RSI VIDEOTECHNOLOGIES SD00 Smoke Detector User Manual
RSI VIDEOTECHNOLOGIES Smoke Detector
user manual.pdf
Doc. - Ref. 2110-ISD
Version : February 2015
•Completely wireless - Battery powered with 3V
Lithium battery for 2 years battery life.
•Dual tamper function provides detection for both
wall and cover tamper.
•Transmits check-in/status signals every 8
minutes
•85dB output level at 3m
•24h detection
Product presentation
Installation guidelines
RF testing will ensure good communication between the
control panel and all system devices. Install the detector and
other system devices in the order of the following steps :
> Program the detector and all other devices into the control
panel and test RF communication from each intended device
location to the control panel.
> Mount the detector at the final location.
Installation and Programming
The following provides summarized steps for device
programming and testing.
1 Mount the base to the wall.
2 Insert 3V DC CR123A Lithium battery , observing correct
polarity and close the battery cover.
3 Mount the detector on its base. The yellow light
should switch off.
4 With the programming keypad, browse to the ADD A NEW
DEVICE menu (Level 4).
5 Press OK/YES. The keypad displays PRESS PROGRAM
BUTTON OF DEVICE.
6 Press program button. The button blinks in green. Wait
for keypad to display SMOKE DETECT. n RECORDED.
7 Press OK/YES. The display shows RADIO RANGE TEST?
Press OK/YES again to run the test. The keypad display shows
TEST IN PROGRESS.
8 Make sure the siren is flashing indicating good
communication with the control panel. The test result must
stabilize at 8/9 as a minimum.
If the radio range level is below 8/9, change the location of the
detector to obtain satisfactory radio range level.
9 Press OK/YES to end the radio range test then ESC NO.
10 Name the detector. When finished, keep ESC NO pressed
to exit from configuration mode.
For full programming details, please refer to the control panel
installation manual.

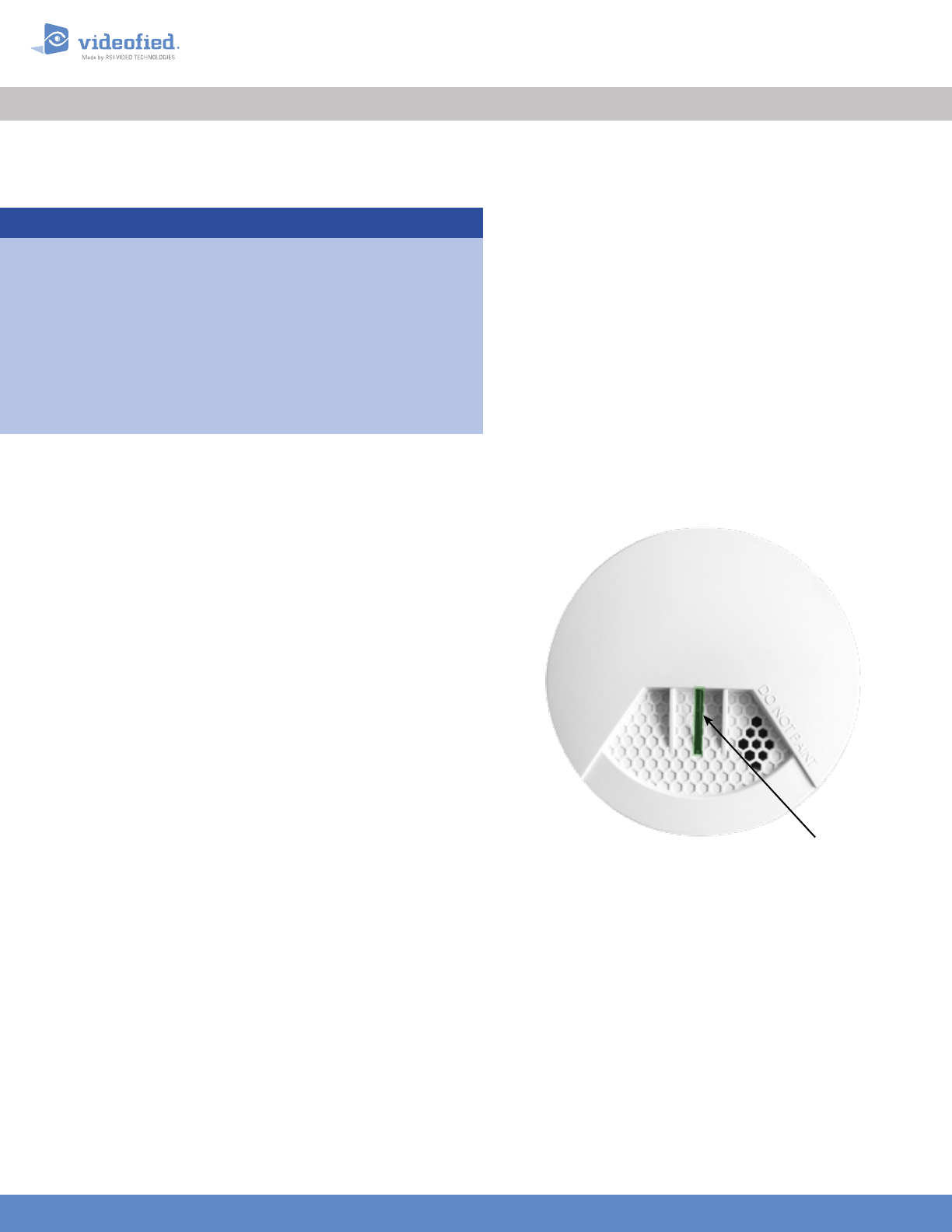

Program Button
and Indicator light
Indicator light
> Yellow blink with 3 beeps:
Malfunction
> Continuous yellow blink:
Low Battery
> Red blink once every 334 seconds:
Normal Operation
> Red blink once every 10.7 seconds:
Reduced sensitivity operation (during 10 minutes)
> Fixed red light with 3 loud beeps:
Alarm
PRODUCT INSTALL SHEET
ISD Smoke Detector
www.videofied.com
2
www.videofied.com
Notes de sécurité / (EN) Security notes / (DE) Hinweise zur Sicherheit
Français
•Retirez la pile avant toute opération de
maintenance !
•Attention ! Il y a un risque d'explosion si
la pile utilisée est remplacée par une pile
de type incorrect !
•Respectez la polarité lors de la mise en
place de la pile !
•Ne jetez pas la pile usagée !
Ramenez-la à votre installateur ou à un
point de collecte spécialisé.
English
•Remove battery before any
maintenance !
•WARNING, there is a risk of explosion if a
battery is replaced by an incorrect type!
•Observe polarity when setting up the
battery!
•Do not throw away used battery!
Dispose of it properly according to
Lithium Metal requirements
Deutsch
•Batterie vor jeglichen Wartungsarbeiten
entfernen!
•Vorsicht, es besteht Explosionsgefahr,
wenn eine Batterie durch eine Batterie
falschen Typs ersetzt wird!
•Achten Sie beim Einsetzen der Batterie
auf die Polung!
•Entsorgen Sie Batterie nicht im
normalen Haushaltsmüll! Bringen Sie
Ihre verbrauchten Batterie zu den
öffentlichen Sammelstellen.
FCC Regulatory Information for USA and CANADA
FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI Video Technologies may void the FCC
authorization to operate this equipment.
FCC Part 15.105 Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
> Reorient or relocate the receiving antenna.
> Increase the separation between the equipment and receiver.
> Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
> Consult the dealer or an experienced radio/TV technician for help.
Radio frequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance of 20 cm between the radiator and your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
1 L’appareil ne doit pas produire de brouillage,et
2 L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre
le fonctionnement.
ISD Smoke Detector PRODUCT INSTALL SHEET
www.videofied.com
North American Headquarters
1375 Willow Lake Blvd, Suite 103
Vadnais Heights, MN 55110
USA
E-Mail : usasales@rsivideotech.com
EMEA SALES
23, avenue du Général Leclerc
92340 BOURG-LA-REINE
FRANCE
E-Mail : emeasales@rsivideotech.com
3
PRODUCT INSTALL SHEET
© 2013 RSI Video Technologies Videofied® and MotionViewer® are Registered Trademark of RSI Video Technologies.
Specifications subject to change without notice.
Electrical Data
Panel Compatibility XL, XLL XT, XV, W
Power requirements
Battery life
Low battery limit 2,75 V
Current consumption
Standby 50µA
Alarm 26mA
RF Technology S2View®
Radio type Spread spectrum bidirectionnal
Operating frequency
868MHz - ISD200 (Europe, South Africa, Asia)
915MHz - FHSS - ISD601 (USA, Canada, South America)
920MHz - FHSS - ISD702 (Australia, South America)
Transmission security AES encryption algorithm
Supervision Polled signal every 8 minutes
Antenna Integrated
Tamper detection Wall and cover tampered
Output level
Operating temperature
Maximum relative humidity
Installation/Mounting
Physical Data
Material ABS - ULV0
Dimensions
Weight
Protection Marking IP30/IK07
Standards & Certifications
868MHz (ISD200)
EN14604
915MHz (ISD601)
UL217
USA FCC (Part 15C)
Canada IC (RSS-210 Issue 8)
920MHz (ISD702)
Australie C-Tick (AS-NZS4268)
ISD Smoke Detector
Detector and base 2 screws secure base to the mounting surface
140g (without battery)
156g (with battery)
120 mm x 53 mm
85%, non-condensing
0° / +49°C (32°/ 120°F)
85dB at 3 meters
3V DC, 1 Duracell CR123A Lithium battery
2 years (common usage)
Compliant with the annex IV of the R&TTE Directive 1999/5/EC
