RSI VIDEOTECHNOLOGIES SV00 Indoor Streaming Motion Viewer User Manual
RSI VIDEOTECHNOLOGIES Indoor Streaming Motion Viewer
user manual
The ISMV 200/601/702 is a wireless, battery-powered, motion
activated indoor video camera. It can also be activated by user request.
• Wireless technology for optimal security.
• Color video (lighted sites) or black & white (night vision).
• Infrared LED for night vision.
• Standard motion coverage lens.
• Wall and cover tamper.
• Powered by 3 Lithium CR123A batteries for extended autonomy.
• Device supervision every 8 minutes.
• Video capture and transmission in «streaming mode» on user request.
Main features
Installation guidelines
For an easier installation, programming and RF testing should be done to check
for good communication between the control panel and all system devices
before mounting.
Install the detector and other system devices in the following order:
> Programming / RF Testing: Program detector and all other devices into the
control panel and test RF communication at each intended device location to the
control panel.
> Mounting: Mount detector at the tested location.
Mounting rules
> Use proper tools and hardware.
> Mount indoors in a temperature controlled environment.
> Mount camera 2.1m from the floor.
> Respect Top and Bottom side of the Motion Viewer
> When possible, mount in a wall corner in order to aim at a
complete room
> Mount detector on an outside wall, aimed at area to protect.
> Do not aim detector at windows, especially those that let in direct sunlight, or at
heat sources such as lamps, fireplaces, radiators and heating vents.
> Do not aim detector at moving objects such as curtains, fans or animals.
> Do not cover the Fresnel lens.

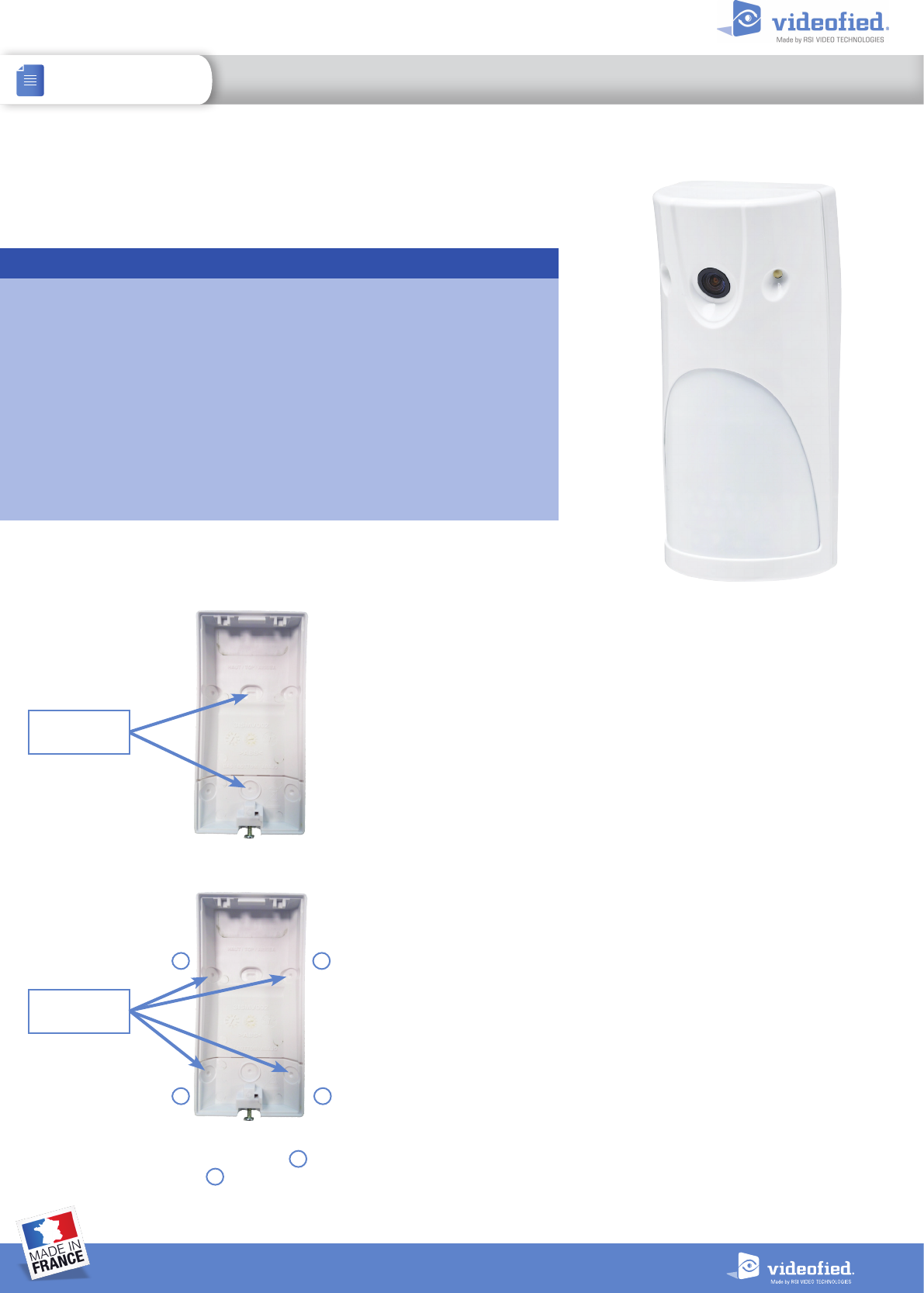

Corner
mounting holes
Flat wall
mounting holes
Only use 2 of the 4
mounting holes.
or .
1
1 2
2
1
2
ISMV STREAMING MOTIONVIEWER
INSTALL SHEET
DOC. - REF. 212-ISMV
MODIF. DATE :NOVEMBER 2016
1
2
INSTALL SHEET ISMV STREAMING MOTIONVIEWER
Programming / RF Testing / Mounting
The following provides summarized steps for device
programming,testing, and mounting. For complete details,
refer to the control panel installation manual.
1 Loosen bottom screw
Separate base from ISMV
2 Install 3 CR123A 3V batteries, observing correct polarity.
3 Enter the panel into programming/configuration mode.
4 Using a programmed alphanumeric keypad, proceed through
menus until the display shows ADD A NEW DEVICE.
5 Press OK. The display shows PRESS PROGRAM BUTTON OF
DEVICE.
6 Press and release the program button on the ISMV using
a paper clip. The ISMV LED flashes red .
7 Press OK, the keypad displays RADIO RANGE TEST ? Press
OK again. The ISMV LED starts flashing and the keypad displays
TEST IN PROGRESS.
8 Move the ISMV to the intended mounting location and
confirm the signal is 9/9, indicating good communication with
the control panel.
9 Press OK to end the radio range test then press ESC/NO.
10 The display shows :
AREA ALLOCATION :
AREA : 1
Press either arrow button on the keypad until the desired AREA
number appears, then press OK. By default all devices in area 1
will be subject to the entry and exit delays.
11 The screen displays NAME + LOCATION :
Enter an appropriate device name (up to 16 characters). The
name of the device should describe its intended mounting
location or zone. Press OK. The display will show the device
number and name for your verification.
12 Mount the ISMV on the wall:
> Follow the mounting rules on page 1.
> Hold the ISMV base against the mounting surface and mark
the appropriate mounting holes.
> Drill pilot holes and install anchors where needed.
> Place the base on mounting surface so that the pilot holes line
up and secure base with appropriate screws.
> Attach camera to base and secure with screw if required.
13 Press OK. The display shows FUNCTIONAL DEVICE TEST?
Press YES again and verify IMV operation. The red LED indicates
the detection field.
14 Press OK to end the detection test.
15 The display shows ADD A NEW DEVICE? Repeat steps 1-14
for remaining devices.
16 When finished, exit from configuration mode by pressing
and holding the ESC/NO for 5 seconds.
Wait for the keypad to display : CAMERA REGISTERED.
2
1
3
3
4
4
1
2
3
INSTALL SHEET ISMV STREAMING MOTIONVIEWER
Mounting recommendations
• Recommended mounting height is 2,1 m. There may be a 1 m radius blind zone under the detector
depending on the room size and detector installation height. Confirm the detection field using the
functional device test.
• The ISMV is fitted with a 90° wide angle lens that allows the camera to cover the full size of the area to
protect. It will reduce the blind area under the detector as well.
• Please mount the ISMV in an angle to optimize detection. It shall be mounted opposed to the access
point or asset you need to protect. The detector should not be mounted close to a door or an access
point. Such installation increase the probability of a missed intrusion. When stairs mounted, please aim
the detector towards the entry or the exit of the stairwell.

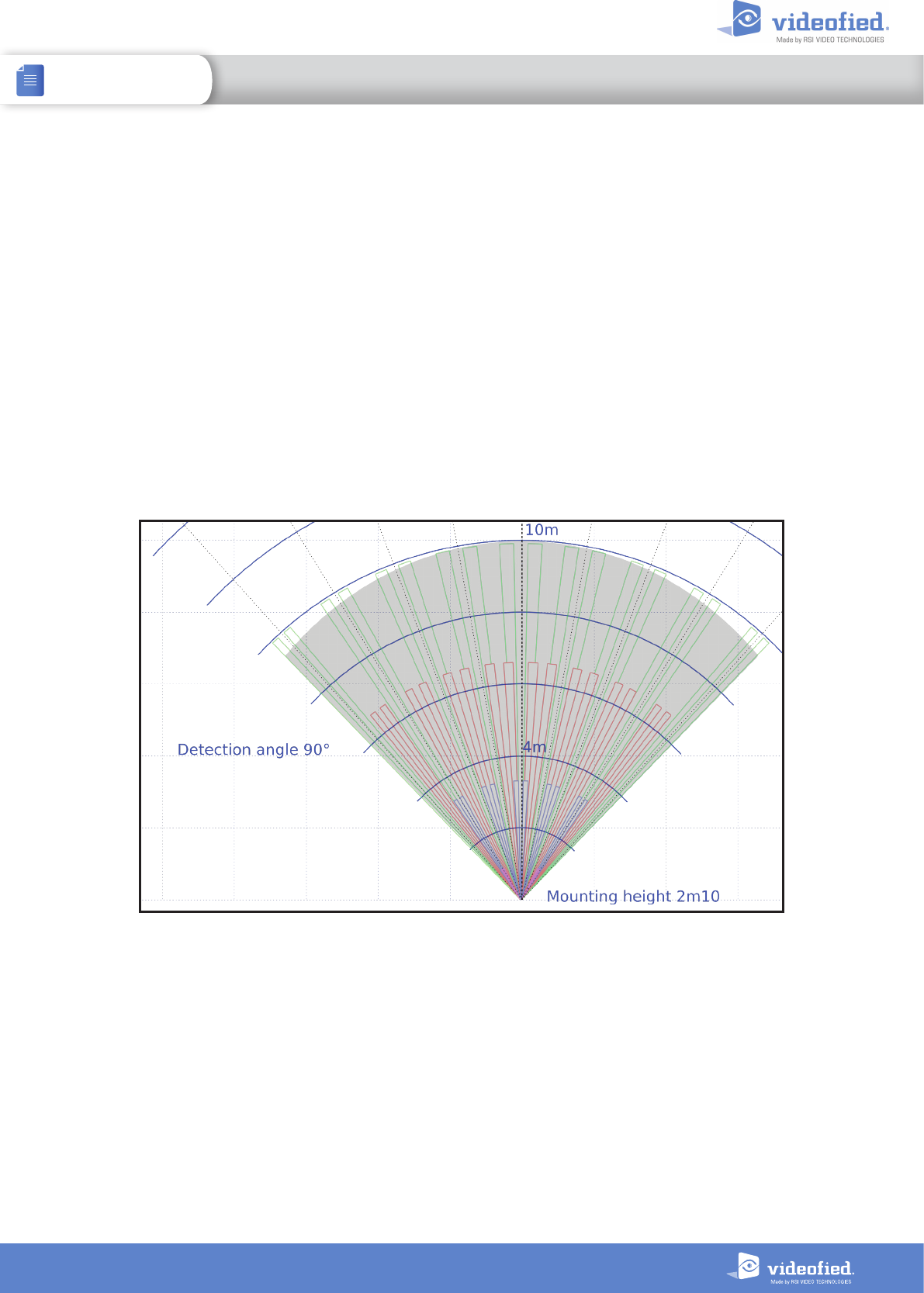

Detection diagram
Streaming option
The new ISMV MotionViewer allow the user to request a live video session.
The ISMV is the first battery-powered wireless camera detector emitting on 868MHz able to provide a live
video stream from its camera.
The 868 MHz frequency has excellent range and allow for excellent battery-life.
4
INSTALL SHEET ISMV STREAMING MOTIONVIEWER
Security notes / (FR) Notes de sécurité / (DE) Hinweise zur Sicherheit
English
• Remove the batteries before any
maintenance !
• WARNING, there is a risk of explosion if a battery is
replaced by an improper model !
• Observe polarity when setting up the batteries!
• Do not litter the batteries when they are used!
Dispose of them properly according to Lithium
Metal requirements
Deutsch
• Batterien vor jeglichen Wartungsarbeiten
entfernen!
• Vorsicht, es besteht Explosionsgefahr, wenn eine
Batterie durch eine Batterie falschen Models
ersetzt wird!
• Achten Sie beim Einsetzen der Batterien auf die
Polung!
• Entsorgen Sie Batterien nicht im normalen
Haushaltsmüll! Bringen Sie Ihre verbrauchten
Batterien zu den öffentlichen Sammelstellen.
FCC Regulatory Information for USA and CANADA
FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI Video Technologies may void the FCC authorization
to operate this equipment.
FCC Part 15.105 Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
> Reorient or relocate the receiving antenna.
> Increase the separation between the equipment and receiver.
> Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
> Consult the dealer or an experienced radio/TV technician for help.
Radio frequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance of 20 cm between the radiator and your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s)
Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
1 L’appareil ne doit pas produire de brouillage, et
2 L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement..
Français
• Retirez les piles avant toute opération de
maintenance !
• Attention ! Il y a un risque d'explosion si la batterie
utilisée est remplacée par un mauvais modèle !
• Respectez la polarité lors de la mise en place des
piles !
• Ne jetez pas les batteries usagées !
Ramenez-les à votre installateur ou à un point de
collecte spécialisé.
This symbol on the product or on its packaging indicates that this product should not be treated as household
waste. It must be handed over to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health. The recycling of materials will help to conserve natural
resources. For more information about recycling of this product, please contact your local municipality, your
waste disposal service or the company that installed the product.
The EC declaration of conformity of this product is available by flashing this QR code.
INSTALL SHEET
5
www.videofied.com
ISMV STREAMING MOTIONVIEWER
Certification organisation :
CNPP Cert.
Route de La Chapelle Réanville CS22265
F—27950 SAINT MARCEL
Tel : +33(0)2.32.53.63.63
Fax: +33(0)2.32.53.64.46
Sites Internet : www.cnpp.com
Email : certification@cnpp.com
Certification organisation :
AFNOR Certification
11, rue François de Pressensé
93571 Saint Denis La Plaine Cedex
Tel : +33(0)1.41.62.80.00
Fax: +33(0)1.49.17.90.00
Sites Internet : www.marque-nf.com
E-mail : certification@afnor.org
Battery 3 CR123A 3V Lithium batteries
Nominal voltage 3 V
Low battery treshold 2.7 V
Estimated battery life Up to 3 years
Current consumption
Standby (1h average) 100 µA
Max 300 mA
Panel compatibility
Streaming option W panels
Without streaming option XL, XLL, XT, XV, Visio and their variants
ELECTRICAL PROPERTIES
RF S2View® technology
Radio type Spread spectrum RF bidirectional
Operating frequency
• 868MHz - ISMV 200 (Europe, Africa, Asia)
• 915 MHz - ISMV 601 (USA, Canada, South america)
• 920 MHz -ISMV 702 (Australia, South america)
Transmission security AES algorythm encryption
Supervision Radio, batteries, tamper
Radio antenna Integrated
RADIO PROPERTIES
Camera
Angle 90°
Sensor type CMOS
Lighted video Programmable : Color or B&W
Night vision video Black & white automatic infrared
Infrared illumination Automatic with 2 IR LEDs
Infrared illumination distance 7m
Video
Video format H264 (MPEG if not available)
Framerate 5 images per second
Resolution QVGA (320x240)
Video file size Up to 230 kB
VIDEO PROPERTIES
BOX
Physical properties
Material ABS UL94-V0
Installation / Mounting
Mounting height 2,10 m
Wall mounting 2 screws
Box sealing With screw
Environmental properties
Operating temperature -10°/+55°C
Max relative humidity 75%, without condensing
Tamper
Tamper detection
Cover and wall tamper, electromagnetic immunity
DETECTION PROPERTIES
Infrared detection specifications
Technology Passive-infrared DSP
Type Dual element sensor
Lens Fresnel
Detection angle 90°
Detection range Up to 10m
Initialization time 10 seconds
Recovery time 90 seconds
NF EN50131-2-2 Grade 2 2008
RTC 50131-2-2 2015
NF EN50130-4 2011
NF EN50130-5 Environment Class II 2011
STANDARDS AND APPROVALS
868 MHz ISMV 200
Compliant with annex IV from the R&TTE 1999/5/CE directive
NF&A2P – 2 boucliers – suivant le référentiel NF324-H58
Matériels de sécurité electronique, détection d’intrusion
DETECTEUR DE MOUVEMENT A INFRAROUGE PASSIF
Marque commerciale Videofied
Référence produits ISMV 200
N° de certification 2623200010
