DEAR CUSTOMER
We would like to thank you for purchasing our Wireless Phone Jack and/or an
additional Extension unit. We hope you will enjoy it.
The Wireless Phone Jack is a wireless and cable free extension of the phone
socket or VoIP adapter for an ordinary phone, modem, fax or satellite/cable set
top box with integrated modem.
Please read the following thoroughly and observe the operating instructions and
information provided.
Please visit our website for additional information: www.wireless-phonejack.com
Conformity of the Wireless Phone Jack to EU directives is confirmed by the CE
symbol. Hereby, we declare that the Wireless Phone Jack and/or extra Extension
units are in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Copyright ©. All rights reserved. All forms of copying or reproduction of the
product or its associated user manual are strictly prohibited.
This product is manufactured for RTX Products HK Ltd.
5
UNPACKING
Carefully remove units from the packaging. If there is any visible damage
DO NOT attempt to operate the Wireless Phone Jack. Contact your dealer
or shipping carrier immediately.

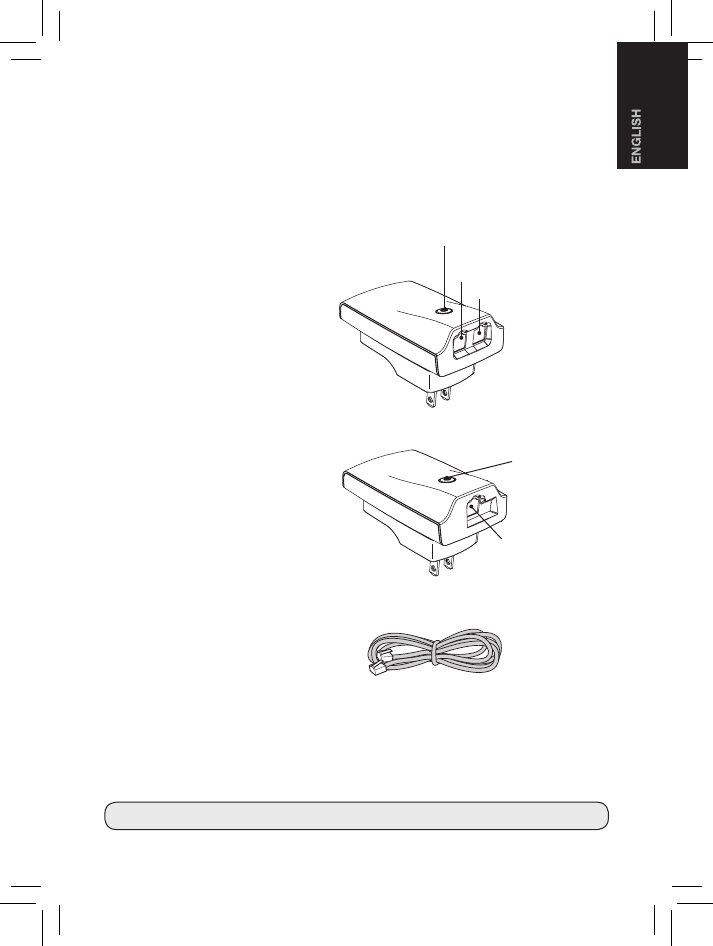

BOX CONTENTS:
1) One Base unit
2) One Extension unit
3) One phone line cord
4) This user manual
NOTE: Please read and follow carefully the instructions.
Indicator light
Indicator light
Phone socket
Phone socket
Phone line
6
BASE UNIT INSTALLATION

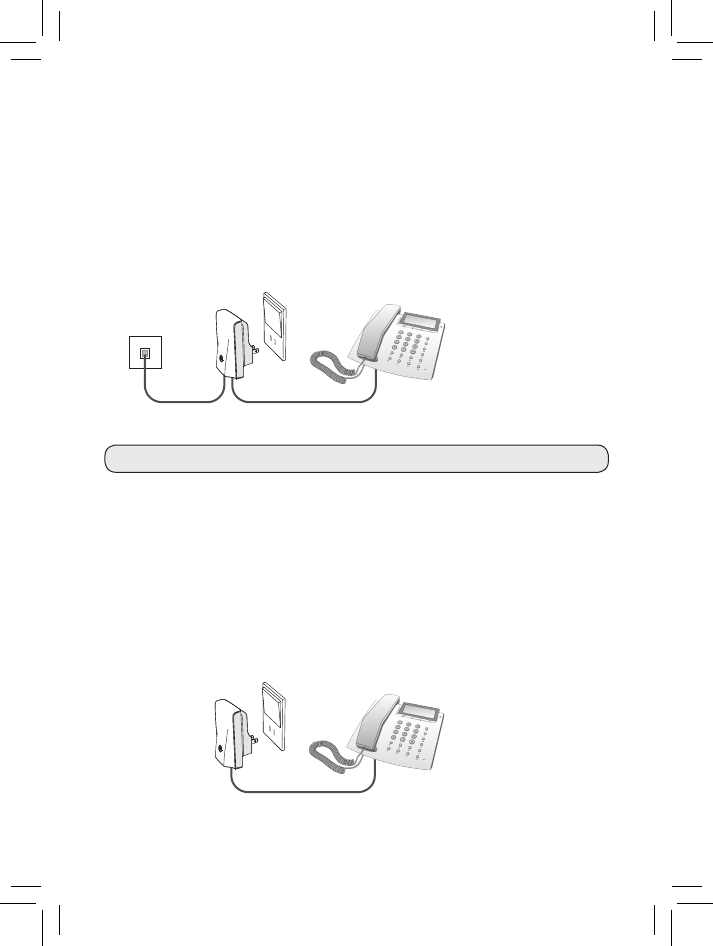

1) Connect the enclosed phone line cord to the Base unit and connect the other
end to the phone wall socket.*
2) If you have a phone connected to the wall socket, unplug it and connect it to
the Base unit instead (remove plug adapter before connecting to the Base unit).
3)
Connect the Base unit to a power outlet and switch power on. The light on top of
the Base unit should now glow green.
The Base unit is now installed.
EXTENSION UNIT INSTALLATION
The Extension unit can be connected to either a normal phone, dial-up modem,
fax or satellite/cable set top box.
1) Plug the phone line cord from your phone, dial-up modem, fax or satellite/cable
set top box into the Extension unit.
*NOTE: Works also as a wireless extension to a VoIP Terminal Adapter
Phone wall socket
1)
3)
Power outlet
2)
Phone, dial-up modem, fax
1)
Power supply plug Phone, dial-up modem, fax or
satellite/cable set top box
7

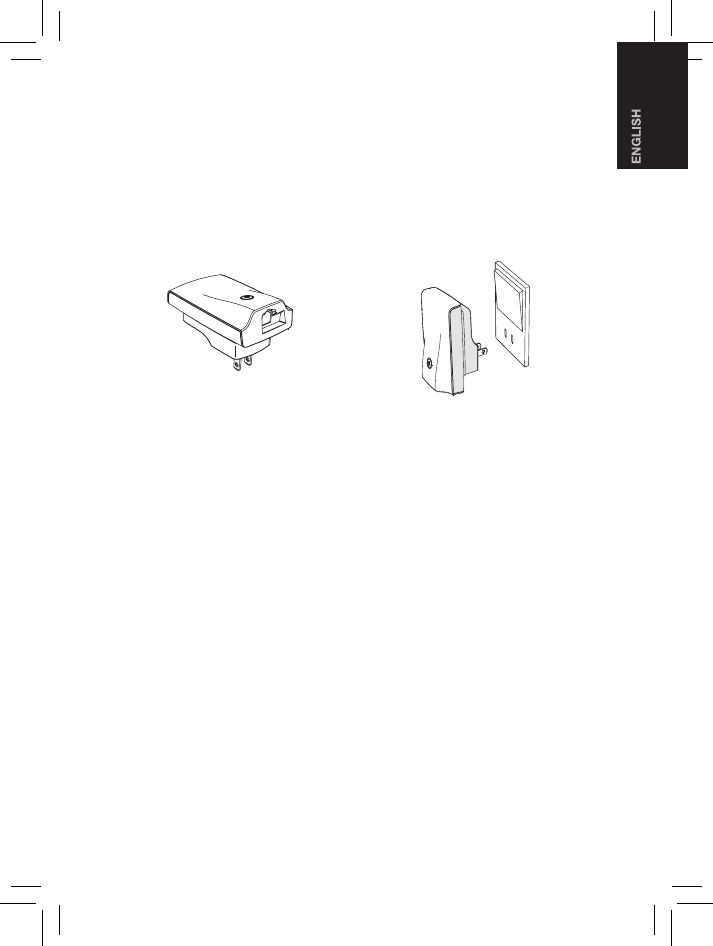

2) Plug the Extension unit into a power outlet and switch the power on. The light
on top of the Extension unit will after a short period.
The Extension unit is now installed and your Wireless Phone Jack is now ready
for use.
INSTALLATION OF
EXTRA EXTENSION UNITS
1) Make sure the existing Wireless Phone Jack system (base and extension unit)
is powered on.
2) Unplug any cords attached to the Base unit (these will be connected again later).
3) Plug the extra Extension unit into a power outlet near the Base unit and switch
power on. This will activate a red light on the Extension unit.
4) Plug one end of the supplied phone line cord into the Base unit and the other
end into the extra Extension unit. A red light will be activated before changing
to yellow. This can take up to a minute.
5) Once the light changes on the Extension unit, unplug the phone line cord
between the Base unit and the Extension unit.
6) Replug the cords which you have unplugged.
Go to page 4 Extension unit installation to finish the installation process.
Computer
(dial-up modem, fax or satellite/
cable set top box)
Extension unit 3)2)
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
“Caution” Main plug is used as disconnect device and it should remain readily operable
during intended use. In order to disconnect the apparatus from the mains completely,
the mains plug should be disconnected from the mains socket outlet completely.
The socket outlet shall be installed near the equipment and shall be easily accessible.
Warning:
– Do not use this equipment in places where volatile or explosive materials may be present.
– This equipment will be inoperable if mains power fails.
– For indoor use only.
The crossed-out wheeled bin symbol that can be found on your product means
that the product is covered by the European Directive 2002/96/EC and it indicates
that this product should not be disposed of via the normal household waste stream.
To prevent possible harm to the environment or human health, please separate this product
from other waste streams to ensure that it can be recycled in an environmentally sound manner.
For more details on available collection facilities, please contact your local govern office
or the retailer where you purchased this product.
8
WPJ_11 Languages P/N: 60081231
24/12/09
9
Regulatory information
This product meets the applicable Industry Canada technical specifications/Le present
materiel est conforme aux specifications techniques applicables d’Industrie Canada.
The Ringer Equivalence Number is an indication of the maximum number of devices
allowed to be connected to a telephone interface. The termination on an interface may
consist of any combination of devices subject only to the requirement that the sum of the
RENs of all the devices does not exceed five/L’indice d’équivalence de la sonnerie (IES)
sert à indiquer le nombre maximal de terminaux qui peuvent être raccordés à une
interface téléphonique. La terminaison d’une interface peut consister en une combinaison
quelconque de dispositifs, à la seule condition que la somme d’indices d’équivalence de
la sonnerie de tous les dispositifs n’excède pas 5.
Part 68
a) This equipment complies with Part 68 of the FCC rules and the requirements adopted
by the ACTA. On the bottom of this equipment is a label that contains, among other
information, a product identifier in the format US: T7HW400BX3122. If requested, this
number must be provided to the telephone company.
b) An applicable certification jacks Universal Service Order Codes (USOC) for the
equipment is provided (i.e., RJ11C) in the packaging with each piece of approved
terminal equipment.
c) A plug and jack used to connect this equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68 rules and requirements adopted by
the ACTA. A compliant telephone cord and modular plug is provided with this product. It
is designed to be connected to a compatible modular jack that is also compliant. See
installation instructions for details.
d) The REN is used to determine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone line may result in the devices not ringing
in response to an incoming call. In most but not all areas, the sum of RENs should not
exceed five (5.0). To be certain of the number of devices that may be connected to a line,
as determined by the total RENs, contact the local telephone company. [For products
approved after July 23, 2001, the REN for this product is part of the product identifier
that has the format US: T7HW400BX3122. The digits represented by ## are the REN
without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is
separately shown on the label.]
e) If this equipment 1.9GHz DECT Telephone Line Extender causes harm to the
telephone network, the telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice isn't practical, the
telephone company will notify the customer as s oon as possible. Also, you will be
advised of your right to file a complaint with the FCC if you believe it is necessary.
f) The telephone company may make changes in its facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the telephone
company will provide advance notice in order for you to make necessary modifications to
maintain uninterrupted service.
g) Should you experience trouble with this equipment, please contact On2Locate; 567
Highway 51, Ridgeland, MS 39157, USA; Tel: 1-601-499-4478 for repair or warranty
information. If the equipment is causing harm to the telephone network, the telephone
company may request that you disconnect the equipment until the problem is resolved.
h) Please follow instructions for repairing if any (e.g. battery replacement section);
otherwise do not alternate or repair any parts of device except specified.
i) Connection to party line service is subject to state tariffs. Contact the state public utility
commission, public service commission or corporation commission for information.
j) NOTICE: If your home has specially wired alarm equipment connected to the
telephone line, ensure the installation of this 1.9GHz DECT Telephone Line Extender
does not disable your alarm equipment. If you have questions about what will disable
alarm equipment, consult your telephone company or a qualified installer.
Part 15
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Privacy of communications may not be ensured when using the equipment.
Caution: To maintain the compliance with the FCC’s RF exposure guideline, place the
equipment at least 20 cm from nearby persons.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
Warning: Changes or modifications to this equipment not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help
