Rachio RFLOW Wireless Flow Meter User Manual Rachio 3 Flow Meter V4 5

Rachio, Inc. Wireless Flow Meter Rachio 3 Flow Meter V4 5

Contents

Rachio 3 Flow Meter User Manual V4.5

WIRELESS FLOW METERLet’s get started.
2 3What’s in the box. What you’ll need.Wireless Flow MeterBattery Cover 4 Screws 2 AA BatteriesInstallation instructions are intended only for use with recommended fittings. Visit rachio.com/flow for a list of required tools, helpful videos, FAQs and more. Recommended fittings Recommended manual pipe cutter Sandpaper or deburring toolFine point permanent markerStick rulerPhillips screwdriverSmartphone or tablet

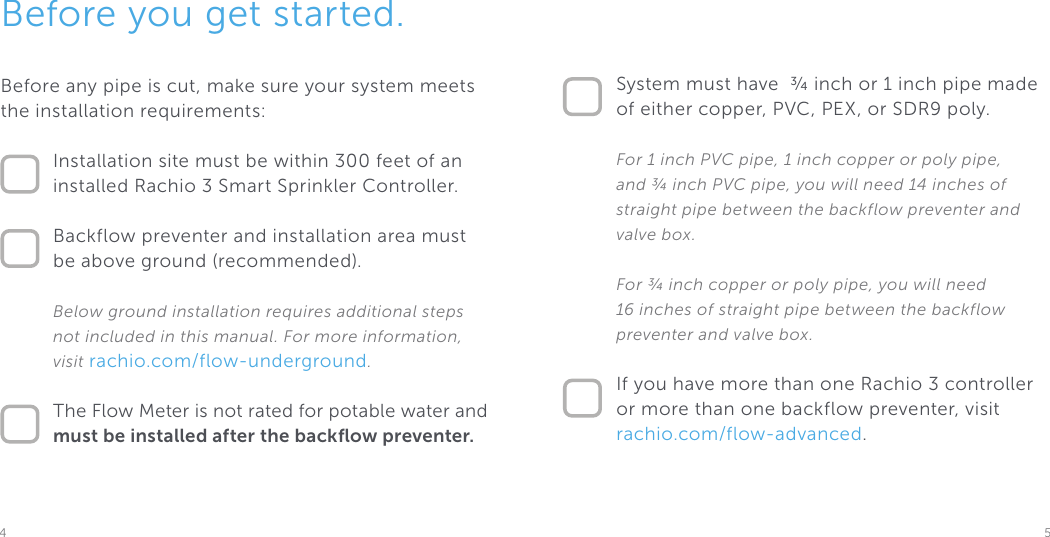

4 5Before you get started.Before any pipe is cut, make sure your system meets the installation requirements:Installation site must be within 300 feet of an installed Rachio 3 Smart Sprinkler Controller.Backflow preventer and installation area must be above ground (recommended).Below ground installation requires additional steps not included in this manual. For more information, visit rachio.com/flow-underground.The Flow Meter is not rated for potable water and must be installed after the backflow preventer.System must have ¾ inch or 1 inch pipe made of either copper, PVC, PEX, or SDR9 poly. For 1 inch PVC pipe, 1 inch copper or poly pipe, and ¾ inch PVC pipe, you will need 14 inches of straight pipe between the backflow preventer and valve box.For ¾ inch copper or poly pipe, you will need 16 inches of straight pipe between the backflow preventer and valve box.If you have more than one Rachio 3 controller or more than one backflow preventer, visit rachio.com/flow-advanced.
6 7IMPORTANT: Using installation methods other than those recommended in this manual could damage the Wireless Flow Meter or void the warranty. WARNING: Inserting your fingers into the Flow Meter or fittings can damage equipment or cause personal injury. Once attached, fittings cannot be removed from the Flow Meter, but may be removed from the pipe using fitting removers.Using glue of any kind could damage the Rachio Flow Meter.Check out our Help Center.support.rachio.comGive us a call.1 (855) 300 3569Need some help?If you’re unable to complete any of the installation steps, we recommend a professional installation. To find a Rachio Pro, go to rachio.com/flow-install.
8 9STEP 1 STEP 2Pair flow meter. Turn water off.Take the Wireless Flow Meter to the backflow preventer where it will be installed.Do not put the batteries in the Flow Meter until prompted.Open the Rachio app. From the “More” tab, select “Accessories,” then add the Rachio Wireless Flow Meter. You will be guided through the pairing process and then prompted to continue installation.Turn off water to the irrigation system at the backflow or at the main shut-off.Drain the system by running any zone for one minute using the Quick Run feature in the Rachio App.
10 11STEP 3Connect fittings.Push the Flow Meter and fittings together firmly using a twisting action until the fittings are flush or nearly flush with the Flow Meter.

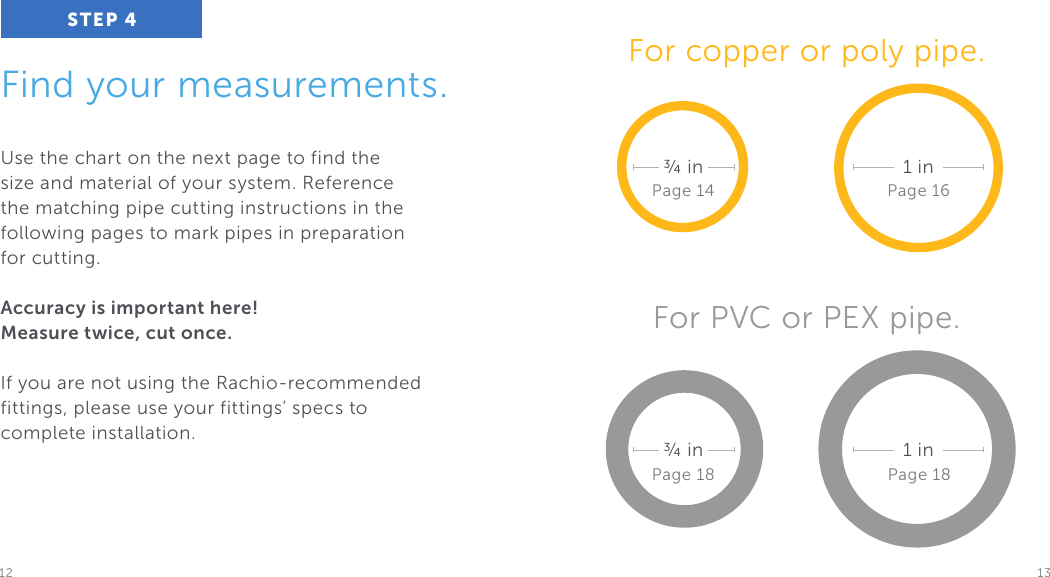

12 13STEP 4Find your measurements.Use the chart on the next page to find the size and material of your system. Reference the matching pipe cutting instructions in the following pages to mark pipes in preparation for cutting. Accuracy is important here!Measure twice, cut once.If you are not using the Rachio-recommended fittings, please use your fittings’ specs to complete installation.For copper or poly pipe.For PVC or PEX pipe.¾ inPage 14Page 18 Page 18Page 16¾ in1 in1 in

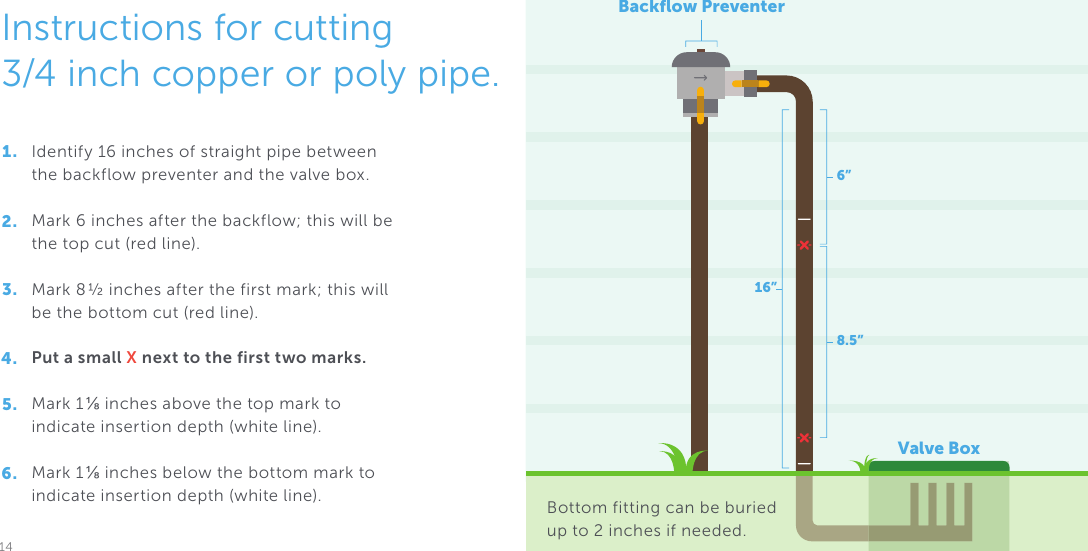

14 156”16”Backflow Preventer8.5”Valve BoxInstructions for cutting3/4 inch copper or poly pipe.Identify 16 inches of straight pipe between the backflow preventer and the valve box.Mark 6 inches after the backflow; this will be the top cut (red line).Mark 8½ inches after the first mark; this will be the bottom cut (red line).Put a small X next to the first two marks.Mark 1⅛ inches above the top mark to indicate insertion depth (white line).Mark 1⅛ inches below the bottom mark to indicate insertion depth (white line).1.2.3.4.5.6.Bottom fitting can be buriedup to 2 inches if needed.

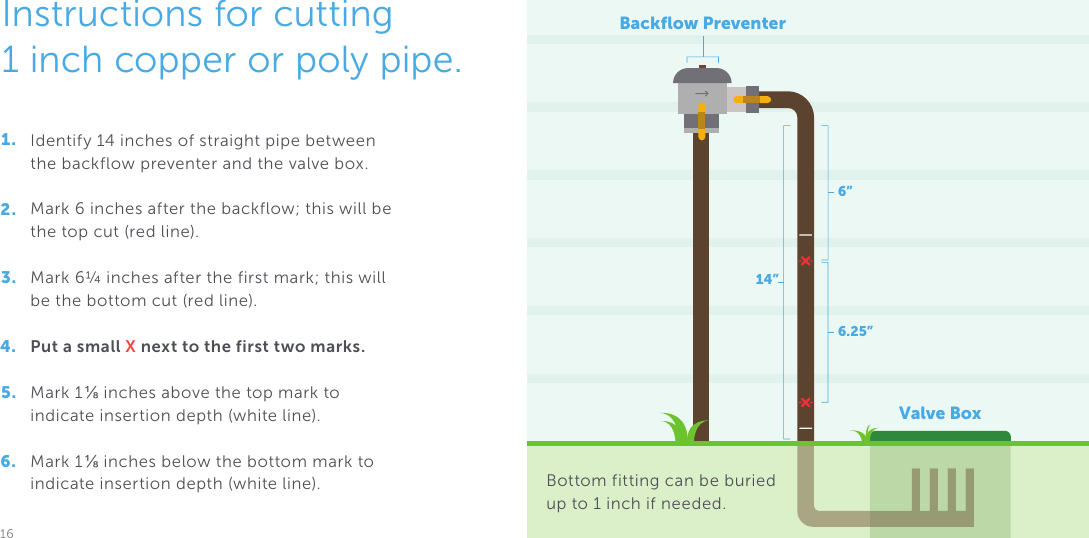

16 176”14”Backflow Preventer6.25”Valve BoxInstructions for cutting1 inch copper or poly pipe.Bottom fitting can be buriedup to 1 inch if needed.Identify 14 inches of straight pipe between the backflow preventer and the valve box.Mark 6 inches after the backflow; this will be the top cut (red line).Mark 6¼ inches after the first mark; this will be the bottom cut (red line).Put a small X next to the first two marks.Mark 1⅛ inches above the top mark to indicate insertion depth (white line).Mark 1⅛ inches below the bottom mark to indicate insertion depth (white line).1.2.3.4.5.6.

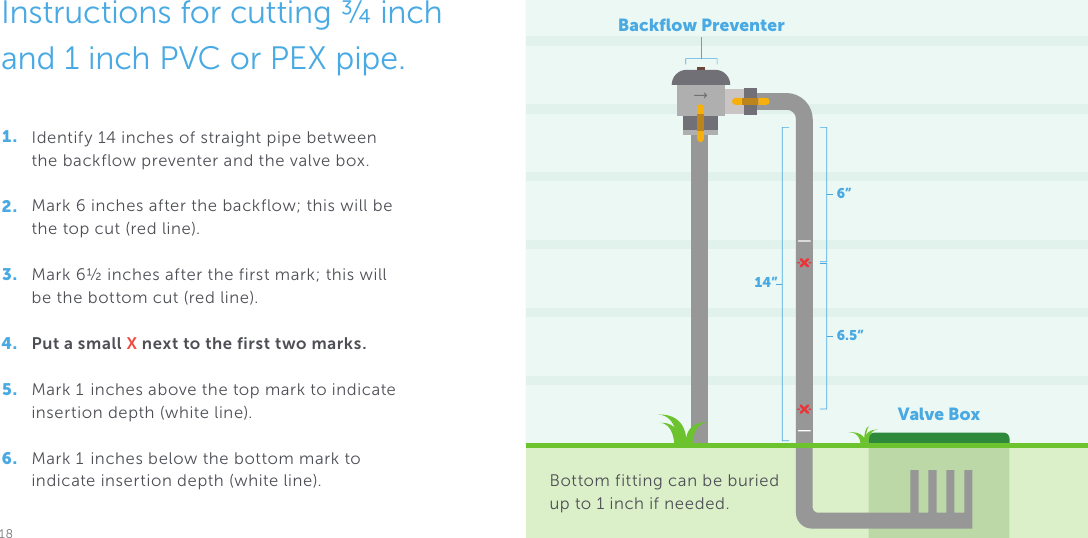

18 196”14”Backflow Preventer6.5”Valve BoxInstructions for cutting ¾ inch and 1 inch PVC or PEX pipe.Bottom fitting can be buriedup to 1 inch if needed.Identify 14 inches of straight pipe between the backflow preventer and the valve box.Mark 6 inches after the backflow; this will be the top cut (red line).Mark 6½ inches after the first mark; this will be the bottom cut (red line).Put a small X next to the first two marks.Mark 1 inches above the top mark to indicate insertion depth (white line).Mark 1 inches below the bottom mark to indicate insertion depth (white line).1.2.3.4.5.6.

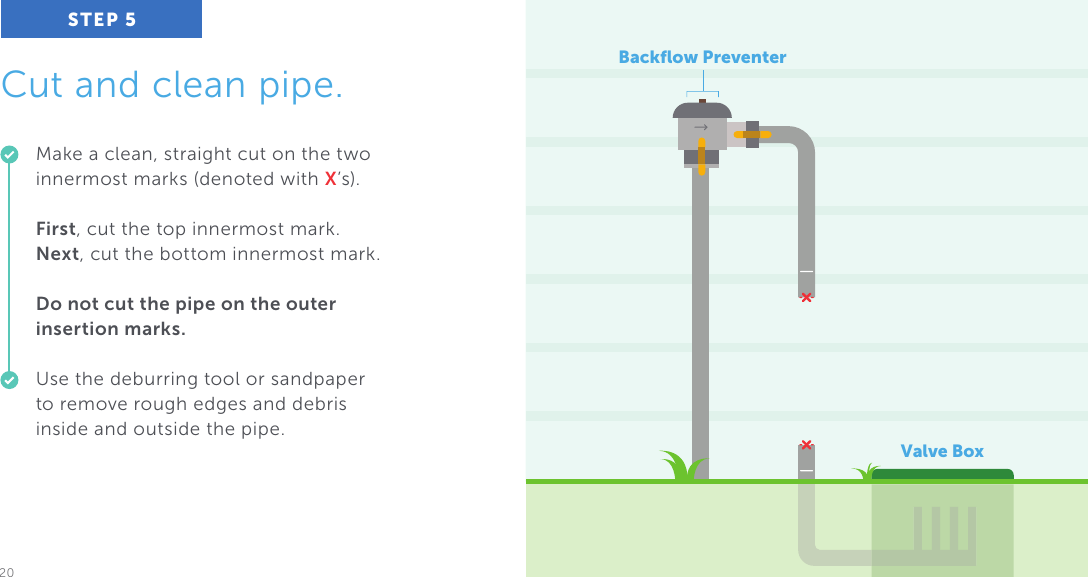

20 21Backflow PreventerValve BoxSTEP 5Cut and clean pipe.Make a clean, straight cut on the two innermost marks (denoted with X’s). First, cut the top innermost mark. Next, cut the bottom innermost mark. Do not cut the pipe on the outer insertion marks.Use the deburring tool or sandpaper to remove rough edges and debris inside and outside the pipe.
22 23STEP 6Install the flow meter.Install so the arrows on the side and face of the Flow Meter are oriented with the direction of water flow.(Water flows towards the valve box.)Push the Flow Meter, fittings, and pipe together firmly while twisting the fittings to the insertion marks (white lines). All Rachio recommended fittings swivel 360˚, allowing for easy directional adjustment of the Flow Meter after installation.Backflow PreventerValve Box

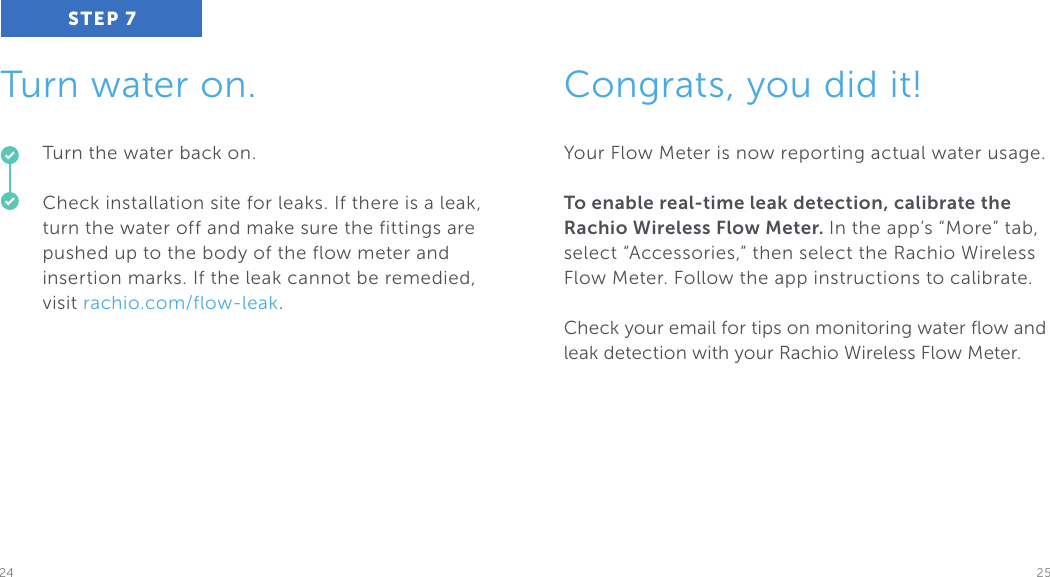

24 25STEP 7Turn water on.Turn the water back on.Check installation site for leaks. If there is a leak, turn the water off and make sure the fittings are pushed up to the body of the flow meter and insertion marks. If the leak cannot be remedied, visit rachio.com/flow-leak.Congrats, you did it!Your Flow Meter is now reporting actual water usage. To enable real-time leak detection, calibrate the Rachio Wireless Flow Meter. In the app’s “More” tab, select “Accessories,” then select the Rachio Wireless Flow Meter. Follow the app instructions to calibrate. Check your email for tips on monitoring water flow and leak detection with your Rachio Wireless Flow Meter.
