Radicom Research RW8200 RW8200 Serial / USB Embedded WiFi Modules User Manual
Radicom Research Inc RW8200 Serial / USB Embedded WiFi Modules Users Manual
Users Manual
Radicom Research, Inc
Preliminary

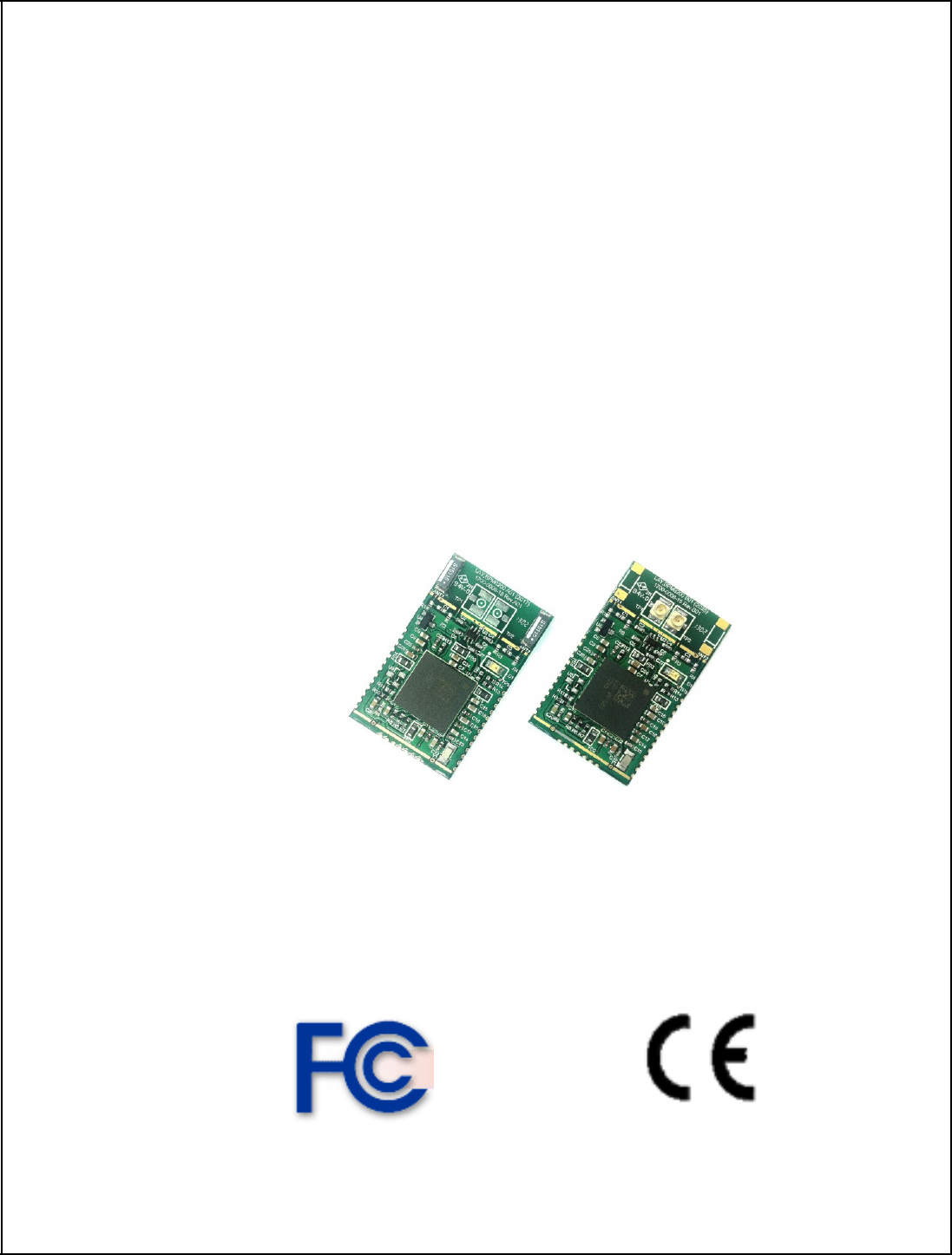

Designers Guide for the
RW8200 Series
RoHS Compliant
Serial Embedded WiFi Modules.
Table of Contents
Introduction and Features ...................................................................................... 1
Technical Specification ......................................................................................... 2
Block Diagram ...................................................................................................... 6
Model and Ordering Information .......................................................................... 6
RW8200 Series Module Pin Definitions ............................................................... 9
RW8200 Series Module Pin Descriptions............................................................. 10

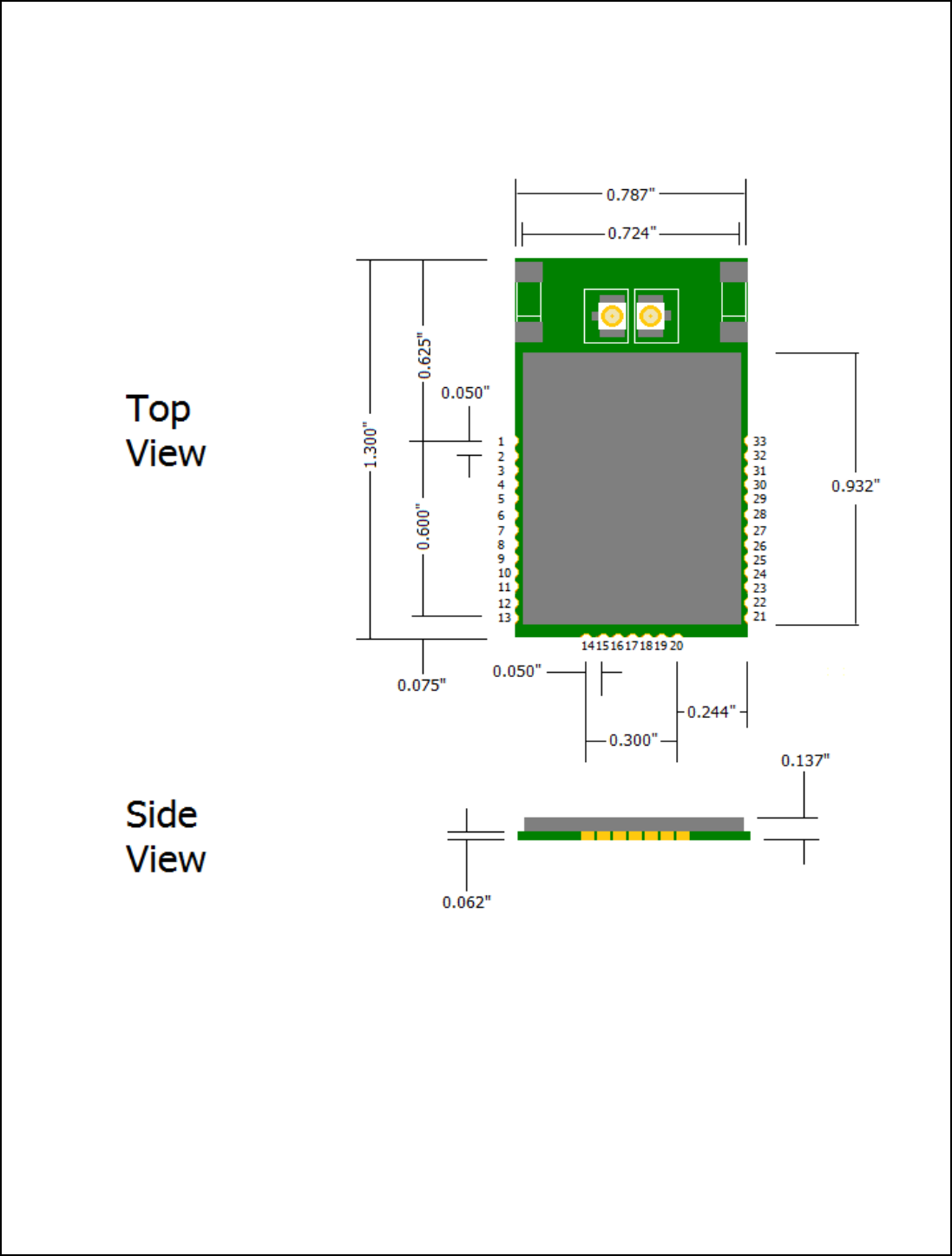

RW8200 Series Module Mechanical Dimensions ............................................... 12

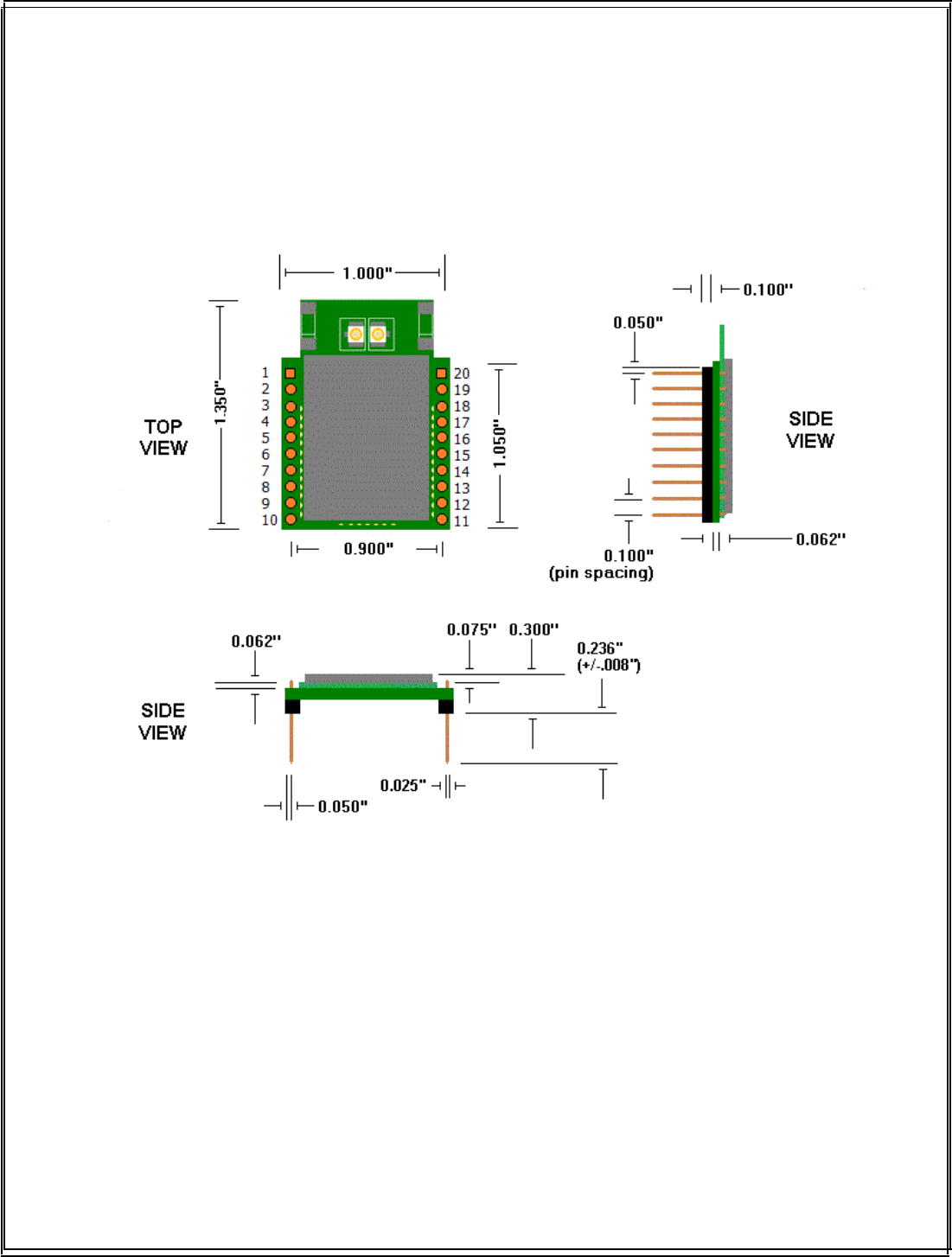

RW8200HM Series Mechanical Dimensions ....................................................... 13
RW8200HM Series Pin Descriptions ................................................................... 14
Connecting the RW8200 to Your System ............................................................. 15
Antenna Information ............................................................................................. 15

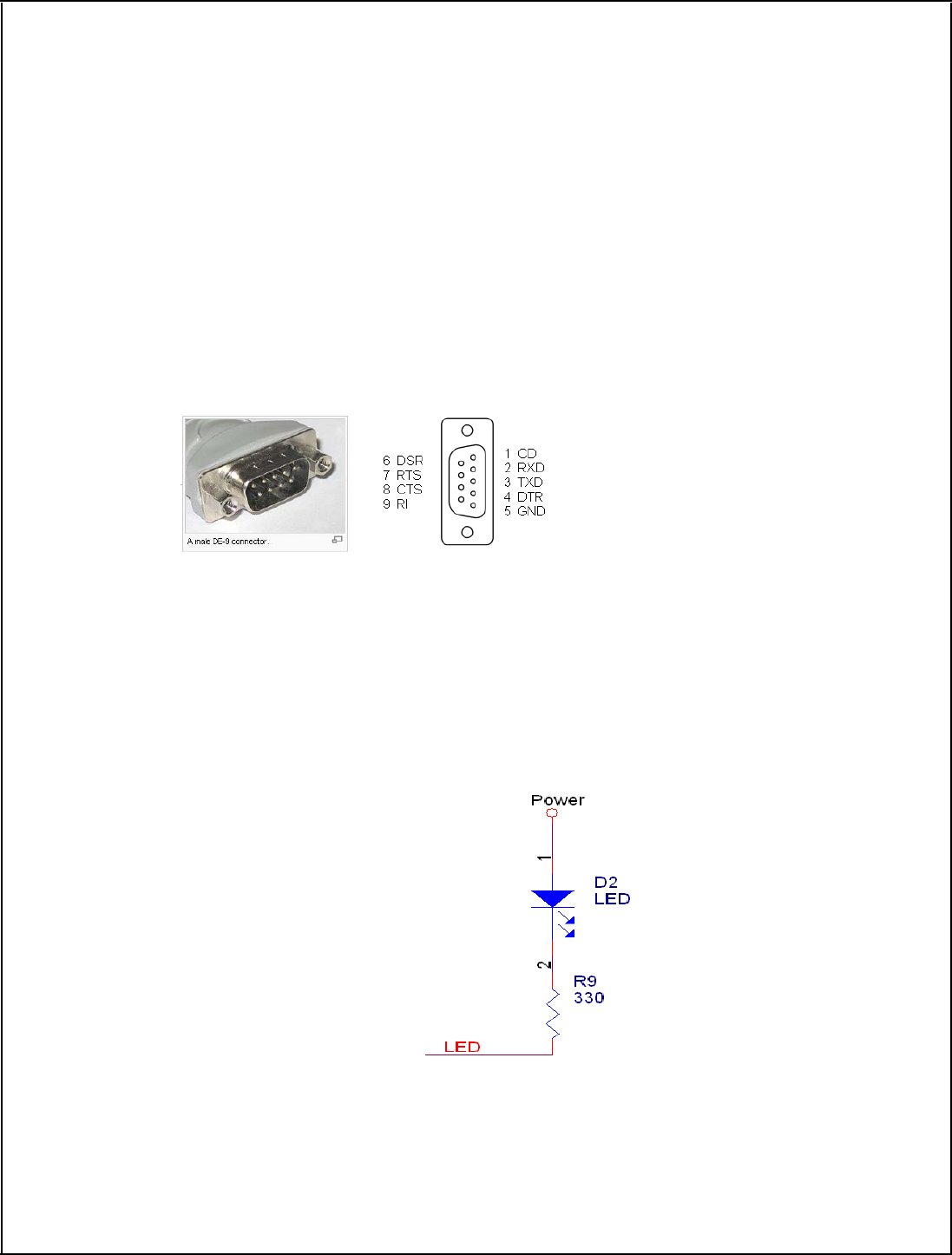

RW8200MB Carrier Board RS232 DB-9 Pin Definitions .................................... 16
LED Suggestion Circuit ........................................................................................ 16
FCC, IC, and CE Label Location and Module Model Identification………… ...17
Important Regulatory Compliance and User Information……………………….18
Industry Canada statement……………………………………………………….20
CE Declaration of Conformity…………………………………………………. .23
WiFi Regulatory Domain Frequencies…………………………………………..24
RW8200 Command Set ........................................................................................ 25
RW8200 Command Detail .................................................................................... 26
RW8200 Special atbp Command Set .................................................................... 35

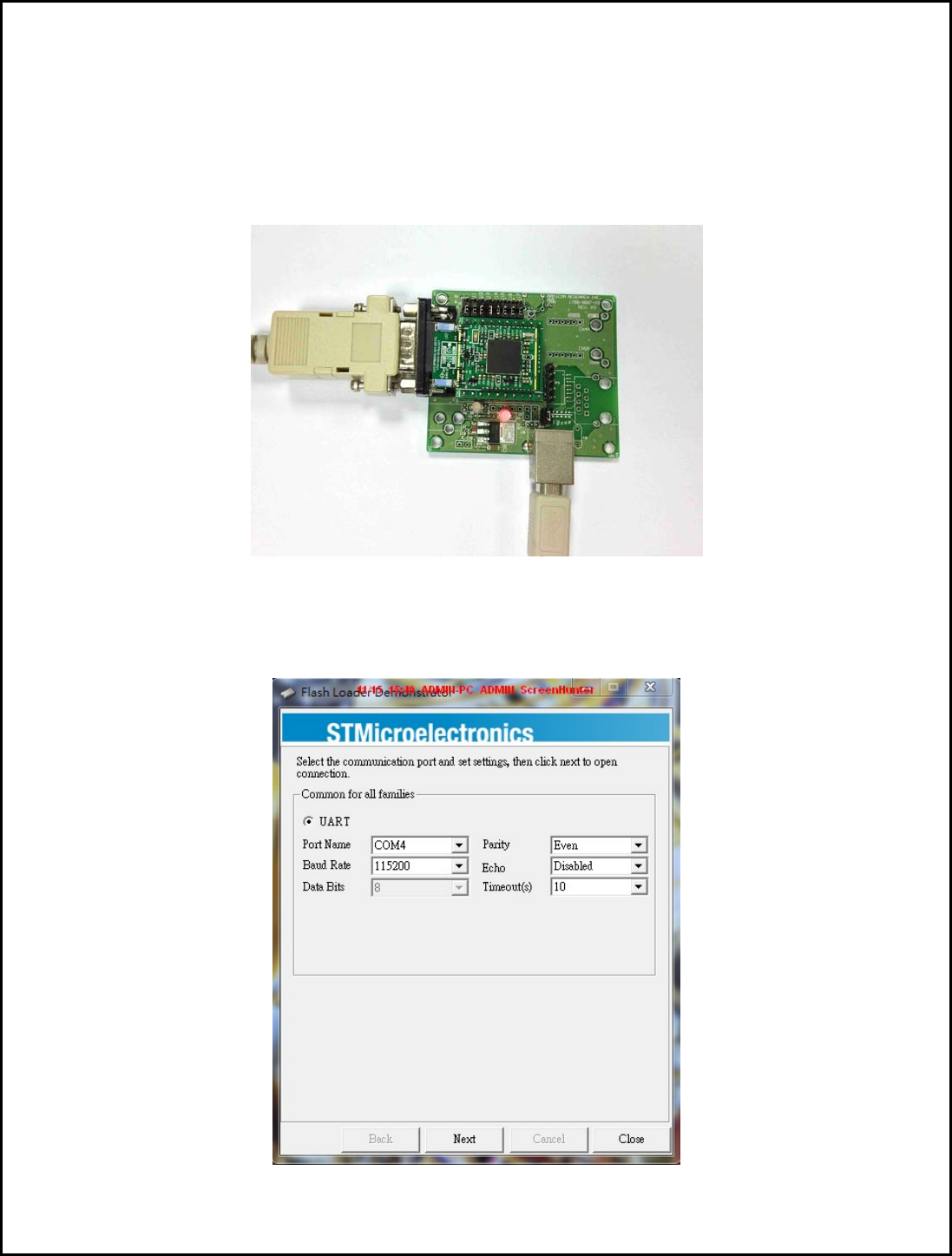

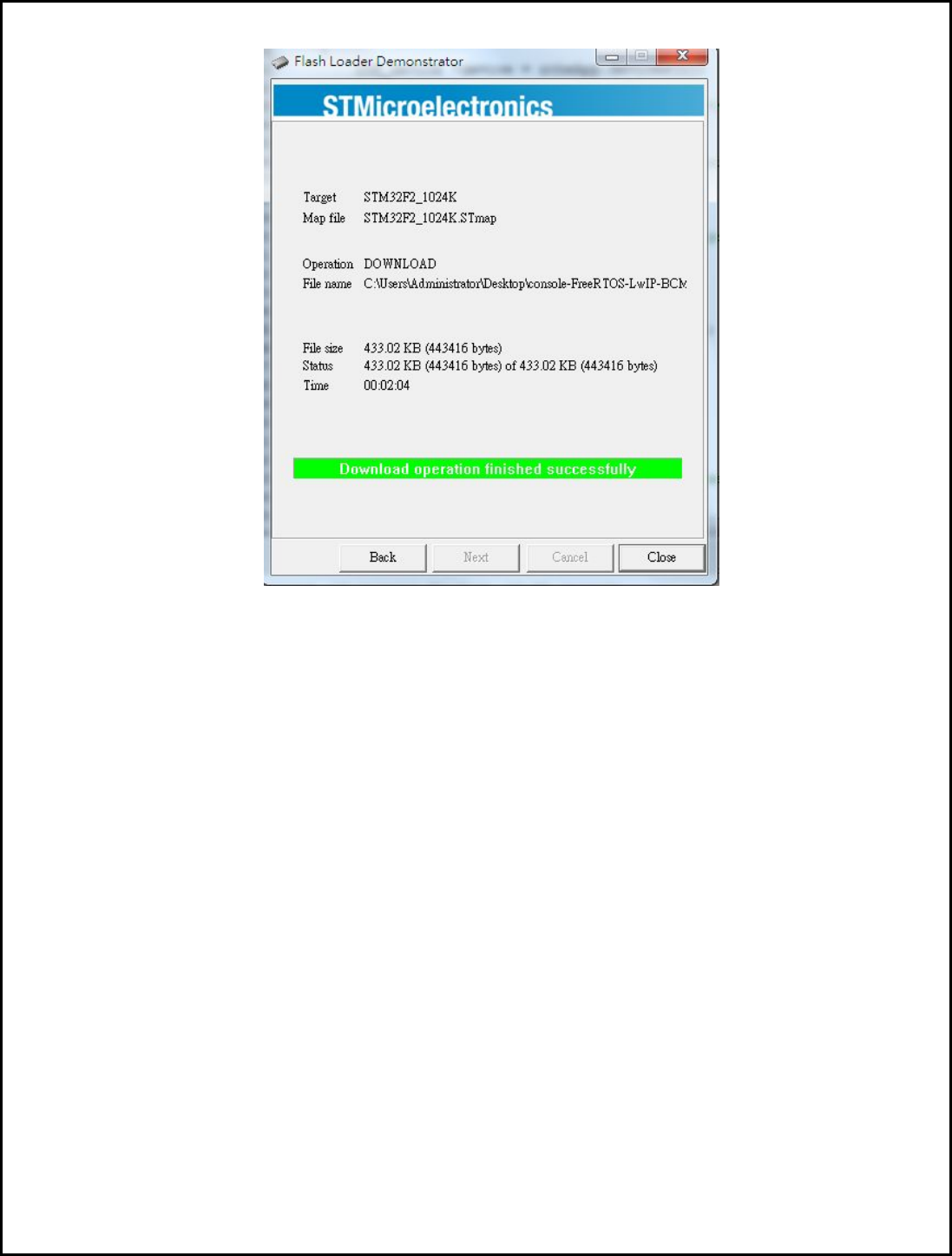

Upgrade Firmware for BPM8200MB ................................................................... 38
Limited Warranty .................................................................................................. 42
Contacting Radicom .............................................................................................. 44
Information furnished by Bluepacket is believed to be accurate and reliable. However Bluepacket
assumes no responsibility for its use, or any infringement of patents or other rights of third parties
that may result from its use. Bluepacket reserves the right to change circuitry at any time without
notice. This document is subject to change without notice.
Introduction
Thanks for purchasing Radicom’s serial Embedded WiFi Module. Radicom is committed to
providing quality service and technical support in order to expedite the product development
process. The RW8200 Module requires only a serial port interface to add state of the art data
WiFi wireless operation to any system. The RW8200 Serial to WiFi Module integrates a ARM9
processor, Wireless Internet Connectivity for Embedded Devices (WICED) and an embedded
processor. Featuring a self-contained WiFi subsystem, a streamlined and simple connectivity
API and complete software development environment, the RW8200 allows OEM integrators to
incorporate WiFi wireless technology into a broad range that previously did not feature
networking capabilities. It is designed to fully support IEEE802.11b Draft 2.0, IEEE802.11g
and IEEE802.11n standards. The RW8200 is available in surface mount (SMD) or through-hole
(Dip) hardware designs. If further information is required, please contact us and we will provide
any additional help needed.
Features
• Compatible with any serial port embedded controllers
• IEEE 802.11b/g/n compatible WLAN
• IEEE 802.11i ~ WiFi security: WEP-128, WPA-PSK(TKIP), WPA2-PSK
• RTOS and TCP/IP support
• Configurable through AT commands
• Low power 3.3V operation
• Extended operating temperature (-40°C to +85°C)
• Small size 0.787” x 1.299” (20x33mm)
• ROHS compliant
• WiFi Client and AP mode
• No powerful host processor required
• 2 general IO pins
• 1 analog IO pins
• Firmware upgradable through serial port
• Supports power save mode
• Integrated CMOS power amplifier
• Cisco compatible extension certified (CCX, CCX 2.0 CCX 3.0 CCX 4.0)
• Integrated ARM Cortex-M3 processor and on chip memory for complete WLAN subsystem
functionality
• Agency approval: pending FCC15, IC, CE
Approvals
• FCC Part 15: FCC OET 65 Supplement C (SAR), 47 CFR FCC Part 15
Subpart C 15.247, 47 CFR FCC Part 15 Subpart B 2009 (Class B)
• IC RSS-102, IC ES-003 issue 4, IC RSS-210 issue 8:2010
• RoHS Compliant
•
CE Marked: EN 300328 V1.7.1: 2006, EN 62311:2008(MPE), EN 301489-1 V1.9.2:2001
EN 301489-17 V2.2.1:2009, EN 60601-1:2006/AC: 2010 1
Technical Specification
Absolute maximum Rating
Symbol Description Min Max Unit
VDD_3V3 Input supply voltage 0 4.0 V
Recommended Operating Rating
Parameter Min. Typ. Max. Unit
VDD_3V3 3.15 3.3 3.6 V
Operating Temperature -40° +85° °C
Relative Humidity (non-condensing) 95 %
Power Consumption
Condition: Condition: 25deg.C, includes Both WiFi and Micro-Controller
Item Condition Min Nom Max
Unit
Tx mode(11b Max current) 11Mbps 345 mA
Tx mode(11g Max current) 54Mbps 250 mA
Tx mode(11n Max current) MCS7 210 mA
Rx mode 11b (11Mbps) 115 150 mA
11g (54Mbps) 115 150 mA
11n (MCS7) 115 150 mA
RF SPECIFICATION
1. WIRELESS
SPECIFICATIONS
The WiFi Network Controller module complies with the following features and standards;
Features Description
WLAN Standards IEEE 802 Part 11b/g/n (802.11b/g/n single stream n)
Antenna Port Support Single Antenna for WiFi
Frequency Band 2.400 – 2.484 GHz
The RF performance of WiFi Network Controller is given as follows. The default voltage is
3.3V.
Features Description
Frequency Band 2.4000 – 2.497 GHz (2.4 GHz ISM Band)
Number of selectable Sub
channels 14 channels
2
Modulation OFDM, DSSS (Direct Sequence Spread Spectrum),
DBPSK, DQPSK, CCK , 16QAM, 64QAM
Supported rates 1,2, 5.5,11,6,9,12,24,36,48,54 Mbps & HT20 MCS 0~7
Maximum receive input level - 10dBm (with PER < 8%@11 Mbps)
- 20dBm (with PER < 10%@54 Mbps)
- 20dBm (with PER < 10%@MCS7)
Output Power 17dBm @ 802.11b
13dBm @ 802.11g
11dBm @ 802.11n
Carrier Frequency Accuracy +/- 20ppm (crystal: 26MHz +/-10ppm in 250C)
2. WiFi RF Transmitter Specification
802.11b Transmit
Item Condition Min. Typ. Max. Unit
Transmit output
power level 1M/2M/5.5M/11M 17 dBm
Transmit center
frequency tolerance -20 20 ppm
Transmit spectrum
mask
Fc-22MHz<F<Fc-11MHz &
Fc+11MHz<F<Fc+22MHz(1/2/5.5/11Mbps;
channel 1~13)
-30* dBr
F<Fc-22MHz &
F>Fc+22MHz(1/2/5.5/11Mbps; channel 1~13) -50* dBr
Transmit power
-on 10% ~ 90 % 0.3 2* us
Transmit power -
down 90% ~ 10 % 1.5 2* us
Transmit
modulation
accuracy 1/2/5.5/11 Mbps -17 -10 dB
*” indicates IEEE802.11 specification
802.11g Transmit
Item Condition Min. Typ. Max. Unit
Transmit output power
level 6M/9M/12M/18M/24M/36M/48M/54M 13
dBm
dBm
dBm
3
Transmit center
frequency tolerance -20 0 20 ppm
Transmit modulation
accuracy
6Mbps -5* dB
9Mbps -8* dB
12Mbps -10* dB
18Mbps -13* dB
24Mbps -16* dB
36Mbps -19* dB
48Mbps -22* dB
54Mbps -25* dB
Transmit spectrum
mask
@ 11MHz -20* dBr
@ 20MHz -28* dBr
@ 30MHz -40* dBr
802.11n Transmit
Item Condition Min. Typ. Max. Unit
Transmit output power
level HT20 MCS 0~7 11
dBm
dBm
dBm
Transmit center
frequency tolerance -20 0 20 ppm
Transmit modulation
accuracy HT20, MCS0~7 -28* dB
dB
Transmit Spectrum
mask
@ 11MHz -20* dBr
@ 20MHz -28* dBr
@ 30MHz -40* dBr
*” indicates IEEE802.11 specification
3 WIFi RF Receiver Specification
802.11 b Receiver
Item Condition Min. Typ. Max. Unit
Receiver minimum input level
sensitivity (PER< 8 % )
1Mbps -80* dBm
2Mbps -80* dBm
5.5Mbps -76* dBm
11Mbps -76* dBm
Receiver maximum input level
sensitivity (PER< 8 % ) 1/2/5.5/11 Mbps -10* dBm
“*” indicates IEEE802.11 specification
4
802.11g Receiver
Item Condition Min. Typ. Max. Unit
Receiver minimum input
level sensitivity (PER<10
% )
6Mbps -82* dBm
9Mbps -81* dBm
12Mbps -79* dBm
18Mbps -77* dBm
24Mbps -74* dBm
36Mbps -70* dBm
48Mbps -66* dBm
54Mbps -65* dBm
Receiver maximum input
level (PER<10%) 6/9/12/18/24/36/48/54 -20* dBm
“*” indicates IEEE802.11 specification
802.11n Receiver
Item Condition Min. Typ. Max. Unit
Receiver minimum input
level sensitivity (PER<10
% )
HT20, MCS0 -82* dBm
HT20, MCS1 -79* dBm
HT20, MCS2 -77* dBm
HT20, MCS3 -74* dBm
HT20, MCS4 -70* dBm
HT20, MCS5 -66* dBm
HT20, MCS6 -65* dBm
HT20, MCS7 -64* dBm
Receiver maximum input
level (PER<10%) MSC0~MSC7 -20* dBm
“*” indicates IEEE802.11 specification
5
Block Diagram

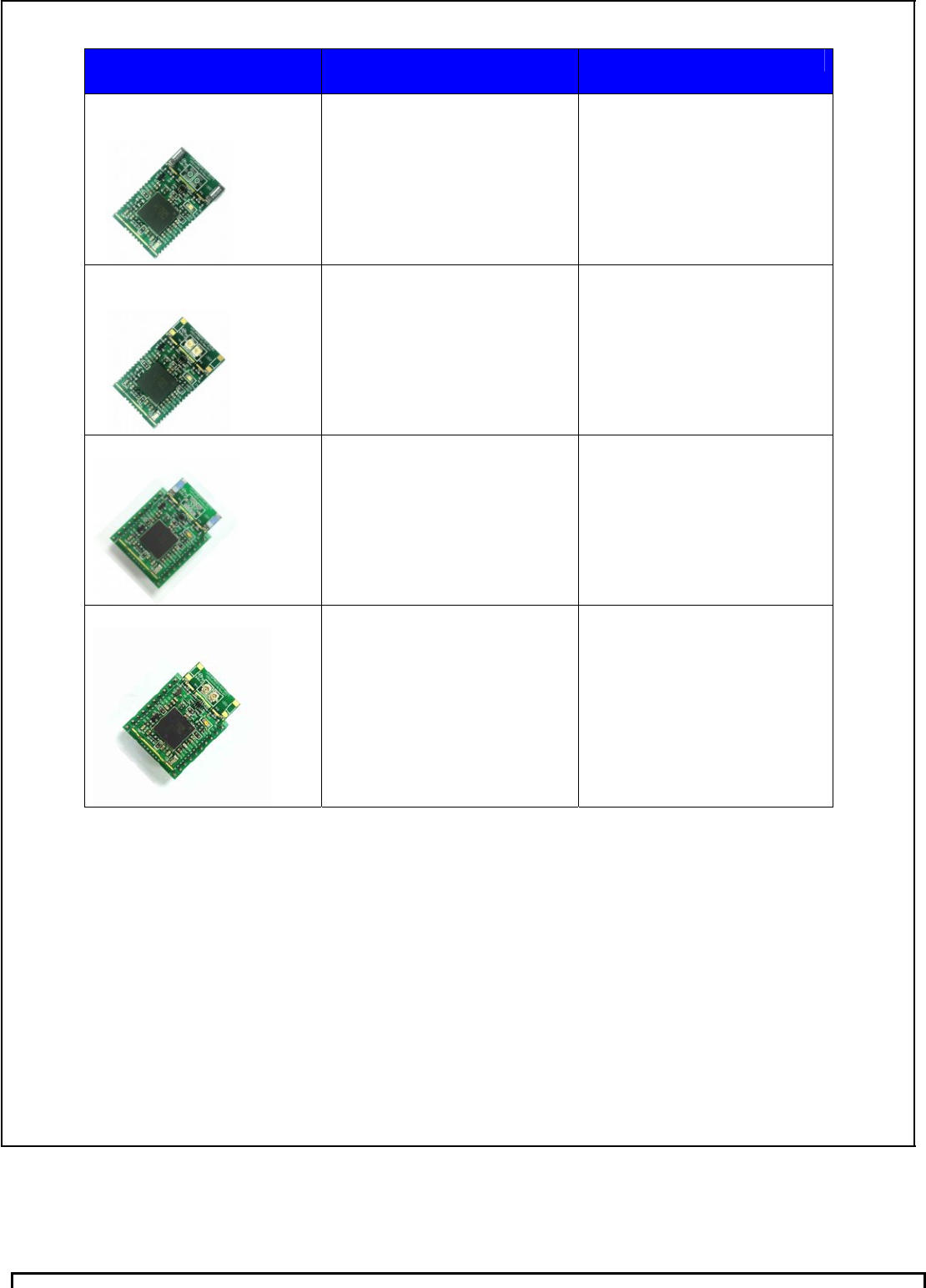

Model and Ordering Information
This versatile serial RW8200 family of products offers various configuration options to meet
the specific system requirements a designer may need to add state of the art RW8200 operation.
The RW8200 is available in surface mount (SMD) or through-hole (Dip) hardware designs. The
RW8200 module is the surface mount model. The RW8200 can also be mounted on a
conversion board to create the RW8200HM model for serial through-hole designs. Both Models
are available with either On Board Chip Antennae or External antennae. The Onboard Antennae
models are RW8200a and RW8200HMa. The External Antennae models are RW8200c and
RW8200HMc
6

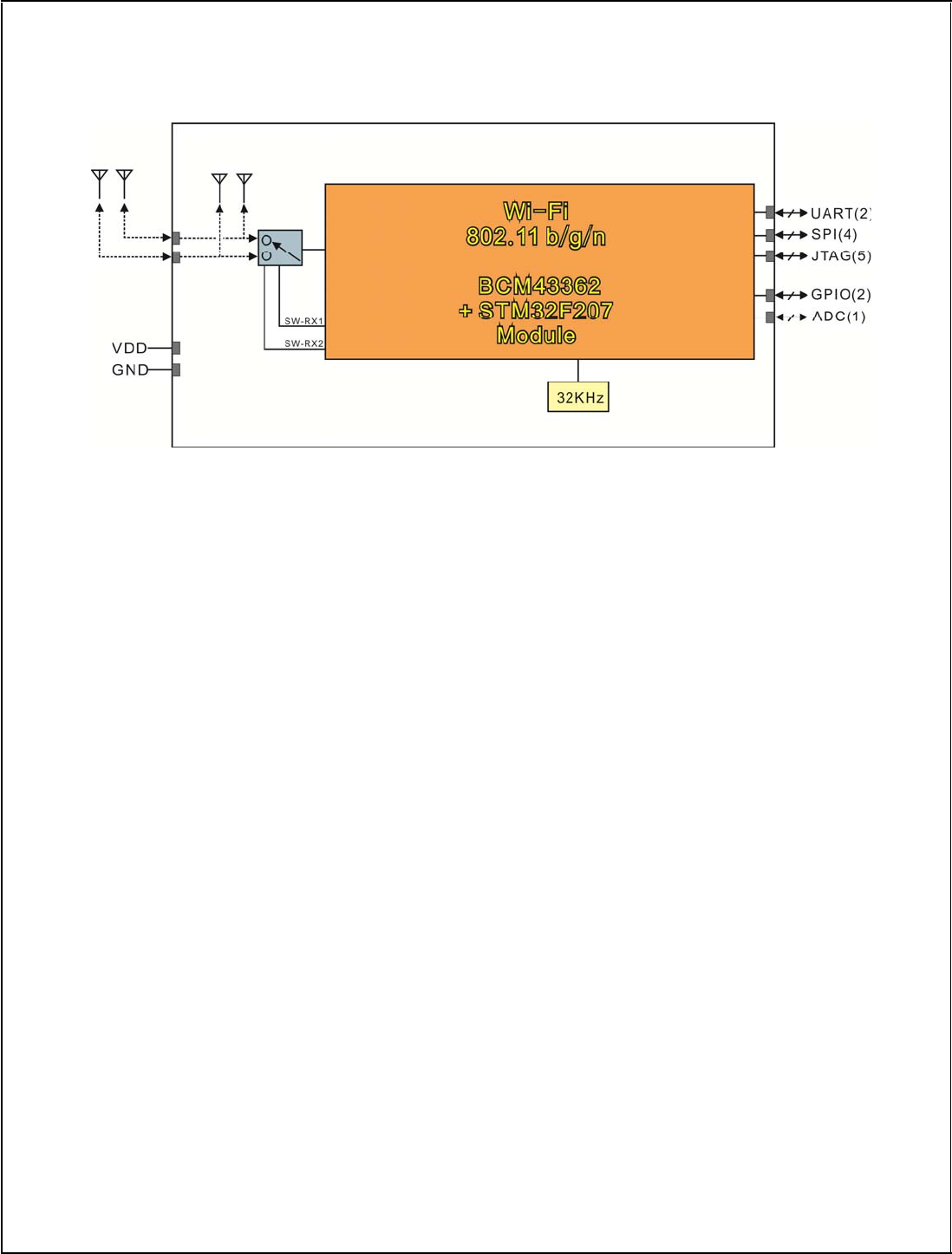

RW8200 Series Block diagram
Operation Freq.: 2412~2484MHz
Description
Comments
RW8200a/RW8200Ua/
BPM8200a
WiFi Surface Mount Serial
Module with dual on board
chip antenna
On board chip antenna
RW8200c /RW8200Uc
BPM8200c
WiFi Surface Mount Serial
Module with two U.FL
Connectors for attaching
antenna cables and antenna
Can use either one or two
cables and external antenna
RW8200HMa
WiFi Serial Dip (Through
Hole) Module with dual on
board chip antenna
On board chip antenna
RW8200HMc WiFi Serial Dip (Through
Hole) Module with two
U.FL Connectors for
attaching antenna cables
and antenna
Can use either one or two
cables and external antenna
7

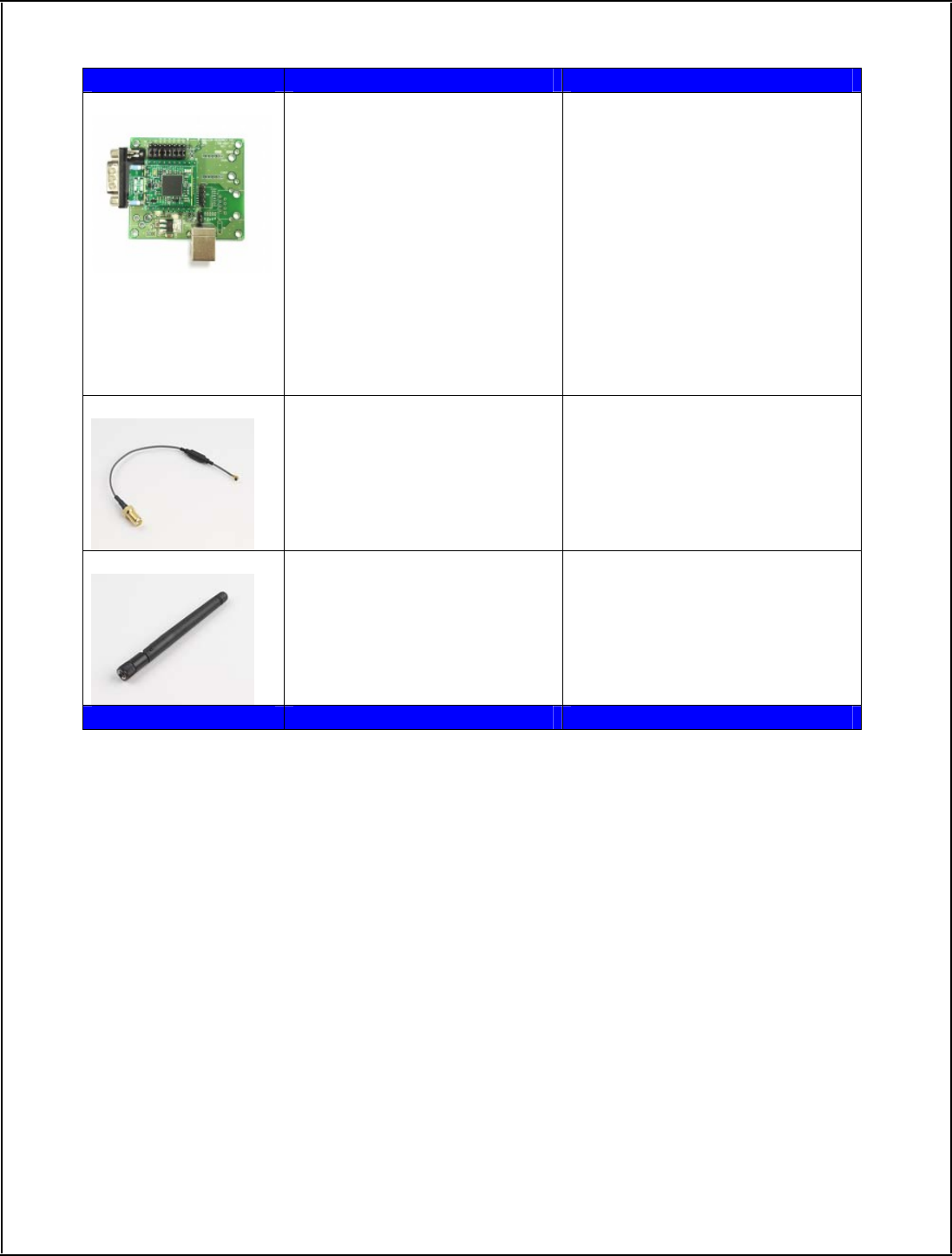

Model Description Comments
RW8200EKa (c) Complete RW8200
development kits including
RW8200HM module installed
in RW8200MB Carrier
Board. All kits include 6ft
USB cable, DB9 Serial Port
Cable and CD with Designers
Guide. Two Antennae and
Antennae Cables are also
provided for external antenna
models.
RW8200EKa Kit for
Model(s) RW8200a or
RW8200HMa
RW8200EK1001c Kit for
Model(s) RWM8200c or
RW8200HMc
AC6i-RP-SMA
6" U.FL. to RP-SMA female
connector antenna cable *Antenna Cable for models
RW8200c & RW8200HMc
ATN-2d-RP-SMA
Replacement antenna,
2.4GHz, 2dBi, RP-SMA,
Omni-directional.
*Antenna for models RW8200c
& RW8200HMc
*These models can use either one or two cables and antennas. For ultimate performance, we
recommend using two antennas to meet MIMO requirement with better adaptability for receiving.
If only one antenna is used, it can be configured through the AT command.
8

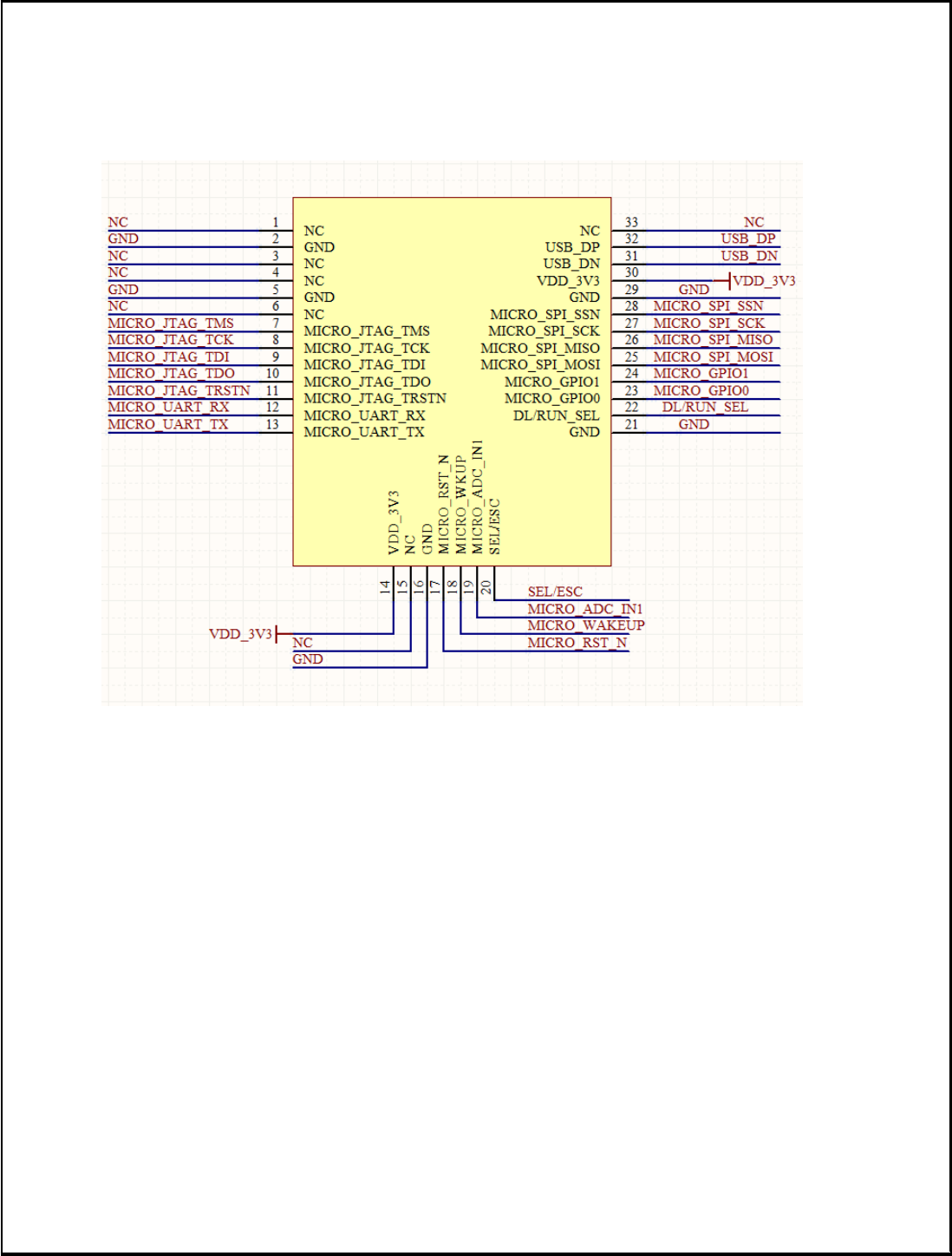

RW8200 Series Module Pin Definitions
9
RW8200 Series Module Pin Descriptions
Pin # Pin Name Type Description I/O Voltage Range
1 NC - -
-
2 GND - - -
3 NC - --
4 NC - --
5 GND - - -
6 NC - --
7 MICRO_JTAG_TMS I MCU_JTAG_TMS
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
8 MICRO_JTAG_TCK I MCU_JTAG_TCK
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
9 MICRO_JTAG_TDI I MCU_JTAG_TDI
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
10 MICRO_JTAG_TDO O MCU_JTAG_TDO
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
11 MICRO_JTAG_TRSTN
I
MCU_JTAG_TRSTN
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
12 MICRO_UART_RX I MCU_UART _RX
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
13 MICRO_UART_TX O MCU_UART _TX
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
14 VDD_3V3 PWR MCU input supply voltage 3.15 - 3.6V
15 NC - --
16 GND - Ground
17 MICRO_RST_N I MCU_RST_N Vil: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
18 MICRO_WAKEUP O MCU_WAKEUP
Vol: 0.4V Max
Voh: 0.75VDD Min
10
19 MICRO_ADC_IN1 I MCU_ADC_1 Vil: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
20 SEL/ESC I Vil: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
21 GND - - -
22 DL/RUN_SEL I
MCU enters download mode if
this pin is pulled high.
Normal operation if connected to
low at power up
Vil: -0.4V ~ 0.4V
Vih: 0.7VDD ~VDD+0.4V
23 MICRO_GPIO0 I/O MCU_ General Purpose I/O
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
24 MICRO_GPIO1 I/O MCU_ General Purpose I/O
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
25 MICRO_SPI_MOSI I MCU_MOSI Vil: -0.4V ~ 0.4V
Vih: 0.7VDD ~VDD+0.4
26 MICRO_SPI_MISO O MCU_MISO Vol: 0.4V Max
Voh 0.75VDD Min
27 MICRO_SPI_SCK I MCU_SCK
V
il: -0.4V ~ 0.4V
Vih: 0.7VDD ~VDD+0.4V
28 MICRO_SPI_SSN I MCU_SSN Vil: -0.4V ~ 0.4V
Vih: 0.7VDD ~VDD+0.4V
29 GND - --
30
VDD_3V3
PWR Input supply voltage Vil: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
31 USB_DN I/O USB data minus
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
32 USB_DP I/O USB data plus
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
33 NC - --
11
RW8200 Module Mechanical Dimensions
Board Size: 0.787" x 1.300" x 0.137"(20mm x 33mm x 3.5mm)
Pitch: 0.050" (1.27mm)
Pad Width: 0.036"(0.914mm)
Tolerance: +/- 0.0075" (0.118mm)
12
RW8200HM Series Mechanical Dimensions
Notes:
1. Pin spacing is 0.100" from center to center.
2. Dimension of the module - 1.00" x 1.35" x 0.30"
3. Pin 1 is not provided – Use as key
4. Suggested mating female connector: Samtec P/N. #SSW-110-21-G-S (RoHS Thru-Hole)
Samtec P/N. #SSW-110-22-G-S-VS (RoHS SMT)
5. Square pins - 0.025" x 0.025"
13
RW8200HM Series Pin Descriptions
Pin # Pin Name Type Description I/O Voltage Range
1 NC - - -
2 MICRO_GPIO1 I/O MCU_ General Purpose I/O
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
3 NC - - -
4 VDD_3V3 PWR Supply voltage 3.15V ~ 3.6V
5 MICRO_RST_N I Reset if low for more than 5ms Vil: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
6 GND - Ground
7 USB_DN I/O USB data minus
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
8 USB_DP I/O USB data plus
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
9 MICRO_SPI_SCK I MCU_SCK
V
il: -0.4V ~ 0.4V
Vih: 0.7VDD ~VDD+0.4V
10 MICRO_SPI_MOSI I MCU_MOSI Vil: -0.4V ~ 0.4V
Vih: 0.7VDD ~VDD+0.4
11 MICRO_SPI_SSN I MCU_SSN Vil: -0.4V ~ 0.4V
Vih: 0.7VDD ~VDD+0.4V
12 MICRO_SPI_MISO O MCU_MISO Vol: 0.4V Max
Voh 0.75VDD Min
13 SEL/ESC I
SEL: In power up stage only
set UART baud rate to 115200 if
this pin is pulled low, otherwise
using previous setting stored baud
rate.
ESC: In TCP mode only escape
TCP mode while this pin is pull
low.
Vil: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
14 NC - - -
15 MICRO_ADC_IN1 I MCU_ADC_1 Vil: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
16 MICRO_GPIO0 I/O MCU_ General Purpose I/O
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
17 NC - - -
18 MICRO_UART_TX O MCU_UART _TX
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
19 MICRO_UART_RX I MCU_UART _RX
V
il: -0.4V ~ 0.4V
Vih: 0.75VDD ~VDD+0.4V
Vol: 0.4V Max
Voh 0.75VDD Min
Note: I/O is DTE not DCE.
14
Connecting the RW8200 to Your System
The RW8200 Modules are designed for easy connection to any standard Serial Port and wireless
network. Connect one end of the RS232 cable into the DB9 connector on the RW8200MB and the
other into any available COM port on your computer. The RW8200 module can work with any
communication software without loading driver. Once turn on Terminal emulation program and select
right speed and com port, The RW8200 is now ready for use.
The initial evaluation consists of the RW8200 Module mounted onto a RW8200HM. To remove the
RW8200-HM: carefully remove it from the pin headers on the RW8200MB interface board. Save this
interface board. The RW8200HM can always be reinstalled into the RW8200MB interface board and
connected to any standard Serial port to verify or test the module functions.
If you use external antennae, connect Radicom approved antennae and cable(s) to the on board U.FL
sockets. For ultimate performance, we recommend using two antennas to meet MIMO requirement
with better adaptability for receiving. If only one antenna is used, it MUST be connected to the SMD
antenna connector on the top of the RW8200 module.
To maintain compliance, make sure that you follow all of the requirements described in the
compliance section of this document.
Antenna Information
The RW8200 can have either an ON Board Chip antennae or an U.FL connector for external antennae
connections. For ultimate performance, we recommend using two antennae for MIMO single stream
operation and use the modules antenna command to automatically select the best antenna location for
optimum performance. The ON Board Chip antennae location can be identified by the ANT1 and
ANT2 silkscreened legend next to them. The U.FL antenna connectors are identified by TP1 and TP2
silkscreen.
Antennae command Information:
Use 0 = ANTENNA 1 for ANT1 and TP1 locations
Use 1 = ANTENNA 2 for ANT2 and TP2 locations
Use 3 = AUTOANTENNA Selection to have the module automatically control the antennae for
optimum performance.
See section “Important Regulatory and Compliance Information” for additional restrictions and
requirements for antenna usage.
15
RW8200MB Carrier Board RS232 DB-9 Pin Definitions
The pin definitions of DB9 used on the RW8200-MB RS232 Serial Connector are as follows:
1. DCD: Input, Carrier Detect
2. RXD: Input, Received Data
3. TXD: Output, Transmit data
4. DTR: Output, Data Terminal ready
5. GND: Ground
6 DSR: Input, Data Set Ready
7. RTS: Output, Request to Send
8. CTS: Input, Clear to Send
9. RI: Input, Ring Indicator
LED Suggestion Circuit
16
FCC, IC, and CE Label Location and Module Model Identification
The RW8200 module family is FCC Part 15 and IC (Industry Canada) certified. The RW8200 series is
also CE marked. The modules are labeled with theRW8200 series module model number and FCC Part
15 ID, IC registration number and CE mark. The label can be found on top of the metal shielding on
the RW8200 Module.
FCC, IC, and CE Label Location and Module Model Identification
Location:
16
Radicom Research Inc.
Model: RW8200Uc
FCC ID: K7T-RW8200
IC: 2377A-RW8200
Radicom Research Inc.
Model: RW8200c
FCC ID: K7T-RW8200
IC: 2377A-RW8200
Radicom Research Inc.
Model: RW8200a
FCC ID: K7T-RW8200
IC: 2377A-RW8200
Radicom Research Inc.
Model: RW8200HMa
FCC ID: K7T-RW8200
IC: 2377A-RW8200
17
Label
Module board
Radicom Research Inc.
Model: BPM8200a
FCC ID: K7T-RW8200
IC: 2377A-RW8200
Radicom Research Inc.
Model: BPM8200c
FCC ID: K7T-RW8200
IC: 2377A-RW8200
Radicom Research Inc.
Model: RW8200Ua
FCC ID: K7T-RW8200
IC: 2377A-RW8200
Radicom Research Inc.
Model: RW 8200HMc
FCC ID: K7T-RW8200
IC: 2377A-RW8200
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The transmitter module may not be co-located with any other transmitter or antenna,
As long as 1 condition above is met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE
In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the
FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
18
End Product Labeling
The final end product must be labeled in a visible area with the following:
“Contains FCC ID: K7T- RW8200
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
19
Industry Canada statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Radiation Exposure Statement:
This equipment complies with Canada portable RF exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
20
This device is intended only for OEM integrators under the following conditions:
1) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 1 condition above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes:
1) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 1 condition ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront
pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final
pour toutes exigences de conformité supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the Canada authorization is no longer considered valid and the
IC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate
Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations
d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du Canada
n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans ces
circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et
l'obtention d'une autorisation distincte au Canada.
21
End Product Labeling
The final end product must be labeled in a visible area with the following:
Contains IC: 2377A- RW8200
Plaque signalétique du produit final
Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante:
Contient des IC: 2377A- RW8200
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la
façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui
intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et
avertissements comme indiqué dans ce manuel.
22
CE Declaration of Conformity
For the following equipment:
Radicom Research Inc. Wi-Fi Module
Model(s): RW8200a, RW8200c, RW8200Ua, RW8200Uc, RW8200HMa, RW8200HM c,
BPM8200a, BPM8200c
are herewith confirmed to comply with the requirements set out in the Council (European
parliament) Directive on the Approximation of the Laws of the
Member States relating to Electromagnetic Compatibility of Radio and Telecom device (1999/5/CE).
For the evaluation regarding this Directive, the following standards were applied:
EN 300328 V1.8.1: 2012
EN 62311:2008(MPE)
EN 301489-1 V1.9.2:2011
EN 301489-17 V2.2.1:2012
EN 60601-1:2006/AC:2010
This equipment is marked with and can be used throughout the European community.
Europe – R&TTE Compliance Statement:
Hereby, Radicom Research Inc. declares that this equipment complies with the essential requirements
and other relevant provisions of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT
AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication
terminal Equipment and the mutual recognition of their conformity (R&TTE).
23
WiFi Regulatory Domain Frequencies
The channel identifiers, channel center frequencies, and regulatory domains of each 22-
MHz-wide channel are shown in following table.
Model:
WiFiHU2
Family
Frequency
(MHZ)
Regulatory Domains
Japan ETSI North
America Israel France
Outdoor Mexico
1 2412
∨ ∨ ∨ ∨
2 2417
∨ ∨ ∨ ∨
3 2422
∨ ∨ ∨ ∨ ∨
4 2427
∨ ∨ ∨ ∨ ∨
5 2432
∨ ∨ ∨ ∨ ∨
6 2437
∨ ∨ ∨ ∨ ∨
7 2442
∨ ∨ ∨ ∨ ∨
8 2447
∨ ∨ ∨ ∨ ∨
9 2452
∨ ∨ ∨ ∨ ∨
10 2457
∨ ∨ ∨ ∨
11 2462
∨ ∨ ∨ ∨
12 2467
∨ ∨
13 2472
∨ ∨
14 2484
∨
24
Important features:
1. Antenna types
The RW8200 can have either an ON Board Chip antennae or an U.FL connector for
external antennae connections.
2. Serial Port
The RW8200 supports serial port and can set baud rate from 1200 up to 921600 bps. The
default speed is 115200bps with one start, 1stop and no parity bit. When power on, if pin
20 signal is pulled low, the default speed is 115200bps.
3. Command/data mode
To exit from data mode, you can issue an Escape sequence (+++) or use pin 20 of RW8200
module and RW8200-HM.
4. Flow control
No flow control is needed for Network protocol. The BPM8200 does not have flow control
at all.
RW8200 COMMAND SET
Command Paramete
r
Descriptions
? 0, “Help menu”
help 0, “Help menu”
ping, 0,
“<destination>”
“Pings the specified IP or Host.”
get_random, 0, “Get a random number.”
get_mac_addr, 0, “Get the device MAC address.”
get_rssi, 0,
“Get the received signal strength of
the AP (client mode only).”
tcp_server, 0, “Turn on TCP Server mode.”
tcp_client, 1, “Turn on TCP Client mode.”
join, 2,
“<ssid><open|wpa|wpa2>[key][ip netmask
gateway]”
“Join an AP. DHCP assumed if no IP
address provided”
join, 4,
“<ssid><open|wpa|wpa2><key>[ip netmask
gateway]”
“Join a specific AP. DHCP assumed if no
IP address provided.”
leave, 0, “Leave an AP.”
powersave, 1, “Enable/disable power save mode.”
scan, 0,
“Scan all enabled channels and print a
list of APs found.”
set_ip, 3, “Set a static IP.”
set_tx_power, 1, “Set the tx power in dBm.”
get_tx_power, 0, “Gets the tx power in dBm.”
status, 0, “Print status of the WiFi and network 25
interfaces.”
start_ap, 4, “Start AP mode.”
stop_ap, 0, “Stop AP mode.”
wifi_on, 0, “Turn WiFi device on.”
wifi_off, 0, “Turn WiFi device off.”
wifi_reset, 0, “Reset the WiFi device.”
antenna, 1, “Antenna selection. 3 = Auto”
set_country, 1,
“<country code>”
“Set country.”
RW8200 COMMAND Detail
1. ? 0, "Help menu"
(prompt)?
2. help 0, "Help menu"
(prompt)HELP
>
console Commands:
help [<command> [<example_num>]]
- Print help message or command example.
dhcp
- Perform DHCP as a client to obtain an IP address.
get_mac_addr
- Get the device MAC address
get_rssi
- Get the received signal strength of the AP (client mode only)
join <ssid> <open|wpa|wpa2> [key] [ip netmask gateway]
- Join an AP. DHCP assumed if no IP address provided
join_specific <ssid> <bssid> <channel> <open|wpa|wpa2> <key> [ip
netmask gateway]
- Join a specific AP. DHCP assumed if no IP address provided
leave
- Leave an AP.
Powersave <1|0>
- Enable/Disable powersave mode.
scan
- Scan all enabled channels and print a list of APs found.
set_ip <ip> <network> <gateway>
-Set a static IP.
set_tx_power <0-32>
- Set the tx power in dBm.
get_tx_power
- Gets the rx power in dBm.
status
- Print status of the Wi-Fi and network interfaces.
start_ap <ssid> <open|wpa|wpa2> <key> <channel>
- Start AP mode
stop_ap
Stop AP mode
wifi_on
- Turn Wi-Fi device on.
26
Wifi_off
- Turn Wi-Fi device off.
wifi_reset
- Reset the Wi-Fi device
antenna <0|1|2>
-Antenna selection. 3 = Auto
set_country <country code>
- Set country.
ping <destination>
- Pings the specificd IP or Host.
get_random
- Get a random number.
tcp_server
-Waits for connection from TCP client.
tcp_client
-Initiate connection to TCP server.
>
3. ping, 0, "<destination>"
"Pings the specified IP or Host."
(prompt)ping 192.128.1.1
>
Pinging: 191.128.1.1
>
Pining Timeout
4. get_random, 0, "Get a random number."
(prompt)get_random
>
Random number is 24280
>
5. tcp_server, 0," Waits for connection from TCP client."
(prompt)tcp_test_tx_server
6. tcp_client, 0," Initiate connection to TCP server."
(prompt)tcp_test_rx_server
27
7. get_mac_addr, 0, "Get the device MAC address."
(prompt)get_mac_addr
MAC address is : CC:52:AF:2A:58:8A
8. get_rssi, 0, "Get the received signal strength of the AP (client mode
only)."
(prompt)get_rssi
RSSI is 0
9. join 2, "<ssid> <open|wpa|wpa2> [key] [ip netmask gateway]"
"Join an AP. DHCP assumed if no IP address provided"
(prompt)join
10. join_specific, 4, "<ssid> <bssid> <channel> <open|wpa|wpa2> <key> [ip
netmask gateway]"
"Join a specific AP. DHCP assumed if no IP address provided"
(prompt)join_specific
11. leave, 0, "Leave an AP."
(prompt)leave
>
12. powersave, 1, "Enable/disable powersave mode."
(prompt)powersave
>
13. scan, 0, "Scan all enabled channels and print a list of APs found."
(prompt)scan
SSID : Business
BSSID : 00:1E:00:10:10:10
RSSI : -58dBm
Max Data Rate : 54.0 Mbits/s
Network Type : Infrastructure
Security : WPA
Radio Band : 2.4GHz
Channel : 11
14. set_ip, 3, "Set a static IP."
(prompt)set_ip
15. set_tx_power, 1, "Set the tx power in dBm."
(prompt)set_tx_power
28
16. get_tx_power, 0, "Gets the tx power in dBm."
(prompt)get_tx_power
17. status, 0, "Print status of the Wi-Fi and network interfaces."
(prompt)status
>
WICED Version : 1.2.10956
Platform : BCM94319WICED5
MAC address : CC:52:AF:2A:58:8A
STA Interface : Down
AP Interface : Down
>
18. start_ap, 4, "Start AP mode."
(prompt)start_ap
19. stop_ap, 0, "Stop AP mode."
(prompt)stop_ap
20. wifi_on, 0, "Turn Wi-Fi device on."
(prompt)wifi_on
21. wifi_off, 0, "Turn Wi-Fi device off."
(prompt)wifi_off
>
Wi-Fi is now off. Calling further Wi_Fi function will cause system
instability.
22. wifi_reset, 0, "Reset the Wi-Fi device."
(prompt)reset the Wi-Fi device
23. antenna, 1, "Antenna selection. 3 = Auto"
0 = ANTENNA 1 (default)
1 = ANTENNA 2
3 = AUTOANTENNA SELECTION
(prompt)antenna 1
>
24. set_country, 1, "<country code>"
"Set country."
(prompt)set_country A,L
>
-------------------------------Country Code----------------------------------
AFGHANISTAN /* AF Afghanistan */
ALBANIA /* AL Albania */
ALGERIA /* DZ Algeria */
AMERICAN_SAMOA /* AS American_Samoa */
ANGOLA /* AO Angola */
ANGUILLA /* AI Anguilla */
29
ANTIGUA_AND_BARBUDA /* AG Antigua_and_Barbuda */
ARGENTINA /* AR Argentina */
ARMENIA /* AM Armenia */
ARUBA /* AW Aruba */
AUSTRALIA /* AU Australia */
AUSTRIA /* AT Austria */
AZERBAIJAN /* AZ Azerbaijan */
BAHAMAS /* BS Bahamas */
BAHRAIN /* BH Bahrain */
BAKER_ISLAND /* 0B Baker_Island */
BANGLADESH /* BD Bangladesh */
BARBADOS /* BB Barbados */
BELARUS /* BY Belarus */
BELGIUM /* BE Belgium */
BELIZE /* BZ Belize */
BENIN /* BJ Benin */
BERMUDA /* BM Bermuda */
BHUTAN /* BT Bhutan */
BOLIVIA /* BO Bolivia */
BOSNIA_AND_HERZEGOVINA /* BA Bosnia_and_Herzegovina */
BOTSWANA /* BW Botswana */
BRAZIL /* BR Brazil */
BRITISH_INDIAN_OCEAN_TERRITORY /* IO British_Indian_Ocean_Territory */
BRUNEI_DARUSSALAM /* BN Brunei_Darussalam */
BULGARIA /* BG Bulgaria */
BURKINA_FASO /* BF Burkina_Faso */
BURUNDI /* BI Burundi */
CAMBODIA /* KH Cambodia */
CAMEROON /* CM Cameroon */
CANADA /* CA Canada */
CAPE_VERDE /* CV Cape_Verde */
CAYMAN_ISLANDS /* KY Cayman_Islands */
CENTRAL_AFRICAN_REPUBLIC /* CF Central_African_Republic */
CHAD /* TD Chad */
CHILE /* CL Chile */
CHINA /* CN China */
CHRISTMAS_ISLAND /* CX Christmas_Island */
COLOMBIA /* CO Colombia */
COMOROS /* KM Comoros */
CONGO /* CG Congo */
CONGO_THE_DEMOCRATIC_REPUBLIC_OF_THE /* CD Congo,
_The_Democratic_Republic_Of_The */
COSTA_RICA /* CR Costa_Rica */
COTE_DIVOIRE /* CI Cote_D'ivoire */
CROATIA /* HR Croatia */
CUBA /* CU Cuba */
CYPRUS /* CY Cyprus */
CZECH_REPUBLIC /* CZ Czech_Republic */
DENMARK /* DK Denmark */
DJIBOUTI /* DJ Djibouti */
DOMINICA /* DM Dominica */
DOMINICAN_REPUBLIC /* DO Dominican_Republic */
ECUADOR /* EC Ecuador */
EGYPT /* EG Egypt */
EL_SALVADOR /* SV El_Salvador */
EQUATORIAL_GUINEA /* GQ Equatorial_Guinea */
ERITREA /* ER Eritrea */
ESTONIA /* EE Estonia */
30
ETHIOPIA /* ET Ethiopia */
FALKLAND_ISLANDS_MALVINAS /* FK Falkland_Islands_(Malvinas) */
FAROE_ISLANDS /* FO Faroe_Islands */
FIJI /* FJ Fiji */
FINLAND /* FI Finland */
FRANCE /* FR France */
FRENCH_GUINA /* GF French_Guina */
FRENCH_POLYNESIA /* PF French_Polynesia */
FRENCH_SOUTHERN_TERRITORIES /* TF French_Southern_Territories */
GABON /* GA Gabon */
GAMBIA /* GM Gambia */
GEORGIA /* GE Georgia */
GERMANY /* DE Germany */
GHANA /* GH Ghana */
GIBRALTAR /* GI Gibraltar */
GREECE /* GR Greece */
GRENADA /* GD Grenada */
GUADELOUPE /* GP Guadeloupe */
GUAM /* GU Guam */
GUATEMALA /* GT Guatemala */
GUERNSEY /* GG Guernsey */
GUINEA /* GN Guinea */
GUINEA_BISSAU /* GW Guinea-bissau */
GUYANA /* GY Guyana */
HAITI /* HT Haiti */
HOLY_SEE_VATICAN_CITY_STATE /* VA Holy_See_(Vatican_City_State) */
HONDURAS /* HN Honduras */
HONG_KONG /* HK Hong_Kong */
HUNGARY /* HU Hungary */
ICELAND /* IS Iceland */
INDIA /* IN India */
INDONESIA /* ID Indonesia */
IRAN_ISLAMIC_REPUBLIC_OF /* IR Iran,_Islamic_Republic_Of */
IRAQ /* IQ Iraq */
IRELAND /* IE Ireland */
ISRAEL /* IL Israel */
ITALY /* IT Italy */
JAMAICA /* JM Jamaica */
JAPAN /* JP Japan */
JERSEY /* JE Jersey */
JORDAN /* JO Jordan */
KAZAKHSTAN /* KZ Kazakhstan */
KENYA /* KE Kenya */
KIRIBATI /* KI Kiribati */
KOREA_REPUBLIC_OF /* KR Korea,_Republic_Of */
KOSOVO /* 0A Kosovo */
KUWAIT /* KW Kuwait */
KYRGYZSTAN /* KG Kyrgyzstan */
LAO_PEOPLES_DEMOCRATIC_REPUBIC /* LA Lao_People's_Democratic_Repubic */
LATVIA /* LV Latvia */
LEBANON /* LB Lebanon */
LESOTHO /* LS Lesotho */
LIBERIA /* LR Liberia */
LIBYAN_ARAB_JAMAHIRIYA /* LY Libyan_Arab_Jamahiriya */
LIECHTENSTEIN /* LI Liechtenstein */
LITHUANIA /* LT Lithuania */
LUXEMBOURG /* LU Luxembourg */
31
MACAO /* MO Macao */
MACEDONIA_FORMER_YUGOSLAV_REPUBLIC_OF /* MK Macedonia,
_Former_Yugoslav_Republic_Of */
MADAGASCAR /* MG Madagascar */
MALAWI /* MW Malawi */
MALAYSIA /* MY Malaysia */
MALDIVES /* MV Maldives */
MALI /* ML Mali */
MALTA /* MT Malta */
MAN_ISLE_OF /* IM Man,_Isle_Of */
MARTINIQUE /* MQ Martinique */
MAURITANIA /* MR Mauritania */
MAURITIUS /* MU Mauritius */
MAYOTTE /* YT Mayotte */
MEXICO /* MX Mexico */
MICRONESIA_FEDERATED_STATES_OF /* FM Micronesia,_Federated_States_Of */
MOLDOVA_REPUBLIC_OF /* MD Moldova,_Republic_Of */
MONACO /* MC Monaco */
MONGOLIA /* MN Mongolia */
MONTENEGRO /* ME Montenegro */
MONTSERRAT /* MS Montserrat */
MOROCCO /* MA Morocco */
MOZAMBIQUE /* MZ Mozambique */
MYANMAR /* MM Myanmar */
NAMIBIA /* NA Namibia */
NAURU /* NR Nauru */
NEPAL /* NP Nepal */
NETHERLANDS /* NL Netherlands */
NETHERLANDS_ANTILLES /* AN Netherlands_Antilles */
NEW_CALEDONIA /* NC New_Caledonia */
NEW_ZEALAND /* NZ New_Zealand */
NICARAGUA /* NI Nicaragua */
NIGER /* NE Niger */
NIGERIA /* NG Nigeria */
NORFOLK_ISLAND /* NF Norfolk_Island */
NORTHERN_MARIANA_ISLANDS /* MP Northern_Mariana_Islands */
NORWAY /* NO Norway */
OMAN /* OM Oman */
PAKISTAN /* PK Pakistan */
PALAU /* PW Palau */
PANAMA /* PA Panama */
PAPUA_NEW_GUINEA /* PG Papua_New_Guinea */
PARAGUAY /* PY Paraguay */
PERU /* PE Peru */
PHILIPPINES /* PH Philippines */
POLAND /* PL Poland */
PORTUGAL /* PT Portugal */
PUETO_RICO /* PR Pueto_Rico */
QATAR /* QA Qatar */
REUNION /* RE Reunion */
ROMANIA /* RO Romania */
RUSSIAN_FEDERATION /* RU Russian_Federation */
RWANDA /* RW Rwanda */
SAINT_KITTS_AND_NEVIS /* KN Saint_Kitts_and_Nevis */
SAINT_LUCIA /* LC Saint_Lucia */
SAINT_PIERRE_AND_MIQUELON /* PM Saint_Pierre_and_Miquelon */
32
SAINT_VINCENT_AND_THE_GRENADINES /* VC Saint_Vincent_and_The_Grenadines */
SAMOA /* WS Samoa */
SANIT_MARTIN_SINT_MARTEEN /* MF Sanit_Martin_/_Sint_Marteen */
SAO_TOME_AND_PRINCIPE /* ST Sao_Tome_and_Principe */
SAUDI_ARABIA /* SA Saudi_Arabia */
SENEGAL /* SN Senegal */
SERBIA /* RS Serbia */
SEYCHELLES /* SC Seychelles */
SIERRA_LEONE /* SL Sierra_Leone */
SINGAPORE /* SG Singapore */
SLOVAKIA /* SK Slovakia */
SLOVENIA /* SI Slovenia */
SOLOMON_ISLANDS /* SB Solomon_Islands */
SOMALIA /* SO Somalia */
SOUTH_AFRICA /* ZA South_Africa */
SPAIN /* ES Spain */
SRI_LANKA /* LK Sri_Lanka */
SURINAME /* SR Suriname */
SWAZILAND /* SZ Swaziland */
SWEDEN /* SE Sweden */
SWITZERLAND /* CH Switzerland */
SYRIAN_ARAB_REPUBLIC /* SY Syrian_Arab_Republic */
TAIWAN_PROVINCE_OF_CHINA /* TW Taiwan,_Province_Of_China */
TAJIKISTAN /* TJ Tajikistan */
TANZANIA_UNITED_REPUBLIC_OF /* TZ Tanzania,_United_Republic_Of */
THAILAND /* TH Thailand */
TOGO /* TG Togo */
TONGA /* TO Tonga */
TRINIDAD_AND_TOBAGO /* TT Trinidad_and_Tobago */
TUNISIA /* TN Tunisia */
TURKEY /* TR Turkey */
TURKMENISTAN /* TM Turkmenistan */
TURKS_AND_CAICOS_ISLANDS /* TC Turks_and_Caicos_Islands */
TUVALU /* TV Tuvalu */
UGANDA /* UG Uganda */
UKRAINE /* UA Ukraine */
UNITED_ARAB_EMIRATES /* AE United_Arab_Emirates */
UNITED_KINGDOM /* GB United_Kingdom */
UNITED_STATES /* US United_States */
UNITED_STATES_NO_DFS /* Q2 United_States_(No_DFS) */
UNITED_STATES_MINOR_OUTLYING_ISLANDS /* UM United_States_Minor_
Outlying_Islands */
33
URUGUAY /* UY Uruguay */
UZBEKISTAN /* UZ Uzbekistan */
VANUATU /* VU Vanuatu */
VENEZUELA /* VE Venezuela */
VIET_NAM /* VN Viet_Nam */
VIRGIN_ISLANDS_BRITISH /* VG Virgin_Islands,_British */
VIRGIN_ISLANDS_US /* VI Virgin_Islands,_U.S. */
WALLIS_AND_FUTUNA /* WF Wallis_and_Futuna */
WEST_BANK /* 0C West_Bank */
WESTERN_SAHARA /* EH Western_Sahara */
YEMEN /* YE Yemen */
ZAMBIA /* ZM Zambia */
ZIMBABWE /* ZW Zimbabwe */
34
RW8200 Special atbp Command Set
a: ip address
atbp a 192 168 1 1 (space for each arguments)
c: country setting
atbp c 123 (see country table for different country setting)
d: dhcp enable
atbp d 0 (disable dhcp, other value will turn on dhcp)
g: gateway address
atbp g 192 168 1 0 (space for each arguments)
i: ap ssid
atbp i RADICOM (SSID is RADICOM)
m: address mask
atbp m 255 255 255 0 (space for each arguments)
p: paraphrase
atbp p 12345678 (12345678 is the key)
s: security type
atbp s 0 (0: no security)
t: tcp listen tx port
atbp t 3490 (for tcp tx port 3490)
u: tcplisten rx port
atbp u 3490 (for tcp rx port 3490)
o: save current settings
atbp o (save current settings into flash which will be loaded
starting next power reset)
z: load and apply settings
atbp z (load and apply settings stored in flash)
f: factory default
atbp f (Use factory default settings)
v: display setting
atbp v (display setting)
b: baud rate setting
atbp b n (n=0: 9600; 1: 19200; 2: 38400; 3: 57600; 4: 115200; 5:
230400; 6: 460800; 7: 921600)
35
Operation examples
1. Example of connecting to 192.168.0.2 client of TCP port 3490 enter command to
RW8200 as following:
>join SSID wpa2 xxxxxxxxx
>joining:SSID
Failed to join:SSID …retrying
Successfully joined:SSID
Obtaining IP address via DHCP
Network ready IP:192.168.0.104
>tcp_server
Server ready listening on port 3490
* Make sure send data to keep TCP port alive.
2. Example of connecting to 192.168.0.2 client of TCP port 3490 as following:
>join SSID wpa2 xxxxxxxxx
>joining:SSID
Failed to join: SSID …retrying
Successfully joined:SSID
Obtaining IP address via DHCP
Network ready IP:192.168.0.104
>tcp_client 192.168.0.2
* Make sure send data to keep TCP port alive.
3. Example of how to test the start_ap command as following:
1. Prepare 2 BPM8200 and download the V1.0C4 above
firmware
2. Choose any one and setup and AP
>start_ap BPM8200 open 00000000 0
3. Use other BPM8200 join to BPM8200
a. >scan
make sure our BPM8200 is visible
b. >join BPM8200 open 00000000 <IP> <Netmask>
<Gateway>
36
4. One BPM8200 execute tcp_server command, and other
execute tcp_client <AP’s IP>
5. Now, we can send data from one BPM8200’s console and
display data in other.
4. Example of atbp v response as following:
>atbp v
AP-SSID: RADICOM
Security Type: 6
AP passphrase: YOUR_AP_PASSPHRASE
Country Setting: 21825
DHCP ENABLE: 1
IP ADDRESS: 192.168.1.95
GATEWAY ADDRESS: 192.168.1.1
IP MASK: 255.255.255.0
CHANNEL: 1
JOIN TIMEOUT: 10000
LOCAL UDP PORT: 50007
TARGET UDP PORT: 50007
TCP LISTEN TX PORT: 3490
TCP LISTEN RX PORT: 3490
DEFAULT SERVER IP: 192.168.0.90
5. Example of scan response as following:
>scan
SSID: Business
BSSID: 00:1E:00:10:10:10
RSSI: -58dBm
Max Data Rate: 54.0 Mbits/s
Network Type: Infrastructure
Security: WPA
Radio Band: 2.4GHz
Channel: 11
37
Upgrade Firmware for RW8200-MB
1. Install STMicroelectronics “Flash Loader Demonstrator” program.
2. Enable RW8200-MB to be Uart D/L mode (ADC3 pulled high)
3. Reset RW8200-MB, execute “Flash Loader Demonstrator” w/ correct COM port
selected, press [Next]

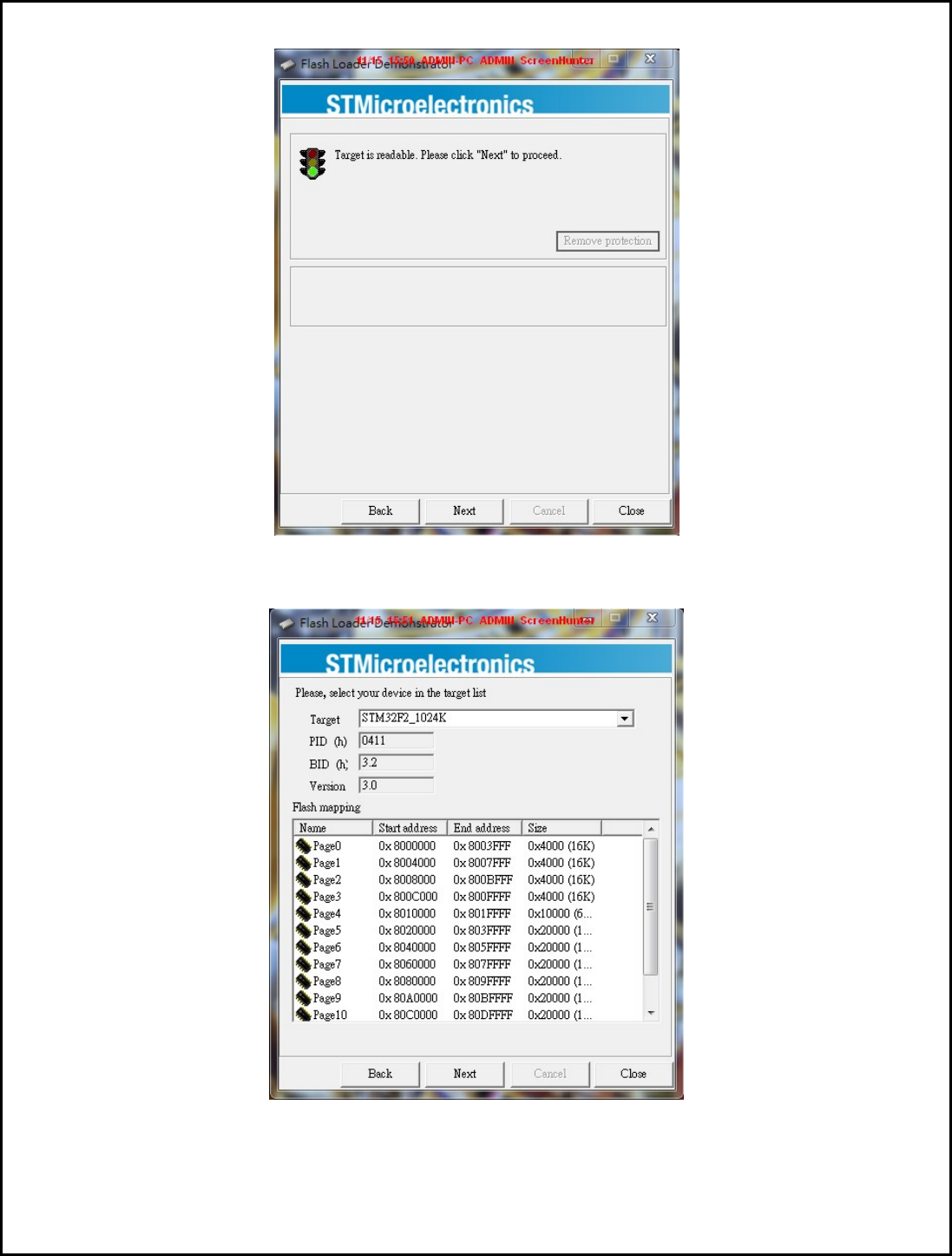

4. “Target available…” should be displayed (as below), press [Next]; if not, close
the program and repeat step #3
38
5. From the “Target” pull-down menu, choose “STMF32F2_1024K”, press [Next]

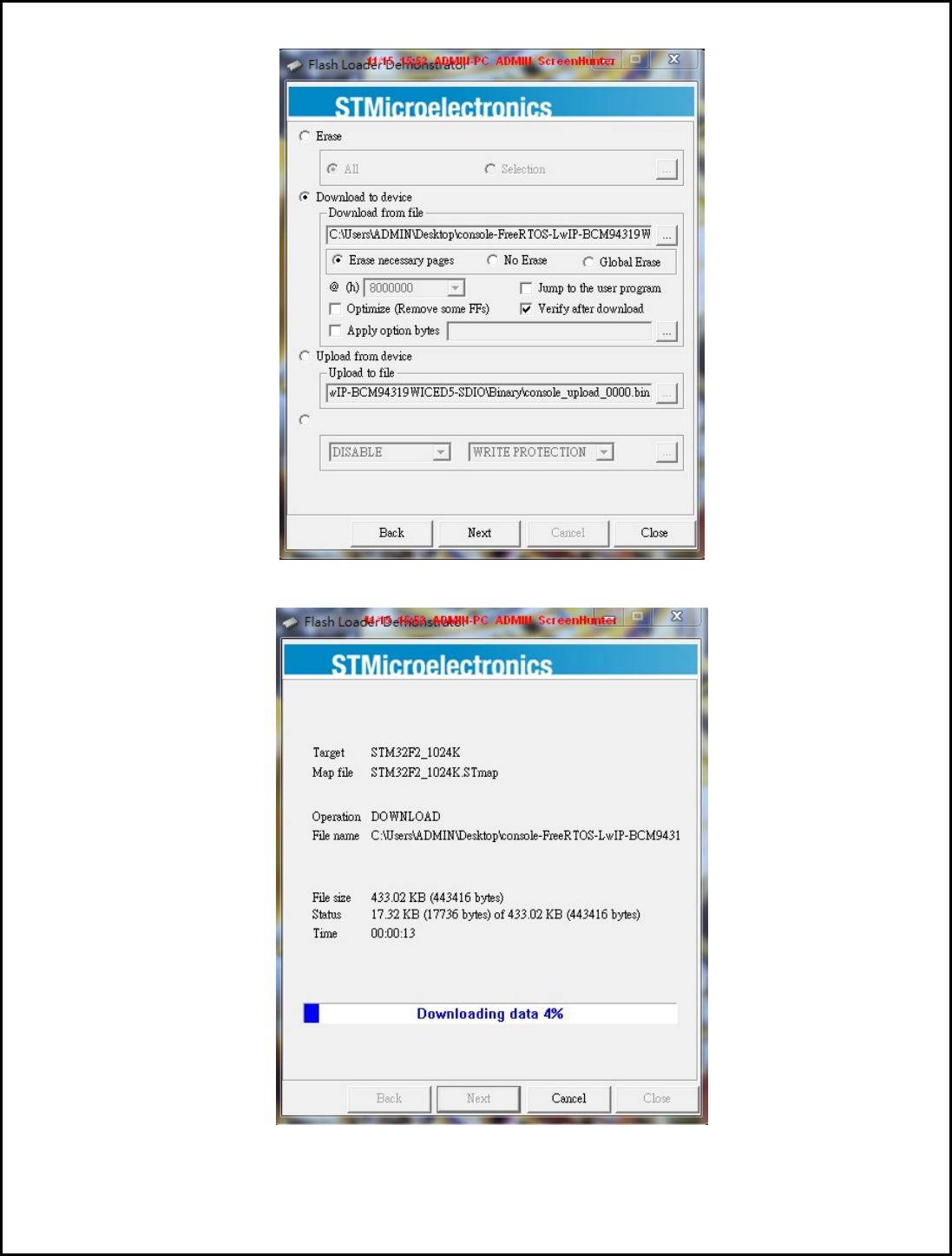

6. Specify the to-be-upgraded F/W path (the example shows “console-FreeRTOS-
LwIP-BCM94319WICED5-SDIO.hex”), press [Next]
39
7. Flash Loader program first erases then downloads F/W to device
40
41
Limited Warranty
Warranty Coverage and Duration
Radicom Research, Inc. (“RRI”) warrants to the original purchaser its RRI-manufactured
products (“Product”) against defects in material and workmanship under normal use and
service for a period of one year from the date of delivery.
During the applicable warranty period, at no charge, RRI will, at its option, either repair,
replace or refund the purchase price of this Product, provided it is returned in accordance
with the terms of this warranty to RRI. Repair, at the option of RRI, may include the
replacement of parts, boards or other components with functionally equivalent
reconditioned or new parts, boards or other components. Replaced parts, boards or other
components are warranted for the balance of the original applicable warranty period. All
replaced items shall become the property of RRI.
RRI MAKES NO GUARANTEE OR WARRANTY THAT THE PRODUCT WILL
PREVENT OCCURRENCES, OR THE CONSEQUENCES THEREOF, WHICH THE
PRODUCT IS DESIGNED TO DETECT.
This expressed limited warranty is extended by RRI to the original end-user purchaser
only, and is not assignable or transferable to any other party. This is the complete
warranty for the Product manufactured by RRI, and RRI assumes no obligation or
liability for additions or modifications to this warranty. In no case does RRI warrant the
installation, maintenance or service of the Product.
RRI is not responsible in any way for any ancillary equipment not furnished by RRI that
is attached to or used in connection with the Product, or for operation of the Product with
any ancillary equipment, and all such equipment is expressly excluded from this warranty.
Because of wide variations in topographical and atmospheric conditions,
which may require availability of repeater stations or of particular radio frequencies, RRI
assumes no liability for range, coverage or suitability of the Product for any particular
application. Buyer acknowledges that RRI does not know a particular purpose for which
buyer wants the product, and that buyer is not relying on RRI’s skill and judgment to
select or furnish suitable goods.
What this Warranty does NOT Cover:
(a) Defects or damage resulting from use of the Product in other than its normal and
customary manner.
(b) Defects or damage from misuse, accident or neglect.
(c) Defects of damage from improper testing, operation, maintenance, installation,
alteration, modification or adjustment.
(d) Disassembly or repair of the Product in such a manner as to adversely affect
performance or prevent adequate inspection and testing to verify any warranty claim.
(e) Any Product that has had its serial number or date code removed or made illegible.
42
How to Receive Warranty Service:
To obtain warranty service, contact RRI by phone (408)383-9006 for your sales
representative or email to sales@radi.com for an RMA (Return Merchandise
Authorization) number. Deliver or send the Product, transportation and insurance
prepaid to RRI, with the RMA number clearly marked on the outside of the package.
General Provision
This warranty sets forth the full extent of RRI’s responsibilities regarding the
Product. Repair, replacement or refund of the purchase price, at RRI’s option, is the
exclusive remedy.
THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESSED
WARRANTIES. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING
WITHOUT LIMITATION, THE IMPLIED WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. TO THE FULLEST EXTENT PERMITTED BY LAW, RRI
DISCLAIMS ANY LIABILITY
FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT,
FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL
LOSS, LOST PROFITS OR SAVING OR OTHER INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO
USE OR FAILURE OF SUCH PRODUCT.
43
Contacting Radicom Research
If more information or technical support is needed, please contact us:
2148 Bering Drive
San Jose, CA. 95131
Telephone: (408) 383 9006
Fax: (408) 383 9007
or
e-mail: sales@radi.com
http://www.radi.com/
44
