USERS MANUAL

stay + play wireless fence™
operating and training guide
Model Number
PIF00-12917
PLEASE READ THIS ENTIRE GUIDE BEFORE BEGINNING
2 1-800-732-2677
Important Safety Information
Explanation of Attention Words and Symbols used in this guide
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey
all safety messages that follow this symbol to avoid possible injury or death.
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION, used without the safety alert symbol, indicates a hazardous situation
which, if not avoided, could result in harm to your pet.
NOTICE is used to address safe use practices not related to personal injury.
• Not for use with aggressive dogs. Do not use this product if your dog is prone to
aggressive behavior. Aggressive dogs can cause severe injury or death to their
owners and others. If you are not sure that this product is right for your dog,
please talk to your veterinarian or a certifi ed trainer.
• Risk of electric shock. Use the Fence Transmitter indoors in dry location only.
• This PetSafe® Stay + Play Wireless Fence™ is NOT a solid barrier. The system is
designed to act as a deterrent to remind pets by Static Correction to remain in the
boundary established. It is important that you reinforce training with your pet on a
regular basis. Since the tolerance level to Static Correction varies from pet to pet,
Radio Systems® Corporation CANNOT guarantee that the system will, in all cases,
keep a pet within the established boundary. Not all pets can be trained to avoid
crossing the boundary! Therefore, if you have reason to believe that your pet
may pose a danger to others or harm himself if he is not kept from crossing the
boundaries, you should NOT rely solely upon the PetSafe® Stay + Play Wireless
Fence™ to confi ne your pet. Radio Systems® Corporation shall NOT be liable for
any property damage, economic loss or any consequential damages, sustained
as a result of any animal crossing the boundary.
• Proper fi t of the collar is important. A collar worn for too long or made too tight on
the pet’s neck may cause skin damage. Ranging from redness to pressure ulcers;
this condition is commonly known as bed sores.
- Avoid leaving the collar on the dog for more than 12 hours per day.
- When possible reposition the collar on the pet’s neck every 1 to 2 hours.
- Check the fi t to prevent excessive pressure; follow the instructions in
this manual.
- Never connect a lead to the electronic collar; it will cause excessive
pressure on the contacts.
- When using a separate collar for a lead, don’t put pressure on the
electronic collar.
- Wash the dog’s neck area and the contacts of the collar weekly with a
damp cloth.
- Examine the contact area daily for signs of a rash or a sore.
- If a rash or sore is found, discontinue use of the collar until the skin
has healed.
- If the condition persists beyond 48 hours, see your veterinarian.
- For additional information on bed sores and pressure necrosis, please
visit our website.
www.petsafe.net 3
These steps will help keep your pet safe and comfortable. Millions of pets are
comfortable while they wear stainless steel contacts. Some pets are sensitive to
contact pressure. You may fi nd after some time that your pet is very tolerant of the
collar. If so, you may relax some of these precautions. It is important to continue
daily checks of the contact area. If redness or sores are found, discontinue use until
the skin has fully healed.
• You may need to trim the hair in the area of the Contact Points. Never shave the
dog’s neck; this may lead to a rash or infection.
• Always remove your dog’s Receiver Collar before performing any Transmitter
testing.
• The Receiver Collar should not be on your dog when the system is tested. Your
pet may receive an unintended correction.
• The Boundary Width of the system must be tested whenever an adjustment is
made to the containment fi eld to prevent unintended corrections to your pet.
• If you use a collar and leash for training, be sure the extra collar does not put
pressure on the contact points.
• Never remove power from the system when the collar is on the pet. This may
activate the Receiver Collar.
• Radio Systems® Corporation recommends the use of an Uninterruptible Power
Supply (UPS) for use with your wireless fence. Should the power go out at your
home, your pet will be unprotected. Power outages can be unpredictable, and the
use of a UPS will provide you with some time to properly restrain your pet.
In rare instances, if your pet is near the boundary at the time when the power fails, it
is possible that your pet will receive a correction. This correction will stop after a 15
second timeout period has been reached. This is due to the operation of the collar:
the collar is activated by the absence of the containment signal.
While results will vary depending on the UPS manufacturer’s specifi cations the
following are typical examples to guide your choice of UPS:
• Using a 400 VA UPS a consumer should expect 1 hour of backup time.
• Using a 900 VA UPS a consumer could expect 4 hours of backup time.
If settings below maximum fence size are used, additional backup time will result.
At minimum fence size settings backup time may be more than two times the
backup time estimated at maximum fence size.
• To prevent an unintended correction, after the Boundary Flags have been placed,
be sure to set the static correction on the Receiver Collar back to level 1 tone only.
• Do not charge your Receiver Collar every night. Charging too often can reduce
battery life. Charge your Receiver Collar when the Receiver Indicator Light blinks
yellow; or when the light blinks red.
• Do not place anything on the top of the Transmitter or cover any ventilation holes.
This may overheat the Transmitter and cause early transmit failure.
4 1-800-732-2677
Thank you for choosing PetSafe® brand. You and your pet deserve a companionship that
includes memorable moments and a shared understanding together. Our products and training
tools promote a lifestyle of protection, teaching, and love — essentials that infl uence memories
for a lifetime. If you have any questions about our products or training your pet, please visit our
website at www.petsafe.net or contact our Customer Care Center at 1-800-732-2677.
To get the most protection out of your warranty, please register your product within 30 days
at www.petsafe.net. By registering and keeping your receipt, you will enjoy the product’s
full warranty and should you ever need to call the Customer Care Center, we will be able to
help you faster. Most importantly, PetSafe® will never give or sell your valuable information to
anyone. Complete warranty information is available online at www.petsafe.net.
Table of Contents
Components ...............................................................................................................................5
Other Items You May Need ............................................................................................5
How the System Works ...................................................................................................6
Key Defi nitions ................................................................................................................6
Operating Guide ......................................................................................................7
Set Up the Transmitter .................................................................................................7
Charge the Receiver Collar .......................................................................................... 8
Prepare the Receiver Collar ..........................................................................................8
Adjust the Pet Area to Desired Size ...........................................................................11
Transmitter Range Chart.............................................................................................12
Place the Boundary Flags ...........................................................................................12
Fit the Receiver Collar ................................................................................................13
Training Guide ........................................................................................................ 15
Be Patient With Your Pet ............................................................................................ 15
Day 1 - Boundary Awareness ......................................................................................16
Days 2 thru 4 - Continue Boundary Awareness ..........................................................17
Days 5 thru 8 - Distraction Phase ...............................................................................17
Days 9 thru 14 - Unleashed Supervision .....................................................................18
Days 15 thru 30 - Pet Monitoring ............................................................................... 19
Taking Your Pet Out of the Pet Area .............................................................................19
Wireless-To-Go .............................................................................................................. 20
Accessories ....................................................................................................................20
Frequently Asked Questions ...........................................................................21
Troubleshooting .....................................................................................................23
Terms of Use and Limitation of Liability .......................................................................25
Compliance ...................................................................................................................26
Customer Care International .........................................................................................26
Mounting Template .......................................................................................................28
www.petsafe.net 5

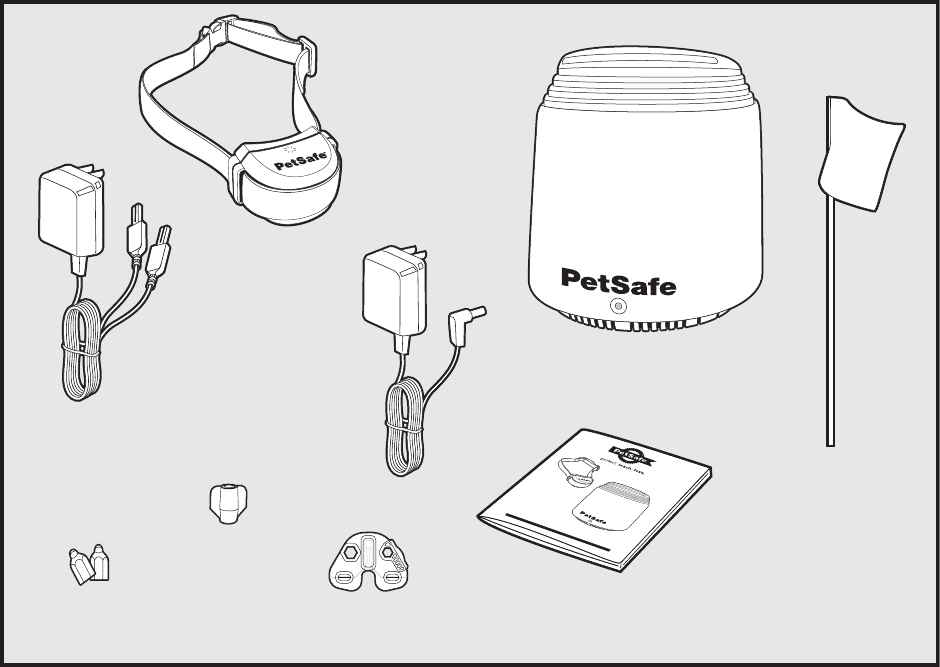

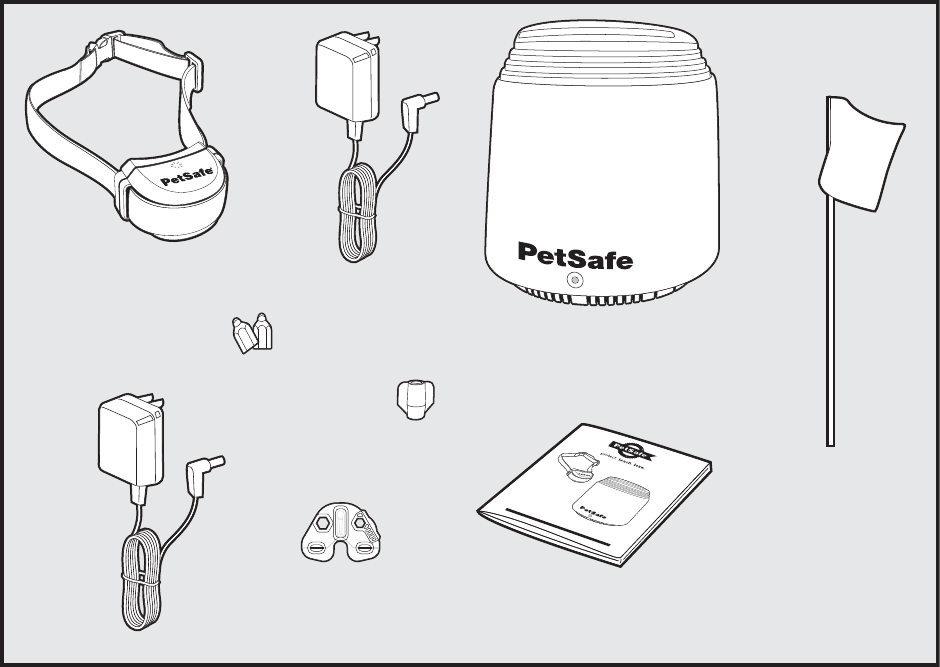

Components
Transmitter
Operating and
Training Guide
Receiver
Collar
Test Light
Tool
Receiver
Charger
Contact Point
Wrench
Long
Contact Points
Boundary Flags - 50
Transmitter
Power
Adapter
stay + play wireless fence
™
operating and training guide
Model Number
PIF00-12917
PLEASE READ THIS ENTIRE GUIDE BEFORE BEGINNING
Other Items You May Need
• Pliers
• Scissors
• Lighter
• Drill & mounting hardware
• Tape measure
• Non-metallic collar and leash
Set up and training help: www.petsafe.net/fence
Want professional installation help? Invisible Fence® Brand installers will come to your home
and install your new PetSafe® System for an additional cost. Contact your local dealer at
1-877-866-DOGS (3647) or visit our website at www.invisiblefence.com for more information.
6 1-800-732-2677
Note: In many
neighborhoods,
nearby property lines
may limit how large
the Pet Area can be.
Maximum 105 ft. range
(53 average steps)
PET AREA
Transmitter
How the System Works
The PetSafe® Stay + Play Wireless Fence™ has been proven safe, comfortable, and effective
for pets over 5 pounds. The system works by transmitting a radio signal up to 105 feet in all
directions. You temporarily defi ne the Pet Area with Boundary Flags for a visual aid in training
your pet. Your pet wears a Receiver Collar with Contact Points that touch his neck, and, once
trained, is allowed to roam freely in the Pet Area. When your pet reaches the Boundary Zone,
the Receiver Collar gives a warning tone before delivering a safe Static Correction through the
Contact Points to get his attention until he returns to the Pet Area.
Key Definitions
Transmitter: Transmits the radio signal and is the center of the Pet Area.
Pet Area: Distance from the Transmitter where your pet can roam freely.
Boundary Zone: 2 to 3 foot wide area outside the Pet Area
where your pet’s Receiver Collar will begin to tone and then
begin to deliver a Static Correction. The correction will start
in the Boundary Zone and continue anywhere beyond the
Pet Area. Note: The Receiver Collar is equipped with a safety
time-out feature that will stop correcting after 15 seconds if
your pet remains outside the Pet Area.
Receiver Collar: Receives the radio signal from
the Transmitter.
Mode Button: Turns Receiver on/off and adjusts
the level of Static Correction your pet receives
outside the Pet Area.
Receiver Indicator Light: Indicates the level of
correction at which the Receiver Collar is set. This
light also to indicate battery status.
Contact Points: Deliver the safe Static Correction when
your pet moves into the Boundary Zone.
Power Jack: Where the Power Adapter plugs into the
Transmitter. The Transmitter is powered by a standard 120-volt outlet.
Boundary Switch: Adjust according to the size of the Pet Area desired.
Note: Adjusting the switch does not change the level of Static Correction
on the Receiver Collar.
Power Light: Indicates when the Transmitter is on.
Boundary Control Dial: Adjusts the distance from the Transmitter to the Boundary Zone. Note: Adjusting the
dial does not change the level of Static Correction on the Receiver Collar.
Receiver Charger: Charges the batteries inside the Receiver Collar
Receiver Charge Jack: Connection point for charging Receiver battery.
Alarm Disable Button: Silences Transmitter Alarm
Receiver Collar
Receiver
Indicator
Light
Transmitter
Power
Light
LOW HIGH
Power
Jack
Boundary
Switch
Boundary
Control Dial
LOW HIGH
ALARM
AL
A
R
M
ALARM
Alarm
Disable
Button
www.petsafe.net 7
Operating Guide
Set Up the Transmitter
Important: You may need to move the Transmitter several times before determining the
fi nal location.
The Transmitter is located at the exact center of the Pet Area. Place the Transmitter:
• 2 to 4 feet above the fl oor located on the ground fl oor of your home.
• In a dry, well ventilated, protected area.
• In an area where temperatures do not fall below freezing (e.g., garage, shed, closet).
• On a non-metal table or other hard surface to ensure proper ventilation (1A).
• Do not place anything on top of Transmitter or cover any ventilation holes. This may
overheat the Transmitter and cause early transmit failure.

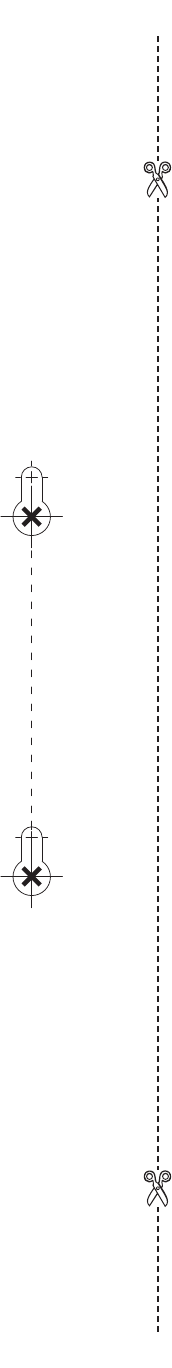

• You can mount on a wall (1A). A mounting template is included on the back of this guide.
• At least 3 feet from large metal objects, as these items may reduce the size and shape of
your Pet Area (1B).
The Transmitter has two built in warning
alarms: a Power Loss Alarm and a Failure
Alarm.
The Transmitter Power Loss Alarm sounds
an intermittent tone alarm indicating
power has been removed from the
Transmitter. The Power Loss Alarm will
last up to 1 hour. In the event of a power
loss, your pet is no longer contained.
There are 3 ways to turn off the Power
Loss Alarm.
Wall
Mount
Tabletop
1A
3ft.
1B
1. Plug adapter into a functional 120-volt outlet.
2. Unplug Transmitter power Adapter from the Power Jack located on the bottom of
the Transmitter.
3. Press the Alarm Disable button for 5 seconds then release. Three short tones will
sound to signify the alarm has been turned off.
The Failure Alarm makes a continuous tone indicating a Transmitter problem. In this
situation, your pet can no longer be contained. Contact the Customer Care Center for
a replacement at 1-800-732-2677.
Step
1
Charge the Receiver Collar
The Receiver Collar Charger is designed to plug into a standard
AC wall outlet. The Receiver Collar light will glow red when the
Receiver Charger is properly seated into the Receiver Charge
Jack. The light will turn green when charging is complete.
A built in safety circuit prevents the Receiver Collar from
overcharging.
The Receiver Collar will achieve a full charge in 2-3 hours. Each
charge can last up to 3 weeks depending upon frequency of use.
2A
• Do not charge your Receiver Collar every night. Frequent charging can have a
negative effect on the battery. We recommend that the Receiver Collar be used until
the Receiver Indicator Light blinks yellow or red.
To charge the Receiver Collar, lift and slide the Receiver Collar strap away from the
front of the unit (2A). Lift the rubber plug to allow access to the Receiver Charge Jack.
The rubber plug needs to remain attached to the Receiver Collar. Plug the Receiver
Charger into the Receiver Charge Jack on the Receiver Collar. The Receiver Charge
Jack and Receiver Charger are keyed to fi t one way. Do not force it in backwards.
Step
2
Prepare the Receiver Collar
Your Receiver Collar comes with Short Contact Points. Use the
Long Contact Points for pets with long or thick hair. Tighten
the Contact Points using the Contact Point Wrench (3A). Check
tightness weekly.
Turning the Receiver Collar ON
Press and hold the Mode Button continuously for 5 seconds (3B).
The Green or Yellow or Red Receiver Indicator Light will turn ON
for 5 seconds (3C) to indicate battery status, followed by the
Red Receiver Indicator Light fl ashing the Static Correction Level
Settings.
Turning the Receiver Collar OFF
Press and hold the Mode Button continuously for 5 seconds. The
Red Receiver Indicator Light will be ON during this time. The
Red Receiver Indicator Light will then turn OFF and all Receiver
Indicator Lights will stay OFF indicating that the
unit is turned OFF.
To extend the time between charging the Receiver Collar,
consider turning OFF the Receiver Collar when it is not in use.
3A
3B
Mode
Button
3C
Step
3
8 1-800-732-2677
www.petsafe.net 9
Receiver Collar Status Indicators
The Receiver Collar Status Indicator Light along with the Receiver Collar Alarm Tone are
used to determine the battery status, and the correction type. Refer to the Receiver Collar
Status Indicator Table below to understand the status lights and tones for the Receiver
Collar.
During normal operation, the Receiver Collar Indicator Light will fl ash every 4-5 seconds to
indicate the battery status as shown in the table below.
Receiver Collar Status Indicator Table
Status Light Alarm Tone Condition
While Plugged into Receiver Charger
Solid Red No Tone Charge in progress
Solid Green No Tone Charge complete
No Light Charge failure, contact
Customer Care Center
After Removing from Receiver Charger
Continuous
Green or Yellow or Red
(5 seconds duration)
No Tone
Battery Charge Indication.
Occurs immediately after unplugging
the charger from the Receiver Collar
Operating Battery Status
Slow Blinking Green
(every 4-5 seconds) No Tone Collar battery charge 100%-60%
Slow Blinking Yellow
(every 4-5 seconds) No Tone Collar battery charge 60%-20%
Slow Blinking Red
(every 4-5 seconds) No Tone Collar battery charge 20% or less,
charge immediately
Receiver Activation Status
Fast Pulsating Green
(3 flashes per second) Warning Tone Warning Tone
Fast Pulsating Red
(3 flashes per second)
Stimulation Tone for
duration of stimulation
Stimulation being delivered
up to 15 seconds
Continuous Green
(10 seconds) No Tone Over Correction Protection;
collar locked for 10 seconds
10 1-800-732-2677
To Set the Static Correction Level
Read all steps before attempting to set the Static Correction Level.
1. Press the Mode Button and release (3B) when the Receiver Indicator Light
illuminates Red (3C).
2. The Receiver Indicator Light will emit a series of Red fl ashes representing the Static
Correction Level.
3. Increase the Static Correction Level by pressing and releasing the Mode Button
within 5 seconds of the previous series of fl ashes.
The Static Correction levels increase in strength from 1 to 6. Pushing the Correction
Level Button while the Receiver Collar is on level 6 will cause the Receiver Collar
to revert to level 1. Refer to the Function and Response Table to choose the Static
Correction level that best fi ts your pet.
The Receiver Indicator Light indicates Battery Status and Static Correction Levels.
The light will fl ash Red every 4 to 5 seconds when battery charging is required.
Function and Response Table
Indicator Light
Response
Static
Correction
Level
Receiver Collar Function Temperament of Pet
1 Red Flash 1 No Static Correction, Tone Only Initial Training Mode
2 Red Flashes 2 Low Static Correction Timid
3 Red Flashes 3 Medium-Low Static Correction Timid or Average
4 Red Flashes 4 Medium Static Correction Average Energy
5 Red Flashes 5 Medium-High Static Correction Average or High
Energy
6 Red Flashes 6 High Static Correction High Energy
Flashes Red
once every
4 to 5 seconds
Indicates Low Battery
Over Correction Protection
In the unlikely event that your pet “freezes” in the Boundary Zone, this feature limits
the Static Correction duration to 15 seconds. While the system locks out further Static
Correction, the green light will remain on for 10 seconds.
www.petsafe.net 11
Adjust the Pet Area to Desired Size
Make sure the entire Pet Area lies within your property
boundaries (4A). Always start determining the Boundary Zone
at the shortest distance from Transmitter. Place the Boundary
Switch on “Low” if the Boundary Zone will be less than 45 feet
from the Transmitter.
Test Light Instructions
1. Make sure the Receiver Collar Battery is properly charged.
Set the Correction Level to 2 or above.
2. Hold the Test Light Contacts to the Contact Points. (4B)
3. Walk toward the Boundary Zone holding the Receiver Collar
at your pet’s neck level
until the Test Light fl ashes.
Save Test Light for future testing.
Note: If your next-door neighbor has an In-Ground Containment
System, see Troubleshooting section page 24.
To maximize your Pet Area, make sure the Boundary Switch is on
“High” and the Boundary Control Dial is set to “8” (4C & 4D). Plug
Power Adapter into Power Jack and standard 120-volt outlet.
Pet
Area
STREET
4A
4B
Two-Person Method
Hold the Receiver Collar at your pet’s neck height (4E)
with logo side facing away from the Transmitter and
Contact Points facing upwards. Walk to the edge of
the desired Pet Area. Facing away from the Transmitter,
hold the Receiver Collar at the edge of the desired Pet
Area (4F).
Starting with the Boundary Control Dial set to “8”,
LOW
HIGH
4D
4C
have a second person turn the dial down SLOWLY. When the Receiver Collar starts to
beep, tell the person to stop turning the Boundary Control Dial. Record your settings on
the next page for future reference.
Step
4
One-Person Method
Measure the shortest distance from the desired
Boundary Zone to the Transmitter. Find the
distance on the Transmitter Range Chart on
the next page and set the Boundary Switch
and Boundary Control Dial. Hold the Test Light
Contacts to the Contact Points (4B). Take the
Receiver Collar to the Boundary Zone with the
logo side facing away from the Transmitter and
Contact Points facing upwards (4E). Hold the
4E
B
o
u
n
d
a
r
y
Z
o
n
e
Pet
Area
4F
Receiver Collar at your pet’s neck level (4F) until the Receiver Collar beeps and the Test
Light fl ashes. If the Receiver Collar beeps before or after the desired Boundary Zone,
return to the Transmitter and adjust the Boundary Control Dial. Repeat this process
until the Receiver Collar is beeping at the desired location. Record your settings on the
next page for future reference.
12 1-800-732-2677
Transmitter
Range Chart
Boundary
Control
Dial
Position
Boundary
Switch
LOW
Boundary
Switch
HIGH
117 ft. 35 ft.
2
3
4
5
6
7
845 ft. 105 ft.
Note: These distances are approximate.
Record Your
Settings
Final
Boundary
Switch
Setting
(HIGH or
LOW)
Final
Boundary
Control
Dial
Position
(1-8)
Receiver
Static
Correction
Level (1-6)
Home
Camping
Vacation
Other
Place the Boundary Flags
The Boundary Flags are visual reminders
for your pet of where the Boundary Zone is
located. The Receiver Collar will activate within
2 to 3 feet of the Boundary Flags.
1. Using the Test Light, with the Static
Correction Level set at 2 or greater, hold the
Receiver Collar at your pet’s neck height with
logo side facing away from the Transmitter.
2. Walk towards the Boundary Zone until the
Receiver Collar beeps and the Test Light
fl ashes (5A).
5A 5B
3. Place a Boundary Flag in the ground (5B).
4. Walk back into the Pet Area until the beeping stops.
5. Repeat this process around the Boundary Zone until it is marked with Boundary
Flags every 10 feet.
The Boundary Flags may be in different parts of the Boundary Zone and may not be in
a line. The Boundary Zone is 2 to 3 feet wide.
Step
5
www.petsafe.net 13
Fit the Receiver Collar
Important: The proper fit and placement of your Receiver Collar is important for effective training.
The Contact Points must have direct contact with your pet’s skin on the underside of his neck.
Please read and follow the instructions in this manual. Proper fi t of the collar
is important. A collar worn for too long or made too tight on the pet’s neck
may cause skin damage. Ranging from redness to pressure ulcers; this
condition is commonly known as bed sores.
• Avoid leaving the collar on the dog for more than 12 hours per day.
• When possible reposition the collar on the pet’s neck every 1 to 2 hours.
• Check the fi t to prevent excessive pressure; follow the instructions in
this manual.
• Never connect a lead to the electronic collar; it will cause excessive
pressure on the contacts.
• When using a separate collar for a lead, don’t put pressure on the
electronic collar.
• Wash the dog’s neck area and the contacts of the collar weekly with a
damp cloth.
• Examine the contact area daily for signs of a rash or a sore.
• If a rash or sore is found, discontinue use of the collar until the skin has
healed.
• If the condition persists beyond 48 hours, see your veterinarian.
• For additional information on bed sores and pressure necrosis, please
visit our website.
These steps will help keep your pet safe and comfortable. Millions of pets
are comfortable while they wear stainless steel contacts. Some pets are
sensitive to contact pressure. You may fi nd after some time that your pet is
very tolerant of the collar. If so, you may relax some of these precautions. It is
important to continue daily checks of the contact area. If redness or sores are
found, discontinue use until the skin has fully healed.
You may need to trim the hair in the area of the Contact Points. Never shave
the dog’s neck; this may lead to a rash or infection.
To assure a proper fit, please follow these steps:
1. Make sure Transmitter is not plugged in, and the receiver is
turned off.
2. Start with your pet standing comfortably (6A).
3. To make it easier to hear the warning beep, place the
Receiver Collar on your pet with the logo side of Receiver
facing your pet’s chin.
4. Center the Contact Points underneath your pet’s neck,
touching the skin.
6A
You may need to trim the hair in the area of the Contact Points. Never shave
the dog’s neck; this may lead to a rash or infection.
Step
6
14 1-800-732-2677
5. Check the tightness of the Receiver
Collar by inserting one fi nger between
the end of a Contact Point and your pet’s
neck. The fi t should be snug but not
constricting (6B).
6. Allow your pet to wear the collar for
several minutes then recheck the fi t.
Check the fi t again as your pet becomes
more comfortable with the Receiver
Collar.
6B
7. Trim the collar as follows (6C):
a. Mark the desired length of the
Receiver Collar with a pen. Allow for
growth if your pet is young or grows
a thick winter coat.
b. Remove the Receiver Collar from
your pet and cut off the excess.
c. Before placing the Receiver Collar
back onto your pet, seal the edge
of the cut collar by applying a fl ame
along the frayed edge.
6C
To Re-Thread the Collar
Slide Buckle
Ridges
The slide buckle prevents the collar from becoming loose
around your pet’s neck.
The ridges must be facing up; the collar will slip if it is
not properly threaded.
www.petsafe.net 15
Training Guide
Be Patient With Your Pet
Important: Proper training of your pet is essential to the success of the PetSafe®
Stay + Play Wireless Fence™. Read this section completely before beginning to
train your pet. Remember that the PetSafe® Stay + Play Wireless Fence™ is not a
solid barrier.
• Have fun with your pet throughout the training process.
Training should be fun, fair, fi rm and consistent.
• Train for 10 to 15 minutes at a time. Don’t try to do too
much too quickly. More-frequent short sessions are better
than less-frequent longer sessions.
• We suggest a minimum of 14 days of training. Depending
on your pet and how he learns, the training could take
more or less time.
• If your pet shows signs of stress, slow down the training
schedule, add additional days of training, or increase the amount of play time with
your pet in the Pet Area. Common stress signals include:
-Pet pulling on leash toward the house
-Ears tucked
-Tail down
-Body lowered
-Nervous / frantic movement or stiffening of pet’s body
• Your pet must be completely comfortable near the Boundary Flags at the end of
every training session. Spend at least 5 minutes of “play time” at the completion of
each session within 10 feet of the Boundary Flags.
• Finish each training session on a positive note with lots of praise and play.
• Remove the Receiver Collar after each training session.
• Be sure to contain your pet by another means during the training period (e.g. pen,
tie-out, leash, etc.).
• During training, if you need to take your pet out of the Pet Area, remove the
Receiver Collar and either pick your pet up or put him in the car to pass out of the
Pet Area.
• Even if you think your pet is responding well to the training, complete the entire
training. Reinforcement is important!
1234567
8 9 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 26 27 28
29 30 31
SMTWT F S
25
30
0
15
min.
45
16 1-800-732-2677
Day 1 - Boundary Awareness
Tone Only Training Mode
Perform three sessions on day 1, each training session lasting 10-15 minutes.
Goal:
To have your pet learn that the Boundary Flags and warning beep from the Receiver
Collar defi ne the new Pet Area.
Setup:
• Program the Static Correction Level on the Receiver Collar to Level 1 Tone Only
training mode.
• Put a separate non-metallic collar on your pet’s neck ABOVE the Receiver Collar and
attach a leash.
Be sure the extra collar does not put pressure on the Contact Points.
• Have tiny pieces of treats that your pet will fi nd desirable available (hot dogs or lunch
meat work well).
• Have your pet’s favorite play toy available.
Steps:
1. Begin by walking your pet on a leash in the Pet Area. Calmly praise and talk to your
pet.
2. Move toward the Boundary Flags (1A). Keep your mood happy.
3. With full control of your pet on a leash, walk to the fl ags. As your pet enters the Boundary
Zone, the Receiver Collar will begin to beep (1B). Allow your pet to stay in the Boundary
Zone for up to 2 seconds then gently help him back into the Pet Area (1C). Immediately
praise and offer your pet a treat as he enters the Pet Area, even if you have helped with
the leash.
4. Repeat this process at the same Boundary Flag until your pet resists going into the
Boundary Zone.
5. Aim to master 3-4 Boundary Flags per session. Make this FUN! Praise if your pet
quickly retreats or resists going into the Boundary Zone.
1A 1B 1C
Phase
1
www.petsafe.net 17
Days 2 thru 4 - Continue
Boundary Awareness
Introduction to Static Correction
Perform three sessions per day, each lasting 10-15 minutes.
Goal:
To train your pet to stay in the Pet Area and respect the boundary.
Setup:
• Program the Static Correction Level on the Receiver Collar to Level 2.
• Put a separate non-metallic collar on your pet’s neck ABOVE the Receiver Collar and
attach a leash.
Be sure the extra collar does not put pressure on the Contact Points.
• Have tiny pieces of treats available (hot dogs or lunch meat work well).
• Have your pet’s favorite play toy available.
Steps:
1. Repeat steps 1-5 in Phase One.
2. If your pet does not respond to the Static Correction, confi rm that the Receiver
Collar is fi tting properly according to Step 6 on page 13.
3. If the Receiver Collar is fi tted properly and your pet does not respond to the Static
Correction, increase the Static Correction Level by 1. Watch for slight reactions at
fi rst such as ears up, head turned, looking at the ground.
4. Stay at the same fl ag until your pet resists going into the Boundary Zone.
Days 5 thru 8 - Distraction Phase
Perform three training sessions per day, each lasting 10 to 15 minutes.
Goal:
To train your pet to stay within the Pet Area with distractions outside of the Pet Area.
Setup:
• Program the Static Correction Level on the Receiver Collar to level 2 or higher
depending on the reaction results from days 2 thru 4.
• Put a separate non-metallic collar on your pet’s neck ABOVE the Receiver Collar and
attach a leash.
Be sure the extra collar does not put pressure on the Contact Points.
• Have tiny pieces of treats available (hot dogs or lunch meat work well).
• Have your pet’s favorite play toy available.
• Create distractions to tempt your pet to enter the Boundary Zone, such as:
-Have a family member cross from inside the Pet Area to outside of it.
-Throw a ball or treat outside of the Pet Area.
-Have a neighbor walk their pet outside of the Pet Area.
• Gradually increase distraction level. Never coax or call your pet out of the Pet Area.
Phase
2
Phase
3
18 1-800-732-2677
Steps:
1. With full control of your pet on a leash, have the distraction presented.
2. If your pet does not move toward the distraction, praise and offer a treat.
3. If your pet does react to the distraction, allow him to go into the Boundary Zone.
4. Help your pet back into the Pet Area if he does not turn back after 2 seconds.
5. Treat and praise your pet anytime he comes back into the Pet Area with or without
help.
6. Repeat this process with other distractions. Use other family members during this
process.
7. If your pet does not respond to the Static Correction, confi rm that the Receiver
Collar is fi tting properly according to Step 6 on page 13.
8. If the Receiver Collar is fi tted properly and if your pet does not respond to the Static
Correction, increase the Static Correction Level by 1.
Days 9 thru 14 - Unleashed
Supervision
Training sessions should start at 10-15 minutes, gradually
increasing to over an hour.
Your pet is ready for this step only when he clearly avoids
the entire Boundary Zone, regardless of any distractions
or temptations. During this step, do not leave your pet
unattended.
Goal:
To give your pet free run of the Pet Area off the leash.
Setup:
Adjust the Receiver Collar to the permanent setting
appropriate for your pet.
Steps:
1. Enter the Pet Area with your pet wearing the Receiver Collar.
2. Walk around the yard and play with your pet, staying within the Pet Area at all times.
3. Preoccupy yourself with another task in the yard while watching your pet.
4. Should your pet escape, take the Receiver Collar off and lead him back into the
Pet Area.
Phase
4
www.petsafe.net 19
Days 15 thru 30 - Pet Monitoring
Your pet is ready to run! Check in on your pet at regular intervals.
Note: After you are satisfi ed your pet’s training is complete, remove every other
Boundary Flag every 4 days until all fl ags are removed. Save Boundary Flags for
future use.
Taking Your Pet Out of the Pet
Area
Important: Remove the Receiver Collar and leave it in the Pet Area.
Once your pet learns the Boundary Zone, he will be reluctant to cross it for walks
or car rides.
Option 1: Replace the Receiver Collar with a regular collar.
Put your pet in a car that is within the Pet Area and drive him
out of the Pet Area.
Option 2: Replace the Receiver Collar with a regular collar
and leash. Walk your pet out of the Pet Area while giving a
command such as “OK” at a specifi c place of the Boundary
Zone (the end of your driveway, sidewalk, etc.). Always leave the
Pet Area with a leash at this place and your pet will associate
leaving the Pet Area only on a leash, only at this place, and only
with a person. You may initially need to convince your pet to
leave the Pet Area with a food treat and lots of praise.
Note: You may also carry your pet out of the Pet Area.
Congratulations!
You have now
successfully completed
the training program.
Phase
5
20 1-800-732-2677
Wireless-To-Go
Your PetSafe® Stay + Play Wireless Fence™ is completely portable. Follow the set-up
procedures (steps 1 through 4) wherever you wish to have containment of your pet.
Reestablish the Pet Area and mark it with Boundary Flags so your pet knows his Boundary
Zone. Note: If setting up in a metal building or vehicle, the maximum size of the Pet Area
may be reduced. Be sure to remove the Receiver Collar before removing power from the
Transmitter. If you want to power the Transmitter from a car or other DC source, use an
inverter rated for 50 watts or more.
Accessories
To purchase additional accessories for your PetSafe® Stay + Play Wireless Fence®, contact the
Customer Care Center at 1-800-732-2677 or visit our website at www.petsafe.net to locate a
retailer near you.
Component Part Number
Extra Stay + Play Wireless Fence™ Receiver Collar (Rechargeable) PIF00-12918
Extra Wireless Non-Rechargeable Receiver Collar PIF-275-19
Wireless Transmitter Power Adapter (USA Plug) RFA-464
Receiver Collar Charger RFA-463
Extra Boundary Flags RFA-2
Extra Wireless Transmitter and Adapter PIF00-13210
Receiver Collar Accessory Pack RFA-454
www.petsafe.net 21
Frequently Asked Questions
Is the Receiver Collar
waterproof?
• Yes.
Will the PetSafe® Stay +
Play Wireless Fence™ cover
a larger circle than 210 feet
across?
• You can use another Wireless Transmitter with overlapping
boundaries of at least 5-10 feet to increase the size of the
Pet Area.
Will a sloping yard or hills
affect the Pet Area?
• The Transmitter signal extends up to 105 feet in all
directions. A sloping yard or a yard with hills can cause the
Pet Area to appear less or more than expected. Consider
repositioning the Transmitter to maximize your Pet Area.
Can I use more than one
Receiver Collar with the
Stay + Play Wireless Fence™?
• Yes. There is no limit to the number of pets you can contain
with the Stay + Play Wireless Fence™. You must purchase
an additional Wireless Pet Fence Receiver Collar for each
pet. Contact the Customer Care Center at 1-800-732-2677
or visit our website at www.petsafe.net to locate a retailer
near you.
Will the Stay + Play Wireless
Fence™ keep other pets out
of my yard?
• No. The Stay + Play Wireless Fence™ is only effective on
pets who wear the Receiver Collar.
Is there a hand-held remote
Transmitter that will work
with the Wireless System
Receiver Collar?
• No. You would need to purchase a separate Remote
Training System. Contact the Customer Care Center at
1-800-732-2677 or visit our website at www.petsafe.net to
locate a retailer near you.
If I have a question about my
Stay + Play Wireless Fence™
or need replacement parts,
where can I get answers or
service?
• Contact the Customer Care Center at 1-800-732-2677 or
visit our web site at www.petsafe.net.
Can I use the Stay + Play
Wireless Fence™ on an
aggressive pet?
• This product is not for use with aggressive pets. If you
are unsure if your dog is aggressive, please consult your
veterinarian or a certifi ed trainer.
Can I use the Stay + Play
Wireless Fence™ on a cat?
• The Stay + Play Wireless Fence™ can be used as long as the
cat can comfortably wear the Receiver Collar.
What happens if the power
goes out?
• The Stay + Play Wireless Fence™ is designed to recognize
power outages and shuts down without activating the
Receiver Collar. However, if your pet is near the Boundary
Zone during the power failure, he may receive a Static
Correction. The Transmitter will sound an intermittent
alarm for up to one hour to alert you to the power failure.
If my pet leaves the Pet
Area, how long will he be
corrected?
• Your pet will receive Static Correction for up to 15 seconds
as long as he is outside the Pet Area.
How often do I need to
charge the Receiver Collar
battery?
• Battery life depends on how frequently your pet tests the
Boundary Zone. The Receiver Indicator Light acts as a low
battery indicator, fl ashing red every 4 to 5 seconds when
replacement is required.
22 1-800-732-2677
Can I place the Receiver on
another collar?
• Yes. You may use any 3/4 inch, non-metallic collar.
Do I need to perform
maintenance on my
Stay + Play Wireless Fence™?
• Check your pet’s neck daily for irritation from the
Contact Points.
• Check the Contact Points on the Receiver Collar weekly to
make sure they are clean.
• Use the Contact Point Wrench to make sure the Contact
Points are secure. Do not over tighten.
• Check the fi t of the Receiver Collar weekly.
• The Receiver Indicator Light acts as a Battery Status
Indicator, fl ashing red every 4 to 5 seconds when
replacement is required.
How do I know the battery
in the Receiver Collar is still
working?
• Check Battery Status Indicator Lights.
Will vehicles, buildings and
landscape features (trees,
shrubs, etc.) affect the
performance of the
Stay +
Play Wireless Fence™
?
• Yes. Placing the Transmitter inside a metal building can
reduce the maximum range of the Stay + Play Wireless
Fence™.
• Parking a vehicle within the Pet Area, can reduce the
range of the system and cause your pet to receive a Static
Correction where it otherwise would not if the vehicle was
not there.
• Fixed large metal objects such as metal sheds can affect
the signal by reducing the maximum range of the system
at the location of the object. As a result, your pet may
receive a Static Correction.
What do I do if my pet’s neck
becomes red and irritated?
• This condition is due to the Contact Points irritating the
skin. Discontinue use of the Receiver Collar for a few
days. If the condition persists beyond 48 hours, see your
veterinarian. Once the skin returns to normal, replace the
Receiver Collar and monitor the skin condition closely.
Can I attach a leash to the
Receiver Collar?
• No. This can result in pulling the Contact Points too tightly
against your pet’s neck or the collar may break. Attach a
leash to a separate, non-metallic collar positioned above
the Receiver Collar.
Why does my Receiver Collar
have a tone only mode?
• The tone only mode can be used in training your pet to his
boundary or for well-trained pets that no longer require
Static Correction.
What if my Transmitter alarm
is sounding?
• A beeping tone indicates power loss. If the Transmitter fails
to transmit a proper signal, a continuous alarm will sound.
Contact the Customer Care Center at 1-800-732-2677.
www.petsafe.net 23
Troubleshooting
The Receiver Collar is not
beeping when setting up the
Boundary Zone.
• Make sure Receiver Collar is turned on and Battery Status
Lights are fl ashing every 4-5 seconds
• Charge Receiver Collar
• The beep may be diffi cult to hear in a noisy environment.
• Use Test Light as explained in the “Test Light Instructions”
section, and use it to determine the location of Boundary
Zone.
• Check that the Transmitter is set up according to
directions.
The Receiver Collar is not
beeping or administering a
Static Correction.
• Make sure Receiver Collar is turned on and Battery Status
Lights are fl ashing every 4-5 seconds
• Charge Receiver Collar
• Check that the Transmitter is plugged into a working 120-
volt outlet, the Power Light is on, and the Transmitter
controls are set at your desired settings.
The Receiver Collar is
beeping everywhere.
• Check that the Transmitter is plugged into a working
standard 120-volt outlet, the Power Light is on, and the
Transmitter controls are set at your desired settings.
• Bring Receiver Collar within 10 feet of the Transmitter to
reset.
• Make sure no continuous alarm is sounding on the
Transmitter.
The Receiver Collar is
beeping inside the house.
• It is recommended to remove the Receiver Collar from
your pet when indoors to avoid activation of the Receiver
Collar.
• Make sure the Transmitter is
plugged in
and set up
according to the directions.
• Ensure the entire house is within the Pet Area. The
Transmitter may need to be moved to adjust the Pet Area
to include the entire house.
• If relocating the Transmitter, remove the Receiver
Collar from your pet before removing power from the
Transmitter.
My pet is receiving a Static
Correction in his metal crate.
• The Receiver Collar activates when it loses the Transmitter
signal. The metal crate may block the Transmitter signal
which causes the Receiver Collar to activate.
• Remove the Receiver Collar from your pet when placing
him in his metal crate.
The Boundary Zone seems to
fl uctuate.
• This is normal for the electro magnetic fi eld of the Stay
+ Play Wireless Fence™. The fi eld may be affected by
surrounding “electronic noise,” which can cause it to
fl uctuate up to 5%.
• Where the Receiver Collar activates is infl uenced by the
speed and orientation of the Receiver Collar as your pet
enters the Boundary Zone.
24 1-800-732-2677
The Receiver Collar activates
in the middle of the yard.
• The Receiver Collar activates when it loses the Transmitter
signal. This sometimes occurs if a large metal object
is between the Receiver Collar and Transmitter, if the
orientation of the Receiver Collar changes near the Boundary
Zone, or if the surrounding “electronic noise” interferes with
the signal. If this continues to occur, consider relocating the
Transmitter and resetting the Pet Area.
The Receiver Collar is
beeping but my pet is not
responding to the Static
Correction.
• Make sure the Static Correction Level is set at 2 or above.
• Test the Receiver Collar with the Test Light.
• If the Test Light fl ashes, check the fi t of the Receiver Collar.
• Trim your pet’s fur where the Contact Points touch the
neck and/or switch to the longer Contact Points.
• Contact Points must be in contact with dog’s skin.
• Increase the Static Correction Level.
• Repeat training steps to reinforce training.
My pet reacts strongly to
the Static Correction and has
become fearful.
• Lower the Static Correction Level.
• Make sure you are in control of the situation when your pet
receives his fi rst Static Corrections (have him on a leash
attached to a separate, non-metallic collar) and lead him
into the Pet Area and praise him. If your pet remains fearful,
suspend training and start again the next day. Make sure to
end all training sessions on a positive note with lots of praise
and play.
The Transmitter Power Light is
not on.
• Make sure the Power Adapter is plugged into the
Transmitter and into a working standard 120-volt outlet.
I was setting up the Pet Area
and after I turned down the
Boundary Control Dial, the
Receiver Collar would no
longer beep or correct.
• You may have turned the Boundary Control Dial down too
quickly, causing the Receiver Collar to go into power-fail
mode. This is a safety feature designed to protect your
pet when power to the Transmitter goes out. With the
Receiver Collar within 10 feet of the Transmitter, readjust
the Boundary Control Dial as shown in Step 4 and reset the
Boundary Zone, making sure to turn the dial down slowly.
My next-door neighbor has
an In-Ground Containment
System and the Receiver
Collar does not activate near
their property.
• Your neighbor’s In-Ground Fence signal may interfere with
the operation of the Receiver Collar preventing activation
close to their fence. To minimize the interference, reduce
the size of the Pet Area or move the Transmitter away from
the In-Ground Fence System.
• Adjust the Pet Area so that the Receiver Collar activates
at least 5 feet beyond the reduced Boundary setting when
walking towards the In-Ground Fence.
www.petsafe.net 25
Terms of Use and Limitation
of Liability
1. Terms of Use
This Product is offered to you conditioned upon your acceptance without modifi cation of the
terms, conditions and notices contained herein. Usage of this Product implies acceptance of
all such terms, conditions, and notices.
2. Proper Use
This Product is designed for use with pets where training is desired. The specifi c
temperament of your pet may not work with this Product. If you are unsure whether this is
appropriate for your pet, please consult your veterinarian or certifi ed trainer.
3. No Unlawful or Prohibited Use
This Product is designed for use with pets only. This pet training device is not intended
to harm, injure or provoke. Using this Product in a way that is not intended could result in
violation of Federal, State or local laws.
4. Limitation of Liability
In no event shall Radio Systems® Corporation be liable for any direct, indirect, punitive,
incidental, special or consequential damages, or any damages whatsoever arising out of or
connected with the use or misuse of this Product. Buyer assumes all risks and liability from
the use of this Product.
5. Modification of Terms and Conditions
Radio Systems® Corporation reserves the right to change the terms, conditions and notices
under which this Product is offered.
26 1-800-732-2677
Compliance
FCC/Canada
This Class B digital apparatus complies with Canadian ICES-003. This equipment has been tested
and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a residential environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction guide, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a practical installation. If this equipment causes
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Relocate the interfered receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Contact the Customer Care Center at 1-800-732-2677.
This device complies with Industry Canada Rules.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Unauthorized changes or modifi cations to the equipment, not approved by Radio Systems®
Corporation, could result in not meeting compliance with FCC regulations and void the user’s
authority to operate the equipment.
Australia
This device complies with the applicable EMC requirements specifi ed by the ACMA (Australian
Communications and Media Authority).
Customer Care International
USA & Canada - Tel: 800-732-2677
Monday - Friday 8 AM - 8 PM / Saturday 9 AM – 5 PM
Australia - Tel: 1800 786 608
Monday - Friday 7:30 AM - 5 PM
New Zealand - Tel: 0800 543 054
Monday - Friday 10:30 AM - 7 PM
This product has the benefi t of a limited manufacturer’s warranty. Details of the warranty
applicable to this product and its terms can be found at www.petsafe.net and/or are available
by sending a stamped addressed envelope to PetSafe® Ltd. Redthorn House, Unit 9, Chorley
West Business Park, Ackhurst Road, Chorley, Lancashire PR7 1NL, United Kingdom.
www.petsafe.net 27
2½ INCHES (63.5mm)
Mounting Template
Radio Systems® Corporation
10427 Electric Avenue
Knoxville, TN 37932
1-800-732-2677
www.petsafe.net
Protected by US Patents 6,879,300
and 7,142,167.
Other patents pending.
400-1243
©2010 Radio Systems Corporation

Navigation menu
