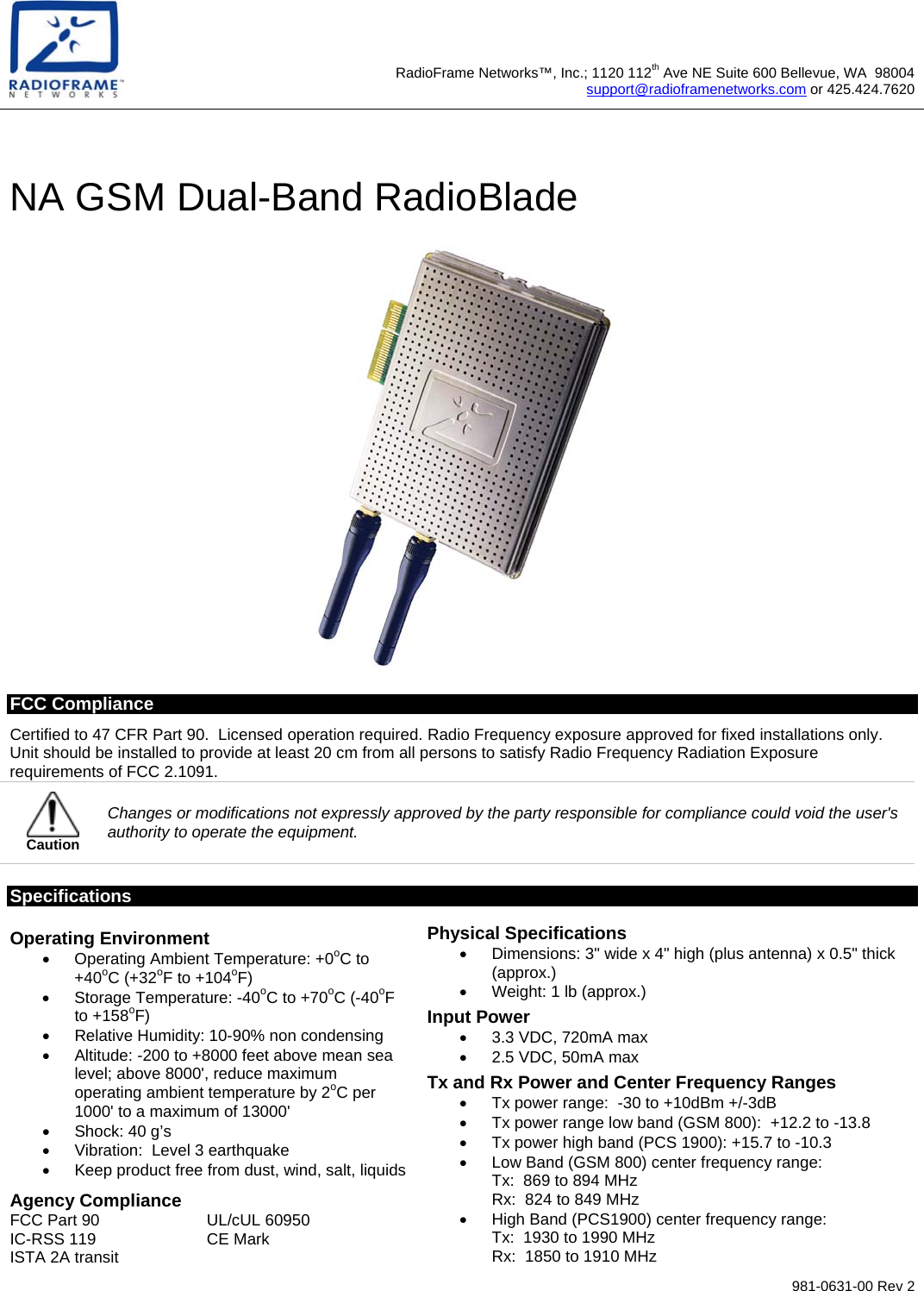

981-0631-00 Rev 2 RadioFrame Networks™, Inc.; 1120 112th Ave NE Suite 600 Bellevue, WA 98004support@radioframenetworks.com or 425.424.7620 NA GSM Dual-Band RadioBlade FCC Compliance Certified to 47 CFR Part 90. Licensed operation required. Radio Frequency exposure approved for fixed installations only. Unit should be installed to provide at least 20 cm from all persons to satisfy Radio Frequency Radiation Exposure requirements of FCC 2.1091. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Specifications Operating Environment • Operating Ambient Temperature: +0oC to +40oC (+32oF to +104oF) • Storage Temperature: -40oC to +70oC (-40oF to +158oF) • Relative Humidity: 10-90% non condensing • Altitude: -200 to +8000 feet above mean sea level; above 8000', reduce maximum operating ambient temperature by 2oC per 1000' to a maximum of 13000' • Shock: 40 g’s • Vibration: Level 3 earthquake • Keep product free from dust, wind, salt, liquids Agency Compliance FCC Part 90 UL/cUL 60950 IC-RSS 119 CE Mark ISTA 2A transit Physical Specifications • Dimensions: 3" wide x 4" high (plus antenna) x 0.5" thick (approx.) • Weight: 1 lb (approx.) Input Power • 3.3 VDC, 720mA max • 2.5 VDC, 50mA max Tx and Rx Power and Center Frequency Ranges • Tx power range: -30 to +10dBm +/-3dB • Tx power range low band (GSM 800): +12.2 to -13.8 • Tx power high band (PCS 1900): +15.7 to -10.3 • Low Band (GSM 800) center frequency range: Tx: 869 to 894 MHz Rx: 824 to 849 MHz • High Band (PCS1900) center frequency range: Tx: 1930 to 1990 MHz Rx: 1850 to 1910 MHz

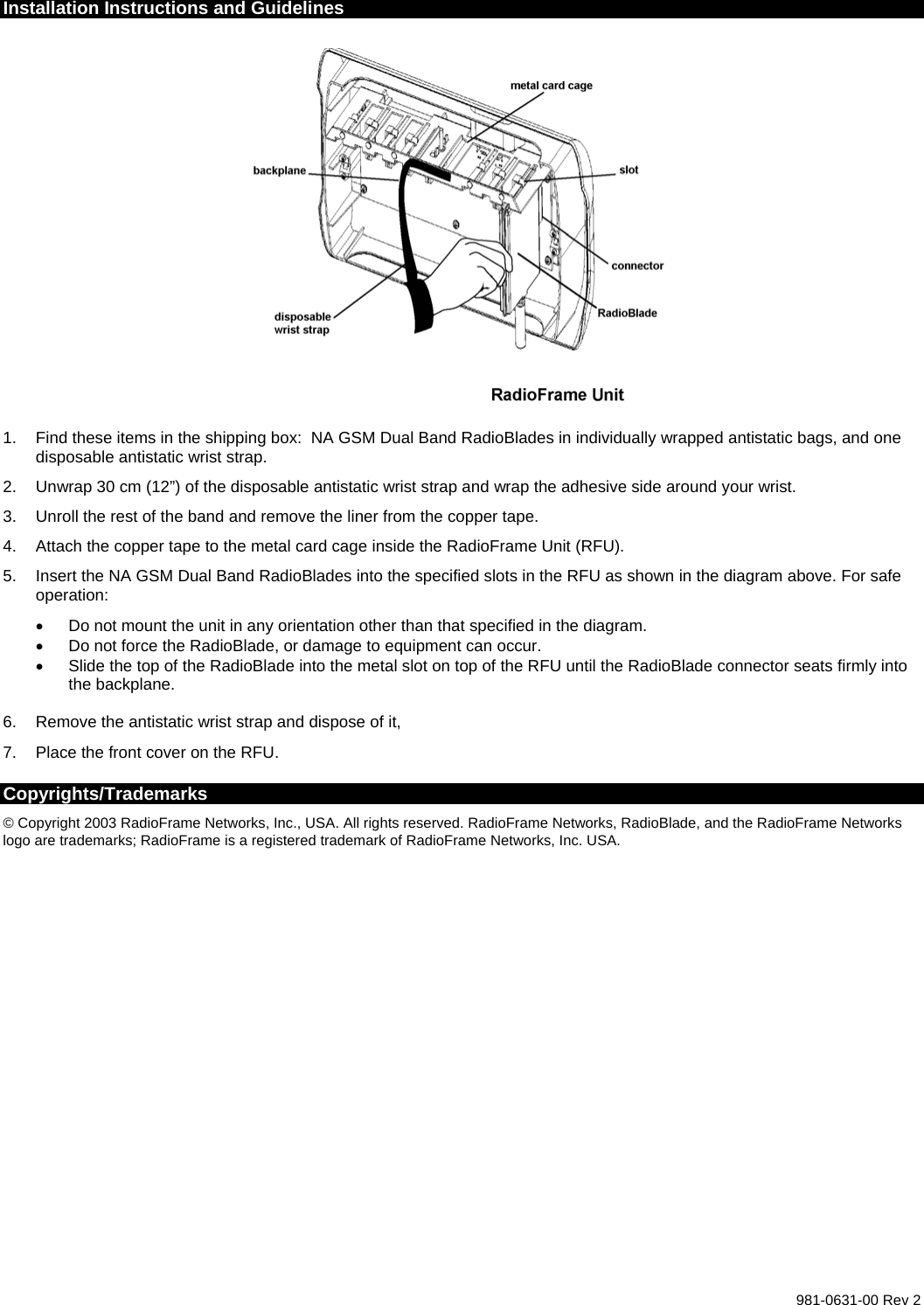

981-0631-00 Rev 2 Installation Instructions and Guidelines 1. Find these items in the shipping box: NA GSM Dual Band RadioBlades in individually wrapped antistatic bags, and one disposable antistatic wrist strap. 2. Unwrap 30 cm (12”) of the disposable antistatic wrist strap and wrap the adhesive side around your wrist. 3. Unroll the rest of the band and remove the liner from the copper tape. 4. Attach the copper tape to the metal card cage inside the RadioFrame Unit (RFU). 5. Insert the NA GSM Dual Band RadioBlades into the specified slots in the RFU as shown in the diagram above. For safe operation: • Do not mount the unit in any orientation other than that specified in the diagram. • Do not force the RadioBlade, or damage to equipment can occur. • Slide the top of the RadioBlade into the metal slot on top of the RFU until the RadioBlade connector seats firmly into the backplane. 6. Remove the antistatic wrist strap and dispose of it, 7. Place the front cover on the RFU. Copyrights/Trademarks © Copyright 2003 RadioFrame Networks, Inc., USA. All rights reserved. RadioFrame Networks, RadioBlade, and the RadioFrame Networks logo are trademarks; RadioFrame is a registered trademark of RadioFrame Networks, Inc. USA.
