Radius Networks RBT003 RadBeacon Locator Tent User Manual
Radius Networks, Inc. RadBeacon Locator Tent Users Manual
Users Manual

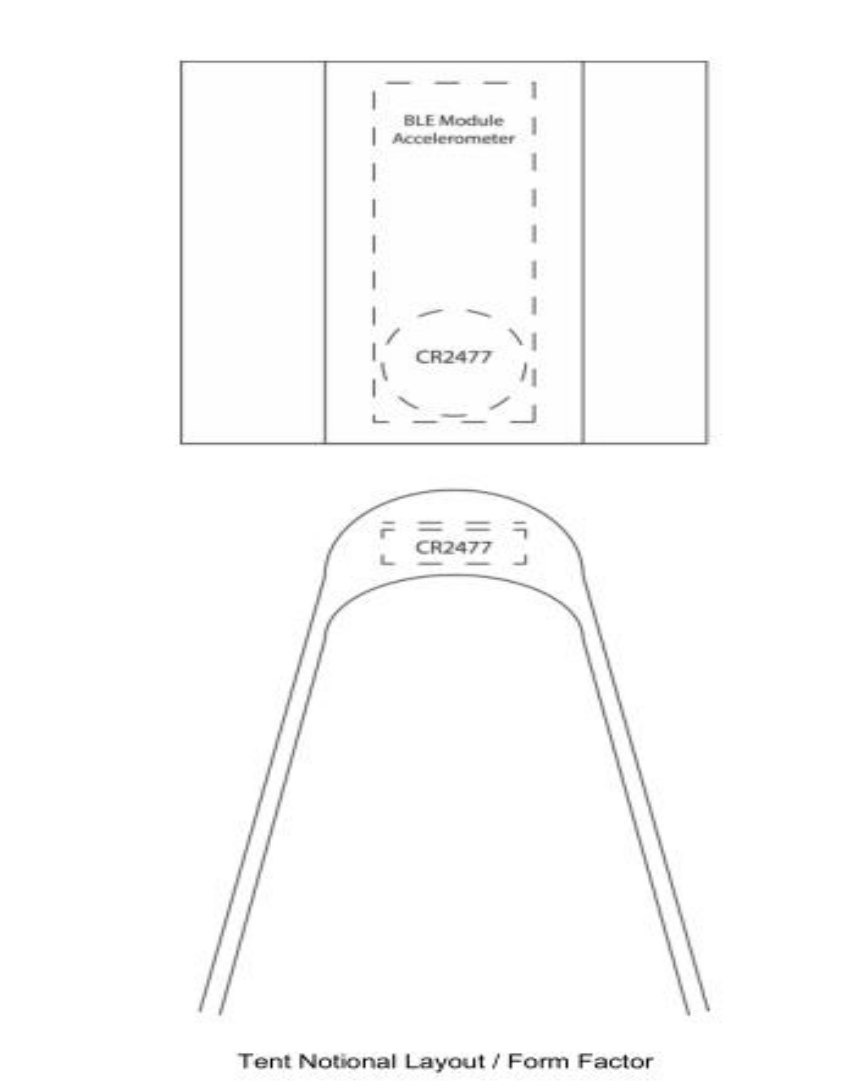

Bluetooth Smart 5.0 proximity beacon powered by 1 CR2477 Lithium battery with tent
form factor for extended battery life and a waterproof enclosure.
The idea is to redesign the electronics to use a larger battery.
The tent beacon has an accelerometer to extend battery life by trigger on accelerometer event.
The tent enclosure should be really waterproof to allow the tents to be washed in the restaurant.
Category Requirement Additional Detail Partner Comments
Bluetooth Bluetooth Low Energy v5.0 Advertising Extensions, GATT
Services, L2CAP Channels
Microprocessor ARM Cortex M4 This is based on the Nordic
NRF52832 SOC as a likel
y
candidate architecture. Open to
alternatives
Flash 512kB of flash memory This is based on the Nordic
NRF52832 SOC as a likel
y
candidate architecture. Open to
alternatives
RAM 64kB RAM This is based on the Nordic
NRF52832 SOC as a likely
candidate architecture. Open to
alternatives
Ran
g
e 100m at max tx power This is based on the Nordic
NRF52832 SOC as a likely
candidate architecture. Open to
alternatives
Antenna Trace or Chip,
Omnidirectional
Sensor Accelerometer Motion and fall detection triggered
Power Source 1 x CR2477 1 x 1,000 mAh
Batter
y
Life 12 Months Based on 100Hz advertisin
g
rate at
+3dBm TX Power
Enclosure IP67 Rated
Enclosure UL 94 V-0 Flame Rated
Firmware Multiple interleaved iBeacon, AltBeacon, AltBeacon
advertisements TLM, Eddystone UID, Eddystone
URL, Edd
y
stone TLM, Edd
y
stone
EID, Eddystone ETLM
Model: RBT-003
User Manual
RadBeacon Locator Tent
e
IC Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject
to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
The term “IC: “ before the certification/registration number only signifies that the Industry
Canada technical specifications were met. This product meets the applicable Industry
Canada technical specifications.
Le présent appareil est conforme aux CNR d'Industrie Canada applicable aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement
FCC Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or t levision reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions (1)this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation
