Realtek Semiconductor RTL8188CEB8 802.11b/g/n RTL8188CE Combo miniCard User Manual Installation

Realtek Semiconductor Corp. 802.11b/g/n RTL8188CE Combo miniCard Installation

User Manual II install procedure

RTL8188CEB8
UsersManual
RTL8188CEB8
PCI-Express miniCard User’s Manual
Realtek Semiconductor Corp.
No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan
Tel.: +886-3-578-0211. Fax: +886-3-577-6047
www.realtek.com.tw
RTL8188CEB8
UsersManual
Installing the Wireless PCIe miniCard
module Hardware
Step 1. Shut down the computer.

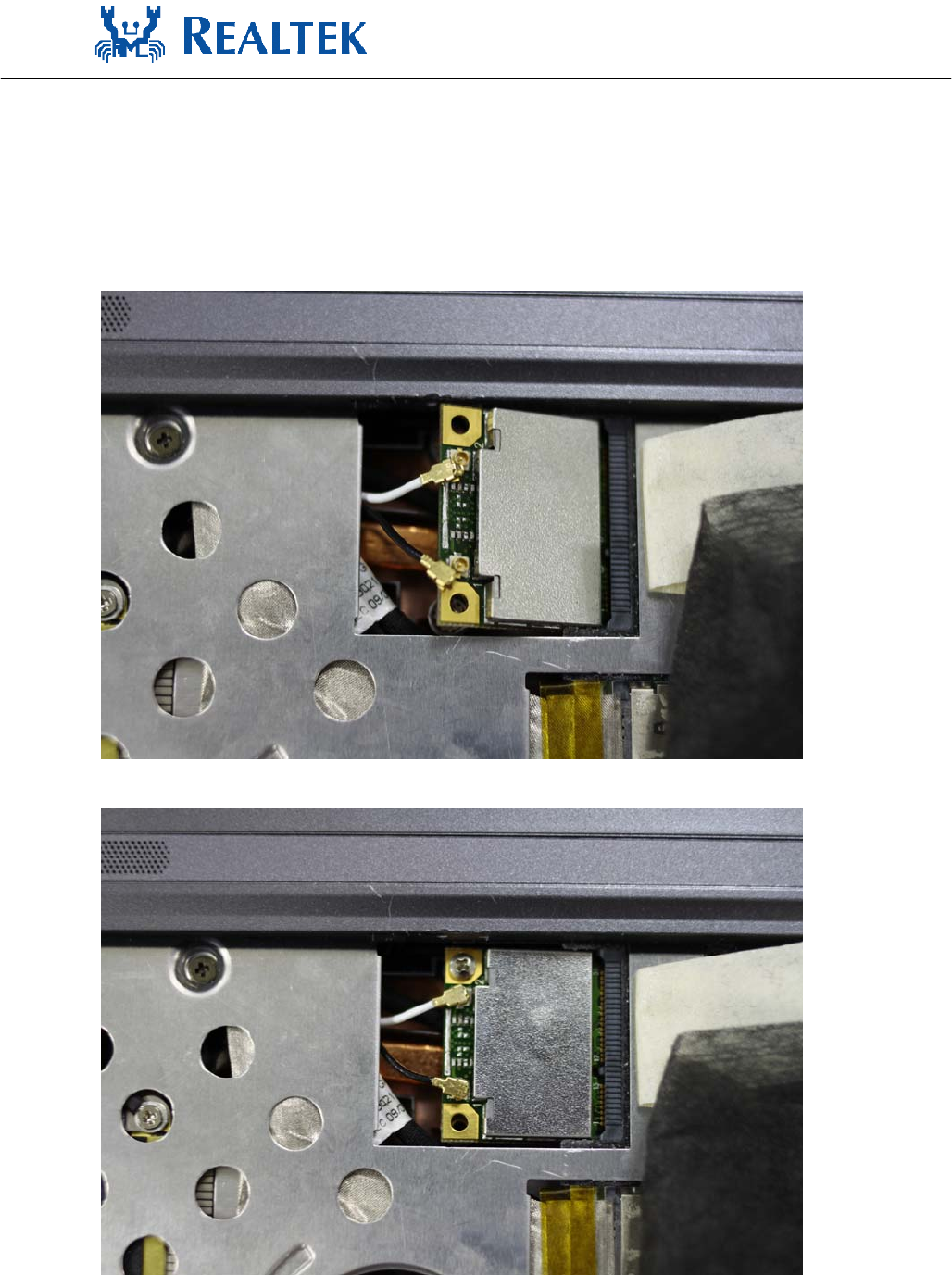

Step 2. Installing PCIe MiniCard module to PCIe MiniCard connector.
Step 3. Connect two external Wi-Fi antennas on I-PEX connectors.
step4. Power on the computer.
RTL8188CEB8
UsersManual
Un-installing the Wireless PCIe MiniCard
module Hardware
Step 1. Shut down the computer.

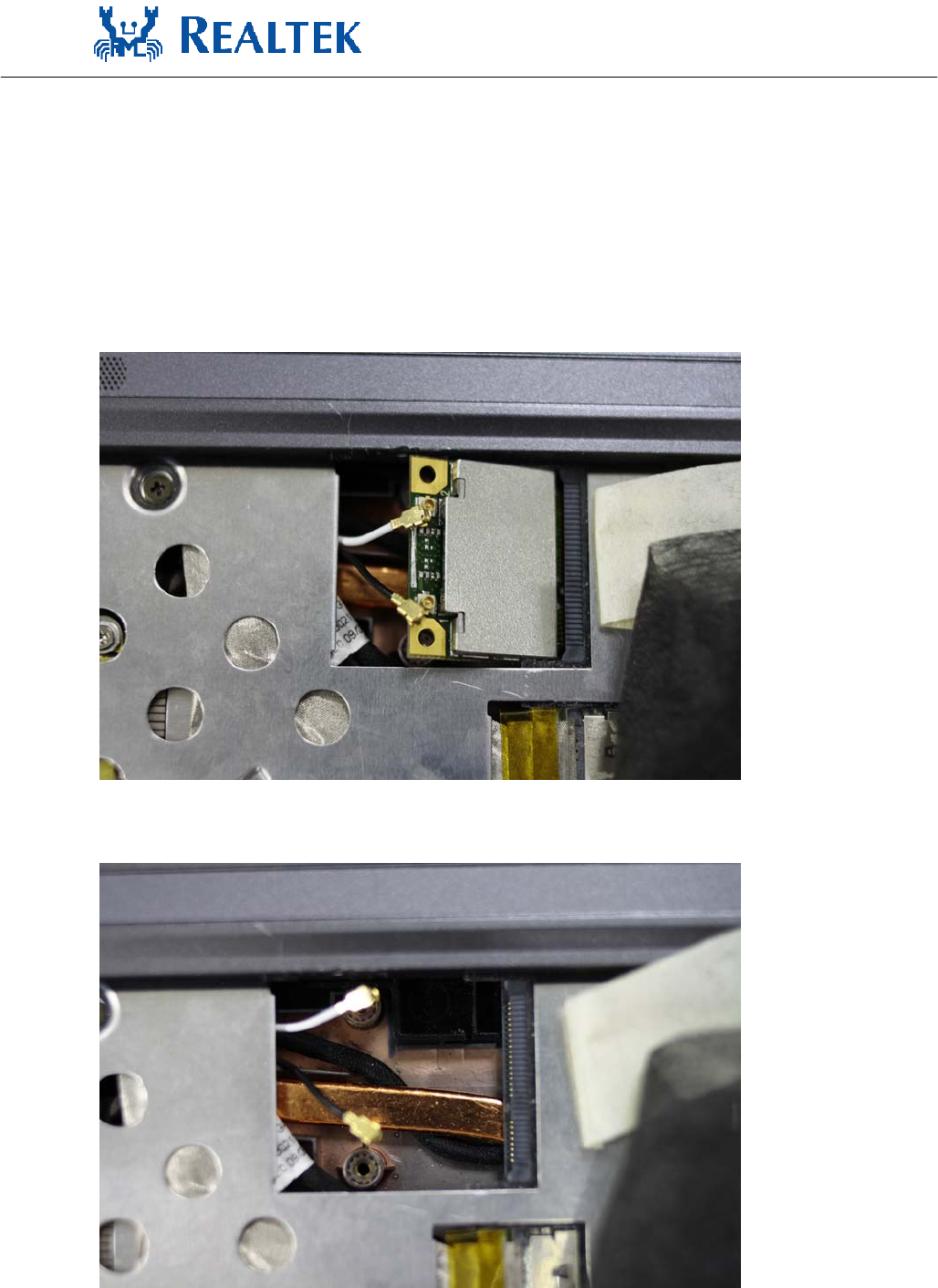

Step 2. Remove 2 external Wi-Fi Antennas from the Wireless PCIe MiniCard module
board.
Step 3. Remove the Wireless PCIe MiniCard module board from PCIe MiniCard
connector port.
Step 4. Power on the computer.
RTL8188CEB8
UsersManual
Installing the Wireless PCIe miniCard
module Software
Before you proceed with the installation, please notice following descriptions.
Note1: The following installation was operated under Windows XP.
(Procedures are similar for Windows 98SE/Me/2000.)
Note2: If you have installed the WLAN driver & utility before, please
uninstall the old version first.
If you install the “Realtek11n Single Chip PCIE WLAN NIC Mass
production kit” into your laptop computer before installing the software
program from
the CD.

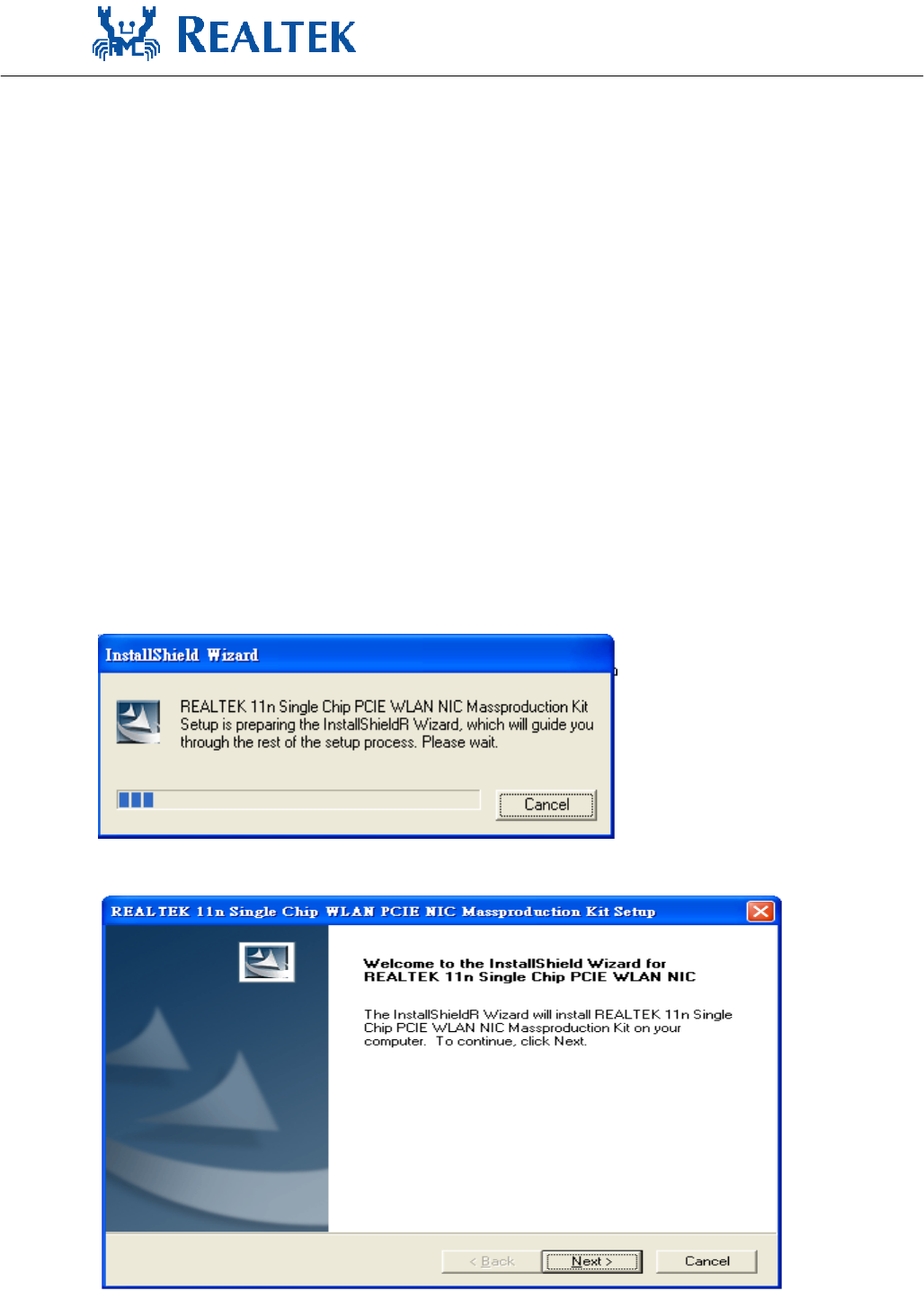

A. Insert the Installation CD to your CD-ROM Drive. Execute the “setup”
program.
B. Click “Next” to process the installation
RTL8188CEB8
UsersManual

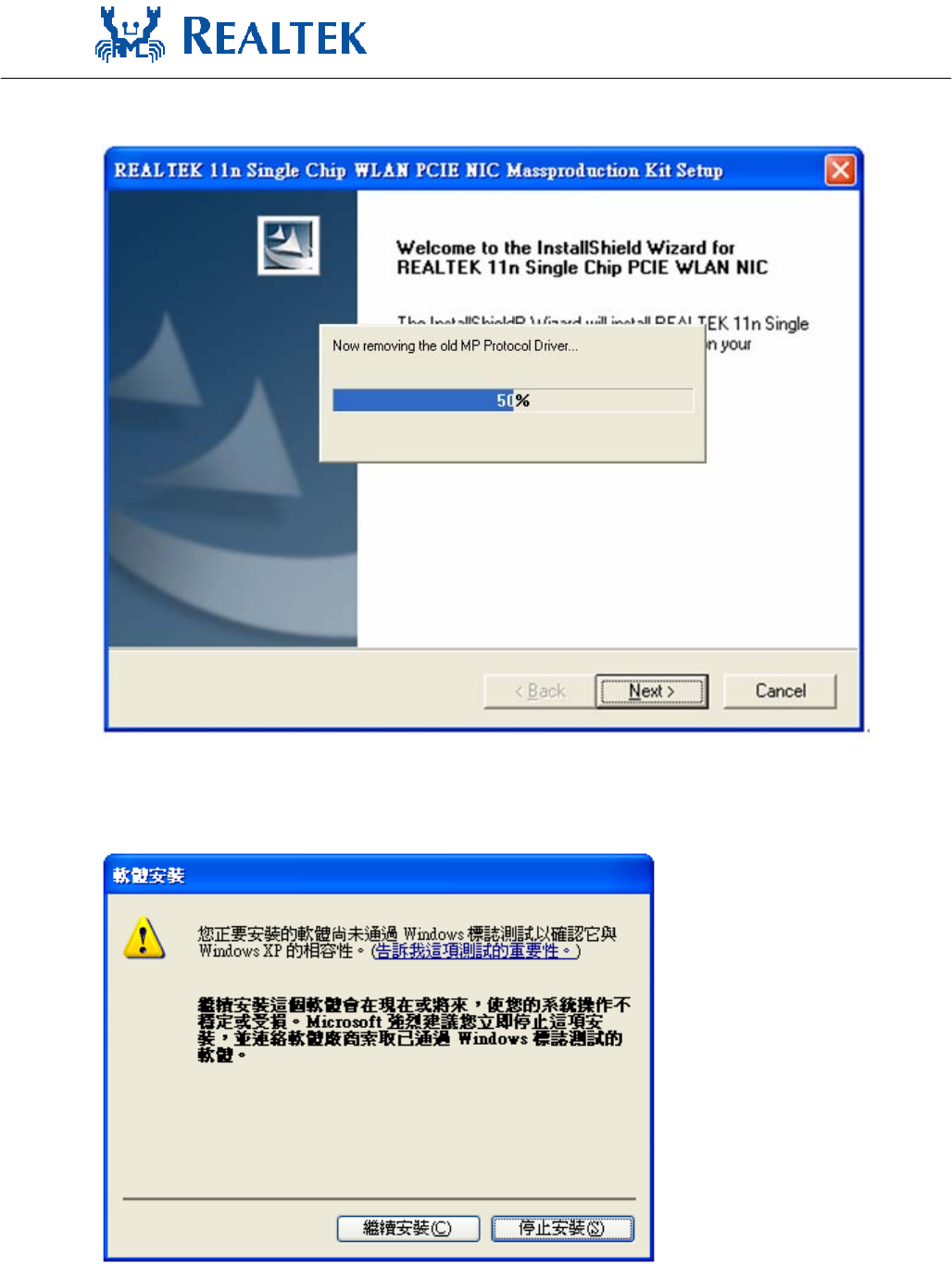

C. The system starts to install the software of the WLAN adapter.
D. The system will automatically detect the card and display “Hardware
Installation” screen. Click “繼續安裝” to continue.
RTL8188CEB8
UsersManual

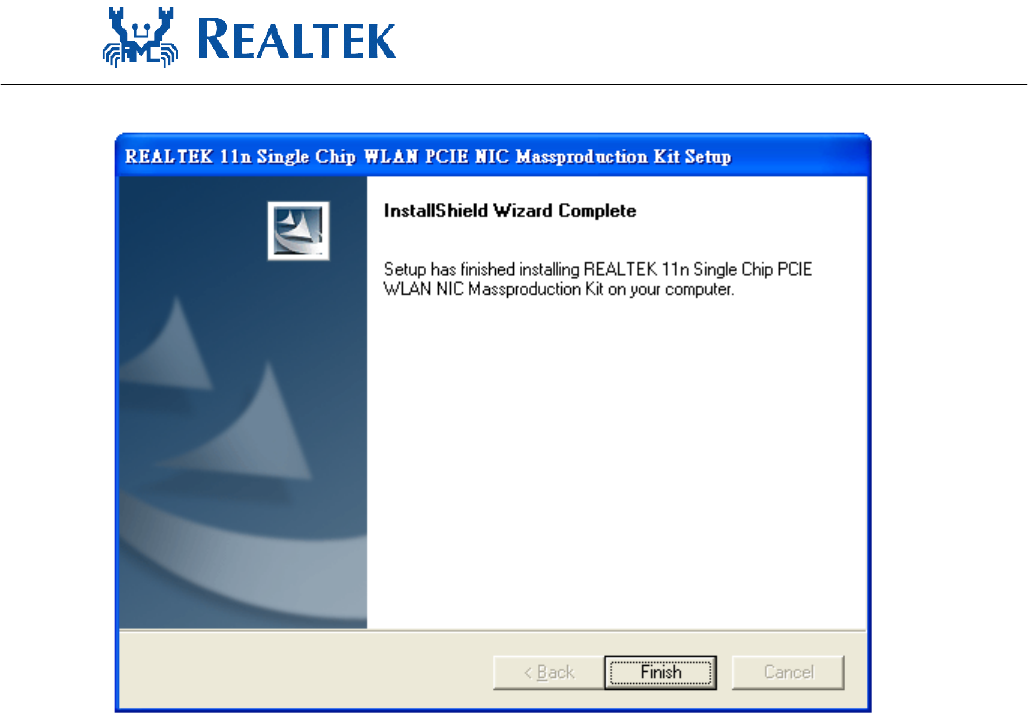

E. Please click “Finish” to complete the installation.
RTL8188CEB8
UsersManual
Un-installing the Wireless PCIe MiniCard
module Software
If you install Realtek11n Single Chip PCIE WLAN NIC Mass production kit
into your laptop computer after installing the software program from the
CD.
When you install Realtek11n Single Chip WLAN PCIE MINICARD Adapter,
the following dialog will be shown.

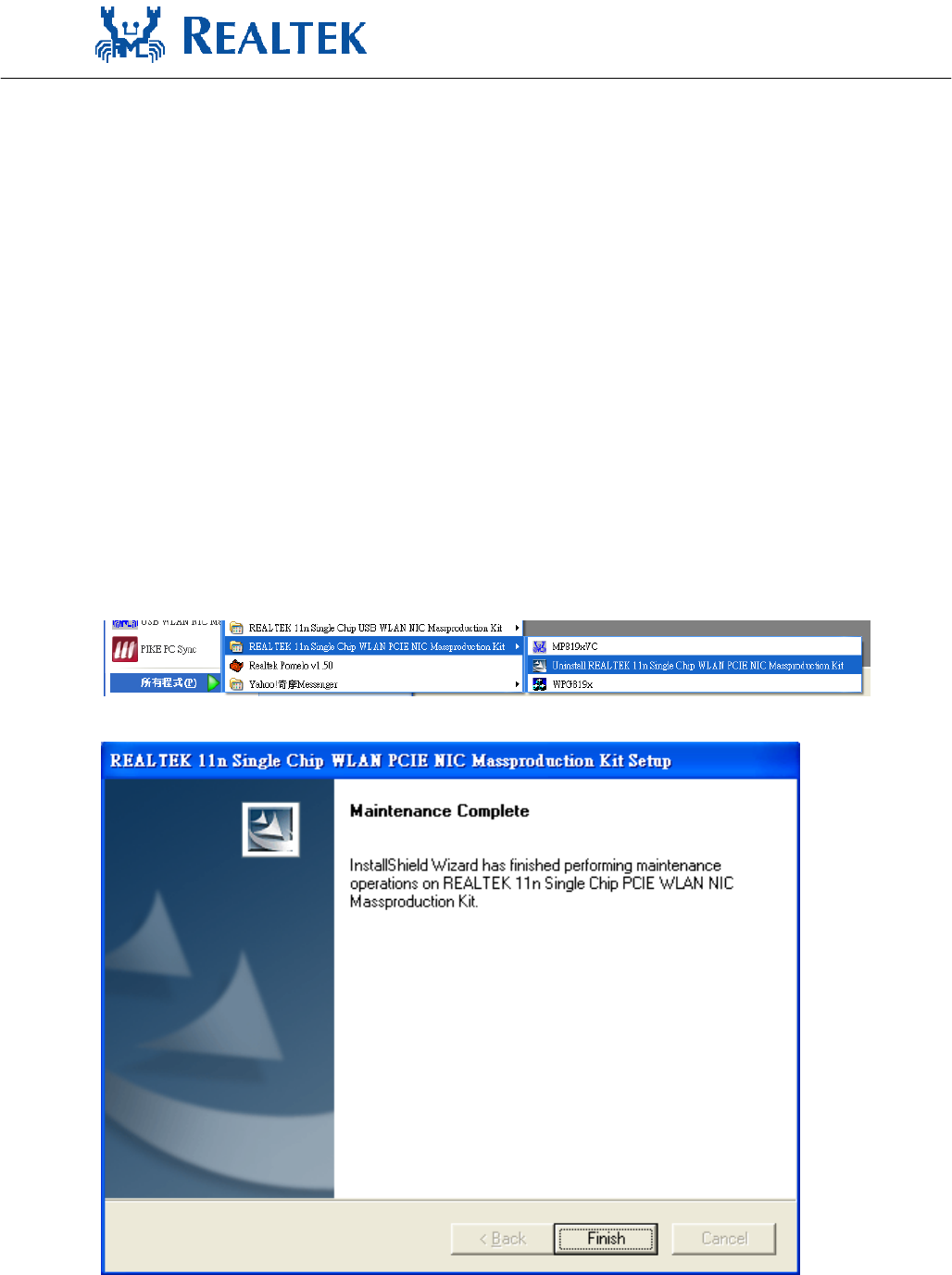

A. Uninstall the RTL8188CE WLAN Driver from “Start” “All Programs”
“Realtek11n Single Chip WLAN PCIE NIC Mass production kit” or “Control
Panel”“”“Change or Remove Programs”.
Please click “Un-install” (or “Change/Remove”) to remove RTL8188CE
WLAN driver.
B. Please click “Finish” to complete the un-installation
RTL8188CEB8
UsersManual
Installing the Bluetooth USB Module
Software
If you install the “BlueSuite2.2” into your laptop computer before
installing the software program from the CD.

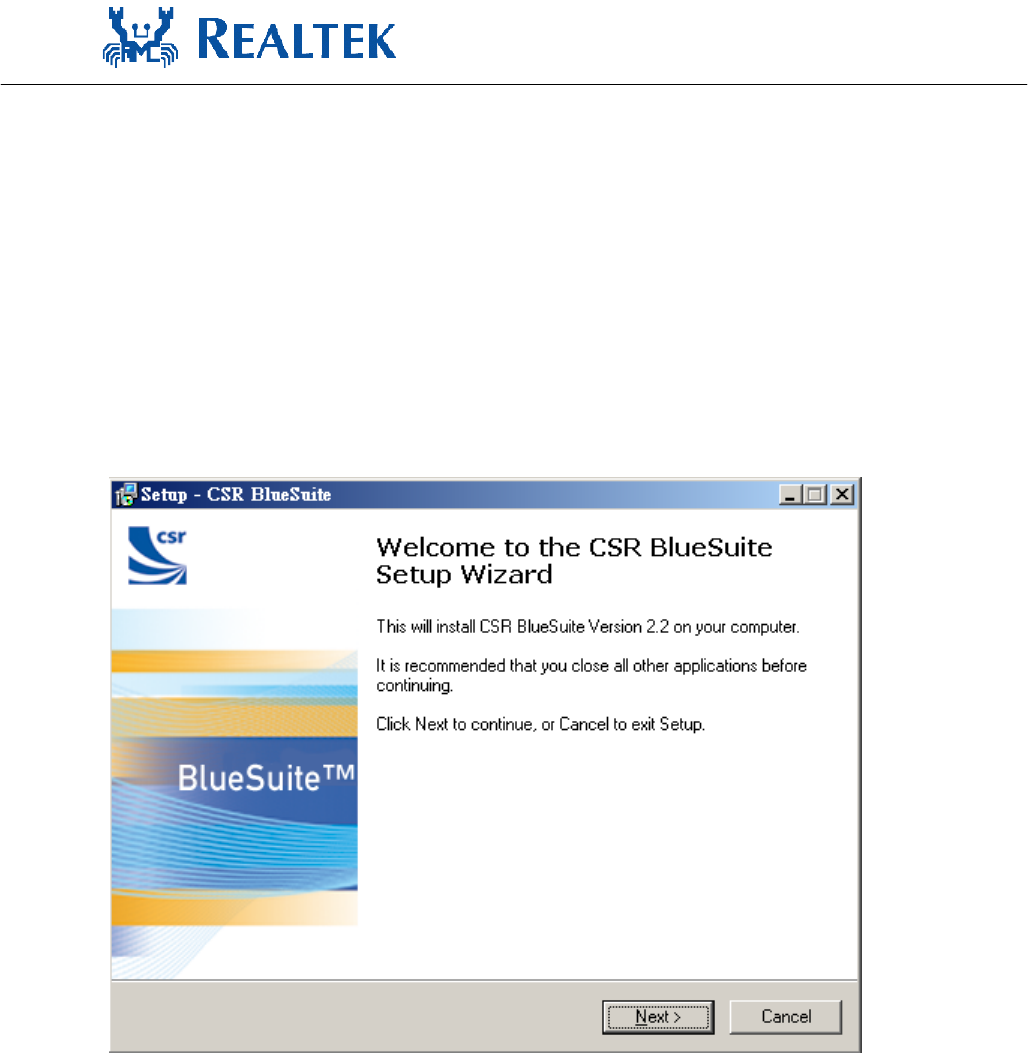

A. Insert the Installation CD to your CD-ROM Drive. Execute the “setup”
program.
B. Click “Next” to process the installation
RTL8188CEB8
UsersManual

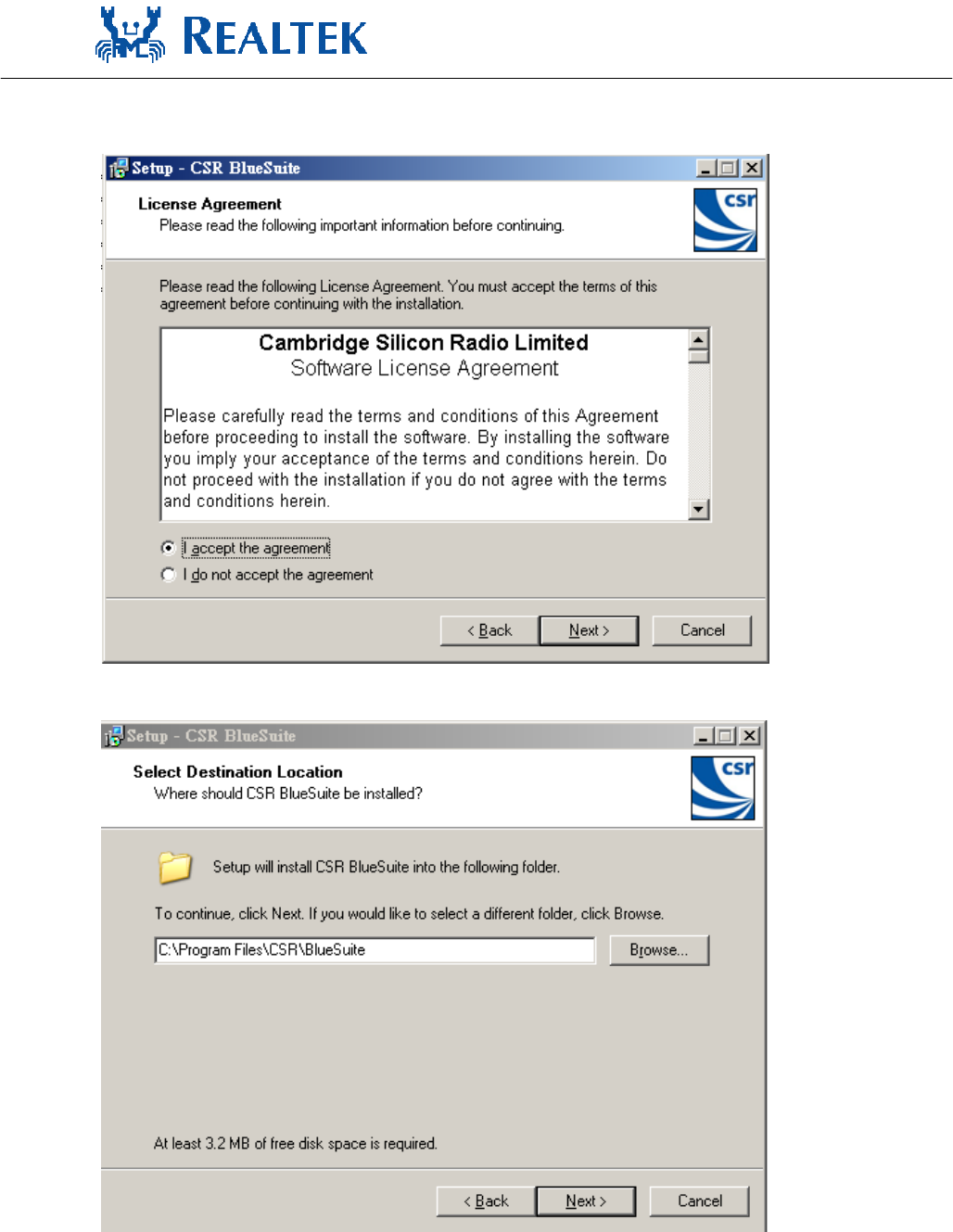

C. License Agreement
D. Select Destination Location .
RTL8188CEB8
UsersManual

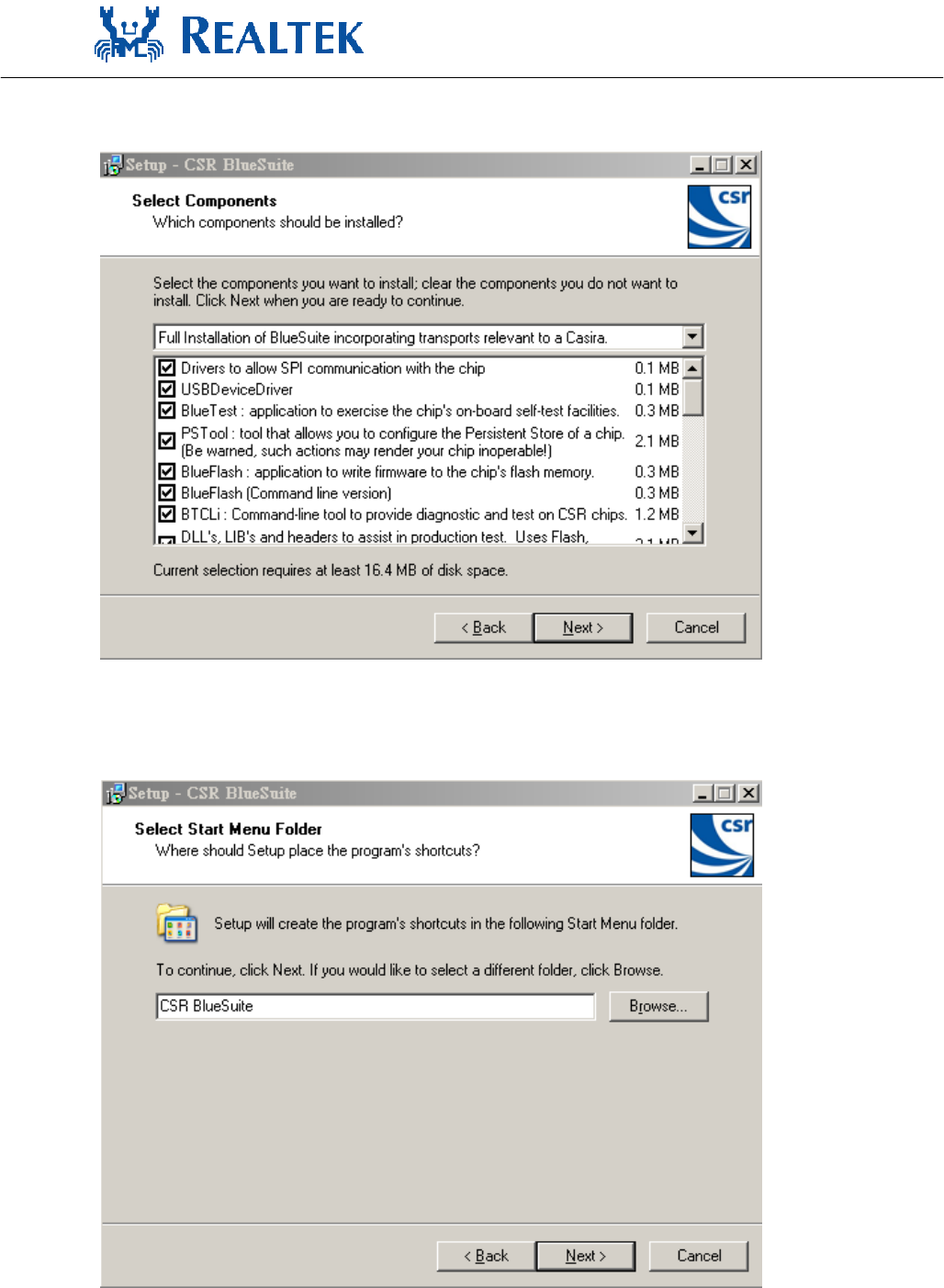

E. Select Components
F. Select Start Menu Folder
RTL8188CEB8
UsersManual

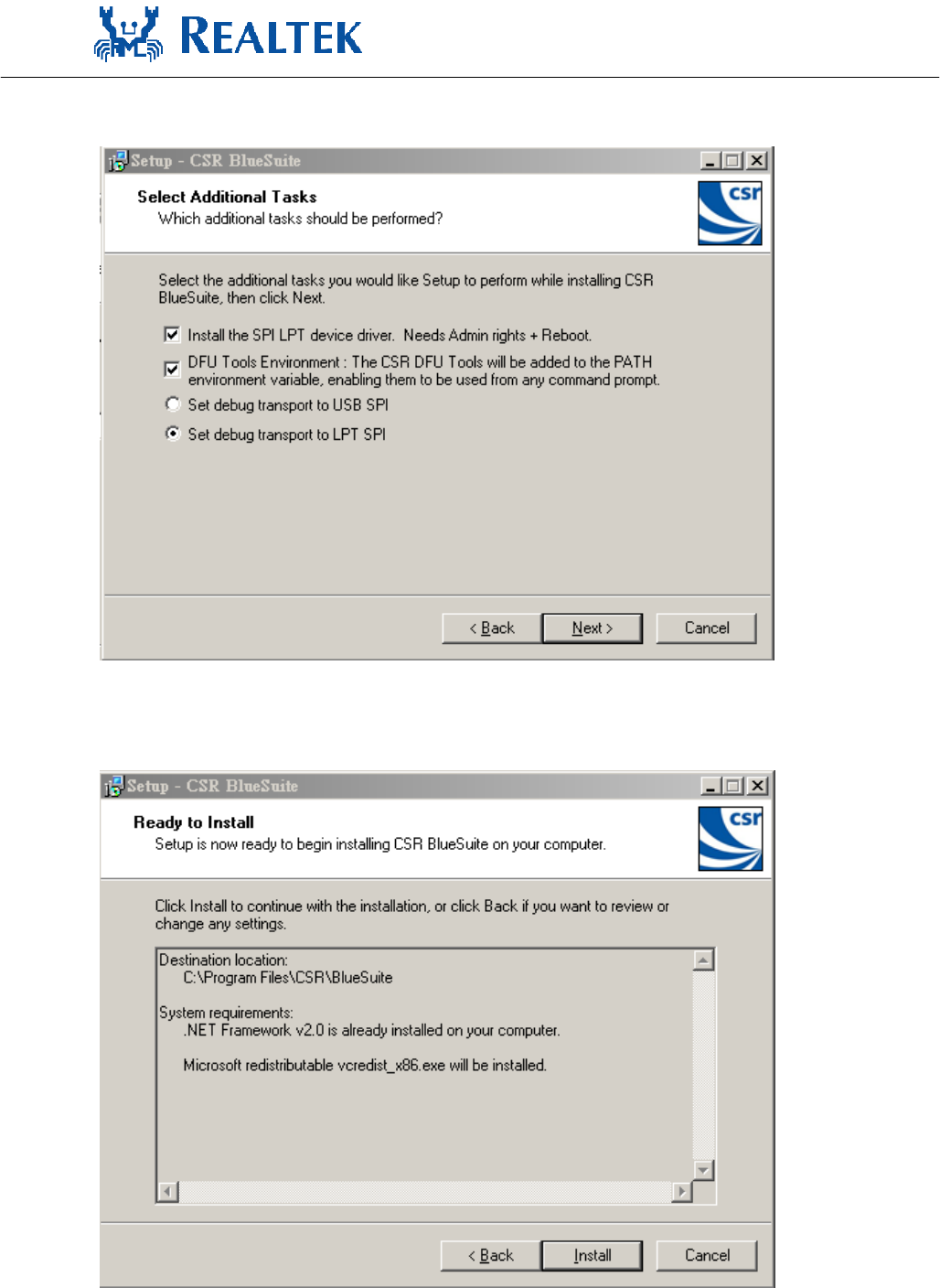

G. Select Additional Tasks
H Click “Next” to process the installation
RTL8188CEB8
UsersManual

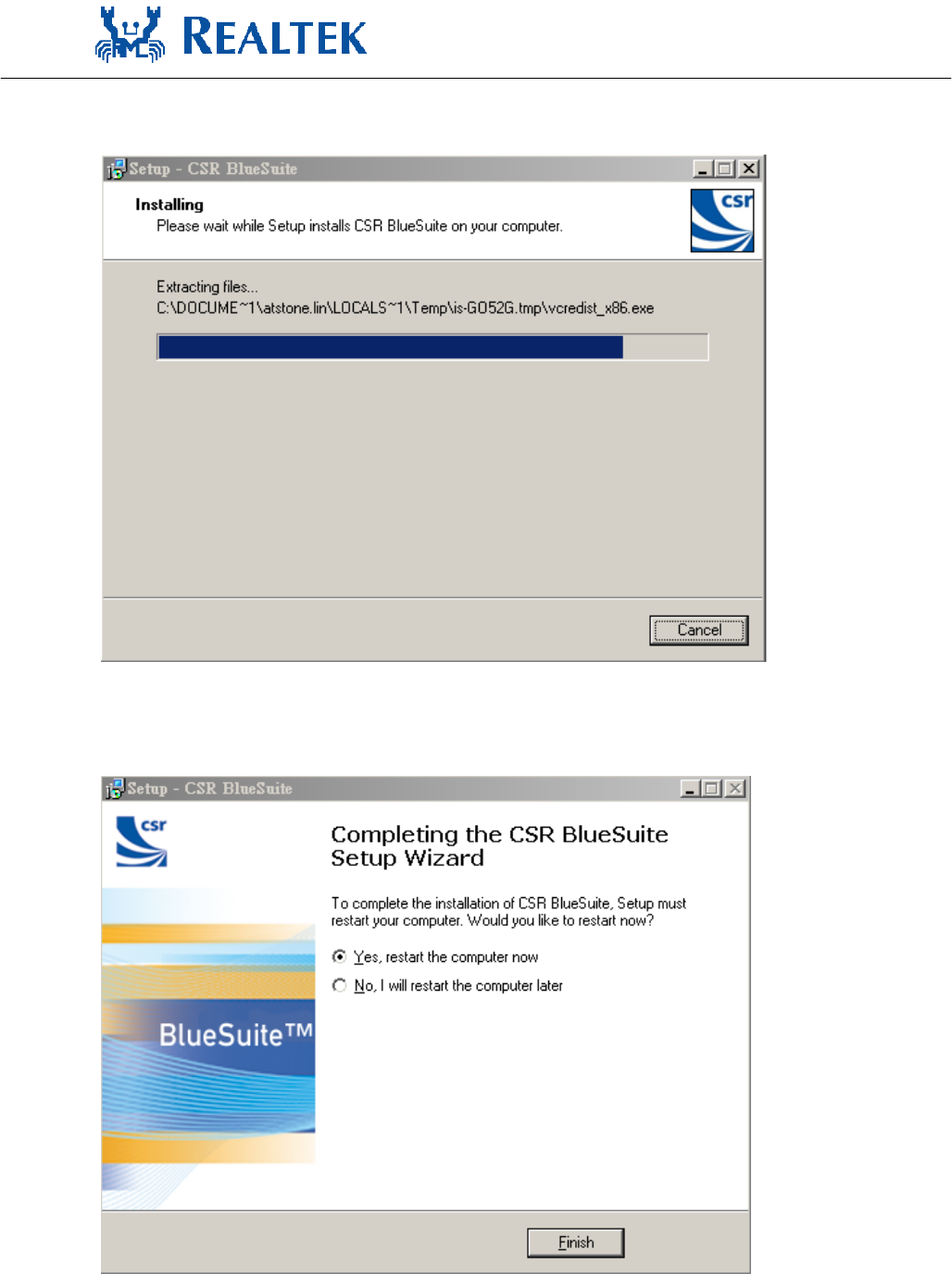

I. The system starts to install the software of the CSR BlueSuite.
J. Please click “Finish” to complete the installation.
Un-installing the Bluetooth USB
RTL8188CEB8
UsersManual
Module Software

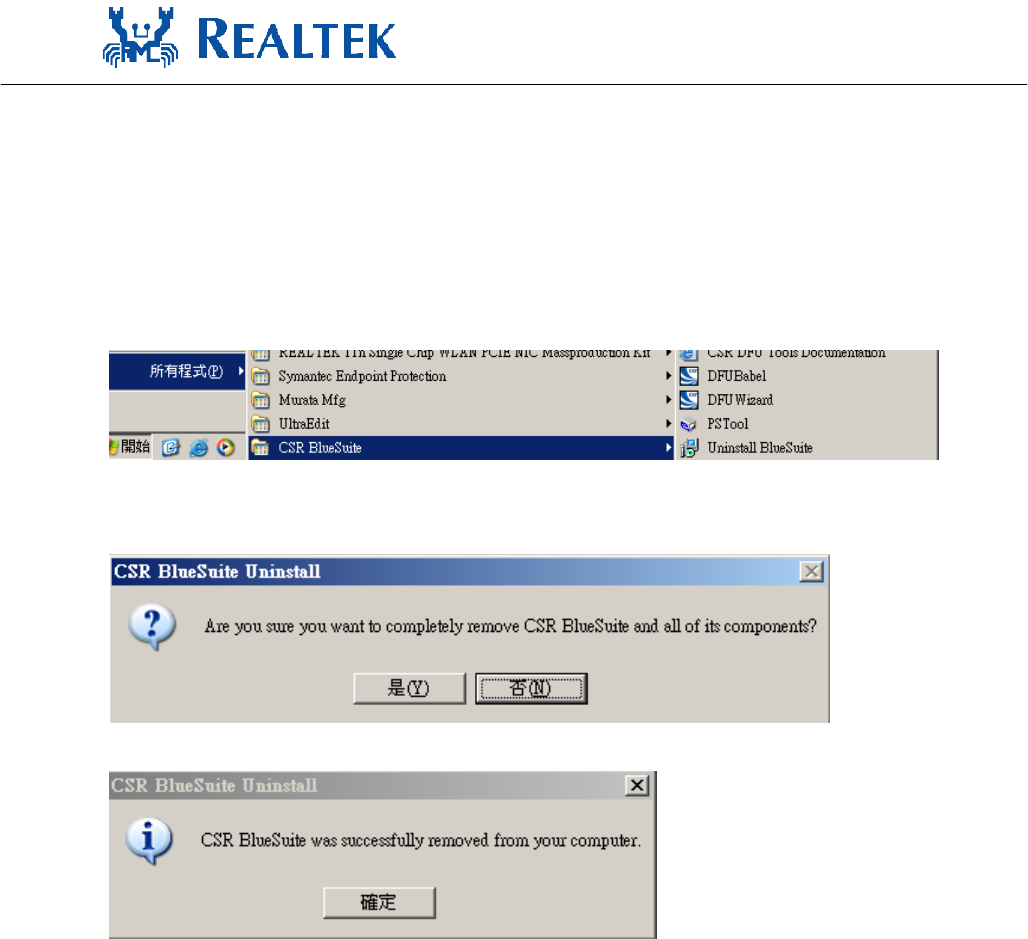

A. Uninstall the CSR Bluetooth Driver from “Start” “All Programs”
“CSR BlueSuite” or “Control Panel”“Change or Remove Programs”.
Please click “Un-install” (or “Change/Remove”) to remove CSR Bluetooth
driver.
B. Please click “Yse” to complete the un-installation
