User manual_1
Lenovo
ideapad Y700
Read the safety notices and important tips in the
included manuals before using your computer.
User Guide
First Edition (August 2015)
© Copyright Lenovo 2015.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
For details, refer to Guides & Manuals at http://support.lenovo.com.
Regulatory Notice
Before using the product, be sure to read Lenovo Safety and General Information Guide first.
The features described in this guide are common to most models. Some features may not
be available on your computer or your computer may include features that are not
described in this user guide.
Some instructions in this guide may assume that you are using Windows® 10. If you are
using other Windows operating system, some operations may be slightly different.
If you are using other operating systems, some operations may not apply to you.
Notes
•
•
•
The illustrations used in this manual are for Lenovo ideapad Y700-15ACZ unless
otherwise stated.
•
The illustrations in this manual may differ from the actual product. Please refer to the
actual product.
•
•
Instructions and technical information in this manual are applicable to the following
Lenovo notebook computers unless otherwise stated.
Model name MT
Lenovo ideapad Y700-15ACZ
Lenovo ideapad Y700-15ISK
Lenovo ideapad Y700 Touch-15ISK
Lenovo ideapad Y700-17ISK
80NY
80NV
80NW
80Q0
Lenovo
User Guide
User Guide
i
Contents
Chapter 1. Getting to know your computer..................................................................................... 1
Top view ......................................................................................................................................................... 1
Left-side view ................................................................................................................................................ 6
Right-side view .............................................................................................................................................. 9
Front view .................................................................................................................................................... 11
Bottom view ................................................................................................................................................. 12
Chapter 2. Starting to use Windows 10......................................................................................... 14
Configuring the operating system for the first time .............................................................................. 14
Operating system interfaces ...................................................................................................................... 14
Putting the computer to sleep or shutting it down ................................................................................ 17
Task and desktop management ................................................................................................................ 18
Connecting to a wireless network ............................................................................................................ 19
Get Started app ............................................................................................................................................ 20
Touch screen operation (on select models) ............................................................................................. 21
Chapter 3. Lenovo OneKey Recovery System.............................................................................. 23
Chapter 4. Troubleshooting............................................................................................................ 24
Frequently asked questions ....................................................................................................................... 24
Troubleshooting .......................................................................................................................................... 26
Trademarks ...................................................................................................................................... 30
1
Chapter 1. Getting to know your computer
Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Lenovo ideapad Y700-15ACZ/Y700-15ISK/Y700 Touch-15ISK
12 2
3
4
7
8
4
7
6
5
2
Chapter 1. Getting to know your computer
Lenovo ideapad Y700-17ISK
Attention:
•Do not open the display panel beyond 130 degrees. When closing the display panel, be careful not to leave
pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel
may be damaged.
Note: The dashed areas indicate parts that are not visible externally.
12 2
3
4
7
8
4
7
6
5
Chapter 1. Getting to know your computer
3
aIntegrated camera Use the camera for video communication or taking photos.
bBuilt-in microphone
(with noise reduction)
Captures sound which can be used for video conferencing, voice
narration, or audio recording.
cComputer display Provides brilliant visual output.
dJBL speakers Provide the audio output.
ePower button Press this button to turn on the computer.
fNumeric keypad For details, see “Using the keyboard” on page 4.
gWireless LAN antennas Connect to a wireless LAN adapter to send and receive wireless radio signals.
hTouchpad The touchpad functions as a conventional mouse.
One piece multi-touch ClickPad: To move the pointer on the screen,
slide your fingertip over the pad in the direction in which you want the
pointer to move.
Left-click area: Clicking in this area corresponds to the functions of
clicking the left button on a conventional mouse.
Right-click area: Clicking in this area corresponds to the functions of
clicking the right button on a conventional mouse.
Note: You can enable/disable the touchpad by pressing Fn + F6.
4
Chapter 1. Getting to know your computer
Using the keyboard
Your computer has a numeric keypad and function keys incorporated in its standard keyboard.
Numeric keypad
The keyboard has a separate numeric keypad. To enable or disable the numeric keypad,
press the Num Lock key.

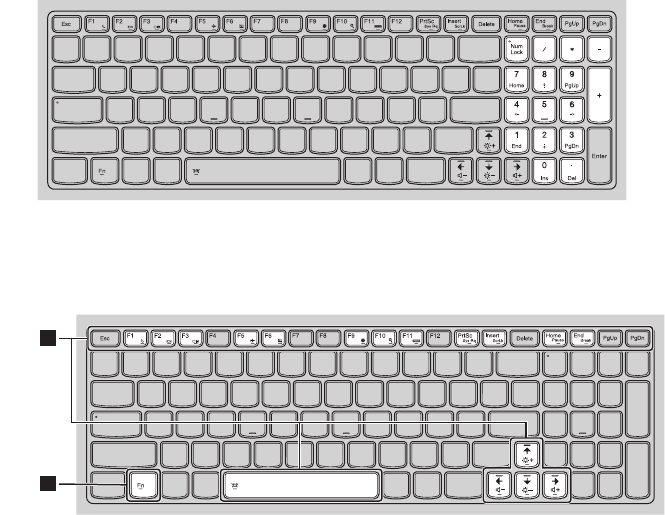

Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn ; then press one of the function keys .
a
b
2
1
Chapter 1. Getting to know your computer
5
The following describes the features of each function key.
Fn + F1: Enters sleep mode.
Fn + F2: Turns on/off the backlight of the LCD screen.
Fn + F3: Opens the interface for selecting display options.
Fn + F5: Enables/disables Airplane mode.
Fn + F6: Enables/disables the touchpad.
Fn + F9: Opens the Settings charm.
Fn + F10: Opens the Search charm.
Fn + F11: Displays current apps.
Fn + PrtSc: Activates the system request.
Fn + Insert: Enables/disables the scroll lock.
Fn + Home: Activates the pause function.
Fn + End: Activates the break function.
Fn + / : Increases/decreases the display brightness.
Fn + / : Increases/decreases the volume.
Fn + Space
(on select models): Adjusts the keyboard backlight (off dim bright off).
6
Chapter 1. Getting to know your computer
Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
aAC power adapter jack Connect the AC power adapter here.
bUSB port Connects to USB devices.
Notes:
•The red port is a USB 3.0 port.
•For details, see “Connecting USB device” on page 7.
cMemory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 8.
dCombo audio jack Connects to headsets.
Notes:
•The combo audio jack does not support conventional microphones.
•The recording function might not be supported if third-party headphones or headsets are connected,
due to different industry standards.
eNovo button When the computer is off or in hibernation mode, press this button to
start the Lenovo OneKey Recovery System or the BIOS setup utility, or to
enter the boot menu.
Notes:
•You can use the tip of an unfolded paper clip (or similar object without a sharp tip) to gently press the
Novo button.
•For details, see “Lenovo OneKey Recovery System” on page 23.
1 2 3 4 5
Chapter 1. Getting to know your computer
7
Connecting USB device

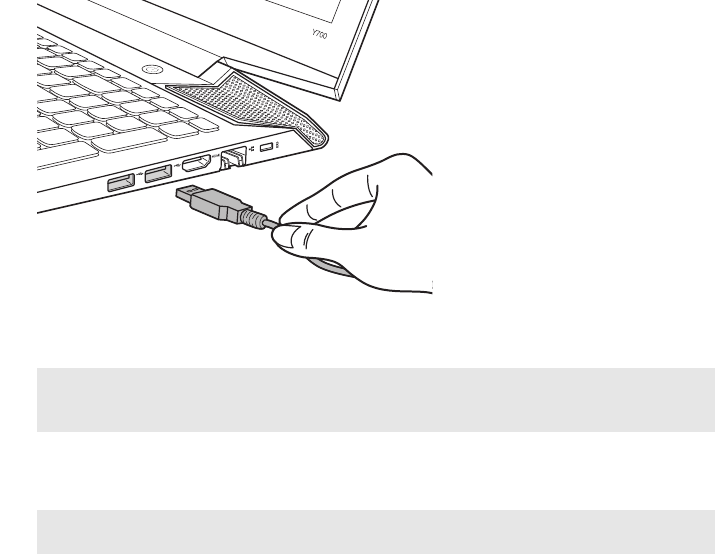

Your computer comes with three USB ports compatible with USB devices.
The first time you plug a USB device into a particular USB port on your computer, Windows
automatically installs a driver for that device. After the driver has been installed, you can
disconnect and reconnect the device without performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has finished transferring
data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows
notification area to remove the device before disconnecting.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver
automatically. However, some devices may require you to install the driver before connecting.
Check the documentation provided by the device’s manufacturer before connecting the device.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it.
Otherwise, the device may not be recognized.
8
Chapter 1. Getting to know your computer
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• Secure Digital eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)
Inserting a memory card
Slide the memory card in until it clicks into place.
Removing a memory card
1Push the memory card in until you hear a click.
2Gently pull the memory card out of the memory card slot.
Notes:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth and so on.).
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject
media utility to avoid data corruption.
Chapter 1. Getting to know your computer
9
Right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
aUSB port Connects to USB devices.
Notes:
•The red port is a USB 3.0 port.
•For details, see “Connecting USB device” on page 7.
bHDMI port Connects to devices with HDMI input such as a TV or an external display.
cRJ-45 port Connects the computer to an Ethernet network.
Note: For details, see “Connecting network cables” on page 10.
dKensington lock slot Attach a security lock (not supplied) here to help protect your computer
from theft and unauthorized use. You can attach a security lock to your
computer to help prevent it from being removed without your
permission. For details on installing the security lock, please refer to the
instructions shipped with the security lock that you have purchased.
Notes:
•Before purchasing any security product, verify that it is compatible with this type of security keyhole.
•You are responsible for evaluating, selecting, and implementing the locking devices and security features.
Lenovo offers no comment, judgment, or warranty regarding the function, quality, or performance of
locking devices and security features.
1 2 3 4
10
Chapter 1. Getting to know your computer
Connecting network cables
To insert a network cable, do the following:
1Hold one connector of the network cable to press the RJ-45 cover down gently .
2Insert the connector into the RJ-45 port .
Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure your computer.
a
b
2
1
Chapter 1. Getting to know your computer
11
Front view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
aSystem status indicators
Symbol Indicator Indicator
status
Charge
status Meaning
Power
On (solid
white) --- The computer is powered on.
Blinking --- The computer is in sleep mode.
Off --- The computer is powered off.
Battery
On (solid
white)
Charging The battery has more than 80% charge.
Discharging The battery has more than 20% charge.
On (solid
amber) Discharging The battery has between 5% and 20%
charge.
Blinking
slowly
(white)
Charging
The battery has between 20% and 80%
charge. When the battery reaches 80%
charge, the light will stop blinking.
However, charging will continue until
the battery is fully charged.
Blinking
slowly
(amber)
Charging
The battery has less than 20% charge.
When the battery charge reaches 20%,
the blinking color will change to white.
Blinking
quickly
(amber)
Charging/
Discharging The battery has less than 5% charge.
Touchpad
On (solid
white) --- The touchpad is disabled.
Off --- The touchpad is enabled.
Hard disk
drive Blinking --- The hard disk drive is reading or
writing data.
1
12
Chapter 1. Getting to know your computer
Bottom view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Lenovo ideapad Y700-15ACZ/Y700-15ISK/Y700 Touch-15ISK
1
2
Chapter 1. Getting to know your computer
13
Lenovo ideapad Y700-17ISK
aVentilation slots Dissipate internal heat.
Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
bSpeaker Provides subwoofer audio output.
1
2
14
Chapter 2. Starting to use Windows 10
Configuring the operating system for the first time - - - - - - - - - - - - - - - - -
You may need to configure the operating system when it is first used.
The configuration process may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interfaces - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Windows 10 comes with a powerful and useful start menu.
To open the start menu, do one of the following:
• Press the Windows key on the keyboard.
• Select Start on the lower-left corner of the desktop.
Settings button Search box
Power button Task view button
All apps button Get started app
Start button
2
1
3
4 5 6
7
a
e
b
f
c
g
d
系统内容待确认
Chapter 2. Starting to use Windows 10
15
Settings
Settings lets you perform basic tasks. You can also search for more settings with the settings
search box in the upper-right corner.
To open the settings, do the following:
• Open the start menu, and then select Settings .
Personalize the start menu
You can personalize the start menu with your favorite apps.
To personalize the start menu, do the following:
1Open the start menu, and then select All apps to display the apps list.
2Right click the app you want to add to the start menu, and then select Pin to Start.
Note: You can also drag apps from the Most used or All apps columns to add them to the start menu.
16
Chapter 2. Starting to use Windows 10
Searching box and Cortana
The Search box is a powerful way to find whatever you are looking for, including settings, files,
Web images, Web videos, etc.
Windows 10 provides you with a personal assistant, Cortana. Place the cursor in the search box
and Cortana will give you suggestions and answers as a smart computer assistant.
Chapter 2. Starting to use Windows 10
17
Putting the computer to sleep or shutting it down - - - - - - - - - - - - - - - - - - - -
When you have finished working with your computer, you can put it to sleep or shut it down.
Putting your computer to sleep
If you will be away from your computer for only a short time, put the computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the
startup process.
To put the computer to sleep, do one of the following:
• Close the display lid.
• Press the Power button.
• Open the start menu, and then select Power Sleep.
To wake the computer, do one of the following:
• Press any key on the keyboard.
• Press the Power button.
Shutting down the computer
If you are not going to use your computer for a long time, shut it down.
To shut down the computer, do one of the following:
• Open the start menu, and then select Power Shut down.
• Press and hold or right-click the Start button in the lower-left corner and select Shut down or
sign out Shut down.
Note: Wait until the power indicator light starts blinking (indicating that the computer is in sleep mode)
before you move your computer. Moving your computer while the hard disk is spinning can damage
the hard disk, causing loss of data.
18
Chapter 2. Starting to use Windows 10
Task and desktop management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Task view
To open the task view, do one of the following:
• Select the Task view button on the task bar.
• Press the Windows key + Tab.
Virtual desktop management
Windows 10 supports the ability to create, manage and switch between virtual desktops.
To create a new virtual desktop, do one of the following:
• Open the task view, and then select New desktop.
• Press the Windows key + Ctrl + D.
To switch between different desktops, do one of the following:
• Open the task view and select the desktop you want active.
• Press the Windows key + Ctrl + / to scroll through the desktops you’ve created.
Chapter 2. Starting to use Windows 10
19
Connecting to a wireless network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Enabling wireless connection
To enable wireless functions, do the following:
1Press Fn + F5 to disable airplane mode.
2Click on the lower-right corner of the task bar to open the network configuration page.
Connecting to a wireless network
After wireless has been enabled, the computer will automatically scan for available wireless
networks and display them in the wireless network list. To connect to a wireless network, click
the network name in the list, and then click Connect.
20
Chapter 2. Starting to use Windows 10
Get Started app - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Windows 10 also provides the Get Started app to explain the new features of Windows 10. You
can find it on the Start menu.
To open the Get Started app, open the start menu and select Get started .
Chapter 2. Starting to use Windows 10
21
Touch screen operation (on select models) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The display panel can accept inputs like a tablet, using the multi-touch screen, or like a
traditional notebook computer, using the keyboard and touchpad.
Multi-touch gestures
You can touch the screen with one or more fingertips to perform a variety of tasks.
Frequently used gestures Tasks performed
Tap
Tap once on an item.
Performs an action, such as starting an app,
opening a link, or performing a command.
Similar to left-clicking with a mouse.
Press and hold
Press your finger down and leave it there for
a moment.
Enables you to see detailed information
before selecting an action. Can also open a
menu with more options. Similar to right-
clicking with a mouse.
Zoom
Move two fingers together or apart while
touching the screen.
Zooms in and out on visual apps, such as
pictures and maps. Can also jump to the
beginning or end of a list.
22
Chapter 2. Starting to use Windows 10
Rotate
Place two or more fingers on an item and then
turn your hand.
Rotates an object (Note: Not all items can be
rotated, depending upon the app.).
Slide
Drag your finger across the screen.
Pans or scrolls through lists and pages. Can
also move an object or be used to draw or
write, depending upon the app. Similar to
pressing and holding to pan and to
scrolling with a mouse.
(continued)
Frequently used gestures Tasks performed
23
Chapter 3. Lenovo OneKey Recovery System
The Lenovo OneKey Recovery System is software designed to back up and restore your computer.
You can use it to restore the system partition to its original status in case of a system failure.
You can also create user backups for easy restoration as required.
Backing up the system partition
You can back up the system partition to an image file. This image file can be used to restore the
system partition. To back up the system partition:
1In Windows, press the Novo button or double-click OneKey Recovery icon to start the
Lenovo OneKey Recovery System.
2Click System Backup.
3Select a back-up location and click Next to start the backup.
Restoring
You can choose to restore the system partition to its original status or to a previously created
back-up point. To restore the system partition:
1In Windows, press the Novo button or double-click OneKey Recovery icon to start the
Lenovo OneKey Recovery System.
2Click System Recovery. The computer will restart to the recovery environment.
3Follow the on-screen instructions to restore the system partition to its original status or to a
previously created back-up point.
If Windows cannot be started, then follow the steps below to start the Lenovo OneKey
Recovery System:
1Shut down the computer.
2Press the Novo button. From Novo Button Menu, select System Recovery and press Enter.
Notes:
•If your computer is preinstalled with a GNU/Linux operating system, OneKey Recovery System is
not available.
•To utilize the features of the OneKey Recovery System, your hard disk already includes a hidden
partition by default to store the system image file and the OneKey Recovery System program files. This
default partition is hidden for security reasons, which explains why the available disk space is less than
the stated capacity.
Notes:
•You can choose a back-up location on the local hard disk drive or an external storage device.
•Remove the removable hard disk drive before starting the Lenovo OneKey Recovery System. Otherwise,
data from the removable hard disk drive might be lost.
•The back-up process may take a while.
•The back-up process is only available when Windows can be started normally.
Notes:
•The recovery process is irreversible. Make sure to back up any data you wish to save on the system
partition before starting the recovery process.
•The recovery process may take a while. So be sure to connect the AC power adapter to your computer
during the recovery process.
•The above instructions should be followed when Windows can be started normally.
24
Chapter 4. Troubleshooting
Frequently asked questions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This section lists frequently asked questions by category.
Finding information
Drivers and preinstalled software
Lenovo OneKey Recovery System
What safety precautions should I follow when using my computer?
The Lenovo Safety and General Information Guide which came with your computer contains safety
precautions for using your computer. Read and follow all the precautions when using your computer.
Where can I find the hardware specifications for my computer?
You can find the hardware specification for your computer on the printed flyers which came
with your computer.
Where can I find warranty information?
For detailed warranty information on this machine, please visit below website to check out:
support.lenovo.com/warrantystatus.
Where are the installation discs for Lenovo preinstalled software (desktop software)?
Your computer did not come with installation discs for Lenovo preinstalled software. If you
need to reinstall any preinstalled software, you can find the installation program on the D
partition of your hard disk. If you cannot find the installation program there, you can also
download it from the Lenovo consumer support website.
Where can I find drivers for the various hardware devices of my computer?
If your computer is preinstalled with a Windows operating system, Lenovo provides drivers for
all the hardware devices that you need on the D partition of your hard disk. You can also
download the latest device drivers from the Lenovo consumer support website.
Where are the recovery discs?
Your computer did not come with any recovery discs. Use the Lenovo OneKey Recovery System
if you need to restore the system to its original factory status.
What can I do if the back-up process fails?
If you can start the backup but it fails during the back-up process, try the following steps:
1Close all open programs, and then restart the back-up process.
2Check to see if the destination media is damaged. Select another path and then try again.
When do I need to restore the system to its factory status?
Use this feature when the operating system fails to start up. If there is critical data on the system
partition, back it up before starting recovery.
Chapter 4. Troubleshooting
25
BIOS setup utility
Getting help
What is the BIOS setup utility?
The BIOS setup utility is a ROM-based software. It displays basic computer information and
provides options for setting boot devices, security, hardware mode, and other preferences.
How can I start the BIOS setup utility?
To start the BIOS setup utility:
1Shut down the computer.
2Press the Novo button and then select BIOS Setup.
How can I change the boot mode?
There are two boot modes: UEFI and Legacy Support. To change the boot mode, start the BIOS
setup utility and set boot mode to UEFI or Legacy Support on the boot menu.
When do I need to change the boot mode?
The default boot mode for your computer is UEFI mode. If you need to install a legacy operating
system, such as Windows, Linux or Dos, etc. (that is, any operating system before Windows 8) on
your computer, you must change the boot mode to Legacy Support. The legacy operating system,
such as Windows, Linux or Dos, etc. cannot be installed if you don't change the boot mode.
How can I contact the customer support center?
See “Chapter 3. Getting help and service” in the Lenovo Safety and General Information Guide.
26
Chapter 4. Troubleshooting
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Display problems
When I turn on the
computer, nothing appears
on the screen.
•If the screen is blank, make sure that:
- The AC power adapter is connected to the computer, and
the power cord is plugged into a working electrical outlet.
- The computer power is on. (Press the Power button again
for confirmation.)
- The memory is installed correctly.
•If these items are properly set, and the screen remains blank,
have the computer serviced.
When I turn on the
computer, only a white
cursor appears on a
blank screen.
•Restore backed-up files to your Windows environment or the
entire contents of your hard disk to its original factory contents
using the Lenovo OneKey Recovery System. If you still see
only the cursor on the screen, have the computer serviced.
The screen goes blank
while the computer is on.
•Your screen saver or power management may be enabled. Do
one of the following to exit from the screen saver or to
resume from sleep mode:
-Touch the touchpad.
- Press any key on the keyboard.
- Press the Power button.
- Press Fn + F2 to confirm whether the backlight of the LCD
screen has been turned off.
BIOS password problems
I forgot my password. •If you forget your user password, ask the system
administrator to clear your user password.
•If you forget your hard disk drive password, a Lenovo
authorized servicer cannot reset your password or recover
data from the hard disk. You must take your computer to a
Lenovo authorized servicer or a marketing representative to
have the hard disk drive replaced. Proof of purchase is
required, and a fee will be charged for parts and service.
•If you forget your administrator password, a Lenovo
authorized servicer cannot reset your password. You must
take your computer to a Lenovo authorized servicer or a
marketing representative to have the system board replaced.
Proof of purchase is required, and a fee will be charged for
parts and service.
Chapter 4. Troubleshooting
27
Sleep problems
The critical low-battery
error message appears,
and the computer
immediately turns off.
•The battery power is getting low. Connect the AC power
adapter to the computer.
The computer enters sleep
mode immediately after
Power-on self-test (POST).
•Make sure that:
- The battery pack is charged.
- The operating temperature is within the acceptable range.
See “Chapter 2. Use and care Information” in the Lenovo
Safety and General Information Guide.
Note: If the battery pack is charged and the temperature is within range, have the computer serviced.
The computer does not
return from sleep mode,
and the computer does
not work.
•If your computer is in sleep mode, connect the AC power adapter
to the computer, then press any key or the Power button.
•If the system still does not return from sleep mode, stops
responding, or cannot be turned off, reset the computer.
Unsaved data may be lost. To reset the computer, press and
hold the Power button for four seconds or more. If the
computer is still not reset, remove the AC power adapter.
Display panel problems
The screen is blank. •Do the following:
- If you are using the AC power adapter or the battery pack,
and the battery status indicator is on, press Fn + to make
the screen brighter.
- If the power indicator is blinking, press the Power button to
resume from sleep mode.
- If the problem persists, follow the solution in the next
problem “The screen is unreadable or distorted.”
- Press Fn + F2 to confirm whether the backlight of the LCD
screen has been turned off.
The screen is unreadable
or distorted.
•Make sure that:
- The display device driver is installed correctly.
- The screen resolution and color quality are correctly set.
- The monitor type is correct.
Incorrect characters
appear on the screen.
•Is the operating system or programs installed correctly? If
they are installed and configured correctly, have the
computer serviced.
28
Chapter 4. Troubleshooting
Sound problems
No sound can be heard
from the speakers even
when the volume is
turned up.
•Make sure that:
- The Mute function is off.
- The combo audio jack is not being used.
- Speakers are selected as the playback device.
Battery pack problems
Your computer shuts down
before the battery status
indicator shows empty.
-or-
Your computer operates
after the battery status
indicator shows empty.
The operating time for a
fully charged battery pack
is short.
•Discharge and recharge the battery pack.
The computer does not
operate with a fully
charged battery pack.
The battery pack does
not charge.
•The surge protector in the battery pack might be active. Turn
off the computer for one minute to reset the protector; then
turn on the computer again.
A hard disk drive problem
The hard disk drive does
not work.
•Make sure that the hard disk drive is included in the Boot
menu in the BIOS setup utility correctly.
OneKey Recovery System problems
Backup cannot be made. •Make sure that you are currently using a Windows
operating system.
•There may not be enough space to store the backed-up data.
You will need to free more hard disk space on your
backup's partition.
Failure to restore system
partition to factory default.
•The system partition (e.g. the partition size or the drive
capacity of C) has been modified.
Chapter 4. Troubleshooting
29
Other problems
Your computer does
not respond.
•To turn off your computer, press and hold the Power button
for four seconds or more. If the computer still does not
respond, remove the AC power adapter.
•Your computer might lock when it enters sleep mode during
a communication operation. Disable the sleep timer when
you are working on the network.
The computer does not start
from a device you want.
•See the Boot menu of the BIOS setup utility. Make sure that
the BIOS setup utility is set so that the computer starts from
the device you want.
•Also make sure that the device from which the computer
starts is enabled. Make sure that the device is included in the
Boot menu in the BIOS setup utility correctly.
•While turned off, press the Novo button to select the device
you want the computer to start from.
The connected external
device does not work.
•Do not connect or disconnect any external device cables other
than USB while the computer power is on. Otherwise, you
might damage your computer.
•When using high power consumption external devices such
as an external USB optical disk drive, use an external device
power adapter. Otherwise, the device may not be recognized,
or the system may shut down as a result.
30
Trademarks
The following terms are trademarks or registered trademarks of Lenovo in the United States,
other countries, or both.
Lenovo
OneKey
ideapad
Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other
countries, or both.
Other company, products, or service names may be trademarks or service marks of others.
©Lenovo China 2015
en-US
Rev. AA00
