Recoton AW9T 900 MHz Transmitter Module User Manual CVL AW9T

Recoton Corporation 900 MHz Transmitter Module CVL AW9T

users manual

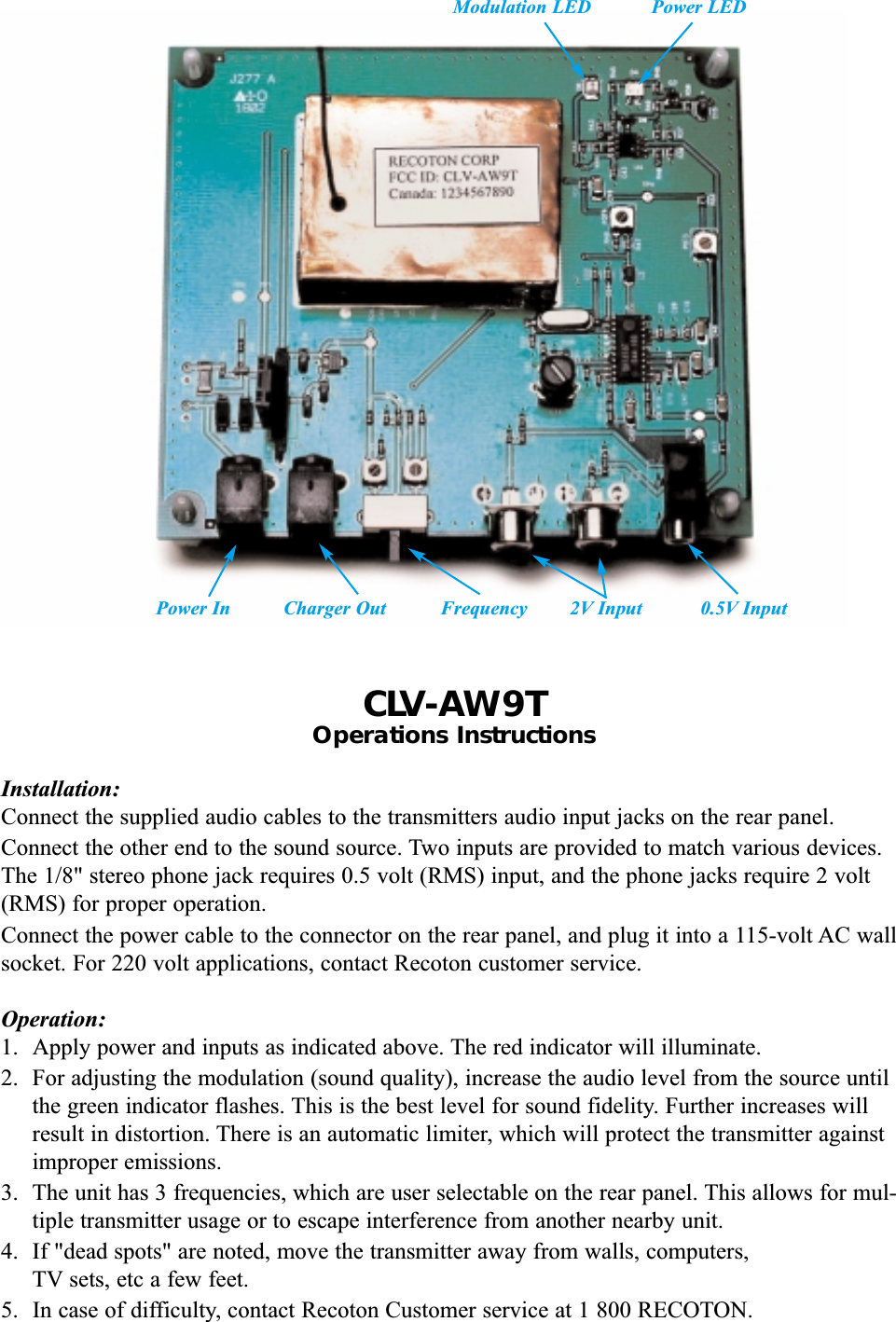

CLV-AW9TOperations InstructionsInstallation:Connect the supplied audio cables to the transmitters audio input jacks on the rear panel.Connect the other end to the sound source. Two inputs are provided to match various devices.The 1/8" stereo phone jack requires 0.5 volt (RMS) input, and the phone jacks require 2 volt(RMS) for proper operation.Connect the power cable to the connector on the rear panel, and plug it into a 115-volt AC wallsocket. For 220 volt applications, contact Recoton customer service.Operation:1. Apply power and inputs as indicated above. The red indicator will illuminate.2. For adjusting the modulation (sound quality), increase the audio level from the source untilthe green indicator flashes. This is the best level for sound fidelity. Further increases willresult in distortion. There is an automatic limiter, which will protect the transmitter againstimproper emissions.3. The unit has 3 frequencies, which are user selectable on the rear panel. This allows for mul-tiple transmitter usage or to escape interference from another nearby unit.4. If "dead spots" are noted, move the transmitter away from walls, computers,TV sets, etc a few feet.5. In case of difficulty, contact Recoton Customer service at 1 800 RECOTON.Power In Charger Out Frequency 2V Input 0.5V InputModulation LED Power LED

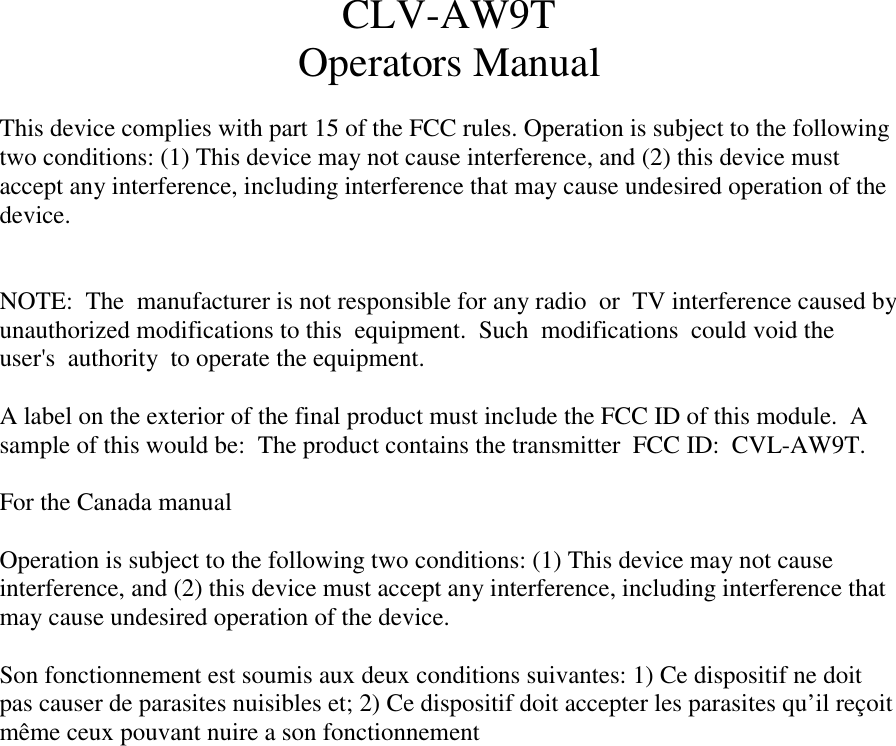

CLV-AW9T Operators Manual This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. A label on the exterior of the final product must include the FCC ID of this module. A sample of this would be: The product contains the transmitter FCC ID: CVL-AW9T. For the Canada manual Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Son fonctionnement est soumis aux deux conditions suivantes: 1) Ce dispositif ne doit pas causer de parasites nuisibles et; 2) Ce dispositif doit accepter les parasites qu’il reçoit même ceux pouvant nuire a son fonctionnement
