CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. RBEL9906.1

Serial No.

Visit our website at

www.reebokhomefitness.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-877-994-4999

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.reebokservice.com

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

TABLE OF CONTENTS

REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is

manufactured and distributed under license from Reebok International.

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical exerciser.

IMPORTANT PRECAUTIONS

1. Read all instructions in this manual and all

warnings on the elliptical exerciser before

using the elliptical exerciser. Use the ellipti-

cal exercise only as described in this

manual.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. The elliptical exerciser is intended for

home use only. Do not use the elliptical

exerciser in a commercial, rental, or institu-

tional setting.

4. Keep the elliptical exerciser indoors, away

from moisture and dust. Place the elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around the elliptical exerciser to mount, dis-

mount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from the elliptical exerciser at all times.

7. The elliptical exerciser should not be used

by persons weighing more than 325 pounds.

8. Wear appropriate exercise clothes while

using the elliptical exerciser. Always wear

athletic shoes for foot protection while exer-

cising.

9. Hold the handgrip pulse sensors or the upper

body arms when mounting, dismounting, or

using the elliptical exerciser.

10. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

11. Keep your back straight while using the ellip-

tical exerciser; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

13. When you stop exercising, allow the pedals

to slowly come to a stop.

14. The warning decals shown on page 4 have

been placed on the elliptical exerciser in the

locations shown. If a decal is missing or

illegible, call the toll-free telephone number

on the front cover of this manual and order

a free replacement decal. Apply the decal in

the location shown.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

Thank you for purchasing the revolutionary REEBOK®

1000 ZX elliptical exerciser. The 1000 ZX elliptical

exerciser provides an array of features designed to

make your workouts at home more effective and

enjoyable—and when you’re not exercising, the

unique elliptical exerciser can be folded out of the way.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number is RBEL9906.1. The

serial number can be found on a decal attached to the

elliptical exerciser (see the front cover of this manual

for the location of the decal).

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.reebokservice.com/registration.

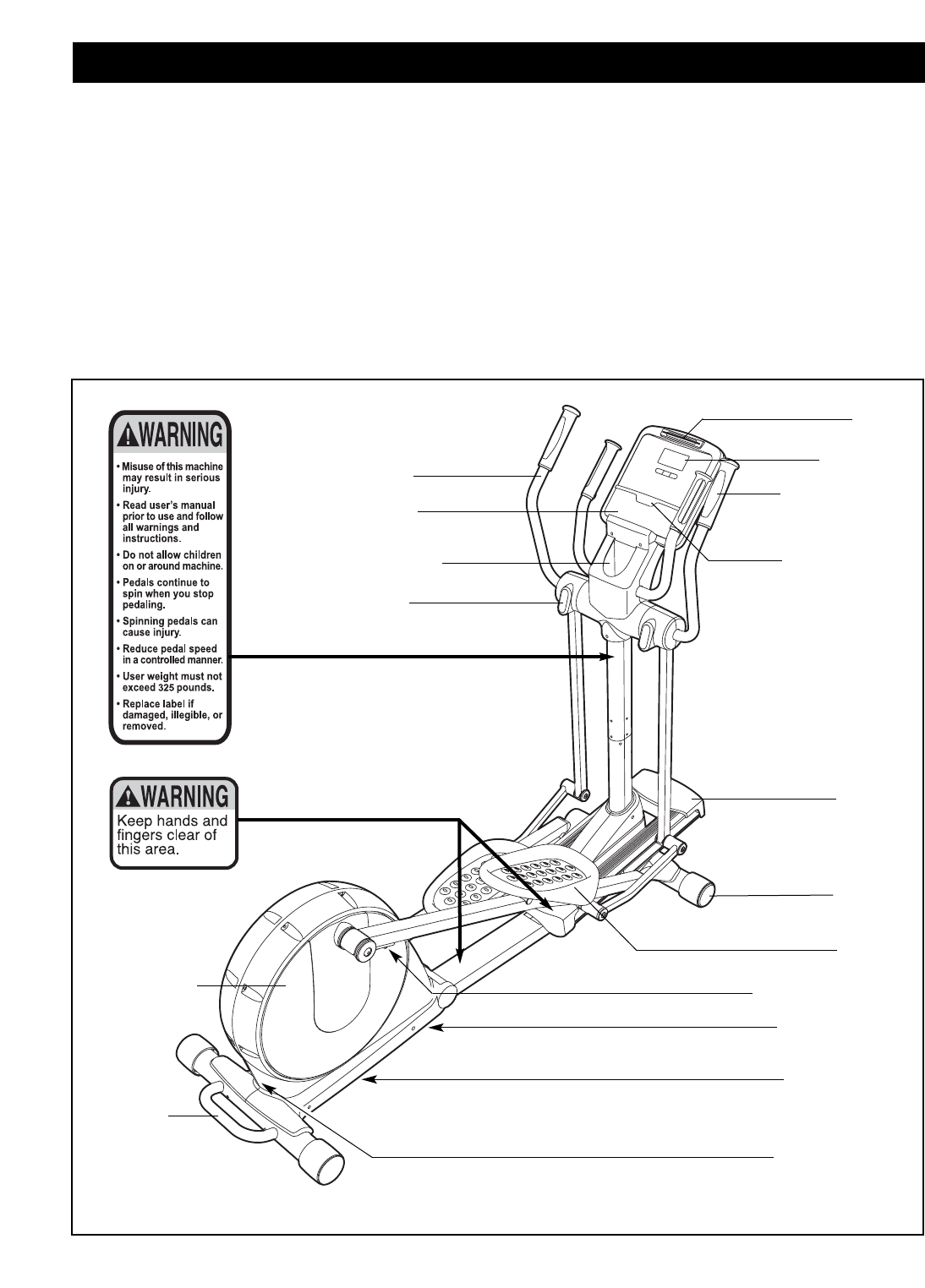

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pulse Sensor

Stereo Cable

Upper Body Arm

Pedal Disc

Wheel

Pedal

Stereo Speakers

Water Bottle Holder*

Console

Leveling Foot

Handle

Power Socket

Latch Button

Ramp

FRONT

RIGHT SIDE

REAR

Storage Magnet

Fan

Pedal Arm Latch

*No water bottle is included

BEFORE YOU BEGIN

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included hex keys and your own Phillips screwdriver and rubber

mallet .

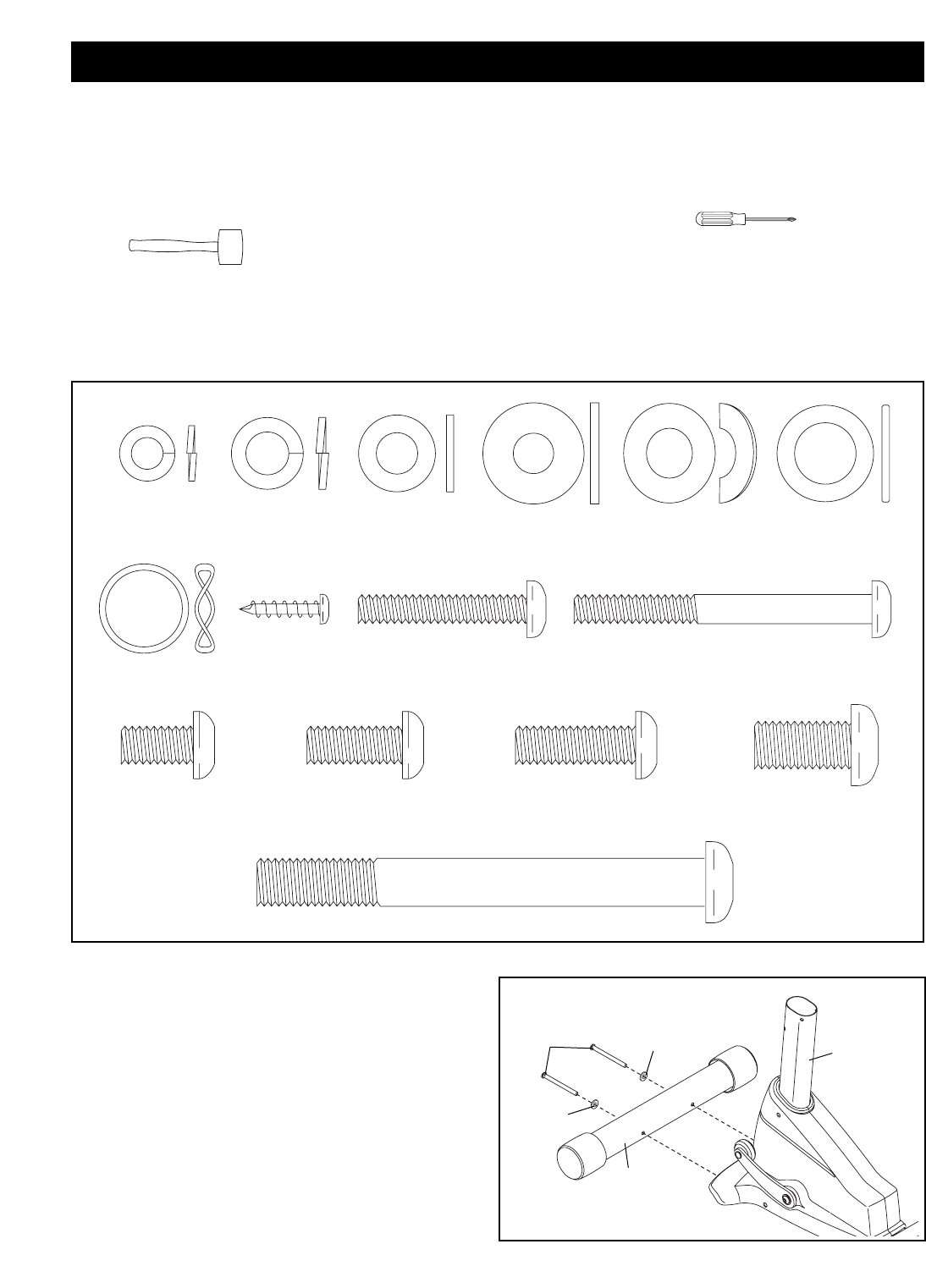

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number follow-

ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassem-

bled. If a part is not in the parts bag, check to see if it has been preassembled.

M10 x 93mm Button Screw (82)–4

M10 x 25mm

Washer (87)–2

M8 Split

Washer (101)–4

M4 x 16mm

Screw (116)–16

M6 Split Washer

(102)–8

M6 x 35mm

Screw (109)–4

M6 x 62mm

Screw (108)–4

M8.5 x 16mm x

1.5mm Washer

(103)–6

Link Arm

Spacer (74)–4

M8 x 20mm Button

Screw (107)–4

M8 x 25mm Button

Screw (110)–2

M10 x 20mm Button

Screw (111)–2

M8 x 15mm Button

Screw (106)–10

M10 Curved

Washer (99)–4

Wave Washer

(100)–2

1. While another person lifts the front of the

Frame (1), attach the Front Stabilizer (4) to the

Frame with two M10 x 93mm Button Screws

(82) and two M10 Curved Washers (99).

82 1

ASSEMBLY

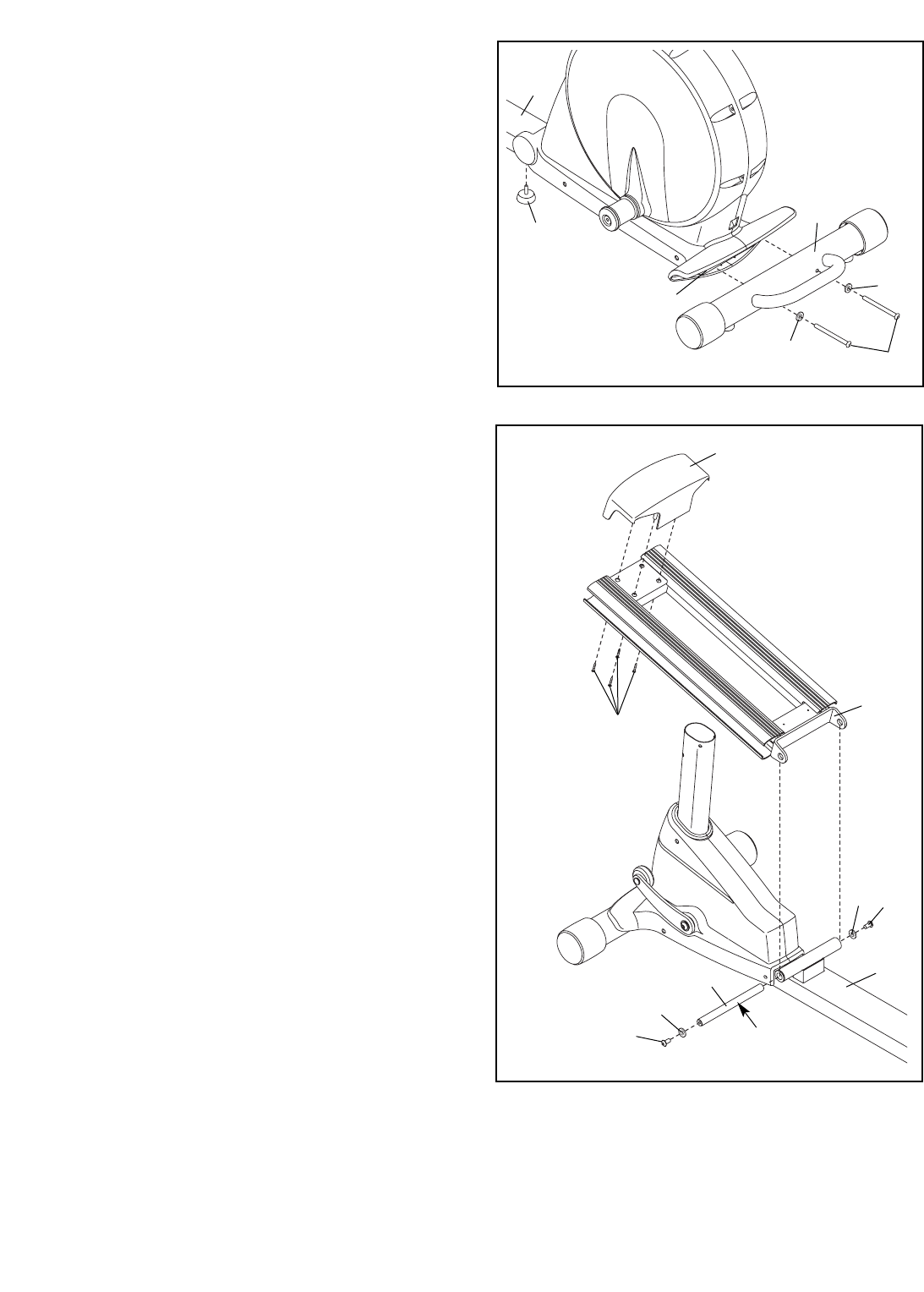

2. While another person lifts the Folding Frame (2),

attach the Rear Stabilizer (3) to the Folding

Frame with two M10 x 93mm Button Screws (82)

and two M10 Curved Washers (99). Next,

tighten the Center Foot (95) into the Frame (1).

3. Attach the Front Ramp Cover (6) to the

Ramp (5) with four M4 x 16mm Screws (116).

Slide an M10 x 25mm Washer (87) onto an

M10 x 20mm Button Screw (111). Tighten the

Button Screw into one end of the Ramp

Axle (72). Apply a small amount of the included

grease to the Ramp Axle.

Orient the Ramp (5) as shown. Align the lower

end of the Ramp with the welded tube on the

Frame (1). Insert the Ramp Axle (72) into the

Ramp and the welded tube.

Slide an M10 x 25mm Washer (87) onto an

M10 x 20mm Button Screw (111). Tighten the

Button Screw into the open end of the Ramp

Axle (72).

Grease

111

116

111

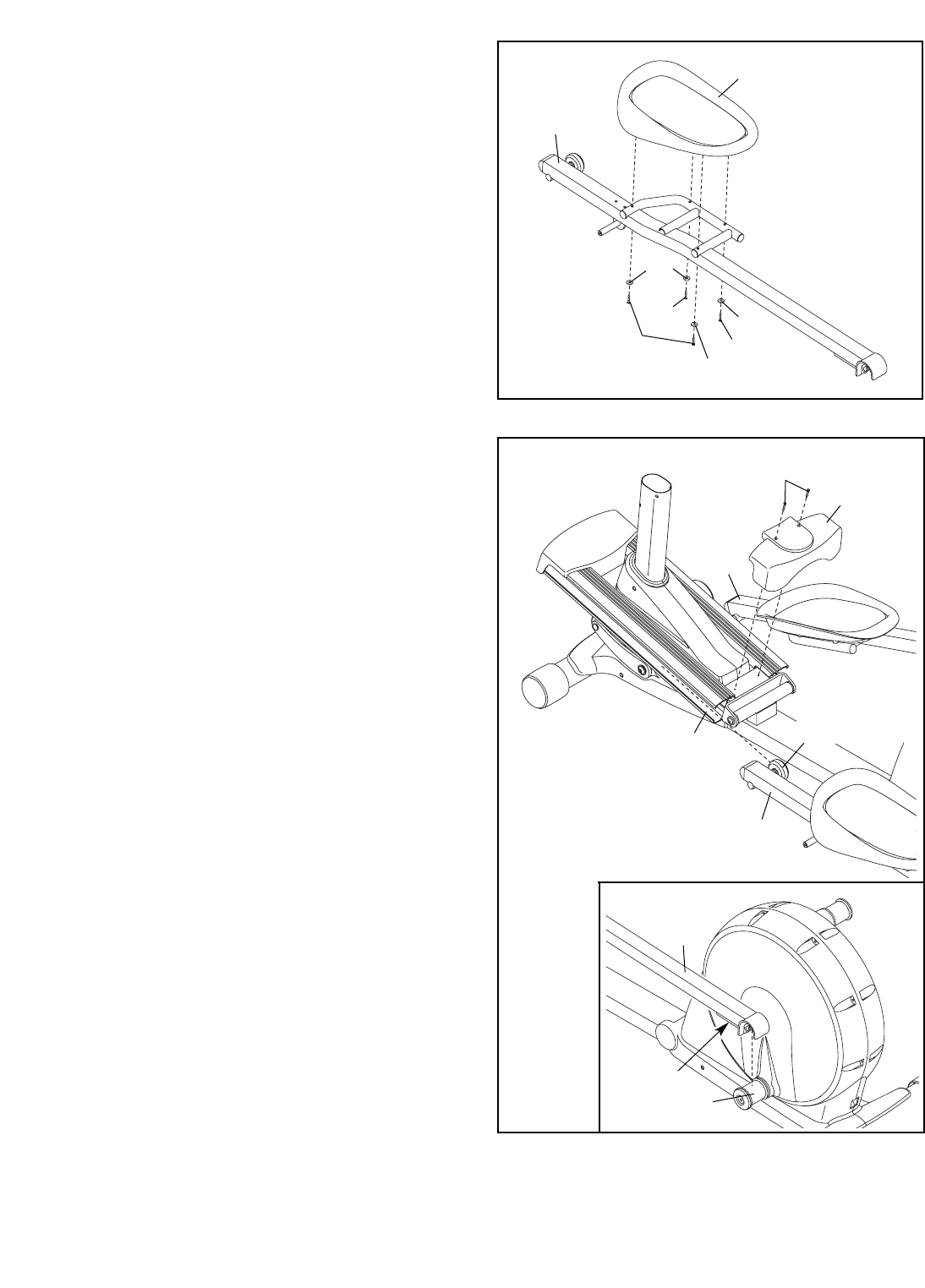

5. Insert the Roller (38) on the Left Pedal Arm (32)

and the Roller on the Right Pedal Arm (33) into

the sides of the Ramp (5).

Attach the Rear Ramp Cover (7) to the

Ramp (5) with two M4 x 16mm Screws (116).

See the inset drawing. Lift the Pedal Arm

Latch (41) on the Left Pedal Arm (32) and set

the end of the Left Pedal Arm on the left Crank

Bushing Sleeve (54). Release the Pedal Arm

Latch; make sure that the Left Pedal Arm is

securely connected to the Crank Bushing

Sleeve.

Connect the Right Pedal Arm (33) to the

right Crank Bushing Sleeve (not shown) in

the same way.

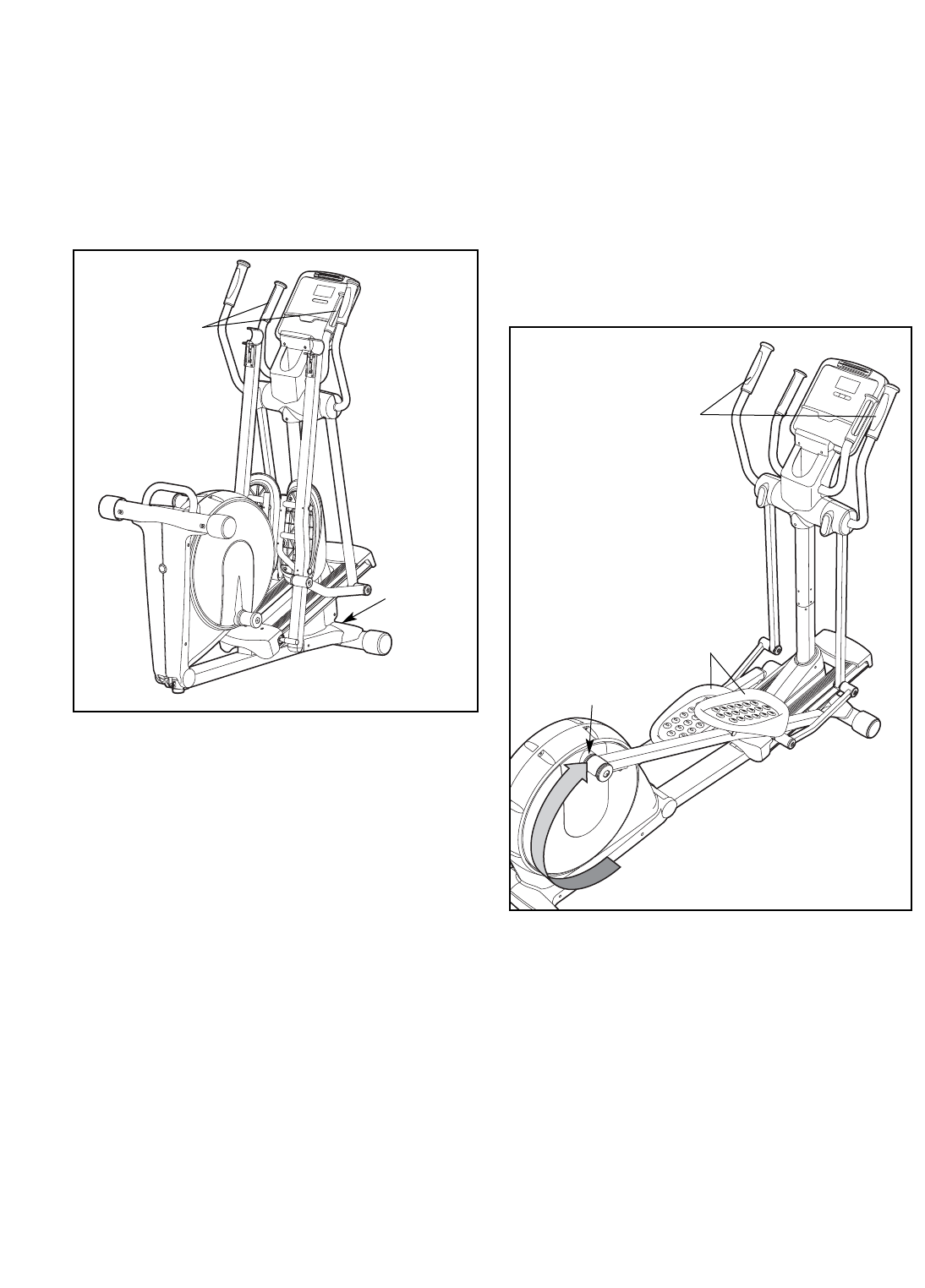

4. Identify the Left Pedal (34) and the Left Pedal

Arm (32), which are marked with stickers.

Attach the Left Pedal (34) to the Left Pedal

Arm (32) with two M6 x 62mm Screws (108),

two M6 x 35mm Screws (109), and four M6

Split Washers (102).

Attach the Right Pedal (not shown) to the

Right Pedal Arm (not shown) in the same

way.

116

108

102

109

102

7. Attach the Left Upper Body Arm (22) to the left

Upper Body Leg (24) with three M8 x 15mm

Button Screws (106).

Attach the Right Upper Body Arm (23) in the

same way.

6. While another person holds the Upright (10)

near the Frame (1), connect the Upper Wire

Harness (65) to the Lower Wire Harness (64).

Carefully insert the Upright (10) into the

Frame (1); be careful not to damage the Wire

Harnesses (64, 65). Attach the Upright with four

M8 x 20mm Button Screws (107) and four M8

Split Washers (101).

106

107

101 101

Be careful not

to damage the

Wire Harnesses

(64, 65) during

this step

107

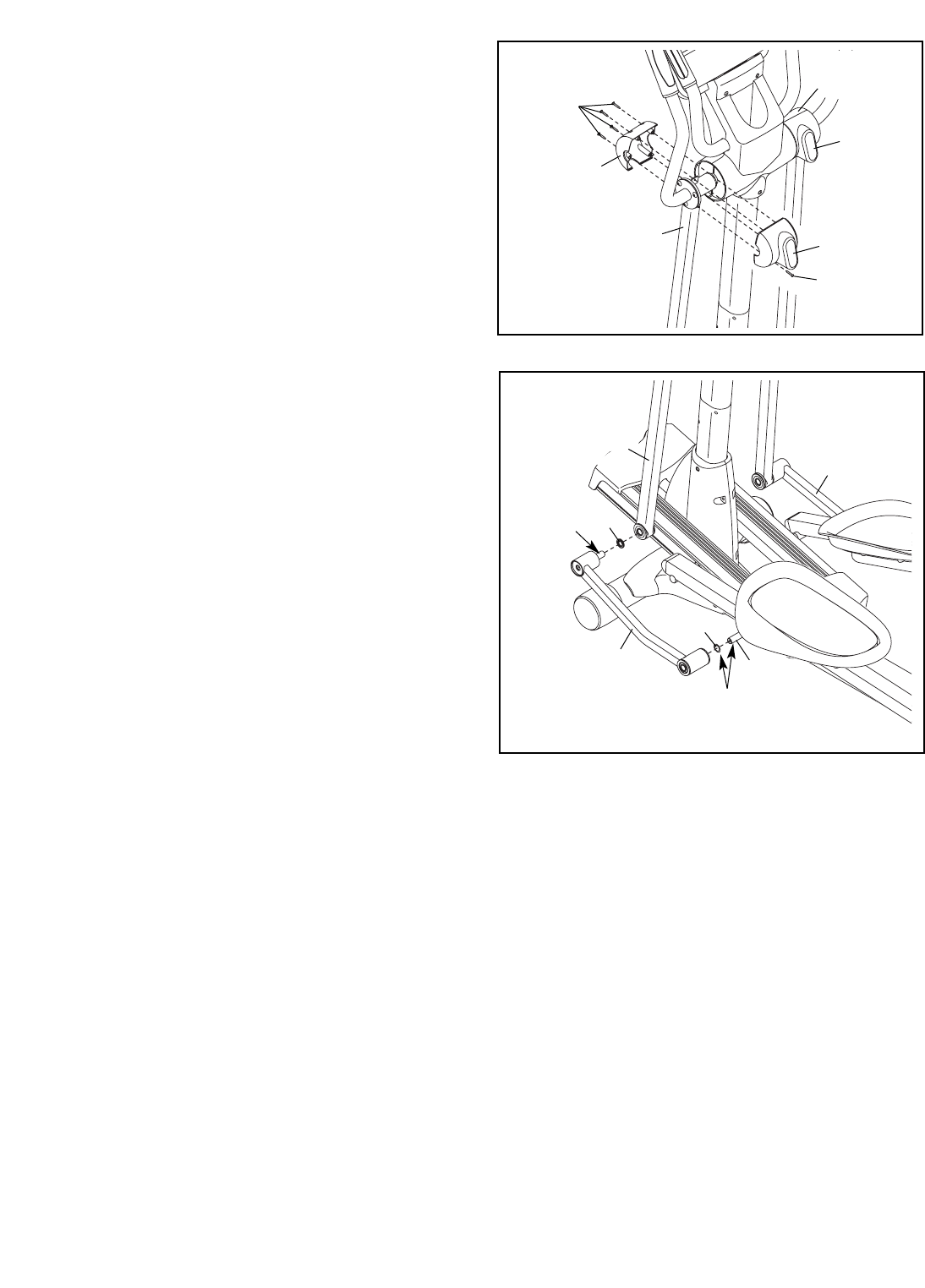

9. Apply a small amount of grease to the axle on

the Left Link Arm (30), to the axle on the Left

Pedal Arm (32), and to a Wave Washer (100).

Slide the Wave Washer (100) onto the axle on

the Left Pedal Arm (32). Next, slide a Link Arm

Spacer (74) onto the axle on the Left Link

Arm (30).

Then, insert the axle on the Left Link Arm (30)

into the left Upper Body Leg (24) while sliding

the Left Link Arm onto the axle on the Left Pedal

Arm (32).

Repeat this step with the Right Link Arm (31).

100

Grease

8. Hold the Left Rear Upper Body Cover (26) and

the Left Front Upper Body Cover (27) around

the left Upper Body Leg (24). Attach the Upper

Body Covers with five M4 x 16mm Screws (116).

Attach the Right Rear Upper Body Cover (28)

and the Right Front Upper Body Cover (29)

in the same way.

116

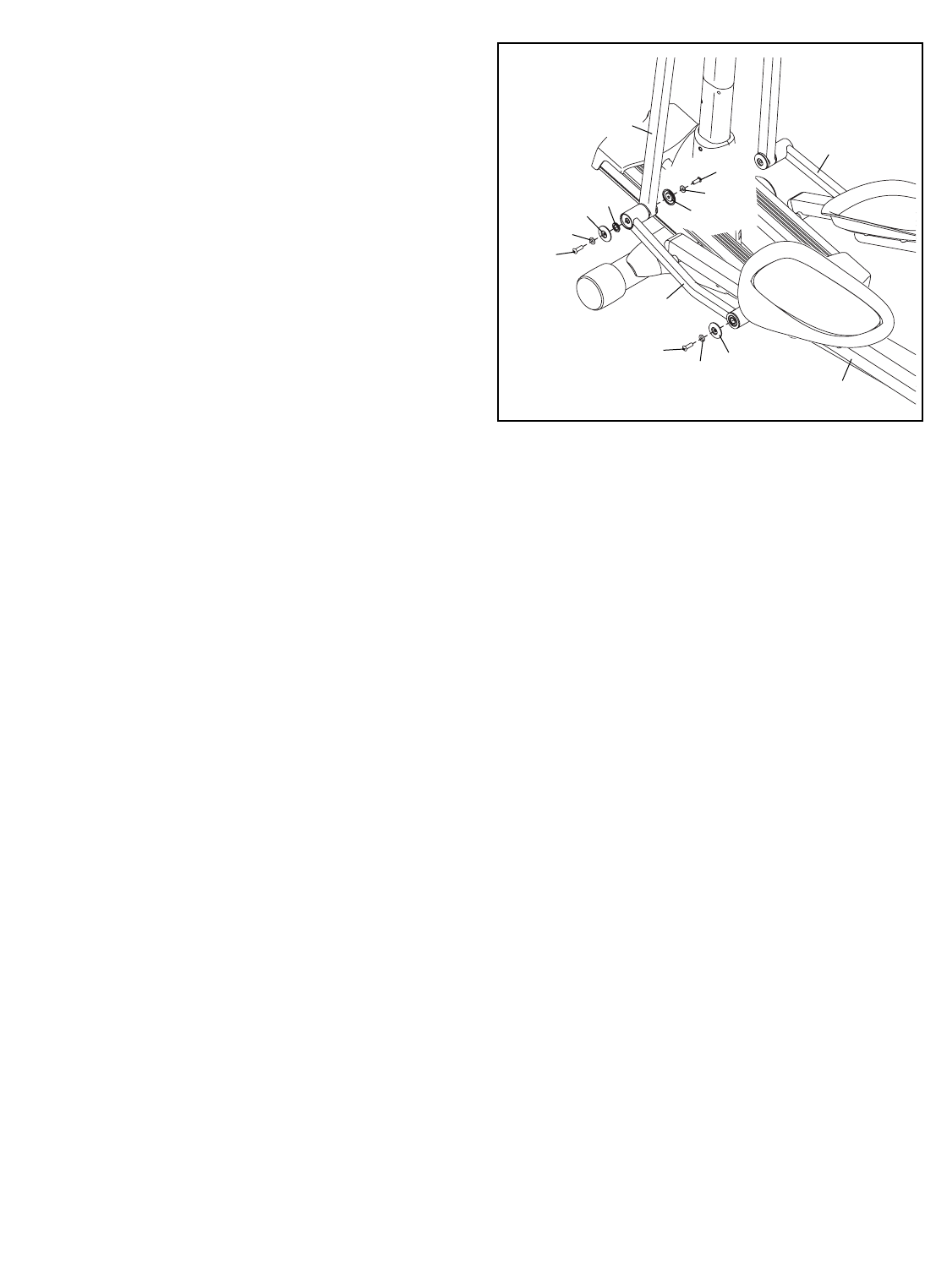

10. Attach the Left Link Arm (30) to the Left Pedal

Arm (32) with an M8 x 15mm Button Screw

(106), an M8.5 x 16mm x 1.5mm Washer (103),

and an Axle Cover (66).

Attach the Left Link Arm (30) to the left Upper

Body Leg (24) with an M8 x 25mm Button

Screw (110), two M8.5 x 16mm x 1.5mm

Washers (103), two Axle Covers (66), a Link

Arm Spacer (74), and an M8 x 15mm Button

Screw (106) as shown.

Attach the Right Link Arm (31) in the same

way.

11. Plug the power cord (not shown) into the power socket (not shown) at the rear of the elliptical exer-

ciser.

Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be

left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical exerciser.

66 74

103

110

103

106

103

106

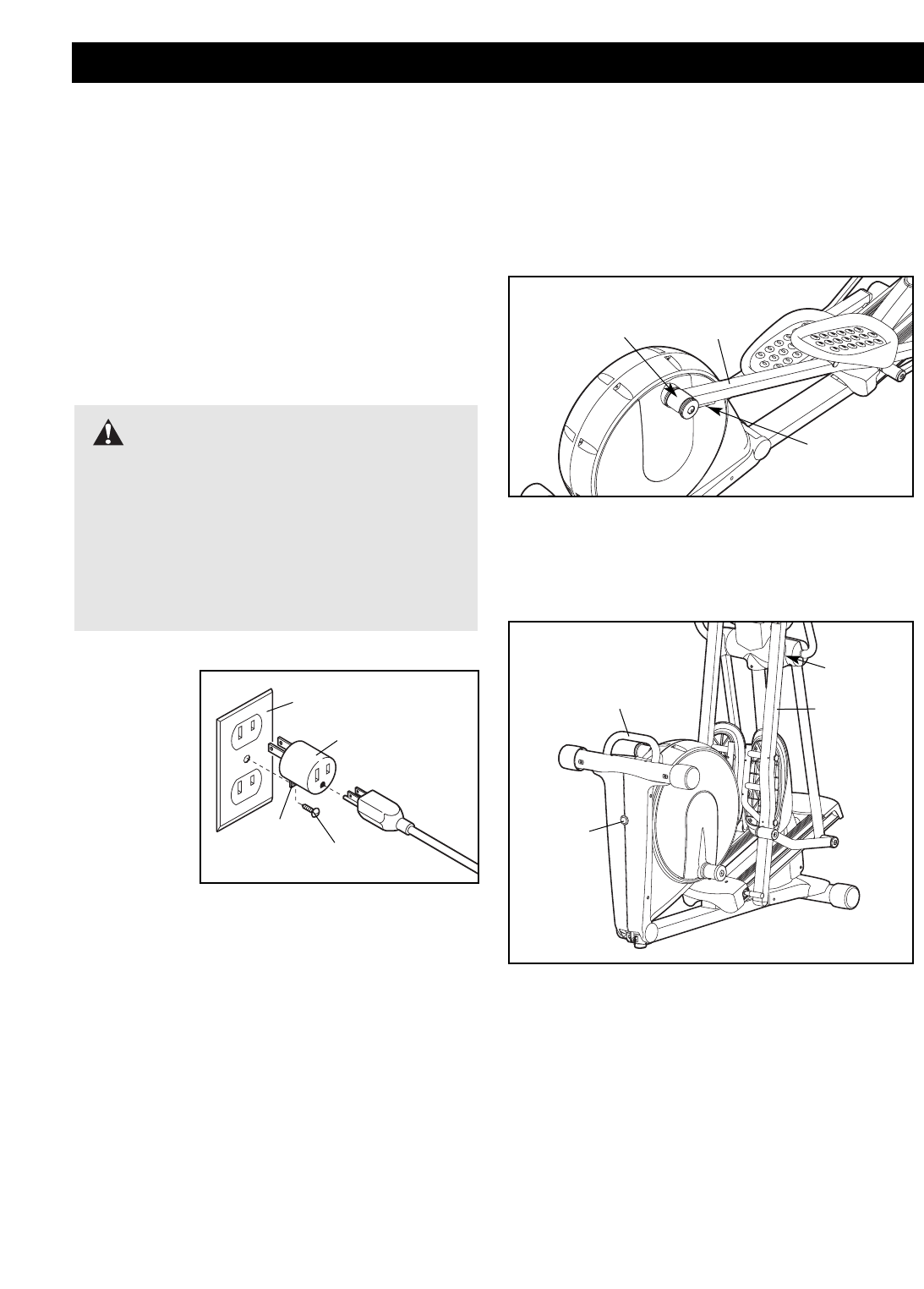

HOW TO PLUG IN THE POWER CORD

This product must be grounded. If it should mal-

function or break down, grounding provides a path of

least resistance for electric current to reduce the risk

of electric shock. This product is equipped with a cord

having an equipment-grounding conductor and a

grounding plug. Plug the power cord into an appro-

priate outlet that is properly installed and ground-

ed in accordance with all local codes and ordi-

nances. This product is for use on a nominal 120-

volt circuit. Important: The elliptical exerciser is

not compatible with GFCI-equipped outlets.

A temporary

adapter may

be used to

connect the

power cord

to a 2-pole

receptacle

as shown at

the right if a

properly

grounded

outlet is not

available. The temporary adapter should be used only

until a properly grounded outlet can be installed by a

qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used, it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

HOW TO FOLD AND UNFOLD THE ELLIPTICAL

EXERCISER

When the elliptical exerciser is not in use, the frame

can be folded out of the way. First, lift the latch under

each pedal arm, and lift the pedal arms off the sleeves

on the crank arms.

Next, raise the pedal arms until they touch the magnets

on the upper body legs; the magnets will hold the pedal

arms in place. Then, hold the handle and lift the frame

until it locks in a vertical position.

To use the elliptical exerciser, first hold the handle,

press the latch button, and lower the frame.

Next, pull the pedal arms off the magnets on the upper

body legs. Then, lift the latches under the pedal

arms, and set the pedal arms on the sleeves on the

crank arms. Release the latches, and make sure that

the pedal arms are securely connected to the crank

arms.

Latch

Sleeve

Pedal

Arm

Handle

Magnet

Latch

Button

Pedal Arm

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Grounded Outlet Box

Adapter

Lug

Metal Screw

HOW TO USE THE ELLIPTICAL EXERCISER

HOW TO MOVE THE ELLIPTICAL EXERCISER

To move the elliptical exerciser, first fold it as

described on page 11. Next, stand in front of the ellipti-

cal exerciser, hold the handgrip pulse sensors, and

place one foot against the center of the front stabilizer.

Pull the pulse sensors until the elliptical exerciser will

roll on the front wheels. Carefully move the elliptical

exerciser to the desired position, and then lower it.

HOW TO EXERCISE ON THE ELLIPTICAL

EXERCISER

To mount the elliptical exerciser, hold the upper body

arms and step onto the pedal that is in the lowest posi-

tion. Next, step onto the other pedal. Push the pedals

until they begin to move with a continuous motion.

Note: The crank arms can turn in either direction.

It is recommended that you turn the crank arms in

the direction shown by the arrow below; however,

for variety you can turn the crank arms in the

opposite direction.

To dismount the elliptical exerciser, wait until the ped-

als come to a complete stop. Note: The elliptical

exerciser does not have a free wheel; the pedals

will continue to move until the flywheel stops.

When the pedals are stationary, step off the higher

pedal first. Then, step off the lower pedal.

Pedals

Crank Arm

Upper Body Arms

Place

your foot

here

Handgrip

Pulse

Sensors

FEATURES OF THE CONSOLE

The advanced console offers an array of features

designed to make your workouts more effective and

enjoyable. When you select the manual mode of the

console, you can change the resistance of the pedals

and the incline of the ramp with the touch of a button.

As you exercise, the console will provide continuous

exercise feedback. You can even measure your heart

rate using the handgrip pulse sensor.

The console features twenty preset programs. Each

program automatically changes the resistance of the

pedals and prompts you to increase or decrease your

pedaling pace as it guides you through an effective

workout.

The console also offers two custom programs that

allow you to create your own workout programs and

store them in memory for future use.

In addition, the console features two heart rate pro-

grams that change the resistance of the pedals to

keep your heart rate near target heart rate settings

while you exercise.

The console also features the new iFIT Interactive

Workout System. The iFIT Interactive Workout System

enables the console to accept iFIT Cards containing

workout programs designed to help you achieve specif-

ic fitness goals. For example, lose unwanted pounds

with the 8-week Weight Loss program. iFIT programs

control the resistance of the pedals while the voice of a

personal trainer coaches you and motivates you

through your workouts. One iFIT Card with three new

programs is included. Additional iFIT Cards are avail-

able separately. To purchase iFIT Cards, go to

www.iFIT.com or call the toll-free telephone num-

ber on the front cover of this manual. iFIT Cards

are also available at select stores.

You can even connect your MP3 player or CD player

to the console’s stereo sound system and listen to

your favorite music or audio books while you exercise.

To use the manual mode of the console, follow the

steps beginning on page 14. To use a preset

program, see page 16. To create a custom

program, see page 17. To use a custom program,

see page 18. To use a heart rate program,

see page 19. To use an iFIT program, see page 21.

To use the stereo sound system, see page 21.

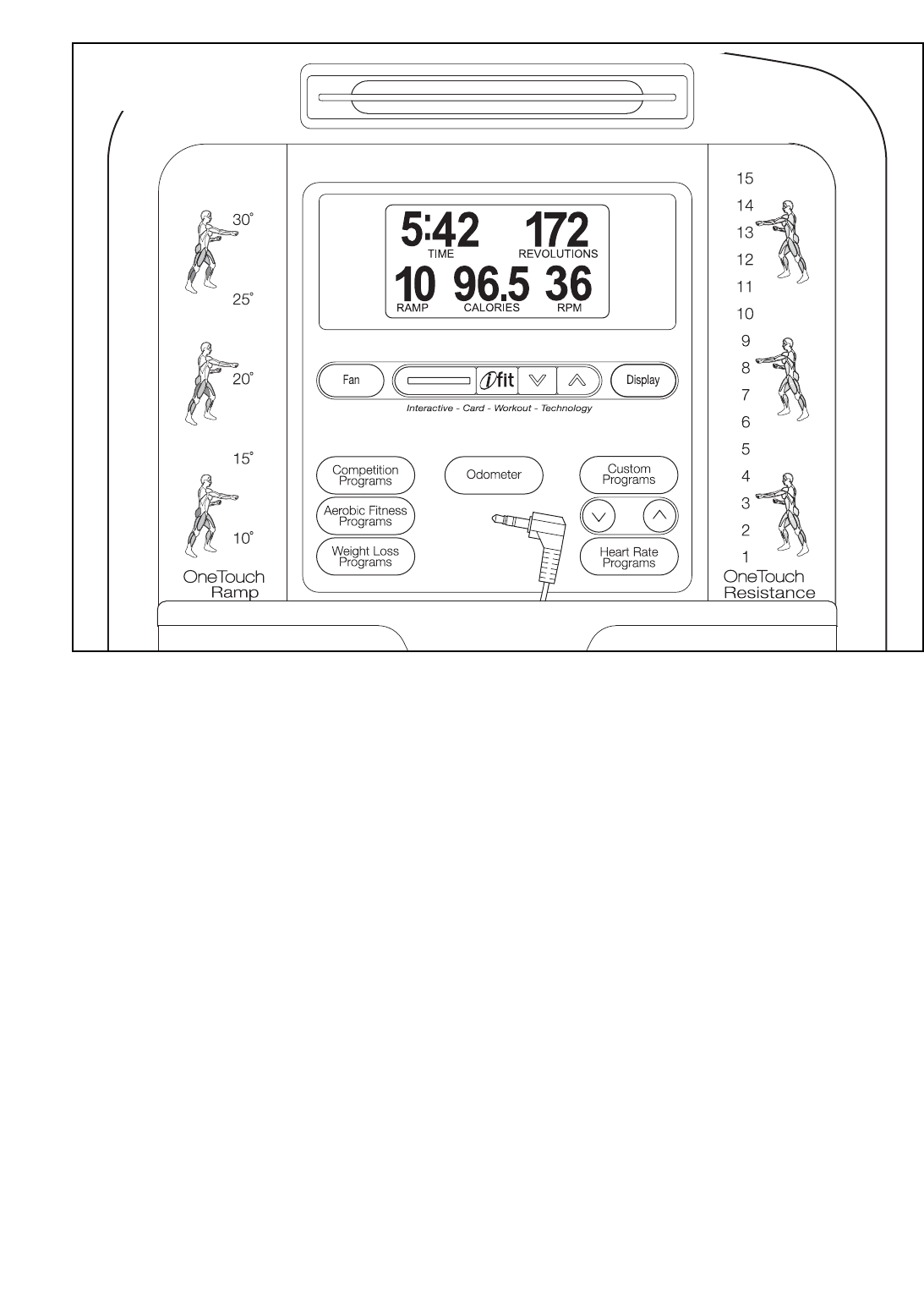

CONSOLE DIAGRAM

HOW TO USE THE MANUAL MODE

Note: If there is a sheet of clear plastic on the face of

the console, remove the plastic.

Press any button on the console or begin

pedaling to turn on the console.

When you turn on the console, the display will

light. A tone will then sound and the console will

be ready for use.

Select the manual mode.

When you turn on the console, the manual mode

will be selected. If you have selected a program,

reselect the manual mode by pressing any of the

Programs buttons repeatedly until zeros appear in

the display.

Begin pedaling and change the resistance of

the pedals and the incline of the ramp as

desired.

As you pedal, change the resistance of the ped-

als by pressing the OneTouch Resistance but-

tons. There are fifteen resistance levels. Note:

After you press the buttons, it will take a moment

for the pedals to reach the selected resistance

level.

To vary the motion of the pedals, you can change

the incline of the ramp. To change the incline,

press the OneTouch Ramp buttons. There are

five incline levels. Note: After you press the but-

tons, it will take a moment for the ramp to reach

the selected incline level.

Follow your progress with the display.

While you pedal, the upper left corner of the dis-

play will show the elapsed time. Note: During a

program, except for heart rate program 1, the dis-

play will show the time remaining in the program.

The upper right corner of the display will show the

distance you have pedaled, in total revolutions.

The display will also show your heart rate when

you use the handgrip pulse sensor (see step 5 on

page 15).

The lower left corner of the display will show the

ramp incline level.

The lower center of the display will show the

approximate number of calories you have burned.

The lower right corner of the display will show

your pedaling pace, in revolutions per minute.

The center of the display will show the resistance

level of the pedals for a few seconds each time the

resistance level changes.

You can also view selected information at a larger

size. Press the Display button repeatedly to view

the elapsed time and the distance you have ped-

aled, the elapsed time and the approximate num-

ber of calories you have burned, or the elapsed

time. Press the Display button again to view a

workout history of resistance levels and pedaling

pace.

To again view the time, distance, ramp incline,

number of calories burned, and pedaling pace,

press the Display button again.

To view the total distance pedaled since the ellipti-

cal exerciser was purchased and the trip distance,

press the Odometer button. The information will

appear in the display for a few seconds. To reset

the trip distance, hold down the Odometer button

for a few seconds.

Measure your heart rate if desired.

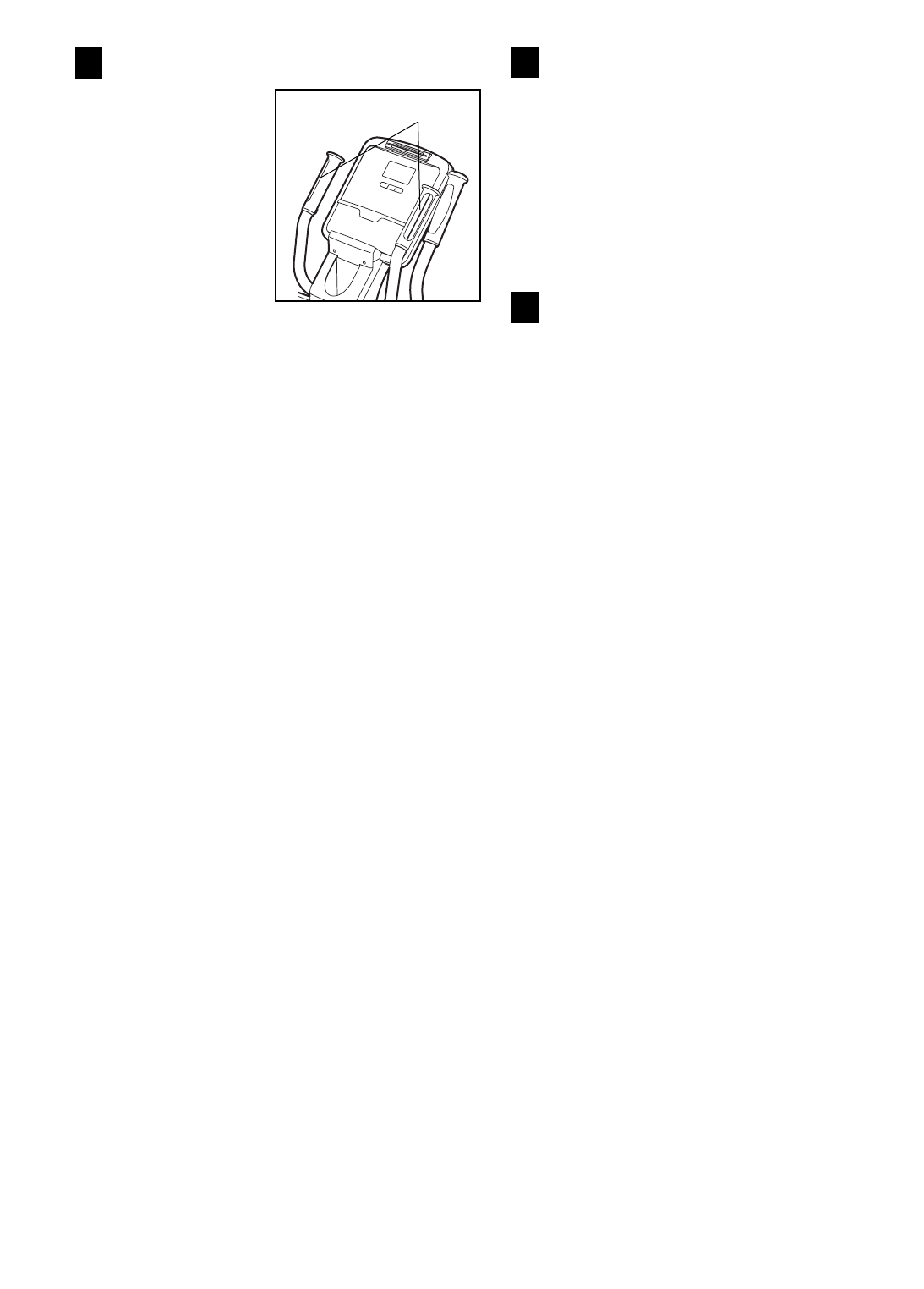

If there are

sheets of clear

plastic on the

metal contacts

on the handgrip

pulse sensor,

remove the plas-

tic. In addition,

make sure that

your hands are

clean. To mea-

sure your heart

rate, hold the handgrip pulse sensor with your

palms resting against the metal contacts. Avoid

moving your hands or gripping the contacts

tightly.

When your pulse is detected, your heart rate will

be shown in the display. For the most accurate

heart rate reading, hold the contacts for at least 15

seconds.

If your heart rate is not shown, make sure that

your hands are positioned as described. Be care-

ful not to move your hands excessively or to

squeeze the metal contacts tightly. For optimal

performance, clean the metal contacts using a

soft cloth; never use alcohol, abrasives, or

chemicals to clean the contacts.

Turn on the fan if desired.

To turn on the fan at high speed, press the Fan

button. To turn on the fan at low speed, press the

Fan button a second time. To turn off the fan,

press the Fan button again. Note: If the pedals

have not moved for about thirty seconds, the fan

will automatically turn off.

Pivot the fan louvers above the display upward or

downward to direct the airflow from the fan.

When you are finished exercising, the console

will turn off automatically.

If the pedals have not moved for several seconds,

a series of tones will sound and the console will

pause.

If the pedals have not moved for about five min-

utes, the console will turn off and the display will

be reset.

Contacts

HOW TO USE A PRESET PROGRAM

Turn on the console.

See step 1 on page 14.

Select a preset program.

To select a weight loss program, press the

Weight Loss Programs button repeatedly; to

select an aerobic fitness program, press the

Aerobic Fitness Programs button; to select a

competition program, press the Competition

Programs button.

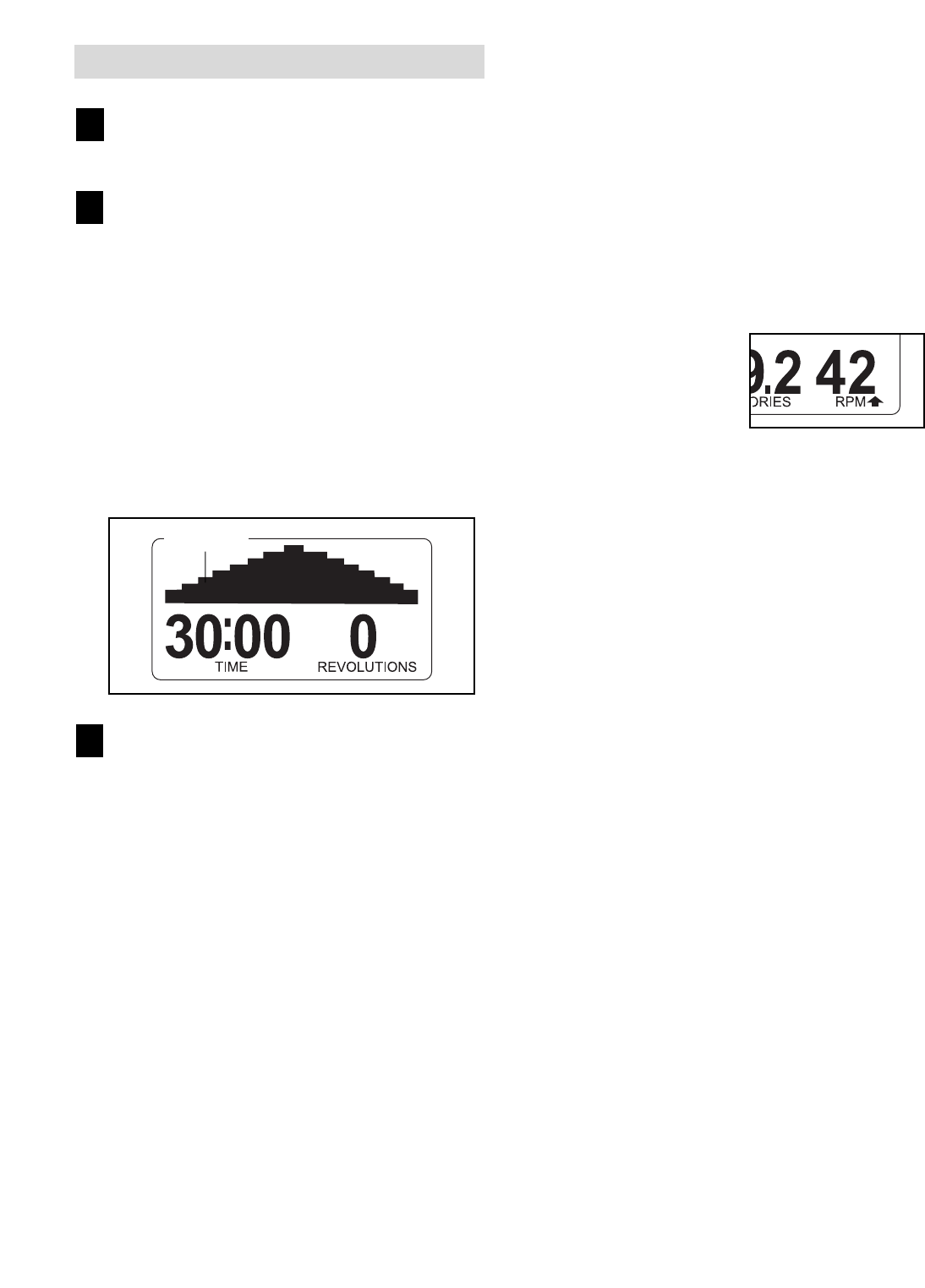

When you select a preset program, the name of

the program, the program time, and the maximum

pace and resistance level for the program will

appear in the display for a few seconds. A profile

of the resistance levels of the program will then

appear in the display.

Begin pedaling to start the program.

Each program is divided into 20, 30, or 45 one-

minute segments. One resistance level and one

target pace setting are programmed for each seg-

ment. Note: The same resistance level and/or tar-

get pace setting may be programmed for two or

more consecutive segments.

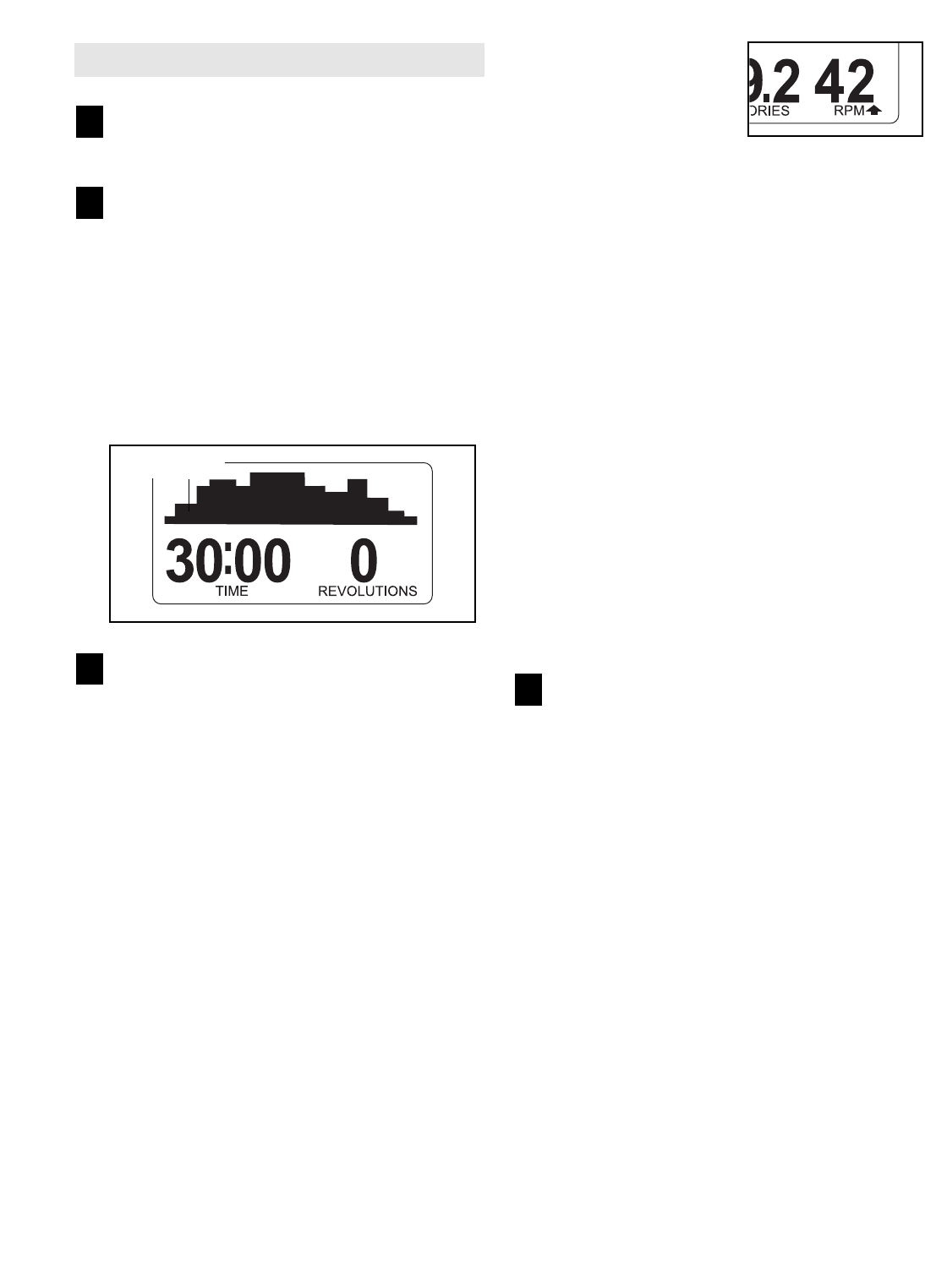

During the program, the program profile will show

your progress (see the drawing above). The

flashing segment of the profile represents the cur-

rent segment of the program. The height of the

flashing segment indicates the resistance level

for the current segment. At the end of each seg-

ment of the program, a series of tones will sound

and the next segment of the profile will begin to

flash. If a different resistance level is pro-

grammed for the next segment, the resistance

level will appear in the display for a few seconds

to alert you. The resistance of the pedals will then

change.

As you exercise, you

will be prompted to

keep your pedaling

pace near the target

pace setting for the

current segment.

When an upward-pointing arrow or the prompt

SPEED UP appears next to the pace information

in the display (see step 4 on page 17), increase

your pace. When a downward-pointing arrow or

the prompt SLOW DOWN appears, decrease

your pace. When no arrow or prompt appears,

maintain your current pace. Important: The tar-

get pace settings are intended only to provide

motivation. Make sure to pedal at a pace that

is comfortable for you.

If the resistance level for the current segment is

too high or too low, you can manually override

the setting by pressing the OneTouch Resistance

buttons. However, when the current segment

ends, the pedals will automatically adjust to the

resistance level for the next segment.

If you stop pedaling for several seconds, a series

of tones will sound and the program will pause. To

restart the program, simply resume pedaling. The

program will continue until the last segment of the

profile flashes and the last segment of the pro-

gram ends.

Profile

Follow your progress with the display.

During the program, the display will show the pro-

gram profile, the time remaining in the program,

and the distance you have pedaled.

To view the profile, your pedaling pace, and the

distance you have pedaled, press the Display but-

ton. Note: The words SPEED UP or SLOW

DOWN may appear in the display to prompt you

to keep your pedaling pace near the target pace

setting for the current segment.

To view the time remaining in the program and the

distance pedaled, press the Display button. Press

the Display button again to view the time remain-

ing and the approximate number of calories

burned.

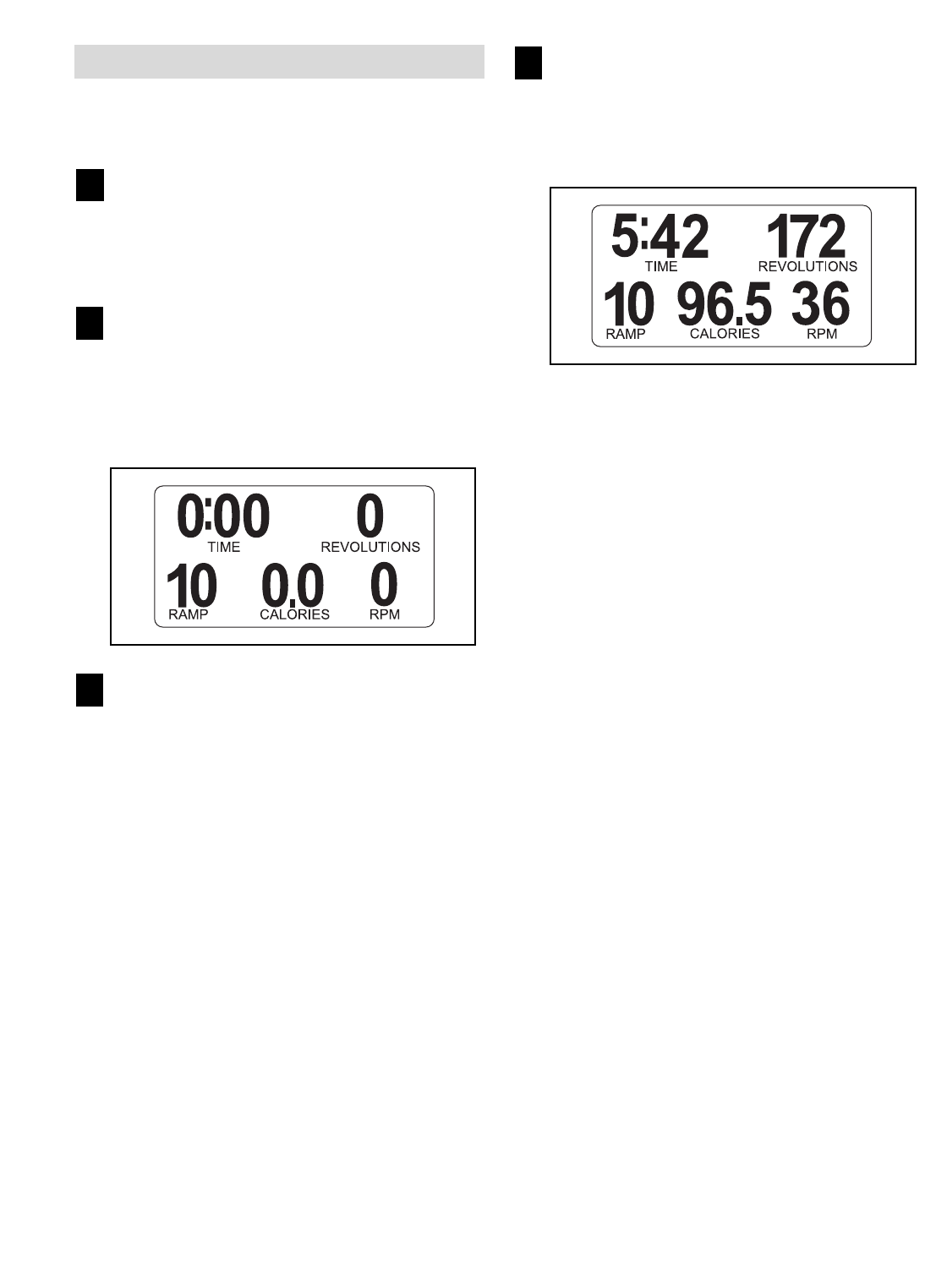

To view the time remaining, distance pedaled,

ramp incline, number of calories burned, and ped-

aling pace, press the Display button again. Note:

An upward- or downward-pointing arrow may

appear in the display to prompt you to keep your

pedaling pace near the target pace setting for the

current segment.

To view the first display again, press the Display

button again.

Measure your heart rate if desired.

See step 5 on page 15.

Turn on the fan if desired.

See step 6 on page 15.

When you are finished exercising, the console

will turn off automatically.

See step 7 on page 15.

HOW TO CREATE A CUSTOM PROGRAM

Turn on the console.

See step 1 on page 14.

Select a custom program.

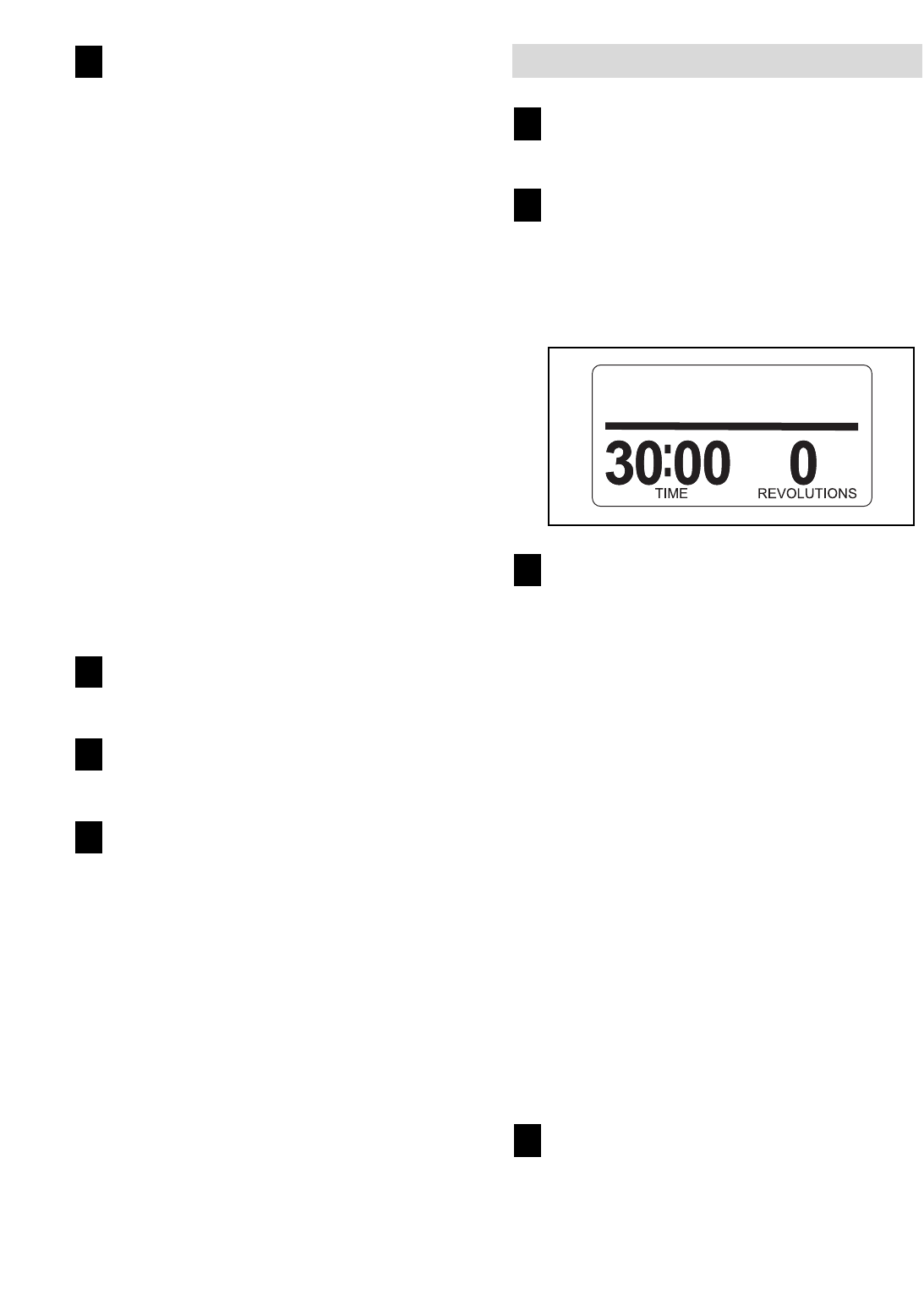

To select a custom program, press the Custom

Programs button once or twice. When you select

a custom program, the name of the program and

the settings for the program will appear in the dis-

play for a few seconds.

Begin pedaling to start the program, and

program the desired settings.

Each custom program is divided into 30 one-

minute segments. You can program one resis-

tance level and one target pace setting for each

segment.

To program a resistance level for the first seg-

ment, simply adjust the resistance of the pedals

by pressing the OneTouch Resistance buttons. To

program a target pace for the first segment, sim-

ply pedal at the desired pace.

At the end of the first segment, the program will

store the current resistance level and your current

pace in memory. Program a resistance level and

a target pace for the second segment as

described above.

Continue exercising for up to forty minutes. Stop

pedaling when you are finished with your work-

out. The program you created will then be stored

in memory. Note: If your workout is less than thirty

minutes long, any remaining segments in the pro-

gram will be stored with the last resistance level

and target pace setting you programmed.

When the program is finished, the console

will turn off automatically.

See step 7 on page 15.

HOW TO USE A CUSTOM PROGRAM

Turn on the console.

See step 1 on page 14.

Select a custom program.

To select a custom program, press the Custom

Programs button repeatedly until the words CUS-

TOM 1 or CUSTOM 2 appear in the display.

When you select a custom program, the name of

the program, the program time, and the maximum

pace and resistance level will appear in the dis-

play for a few seconds. A profile of the resistance

levels of the program will then appear in the dis-

play.

Begin pedaling to start the program.

Each custom program is divided into 30 one-

minute segments. One resistance level and one

target pace setting are programmed for each seg-

ment. Note: The same resistance level and/or tar-

get pace setting may be programmed for two or

more consecutive segments.

During the program, the program profile will show

your progress. The flashing segment of the profile

represents the current segment of the program.

The height of the flashing segment indicates the

resistance level for the current segment. At the

end of each segment of the program, a series of

tones will sound and the next segment of the pro-

file will begin to flash. If a different resistance

level is programmed for the next segment, the

resistance level will appear in the display for a

few seconds to alert you. The resistance of the

pedals will then change.

As you exercise, you

will be prompted to

keep your pedaling

pace near the target

pace setting for the

current segment.

When an upward-pointing arrow or the prompt

SPEED UP appears next to the pace information

in the display (see step 4 on page 17), increase

your pace. When a downward-pointing arrow or

the prompt SLOW DOWN appears, decrease

your pace. When no arrow or prompt appears,

maintain your current pace. Important: The tar-

get pace settings are intended only to provide

motivation. Make sure to pedal at a pace that

is comfortable for you.

If the resistance level for the current segment is

too high or too low, you can manually override

the setting by pressing the OneTouch Resistance

buttons. However, when the current segment

ends, the pedals will automatically adjust to the

resistance level for the next segment.

If you stop pedaling for several seconds, a series

of tones will sound and the program will pause. To

restart the program, simply resume pedaling. The

program will continue until the last segment of the

profile flashes and the last segment of the pro-

gram ends.

Change the program if desired.

If desired, you can change the program while

using it. To change the resistance level for the

current segment, simply press the OneTouch

Resistance buttons. At the end of the current seg-

ment, the new resistance level will be stored in

memory. To change the target pace for the cur-

rent segment, simply change your pedaling

pace. At the end of the current segment, your

pace will be stored in memory. You can continue

exercising and changing the program for up to

thirty minutes.

Profile

Follow your progress with the display.

See step 4 on page 17.

Measure your heart rate if desired.

See step 5 on page 15.

Turn on the fan if desired.

See step 6 on page 15.

When you are finished exercising, the console

will turn off automatically.

See step 7 on page 15.

HOW TO USE A HEART RATE PROGRAM

Turn on the console.

See step 1 on page 14.

Select a heart rate program.

To select one of the heart rate programs, press

the Heart Rate Programs button repeatedly until

the words HEART RATE 1 or HEART RATE 2

appear in the display.

Enter a target heart rate setting.

A few seconds after you select a heart rate pro-

gram, the words ENTER MAX TARGET HEART

RATE FOR THIS WORKOUT will appear in the

display and the number 110 will begin to flash.

During heart rate program 1, the same target

heart rate setting will be programmed for all seg-

ments of the program. If you have selected heart

rate program 1, press the increase and decrease

buttons above the Heart Rate Programs button to

enter the desired target heart rate setting (see

EXERCISE INTENSITY on page 23).

During heart rate program 2, different target

heart rate settings will be programmed for differ-

ent segments of the program. If you have select-

ed heart rate program 2, press the increase and

decrease buttons above the Heart Rate

Programs button to enter the desired maximum

target heart rate setting for the program (see

EXERCISE INTENSITY on page 23).

Hold the handgrip pulse sensor.

It is not necessary to hold the handgrip pulse

sensor continuously during heart rate programs;

however, you should hold the handgrip pulse sen-

sor frequently for the programs to operate proper-

ly. Each time you hold the handgrip pulse sen-

sor, keep your hands on the metal contacts

for at least 30 seconds.

Begin pedaling to start the program.

Heart rate program 1 is divided into 40 one-

minute segments. Note: For a shorter workout,

stop exercising or select a different program

before the program ends.

Heart rate program 2 is divided into 30 one-

minute segments. One target heart rate setting is

programmed for each segment. Note: The same

target heart rate setting may be programmed for

consecutive segments.

During the program, the program profile in the

display will show your progress. The flashing seg-

ment of the profile represents the current seg-

ment of the program. The height of the flashing

segment indicates the target heart rate setting for

the current segment. At the end of each segment

of the program, a series of tones will sound and

the next segment of the profile will begin to flash.

During both programs, the console will regularly

compare your heart rate to the target heart rate

setting for the current segment of the program. If

your heart rate is too far below or above the tar-

get heart rate setting, the resistance of the pedals

will automatically increase or decrease to bring

your heart rate closer to the target heart rate set-

ting. Each time the resistance changes, the resis-

tance level will appear in the display for a few

seconds to alert you.

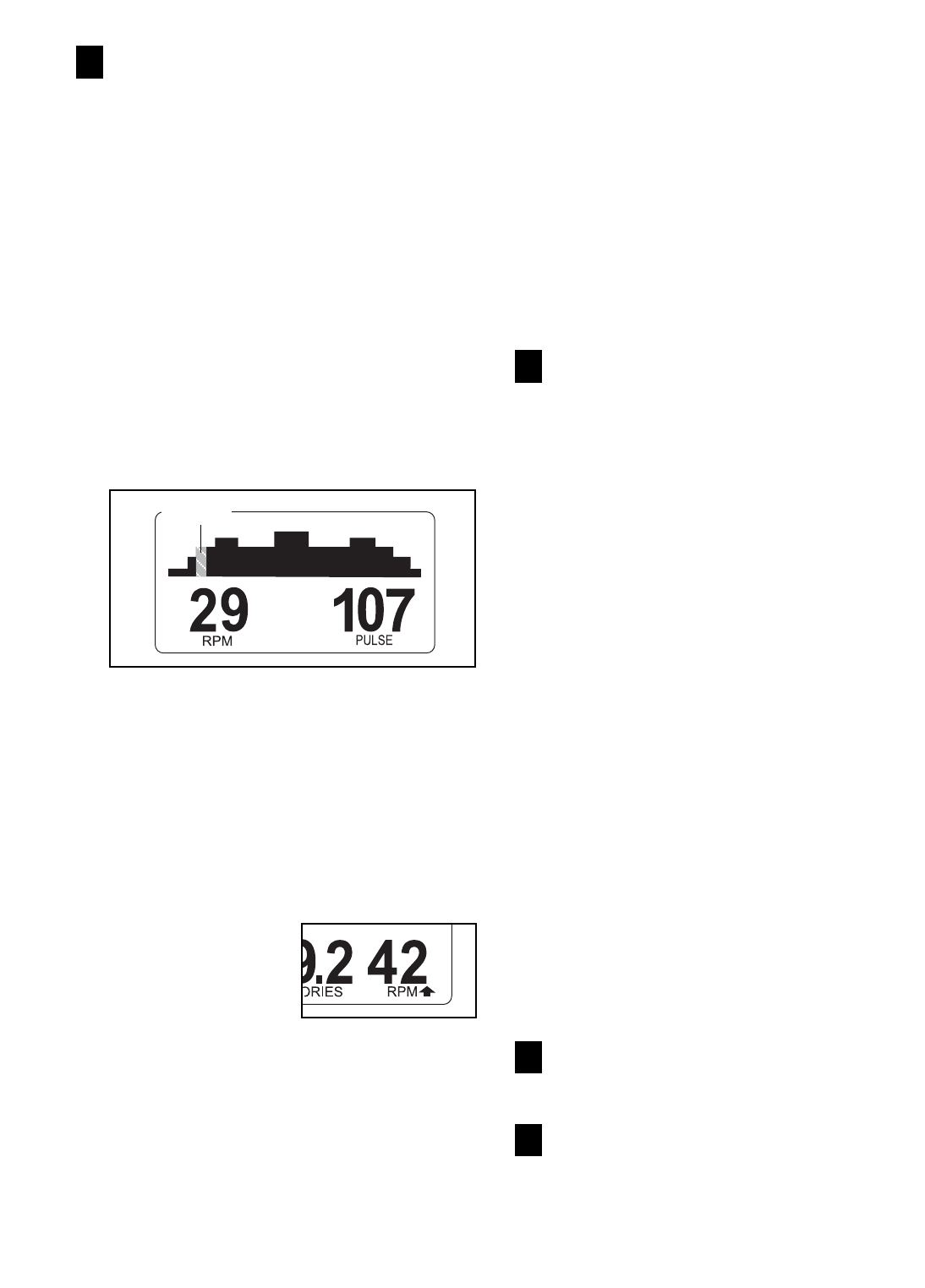

While you exercise,

you will be prompted

to maintain a con-

stant pedaling pace.

When an upward-

pointing arrow or the

prompt SPEED UP appears next to the pace

information in the display (see step 6 on this

page), increase your pace. When a downward-

pointing arrow or the prompt SLOW DOWN

appears, decrease your pace. When no arrow or

prompt appears, maintain your current pace.

If the resistance level for the current segment is

too high or too low, you can manually override

the setting by pressing the OneTouch Resistance

buttons. However, when the console compares

your heart rate to the target heart rate setting, the

resistance of the pedals may automatically

increase or decrease to bring your heart rate

closer to the target heart rate setting.

If you stop pedaling for several seconds, a series

of tones will sound and the program will pause. To

restart the program, simply resume pedaling. The

program will continue until the last segment of the

program ends.

Follow your progress with the display.

During heart rate program 1, the display will

show a graphic that represents a heartbeat each

time your heartbeat is detected, the elapsed time,

and the distance that you have pedaled. During

heart rate program 2, the display will show the

program profile, the time remaining in the pro-

gram, and the distance that you have pedaled.

To view the profile, your pedaling pace, and the

distance you have pedaled, press the Display but-

ton. Note: The words SPEED UP or SLOW

DOWN may appear in the display to prompt you

to keep your pedaling pace near the target pace

setting for the current segment.

To view the time remaining in the program and the

distance pedaled, press the Display button. Press

the Display button again to view the time remain-

ing and the approximate number of calories

burned.

To view the time remaining, distance pedaled,

ramp incline, number of calories burned, and ped-

aling pace, press the Display button again. Note:

An upward- or downward-pointing arrow may

appear in the display to prompt you to keep your

pedaling pace near the target pace setting for the

current segment.

To view the first display again, press the Display

button again.

Turn on the fan if desired.

See step 6 on page 15.

When you are finished exercising, the console

will turn off automatically.

See step 7 on page 15.

Profile

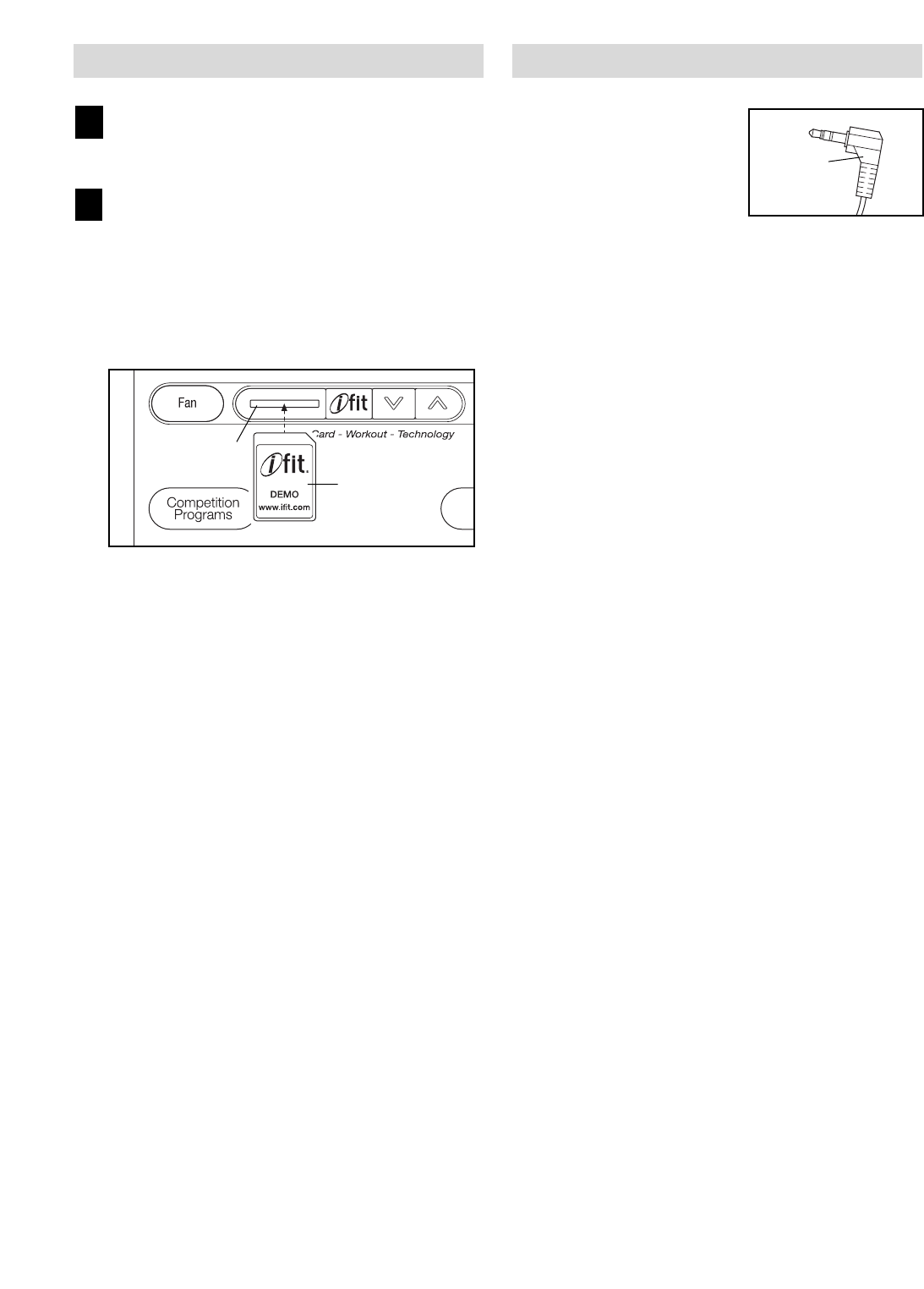

HOW TO USE AN IFIT PROGRAM

Turn on the console.

See step 1 on page 14.

Insert an iFIT Card and select a program.

To use an iFIT program, insert an iFIT Card into

the iFIT slot; make sure that the iFIT Card is ori-

ented so the metal contacts are face-down and

facing the slot. When the iFIT Card is properly

inserted, the indicator next to the slot will light

and the words IFIT 1 will appear in the display.

Next, select the desired program on the iFIT Card

by pressing the increase and decrease buttons

next to the iFIT slot.

A moment after you select a program, the voice

of a personal trainer will begin guiding you

through your workout. iFIT programs work in the

same way as preset programs. To use the pro-

gram, see steps 3 to 6 on pages 16 and 17.

HOW TO USE THE STEREO SOUND SYSTEM

To play music or audio

books through the con-

sole’s stereo sound system

while you exercise, first

locate the stereo audio

cable in the center of the

console above the speak-

ers. Plug the cable into a jack on your MP3 player or

CD player; make sure that the audio cable is fully

plugged in.

Next, press the play button on your MP3 player or CD

player. Adjust the volume of the speakers using the

volume control on your MP3 player or CD player.

When not in use, insert the stereo audio cable into the

storage recess on the console.

iFIT Slot

iFIT Card

Cable

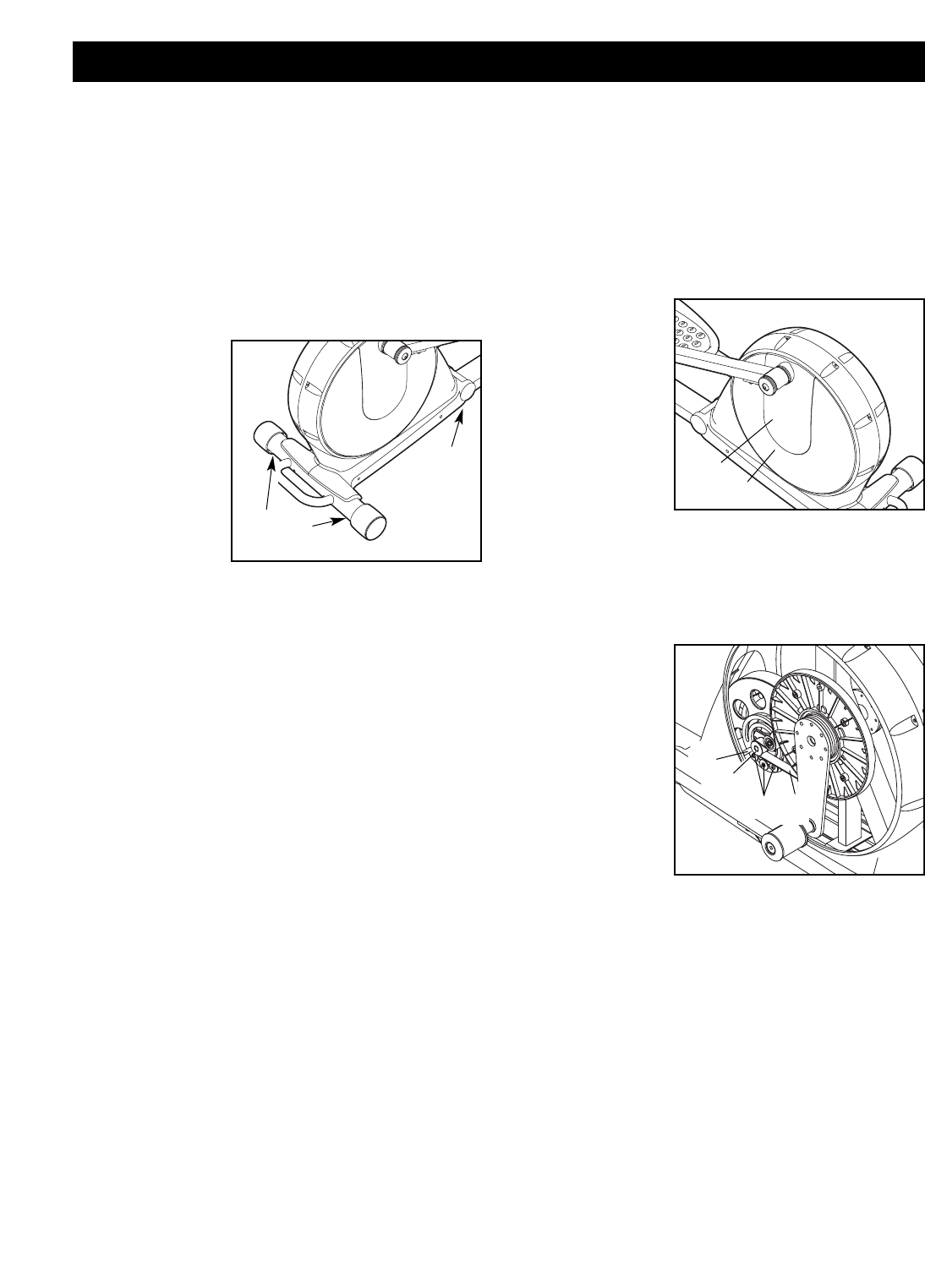

Inspect and tighten all parts of the elliptical exerciser

regularly. Replace any worn parts immediately.

To clean the elliptical exerciser, use a damp cloth and

a small amount of mild soap. Important: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

HOW TO LEVEL THE ELLIPTICAL EXERCISER

If the elliptical

exerciser rocks

on your floor dur-

ing use, turn one

or both of the

leveling feet

beneath the rear

stabilizer until

the rocking

motion is elimi-

nated.

HANDGRIP PULSE SENSOR TROUBLESHOOTING

• Avoid moving your hands while using the handgrip

pulse sensor. Excessive movement may interfere

with heart rate readings.

• Do not hold the metal contacts too tightly; doing so

may interfere with heart rate readings.

• For the most accurate heart rate reading, hold the

metal contacts for about 30 seconds.

• For optimal performance of the handgrip pulse sen-

sor, keep the metal contacts clean. The contacts

can be cleaned with a soft cloth—never use alco-

hol, abrasives, or chemicals to clean the con-

tacts.

HOW TO ELIMINATE FLEXING IN THE CENTER OF

THE ELLIPTICAL EXERCISER

If the elliptical exerciser flexes in the center during

use, turn the center foot beneath the frame (see the

drawing at the left) until the flexing is eliminated.

HOW TO ADJUST THE BELT

If the pedals slip

while you are

pedaling, even

while the resis-

tance is adjusted

to the highest

setting, the belt

may need to be

adjusted. To

adjust the belt,

first carefully pry

off the left Disc

Cover (13) using a flat screwdriver. Next, remove the

four screws (not shown) from the center of the left

Disc (12). Gently rotate the Disc Cover and the Disc

away from the elliptical exerciser.

Loosen, but do

not remove, the

three 1/4" x

19mm Button

Screws (114).

Insert the shaft of

a screwdriver

downward

between the

Idler (47) and the

Idler Pulley (48).

Pull the top of the

screwdriver

toward the rear of the elliptical exerciser until the Belt

(96) is tight, and then tighten the three Button Screws.

Reattach the left disc with the four screws and then

reattach the left disc cover.

Leveling

Feet

Center

Foot

114 96

MAINTENANCE AND TROUBLESHOOTING

The following guidelines will help you to plan your

exercise program. Remember that proper nutrition

and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

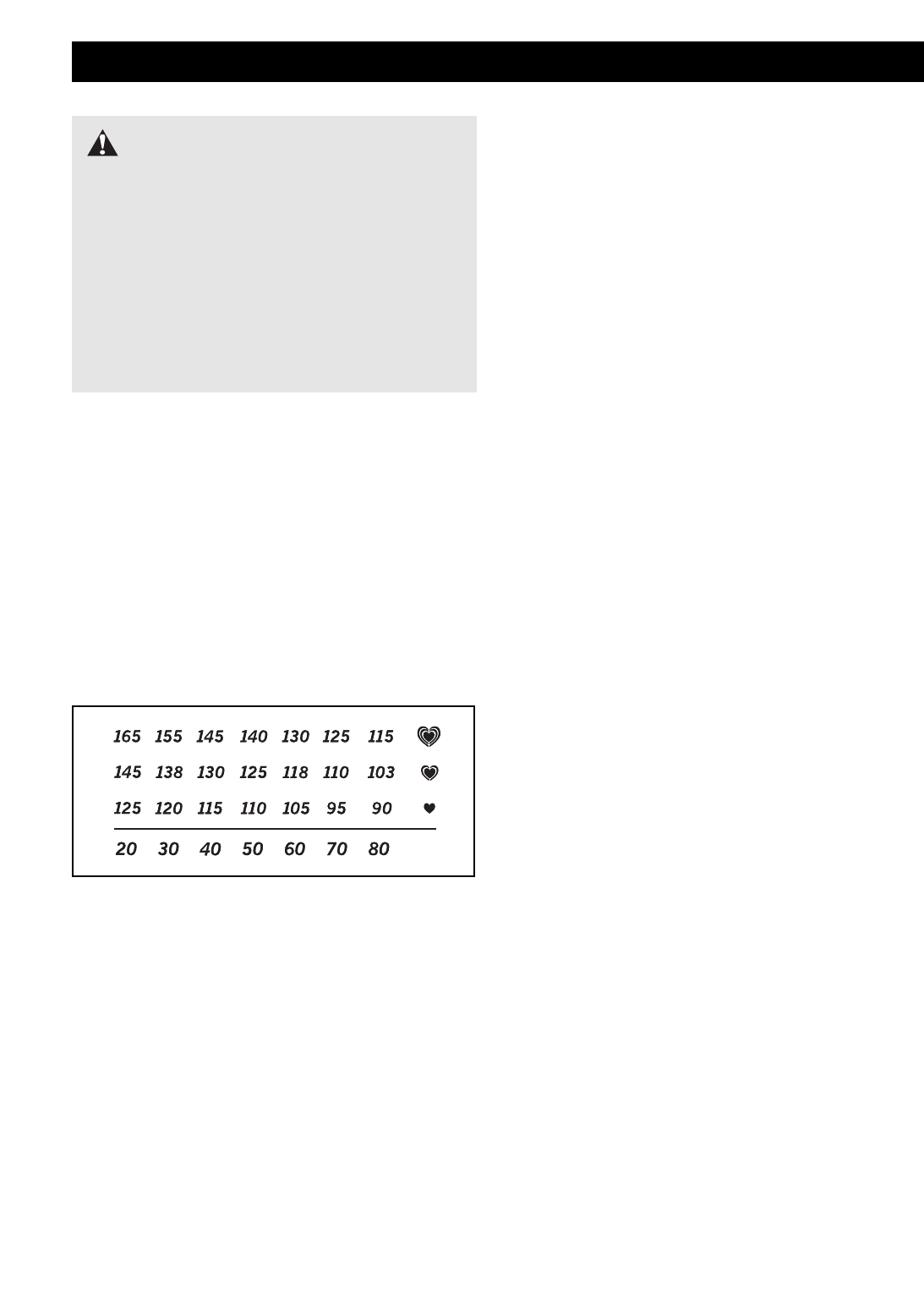

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning, maximum fat

burning, and cardiovascular (aerobic) exercise.

To find the proper heart rate for you, first find your age

at the bottom of the chart (ages are rounded off to the

nearest ten years). Next, find the three numbers above

your age. The three numbers are your “training zone.”

The lower two numbers are recommended heart rates

for fat burning; the highest number is the recommend-

ed heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relative-

ly low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible

carbohydrate

calories for ener-

gy. Only after the first few minutes of exercise does

your body begin to use stored

fat

calories for energy.

If your goal is to burn fat, adjust the intensity of your

exercise until your heart rate is near the lowest num-

ber in your training zone as you exercise.

For maximum fat burning, adjust the intensity of your

exercise until your heart rate is near the middle num-

ber in your training zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exer-

cise is activity that requires large amounts of oxygen

for prolonged periods of time. This increases the

demand on the heart to pump blood to the muscles,

and on the lungs to oxygenate the blood. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

training zone as you exercise.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A warm-up, consisting of 5 to 10 minutes of stretching

and light exercise. A proper warm-up increases your

body temperature, heart rate, and circulation in prepa-

ration for exercise.

Training zone exercise, consisting of 20 to 30 min-

utes of exercising with your heart rate in your training

zone. Note: During the first few weeks of your exer-

cise program, do not keep your heart rate in your

training zone for longer than 20 minutes.

A cool-down, with 5 to 10 minutes of stretching. This

will increase the flexibility of your muscles and will

help to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week

if desired. The key to success is to make exercise a

regular and enjoyable part of your everyday life.

WARNING:

Before beginning this or any exercise pro-

gram, consult your physician. This is espe-

cially important for persons over the age of 35

or persons with pre-existing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

CONDITIONING GUIDELINES

1 1 Frame

2 1 Folding Frame

3 1 Rear Stabilizer

4 1 Front Stabilizer

5 1 Ramp

6 1 Front Ramp Cover

7 1 Rear Ramp Cover

8 2 Side Ramp Cover

9 1 Lift Motor

10 1 Upright

11 1 Console

12 2 Disc

13 2 Disc Cover

14 1 Left Side Shield

15 1 Right Side Shield

16 2 Rear Endcap

17 2 Wheel

18 2 Wheel Cover

19 1 Rear Upright Cover

20 1 Front Upright Cover

21 2 Handgrip

22 1 Left Upper Body Arm

23 1 Right Upper Body Arm

24 2 Upper Body Leg

25 2 Pulse Sensor/Wire

26 1 Left Rear Upper Body Cover

27 1 Left Front Upper Body Cover

28 1 Right Rear Upper Body Cover

29 1 Right Front Upper Body Cover

30 1 Left Link Arm

31 1 Right Link Arm

32 1 Left Pedal Arm

33 1 Right Pedal Arm

34 1 Left Pedal

35 1 Right Pedal

36 1 Left Frame Cover

37 1 Right Frame Cover

38 4 Roller

39 2 Pedal Arm Endcap

40 1 Tray

41 2 Pedal Arm Latch

42 4 Pedal Arm Latch Spring

43 6 Pedal Arm Cap

44 1 Eddy Mechanism

45 1 Eddy Crank Assembly

46 1 Pillow Block

47 1 Idler

48 1 Idler Pulley

49 1 Eddy Motor

50 1 Reed Switch/Wire

51 1 Clamp

52 2 Large Axle Cover

53 2 Crank Bushing

54 2 Crank Bushing Sleeve

55 2 Crank Arm

56 1 Crank Arm Spacer

57 1 Large Pulley

58 1 Crank Flange

59 2 Crank Bearing Assembly

60 1 Crank Spacer

61 1 Crank

62 2 Lift Bracket

63 1 Lift Axle

64 1 Lower Wire Harness

65 1 Upper Wire Harness

66 6 Axle Cover

67 8 Bushing Assembly

68 4 Brass Bushing

69 1 Latch Bracket

70 1 Latch Button

71 1 Upper Body Axle

72 1 Ramp Axle

73 1 Pivot Axle

74 4 Link Arm Spacer

75 1 Latch Axle

76 1 Latch Spring

77 2 Lift Axle Screw

78 1 Button Frame

79 2 Hairpin Cotter

80 2 Lift Axle Washer

81 1 Control Board

82 4 M10 x 93mm Button Screw

83 2 Crank Snap Ring

84 2 Crank Arm Washer

85 2 Outside Crank Bushing

86 1 Flange Screw

87 4 M10 x 25mm Washer

88 5 Bolt Set

89 4 Small Snap Ring

90 1 Idler Snap Ring

91 1 Eddy Snap Ring

92 1 Idler Spacer

93 2 M10 Nylon Locknut

94 3 Idler Washer

95 1 Center Foot

96 1 Belt

97 1 Control Box

98 2 Leveling Foot

99 4 M10 Curved Washer

100 4 Wave Washer

Key No. Qty. Description Key No. Qty. Description

PART LIST—MODEL NO. RBEL9906.1 R1206A

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordering replacement parts.

101 4 M8 Split Washer

102 12 M6 Split Washer

103 8 M8.5 x 16mm x 1.5mm Washer

104 4 M8 x 20mm x 2mm Washer

105 4 M8 x 16mm Button Screw

106 10 M8 x 15mm Button Screw

107 8 M8 x 20mm Button Screw

108 4 M6 x 62mm Screw

109 4 M6 x 35mm Screw

110 6 M8 x 25mm Button Screw

111 4 M10 x 20mm Button Screw

112 8 M8 x 25mm Shoulder Screw

113 2 M8 x 30mm Button Screw

114 5 1/4" x 19mm Button Screw

115 3 M4 x 12mm Screw

116 56 M4 x 16mm Screw

117 8 M4 x 16mm Cupped Screw

118 4 M6 Nylon Locknut

119 4 Bearing Assembly

120 2 Upright Brass Bushing

121 1 Left Lift Arm

122 1 Right Lift Arm

123 2 Lift Bushing

124 1 Transformer

125 1 Control Box Cover

126 1 Motor Clevis Pin

127 1 Bracket Pin

128 1 Lift Reed Switch

129 1 Switch Cover

130 1 Power Socket

131 2 Motor Spacer

132 4 M4 x 10mm Screw

# - User’s Manual

# - Hex Key

# - Grease

# - Power Cord

Key No. Qty. Description Key No. Qty. Description

67 67

119

120

116

110

103

105

104

106

116

117

116

117

116

104

105

106

116

115

100

106 103

110

103

106

103

100

106

103

100

108

102 102

109 109

102 102

109

108 108

117

116

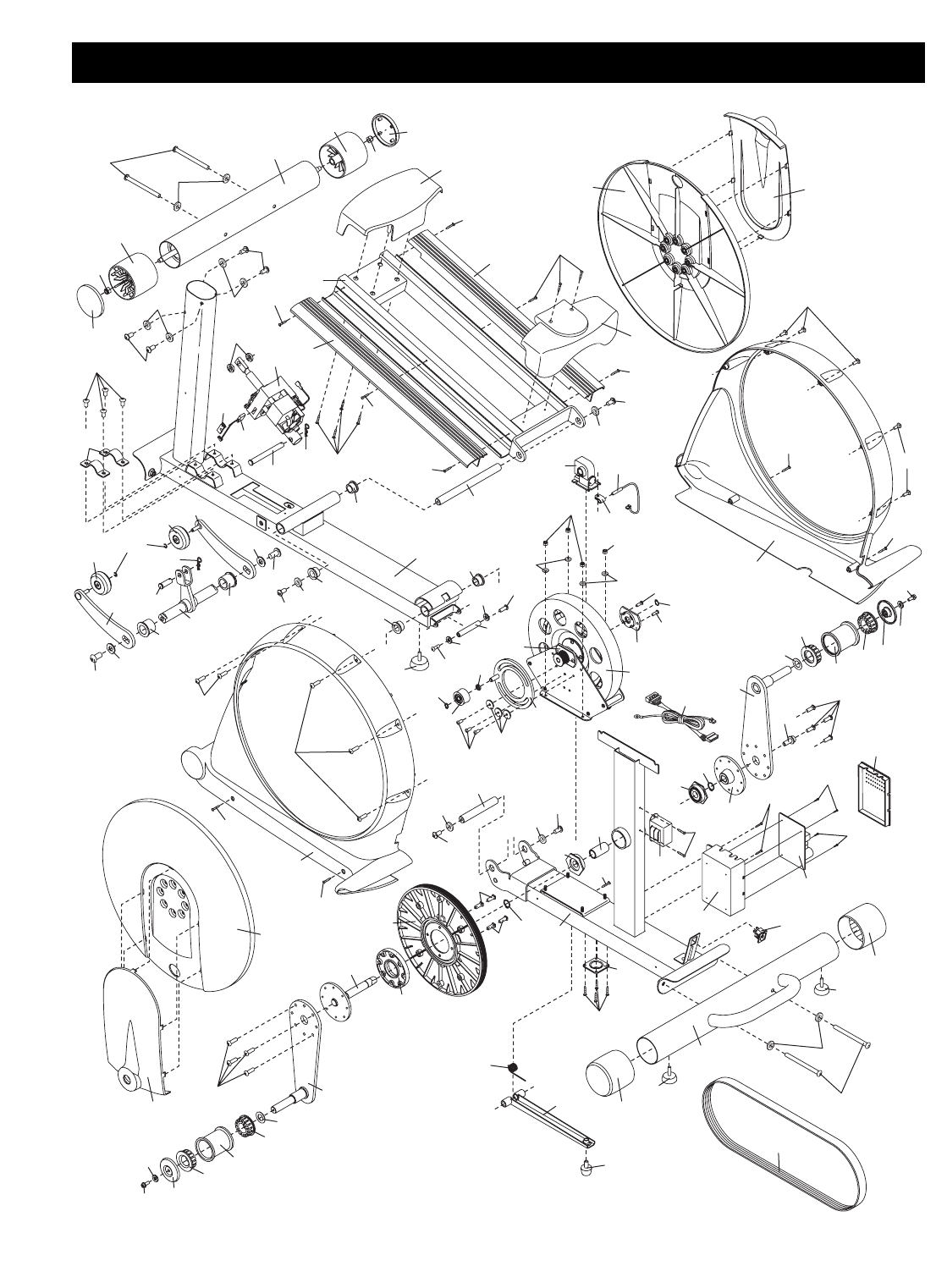

EXPLODED DRAWING A—MODEL NO. RBEL9906.1 R1206A

12 13

45 46

49 50

84 85

118

107

101

107

101 116

116

116 116

111

116

111 87

102

114

102

114

116

113

103

113

103

112

110

111

116

115

112

121

122

123

126

127

128

129

131

107

124

116

97 130

116

132

125

105

104 105

104

EXPLODED DRAWING B—MODEL NO. RBEL9906.1 R1206A

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the MODEL NUMBER of the product (RBEL9906.1)

• the NAME of the product (REEBOK 1000 ZX elliptical exerciser)

• the SERIAL NUMBER of the product (see the front cover of this manual)

• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 24 to 27)

HOW TOORDER REPLACEMENT PARTS

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and mate-

rial, under normal use and service conditions, for a period of one (1) year from the date of purchase. There

is a lifetime warranty on the frame. This warranty extends only to the original purchaser. ICON's obligation

under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its autho-

rized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the

product is shipped to a service center, freight charges to and from the service center will be the customer’s

responsibility. For in-home service, the customer will be responsible for a minimal trip charge. This warran-

ty does not extend to any product or damage to a product caused by or attributable to freight damage,

abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center;

products used for commercial or rental purposes; or products used as store display models. No other war-

ranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connec-

tion with the use or performance of the product or damages with respect to any economic loss, loss of prop-

erty, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other conse-

quential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental

or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

LIMITED WARRANTY

Reebok Fitness 1000 Zx Elliptical Exerciser Rbel9906 1 Users Manual RBEL9906.1 249904

Reebok-Rbel99061-Owners-Manual reebok-rbel99061-owners-manual

RBEL9906.1 to the manual 3d2fde4a-5bf2-4ce7-a7ff-a365e12e12a3

Navigation menu

Versions of this User Manual:

Views

Navigation
