Remote Control Solutions RCS433MDR 433.92 MHz Radio Transmitter User Manual 519 Transmitter Instructions

Remote Control Solutions, LLC 433.92 MHz Radio Transmitter 519 Transmitter Instructions

Users Manual

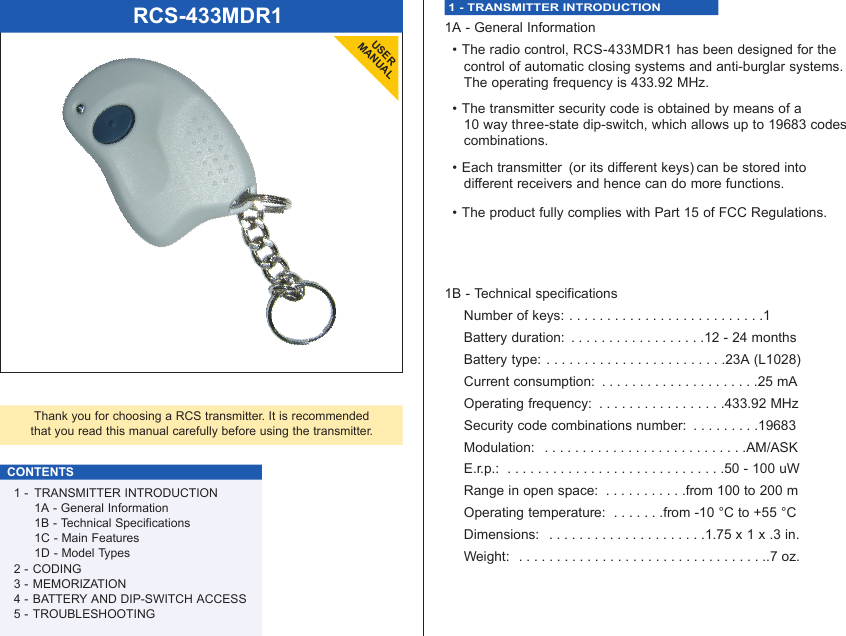

RCS-433MDR1USERMANUALThank you for choosing a RCS transmitter. It is recommendedthat you read this manual carefully before using the transmitter.CONTENTS1 - TRANSMITTER INTRODUCTION1A - General Information1B - Technical Specifications1C - Main Features1D - Model Types2 - CODING3 - MEMORIZATION4 - BATTERY AND DIP-SWITCH ACCESS5 - TROUBLESHOOTING1 - TRANSMITTER INTRODUCTION 1A - General Information• The radio control, RCS-433MDR1 has been designed for the control of automatic closing systems and anti-burglar systems. The operating frequency is 433.92 MHz.• The transmitter security code is obtained by means of a 10 way three-state dip-switch, which allows up to 19683 codes combinations. • Each transmitter (or its different keys) can be stored into different receivers and hence can do more functions.• The product fully complies with Part 15 of FCC Regulations.1B - Technical specificationsNumber of keys: . . . . . . . . . . . . . . . . . . . . . . . . . .1Battery duration: . . . . . . . . . . . . . . . . . .12 - 24 monthsBattery type: . . . . . . . . . . . . . . . . . . . . . . . .23A (L1028)Current consumption: . . . . . . . . . . . . . . . . . . . . .25 mAOperating frequency: . . . . . . . . . . . . . . . . .433.92 MHzSecurity code combinations number: . . . . . . . . .19683Modulation: . . . . . . . . . . . . . . . . . . . . . . . . . . .AM/ASKE.r.p.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 - 100 uWRange in open space: . . . . . . . . . . .from 100 to 200 mOperating temperature: . . . . . . .from -10 °C to +55 °CDimensions: . . . . . . . . . . . . . . . . . . . . .1.75 x 1 x .3 in.Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..7 oz.

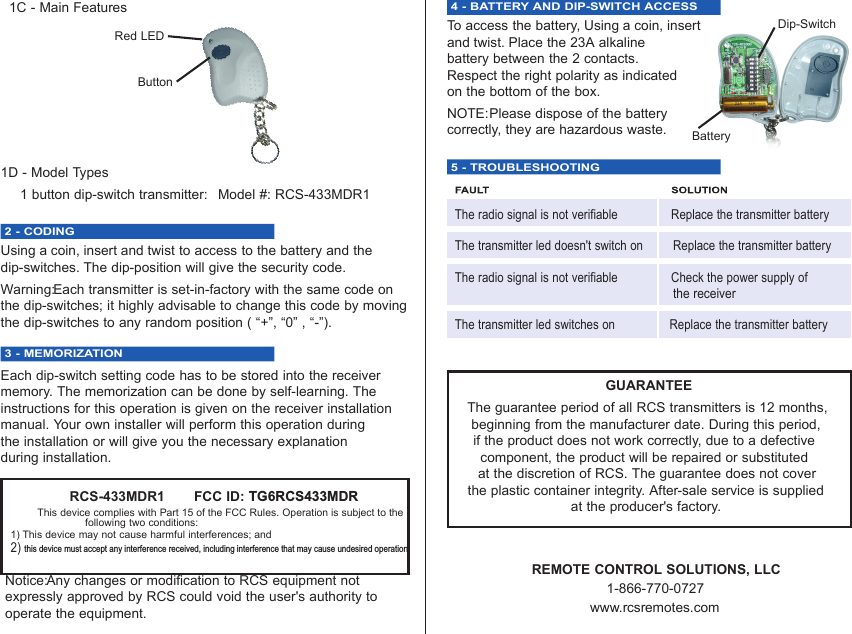

1C - Main Features1D - Model Types1 button dip-switch transmitter: Model #: RCS-433MDR12 - CODING Using a coin, insert and twist to access to the battery and thedip-switches. The dip-position will give the security code.Warning:Each transmitter is set-in-factory with the same code onthe dip-switches; it highly advisable to change this code by movingthe dip-switches to any random position ( “+”, “0” , “-”).3 - MEMORIZATIONEach dip-switch setting code has to be stored into the receivermemory. The memorization can be done by self-learning. Theinstructions for this operation is given on the receiver installationmanual. Your own installer will perform this operation during the installation or will give you the necessary explanation during installation.4 - BATTERY AND DIP-SWITCH ACCESS To access the battery, Using a coin, insert and twist. Place the 23A alkaline battery between the 2 contacts. Respect the right polarity as indicated on the bottom of the box. NOTE:Please dispose of the battery correctly, they are hazardous waste. 5 - TROUBLESHOOTINGThe radio signal is not verifiable Replace the transmitter batteryThe transmitter led doesn't switch on Replace the transmitter batteryThe radio signal is not verifiable Check the power supply ofthe receiverThe transmitter led switches on Replace the transmitter batteryGUARANTEEThe guarantee period of all RCS transmitters is 12 months, beginning from the manufacturer date. During this period, if the product does not work correctly, due to a defective component, the product will be repaired or substituted at the discretion of RCS. The guarantee does not cover the plastic container integrity. After-sale service is supplied at the producer's factory.REMOTE CONTROL SOLUTIONS, LLC1-866-770-0727www.rcsremotes.comRCS-433MDR1 FCC ID: TG6RCS433MDRThis device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:1) This device may not cause harmful interferences; and2) this device must accept any interference received, including interference that may cause undesired operationNotice:Any changes or modification to RCS equipment not expressly approved by RCS could void the user's authority to operate the equipment.Red LEDButtonDip-SwitchBattery
