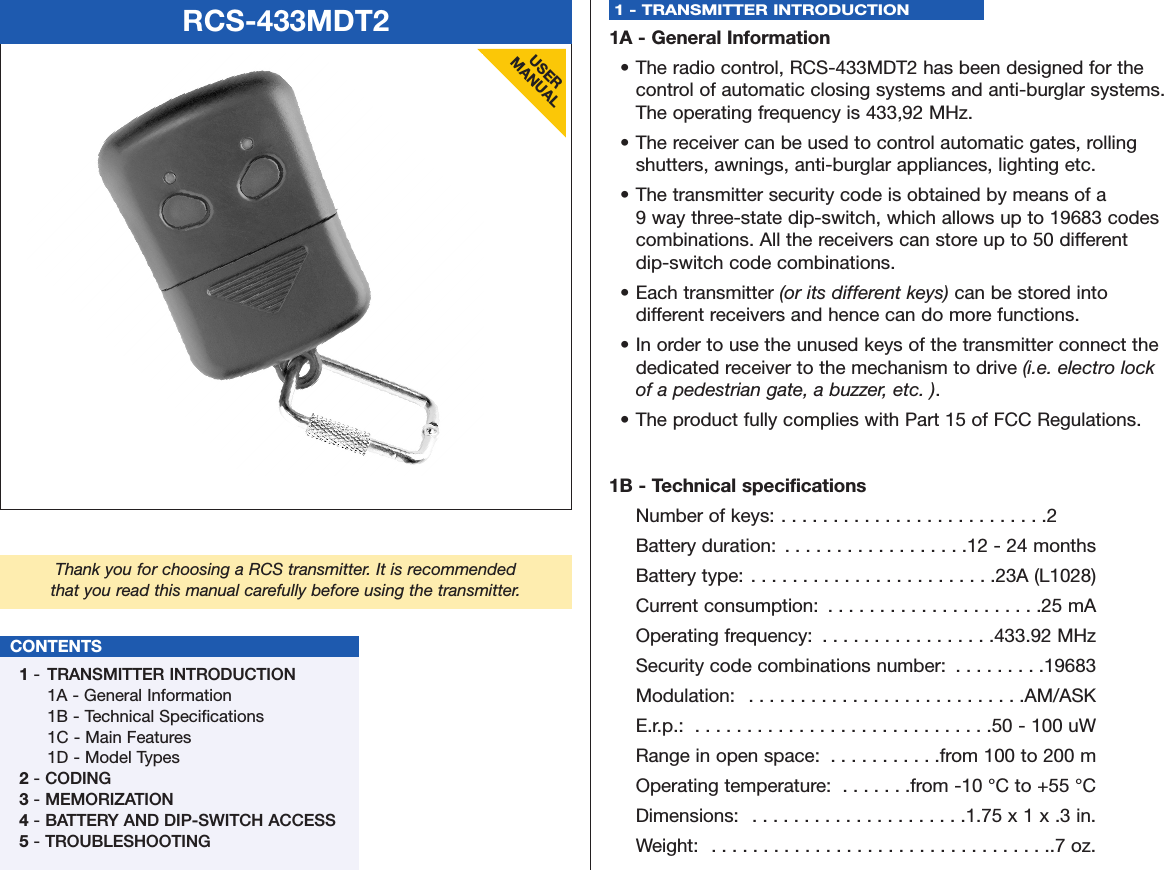

RCS-433MDT2USERMANUALThank you for choosing a RCS transmitter. It is recommendedthat you read this manual carefully before using the transmitter.CONTENTS1- TRANSMITTER INTRODUCTION1A - General Information1B - Technical Specifications1C - Main Features1D - Model Types2- CODING3- MEMORIZATION4- BATTERY AND DIP-SWITCH ACCESS5- TROUBLESHOOTING1 - TRANSMITTER INTRODUCTION 1A - General Information• The radio control, RCS-433MDT2 has been designed for the control of automatic closing systems and anti-burglar systems. The operating frequency is 433,92 MHz.• The receiver can be used to control automatic gates, rolling shutters, awnings, anti-burglar appliances, lighting etc.• The transmitter security code is obtained by means of a 9 way three-state dip-switch, which allows up to 19683 codes combinations. All the receivers can store up to 50 different dip-switch code combinations.• Each transmitter (or its different keys) can be stored into different receivers and hence can do more functions.• In order to use the unused keys of the transmitter connect the dedicated receiver to the mechanism to drive (i.e. electro lock of a pedestrian gate, a buzzer, etc. ).• The product fully complies with Part 15 of FCC Regulations.1B - Technical specificationsNumber of keys: . . . . . . . . . . . . . . . . . . . . . . . . . .2Battery duration: . . . . . . . . . . . . . . . . . .12 - 24 monthsBattery type: . . . . . . . . . . . . . . . . . . . . . . . .23A (L1028)Current consumption: . . . . . . . . . . . . . . . . . . . . .25 mAOperating frequency: . . . . . . . . . . . . . . . . .433.92 MHzSecurity code combinations number: . . . . . . . . .19683Modulation: . . . . . . . . . . . . . . . . . . . . . . . . . . .AM/ASKE.r.p.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 - 100 uWRange in open space: . . . . . . . . . . .from 100 to 200 mOperating temperature: . . . . . . .from -10 °C to +55 °CDimensions: . . . . . . . . . . . . . . . . . . . . .1.75 x 1 x .3 in.Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..7 oz.

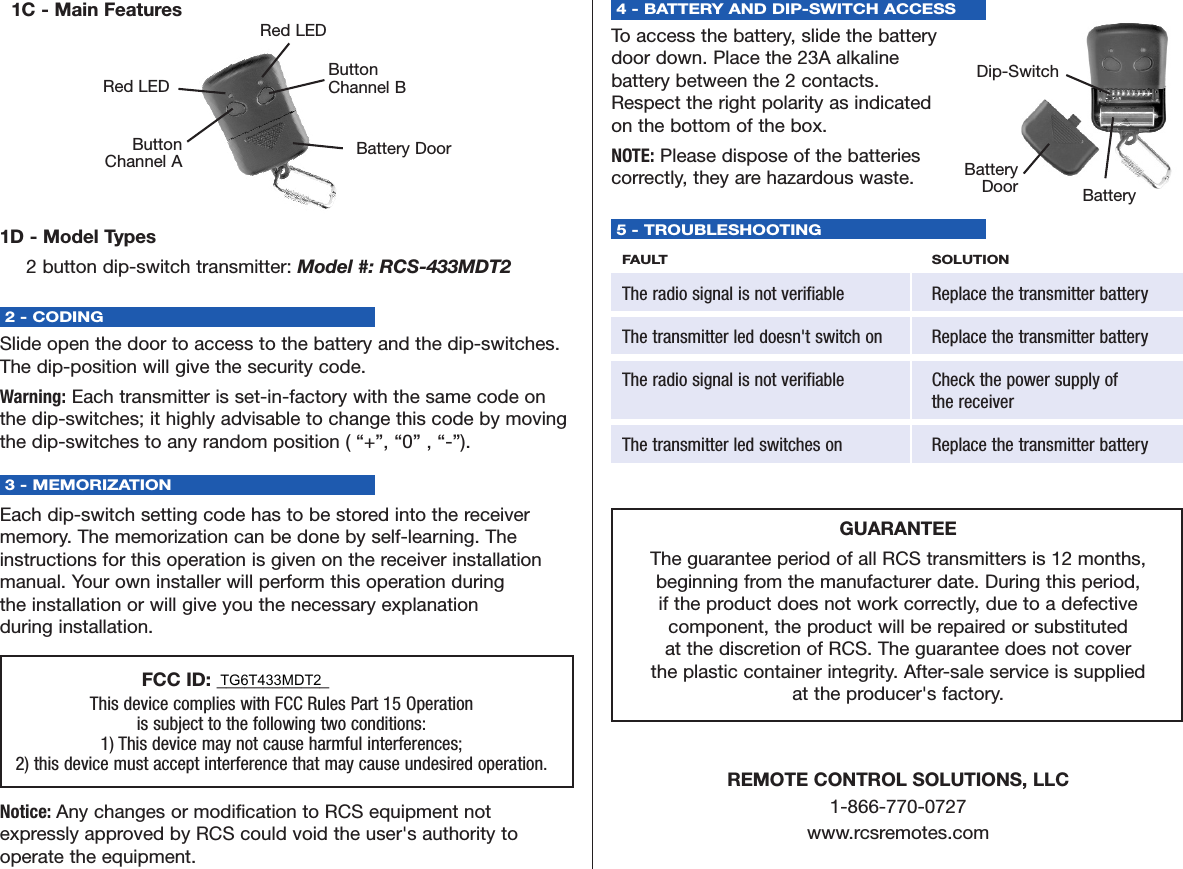

1C - Main Features1D - Model Types2 button dip-switch transmitter: Model #: RCS-433MDT22 - CODING Slide open the door to access to the battery and the dip-switches.The dip-position will give the security code.Warning: Each transmitter is set-in-factory with the same code onthe dip-switches; it highly advisable to change this code by movingthe dip-switches to any random position ( “+”, “0” , “-”).3 - MEMORIZATIONEach dip-switch setting code has to be stored into the receivermemory. The memorization can be done by self-learning. Theinstructions for this operation is given on the receiver installationmanual. Your own installer will perform this operation during the installation or will give you the necessary explanation during installation.4 - BATTERY AND DIP-SWITCH ACCESS To access the battery, slide the battery door down. Place the 23A alkaline battery between the 2 contacts. Respect the right polarity as indicated on the bottom of the box. NOTE: Please dispose of the batteries correctly, they are hazardous waste. 5 - TROUBLESHOOTINGFAULT SOLUTIONThe radio signal is not verifiable Replace the transmitter batteryThe transmitter led doesn't switch on Replace the transmitter batteryThe radio signal is not verifiable Check the power supply ofthe receiverThe transmitter led switches on Replace the transmitter batteryGUARANTEEThe guarantee period of all RCS transmitters is 12 months, beginning from the manufacturer date. During this period, if the product does not work correctly, due to a defective component, the product will be repaired or substituted at the discretion of RCS. The guarantee does not cover the plastic container integrity. After-sale service is supplied at the producer's factory.REMOTE CONTROL SOLUTIONS, LLC1-866-770-0727www.rcsremotes.com FCC ID: ____________This device complies with FCC Rules Part 15 Operation is subject to the following two conditions:1) This device may not cause harmful interferences; 2) this device must accept interference that may cause undesired operation.Notice: Any changes or modification to RCS equipment not expressly approved by RCS could void the user's authority to operate the equipment.Battery DoorButtonChannel BRed LEDButtonChannel ARed LEDBattery DoorDip-SwitchBatteryTG6T433MDT2
