User Manual

ZXT-120
(Z-Wave-to-AC IR Extender)
USER MANUAL
Table of Contents
Introduction 2
Controller and Gateway Requirements 3
Built-in IR code library 3
Glossary 3
Product Overview 5
Setup and Operations 6
Listening Mode 6
Inclusion/Exclusion 7
IR Code Selection 8
IR Code Learning 9
Reset ZXT-120 to factory default 14
ZXT-120 Information 14
Z-Wave Configuration Parameters 15
Installation 18

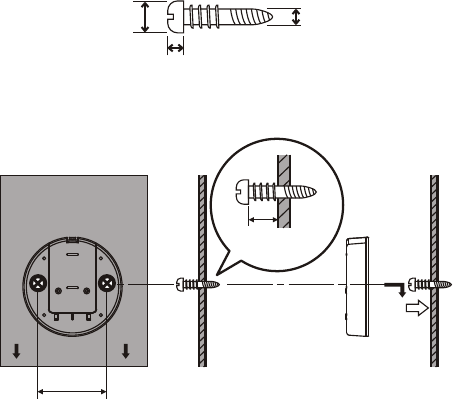

Mounting the ZXT-120 to a wall 18
Wireless Information 21
Maintenance 21
Frequently Asked Questions 22
Technical Specifications 24
Checking Accessories 25
FCC Notice 25
Warnings 26
Caution 26
1
TM
Z-Extender ZXT-120
(Z-Wave-to-AC IR Extender)
Introduction
The ZXT-120 is a Z-Wave to IR extender for air-conditioner (AC), (Figure 1), it works with
any Z-Wave compliant gateway or controller by translating Z-Wave Thermostat
Commands to AC IR control code. User can select the IR code from the built-in code
library of ZXT-120, or use learning function, by using Z-Wave Configuration Commands
according to the parameter table. ZXT-120 is also with built-in temperature sensor which
allows gateway or controller to get the current room temperature.
ZXT-120 can be configured as either "Frequently Listening Routing Slaves" FLiRS (if
you are using battery) or "Always Listening" (if you are using 5Vdc adaptor) before
inclusion process. Refer to Glossary for definition of "FLiRS" and "Always Listening"
mode.
ZXT-120 supports Network Wide Inclusion (NWI) and Explore Frames. It also supports Z-
]Wave networks with multiple gateways and controllers. Once the configuration and setup
is complete, the gateway or controller can use Z-Wave "Thermostat commands class" to
control their IR-controlled air-conditioner through the ZXT-120.
2

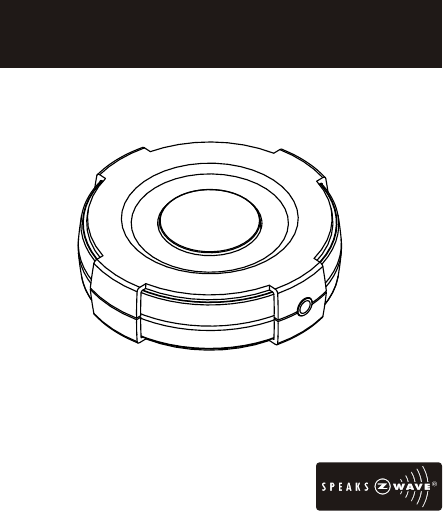

Figure 1 ZXT-120
3
Controller and Gateway Requirements
The ZXT-120 can work with any Z-Wave compliant controller or gateway supporting the
following Z-Wave commands.
- Configuration Command Class
- Multilevel Sensor Command Class
- Thermostat Command Class
> Thermostat Mode Command Class
> Thermostat Fan Mode Command Class
> Thermostat Set-point Command Class
Built-in IR code library
The Built-in IR code library supports most of the popular air conditioner brands in the
market. Z-Wave gateway and controller does not need to have any IR control code
knowledge. User can use Z-Wave controller or gateway to select the IR code according to
the ZXT-120 code list separately provided through Z-Wave configuration command.
Glossary
Device or Node Devices and nodes are all terms to describe an individual Z-
Wave device. These are all interchangeable when setting up
your Z-Wave network.
Inclusion Add a Z-Wave device to the network.
Exclusion Delete a Z-Wave device to the network.
Remove To take a device out of a group, scene or association group
while that device still exists in the same Z-Wave network.
4
Z-Wave Network A collection of Z-Wave devices is controlled by primary and
secondary controllers operating on the same system. A Z-Wave
network has its own unique ID code so that controllers not in the
network cannot control the system.
Primary
Controller
The first controller is used to set up your devices and network.
Only the Primary Controller can be used to include or delete
devices from a network. It is recommended that you mark the
primary controller for each network for ease in modifying your
network.
Network Wide
Inclusion (NWI)
Network Wide Inclusion (NWI) enables both end-user friendly,
Plug and Play like Z-Wave network installation as well as
professional installation scenario where the inclusion process in
terms of time will be reduced significantly. NWI is a feature
supported by a new frame type named Explorer which enables
the Z-Wave protocol to implement Adaptive Source Routing.
FLiRS Mode FLiRS is abbreviation for "Frequently Listening Routing Slave".
FLiRS mode is targeted for battery operated applications and
will enter sleep mode frequently in order to conserve battery
consumption. The response to Z-Wave command is not as
quick as Always Listening Device. Normally there is 1-2
seconds latency.
Always Listening
Mode
Always Listening mode is targeted for AC power operated
applications and it can act as a repeater, which will re-transmit
the RF signal to ensure that the signal is received by its
intended destination by routing the signal around obstacle and
radio dead spots. The response to Z-Wave command is
immediate.

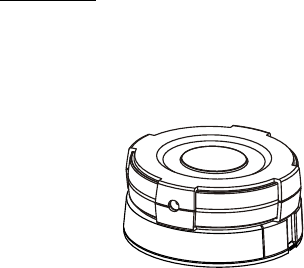

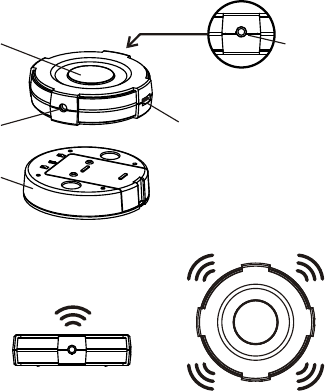

Product Overview
1. "PROG" Button, Learning and LED Indication
2. Temperature sensor
3. External IR Port
4. USB Power 5V DC
5. Battery chassis
5
Surround IR Output for top and 4-directions
Figure 2
PROG Key and IR Port of ZXT-120
1 2
3 4
5
6
Setup and Operations
Before using the ZXT-120, please read the [INSTALLATION] if you need to mount the
ZXT-120 to a wall. Power up the ZXT-120 by the USB Power 5Vdc or Dry battery AAA x
3pcs.
- Plug-in 5Vdc power into the USB socket if operated at Always Listening mode. Or
- Install 3xAAA batteries if operated at FLiRS mode.
- Please refer to the section of [MOUNTING PROCEDURE].

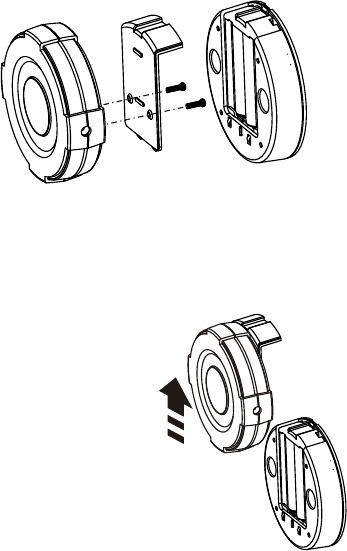

- Remove the battery cover on the back of your ZXT-120 battery chassis.
- Mount the battery cover into the main unit with 2 screws.
- Check the polarity of the batteries and the "+/-" marks inside the battery compartment.
- Insert the batteries.
- Push the battery cover and main unit back in place.
(Please carefully read through the following then store the manual for future reference.)
Listening Mode (default mode is FLiRS)
ZXT-120 can be configured as either "Frequently Listening Routing Slaves" FLiRS (if
you are using battery) or "Always Listening" (if you are using 5Vdc adaptor) before
inclusion process. Refer to Glossary for definition of "FLIRS" and "Always Listening"
mode.
Important:
It is not allowed to changing ZXT-120 listening mode without exclusion process (do not
change ZXT-120 listening mode while ZXT-120 is included in a network).
ƒ{- Use new batteries of the recommended type and size only.
ƒ{- Never mix used and new batteries together.
ƒ{- To avoid chemical leaks, remove batteries from the ZXT-120 if you do not intend to
use the remote for an extended period of time.
- Dispose of used batteries properly; do not burn or bury them.
CAUTION (battery and power adaptor safety)
7
How to switch ZXT-120 listening mode from "Always Listening" to
"FLiRS" (or vice verse)
Inclusion/Exclusion
The primary controller should indicate that the action was successful. If the controller
indicates the action was unsuccessful, please repeat the procedure.
Step
1Press and hold the PROG button on
the ZXT-120 for around 5 seconds
Setup Key LED Indication Status on ZXT-120
- LED turns ON after PROG key
hold for 5seconds
2Release the button and then press the
PROG button 3 times within 2 seconds
-LED flashes twice then stay off
(ZXT-120 set in FLiRS mode)
OR
- LED flashes four times then stay
off (ZXT-120 set in Always
Listening mode)
Step
1Refer to your primary controller
instructions to process the inclusion/
exclusion setup procedure.
Setup Key LED Indication Status on ZXT-120
2When prompted by your primary
controller, click once on the PROG
button
- LED flashes once then stay off
(ZXT-120 will report the
supported command class)
IR Code Selection
ZXT-120 is with built-in IR AC code library, user may select the IR code using
Configuration Command Class.
Step
1After included ZXT-120 to Z-Wave
controller or Gateway, go to device
setup for configuration on gateway or
controller.
Setup Key LED Indication Status on ZXT-120
2Input parameter number "27" and
parameter value (please look up the
code list of ZXT-120 according to your
AC brand). Then complete the
configuration process.
-LED flashes twice when ZXT-120
receives the configuration setting
3Press the PROG button on the ZXT-
120. (this step apply when using ZRC-
100 or other portable controller for set
up, if using gateway, user can skip this
step)
-LED flashes twice when ZXT-120
receives the configuration setting
4Go back to the control page of ZXT-
120 on the gateway and try the
function such as (cool, temperature set).
If the air conditioner does not respond
to the command you set on Gateway
(Cool, Heat, Auto, Temperature set etc.),
repeat step 2 and 3 to select the next
code on code list.
-LED flashes once every time it
receives a command from
gateway
8
IR Code Learning
In case none of the code on the code list works for the targeted air conditioner, user can
use IR code learning function using configuration according to below steps:
- Different brand or model of air conditioner has different function. For example,
o o
some air conditioner only support temperature set from 18 C - 30 C, if user set
o
17 C on gateway, ZXT-120 will not respond.
- There are more than 1 code for each brand, some does not support heat, if user
selected a code that does not support heat but the original air conditioner supports
heat function, please continue to try next code until the correct one is selected.
- You can record down your device code for future reference after setting up the
ZXT-120 correctly.
AC device programmed to your ZXT-120
Code no.:
- If none of the code works on the target air conditioner, or the air conditioner brand
is not shown on the code list, please select code "000" for IR code learning (refer
to instruction of IR Code Learning)
Important Information
9
Step
1Go to configuration setting page on the
gateway or ZRC-100 and input parameter
number "27" and parameter value "000" to
select the dedicated AC code number "000"
for learning.
Setup Key LED Indication Status
on ZXT-120
- LED flashes twice when
ZXT-120 receives the
configuration setting.
2Look up below mapping table (value 0-22) for
learning, and decide the IR setting you intent
to learn next.
o
For example "22 C, cool" which matches
value "5" (IR code to be learnt will locate at
"5" in ZXT-120). Set your original air
o
conditioner remote at "22 C, cool" and turn it
off. (Besides temperature and mode, you
may set other desired settings, such as Fan,
Swing etc.)
Step Setup Key LED Indication Status
on ZXT-120
3Go to configuration setting page on the
gateway or ZRC-100 and input parameter
number "25" and parameter value "5" (in this
case).
4Press the PROG button on the ZXT-120. (this
step apply when using ZRC-100 or other
portable controller for set up, if using gateway,
user can skip this step)
- LED flashes once when
ZXT-120 receives the
configuration setting.
- LED flashes once again to
start learning.

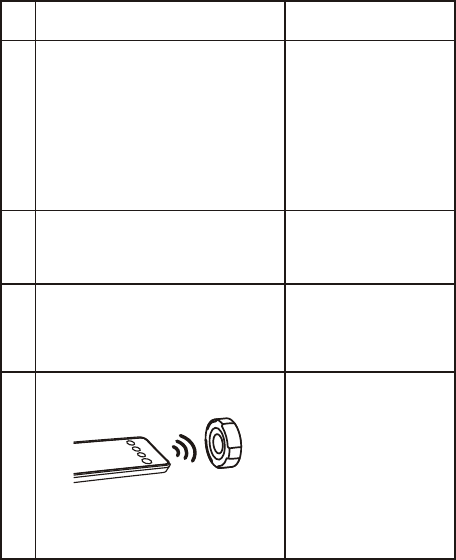

5Aim the original air conditioner remote at ZXT-
120 according to below position within 1-3 cm
Press "power on" button on the original air
conditioner remote.
If the learning is failed, repeat step 3 to step 5.
To learn next IR code, repeat step 2 to step 5.
- LED flashes twice if
learning is successful.
- LED flashes 6 times if it's
failed.
1-3 cm
original remote
10
IR Learning Mapping Table (Parameter number 25)
- Make sure your original remote is switched to power off.
- Press the key on original remote before learning mode timeout.
- Keep away from incandescent light and direct sunlight during learning.
- Make sure IR Transmitter of your original remote alight with learning diode of ZXT-
120, you may also slight adjust closer or further away the distance of two devices.
Some of remotes the IR transmitter in hidden behind lens and may not installed
center of remote.
- Make sure the power is good on both devices, especially the original remote. Use
fresh batteries.
When you encounter problem, check followings:
Parameter Value
(Storage Location) Storage in Celsius unit Storage in Fahrenheit unit
Thermostat command & IR setting
0 OFF OFF
1ON (resume) ON (resume)
2o
19 C cool o
67 F cool
3o
20 C cool o
68 or 69 F cool
4o
21 C cool o
70 or 71 F cool
5o
22 C cool o
72 or 73 F cool
6o
23 C cool o
74 or 75 F cool
7o
24 C cool o
76 F cool
8o
25 C cool o
77 or 78 F cool
9o
26 C cool o
79 or 80 F cool
10 o
27 C cool o
81 or 82 F cool
11 o
28 C cool o
83 or 84 F cool
11
The "IR Learning Mapping Table" is the mapping information "degree C" VS "storage
location" or "degree F" VS "storage location". It is not related to "F to C" or "C to F" unit
conversion.
Parameter Value
(Storage Location) Storage in Celsius unit Storage in Fahrenheit unit
Thermostat command & IR setting
12 o
19 C heat o
67 F heat
13 o
20 C heat o
68 or 69 F heat
14 o
21 C heat o
70 or 71 F heat
15 o
22 C heat o
72 or 73 F heat
16 o
23 C heat o
74 or 75 F heat
17 o
24 C heat o
76 F heat
18 o
25 C heat o
77 or 78 F heat
19 o
26 C heat o
79 or 80 F heat
20 o
27 C heat o
81 or 82 F heat
21 o
28 C heat o
83 or 84 F heat
22 Dry mode Dry mode
12
After all learning completed, user can go back to the ZXT-120 control page on the
gateway for normal operation.
- On the gateway UI, user can only use the temperature range from the mapping
table, OFF, ON(RESUME), COOL, HEAT, DRY, If user press the button of FAN, or
other function on the gateway UI which is not listed in above table, ZXT-120 will
not respond.
- If user only learnt ON, OFF, or part of the settings according to the above table,
ZXT-120 will send the learnt data to the air conditioner only. For example, user
o o
only learnt ON, OFF, 22 C Cool, 24 C Heat, ZXT-120 will not send IR data to air
o
conditioner if user set 27 C Cool on the gateway.
o o
- ZXT-120 has been pre-defined default cool at 26 C, default heat at 22 C, when
user press Cool on gateway without setting temperature, ZXT-120 will send the
o
learnt data of 26 C Cool to air conditioner. When user press Heat on gateway
o
without setting temperature, ZXT-120 will send the learnt data of 22 C Heat to air
conditioner.
- There is only one code for dry mode, user can set it at any preferred temperature.
- User can still use gateway to set up scene and schedule with ZXT-120, for
o o
example, to have AC turn on at 23 C every day at 7pm, 25 C at 11pm. Just
make sure the set code is learnt.
- The learning mapping table is for split air conditioner which remote control is with
LCD display. For window type air conditioner (which remote control is without LCD
display), the mapping table with temperatures do not apply, due to different type of
IR control protocol. However, user may still use the OFF, or ON/RESUME, DRY
key for learning. (Because the POWER key on the original remote without LCD
display is toggle, user can choose either ON key, or OFF key to learn Power key,
after learning is done, press once to turn on the air conditioner if the air
conditioner is OFF, press once to turn off if the air conditioner is ON)
Important Information
13
Reset ZXT-120 to factory default
Press and hold "PROG" button for 10 seconds on ZXT-120. During the key hold period,
RED LED lights up at around 5 seconds, then, it will flash twice until reset process is
completed at around 10 seconds.
ZXT-120 Information
How to get the NIF "Node Information Frame" on ZXT-120 (Inclusion)?
- This reset step will not affect the listening mode of ZXT-120, user should refer to
"Listening Mode" section if you want to change the listening mode.
- If you are using Gateway or other Z-wave controllers to operate ZXT-120, please
follow the instruction from the gateway or other controller.
Information
14
Press the PROG button on the ZXT-120
Setup Key LED Indication Status
on ZXT-120
- LED flashes once then stay off.
(ZXT-120 will report the supported
command class)
Z-Wave Configuration Parameters
Parameter No. Definitions Parameter Value
25 (0x19) Indicate a location for IR code
learning and start learning
0-22 (0x00 0x16)
26 (0x1A) Learning status register
Note:
The status value 0x01 and
0x04 will be reset to 0 when
the ZXT-120 receive a get
command to this parameter
0(0x00): Idle - this IR channel
is idle (default)
1(0x01): OK - the latest
learning process
successful and
completed
2(0x02): Learning - the ZXT-
120 is busy
processing previous
learning request
4(0x04): Failed - the latest
learning request failed
27 (0x1B) IR code number for built-in
code library
Refer "Code list" for details
28 (0x1C) External IR Emitter power
level
0(0x00): normal power mode
255(0xFF):high power mode
(default)
32 (0x20) Surround IR control
- to avoid the IR interference
by disabling the
surrounding IR emitter if 2
air-conditioners in a room
are used
- extend the battery life by
disabling the Surround IR
Emitters
0(0x00): disable Surround IR
Emitters
255(0xFF):enable Surround IR
Emitters (default)
15
16
Parameter No. Definitions Parameter Value
33 (0x21) AC function "SWING" control 0(0x00): SWING OFF
1(0x01): SWING AUTO (Default)
35 (0x23) Learn location status Bit mask = 1, learn location has
learn data. Otherwise, Bit mask =
0
See figure "Learn location" as
below
On below example, listed below function has learnt
location 1: ON (resume)
o
location 7: 24 C cool
o
location 8: 25 C cool
o
location 12: 19 C heat
o
location 16: 23 C heat
7 6 5 4 3 2 1 0
1 0 0 0 0 0 1 0
Bit mask Byte 1
Location 0-7
7 6 5 4 3 2 1 0
0 0 0 1 0 0 0 1
Bit mask Byte 2
Location 8-15
7 6 5 4 3 2 1 0
0000001
Bit mask Byte 3
Location 16-22
7 6 5 4 3 2 1 0 Bit mask Byte 4
(Reserved)
Figure: Learn location
Reserved location
- BASIC Set Value 0x00 will map to Thermostat mode Off 0x00.
- BASIC set Value 0xFF will map to Thermostat mode Resume 0x05.
Mapping Information
17
Parameter No. Definitions Parameter Value
37 (0x25) Sensor temperature
compensation
(This parameter is used to
compensate the temperature
error at temperature sensor)
Temperature offset value.
Formula:
Display temperature = sensor
reading value + offset value
(unit = degree C)
o
0x00 = 0 C (Default)
o
0x01 = 1 C
o
0x02 = 2 C
o
0x03 = 3 C
o
0x04 = 4 C
o
0x05 = 5 C
o
0xFF = -1 C
o
0xFE = -2 C
o
0xFD = -3 C
o
0xFC = -4 C
o
0xFB = -5 C
Installation
Mounting the ZXT-120 to a wall
MOUNTING LOCATION PRECAUTIONS
- Before mounting, check the material and structure of the mounting location. If the
location does not have the proper material or structure, the ZXT-120 can fall and cause
injuries.
- Use commercial items that best match the wall structure and material for the screws
and other fixtures.
- Do not mount near a kitchen counter, humidifier, or other location in which it can be
exposed to smoke or steam. Doing so could cause a fire or electrical shock.
- Do not mount in locations with high humidity or large amounts of dust. Doing so could
cause a fire or electrical shock.
- Do not mount to locations subject to high temperatures, high humidity, or exposure to
water. Doing so could cause a fire or electrical shock.
- Do not mount to locations subject to large amounts of vibration, large jolts, or large
forces. These could cause an injury if the ZXT-120 falls and breaks.
MOUNTING PROCEDURE PRECAUTIONS
- Do not modify parts or use the ZXT-120 in ways other than its intended use. Doing so
could cause the ZXT-120 to fall and result in an injury.
- Be sure to fully check that there are no electrical wires or pipes inside the wall before
mounting.
- If any of the screws are loose, the ZXT-120 can fall and cause an injury. Do not mount
the ZXT-120 with the screws still loose.
- Check that the two screws mounted to the wall are fully inserted into the key holes of
the ZXT-120. Otherwise, the ZXT-120 can fall and cause an injury.
- Do not mount the ZXT-120 so that it sticks out from the wall edge. It could get hit by
people's bodies or objects and cause an injury.
- Supplier will not be liable for any accidents or injuries that occur due to improper
mounting or handling.
- When mounting, be careful not to get your fingers pinched or injure your hands.
18
MOUNTING PROCEDURE
The ZXT-120 can be mounted to a wall or wooden racks using the two key holes in the
bottom case.
Note 1: The reception sensitivity varies depending on the antenna direction.
Note 2: Before mounting to a wall, be sure to fully read the precautions.
1. Obtain two screws suitable for the wall strength and material. The screw size is shown
in the figure below.
2. The positional relationship between the ZXT-120 key holes and the screw mounting
positions are shown in the figure below.
Note 1: When mounting the screws to the wall, leave a space between the wall and
screw cap as shown in the figure.
19
3-4mm(1/8 - 3/16ins.)
MIN. 6-8mm
(3/16 - 3/18ins.)
MIN. 3mm(1/8ins.)
48.5mm (1-7/8ins.)
4.5mm (3/16ins.)
3. Insert the ZXT-120 key holes onto the two screws mounted to the wall, and then slide
downward to secure in place.
4. After securing the ZXT-120 to the wall, connect the USB Power or batteries and IR
emitter cable to the ZXT-120.
Note 1: Check that the ZXT-120 is firmly secured to the wall.
Note 2: Insert USB plug or batteries and IR emitter cable so that they are firmly
connected to the ZXT-120.
5. When removing the ZXT-120 from the wall,
lift up the ZXT-120, then pull it towards you.
6. Detach the main unit from the battery
chassis by move toward to top position.
20
21
Wireless Information
This device has an open-air line-of-sight transmission distance of 25m which complies
with the Z-Wave standards. Performance can vary depending on the amount of objects in
between Z-Wave devices such as walls and furniture. Every Z-Wave device set up in
your network will act as a signal repeater allowing devices to talk to each other and find
alternate routes in the case of a reception dead spot.
Radio frequency limitations:
1. Each wall or object (i.e.: refrigerator, bookshelf, large TV, etc) can reduce the
maximum range of 20m by up to 20 to 30%.
2. Plasterboard and wooden walls block less of the radio signal then concrete, brick or
tile walls which will have more of an effect on signal strength.
3. Wall mounted Z-Wave devices will also suffer a loss of range if they are housed in
metal junction boxes which could also reduce the range by up to 20 to 30%.
Maintenance
1. Do not expose your unit to dust, strong sunlight, humidity, high temperatures or
mechanical shocks.
2. Do not use old and new batteries together as old batteries tend to leak.
3. Do not use corrosive or abrasive cleansers on your unit.
4. Keep the unit dust free by wiping it with a soft, dry cloth.
5. Do not disassemble your unit, it contains no user-serviceable parts.
All Z-Wave products also come with the Z-Wave
logo.
Frequently asked questions
Q Why won't my ZXT-120 work with the Z-Wave devices I purchased from another
country?
A Due to different countries regulations Z-Wave products from different regions are set
to different frequencies. Before purchasing new devices make sure you have checked
that the device is compatible in your region.
Q How do I know which product is compatible with my ZXT-120?
A ZXT-120 should work with any Z-Wave controller or gateway that has control
capability for "Thermostat" devices.
Q Can I use the USB port to configure ZXT-120?
A No, the mini USB port only provides an alternative option for user to power the ZXT-
120.
Q Do I need an electrician to install Z-Wave products in my house?
A Installation can be simple. In some cases all you need to do is mount the ZXT-120 to
a wall or wooden racks. You also can place the ZXT-120 on the desk and power it
with dry cell batteries.
Q How to select my air-conditioner IR code from ZXT-120?
A You should refer to the code list and look into the brand and try the code no.
sequentially until you find the right code. You can record down your device code
under the table for future reference after setting up the ZXT-120 correctly.
Q ZXT-120 is working on top and 4-directions IR output, but there is no response
on the IR emitter socket, why?
A ZXT-120 supports two IR power levels for the external IR emitter to avoid saturation of
the IR receiver. You can set the IR output power level by the Parameter Table value
(normal or high power mode) or adjust the position of your external IR emitter.
22
Q Can I use 2 or more ZXT-120 in my house? What is the max. units if yes?
A Yes and it is very depend on the capability of gateway / controller. For example,
gateway can supports up to 8, 16 or 32 ZXT-120 in a network.
Q How to avoid the IR interference if I am using 2 identical air-conditioners in same
location but want to control them individually?
A User can disable the Surround IR Output function, connect the external IR emitter and
aim it at the specific AC unit. The operating distance of external IR emitter is around
100cm (High power mode) and 50cm (Low power mode) but it is also depends on the
sensitivity of the IR receiver.
23
External IR emitter cable
24
Technical Specifications
Model no. BW8377EU (ZXT-120EU)
BW8377AU (ZXT-120AU)
BW8377US (ZXT-120US)
BW8377IN (ZXT-120IN)
BW8377RU (ZXT-120RU)
BW8377IL (ZXT-120IL)
BW8377CN (ZXT-120CN)
RF frequency 868.42MHz (ZXT-120EU)
921.42MHz (ZXT-120AU)
908.42MHz (ZXT-120US)
865.22MHz (ZXT-120IN)
869.02MHz (ZXT-120RU)
916.02MHz (ZXT-120IL)
868.42MHz (ZXT-120CN)
RF operating
distance
up to 80ft outdoor line of sight, in unobstructed environment
IR operating
distance
up to 25ft line of sight, in unobstructed environment
IR learning Max. 23 commands
Temperature o o
Measurable range: 32 ~ 104 F / 0~ 40 C
Report resolution: 1 degree C
o
Operation: 0 ~ 40 C
o
Storage: -20 ~ 60 C
Powered by USB Power DC 5V 100mA or Dry battery AAA x 3pcs
Dimension Dia.=70mm, T = 18mm (Main unit)
Dia.=70mm, T = 15.5mm (Battery chassis)
Weight 35g (Battery chassis excluded)
60g (Battery chassis included)
90g (Main + Battery chassis + AAA x3pcs)
25
Checking Accessories
After opening the cover of the packing box, check that the following accessories are
included.
- ZXT-120 (Z-Wave-to-AC IR Extender) - USB cable
- Screws (bottom cover) x 2pcs - User Manual
- AC Code List - Warranty sheet
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Notice: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
Warnings
- Do not modify the unit in any way.
- Risk of fire.
- Risk of electrical shock.
- Risk of burns.
- Do not dispose of electrical appliances and unsorted municipal waste, use separate
collection facilities. Contact your local government for information regarding the
collection systems available.
- There is no user serviceable parts in this unit.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
- Use only power supplies listed in the user instructions.
Caution
- Risk of explosion if battery is replaced by an incorrect type.
- Dispose of used batteries according to the instructions.
26
Printed in China F820-8377-0000

Navigation menu
