Remotesolution RC10A IR & RF Remote User Manual Manual
Remote Solution Co., Ltd. IR & RF Remote Manual
User Manual
Back of remote
Cable In
HDMI
TV Out
HDMI Camera USB IRAudioEthernet
Reset
Power
Lock
Press to prevent
accidental typing while
using front.
On/O
Indicator
Glowing LED
indicates camera
is on.
Lens with Shutter
Shutter closes when
camera is o.
Clip
Adjust for
placement.
Front of camera
Network Messages Power
SD Card
WPS
Use for wireless setup
with WPS capable
routers.
(Currently not available)
SD Slot
Use for viewing media
(Currently not available)
Message Indicator
Glowing LED indicates
new messages.
Network Indicator
Glowing LED
indicates connection
to home network.
Power
Glowing LED indicates
adaptor is on.
Front of adaptor box
Top of adaptor box
HDMI
Cable In
HDMI
TV Out
USB/IR
(Currently not
available)
Power
Ethernet Camera Audio Reset
Back of adaptor box
Visit xfinity.com/remotes
for programming details
Navigate Home Close and return to TV
Switch profiles
End call and ignore incoming call
Zoom self-view
Turn your video camera on/o
Use to pair remote
Change screen layout
Place call on hold,
mute mic and pause camera
Battery
compartment
Remove tab
from battery
compartment
before use.
Mute your microphone
Accept incoming calls
and access contacts
Go back to previous screen Navigate and select current option
Adjust volume
Mute call
CAPS
Press then release CAPS
to capitalize a letter—i.e.
press and release CAPS
then s for an upper case
S. You will need to
press/release CAPS for
each character.
ALT
Press then release
ALT for characters in
blue—i.e. press and
release ALT then Q
for 1. You will need
to press/release ALT
for each character.
Share
Rewind/Play/
Pause/Forward
Not available at
this time.
Setup
If the remote
becomes un-
paired, press
and hold Setup,
then press Call
to pair again.
Note:
You can use this remote to turn on your
TV and/or receiver and control volume.
Visit xfinity.com/remotes to access the
XR3 Remote Control User Guide and
follow the instructions from there.
Front of remote
WPS

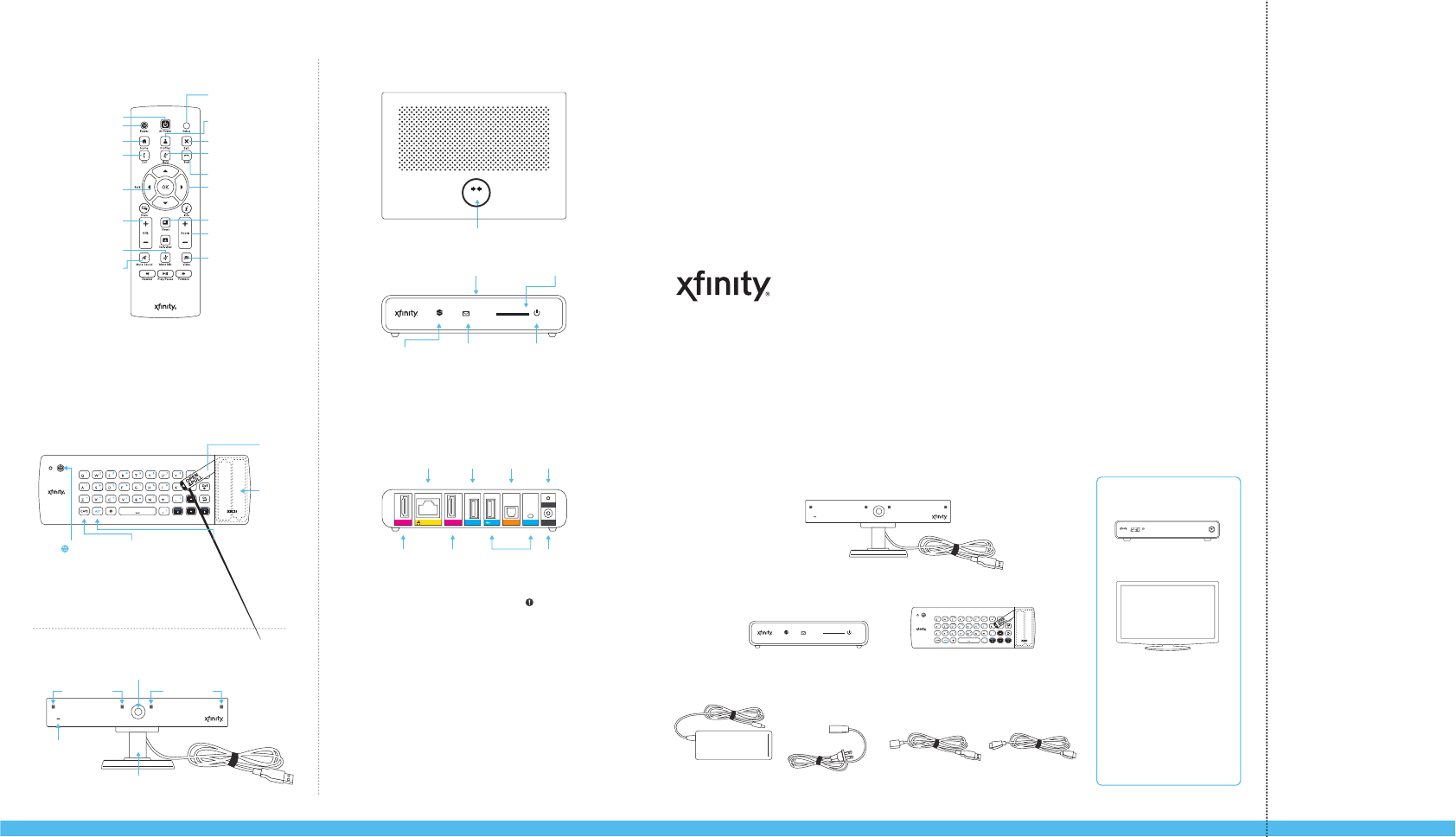

Get to Know the Parts
Network Messages Power
SD Card
Remote (1)
Pull the tab from the remote’s battery
compartment before using
Adaptor box (1)
Camera with clip (1)
What’s in the Box
You’ll Also Need:
XFINITY® is your interface to a growing number
of new products, services and features that will
become available to you on your HDTV.
Getting Started Guide
The Reset button
has two functions,
depending on the
length of time held:
Normal Reset
Insert a thin object
and hold the Reset
button for 2-5 seconds
to reboot the adaptor
and keep your
personal settings.
Factory Reset
Insert a thin object and
hold the Reset button
for 15 or more seconds
to delete ALL personal
settings and restore the
adaptor to the default
factory settings.
Important Information
Microphones Microphones
Messages
Power
Ţ HDMI-capable Comcast
set-top box
Ţ HDTV
http://speedtest.comcast.net)
Ţ Internet connection with at
least 1.5 Mbps simultaneous
upload and download speeds
(check your speeds at
Ţ Comcast ID
Ţ Skype™ account
Power adaptor cable (1) HDMI cable (2)
Power adaptor (1) USB extension cable (1)
Note: This packaging has been specially designed using sustainable materials. Be kind to the
environment and re-use this box.
Need help? Call 877-704-7713 for assistance.
Need help? Call 877-704-7713 for assistance. Please keep for future reference, but if you decide to toss, please recycle.
Need help? Call 877-704-7713 for assistance.
Please keep for future reference, but if you decide to toss, please recycle.
16983970 Printed in China
Getting Started Guide v.2.0
Comcast Account
You will link your Comcast ID to a Skype account during
the TV activation process. If you don’t have a Skype
account or need to create a new one, you can do so
during activation.
Skype Account
You must use your Comcast ID to activate.
Please visit http://customer.comcast.com to create
more Comcast IDs.
@comcast.net
Password:
Username:
Skype Name:
Password:
Network Password (Key):
If you choose to use your wireless home network, you’ll
need the following information during the TV
activation. If you have a compatible router with WiFi
Protected Setup (WPS), this will be detected and you’ll
automatically connect to your wireless network. (WPS
is currently not available)
(for hidden wireless networks only)
Home Network
Please visit www.comcast.com/skype for online support.
Please contact our customer care sta at 877-704-7713
for assistance with set-up and activation.
Support Information
Network Name (SSID):
Security Encryption Method:
Save time during activation by completing the
information below.
Important Information
Plug an HDMI cable into the HDMI port on the back of your set-top box and the other end to
the HDMI Cable In port on your adaptor box.
Note: If you have an audio receiver, use one HDMI cable to connect your set-top box to your
receiver then use another HDMI cable to connect the receiver to your adapter box.
Plug a second HDMI cable to the HDMI TV Out port on your adaptor and the other end to
one of the available HDMI ports on your TV.
Plug the camera (USB) cable into the Camera port on the adaptor box. If the camera cable
isn’t long enough, use the provided USB extension cable to extend the camera cable’s reach.
Decide if you want to connect to your home network using a wired Ethernet cable or
wireless connection.
Ethernet connection:
Plug a CAT-6 Ethernet cable (not provided) to the Ethernet port on the adaptor box and the
other end to an available port on your modem or router.
Wireless connection:
Skip this step and follow the instructions during TV activation.
If you’re using an audio receiver with an SPDIF (Optical Digital Audio) cable, disconnect this
cable from your set-top box and plug it into the Audio port on the adaptor box. Since SPDIF
only transmits audio, you’ll also have to connect via HDMI in order to see any video. We
strongly recommend using both HDMI and SPDIF cables (as depicted in the illustrati on) to
connect your adaptor box.
Connect the power adaptor to the power adaptor cable.
Plug the power adaptor into the Power port on the adaptor box and the power adaptor cable
to an electrical outlet. There is no actual power button on your adaptor box so this power
cable is the only way to turn the system on and o.
Once everything is connected, power up the system then use your TV’s remote to select the
same HDMI input to which you’ve connected the adaptor box.
Note: As long as your adaptor box is plugged in, it will act as a pass-through device between
your TV and your set-top box or receiver (if using).
Connect and Power Up
2
Before you begin, please turn o your TV, set-top box and audio receiver (if using) then
disconnect the HDMI cables that are currently connecting your set-top box to your TV.
Basic Setup Setup with Receiver
HDMI
USB USB
HDMI
HDMI HDMI HDMI
HDMI
* If you don’t have an SPDIF/Optical cable, you can purchase one to
connect your receiver with the adaptor box or simply use the existing
HDMI cable to use your TV’s audio system.
* SPDIF/Optical
Digital Audio
HDMI
OR
ADAPTOR BOX
ADAPTOR BOX
RECEIVER
SET-TOP BOXSET-TOP BOX
DVD PLAYER
CAMERA
Activate
3
Once you’ve powered up, you’ll see an XFINITY screen.
After a few minutes, you’ll be greeted with a Welcome screen.
Please be patient during this wait as it may take up to 20 minutes.
If the Welcome screen does not appear after 20 minutes, try
unplugging your device then plugging it in again or call customer
care at 877-704-7713 for assistance.
Remove the tab from your remote’s battery compartment before
using. If the keyboard is unresponsive, see if the LOCK button is
engaged (it will glow red when you press a key). Press the LOCK
button to disengage and unlock the keyboard.
Use your remote to complete the activation by following the
directions on your TV screen.
You’ll be taken through a short series of screens prompting you to
check your equipment. During this time, you may be asked to run a
firmware upgrade to ensure everything is working properly.
Ţ
Ţ
Ţ
Ţ
Ţ
Ţ
Make Audio & Video Calls
4
If you already have an existing Skype account with contacts:
Ţ
Ţ
If you’ve just set up your Skype account and don’t have any contacts yet:
Ţ
Ţ
Ţ
Go to Home > Contacts and select from the list.
Click VIDEO CALL,AUDIO CALL or MESSAGE to connect.
Go to Home > Contacts and select Add Contact.
Use the keyboard to enter a Skype Name, Skype Display Name or
email address. Once your invitation to connect is accepted, the
person will appear in your Contacts. Select the person.
Click VIDEO CALL,AUDIO CALL or MESSAGE to connect.
GAME
CONSOLE
OR
Flat Surface
TV Top
Back of TV

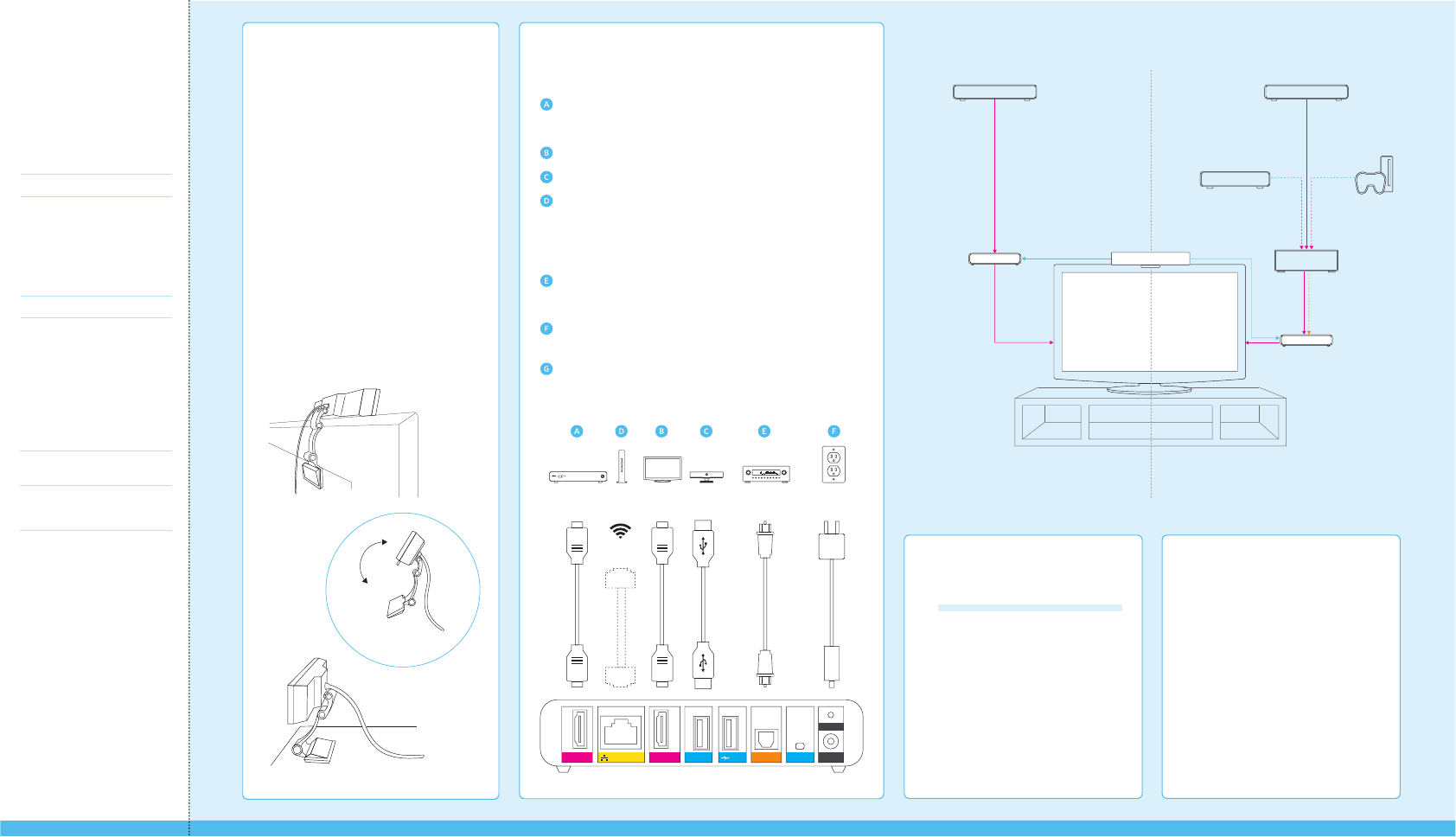

1Set Up Camera
1
Place the front of the camera on top of your TV, with the bottom lip
resting just below the top of the screen. Push the clip down until it
touches the back of the TV and the camera is secured.
Pivot the angle of the camera and adjust to capture your preferred
viewing area.
Place the camera on your level surface with the lens facing the
viewing area.
Hold the rubber bottom in place while pivoting the angle of the
camera to capture your preferred viewing area.
Note: The recommended viewing distance is 5' - 12'. Camera should not be
used near strong magnetic fields.
Important Note for Wall-Mounted TVs
Make sure the combined weight of the camera (8.81 oz.) and TV does not
exceed the maximum rating for your wall mount. Check the wall mount
manufacturer’s manual for the maximum rating. The camera clip is not
compatible with all TV wall mounts. For wall-mounted TVs that have been
installed flush with the wall, camera placement on your TV is not
recommended due to space constraints which may result in damage to your
TV or the camera.
Important Note for Fireplace-Mounted TVs
The camera is not intended for use in high-temperature locations, such as
above fireplaces.
TV Top:
OR
Flat Surface:
Ţ
Ţ
Ţ
Ţ
Pivot Camera to
adjust view
Camera USB IRAudioEthernet
Reset
Power
Digital Audio
Receiver
OutletCameraTVBack of
Modem if
using Ethernet
Set-top Box
OR
Not
available
at this
time
Not
available
at this
time
Messages
Power
Back of adaptor box
HDMI HDMI
Cable In
HDMI
TV Out
HDMI
