Remotesolution SD01A Smart Home Sensor User Manual
Remote Solution Co., Ltd. Smart Home Sensor
User Manual

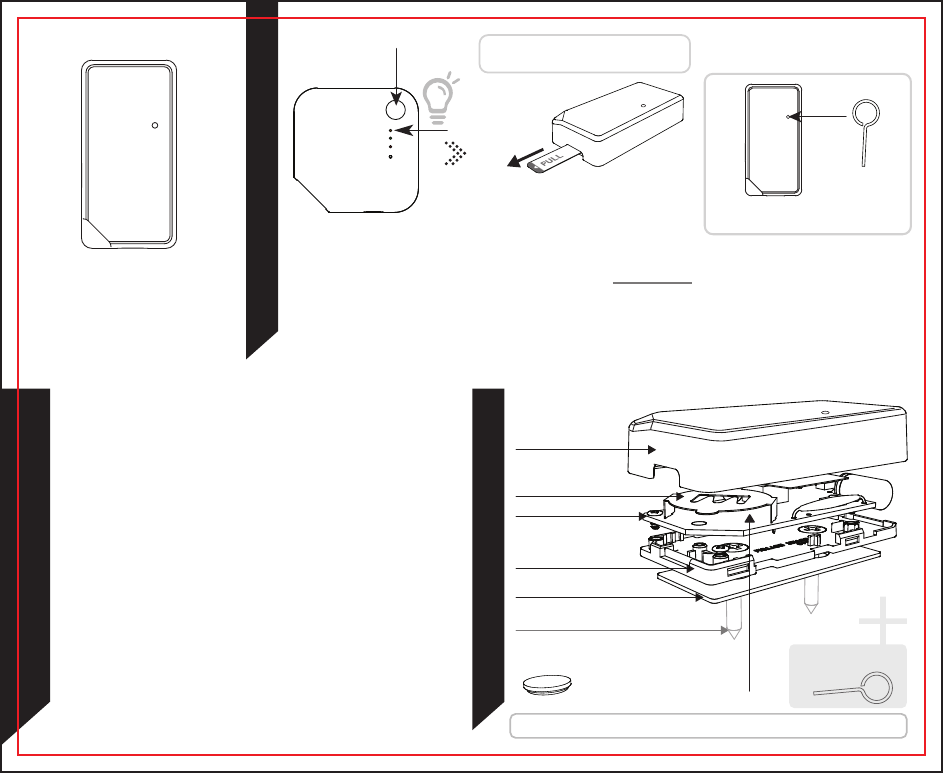

Press Pairing button
on the sensors once.
Pairing
button
CR2032 Coin cell (1ea)
Metal Pairing Pin
(1ea)
1. The sensors retry to pair with a
red color LED blinking.
2. The method of the registration as
pairing is done.(Should check the
list on the smart phone.)
・User can edit the text regarding
registered sensors on DSR application.
The gateway and the sensor will try
pairing for 40seconds.
If they are failed to be paired within
40seconds, the orange LED will be o.
3. Pull battery tab from the sensor
to try pairing with the gateway.
(The sensor will try pairing for 40seconds.)
4.
Once orange LED is o, pairing is done.
1. Press pairing button on the
gateway.
2. The orange LED will blink then
the gateway turn into the pairing
standby mode.
(The orange LED will keep blink
-ing for 60seconds.)
Please refer to this when changing the battery or using screws.
・Sensor is designed to try pairing
when pull tab is initially removed
Pairing
failure
Pairing
button
!
Please follow below instruction in
case pairing is failed.
( This product is working
with ethernet gateway. )
Pairing Guide
Document Number : Rev. 1.0
Introduction
Package Contents
Bottom cover
Top case
Screw B (2ea)
Double sided tape
Battery holder
Option
Screw A (2ea)
Wireless
Movement
Sensor
・Movement sensor can report the gateway via radio
communications door/window state, open or close by
recognizing door movement.
・Low voltage communication and embedded RF amplier
can provide a wide range of communication.
・The sensor uses CR2032 coin cell battery.
Battery lifetime is apporx. 5years.
・In case of damage, sensor can detects damage and notify
Ethernet gateway.
・User can easily install using double sided tape.
[The sensor supplied with] This product contains a
coin/button cell battery. If the coin/button cell
battery is swallowed, it can cause severe internal
burns in just 2 hours and can lead to death Keep new
and used batteries away from children. If the battery
compartment does not close securely, stop using the
product and keep it away from children. If you think
batteries might have been swallowed or placed
inside any part of the body, seek immediate medical
attention.
Protocols : Zigbee HA
Supported channels : IEEE802.15.4 CH11 to CH26
RF Performance Requirements
• Reorient or relocate the receiving antenna.
•
Increase or decrease the separation be-tween the
equipment and receiver.
•
Connect the equipment into an outlet on a circuit
dierent from that which the receiver is connected.
• Consult the dealer or an experienced remote
control/TV technician for help.
•
It is strongly recommended that the TV be plugg
-ed into a separate wall outlet.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equip
-ment generates, uses, and can radiate radio requency
energy and, if not used in accordance with the
instructions, may cause harmful interference to radio
communications.
There is no guarantee that interference will not occur
in a particular installation. If this equipment does cause
harmful interference to radio or television recep -tion,
the user is encouraged to try to correct the interference
by one or more of the following measures :
The user is cautioned that changes and modica
-tions made to the equipment without the approval
of the manufacturer could void the user’s authority
to operate this equipment.
This device complies with part 15 of the FCC rules.
Operation is subject to the following two condi
-tions : (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
“CAUTION” : Exposure to Radio Frequency Radia
-tion. Antenna shall be mounted in such a manner
to minimize the potential for human contact to
minimize the potential for human contact during
normal operation. The antenna should not be
contacted during operation to avoid the possibility
of exceeding the FCC radio frequency exposure
limit.
“CAUTION” : Exposure to Radio Frequency Radia
-tion. This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment must be installed
and operated with minimum distance of 20cm
between the radiator and your body. This transmit
-ter module is authorized only for use in device
where the antenna may be installed such that 20
cm may be maintained between the antenna and
users.
FCC Compliance Statement
Remove
Insert
1
Open
Top case
Battery change

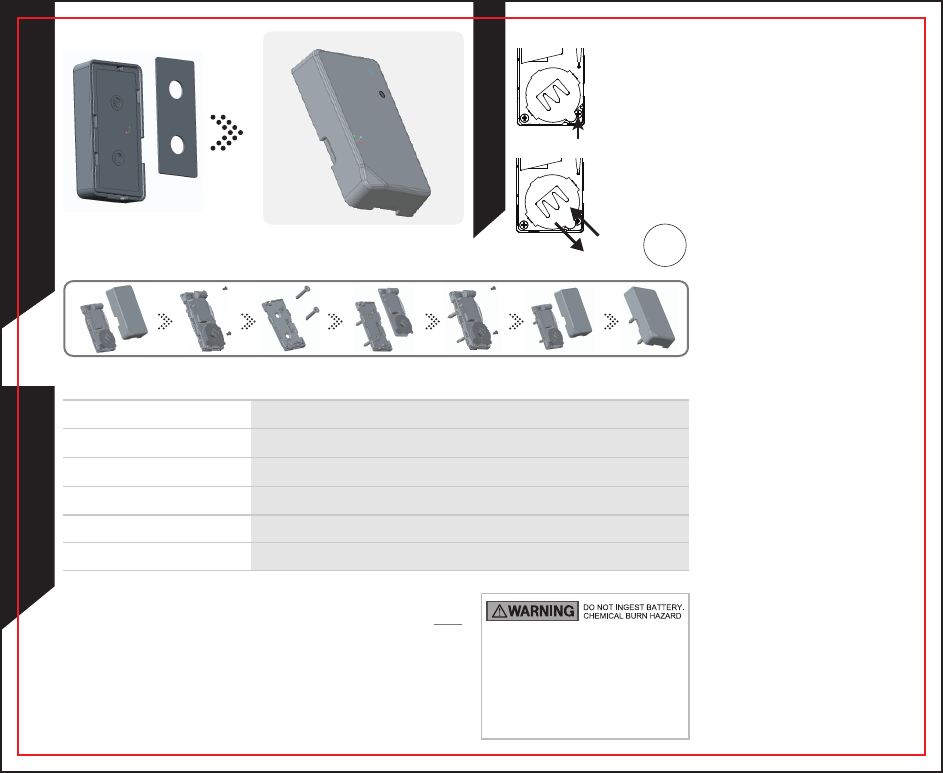

Attach
double sided tape Install on wall
2
Installation Guide 1
1
Specications
Dimensions L= 28mm, W= 54.5mm, H= 11.3mm
Power source CR2032(3V) Lithium Battery 1ea
Battery Lifetime
Relative Humidity
5 years at 25℃ (77℉), typical, Indoor use
0℃ ~50℃, Indoor use
up to 95% non-condensing
Operating Temperature
Storage Temperature -10℃ ~ 60℃
How to x using screws
Replace
battery
with arrow
direction.
3
2
unscrew
a screw.
(see arrow)
+
CR2032
