Welcome to your new RENAULT
This driver’s handbook contains all the information you will need:
• to get to know your Renault, to use it to the best advantage and to benefit from all the latest technical developments
which are incorporated in it.
• to ensure that it is always running well by following the simple, but strict, advice concerning regular maintenance.
• to enable you to deal quickly with minor faults which do not require specialist attention.
The few minutes you spend reading this handbook will be amply rewarded by the information which it provides and the
technical innovations it will bring to your attention. If certain points are still unclear, the technicians in our Network will
be happy to provide you with any additional information you may require.
The following symbols are used in this handbook to help you while you are reading it:
To indicate a risk, danger or safety advice.
The description of the models given in this handbook is based on the technical specifications known at the date this
document was produced. The handbook covers all equipment (standard or optional) which is available for these
models, but their presence on the vehicle depends on the version, options selected and country of marketing.
Certain equipment which is due to be made available during the year may also be included in this handbook.
Enjoy driving your new Renault.
Copying or translation, in part or in full, is forbidden without written permission from Renault, 92100 Billancourt 2002.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 - page 4
0.02
Brief overview
• Tyre pressures .............................................................................................. 0.04 - 0.05
• Adjusting the seats and driving position ............................................... 1.11 ¬1.14
• Child restraints ........................................................................................... 1.24 ¬1.36
• Warning lights ............................................................................................ 1.42 ¬1.52
• Horn and headlamp flash ............................................................. 1.55 ¬1.57 - 1.62
• De-icing .................................................................................................................... 1.61
• Running in, driving ................................................................................... 2.02 ¬2.30
• Heating/air conditioning ........................................................................... 3.04 ¬3.22
• Opening the bonnet ............................................................................................... 4.02
• Levels (engine oil, windscreen washer, etc.) .......................................... 4.03 ¬4.11
• Emergency spare wheel ............................................................................ 5.02 ¬5.05
• Practical advice (changing the bulbs, fuses, repairs, operating
incidents) .................................................................................................... 5.02 ¬5.34
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 - page 5
0.03
CONTENTS
Sections
1
2
3
4
5
6
7
Getting to know your car .....................................................................
Driving ...............................................................................................................
Your comfort .................................................................................................
Maintenance ..................................................................................................
Practical advice ...........................................................................................
Technical specifications ........................................................................
Alphabetical index ....................................................................................
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 - page 6
0.04
Tyre inflation pressures when cold (in bar)
Versions 1.2
1.2 16V
1.4 16V
1.6 16V 2.0 16V 1.5 dCi
1.9 dCi
Tyre sizes 175/65 R14 T
185/55 R15 H
175/65 R14 T
185/55 R15 H
195/45 R16 195/50 R15 175/65 R14 T
185/55 R15 H
Normal use (2)
• Front 1.9 2.2(1) 2.3 2.3 2.2
•Rear 1.822.12.12
Motorway use (2)
• Front 2 2.3(1) 2.7 2.5 2.3
• Rear 2 2.1(1) 2.2 2.2 2.1
Wheel sizes 5.5 J 14
6.0 J 15
7 J 16 7 J 16 5.5 J 14
6.0 J 15
Tyre safety and use of chains
Refer to the information on tyres in Section 5 for information on maintenance and, depending on the version, the
conditions under which snow chains may be fitted to the vehicle.
Special features of the 2.0 16V version
The tyres on this vehicle cannot be fitted with chains. If you wish to fit snow chains, you must use special equipment.
Consult your Renault Dealer.
(1) Vehicle with automatic transmission: add 0.1 bar.
(2) Special note concerning vehicles used under full load (maximum permissible all-up weight) and towing a trailer:
Maximum speed must be limited to 60 mph (100 km/h) and the tyre pressure increased by 0.2 bar (or 3PSI).
Refer to the information on weights in Section 6 for more details.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page7
0.05
Tyre pressures when cold (in PSI) (continued)
Versions 1.2
1.2 16V
1.4 16V
1.6 16V 2.0 16V 1.5 dCi
1.9 dCi
Tyre sizes 175/65 R14 T
185/55 R15 H
175/65 R14 T
185/55 R15 H
195/45 R16 195/50 R15 175/65 R14 T
185/55 R15 H
Normal use
•Front 28 32(1) 33 33 32
•Rear 2629303029
Motorway use (2)
• Front 29 33 (1) 39 36 33
• Rear 28 30(1) 32 32 30
Wheel sizes 5.5 J 14
6.0 J 15
7 J 16 7 J 16 5.5 J 14
6.0 J 15
Tyre safety and use of chains
Refer to the information on tyres in Section 5 for information on maintenance and, depending on the version, the
conditions under which snow chains may be fitted to the vehicle.
Special features of the 2.0 16V version
The tyres on this vehicle cannot be fitted with chains. If you wish to fit snow chains, you must use special equipment.
Consult your Renault Dealer.
(1) Vehicle with automatic transmission: add 3PSI.
(2) Special note concerning vehicles used under full load (maximum permissible all-up weight) and towing a trailer:
Maximum speed must be limited to 60 mph (100 km/h) and the tyre pressure increased by 0.2 bar (or 3PSI).
Refer to the information on weights in Section 6 for more details.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page8
0.06
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page9
1.01
Section 1: Getting to know your car
Keys - plip remote control unit ............................................................................................................ 1.02 - 1.03
Doors ....................................................................................................................................................... 1.04 - 1.05
Automatic locking of doors when driving ..................................................................................................... 1.06
Engine immobiliser system ................................................................................................................... 1.07 - 1.08
Head restraints - Seats ......................................................................................................................... 1.09 ¬1.12
Seat belts/Methods of restraint in addition to the front seat belts ................................................. 1.13 ¬1.23
Child safety ........................................................................................................................................... 1.24 ¬1.36
Clock and external temperature ...................................................................................................................... 1.37
Driving position ................................................................................................................................... 1.38 ¬1.41
Instruments ........................................................................................................................................... 1.42 ¬1.49
On-board computer .......................................................................................................................... 1.50 ¬1.52
Rear-view mirrors .................................................................................................................................. 1.53 - 1.54
Steering wheel .................................................................................................................................................. 1.54
Lighting and external signals ............................................................................................................... 1.55 - 1.56
Headlight beam adjustment ............................................................................................................................. 1.57
Wipers ................................................................................................................................................... 1.58 ¬1.60
De-icing .............................................................................................................................................................. 1.61
Visible and audible warning signals ............................................................................................................... 1.62
Fuel tank (filling with fuel) .................................................................................................................. 1.63 - 1.64
1
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page10
1.02

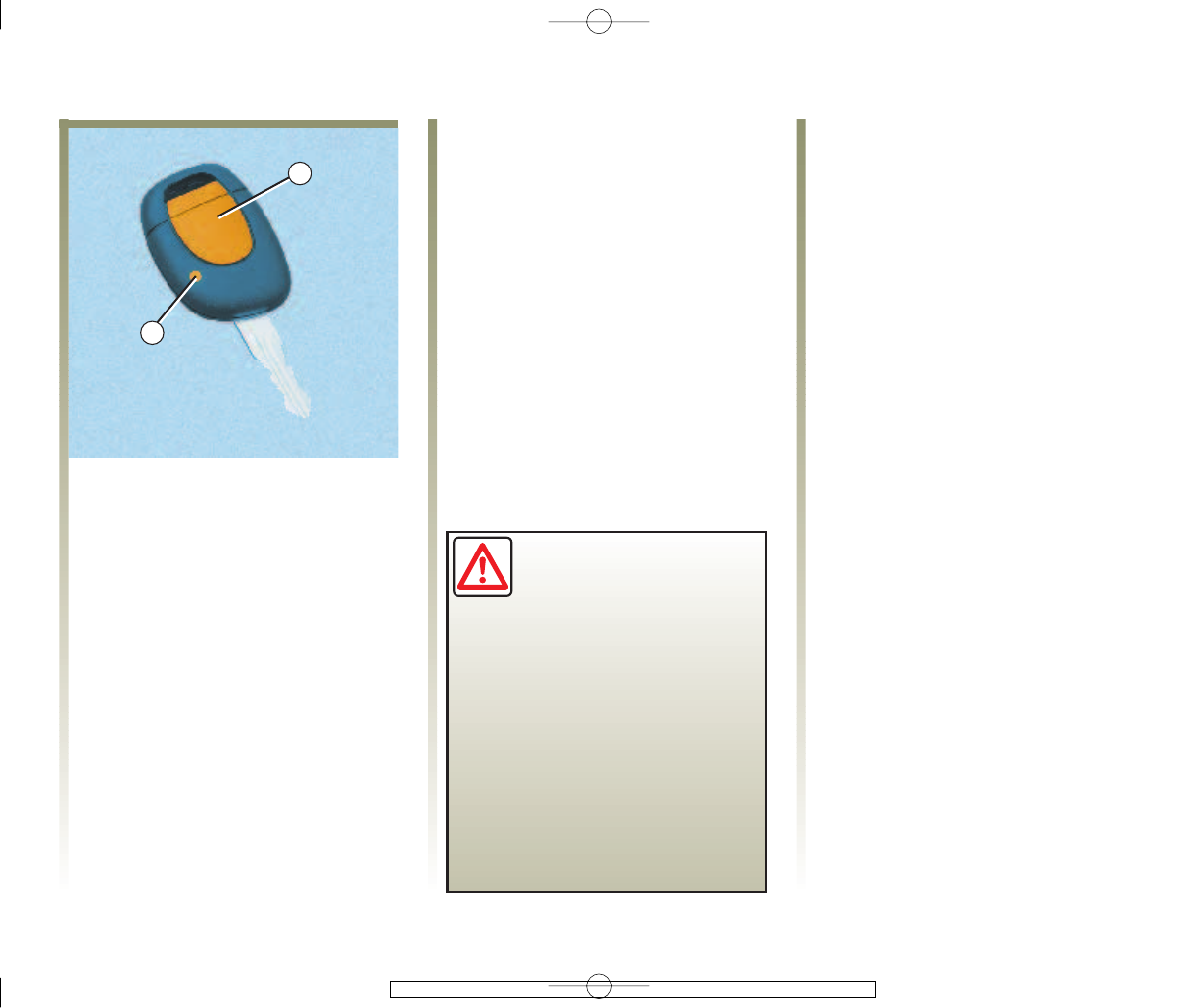

KEYS / RADIO FREQUENCY REMOTE CONTROL

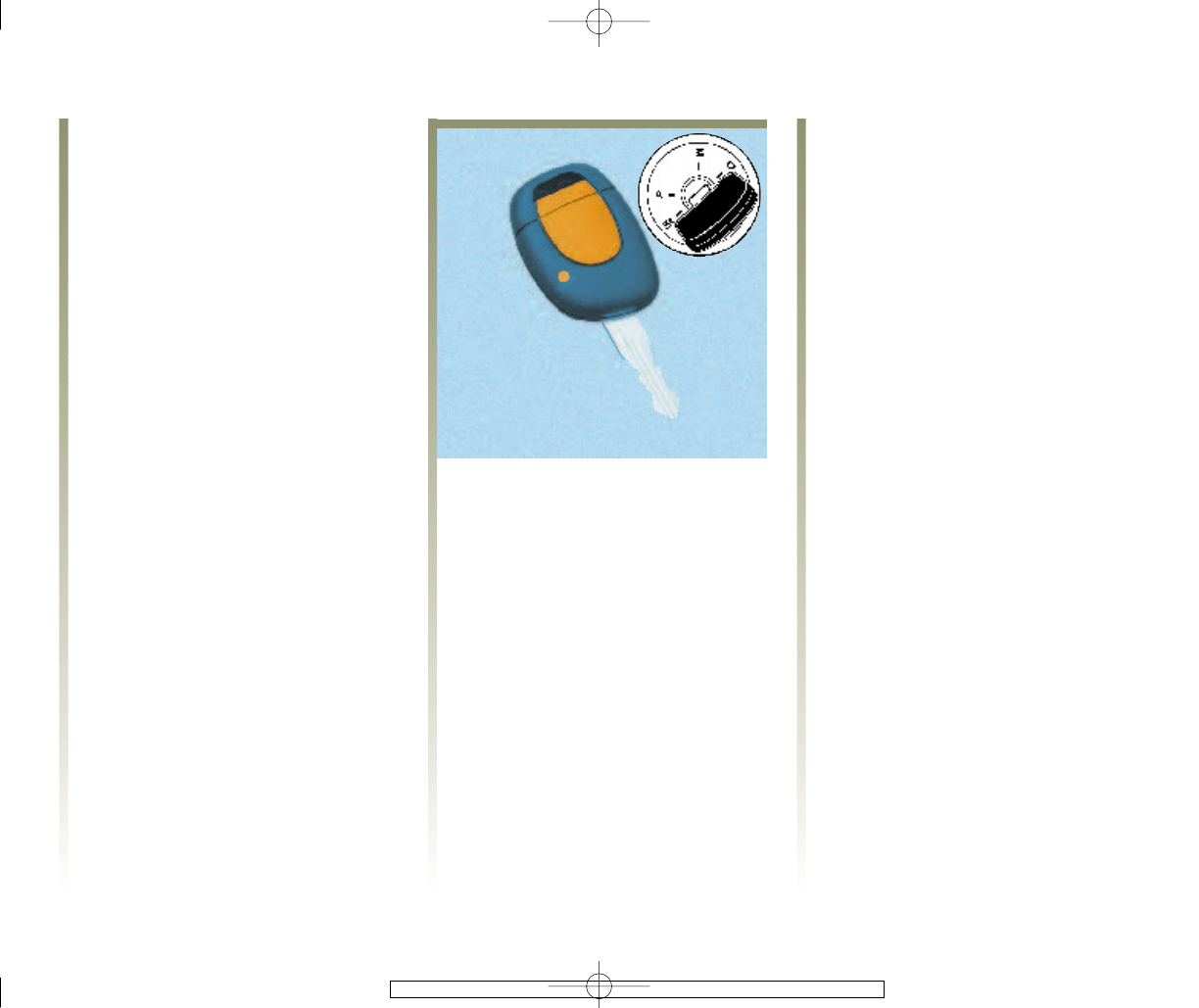

1Remote control coded ignition
key, key for doors and fuel filler
cap.
The plip remote control 1locks and
unlocks the doors.
It is supplied with power by a
battery which has to be replaced
when the battery tell-tale light 2no
longer comes on. (Refer to the
information on the radio frequency
remote control batteries.)
If there is a child (or
animal) in the car, never
leave it unattended with
the key in the ignition.
With the key in the ignition it
would be possible to operate
electrical equipment such as the
window risers and there is a risk
that the child may be seriously
injured (by trapping his or her
neck, arm, hand, etc.).
Locking/unlocking the doors
Press the remote control for
approximately one second to lock or
unlock the doors. (Tell-tale light 2
will switch on.)
- The hazard warning lights flash
twice to indicate that the doors
have been locked.
Note: Depending on the vehicle, if
eitheradoorortailgateisopenor
not properly closed or if a rear
interior light remains in the
“continuous lighting” position
(see information on interior lights
in section 3), the hazard warning
lights will not flash.
- The hazard warning lights flash
once to indicate that the doors
have been unlocked.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page11
1.03
RADIO FREQUENCY REMOTE CONTROL (continued)
The range within which the remote
control will operate
This varies according to the
environment: therefore take care
when handling the remote control
that you do not inadvertently lock
or unlock the doors.
Note: On certain vehicles, if a door
is not opened within approximately
30 seconds of unlocking the door
using the remote control, the doors
will lock again automatically.
Interference
Interference may be caused to the
operation of the remote control by
factors in the immediate vicinity
(external installations or the use of
equipment operating on the same
frequency as the remote control).
If you lose your keys or need
another set of keys (or a remote
control), contact your RENAULT
Dealer.
• If a remote control unit is
replaced, it will be necessary to
take the vehicle to your
RENAULT Dealer because both
the vehicle and all the remote
control units are needed to
initialise the system.
• No more than two remote controls
can be used on one vehicle.
• Make sure that the batteries are
always in good condition - they
last for approximately two years.
1
2
5
4
3
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page12
1.04
OPENING THE DOORS

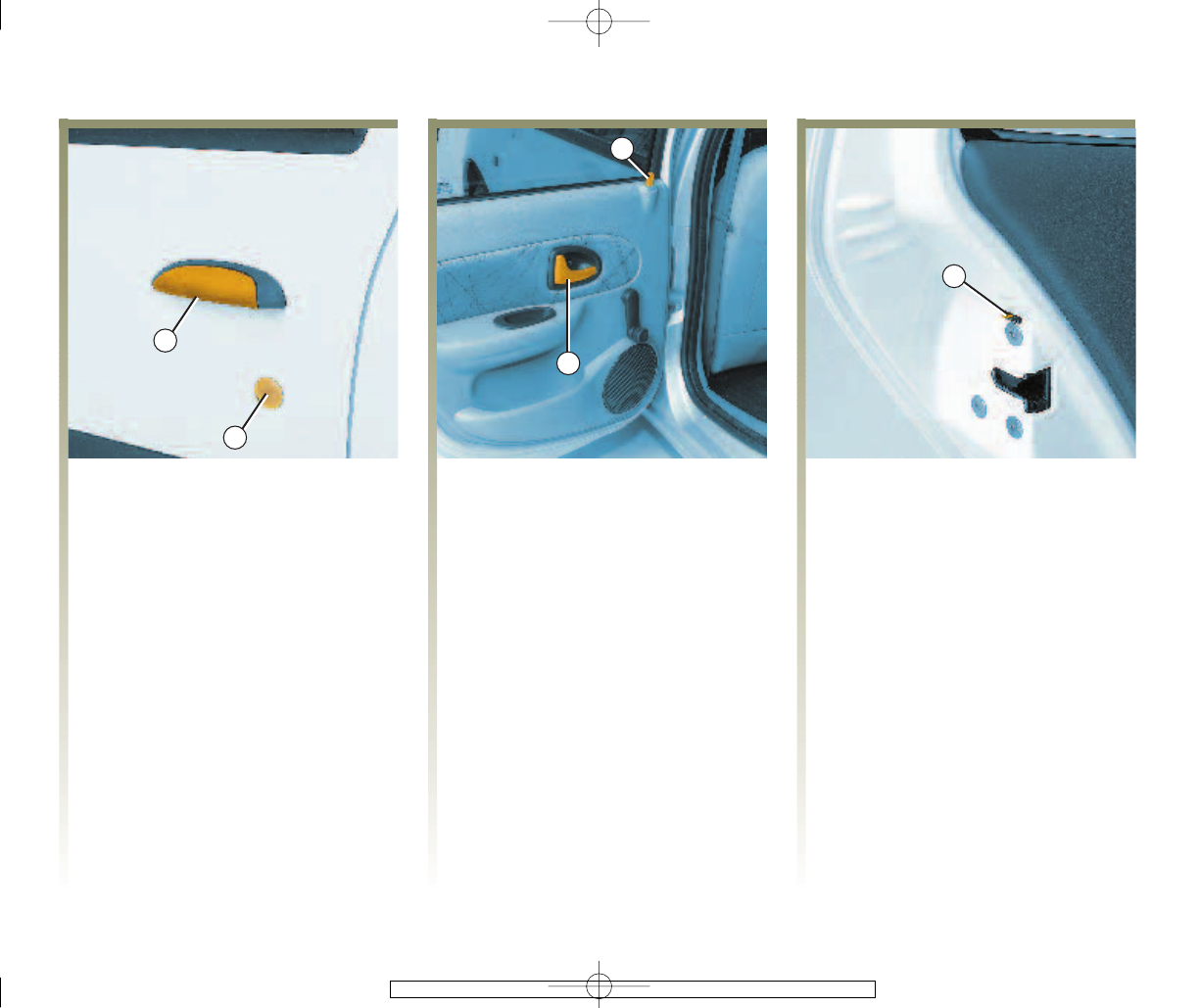

Opening the doors from the
outside
Front: Use the key to unlock the
front door lock 2.Slipyourhand
under the handle 1and pull it
towards you.
Rear: When the front door is open,
lift the unlocking knob 3from
inside and pull the door handle.

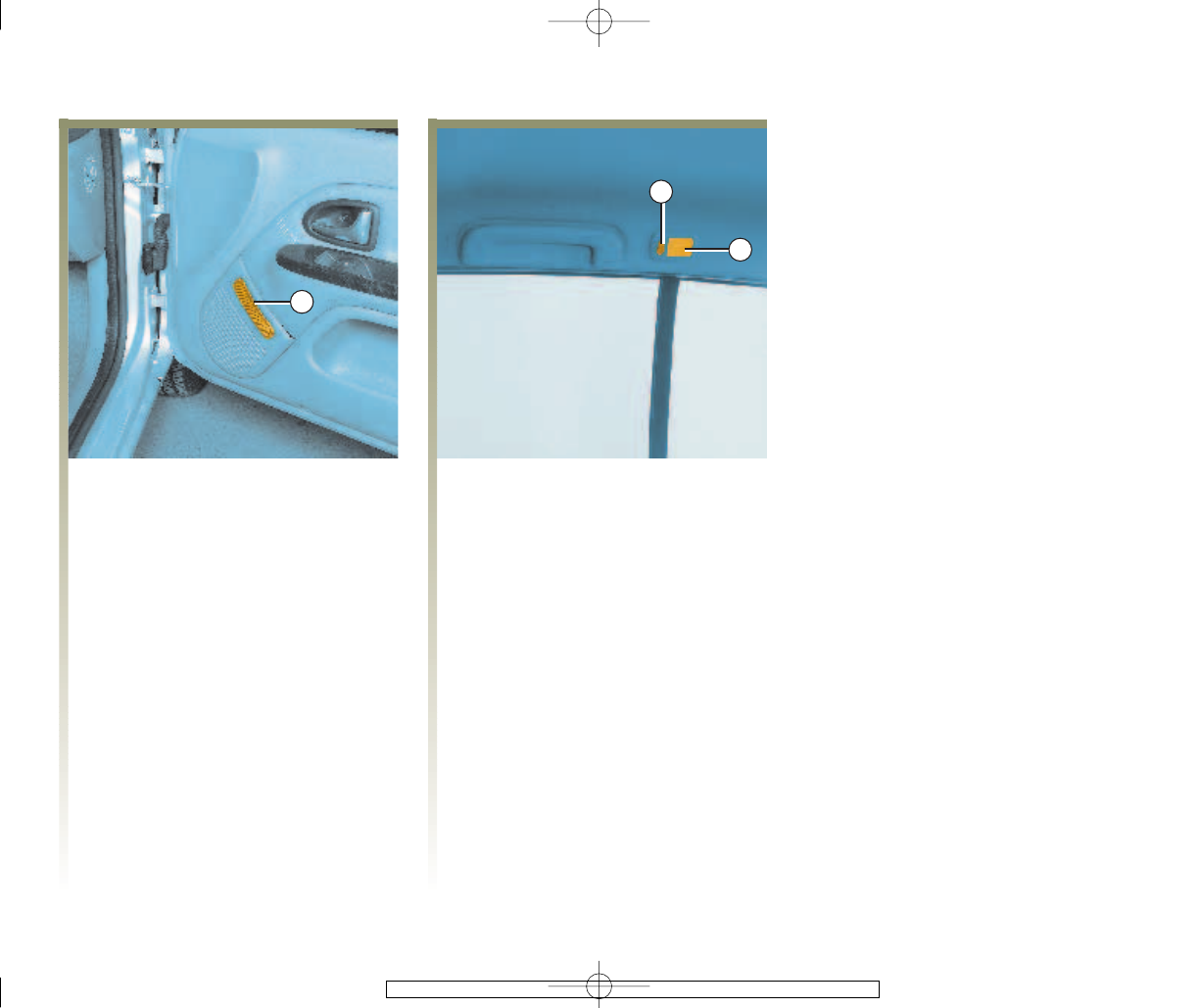

Opening the doors from inside
the vehicle
Move handle 4.
Lights on warning buzzer
If you have left the lights switched
on after turning off the ignition, a
warning buzzer will sound when a
door is opened (risk of battery
discharge).
Childproof locks
To prevent the rear doors being
opened from inside the vehicle,
move lever 5on each door and
check from inside the car that both
doors are securely locked.
2
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page13
1.05
LOCKING THE DOORS
Manual locking
Front: Use the key from the outside.
Rear: Press down knob 1in each
door.
Electric central locking
This enables the doors and
the luggage compartment to be
locked or unlocked simultaneously.
Lock by pressing the indicator light
on switch 2.
The front door mechanism cannot
be locked if the door is open.
Opening status warning light
The warning light on switch 2
informs you of the closure status of
the doors and tailgate:
- the light comes on when the doors
are locked;
- when a door is opened (or
incorrectly closed) the indicator
light goes out.
When you lock the doors using the
plip remote control, the indicator
light remains lit for approximately
one minute then goes out.
If you decide to keep the
doors locked when you
are driving, remember
that it may be more
difficult for those assisting you
to gain access to your vehicle in
the event of an emergency.
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page14
1.06
AUTOMATIC LOCKING OF DOORS, ETC. WHEN DRIVING
You must first decide if you want to
activate this function.
To activate
With the ignition on, press the
central door locking button 1for
approximately 5 seconds, until you
hear the beep.
To deactivate
With the ignition on, press the
central door locking button 1for
approximately 5 seconds, until you
hear the beep.
If you decide to keep the
doors locked when you
are driving, remember
that it may be more
difficult for those assisting you
to gain access to your vehicle in
the event of an emergency.
Operating principle
When the vehicle moves off, the
system automatically locks the
doors,etc.assoonasaspeedof4
mph (6 km/h) is attained. The
indicator light on button 1light ups.
Unlocking occurs automatically:
- if a front door is opened.
Note: If a rear door is opened, this
will be locked again automatically
when the vehicle attains a speed of
approximately 4 mph (6 km/h).
- by pressing the door unlocking
button 1.
Operating incident
If you note that the system is not
operating correctly (automatic
locking does not take place, the
indicator light on button 1does not
light up when the doors, etc. are
locked), first of all check that all the
doors, etc. are properly closed.
However, if they are closed
correctly, consult your Renault
Dealer.
Also make sure that locking has not
been deactivated inadvertently. If
this occurs, switch the ignition off
and on again and reactivate it as
described above.
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page15
1.07

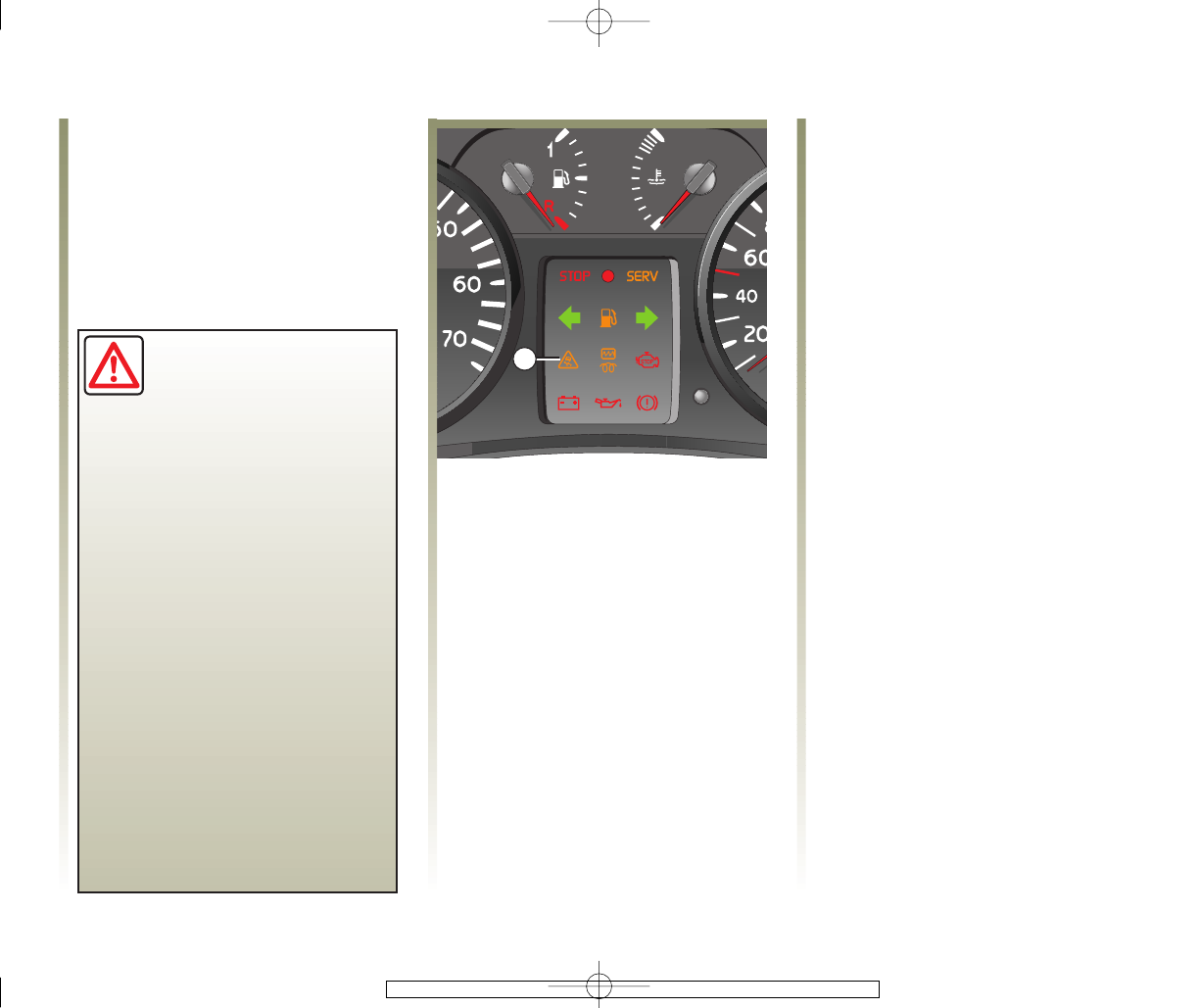

ENGINE IMMOBILISER
This prevents the engine being
started by anyone who does not
have the coded key for the vehicle.
Any operation on or
modification to the
immobiliser system
(computers, wiring, etc.)
may be dangerous. It must be
carried out by qualified
RENAULT personnel.
Operating principle
The vehicle is automatically
protected a few seconds after the
key has been removed from the
ignition.
When the ignition is switched on,
warning light 1comesonforafew
seconds then goes out.
The vehicle has recognised the code
and the engine may be started.
If the code of the ignition key is not
recognised by the vehicle, warning
light 1will flash continuously and
the engine cannot be started.
Indicator light
System operational indicator light
When the ignition is switched on,
indicator light 1lights up
continuously for approximately
three seconds and then goes out.
You can then start the engine.
Vehicle protection indicator light
A few seconds after the ignition has
been switched off, indicator light 1
will flash continuously.
The vehicle will not be protected
until the key has been taken out of
the ignition.
1
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page16
1.08
ENGINE IMMOBILISER (continued)
Warning light to indicate that the
system is not operating correctly
When the ignition has been
switched on, if warning light 1
continues to flash or remains on, it
indicates that the system is not
operating correctly.
In all instances, you must contact a
RENAULT Dealer, who are the only
people authorised to repair the
engine immobiliser system.
If the coded ignition key is faulty,
use the second key (supplied with
the vehicle).
A1
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page17
1.09
HEAD RESTRAINTS

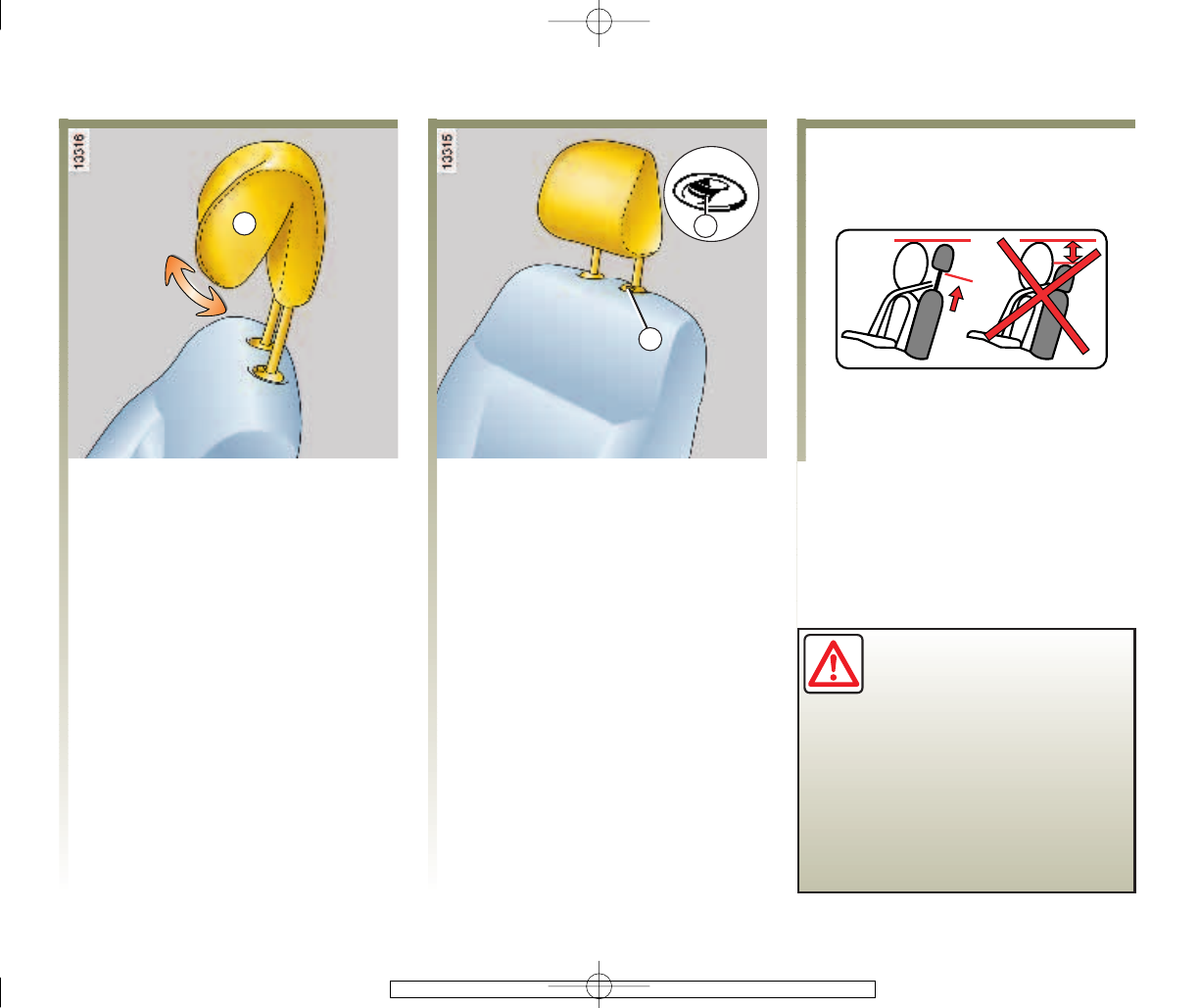

To raise or lower the headrest
Pull the headrest towards you (i.e.
towards the front of the vehicle) and
slide it up or down at the same time.
To adjust the angle of the headrest
On certain vehicles the angle of the
headrest can be adjusted. To do this,
move the front section Aof the
headrest forwards or backwards
until it feels comfortable.
To remove the headrest
First incline the seatback towards
the rear.
Raise the headrest until it is at the
highest possible setting. Lift up
tab 1and then pull the headrest
upwards until it is released.
To refit the headrest
Insert the rods into the sleeves, with
the notches facing the front.
Lower the headrest until it locks in
position.
The head restraint is
important for safety: ensure
that it is positioned
correctly. The distance
between your head and the head
restraint should be as small as
possible, and the top of the head
restraint should be as close as
possible to the top of your head.
1
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page18
1.10
REAR HEAD RESTRAINTS
To adjust the height
Simply slide it up.
To remove it
Press tab 1.
To refit the headrest
Insert the rods into the sleeves, with
the notches to the front, and lower
the headrest to the desired height.
Storage position
When the headrest is fully lowered,
it is in the storage position; do not
use this position when someone is
sitting in the rear seats.
The head restraint is
important for safety: ensure
that it is positioned
correctly. The distance
between your head and the head
restraint should be as small as
possible, and the top of the head
restraint should be as close as
possible to the top of your head.
2
3
4
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page19
1.11
FRONT SEATS

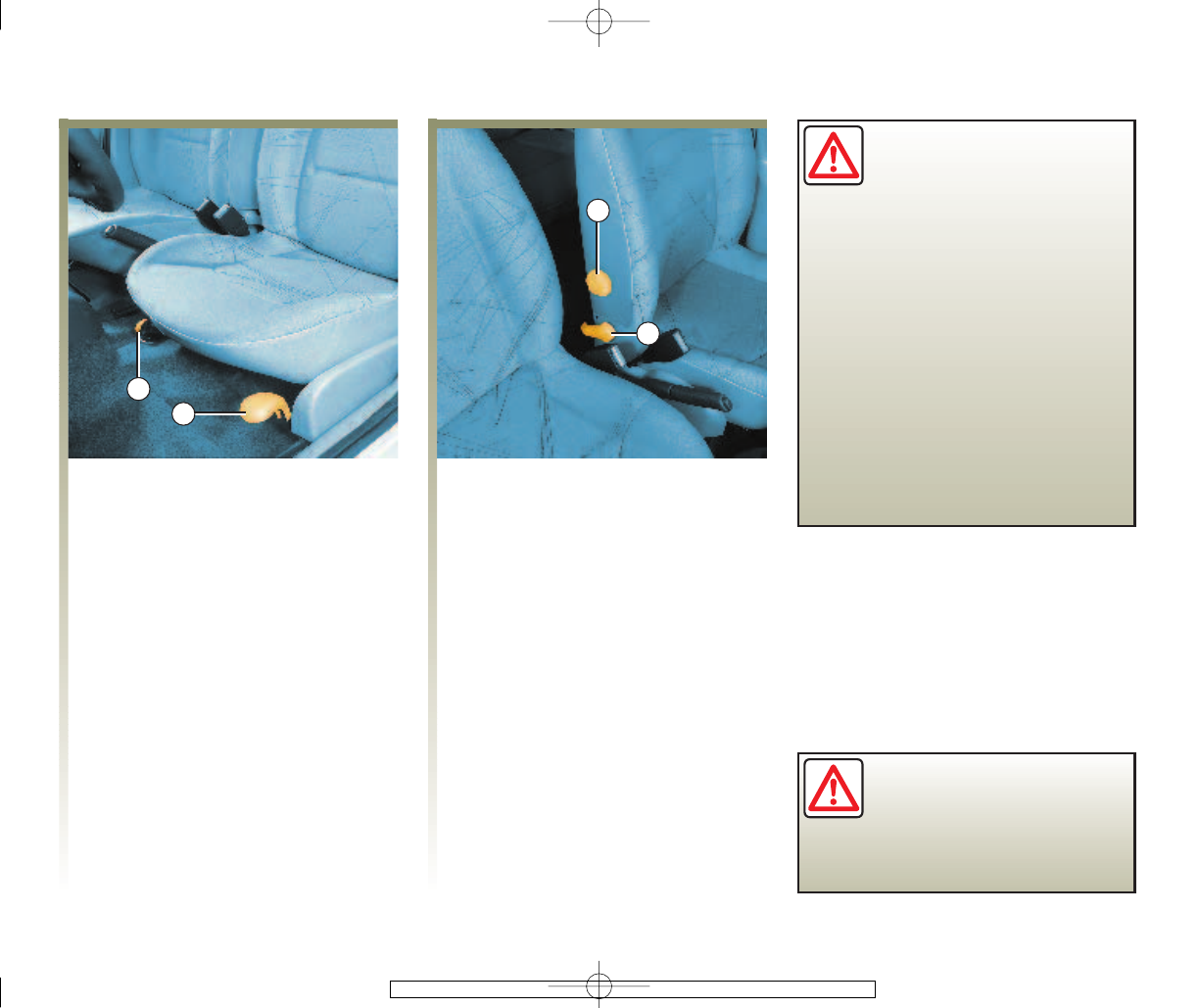

To move forwards or backwards:
Lift lever 2to unlock the seat.
Release the lever when the seat is in
the required position and ensure it
is locked in place.
To raise or lower the driver’s seat:
Lift lever 1.
To tilt the seatback:
Move handle 4and tilt the seat to
the required position.
To adjust the lumbar support on the
driver’s seat:
Turn wheel 3.
So that the effectiveness of
the seat belts is not
reduced, we would advise
you not to recline the
seatbacks excessively.
Make sure the seatback is locked in
place correctly.
No objects should be placed on the
floor (area in front of driver) as
such objects may slide under the
pedal during braking manoeuvres,
thus obstructing its use.
For safety reasons, adjust
the seats only when the
vehicle is stationary.
5
6
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page20
1.12

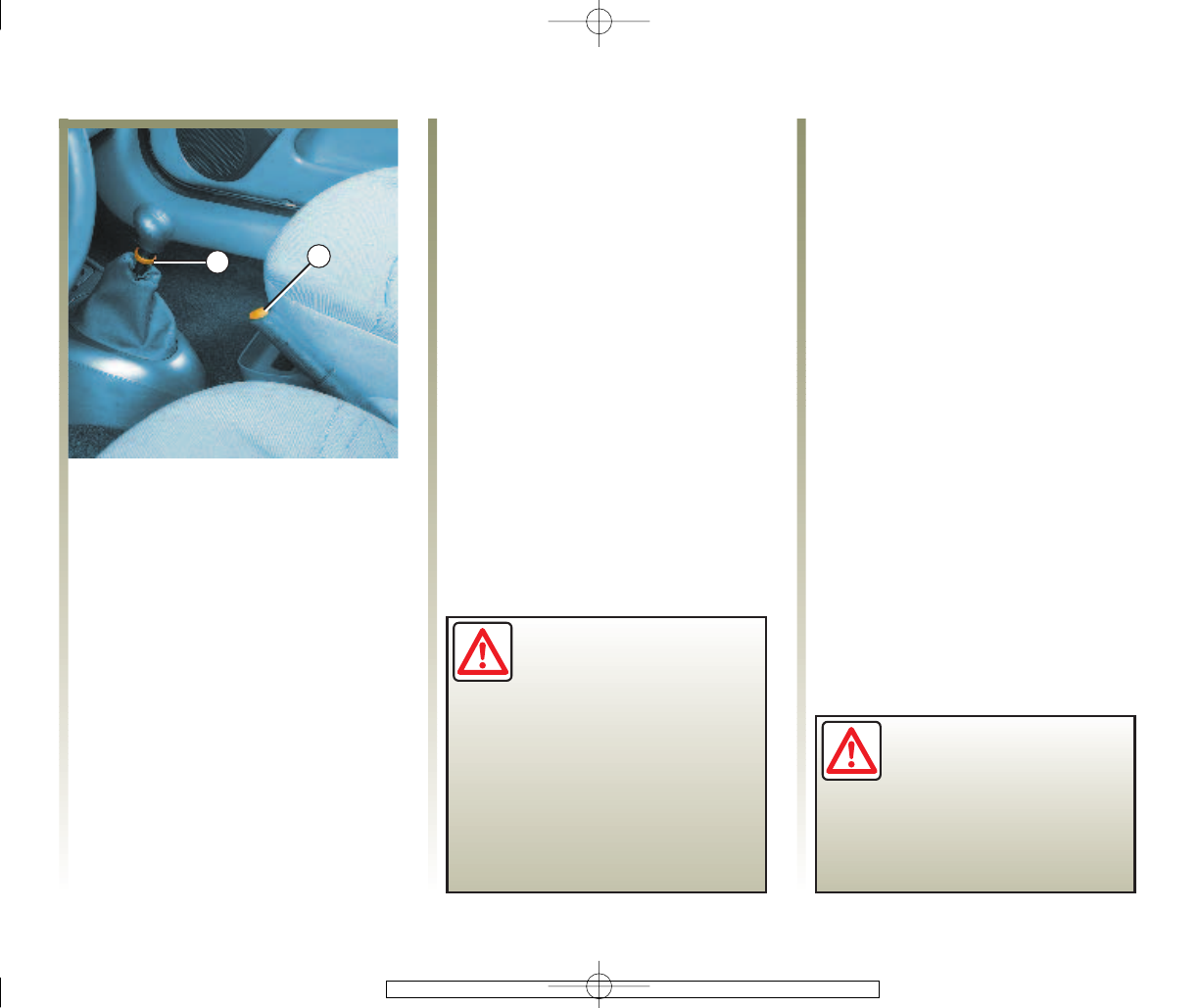

FRONT SEATS (continued)
Access to the rear seats
(three-door versions)

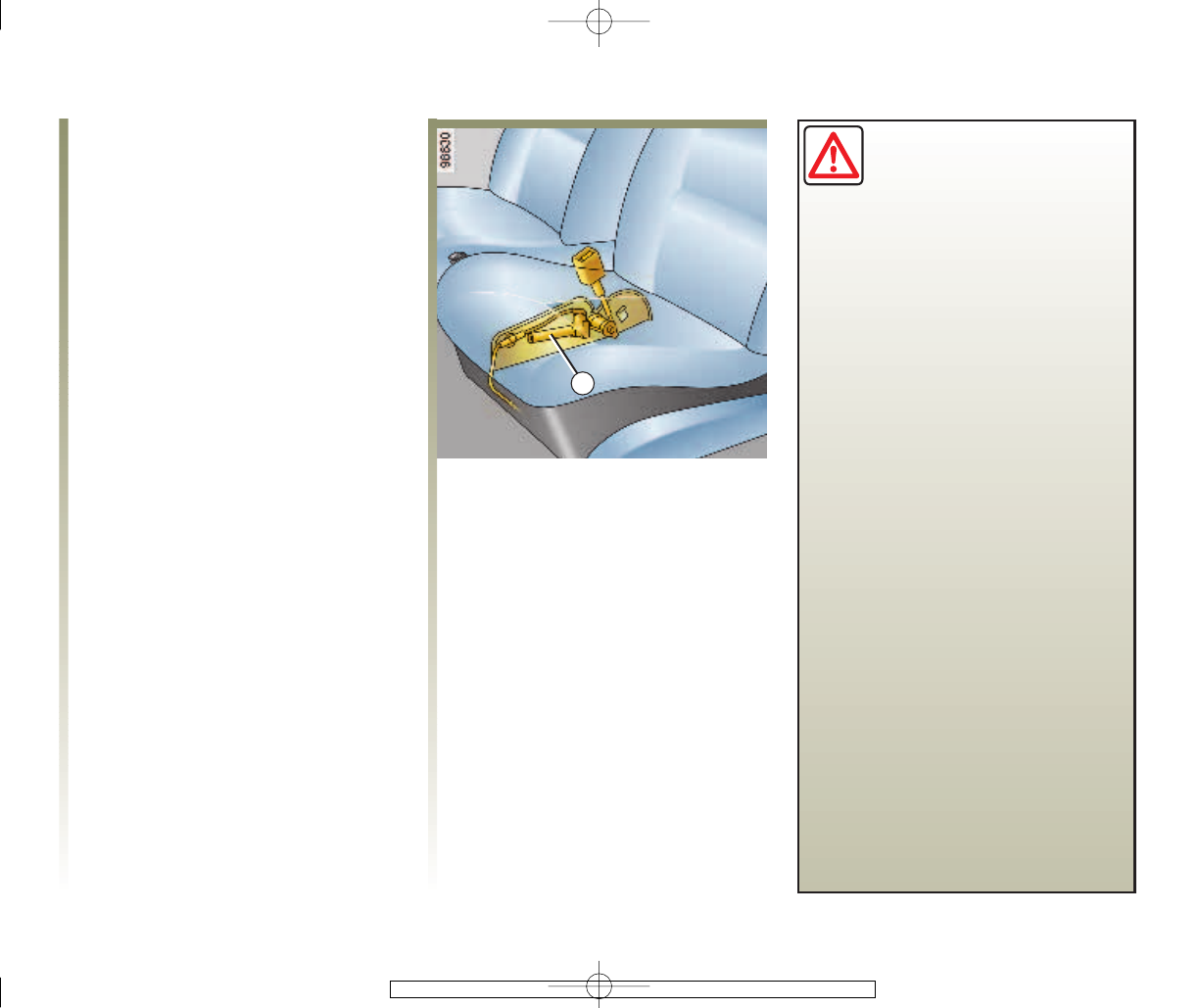

Lift lever 5and slide the seat
forwards.
To return the seat to its original
position (memorised position) on
the driver's side, slide the seat
backwards until it locks.

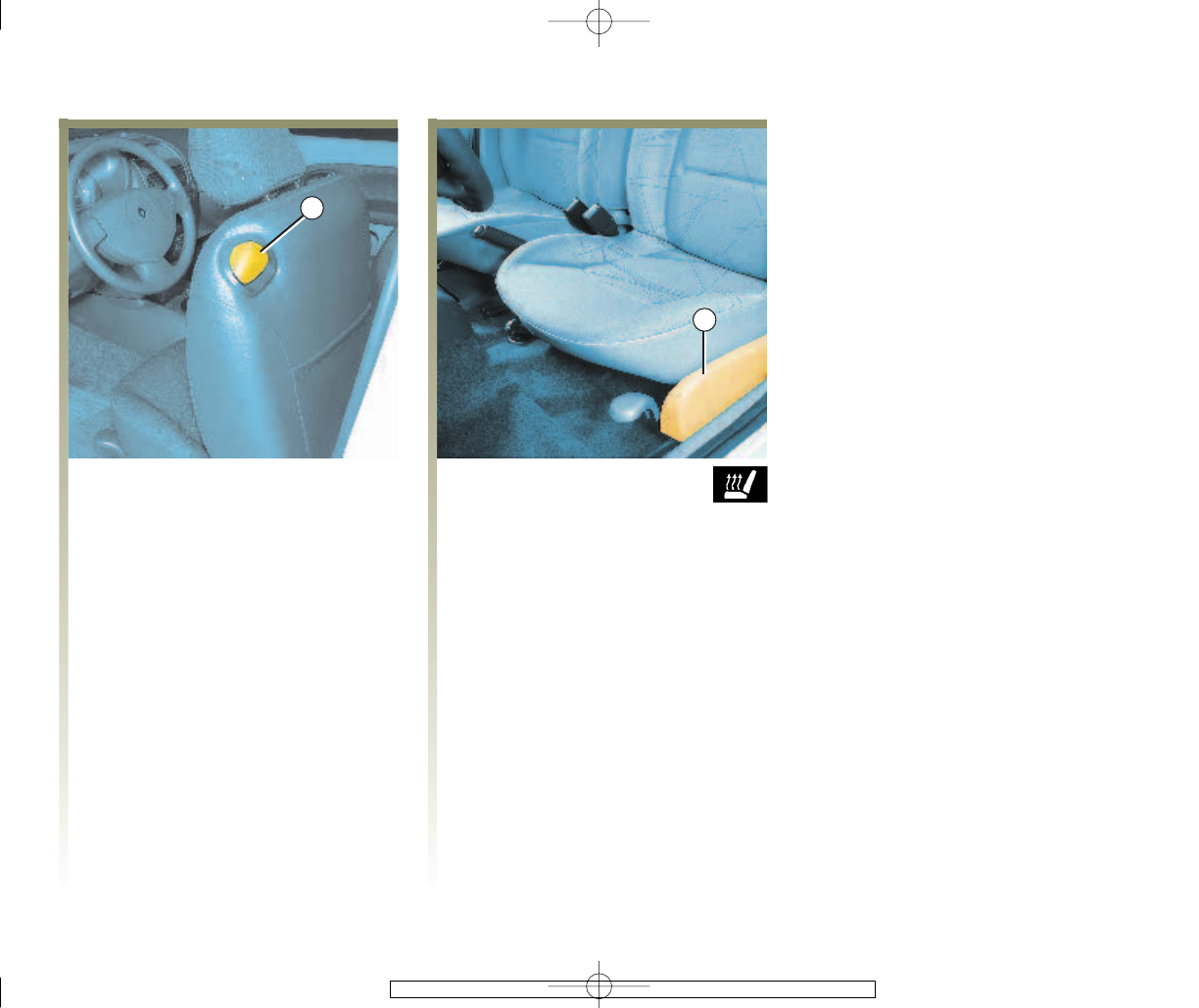

Heated seats
With the ignition switched
on, press the switch located on the
rail cover 6. An indicator light will
light up on the instrument panel.
The system is not necessarily
activated if the indicator light is lit
up. The system has a thermostat and
only operates when the passenger
compartment temperature is less
than 12°C (with a tolerance of plus
or minus 4°C).
1
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page21
1.13
SEAT BELTS
Always wear your seat belt when
travelling in your car. You must also
comply with the local legislation in
the particular country you are in.
Before driving off:
- First ensure that your driving
position is correct.
- Then, to provide maximum
safety, adjust your seat belt
correctly.
Incorrectly adjusted seat
belts may cause injuries
in the event of an
accident.
Even pregnant women should
wear a seat belt. In this case,
ensure that the pressure of the
lap belt on the abdomen is not
excessive.
Adjusting your driving position
• Sit with your back firmly against
the seatback.
This is essential to ensure your
lumbar vertebrae are in the
correct position.
•Adjust the distance between the
seat and the pedals.
Your seat should be as far back as
possible to allow you to press the
clutch pedal fully down. The
seatback should be adjusted so
that your arms remain slightly
bent.
•Adjust the position of the head
restraint.
For maximum safety, your head
should be as close as possible to
the head restraint.
•Adjust the height of the seat.
This adjustment allows you to
select the seat position which
offers you the best possible
vision.
•Adjust the position of the steering
wheel
Adjusting the seat belts

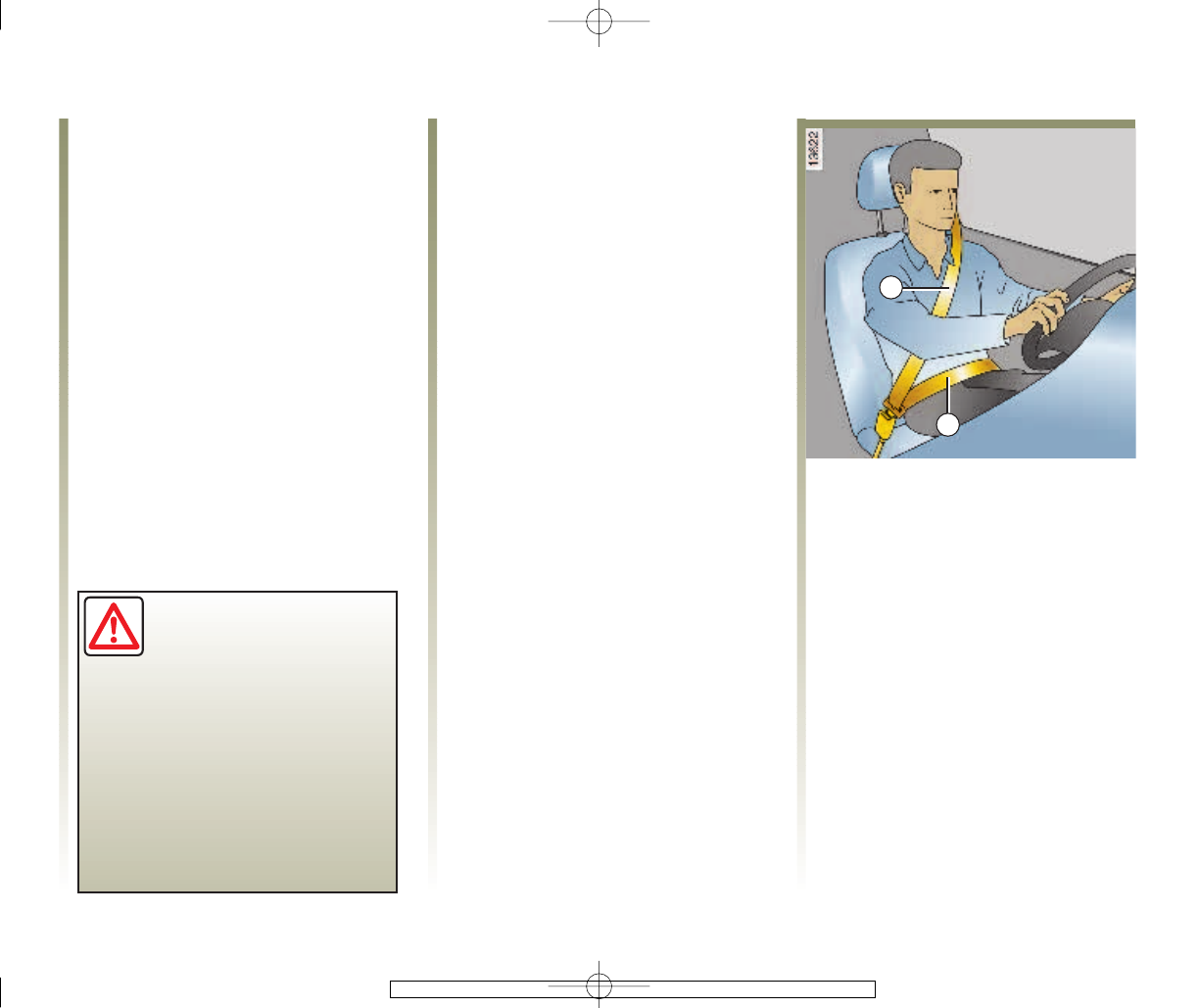

Sit with your back firmly against the
seatback.
The shoulder strap 1should be as
close to the base of the neck as
possible but not on it.
The lap strap 2should be held
firmly over the thighs and against
the pelvis.
The belt should be worn so that it is
as close to the body as possible, i.e.
avoid wearing heavy clothing or
having bulky objects under the
belts.
3
45
6
6
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page22
1.14
SEAT BELTS (continued)
Adjusting the height of the front
seat shoulder strap

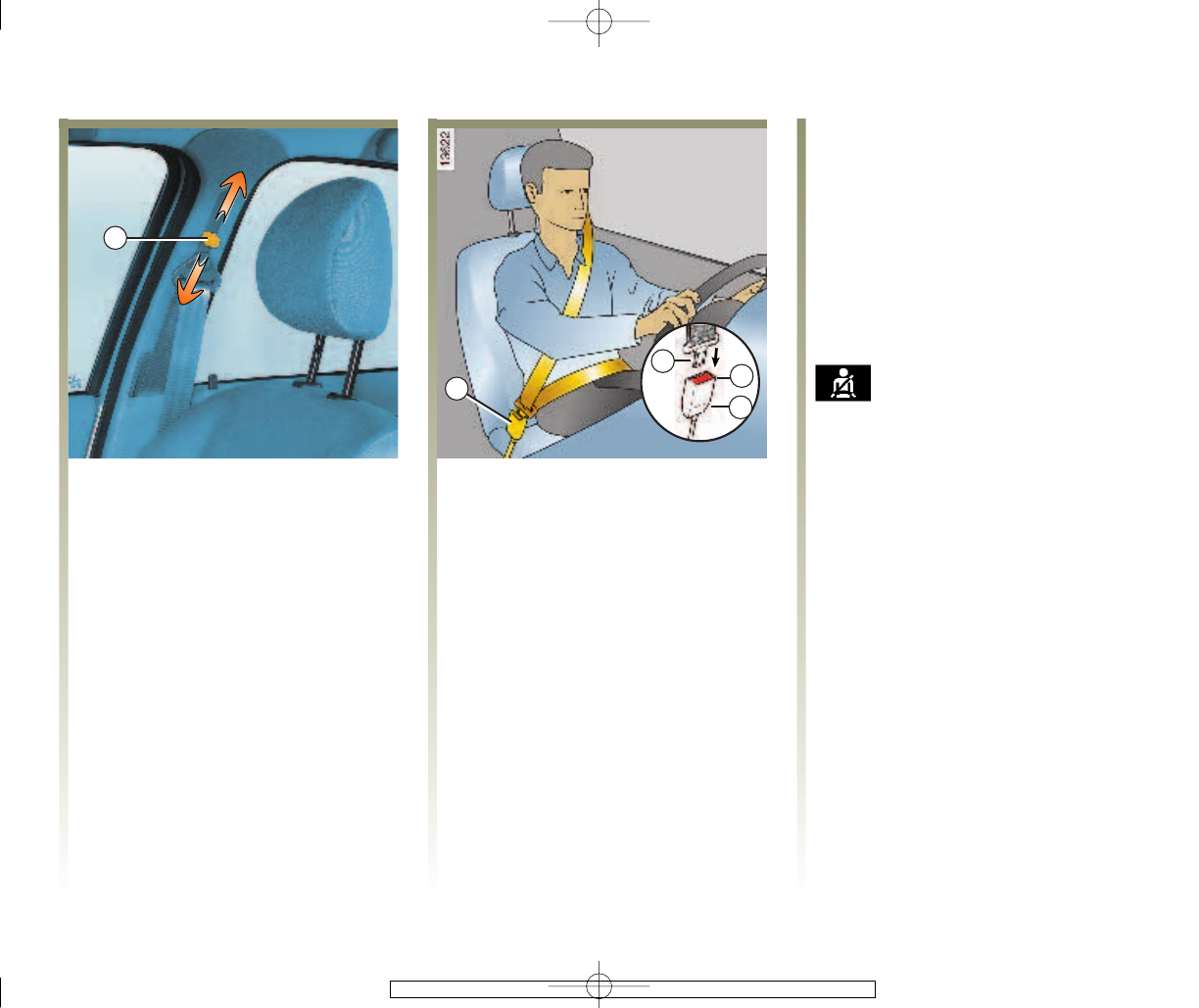

Move button 3to adjust the belt so
that the shoulder strap 1is positioned
as described above.
After making the adjustment, ensure
the belt is correctly locked.
Locking
Unwind the belt slowly and smoothly
ensuring the buckle 4clips correctly
into housing 6(check it is locked by
pulling on buckle 4). If the belt jams,
allow it to return slightly before
unwinding it again
Locking (continued)
If the belt is jammed completely:
- pull slowly but firmly, to unwind
just over an inch (approximately
3cm);
- allow the belt to rewind by itself;
- unwind the belt once more;
- if the problem persists, consult your
RENAULT Dealer.
Driver's seat belt not
fastened warning light
If the driver's seat belt is
unfastened this lights up, and,
when the vehicle reaches a speed of
approximately 6 mph (10 km/h), it
will flash and a beep will sound
for approximately 90 seconds
before the light returns to being
permanently lit.
Unlocking
Press button 5on housing 6. The belt
will rewind by itself.
Hold the buckle to help the action.
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page23
1.15
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS
These are:
OFront seat belt pretensioners.
OForce limiters.
ODriver's and passenger airbags.
These airbags are adaptable in
that they offer a small or large
volume depending on the
severity of the frontal impact.
These systems are provided to act
independently or together when the
vehicle is subjected to a frontal
impact.
Depending on the force of the
impact the system may engage:
- seat belt locking;
- the buckle pretensioner (which
triggers to take up the slack in the
seat belt);
- the lap belt pretensioner to keep
the occupant in their seat, the low
volume front airbag and the load
limiters;
- the large volume front airbag.
OSide airbags are provided to
activate in the event of severe
side impacts.
Front seat belt pretensioners
With the ignition switched on, if
there is a severe frontal impact and
depending on the force of the
impact, the system may engage:
- the piston 1which immediately
retracts the seat belt.
The pretensioners pull the seat
belt against the body, holding the
occupant more securely against the
seat, thus increasing the seat belt's
efficiency.
• Have the entire restraint
system checked following
an accident.
• No operation whatsoever
is permitted on any part of the
system (pretensioners, airbags,
computers, wiring) and the
system components must not be
re-used on any other vehicle,
even if identical.
• To avoid premature triggering of
the system which may cause
injury, only qualified RENAULT
Network personnel may work on
the pretensioner and airbag
system.
• Testing of the electric trigger
system may only be carried out
by a specially trained technician
using special equipment.
• When the vehicle is scrapped,
contact your RENAULT Dealer
for disposal of the pretensioner
and airbag gas generators.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page24
1.16
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT (continued)
Force limiter
Above a certain severity of impact,
this mechanism is used to limit the
force of the belt against the body so
that it is at an acceptable level.
Warning relating to the
service life of airbags
and pretensioners
Pyrotechnic systems for
airbags and pretensioners have a
limited service life: refer to the
servicing booklet for your
vehicle for the replacement
frequency.
Driver and passenger airbags
These are fitted to both the driver
and the front passenger seats.
An “Airbag” marking on the
steering wheel and dashboard and a
label in the lower section of the
windscreen inform you of the
presence of additional means of
restraint (airbags, pretensioners,
etc.) in the passenger compartment.
Each airbag system consists of:
- an airbag and its two gas
generators (for the small or
large-volume bag depending on
the severity of the frontal impact)
mounted on the steering wheel for
the driver and in the dashboard for
the passenger;
- a computer for both systems,
which includes the impact
detector and the monitor
controlling the electrical trigger
system for each of the gas
generators;
- A single warning light on
the instrument panel.
The air bag system uses the
principles of pyrotechnics. This
explains why, when the air bag
inflates, it will generate heat,
produce smoke (this does not mean
that a fire is about to start) and
make a noise upon detonation. In a
situation where an air bag is
required, it must inflate immediately
and this may cause some minor,
superficial grazing to the skin.
1
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page25
1.17
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT (continued)
Operation
The system waits a few seconds
after the ignition has been switched
on before being operational.
If a severe frontal impact occurs,
the airbag(s) inflate(s) rapidly,
cushioning the impact of the
driver's head and chest against the
steering wheel and the front
passenger's head against the
dashboard. The airbag(s) then
deflate(s) immediately so that the
passengers are not impeded in any
way when they get out of the
vehicle.
The passenger airbag system is
linked to a front passenger airbag
deactivation warning light 2on the
instrument panel. This warning
light is linked to the passenger
airbag deactivation system through
the ignition key.
It lights up to indicate that the
passenger airbag will not be inflated
in the event of an impact (refer to
the section on Deactivating the front
passenger airbag).
Operational incidents
Warning light 1lights up on the
instrument panel when the ignition
is turned on and then goes out after
a few seconds.
If it does not light up when the
ignition is turned on, there is a fault
in the system.
If it lights up while you are driving,
stop at once and switch off the
ignition.
If it is still lit up after the ignition
has been switched on again, there is
a fault in the system. In this case, a
rear-facing child seat MUST NOT be
fitted to the front passenger seat.
We do not recommend fitting any
other kind of passenger seat device.
In both cases, consult your
RENAULT Dealer as soon as
possible.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page26
1.18
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT (continued)
All the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent the
risk of serious injuries caused by items which may be dislodged when the airbag inflates.
The airbag is designed to complement the action of the seat belt. Both the airbags and seat belts are integral parts
of the same protection system. It is therefore essential to wear the seat belt at all times. If the seat belt is not worn,
it exposes the occupants to the risk of serious injury in the event of an accident. It may also increase the risk of
minor, superficial injuries occurring when the airbag is deployed, although such minor injuries are always
possible with airbags.
The airbag does not offer protection against minor and moderately serious frontal impacts, side or rear impacts or if the
vehicle turns over.
Airbags for driver and passenger
• No work or modification whatsoever may be performed on the entire airbag system for the driver and passenger
(computer, wiring, etc.) except by qualified RENAULT network personnel.
• To ensure that the system is in good working order and to avoid incorrect triggering of the system which may cause
injury, only qualified RENAULT network personnel may work on the airbag system.
• As a safety precaution, have the airbag system checked if your vehicle has been involved in an accident, is stolen or
broken into.
• When selling or lending the vehicle, inform the user of these points and hand over this handbook with the vehicle.
• When scrapping your vehicle, contact your RENAULT Dealer for disposal of the gas generator(s).
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page27
1.19
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT (continued)
All the warnings given below are
designed to ensure that the airbag
can inflate correctly and to prevent
serious injuries caused by items
which may be dislodged when the
airbag inflates.
Warnings concerning the driver’s airbag
•Do not adjust either the steering wheel or the airbag cushion.
• Do not cover the airbag cushion.
• Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the
airbag cushion.
• The steering wheel must not be removed (except by qualified personnel
from the RENAULT network).
• Do not sit too close to the steering wheel. If you sit with your arms slightly
bent (see the information on Adjusting your driving position in Section 1),
you will ensure that there is sufficient space for the airbag to inflate
properly and to be fully effective.

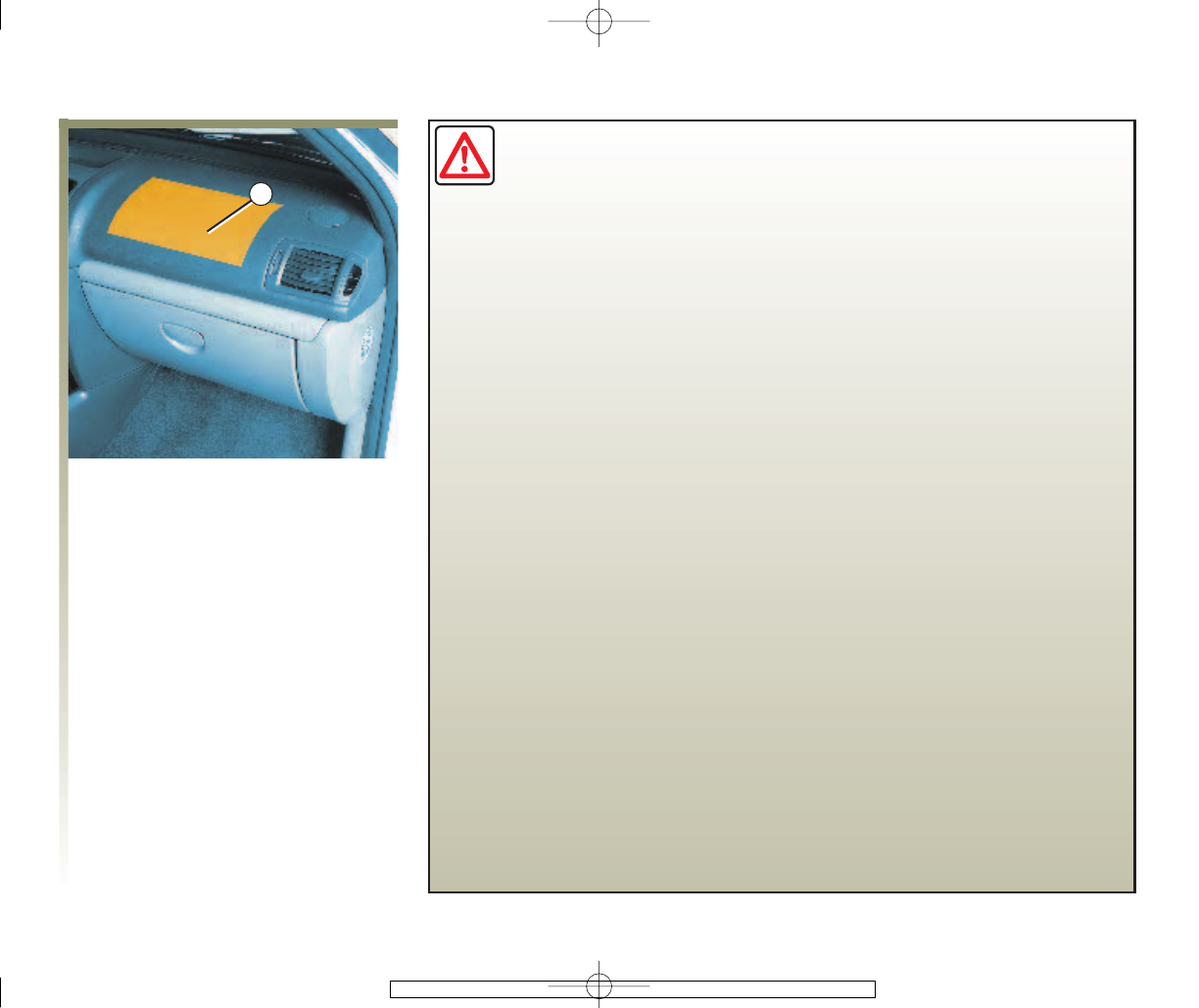

Warnings concerning the passenger airbag: location 1
• Do not attach or glue any objects (badges, logo, clock, telephone holder,
etc.) onto the front passenger side of the dashboard.
• Nothing should be placed between the dashboard and the passenger (pet,
umbrella, walking stick, parcels, etc.).
• The passenger must not put his or her feet on the dashboard or seat as there
is a risk that serious injuries may be sustained. As a general rule, keep all
parts of the body (knees, hands, head, etc.) well away from the dashboard.
• You should reactivate the airbag as soon as you remove the child seat from
the front passenger seat to ensure the protection of the front passenger in
the event of an impact.
IT IS FORBIDDEN TO FIT A REAR-FACING CHILD SEAT ON THE FRONT
PASSENGER SEAT WHILE THE RESTRAINING METHODS ADDITIONAL
TO THE PASSENGER SEAT BELT ARE NOT DEACTIVATED.
(Refer to the information on Deactivation
of front passenger airbags in Section 1).
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page28
1.20
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT (continued)
Side airbags
These airbags may be fitted to the
front seats and are deployed at the
sides of the seats (door side) to
protect the occupants in the event of
a severe side impact.
The slits on the front
seatbacks (door side) and
the gap between the rear
bench seatback and the
interior fittings form the trigger
area for the airbag, so it is
forbidden to place any objects
there.
Warnings concerning the
side airbag
• Fitting seat covers: Seats
equipped with an airbag
require special covers
specifically designed for your
vehicle. Consult your RENAULT
Dealer to see if appropriate
covers are available from
RENAULT outlets. The use of any
covers other than those designed
for your vehicle (and including
those designed for another
vehicle) may affect the operation
of these airbags and reduce your
protection.
• Do not place any accessories,
objects or pets between the
seatback and the door. This may
prevent the airbag from operating
correctly or cause injury if the
airbag is deployed.
• No work or modification
whatsoever may be carried out
on the seat, except by qualified
RENAULT Network personnel.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page29
1.21
METHODS OF RESTRAINT IN ADDITION TO THE REAR SEAT BELTS
Force limiter
In the event of a frontal impact
above a certain severity, this
mechanism is used to limit the force
of the belt against the body so that it
is at an acceptable level.
Rear side seat belt pretensioners
This system is only operational
when the ignition is switched on.
If the vehicle is subjected to a severe
impact, a device retracts the seat
belt, pulling the seat belt tight
against the body and thereby
improving its efficiency.
Warning relating to the
service life of airbags and
pretensioners
Pyrotechnic systems for
airbags and pretensioners have a
limited service life: refer to the
servicing booklet for your vehicle
for the replacement frequency.
1
5
3
2
4
6
A
B
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page30
1.22
REAR SEAT BELTS

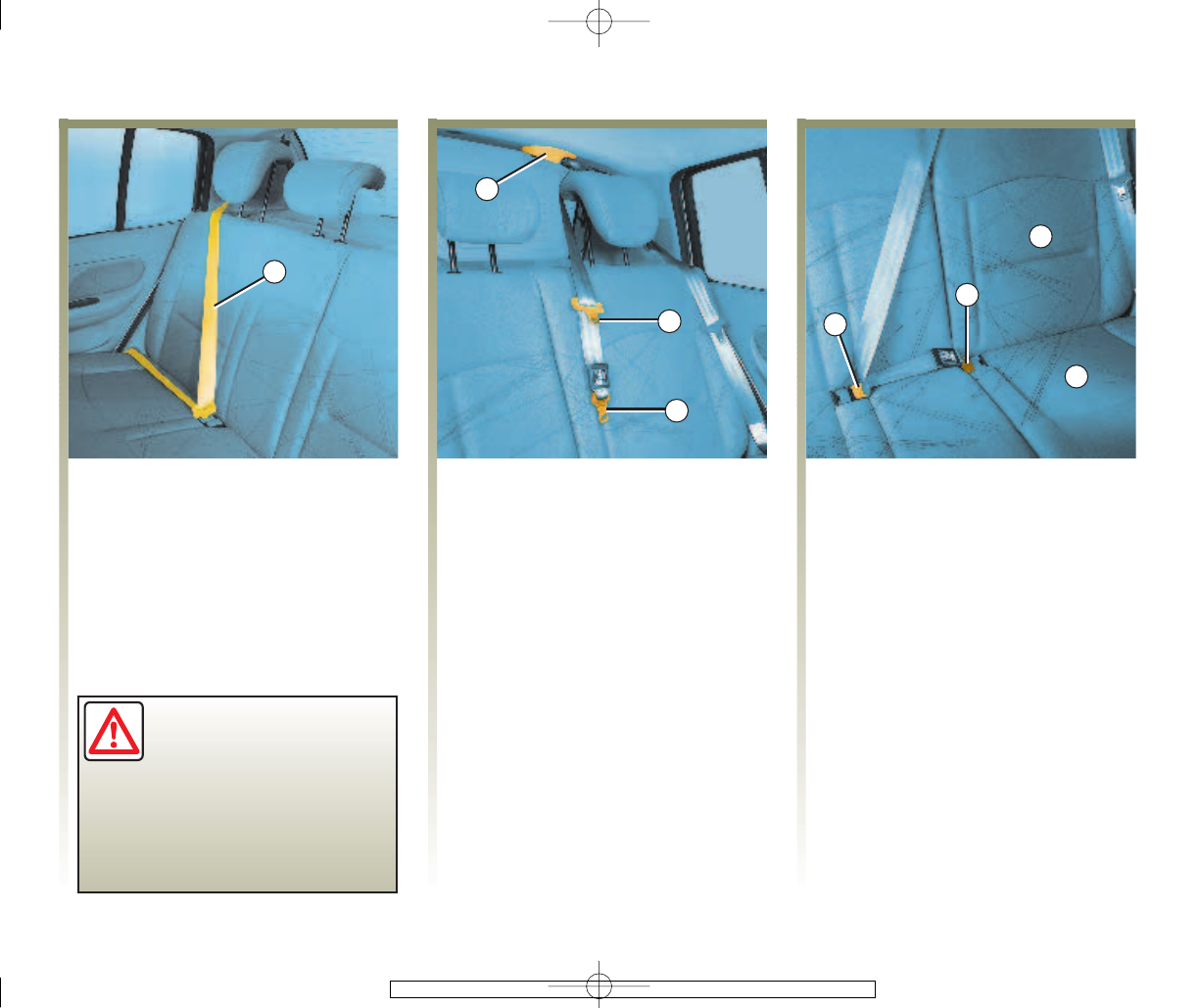

Rear side seat belts 1
The belts are locked, unlocked and
adjusted in the same way as for the
front seat belts.
The rear bench seat must
be correctly secured for
the seat belts to be
efficient.
Refer to the information on rear
bench seats in section 3.
Rear central belt
Unwind the belt slowly from
position 2.
Fasten the black buckle 4into the
black housing 6.
Fasten the last sliding buckle 2into
the red housing 5.
Special point concerning vehicles
with a two-part rear bench seat
If you have to fold down the part of
the rear bench seat behind the front
left-hand seat:
- lift the cushion Bagainst the front
seat;
- insert the black buckle 4into the
black housing 6;
- lower the seatback A(after
removing the head restraint).
Then fasten the last sliding buckle 3
into the red housing 5.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page31
1.23
SEAT BELTS
The following information applies to both the vehicle’s front and rear seat belts:
• No modifications may be made to the component parts of the original restraint systems: seat belts and
their mountings.
Consult your Renault Dealer for special applications (e.g. fitting a child seat).
• Do not use any devices which give any play in the belts (clothes pegs, clips for example).
• Never wear the shoulder strap under your arm or behind your back.
• Never use the same belt for more than one person and never hold a baby or child on your knees with the seat
belt around them.
• The seat belt should never be twisted.
• Following a serious accident, replace all the belts which were in use at the time. Likewise, have the belts
replaced if they show any signs of wear.
• When refitting the rear bench seat, check that the seat belts are repositioned correctly, to enable them to be used
properly.
• If necessary, re-adjust the position and tension of the belt.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page32
1.24
CHILD SAFETY (continued)
In all countries there are regulations
governing the use of restraint
systems for children and babies.
In Europe, children under 12 years
ofage,lessthan1.50mtalland
weighing less than 36 kg(1) must be
restrained with an approved
restraint adapted to the child's
weight and height.
The driver is responsible for
ensuring that this equipment is
used correctly.
Child restraints for which type
approval was obtained after January
1992 offer a level of safety much
greater than for restraints with type
approval before that date.
We therefore advise you to select an
approved child restraint that
complies with European regulation
ECE 44.
Restraints that comply with this
legislationmustbemarkedwithan
orange label bearing the letter E
followed by a number (which
stands for the country where it is an
approved type) and the year in
which the type approval was
granted.
(1) Always comply with the laws of the
country in which you are travelling.
They may be different to the
guidelines in this handbook.
Remember that a collision at
30 mph (50 km/h) is the same as
falling a distance of 10 metres.
Expressed in other terms,
transporting a child without a
restraint is the equivalent of
allowing him or her to play on a
third-floor balcony which does not
have any railings.
Under no circumstances
should babies or children
be allowed to travel sitting
on the knees of another
passenger in the vehicle.
If a head-on collision occurs at
30 mph (50 km/h) a child weighing
30 kg (66 lbs) will be transformed
into a missile equivalent to one
tonne: you will find it impossible
to hold the child, even if you
yourself are wearing a belt.
It is particularly dangerous to put
the belt round your child when he
or she is sitting on your knee.
Never use the same belt for more
than one person at the same time.
The tables on the following pages
inform you of the types of seat that
can be fitted in each of the vehicle
seat positions on the vehicle in
accordance with the European
directive.
Before installing a child seat in the
front seat (if fitting is permitted)
If the passenger seat is fitted with
one, carry out the following
adjustments:
- pull back the seat as far as
possible,
- straighten the seatback as much as
possible,
- raise the seat squab as far as
possible,
- pull the headrest up to its
maximum position,
- move the seat belt height control
to the low position.
Refer to the Child safety equipment
booklet available from the
RENAULT Network to choose the
seat suited to your child and
recommended for your vehicle.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page33
1.25
CHILD SAFETY (continued)
Age of child
(weight of child)
All versions (except utility version)
Front passenger seat
(2)
Rear side
seats
Rear centre
seat
Birth to approximately 9 months
(weight below 13 kg) I(4) U-I X
From 9 months to approximately
3 years (weight from 9 to 18 kg) I(4) U-I(3) X
From 3 years to approximately
12 years (1) (weight from 15 to 36 kg)
XU(3)X
X : seat not suitable for fitting a child seat for this age range.
U : seat suitable for fitting a belt-fitted child seat classed as universal for this age range, check that it can be fitted.
I : seat equipped with anchoring points for mounting a seat for this age range using Isofix locks, only RENAULT seats are
approved.
(1) A child taller than 1.50 m or weighing more than 36 kg can be strapped in the same way as an adult, without a special
seat.
(2) Only a rear-facing child seat may be installed in this seat.
(3) Place the back of the child seat against the vehicle seatback, adjust the headrest height or remove it if necessary.
(4) DANGER RISK OF DEATH OR SERIOUS INJURY: CHECK THAT THE FRONT PASSENGER AIRBAG HAS
BEEN DEACTIVATED BEFORE INSTALLING A REAR-FACING CHILD SEAT IN THIS SEAT.
(Refer to the Deactivating the front passenger Airbag information in Section 1 of the basic manual).
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page34
1.26
CHILD SAFETY (continued)
Age of child
(weight of child)
Utility version
Front passenger seat
Birth to approximately 9 months
(weight below 13 kg) I(2)
From 9 months to approximately
3 years (weight from 9 to 18 kg) I(2)
From 3 years to approximately
12 years (1) (weight from 15 to 36 kg)
X
X : seat not suitable for fitting a child seat for this age range.
I : seat equipped with anchoring points for mounting a seat for this age range using Isofix locks, only RENAULT seats are
approved.
(1) A child taller than 1.50 m or weighing more than 36 kg can be strapped in the same way as an adult, without a special
seat.
(2) DANGER RISK OF DEATH OR SERIOUS INJURY: CHECK THAT THE FRONT PASSENGER AIRBAG HAS
BEEN DEACTIVATED BEFORE INSTALLING A REAR-FACING CHILD SEAT IN THIS SEAT.
(Refer to the Deactivating the front passenger Airbag information in Section 1 of the basic manual).
1 2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page35
1.27
CHILD SAFETY (continued)
The right choice
The safety of your children is also
your responsibility.
To give your children maximum
protection, we recommend that you
use seats obtained from a Renault
Dealer.
If your vehicle is equipped with an
Isofix system, it is preferable to use
an Isofix seat. (Refer to the
information in section 1 on the
Isofix system of child seats.)
Restraint systems for all categories
are available. These systems have
been developed in consultation
with the manufacturers and have
been tested in Renault vehicles.
Take the advice of your Renault
Dealer and ask him to help you to
install it.
Category 0 and 0+
A child’s neck is very susceptible to
injury up to the age of two. In a
front-facing seat there is a risk that a
child will sustain neck injuries in
the event of a frontal collision.
Renault therefore recommends a
rear-facing seat with a harness that

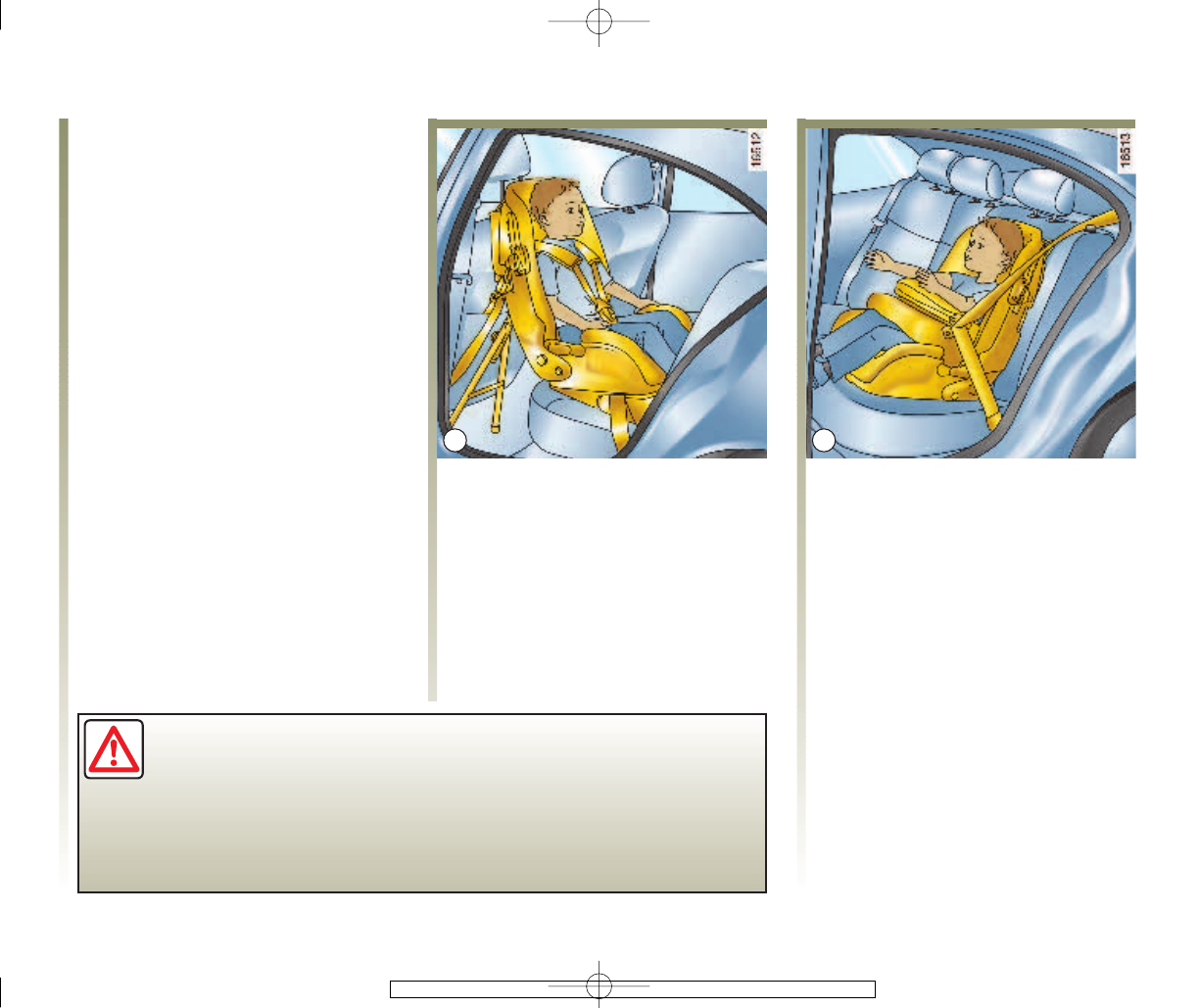

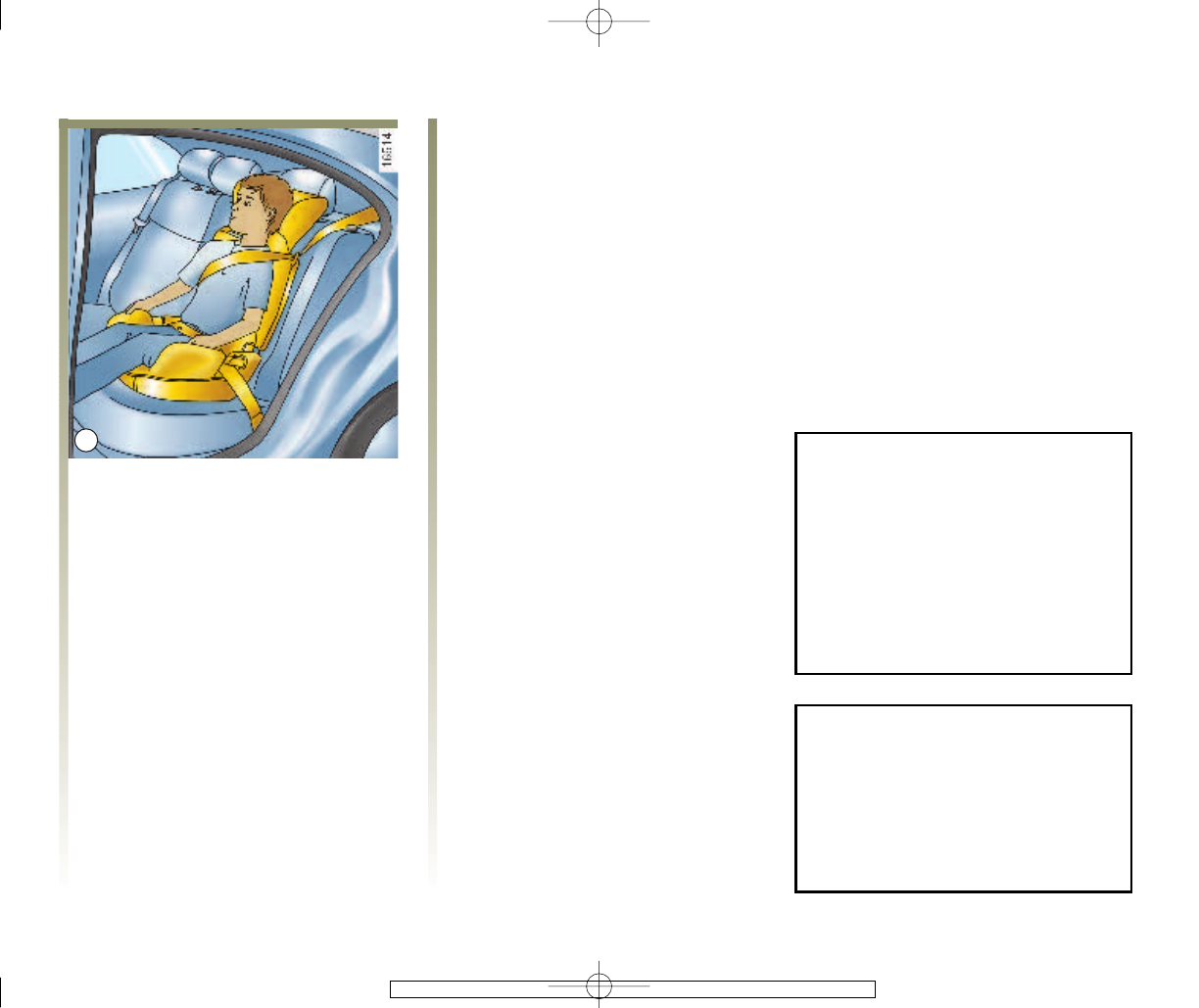

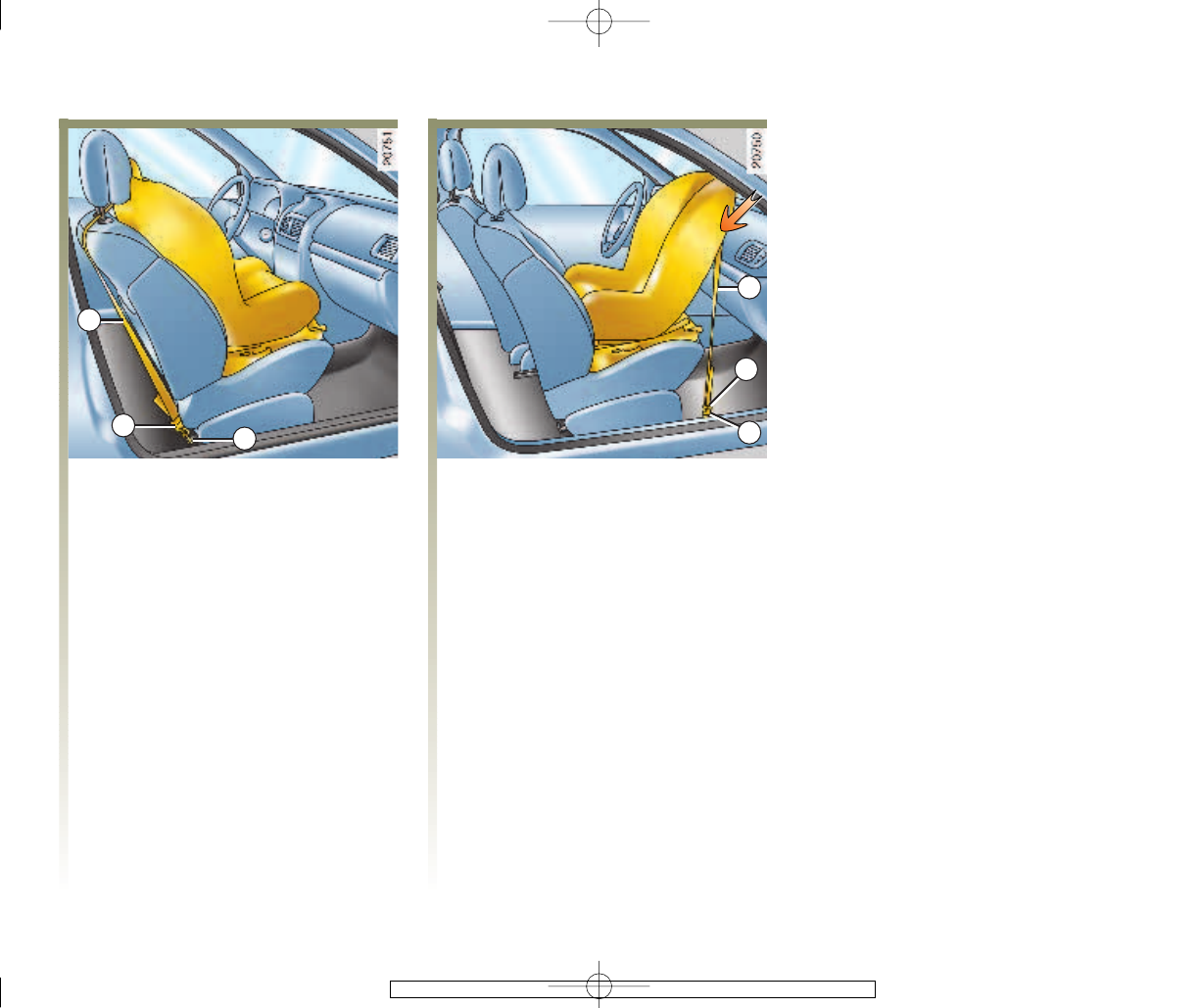

gives all-round protection (figure 1).
Category 1
Between the ages of 2 and 4, a
child’s pelvis is not fully developed.
Restraints using three-point belts
are not adequate and there is a risk
that the child will sustain
abdominal injuries in the event of a
frontal collision. It is therefore
advisable to use rear-facing seats
(figure 1), bucket type seats (figure
2) or seats with harnesses.
To avoid any risk to your safety, we recommend that you use
RENAULT approved accessories because they are suitable for your
car and are the only accessories for which RENAULT will provide a
warranty.
3
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page36
1.28
CHILD SAFETY (continued)
Category 2 (15 to 25 kg) and
category 3 (22 to 36 kg)
To correctly secure the pelvis of a
child of up to 12 years old, smaller
than 1.50 m and weighing less than
36 kg, it is preferable to use child
seats that can be combined with
three-point seat belts. This is a
booster seat (figure 3) with belt
guides to ensure that the belt will be
worn flat over the thighs of the
child.
A booster seat with a
height-adjustable seatback and a
belt guide are recommended as this
will allow the belt to be worn as
close to the base of the neck as
possible but not on it.
Place the head rest in the top
position to allow you to press the
seat back of the child seat firmly
against the vehicle seatback.
If a booster seat without a seatback
is used, the vehicle's headrest will
have to be adjusted to suit the
child's stature; the upper edge of the
headrest must be at the same height
as the top of the child's head and
should never be lower than in line
with the child's eyes. The standard classifies the
restraints in five categories:
Category 0 : from 0 to 10 kg (0 to 22 lbs)
Category0+:from0to13kg(0to28lbs)
Category 1 : from 9 to 18 kg (20 to 40 lbs)
Category 2 : from 15 to 25 kg (33 to 55 lbs)
Category 3 : from 22 to 36 kg (48 to 80 lbs)
We recommend that you remove
the headrest and put it in the
luggage compartment, to facilitate
fitting certain types of child seat.
4 5
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page37
1.29
CHILD SAFETY (continued)
DANGER
Since front passenger airbag triggering and the position of a
rear-facing child seat are incompatible, it is not permitted to install
such a seat in this position unless the vehicle is fitted with an airbag
deactivation device. Refer to the information on deactivating the front
passenger airbag. The child may suffer very serious injuries if the airbag
inflates.

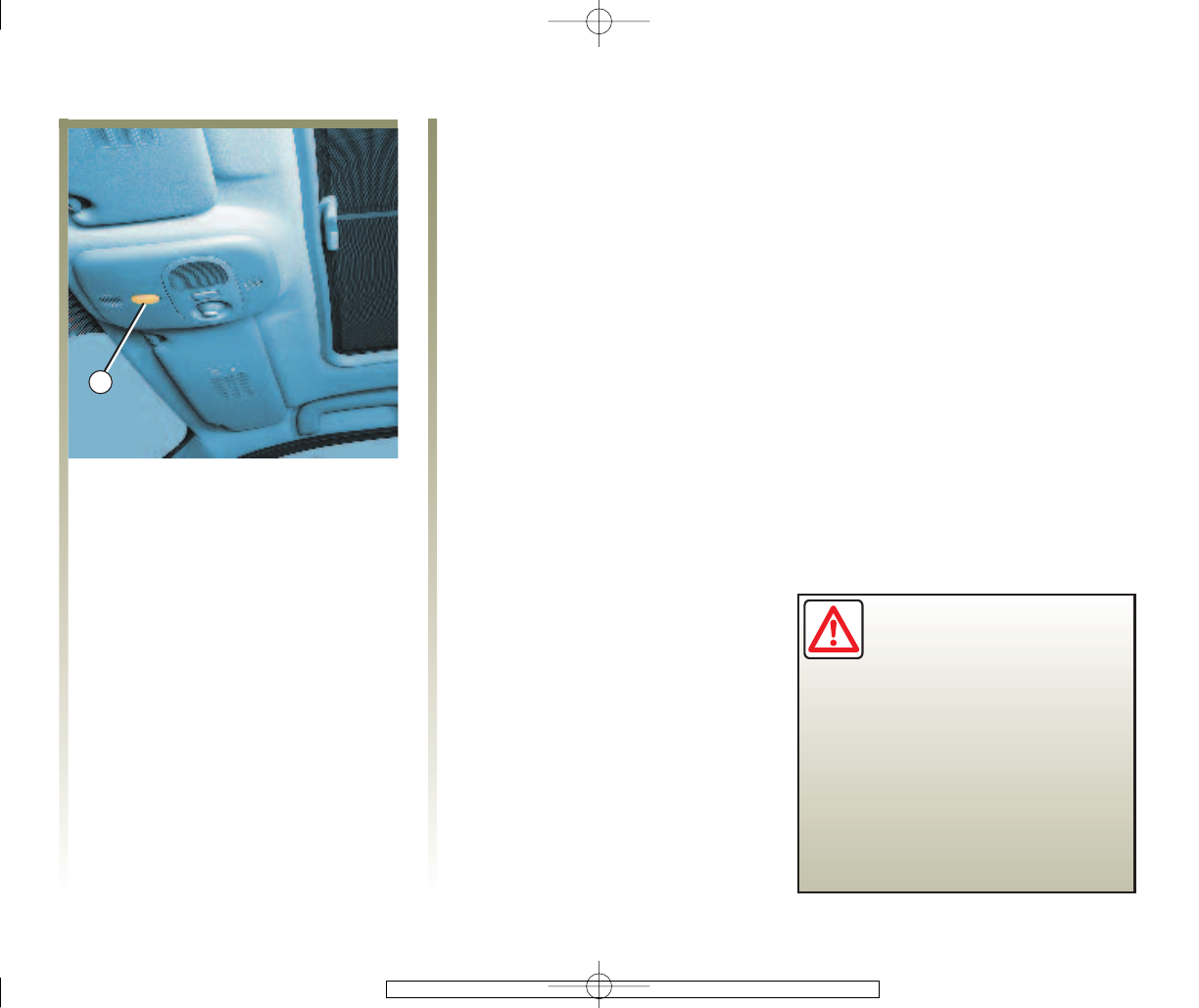

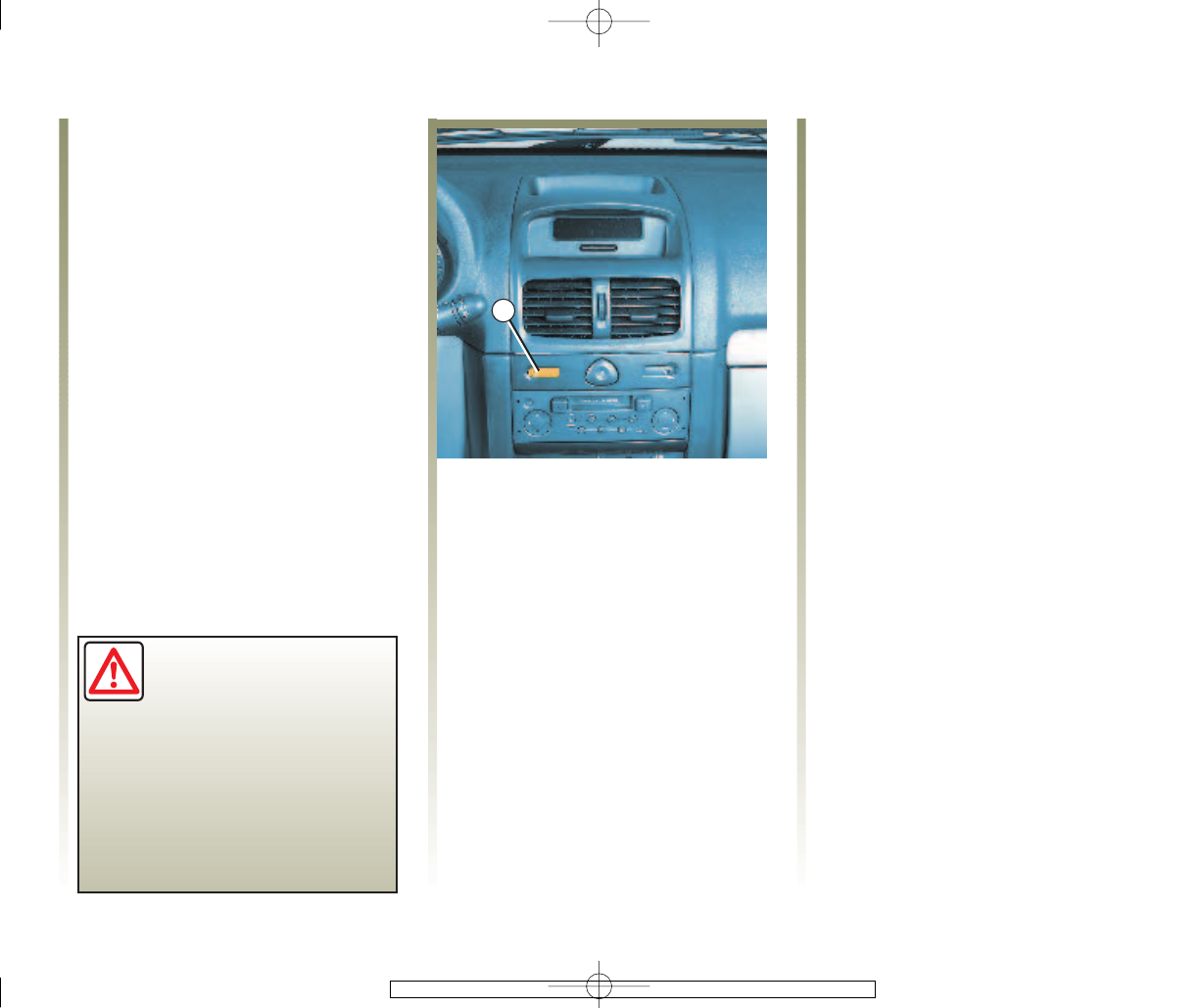

Label 4(on the dashboard) and markings 5(on the sun visors) remind you of
these instructions.
1
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page38
1.30
CHILD SAFETY (continued)

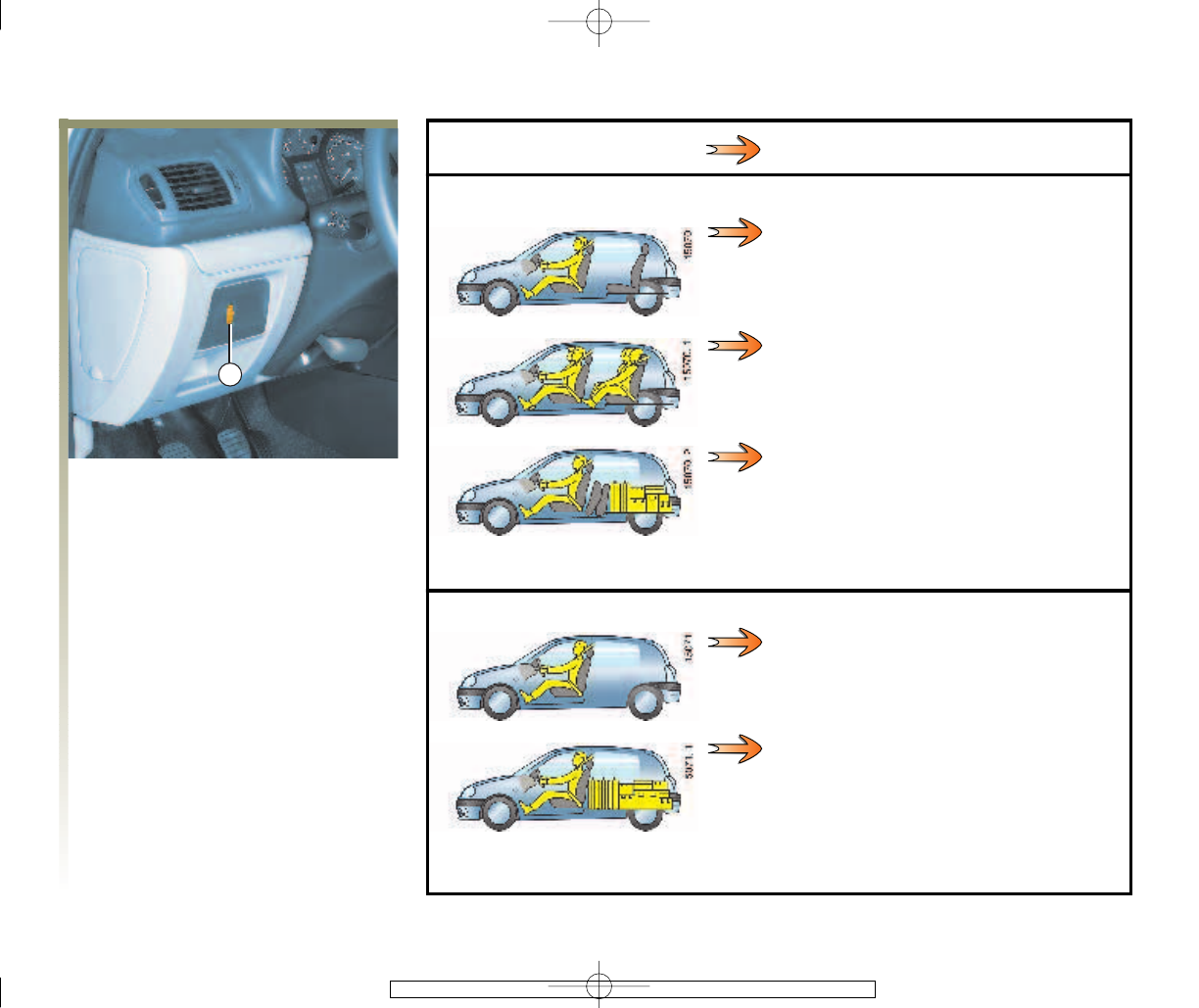

Deactivation of the front
passenger airbag
You must deactivate the front
left-hand airbag before fitting a
rear-facing child seat on the front
passenger seat.

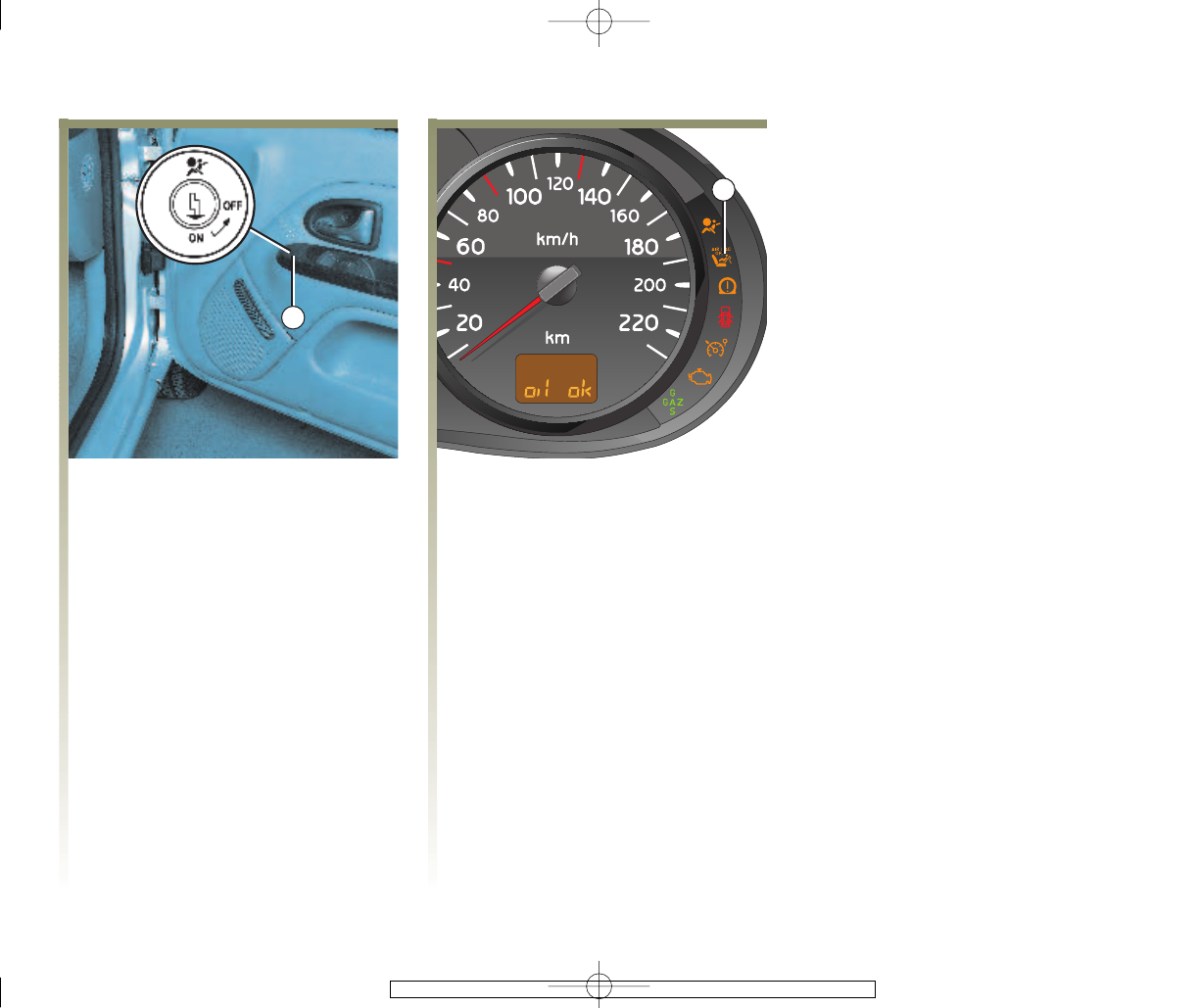

To deactivate the airbag: switch off
the ignition, insert the ignition key
in the lock 1, push and turn the lock
to the OFF position and remove the
key while holding it in the OFF
position. The airbag is deactivated.
With the ignition switched on,
check that the warning light 2,
AIRBAG OFF, is lit up on the
dashboard.
This indicator light remains lit to
confirm that you can fit a child seat,
as the left-hand airbag has been
deactivated.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page39
1.31
CHILD SAFETY (continued)
Activation of the front
passenger airbag
You should reactivate the airbag as
soon as you remove the child seat
from the front passenger seat to
ensure the protection of your front
passenger in the event of an impact.
To reactivate the airbag: switch off
the ignition and insert the ignition
key into lock 1. The key then turns
automatically to the ON position.
Switch the ignition back on, and
then check that AIRBAG OFF
indicator light 2goes out. The
airbag is activated.
Activation or deactivation
of the passenger airbag
must be done with the
ignition off.
Six seconds after the ignition has
been switched on, operating
lock 1will deactivate the
supplementary methods of
restraint in addition to the seat
belt in the front passenger seat
and the indicator light
will come on to warn you.
Operational faults
It is FORBIDDEN to fit a rear-facing
child seat to the front passenger seat
if the air bag activation/deactivation
system is faulty.
We do not recommend fitting any
other kind of passenger seat device.
Consult your RENAULT Dealer as
soon as possible.
1
3
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page40
1.32
CHILD SAFETY (continued)

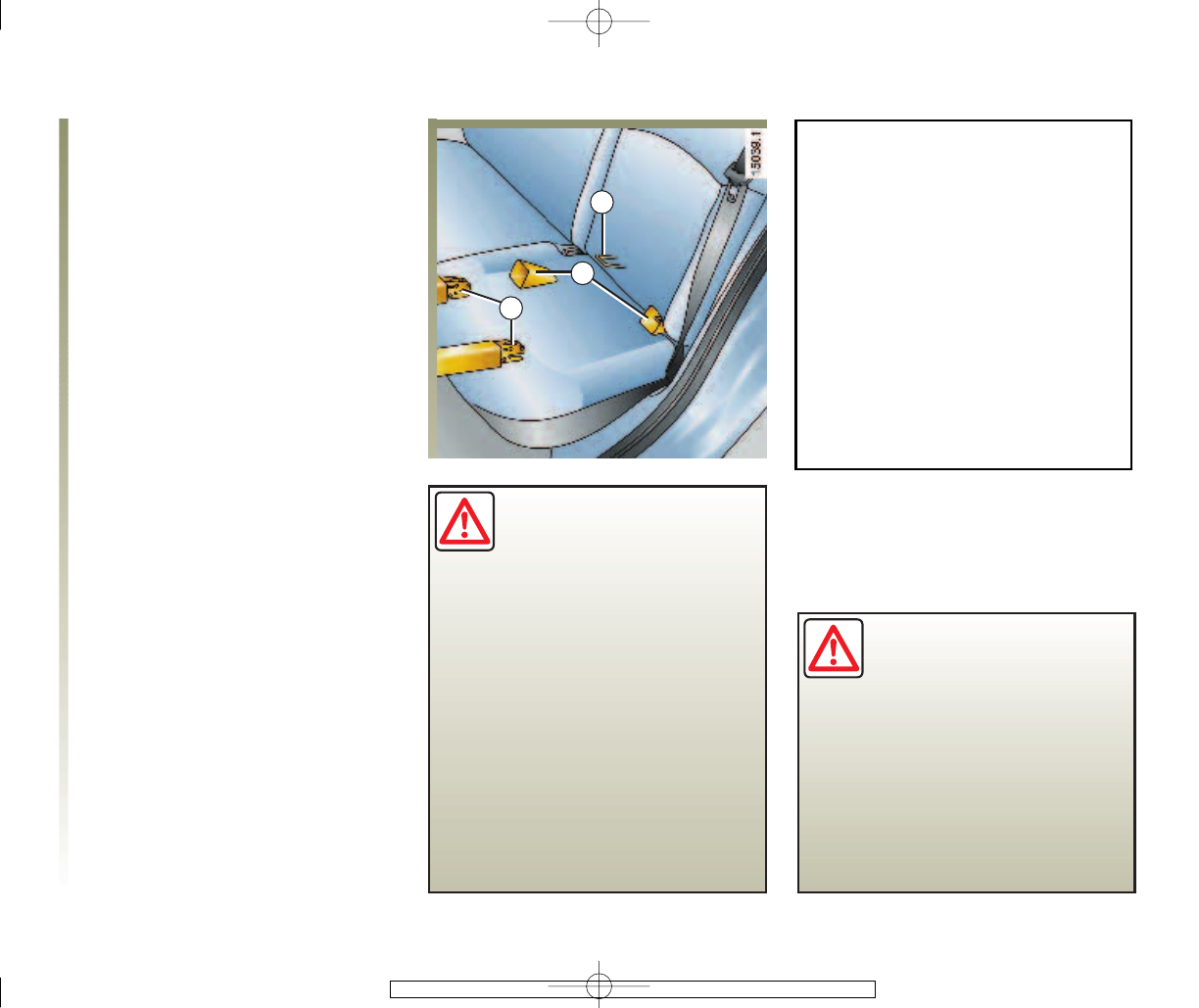

Isofix - mounting system for
child seats
This is a new procedure for
installing a child seat. This system
equips the front passenger seat and
the rear side seats of the vehicle.
It consists of the following
components:
• Two anchoring rings 1located
between the seat and the
seatback.
• A special RENAULT child seat
fitted with two catches 3which
hook onto the two rings;
• Make sure that there is
nothing obstructing the
seat mounting mechanism
at the anchorage points
(gravel, rags, toys, etc.).
• Always remember to fasten the
seat belt on child seats for all
journeys.
Only RENAULT child seats are
approved for this vehicle.
To purchase these seats, please
contact your RENAULT Dealer.
They are fitted with locks which
can be secured to the Isofix
attachments in your vehicle.
They can also be secured in other
vehicles using a three-point seat
belt.
Use of this device on the
front passenger seat is only
authorized if the passenger
airbags have been
deactivated.
Refer to the information in the
section on deactivating the front
passenger airbag.
1
3
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page41
1.33
CHILD SAFETY (continued)
Fitting a child seat
•Before fitting and using the seat,
read the instructions provided
carefully;
• Fix the fitting guides 2on the
rings 1fitted to the rear seats and
front passenger seat of the
vehicle;
Fitting a child seat (continued)
•Slide the seat catches 3in the
guides 2and push the seat hard to
lock it on the rings;
• Check that the seat is correctly
locked by moving it from left
to right and forwards and
backwards.
7
5
4
4
56
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page42
1.34
CHILD SAFETY (continued)
A front-facing Isofix seat fitted
on the front passenger seat
Use the belt 4delivered with the
seat:
- pass the belt between the two head
restraint rods;
- fix the hook 5on the ring 6located
under the front passenger seat;
- tighten the belt.
Note: only fit the seat here if all
other places are occupied.
A rear-facing Isofix seat fitted on
the front passenger seat
The front passenger seat must be
adjusted so that the back of the child
seat is touching the dashboard.
Use the belt 4delivered with the
seat:
- remove the cover to access the
ring 7;
- attach the belt catch 5to the
ring 7;
- tighten the belt.
4
5
6
4
5
8
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page43
1.35
CHILD SAFETY (continued)

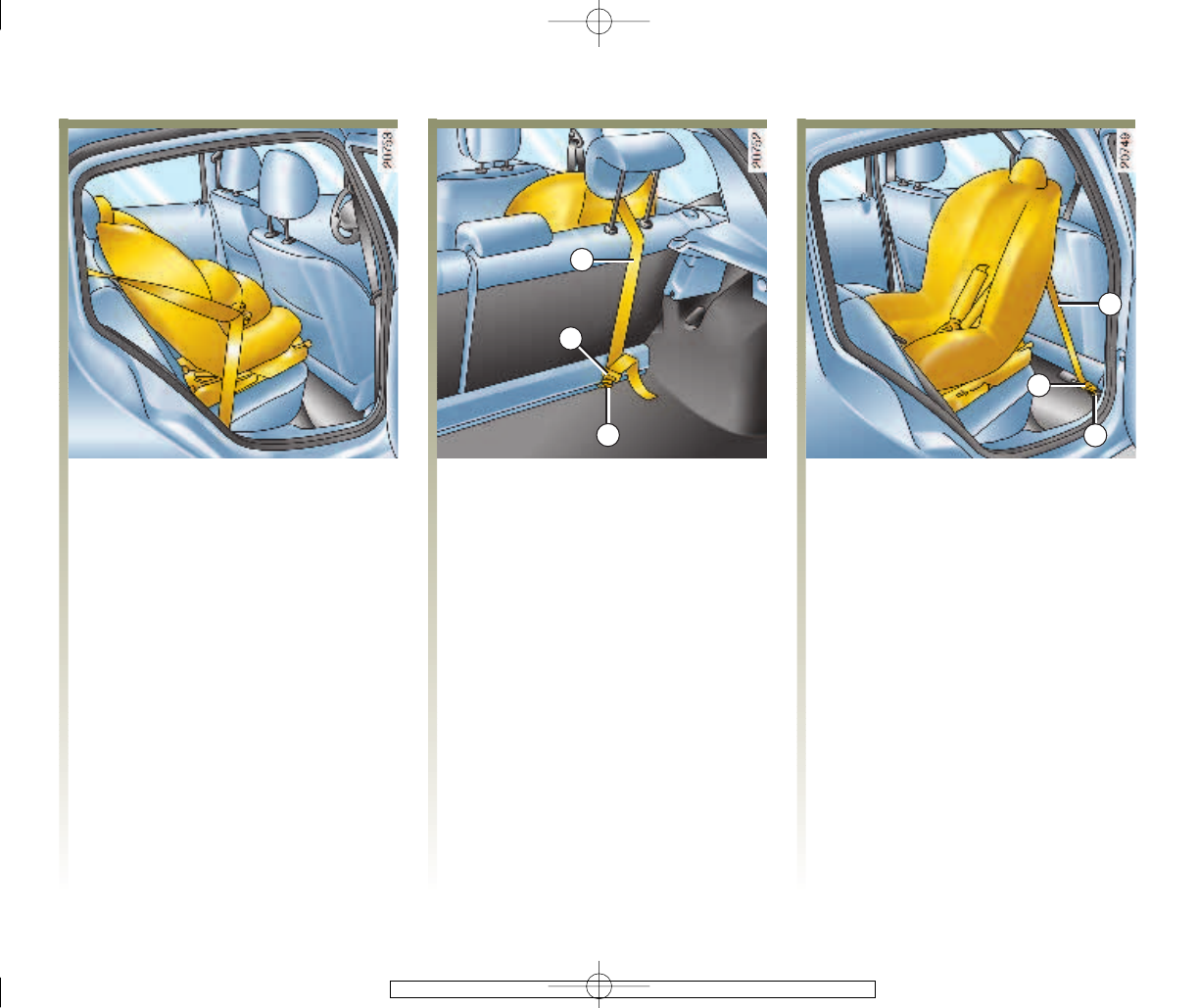

A front-facing Isofix seat fitted
on the rear side seat
When a front-facing child seat is
installed, the front seat must not be
moved back beyond the halfway
point on the seat runners and the
seatback must not be reclined too
far.
Each of the rear seats is fitted with
two rings for mounting the base of
the seat.
Mounting ring for a front-facing
seat
Use belt 4supplied with the seat:
- pass the belt 4between the two
rear headrest rods;
- attach catch 5to the ring 8located
inside the luggage compartment;
- tighten the belt.
A front-facing Isofix seat fitted
on the rear side seat
When a rear-facing child seat is
installed, the front seat must not be
moved forward beyond the halfway
point on the seat runners.
The front seat back must be close to
or touching the shell of the child
seat.
Use belt 4supplied with the seat:
- fix the hook 5on the ring 6located
under the front passenger seat;
- tighten the belt.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page44
1.36
CHILD SAFETY (continued)
CHILD SAFETY
•No modifications may be made to the component parts of the restraint system (belts and seats and their
mountings) fitted originally.
• The fitting instructions provided by the manufacturer of the restraint system should be followed carefully.
• Avoid wearing bulky clothing and do not place any objects between the child and the restraint system.
• The seat belt on the vehicle must be taut so that the child’s seat is held in position securely. Check the tension
regularly.
• Never wear the belt under the arm or behind the back.
• The harness or belt should be taut and fitted to suit the child’s stature.
• Never allow your child to stand or kneel on the seat when the vehicle is moving.
• Check that the child is in the correct position for the entire journey, particularly when he or she is asleep.
• Use the seat belts to hold the seat in position, even if it is not occupied. Otherwise, if an accident occurs, it may
become dislodged and pose a risk to other vehicle occupants.
• Following a serious accident, have an inspection made of the seat belts and restraint systems fitted at the time.
• Never leave a child unsupervised in a vehicle, even if he or she is in a child seat.
• Activate the rear door locks (if your vehicle is equipped with these).
• Make sure the child does not get out of the vehicle at the side where there is traffic.
• Set your children a good example - always wear your seat belt.
2
3
HM
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page45
1.37

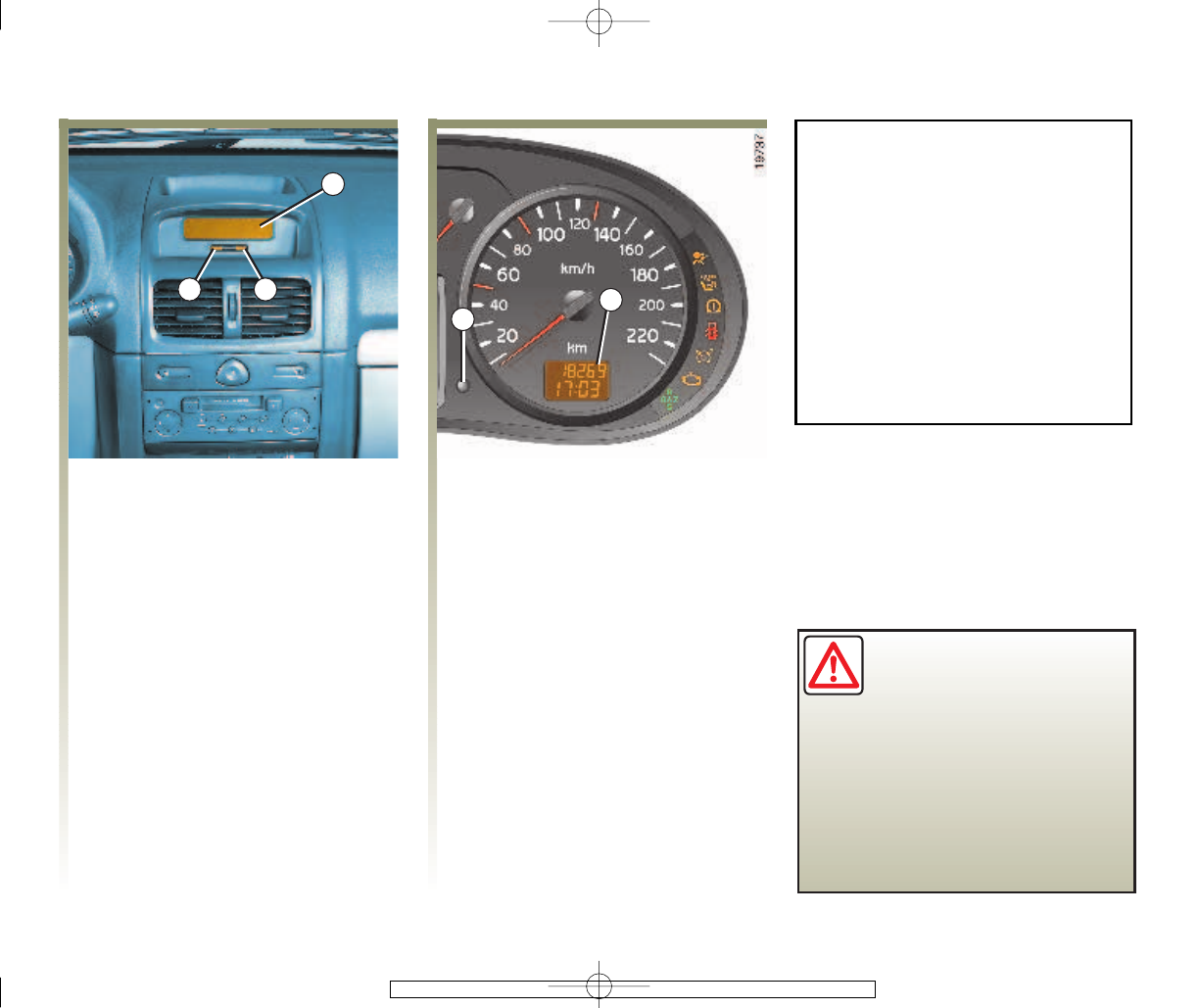

CLOCK / EXTERNAL TEMPERATURE
Clock 1- setting the clock
With the ignition on, press button:
HFor hours,
MFor minutes.
Clock 3, setting the time
With the engine switched on,
display 3set to total mileage
recorder and clock function, press
and hold button 2, to access time
setting mode, then release the
button.
There are two ways to set the time:
- one long press on button 2allows
you to scroll through the hours
and minutes quickly;
- short presses on button 2allow
you to set the time minute by
minute.
If the electrical supply is cut
(battery disconnected, feed wire
broken, etc.), the clock must be
reset.
For your safety, we recommend
that you do not reset or alter the
time while driving.
External temperature
display 1
The formation of ice is
related to exposure, local
hygrometry and temperature.
The external temperature alone is
not sufficient to detect ice.
12 3 45 67 8 910 11 12 13
30 29 28 27 26 25 24 23 17 16 15 14
22 21 20 19 18
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page46
1.38

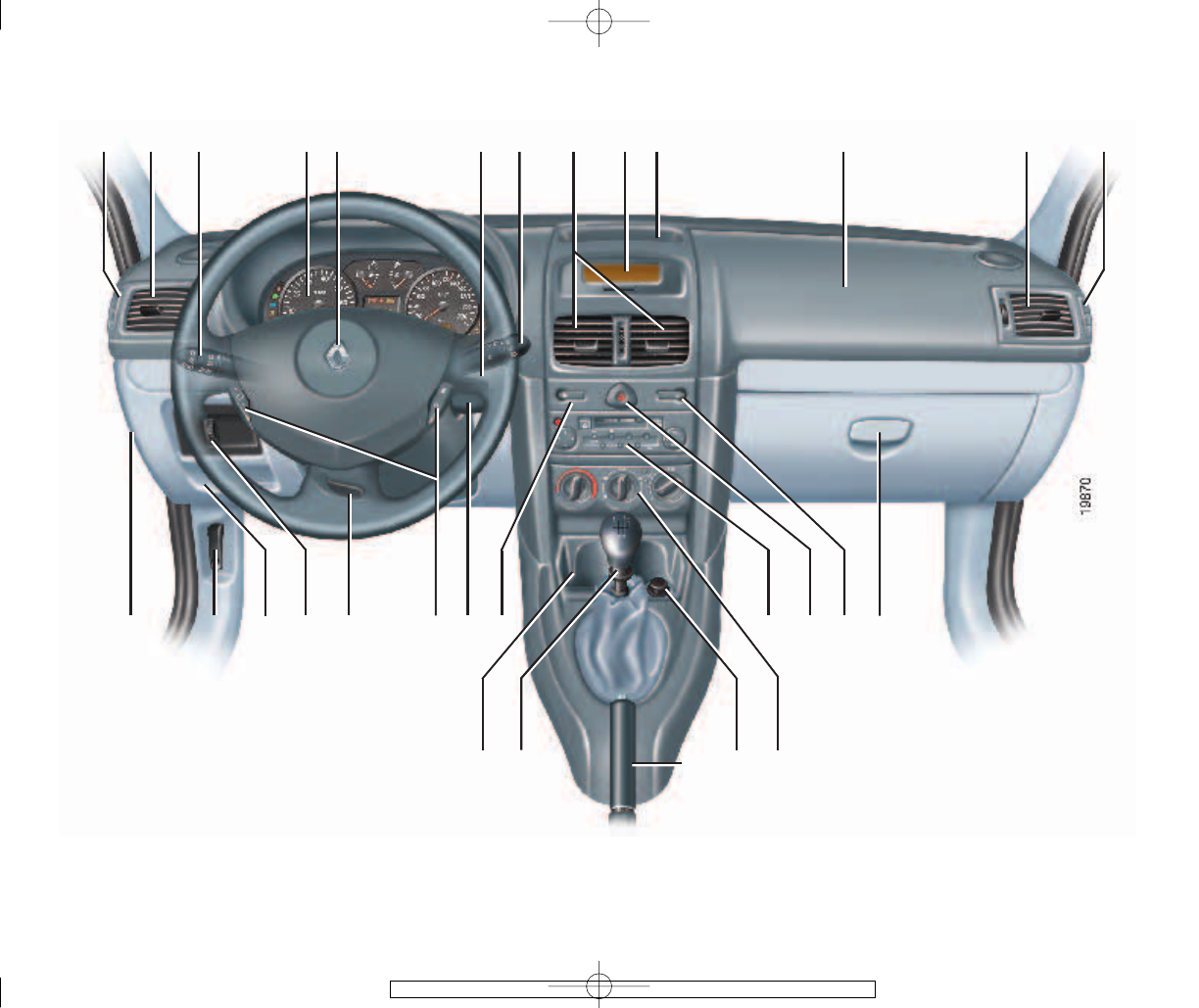

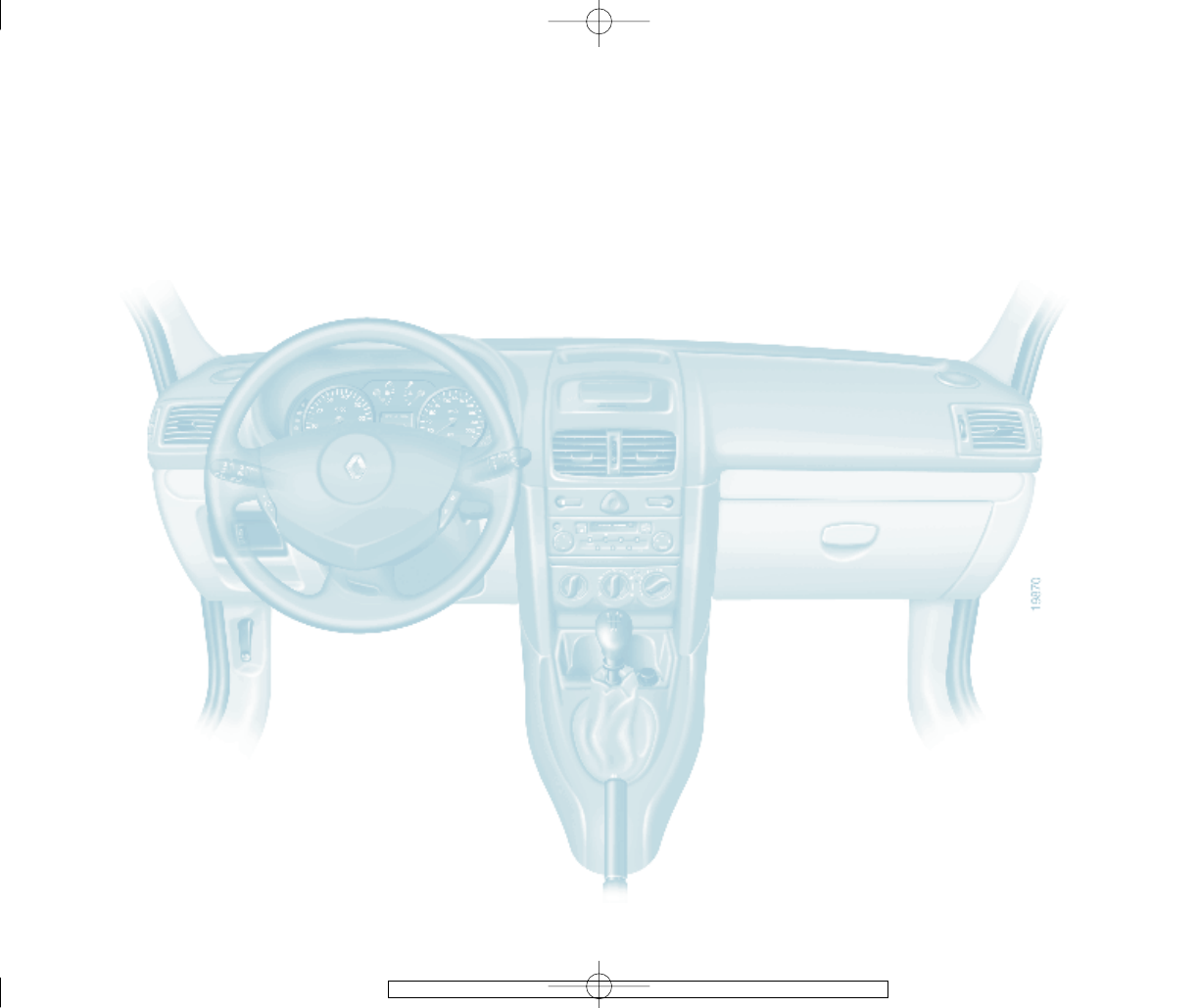

DRIVER’S LAYOUT, LEFT HAND DRIVE
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page47
1.39
DRIVER’S LAYOUT, LEFT HAND DRIVE (continued)
The equipment fitted, described below, depends on the version, option and country.
1Demister outlet for left-hand
side window
2Left-hand side vent
3Stalk for:
• direction indicators,
• exterior lights,
• front fog lights,
• rear fog lights,
• horn.
4Instruments.
5• Driver's airbag location.
• Horn
6Radio satellite controls.
7• Stalk for windscreen and rear
screen wash/wipe.
• Trip computer information
scrolling control.
8Centre air vents.
9Display:
• Clock and temperature,
• Radio, clock and temperature
• Radio, clock, external
temperature and navigation
system
10 Storage compartment.
11 Passenger airbag location.
12 Right-hand side air vent.
13 Demister outlet for right-hand
side vent
14 Glove box.

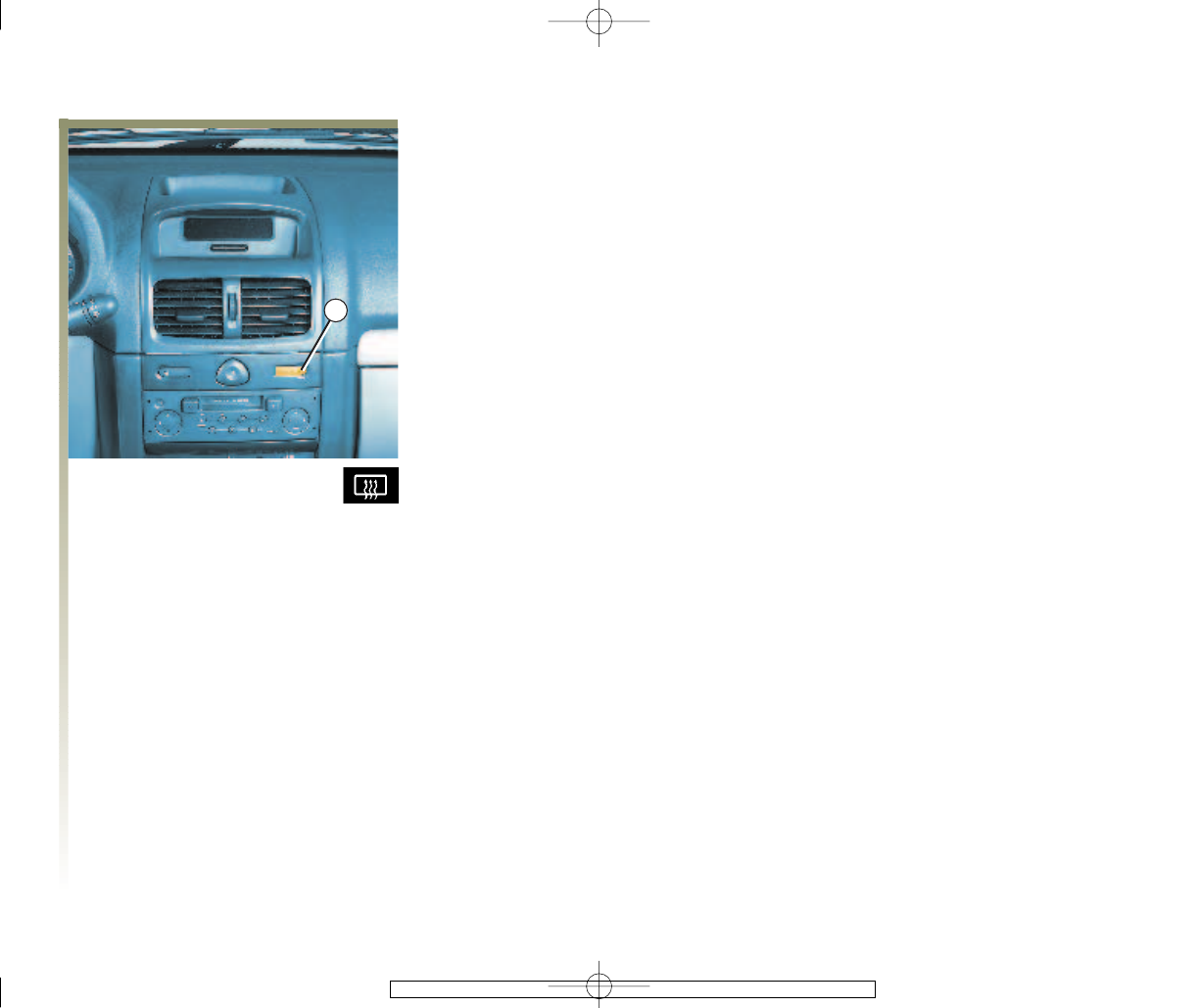

15 Heated rear screen switch
16 Hazard warning lights switch.
17 Radio location or storage
compartment
18 Air conditioning controls.
19 Ashtray and cigarette lighter
20 Handbrake
21 Gear lever
22 Cup holder
23 Electric door locking switch
24 Ignition switch
25 Cruise control/speed limiter
controls
26 Steering wheel height adjuster
27 Controls for:
• Electric headlight beam
adjustment
• Dimmer for control lighting
• Cruise control
• Electronic Stability Program
(ESP)
28 Storage compartment
29 Bonnet release
30 Fuse box
1 2 3 4 5 6 7 8 9 10 11 12 13
30 29 28 27 26 25 24 21 20 19 18 17 16 15 14
22
23
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page48
1.40

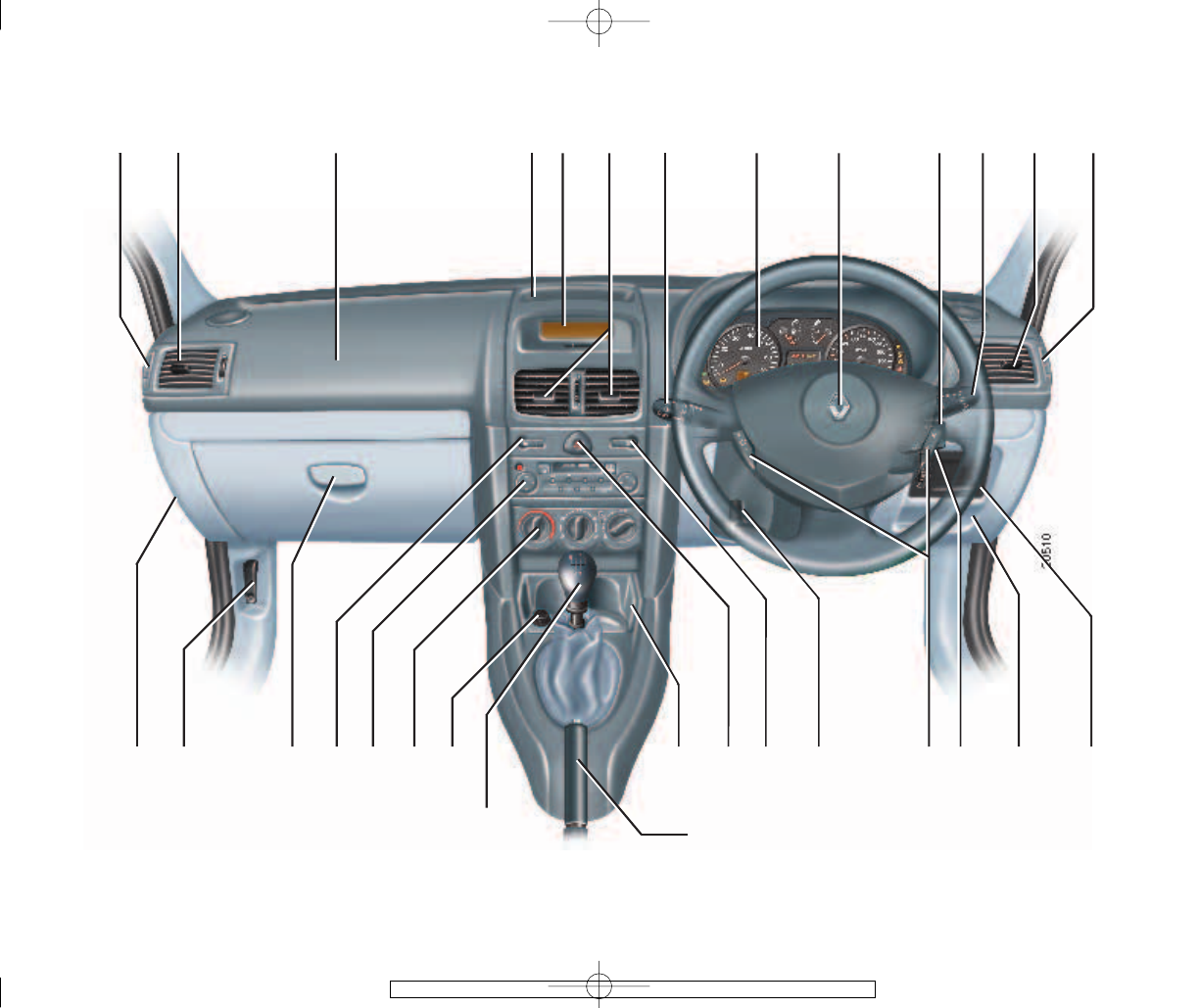

DRIVER’S LAYOUT, RIGHT-HAND DRIVE
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page49
1.41
DRIVER’S LAYOUT, RIGHT-HAND DRIVE (continued)
The equipment fitted, described below, depends on the version, option and country.
1Demister outlet for left-hand
side window
2Left-hand side vent
3Passenger airbag location.
4Storage compartment.
5Display:
• Clock and temperature,
• Radio, clock and temperature,
• Radio, clock, external
temperature and navigation
system
6Centre air vents.
7Stalk for:
• direction indicators,
• exterior lights,
• front fog lights,
• rear fog lights,
• horn.
8Instruments.
9• Driver's airbag location.
• Horn
10 Radio satellite controls
11 • Stalk for windscreen and rear
screen wash/wipe
• On-board computer
information readout control
12 Right-hand side vents
13 Demister outlet for right-hand
side vent
14 Controls for:
• Electric headlight beam
adjustment
• Instrument panel lighting
dimmer
• Cruise control and speed
limiter
• Electronic Stability Program
(ESP)
15 Storage compartment
16 Ignition switch
17 Cruise control/speed limiter
controls
18 Steering wheel height adjuster
19 Heated rear screen switch
20 Hazard warning lights switch
21 Cup holder
22 Handbrake
23 Gear lever
24 Ashtray and cigarette lighter
25 Heating and ventilation
controls
26 Radiolocationorstorage
compartment
27 Electric door locking switch
28 Glove box
29 Bonnet release
30 Fuse box
234a45
11 10 9 8 7
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page50

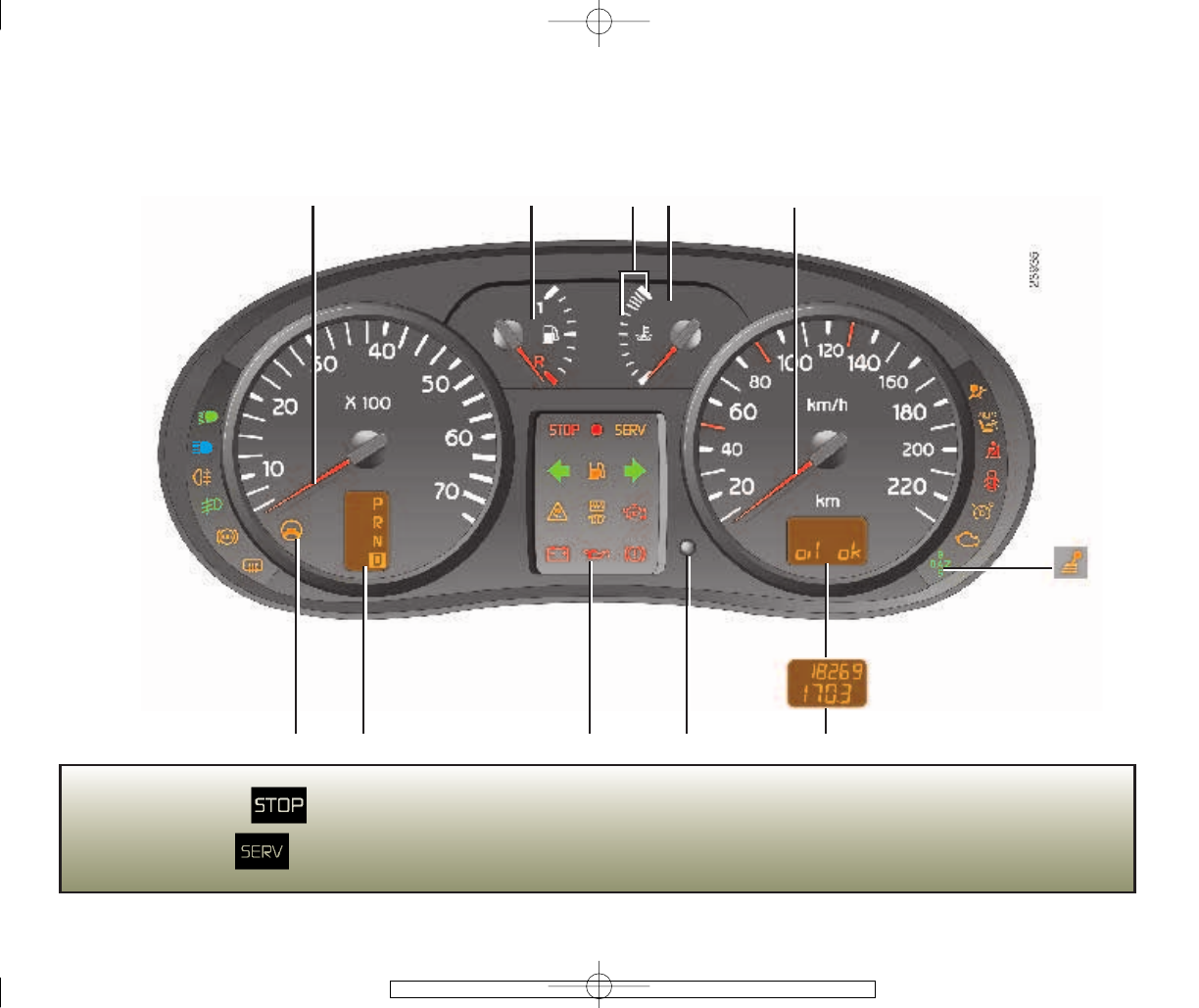

1.42

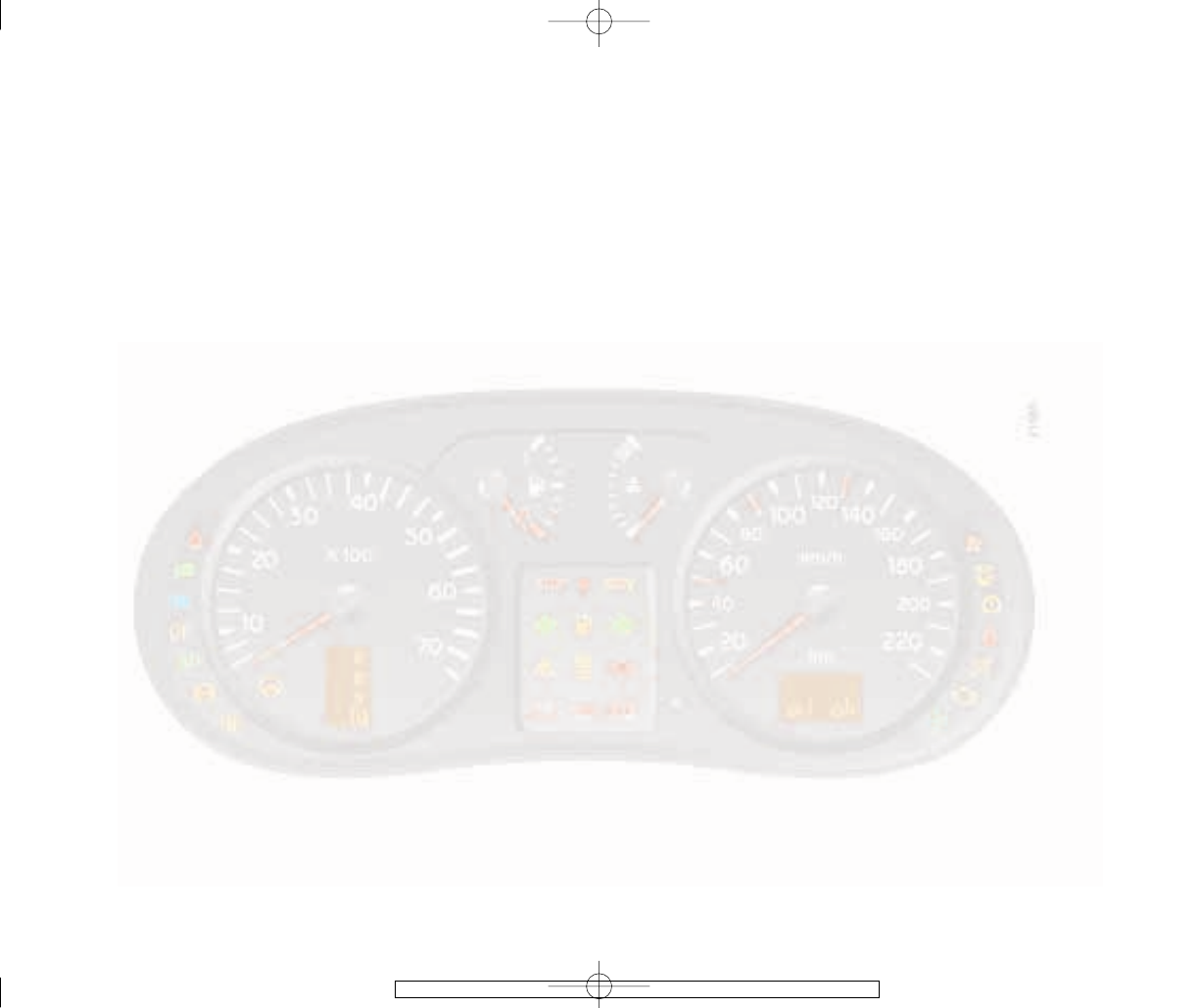

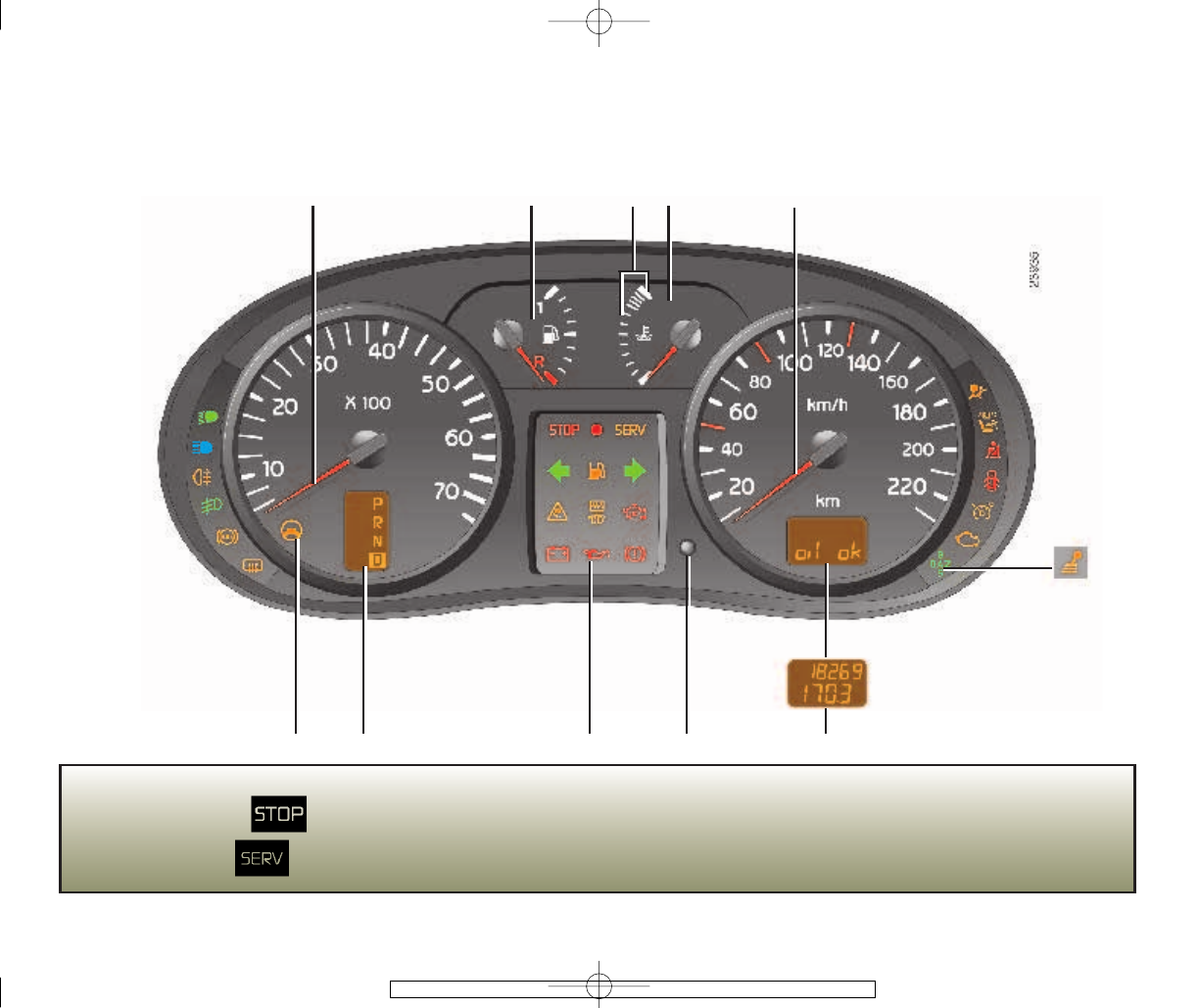

INSTRUMENT PANEL (continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If the warning light comes on, you must stop as soon as traffic conditions allow.
If the warning light comes on, you should visit a Renault Dealer in the near future.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page51
1.43
INSTRUMENT PANEL (continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
1Headlight dipped beam
warning light
Main beam headlight
indicator light
Rear fog light indicator
light
Front fog light
indicator light
Anti-lock braking
system warning light
This light comes on
when the ignition is switched
on and goes out within 3
seconds. If it comes on when
you are driving, it indicates a
fault in the anti-lock braking
system. Braking will then occur
normally but without the
anti-lock braking system.
Consult your RENAULT Dealer
as soon as possible.
Rear screen demisting
indicator light
2Rev counter (scale × 100)
3Fuel level gauge
4Coolant temperature indicator
In normal use, the needle
should be below zone 4a.
Under severe use the needle
may enter this zone. This is not
serious unless warning light
lights up.
5Speedometer (km or miles per
hour)
6Airbag warning light
This lights up when the
ignition is switched on
and goes out after a few
seconds.
If it does not light up when the
ignition is switched on, or
lights up when the engine is
running, there is a fault in the
system. Refer to the
information in Section 1 on the
restraint device additional to
the front seat belt, and consult
your RENAULT Dealer as soon
as possible.
6Front passenger airbag
deactivated warning
light
Refer to the information on
Child safety in Section 1.
Driver's seat belt not
fastened warning light
It remains lit when the
vehicle is started, then when
the car reaches a speed
of approximately 6 mph
(10 km/h), it flashes and a beep
sounds for approximately
90 seconds.
Door(s) open warning
light
234a45
11 10 9 8 7
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page52
1.44
INSTRUMENT PANEL (continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If the warning light comes on, you must stop as soon as traffic conditions allow.
If the warning light comes on, you should visit a Renault Dealer in the near future.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page53
1.45
INSTRUMENT PANEL (continued)
or
The presence and operation of the warning lights, described below, depend on the vehicle equipment and
country.
6Speed limiter and
cruise control indicator
light
To understand how this
operates, refer to the
information on the cruise
control and speed limiter
functions in Section 2.
Toxic fume monitoring
warning light
For vehicles equipped
with this option, the light
comes on when the ignition is
switched on then goes out.
•Ifitlightsuppermanently,
consult your Renault Dealer
as soon as possible;
• If it flashes, reduce the
engine speed until the light
stops flashing.
Consult your Renault Dealer
as soon as possible.
Refer to the information on
anti-pollution, fuel economy
and driving in Section 2.
6
Over-revving warning light
Indicates that you need
to change gear.
LPG mode operating
indicator
Refer to the LPG-powered
vehicles supplement.

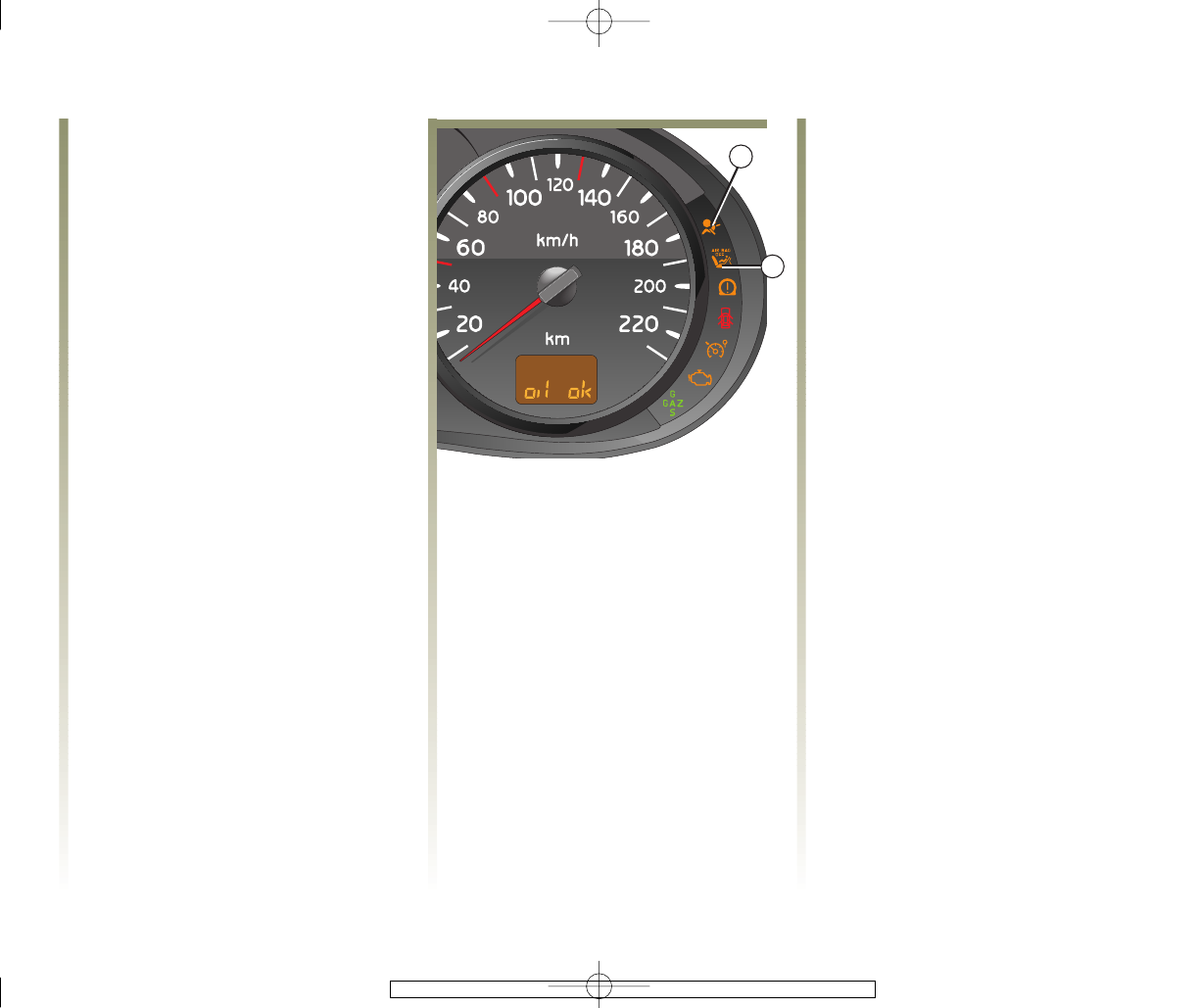

7Multifunction display

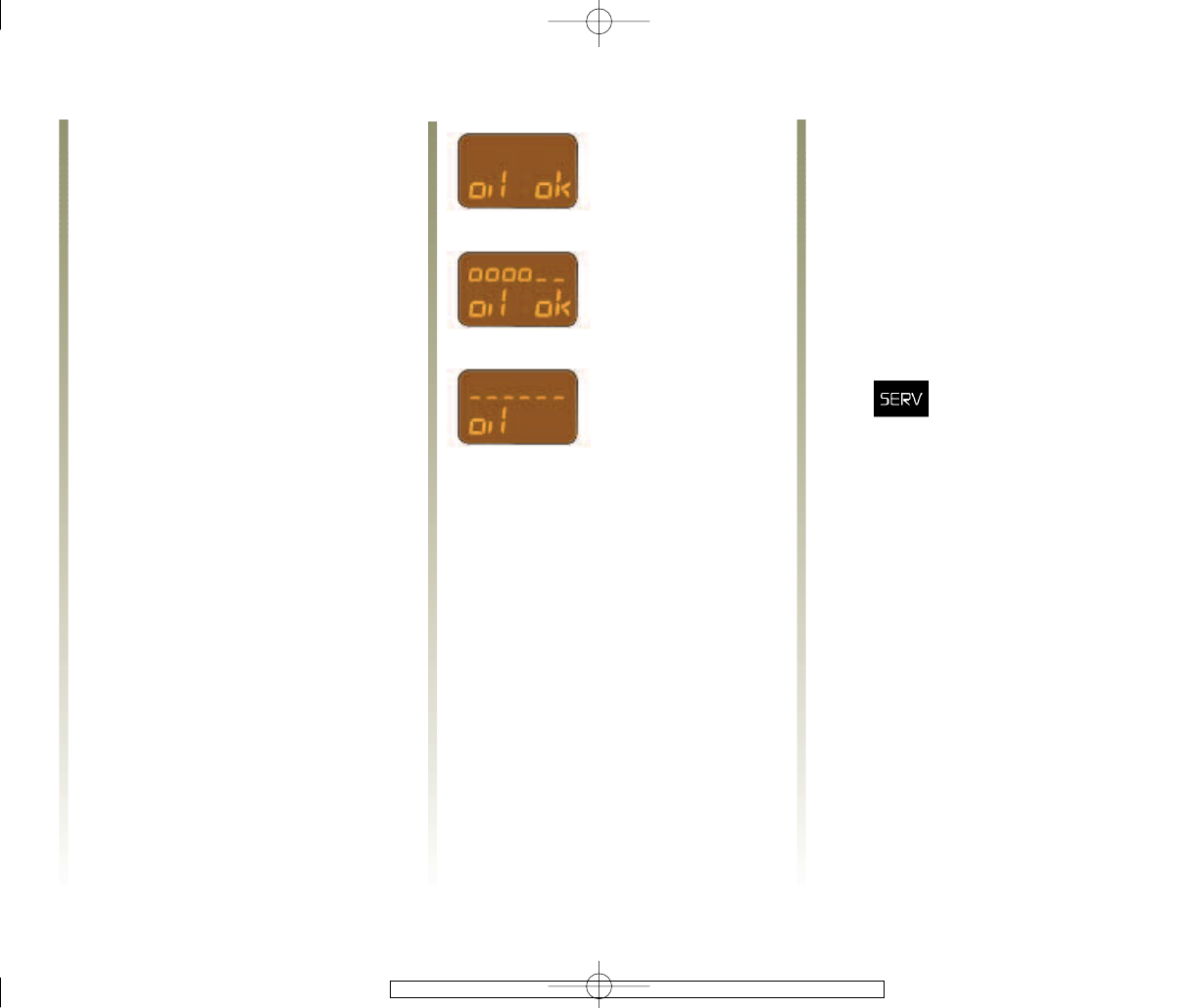

Oil level display function
The vehicle must be parked on
level ground and the engine
shouldhavebeenswitchedoff
for some time beforehand to
obtain an accurate level
reading.
When the ignition has been
switched on for approximately
30 seconds:
-if the level is correct,the
display will show “oil OK”
- when the minimum oil level
is reached: the word “OK”
will no longer be displayed,
the dashes and the word
“Oil” will flash and the SERV
warning light will light up
until the engine is switched
off.
It is vital to top up as soon as
possible.
7Total mileage recorder, trip
mileage and clock
Can be read approximately
30 seconds after the ignition is
switched on.
8Multifunction key
Press the key repeatedly to
select information on the
display, to reset the trip mileage
recorder or to set the clock.
234a45
11 10 9 8 7
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page54
1.46
INSTRUMENT PANEL (continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If the warning light comes on, you must stop as soon as traffic conditions allow.
If the warning light comes on, you should visit a Renault Dealer in the near future.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page55
1.47

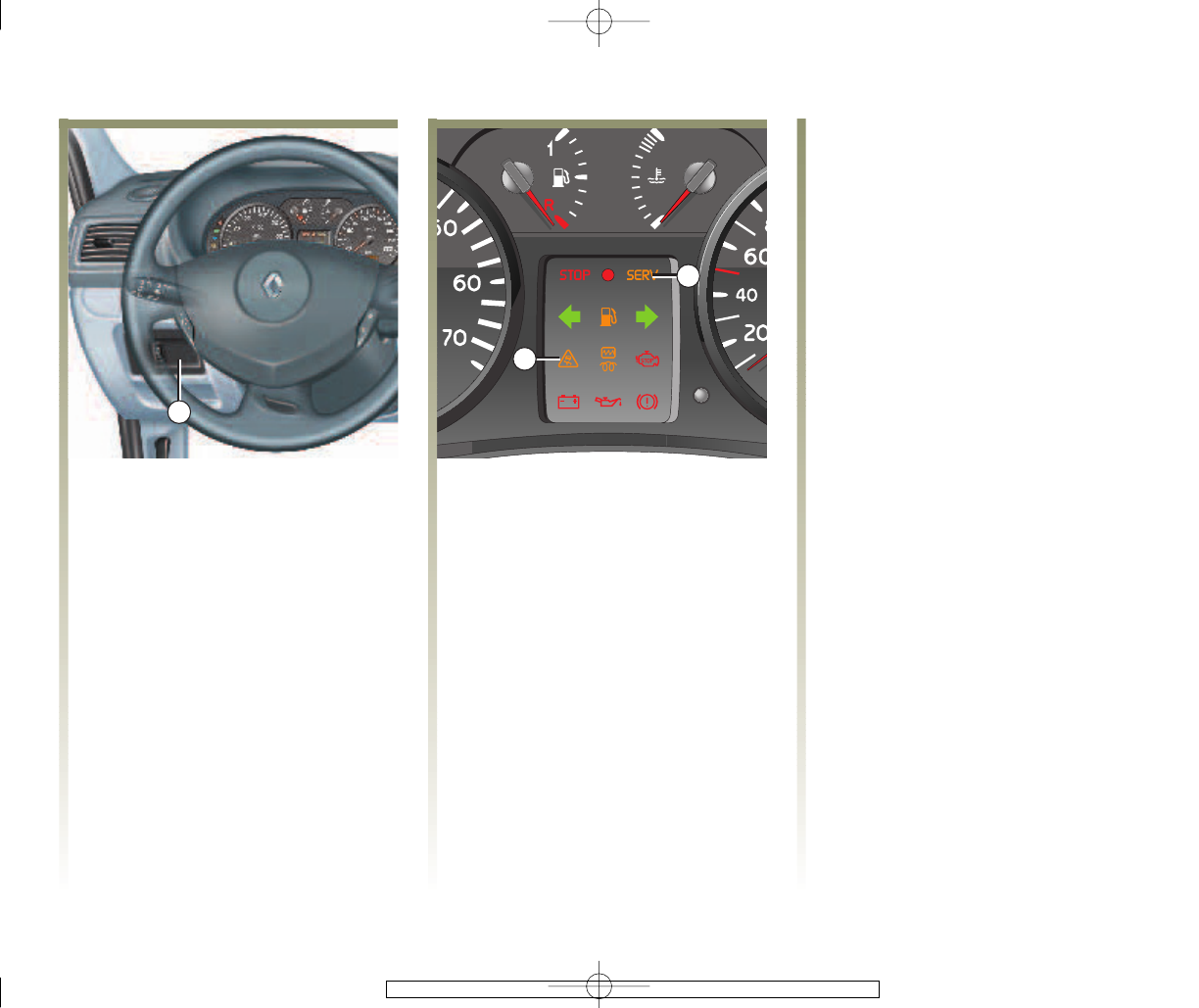

INSTRUMENT PANEL (continued)
The presence and operation of the warning lights, described below, depend on the vehicle equipment and
country.
9STOP light
It goes out as soon as
the engine starts.
This lights up together with
one of the warning lights:
Engine immobiliser
system indicator light
This light performs
several functions.
Refer to the information on the
engine immobiliser in Section 1.
SERVICE warning light
This lights up when the
ignition is switched on
and goes out after a few
seconds. If it lights up when the
vehicle is being driven, it is
advisable to stop at a Renault
Dealer soon.
It lights up together with one of
the warning lights:
9Left turn signal
indicator light
Low fuel level warning
light
It goes out as soon as
the engine starts.
If it lights up or remains lit, fill
up with fuel as soon as
possible.
Right turn signal
indicator light
Electronic Stability
Program (ESP) and
traction control
indicator light
There are several reasons for
this warning light coming on:
see Section 2 for information
on the Electronic Stability
Program: ESP and the Traction
control system.
9Preheating/electronic
fault or water
in the diesel
warning light.
• Preheating indicator light
This light should come on
when the ignition key is in
position M; it indicates that
the heater plugs are
functioning. It goes out after
preheating is sufficient and
the engine can be started.
•Electronic fault/or water
present in the diesel warning
light
If it comes on while driving,
it indicates an electronic
fault or that water is present
in the fuel. Consult your
RENAULT Dealer as soon as
possible.
234a45
11 10 9 8 7
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page56
1.48
INSTRUMENT PANEL (continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If the warning light comes on, you must stop as soon as traffic conditions allow.
If the warning light comes on, you should visit a Renault Dealer in the near future.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page57
1.49
INSTRUMENT PANEL (continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
9Coolant temperature
warning light
If this lights up when
the vehicle is being driven, it
indicates that the engine is
overheating. Stop and allow the
engine to run at idle speed for a
minute or two. The
temperature should drop. If it
does not, stop the engine and
check the coolant level (having
let the engine cool down). Call
for the assistance of a Renault
Dealer if necessary.
Oil pressure warning
light
It should go out as soon
as the engine starts; if it lights
up when you are driving, stop
at once, switch off the ignition
and check the oil level. If this is
normal, call for the assistance
of a Renault Dealer.
9Battery charge warning
light
It should go out as soon
as the engine starts.
If it lights up when you are
driving, it indicates that the
circuit is overcharging or
discharged. Stop and have the
circuit checked.
Handbrake “on” and
brake circuit incident
warning light.
If it lights up when the brakes
are applied, it indicates that the
fluid level in the circuit is low.
It may be dangerous to
continue driving. Call for the
assistance of a Renault Dealer.
10 Warning lights relating to the
operation of and/or faults in
the automatic gearbox or
Quickshift 5.
Refer to the information on
automatic gearbox in section 2.
11 Variable
power-assisted steering
warning light
It goes out as soon as the engine
starts. If it lights up when you
are driving, this indicates a
fault in the system. Consult
your Renault Dealer as soon as
possible.
1
3
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page58
1.50

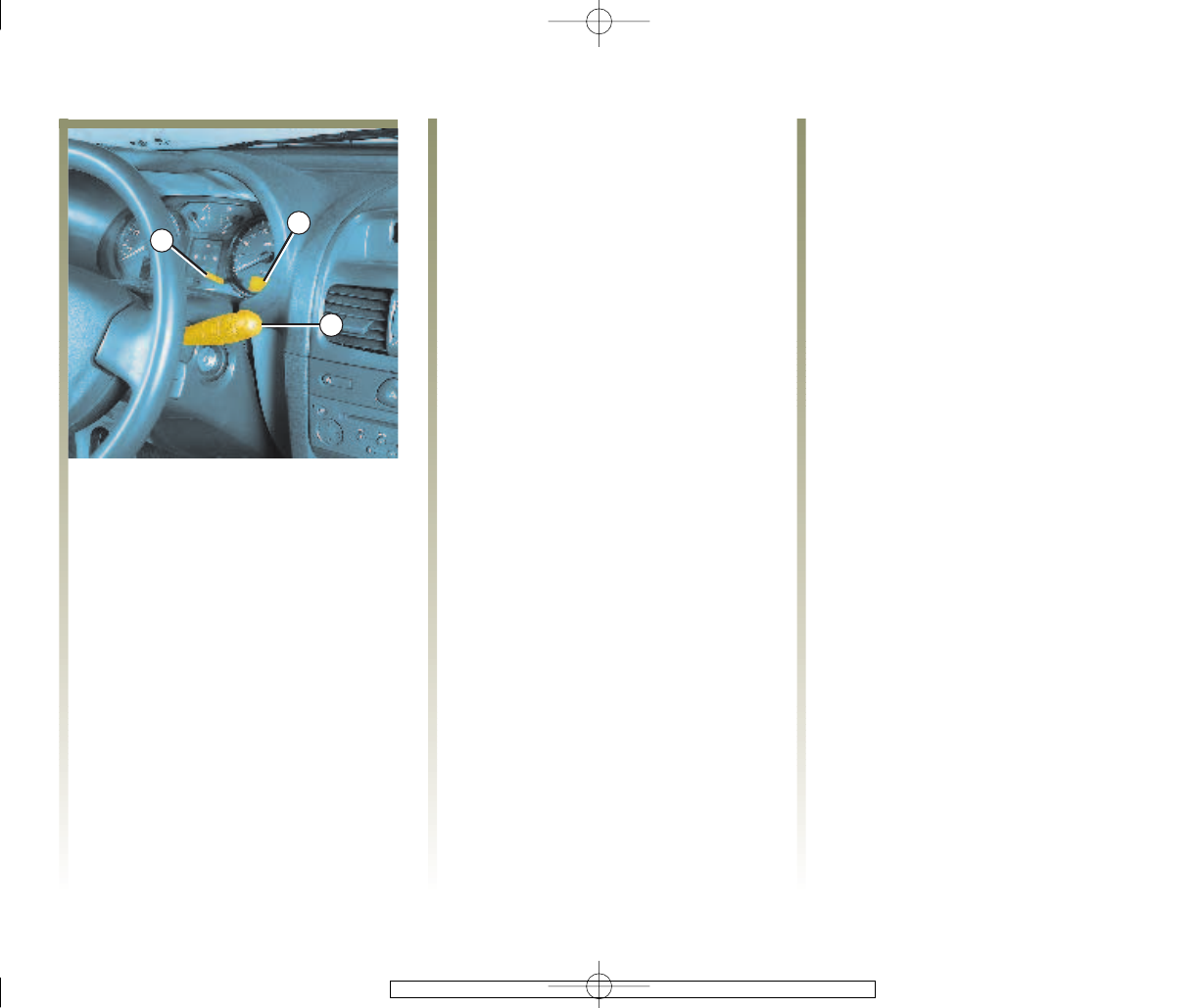

ON-BOARD COMPUTER
1Display
2General reset and trip mileage
recorder reset button
To reset the trip mileage recorder,
the display must show the “trip
mileometer” function.
Automatic reset
Automatic resetting will occur
when the maximum of any of the
memories is exceeded.
3Display selection key
Press button 3repeatedly to
scroll through the following
information:
a) total mileage recorder,
b) trip mileage recorder,
c) fuel used,
d) average consumption,
e) current consumption,
f) estimated range,
g) distance covered,
h) average speed,
i) recommended speed (speed
limiter/cruise control).
Refer to the chart on the following
page for display examples.
Interpreting certain values
displayed after a reset:
The values showing average fuel
consumption, range and average
speed will become more stable
and reliable the further you travel
since the last time the reset key
was pressed.
In the first few miles after resetting,
you may notice:
• that the range increases as you
drive. This is normal as the
average consumption may reduce
when:
- the vehicle is no longer
accelerating,
- the engine reaches normal
operating temperature (reset
when engine was cold),
- you drive from a built up area to
the open road.
If average consumption is
decreased, the expected range
will therefore increase.
• average consumption increases
when the vehicle is stationary
and idling.
This is normal as the computer
takes into account the fuel used
during idling.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page59
1.51
ON-BOARD COMPUTER (continued)

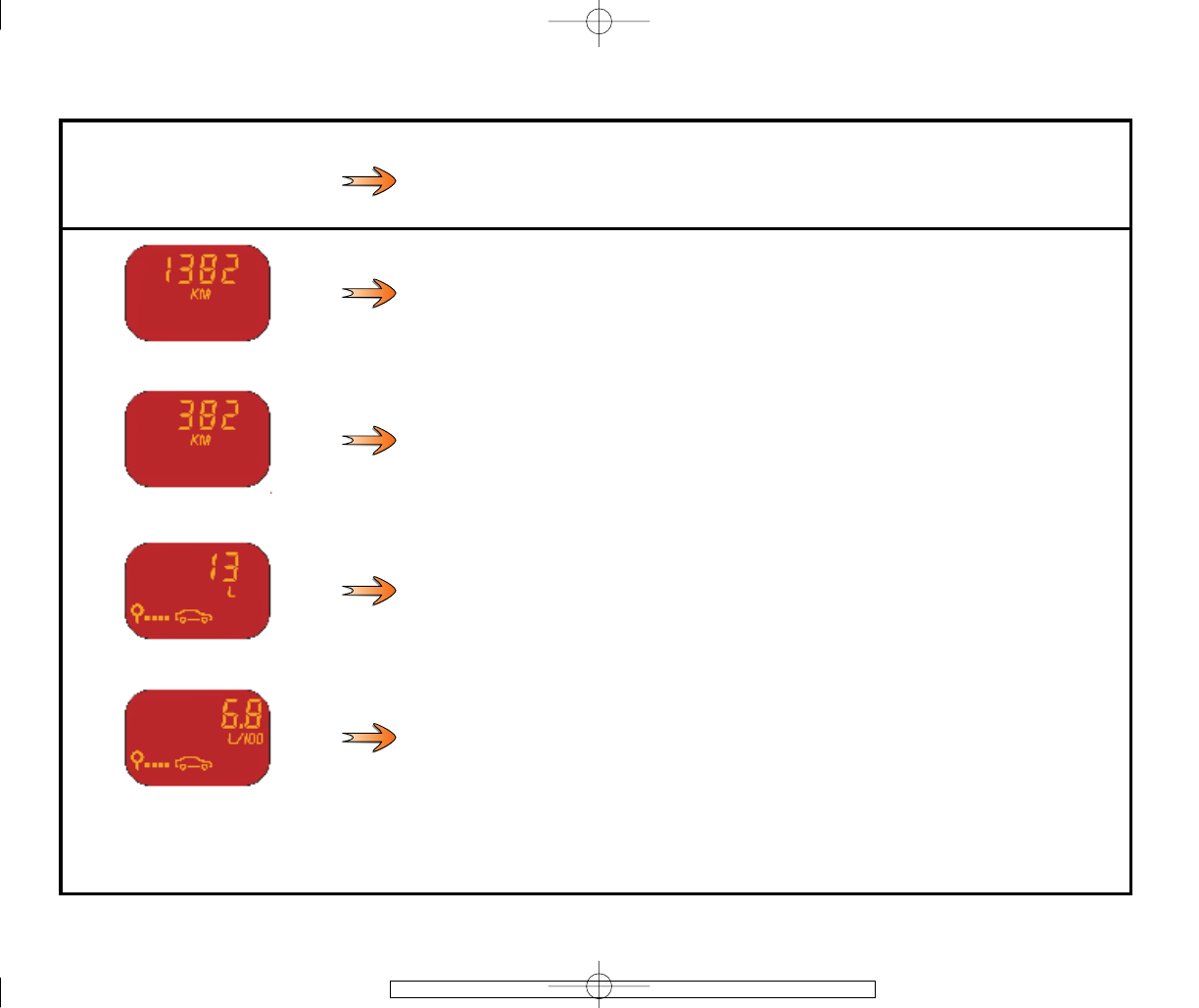

Examples of
display selections by
pressing button 3
Interpreting the display
a) Total mileage recorder.
b) Trip mileage recorder.
c) Fuel used (in litres or gallons) since the last reset.
d) Average consumption (in mpg or l/100 km) since the last reset.
The value is displayed after covering 400 metres taking into account the
distance covered and the fuel used since the last reset.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page60
1.52

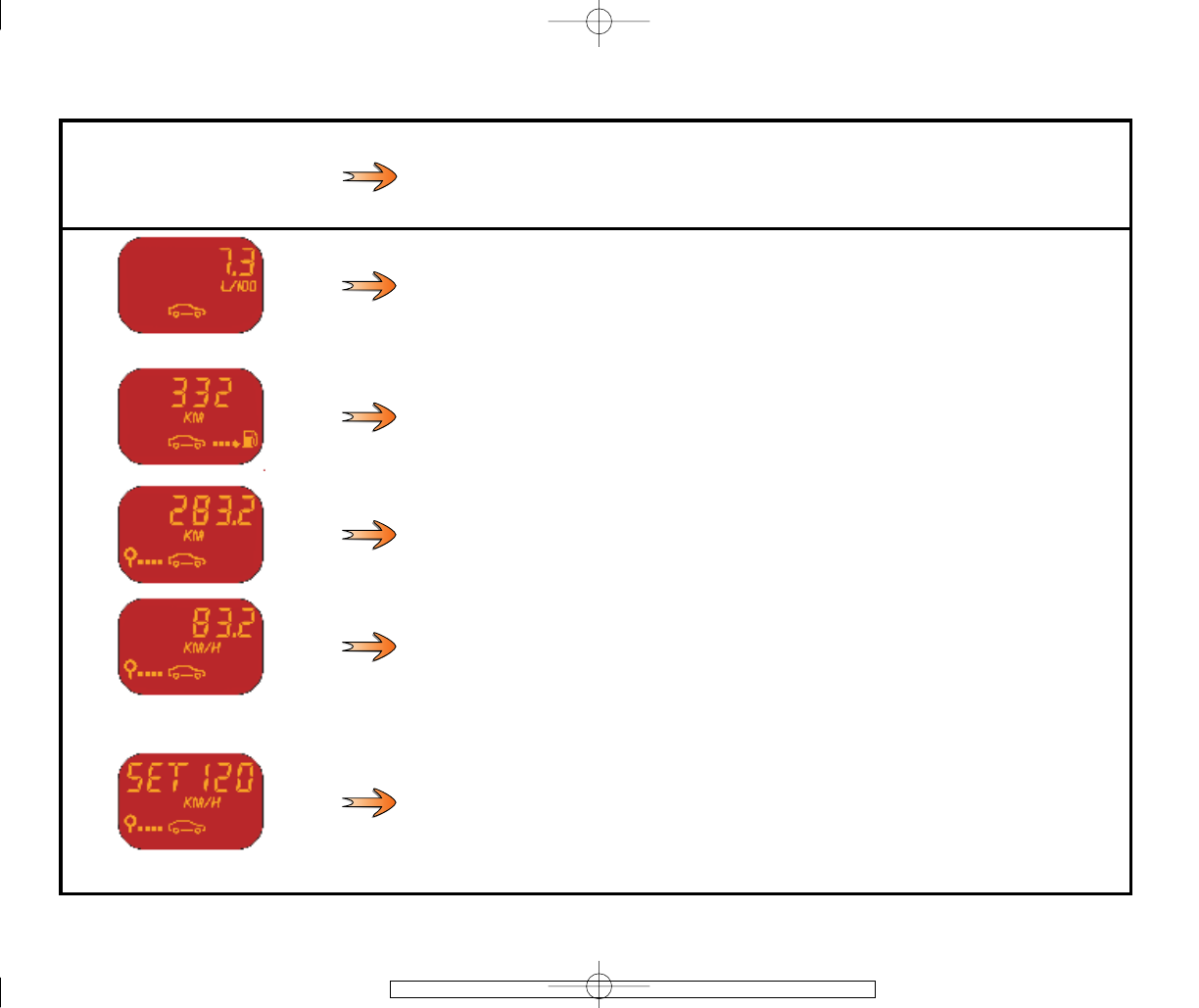

ON-BOARD COMPUTER (continued)
Examples of
display selections by
pressing button 3
Interpreting the display
e) Current consumption (in mpg or litres/100 km)
The value is displayed after reaching a speed of 15 mph (25 km/h).
f) Estimated range with remaining fuel (in miles or km)
This function uses the average consumption since the last general reset.
The value is displayed after covering 400 metres.
g) Distance covered (in miles or km) since the last reset.
h) Average speed (in mph or km/h) since the last reset.
The value is displayed after covering 400 metres.
i) Cruise control or speed limiter recommended speed (depending on
vehicle).
See the information on speed limiter and cruise control in section 2.
1
BA 2
C
D
E
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page61
1.53
REAR VIEW MIRRORS
External rear view mirrors with
manual adjustment
To adjust the mirror, move lever 1.
External rear view mirrors with
electrical adjustment
Ignition on,moveknob2:
- position Cto adjust the left hand
mirror;
- position Eto adjust the right hand
mirror;
Dis the central neutral position.
Heated rear view mirrors
The mirrors are de-iced at the same
time as the rear screen demisting /
de-icing is used.
The driver’s side external
rear view mirror has two
clearly marked areas. Zone
Bcorresponds to what can
normally be seen in a conventional
rear view mirror. Zone Aincreases
the area visible to the rear and to
the side of your vehicle, for your
safety.
Objects in zone Aappear to be
much further away than they
really are.
1
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page62
1.54
REAR VIEW MIRRORS
(continued)
STEERING WHEEL
Interior rear view mirror
This is adjustable. When driving at
night, to avoid being blinded by the
headlights of a following vehicle,
lower the small lever 1located
behind the rear view mirror.
Adjusting the steering wheel
On certain vehicles, the position of
the steering wheel can be adjusted.
Lift lever 2and set the steering
wheel in the required position.
Lower the lever to lock the steering
wheel.
For safety reasons, only
adjust the steering
wheel when the vehicle
is stationary.
1
2
1
3
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:45 -page63
1.55

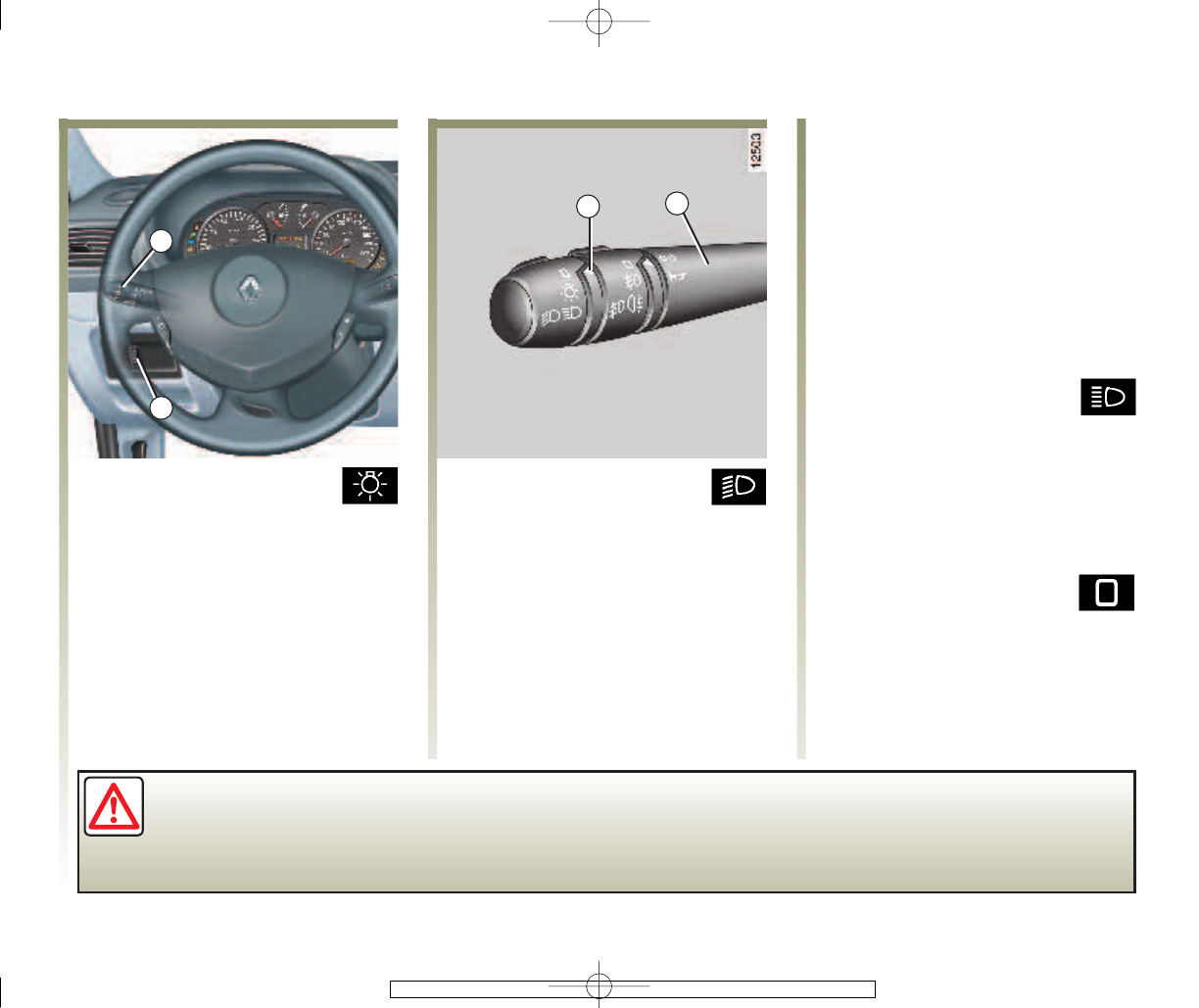

EXTERNAL LIGHTING AND SIGNALS
Side lights
Turn the end of stalk 1to
align the symbol opposite the
mark 3.
The instrument panel lights up. The
brightness of the lights can be
modified by turning wheel 2,ifthis
feature is fitted to the vehicle.
Dipped beam headlights
Automatic operation
With the engine running, vehicles
fitted with a light sensor,the
dipped beam headlights light up
automatically as light begins to
fade; stalk 1does not need to be
turned (position 0).
To deactivate or reactivate this
function, move the end of stalk 1
twice consecutively from 0 to side
light position, with the engine
stopped and the ignition on.
Automatic operation (continued)
A bleep confirms the deactivation of
this function, and two bleeps
confirm its reactivation.
Manual operation
Turn the end of stalk 1until the
symbol appears opposite mark 3.
An indicator light lights up on the
instrument panel in all cases.
Headlight main beam
When the dipped beam
headlights are on, turn stalk 1
towards you (an indicator light
lights up on the instrument panel).
To return to the dipped headlight
position, pull the stalk towards you.
Switching off the lights
Turn the end of stalk 1back
to its original position.
Before setting out to drive at night:
check that the electrical equipment is in good condition and adjust the headlight beams (if your vehicle is not
carrying its normal load). Check that the lights are not obscured (by dirt, mud, snow or objects which could
cover them).
4 5
4
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:46 -page64
1.56
EXTERNAL LIGHTING AND SIGNALS (continued)

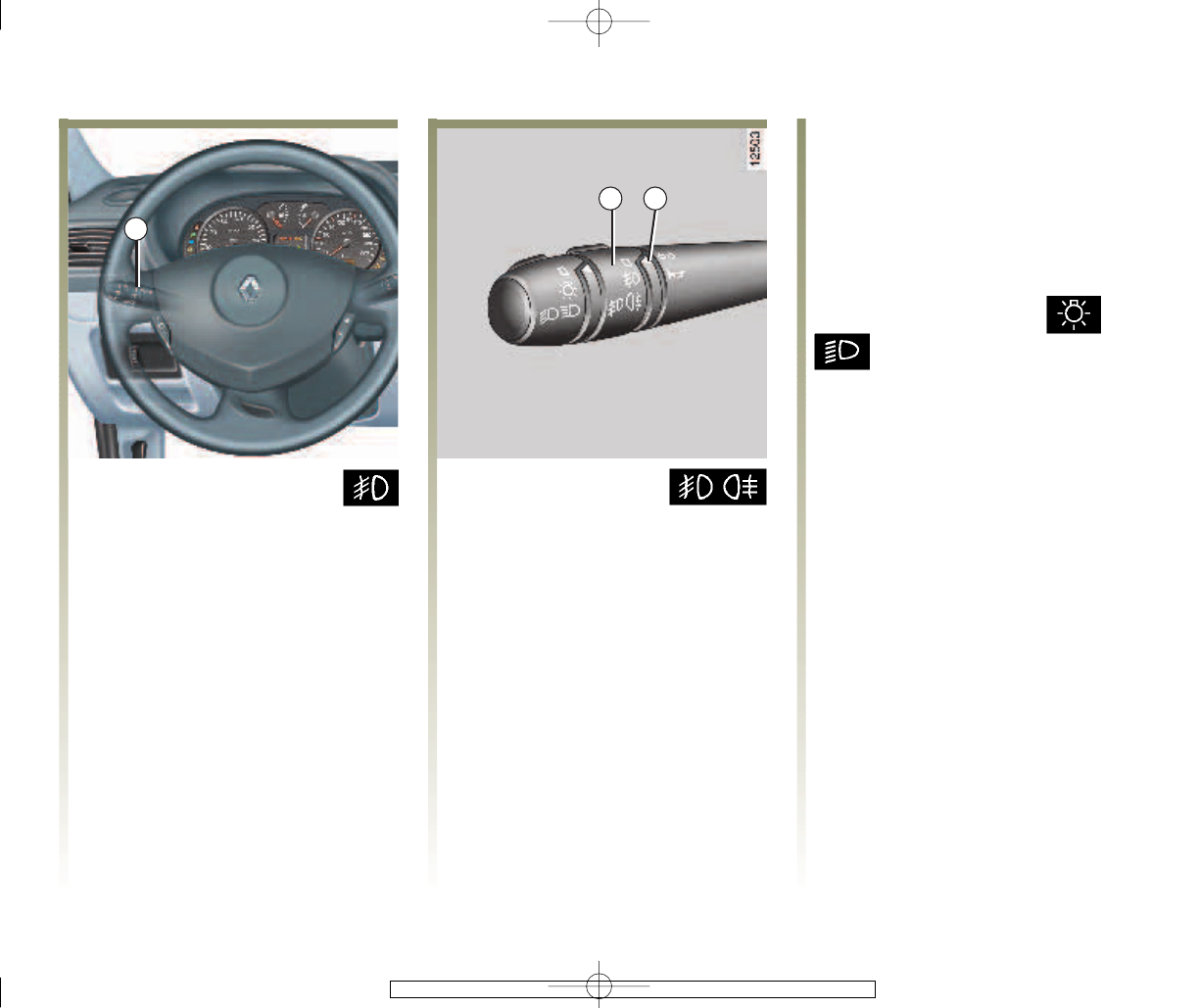

Front fog lights
Turn the central ring 4of
the stalk to align the symbol with
mark 5.
Operation of the fog lights depends
on the external lighting selected and
a warning light will light up on the
instrument panel.
Rear fog light
Turn the central ring 4
of the stalk to align the symbol with
mark 5.
Operation of the rear fog light
depends on the external lighting
selected and a warning light will
light up on the instrument panel.
Remember to turn this light off
when it is no longer needed to avoid
inconveniencing other road users.
The front and rear fog lights switch
off when the exterior lights are
switched off.
Special case
The front and rear fog lights do not
operate in automatic mode.
They only come on if the end of
ring 1is in position or
.
Lights on warning buzzer
A warning buzzer will sound when
a front door is opened and the lights
are left on after the ignition has been
switched off (to prevent discharge
of the battery).
A
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:46 -page65
1.57
ELECTRIC HEADLIGHT BEAM ADJUSTMENT
On vehicles fitted with this
function, the tumblewheel Aallows
you to adjust the height of the beams
according to load.
Turn the tumblewheel Adown to
lower the headlights and up to raise
them.
Versions
All versions except utility
Utility version
Tumblewheel adjustment positions A
Position 0 or 1: basic setting, luggage
compartment empty with driver
alone or with a front passenger.
Position 2 or 3: vehicle with 5 persons
on board, luggage compartment empty.
Position 3: Vehicle luggage compartment
fully laden and driver only.
Position 4: intermediate position.
Position 0: Basic setting, vehicle unladen
Position 3: Vehicle fully laden
Positions 1, 2, 4: Intermediate positions
1
A
B
C
D
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:46 -page66
1.58

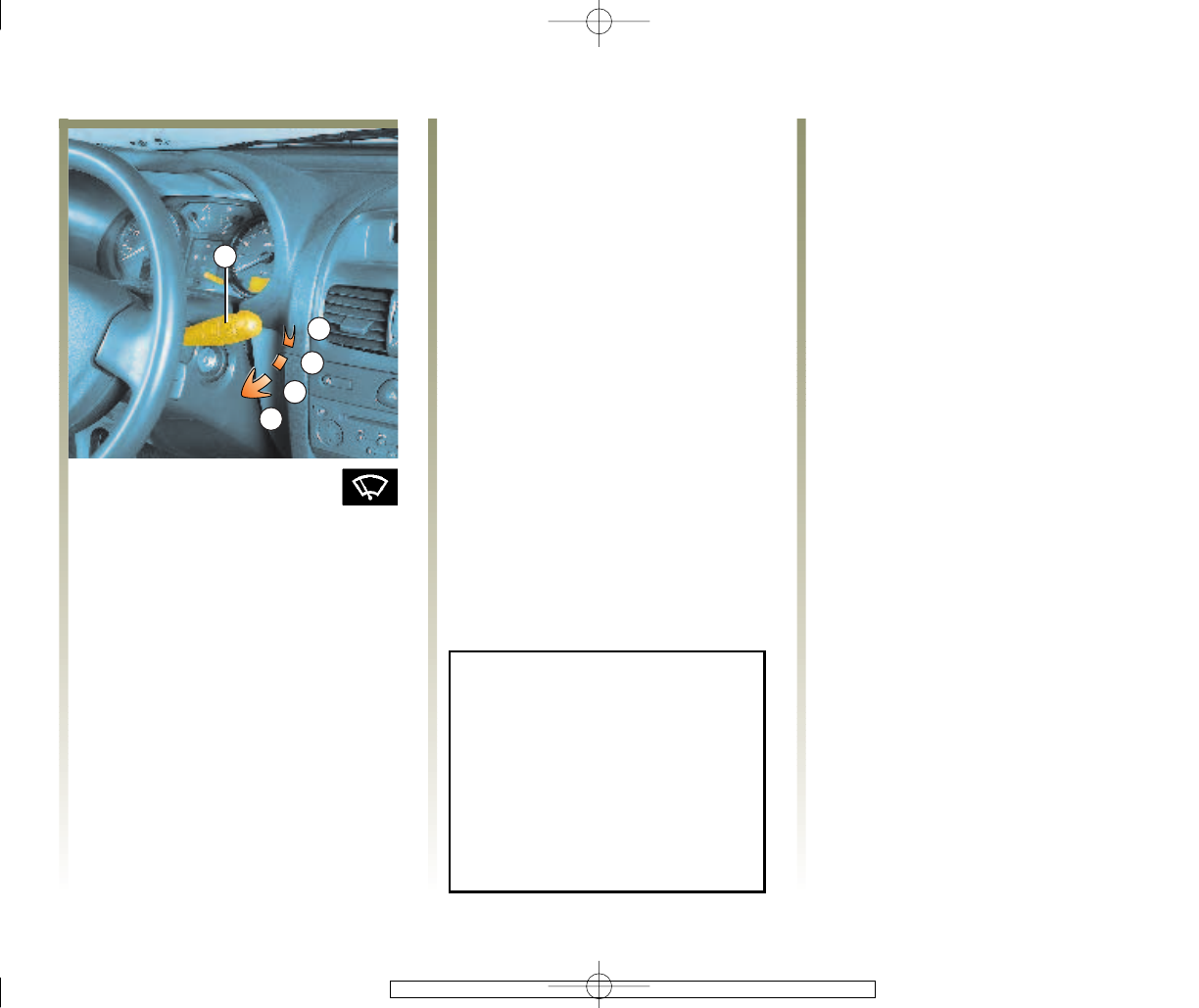

WINDSCREEN WIPER/WASHER
Vehicle fitted with
intermittent wiping
windscreen wipers
With the ignition switched on, turn
stalk 1
•Aoff
•Bintermittent wiping
Thewipersmaystopforafew
seconds between wipes
depending on the version. It is
possible to vary the time
between sweeps by turning the
central ring on the stalk 1:
•Ccontinuous slow wiping
•Dcontinuous fast wiping
Vehicle fitted with windscreen
wiper and rain sensor
With the ignition switched on,turn
stalk 1
•Aoff
•Brain sensor position
When this position is selected,
the system detects the presence
of water on the windscreen and
triggers wiping at a suitable
wiping speed.
The central ring on stalk 1
enables you to vary the
sensitivity of the rain sensor–
to O:
– represents minimum
sensitivity
Orepresents maximum
sensitivity.
•Ccontinuous slow wiping.
•Dcontinuous fast wiping.
The rain sensor is deactivated
every time the ignition is
switched off.
To reactivate the sensor, return to
stop position A, then move to
rain sensor position B.This
causes the wipers to sweep once.
Vehicles with automatic
selection of wiping speed
If a wiping speed is selected when
driving, the wiping speed is
reduced to a lower speed when the
vehicle stops:
• from fast wiping speed the speed
will change to normal wiping
speed;
• from normal wiping speed the
speed will change to intermittent
wiping.
As soon as the vehicle moves off,
wiping will return to the speed
originally selected.
When the vehicle is stationary,
pressing stalk 1overrides and
cancels automatic operation.
Note:
If for any reason the wipers cannot
move (e.g. stuck to windscreen by
ice), the system will automatically
cut off the power supply to the
wipers.
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:46 -page67
1.59
WINDSCREEN WASHER/WIPER (continued)
Windscreen washer,
headlight washers
With the ignition on, pull stalk 1
towards you.
A short press triggers one sweep
cycle of the wiper, while a longer
press triggers three cycles.
•Car lights off
You activate the windscreen
washer and wiper.
This will make another sweep
after a few seconds.
•Carheadlightson
Press for longer than one second
to activate the windscreen washer
and headlight washer devices
simultaneously.
In frosty weather, make sure that
the wiper blades are not stuck by
ice (risk of motor overheating).
Keep an eye on the condition of
the blades. Change the wiper
blades as soon as they become
less efficient (approximately
once a year).
If you switch off the ignition
before switching off the
windscreen wiper (position A)
the blades will stop at random on
the windscreen.
1
2
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:46 -page68
1.60

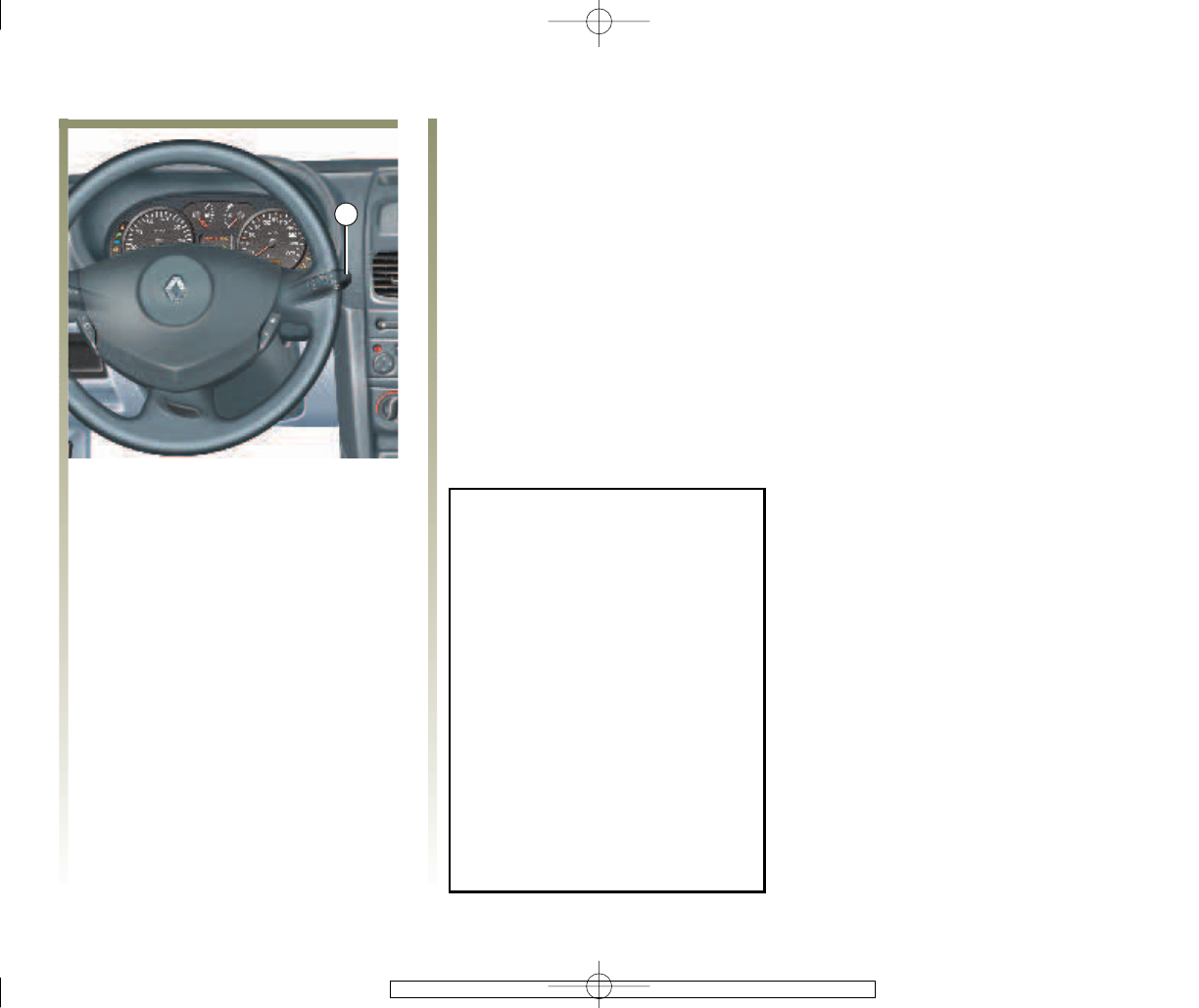

REAR SCREEN WASH/WIPE
Intermittent rear wiper
Ignition on, turn the end of
stalk 1to align reference mark 2
opposite the symbol.
Rear washer
Ignition on, turn the end of
stalk 1to align reference mark 2
opposite the symbol.
When the stalk is released, it returns
to the rear wiper position.
Special note
For certain vehicles, if the windscreen
wipers are operating when reverse
gear is selected, the rear wiper will
operate intermittently.
In freezing conditions, make sure that
the wiper blades are not stuck to the
windscreen (risk of overheating the
motor).
Keep an eye on the condition of the
blades. Change them as soon as they
become less efficient: approximately
once a year.
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:46 -page69
1.61

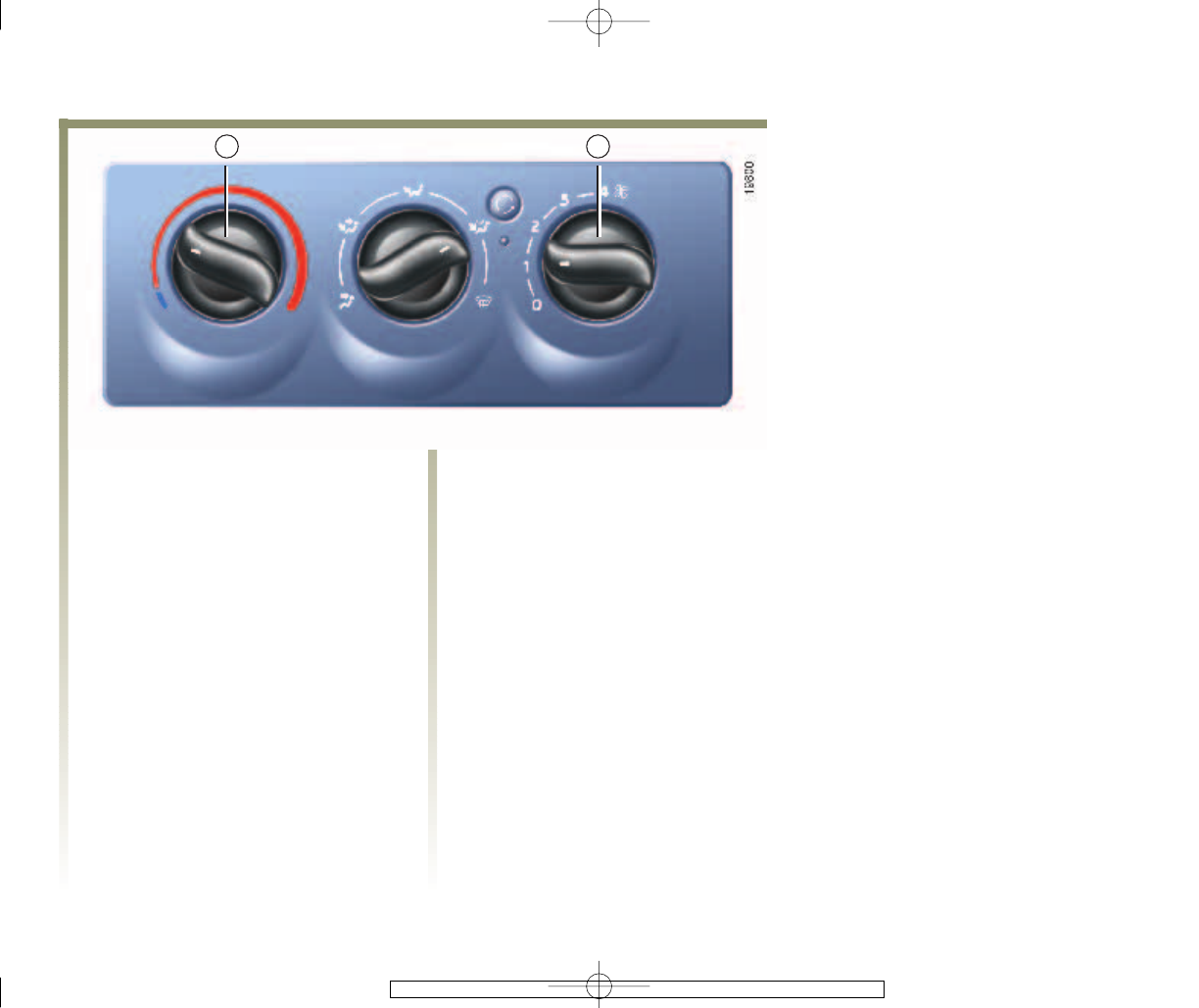

DE-ICING
Heated rear screen
With the engine running,
press button 1(the warning light
lights up on the instrument panel).
This function ensures the de-icing
and demisting of the rear screen and
the heated external rear-view
mirrors (if the vehicle is fitted with
them).
Thefunctionisstopped:
- automatically after 15 minutes
operation,
- by pressing button 1again (the
warning light goes out).
1
31
0
2
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:46 -page70
1.62

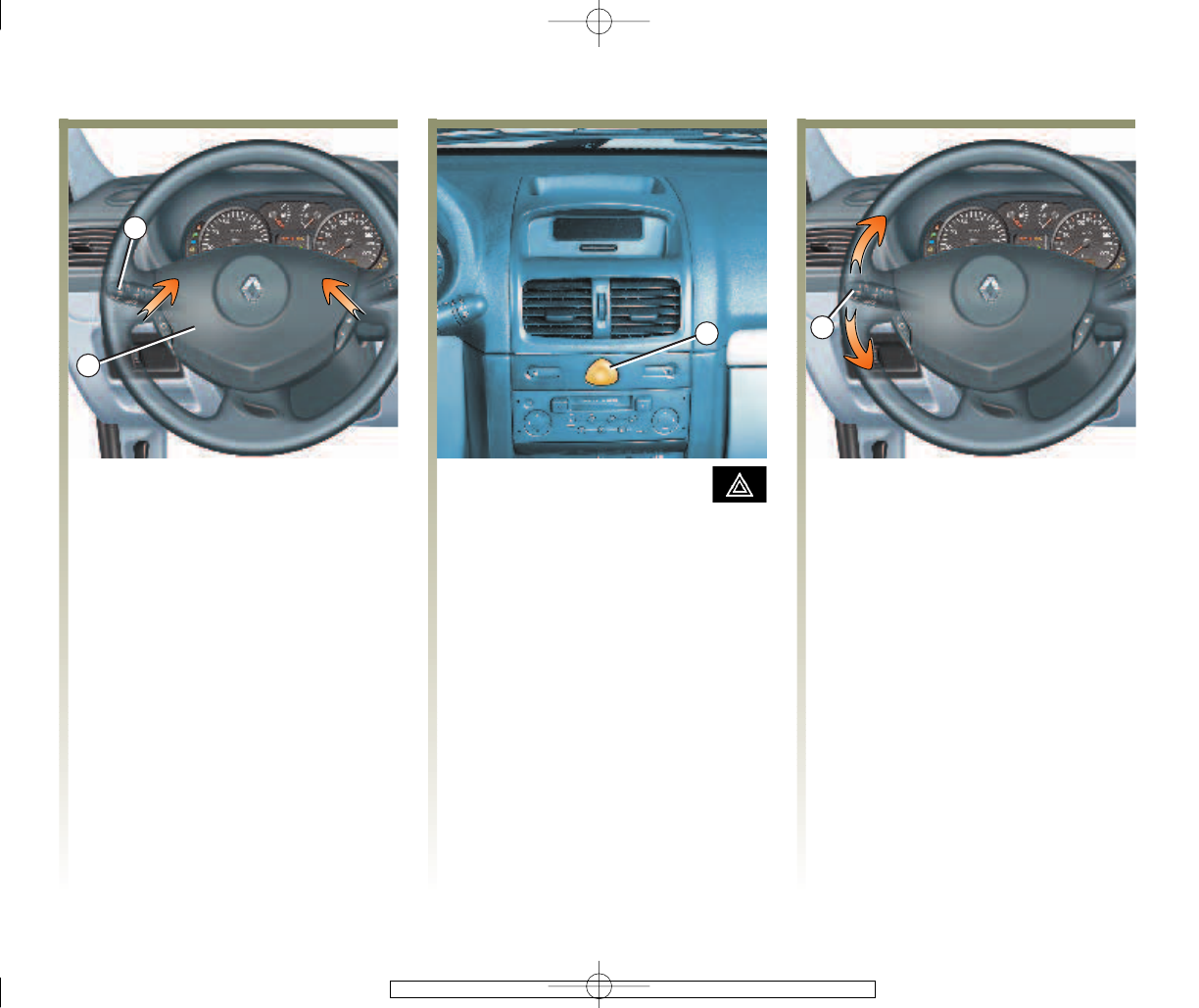

AUDIBLE AND VISIBLE SIGNALS
Horn
Press on the central cushion of
steering wheel 2.
Headlight flasher
To flash your headlights, even if the
lights are not in use, pull the stalk 1
towards you.
Special case
If automatic operation for dipped
headlights is activated, first pull
stalk 1towards you to light the main
beam headlight then again to turn
them off.
Hazard warning lights
Press switch 3.
This switch lights up all four
indicators at the same time.
It is to be used in cases of danger to
warn other road users that you:
• are obliged to stop in a normally
prohibited location,
• are obliged to drive under
particular conditions.
Direction indicators
Move stalk 1parallel to the steering
wheel and in the direction in which
you are going to turn.
When driving on the motorway, the
steering wheel is not often turned
far enough to return the stalk
automatically to position 0. There is
an intermediate position in which
the stalk can be held when changing
lanes.
When the stalk is released, it
automatically returns to 0.
1
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:46 -page71
1.63

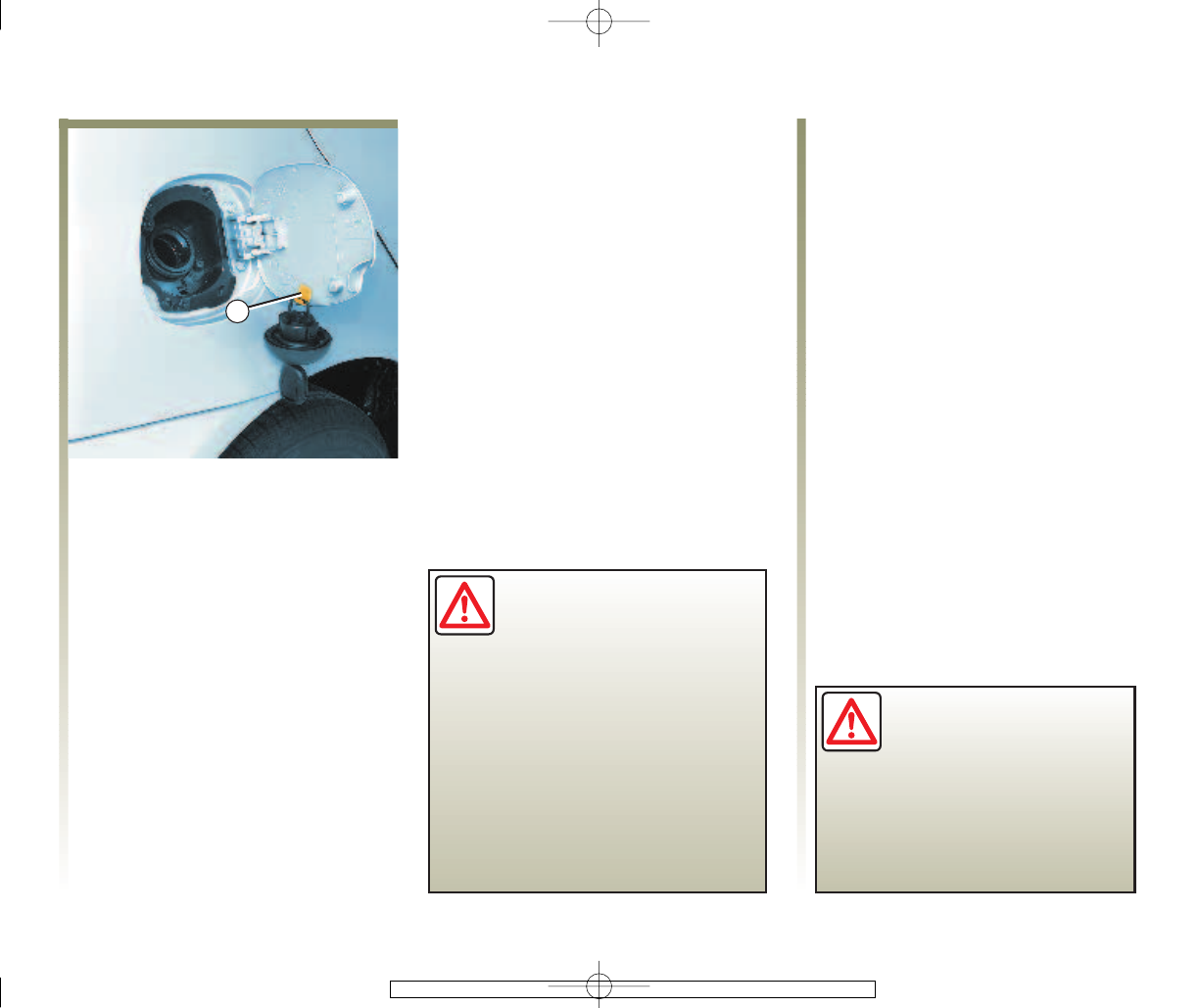

FUEL TANK
Useful capacity of the fuel tank:
Approximately 11 gallons
(50 litres).
There is a cap holder 1on the fuel
filler flap for holding the cap when
filling the tank. Fuel filler cap: this is of a
special type. If you have to
change it, make sure the
new cap is of the same type.
Never handle the cap near a source
of heat or a flame.
Fuel grade
Petrol version
Use fuel which corresponds to the
appropriate grade defined by the
standards in force in the particular
country you are in.
Refer to the Engine specifications
section.
Diesel versions
Use diesel fuel only. When filling
the tank, ensure that no water enters
the tank accidentally. The filler cap
and the neck must be clean and
dust-free. The fuel must be of high
quality.
Rapeseed oil must not
be used under any
circumstances. Also, do
not mix even small
amounts of petrol with diesel.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:46 -page72
1.64
FUEL TANK (continued)
Filling with fuel
Petrol version
Use unleaded fuel only.
Using leaded fuel will damage the
depollution equipment and may
lead to a loss of warranty.
To avoid the tank being filled with
leaded fuel, the filler neck has a
restrictor with a valve which only
allows an unleaded petrol nozzle to
be used (at the petrol pump).
- Insert the nozzle to open the valve,
asfarasitwillgo.
- Hold the nozzle in this position
while the tank is filled and then
release it.
Filling with fuel (continued)
Petrol and diesel versions
To allow room for expansion in the
fuel tank, do not top up more than
twice after the pump nozzle has cut
out automatically.
Any operation or
modification on the fuel
supply system (computers,
wiring, fuel circuit, in-
jector, protective covers...) is
strictly forbidden due to the
safety risks it may cause (except
for qualified staff from the
Renault network.
Persistent fuel odour
Your vehicle has a pressurised fuel
supply system. If a persistent fuel
odour should occur, please:
• stop the vehicle if traffic
conditions allow and switch the
ignition off;
• switch on the hazard warning
lights and ask all passengers to
leave the vehicle to keep them
away from the traffic;
• do not intervene or restart before
the vehicle has been checked by
qualified Renault network staff.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page1
2.01
Section 2: Driving
(advice on use relating to fuel economy and the environment)
Running in/Ignition switch .............................................................................................................................. 2.02
Starting the engine/Stopping the engine ........................................................................................................ 2.03
Special features of petrol versions .................................................................................................................. 2.04
Special features of diesel versions ................................................................................................................. 2.05
Advice on anti-pollution and how to economise on fuel ................................................................ 2.06 ¬2.08
Environment ...................................................................................................................................................... 2.09
Proactive automatic gearbox ............................................................................................................... 2.10 ¬2.12
Quickshift 5 gearbox ............................................................................................................................ 2.13 ¬2.18
Gear lever - Handbrake - Power steering ....................................................................................................... 2.19
Anti-lock braking system ................................................................................................................................. 2.20
Cruise control-Speed limiter ............................................................................................................... 2.21 ¬2.26
Electronic Stability Program: ESP ........................................................................................................ 2.27 - 2.28
Traction control system ......................................................................................................................... 2.29 - 2.30
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 - page 2
2.02
RUNNING IN IGNITION SWITCH
Petrol version
For the first 625 miles (1,000 km), do
not exceed 80 mph (130 km/h) in the
highest gear or 3,000 to 3,500 rpm.
After 625 miles (1,000 km), you may
drive your car normally, but it is
only after 1,500 miles (3,000 km)
have been covered that you may
reasonably expect full performance.
Service intervals: refer to the vehicle’s
Warranty and Servicing booklet.
Diesel version
For the first 750 miles (1,500 km), do
not exceed 2,500 rpm. On completion
of this mileage you may drive faster,
but the vehicle will only provide top
performance after approximately
4,000 miles (6,000 km).
During the running in period, do
not accelerate hard while the engine
is still cold and do not let the engine
rev too high.
Service intervals: refer to the vehicle’s
Warranty and Servicing booklet.
“Stop” position and anti-theft lock
applied St
To lock, remove the key and turn the
steering wheel until the latch clicks
as it engages in the steering column.
To unlock, turn the key and steering
wheel slightly.
“Accessories” position A
The ignition is switched off. Any
accessories (radio...) will continue
to function.
“Ignition on” position M
The ignition is on:
• petrol version: the engine may be
started
• diesel version: the heater plugs
are on.
“Start” position D
If the engine does not start, turn the
key back before activating the
starter motor again. Release the key
as soon as the engine starts.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 - page 3
2.03
STARTING AND STOPPING THE ENGINE
Starting the engine
OPetrol injection
Engine hot or cold
- Turn the key to the Start
position without depressing
the accelerator.
- Release the key as soon as the
engine starts.
ODiesel injection
Cold or warm engine
Turn the ignition key to the
ignition on position M, and hold
this position until the preheating
warning light goes out.
Turn the key to the starter
position D,without accelerating.
Release the key as soon as the
engine starts.
Stopping the engine
With the engine idling, return the
key to the “Stop” position.
If there is a child (or pet) in
the car, never leave it
unattended with the key in
the ignition. With the key
in the ignition it would be possible
to operate the electrical equipment
such as the windows and there is a
risk that the child may be seriously
injured (by trapping his or her
neck, arm, hand, etc.).
Never switch off the ignition
before the vehicle has stopped
completely. Once the engine has
stopped, the power steering, brake
servo and passive safety devices
such as airbags and pretensioners
will no longer operate.
When the key has been removed,
the steering will lock.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 - page 4
2.04
SPECIAL POINTS - PETROL VERSIONS
The following operating conditions
may cause the catalytic converter to
overheat and thus reduce its
efficiency or even destroy it and
cause heat damage to the vehicle:
• Driving for a long time with the
low fuel level warning light
illuminated;
• Faulty ignition, running out of
fuel or spark plug disconnected
occurring as engine misfiring and
snatches when driving;
• Using leaded petrol;
• Using lubrication additives or
fuel which is not approved by
Renault;
• Loss of power;
• The fitting of non-recognised
security systems which have been
integrated into the fuel injection
system for immobilisation
purposes;
Bump starting the vehicle, as
unburnt petrol in the system, may
affect the catalyst if the car does not
start quickly. However, jump
starting with jump leads across the
battery is permissible;
If you note any of the above faults,
have the necessary repairs carried
out as soon as possible by your
Renault Dealer.
These faults may be avoided by
taking your vehicle regularly to
your Renault Dealer at the intervals
specifiedinyour“Warrantyand
Servicing” booklet.
Starting problems
To avoid damaging the catalytic
converter, do not keep trying to start
the engine (using the starter, or by
pushing or pulling the vehicle)
without having identified and
corrected the cause of the fault.
If the fault cannot be found, do not
try to start the engine again, but call
for the assistance of a Renault
Dealer.
Never park the vehicle or
run the engine in locations
where combustible
substances or materials
such as grass or leaves may come
into contact with a hot exhaust
system.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 - page 5
2.05
SPECIAL POINTS - DIESEL VERSIONS
Diesel engine speed
Diesel engines have an injection
system with a mechanical governor
which prevents overrevving of the
engine regardless of the gear engaged.
Running out of fuel
After filling the tank, if you have run
completely out of fuel, on condition
that the battery is fully charged, the
engine may be started normally.
If, after a few seconds, after several
attempts, the engine will not start,
call for the assistance of a Renault
Dealer.
Winter precautions
To avoid any problems in icy
conditions:
• ensure your battery is always well
charged.
• ensure the fuel level in the tank
never drops too low to avoid
condensation forming at the
bottom of the tank.
Vehicles fitted with a diesel fuel
heater
This allows diesel fuel to be used
with no additives down to –18°C,
or, in the case of a vehicle used
regularly over short distances
(engine cold) down to –5°C.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 - page 6
2.06
ADVICE ON ANTIPOLLUTION AND HOW TO ECONOMISE ON FUEL WHEN DRIVING
RENAULT actively participates in
the reduction of pollutant exhaust
gas emissions and in saving energy.
By virtue of its design, its original
settings and moderate fuel
consumption, your RENAULT
conforms to the current antipollution
standards. Technical design cannot
achieve everything, however. The
level of exhaust gas pollutant
emissions and the fuel
consumption of your vehicle is
within your control. Ensure that
your vehicle is maintained
correctly, and that you drive and use
it carefully.
Maintenance
Not observing the antipollution
legislation may lead to the owner of
the vehicle being prosecuted.
Replacing parts of the engine, the
fuel supply system and the exhaust
with parts which are not original
parts recommended by the
manufacturer may mean that your
vehicle no longer conforms to the
antipollution regulations.
Have your vehicle checked and
adjusted by your Renault Dealer in
accordance with the instructions in
your Warranty and Servicing booklet.
Your Renault Dealer has all the
equipment necessary to ensure that
your vehicle is maintained to its
original standard.
Always remember that the emission
of pollutant fumes is directly linked
to fuel consumption.
Engine adjustments
• ignition: this requires no adjustment
• spark plugs: optimum conditions
of use, performance and output
require that the specifications
laid down by our Design
Department be rigorously
adhered to.
If the spark plugs have to be
replaced, use the make, type and
gap specified for your engine.
Consult your Renault Dealer for
this information.
• idle speed: this requires no
adjustment.
• air filter, diesel fuel filter: a
blocked cartridge reduces output
and must be replaced.
• injection pump setting: this must
be set to the recommended values.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 - page 7
2.07
ADVICE ON ANTIPOLLUTION AND HOW TO ECONOMISE ON FUEL WHEN DRIVING
(continued)
Monitoring exhaust gas
The exhaust gas monitoring system
will detect any malfunctioning of
the vehicle's exhaust gas
depollution system.
If this system malfunctions, toxic
substances may be released into the
atmosphere or mechanical damage
may occur.
This warning light on the
instrument panel will
indicate if there are any
problems with the system:
This lights up when the ignition is
switched on and then goes out.
- If it lights up continuously,
consult your Renault Dealer as
soon as possible.
- If it flashes, reduce the engine
speed until the light stops
flashing. Consult your Renault
Dealer as soon as possible.
Driving
•Drive carefully for the first few
miles until the engine reaches its
normal operating temperature
rather than letting it warm up
while stationary.
• Speed is expensive.
• “Snappy” driving uses a lot of
fuel: drive with a “light right
foot”.
• Brake as little as possible by
suitably anticipating an obstacle
or bend and then simply releasing
the accelerator pedal.
• Avoid sudden acceleration.
• Do not overrev the engine in
intermediate gears.
Use the highest gear possible
without labouring the engine.
(On versions with an automatic
gearbox, try to always use
position D.)
• Try not to maintain the same
speed up a hill as you would on
the level; keep your foot in the
same position on the accelerator
pedal.
• Double declutching and
accelerating before switching off
the engine are superfluous
actions in modern cars.
• Bad weather, flooded roads
Do not drive on flooded
roads if the depth of
water is above the lower
edge of the wheel rims.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 - page 8
2.08
ADVICE ON ANTIPOLLUTION AND HOW TO ECONOMISE ON FUEL WHEN DRIVING
(continued)
General hints
•Electricity is “fuel”; switch off all
the electrical units which are not
really needed.
However, (with safety always in
mind), keep your lights on when
the visibility is bad (see and be
seen).
• Try to use the air vents. Driving at
a speed of 60 mph (100 km/h)
with the windows open will
increase the use of fuel by 4%.
•For vehicles fitted with air
conditioning,morefuelmaybe
used during urban driving; switch
off the system when it is not really
needed.
• Never fill the fuel tank up to the
brim to avoid it overflowing.
• Do not leave an empty roof rack in
position.
• Use a trailer for carrying bulky
objects.
• When towing a caravan, fit a wind
deflector and adjust it properly.
• Avoid using the car for door to
door calls (short journeys with
long stops in between), as the
engine never reaches its ideal
temperature. Try to group your
calls.
Tyres
•Inflation pressures which are too
low may increase fuel
consumption.
• The use of non-recommended
tyres may also increase fuel
consumption.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 - page 9
2.09
ENVIRONMENT
Your vehicle has been designed with
the aim of caring for the environment.
• Most versions are fitted with a
depollution system incorporating
the catalytic converter, oxygen
sensor and active carbon filter
(which prevents fuel vapour
evaporating from the fuel tank
into the open air).
•These vehicles run on unleaded
fuel only.
•your vehicle comprises 87%
recyclable parts and already
contains parts which are made
from recycled materials (as marked
on the diagram above).
• 95% of the plastic parts in your
vehicle are marked by a symbol
which allows the principal
component material to be identified.
This marking means that the parts
removed can be sorted more
easily, making recycling of each of
them easier.
In addition, your vehicle meets the
requirements of European legislation
concerning the protection of the
environment.
Make your contribution to
environmental protection too !
Do not dispose of parts replaced in
the course of routine vehicle
maintenance (battery, oil filter, air
filter...) and oil cans (empty or filled
with old oil...) with household
waste.
Dispose of them through specialist
organisations. In all cases comply
with local legislation.
A
B
C
1
F
G
H
I
E
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page10
2.10

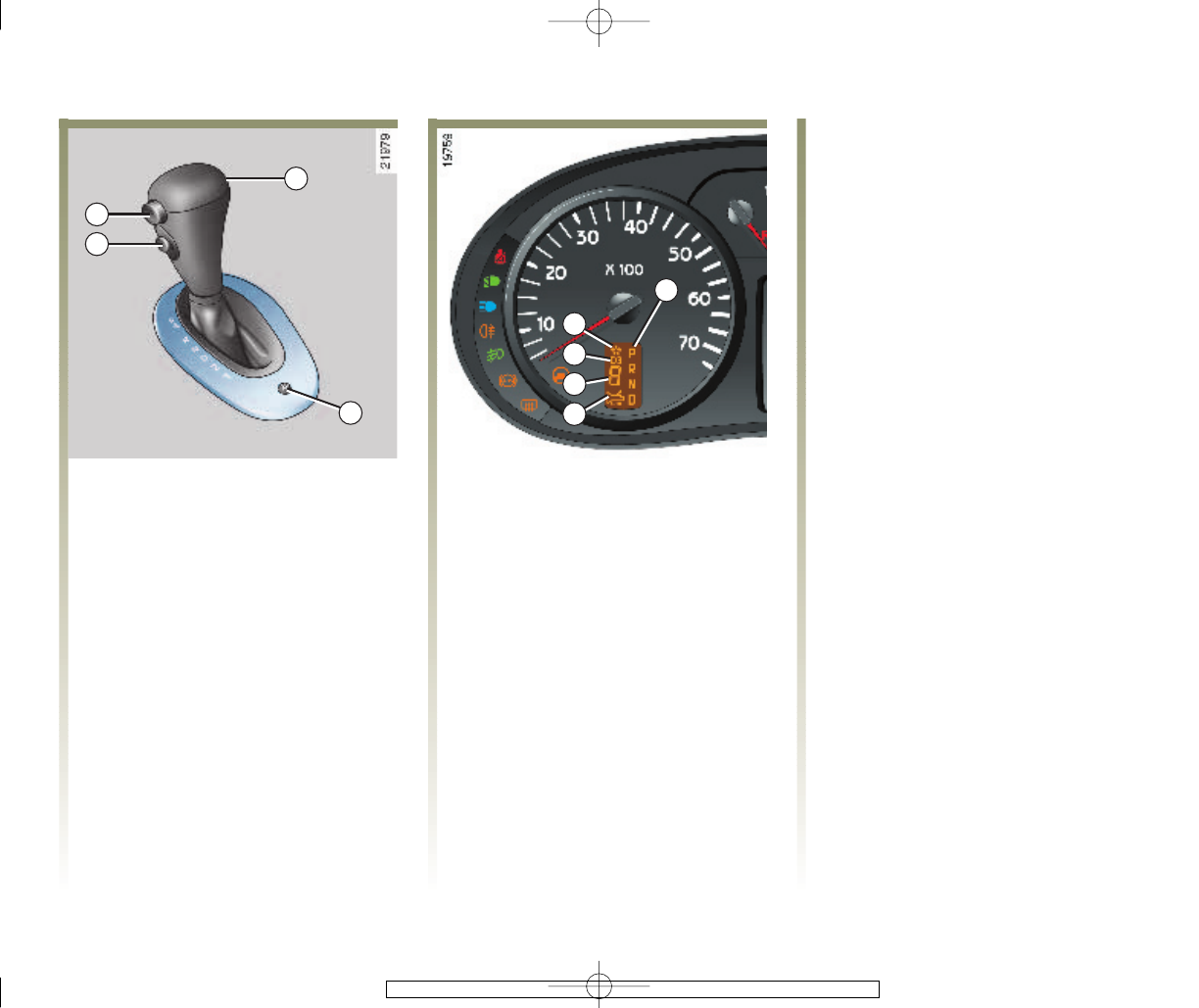

PROACTIVE AUTOMATIC GEARBOX
Selector lever 1
P:Park
R: Reverse
N: Neutral
D: Drive in automatic
(gears authorised: 1, 2, 3 and 4)
2: 2nd gear hold H
(gears authorised: 1, 2)
1: 1st gear hold H.
The display Eand indicator lights F,
G,H,I, on the instrument panel
indicate the position of the gear
lever 1and/or the operating mode of
the automatic gearbox.
Position D3 or 3rd gear hold
(Gears authorised: 1, 2, 3).
With the selector lever in position
D, press button B. Indicator light G
will light up on the instrument
panel. Press button Bagain to
deselect this position. (indicator
lightwillgoout.)
Note: When indicator light is lit, the
system will prevent 4th gear being
selected.
For safety reasons, certain positions
may not be selected until the
mechanism is released: press button A.
The lever may only be moved to D
or R when the vehicle is stationary,
with your foot on the brake and the
accelerator pedal released.
Moving off forwards
With the lever in position P or N,
switch on the ignition.
With your foot on the brake pedal,
move the lever out of position Por N.
For safety reasons, to take the lever
out of position P, the brake pedal
must be pressed before pressing the
releasing button A.
C
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page11
2.11
PROACTIVE AUTOMATIC GEARBOX (continued)
Forward gears
Move the lever to position D.Inthe
majority of traffic conditions, you
will not have to move the lever
again: the gears will change
automatically at the right time and
at the appropriate engine speed,
since the automatic system takes
into account the vehicle load, the
road contour and the particular
driving style you have chosen.
Acceleration and overtaking
Fully depress the accelerator pedal
quickly (or take your foot off the
accelerator and press it in again as
far as it will go).
When the pedal is depressed
quickly, it activates the
“kickdown” switch to obtain
maximum performance.
Special circumstances
• Snow position: if you are driving
on a surface with low adhesion
(snow, mud etc.), press switch C,
warning light Fwill come on.
When these driving conditions no
longer apply, turn the system off
by pressing button Cagain and
the warning light will go out.
• In hilly or mountainous country:
if the road conditions and the
number of bends do not allow you
to remain in 4th, we recommend
you select position D3 (by
pressing button B, with the gear
lever in position D), or even 2
(2nd gear hold), to avoid the
transmission changing to a higher
gear than the one selected.
Position 1, which enforces the use
of 1st gear, gives good engine
braking.
When travelling downhill for a
long way, select position D3 or 2
(or even 1)togivemoreefficient
engine braking, and to relieve the
brakes.
•In cold weather, to prevent the
engine from stalling, wait for a
few moments before moving the
lever from position Por Nto
position Dor R.
A
J
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page12
2.12
PROACTIVE AUTOMATIC GEARBOX (continued)
Economical driving
On the open road, always leave the
lever in position D. Press the
accelerator pedal lightly to ensure
that the gears change automatically
at a low engine speed.
Never use positions D3, 2, 1 and the
snow position unless special
circumstances apply.
Parking the vehicle
When the vehicle is stationary,
place the lever in position Pwhile
keeping your foot on the brake
pedal: the automatic gearbox is in
neutral and the drive wheels are
mechanically locked by the
gearbox.
Apply the handbrake.

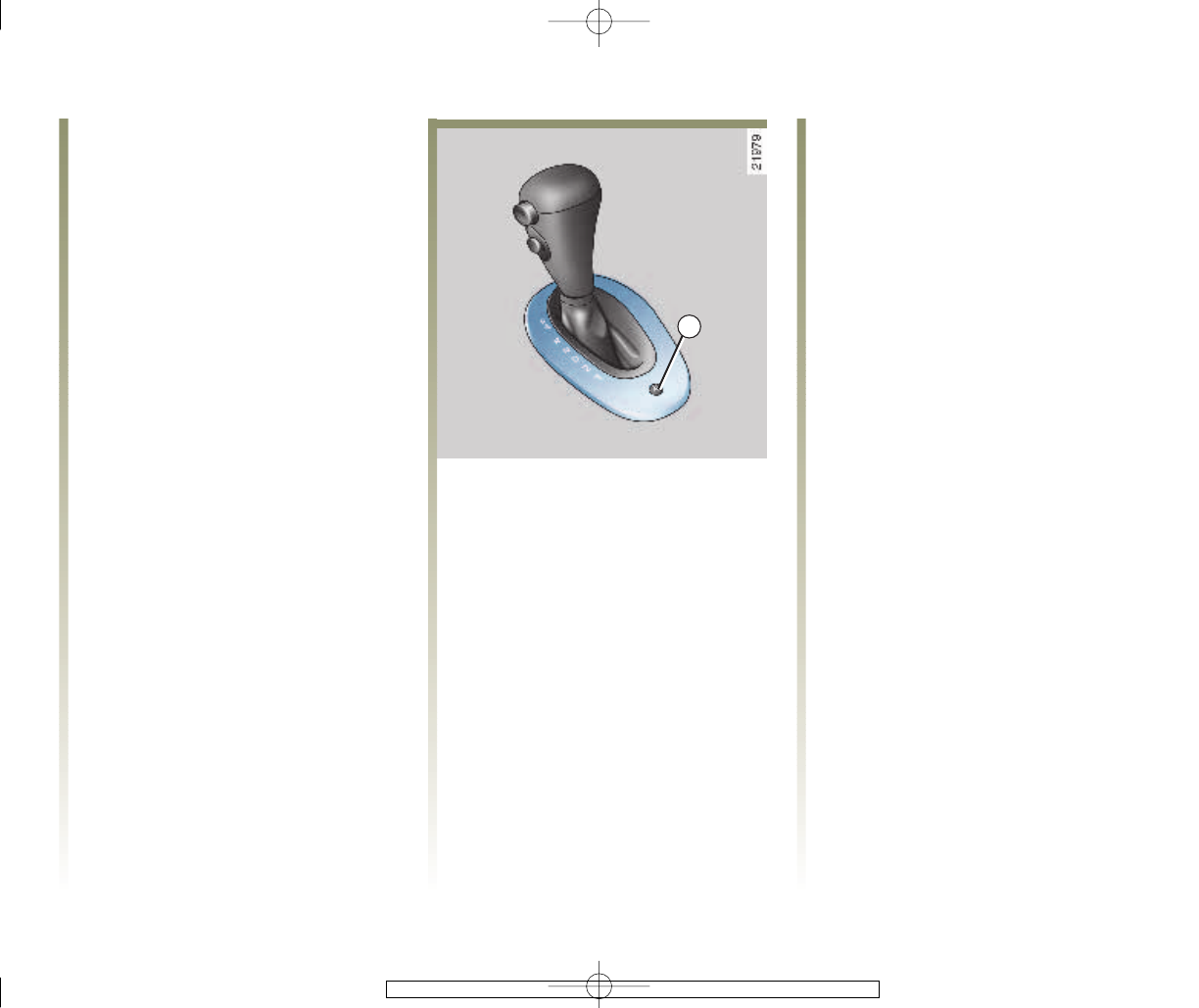

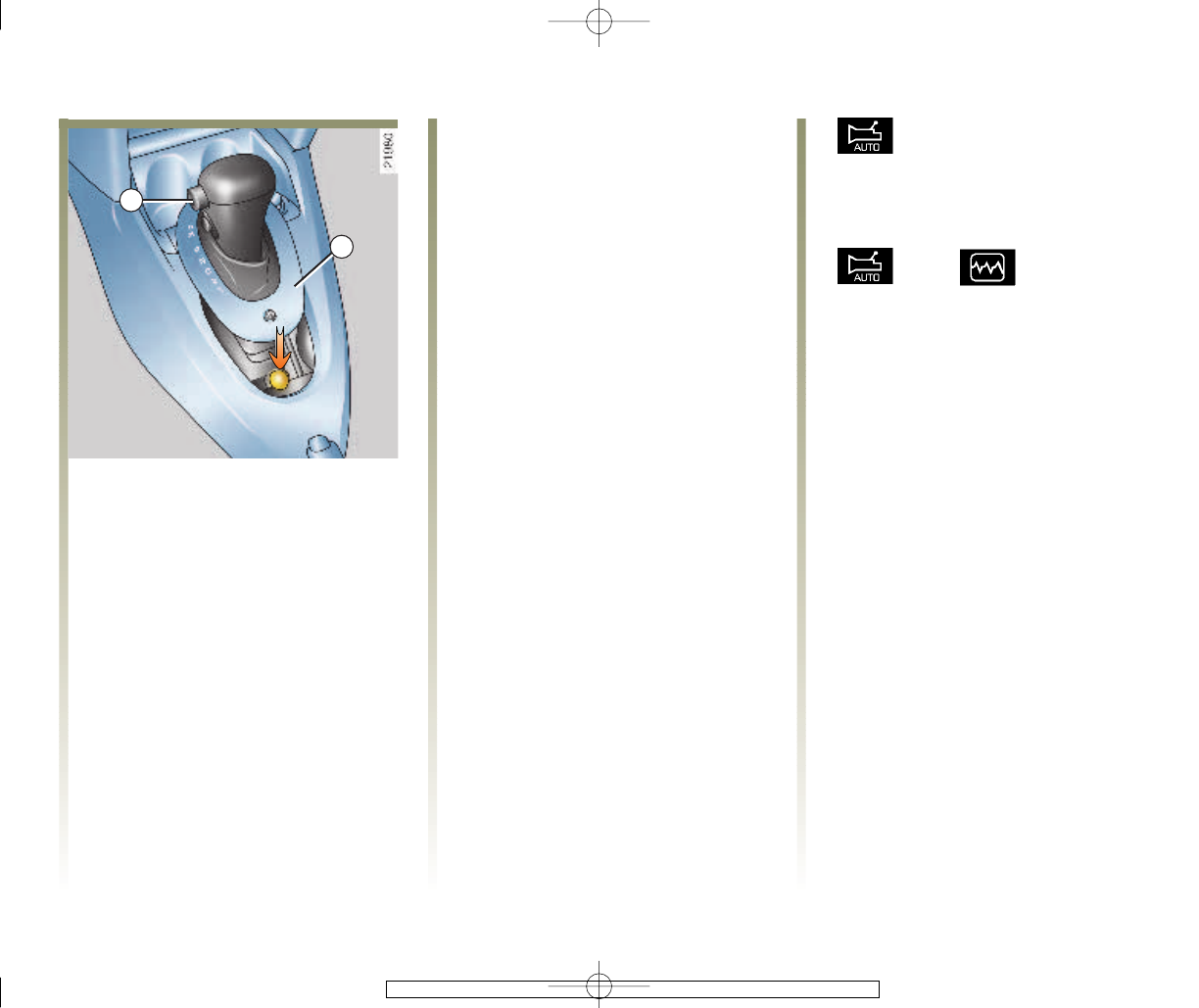

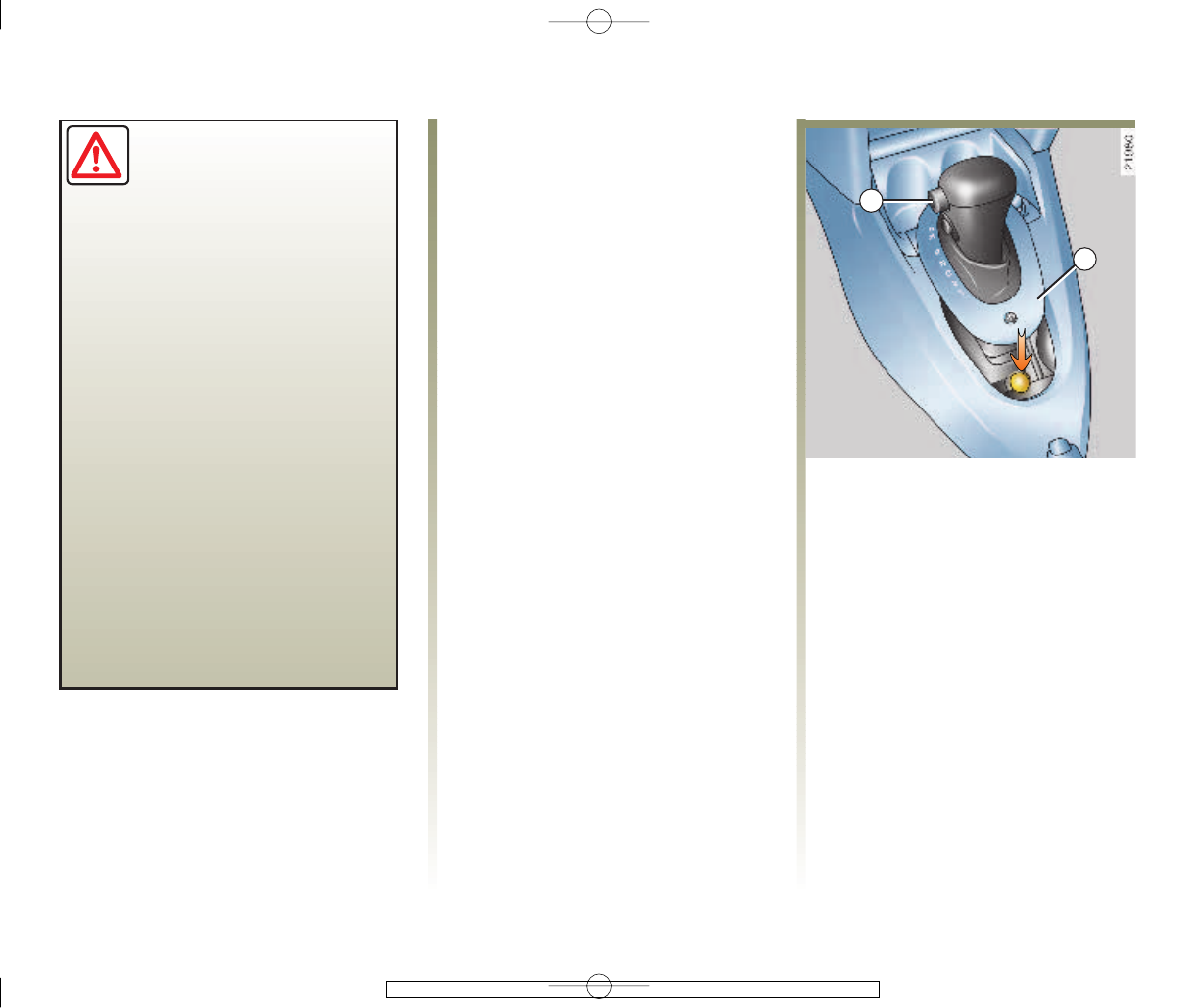

Operating faults
• If the lever becomes jammed in P,
even though you are depressing
the brake pedal, it can be released
manually.
To do this, unclip the cover Jthen
simultaneously press the button
(located under the cover J) and
the unlocking button Ato move
the lever from P.
Consult your RENAULT Dealer.
• If warning light Icomes
on when the vehicle is
being driven, it is
indicating that there is a failure.
Consult a RENAULT Dealer as
soon as possible.
• and :Ifthese
warning lights come on
simultaneously when the
vehicle is being driven, avoid
leaving the gear lever in D
position (or R) when stopping in
traffic: always return to N
position when stopped. Consult a
RENAULT Dealer as soon as
possible.
•If a vehicle with an automatic
gearbox breaks down,refertothe
information on towing in section 5.
1
4
3
5
2
6
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page13
2.13

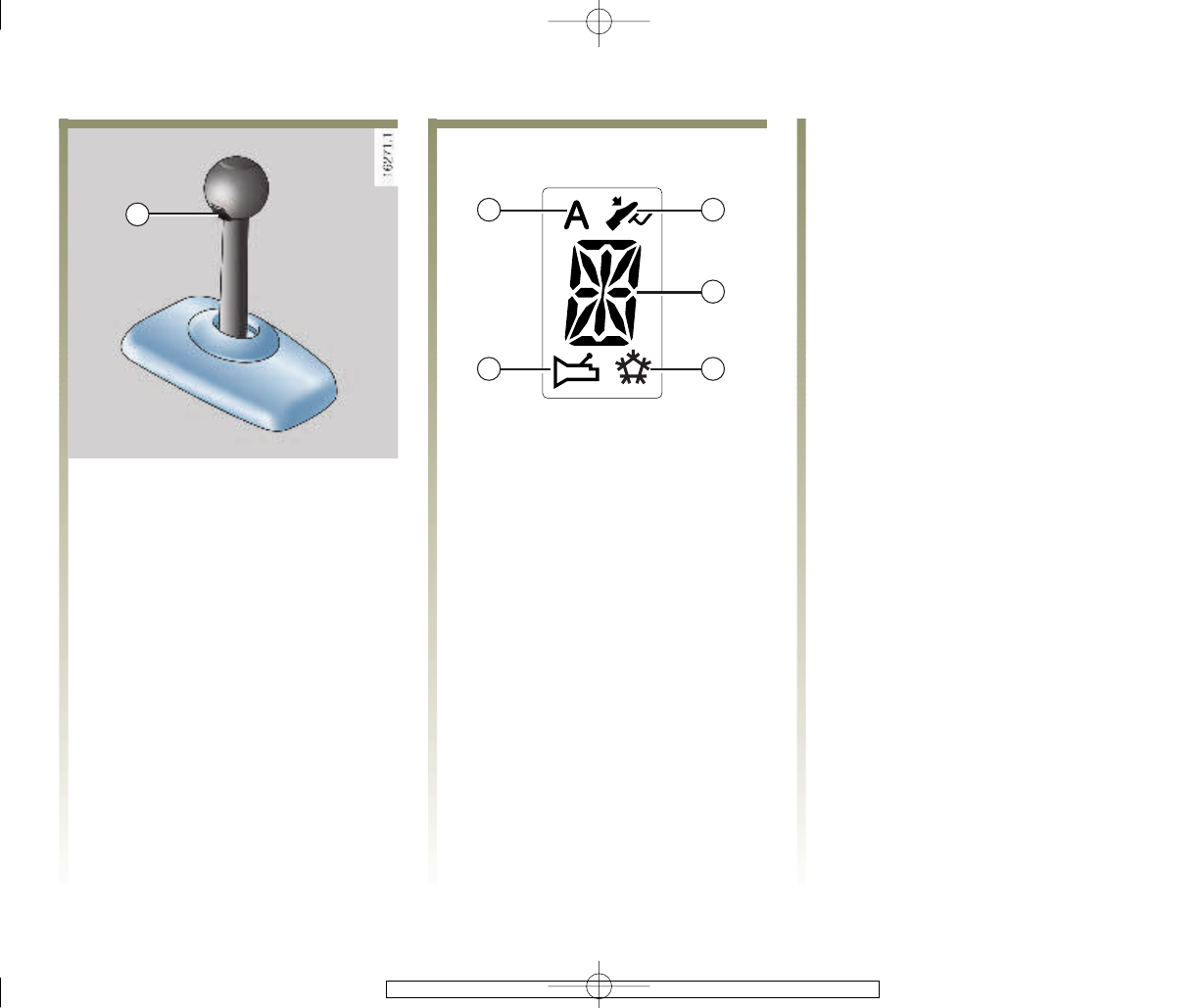

QUICKSHIFT 5 GEARBOX

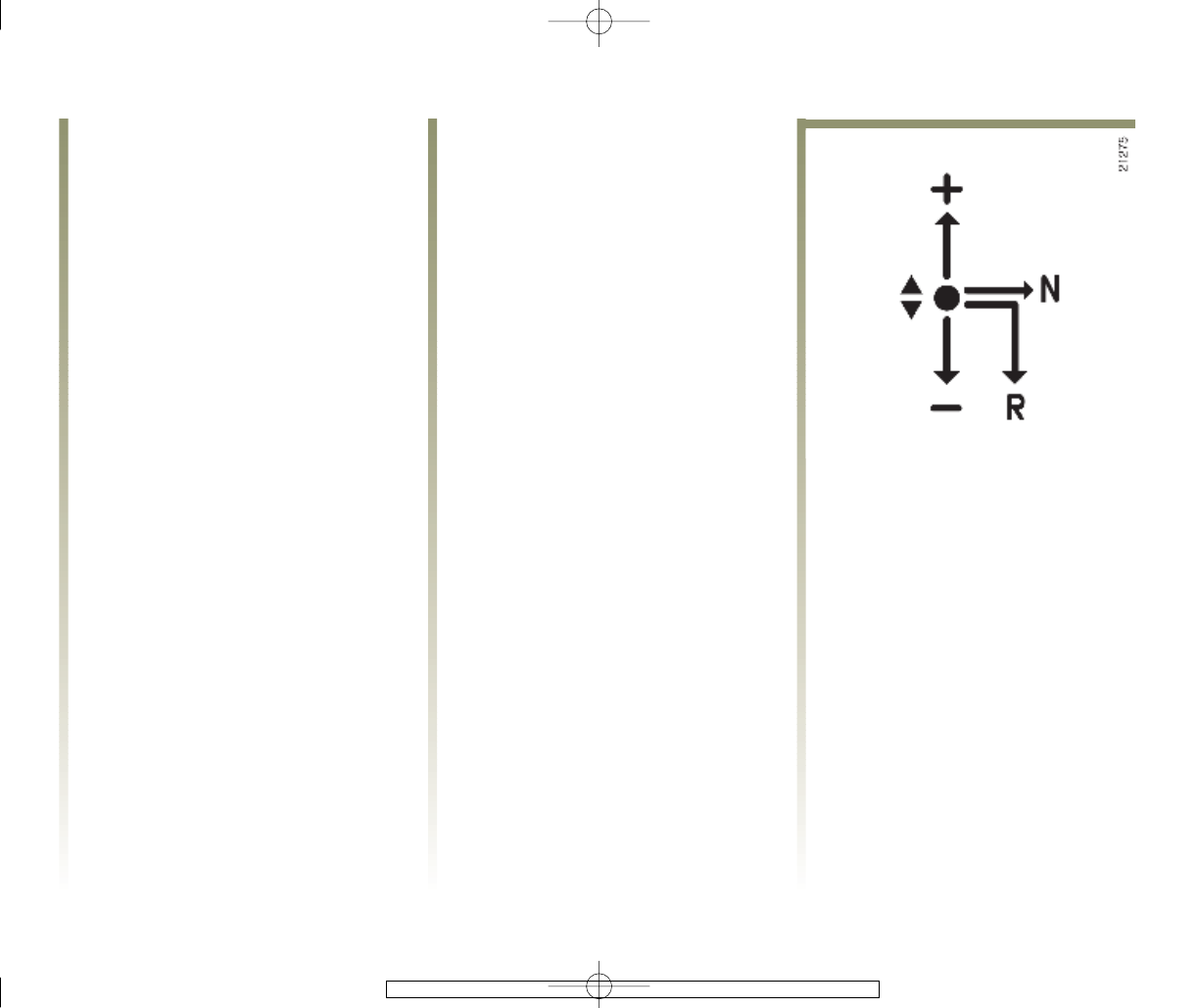

Selector lever
1Mode selection button: enables
you to move from manual mode to
automatic mode or from
automatic to manual mode at any
time with the engine running.
Note: The selector lever
automatically returns to the middle
position after use.
Display
2automatic mode
3brake pedal depressed warning
light
4gear display
5not used
6gearbox fault warning light.
Thegearused(1,2.., 5,N,R)is
indicated in the instrument panel
display. In automatic mode, (A) is
also displayed.
Driving
Switch on the ignition.
The display lights up on the
instrument panel.
As long as neutral is displayed (N),
start the engine but do not depress
the accelerator.
If a gear other than neutral (N) is
displayed this will flash; it will only
be possible to start the engine if you
press down the brake pedal (the
warning light 3will come on if you
forget) when holding the key in
starting position.
The vehicle will then change to
neutral (N) automatically and the
engine will start.
Note: do not attempt to start the
engine by pushing the vehicle if the
battery is flat (the display remains
off when the ignition is switched
on).
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page14
2.14
QUICKSHIFT 5 GEARBOX (continued)
Starting up
Moving forwards (starting in
neutral)
The gear display shows Nand A.
•With your foot on the brake
pedal, push the selector lever
toward the front and then release
it again.
• Release the brake pedal:
- it is possible to carry out parking
manoeuvres when the engine is
idling.
- accelerate gently to move off.
Note: you can pull away in second
gear if you are driving on slippery
surfaces (snow, mud, etc.).
To do this, move the gear selector
lever twice with your foot on the
brake pedal.
The figure 2appears on the
dashboard display. The system is
then running in semi-automatic
mode.
To return to automatic mode, press
the mode change button.
Reverse
• Foot on the brake pedal. Push the
lever as far as it will go to the
right, hold and pull back
according to the marking on the
knob, then release it. Reverse gear
is engaged and the letter R
appears on the display.
• Release the brake pedal:
- it is possible to carry out parking
manoeuvres when the engine is
idling.
- accelerate gently to reverse.
Note: You should put your foot on
the brake to engage or disengage a
gear when stopping. Otherwise, the
gear selected will flash and the
warning light 3will come on.
Gear selection gate
+To move up through the gears
– To move down through the gears
NNeutral
RReverse
•Only stable lever position
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page15
2.15
QUICKSHIFT 5 GEARBOX (continued)
Semi-automatic mode (manual)
When in automatic mode, moving
the selector lever up or down
through the gears or pushing the
automatic mode switch will switch
the system into semi-automatic
mode. If you push the switch, you
do not need to shift up or down
through the gears.
You can initiate gear changes using
the selector lever.
To move up through the gears
simply push the selector lever
forwards without necessarily
releasing the accelerator.
To move down through the gears
simply push the selector lever
backwards without necessarily
releasing the accelerator.
The system will not tolerate a series
of up or down changes that cause
the engine to underrev or overrev.
Pushing forwards twice in
succession enables a shift up of two
gears at once (except in the case of
underrev). Pulling backwards twice
in succession enables a shift down
of two gears at once (except in the
case of overrev).
When decelerating with the foot off
the pedal, the gears will
automatically drop to the low speed
limit to avoid stalling. First gear
automatically passes below a
certain speed limit. You can stop the
vehicle at red lights or junctions etc.
by pressing the brake pedal; there is
no need to change to neutral (N).
The vehicle will move off again:
- slowly, if you release the brake
without accelerating (e.g. when in
a traffic jam)
- quickly, if you release the brake
and accelerate.
Note: neutral is only accessible
when you are driving or stationary
with your foot on the brake (if you
forget, the warning light 3will
come on and the Nsign will flash).
Push the gear lever to the right to
engage neutral.
Moving from one mode to another
can be performed with the engine
running, at any time and in all
ratios.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page16
2.16
QUICKSHIFT 5 GEARBOX (continued)
Automatic mode
Automatic mode is selected by
default every time the ignition is
switched on.
You can change it at any time when
driving by pressing the mode
change button. The letter Aappears
on the display.
The vehicle is controlled using the
accelerator and the brake. Gears will
change automatically at the correct
moment to a speed suitable for the
engine because the automatic
function takes into consideration
the weight of the car, the road
surface and the chosen driving
style.
Note:
Automatic mode takes account of:
- the position and speed of
depression of the accelerator
pedal to assess driving style and
select the optimum gear,
- action on the brake pedal to alert
the engine brake by anticipating
the down-change
You can stop the vehicle at red
lights, with the gear engaged, by
pressing the brake pedal; there is no
need to change to neutral.
The vehicle will move off again:
- slowly, if you release just the brake
without accelerating (e.g. when in
a traffic jam)
- quickly, if you release the brake
and accelerate.
The level of oil in the
automatic gearbox system
reservoir is variable
depending on use. Adding
oil is strictly forbidden (except by
qualified Renault network
personnel).
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page17
2.17
QUICKSHIFT 5 GEARBOX (continued)
Accelerating and overtaking
You have two options:
1) slowly depress the accelerator
pedal to speed up gradually.
2) depress the accelerator pedal as
far as it will go (or: take your foot
off the pedal and depress the
pedal again until you reach the
point of resistance.
Parking
It is possible to park in gear (for
example, on a slope). To do this:
- with the ignition on, select a gear
with your foot on the brake.
- check that a gear other than Nis
displayed on the instrument
panel, then remove the ignition
key.
To disengage the gear, repeat this
operation by switching on the
ignition without starting the engine
and shift the selector lever to
neutral with your foot on the brake.
Check that Nis displayed on the
instrument panel.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page18
2.18
QUICKSHIFT 5 GEARBOX (continued)
Horn
•If you keep the vehicle on a slope
for too long without applying the
brakes or handbrake, there is a
risk that the clutch will overheat.
In this event, an intermittent beep
will remind you that you should
put your foot on the brake or
apply the handbrake.
• Never leave the vehicle with the
engine running when in gear.
For safety reasons you will hear
an intermittent beep when you
open the door if you have not
shifted into neutral or you have
not switched off the ignition or
pressed the brake pedal.
• Your vehicle will not start:
you can start the engine when the
vehicle is moving if the battery is
not discharged (display lit up).
Proceed as before:
- switch on the ignition
- select neutral
- push or tow the car or run it
down a slope until you reach the
speed at which the warning
buzzer is activated. This will
indicate that moving the
selector lever forwards will
engage the gear most suited to
starting the engine.
Note: never attempt this in reverse.
Operating faults
When driving,ifthis
warning light comes on, it
indicates a fault in the
system.
In most cases, you may still drive
the vehicle, although it will not
function perfectly. However, you
should consult a Renault Dealer as
soon as possible.
Towing a vehicle with a
sequential gearbox
If the gearbox is stuck in a gear:
- switch on the ignition
- select neutral with your foot on
the brake
- check that the gearbox is in neutral
(by pushing the vehicle, for
example).
If you cannot find neutral you must
tow the vehicle with the front
wheels raised.
Towing should always take place
with the ignition switched off.
2
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page19
2.19

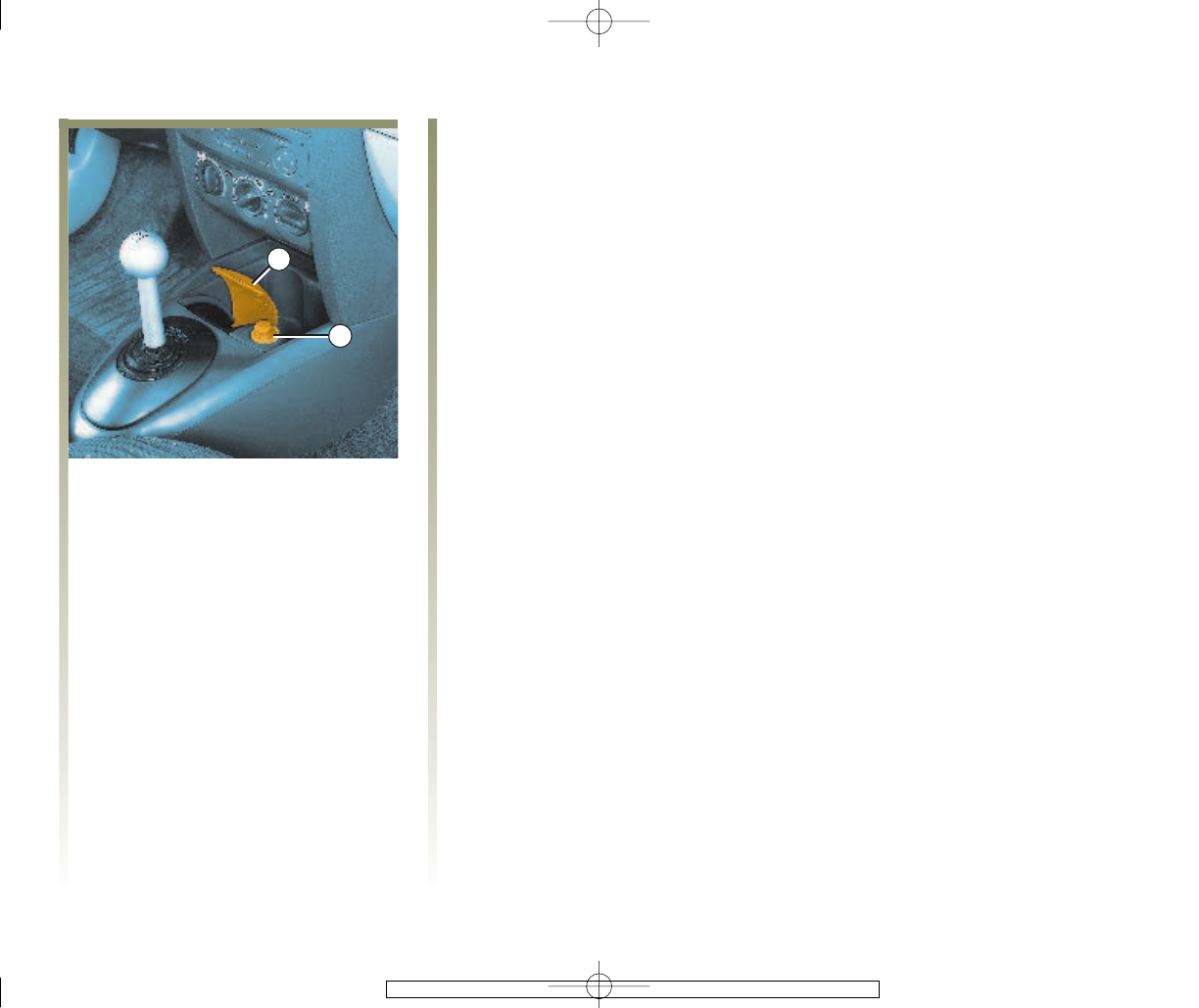

GEAR LEVER HANDBRAKE
POWER ASSISTED STEERING
To select reverse
(vehicle stationary)
Move the lever to neutral, then lift
up ring 1against the gear lever knob
to select reverse gear.
The reversing lights illuminate as
soon as reverse gear is selected
(ignition on).
To release
Pull the lever up slightly, press in
button 2and lower the lever to the
floor.
If you are driving with the
handbrake incorrectly released, the
red warning light on the instrument
panel will remain illuminated.
To apply
Pull the lever upwards.
The lever should travel about 10
notches to hold the vehicle. Your
vehicle has self adjusting rear brake
shoes and the handbrake should
only be adjusted during a brake
overhaul.
When the vehicle is
stationary, make sure
that the handbrake is
properly applied so that
the vehicle does not move
unintentionally.
Make sure the handbrake is
properly released when driving,
otherwise overheating may
occur.
Never leave the steering on full lock
when the vehicle is parked (risk of
damaging the power assisted
steering pump).
Never switch off the
engine when travelling
downhill, and avoid
doing so when driving in
general (power steering and
brake servo will not function).
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page20
2.20
ANTI-LOCK BRAKING SYSTEM (ABS)
When braking sharply, the two main
aims are to reduce the stopping
distance and to keep the vehicle
under control. However, depending
on the nature of the ground, the
atmospheric conditions and your
reactions, dangers due to loss of
adherence may exist: the wheels
may lock and directional control
may be lost. To avoid these risks,
your vehicle has been fitted with
the anti-lock braking system (ABS).
The safety enhancement is that the
brake control system prevents the
wheels from locking, even if the
brakes are applied too sharply,
allowing the vehicle to be steered
and thus its direction to be controlled.
Under these circumstances, it is quite
possible for the driver to steer the
vehicle and avoid an obstacle whilst
at the same time applying the brake.
This system also allows stopping
distances to be improved, especially
when adhesion is limited (wet roads,
slippery or uneven road surface).
Although this system allows this
optimisation, the ABS system in no
way increases performance which is
physically related to the local
adherence conditions between the
tyres and the ground. You must still
follow the rules of good driving
practice (driving at a safe distance
from the vehicle in front etc.). The
fact that the vehicle’s safety has been
increased should not encourage you
to take risks.
Each time the system is activated,
you will feel a certain degree of
pulsation at the brake pedal. These
tangible signs will warn you that the
adhesion between the tyres and the
ground has reached its limit and
enable you to adapt your driving
style to suit the road conditions.
Operating incidents
Two situations must be considered:
1 - The warning light is
illuminated on the instrument
panel.
Braking is still assured, but
without the action of the ABS
system. Consult a Renault Dealer
as soon as possible.
2 - The warning lights
are illuminated on the instrument
panel.
This indicates a fault in one of
the ABS braking components.
Braking may be partially assured.
It is however dangerous to brake
sharply,soyoumuststop
immediately as soon as traffic
conditions allow. Call for the
assistance of a Renault Dealer as
soon as possible.
The braking modulation provided by the ABS system is independent of the force applied at the pedal. In an
emergency, apply firm, continuous pressure at the brake pedal - there is no need to pump it repeatedly.
1
26
5
3
4
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page21
2.21

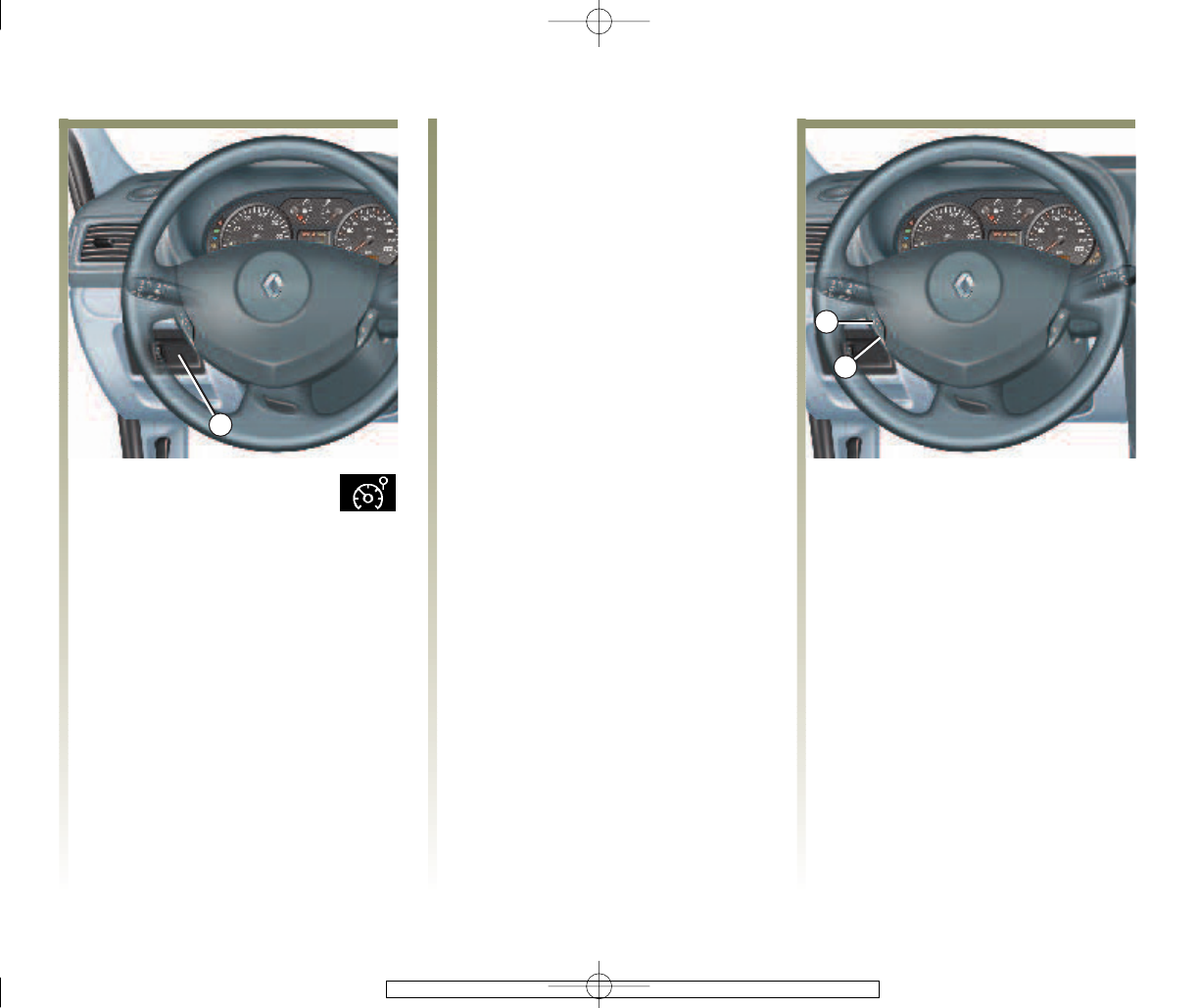

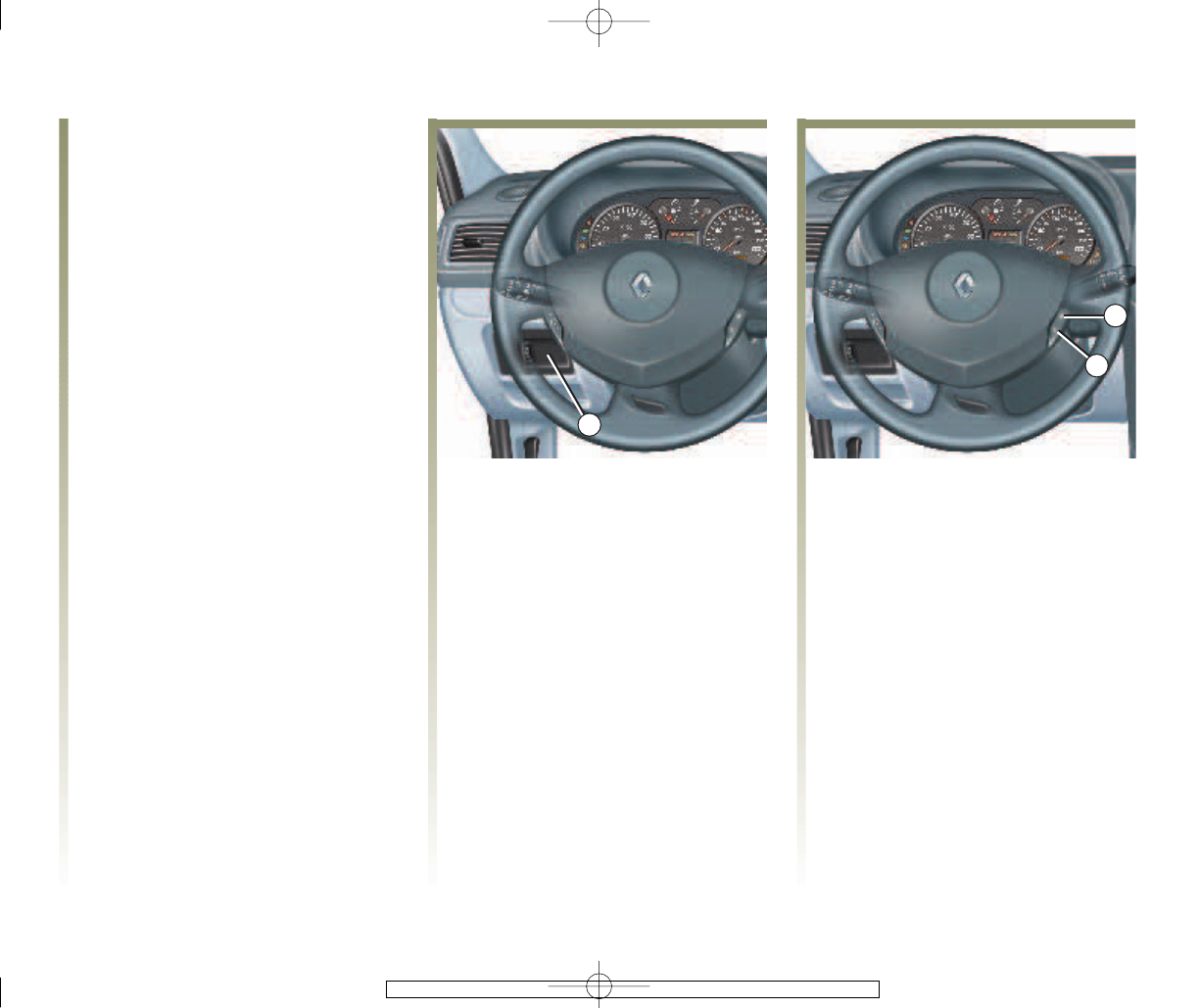

CRUISE CONTROL - SPEED LIMITER: limiter function
The speed limiter function allows
youtodecideonamaximum
driving speed.
This may be useful, for example, in
town driving or in areas with speed
restriction (roadworks), etc.
The system operates above a driving
speed of approximately 20 mph
(30 km/h).
Controls
1Main On/Off switch
2Limited speed storage switch and
adjustment of limited speed
(increasing).
3Return to stored limited speed.
4Switching the function off (with
stored limited speed)
5Limited speed storage switch and
adjustment of limited speed
(decreasing).
Indicator light
This orange indicator light lights up
on the instrument panel to indicate
that the limiter function is in
operation.
Stored speed information appears
on instrument panel display 6
permanently or for approximately
30 seconds, depending on vehicle
type.
1
2
5
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page22
2.22
CRUISE CONTROL - SPEED LIMITER: limiter function (continued)
Switching on
Press the side switch 1
The indicator light lights up in the
instrument panel and the on-board
computer enters speed limiter
mode.
Limiting the speed
At a stable speed (approximately
20 mph or 30 km/h) and in the
correct gear (for vehicles with
manual gearboxes), press switch 2:
the speed is stored.
Driving
When a limited speed is stored,
press on the accelerator pedal until
you reach the limited speed.
From this point, no effort on the
accelerator pedal will allow you to
exceed the programmed speed
except in an emergency (see
information on exceeding the
limited speed).
Changing the limited speed
The limited speed may be changed
by acting (pressing frequently or
continuously) on:
-button2to increase speed,
-button5to reduce speed.
If the car has the temporary display
function, the limited speed is
displayed for approximately 30
seconds.
1
3
4
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page23
2.23
CRUISE CONTROL - SPEED LIMITER: limiter function (continued)
Exceeding the limited speed
In the event of an emergency
It is possible to exceed the limited
speed at any moment. To do this:
depress the accelerator pedal firmly
and fully (beyond the point of
resistance).
The speed flashes on the instrument
panel (on-board computer) to
inform you that the cruise control
speed is being exceeded.
When the emergency has passed,
release the accelerator pedal: the
speed limiter function will return as
soon as you reach a speed lower
than the limited speed before the
emergency.
Impossible to operate at the limited
speed
If the limited speed cannot be
maintained by the system (for
example in the event of a steep
incline), the speed will flash on the
instrument panel (on-board
computer).
Switching the function off
The speed limiter function is
interrupted when you press:
- button 4,inthiscasethelimited
speed remains stored
- button 1,inthiscasethelimited
speed is no longer stored.
Confirmation that the function has
been switched off is given when the
indicator light on the instrument
panel goes out.
Return to limited speed
It is possible to return to a stored
speed by pressing button 3.
If the car has the temporary display
function, the limited speed is
displayed for approximately 30
seconds.
1
26
5
3
4
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page24
2.24

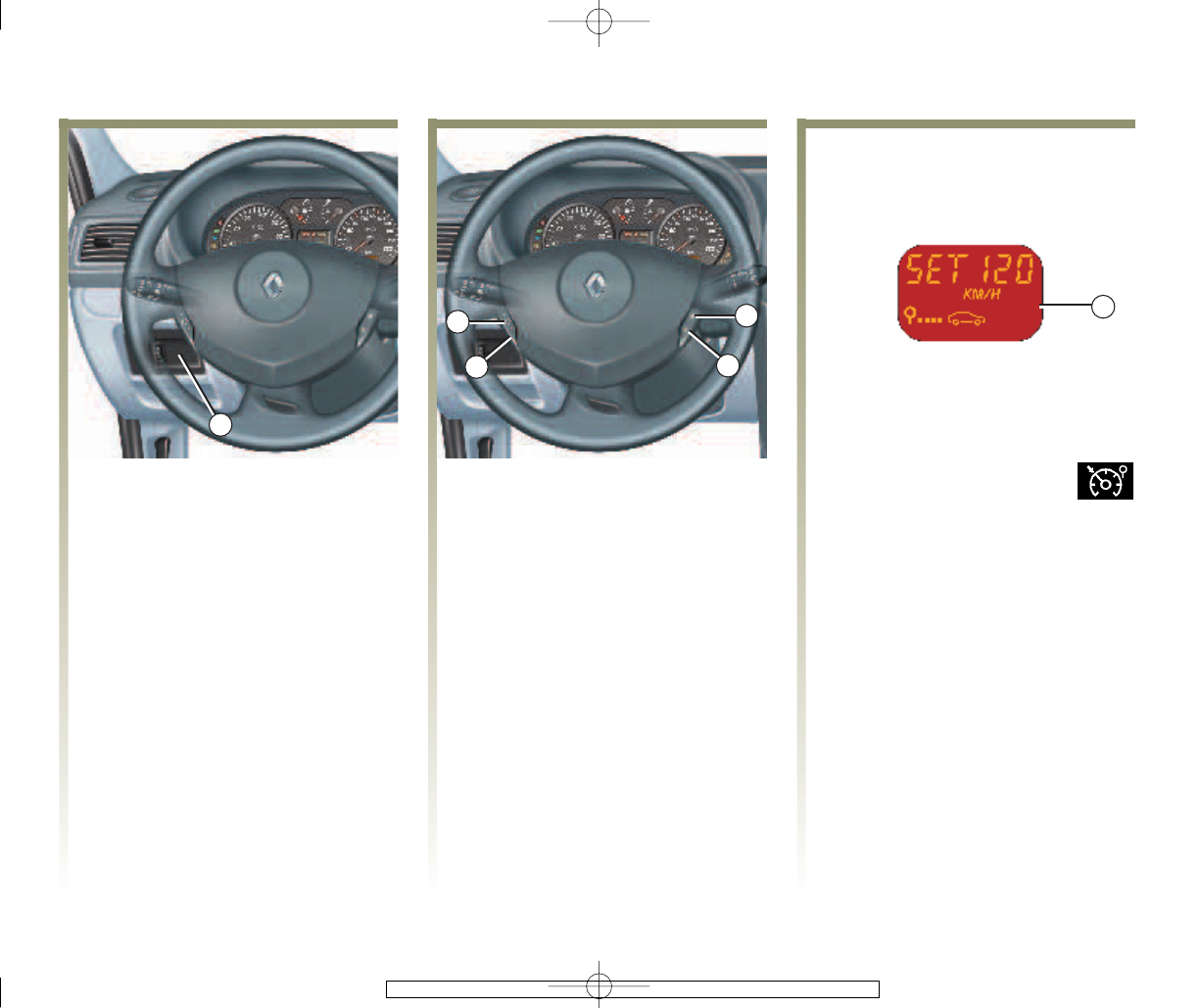

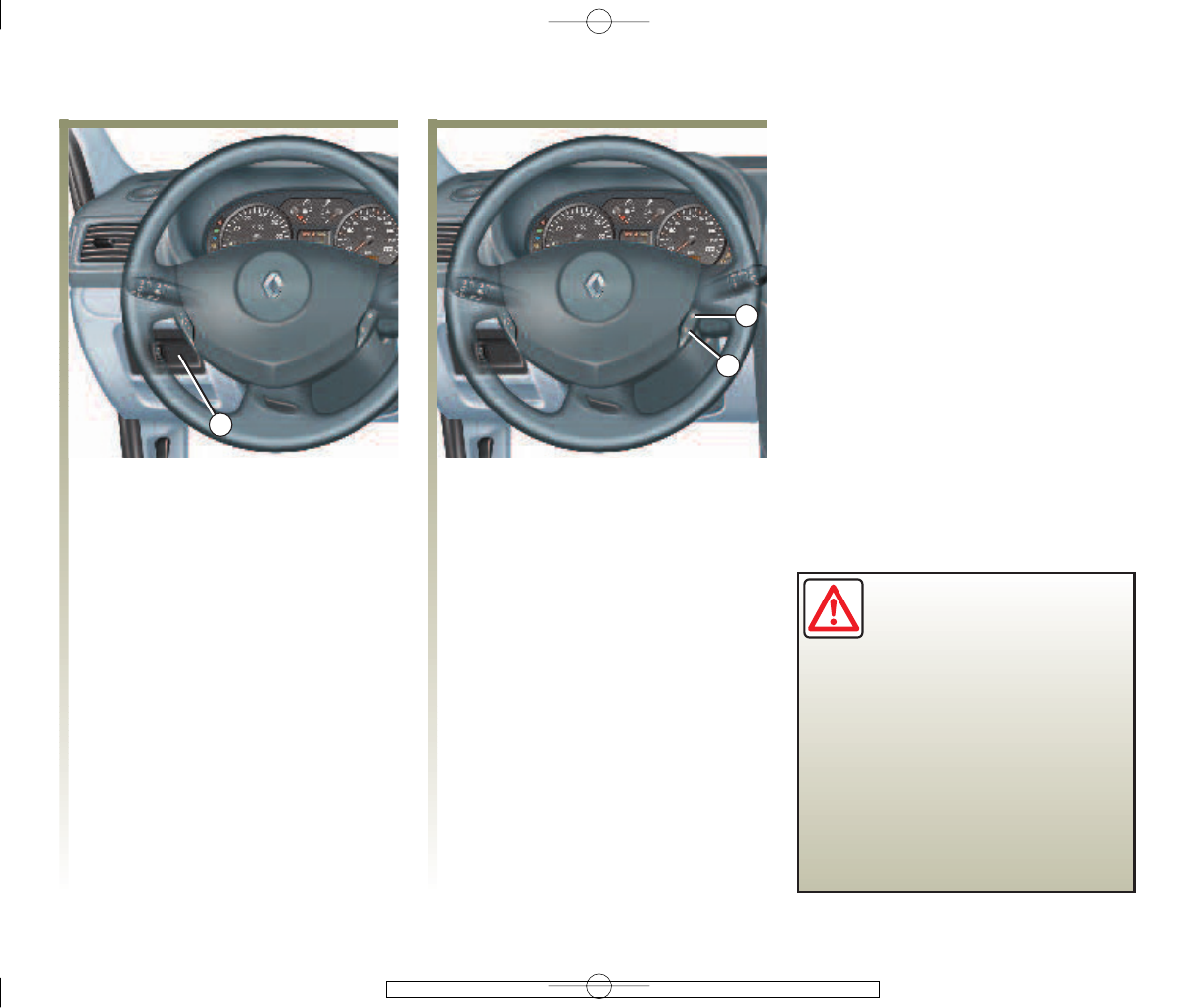

CRUISE CONTROL - SPEED LIMITER: cruising function
When road conditions permit (fluid
or motorway traffic), the cruise
control allows you to take your foot
off the accelerator while your car
continues to cruise at the speed you
have selected. This is called the
“cruising speed”.
This cruising speed may be set at
any speed at speeds of 20 mph
(30 km/h) and above.
Controls
1Main On/Off switch
2Cruising speed storage switch and
adjustment of limited speed
(increasing)
3Return to stored cruising speed
4Switching the function off (with
stored cruising speed)
5Cruising speed storage switch and
adjustment of limited speed
(decreasing)
Indicator light
This green indicator light lights up
on the instrument panel to indicate
that the cruising function is in
operation.
Stored speed information appears
on instrument panel display 6
permanently or for approximately
30 seconds, depending on vehicle
type.
1
2
5
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page25
2.25
CRUISE CONTROL - SPEED LIMITER: cruising function (continued)
Switching on
Press side switch 1
The indicator light lights up in the
instrument panel and the on-board
computer enters cruise control
mode.
Activating cruise control
At a stable speed (approximately
20mphor30km/h)andinthe
correct gear (for vehicles with
manual gearboxes), press switch 2:
the speed is stored.
Driving
When a cruise control speed is
stored you can lift your foot off the
accelerator pedal.
Changing the cruise control
speed
The cruise control speed may be
changed by acting (pressing
repeatedly or continuously) on:
- button 2to increase speed,
- button 5to reduce speed.
If the car has the temporary display
function, the limited speed is
displayed for approximately
30 seconds.
Exceeding the cruise control
speed
In the event of an emergency
Thecruisingspeedmaybe
exceeded at any time by pressing
the accelerator pedal.
The speed flashes on the instrument
panel (on-board computer) to
inform you that the cruise control
speed is being exceeded.
When the emergency has passed,
release the accelerator pedal: your
vehicle will automatically return to
the speed previously selected and
the indicator light will go out.
Impossible to operate at the speed
selected
If the adjusted speed cannot be
maintained by the system (for
example in the event of a steep
incline), the speed will flash on the
instrument panel (on-board
computer).
1
3
4
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page26
2.26
CRUISE CONTROL - SPEED LIMITER: cruising function (continued)
Switching the function off
The function is switched off when
you:
- press the brake pedal,
- press the clutch pedal to shift to
neutral for vehicles with
automatic gearbox,
- press button 4; in this case the
selected speed remains stored,
- press button 1; in this case the
selected speed is no longer stored.
Confirmation that the function has
been switched off is given when the
indicator light on the instrument
panel goes out.
Return to cruising speed
A stored speed can be recalled by
pressing button 3if you are driving
at a speed of approximately 20 mph
(30 km/h).
If the car has the temporary display
function, the limited speed is
displayed for approximately 30
seconds.
This function is an
additional aid to driving.
However, the function does
not take the place of the
driver. Under no circumstances
should it replace observation of
speed limits nor vigilance and
responsibility on the part of the
driver.
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page27
2.27
ELECTRONIC STABILITY PROGRAM: ESP
This system helps you to keep
control of the vehicle in “critical”
driving conditions (avoiding an
obstacle, loss of grip in a bend...).
This function is an
additional aid in the
event of critical driving
conditions to allow the
behaviour of the vehicle to be
adapted to the driving
conditions.
However, the function does not
take the place of the driver. It
does not increase the vehicle's
limitations and should not
encourage you to drive more
quickly.
It can, thus, under no
circumstances replace the
vigilance or responsibility of the
driver when manoeuvring the
vehicle (the driver must always
be aware of sudden incidents
which may occur when driving).
Operating principle
A sensor in the steering wheel
detects the path selected by the
driver.
Other sensors throughout the
vehicle measure the actual path.
The system compares the path
selected by the driver and the actual
vehicle path and corrects this as
necessary by applying the brakes
selectively and/or acting on the
engine power.
When the function is in operation,
message 1lights up to confirm this.
2
1
3
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page28
2.28
ELECTRONIC STABILITY PROGRAM: ESP (continued)
Disabling the function
The function is deactivated by
pressing switch 2, warning light 1
will light up to confirm this.
This action also deactivates traction
control: see the information on the
traction control system in section 2.
As the ESP offers additional safety,
it is recommended that you do not
drive when the function is disabled.
Correct this as soon as possible by
pressing button 2again.
Note: ESP is automatically
reactivated when the ignition is
switched on.
Faults
When the system detects an
operating fault, warning lights 1
and 3light up.
Consult your Renault Dealer.
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page29
2.29
TRACTION CONTROL SYSTEM
This system helps to limit skidding
on drive wheels and to control the
vehicle when pulling away or
accelerating.
This function is an
additional aid in the
event of critical driving
conditions to allow the
behaviour of the vehicle to be
adapted to the driving
conditions.
However, the function does not
take the place of the driver. It
does not increase the vehicle's
limitations and should not
encourage you to drive more
quickly.
It can, thus, under no
circumstances replace the
vigilance or responsibility of the
driver when manoeuvring the
vehicle (the driver must always
be aware of sudden incidents
which may occur when driving).
Operating principle
The system uses sensors in the
wheels to constantly measure and
compare the speed of the drive
wheels and prevents them spinning.
If a wheel is tending to skid, the
system brakes automatically until
the drive delivered becomes
compatible with the level of grip.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the action
exerted on the accelerator pedal.
When the function is in operation,
message 1lights up to confirm this.
2
1
3
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T2.WIN 30/10/2002 12:06 -page30
2.30
TRACTION CONTROL SYSTEM (continued)
Disabling the function
In some situations (driving on very
wet ground: snow, mud,... or
driving with chained wheels), the
system may reduce the engine
power to limit skidding. It is
possible to deactivate the function
by pressing switch 2if this is not
desirable.
Warning light 1lights up.
Disabling the traction control
function also deactivates the ESP
function: refer to the information on
the ESP in section 2.
Correct this as soon as possible by
pressing switch 2again.
Note: traction control is
automatically reactivated when the
ignition is switched on.
Operating faults
When the system detects an
operating fault, warning lights 1
and 3light up.
Consult your Renault Dealer.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page1
3.01
Section 3: Your comfort
Air vents ................................................................................................................................................. 3.02 - 3.03
Heating and air conditioning .............................................................................................................. 3.04 ¬3.22
Interior lights .......................................................................................................................................... 3.23 - 3.24
Electric windows .............................................................................................................................................. 3.25
Sun visor/Vanity mirrors/Windscreen ............................................................................................................ 3.26
Sunroof ................................................................................................................................................. 3.27 ¬3.29
Storage compartments ........................................................................................................................... 3.30 - 3.31
Ashtrays - Cigarette lighters ............................................................................................................................ 3.32
Rear bench seat ................................................................................................................................................. 3.33
Luggage compartment ............................................................................................................................ 3.34 - 3.35
Rear window shelf - separating grille ......................................................................................................... 3.36
Transporting items in the luggage compartment ....................................................................................... 3.37
12 3 4 5 6 7
88
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 - page 2
3.02

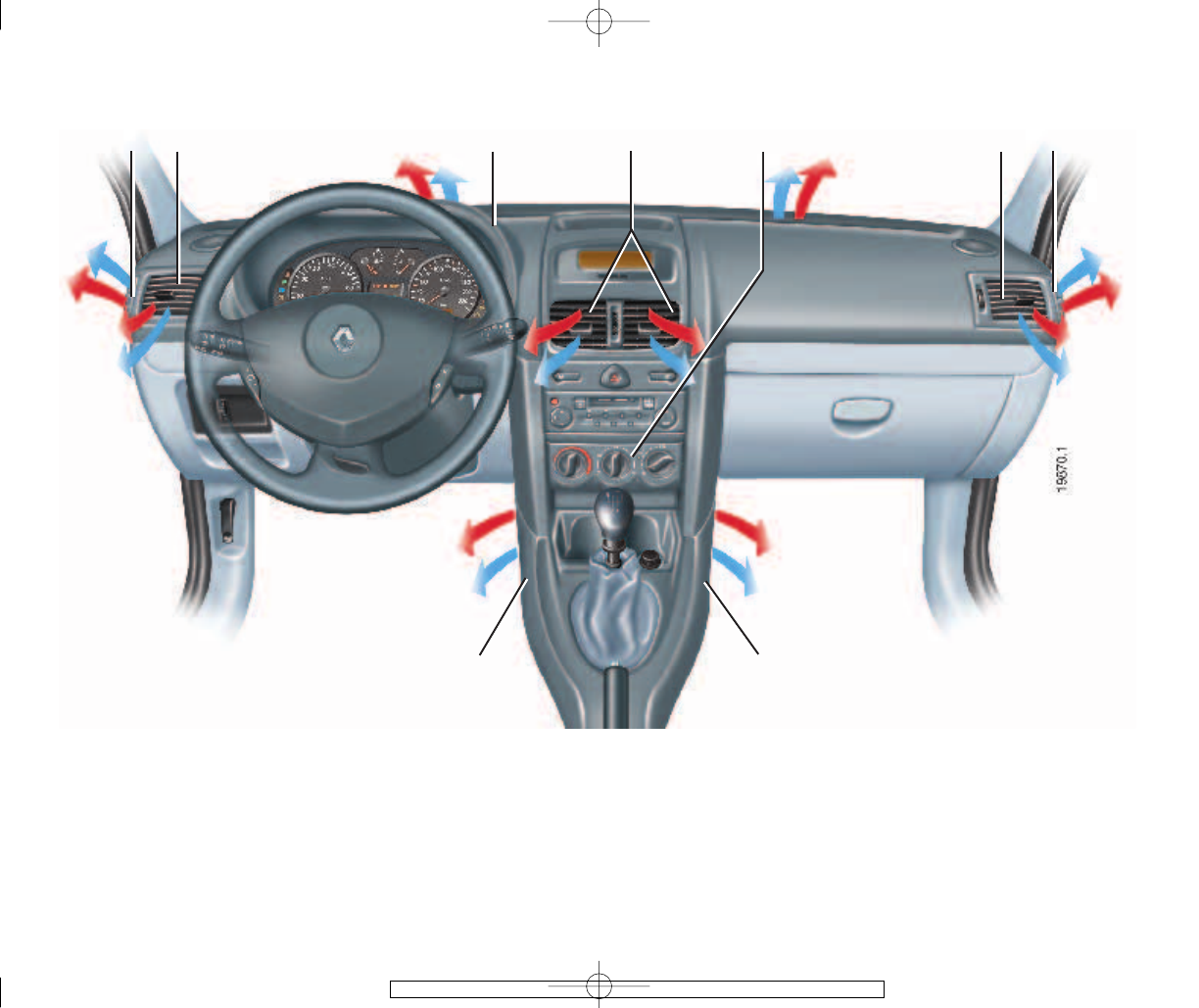

AIR VENTS (air outlets)
1- left hand side window demister
2- left hand side air vent
3- windscreen demisting vents
4- centre air vents
5- control panel
6- right hand side air vent
7- right hand side window demister
8- heater outlets for front and rear
footwells
12
4
3 3
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 - page 3
3.03

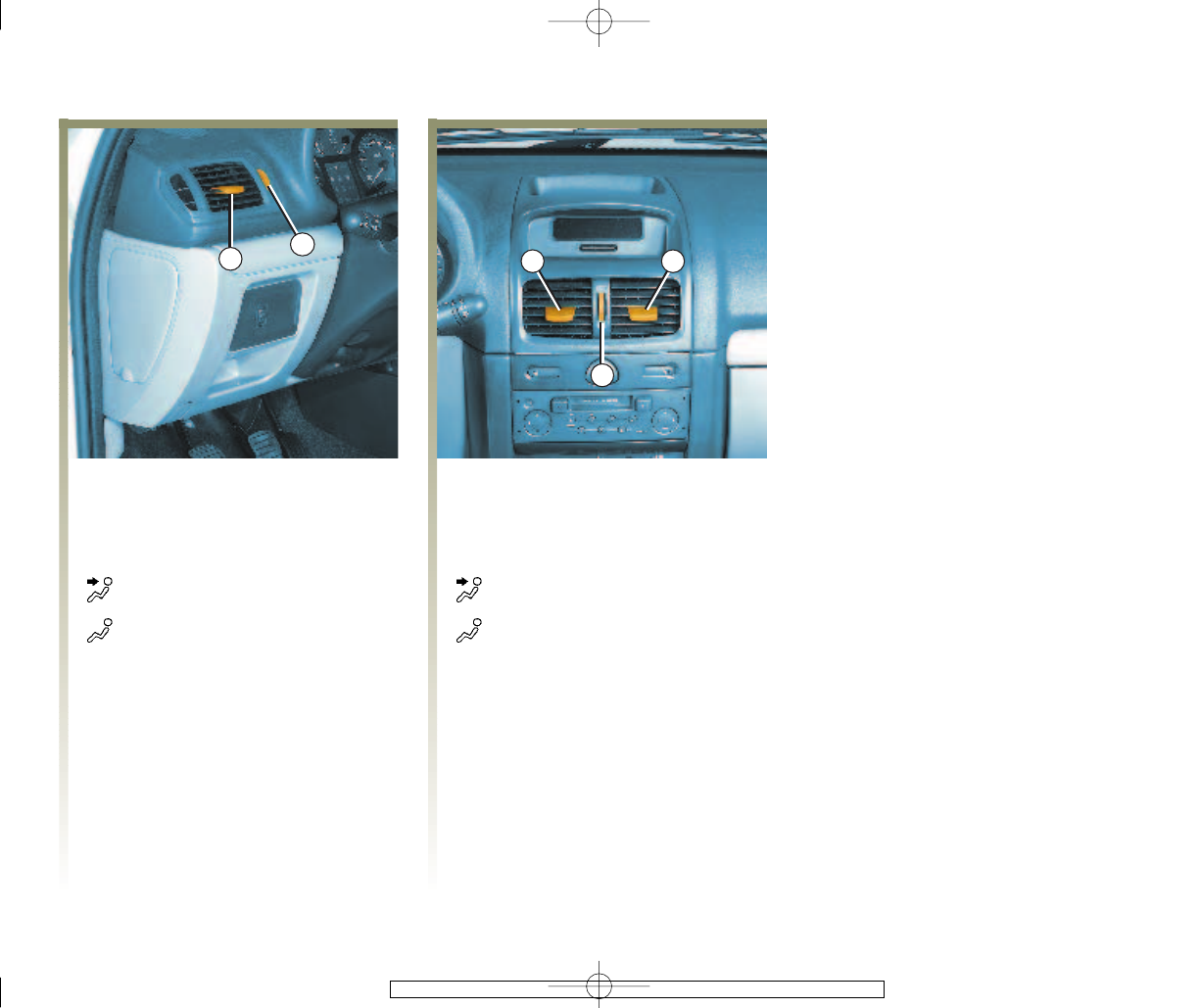

AIR VENTS (continued)
Side air vents
Flow:
Move wheel 2(beyond the point
where a certain resistance is felt).
: fully open.
: closed.
Direction:
Right / left: move tab 1.
Up / down: press on the top or
bottom of the air vent
Centre air vent
Flow:
Move wheel 4(beyond the point
where a certain resistance is felt).
: fully open.
: closed.
Direction:
Right / left: move tabs 3.
Up / down: press on the top or
bottom of the air vent
A B C
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 - page 4
3.04
HEATING - VENTILATION
Controls
AAir temperature adjustment.
BDistribution of air.
CAdjusting air volume output.
Adjusting the air temperature
Move control A.
The further the control is positioned
to the right, the higher the
temperature.
Distribution of air in the
passenger compartment
Move control B.
•Position
The air flow is directed to the
dashboard air vents only.
This selection is not appropriate if
all the air vents are closed.
•Position
The air flow is directed to the
dashboard air vents and the
footwells.
•Position
The air flow is directed to the
footwells.
•Position
The air flow is distributed between
all the air vents, the side window
demisters, the windscreen
demisters and the footwells.
B C
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 - page 5
3.05

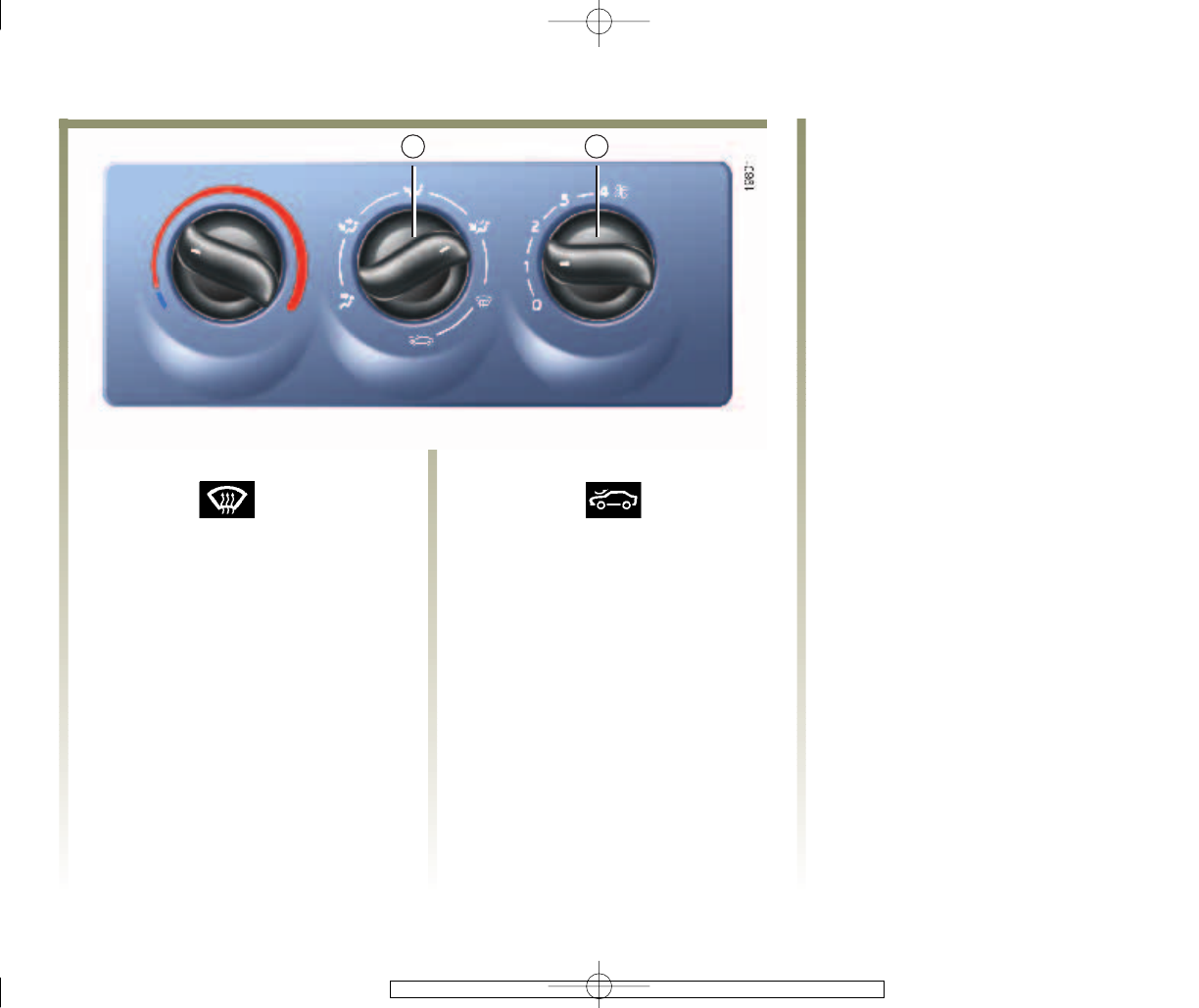

HEATING - VENTILATION (continued)
• Position
For improved efficiency, close the
dashboard air vents.
All the air flow is directed to the
windscreen demisters and the side
window demisters.
•Position (Isolation
position)
This position prevents any air from
entering (regardless of the position
of control C). This allows the
passenger compartment to be
isolated from the external
environment (driving through
polluted areas, etc.).
Prolonged use of the ISOLATION
position may cause the windows to
mist up.
We recommend that another
position is selected as soon as the
polluted area is left behind.
Adjusting the amount of air
supplied to the passenger
compartment
Move control Cfrom 0to 4.
Passenger compartment ventilation
is by blown air. The blower
determines how much air enters but
car speed has some effect on this.
The further the control is positioned
to the right, the greater the volume
of air blown into the passenger
compartment.
A B C D E
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 - page 6
3.06

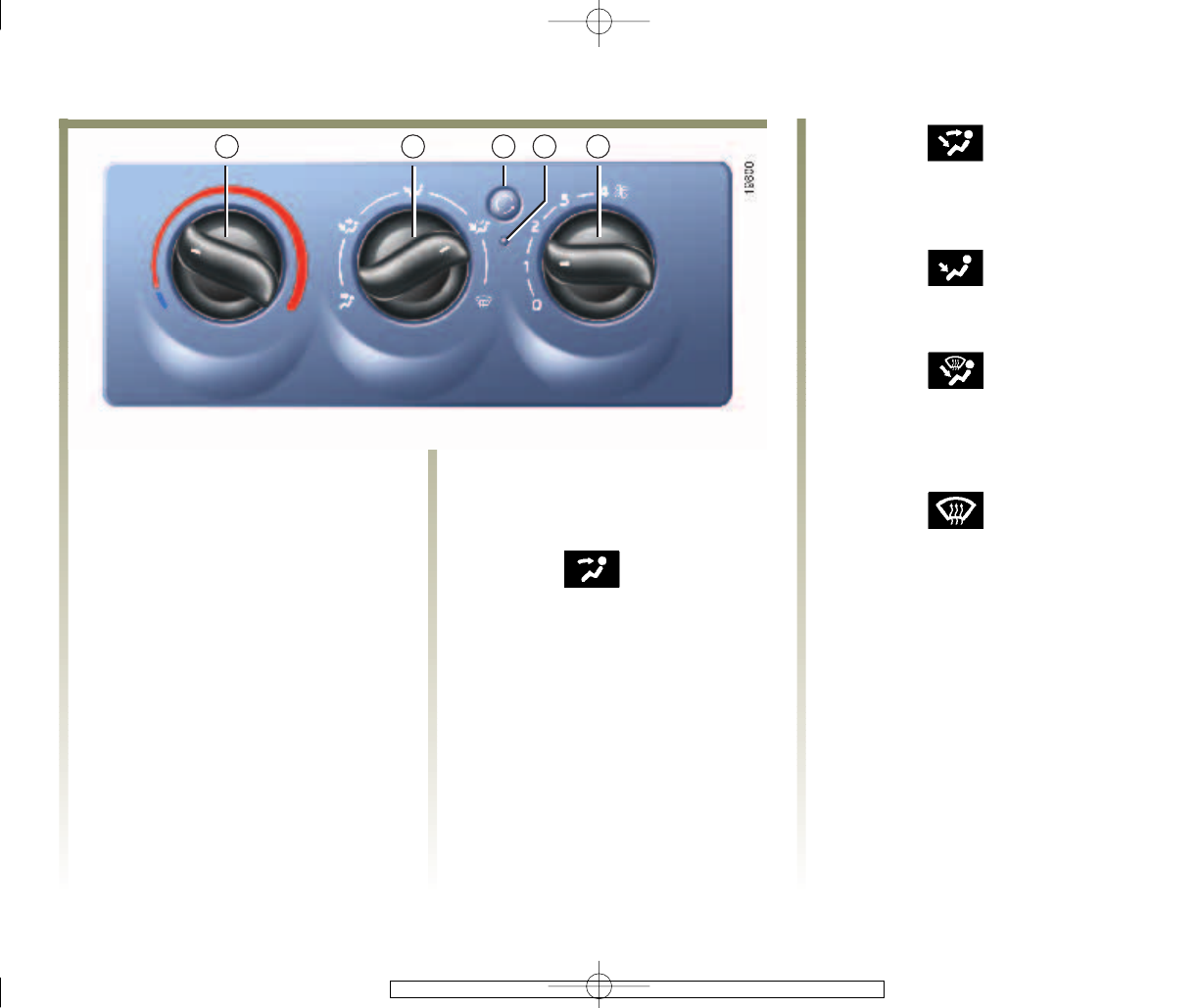

HEATING - VENTILATION AND ISOLATING THE PASSENGER COMPARTMENT
Controls
AAir temperature adjustment.
BDistribution of air.
CIsolation of the passenger
compartment (air recirculation).
DAir recirculation operation
indicator light.
EAdjusting air volume output.
Distribution of air in the
passenger compartment
Move control B.
•Position
The air flow is directed to the
dashboard air vents only.
This selection is not appropriate if
all the air vents are closed.
•Position
The air flow is directed to the
dashboard air vents and the
footwells.
•Position
The air flow is directed to the
footwells.
•Position
The air flow is distributed between
all the air vents, the side window
demisters, the windscreen
demisters and the footwells.
•Position
For improved efficiency, close the
dashboard air vents.
All the air flow is directed to the
windscreen demisters and the side
window demisters.
A E
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 - page 7
3.07
HEATING - VENTILATION AND ISOLATING THE PASSENGER COMPARTMENT
(continued)
Adjusting the air temperature
Move control A.
The further the control is positioned
to the right, the higher the temperature.
Adjusting the amount of air
supplied to the passenger
compartment
Move control Efrom 0to 4.
Passenger compartment ventilation
is by “blown air”. The ventilation
fan determines how much air enters
but vehicle speed has a slight effect
on this.
The further the control is positioned
to the right, the more air is blown
into the passenger compartment.
C D
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 - page 8
3.08

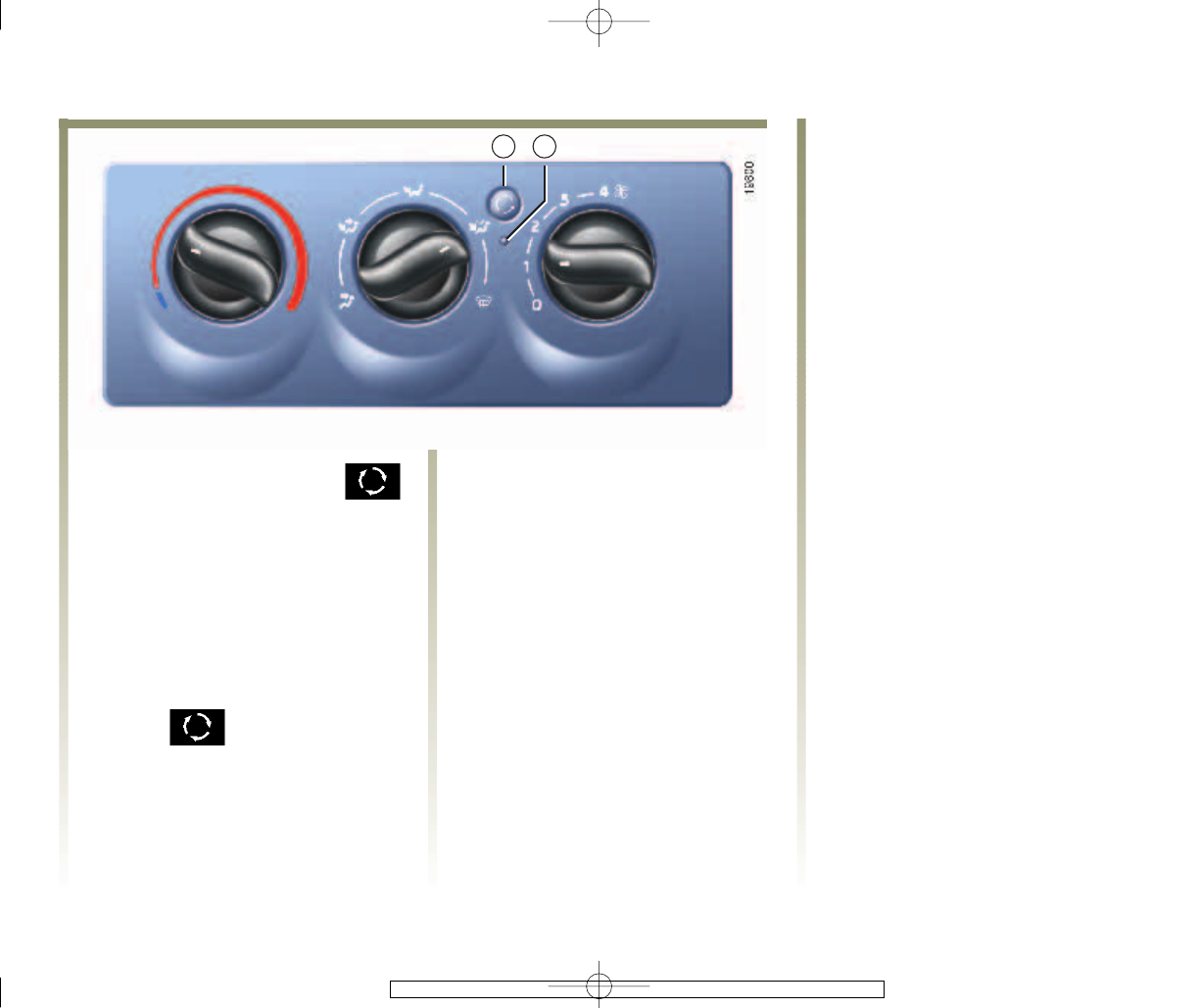

HEATING - VENTILATION AND ISOLATING THE PASSENGER COMPARTMENT
(continued)
Isolating the passenger
compartment
Button C
Normal operation of the system is
obtained using external air.
The air recirculation position allows
the passenger compartment to be
isolated from the external atmosphere
(driving in polluted areas...).
To enter the isolation mode, press
button C.
This function allows the desired
warmth of the passenger
compartment to be achieved as
quickly as possible.
This button switches the air
recirculation system on or off.
Warning light Dcomes on when the
function is operational. In this
position, air is taken from within the
passenger compartment and is
recycled without outside air entering.
Prolonged use of the isolation mode
may cause odours due to the air not
being renewed and may cause the
windows to mist up.
Return to normal operation (external
air) by pressing button Cas soon as
the polluted area is left behind.
A D E F GB C
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 - page 9
3.09

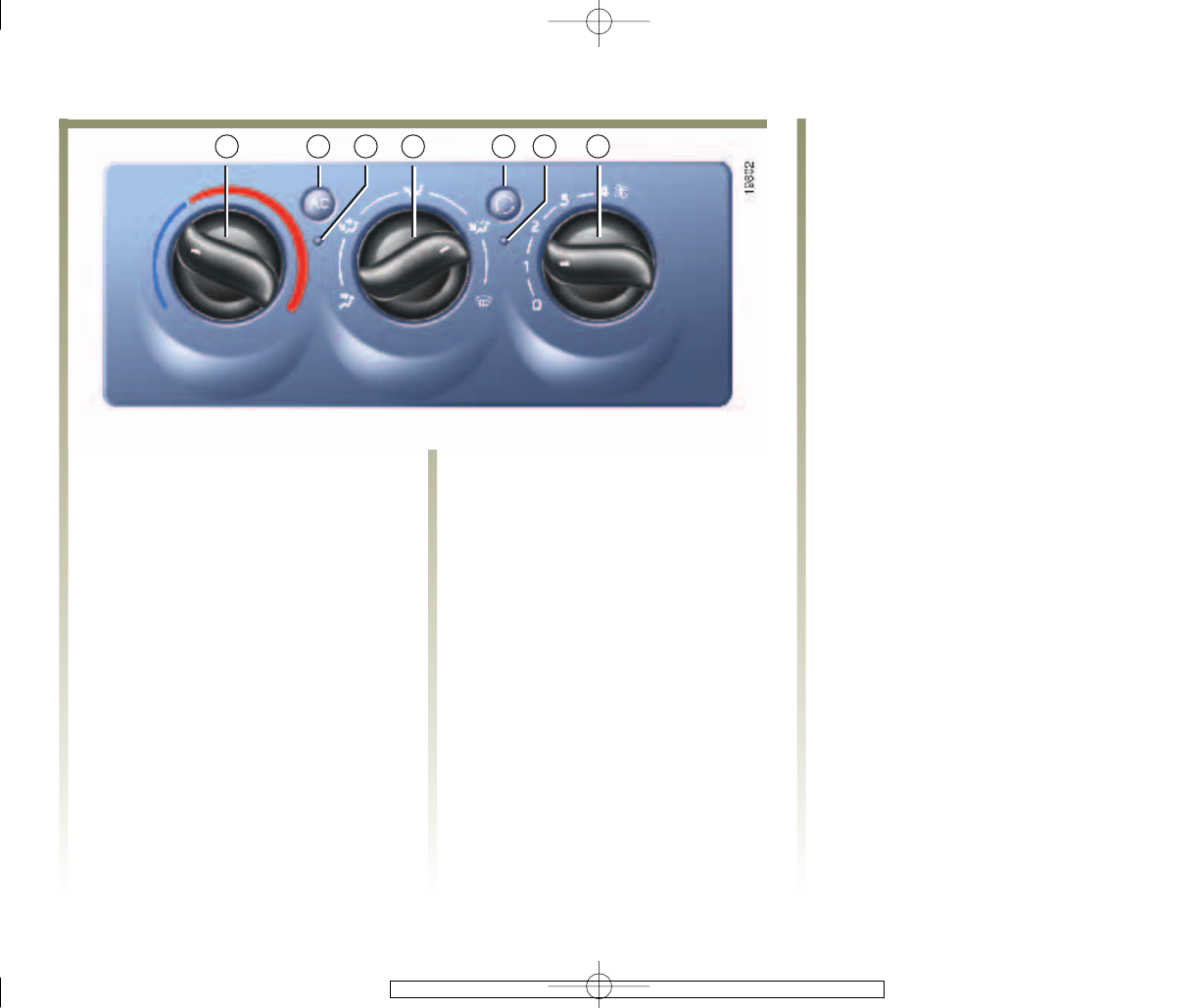

AIR CONDITIONING
Controls
AAir temperature adjustment.
BOperating the air conditioning.
CAir conditioning operation
indicator light.
DAir distribution control.
EIsolation of the passenger
compartment (air recirculation).
FAir recirculation operation
indicator light.
GAdjusting air volume output.
Adjusting the air temperature
Move control A.
To the right: maximum temperature
possible
To the left: minimum temperature
possible.
Adjusting the amount of air
supplied to the passenger
compartment
Move control Gfrom 0to 4.
Passenger compartment ventilation
is by “blown air”. The ventilation
fan determines how much air enters
but vehicle speed has a slight effect
on this.
The further the control is positioned
to the right, the more air is blown
into the passenger compartment.
D
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page10
3.10

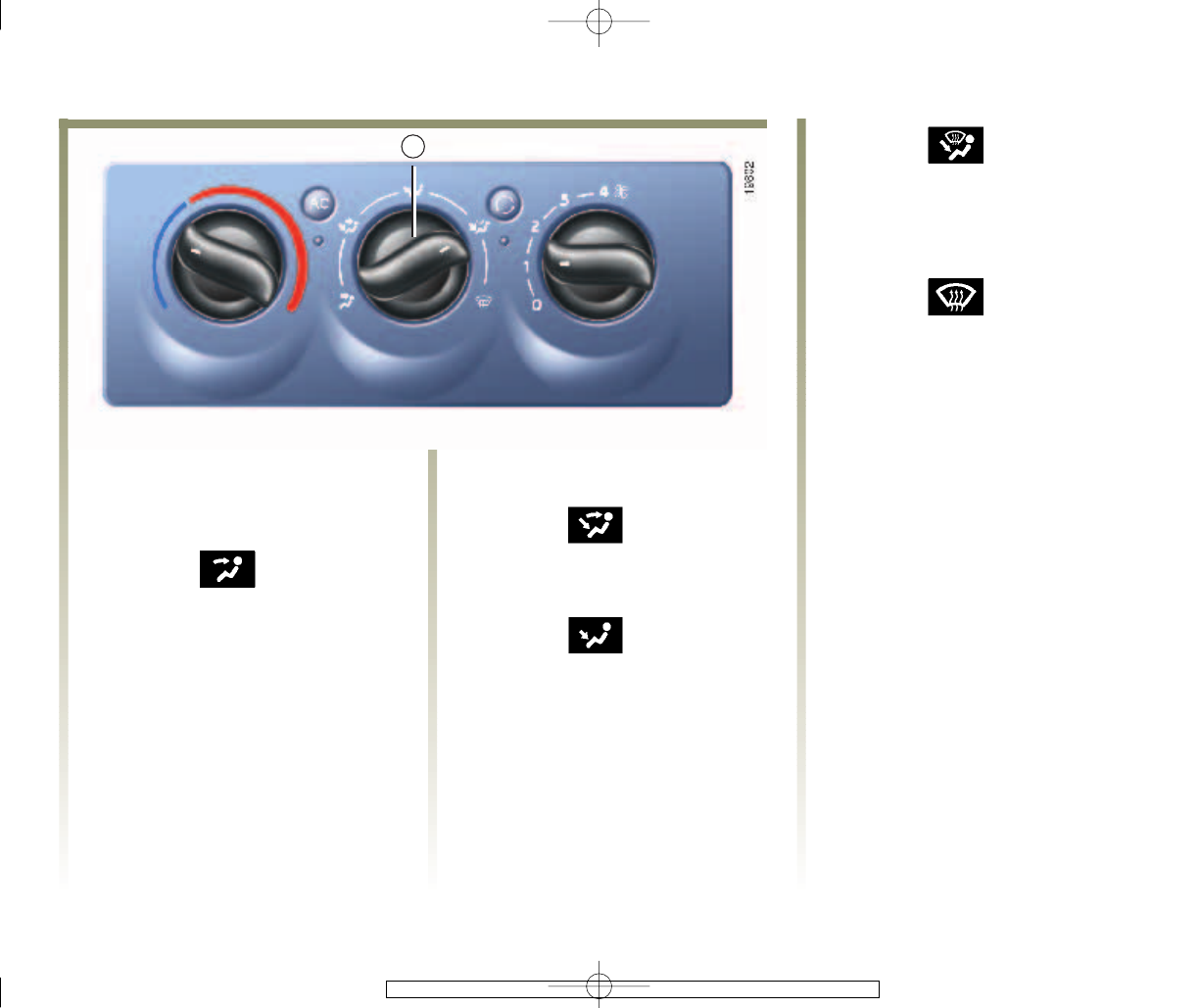

AIR CONDITIONING (continued)
Distribution of air in the
passenger compartment
Move control D.
• Position
The air flow is directed to the
dashboard air vents only.
This selection is not appropriate if
all the air vents are closed.
• Position
The air flow is directed to the
dashboard air vents and the footwells.
• Position
The air flow is directed to the
footwells.
• Position
The air flow is distributed between
all the air vents, the side window
demisters, the windscreen demisters
and the footwells.
• Position
For improved efficiency, close the
dashboard air vents.
All the air flow is directed to the
windscreen demisters and the side
window demisters.
In this position, simultaneous
operation of the air conditioning
system could make demisting more
efficient.
E F
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page11
3.11
AIR CONDITIONING (continued)
Isolating the passenger
compartment
Button E
Normal operation of the system is
obtained using external air.
The air recirculation position
allows the passenger compartment
to be isolated from the external
atmosphere (driving in polluted
areas, etc.).
To enter the isolation mode, press
button E.
This function allows the desired
warmth of the passenger
compartment to be achieved as
quickly as possible.
This button switches the air
recirculation system on or off.
Warning light Fcomesonwhenthe
function is operational. In this
position, air is taken from within
the passenger compartment and is
recycled without outside air
entering.
Prolonged use of the isolation mode
may cause odours due to the air not
being renewed and may cause the
windows to mist up.
Return to normal operation
(external air) by pressing button D
assoonasthepollutedareaisleft
behind.
GB C
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page12
3.12

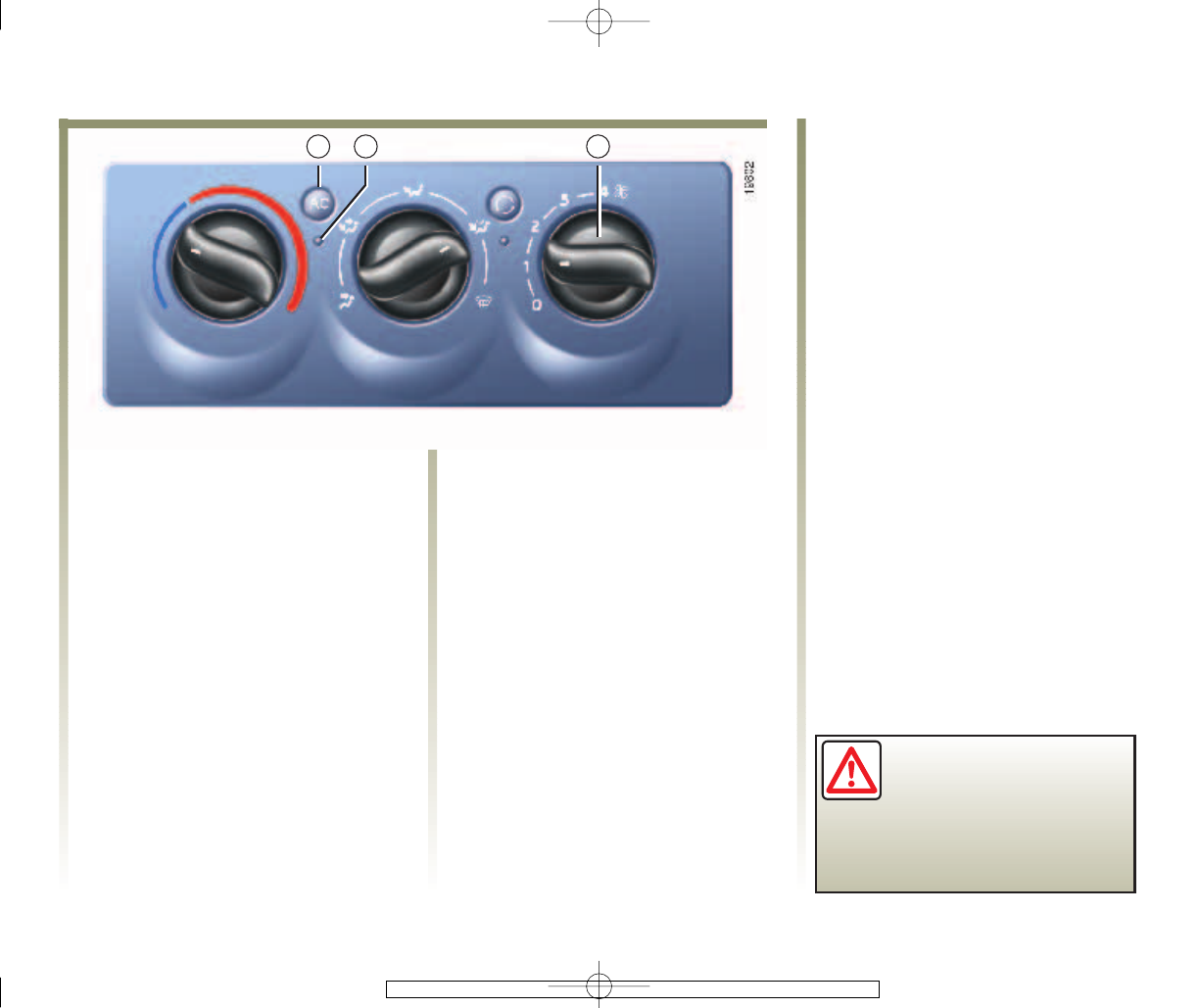

AIR CONDITIONING (continued)
Air conditioning controls
Control Boperates or stops
the air conditioning system.
The air conditioning will not operate
if control Gis positioned on 0.
Using the air conditioning system:
• lowers the internal passenger
compartment temperature,
especially in hot weather, when
driving in traffic or when the
vehicle has been parked in the
sun;
• reduces the humidity of the air
blown inside the passenger
compartment (prevents misting).
Fuel consumption increases when
the air conditioning system is being
used. (Switch it off when it is not
required.)
Note: the air conditioning may be
used in all conditions, but does not
operate when the external
temperature is low.
•Button Bnot activated (warning
light Coff)
The air conditioning is not
operational.
Heating and ventilation are
therefore identical to that of a
vehicle without air conditioning.
•Button Bactivated (warning light
Con)
The air conditioning is operating.
Air is taken from outside the
vehicle and is constantly
renewed.
GB C
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page13
3.13
AIR CONDITIONING (continued)
In very hot weather, or when the
vehicle has been parked in the sun,
openthedoorsforafewmomentsto
allow the hot air to escape before
starting off.
To lower the temperature of the
passenger compartment as quickly
as possible to the required level, use
the “Isolation of the passenger
compartment” function. Once the
required comfort level has been
reached, turn the recirculation
function off.
When the air conditioning is
operating, all the windows must be
closed to give the best efficiency.
If there is an operating fault, contact
your Renault Dealer.
No cool air
Check that the controls are correctly
positioned and that the fuses are in
good condition. If not, stop the air
conditioning system (warning
light Cgoes out) and call for the
assistance of a Renault Dealer.
Do not open the refrigerant
circuit. The fluid is
dangerous to the eyes and
skin.
1 2 345
13 12 11 10 9 8 7 6
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page14
3.14

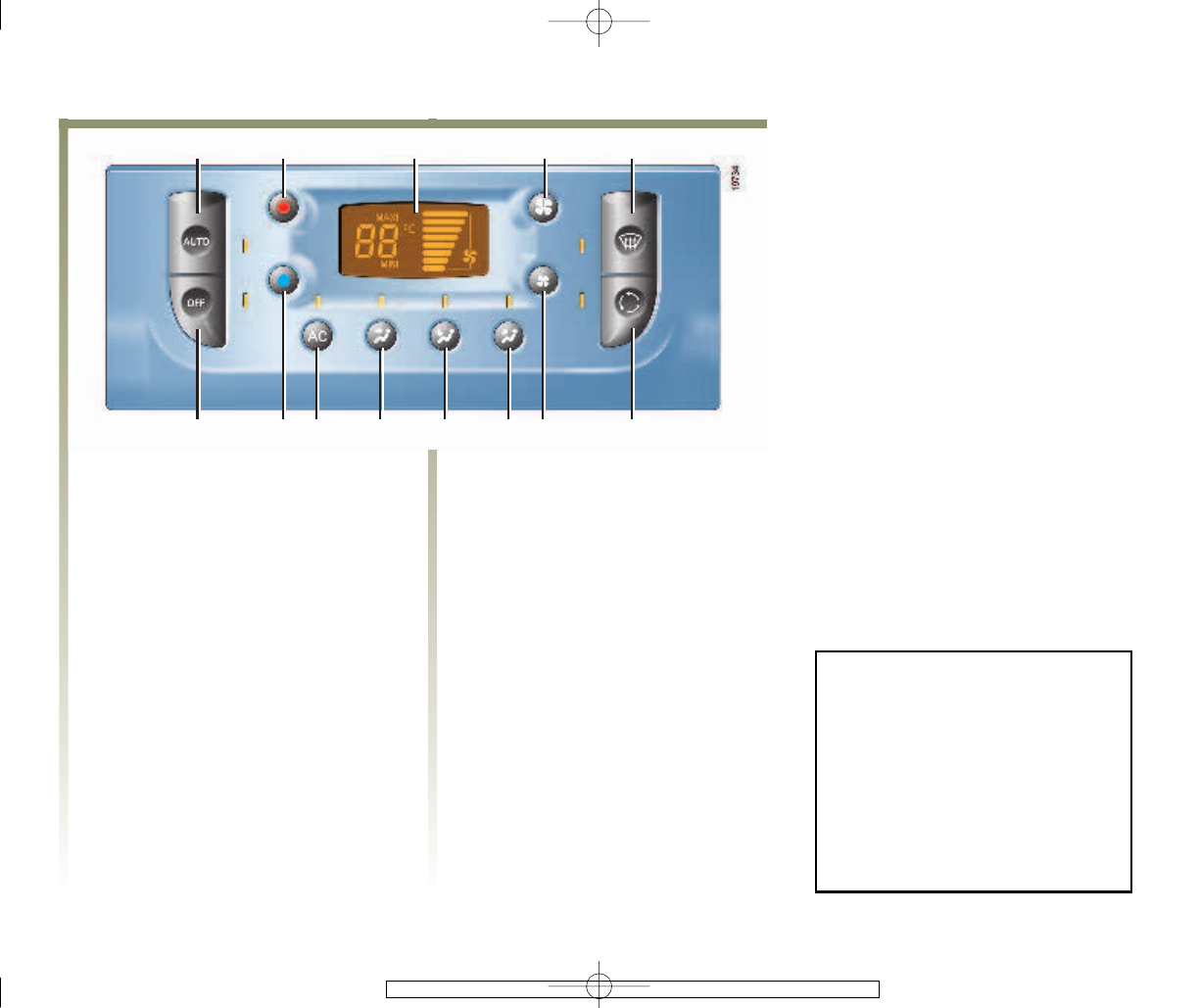

AUTOMATIC AIR CONDITIONING
Controls
1- automatic mode button
2and 12 - air temperature
adjustment buttons
3-display
4and 7- ventilation speed
adjustment buttons
5- automatic windscreen
demister-de-icer button
6- air recirculation button
8to 10 - air distribution buttons
11 - air conditioning button
13 - unit off button
All buttons except 2,4,7,and12
have associated indicator lights
which light up when the function
is being used and go out when the
function is not in use.
1 2
12
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page15
3.15
AUTOMATIC AIR CONDITIONING (continued)
OAir conditioning (automatic
mode)
Automatic air conditioning is a
system which will ensure that
the temperature in the passenger
compartment is maintained at a
comfortable level (except in
extreme conditions of use).
This system is equipped with a
comfort level selector to provide
in-car comfort whatever the
weather.
Operation of the automatic mode
•Press button 1; the indicator light
comes on.
• Choose a comfort level between
16 and 26°C by pressing buttons
2and 12.
MAXI position: maximum air
temperature,
MINI position: minimum air
temperature.
3
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page16
3.16

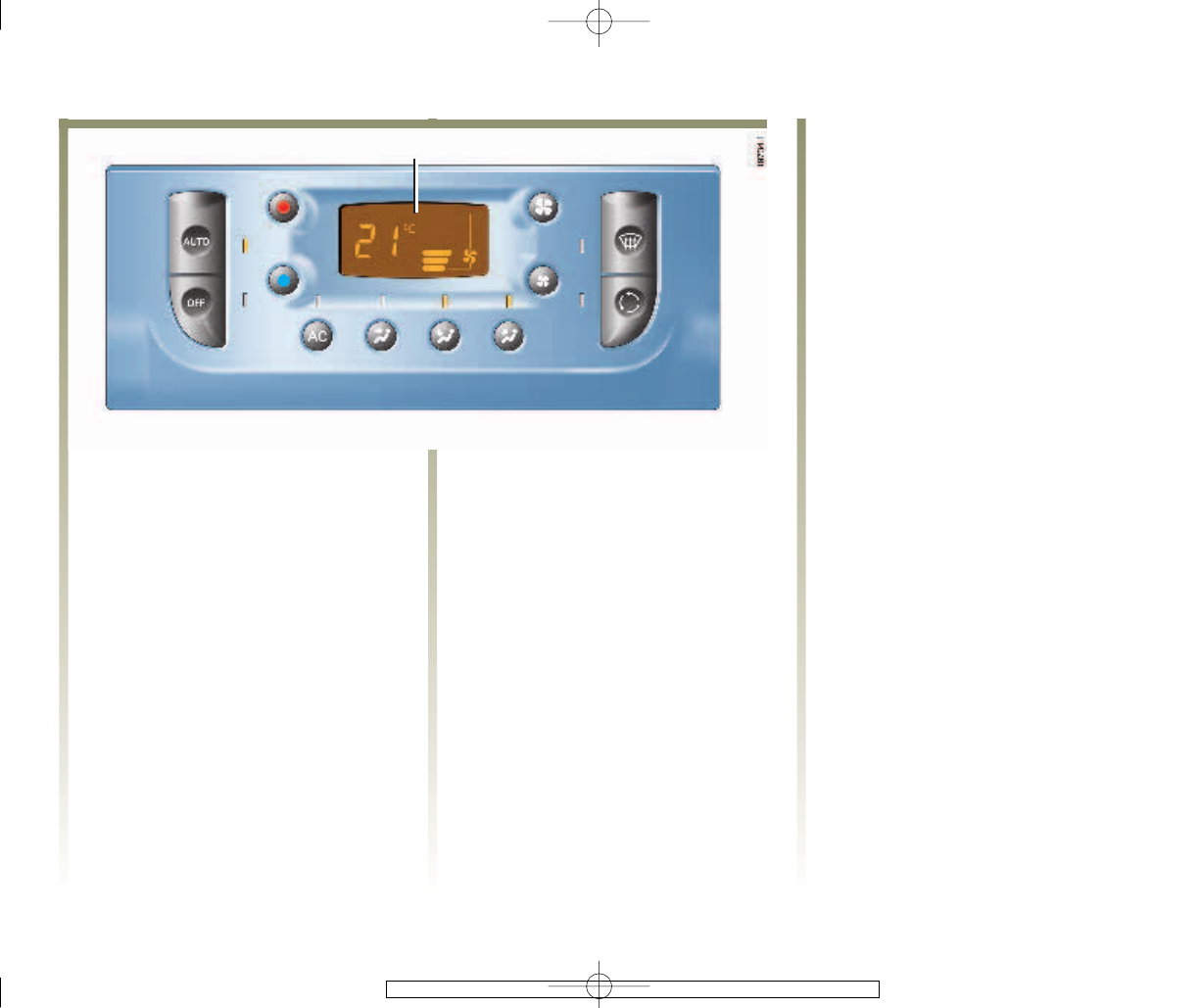

AUTOMATIC AIR CONDITIONING (continued)
Operation of the automatic mode
(continued)
To reach and maintain the selected
comfort level, the system acts upon:
-blowerspeed,
- air distribution,
- air recirculation management,
- air conditioning (on or off).
The indicator lights let you know
what the system has selected.
The value on the display 3indicates
the comfort level.
When the vehicle is started in cold
or hot weather, increasing or
decreasing the values displayed
does not mean that the comfort level
is reached more quickly (the system
optimises the temperature increase
or decrease whatever the air
temperature indicated).
For optimum operation, we
recommend that you leave the air
vents open in all weathers.
51
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page17
3.17
AUTOMATIC AIR CONDITIONING (continued)
OVisibility (automatic de-icing
- demisting)
Press button 5to operate
windscreen de-icing/demisting
by ventilation.
The indicator light comes on.
The AUTO indicator light goes
out.
This system quickly demists and
de-ices the windscreen and the
front side windows. To improve
efficiency, the air conditioning is
automatically switched on at the
same time (indicator light comes
on).
The best possible flow of air is then
directed towards the windscreen
and front window air outlets.
Press button 1to return to automatic
mode. Press button 5again to
switch off automatic windscreen
demisting/de-icing mode.
You may wish to switch on the
airconditioningoncemoreif
there are high levels of humidity.
In this case, the air conditioning
will operate permanently,
whatever mode is selected
afterwards.
1
10 9 8
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page18
3.18
AUTOMATIC AIR CONDITIONING (continued)
Personalised operation
OSelecting air distribution
The system normally operates in
automatic mode but you can
alter the standard settings used
by the system (quantity of air,
etc.).
Automatic mode is switched off by
pressing one of the following
buttons.
The indicator light on button 1will
go out.
Button 8
The air flow is directed to the
demisting vents (for the windscreen
and the side windows).
Button 9
The air is only directed to the feet of
the front and rear passengers.
Button 10
The air flows mainly to the
dashboard air vents.
In personalised operation mode,
you may choose no more than
two air distribution selections at
once (N.B.: buttons 8and 10
cannot be selected together).
If you alter the automatic
selection, the AUTO key 1
indicator light goes out, but only
the function changed is no
longer controlled by the
automatic system.
To return to automatic mode,
press the AUTO button.
145
11 7 6
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page19

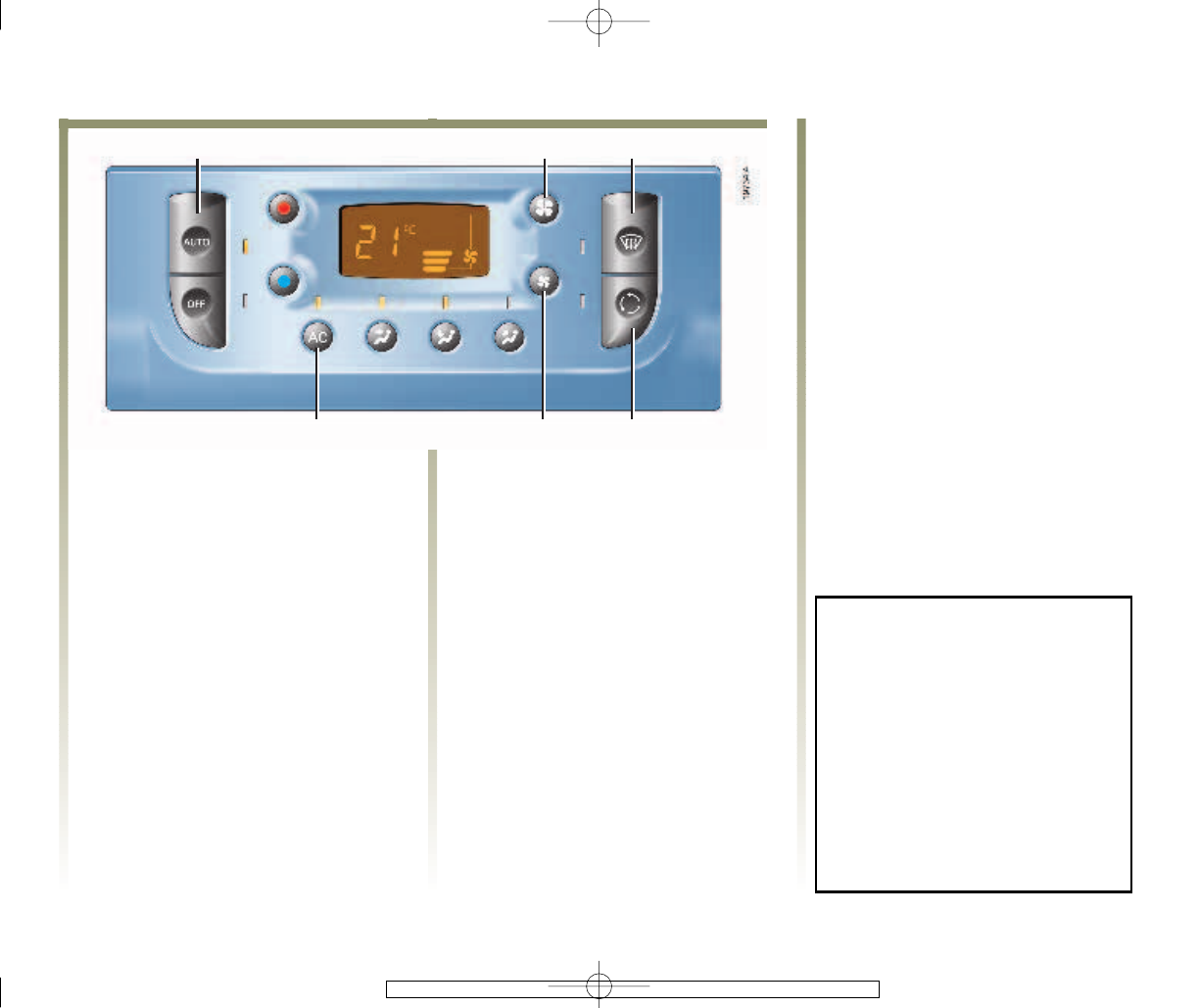

3.19
AUTOMATIC AIR CONDITIONING (continued)
OSwitching the air
conditioning on and off
In automatic mode, the system
switches the air conditioning
system on or off, depending on
external weather conditions.
The automatic mode is switched
off by pressing button 11;the
indicator light in button 1will go
out.
Button 11 allows you to switch the
air conditioning system on or off.
N.B.: switching on the
demisting/de-icing function
(buttons 5and 6) automatically
switches on the air conditioning.
OAltering blower speed
In automatic mode, the system
uses the most suitable amount of
air to reach and maintain the
desired temperature.
Press button 4or 7to switch off
automatic mode.
The indicator light on button 1
will go out.
These buttons increase or
decrease the amount of air blown
into the passenger compartment.
In cold weather, the automatic
air conditioning system will not
start immediately at maximum
power but will increase
gradually until the engine
temperature is warm enough to
heat the passenger compartment
air. This may take between 30
seconds and several minutes.
6
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page20
3.20
AUTOMATIC AIR CONDITIONING (continued)
OUsing recirculated air
Press button 6;the
indicator light will come on.
In this position the air is taken
from inside the passenger
compartment and is recirculated
without admitting external air.
Recirculation of air allows the
external atmosphere to be
isolated (driving in polluted
areas).
Prolonged use of the air
recirculation mode may cause the
windows to mist up or lead to
odours, as the air is not renewed.
We therefore advise you to return to
normal mode (external air) by
pressing button 6as soon as air
recirculation is no longer required.
Special instructions
Switching on air recirculation
automatically switches on the air
conditioning.
The function operates periodically
if the external temperature is lower
than approximately 10°C; the
indicator light on button 6will go
out after a few minutes.
The function operates permanently
if the external temperature is above
approximately 10°C; press button 6
to switch off.
1 3 5
13
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page21

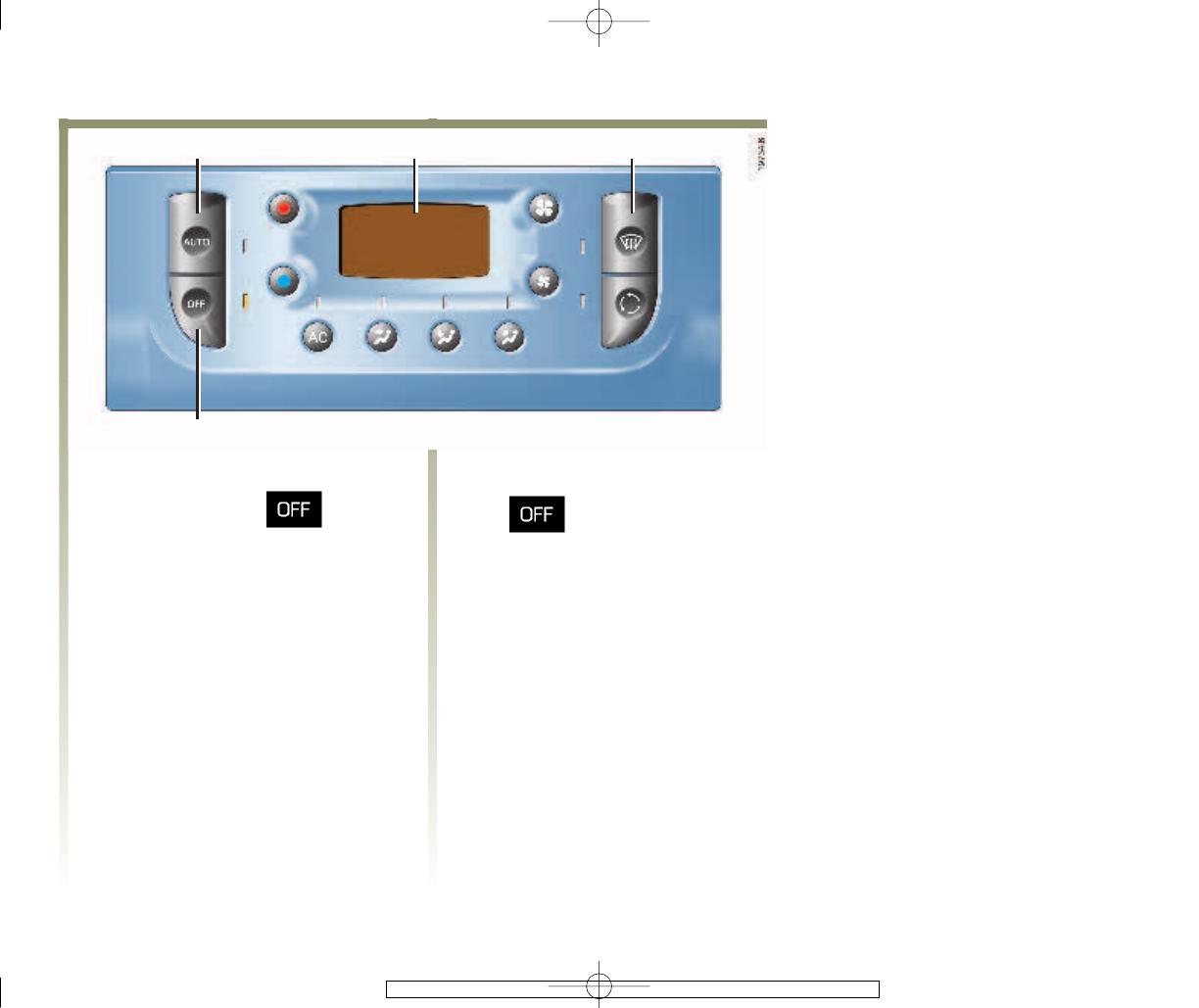

3.21
AUTOMATIC AIR CONDITIONING (continued)
OSwitching the system off
Press button 13
The indicator light comes on. No
more information appears on the
display 3. The system is
switched off.
The button isolates the
passenger compartment from the
outside atmosphere.
Press buttons 1or 5to return to
automatic mode.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page22
3.22
AIR CONDITIONING
If no cool air is produced
Check that the controls are set correctly and that the fuses are in good condition. Otherwise switch off the air
conditioning and contact a RENAULT Dealer.
Do not open the refrigerant fluid circuit.
Fuel consumption
When the air conditioning is operating, it is normal to notice an increase in fuel consumption (especially when driving
in town).
In winter, use the air conditioning occasionally in order to keep the system in correct working order.
Do not worry about any water which may appear from underneath the vehicle as this results from condensation.
Operating faults
Generally, if you notice a decrease in the efficiency of de-icing, demisting or air conditioning, it may be caused by
clogging up of the particle filter cartridge, if one is fitted to the vehicle: consult your RENAULT Dealer.
1
3
2
A
B
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page23
3.23
INTERIOR LIGHTING
Light A
Tilt light 1to give:
- continuous lighting,
- lighting controlled, depending on
version, by the opening of one of
the front doors, or by one of the
four doors. It only extinguishes
when the doors concerned are
correctly closed.
Light B
Tilt switch 2to give:
- Continuous lighting.
- Lighting controlled, depending on
version, by opening one of the
front doors, or by one of the four
doors. It only extinguishes when
the doors concerned are correctly
closed.
- Lighting off.
- Lighting up of map reading light 3.
Adjust map reading light 3to the
required position.
Automatic operation of interior
lighting (depending on the vehicle)
•If the doors are unlocked using
the plip remote control, the
interior lights are switched on for
approximately 15 seconds.
• If the doors are locked using the
plip remote control, the lights are
switched off immediately.
• If the door is open (or not
properly closed), the lights are
switched on for a period of
approximately 15 minutes.
• If all the doors are closed, the
interior lights start to dim when
the ignition is switched on.
4
5
6
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page24
3.24
INTERIOR LIGHTING (continued)
Front door lights 4
They operate in a similar way to the
other lights.
Rear lights 6
Tilt switch 5to give:
- Continuous lighting.
- Lighting controlled by the opening
of one of the four doors. It only
goes out when the doors
concerned are correctly closed.
- No lighting.
3
2
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page25
3.25
WINDOW RISERS
Front driver's side electric
window
With the ignition on or off and the
driver’s door closed:
Press switch 1to open the window
or lift switch 1to close it.
Front passenger's side electric
window
With the ignition on, press switch 2
to open the window or lift switch 2
to close it.
Automatic operation
This is in addition to the driver’s
window operation described above.
When the engine is running, briefly
pressing switch 1allows the
window to be fully closed or
opened.
Anyactiononswitch1during this
operation will stop the window
moving.
Manual window risers
Operate window winder 3.
Child safety
Never leave the key in
the ignition when there
is a child in the car (or
an animal). It would be possible
to operate the electric windows
and there is a risk that the child
could trap a part of his/her body
in the window (neck, arm, hand,
etc.), causing serious injury.
1
2
3
1
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page26
3.26
SUN VISOR WINDSCREEN
Front sun visor
Lower the sun visor 1.
Vanity mirrors 2
Special feature on driver's side:
A vanity mirror in the sun visor has
a cover.
Windscreen with reflective
layers
This windscreen reflects the sun
and, in particular, limits the
infrared rays entering the passenger
compartment.
An area 3is suitable for affixing
passes to the windscreen (e.g.
motorway permits, car park season
tickets, etc.).
2
1
4
3
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page27
3.27

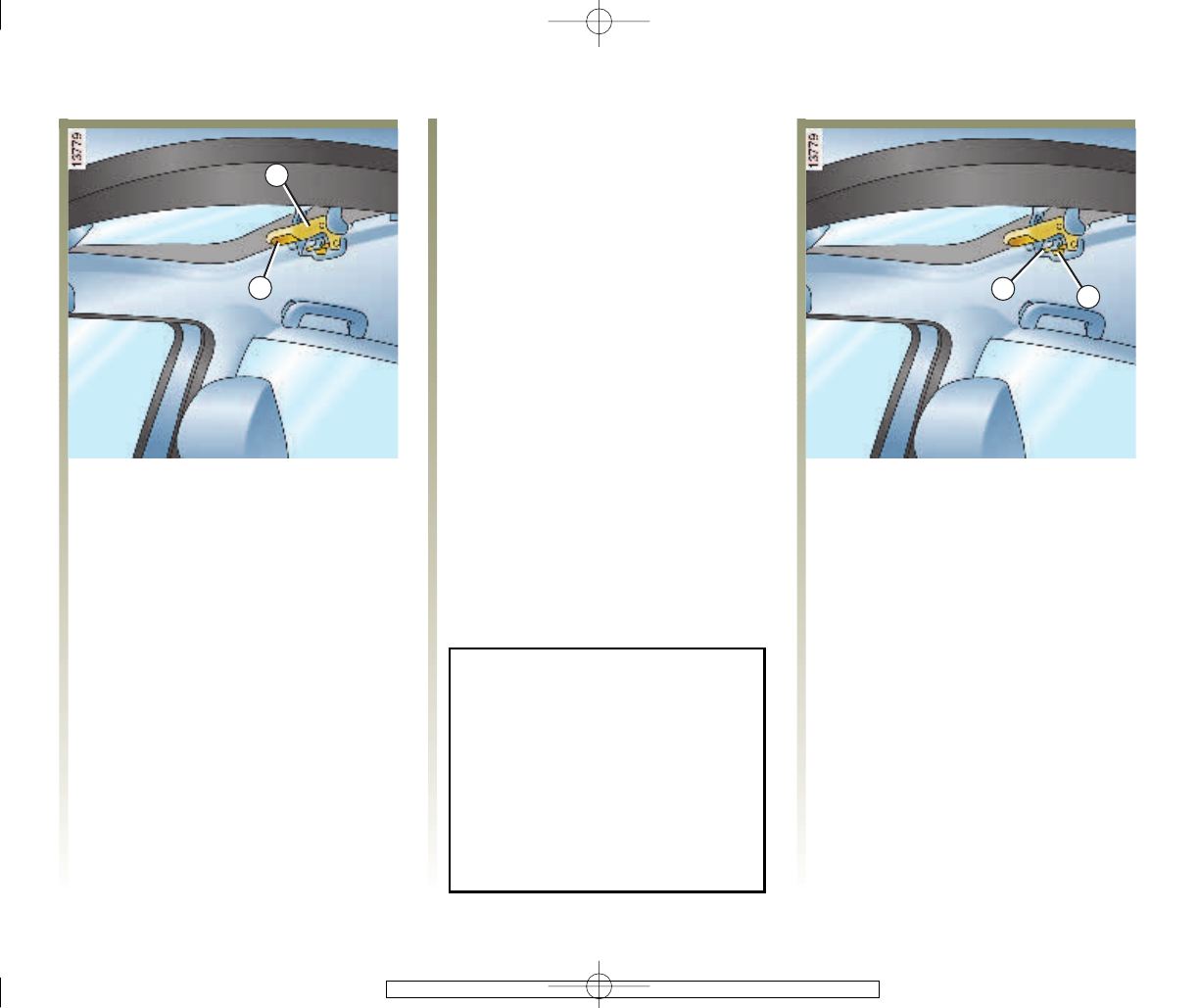

MANUAL SUNROOF
Opening
To the first stage
Tilt handle 1forwards until it locks.
To the second stage
Press lever 2and simultaneously tilt
handle 1until the mechanism locks
again.
Closing
Keep lever 2depressed and return
handle 1to its original position.
• Check that the sunroof is
correctly closed before leaving
the vehicle.
• Clean the seal every three months
using products provided by
our Technical Department
Removal
Open the sunroof to the first stage.
Press button 4(if necessary, using a
tool such as a flat screwdriver) to
release the pin 3from handle 1:the
pin should be freed.
Lift the sunroof glass almost vertically
and release it from its hinges.
Refitting
Refitting is the reverse of removal.
Ensure pin 3is correctly locked in
position.
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page28
3.28
ELECTRIC SUNROOF
To tilt the sunroof
With the ignition on:
- Opening: tilt the switch 1towards
the rear and keep it depressed
until the required tilt angle is
obtained.
- Closing: tilt the switch 1towards
the front.
To slide the sunroof
Tilted sunroof,
- Opening: tilt the switch 1towards
the rear and keep it depressed
until the required tilt angle is
obtained.
- Closing: tilt the switch 1towards
the front.
Child safety
Never leave the key in the
ignition when there is a
child in the car (or an
animal). It would be possible to
operate the sunroof and there is a
risk that the child could trap a part
of his/her body in the sunroof
(neck, arm, hand, etc.), causing
serious injury.
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page29
3.29
ELECTRIC SUNROOF (continued)

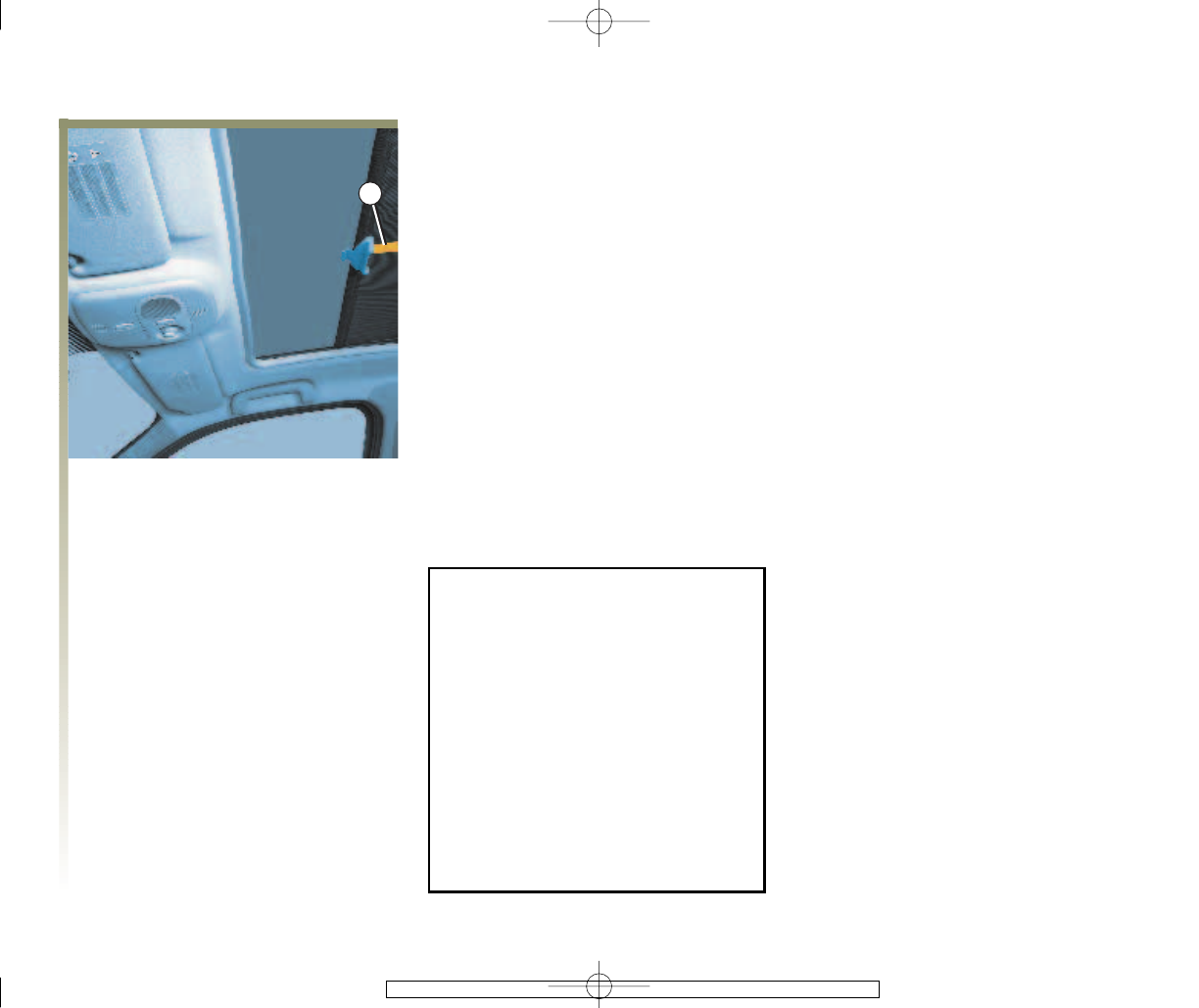

Sunroof screen
Slide it using handle 2.
To keep the screen closed, the hook
must be secured into the sunroof
frame.
• Check that the sunroof is
correctly closed before leaving
the vehicle.
• Clean the seal every three months
using products provided by our
Technical Department.
• Do not open the sunroof
immediately after a rain shower or
after washing your vehicle.
2
3
1
4
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page30
3.30

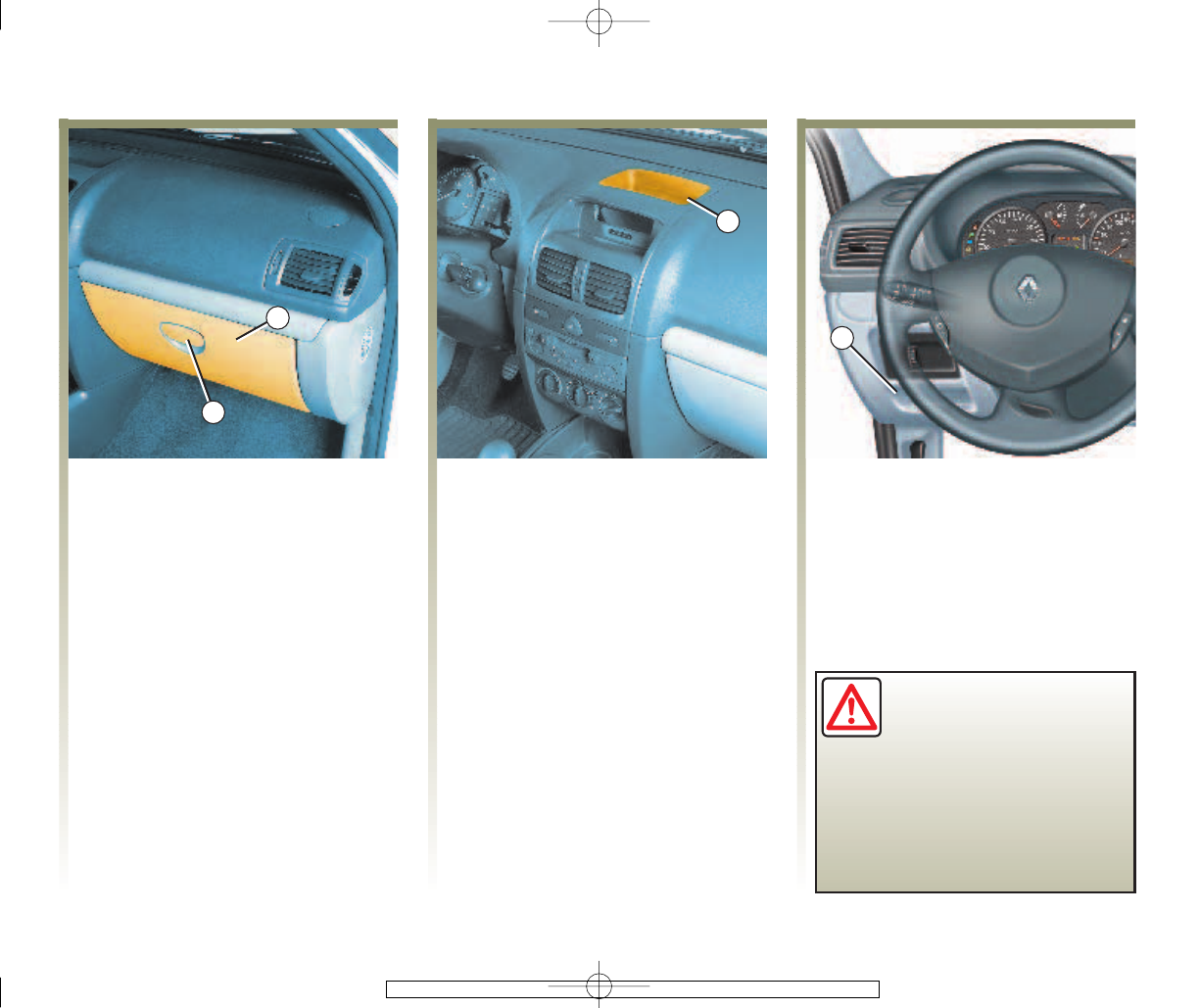

STORAGE COMPARTMENTS
Passenger side glove box 1
To open, lift handle 2. The box
contains a sunglasses holder, a pen
holder and space for credit cards.
Centre console storage
compartment 3
Driver's storage compartment 4
No objects should be
placed on the floor (area
in front of driver) as such
objects may slide under
the pedal during braking
manoeuvres, thus obstructing its
use.
1
3
3
4
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page31
3.31

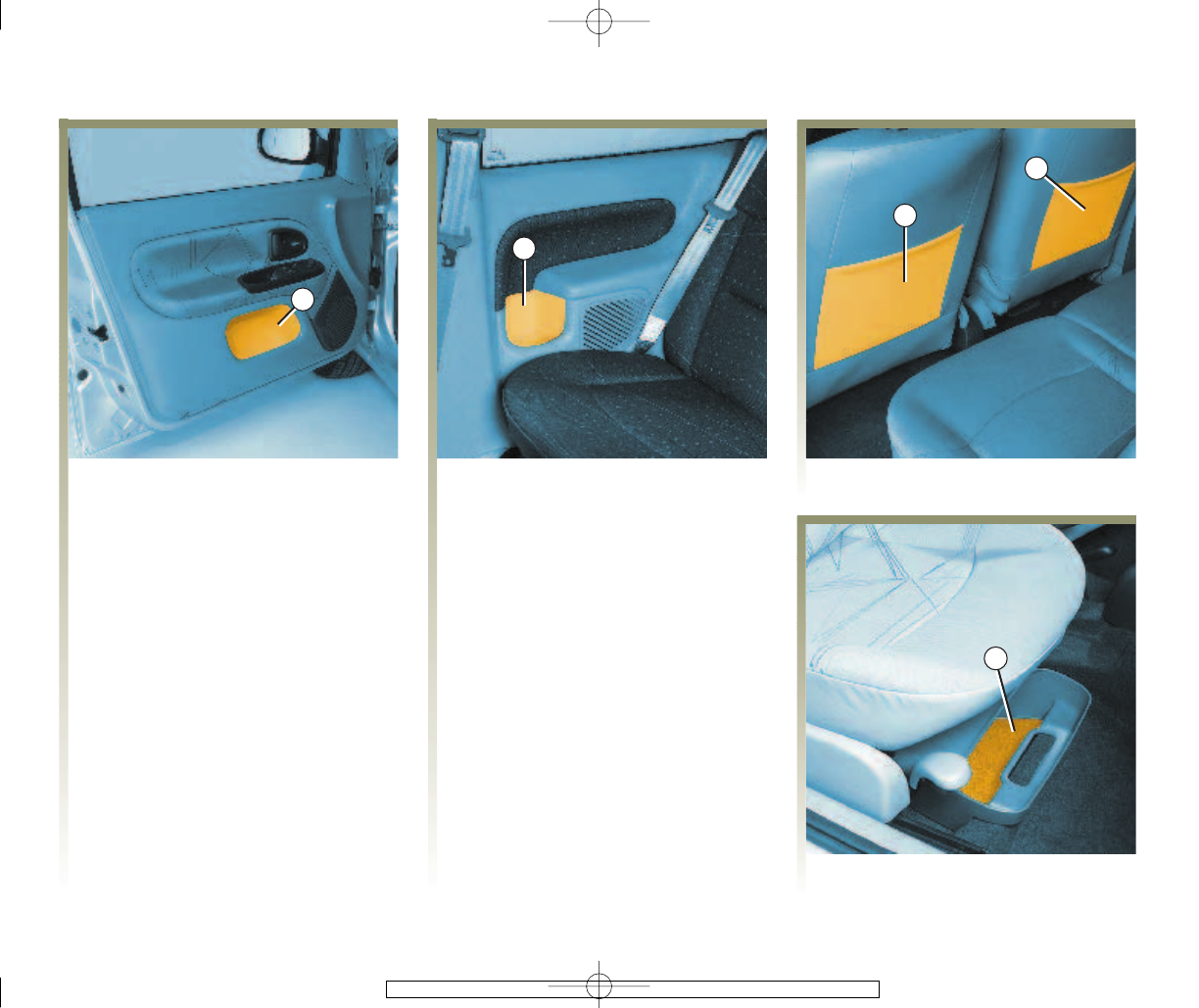

STORAGE COMPARTMENTS (continued)
Door storage compartments 1Rear compartments 2Front seat document pouches 3
Storage compartment under
passenger seat 4
2
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page32
3.32
ASHTRAYS - CIGAR LIGHTER
Ashtray
To open, lift cover 1.
To empty the ashtray, pull the
assembly towards you and it will be
released from its housing.
Cigar lighter
Ignition on, press in the cigar
lighter 2.
It will click out by itself as soon as it
is ready. Pull it out to use it. After
use, replace it without pushing it all
the way in.
1
A
3
4
3
4
2
B
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page33
3.33

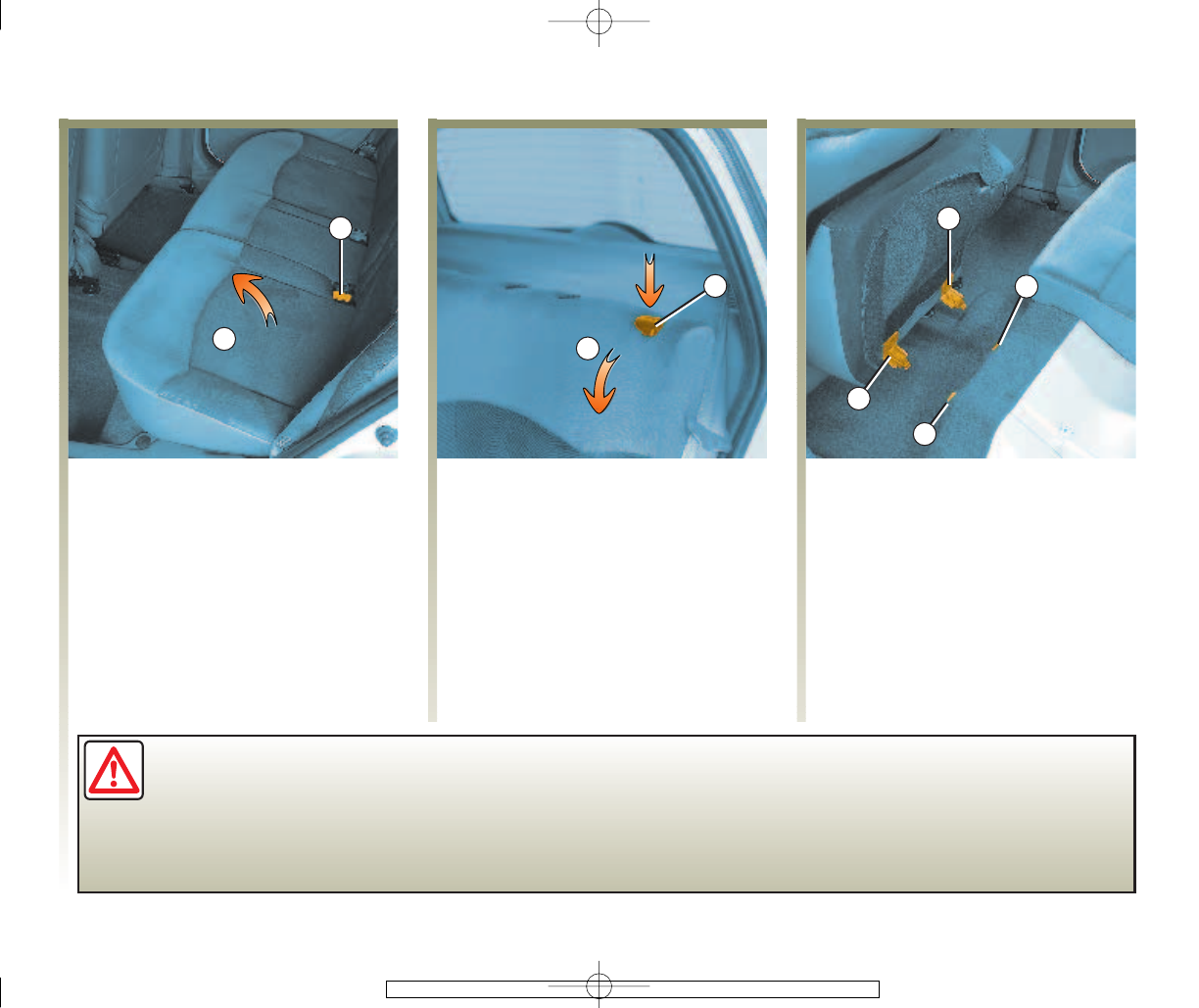

REAR BENCH SEAT (operation)
The seat base and the seatback may
be folded down (in one or two
sections) to allow bulky objects to
be carried
To fold down the seat base
Lift seat base A, against the front
seats.
To fold down the seatback
Remove the rear head restraints (if
they are fitted to the vehicle). Press
button 2and lower the seatback B.
Removing the seat base
Lift the seat base to remove brackets 3
from their housing 4.
To refit the seat base, carry out the
operations in reverse order to
removal. Ensure the seat base is
correctly secured.
• When refitting the seatback, ensure it is correctly locked at the top. If seat covers are being used,
check that they are not preventing the seatback locking mechanism from operating correctly.
• When moving the bench seat, check that the seat belt housings 1are correctly positioned before
folding down the seat base.
Once the bench seat is in place again, ensure the seat belts are correctly repositioned.
1
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page34
3.34

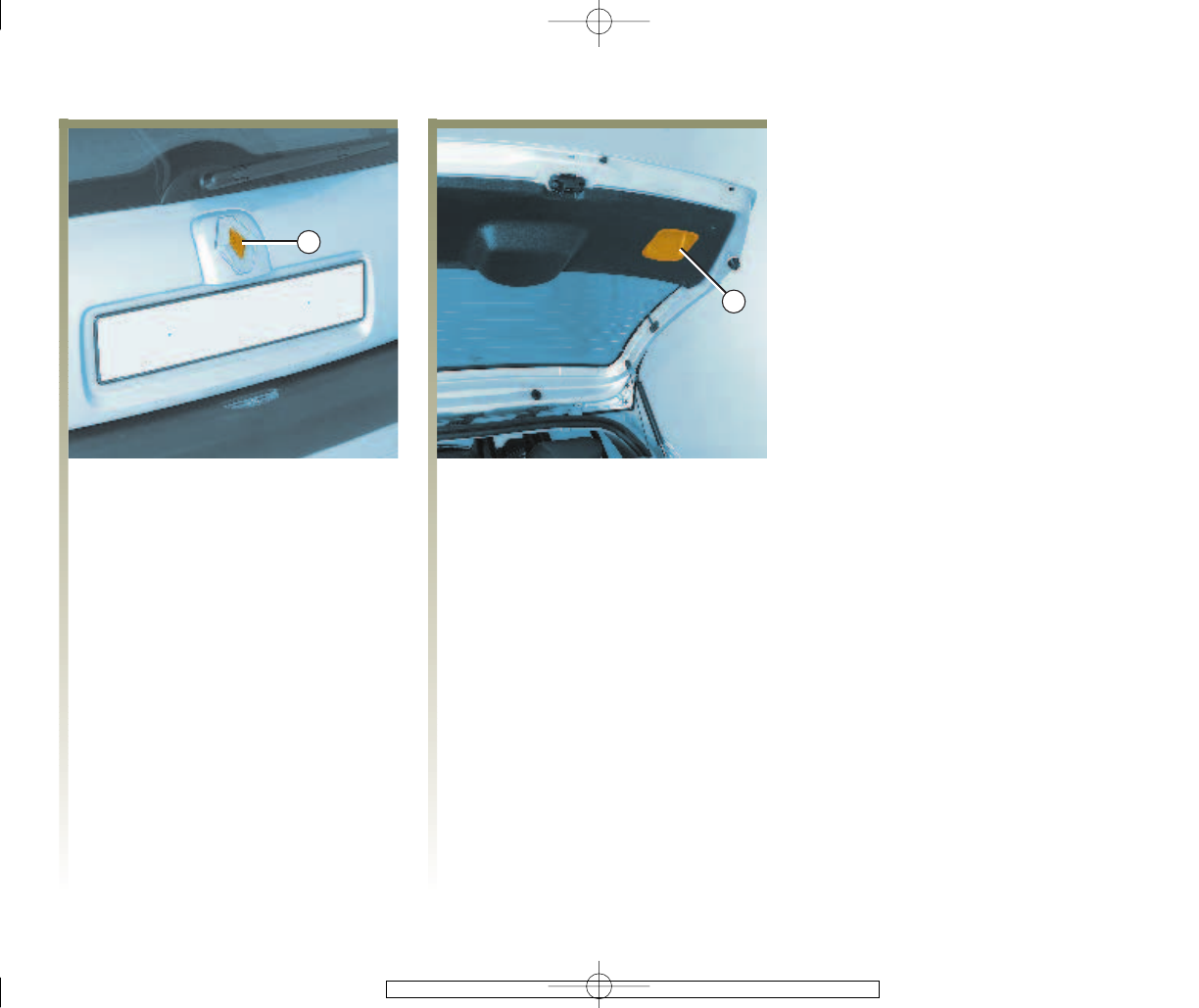

LUGGAGE COMPARTMENT
To open
Press button 1and lift the tailgate.
To close:
Lower the tailgate using handle 2
inside the tailgate to help you.
When the tailgate has been lowered
to shoulder height, release handle 2
and finish closing the tailgate by
pressing down on the tailgate from
the outside.
1 1
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page35
3.35

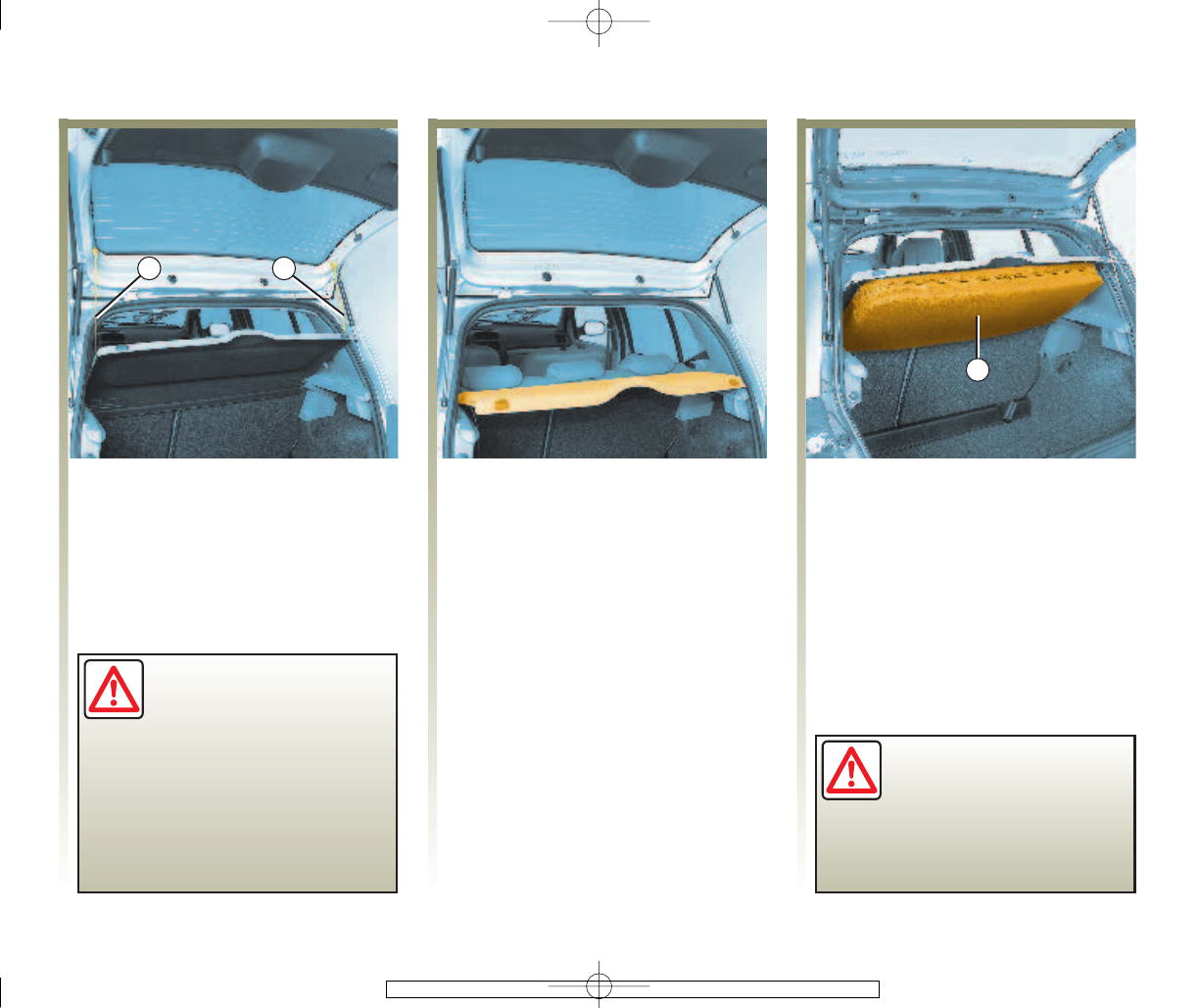

LUGGAGE COMPARTMENT (continued)
Rear shelf
To remove, release the two return
cords 1.
Do not place any objects,
in particular heavy or
hard objects, on the rear
parcel shelf. These may
pose a risk to the vehicle
occupants if the driver has to
brake suddenly or if the vehicle
is involved in an accident.
Gently lift the shelf and pull it
towards you.
Refitting is the reverse of removal.
Built-in garment case 2
This is located under the rear parcel
shelf and is closed by a zip fastener.
It can be used to store clothes.
The total weight of luggage
placed in the built-in
garment case must not
exceed 5 kg (11 lbs).
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page36

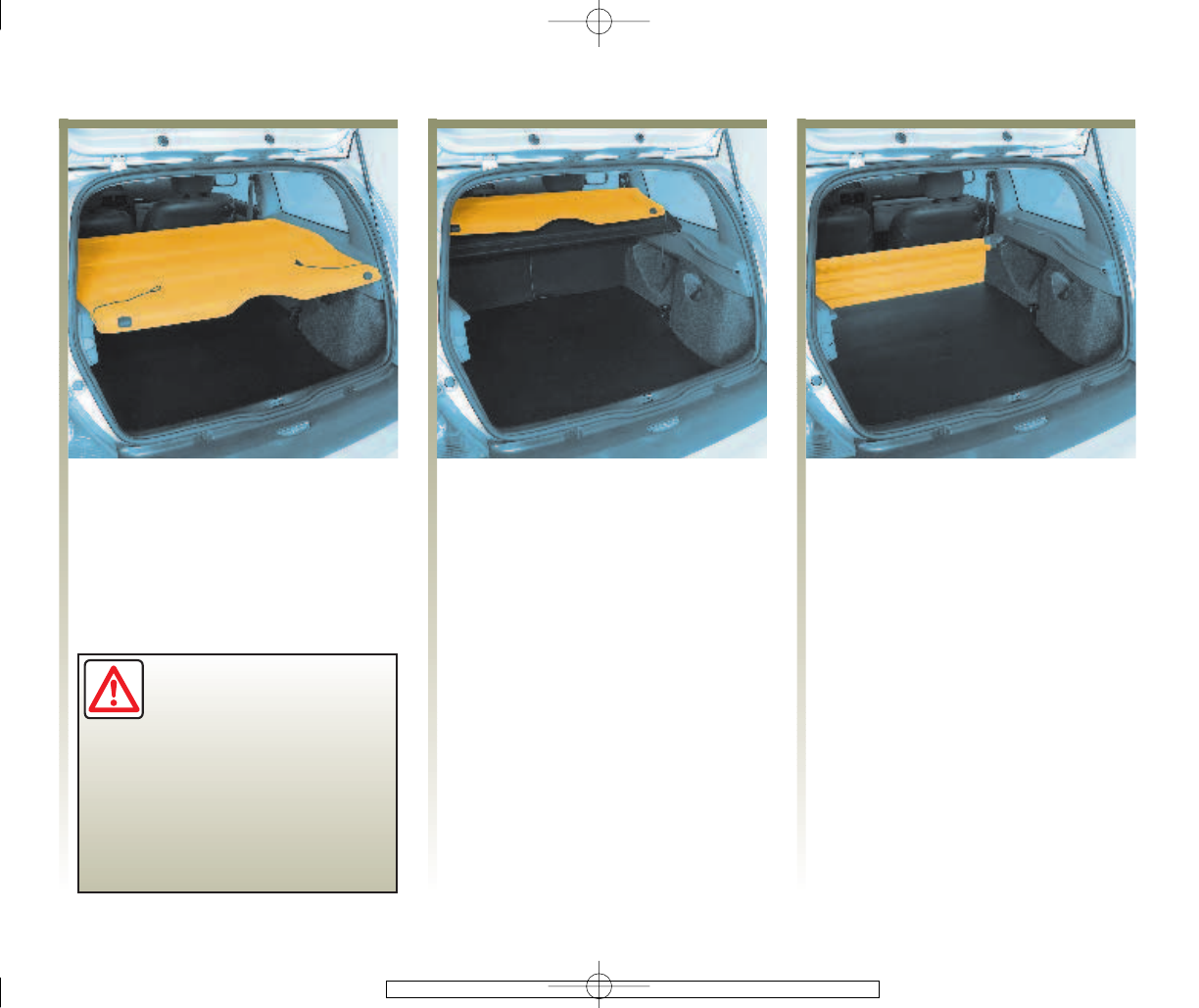

3.36
LUGGAGE COVER
The luggage cover consists of three
solid sections.
It can be used in one of three ways:
• In the unfolded position.
Do not place any objects,
in particular heavy or
hard objects, on the
luggage compartment
cover. These may pose a risk to
the vehicle occupants if the
driver has to brake suddenly or if
the vehicle is involved in an
accident.
• In the half-folded position. • Removed entirely.
To remove the luggage cover,
place it in the half-folded
position, take hold of the end and
pull it towards you.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page37
3.37

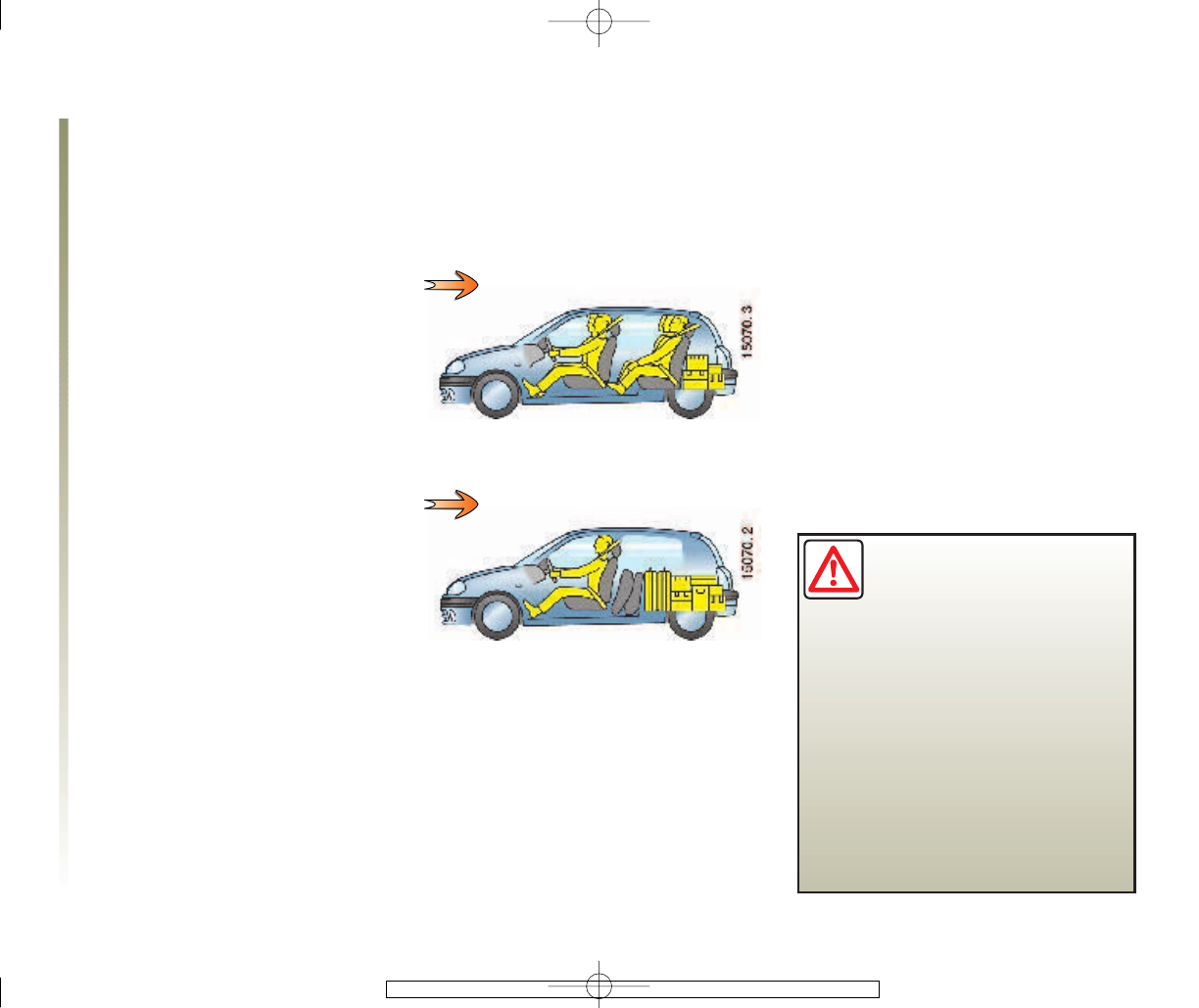

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT
Always place objects carried in the
luggage compartment so that their
largest dimension is against:
- the back of the rear bench seat, for
normal loading.
- the folded down seat, for
maximum loading.
Always put the heaviest
items directly onto the
floor. When the vehicle is
fitted with them, use the
lashing points located on the floor
at the rear to secure transported
items. Luggage should be loaded in
such a way that no item will be
thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T3.WIN 30/10/2002 12:12 -page38
3.38
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 -page1
4.01
Section 4: Maintenance
Bonnet ................................................................................................................................................................ 4.02
Engine oil level .................................................................................................................................... 4.03 ¬4.07
Oil changes: Engine .......................................................................................................................................... 4.07
Levels: Brake fluid ............................................................................................................................................ 4.08
Coolant .................................................................................................................................................. 4.09
Power steering pump .......................................................................................................................... 4.10
Battery ................................................................................................................................................... 4.10
Screen washer reservoir ...................................................................................................................... 4.11
Filters ................................................................................................................................................................. 4.11
Bodywork maintenance ......................................................................................................................... 4.12 - 4.13
Interior trim maintenance ................................................................................................................................ 4.14
1
4
3
2
5
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 - page 2
4.02

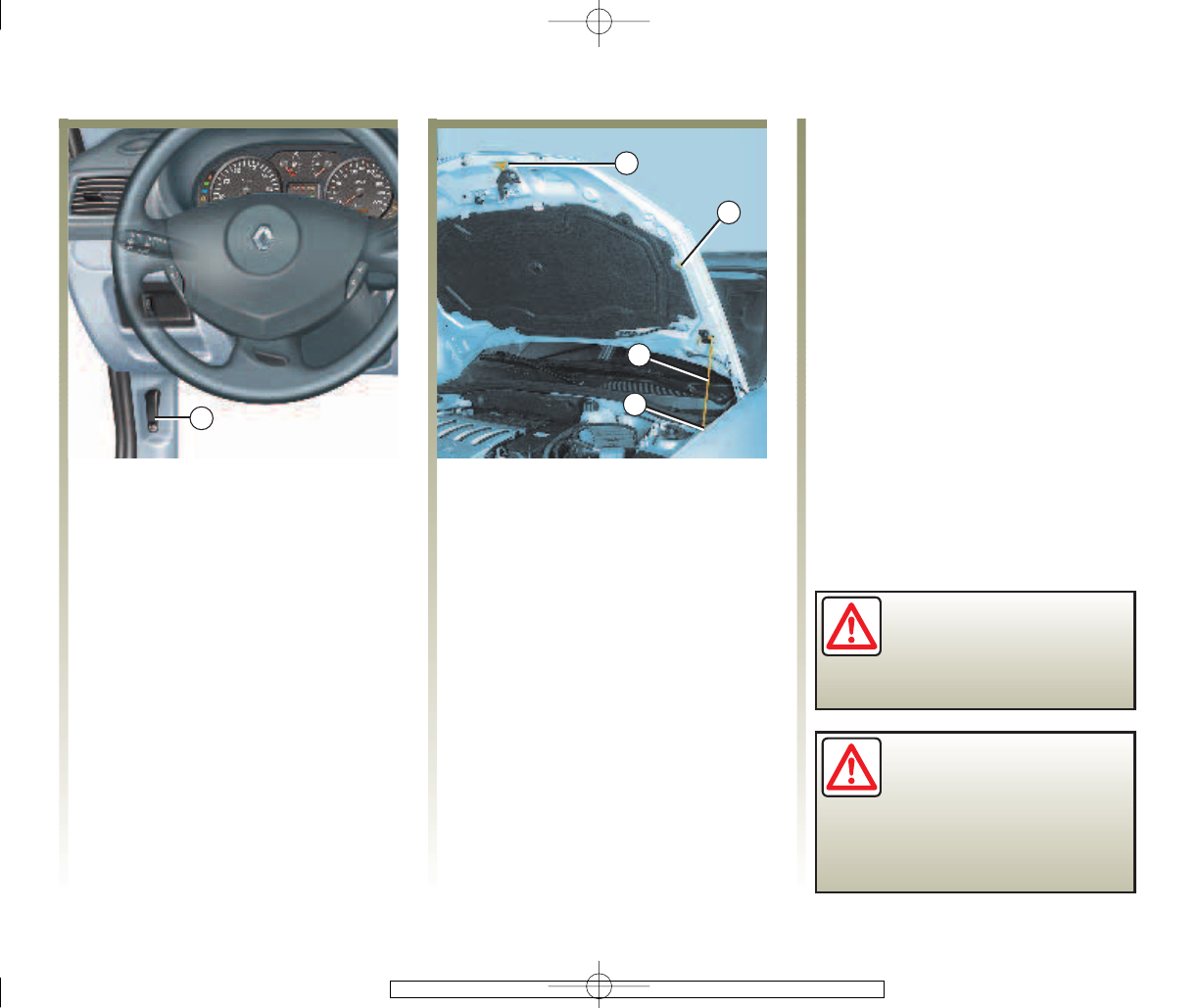

BONNET
Opening the bonnet
To open, pull handle 1.
Bonnet safety lock
To unlock, lift lever 2.
Lift the bonnet, release the strut 4
from its mounting 3. For your safety,
this must be placed in location 5.
Closing the bonnet
To close the bonnet, replace strut 4
in its mounting 3, hold the bonnet
in the middle and lower it to 20 cm
above the closed position. Now
release it and it will lock under its
own weight.
Check that the bonnet is correctly
locked.
Check that nothing has been left in
the engine compartment before
closing the bonnet.
Ensure it is correctly
locked.
Take care when working
under the bonnet as the
engine cooling fan may
cut in at any moment.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 - page 3
4.03
ENGINE OIL LEVEL
An engine uses oil for lubrication
and to coolmoving parts and it is
sometimes necessary to top up the
level between oil changes.
However, consult your Renault
Dealer if more than 0.5 litre is
being consumed every 625 miles
(1000 km) after the running-in
period.
Oil change frequency: Check the oil
level from time to time and always
before long journeys, to avoid the
risk of damaging your engine.
Reading the oil level
The car must be parked on level
ground and the engine should have
been switched off for some time
beforehand to obtain an accurate
reading.
The oil level can be read:
- on the instrument panel;
- using the dipstick.
Reading the level on the instrument
panel
When ignition has been switched
on for approximately 30 seconds:
-if the level is correct, the display
will show “oil OK”: display
message 1
Special note: To gain a more
precise indication of the level,
press the trip mileage counter
reset button or the information
scroll button on the on-board
computer.
The squares which appear on the
display indicate the level. The
number of squares displayed
decreases as the oil level drops and
they are replaced by a dash: display
message 2.
To move to on-board computer
reading, press the button again.
-When the minimum oil level is
reached, the dashes and the word
“Oil” flash, and the word “OK”
disappears (display message 3)
and some versions
lights up on the instrument panel.
It is vital to top up the oil as soon
as possible.
Message 1
Level
satisfactory
Message 2
Level
display
function
Message 3
Minimum
level
(flashing)
B
A
B
A
C
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 - page 4
4.04
ENGINE OIL LEVEL (continued)
Reading the level using the dipstick
- Take out the dipstick.
- Wipe the dipstick using a clean,
lint-free cloth.
- Push the dipstick in as far as it will
go. (For vehicles equipped with a
cap-type dipstick C, screw the cap
in as far as it will go.)
- Take out the dipstick again.
- Read the level. It should never fall
below the minimum mark Bor
exceed the maximum mark A.
Take care when working
under the bonnet as the
engine cooling fan may cut
in at any moment.
Consult your Renault Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
1
2
2
11
2
1.2 1.2 16V 1.4 16V - 1.6 16V
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 - page 5
4.05

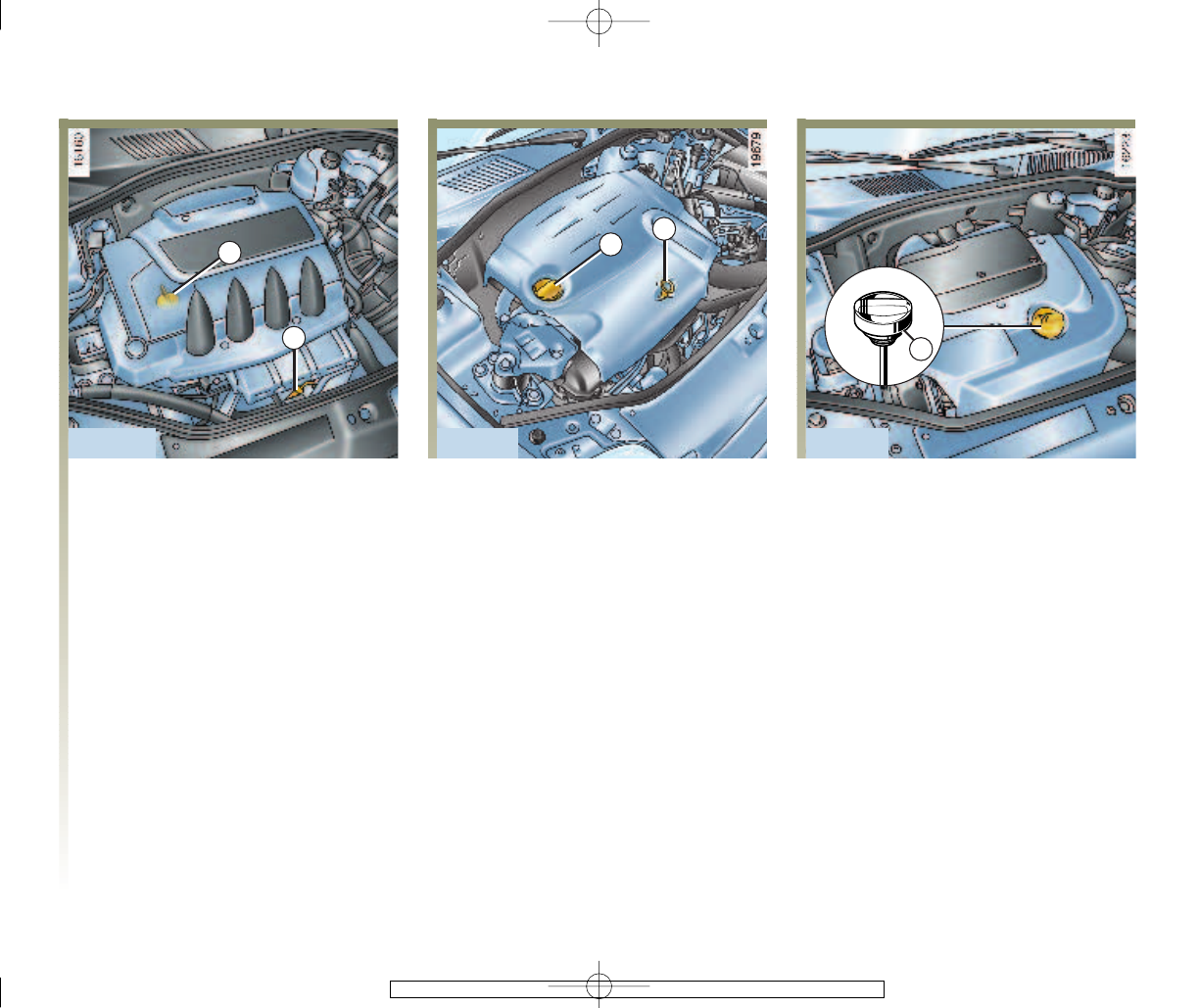

ENGINE OIL LEVEL (continued)
Topping up/filling
The vehicle must be parked on level
ground and the engine should be
cold (for instance, before the engine
is started up for the first time in the
day).
- Unscrew filler cap 1.
- Top up the level. (For information,
the capacity between the
minimum and maximum reading
on dipstick 2is between 1.5 and 2
litres depending on the engine.)
- Wait for approx. two minutes to
allow the oil to flow into the
engine.
- Check the level using dipstick 2
(as explained above).
Do not exceed the max. level and do
not forget to refit cap 1.
12
1
2C
2.0 16V 1.5 dCi 1.9 dTi
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 - page 6
4.06
ENGINE OIL LEVEL (continued)
Special features on engine 2.0 16V
Cap 1is located underneath a filler
flap.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 - page 7
4.07
ENGINE OIL LEVEL (continued) / OIL CHANGE
Oil change
Oil change frequency: Refer to the
Servicing booklet for your vehicle.
Change the oil more often if the
vehicle is subject to severe use.
Average capacities of oil change
(for information)
1.2 l - 1.2 l 16V engines : 4.0 litres
1.4 litre 16 V engines: 4.9 litres
1.6 litre 16V engines: 4.9 litres
2.0 16V engines: 4.75 litres
1.5 litre dCi engine: 5.0 litres
1.9 l dTi engine: 5.5 litres
Oil filter included.
The oil filter should be replaced
periodically: consult the Servicing
booklet for your vehicle.
Engine oil grade
To find out which grade of oil to use,
see the Servicing booklet for your
vehicle.
Filling:Takecarewhen
topping up the oil that no
oil drips onto engine
components: there is a risk
of fire. Do not forget to refit the cap
securely as there is a risk of fire if
oil splashes onto hot engine
components.
Engine oil change:Ifyou
change the oil when the
engine is hot, be careful to
avoid scalding yourself as
the oil flows out.
Take care when working
under the bonnet as the
engine cooling fan may cut
in at any moment.
Never run the engine in an
enclosed space as exhaust
fumes are poisonous.
Consult your Renault Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 - page 8
4.08
LEVELS
Brake fluid
This must be checked frequently,
especially if you notice even the
slightest loss in braking efficiency.
Level 1
The level falls naturally as the brake
pads wear, but it should never be
allowed to fall below the
MINIMUM warning mark.
Topping up
After any operation on the
hydraulic circuit, a specialist must
replace the brake fluid.
Only use fluids approved by
RENAULT’s Technical Department
and which have been taken from a
sealed container.
Fluid change frequency: Refer to
the servicing booklet for your
vehicle.
Take care when working
under the bonnet as the
engine cooling fan may cut
in at any moment.
1
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 - page 9
4.09
LEVELS (continued)

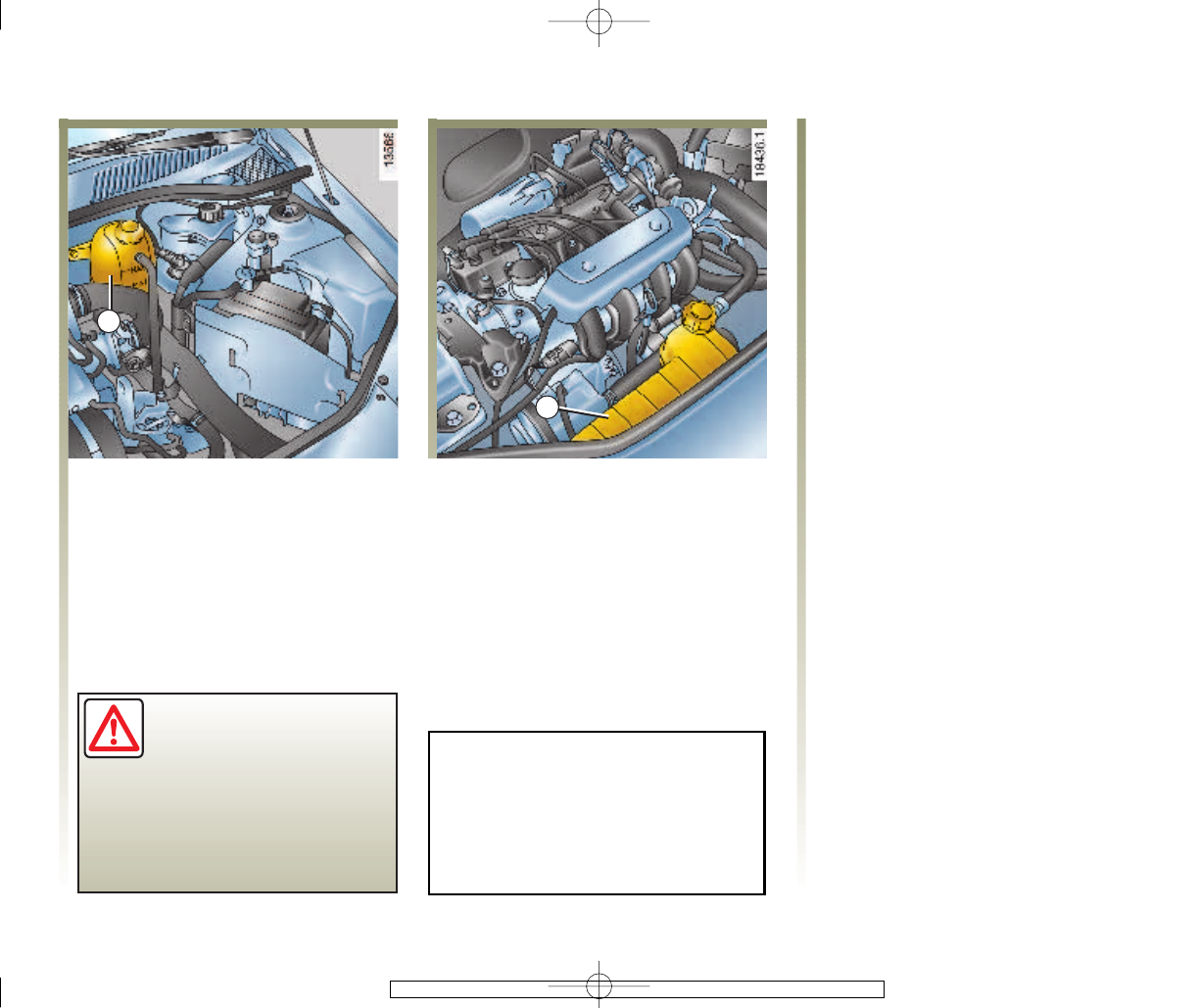

Coolant
The level when cold should be
between the MINIMUM and
MAXIMUM marks on the
expansion bottle 1.
Top up the level when cold before it
reaches the MINIMUM mark.
No operations may be
carried out on the
cooling circuit when the
engine is hot.
Danger of burns. If there is an abnormal drop in the
coolant level or if coolant loss is
repeated, consult your RENAULT
Dealer.
Frequency for checking coolant
level
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If topping up is required, only use
products approved by RENAULT's
Technical Department:
- Anti-freeze protection;
- Anti-corrosion protection of the
cooling system.
Coolant replacement intervals
Refer to your vehicle's Servicing
booklet.
12
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 -page10

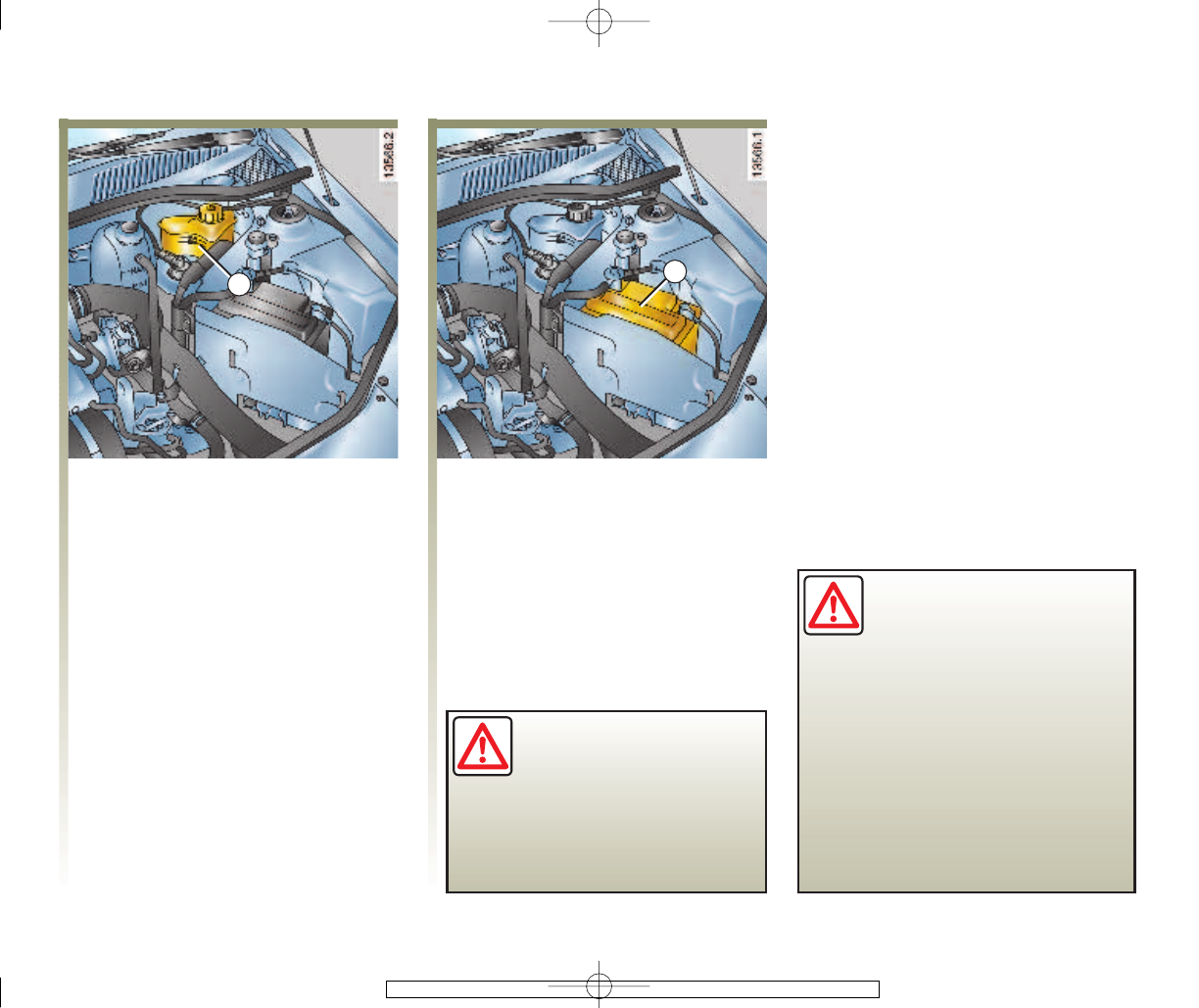

4.10
LEVELS (continued)

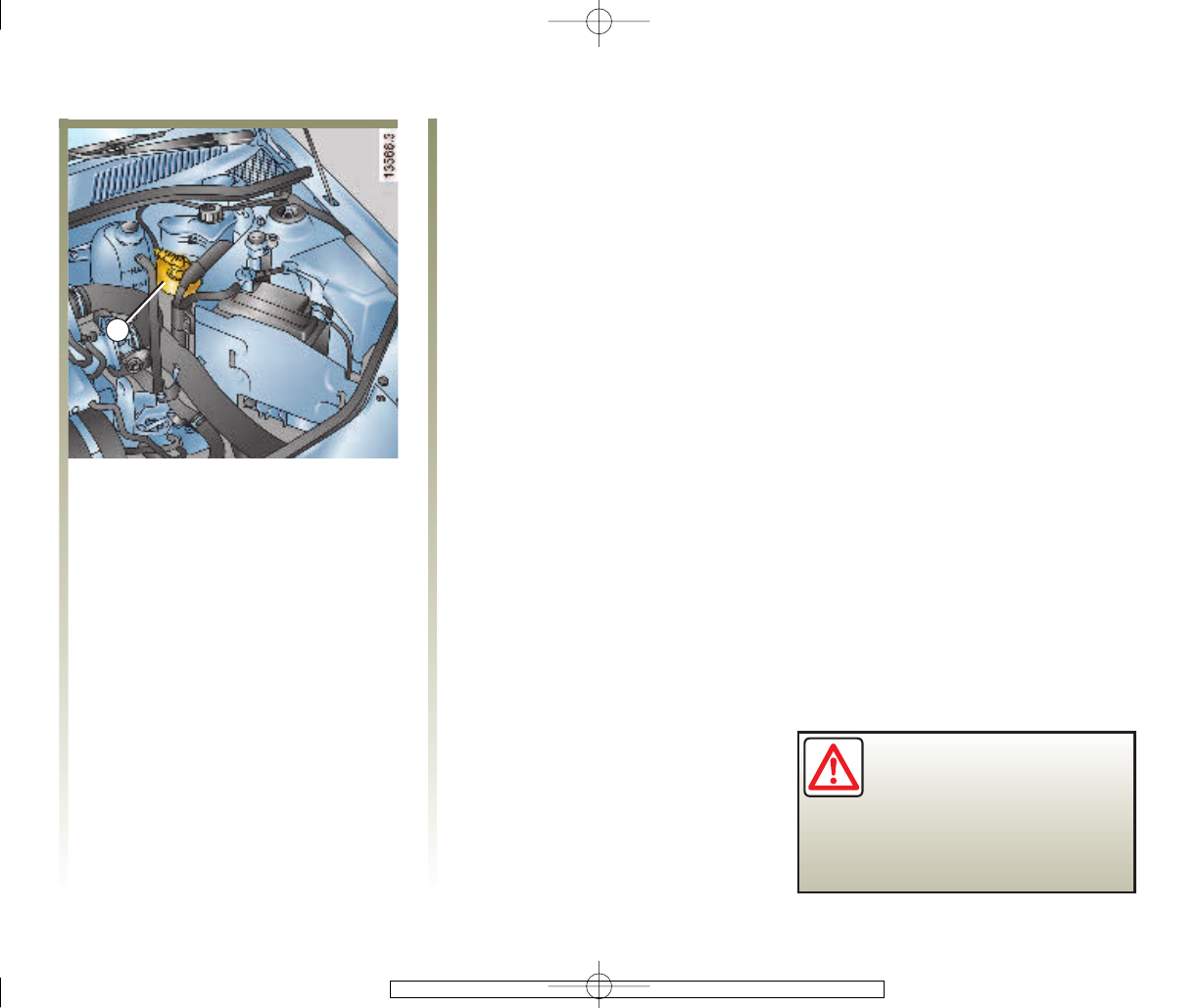

Power assisted steering pump
Frequency of changing: refer to the
Servicing booklet for your vehicle.
Level: The correct level when cold
should be:
- visible between the Min and Max
marks on reservoir 1.
For topping up or refilling with oil,
use products approved by
RENAULT's Technical Department.
Battery
The battery does not require any
maintenance. Never open cover 2.
Take care when working
in the engine
compartment as the
engine cooling fan may
cutinatanymoment
without warning.
Handle the battery with
care as it contains
sulphuric acid which must
not come into contact with
the eyes or skin.
If it does, rinse with plenty of
water.
Keep all sources of flame, heat and
sparks away from the battery as
there is a risk of explosion.
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 -page11
4.11
LEVELS (continued) FILTERS
Windscreen washer reservoir
Filling: via plug 1.
This reservoir also supplies the
headlight washers (if fitted to the
vehicle).
Liquid: water + washer product
(antifreeze product in winter).
Jets: tilt each small sphere with a
pin to alter the angle of the spray.
The replacement of filter elements
(air filter, passenger compartment
filter, diesel filter, etc.) is
anticipated in the maintenance
operations for your vehicle.
Frequency for replacing filter
components: see the Servicing
booklet for your vehicle.
If there is an abnormal drop in
any of the fluid levels, consult
your Renault Dealer at once.
Take care when working
under the bonnet as the
engine cooling fan may
cut in at any moment.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 -page12
4.12
BODYWORK MAINTENANCE
Protection against the action of
corrosive agents
Although your vehicle has been
treated with very effective
anti-corrosion products, it is still
subject to the action of:
• corrosives in the atmosphere
- atmospheric pollution (urban
and industrial areas),
- saline atmosphere (near the sea,
particularly in hot weather),
- seasonal and humid climatic
conditions, especially road salt
in winter.
• abrasives
- wind-carried dust and sand, mud,
road grit thrown up by other
vehicles.
• minor impacts
To avoid losing the benefits of this
protection, a minimum number of
precautions should be taken to
ensure against this risk.
What you must not do
• Wash the vehicle in bright sunlight
or in freezing temperatures.
• Scrape off mud or dirt without
pre-wetting.
• Allow external dirt to accumulate.
• Allow rust to form after minor
impacts.
• Use solvents not recommended
by Renault's Technical Department
to remove spots as they may
damage the paintwork.
• Drive frequently in snow or muddy
conditions without periodically
washing the car, particularly
under the wheel arches and under
the body.
• Degrease or clean mechanical
components (e.g. engine
compartment), underneath the
bodywork, parts with hinges (e.g.
inside the fuel tank flap, sunroof)
and painted plastic external
fittings (e.g. bumpers) using high
pressure cleaning apparatus or
spraying on products which are
not approved by our Technical
Department as this could give rise
to corrosion or incorrect operation.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 -page13
4.13
BODYWORK MAINTENANCE (continued)
What you should do
• Wash your car frequently, using our
recommended cleaning products
anduseahighpressurejettorinse
off the wheel arches and under the
body to get rid of:
- spots of tree resin and industrial
grime;
-bird droppings, which contain
chemicals which rapidly
discolour paintwork and may
even cause the paint to peel off;
The vehicle must be washed
immediately to remove these
marks since they cannot be
removed by polishing;
- salt from the wheel arches and
under the body, after the vehicle
has been driven in areas where
the roads are chemically treated;
- mud forming damp patches in
the wheel arches and under the
body.
• Keep well away from the vehicle
in front when driving on a freshly
laid surface to avoid damage to
your paintwork.
• Have patches where the paint has
been damaged repaired quickly to
avoid corrosion spreading.
• If your vehicle is covered by the
Renault anti-corrosion warranty,
remember to visit the bodyshop
periodically. Refer to your vehicle’s
Warranty and Servicing booklet.
• Respect local regulations relating
to washing your vehicle (e.g. do
not wash your vehicle on a public
highway).
• Before using a revolving brush
type car wash, check the mounting
of exterior equipment, additional
headlights and rear view mirrors.
Secure the wiper blades and radio
aerial with adhesive tape.
Remove the car phone aerial if the
vehicle has one.
• If mechanical components such
as hinges have to be cleaned, their
protection must be reapplied by
spraying on products approved
by Renault's Technical Department.
We have selected special products
to care for your vehicle which
may be obtained from Renault
Accessory Outlets.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T4.WIN 28/10/2002 11:44 -page14
4.14
MAINTAINING INTERIOR TRIM
Do
Whatever type of stain is on the
trim, use soapy water (if necessary,
with warm water) based on:
• natural soap,
• washing up liquid (with one part
washingupliquidto200parts
water).
Rinse off with a soft, damp cloth.
Special instructions
• Glass instrument panel (e.g.:
instrument panel, clock, exterior
temperature display, radio
display, etc...).
Use a soft cloth (or cotton wool).
If this does not clean them
properly, use a soft cloth or cotton
wool slightly moistened with
soapy water and then wipe clean
with a soft damp cloth.
Finally, dry off carefully with a
soft dry cloth.
Cleaning products containing
alcohol may not be used under
any circumstances.
• Seat belts
These must be kept clean.
Use products selected by our
Technical Department or warm
soapy water using a sponge and
dry off with a dry cloth.
Do not use cleaning agents or
dyes.
We have selected special
products to care for your vehicle
and you can obtain these from
Renault accessory outlets.
Do not
You are strongly recommended
not to use high pressure or
atomising cleaning equipment
inside the passenger
compartment: unless carefully
used, such equipment could
interfere with correct operation
of the electrical or electronic
components in the vehicle,
amongst other effects.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page1
5.01
Section 5: Practical advice
Emergency spare wheel .................................................................................................................................... 5.02
Toolkit (Jack - Wheelbrace - Tyre levers etc.) ................................................................................................ 5.03
Hubcaps - Wheels ............................................................................................................................................. 5.04
Changing a wheel ............................................................................................................................................. 5.05
Tyres (tyre safety, wheels, winter use) ............................................................................................... 5.06 ¬5.08
Wiper blades ..................................................................................................................................................... 5.09
Changing the bulbs .............................................................................................................................. 5.10 ¬5.18
Headlights ................................................................................................................................... 5.10 ¬5.12
Front fog lights ........................................................................................................................................ 5.13
Rear lights ..................................................................................................................................... 5.14 - 5.15
Side-mounted repeaters .......................................................................................................................... 5.16
Interior lights ................................................................................................................................ 5.17 - 5.18
Battery ..................................................................................................................................................... 5.19 - 5.20
Remote control door locking (changing the batteries) ..................................................................................5.21
Fuses ....................................................................................................................................................... 5.22 - 5.23
Towing (breakdown - attachments) .................................................................................................... 5.24 ¬5.26
Fitting a radio/accessories .................................................................................................................... 5.27 - 5.28
Operating incidents ............................................................................................................................. 5.29 ¬5.34
1
3
2
4
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 - page 2
5.02

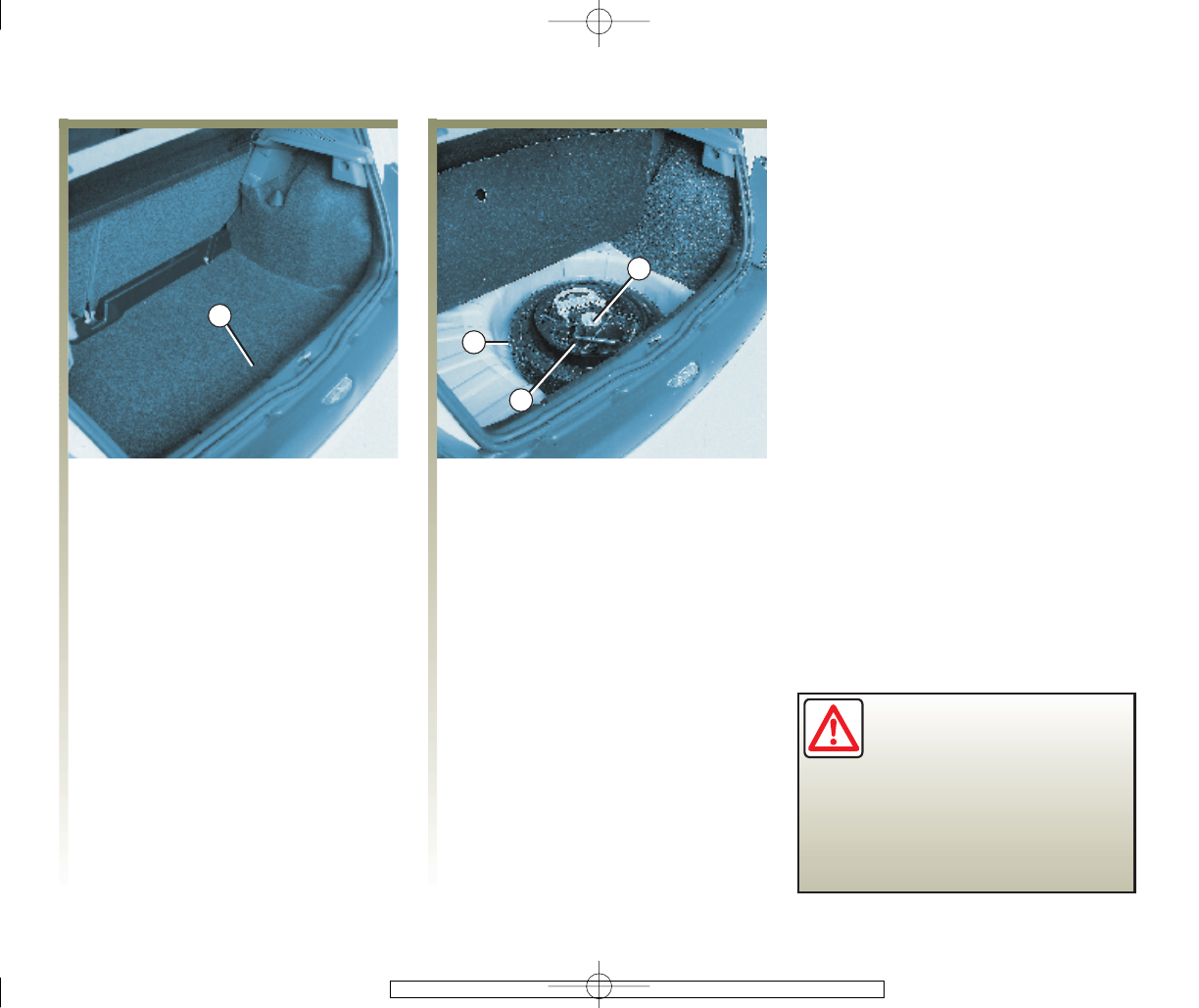

EMERGENCY SPARE WHEEL
Emergency spare wheel 2
This is located in the luggage
compartment.
To reach the emergency spare
wheel:
• Open the tailgate.
• Lift the luggage compartment
carpet using circular cut-out 1.
• Slacken central fastener 3.
• Remove the tool kit 4.
• Release the emergency spare
wheel 2.
If the spare wheel has been
stored for several years,
have it checked by your
Dealer to ensure that it is
safe to use.
1
4
5
3
6
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 - page 3
5.03
TOOL KIT
The tool kit 1is located on the
emergency spare wheel. It consists
of a set of tools for various
operations on the vehicle: jack,
wheelbrace, towing hitch, etc. and a
spaceforabulbunit.
Wheelbrace 5
Jack 4
When replacing the jack, fold it
down completely before putting it
back into position.
The jack is designed for
changing a wheel. Under
no circumstances should
it be used for carrying out
repairs or to gain access under
the vehicle.
Hubcap spanner 2
This is used to unclip the hubcaps.
Wheel spanner 6
This is used to lock or release the
wheel bolts.
Towing ring 3
Refer to the Towing section in
section 5 for information on using
the towing ring.
1
A
2
3
54
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 - page 4
5.04
WHEEL HUBCAPS - WHEELS
Hubcap with concealed wheel
bolts
(example: Hubcap 1)
Remove the Hubcap using the
Hubcap spanner A(from the tool
kit) or the end of the wheelbrace, by
engaging the hook into one of the
openings around the edge of the
Hubcap.
To refit the Hubcap, clip it into
position, ensuring it is aligned with
the valve 2.
Wheel or Hubcap with exposed
wheel bolts
Remove the bolts and remove the
wheel.
Central embellisher
(example: Hubcap 3)
Remove the Hubcap using the
Hubcap spanner (stored in the glove
box). Insert the spanner 4in the
recess 5.
To refit, align recess 5with rim, clip
the Hubcap back into position and
refit the nut using spanner 4.
We would advise you to note the
number engraved on the spanner so
that you can replace it if it is lost.
1
3
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 - page 5
5.05

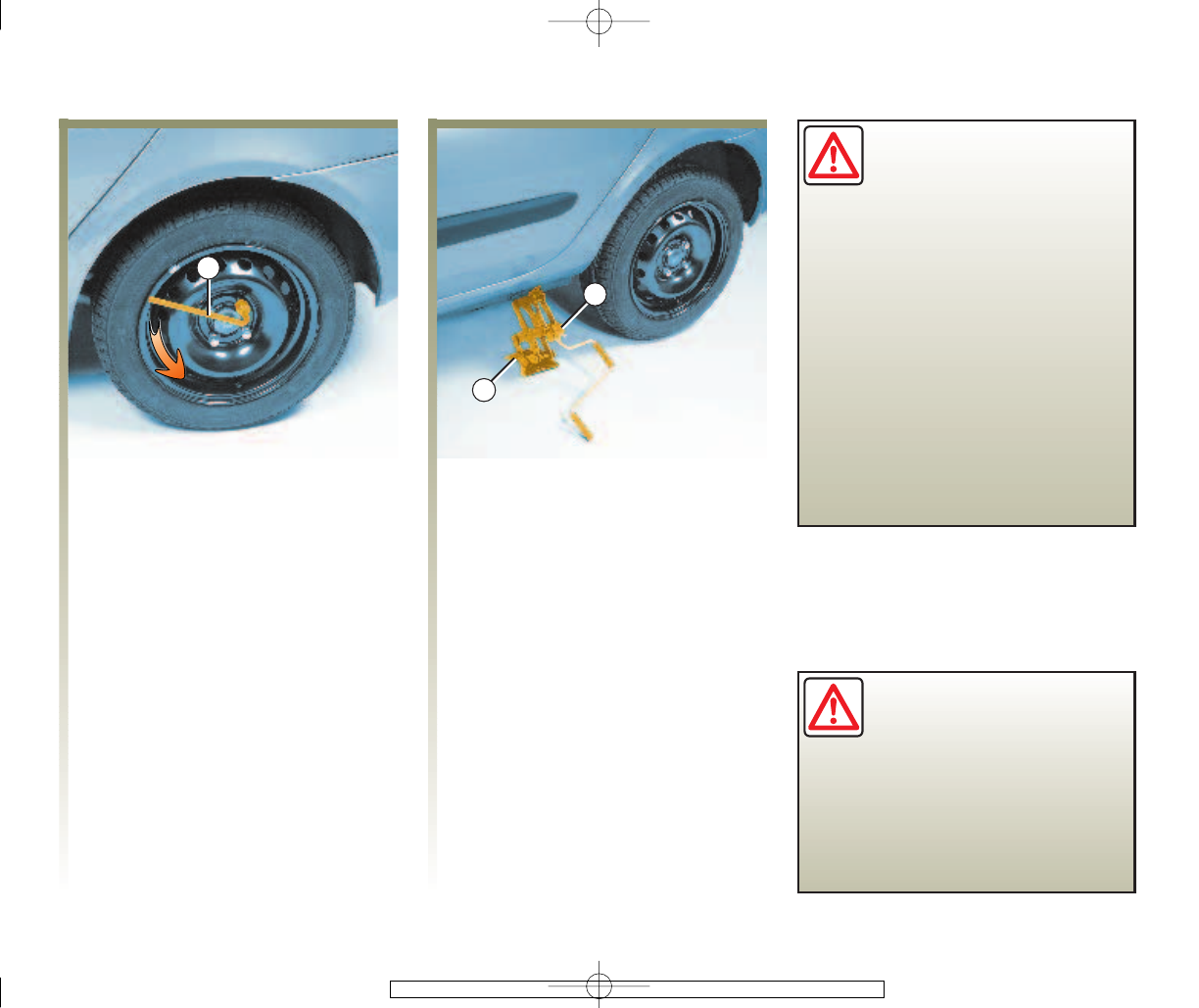

CHANGING A WHEEL
•Remove the wheel embellisher
(see section on embellishers).
• Use the wheelbrace 1to loosen
the wheel bolts slightly. Fit it so
that you press downwards and
not upwards.
• Offer up the jack horizontally, the
jack head must be slid
underneath the jacking point
under the body, nearest the wheel
concerned.
• Screw up the jack by hand at first
to align the base plate (which
should be inclined further
inwards than the jack head). Use a
piece of wood under the base
plate if on soft ground.
• Insert the end of the wheelbrace 2
into the jack 3and turn a few
times to lift the wheel off the
ground:
• Remove the bolts.
• Take off the wheel.
• Position the emergency spare
wheel on the central hub and turn
it to locate the mounting holes in
the wheel and the hub.
• Tighten the bolts and lower the
jack.
• Tighten the bolts fully when the
wheel is on the ground.
Park your vehicle on firm,
flat ground (if necessary,
placing a plank under the
base of the jack).
Switch on the hazard warning
lights.
Apply the handbrake and engage a
gear (first or reverse, or Pon an
automatic gearbox).
Ask all the passengers to get out of
the vehicle and keep them away
from moving traffic.
If you have a puncture,
replace the wheel as soon
as possible.
A tyre which has been
punctured should always be
inspected (and repaired if possible)
by a specialist.
2
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 - page 6
5.06

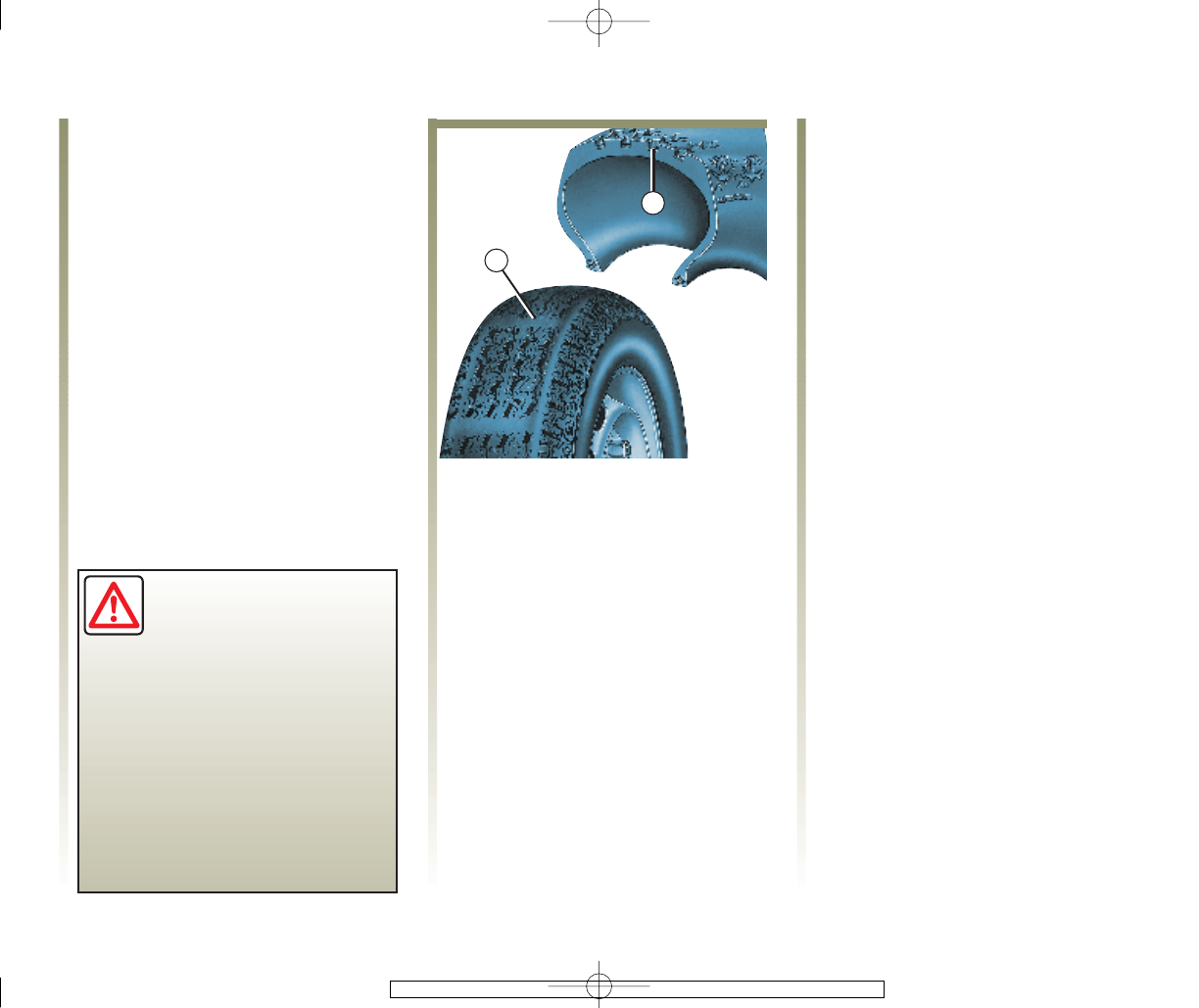

TYRES
Tyre safety - road wheels
The tyres are the only contact
between the vehicle and the road, so
it is essential to keep them in good
condition.
You must make sure that your tyres
conform to local road regulations.
When they need to be
replaced, only tyres of
the same make,
dimension, type and
profile should be used.
When fitting tyres to the car,
they should either be identical to
those fitted originally or
conform to those recommended
by your Renault Dealer.
Maintaining the tyres
The tyres must be in good condition
and the tread form must have
sufficient depth: tyres approved by
our Technical Department have
wear warning strips 1which are
risers moulded into the tread at
several points.
When the tread has worn down to
the level of these risers, they
become visible 2: the tyres
concerned must be replaced now as
only 1.6 mm maximum of tread
remains and this is not sufficient to
maintain good grip on wet roads.
Incidents which occur when
driving such as striking the kerb
may damage the tyres and could
lead to the misalignment of the front
axle geometry.
An overloaded car, long journeys by
motorway, especially in very hot
weather, or continual driving on
poor road surfaces will lead to more
rapid tyre wear and affect safety.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 - page 7
5.07
TYRES (continued)
Tyre inflation pressures
Tyre inflation pressures must be
adhered to. (Remember to check the
emergency spare wheel at the same
time.) Inflation pressures must be
checked at least once a month and
always before a long journey. (Refer
to the section on Tyre inflation
pressures).
Incorrect tyre pressures
lead to abnormal tyre
wear and unusually hot
running. Factors which may
seriously affect safety and lead
to:
- poor roadholding
- possibility of blow-outs or of
throwingatreadathighspeed.
Inflation pressures depend on
the load and the driving speed.
Adjust the pressures according
to the conditions of use. (Refer to
the section on tyre inflation
pressures).
Pressures should be checked when
the tyres are cold; ignore higher
pressures which may be reached in
hot weather or after driving at high
speeds.
If tyre pressures cannot be checked
when the tyres are cold, assume an
increase of 0.2 to 0.3 bar (3PSI).
Never deflate a hot tyre.
Note: a label (depending on country
or version) affixed to the edge or
frame of the driver's door gives the
recommended tyre pressures.
Replacing tyres
For safety reasons, this
operation must only be
carried out by a
specialist.
Fitting different tyres may
change your vehicle as follows:
- It may mean that your vehicle
no longer conforms to current
regulations.
- It may change the way it
handles when cornering.
- It may cause the steering to be
heavy.
- It may cause tyre noise.
- It may affect the use of chains.
Changing wheels around
This practice is not recommended.
Emergency spare wheel
Refer to the information on the
emergency spare wheel and
instructions on how to change a
wheel in section 5.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 - page 8
5.08
TYRES (continued)
Use in winter
• Chains
For safety reasons, chains must
never be fitted to the wheels on
the rear axle.
Chains must not be fitted to tyres
which are larger than those
originally fitted to the vehicle.
Chainsmayonlybefitted
to tyres of the same size
as those originally fitted
to your vehicle.
•“Snow” or winter tyres
We recommend that these are
fitted to all four wheels to ensure
that your vehicle retains
maximum road holding.
Note: These tyres sometimes
have:
- a specific direction of rotation
- a maximum speed which may
be lower than the maximum
speed of your vehicle.
•Studded tyres
This type of equipment may only
be used for a limited period and
as laid down by local legislation.
It is necessary to keep to the speed
specified by current legislation.
As a minimum, these tyres may be
fitted to the two front wheels.
In all cases, we recommend that
you consult your Renault Dealer,
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.
21
4
A
B
C
5
3
6
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 - page 9
5.09

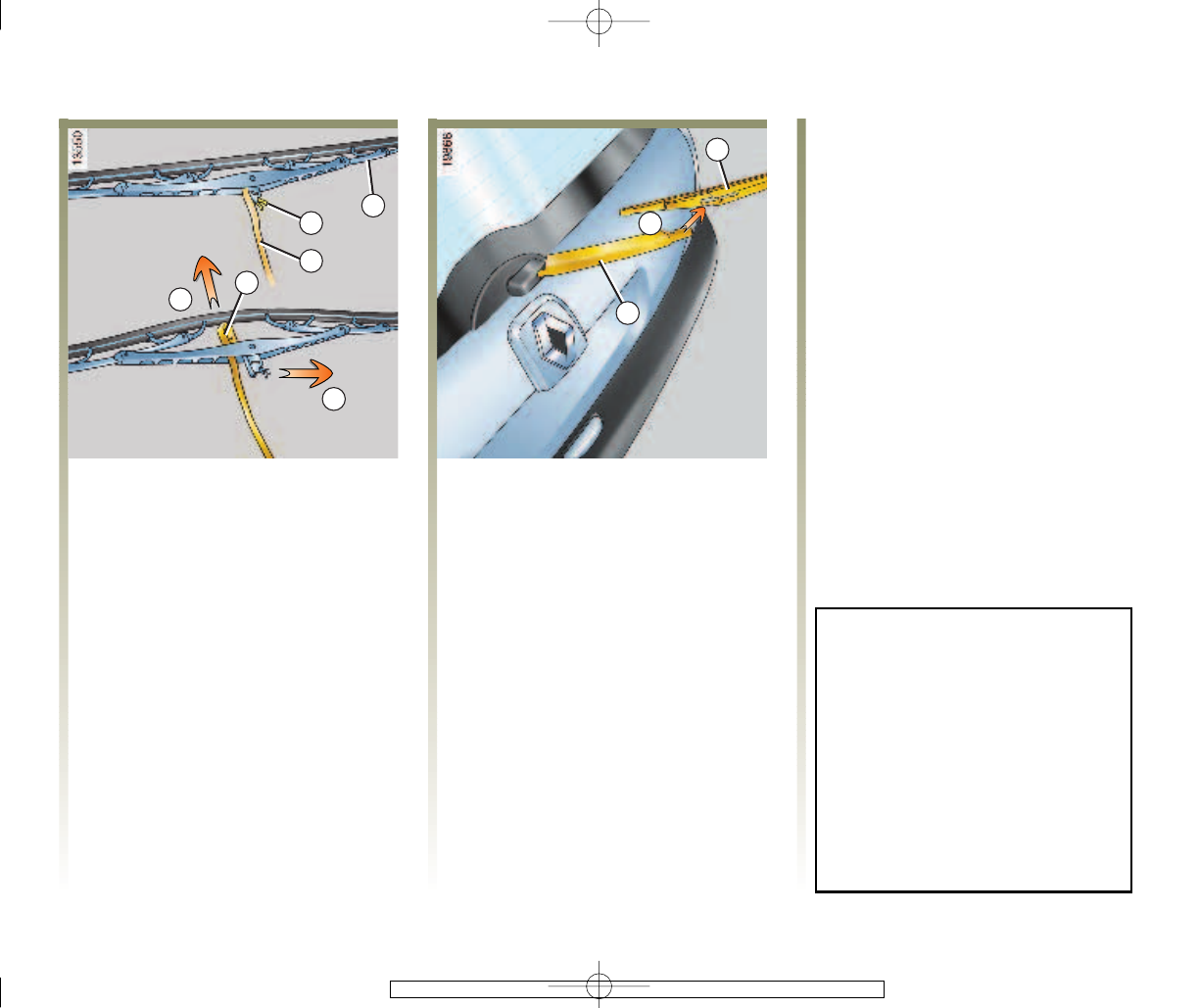

WIPERS
Replacing the windscreen
wiper blades 1
• Lift the wiper arm 3.
• Move the blade into a horizontal
position.
• Press tab 2and slide the wiper
blade downwards until the hook
4of the wiper arm is released.
• Remove blade in direction of
arrow (A)andfitnewbladein
direction of arrow (B).
Replacing the rear screen wiper
blade 5
• Lift the wiper arm 6.
• Pivot the blade until a resistance
is felt.
• Release the blade by pulling it (C).
Refitting a windscreen or rear
screen wiper blade
Refitting is the reverse of removal.
Ensure the blade is correctly locked
in position.
• In freezing conditions, make
sure that the wiper blades are
not stuck to the windscreen
(risk of overheating the motor).
• Keep an eye on the condition of
the blades. Change them as soon
as they become less efficient:
approximately once a year.
AB1
5
4
3
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page10
5.10

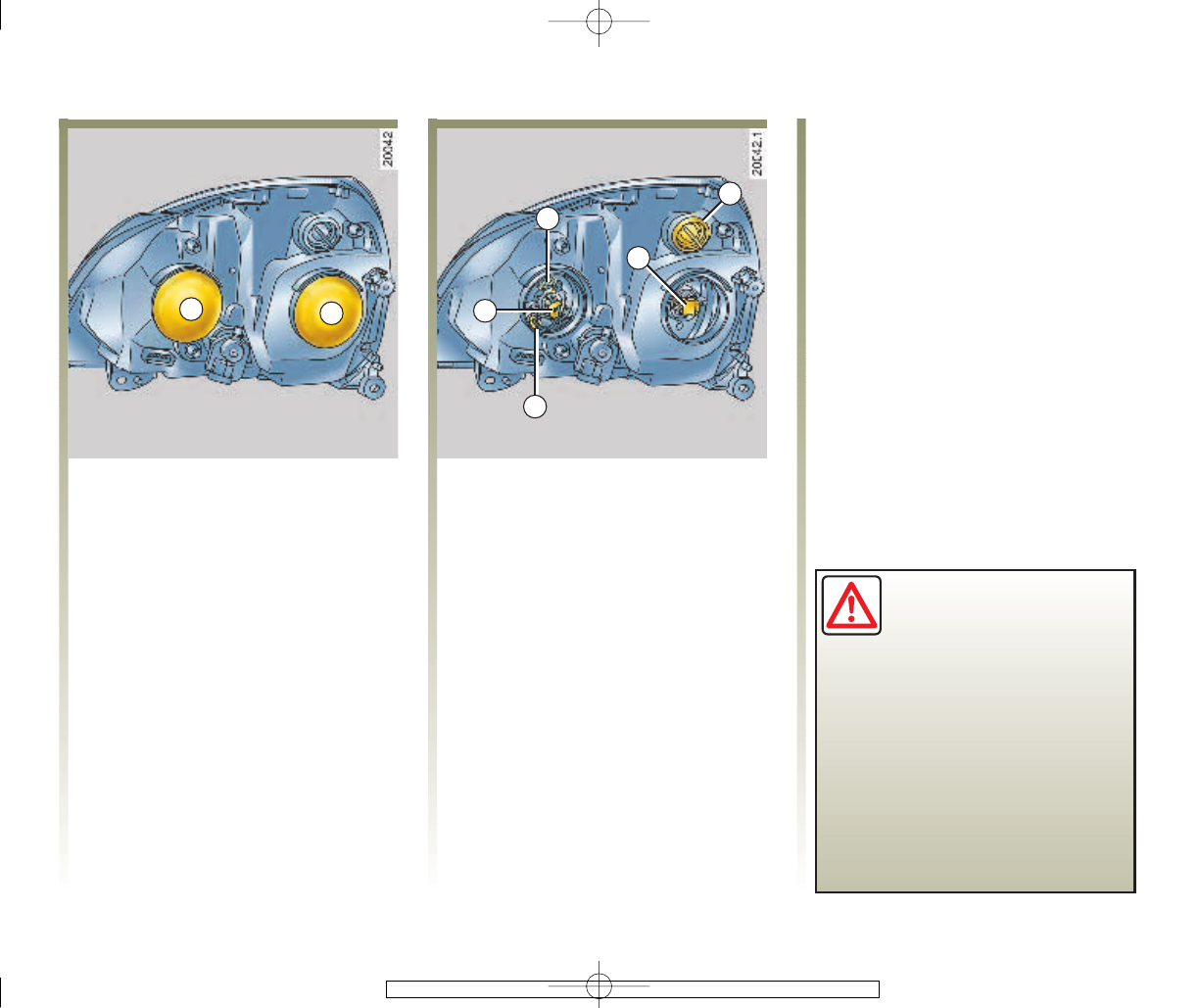

HEADLIGHTS WITH HALOGEN BULBS: replacing bulbs
Headlight main beam
Remove the cover A.
Unclip bulb connector 1.
Disengage the springs 2and remove
the bulb.
Dipped beam headlights
Remove cover B.
Turn the connector a quarter of a
turn and remove bulb 3.
Type of bulb: 1¶H1
3¶H7
anti-UV (see box).
Do not touch the Halogen bulb
glass. Hold it by its base.
Front side lights
Remove the bulb holder 5to access
the bulb.
Bulb type: W5W.
Direction indicator lights
Turn the bulb holder 4aquarterofa
turn and remove the bulb.
Bulb type: PY21W.
When the bulb has been changed,
please refit the cover.
Cleaning the headlights
As the headlights have plastic
lenses, use a soft cloth or cotton
wool.
If this is not sufficient, use a soft
cloth (or cotton wool) dampened
with soapy water then rinse using a
soft cloth or cotton wool.
Carefully dry off using a soft, dry
cloth.
Alcohol based cleaning products
must not be used under any
circumstances.
As the headlights are
fitted with plastic
“lenses”, it is essential to
use anti-UV bulbs.
(If other bulbs are used, this may
damage the headlight).
It is advisable to carry a set of
spare bulbs for emergencies.
B
A
2
3
1
4
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page11
5.11

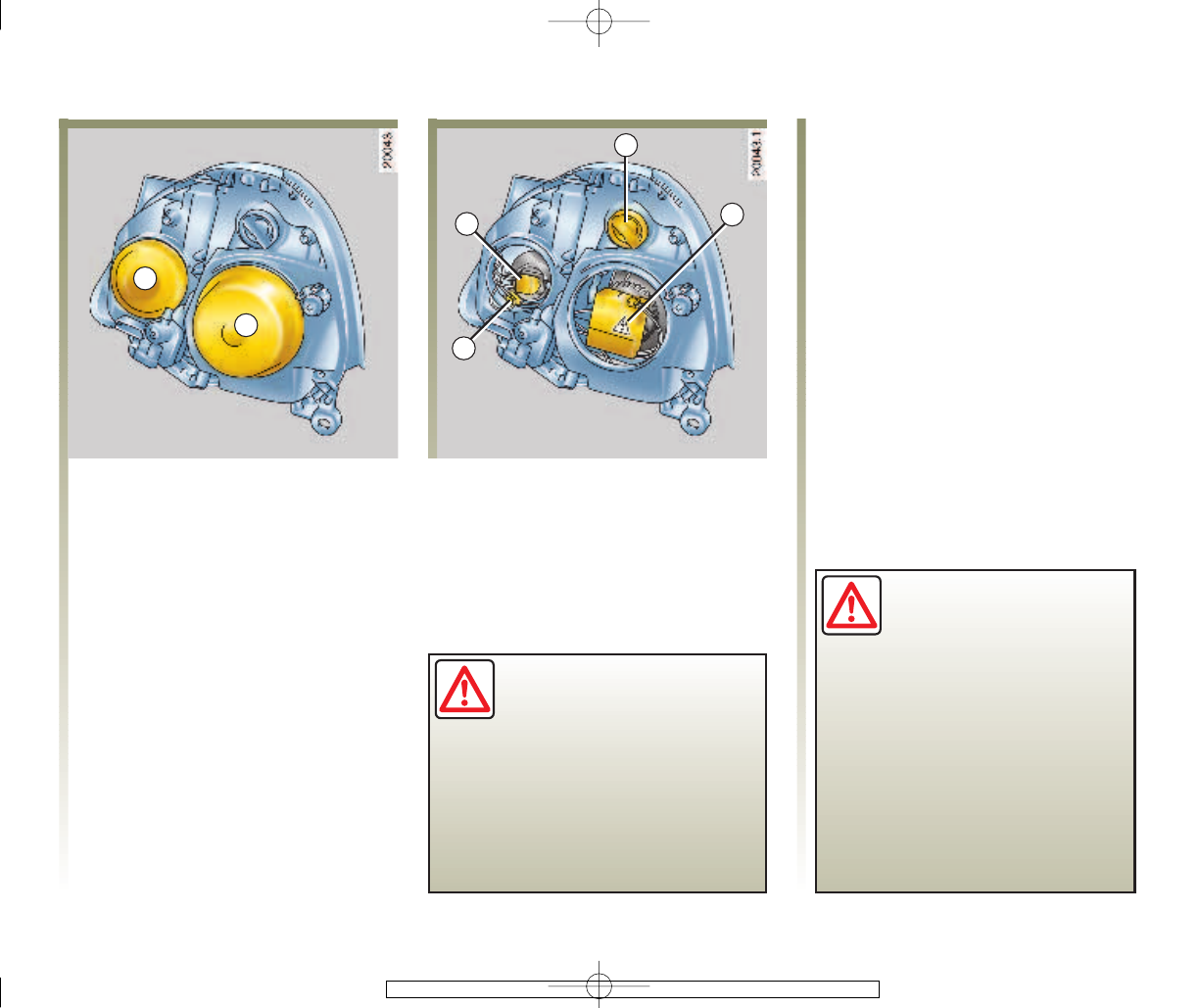

HEADLIGHTS WITH XENON BULBS: replacing bulbs
Dipped beam headlights with
xenon bulbs
They are marked on the label 3
under the cover B.
This type of headlight bulb must be
changed by a RENAULT Dealer.
Bulb type: D2S.
A special mounting is
required to fit this type of
headlight. It is not
permitted to fit a headlight
fitted with xenon bulbs to a vehicle
which was not designed to accept
it.
Main beam headlights
Remove cover A.
Turn the connector 1a quarter of a
turn and remove the bulb.
Type of bulb: anti U.V. (see box).
Do not touch the Halogen bulb
glass. Hold it by its base.
When the bulb has been changed,
refit cover Acorrectly.
As headlights are fitted
with plastic lenses, you
must use anti-UV 55 W
bulbs. (Using any other
type of H1 bulb may damage the
headlight).
It is advisable to carry a set of
spare bulbs for emergencies.
2
4
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page12
5.12

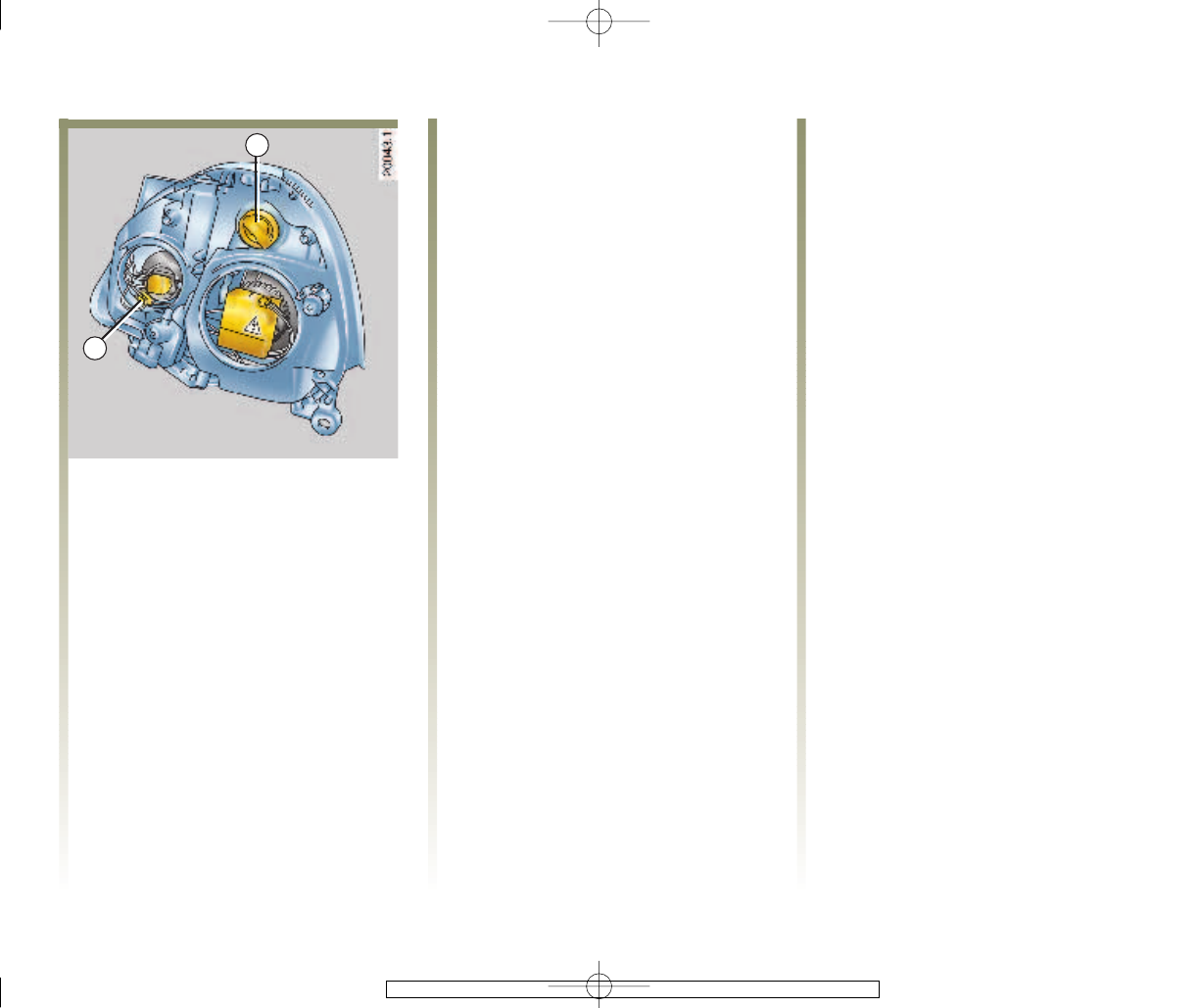

HEADLIGHTS WITH XENON BULBS: replacing bulbs (continued)
Direction indicators
Turn the bulb holder 2a quarter of a
turn and take out the bulb.
Bulb type: orange PY21 W bayonet
bulb.
Front side lights
Remove the cover A.
Remove the bulb holder 4to access
the bulb.
Bulb type: W5W.
Cleaning headlights
As the headlights are made with
plastic lenses, use a soft cloth or
cotton wool to clean them.
If this does not clean them properly,
use a soft cloth or cotton wool
slightly moistened with soapy water
and then wipe clean with a soft
damp cloth.
Finally, carefully dryoffwithasoft
dry cloth.
Cleaning products containing
alcohol must not be used under any
circumstances.
1
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page13
5.13

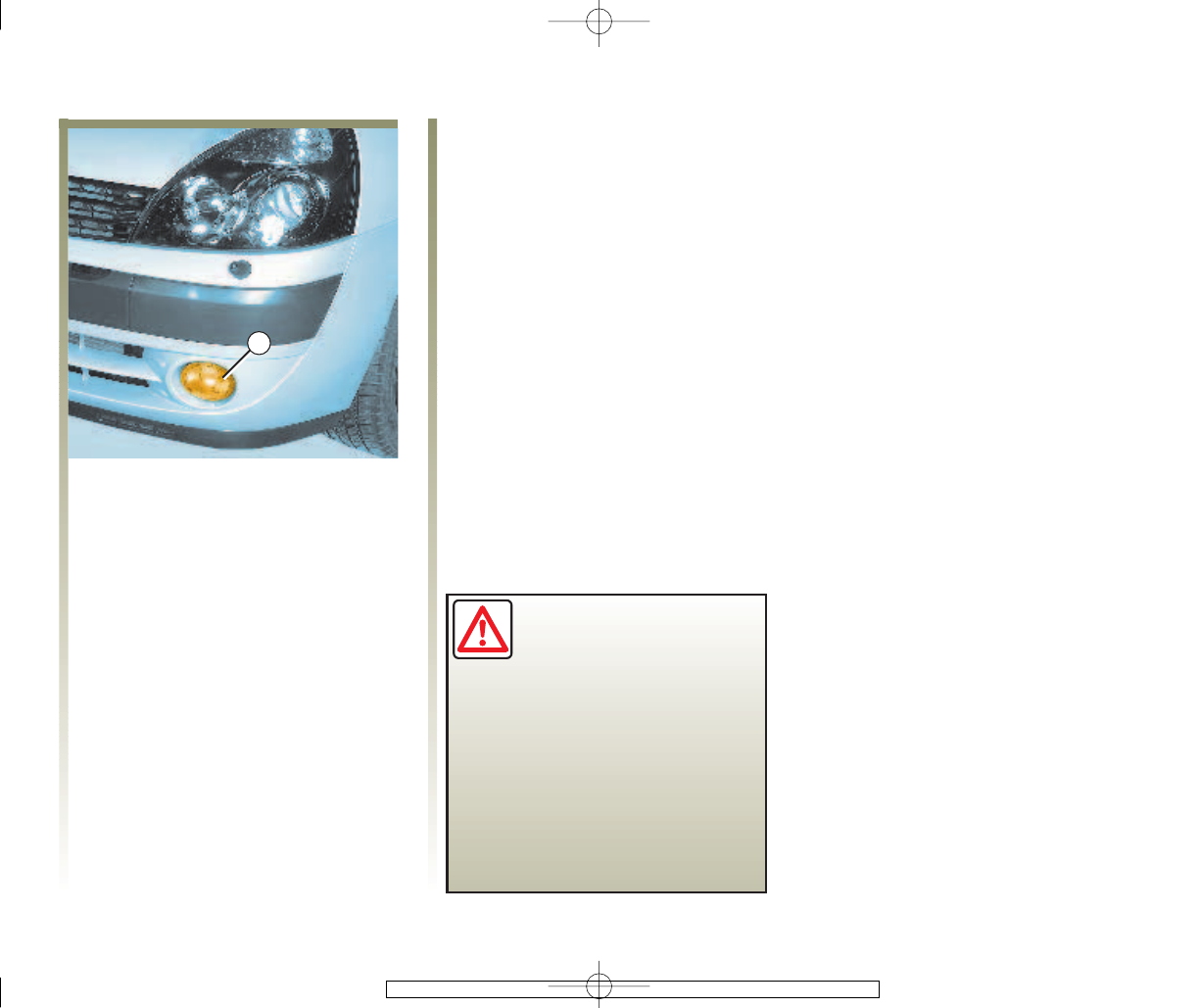

FOG LIGHTS: replacing the bulbs
Front fog lights 1
Changing a bulb and adjusting the
headlight beam:
Consult your Renault Dealer.
Additional lights
If you wish to fit fog lights or long
range headlights to your vehicle,
consult your Renault Dealer.
Any operation on (or
modification to) the
electrical system must be
performed by a Renault
Dealer since an incorrect
connection might damage the
electrical installation (harness,
components and in particular,
the alternator). In addition, your
Dealer has available all the parts
required for fitting these units.
1
2
2
2
3
4
5
6
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page14
5.14

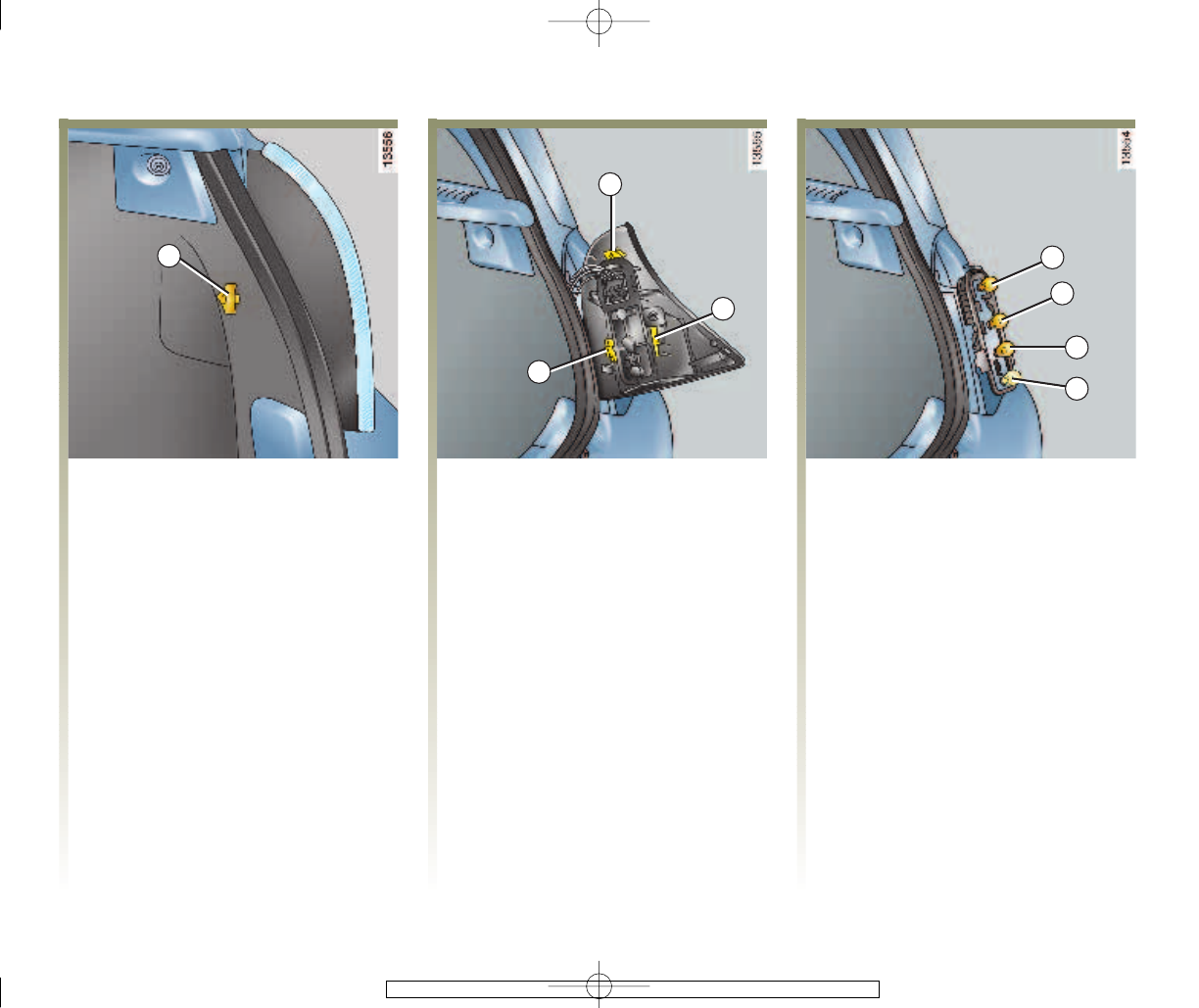

REAR LIGHTS: replacing the bulbs
Remove bolt 1and release the rear
lights unit from outside.
Unclip the bulb holder using tabs 2.3Fog light (or nothing)
Bayonet type bulb with 2
filaments P 21 W.
4Indicator
Orange P 21 W bayonet bulb.
5Reversing light
Bayonet type bulb with 2
filaments P 21 W.
6Tail light and stop light
Bayonet type bulb with 2
filaments P 21/5 W.
1
23
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page15
5.15
REAR LIGHTS: replacing the bulbs (continued)
Third centre stop light 1
The third stop light is a special strip
light. Consult your Renault Dealer if
any work needs to be carried out on
this.
Number plate lights
Release bulb holder 2(using a flat
blade screwdriver for example).
Unclip lens 3from the bulb holder
to reach the bulb.
Bulb type: double ended tubular
bulb 5 W.
1
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page16
5.16

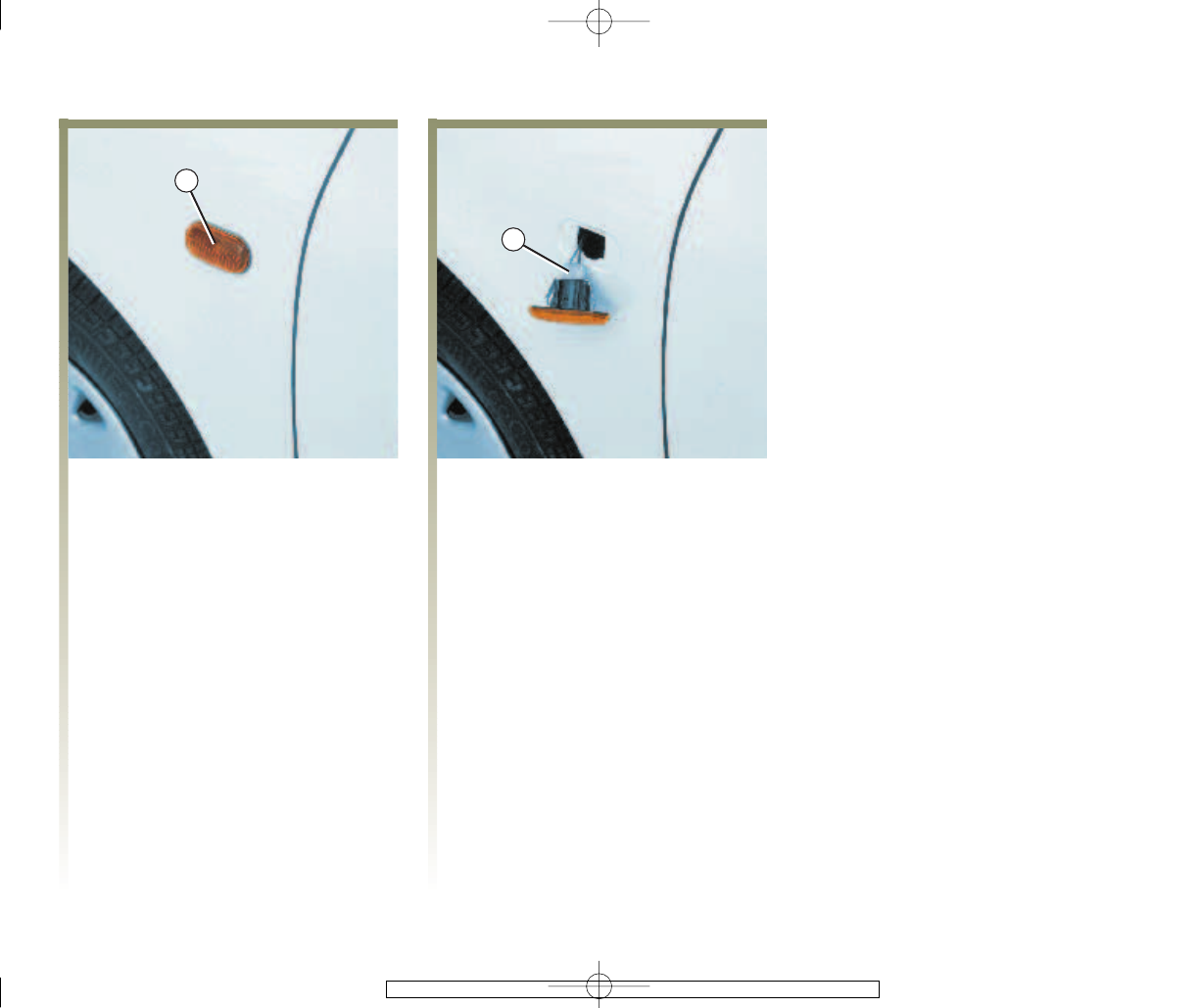

SIDE REPEATERS: replacing the bulbs
Unclip the repeater 1(using a flat
blade screwdriver for example).
Turn the bulb holder 2a quarter turn
and remove the bulb.
Bulb type: W 5 W.
14
2
3
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page17
5.17

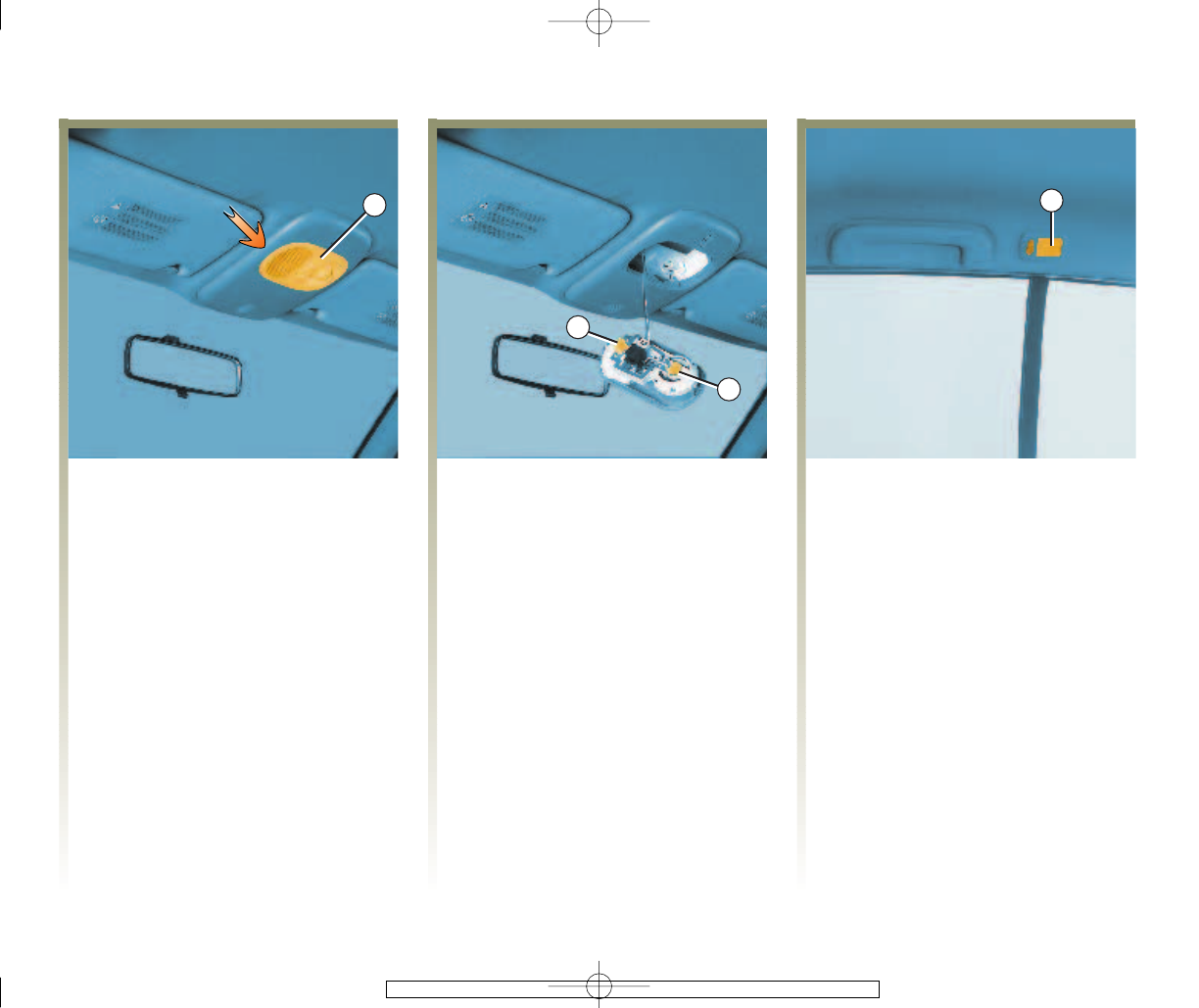

INTERIOR LIGHTS: replacing the bulbs
Courtesy light
Unclip cover 1(using a tool such as
a flat screwdriver).
Turn bulb holder 2or 3aquarterofa
turn.
Bulb type: W 5 W or: festoon type
bulb 7W for a single courtesy light.
Rear lights 4
Unclip the light (using a tool such as
a flat-bladed screwdriver).
Remove the bulb by turning it a
quarter of a turn.
Type of bulb: Bayonet type 5 W.
6
7
8
5
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page18
5.18

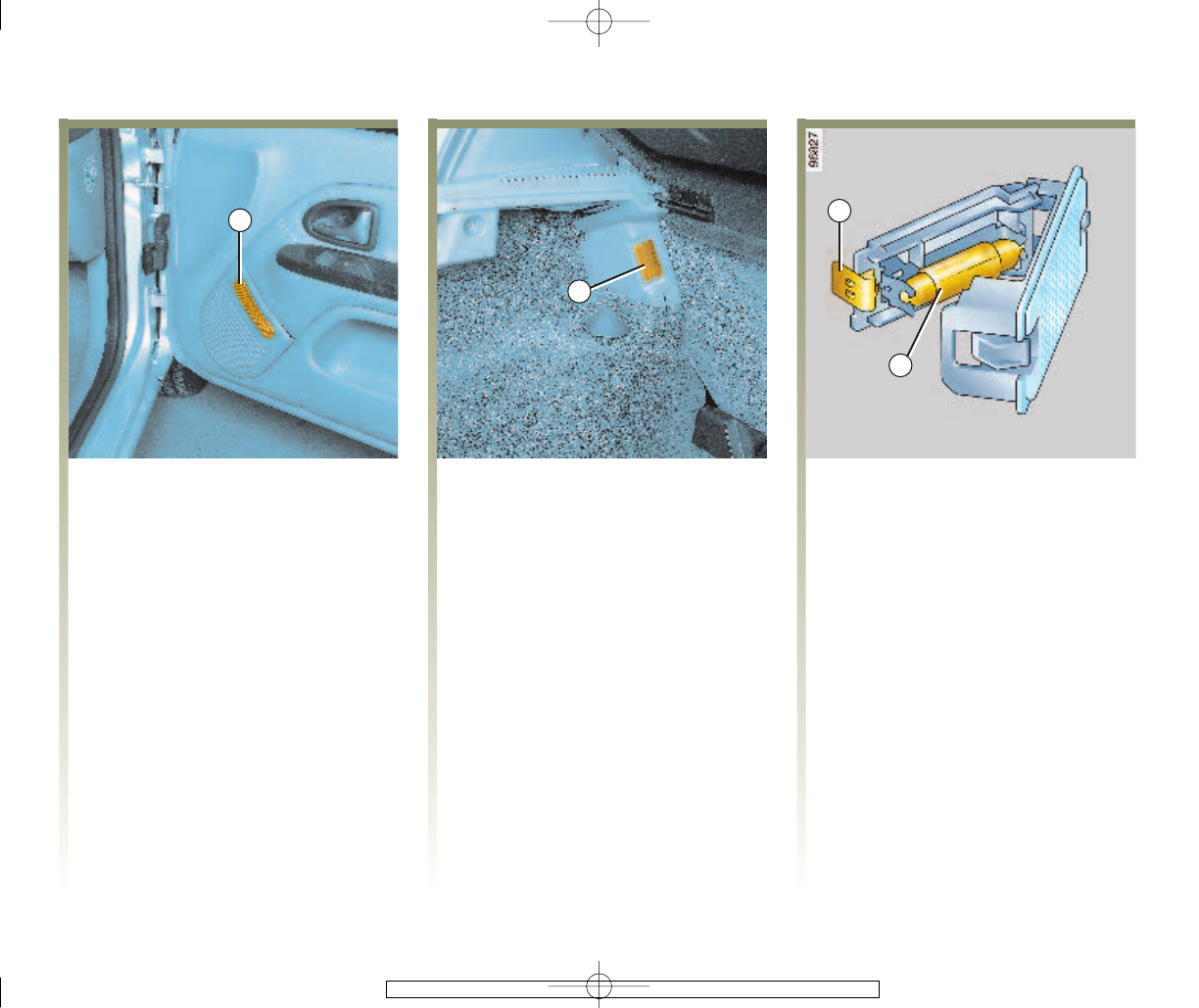

INTERIOR LIGHTS: replacing the bulbs (continued)
Door lights 5
Unclip the light 5(using a tool such
as a flat blade screwdriver).
Release the bulb.
Type of bulb: W 5 W.
Luggage compartment light 6
Unclip light 6by pressing on the
tabs on each side of the light (using
a tool such as a flat screwdriver).
Disconnect the light.
Press tab 7to release the lens and
reach the bulb 8.
Type of bulb: double-ended tubular
bulb 7 W.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:27 -page19
5.19
BATTERY breakdown
To avoid all risk of sparks:
- Ensure that the consumers are
disconnected before disconnecting
or reconnecting the battery.
- When charging, switch off the
charger before connecting or
disconnecting the battery.
- Do not place metal objects on the
battery to avoid creating a short
circuit between the terminals.
Connecting a battery charger
Both battery leads must be
disconnected (with the engine
switched off).
Do not disconnect the battery when
the engine is running. Follow the
instructions for use given by the
manufacturer of the battery charger
you are using.
Only a well-charged and
well-maintained battery will have a
long and useful life and enable you
to start the vehicle’s engine
normally.
The battery must be kept clean and
dry.
Have the battery's charge status
checked regularly:
• especially if you use your vehicle
for short journeys or for frequent
driving in town;
• When the external temperature
drops (in winter), the charge
decreases. In winter, only use
those electrical comsumers which
are really necessary.
• Finally, you should understand
that the charge decreases
naturally as a result of certain
permanent consumers such as:
the clock, aftermarket
accessories...
When a large number of accessories
are fitted to the vehicle, have them
connected to + after ignition.Inthis
case, it is advisable to have your
vehicle fitted with a battery which
has an increased nominal capacity.
Consult your Renault Dealer.
If the vehicle is to be left stationary
for a long time, disconnect the
battery and recharge it regularly,
especially in cold weather. The
memories, radio etc. will then have
to be reprogrammed. The battery
must be stored in a dry and
ventilated area protected from frost.
Specific procedures may
be required to charge
some batteries. Consult
your Renault Dealer.
Avoid all risk of sparks which
may cause an immediate
explosion and charge the battery
in a well-ventilated area.
Risk of serious injury.
1
4A
2
B
3
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page20
5.20
BATTERY: breakdown (continued)
Starting the vehicle using the
battery from another vehicle
Proceed as follows when starting
your vehicle from another vehicle's
battery:
Obtain suitable jump leads (with a
large cross section) from a Renault
Dealer or, if you already have jump
leads, ensure that they are in perfect
condition.
Both batteries must have an
identical nominal voltage: 12 volts.
The battery supplying the current
should have a capacity (amp-hours,
Ah) which is at least the same as
that of the discharged battery.
A frozen battery must be thawed out
before current is supplied to it.
Ensure that there is no risk of
contact between the two vehicles
(risk of short circuiting when the
positive terminals are connected)
and that the discharged battery is
properly connected. Switch off your
vehicle ignition.
Start the engine of the vehicle
supplying the current and run it at
average speed.
Secure the positive cable (+) Ato
the (+) terminal 1of the discharged
battery then to (+) terminal 2of the
battery supplying the current.
Secure the negative cable (–) Bto
the (–) terminal 3of the battery
supplying the current then to the (–)
terminal 4of the discharged battery.
Check that there is no contact
between cables Aand Band that
cable Ais not touching any metal
parts on the vehicle supplying the
current.
Start the engine as you would
normally. As soon as it starts,
disconnect cables Aand Bin the
reverse order (4-3-2-1).
Handle the battery with
care since it contains
sulphuric acid which
must never come into
contact with eyes or skin. If it
does, wash with plenty of water.
Keep all flames, light sources
and sparks away from the
battery: risk of explosion.
Take care when working in the
engine compartment as the
engine cooling fan may cut in at
any moment without warning.
1
2
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page21
5.21

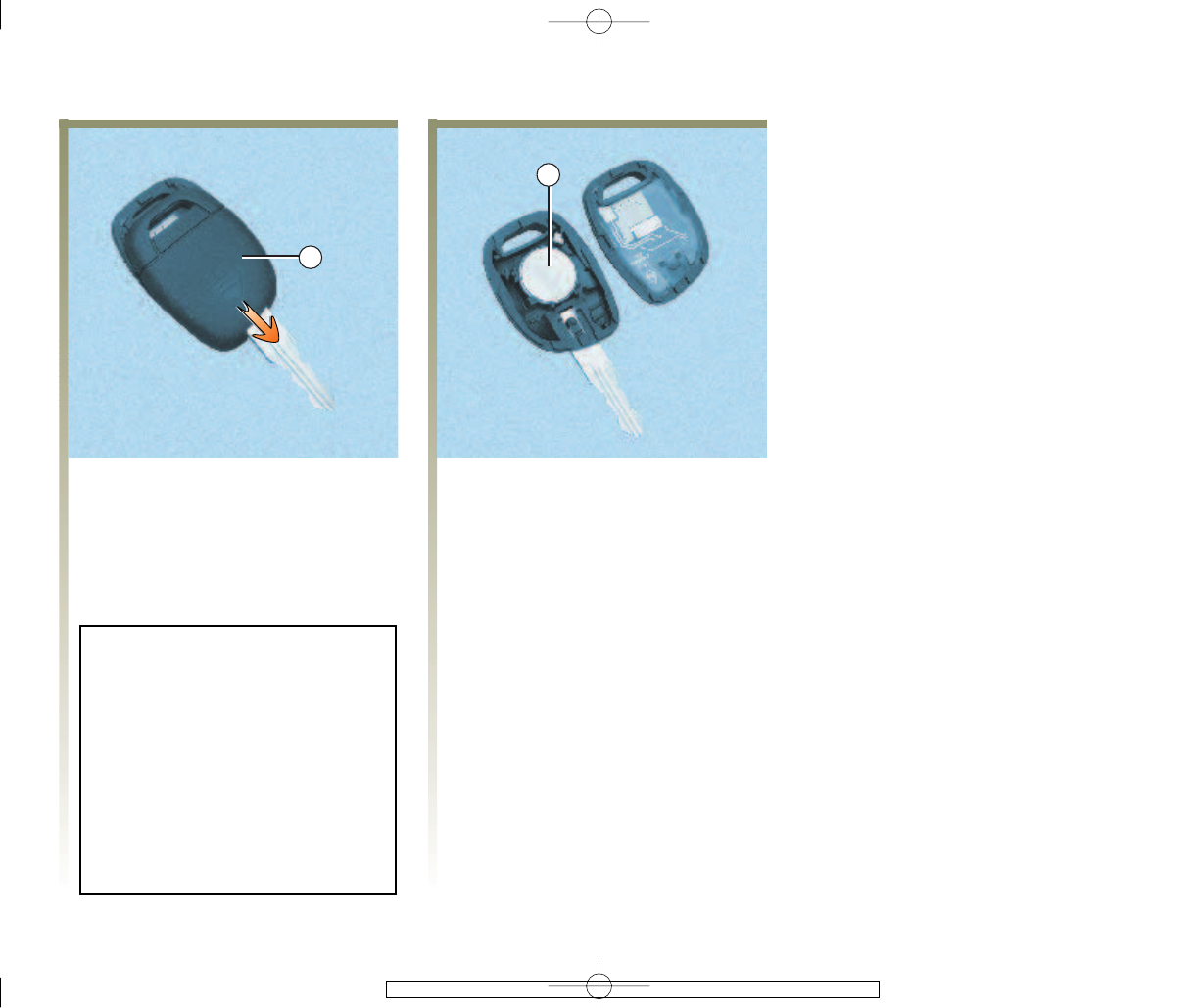

REMOTE CONTROL LOCKING DEVICE (batteries)
Replacing the battery
Slide off the remote control cover 1.
The batteries can be obtained
from your Renault Dealer.
These batteries should last about
two years. There is a delay of 1
second between locking and
unlocking actions.
Replace the battery 2according to
the direction marked on the cover.
Note: When replacing the battery, it
is advisable not to touch the
electronic circuit in the key cover.
1
A
3
2
4
3
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page22
5.22

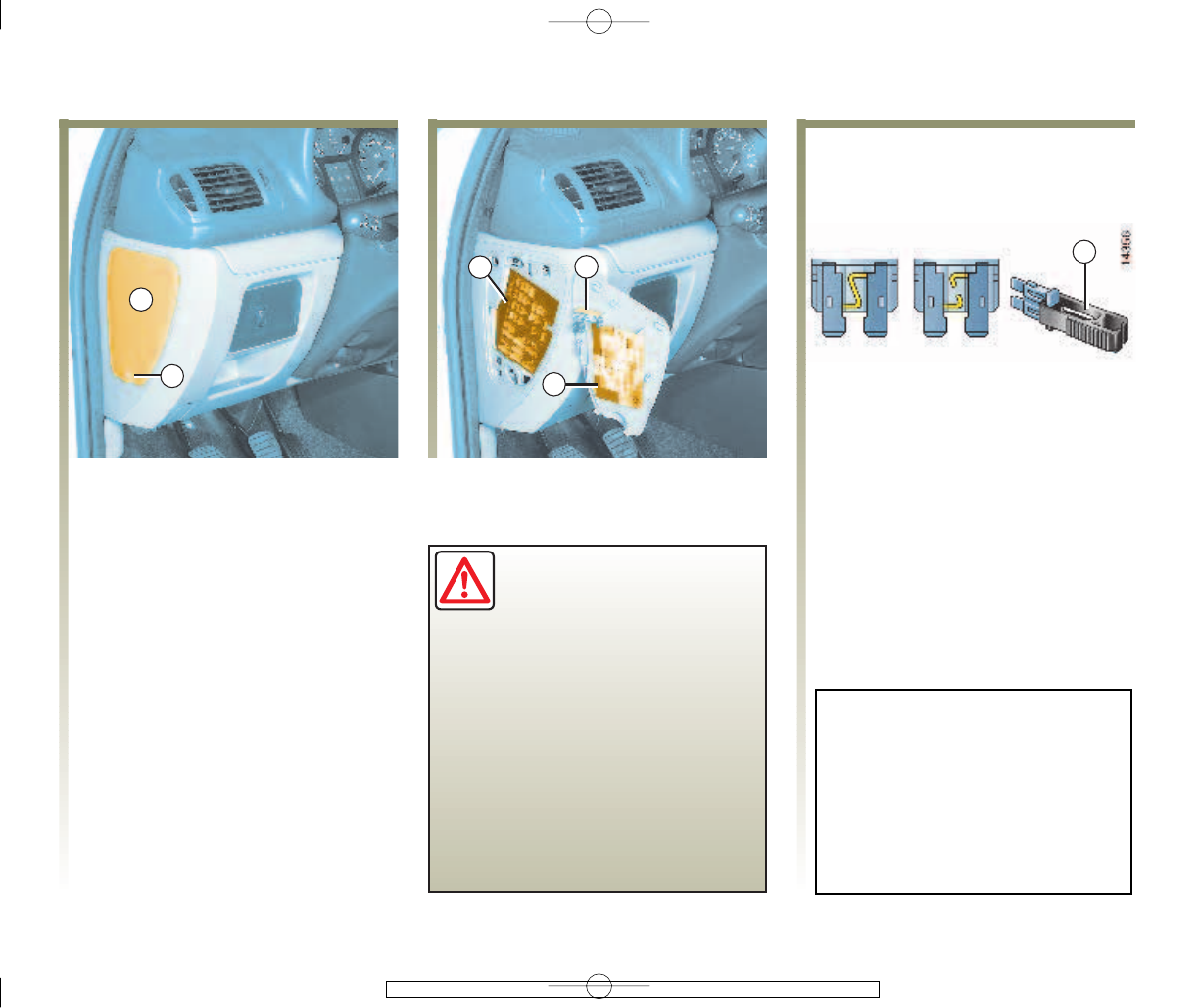

FUSES
CORRECT INCORRECT
Fuse box 2
If electrical equipment does not
work, check the condition of the
fuses.
Lift cover Ausing handle 1.
To identify the fuses, refer to the
fuse allocation label 4(shown on
the page opposite).
It is not advisable to use the free
fuse locations.
Check the fuse in question
and replace it, if necessary,
with a fuse which must be
ofthesameratingasthe
original fuse.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in
the event of an item of equipment
usinganexcessiveamountof
current.
Removethefuseusingtweezers3.
Slide the fuse sideways to remove it
from the tweezers.
A sensible precaution:
Obtain an emergency kit
containing spare bulbs and fuses
from your RENAULT Dealer.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page23
5.23
FUSES (continued)
Allocation of fuses (the presence of fuses depends on the vehicle equipment level)
Symbol Allocation
Air bag/Central timer
Stop lights
Heated rear screen
Windscreen wipers
Anti-lock braking (ABS)
Fan
Radio/Cigar lighter/Clock
Horn
Left hand
dipped headlight
Right hand
dipped headlight
Symbol Allocation
Right hand main beam
headlight
Left hand main beam
headlight
Dual headlights
(dipped beam headlights
and main beam
headlights)
Heated rear view mirrors
Front fog lights
Not used
Not used
Central timer
Direction
indicators/Hazard warning
lights
Rear fog light
Symbol Allocation
Left hand side light
Right hand side light
Engine immobiliser
Interior and luggage
compartment lights/Radio
Central door locking
Electric windows
Headlight washers
Heated seats
Electric sunroof
1
2
2
34
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page24
5.24
TOWING breakdown
The steering lock must not be
applied; the ignition key must be in
position “M” (ignition) allowing
lights and signals to be used (stop
lights and direction indicators).
The vehicle lights must be used at
night.
It is also important to observe the
towing conditions defined by the
legislation for the particular country
you are in. Do not exceed the towing
weight for your vehicle. Consult
your Renault Dealer.
Only use the towing ring 2(in the
tool kit 1) and the towing points at
the front 3. (Never use the drive
shafts.) These towing points may
only be used for pulling the car,
never for lifting it either directly or
indirectly.
Front towing point 3
Rear towing point 4
First screw in the towing
ring 2by hand as far as it
will go. Then use the
wheelbrace from the tool
kit to finish tightening it.
A
J
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page25
5.25
TOWING breakdown, (continued)
• Renault recommends
using a rigid towing bar.
If a rope or cable is used
(where the law allows
this), the vehicle being towed
must be able to brake.
• A vehicle must not be towed if it
is not fit to be driven.
• Do not accelerate or brake
suddenly when towing, as this
may result in damage to the
vehicle.
• When towing a vehicle, do not
exceed 15 mph (25 km/h).
Towing a vehicle with
automatic transmission: special
notes
Engine switched off: The transmission
is no longer lubricated. It is preferable
to tow this type of vehicle on a trailer
or tow it with the front wheels off the
ground.
In exceptional cases, you can tow the
vehicle with all four wheels on the
ground for a maximum distance of 30
miles (50 km).
The selector lever must be in
neutral (position N).
If the lever becomes jammed in P
position, even though you are
pressing down the brake pedal, the
lever can be released manually.
To do this, unclip cover J.Presson
both the raised part (under cover J)
and the unlocking button Aat the
same time to move the lever from
position P.
A
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page26
5.26

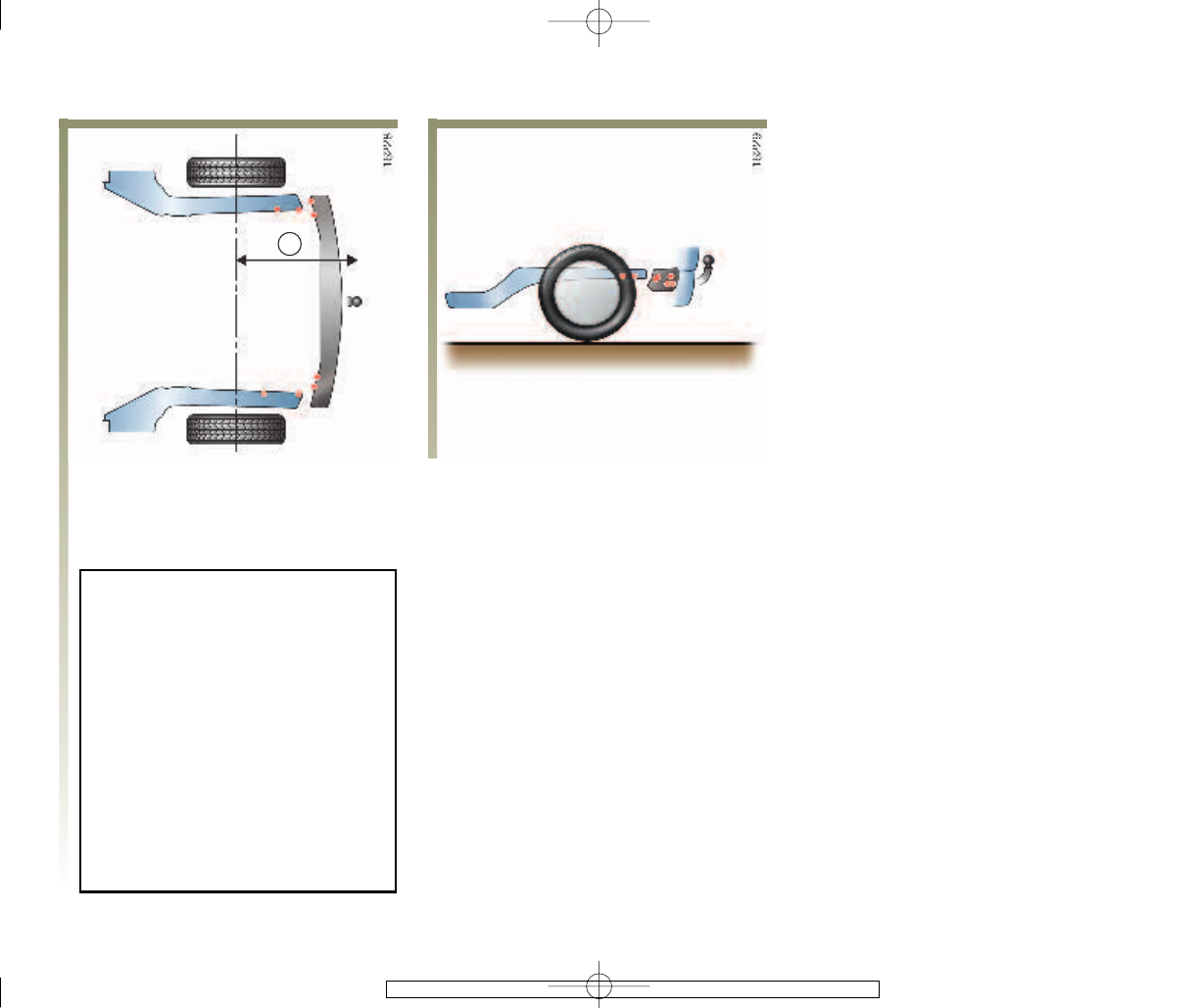

TOWING trailer
A= 662 mm.
Permissible nose weight when
towing a trailer, max. towing
weight, braked and unbraked:
Refer to the information on
“WEIGHTS” in section 6:
Refer to the manufacturer’s
instructions for information on
how to fit and operate the towing
attachment.
It is advisable to keep these
instructions with your other
vehicle documentation.
1
2
3
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page27
5.27
FITTING A RADIO
Radio installation 1
Unclip and remove the cover. The
aerial, + and – supply connectors
and left and right speaker wires are
fixed to the rear face of the cover.
Front speakers
Unclip cover 2using a flat blade
screwdriver type tool at the arrows.
Remove the two screws 3and then
take off the protective card to reach
the speaker wires.
• In all cases, follow the manufacturer’s fitting instructions carefully.
• The specifications of the supports and wires (available as a Renault parts accessory) vary depending on equipment
level of your vehicle and the type of radio.
To find out their reference, consult your Renault Dealer.
• Any operation on (or modification to) the electrical system must be performed by a Renault Dealer since incorrect
connections might damage the electrical installations or any components connected to it.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page28
5.28
ACCESSORIES
Using mobile phones and
CB equipment.
Mobile phone equipment
with integrated aerials may
cause interference to the original
electronic systems fitted to the
vehicle: we recommend that you
only use equipment with an
exterior aerial.
Furthermore, we remind you of
the need to conform to the
legislation in force concerning the
use of such equipment.
After-sales installation of
non-electrical accessories
(roof bars, towing
attachments, etc.)
Accessories approved by Renault
are based on a strict specification
and are regularly tested. We would
recommend that you use approved
accessories (particularly where
these affect safety) because they are
particularly reliable and
appropriate for your vehicle.
After-sales installation of electric
or electronic accessories
•Any work on the electric circuit
of the vehicle must be carried out
by Renault network engineers: if
the system is connected
incorrectly, it may result in
damage being caused to the
electrical installation and/or the
units connected to it.
• If the vehicle is retrofitted with
any electrical equipment, make
sure that the unit is correctly
protected by a fuse. Ask for
information on the rating and
position of this fuse.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page29
5.29
OPERATING FAULTS
Your vehicle should not be affected by faults likely to keep it off the road for long periods if you have followed the Renault
Servicing Programme regularly.
The following advice will allow you to get going again quickly, albeit temporarily: for reasons of safety, you should
always consult a Renault Dealer as soon as possible.
When starter is activated CAUSES REMEDIAL ACTION
• There is no response. The warning
lights fail to illuminate and the starter
does not turn.
Battery lead disconnected or terminals
oxidised.
Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
Battery unserviceable. Replace the battery.
• Warning lights go dim and starter
turns very slowly.
Battery terminals not tight.
Battery terminals oxidised.
Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
• The engine is difficult to start in
damp conditions or after washing.
Poor ignition, ignition system damp. Dry the plug leads and ignition coil.
• The engine is difficult to start when
hot.
Poor carburation (bubbles of vaporised
fuel in the circuit).
Let the engine cool down.
Lack of compression. Consult a Renault Dealer.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page30
5.30
OPERATING FAULTS (continued)
When starter is activated CAUSES REMEDIAL ACTION
• The engine fires once or twice then
dies and is difficult to start when cold.
Immobiliser active. Refer to the “Engine immobiliser”
section.
Starting procedure incorrect Refer to the “starting the engine”
section.
or
Poor fuel supply or ignition fault. If the vehicle will not start, do not
keeptryingtostartit.
Consult a Renault Dealer.
System for cutting off fuel supply
activated if vehicle has been subject to
severe impact.
See a Renault Dealer. (Refer to
information on fuel cut-off system in
section 5.)
• Vibrations. Tyres incorrectly inflated, incorrectly
balanced or damaged.
Check the tyre pressures and, if they
are correct, have a Renault Dealer check
the condition of the tyres.
• Coolant boiling in expansion bottle. Mechanical fault: cylinder head gasket
blown, water pump faulty.
Stop the engine.
Consult a Renault Dealer.
Engine cooling fan not working. Check the appropriate fuse, otherwise
consult a Renault Dealer.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page31
5.31
OPERATING FAULTS (continued)
On the open road CAUSES REMEDIAL ACTION
• Abnormal white smoke from the
exhaust.
Mechanical fault: cylinder head gasket
blown.
Stop the engine.
Consult a Renault Dealer.
• Smoke under the bonnet. Short circuit. Stop the vehicle, switch off the
ignition, disconnect the battery.
Cooling circuit fault. Consult a Renault Dealer.
• The oil pressure warning light
illuminates
- when cornering or braking. The level is too low. Top up the oil.
- at idle speed. The oil pressure is too low. Consult the nearest Renault Dealer.
- is slow to extinguish or remains
illuminated on acceleration.
Loss of oil pressure. Stop and call for the assistance of a
Renault Dealer.
• The engine lacks power. Dirty air filter. Replace the cartridge.
Fuel supply fault. Check the fuel level.
Spark plugs faulty, incorrect gap. Consult a Renault Dealer.
• Idle speed unsteady or engine stalls. Lack of compression (spark plugs,
ignition, air leak)
Consult a Renault Dealer.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page32
5.32
OPERATING FAULTS (continued)
On the open road CAUSES REMEDIAL ACTION
• Steering becomes hard to turn. Belt broken. Have the belt replaced.
Lack of oil in pump. Top up oil (see maintenance section).
If the fault persists, consult your
Renault Dealer.
• The engine overheats. The coolant
temperature warning light illuminates
(or the needle on the gauge is in the
red zone).
Water pump: belt slack or broken.
Faulty engine cooling fan.
Stop the vehicle, switch off the engine
and call for the assistance of a Renault
Dealer.
Coolant leaks. Check the condition of the hoses and
clips.
Check the expansion bottle: it should
contain coolant. If it does not, top up
the level (after letting the engine cool
down). Take care not to burn yourself.
This action is only temporary: consult
your Renault Dealer as soon as
possible.
Radiator
Never fill a hot radiator with cold coolant if a considerable quantity has been lost. After any operation
on the vehicle which has involved even partial draining of the cooling system, it must be refilled with a
new mixture prepared in the correct proportions. Reminder: only products approved by our Technical
Department may be used for this purpose.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page33
5.33
OPERATING FAULTS (continued)
Electrical equipment CAUSES REMEDIAL ACTION
• The wipers do not work. Wiper blades stuck. Release the blades before use.
Fuse blown (intermittent, park). Replace the fuse.
Motor faulty. Consult a Renault Dealer.
• Indicators flash more rapidly. - Bulb blown. Replace the bulb.
• Direction indicators
not flashing.
On one side: - bulb blown. Replace the bulb.
- feed wire disconnected or connector
out of position.
Reconnect the wire.
- faulty earth. Find the earth wire which is secured
to a metal component, scrape the end
of the earth wire and refit it carefully.
On both sides: - fuse blown. Replace the fuse.
- flasher unit faulty. Replace: consult a Renault Dealer.
QXBIUDB*T[G3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T5.WIN 30/10/2002 12:28 -page34
5.34
OPERATING FAULTS (continued)
Electrical equipment CAUSES REMEDIAL ACTION
• Headlights
do not work.
On one side: - bulb blown. Replace the bulb.
- feed wire disconnected or connector
out of position.
Check and reconnect the wire or the
connector.
- faulty earth. See above.
On both sides: - if the circuit is protected by a fuse. Check and replace the fuse if necessary.
• Traces of condensation in the lights. This is not a fault. The presence of
traces of condensation in the lights is
a natural phenomenon concerned
with variations in temperature.
These traces will disappear quickly
once the lights are in use.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page1
6.01
Section 6: Technical specifications
Identification plates ............................................................................................................................. 6.02 ¬6.04
Engine specifications ........................................................................................................................................ 6.05
Weights .................................................................................................................................................. 6.06 ¬6.14
Towing weights .................................................................................................................................... 6.06 ¬6.14
Dimensions ........................................................................................................................................................ 6.15
Replacement parts ............................................................................................................................................ 6.16
A
1
2
3
4
5
6
7
8
9
10
11
12
13
A
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 - page 2
6.02
IDENTIFICATION PLATES
The information on the vehicle
identification plate A(right hand
side) must be quoted when writing
or ordering parts
A- Vehicle identification plate
1Vehicle type and chassis number.
(Number repeated on a plate
mounted on the dashboard at the
base of the windscreen)
2Maximum permissible all up
weight.
3Maximum permissible total train
weight (= vehicle loaded and
towing a trailer).
4Maximum permissible front axle
loading.
5Maximum permissible rear axle
loading.
6Technical specifications of the
vehicle.
7Paint code.
8Equipment level.
9Vehicle type.
10 Trim code.
11 Additional equipment definition
code.
12 Fabrication number.
13 Interior matching trim code.
1
3
B
B
B
B
2
B
1.2 1.2 16V
1.4 16V - 1.6 16V 2.0 16V
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 - page 3
6.03
IDENTIFICATION PLATES (continued)
The information on the vehicle
identification plate and the engine
plate Bmust be quoted when
writing or ordering parts.
B- Engine plate or engine label
(location differs depending on engine)
1Engine type
2Engine suffix
3Engine number
1
3
B
2
B
B
1.5 dCi 1.9 dTi
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 - page 4
6.04
IDENTIFICATION PLATES (continued)
The information on the vehicle
identification plate and the engine
plate Bmust be quoted when
writing or ordering parts.
B- Engine plate or engine label
(location differs depending on
engine)
1Engine type
2Engine suffix
3Engine number
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 - page 5
6.05
ENGINE SPECIFICATIONS
Versions 1.2 1.2 16V 1.4 16V 1.6 16V 2.0 16V 1.5 dCi 1.9 dTi
Vehicle type
(see vehicle
identification plate)
B/C/SB0F
B/C/SB10
B/C/SB1K
B/CB2D
B/C/SB05
B/C/SB11
B/C/SB0W
B/CB1L
B/CB0P
B/CB13
B/CB14
B/CB1D
CB15
CB1C
CB1G
CB1N
CB1S
CB1T
B/C/SB07
B/C/SB08
SB09
BB1W
B/CB2C
Engine type
(see engine
plate)
D7F D4F K4J K4M F4R K9K F9Q turbo
Capacity (cm³) 1 149 1 149 1 390 1 598 1 998 1 461 1 870
Fuel grade Unleaded fuel Diesel
Octane rating 95 or 98 (1) 98 – –
Spark plugs Only use the type specified
for your vehicle’s engine.
Their type is shown on a label in
the engine compartment,
otherwise consult your RENAULT Dealer.
Fitting spark plugs which
are not to specification
may damage the engine.
––
(1) If unavailable, unleaded fuel with an octane rating of 91 may be used.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 - page 6
6.06
WEIGHTS (in kg) - Basic vehicle without options, likely to change in the course of the model year:
Consult your RENAULT Dealer.
5-door petrol versions
(versions sold vary according to country)
1.2 1.2 16V 1.2 16V
Quickshift 5
1.4 16V 1.4 16V
Automatic
1.6 16V 1.6 16V
Automatic
Vehicle type
(see vehicle identification plate)
BB0F
BB10
BB1K
BB2D
BB05
BB0W
BB11
BB05
BB0W
BB0P
BB13
BB1L
BB13
BB1L
BB14
BB1D
BB14
BB1D
Kerb
weight
Without driver
Total
Front
Rear
900 930 940 1 000 1 030 1 040 1 065
545 565 575 645 670 675 700
355 365 365 355 360 365 365
Maximum permitted
axle load
Front
Rear
780 780 780 850 860 850 860
785 785 785 785 785 785 785
Maximum permissible all up weight 1 440 1 470 1 480 1 545 1 570 1 535 1 560
Maximum permissible towed weight, unbraked
485 500 505 535 550 545 555
Maximum permissible towed weight,
braked (1) driver only 1 100 1 100 1 100 1 200 1 200 1 200 1 200
other cases 800 800 800 900 900 900 900
Maximum permissible total train weight
(= maximum permissible all up weight
+ trailer)
2 200 2 200 2 250 2 400 2 400 2 400 2 400
Maximum permissible nose weight 75
Max. permissible load on roof rack 70 (including the carrying device)
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 - page 7
6.07
WEIGHTS (continued)
(1) Towed weight (Towing a caravan, boat, etc.)
- It is important that the towing weights in each country governed by local legislation are respected. Consult your Renault
Dealer for all towing attachments. In all cases, never exceed the maximum permissible total train weight (vehicle +
trailer).
- If your vehicle is already being used fully laden (maximum permitted all up weight); your maximum speed must be
limited to 60 mph (100 km/h) and the tyre inflation pressures should be increased by 0.2 bar.
- Engine output and performance on hills are reduced with altitude. We recommend that you reduce the maximum load by
10% at an altitude of 1000 metres, then by an additional 10% for each 1000 metres thereafter.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 - page 8
6.08
WEIGHTS (in kg) - Basic vehicle without options, likely to change in the course of the model year:
Consult your RENAULT Dealer.
3-door petrol versions
(versions sold vary according to country)
1.2 1.2 16V 1.2 16V
Quickshift 5
1.2 16V 1.2 16V
Quickshift 5
1.4 16V 1.4 16V
Vehicle type
(see vehicle identification plate)
CB0F
CB10
CB1K
CB2D
CB05
CB11
CB05 CB0W CB0W CB0P
CB13
CB1L
CB13
CB1L
Kerb
weight
Without driver
Total
Front
Rear
880 910 920 910 920 980 1 010
540 560 570 560 570 640 665
340 350 350 350 350 340 345
Maximum permitted
axle load
Front
Rear
780 780 780 780 780 850 860
785 785 785 785 785 785 785
Maximum permissible all up weight 1 420 1 450 1 460 1 450 1 460 1 525 1 550
Maximum permissible towed weight, unbraked
475 490 495 490 495 525 540
Maximum permissible towed weight,
braked (1) driver only 1 100 1 150 1 150 1 150 1 150 1 200 1 200
other cases 850 800 800 850 850 950 900
Maximum permissible total train weight
(= maximum permissible all up weight
+ trailer)
2 200 2 250 2 250 2 250 2 250 2 400 2 400
Maximum permissible nose weight 75
Max. permissible load on roof rack 60 (including the carrying device)
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 - page 9
6.09
WEIGHTS (continued)
(1) Towing weight (towing a caravan, boat, etc.)
- It is important to comply with the towing weights, governed by local legislation in each country and, in particular laid
down in the Road Traffic Regulations. Consult your Renault Dealer about any attachments. Under no circumstances may
the total train weight (= max. permissible all-up weight and weight towed) be exceeded.
- If your vehicle is already used at full load (max. permissible all-up weight), the maximum speed must be limited to
60 mph (100 km/h) and the tyre inflation pressure increased by 0.2 bar.
- The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced
by 10% at an altitude of 1000 metres and by an additional 10% for each 1000 metres thereafter.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page10
6.10
WEIGHTS (in kg) - Basic vehicle without options, likely to change in the course of the model year:
Consult your RENAULT Dealer.
3-door petrol versions (continued)
(versions sold vary according to country)
1.6 16V 1.6 16V
Automatic
1.6 16V 1.6 16V
Automatic
2.0 16V
Vehicle type
(see vehicle identification plate)
CB14 CB14 CB1D CB1D CB15 - CB1C
CB1G - CB1N
CB1S - CB1T
Kerb
weight
Without driver
Total
Front
Rear
1 020 1 045 1 030 1 060 1 035
670 695 680 705 660
350 350 350 355 375
Maximum permitted
axle load
Front
Rear
850 860 850 860 850
785 785 785 785 700
Maximum permissible all up weight 1 515 1 540 1 515 1 540 1 490
Maximum permissible towed weight,
unbraked 535 545 535 545 (2)
Maximum permissible towed weight,
braked (1) driver only 1 200 1 200 1 200 1 200 (2)
other cases 900 900 950 900 (2)
Maximum permissible total train weight
(= maximum permissible all up weight
+ trailer)
2 350 2 400 2 400 2 400 1 490
Maximum permissible nose weight 75 (2)
Max. permissible load on roof rack 60 (including the carrying device)
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page11
6.11
WEIGHTS (continued)
(1) Towed weight (Towing a caravan, boat, etc.)
-It is important that the towing weights in each country governed by local legislation are respected. Consult your Renault
Dealer for all towing attachments. In all cases, never exceed the maximum permissible total train weight (vehicle +
trailer).
- If your vehicle is already being used fully laden (maximum permitted all up weight); your maximum speed must be
limited to 60 mph (100 km/h) and the tyre inflation pressures should be increased by 0.2 bar.
- Engine output and performance on hills are reduced with altitude. We recommend that you reduce the maximum load by
10% at an altitude of 1000 metres, then by an additional 10% for each 1000 metres thereafter.
(2) No towing option
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page12
6.12
WEIGHTS (in kg) - Basic vehicle without options, likely to change in the course of the model year:
Consult your RENAULT Dealer.
Diesel versions
(versions marketed depend on country)
1.5 dCi
5 doors
1.9 dTi
5doors
1.5 dCi
3 doors
1.9 dTi
3 doors
Vehicle type
(see vehicle identification plate)
BB07 BB08 BB1W BB2C CB07 CB08 CB2C
Kerb
weight
Without driver
Total
Front
Rear
980 980 990 1 020 960 960 1 000
610 610 620 655 605 605 650
370 370 370 365 355 355 350
Maximum permitted
axle load
Front
Rear
860 860 840 860 860 860 860
785 785 785 785 785 785 785
Maximum permissible all up weight 1 535 1 540 1 510 1 510 1 515 1 520 1 490
Maximum permissible towed weight,
unbraked 535 535 530 545 525 525 535
Maximum permissible towed weight,
braked (1) driver only 1 200 1 200 1 100 1 200 1 200 1 200 1 200
other cases 900 900 800 950 950 950 950
Maximum permissible total train weight
(= maximum permissible all up weight
+ trailer)
2 400 2 400 2 250 2 400 2 400 2 400 2 400
Maximum permissible nose weight 75
Max. permissible load
on roof rack
70
(including the carrying device)
60 (including
the carrying device)
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page13
6.13
WEIGHTS (continued)
(1) Towing weight (towing a caravan, boat, etc.)
- It is important to comply with the towing weights, governed by local legislation in each country and, in particular laid
down in the Road Traffic Regulations. Consult your Renault Dealer about any attachments. Under no circumstances may
the total train weight (= max. permissible all-up weight and weight towed) be exceeded.
- If your vehicle is already used at full load (max. permissible all-up weight), the maximum speed must be limited to
60 mph (100 km/h) and the tyre inflation pressure increased by 0.2 bar.
- The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced
by 10% at an altitude of 1000 metres and by an additional 10% for each 1000 metres thereafter.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page14
6.14
WEIGHTS (in kg) - Basic vehicle without option, likely to change in the course of the model year.
Consult your RENAULT Dealer.
Utility versions
(versions marketed depend on country) 1.2 1.2 16V 1.5 dCi 1.5 dCi
Vehicle type
(see vehicle identification plate)
SB0F
SB10
SB1K
SB05
SB11
SB0W
SB07 SB08
SB09
Kerb
weight
Without driver
Total
Front
Rear
880 910 980 980
540 560 630 630
340 350 350 350
Maximum permitted
axle load
Front
Rear
780 780 860 860
785 785 785 785
Maximum permissible all up weight 1 420 1 450 1 515 1 520
Maximum permissible towed weight, unbraked
475 505 525 525
Maximum permissible towed weight,
braked (1) driver only 1 100 1 100 1 150 1 150
other cases 850 800 900 900
Maximum permissible total train weight
(= maximum permissible all up weight
+ trailer)
2 200 2 200 2 400 2 400
Permissible nose weight 75 50
Max. permissible load on roof rack 60
(including the carrying device)
(1) Towed weight
(Towing a caravan, boat, etc.)
-It is important that the towing
weights in each country governed
by local legislation are respected.
Consult your RENAULT Dealer for
all towing attachments. In all
cases, never exceed the maximum
permissible total train weight
(vehicle + trailer).
- If your vehicle is already being
used fully laden (maximum
permitted all up weight); your
maximum speed must be limited
to 60 mph (100 km/h) and the tyre
inflation pressures should be
increased by 0.2 bar.
- Engine output and performance
on hills are reduced with altitude.
We recommend that you reduce
the maximum load by 10% at an
altitude of 1000 metres, then by
an additional 10% for each
1000 metres thereafter.
0,736 2,473 (2) - 2,472 0,600 1,418 (2) - 1,406
3,811 1,940
1,392 (2) - 1,385
1,409 (2)
1,417
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page15
6.15
DIMENSIONS (in metres)
(1) According to equipment
(2) Version 2.0 16V
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page16
6.16
REPLACEMENT PARTS AND REPAIRS
Original RENAULT parts are based on a strict specification and are regularly tested. Therefore, they are of at least the same
level of quality as the originally fitted part.
If you always fit RENAULT genuine parts to your vehicle, you will ensure that it performs well. Repairs carried out using
original parts in the RENAULT network are guaranteed for one year.
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page17
ALPHABETICAL INDEX
AABS ........................................................................... 2.20
Accessories ............................................................... 5.28
Accessories installation ........................................... 5.28
Additional headlights .............................................. 5.13
Adjusting beam height ............................................ 1.57
Adjusting the driver's position .................... 1.13 - 1.14
Air conditioning .......................................... 3.09 ¬3.22
Air vents ........................................................ 3.02 - 3.03
Airbag ........................................................... 1.15 ¬1.20
Anti-lock braking system ........................................ 2.20
Anti-pollution (advice) ............................... 2.06 ¬2.08
Anti-theft system (switch) ....................................... 2.02
Ashtrays .................................................................... 3.32
Automatic gearbox (use) ............................. 2.10 ¬2.12
Automatic gearbox selector lever .............. 2.10 ¬2.12
BBattery ................................................. 4.10 - 5.19 - 5.20
Bodywork (maintenance) ............................. 4.12 - 4.13
Bonnet ...................................................................... 4.02
Brake fluid ................................................................ 4.08
Bulbs (changing) ......................................... 5.10 ¬5.18
Buzzer (lights on) ......................................... 1.04 - 1.56
CCapacity of mechanical components .......... 4.07 - 4.09
Catalytic converter (special points) ........................ 2.04
Catalytic converter ................................................... 2.04
Central door locking .......................... 1.02 - 1.03 - 1.05
Changing a wheel .................................................... 5.05
Changing the bulbs ..................................... 5.10 ¬5.18
Child booster seat ....................................... 1.23 ¬1.32
Child safety ................. 1.04 - 1.24 ¬1.36 - 3.25 - 3.28
Children ........... 1.04 - 1.19 - 1.24 ¬1.36 - 3.25 - 3.28
Cigarette lighter ........................................................ 3.32
CClock ......................................................................... 1.37
Control instruments .................................... 1.42 ¬1.52
Controls ........................................................ 1.38 ¬1.41
Coolant ..................................................................... 4.09
Courtesy lights .............................................. 3.23 - 3.24
Courtesy mirrors ...................................................... 3.26
Cruise control - speedlimiherer ................. 2.21 ¬2.26
DDashboard ............................ 0.04 ¬0.06 - 1.38 ¬1.41
Deactivating front passenger airbags ........... 1.34 - 1.35
De-icing: windscreen .............. 3.05 - 3.06 - 3.10 - 3.17
rear screen ................................................ 1.61
Demisting: windscreen ........... 3.05 - 3.06 - 3.10 - 3.17
rear screen ............................................. 1.61
Dimensions ............................................................... 6.15
Dipstick ........................................................ 4.03 ¬4.06
Direction indicators ..... 1.62 - 5.10 - 5.12 - 5.14 - 5.16
Door locking ................................................ 1.03 ¬1.06
Doors .............................................................. 1.04 - 1.05
Driver's layout ............................................. 1.50 ¬1.52
Driving ......................................................... 2.02 ¬2.30
Driving position .......................................... 1.38 ¬1.41
EElectronic stability program: ESP ................ 2.27 - 2.28
Emergency spare wheel ........................................... 5.02
Engine (technical specifications) ............................ 6.05
Engine immobiliser ....................................... 1.07 - 1.08
Engine oil .................................................... 4.03 ¬4.07
Engine specifications ............................................... 6.05
Environment ............................................................. 2.09
ESP: Electronic stability program ................ 2.27 - 2.28
Exterior temperature ................................................ 1.37
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page18
ALPHABETICAL INDEX
FFaults (operating faults) ............................. 5.29 ¬5.34
Filter: air filter ......................................................... 4.11
oil filter ......................................................... 4.11
Fitting a radio .......................................................... 5.27
Fog lights ....................................................... 1.56 - 5.13
Front seat adjustment ................................... 1.11 - 1.12
Front seat belt pretensioners .................................. 1.15
Front seats (adjustment) ............................... 1.11 - 1.12
Fuel (advice on economy) .......................... 2.06 ¬2.08
Fuel (filling) ............................................................. 1.64
Fuel (grade) ................................................... 1.64 - 6.05
Fuel economy .............................................. 2.06 ¬2.08
Fuel filler flap .......................................................... 1.63
Fuel level ............................................ 1.43 - 1.51 - 1.52
Fuel tank capacity ................................................... 1.63
Fuses .............................................................. 5.22 - 5.23
GGear lever ................................................................. 2.19
HHandbrake ................................................................ 2.19
Hazard warning lights ............................................. 1.62
Headlight flashers .................................................... 1.62
Headlights (adjusting) ............................................. 1.57
Headlights .................................................... 1.55 ¬1.57
Headrest ......................................................... 1.09 - 1.10
Heated seats ............................................................. 1.12
Heating ......................................................... 3.04 ¬3.08
Heating and ventilation .............................. 3.09 ¬3.22
Horn .......................................................................... 1.62
Hubcap lever ................................................. 5.03 - 5.04
Hubcaps .................................................................... 5.04
IIgnition switch ......................................................... 2.02
Indicator and warning lights ..................... 1.42 ¬1.49
Instrument panel ......................................... 1.42 ¬1.49
Interior trim (maintenance) .................................... 4.14
JJack ................................................................. 5.03 - 5.05
KKeys .......................................................................... 1.02
LLevels ........................................................... 4.03 ¬4.11
Lifting the vehicle (changing a wheel) ..... 5.03 ¬5.05
Lighting: exterior ................... 1.55 - 1.56 - 5.10 ¬5.16
interior ..................... 3.23 - 3.24 - 5.17 - 5.18
instrument panel (adjustment) ............... 1.55
Lighting signals ........................................... 1.55 ¬1.57
Lights: adjusting ...................................................... 1.57
brake lights ....................................... 5.14 - 5.15
dipped beam headlights ....... 1.55 - 5.10 - 5.11
direction indicator lights ................. 1.62 - 5.10
-5.12-5.14-5.16
fog lights ................................ 1.56 - 5.13 - 5.14
hazard warning lights ................................. 1.60
main beam headlights ........... 1.55 - 5.10 - 5.11
reversing lights ............................................ 5.14
side lights .................... 1.55 - 5.10 - 5.12 - 5.14
Luggage compartment ................................. 3.34 ¬3.37
MMaintenance: bodywork ............................... 4.12 - 4.13
interior trim ...................................... 4.14
mechanical ................................................... 4.03 ¬4.11
OOil change ................................................................ 4.07
On-board computer ..................................... 1.50 ¬1.52
Operating faults ........................................... 5.29 ¬5.34
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page19
ALPHABETICAL INDEX
PPaintwork (maintenance) ............................. 4.12 - 4.13
Paintwork (part number) ......................................... 6.02
Petrol and diesel special features ................ 2.04 - 2.05
Power assisted steering ................................ 2.19 - 4.10
Power assisted steering pump ................................ 4.10
Practical advice ........................................... 2.06 ¬2.08
Puncture ....................................................... 5.02 ¬5.05
QQuickshift 5 gearbox (use) ......................... 2.13 ¬2.18
Quickshift 5 gearbox lever ...................................... 2.13
RRadio (fitting) ........................................................... 5.27
Radio (installation) .................................................. 5.27
Reading lights ............................................... 3.23 - 3.24
Rear bench seat ........................................................ 3.33
Rear parcel shelf ........................................... 3.35 - 3.36
Rear screen (demisting) ........................................... 1.61
Rear seats .................................................................. 3.33
Rear view mirrors ......................................... 1.53 - 1.54
Remote control: electric door locking ......... 1.02 - 1.03
door locking - batteries ............... 5.21
Replacement parts ................................................... 6.16
Reverse gear ............................................................. 2.19
Running in ............................................................... 2.02
SSeat belts ..................................................... 1.13 ¬1.23
Side repeaters ........................................................... 5.16
Speakers (locktion) .................................................. 5.27
Starting the engine ....................................... 2.02 - 2.03
Steering wheel (adjusting) ...................................... 1.54
Storage compartments .................................. 3.30 - 3.31
Sun visor .................................................................. 3.26
Sunroof ........................................................ 3.27 ¬3.29
TTank: brake fluid ...................................................... 4.08
engine coolant ............................................... 4.09
fuel ....................................................... 1.58 - 1.64
windscreen washer ....................................... 4.11
Technical specifications ............................. 6.02 ¬6.15
Towing (attachments) .............................................. 5.26
Towing (breakdown) ..................................... 5.24 - 5.25
Towing (caravan) ......................................... 6.06 ¬6.14
Towing weights ........................................... 6.06 ¬6.14
Traction control ............................................. 2.28 - 2.29
Traction control system ................................ 2.29 - 2.30
Transporting items in the luggage compartment .. 3.37
Turning circle ........................................................... 6.15
Tyre pressures .................................... 0.04 - 0.05 - 5.07
Tyre pressures ............................................. 0.04 ¬0.06
Tyres ............................................................. 5.06 ¬5.08
VVehicle identification plates ...................... 6.02 ¬6.04
Ventilation and heating .............................. 3.04 ¬3.22
WWashing ....................................................... 4.12 ¬4.14
Weights ........................................................ 6.06 ¬6.14
Wheelbrace ............................................................... 5.03
Wheels (safety) ............................................ 5.06 ¬5.08
Window winder ....................................................... 3.25
Windscreen ............................................................... 3.26
Windscreen washer ............................ 1.58 - 1.59 - 4.11
Wiper blades ............................................................ 5.09
Wipers ............................................... 1.58 ¬1.60 - 5.09
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page20
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page21
QXBIUDB*T[G 3DJH
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T6.WIN 28/10/2002 12:31 -page22
Driver's handbook – 82 00 285 818 – NU 654-6 – August 2002 – Edition anglaise
CRÉATEUR D'AUTOMOBILES
