Resolution RE112 Wireless Smoke Detector User Manual RE112 GE Compat Smoke Instructions
Resolution Products, Inc. Wireless Smoke Detector RE112 GE Compat Smoke Instructions
User Manual
RE112 GE-Compatible Smoke Sensor
Features
•UL217 Self-Contained Fire Alarm Device
•Senses Smoke per UL217
•Sleek design
•Cover tamper.
•Strong, reliable RF signal.
•3-5 year battery life on Panasonic CR123A battery.
•Low Battery indication.
Key Instructions
1. Attach the mounting plate
Locate on ceiling, as close to center as possible, away from corners.
Some local codes may allow wall mounting.
Mounting plate removes counter-clockwise
2. Insert battery with MINUS towards the RED lever. Close battery door.
3. Enroll sensor in panel:
a) Place panel in Learn Sensor mode
b) Press & release the black tamper switch
Sounder will continue beeping 3 times, until sensor is mounted.
4. Testing:
a) Place panel in Sensor Test mode
b) Press & hold TEST button until you hear the sounder beep.
c) Panel will indicate the sensor is open, but Fire Alarm will not sound.
NOTE: Using Smoke-in-a-Can will cause an actual Fire Alarm.
Operation
Situation Sounder LED Wireless Signal
to Panel
Recovery
Actual smoke Temporal 3
(Loud)
RED
(pulsing)
Wireless Fire
Alarm Signal sent
to panel
Silence an actual
alarm with the TEST
button. Sensor will
return to alarm if
smoke is still
present.
Press & hold
Test Button
Temporal 3
(Loud)
RED
(pulsing)
Sensor Open
signal to panel
Sensor: Release
button.
Panel: Wait one
hour, or unmount &
mount sensor.
Removing
Sensor from
Mount
Temporal 3
(Loud)
Orange
(steady)
Tamper/Trouble
signal to be sent
to panel.
Restore by
remounting.
Low Battery Yellow
(pulsing)
Hourly Check Supervisories,
every hour
RE112_GE-Compat_Smoke_Instructions.doc Page 1 of 3 30-Jul-13
www.ResolutionProducts.com
Wireless
Security
Solutions
DSC
Specifications
Approval: UL217 Self-Contained Fire Alarm Device
Smoke Sensitivity: 1.31 – 2.28 %/ft (UL 217)
0.11 – 0.165 dB/m (EN54-7)
Smoke Sensing Technology: Photoelectric
Heat Alarm Point: 135 – 149 F (UL 521)
Alarm Sound: Temporal Three
Replacement Battery: Panasonic CR123A
Temperature Range: 32 to 120 F (Long Term)
Humidity: 10 – 85% Relative Humidity
Housing dimensions: 4.7 inch diameter, 2.1 inch high
Desing & Manufacture: Resolution Products, Inc.
Specifications subject to change without notice.

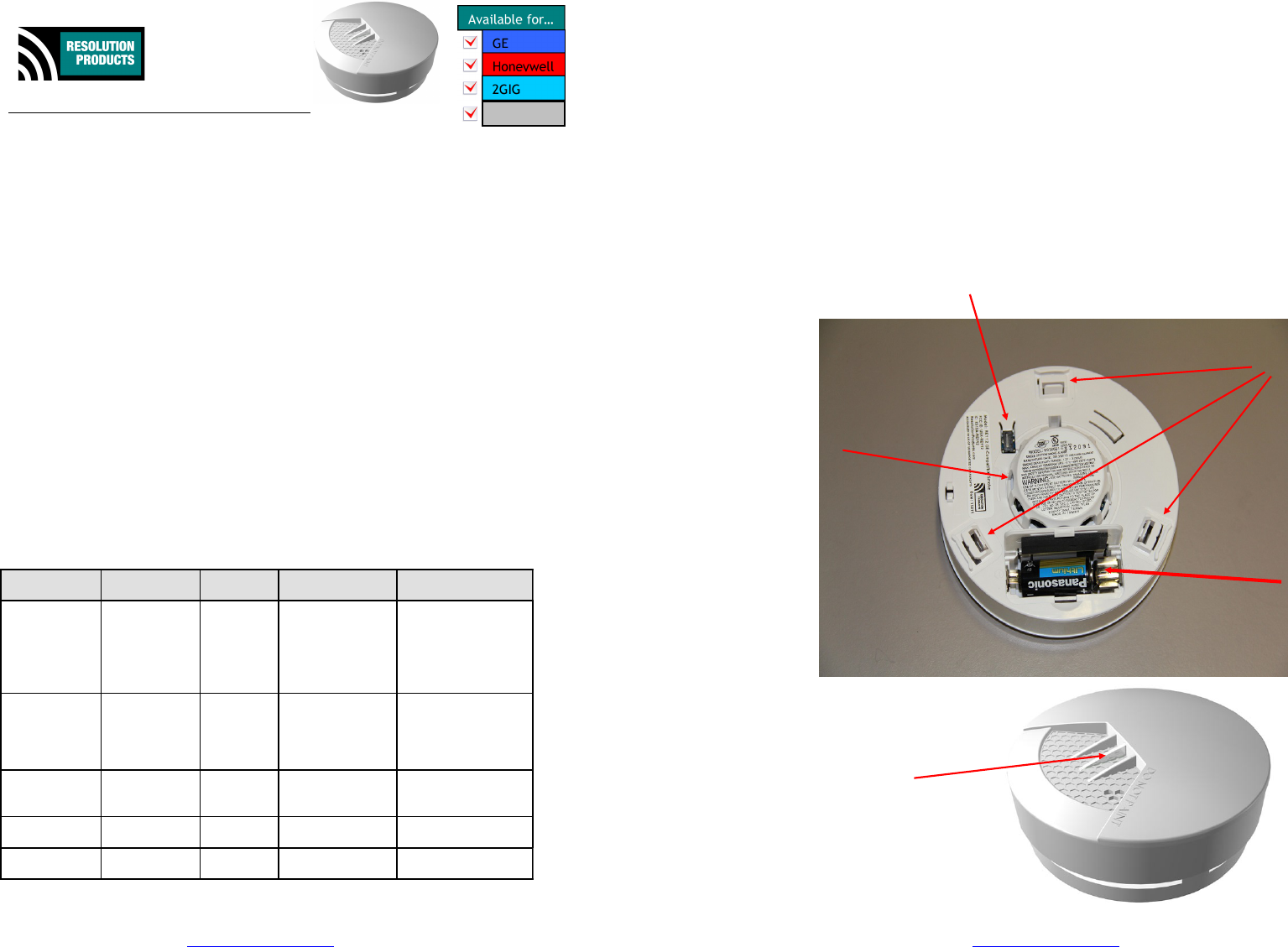

Pictures
RE112_GE-Compat_Smoke_Instructions.doc Page 2 of 3 30-Jul-13
www.ResolutionProducts.com
TEST Button
LED
Battery
+
Smoke Sensing
Element
Mounting
Tabs
Tamper
Notices
Verify proper enrollment and operation, per control panel installation instructions, at installation.
PHOTOELECTRIC SMOKE & HEAT USER'S MANUAL, which is included in device box, is an integral part
of the operating information of the RE112 device. However, this is NOT a heat device.
Approved as a self-contained fire alarm device per UL217. This represents the ability of each
individual sensor to sound locally upon sensed fire conditions.
“GE”, “Interlogix”, “Honeywell”, “2GIG”, “DSC”, “Napco” are trademarks owned by General Electric
Company, UTC Fire & Security Americas Corporation, Inc., Honeywell International Inc., 2GIG
Technologies Inc., Tyco Safety Products Canada LTD, Napco Security Systems respectively.
Resolution Products, Inc. products will function with one of either GE/Interlogix, Honeywell and
2GIG, DSC or Napco. However, no Resolution product is produced by, endorsed by, nor is officially
associated with any of these other manufacturers. Resolution recommends verifying proper
enrollment and operation, per control panel installation instructions, at installation.
Warranty
Resolution Products, Inc. will replace products that are defective in their first 5 years.
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference that may be received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the Resolution Products, Inc. could void
the user's authority to operate this equipment.
FCC ID: U5X-RE112
