Resolution RE201X Security Transmitter, 345MHz User Manual RE201 Honeywell Compat DWS Instructions
Resolution Products, Inc. Security Transmitter, 345MHz RE201 Honeywell Compat DWS Instructions
User Manual
![](/img.php?id=1519131&img=bg1.png)
RE201_Honeywell-Compat_DWS_Instructions.doc
Page 1 of 3 6/29/2011
www.ResolutionProducts.com
Wireless
Security
Solutions
RE201 Honeywell-Compatible Standard Door / Window
Features
• For sensing things that open or separate.
• Magnet and Internal reed switch.
• 2 supplemental hardwire zones.
o Outer terminal.
o Inner terminal.
• Cover tamper.
• Strong, reliable RF signal.
• 10-15 year battery life on CR123A battery.
• Low Battery indication.
Key Instructions
• Battery “+” faces towards spring.
• Panels assume hardwire zone alarm is state in which contact was enrolled.
• Loops:
Reed switch = Loop 2.
External Contact Terminals:
• Outer terminal = Loop 1.
• Inner terminal = Loop 3.
• Center hardwire terminal is common.
• No end-of-line resistors on hardwire zones.
• Ext Loops are: normally closed – alarm on open
Tamper = Loop 4
• Enrolling:
Place Panel in RF Learning mode.
Input Type = RF
Lynx *56 “E I” mode:
To enroll any particular loop: cause the loop to fault…
restore… (panel should beep to indicate ID capture)…
fault… restore… [panel will confirm enrollment].
Vista *56 “10 INPUT S/N: L” mode:
Transmit two open/close sequences.
Press * (to check for duplicate serial/loop number).
Press * (to continue to confirmation screen).
Press * if you wish to skip confirmation; or “Yes” and
activate the loop to confirm.
RE201_Honeywell-Compat_DWS_Instructions.doc
Page 2 of 3 6/29/2011
www.ResolutionProducts.com
Operation
• Magnetic reed switch (Loop 2):
Alarm, when magnet is pulled away from reed switch.
• Hardwire zones (Outer=Loop 1, Inner=Loop 3)
Alarm: when contact changes to alarm condition.
Tamper: none.
• Tamper (Loop 4), when cover is opened.
• Supervisories, every hour.
Specifications
Magnet trip distance: 1 inch nominal
Mounting hardware: # 4 or #6 screws
Replacement Battery: CR123A 1550mAH
Temperature Range: 0F to 120F
Housing dimensions: 3.3x1.4x1.1 inches
Specifications subject to change without notice.

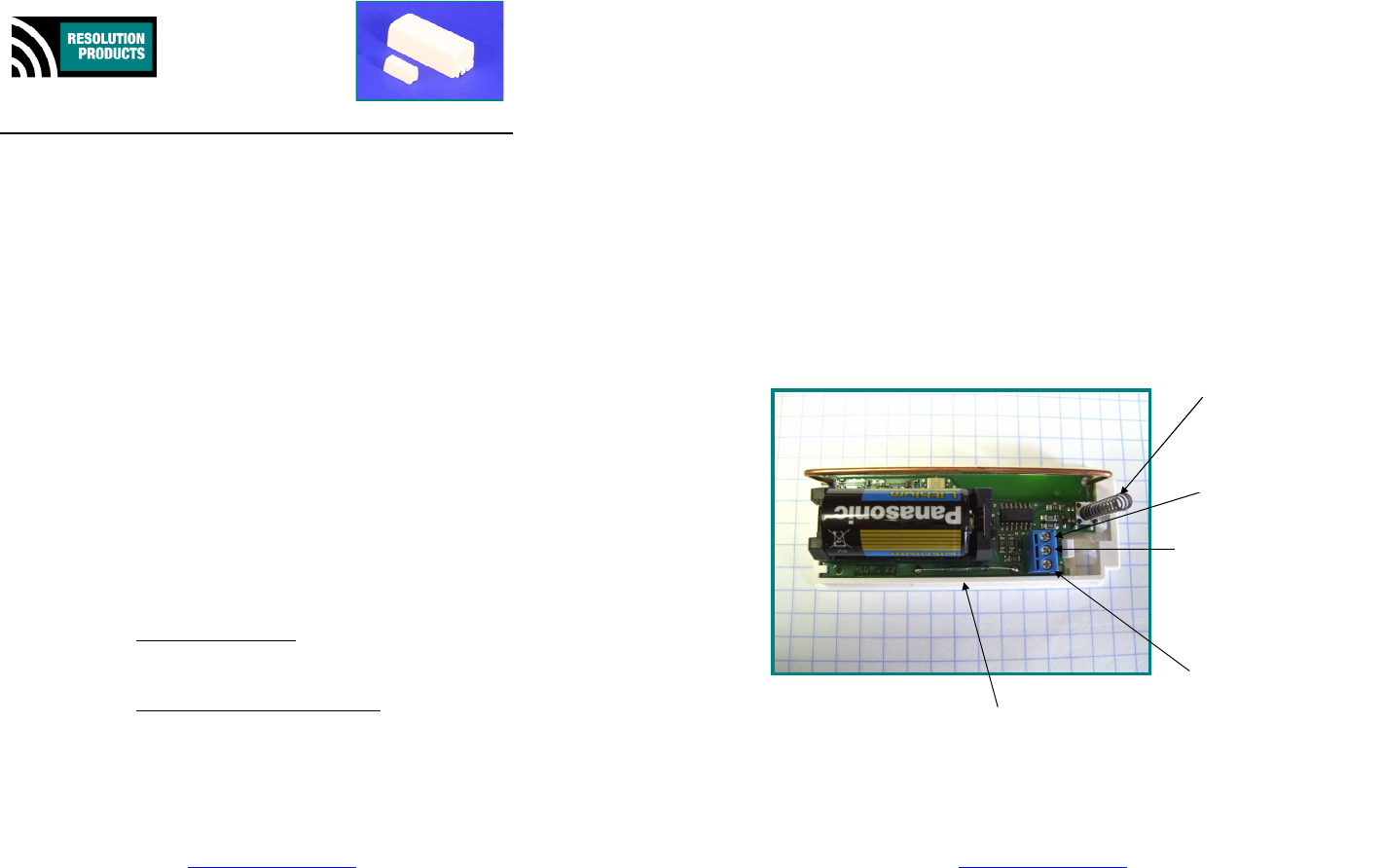

Internal Picture
Loop 1
Outer Terminal Zone
Center Common Terminal
Loop 3
Inner Terminal Zone
Loop 2
Magnetic Reed Switch
Loop 4
Tamper
![](/img.php?id=1519131&img=bg2.png)
RE201_Honeywell-Compat_DWS_Instructions.doc
Page 3 of 3 6/29/2011
www.ResolutionProducts.com
Notices
“GE”, “Honeywell”, and “DSC” are trademarks owned by General Electric Company, Honeywell
International Inc., and Tyco Safety Products Canada LTD, respectively.
Resolution Products, Inc. products will function with one of either GE, DSC or Honeywell
systems. However, no Resolution product is produced by, endorsed by, nor is officially
associated with GE, Honeywell or DSC. Resolution recommends verifying proper enrollment
and operation, per control panel installation instructions, at installation.
Warranty
Resolution Products, Inc. will replace products that are defective in their first year.
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
This device may not cause harmful interference.
This device must accept any interference that may be received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the Resolution Products, Inc. could
void the user's authority to operate this equipment.
FCC ID: U5X-RE201X
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
Cet appareil est conforme avec d’Industrie Canada RSS standard exempts de licence.
Son fonctionnement est soumis aux deux conditions suivantes:
1. Ce dispositif ne peut causer des interférences, et
2. Ce dispositif doit accepter toute interférence, y compris les interférences
qui peuvent causer un mauvais fonctionnement du dispositif.
IC: 8310A-RE201X
