FORM NO. P11-791
RQNL- High Efficiency 13-SEER Series
Nominal Sizes 2-4 Tons [7.03-14.07 kW]
RQPL- High Efficiency 14-SEER Series
Nominal Sizes 2-4 Tons [7.03-14.07 kW]

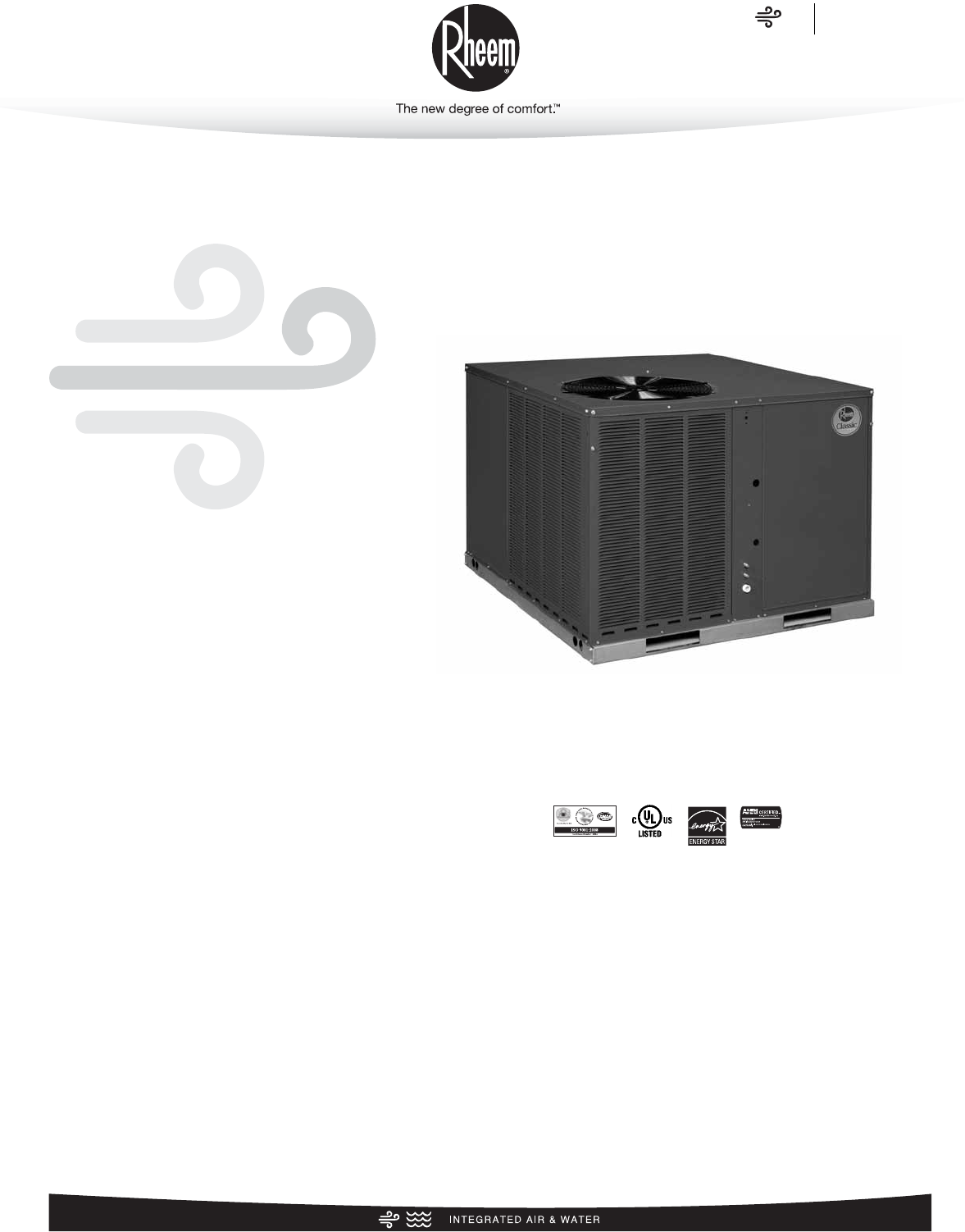

Rheem Commercial Classic® Series
Package Heat Pump
(14 SEER ONLY)
Air Package Heat Pump
RQNL/RQPL Series
“Proper sizing and installation of equipment is critical to achieve
optimal performance. Ask your Contractor for details or visit
www.energystar.gov.”
Air Table of Contents
RQNL/RQPL Series
2
TABLE OF CONTENTS
Unit Features & Benefits ..................................................................................3-4
Model Number Identification ..............................................................................5
Options ............................................................................................................6
General Data
RQNL- Series ..............................................................................................7-8
RQPL- Series ............................................................................................9-11
General Data Notes ..........................................................................................12
Gross Systems Performance Data
RQNL- Series ..........................................................................................13-17
RQPL- Series ..........................................................................................18-23
Indoor Airflow Performance
RQNL- Series ..........................................................................................24-25
RQPL- Series ..........................................................................................26-27
Electrical Data
RQNL- Series................................................................................................28
RQPL- Series................................................................................................28
Electric Heater Kits......................................................................................29-31

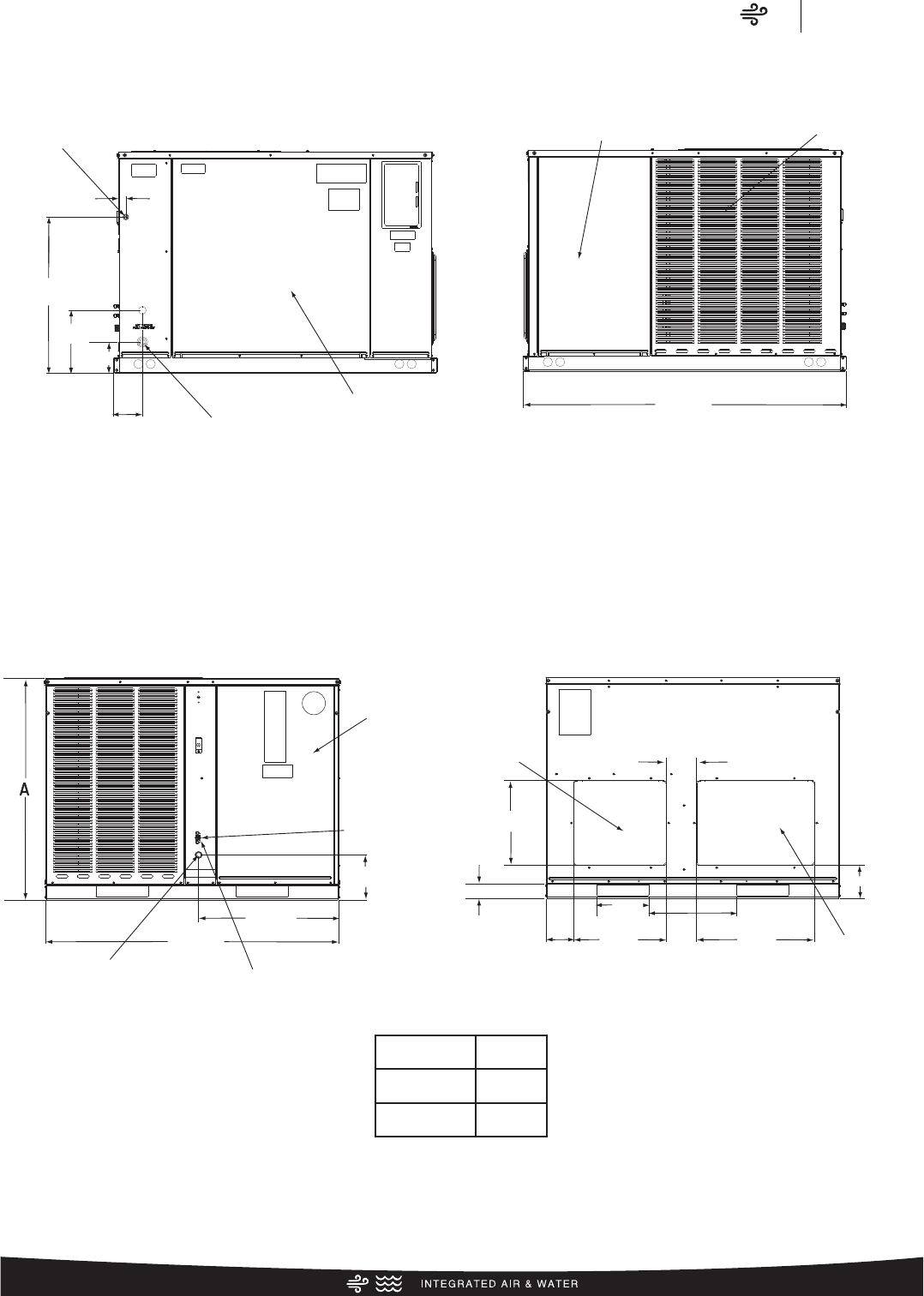

Dimensional Data ........................................................................................32-33
Typical Installations ..........................................................................................34
Accessories ................................................................................................35-43
Wiring Diagrams ..........................................................................................44-48
Limited Warranty ..............................................................................................52
3
Air Unit Features & Benefits
RQNL/RQPL Series
Package Heat Pump Features:
4
5
(Not Shown)
Air Unit Features & Benefits
RQNL/RQPL Series
4
1. All models feature Scroll®compressors for maximum
efficiency and quiet operation. This unit contains a
special scroll compressor that is designed specifically
to operate with R-410A Refrigerants and polyolester
(POE) oils. The compressor is hermetically sealed and
incorporates internal high temperature motor overload
protection and durable insulation on the motor windings.
It is externally mounted on rubber grommets to reduce
vibration and noise.
2. Louvered condenser compartment for protecting the
coil against yard hazards and/or weather extremes.
3. One-piece top with a deep flange to help keep water
out of the unit.
4. Supply and return air openings feature a one-inch tall
flange to prevent water migration into the ductwork.
5. Access panels have “weep holes” and channels to
further help manage water run-off.
6. Side and down discharge options available on all
models. (Shipped Downflow Standard).
7. Easily accessible blower section complete with slide-
out blower.
8. Refrigerant connections are conveniently located for
easy service diagnostics. Low pressure/loss of charge
protection is standard on all models.
9. Condenser and evaporator coils feature enhanced fins
for better heat transfer and rifled copper tubing for
greater efficiency.
10. Supplemental electric heat strips up to 15 kW are
available (field or factory installed) for periods of
extreme cold temperatures. Single point wiring makes
installation even easier.
11. All units feature an internal trap on the condensate
line eliminating the need for installing an on-site
external trap.
12. Easily accessible control box. Package heat pump
utilizes demand defrost control which monitors the
outdoor ambient temperature, outdoor coil temper -
ature, and compressor run-time to determine when a
defrost cycle is required.
13. Thermal Expansion Valve standard on all models for
superior superheat control, reliability, and energy
efficiency at all operating conditions.
14. Filter Drier Standard on all models (not shown).
15. Rugged Baserail for improved installation and
handling.
16. Reversing valve directs flow of refrigerant and
reverses the refrigerant flow when heating is required.
Features Below Correspond to Photos on Page 3
Air Model Number Identification
RQNL/RQPL Series
5
R Q N L — B024 J K 000 X X X
Factory Installed Options
(See Next Page)
Heating Capacity (Factory Installed)
000 = No Resistance Heat
005 = 05 KW Resistance Heat (018-030)
010 = 10 KW Resistance Heat (024-048)
015 = 15 KW Resistance Heat (036-048)
Drive Package
K = Direct Drive
Electrical Designation
J = 208-230V—1PH—60 Hz
C = 208-230V—3PH—60 Hz
Cooling Capacity (BTUH) [kW]
B024 = 24,000 [7.03]
B025 = 24,000 [7.03]
B030 = 30,000 [8.79]
B036 = 36,000 [10.55]
B042 = 42,000 [12.31]
B048 = 48,000 [14.07]
Design Series
L = R-410A
Efficiency Designation
N = 13 SEER High Efficiency
P = 14 SEER High Efficiency
Product Classification
Q = Package Heat Pump
Tradebrand
R = Rheem
[ ] Designates Metric Conversions
Air Options
RQNL/RQPL Series
6
Option
Code Side Flow
AA No Option
AKA x
FACTORY INSTALLED OPTION CODES
Example: RQNL-B036JK000XX (where XX is factory installed option)
Example: No Options
RQNL-B036JK000
Example: Options with Sideflow
RQNL-B036JK000AKA
Note: Factory installed economizer is not available on these models.
Instructions for Factory Installed Option(s) Selection
Note: Two characters following the model number will be utilized to designate a factory-installed option or
combination of options. If no factory option(s) is required, nothing follows the model number.
Step 1. After a basic rooftop model is selected, choose a two-character option code from the FACTORY
INSTALLED OPTION SELECTION TABLE.
Air General Data
RQNL Series
7
NOMINAL SIZES 2-4 TONS [7.03-14.07 kW]
Model RQNL- Series B024JK B030JK B036CK B036JK
Cooling Performance1
Gross Cooling Capacity Btu [kW] 24,400 [7.15] 29,000 [8.5] 36,200 [10.61] 36,200 [10.61]
EER/SEER211/13 11/13 11/13 11/13
Nominal CFM/AHRI Rated CFM [L/s] 800/800 [378/378] 1000/1000 [472/472] 1200/1250 [566/590] 1200/1250 [566/590]
AHRI Net Cooling Capacity Btu [kW] 23,600 [6.91] 27,800 [8.15] 35,000 [10.26] 35,000 [10.26]
Net Sensible Capacity Btu [kW] 17,600 [5.16] 20,800 [6.09] 26,000 [7.62] 26,000 [7.62]
Net System Power kW 2.15 2.53 3.18 3.18
Heating Performance (Heat Pumps)4
Heating Input Btu [kW] Rating 23,600 [6.91] 28,200 [8.26] 34,000 [9.96] 34,000 [9.96]
System Power KW/COP 2.02/3.4 2.45/3.4 2.86/3.5 2.86/3.5
Low Temp. Btuh [kW] Rating 13,000 [3.81] 16,000 [4.69] 19,500 [5.71] 19,500 [5.71]
Net Weight lbs. [kg] 391 [177] 444 [201] 471 [214] 468 [212]
System Power KW/COP 1.9/2 2.26/2.1 2.61/2.2 2.61/2.2
Refrigerant Control TX Valves TX Valves TX Valves TX Valves
HSPF (Btu/Watts-hr) 7.7 7.7 7.7 7.7
Compressor
No./Type 1/Scroll 1/Scroll 1/Scroll 1/Scroll
Outdoor Sound Rating (dB)376 76 76 76
Outdoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] OD 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 14.51 [1.35] 16.32 [1.52] 11.2 [1.04] 11.2 [1.04]
Rows / FPI [FPcm] 1 / 22 [9] 1 / 22 [9] 2 / 22 [9] 2 / 22 [9]
Net Latent Capacity Btu [kW] 6,000 [1.76] 7,000 [2.05] 9,000 [2.64] 9,000 [2.64]
Indoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 5.54 [0.51] 7.39 [0.69] 7.39 [0.69] 7.39 [0.69]
Rows / FPI [FPcm] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6]
Refrigerant Control TX Valves TX Valves TX Valves TX Valves
Drain Connection No./Size in. [mm] 1/1 [25.4] 1/1 [25.4] 1/1 [25.4] 1/1 [25.4]
Outdoor Fan—Type Propeller Propeller Propeller Propeller
No. Used/Diameter in. [mm] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8]
Drive Type/No. Speeds Direct/1 Direct/1 Direct/1 Direct/1
CFM [L/s] 2700 [1274] 2700 [1274] 2700 [1274] 2700 [1274]
No. Motors/HP 1 at 1/5 HP 1 at 1/5 HP 1 at 1/5 HP 1 at 1/5 HP
Motor RPM 1075 1075 1075 1075
Indoor Fan—Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
No. Used/Diameter in. [mm] 1/9x7 [228.6x177.8] 1/10x9 [254x228.6] 1/10x9 [254x228.6] 1/10x9 [254x228.6]
Drive Type/No. Speeds Direct/2 Direct/3 Direct/1 Direct/1
No. Motors 1 1 1 1
Motor HP 1/4 1/2 1/3 1/3
Motor RPM 1075 1075 1075 1075
Motor Frame Size 48 48 48 48
Filter—Type Field Supplied Field Supplied Field Supplied Field Supplied
Furnished No No No No
(No.) Size Recommended in. [mm] (1)1x20x20 [25x508x508] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610]
Refrigerant Charge Oz. [g] 98 [2778] 108 [3062] 146 [4139] 146 [4139]
Weights
Ship Weight lbs. [kg] 401 [182] 455 [206] 482 [219] 479 [217]
CONTINUED
See Page 12 for Notes. [ ] Designates Metric Conversions
Air General Data
RQNL Series
8
Model RQNL- Series B042CK B042JK B048CK B048JK
Cooling Performance1
Gross Cooling Capacity Btu [kW] 43,500 [12.75] 43,500 [12.75] 49,000 [14.36] 49,000 [14.36]
EER/SEER211/13 11/13 11/13 11/13
Nominal CFM/AHRI Rated CFM [L/s] 1400/1400 [661/661] 1400/1400 [661/661] 1600/1600 [755/755] 1600/1600 [755/755]
AHRI Net Cooling Capacity Btu [kW] 42,500 [12.45] 42,500 [12.45] 47,500 [13.92] 47,500 [13.92]
Net Sensible Capacity Btu [kW] 31,500 [9.23] 31,500 [9.23] 36,000 [10.55] 36,000 [10.55]
Net System Power kW 3.86 3.86 4.31 4.31
Heating Performance (Heat Pumps)4
Heating Input Btu [kW] Rating 41,500 [12.16] 41,500 [12.16] 46,000 [13.48] 46,000 [13.48]
System Power KW/COP 3.65/3.4 3.65/3.4 3.89/3.4 3.89/3.4
Low Temp. Btuh [kW] Rating 24,200 [7.09] 24,200 [7.09] 26,600 [7.79] 26,600 [7.79]
Net Weight lbs. [kg] 508 [230] 505 [229] 500 [227] 510 [231]
System Power KW/COP 3.43/2.08 3.43/2.08 3.57/2.2 3.57/2.2
Refrigerant Control TX Valves TX Valves TX Valves TX Valves
HSPF (Btu/Watts-hr) 7.7 7.7 7.7 7.7
Compressor
No./Type 1/Scroll 1/Scroll 1/Scroll 1/Scroll
Outdoor Sound Rating (dB)376 76 78 78
Outdoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] OD 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 16.32 [1.52] 16.32 [1.52] 16.32 [1.52] 16.32 [1.52]
Rows / FPI [FPcm] 2 / 22 [9] 2 / 22 [9] 2 / 22 [9] 2 / 22 [9]
Net Latent Capacity Btu [kW] 11,000 [3.22] 11,000 [3.22] 11,500 [3.37] 11,500 [3.37]
Indoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 7.39 [0.69] 7.39 [0.69] 7.39 [0.69] 7.39 [0.69]
Rows / FPI [FPcm] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6]
Refrigerant Control TX Valves TX Valves TX Valves TX Valves
Drain Connection No./Size in. [mm] 1/1 [25.4] 1/1 [25.4] 1/1 [25.4] 1/1 [25.4]
Outdoor Fan—Type Propeller Propeller Propeller Propeller
No. Used/Diameter in. [mm] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8]
Drive Type/No. Speeds Direct/1 Direct/1 Direct/1 Direct/1
CFM [L/s] 3300 [1557] 3300 [1557] 3000 [1416] 3000 [1416]
No. Motors/HP 1 at 1/3 HP 1 at 1/3 HP 1 at 1/3 HP 1 at 1/3 HP
Motor RPM 1075 1075 1075 1075
Indoor Fan—Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
No. Used/Diameter in. [mm] 1/10x9 [254x228.6] 1/10x9 [254x228.6] 1/10x9 [254x228.6] 1/10x9 [254x228.6]
Drive Type/No. Speeds Direct/2 Direct/2 Direct/2 Direct/2
No. Motors 1 1 1 1
Motor HP 3/4 3/4 3/4 3/4
Motor RPM 1075 1075 1075 1075
Motor Frame Size 48 48 48 48
Filter—Type Field Supplied Field Supplied Field Supplied Field Supplied
Furnished No No No No
(No.) Size Recommended in. [mm] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610]
Refrigerant Charge Oz. [g] 176 [4990] 176 [4990] 183 [5188] 183 [5188]
Weights
Ship Weight lbs. [kg] 519 [235] 516 [234] 511 [232] 521 [236]
NOMINAL SIZES 2-4 TONS [7.03-14.07 kW]
See Page 12 for Notes. [ ] Designates Metric Conversions
Air General Data
RQPL Series
9
NOMINAL SIZES 2-4 TONS [7.03-14.07 kW]
Model RQPL- Series B024JK B030JK B036CK
Cooling Performance1
Gross Cooling Capacity Btu [kW] 25,000 [7.32] 29,800 [8.73] 36,800 [10.78]
EER/SEER211.8/14 12/14 12/14
Nominal CFM/AHRI Rated CFM [L/s] 800/850 [378/401] 1000/1050 [472/495] 1200/1250 [566/590]
AHRI Net Cooling Capacity Btu [kW] 24,400 [7.15] 29,200 [8.56] 36,000 [10.55]
Net Sensible Capacity Btu [kW] 18,900 [5.54] 23,000 [6.74] 27,000 [7.91]
Net System Power kW 2.06 2.43 3
Heating Performance (Heat Pumps)4
Heating Input Btu [kW] Rating 23,800 [6.97] 27,800 [8.15] 33,200 [9.73]
System Power KW/COP 1.94/3.5 2.27/3.6 2.73/3.6
Low Temp. Btuh [kW] Rating 13,800 [4.04] 15,500 [4.54] 18,000 [5.27]
Net Weight lbs. [kg] 391 [177] 444 [201] 471 [214]
System Power KW/COP 1.78/2.2 2.07/2.2 2.5/2.2
Refrigerant Control TX Valves TX Valves TX Valves
HSPF (Btu/Watts-hr) 8 8 8
Compressor
No./Type 1/Scroll 1/Scroll 1/Scroll
Outdoor Sound Rating (dB)376 76 76
Outdoor Coil—Fin Type Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled
Tube Size in. [mm] OD 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 14.51 [1.35] 16.32 [1.52] 11.2 [1.04]
Rows / FPI [FPcm] 1 / 22 [9] 1 / 22 [9] 2 / 22 [9]
Net Latent Capacity Btu [kW] 5,500 [1.61] 6,200 [1.82] 9,000 [2.64]
Indoor Coil—Fin Type Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled
Tube Size in. [mm] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 5.54 [0.51] 7.39 [0.69] 7.39 [0.69]
Rows / FPI [FPcm] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6]
Refrigerant Control TX Valves TX Valves TX Valves
Drain Connection No./Size in. [mm] 1/1 [25.4] 1/1 [25.4] 1/1 [25.4]
Outdoor Fan—Type Propeller Propeller Propeller
No. Used/Diameter in. [mm] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8]
Drive Type/No. Speeds Direct/1 Direct/1 Direct/1
CFM [L/s] 2700 [1274] 2700 [1274] 2700 [1274]
No. Motors/HP 1 at 1/5 HP 1 at 1/5 HP 1 at 1/5 HP
Motor RPM 1075 1075 1075
Indoor Fan—Type FC Centrifugal FC Centrifugal FC Centrifugal
No. Used/Diameter in. [mm] 1/9x7 [228.6x177.8] 1/10x9 [254x228.6] 1/10x9 [254x228.6]
Drive Type/No. Speeds Direct/2 Direct/3 Direct/3
No. Motors 1 1 1
Motor HP 1/3 1/2 1/2
Motor RPM 1050 1050 1075
Motor Frame Size 48 48 48
Filter—Type Field Supplied Field Supplied Field Supplied
Furnished No No No
(No.) Size Recommended in. [mm] (1)1x20x20 [25x508x508] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610]
Refrigerant Charge Oz. [g] 98 [2778] 108 [3062] 146 [4139]
Weights
Ship Weight lbs. [kg] 401 [182] 455 [206] 482 [219]
B025JK
24,400 [7.15]
12/14
800/850 [378/401]
23,800 [6.97]
17,800 [5.22]
1.98
23,600 [6.91]
1.88/3.7
12,900 [3.78]
391 [177]
1.7/2.24
TX Valves
8
1/Scroll
76
Louvered
Rifled
0.375 [9.5]
14.51 [1.35]
1 / 22 [9]
6,000 [1.76]
Louvered
Rifled
0.375 [9.5]
5.54 [0.51]
2 / 15 [6]
TX Valves
1/1 [25.4]
Propeller
1/22 [558.8]
Direct/1
2700 [1274]
1 at 1/3 HP
869
FC Centrifugal
1/9x7 [229x178]
Direct/2
1
1/3
1050
48
Field Supplied
No
(1)1x20x20 [25x508x508]
98 [2778]
401 [182]
CONTINUED
See Page 12 for Notes. [ ] Designates Metric Conversions
Air General Data
RQPL Series
10
Model RQPL- Series B036JK B042CK B042JK B048CK
Cooling Performance1
Gross Cooling Capacity Btu [kW] 36,800 [10.78] 43,500 [12.75] 43,500 [12.75] 49,000 [14.36]
EER/SEER212/14 11.3/14 11.3/14 11.5/14
Nominal CFM/AHRI Rated CFM [L/s] 1200/1250 [566/590] 1400/1400 [661/661] 1400/1400 [661/661] 1600/1600 [755/755]
AHRI Net Cooling Capacity Btu [kW] 36,000 [10.55] 42,500 [12.45] 42,500 [12.45] 47,500 [13.92]
Net Sensible Capacity Btu [kW] 27,000 [7.91] 31,500 [9.23] 31,500 [9.23] 36,000 [10.55]
Net System Power kW 3 3.85 3.85 4.26
Heating Performance (Heat Pumps)4
Heating Input Btu [kW] Rating 33,200 [9.73] 41,500 [12.16] 41,500 [12.16] 46,000 [13.48]
System Power KW/COP 2.73/3.6 3.65/3.4 3.65/3.4 3.89/3.45
Low Temp. Btuh [kW] Rating 18,000 [5.27] 24,200 [7.09] 24,200 [7.09] 26,600 [7.79]
Net Weight lbs. [kg] 468 [212] 508 [230] 505 [229] 500 [227]
System Power KW/COP 2.5/2.2 3.43/2.08 3.43/2.08 3.57/2.2
Refrigerant Control TX Valves TX Valves TX Valves TX Valves
HSPF (Btu/Watts-hr) 8 8 8 8
Compressor
No./Type 1/Scroll 1/Scroll 1/Scroll 1/Scroll
Outdoor Sound Rating (dB)376 76 76 78
Outdoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] OD 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 11.2 [1.04] 16.32 [1.52] 16.32 [1.52] 16.32 [1.52]
Rows / FPI [FPcm] 2 / 22 [9] 2 / 22 [9] 2 / 22 [9] 2 / 22 [9]
Net Latent Capacity Btu [kW] 9,000 [2.64] 11,000 [3.22] 11,000 [3.22] 11,500 [3.37]
Indoor Coil—Fin Type Louvered Louvered Louvered Louvered
Tube Type Rifled Rifled Rifled Rifled
Tube Size in. [mm] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5] 0.375 [9.5]
Face Area sq. ft. [sq. m] 7.39 [0.69] 7.39 [0.69] 7.39 [0.69] 7.39 [0.69]
Rows / FPI [FPcm] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6] 2 / 15 [6]
Refrigerant Control TX Valves TX Valves TX Valves TX Valves
Drain Connection No./Size in. [mm] 1/1 [25.4] 1/1 [25.4] 1/1 [25.4] 1/1 [25.4]
Outdoor Fan—Type Propeller Propeller Propeller Propeller
No. Used/Diameter in. [mm] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8] 1/22 [558.8]
Drive Type/No. Speeds Direct/1 Direct/1 Direct/1 Direct/1
CFM [L/s] 2700 [1274] 3300 [1557] 3300 [1557] 3000 [1416]
No. Motors/HP 1 at 1/5 HP 1 at 1/3 HP 1 at 1/3 HP 1 at 1/3 HP
Motor RPM 1075 1075 1075 1075
Indoor Fan—Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
No. Used/Diameter in. [mm] 1/10x9 [254x228.6] 1/10x9 [254x228.6] 1/10x9 [254x228.6] 1/10x9 [254x228.6]
Drive Type/No. Speeds Direct/3 Direct/2 Direct/2 Direct/2
No. Motors 1 1 1 1
Motor HP 1/2 3/4 3/4 3/4
Motor RPM 1050 1075 1075 1075
Motor Frame Size 48 48 48 48
Filter—Type Field Supplied Field Supplied Field Supplied Field Supplied
Furnished No No No No
(No.) Size Recommended in. [mm] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610] (1)1x24x24 [25x610x610]
Refrigerant Charge Oz. [g] 146 [4139] 176 [4990] 176 [4990] 183 [5188]
Weights
Ship Weight lbs. [kg] 479 [217] 519 [235] 516 [234] 511 [232]
CONTINUED
NOMINAL SIZES 2-4 TONS [7.03-14.07 kW]
See Page 12 for Notes. [ ] Designates Metric Conversions
Air General Data
RQPL Series
11
NOMINAL SIZES 2-4 TONS [7.03-14.07 kW]
Model RQPL- Series B048JK
Cooling Performance1
Gross Cooling Capacity Btu [kW] 49,000 [14.36]
EER/SEER211.5/14
Nominal CFM/AHRI Rated CFM [L/s] 1600/1600 [755/755]
AHRI Net Cooling Capacity Btu [kW] 47,500 [13.92]
Net Sensible Capacity Btu [kW] 36,000 [10.55]
Net System Power kW 4.26
Heating Performance (Heat Pumps)4
Heating Input Btu [kW] Rating 46,000 [13.48]
System Power KW/COP 3.89/3.45
Low Temp. Btuh [kW] Rating 26,600 [7.79]
Net Weight lbs. [kg] 510 [231]
System Power KW/COP 3.57/2.2
Refrigerant Control TX Valves
HSPF (Btu/Watts-hr) 8
Compressor
No./Type 1/Scroll
Outdoor Sound Rating (dB)378
Outdoor Coil—Fin Type Louvered
Tube Type Rifled
Tube Size in. [mm] OD 0.375 [9.5]
Face Area sq. ft. [sq. m] 16.32 [1.52]
Rows / FPI [FPcm] 2 / 22 [9]
Net Latent Capacity Btu [kW] 11,500 [3.37]
Indoor Coil—Fin Type Louvered
Tube Type Rifled
Tube Size in. [mm] 0.375 [9.5]
Face Area sq. ft. [sq. m] 7.39 [0.69]
Rows / FPI [FPcm] 2 / 15 [6]
Refrigerant Control TX Valves
Drain Connection No./Size in. [mm] 1/1 [25.4]
Outdoor Fan—Type Propeller
No. Used/Diameter in. [mm] 1/22 [558.8]
Drive Type/No. Speeds Direct/1
CFM [L/s] 3000 [1416]
No. Motors/HP 1 at 1/3 HP
Motor RPM 1075
Indoor Fan—Type FC Centrifugal
No. Used/Diameter in. [mm] 1/10x9 [254x228.6]
Drive Type/No. Speeds Direct/2
No. Motors 1
Motor HP 3/4
Motor RPM 1075
Motor Frame Size 48
Filter—Type Field Supplied
Furnished No
(No.) Size Recommended in. [mm] (1)1x24x24 [25x610x610]
Refrigerant Charge Oz. [g] 183 [5188]
Weights
Ship Weight lbs. [kg] 521 [236]
See Page 12 for Notes. [ ] Designates Metric Conversions
Air General Data Notes
RQNL/RQPL Series
12
NOTES:
1. Cooling Performance is rated at 95° F ambient, 80° F entering dry bulb, 67° F entering wet bulb. Gross capacity does
not include the effect of fan motor heat. AHRI capacity is net and includes the effect of fan motor heat. Units are
suitable for operation in CFM range shown in airflow tables. Units are certified in accordance with the Unitary Air
Conditioner Equipment certification program, which is based on AHRI Standard 210/240 or 360.
2. EER and/or SEER are rated at AHRI conditions and in accordance with DOE test procedures.
3. Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270.
4. Heating Performance is rated at 47° F ambient, 70° F entering dry bulb for High Temp rating and 17° F ambient, 70° F
entering dry bulb for Low Temp rating. Performance ratings do include the effect of fan motor heat.
Air Gross Systems Performance Data
RQNL Series
13
COOLING PERFORMANCE DATA—RQNL-024
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 880 [415] 800 [378] 720 [340] 880 [415] 800 [378] 720 [340] 880 [415] 800 [378] 720 [340]
DR ➀.17 .15 .13 .17 .15 .13 .17 .15 .13
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
29.4 [8.62]
18.2 [5.33]
1.5
28.9 [8.47]
17.4 [5.10]
1.5
28.3 [8.29]
16.6 [4.86]
1.5
28.1 [8.24]
21.0 [6.15]
1.5
27.6 [8.09]
20.1 [5.89]
1.5
27.1 [7.94]
19.1 [5.60]
1.5
27.1 [7.94]
22.3 [6.54]
1.5
26.6 [7.80]
21.3 [6.24]
1.5
26.1 [7.65]
20.3 [5.95]
1.5
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
29.2 [8.56]
18.0 [5.28]
1.6
28.6 [8.38]
17.2 [5.04]
1.6
28.1 [8.24]
16.4 [4.81]
1.6
27.8 [8.15]
20.8 [6.10]
1.6
27.3 [8.00]
19.8 [5.80]
1.6
26.8 [7.85]
18.9 [5.54]
1.6
26.8 [7.85]
22.1 [6.48]
1.6
26.4 [7.74]
21.1 [6.18]
1.6
25.9 [7.59]
20.1 [5.89]
1.6
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
28.5 [8.35]
17.6 [5.16]
1.7
28.0 [8.21]
16.8 [4.92]
1.7
27.5 [8.06]
16.0 [4.69]
1.7
27.2 [7.97]
20.4 [5.98]
1.7
26.7 [7.83]
19.5 [5.71]
1.7
26.2 [7.68]
18.6 [5.45]
1.7
26.2 [7.68]
21.7 [6.36]
1.7
25.7 [7.53]
20.7 [6.07]
1.7
25.2 [7.39]
19.7 [5.77]
1.7
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
27.5 [8.06]
17.1 [5.01]
1.8
27.0 [7.91]
16.3 [4.78]
1.8
26.5 [7.77]
15.6 [4.57]
1.8
26.1 [7.65]
19.9 [5.83]
1.8
25.7 [7.53]
19.0 [5.57]
1.8
25.2 [7.39]
18.1 [5.30]
1.8
25.2 [7.39]
21.2 [6.21]
1.8
24.7 [7.24]
20.2 [5.92]
1.8
24.3 [7.12]
19.3 [5.66]
1.8
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
26.2 [7.68]
16.5 [4.84]
1.9
25.8 [7.56]
15.8 [4.63]
1.9
25.3 [7.41]
15.0 [4.40]
1.9
24.9 [7.30]
19.3 [5.66]
1.9
24.5 [7.18]
18.5 [5.42]
1.9
24.0 [7.03]
17.6 [5.16]
1.9
23.9 [7.00]
20.6 [6.04]
1.9
23.5 [6.89]
19.7 [5.77]
1.9
23.1 [6.77]
18.8 [5.51]
1.9
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
24.9 [7.30]
15.9 [4.66]
2.0
24.4 [7.15]
15.2 [4.45]
2.0
24.0 [7.03]
14.5 [4.25]
2.0
23.5 [6.89]
18.7 [5.48]
2.0
23.1 [6.77]
17.9 [5.25]
2.0
22.7 [6.65]
17.0 [4.98]
2.0
22.5 [6.59]
20.0 [5.86]
2.0
22.1 [6.48]
19.1 [5.60]
2.0
21.7 [6.36]
18.2 [5.33]
2.0
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
23.5 [6.89]
15.2 [4.45]
2.1
23.1 [6.77]
14.5 [4.25]
2.1
22.7 [6.65]
13.9 [4.07]
2.1
22.2 [6.51]
18.0 [5.28]
2.1
21.8 [6.39]
17.2 [5.04]
2.1
21.4 [6.27]
16.4 [4.81]
2.1
21.2 [6.21]
19.3 [5.66]
2.1
20.8 [6.10]
18.5 [5.42]
2.1
20.4 [5.98]
17.6 [5.16]
2.1
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
22.2 [6.51]
14.6 [4.28]
2.2
21.8 [6.39]
14.0 [4.10]
2.2
21.4 [6.27]
13.3 [3.90]
2.2
20.9 [6.13]
17.4 [5.10]
2.2
20.5 [6.01]
16.7 [4.89]
2.2
20.1 [5.89]
15.9 [4.66]
2.2
19.9 [5.83]
18.7 [5.48]
2.2
19.5 [5.71]
17.9 [5.25]
2.2
19.2 [5.63]
17.0 [4.98]
2.2
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
21.1 [6.18]
14.0 [4.10]
2.3
20.7 [6.07]
13.4 [3.93]
2.3
20.3 [5.95]
12.8 [3.75]
2.3
19.8 [5.80]
16.9 [4.95]
2.3
19.4 [5.69]
16.1 [4.72]
2.3
19.0 [5.57]
15.4 [4.51]
2.3
18.8 [5.51]
18.1 [5.30]
2.3
18.4 [5.39]
17.3 [5.07]
2.3
18.1 [5.30]
16.5 [4.84]
2.3
HEATING PERFORMANCE DATA—RQNL-024
IDB 60°F [15.5°C] 70°F [21.1°C] 80°F [26.7°C]
CFM [L/s] 880 [415] 800 [378] 720 [340] 880 [415] 800 [378] 720 [340] 880 [415] 800 [378] 720 [340]
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
8.3 [2.43]
1.4
8.3 [2.43]
1.4
8.2 [2.40]
1.4
7.4 [2.17]
1.6
7.4 [2.17]
1.6
7.3 [2.14]
1.6
6.0 [1.76]
1.8
6.0 [1.76]
1.8
5.9 [1.73]
1.9
5
[-15]
Total BTUH [kW]
Power
10.0 [2.93]
1.4
9.9 [2.90]
1.4
9.8 [2.87]
1.4
9.1 [2.67]
1.6
9.0 [2.64]
1.6
9.0 [2.64]
1.6
7.6 [2.23]
1.8
7.6 [2.23]
1.8
7.5 [2.20]
1.9
15
[-9.4]
Total BTUH [kW]
Power
13.2 [3.87]
1.4
13.1 [3.84]
1.5
13.0 [3.81]
1.5
12.3 [3.60]
1.6
12.3 [3.60]
1.6
12.2 [3.58]
1.7
10.9 [3.19]
1.9
10.8 [3.17]
1.9
10.8 [3.17]
1.9
10
[-12.2]
Total BTUH [kW]
Power
11.6 [3.40]
1.4
11.5 [3.37]
1.4
11.4 [3.34]
1.5
10.7 [3.14]
1.6
10.6 [3.11]
1.6
10.6 [3.11]
1.6
9.3 [2.73]
1.8
9.2 [2.70]
1.9
9.1 [2.67]
1.9
25
[-3.9]
Total BTUH [kW]
Power
16.5 [4.84]
1.5
16.4 [4.81]
1.5
16.3 [4.78]
1.5
15.6 [4.57]
1.7
15.5 [4.54]
1.7
15.4 [4.51]
1.7
14.2 [4.16]
1.9
14.1 [4.13]
1.9
14.0 [4.10]
2.0
35
[1.7]
Total BTUH [kW]
Power
19.8 [5.80]
1.5
19.6 [5.74]
1.5
19.5 [5.71]
1.6
18.9 [5.54]
1.7
18.7 [5.48]
1.7
18.6 [5.45]
1.7
17.4 [5.10]
1.9
17.3 [5.07]
2.0
17.2 [5.04]
2.0
20
[-6.7]
Total BTUH [kW]
Power
14.9 [4.37]
1.5
14.8 [4.34]
1.5
14.7 [4.31]
1.5
14.0 [4.10]
1.6
13.9 [4.07]
1.7
13.8 [4.04]
1.7
12.5 [3.66]
1.9
12.5 [3.66]
1.9
12.4 [3.63]
1.9
30
[-1.1]
Total BTUH [kW]
Power
18.1 [5.30]
1.5
18.0 [5.28]
1.5
17.9 [5.25]
1.5
17.2 [5.04]
1.7
17.1 [5.01]
1.7
17.0 [4.98]
1.7
15.8 [4.63]
1.9
15.7 [4.60]
2.0
15.6 [4.57]
2.0
40
[4.4]
Total BTUH [kW]
Power
21.4 [6.27]
1.5
21.3 [6.24]
1.6
21.1 [6.18]
1.6
20.5 [6.01]
1.7
20.4 [5.98]
1.7
20.2 [5.92]
1.8
19.1 [5.60]
2.0
18.9 [5.54]
2.0
18.8 [5.51]
2.0
50
[10]
Total BTUH [kW]
Power
24.7 [7.24]
1.6
24.5 [7.18]
1.6
24.3 [7.12]
1.6
23.8 [6.98]
1.8
23.6 [6.92]
1.8
23.4 [6.86]
1.8
22.3 [6.54]
2.0
22.2 [6.51]
2.0
22.0 [6.45]
2.1
45
[7.2]
Total BTUH [kW]
Power
23.0 [6.74]
1.6
22.9 [6.71]
1.6
22.7 [6.65]
1.6
22.1 [6.48]
1.7
22.0 [6.45]
1.8
21.8 [6.39]
1.8
20.7 [6.07]
2.0
20.6 [6.04]
2.0
20.4 [5.98]
2.0
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
Air Gross Systems Performance Data
RQNL Series
14
COOLING PERFORMANCE DATA—RQNL-030
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1100 [519] 1000 [472] 900 [425] 1100 [519] 1000 [472] 900 [425] 1100 [519] 1000 [472 900 [425]
DR ➀.02 .18 .16 .02 .18 .16 .02 .18 .16
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
36.1 [10.58]
22.0 [6.45]
1.9
35.4 [10.37]
21.0 [6.15]
1.9
34.8 [10.20]
20.0 [5.86]
1.8
34.1 [9.99]
25.3 [7.41]
1.8
33.4 [9.79]
24.2 [7.09]
1.8
32.8 [9.61]
23.0 [6.74]
1.8
32.7 [9.58]
26.7 [7.83]
1.9
32.1 [9.41]
25.5 [7.47]
1.9
31.5 [9.23]
24.3 [7.12]
1.8
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
34.9 [10.23]
21.4 [6.27]
2.0
34.3 [10.05]
20.4 [5.98]
1.9
33.6 [9.85]
19.5 [5.71]
1.9
32.9 [9.64]
24.7 [7.24]
1.9
32.3 [9.47]
23.6 [6.92]
1.9
31.7 [9.29]
22.5 [6.59]
1.9
31.5 [9.23]
26.1 [7.65]
2.0
31.0 [9.09]
25.0 [7.33]
1.9
30.4 [8.91]
23.8 [6.98]
1.9
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
33.8 [9.91]
20.8 [6.10]
2.1
33.2 [9.73]
19.9 [5.83]
2.0
32.6 [9.55]
19.0 [5.57]
2.0
31.8 [9.32]
24.1 [7.06]
2.0
31.2 [9.14]
23.0 [6.74]
2.0
30.6 [8.97]
22.0 [6.45]
2.0
30.4 [8.91]
25.5 [7.47]
2.1
29.8 [8.73]
24.4 [7.15]
2.0
29.3 [8.59]
23.3 [6.83]
2.0
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
32.6 [9.55]
20.2 [5.92]
2.2
32.0 [9.38]
19.3 [5.66]
2.1
31.5 [9.23]
18.4 [5.39]
2.1
30.6 [8.97]
23.5 [6.89]
2.1
30.1 [8.82]
22.5 [6.59]
2.1
29.5 [8.65]
21.4 [6.27]
2.1
29.3 [8.59]
25.0 [7.33]
2.2
28.7 [8.41]
23.9 [7.00]
2.1
28.2 [8.26]
22.7 [6.65]
2.1
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
31.5 [9.23]
19.7 [5.77]
2.2
30.9 [9.06]
18.8 [5.51]
2.2
30.4 [8.91]
17.9 [5.25]
2.2
29.5 [8.65]
23.0 [6.74]
2.2
29.0 [8.50]
22.0 [6.45]
2.2
28.4 [8.32]
20.9 [6.13]
2.2
28.1 [8.24]
24.4 [7.15]
2.2
27.6 [8.09]
23.3 [6.83]
2.2
27.1 [7.94]
22.2 [6.51]
2.2
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
30.3 [8.88]
19.2 [5.63]
2.3
29.8 [8.73]
18.3 [5.36]
2.3
29.3 [8.59]
17.4 [5.10]
2.3
28.3 [8.29]
22.4 [6.56]
2.3
27.8 [8.15]
21.4 [6.27]
2.3
27.3 [8.00]
20.4 [5.98]
2.3
27.0 [7.91]
23.9 [7.00]
2.3
26.5 [7.77]
22.8 [6.68]
2.3
26.0 [7.62]
21.7 [6.36]
2.3
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
29.2 [8.56]
18.6 [5.45]
2.4
28.6 [8.38]
17.8 [5.22]
2.4
28.1 [8.24]
16.9 [4.95]
2.4
27.2 [7.97]
21.9 [6.42]
2.4
26.7 [7.83]
20.9 [6.13]
2.4
26.2 [7.68]
19.9 [5.83]
2.4
25.8 [7.56]
23.3 [6.83]
2.4
25.3 [7.41]
22.3 [6.54]
2.4
24.9 [7.30]
21.3 [6.24]
2.4
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
27.9 [8.18]
18.1 [5.30]
2.5
27.4 [8.03]
17.3 [5.07]
2.5
26.9 [7.88]
16.5 [4.84]
2.5
25.9 [7.59]
21.4 [6.27]
2.5
25.5 [7.47]
20.4 [5.98]
2.5
25.0 [7.33]
19.5 [5.71]
2.5
24.6 [7.21]
22.8 [6.68]
2.5
24.1 [7.06]
21.8 [6.39]
2.5
23.7 [6.95]
20.8 [6.10]
2.5
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
26.6 [7.80]
17.5 [5.13]
2.6
26.1 [7.65]
16.7 [4.89]
2.6
25.7 [7.53]
15.9 [4.66]
2.6
24.6 [7.21]
20.8 [6.10]
2.6
24.2 [7.09]
19.9 [5.83]
2.6
23.7 [6.95]
19.0 [5.57]
2.5
23.3 [6.83]
22.2 [6.51]
2.6
22.8 [6.68]
21.2 [6.21]
2.6
22.4 [6.56]
20.3 [5.95]
2.6
HEATING PERFORMANCE DATA—RQNL-030
5
[-15]
Total BTUH [kW]
Power
11.3 [3.31]
1.6
11.2 [3.28]
1.6
11.1 [3.25]
1.6
9.7 [2.84]
1.8
9.6 [2.81]
1.8
9.6 [2.81]
1.9
8.3 [2.43]
2.0
8.2 [2.40]
2.1
8.2 [2.40]
2.1
IDB
15
[-9.4]
60°F [15.5°C]
Total BTUH [kW]
Power
15.1 [4.43]
1.7
70°F [21.1°C]
15.0 [4.40]
1.7
14.9 [4.37]
1.7
80°F [26.7°C]
13.5 [3.96]
1.9
13.5 [3.96]
1.9
CFM [L/s]
13.4 [3.93]
1.9
12.1 [3.55]
2.1
1100 [519] 1000 [472] 900 [425] 1100 [519] 1000 [472] 900 [425] 1100 [519] 1000 [472 900 [425]
12.0 [3.52]
2.1
12.0 [3.52]
2.2
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
9.3 [2.73]
1.6
9.3 [2.73]
1.6
9.2 [2.70]
1.6
7.8 [2.29]
1.8
7.7 [2.26]
1.8
7.7 [2.26]
1.8
6.4 [1.88]
2.0
6.3 [1.85]
2.0
6.3 [1.85]
2.1
10
[-12.2]
Total BTUH [kW]
Power
13.2 [3.87]
1.6
13.1 [3.84]
1.7
13.0 [3.81]
1.7
11.6 [3.40]
1.9
11.5 [3.37]
1.9
11.5 [3.37]
1.9
10.2 [2.99]
2.1
10.1 [2.96]
2.1
10.1 [2.96]
2.1
25
[-3.9]
Total BTUH [kW]
Power
18.9 [5.54]
1.7
18.8 [5.51]
1.8
18.7 [5.48]
1.8
17.4 [5.10]
1.9
17.3 [5.07]
2.0
17.1 [5.01]
2.0
16.0 [4.69]
2.2
15.9 [4.66]
2.2
15.7 [4.60]
2.2
35
[1.7]
Total BTUH [kW]
Power
22.8 [6.68]
1.8
22.6 [6.62]
1.8
22.5 [6.59]
1.8
21.2 [6.21]
2.0
21.1 [6.18]
2.0
20.9 [6.13]
2.1
19.8 [5.80]
2.2
19.7 [5.77]
2.3
19.5 [5.71]
2.3
20
[-6.7]
Total BTUH [kW]
Power
17.0 [4.98]
1.7
16.9 [4.95]
1.7
16.8 [4.92]
1.7
15.5 [4.54]
1.9
15.4 [4.51]
1.9
15.3 [4.48]
2.0
14.0 [4.10]
2.1
13.9 [4.07]
2.2
13.8 [4.04]
2.2
30
[-1.1]
Total BTUH [kW]
Power
20.9 [6.13]
1.8
20.7 [6.07]
1.8
20.6 [6.04]
1.8
19.3 [5.66]
2.0
19.2 [5.63]
2.0
19.0 [5.57]
2.0
17.9 [5.25]
2.2
17.8 [5.22]
2.2
17.6 [5.16]
2.3
40
[4.4]
Total BTUH [kW]
Power
24.7 [7.24]
1.8
24.5 [7.18]
1.8
24.4 [7.15]
1.9
23.2 [6.80]
2.0
23.0 [6.74]
2.1
22.8 [6.68]
2.1
21.7 [6.36]
2.3
21.6 [6.33]
2.3
21.4 [6.27]
2.3
50
[10]
Total BTUH [kW]
Power
28.6 [8.38]
1.9
28.4 [8.32]
1.9
28.2 [8.26]
1.9
27.0 [7.91]
2.1
26.8 [7.85]
2.1
26.6 [7.80]
2.1
25.6 [7.50]
2.3
25.4 [7.44]
2.4
25.2 [7.39]
2.4
45
[7.2]
Total BTUH [kW]
Power
26.6 [7.80]
1.9
26.4 [7.74]
1.9
26.3 [7.71]
1.9
25.1 [7.36]
2.1
24.9 [7.30]
2.1
24.7 [7.24]
2.1
23.7 [6.95]
2.3
23.5 [6.89]
2.3
23.3 [6.83]
2.3
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
Air Gross Systems Performance Data
RQNL Series
15
COOLING PERFORMANCE DATA—RQNL-036
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1380 [651] 1250 [590] 1120 [528] 1380 [651] 1250 [590] 1120 [528] 1380 [651] 1250 [590] 1120 [528]
DR ➀.21 .19 .17 .21 .19 .17 .21 .19 .17
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
44.5 [13.04]
27.2 [7.97]
2.3
43.7 [12.81]
26.0 [7.62]
2.3
42.9 [12.57]
24.8 [7.27]
2.2
42.5 [12.46]
31.3 [9.17]
2.3
41.7 [12.22]
29.9 [8.76]
2.2
40.9 [11.99]
28.5 [8.35]
2.2
41.3 [12.10]
33.7 [9.88]
2.2
40.6 [11.90]
32.2 [9.44]
2.2
39.8 [11.66]
30.7 [9.00]
2.2
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
43.4 [12.72]
26.6 [7.80]
2.4
42.6 [12.48]
25.4 [7.44]
2.4
41.8 [12.25]
24.2 [7.09]
2.4
41.3 [12.10]
30.7 [9.00]
2.4
40.6 [11.90]
29.3 [8.59]
2.4
39.9 [11.69]
27.9 [8.18]
2.4
40.2 [11.78]
33.0 [9.67]
2.4
39.5 [11.58]
31.6 [9.26]
2.4
38.8 [11.37]
30.1 [8.82]
2.3
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
42.1 [12.34]
26.0 [7.62]
2.6
41.3 [12.10]
24.8 [7.27]
2.5
40.6 [11.90]
23.6 [6.92]
2.5
40.0 [11.72]
30.0 [8.79]
2.5
39.3 [11.52]
28.7 [8.41]
2.5
38.6 [11.31]
27.3 [8.00]
2.5
38.9 [11.40]
32.4 [9.50]
2.5
38.2 [11.20]
30.9 [9.06]
2.5
37.5 [10.99]
29.5 [8.65]
2.5
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
40.6 [11.90]
25.3 [7.41]
2.7
39.9 [11.69]
24.1 [7.06]
2.7
39.1 [11.46]
23.0 [6.74]
2.7
38.5 [11.28]
29.3 [8.59]
2.7
37.9 [11.11]
28.0 [8.21]
2.7
37.2 [10.90]
26.7 [7.83]
2.6
37.4 [10.96]
31.7 [9.29]
2.7
36.7 [10.76]
30.3 [8.88]
2.6
36.1 [10.58]
28.8 [8.44]
2.6
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
39.0 [11.43]
24.5 [7.18]
2.9
38.3 [11.22]
23.4 [6.86]
2.8
37.6 [11.02]
22.3 [6.54]
2.8
36.9 [10.81]
28.6 [8.38]
2.8
36.3 [10.64]
27.3 [8.00]
2.8
35.6 [10.43]
26.0 [7.62]
2.8
35.8 [10.49]
30.9 [9.06]
2.8
35.2 [10.32]
29.6 [8.67]
2.8
34.5 [10.11]
28.2 [8.26]
2.8
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
37.3 [10.93]
23.7 [6.95]
3.0
36.7 [10.76]
22.7 [6.65]
3.0
36.0 [10.55]
21.6 [6.33]
2.9
35.3 [10.35]
27.8 [8.15]
3.0
34.6 [10.14]
26.5 [7.77]
2.9
34.0 [9.96]
25.3 [7.41]
2.9
34.1 [9.99]
30.2 [8.85]
3.0
33.5 [9.82]
28.8 [8.44]
2.9
32.9 [9.64]
27.5 [8.06]
2.9
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
35.6 [10.43]
22.9 [6.71]
3.1
35.0 [10.26]
21.9 [6.42]
3.1
34.4 [10.08]
20.9 [6.13]
3.1
33.6 [9.85]
27.0 [7.91]
3.1
33.0 [9.67]
25.8 [7.56]
3.1
32.4 [9.50]
24.6 [7.21]
3.1
32.4 [9.50]
29.4 [8.62]
3.1
31.9 [9.35]
28.1 [8.24]
3.1
31.3 [9.17]
26.7 [7.83]
3.0
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
34.0 [9.96]
22.1 [6.48]
3.3
33.4 [9.79]
21.1 [6.18]
3.3
32.7 [9.58]
20.1 [5.89]
3.2
31.9 [9.35]
26.2 [7.68]
3.3
31.3 [9.17]
25.0 [7.33]
3.2
30.8 [9.03]
23.8 [6.98]
3.2
30.8 [9.03]
28.5 [8.35]
3.2
30.2 [8.85]
27.3 [8.00]
3.2
29.7 [8.70]
26.0 [7.62]
3.2
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
32.4 [9.50]
21.3 [6.24]
3.4
31.8 [9.32]
20.3 [5.95]
3.4
31.2 [9.14]
19.4 [5.69]
3.4
30.3 [8.88]
25.3 [7.41]
3.4
29.8 [8.73]
24.2 [7.09]
3.4
29.2 [8.56]
23.1 [6.77]
3.3
29.2 [8.56]
27.7 [8.12]
3.4
28.6 [8.38]
26.5 [7.77]
3.4
28.1 [8.24]
25.2 [7.39]
3.3
HEATING PERFORMANCE DATA—RQNL-036
5
[-15]
Total BTUH [kW]
Power
14.4 [4.22]
1.9
14.3 [4.19]
1.9
14.2 [4.16]
1.9
12.4 [3.63]
2.1
12.3 [3.60]
2.1
12.2 [3.58]
2.2
11.0 [3.22]
2.4
10.9 [3.19]
2.4
10.8 [3.17]
2.5
IDB
15
[-9.4]
60°F [15.5°C]
Total BTUH [kW]
Power
19.3 [5.66]
1.9
70°F [21.1°C]
19.2 [5.63]
2.0
19.0 [5.57]
2.0
80°F [26.7°C]
17.3 [5.07]
2.2
17.1 [5.01]
2.2
CFM [L/s]
17.0 [4.98]
2.2
15.9 [4.66]
2.5
1380 [651] 1250 [590] 1120 [528] 1380 [651] 1250 [590] 1120 [528] 1380 [651] 1250 [590] 1120 [528]
15.8 [4.63]
2.5
15.7 [4.60]
2.5
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
11.9 [3.49]
1.8
11.9 [3.49]
1.8
11.8 [3.46]
1.9
9.9 [2.90]
2.1
9.8 [2.87]
2.1
9.8 [2.87]
2.1
8.5 [2.49]
2.4
8.5 [2.49]
2.4
8.4 [2.46]
2.4
10
[-12.2]
Total BTUH [kW]
Power
16.8 [4.92]
1.9
16.7 [4.89]
1.9
16.6 [4.86]
1.9
14.8 [4.34]
2.2
14.7 [4.31]
2.2
14.6 [4.28]
2.2
13.4 [3.93]
2.4
13.3 [3.90]
2.5
13.2 [3.87]
2.5
25
[-3.9]
Total BTUH [kW]
Power
24.2 [7.09]
2.0
24.0 [7.03]
2.0
23.9 [7.00]
2.1
22.2 [6.51]
2.3
22.0 [6.45]
2.3
21.8 [6.39]
2.3
20.8 [6.10]
2.6
20.6 [6.04]
2.6
20.5 [6.01]
2.6
35
[1.7]
Total BTUH [kW]
Power
29.1 [8.53]
2.1
28.9 [8.47]
2.1
28.7 [8.41]
2.2
27.1 [7.94]
2.4
26.9 [7.88]
2.4
26.7 [7.83]
2.4
25.7 [7.53]
2.6
25.5 [7.47]
2.7
25.3 [7.41]
2.7
20
[-6.7]
Total BTUH [kW]
Power
21.7 [6.36]
2.0
21.6 [6.33]
2.0
21.4 [6.27]
2.0
19.7 [5.77]
2.2
19.6 [5.74]
2.3
19.4 [5.69]
2.3
18.3 [5.36]
2.5
18.2 [5.33]
2.6
18.1 [5.30]
2.6
30
[-1.1]
Total BTUH [kW]
Power
26.7 [7.83]
2.1
26.5 [7.77]
2.1
26.3 [7.71]
2.1
24.6 [7.21]
2.3
24.4 [7.15]
2.3
24.3 [7.12]
2.4
23.2 [6.80]
2.6
23.1 [6.77]
2.6
22.9 [6.71]
2.7
40
[4.4]
Total BTUH [kW]
Power
31.6 [9.26]
2.1
31.3 [9.17]
2.2
31.1 [9.11]
2.2
29.5 [8.65]
2.4
29.3 [8.59]
2.4
29.1 [8.53]
2.5
28.1 [8.24]
2.7
27.9 [8.18]
2.7
27.7 [8.12]
2.8
50
[10]
Total BTUH [kW]
Power
36.5 [10.70]
2.2
36.2 [10.61]
2.2
35.9 [10.52]
2.3
34.4 [10.08]
2.5
34.2 [10.02]
2.5
33.9 [9.94]
2.5
33.0 [9.67]
2.8
32.8 [9.61]
2.8
32.6 [9.55]
2.8
45
[7.2]
Total BTUH [kW]
Power
34.0 [9.96]
2.2
33.8 [9.91]
2.2
33.5 [9.82]
2.2
32.0 [9.38]
2.4
31.7 [9.29]
2.5
31.5 [9.23]
2.5
30.6 [8.97]
2.7
30.4 [8.91]
2.8
30.2 [8.85]
2.8
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
Air Gross Systems Performance Data
RQNL Series
16
COOLING PERFORMANCE DATA—RQNL-042
5
[-15]
Total BTUH [kW]
Power
16.9 [4.95]
2.6
16.8 [4.92]
2.6
16.7 [4.89]
2.7
16.0 [4.69]
3.0
15.8 [4.63]
3.1
15.7 [4.60]
3.1
14.2 [4.16]
3.4
14.1 [4.13]
3.4
14.0 [4.10]
3.5
IDB
15
[-9.4]
60°F [15.5°C]
Total BTUH [kW]
Power
23.0 [6.74]
2.7
70°F [21.1°C]
22.8 [6.68]
2.7
22.6 [6.62]
2.7
80°F [26.7°C]
22.0 [6.45]
3.1
21.8 [6.39]
3.1
CFM [L/s]
21.7 [6.36]
3.2
20.3 [5.95]
3.5
1540 [727] 1400 [661] 1260 [595] 1540 [727] 1400 [661] 1260 [595] 1540 [727] 1400 [661] 1260 [595]
20.1 [5.89]
3.5
20.0 [5.86]
3.5
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
13.9 [4.07]
2.6
13.8 [4.04]
2.6
13.7 [4.02]
2.6
12.9 [3.78]
3.0
12.8 [3.75]
3.0
12.8 [3.75]
3.1
11.2 [3.28]
3.3
11.1 [3.25]
3.4
11.1 [3.25]
3.4
10
[-12.2]
Total BTUH [kW]
Power
20.0 [5.86]
2.6
19.8 [5.80]
2.7
19.7 [5.77]
2.7
19.0 [5.57]
3.1
18.8 [5.51]
3.1
18.7 [5.48]
3.1
17.3 [5.07]
3.4
17.1 [5.01]
3.5
17.0 [4.98]
3.5
25
[-3.9]
Total BTUH [kW]
Power
29.0 [8.50]
2.8
28.8 [8.44]
2.8
28.6 [8.38]
2.8
28.0 [8.21]
3.2
27.8 [8.15]
3.2
27.6 [8.09]
3.3
26.3 [7.71]
3.5
26.1 [7.65]
3.6
25.9 [7.59]
3.6
35
[1.7]
Total BTUH [kW]
Power
35.1 [10.29]
2.8
34.8 [10.20]
2.9
34.6 [10.14]
2.9
34.1 [9.99]
3.2
33.8 [9.91]
3.3
33.6 [9.85]
3.3
32.4 [9.50]
3.6
32.1 [9.41]
3.6
31.9 [9.35]
3.7
20
[-6.7]
Total BTUH [kW]
Power
26.0 [7.62]
2.7
25.8 [7.56]
2.7
25.6 [7.50]
2.8
25.0 [7.33]
3.1
24.8 [7.27]
3.2
24.7 [7.24]
3.2
23.3 [6.83]
3.5
23.1 [6.77]
3.5
23.0 [6.74]
3.6
30
[-1.1]
Total BTUH [kW]
Power
32.0 [9.38]
2.8
31.8 [9.32]
2.8
31.6 [9.26]
2.9
31.1 [9.11]
3.2
30.8 [9.03]
3.2
30.6 [8.97]
3.3
29.3 [8.59]
3.6
29.1 [8.53]
3.6
28.9 [8.47]
3.7
40
[4.4]
Total BTUH [kW]
Power
38.1 [11.17]
2.9
37.8 [11.08]
2.9
37.5 [10.99]
2.9
37.1 [10.87]
3.3
36.8 [10.79]
3.3
36.6 [10.73]
3.4
35.4 [10.37]
3.6
35.1 [10.29]
3.7
34.9 [10.23]
3.7
50
[10]
Total BTUH [kW]
Power
44.1 [12.92]
2.9
43.8 [12.84]
3.0
43.5 [12.75]
3.0
43.1 [12.63]
3.4
42.8 [12.54]
3.4
42.5 [12.46]
3.4
41.4 [12.13]
3.7
41.1 [12.05]
3.8
40.8 [11.96]
3.8
45
[7.2]
Total BTUH [kW]
Power
41.1 [12.05]
2.9
40.8 [11.96]
2.9
40.5 [11.87]
3.0
40.1 [11.75]
3.3
39.8 [11.66]
3.4
39.6 [11.61]
3.4
38.4 [11.25]
3.7
38.1 [11.17]
3.7
37.9 [11.11]
3.8
HEATING PERFORMANCE DATA—RQNL-042
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1540 [727] 1400 [661] 1260 [595] 1540 [727] 1400 [661] 1260 [595] 1540 [727] 1400 [661] 1260 [595]
DR ➀.17 .15 .14 .17 .15 .14 .17 .15 .14
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
53.9 [15.80]
32.2 [9.44]
2.9
52.9 [15.50]
30.7 [9.00]
2.9
51.9 [15.21]
29.3 [8.59]
2.9
50.9 [14.92]
37.1 [10.87]
2.9
50.0 [14.65]
35.5 [10.40]
2.9
49.1 [14.39]
33.8 [9.91]
2.9
48.1 [14.10]
39.3 [11.52]
2.9
47.3 [13.86]
37.5 [10.99]
2.9
46.4 [13.60]
35.8 [10.49]
2.9
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
52.0 [15.24]
31.3 [9.17]
3.1
51.0 [14.95]
29.9 [8.76]
3.1
50.1 [14.68]
28.5 [8.35]
3.1
49.0 [14.36]
36.3 [10.64]
3.1
48.1 [14.10]
34.7 [10.17]
3.1
47.2 [13.83]
33.0 [9.67]
3.1
46.2 [13.54]
38.4 [11.25]
3.1
45.4 [13.31]
36.7 [10.76]
3.1
44.6 [13.07]
35.0 [10.26]
3.0
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
50.3 [14.74]
30.5 [8.94]
3.3
49.4 [14.48]
29.2 [8.56]
3.3
48.5 [14.21]
27.8 [8.15]
3.2
47.3 [13.86]
35.5 [10.40]
3.3
46.5 [13.63]
33.9 [9.94]
3.2
45.6 [13.36]
32.3 [9.47]
3.2
44.6 [13.07]
37.6 [11.02]
3.3
43.8 [12.84]
35.9 [10.52]
3.2
43.0 [12.60]
34.3 [10.05]
3.2
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
48.7 [14.27]
29.8 [8.73]
3.4
47.9 [14.04]
28.4 [8.32]
3.4
47.0 [13.77]
27.1 [7.94]
3.4
45.8 [13.42]
34.7 [10.17]
3.4
44.9 [13.16]
33.2 [9.73]
3.4
44.1 [12.92]
31.6 [9.26]
3.4
43.0 [12.60]
36.8 [10.79]
3.4
42.2 [12.37]
35.2 [10.32]
3.4
41.5 [12.16]
33.6 [9.85]
3.4
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
47.2 [13.83]
29.0 [8.50]
3.6
46.4 [13.60]
27.7 [8.12]
3.6
45.5 [13.33]
26.4 [7.74]
3.6
44.2 [12.95]
34.0 [9.96]
3.6
43.4 [12.72]
32.4 [9.50]
3.6
42.7 [12.51]
30.9 [9.06]
3.6
41.5 [12.16]
36.1 [10.58]
3.6
40.7 [11.93]
34.5 [10.11]
3.6
40.0 [11.72]
32.9 [9.64]
3.5
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
45.6 [13.36]
28.2 [8.26]
3.8
44.8 [13.13]
26.9 [7.88]
3.8
44.0 [12.90]
25.7 [7.53]
3.7
42.6 [12.48]
33.2 [9.73]
3.8
41.9 [12.28]
31.7 [9.29]
3.7
41.1 [12.05]
30.2 [8.85]
3.7
39.9 [11.69]
35.3 [10.35]
3.8
39.2 [11.49]
33.7 [9.88]
3.7
38.5 [11.28]
32.1 [9.41]
3.7
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
43.8 [12.84]
27.4 [8.03]
4.0
43.0 [12.60]
26.1 [7.65]
3.9
42.3 [12.40]
24.9 [7.30]
3.9
40.8 [11.96]
32.3 [9.47]
3.9
40.1 [11.75]
30.9 [9.06]
3.9
39.4 [11.55]
29.4 [8.62]
3.9
38.1 [11.17]
34.4 [10.08]
3.9
37.4 [10.96]
32.9 [9.64]
3.9
36.7 [10.76]
31.4 [9.20]
3.9
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
41.7 [12.22]
26.4 [7.74]
4.1
41.0 [12.02]
25.2 [7.39]
4.1
40.2 [11.78]
24.1 [7.06]
4.1
38.8 [11.37]
31.4 [9.20]
4.1
38.1 [11.17]
30.0 [8.79]
4.1
37.4 [10.96]
28.6 [8.38]
4.0
36.0 [10.55]
33.5 [9.82]
4.1
35.4 [10.37]
32.0 [9.38]
4.1
34.7 [10.17]
30.5 [8.94]
4.0
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
39.3 [11.52]
25.4 [7.44]
4.3
38.6 [11.31]
24.2 [7.09]
4.3
37.9 [11.11]
23.1 [6.77]
4.2
36.3 [10.64]
30.3 [8.88]
4.3
35.6 [10.43]
29.0 [8.50]
4.2
35.0 [10.26]
27.6 [8.09]
4.2
33.5 [9.82]
32.4 [9.50]
4.3
32.9 [9.64]
31.0 [9.09]
4.2
32.3 [9.47]
29.5 [8.65]
4.2
Air Gross Systems Performance Data
RQNL Series
17
COOLING PERFORMANCE DATA—RQNL-048
5
[-15]
Total BTUH [kW]
Power
20.1 [5.89]
2.6
19.9 [5.83]
2.6
19.8 [5.80]
2.7
18.6 [5.45]
3.0
18.5 [5.42]
3.0
18.3 [5.36]
3.1
17.6 [5.16]
3.5
17.5 [5.13]
3.5
17.3 [5.07]
3.5
IDB
15
[-9.4]
60°F [15.5°C]
Total BTUH [kW]
Power
26.4 [7.74]
2.7
70°F [21.1°C]
26.2 [7.68]
2.8
26.0 [7.62]
2.8
80°F [26.7°C]
24.9 [7.30]
3.1
24.7 [7.24]
3.2
CFM [L/s]
24.6 [7.21]
3.2
23.9 [7.00]
3.6
1760 [831] 1600 [755] 1440 [680] 1760 [831] 1600 [755] 1440 [680] 1760 [831] 1600 [755] 1440 [680]
23.7 [6.95]
3.6
23.6 [6.92]
3.7
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
16.9 [4.95]
2.6
16.8 [4.92]
2.6
16.7 [4.89]
2.6
15.4 [4.51]
3.0
15.3 [4.48]
3.0
15.2 [4.45]
3.0
14.4 [4.22]
3.4
14.3 [4.19]
3.5
14.2 [4.16]
3.5
10
[-12.2]
Total BTUH [kW]
Power
23.2 [6.80]
2.7
23.1 [6.77]
2.7
22.9 [6.71]
2.7
21.8 [6.39]
3.1
21.6 [6.33]
3.1
21.5 [6.30]
3.1
20.7 [6.07]
3.5
20.6 [6.04]
3.6
20.4 [5.98]
3.6
25
[-3.9]
Total BTUH [kW]
Power
32.7 [9.58]
2.8
32.5 [9.52]
2.9
32.2 [9.44]
2.9
31.2 [9.14]
3.2
31.0 [9.09]
3.3
30.8 [9.03]
3.3
30.2 [8.85]
3.7
30.0 [8.79]
3.7
29.8 [8.73]
3.8
35
[1.7]
Total BTUH [kW]
Power
39.0 [11.43]
2.9
38.7 [11.34]
3.0
38.5 [11.28]
3.0
37.5 [10.99]
3.3
37.3 [10.93]
3.4
37.0 [10.84]
3.4
36.5 [10.70]
3.8
36.3 [10.64]
3.8
36.0 [10.55]
3.9
20
[-6.7]
Total BTUH [kW]
Power
29.5 [8.65]
2.8
29.3 [8.59]
2.8
29.1 [8.53]
2.8
28.1 [8.24]
3.2
27.9 [8.18]
3.2
27.7 [8.12]
3.2
27.1 [7.94]
3.6
26.9 [7.88]
3.7
26.7 [7.83]
3.7
30
[-1.1]
Total BTUH [kW]
Power
35.9 [10.52]
2.9
35.6 [10.43]
2.9
35.4 [10.37]
2.9
34.4 [10.08]
3.3
34.1 [9.99]
3.3
33.9 [9.94]
3.4
33.4 [9.79]
3.7
33.1 [9.70]
3.8
32.9 [9.64]
3.8
40
[4.4]
Total BTUH [kW]
Power
42.2 [12.37]
3.0
41.9 [12.28]
3.0
41.6 [12.19]
3.1
40.7 [11.93]
3.4
40.4 [11.84]
3.4
40.1 [11.75]
3.5
39.7 [11.63]
3.8
39.4 [11.55]
3.9
39.1 [11.46]
3.9
50
[10]
Total BTUH [kW]
Power
48.5 [14.21]
3.1
48.1 [14.10]
3.1
47.8 [14.01]
3.2
47.0 [13.77]
3.5
46.7 [13.69]
3.5
46.4 [13.60]
3.6
46.0 [13.48]
3.9
45.7 [13.39]
4.0
45.3 [13.28]
4.0
45
[7.2]
Total BTUH [kW]
Power
45.3 [13.28]
3.0
45.0 [13.19]
3.1
44.7 [13.10]
3.1
43.9 [12.87]
3.4
43.6 [12.78]
3.5
43.2 [12.66]
3.5
42.8 [12.54]
3.9
42.5 [12.46]
3.9
42.2 [12.37]
4.0
HEATING PERFORMANCE DATA—RQNL-048
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1760 [831] 1600 [755] 1440 [680] 1760 [831] 1600 [755] 1440 [680] 1760 [831] 1600 [755] 1440 [680]
DR ➀.15 .13 .11 .15 .13 .11 .15 .13 .11
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
60.4 [17.70]
37.4 [10.96]
3.2
59.3 [17.38]
35.7 [10.46]
3.2
58.3 [17.09]
34.1 [9.99]
3.2
57.1 [16.73]
42.7 [12.51]
3.2
56.1 [16.44]
40.8 [11.96]
3.2
55.0 [16.12]
38.9 [11.40]
3.1
54.5 [15.97]
45.0 [13.19]
3.2
53.5 [15.68]
43.0 [12.60]
3.1
52.5 [15.39]
41.0 [12.02]
3.1
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
58.8 [17.23]
36.6 [10.73]
3.4
57.8 [16.94]
35.0 [10.26]
3.4
56.7 [16.62]
33.3 [9.76]
3.3
55.5 [16.27]
41.9 [12.28]
3.4
54.5 [15.97]
40.0 [11.72]
3.4
53.5 [15.68]
38.2 [11.20]
3.3
52.9 [15.50]
44.2 [12.95]
3.4
51.9 [15.21]
42.2 [12.37]
3.3
51.0 [14.95]
40.3 [11.81]
3.3
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
57.0 [16.71]
35.7 [10.46]
3.6
56.0 [16.41]
34.1 [9.99]
3.6
55.0 [16.12]
32.5 [9.52]
3.5
53.7 [15.74]
41.0 [12.02]
3.6
52.7 [15.44]
39.2 [11.49]
3.5
51.8 [15.18]
37.3 [10.93]
3.5
51.1 [14.98]
43.3 [12.69]
3.5
50.2 [14.71]
41.4 [12.13]
3.5
49.3 [14.45]
39.4 [11.55]
3.5
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
55.1 [16.15]
34.8 [10.20]
3.8
54.1 [15.86]
33.2 [9.73]
3.7
53.1 [15.56]
31.7 [9.29]
3.7
51.7 [15.15]
40.1 [11.75]
3.8
50.8 [14.89]
38.3 [11.22]
3.7
49.9 [14.62]
36.5 [10.70]
3.7
49.1 [14.39]
42.4 [12.43]
3.7
48.3 [14.16]
40.5 [11.87]
3.7
47.4 [13.89]
38.6 [11.31]
3.7
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
53.1 [15.56]
33.8 [9.91]
4.0
52.1 [15.27]
32.3 [9.47]
3.9
51.2 [15.01]
30.8 [9.03]
3.9
49.8 [14.59]
39.1 [11.46]
3.9
48.9 [14.33]
37.4 [10.96]
3.9
48.0 [14.07]
35.6 [10.43]
3.9
47.2 [13.83]
41.4 [12.13]
3.9
46.3 [13.57]
39.6 [11.61]
3.9
45.5 [13.33]
37.7 [11.05]
3.9
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
51.1 [14.98]
32.9 [9.64]
4.2
50.2 [14.71]
31.4 [9.20]
4.1
49.3 [14.45]
29.9 [8.76]
4.1
47.8 [14.01]
38.2 [11.20]
4.1
46.9 [13.75]
36.5 [10.70]
4.1
46.1 [13.51]
34.8 [10.20]
4.1
45.2 [13.25]
40.5 [11.87]
4.1
44.4 [13.01]
38.7 [11.34]
4.1
43.6 [12.78]
36.9 [10.81]
4.0
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
49.3 [14.45]
32.0 [9.38]
4.3
48.4 [14.18]
30.6 [8.97]
4.3
47.5 [13.92]
29.2 [8.56]
4.3
46.0 [13.48]
37.3 [10.93]
4.3
45.1 [13.22]
35.7 [10.46]
4.3
44.3 [12.98]
34.0 [9.96]
4.2
43.4 [12.72]
39.6 [11.61]
4.3
42.6 [12.48]
37.9 [11.11]
4.3
41.8 [12.25]
36.1 [10.58]
4.2
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
47.6 [13.95]
31.3 [9.17]
4.5
46.8 [13.72]
29.9 [8.76]
4.5
45.9 [13.45]
28.5 [8.35]
4.5
44.3 [12.98]
36.6 [10.73]
4.5
43.5 [12.75]
34.9 [10.23]
4.5
42.7 [12.51]
33.3 [9.76]
4.4
41.7 [12.22]
38.9 [11.40]
4.5
41.0 [12.02]
37.1 [10.87]
4.4
40.2 [11.78]
35.4 [10.37]
4.4
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
46.3 [13.57]
30.7 [9.00]
4.7
45.5 [13.33]
29.3 [8.59]
4.7
44.6 [13.07]
27.9 [8.18]
4.6
43.0 [12.60]
36.0 [10.55]
4.7
42.2 [12.37]
34.4 [10.08]
4.7
41.4 [12.13]
32.8 [9.61]
4.6
40.4 [11.84]
38.3 [11.22]
4.7
39.6 [11.61]
36.6 [10.73]
4.6
38.9 [11.40]
34.8 [10.20]
4.6
Air Gross Systems Performance Data
RQPL Series
18
COOLING PERFORMANCE DATA—RQPL-024
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 940 [444] 850 [401] 760 [359] 940 [444] 850 [401] 760 [359] 940 [444] 850 [401] 760 [359]
DR ➀.15 .13 .11 .15 .13 .11 .15 .13 .11
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
29.9 [8.76]
19.2 [5.63]
1.5
29.4 [8.62]
18.4 [5.39]
1.5
28.8 [8.44]
17.5 [5.13]
1.5
28.6 [8.38]
22.0 [6.45]
1.5
28.0 [8.21]
21.0 [6.15]
1.5
27.5 [8.06]
20.1 [5.89]
1.5
27.6 [8.09]
23.3 [6.83]
1.5
27.1 [7.94]
22.3 [6.54]
1.5
26.6 [7.80]
21.2 [6.21]
1.5
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
29.7 [8.70]
19.0 [5.57]
1.6
29.1 [8.53]
18.1 [5.30]
1.6
28.6 [8.38]
17.3 [5.07]
1.6
28.3 [8.29]
21.8 [6.39]
1.6
27.8 [8.15]
20.8 [6.10]
1.6
27.3 [8.00]
19.9 [5.83]
1.6
27.3 [8.00]
23.1 [6.77]
1.6
26.8 [7.85]
22.1 [6.48]
1.6
26.4 [7.74]
21.0 [6.15]
1.6
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
29.0 [8.50]
18.6 [5.45]
1.7
28.5 [8.35]
17.8 [5.22]
1.7
27.9 [8.18]
16.9 [4.95]
1.7
27.6 [8.09]
21.4 [6.27]
1.7
27.2 [7.97]
20.5 [6.01]
1.7
26.7 [7.83]
19.5 [5.71]
1.7
26.7 [7.83]
22.7 [6.65]
1.7
26.2 [7.68]
21.7 [6.36]
1.7
25.7 [7.53]
20.7 [6.07]
1.7
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
28.0 [8.21]
18.1 [5.30]
1.8
27.5 [8.06]
17.3 [5.07]
1.8
27.0 [7.91]
16.5 [4.84]
1.8
26.6 [7.80]
20.9 [6.13]
1.8
26.2 [7.68]
20.0 [5.86]
1.8
25.7 [7.53]
19.1 [5.60]
1.8
25.6 [7.50]
22.2 [6.51]
1.8
25.2 [7.39]
21.2 [6.21]
1.8
24.7 [7.24]
20.2 [5.92]
1.8
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
26.7 [7.83]
17.5 [5.13]
1.9
26.3 [7.71]
16.7 [4.89]
1.9
25.8 [7.56]
16.0 [4.69]
1.9
25.4 [7.44]
20.4 [5.98]
1.9
24.9 [7.30]
19.4 [5.69]
1.9
24.5 [7.18]
18.5 [5.42]
1.9
24.4 [7.15]
21.6 [6.33]
1.9
24.0 [7.03]
20.7 [6.07]
1.9
23.5 [6.89]
19.7 [5.77]
1.9
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
25.4 [7.44]
16.9 [4.95]
2.0
24.9 [7.30]
16.1 [4.72]
2.0
24.5 [7.18]
15.4 [4.51]
2.0
24.0 [7.03]
19.7 [5.77]
2.0
23.6 [6.92]
18.8 [5.51]
2.0
23.2 [6.80]
18.0 [5.28]
2.0
23.0 [6.74]
21.0 [6.15]
2.0
22.6 [6.62]
20.1 [5.89]
2.0
22.2 [6.51]
19.1 [5.60]
2.0
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
24.0 [7.03]
16.3 [4.78]
2.1
23.6 [6.92]
15.5 [4.54]
2.1
23.1 [6.77]
14.8 [4.34]
2.1
22.6 [6.62]
19.1 [5.60]
2.1
22.2 [6.51]
18.2 [5.33]
2.1
21.8 [6.39]
17.4 [5.10]
2.1
21.7 [6.36]
20.4 [5.98]
2.1
21.3 [6.24]
19.5 [5.71]
2.1
20.9 [6.13]
18.5 [5.42]
2.1
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
22.7 [6.65]
15.6 [4.57]
2.2
22.3 [6.54]
14.9 [4.37]
2.2
21.9 [6.42]
14.2 [4.16]
2.2
21.4 [6.27]
18.5 [5.42]
2.2
21.0 [6.15]
17.6 [5.16]
2.2
20.6 [6.04]
16.8 [4.92]
2.2
20.4 [5.98]
19.7 [5.77]
2.2
20.0 [5.86]
18.9 [5.54]
2.2
19.6 [5.74]
18.0 [5.28]
2.2
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
21.6 [6.33]
15.1 [4.43]
2.3
21.2 [6.21]
14.4 [4.22]
2.3
20.8 [6.10]
13.7 [4.02]
2.3
20.2 [5.92]
17.9 [5.25]
2.3
19.9 [5.83]
17.1 [5.01]
2.3
19.5 [5.71]
16.3 [4.78]
2.3
19.3 [5.66]
19.2 [5.63]
2.3
18.9 [5.54]
18.3 [5.36]
2.3
18.6 [5.45]
17.5 [5.13]
2.3
HEATING PERFORMANCE DATA—RQPL-024
IDB 60°F [15.5°C] 70°F [21.1°C] 80°F [26.7°C]
CFM [L/s] 940 [444] 850 [401] 760 [359] 940 [444] 850 [401] 760 [359] 940 [444] 850 [401] 760 [359]
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
8.9 [2.61]
1.4
8.8 [2.58]
1.4
8.7 [2.55]
1.4
8.0 [2.34]
1.6
7.9 [2.32]
1.6
7.9 [2.32]
1.6
6.5 [1.90]
1.8
6.5 [1.90]
1.8
6.5 [1.90]
1.9
5
[-15]
Total BTUH [kW]
Power
10.5 [3.08]
1.4
10.4 [3.05]
1.4
10.4 [3.05]
1.5
9.6 [2.81]
1.6
9.6 [2.81]
1.6
9.5 [2.78]
1.6
8.2 [2.40]
1.8
8.1 [2.37]
1.9
8.1 [2.37]
1.9
15
[-9.4]
Total BTUH [kW]
Power
13.8 [4.04]
1.5
13.7 [4.02]
1.5
13.6 [3.99]
1.5
12.9 [3.78]
1.6
12.8 [3.75]
1.7
12.7 [3.72]
1.7
11.5 [3.37]
1.9
11.4 [3.34]
1.9
11.3 [3.31]
1.9
10
[-12.2]
Total BTUH [kW]
Power
12.1 [3.55]
1.4
12.1 [3.55]
1.5
12.0 [3.52]
1.5
11.3 [3.31]
1.6
11.2 [3.28]
1.6
11.1 [3.25]
1.7
9.8 [2.87]
1.9
9.8 [2.87]
1.9
9.7 [2.84]
1.9
25
[-3.9]
Total BTUH [kW]
Power
17.1 [5.01]
1.5
16.9 [4.95]
1.5
16.8 [4.92]
1.5
16.2 [4.75]
1.7
16.1 [4.72]
1.7
15.9 [4.66]
1.7
14.7 [4.31]
1.9
14.6 [4.28]
1.9
14.5 [4.25]
2.0
35
[1.7]
Total BTUH [kW]
Power
20.3 [5.95]
1.5
20.2 [5.92]
1.6
20.0 [5.86]
1.6
19.4 [5.69]
1.7
19.3 [5.66]
1.7
19.2 [5.63]
1.8
18.0 [5.28]
2.0
17.9 [5.25]
2.0
17.8 [5.22]
2.0
20
[-6.7]
Total BTUH [kW]
Power
15.4 [4.51]
1.5
15.3 [4.48]
1.5
15.2 [4.45]
1.5
14.5 [4.25]
1.7
14.4 [4.22]
1.7
14.3 [4.19]
1.7
13.1 [3.84]
1.9
13.0 [3.81]
1.9
12.9 [3.78]
1.9
30
[-1.1]
Total BTUH [kW]
Power
18.7 [5.48]
1.5
18.6 [5.45]
1.5
18.4 [5.39]
1.6
17.8 [5.22]
1.7
17.7 [5.19]
1.7
17.6 [5.16]
1.7
16.4 [4.81]
1.9
16.3 [4.78]
2.0
16.1 [4.72]
2.0
40
[4.4]
Total BTUH [kW]
Power
22.0 [6.45]
1.6
21.8 [6.39]
1.6
21.7 [6.36]
1.6
21.1 [6.18]
1.7
20.9 [6.13]
1.8
20.8 [6.10]
1.8
19.6 [5.74]
2.0
19.5 [5.71]
2.0
19.4 [5.69]
2.0
50
[10]
Total BTUH [kW]
Power
25.2 [7.39]
1.6
25.1 [7.36]
1.6
24.9 [7.30]
1.6
24.4 [7.15]
1.8
24.2 [7.09]
1.8
24.0 [7.03]
1.8
22.9 [6.71]
2.0
22.8 [6.68]
2.0
22.6 [6.62]
2.1
45
[7.2]
Total BTUH [kW]
Power
23.6 [6.92]
1.6
23.4 [6.86]
1.6
23.3 [6.83]
1.6
22.7 [6.65]
1.8
22.6 [6.62]
1.8
22.4 [6.56]
1.8
21.3 [6.24]
2.0
21.1 [6.18]
2.0
21.0 [6.15]
2.1
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
Air Gross Systems Performance Data
RQPL Series
19
COOLING PERFORMANCE DATA—RQPL-025
5
[-15]
Total BTUH [kW]
Power
9.1 [2.7]
1.3
9.1 [2.7]
1.3
9.0 [2.6]
1.3
7.8 [2.3]
1.4
7.7 [2.3]
1.5
7.7 [2.3]
1.5
6.4 [1.9]
1.6
6.4 [1.9]
1.6
6.3 [1.8]
1.7
IDB
15
[-9.4]
60°F [15.5°C]
Total BTUH [kW]
Power
12.8 [3.8]
1.3
70°F [21.1°C]
12.7 [3.7]
1.3
12.6 [3.7]
1.4
80°F [26.7°C]
11.4 [3.3]
1.5
11.4 [3.3]
1.5
CFM [L/s]
11.3 [3.3]
1.5
10.1 [3.0]
1.7
930 [439] 850 [401] 760 [359] 930 [439] 850 [401] 760 [359] 930 [439] 850 [401] 760 [359]
10.0 [2.9]
1.7
9.9 [2.9]
1.7
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F]
[°C]
0
[-17.8]
Total BTUH [kW]
Power
7.3 [2.1]
1.2
7.2 [2.1]
1.3
7.2 [2.1]
1.3
5.9 [1.7]
1.4
5.9 [1.7]
1.4
5.9 [1.7]
1.4
4.6 [1.3]
1.6
4.5 [1.3]
1.6
4.5 [1.3]
1.6
10
[-12.2]
Total BTUH [kW]
Power
11.0 [3.2]
1.3
10.9 [3.2]
1.3
10.8 [3.2]
1.3
9.6 [2.8]
1.5
9.5 [2.8]
1.5
9.5 [2.8]
1.5
8.2 [2.4]
1.7
8.2 [2.4]
1.7
8.1 [2.4]
1.7
25
[-3.9]
Total BTUH [kW]
Power
16.5 [4.8]
1.4
16.4 [4.8]
1.4
16.2 [4.7]
1.4
15.1 [4.4]
1.6
15.0 [4.4]
1.6
14.9 [4.4]
1.6
13.8 [4.0]
1.7
13.7 [4.0]
1.8
13.6 [4.0]
1.8
35
[1.7]
Total BTUH [kW]
Power
20.1 [5.9]
1.4
20.0 [5.9]
1.5
19.9 [5.8]
1.5
18.8 [5.5]
1.6
18.7 [5.5]
1.6
18.5 [5.4]
1.7
17.4 [5.1]
1.8
17.3 [5.1]
1.8
17.2 [5.0]
1.8
20
[-6.7]
Total BTUH [kW]
Power
14.6 [4.3]
1.4
14.5 [4.2]
1.4
14.4 [4.2]
1.4
13.3 [3.9]
1.5
13.2 [3.9]
1.6
13.1 [3.8]
1.6
11.9 [3.5]
1.7
11.8 [3.5]
1.7
11.8 [3.5]
1.8
30
[-1.1]
Total BTUH [kW]
Power
18.3 [5.4]
1.4
18.2 [5.3]
1.4
18.0 [5.3]
1.4
17.0 [5.0]
1.6
16.8 [4.9]
1.6
16.7 [4.9]
1.6
15.6 [4.6]
1.8
15.5 [4.5]
1.8
15.4 [4.5]
1.8
40
[4.4]
Total BTUH [kW]
Power
22.0 [6.4]
1.5
21.8 [6.4]
1.5
21.7 [6.4]
1.5
20.6 [6.0]
1.6
20.5 [6.0]
1.7
20.3 [5.9]
1.7
19.3 [5.7]
1.8
19.1 [5.6]
1.9
19.0 [5.6]
1.9
50
[10]
Total BTUH [kW]
Power
25.7 [7.5]
1.5
25.5 [7.5]
1.6
25.3 [7.4]
1.6
24.3 [7.1]
1.7
24.1 [7.1]
1.7
23.9 [7.0]
1.8
22.9 [6.7]
1.9
22.8 [6.7]
1.9
22.6 [6.6]
1.9
45
[7.2]
Total BTUH [kW]
Power
23.8 [7.0]
1.5
23.7 [6.9]
1.5
23.5 [6.9]
1.5
22.5 [6.6]
1.7
22.3 [6.5]
1.7
22.1 [6.5]
1.7
21.1 [6.2]
1.9
21.0 [6.2]
1.9
20.8 [6.1]
1.9
HEATING PERFORMANCE DATA—RQPL-025
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 930 [439] 850 [401] 760 [359] 930 [439] 850 [401] 760 [359] 930 [439] 850 [401] 760 [359]
DR ➀.15 .17 .19 .15 .17 .19 .15 .17 .19
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
30.4 [8.9]
18.8 [5.5]
1.5
29.9 [8.8]
17.5 [5.1]
1.4
29.3 [8.6]
16.1 [4.7]
1.4
28.5 [8.4]
22.1 [6.5]
1.5
28.0 [8.2]
20.7 [6.1]
1.5
27.5 [8.1]
19.2 [5.6]
1.4
26.8 [7.9]
24.4 [7.2]
1.5
26.4 [7.7]
23.0 [6.8]
1.5
25.9 [7.6]
21.4 [6.3]
1.4
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
29.6 [8.7]
18.2 [5.3]
1.5
29.1 [8.5]
16.9 [5.0]
1.5
28.5 [8.4]
15.5 [4.6]
1.5
27.7 [8.1]
21.5 [6.3]
1.5
27.2 [8.0]
20.1 [5.9]
1.5
26.7 [7.8]
18.6 [5.5]
1.5
26.0 [7.6]
23.8 [7.0]
1.6
25.6 [7.5]
22.4 [6.6]
1.5
25.1 [7.4]
20.8 [6.1]
1.5
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
28.7 [8.4]
17.5 [5.1]
1.6
28.2 [8.3]
16.3 [4.8]
1.6
27.6 [8.1]
14.9 [4.4]
1.6
26.8 [7.9]
20.9 [6.1]
1.6
26.3 [7.7]
19.5 [5.7]
1.6
25.8 [7.6]
18.1 [5.3]
1.6
25.1 [7.4]
23.2 [6.8]
1.6
24.7 [7.2]
21.8 [6.4]
1.6
24.2 [7.1]
20.2 [5.9]
1.6
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
27.7 [8.1]
16.9 [5.0]
1.7
27.2 [8.0]
15.7 [4.6]
1.7
26.7 [7.8]
14.4 [4.2]
1.7
25.8 [7.6]
20.3 [6.0]
1.7
25.4 [7.4]
19.0 [5.6]
1.7
24.9 [7.3]
17.6 [5.2]
1.7
24.1 [7.1]
22.4 [6.6]
1.7
23.7 [6.9]
21.1 [6.2]
1.7
23.3 [6.8]
19.7 [5.8]
1.7
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
26.7 [7.8]
16.3 [4.8]
1.8
26.2 [7.7]
15.1 [4.4]
1.8
25.7 [7.5]
13.9 [4.1]
1.8
24.8 [7.3]
19.6 [5.8]
1.8
24.4 [7.2]
18.4 [5.4]
1.8
23.9 [7.0]
17.0 [5.0]
1.8
23.1 [6.8]
21.9 [6.4]
1.8
22.7 [6.7]
20.6 [6.0]
1.8
22.3 [6.5]
19.2 [5.6]
1.8
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
25.6 [7.5]
15.8 [4.6]
1.9
25.2 [7.4]
14.7 [4.3]
1.9
24.7 [7.2]
13.5 [4.0]
1.9
23.7 [6.9]
19.0 [5.6]
1.9
23.3 [6.8]
17.8 [5.2]
1.9
22.9 [6.7]
16.5 [4.8]
1.9
22.0 [6.4]
21.3 [6.3]
1.9
21.7 [6.4]
20.1 [5.9]
1.9
21.3 [6.2]
18.7 [5.5]
1.9
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
24.5 [7.2]
15.2 [4.5]
2.0
24.1 [7.1]
14.2 [4.2]
2.0
23.6 [6.9]
13.0 [3.8]
2.0
22.6 [6.6]
18.5 [5.4]
2.0
22.2 [6.5]
17.3 [5.1]
2.0
21.8 [6.4]
16.1 [4.7]
2.0
20.9 [6.1]
20.8 [6.1]
2.0
20.6 [6.0]
19.6 [5.8]
2.0
20.2 [5.9]
18.3 [5.4]
2.0
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
23.3 [6.8]
14.7 [4.3]
2.2
22.9 [6.7]
13.7 [4.0]
2.1
22.5 [6.6]
12.6 [3.7]
2.1
21.4 [6.3]
18.0 [5.3]
2.2
21.0 [6.2]
16.8 [4.9]
2.1
20.6 [6.0]
15.6 [4.6]
2.1
19.7 [5.8]
19.7 [5.8]
2.2
19.4 [5.7]
19.1 [5.6]
2.1
19.0 [5.6]
17.8 [5.2]
2.1
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
22.1 [6.5]
14.2 [4.2]
2.3
21.7 [6.4]
13.2 [3.9]
2.3
21.3 [6.2]
12.2 [3.6]
2.2
20.2 [5.9]
17.5 [5.1]
2.3
19.8 [5.8]
16.4 [4.8]
2.3
19.4 [5.7]
15.2 [4.5]
2.2
18.5 [5.4]
18.5 [5.4]
2.3
18.2 [5.3]
18.2 [5.3]
2.3
17.8 [5.2]
17.4 [5.1]
2.2
Air Gross Systems Performance Data
RQPL Series
20
COOLING PERFORMANCE DATA—RQPL-030
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1160 [547] 1050 [496] 940 [444] 1160 [547] 1050 [496] 940 [444] 1160 [547] 1050 [496] 940 [444]
DR ➀.15 .13 .11 .15 .13 .11 .15 .13 .11
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
36.9 [10.81]
23.7 [6.95]
1.9
36.2 [10.61]
22.6 [6.62]
1.9
35.5 [10.40]
21.5 [6.30]
1.9
34.9 [10.23]
26.9 [7.88]
1.9
34.2 [10.02]
25.7 [7.53]
1.9
33.6 [9.85]
24.5 [7.18]
1.9
33.5 [9.82]
28.4 [8.32]
1.9
32.9 [9.64]
27.1 [7.94]
1.9
32.3 [9.47]
25.8 [7.56]
1.9
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
35.7 [10.46]
23.1 [6.77]
2.0
35.1 [10.29]
22.0 [6.45]
2.0
34.4 [10.08]
21.0 [6.15]
2.0
33.7 [9.88]
26.3 [7.71]
2.0
33.1 [9.70]
25.2 [7.39]
2.0
32.5 [9.52]
24.0 [7.03]
2.0
32.3 [9.47]
27.8 [8.15]
2.0
31.8 [9.32]
26.5 [7.77]
2.0
31.2 [9.14]
25.3 [7.41]
2.0
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
34.6 [10.14]
22.5 [6.59]
2.1
33.9 [9.94]
21.5 [6.30]
2.1
33.3 [9.76]
20.5 [6.01]
2.1
32.6 [9.55]
25.8 [7.56]
2.1
32.0 [9.38]
24.6 [7.21]
2.1
31.4 [9.20]
23.5 [6.89]
2.1
31.2 [9.14]
27.2 [7.97]
2.1
30.6 [8.97]
26.0 [7.62]
2.1
30.1 [8.82]
24.8 [7.27]
2.1
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
33.4 [9.79]
21.9 [6.42]
2.2
32.8 [9.61]
20.9 [6.13]
2.2
32.2 [9.44]
20.0 [5.86]
2.2
31.4 [9.20]
25.2 [7.39]
2.2
30.9 [9.06]
24.1 [7.06]
2.2
30.3 [8.88]
23.0 [6.74]
2.2
30.1 [8.82]
26.6 [7.80]
2.2
29.5 [8.65]
25.4 [7.44]
2.2
29.0 [8.50]
24.3 [7.12]
2.2
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
32.3 [9.47]
21.4 [6.27]
2.3
31.7 [9.29]
20.4 [5.98]
2.3
31.1 [9.11]
19.5 [5.71]
2.3
30.3 [8.88]
24.7 [7.24]
2.3
29.8 [8.73]
23.6 [6.92]
2.3
29.2 [8.56]
22.5 [6.59]
2.2
28.9 [8.47]
26.1 [7.65]
2.3
28.4 [8.32]
24.9 [7.30]
2.3
27.9 [8.18]
23.8 [6.98]
2.3
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
31.1 [9.11]
20.8 [6.10]
2.4
30.6 [8.97]
19.9 [5.83]
2.4
30.0 [8.79]
19.0 [5.57]
2.4
29.1 [8.53]
24.1 [7.06]
2.4
28.6 [8.38]
23.0 [6.74]
2.4
28.1 [8.24]
22.0 [6.45]
2.3
27.8 [8.15]
25.5 [7.47]
2.4
27.3 [8.00]
24.4 [7.15]
2.4
26.8 [7.85]
23.3 [6.83]
2.4
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
30.0 [8.79]
20.3 [5.95]
2.5
29.4 [8.62]
19.4 [5.69]
2.5
28.9 [8.47]
18.5 [5.42]
2.5
28.0 [8.21]
23.6 [6.92]
2.5
27.5 [8.06]
22.5 [6.59]
2.5
27.0 [7.91]
21.5 [6.30]
2.4
26.6 [7.80]
25.0 [7.33]
2.5
26.1 [7.65]
23.9 [7.00]
2.5
25.6 [7.50]
22.8 [6.68]
2.5
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
28.7 [8.41]
19.7 [5.77]
2.6
28.2 [8.26]
18.8 [5.51]
2.6
27.7 [8.12]
18.0 [5.28]
2.6
26.7 [7.83]
23.0 [6.74]
2.6
26.2 [7.68]
22.0 [6.45]
2.6
25.8 [7.56]
21.0 [6.15]
2.5
25.4 [7.44]
24.4 [7.15]
2.6
24.9 [7.30]
23.4 [6.86]
2.6
24.5 [7.18]
22.3 [6.54]
2.6
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
27.4 [8.03]
19.2 [5.63]
2.7
26.9 [7.88]
18.3 [5.36]
2.7
26.4 [7.74]
17.5 [5.13]
2.7
25.4 [7.44]
22.5 [6.59]
2.7
25.0 [7.33]
21.5 [6.30]
2.6
24.5 [7.18]
20.5 [6.01]
2.6
24.1 [7.06]
23.9 [7.00]
2.7
23.6 [6.92]
22.8 [6.68]
2.7
23.2 [6.80]
21.8 [6.39]
2.7
HEATING PERFORMANCE DATA—RQPL-030
5
[-15]
Total BTUH [kW]
Power
11.5 [3.37]
1.6
11.4 [3.34]
1.6
11.3 [3.31]
1.6
19.9 [2.90]
1.8
19.8 [2.87]
1.8
19.8 [2.87]
1.9
18.5 [2.49]
2.0
18.4 [2.46]
2.1
18.4 [2.46]
2.1
IDB
15
[-9.4]
60°F [15.5°C]
Total BTUH [kW]
Power
15.3 [4.48]
1.7
70°F [21.1°C]
15.2 [4.45]
1.7
15.1 [4.43]
1.7
80°F [26.7°C]
13.8 [4.04]
1.9
13.7 [4.02]
1.9
CFM [L/s]
13.6 [3.99]
1.9
12.3 [3.60]
2.1
1160 [547] 1050 [496] 940 [444] 1160 [547] 1050 [496] 940 [444] 1160 [547] 1050 [496] 940 [444]
12.3 [3.60]
2.1
12.2 [3.58]
2.2
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
9.5 [2.78]
1.6
9.5 [2.78]
1.6
9.4 [2.75]
1.6
8.0 [2.34]
1.8
7.9 [2.32]
1.8
7.9 [2.32]
1.8
6.6 [1.93]
2.0
6.5 [1.90]
2.0
6.5 [1.90]
2.1
10
[-12.2]
Total BTUH [kW]
Power
13.4 [3.93]
1.6
13.3 [3.90]
1.7
13.2 [3.87]
1.7
11.8 [3.46]
1.9
11.8 [3.46]
1.9
11.7 [3.43]
1.9
10.4 [3.05]
2.1
10.3 [3.02]
2.1
10.3 [3.02]
2.1
25
[-3.9]
Total BTUH [kW]
Power
19.2 [5.63]
1.7
19.0 [5.57]
1.8
18.9 [5.54]
1.8
17.6 [5.16]
1.9
17.5 [5.13]
2.0
17.4 [5.10]
2.0
16.2 [4.75]
2.2
16.1 [4.72]
2.2
16.0 [4.69]
2.2
35
[1.7]
Total BTUH [kW]
Power
23.0 [6.74]
1.8
22.8 [6.68]
1.8
22.7 [6.65]
1.8
21.5 [6.30]
2.0
21.3 [6.24]
2.0
21.2 [6.21]
2.1
20.0 [5.86]
2.2
19.9 [5.83]
2.3
19.7 [5.77]
2.3
20
[-6.7]
Total BTUH [kW]
Power
17.2 [5.04]
1.7
17.1 [5.01]
1.7
17.0 [4.98]
1.7
15.7 [4.60]
1.9
15.6 [4.57]
1.9
15.5 [4.54]
2.0
14.3 [4.19]
2.1
14.2 [4.16]
2.2
14.1 [4.13]
2.2
30
[-1.1]
Total BTUH [kW]
Power
21.1 [6.18]
1.8
20.9 [6.13]
1.8
20.8 [6.10]
1.8
19.5 [5.71]
2.0
19.4 [5.69]
2.0
19.3 [5.66]
2.0
18.1 [5.30]
2.2
18.0 [5.28]
2.2
17.9 [5.25]
2.3
40
[4.4]
Total BTUH [kW]
Power
24.9 [7.30]
1.8
24.8 [7.27]
1.8
24.6 [7.21]
1.9
23.4 [6.86]
2.0
23.2 [6.80]
2.1
23.0 [6.74]
2.1
22.0 [6.45]
2.3
21.8 [6.39]
2.3
21.6 [6.33]
2.3
50
[10]
Total BTUH [kW]
Power
28.8 [8.44]
1.9
28.6 [8.38]
1.9
28.4 [8.32]
1.9
27.2 [7.97]
2.1
27.0 [7.91]
2.1
26.8 [7.85]
2.2
25.8 [7.56]
2.3
25.6 [7.50]
2.4
25.4 [7.44]
2.4
45
[7.2]
Total BTUH [kW]
Power
26.9 [7.88]
1.9
26.7 [7.83]
1.9
26.5 [7.77]
1.9
25.3 [7.41]
2.1
25.1 [7.36]
2.1
24.9 [7.30]
2.1
23.9 [7.00]
2.3
23.7 [6.95]
2.3
23.5 [6.89]
2.4
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
Air Gross Systems Performance Data
RQPL Series
21
COOLING PERFORMANCE DATA—RQPL-036
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1380 [651] 1250 [590] 1120 [528] 1380 [651] 1250 [590] 1120 [528] 1380 [651] 1250 [590] 1120 [528]
DR ➀.21 .19 .17 .21 .19 .17 .21 .19 .17
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
45.0 [13.19]
27.7 [8.12]
2.3
44.2 [12.95]
26.5 [7.77]
2.2
43.4 [12.72]
25.3 [7.41]
2.2
42.9 [12.57]
31.8 [9.32]
2.2
42.2 [12.37]
30.4 [8.91]
2.2
41.4 [12.13]
28.9 [8.47]
2.2
41.8 [12.25]
34.2 [10.02]
2.2
41.0 [12.02]
32.6 [9.55]
2.2
40.3 [11.81]
31.1 [9.11]
2.2
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
43.9 [12.87]
27.1 [7.94]
2.4
43.1 [12.63]
25.9 [7.59]
2.4
42.3 [12.40]
24.7 [7.24]
2.4
41.8 [12.25]
31.2 [9.14]
2.4
41.1 [12.05]
29.8 [8.73]
2.4
40.3 [11.81]
28.4 [8.32]
2.3
40.7 [11.93]
33.5 [9.82]
2.4
39.9 [11.69]
32.0 [9.38]
2.3
39.2 [11.49]
30.5 [8.94]
2.3
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
42.6 [12.48]
26.5 [7.77]
2.5
41.8 [12.25]
25.3 [7.41]
2.5
41.0 [12.02]
24.1 [7.06]
2.5
40.5 [11.87]
30.5 [8.94]
2.5
39.8 [11.66]
29.1 [8.53]
2.5
39.1 [11.46]
27.8 [8.15]
2.5
39.4 [11.55]
32.9 [9.64]
2.5
38.7 [11.34]
31.4 [9.20]
2.5
37.9 [11.11]
29.9 [8.76]
2.5
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
41.1 [12.05]
25.7 [7.53]
2.7
40.3 [11.81]
24.6 [7.21]
2.7
39.6 [11.61]
23.5 [6.89]
2.6
39.0 [11.43]
29.8 [8.73]
2.7
38.3 [11.22]
28.5 [8.35]
2.6
37.6 [11.02]
27.1 [7.94]
2.6
37.9 [11.11]
32.2 [9.44]
2.6
37.2 [10.90]
30.7 [9.00]
2.6
36.5 [10.70]
29.3 [8.59]
2.6
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
39.5 [11.58]
25.0 [7.33]
2.8
38.8 [11.37]
23.9 [7.00]
2.8
38.1 [11.17]
22.8 [6.68]
2.8
37.4 [10.96]
29.1 [8.53]
2.8
36.8 [10.79]
27.8 [8.15]
2.8
36.1 [10.58]
26.5 [7.77]
2.8
36.3 [10.64]
31.4 [9.20]
2.8
35.6 [10.43]
30.0 [8.79]
2.8
35.0 [10.26]
28.6 [8.38]
2.7
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
37.8 [11.08]
24.2 [7.09]
3.0
37.1 [10.87]
23.2 [6.80]
2.9
36.5 [10.70]
22.1 [6.48]
2.9
35.8 [10.49]
28.3 [8.29]
2.9
35.1 [10.29]
27.0 [7.91]
2.9
34.5 [10.11]
25.8 [7.56]
2.9
34.6 [10.14]
30.7 [9.00]
2.9
34.0 [9.96]
29.3 [8.59]
2.9
33.4 [9.79]
27.9 [8.18]
2.9
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
36.1 [10.58]
23.4 [6.86]
3.1
35.5 [10.40]
22.4 [6.56]
3.1
34.8 [10.20]
21.3 [6.24]
3.1
34.1 [9.99]
27.5 [8.06]
3.1
33.5 [9.82]
26.3 [7.71]
3.1
32.8 [9.61]
25.0 [7.33]
3.0
32.9 [9.64]
29.9 [8.76]
3.1
32.3 [9.47]
28.5 [8.35]
3.0
31.7 [9.29]
27.2 [7.97]
3.0
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
34.4 [10.08]
22.6 [6.62]
3.3
33.8 [9.91]
21.6 [6.33]
3.2
33.2 [9.73]
20.6 [6.04]
3.2
32.4 [9.50]
26.7 [7.83]
3.2
31.8 [9.32]
25.5 [7.47]
3.2
31.2 [9.14]
24.3 [7.12]
3.2
31.2 [9.14]
29.0 [8.50]
3.2
30.7 [9.00]
27.7 [8.12]
3.2
30.1 [8.82]
26.4 [7.74]
3.2
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
32.8 [9.61]
21.8 [6.39]
3.4
32.2 [9.44]
20.8 [6.10]
3.4
31.7 [9.29]
19.8 [5.80]
3.3
30.8 [9.03]
25.8 [7.56]
3.4
30.2 [8.85]
24.7 [7.24]
3.3
29.7 [8.70]
23.5 [6.89]
3.3
29.6 [8.67]
28.2 [8.26]
3.4
29.1 [8.53]
26.9 [7.88]
3.3
28.6 [8.38]
25.7 [7.53]
3.3
HEATING PERFORMANCE DATA—RQPL-036
5
[-15]
Total BTUH [kW]
Power
14.1 [4.13]
1.9
14.0 [4.10]
1.9
13.9 [4.07]
1.9
12.1 [3.55]
2.1
12.0 [3.52]
2.2
11.9 [3.49]
2.2
10.7 [3.14]
2.4
10.6 [3.11]
2.5
10.6 [3.11]
2.5
IDB
15
[-9.4]
60°F [15.5°C]
Total BTUH [kW]
Power
19.0 [5.57]
2.0
70°F [21.1°C]
18.9 [5.54]
2.0
18.8 [5.51]
2.0
80°F [26.7°C]
17.0 [4.98]
2.2
16.9 [4.95]
2.2
CFM [L/s]
16.7 [4.89]
2.3
15.6 [4.57]
2.5
1380 [651] 1250 [590] 1120 [528] 1380 [651] 1250 [590] 1120 [528] 1380 [651] 1250 [590] 1120 [528]
15.5 [4.54]
2.5
15.4 [4.51]
2.6
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
11.7 [3.43]
1.8
11.6 [3.40]
1.9
11.5 [3.37]
1.9
9.6 [2.81]
2.1
9.6 [2.81]
2.1
9.5 [2.78]
2.1
8.3 [2.43]
2.4
8.2 [2.40]
2.4
8.1 [2.37]
2.4
10
[-12.2]
Total BTUH [kW]
Power
16.6 [4.86]
1.9
16.5 [4.84]
1.9
16.3 [4.78]
2.0
14.5 [4.25]
2.2
14.4 [4.22]
2.2
14.3 [4.19]
2.2
13.2 [3.87]
2.5
13.1 [3.84]
2.5
13.0 [3.81]
2.5
25
[-3.9]
Total BTUH [kW]
Power
23.9 [7.00]
2.0
23.8 [6.98]
2.1
23.6 [6.92]
2.1
21.9 [6.42]
2.3
21.7 [6.36]
2.3
21.6 [6.33]
2.4
20.5 [6.01]
2.6
20.4 [5.98]
2.6
20.2 [5.92]
2.7
35
[1.7]
Total BTUH [kW]
Power
28.8 [8.44]
2.1
28.6 [8.38]
2.1
28.4 [8.32]
2.2
26.8 [7.85]
2.4
26.6 [7.80]
2.4
26.4 [7.74]
2.4
25.4 [7.44]
2.7
25.2 [7.39]
2.7
25.1 [7.36]
2.7
20
[-6.7]
Total BTUH [kW]
Power
21.5 [6.30]
2.0
21.3 [6.24]
2.0
21.2 [6.21]
2.1
19.4 [5.69]
2.3
19.3 [5.66]
2.3
19.2 [5.63]
2.3
18.1 [5.30]
2.5
17.9 [5.25]
2.6
17.8 [5.22]
2.6
30
[-1.1]
Total BTUH [kW]
Power
26.4 [7.74]
2.1
26.2 [7.68]
.1
26.0 [7.62]
2.1
24.3 [7.12]
2.3
24.2 [7.09]
2.4
24.0 [7.03]
2.4
23.0 [6.74]
2.6
22.8 [6.68]
2.7
22.6 [6.62]
2.7
40
[4.4]
Total BTUH [kW]
Power
31.3 [9.17]
2.2
31.1 [9.11]
2.2
30.8 [9.03]
2.2
29.2 [8.56]
2.4
29.0 [8.50]
2.4
28.8 [8.44]
2.5
27.9 [8.18]
2.7
27.7 [8.12]
2.7
27.5 [8.06]
2.8
50
[10]
Total BTUH [kW]
Power
36.2 [10.61]
2.2
35.9 [10.52]
2.3
35.7 [10.46]
2.3
34.1 [9.99]
2.5
33.9 [9.94]
2.5
33.7 [9.88]
2.6
32.8 [9.61]
2.8
32.5 [9.52]
2.8
32.3 [9.47]
2.9
45
[7.2]
Total BTUH [kW]
Power
33.7 [9.88]
2.2
33.5 [9.82]
2.2
33.3 [9.76]
2.3
31.7 [9.29]
2.5
31.5 [9.23]
2.5
31.2 [9.14]
2.5
30.3 [8.88]
2.8
30.1 [8.82]
2.8
29.9 [8.76]
2.8
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
Air Gross Systems Performance Data
RQPL Series
22
COOLING PERFORMANCE DATA—RQPL-042
5
[-15]
Total BTUH [kW]
Power
16.9 [4.95]
2.6
16.8 [4.92]
2.6
16.7 [4.89]
2.7
16.0 [4.69]
3.0
15.8 [4.63]
3.1
15.7 [4.60]
3.1
14.2 [4.16]
3.4
14.1 [4.13]
3.4
14.0 [4.10]
3.5
IDB
15
[-9.4]
60°F [15.5°C]
Total BTUH [kW]
Power
23.0 [6.74]
2.7
70°F [21.1°C]
22.8 [6.68]
2.7
22.6 [6.62]
2.7
80°F [26.7°C]
22.0 [6.45]
3.1
21.8 [6.39]
3.1
CFM [L/s]
21.7 [6.36]
3.2
20.3 [5.95]
3.5
1540 [727] 1400 [661] 1260 [595] 1540 [727] 1400 [661] 1260 [595] 1540 [727] 1400 [661] 1260 [595]
20.1 [5.89]
3.5
20.0 [5.86]
3.5
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
13.9 [4.07]
2.6
13.8 [4.04]
2.6
13.7 [4.02]
2.6
12.9 [3.78]
3.0
12.8 [3.75]
3.0
12.8 [3.75]
3.1
11.2 [3.28]
3.3
11.1 [3.25]
3.4
11.1 [3.25]
3.4
10
[-12.2]
Total BTUH [kW]
Power
20.0 [5.86]
2.6
19.8 [5.80]
2.7
19.7 [5.77]
2.7
19.0 [5.57]
3.1
18.8 [5.51]
3.1
18.7 [5.48]
3.1
17.3 [5.07]
3.4
17.1 [5.01]
3.5
17.0 [4.98]
3.5
25
[-3.9]
Total BTUH [kW]
Power
29.0 [8.50]
2.8
28.8 [8.44]
2.8
28.6 [8.38]
2.8
28.0 [8.21]
3.2
27.8 [8.15]
3.2
27.6 [8.09]
3.3
26.3 [7.71]
3.5
26.1 [7.65]
3.6
25.9 [7.59]
3.6
35
[1.7]
Total BTUH [kW]
Power
35.1 [10.29]
2.8
34.8 [10.20]
2.9
34.6 [10.14]
2.9
34.1 [9.99]
3.2
33.8 [9.91]
3.3
33.6 [9.85]
3.3
32.4 [9.50]
3.6
32.1 [9.41]
3.6
31.9 [9.35]
3.7
20
[-6.7]
Total BTUH [kW]
Power
26.0 [7.62]
2.7
25.8 [7.56]
2.7
25.6 [7.50]
2.8
25.0 [7.33]
3.1
24.8 [7.27]
3.2
24.7 [7.24]
3.2
23.3 [6.83]
3.5
23.1 [6.77]
3.5
23.0 [6.74]
3.6
30
[-1.1]
Total BTUH [kW]
Power
32.0 [9.38]
2.8
31.8 [9.32]
2.8
31.6 [9.26]
2.9
31.1 [9.11]
3.2
30.8 [9.03]
3.2
30.6 [8.97]
3.3
29.3 [8.59]
3.6
29.1 [8.53]
3.6
28.9 [8.47]
3.7
40
[4.4]
Total BTUH [kW]
Power
38.1 [11.17]
2.9
37.8 [11.08]
2.9
37.5 [10.99]
2.9
37.1 [10.87]
3.3
36.8 [10.79]
3.3
36.6 [10.73]
3.4
35.4 [10.37]
3.6
35.1 [10.29]
3.7
34.9 [10.23]
3.7
50
[10]
Total BTUH [kW]
Power
44.1 [12.92]
2.9
43.8 [12.84]
3.0
43.5 [12.75]
3.0
43.1 [12.63]
3.4
42.8 [12.54]
3.4
42.5 [12.46]
3.4
41.4 [12.13]
3.7
41.1 [12.05]
3.8
40.8 [11.96]
3.8
45
[7.2]
Total BTUH [kW]
Power
41.1 [12.05]
2.9
40.8 [11.96]
2.9
40.5 [11.87]
3.0
40.1 [11.75]
3.3
39.8 [11.66]
3.4
39.5 [11.58]
3.4
38.4 [11.25]
3.7
38.1 [11.17]
3.7
37.9 [11.11]
3.8
HEATING PERFORMANCE DATA—RQPL-042
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1540 [727] 1400 [661] 1260 [595] 1540 [727] 1400 [661] 1260 [595] 1540 [727] 1400 [661] 1260 [595]
DR ➀.17 .15 .14 .17 .15 .14 .17 .15 .14
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
53.9 [5.80]
32.2 [9.44]
2.9
52.9 [15.50]
30.7 [9.00]
2.9
51.9 [15.21]
29.3 [8.59]
2.9
50.9 [14.92]
37.1 [10.87]
2.9
50.0 [14.65]
35.5 [10.40]
2.9
49.1 [14.39]
33.8 [9.91]
2.9
48.1 [14.10]
39.3 [11.52]
2.9
47.3 [13.86]
37.5 [10.99]
2.9
46.4 [13.60]
35.8 [10.49]
2.9
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
52.0 [15.24]
31.3 [9.17]
3.1
51.0 [14.95]
29.9 [8.76]
3.1
50.1 [14.68]
28.5 [8.35]
3.1
49.0 [14.36]
36.3 [10.64]
3.1
48.1 [14.10]
34.7 [10.17]
3.1
47.2 [13.83]
33.0 [9.67]
3.0
46.2 [13.54]
38.4 [11.25]
3.1
45.4 [13.31]
36.7 [10.76]
3.1
44.6 [13.07]
35.0 [10.26]
3.0
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
50.3 [14.74]
30.5 [8.94]
3.3
49.4 [14.48]
29.2 [8.56]
3.2
48.5 [14.21]
27.8 [8.15]
3.2
47.3 [13.86]
35.5 [10.40]
3.3
46.5 [13.63]
33.9 [9.94]
3.2
45.6 [13.36]
32.3 [9.47]
3.2
44.6 [13.07]
37.6 [11.02]
3.2
43.8 [12.84]
35.9 [10.52]
3.2
43.0 [12.60]
34.3 [10.05]
3.2
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
48.7 [14.27]
29.8 [8.73]
3.4
47.9 [14.04]
28.4 [8.32]
3.4
47.0 [13.77]
27.1 [7.94]
3.4
45.8 [13.42]
34.7 [10.17]
3.4
44.9 [13.16]
33.2 [9.73]
3.4
44.1 [12.92]
31.6 [9.26]
3.4
43.0 [12.60]
36.8 [10.79]
3.4
42.2 [12.37]
35.2 [10.32]
3.4
41.5 [12.16]
33.6 [9.85]
3.4
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
47.2 [13.83]
29.0 [8.50]
3.6
46.4 [13.60]
27.7 [8.12]
3.6
45.5 [13.33]
26.4 [7.74]
3.5
44.2 [12.95]
34.0 [9.96]
3.6
43.4 [12.72]
32.4 [9.50]
3.6
42.7 [12.51]
30.9 [9.06]
3.5
41.5 [12.16]
36.1 [10.58]
3.6
40.7 [11.93]
34.5 [10.11]
3.6
40.0 [11.72]
32.9 [9.64]
3.5
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
45.6 [13.36]
28.2 [8.26]
3.8
44.8 [13.13]
26.9 [7.88]
3.7
44.0 [12.90]
25.7 [7.53]
3.7
42.6 [12.48]
33.2 [9.73]
3.8
41.9 [12.28]
31.7 [9.29]
3.7
41.1 [12.05]
30.2 [8.85]
3.7
39.9 [11.69]
35.3 [10.35]
3.7
39.2 [11.49]
33.7 [9.88]
3.7
38.5 [11.28]
32.1 [9.41]
3.7
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
43.8 [12.84]
27.4 [8.03]
3.9
43.0 [12.60]
26.1 [7.65]
3.9
42.3 [12.40]
24.9 [7.30]
3.9
40.8 [11.96]
32.3 [9.47]
3.9
40.1 [11.75]
30.9 [9.06]
3.9
39.4 [11.55]
29.4 [8.62]
3.9
38.1 [11.17]
34.4 [10.08]
3.9
37.4 [10.96]
32.9 [9.64]
3.9
36.7 [10.76]
31.4 [9.20]
3.9
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
41.7 [12.22]
26.4 [7.74]
4.1
41.0 [12.02]
25.2 [7.39]
4.1
40.2 [11.78]
24.1 [7.06]
4.0
38.8 [11.37]
31.4 [9.20]
4.1
38.1 [11.17]
30.0 [8.79]
4.1
37.4 [10.96]
28.6 [8.38]
4.0
36.0 [10.55]
33.5 [9.82]
4.1
35.4 [10.37]
32.0 [9.38]
4.1
34.7 [10.17]
30.5 [8.94]
4.0
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
39.3 [11.52]
25.4 [7.44]
4.3
38.6 [11.31]
24.2 [7.09]
4.2
37.9 [11.11]
23.1 [6.77]
4.2
36.3 [10.64]
30.3 [8.88]
4.3
35.6 [10.43]
29.0 [8.50]
4.2
35.0 [10.26]
27.6 [8.09]
4.2
33.5 [9.82]
32.4 [9.50]
4.3
32.9 [9.64]
31.0 [9.09]
4.2
32.3 [9.47]
29.5 [8.65]
4.2
Air Gross Systems Performance Data
RQPL Series
23
COOLING PERFORMANCE DATA—RQPL-048
5
[-15]
Total BTUH [kW]
Power
20.1 [5.89]
2.6
19.9 [5.83]
2.6
19.8 [5.80]
2.7
18.6 [5.45]
3.0
18.5 [5.42]
3.0
18.3 [5.36]
3.1
17.6 [5.16]
3.5
17.5 [5.13]
3.5
17.3 [5.07]
3.5
IDB
15
[-9.4]
60°F [15.5°C]
Total BTUH [kW]
Power
26.4 [7.74]
2.7
70°F [21.1°C]
26.2 [7.68]
2.8
26.0 [7.62]
2.8
80°F [26.7°C]
24.9 [7.30]
3.1
24.7 [7.24]
3.2
CFM [L/s]
24.6 [7.21]
3.2
23.9 [7.00]
3.6
1760 [831] 1600 [755] 1440 [680] 1760 [831] 1600 [755] 1440 [680] 1760 [831] 1600 [755] 1440 [680]
23.7 [6.95]
3.6
23.6 [6.92]
3.7
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
0
[-17.8]
Total BTUH [kW]
Power
16.9 [4.95]
2.6
16.8 [4.92]
2.6
16.7 [4.89]
2.6
15.4 [4.51]
3.0
15.3 [4.48]
3.0
15.2 [4.45]
3.0
14.4 [4.22]
3.4
14.3 [4.19]
3.5
14.2 [4.16]
3.5
10
[-12.2]
Total BTUH [kW]
Power
23.2 [6.80]
2.7
23.1 [6.77]
2.7
22.9 [6.71]
2.7
21.8 [6.39]
3.1
21.6 [6.33]
3.1
21.5 [6.30]
3.1
20.7 [6.07]
3.5
20.6 [6.04]
3.6
20.4 [5.98]
3.6
25
[-3.9]
Total BTUH [kW]
Power
32.7 [9.58]
2.8
32.5 [9.52]
2.9
32.2 [9.44]
2.9
31.2 [9.14]
3.2
31.0 [9.09]
3.3
30.8 [9.03]
3.3
30.2 [8.85]
3.7
30.0 [8.79]
3.7
29.8 [8.73]
3.8
35
[1.7]
Total BTUH [kW]
Power
39.0 [11.43]
2.9
38.7 [11.34]
3.0
38.5 [11.28]
3.0
37.5 [10.99]
3.3
37.3 [10.93]
3.4
37.0 [10.84]
3.4
36.5 [10.70]
3.8
36.3 [10.64]
3.8
36.0 [10.55]
3.9
20
[-6.7]
Total BTUH [kW]
Power
29.5 [8.65]
2.8
29.3 [8.59]
2.8
29.1 [8.53]
2.8
28.1 [8.24]
3.2
27.9 [8.18]
3.2
27.7 [8.12]
3.2
27.1 [7.94]
3.6
26.9 [7.88]
3.7
26.7 [7.83]
3.7
30
[-1.1]
Total BTUH [kW]
Power
35.9 [10.52]
2.9
35.6 [10.43]
2.9
35.4 [10.37]
2.9
34.4 [10.08]
3.3
34.1 [9.99]
3.3
33.9 [9.94]
3.4
33.4 [9.79]
3.7
33.1 [9.70]
3.8
32.9 [9.64]
3.8
40
[4.4]
Total BTUH [kW]
Power
42.2 [12.37]
3.0
41.9 [12.28]
3.0
41.6 [12.19]
3.1
40.7 [11.93]
3.4
40.4 [11.84]
3.4
40.1 [11.75]
3.5
39.7 [11.63]
3.8
39.4 [11.55]
3.9
39.1 [11.46]
3.9
50
[10]
Total BTUH [kW]
Power
48.5 [14.21]
3.1
48.1 [14.10]
3.1
47.8 [14.01]
3.2
47.0 [13.77]
3.5
46.7 [13.69]
3.5
46.4 [13.60]
3.6
46.0 [13.48]
3.9
45.7 [13.39]
4.0
45.3 [13.28]
4.0
45
[7.2]
Total BTUH [kW]
Power
45.3 [13.28]
3.0
45.0 [13.19]
3.1
44.7 [13.10]
3.1
43.9 [12.87]
3.4
43.6 [12.78]
3.5
43.2 [12.66]
3.5
42.8 [12.54]
3.9
42.5 [12.46]
3.9
42.2 [12.37]
4.0
HEATING PERFORMANCE DATA—RQPL-048
NOTES:
➀When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity
from the table by adding [1.10 x CFM x (1 – DR) x (dbE – 80)].
DR —Depression ratio
dbE —Entering air dry bulb
wbE—Entering air wet bulb
Total —Total capacity x 1000 BTUH
Sens —Sensible capacity x 1000 BTUH
Power —KW input
IDB—Indoor air dry bulb [ ] Designates Metric Conversions
ENTERING INDOOR AIR @ 80°F [26.7°C] dbE ➀
wbE 71°F [21.7°C] 67°F [19.4°C] 63°F [17.2°C]
CFM [L/s] 1760 [831] 1600 [755] 1440 [680] 1760 [831] 1600 [755] 1440 [680] 1760 [831] 1600 [755] 1440 [680]
DR ➀.15 .13 .11 .15 .13 .11 .15 .13 .11
O
U
T
D
O
O
R
D
R
Y
B
U
L
B
T
E
M
P
E
R
A
T
U
R
E
°F
[°C]
75
[23.9]
Total BTUH [kW]
Sens BTUH [kW]
Power
60.4 [17.70]
37.4 [10.96]
3.2
59.3 [17.38]
35.7 [10.46]
3.1
58.3 [17.09]
34.1 [9.99]
3.1
57.1 [16.73]
42.7 [12.51]
3.1
56.1 [16.44]
40.8 [11.96]
3.1
55.0 [16.12]
38.9 [11.40]
3.1
54.5 [15.97]
45.0 [13.19]
3.1
53.5 [15.68]
43.0 [12.60]
3.1
52.5 [15.39]
41.0 [12.02]
3.1
80
[26.7]
Total BTUH [kW]
Sens BTUH [kW]
Power
58.8 [17.23]
36.6 [10.73]
3.4
57.8 [16.94]
35.0 [10.26]
3.3
56.7 [16.62]
33.3 [9.76]
3.3
55.5 [16.27]
41.9 [12.28]
3.3
54.5 [15.97]
40.0 [11.72]
3.3
53.5 [15.68]
38.2 [11.20]
3.3
52.9 [15.50]
44.2 [12.95]
3.3
51.9 [15.21]
42.2 [12.37]
3.3
51.0 [14.95]
40.3 [11.81]
3.2
85
[29.4]
Total BTUH [kW]
Sens BTUH [kW]
Power
57.0 [16.71]
35.7 [10.46]
3.5
56.0 [16.41]
34.1 [9.99]
3.5
55.0 [16.12]
32.5 [9.52]
3.5
53.7 [15.74]
41.0 [12.02]
3.5
52.7 [15.44]
39.2 [11.49]
3.5
51.8 [15.18]
37.3 [10.93]
3.5
51.1 [14.98]
43.3 [12.69]
3.5
50.2 [14.71]
41.4 [12.13]
3.5
49.3 [14.45]
39.4 [11.55]
3.4
90
[32.2]
Total BTUH [kW]
Sens BTUH [kW]
Power
55.1 [16.15]
34.8 [10.20]
3.7
54.1 [15.86]
33.2 [9.73]
3.7
53.1 [15.56]
31.7 [9.29]
3.7
51.7 [15.15]
40.1 [11.75]
3.7
50.8 [14.89]
38.3 [11.22]
3.7
49.9 [14.62]
36.5 [10.70]
3.6
49.1 [14.39]
42.4 [12.43]
3.7
48.3 [14.16]
40.5 [11.87]
3.6
47.4 [13.89]
38.6 [11.31]
3.6
95
[35]
Total BTUH [kW]
Sens BTUH [kW]
Power
53.1 [15.56]
33.8 [9.91]
3.9
52.1 [15.27]
32.3 [9.47]
3.9
51.2 [15.01]
30.8 [9.03]
3.9
49.8 [14.59]
39.1 [11.46]
3.9
48.9 [14.33]
37.4 [10.96]
3.9
48.0 [14.07]
35.6 [10.43]
3.8
47.2 [13.83]
41.4 [12.13]
3.9
46.3 [13.57]
39.6 [11.61]
3.8
45.5 [13.33]
37.7 [11.05]
3.8
100
[37.8]
Total BTUH [kW]
Sens BTUH [kW]
Power
51.1 [14.98]
32.9 [9.64]
4.1
50.2 [14.71]
31.4 [9.20]
4.1
49.3 [14.45]
29.9 [8.76]
4.0
47.8 [14.01]
38.2 [11.20]
4.1
46.9 [13.75]
36.5 [10.70]
4.0
46.1 [13.51]
34.8 [10.20]
4.0
45.2 [13.25]
40.5 [11.87]
4.1
44.4 [13.01]
38.7 [11.34]
4.0
43.6 [12.78]
36.9 [10.81]
4.0
105
[40.6]
Total BTUH [kW]
Sens BTUH [kW]
Power
49.3 [14.45]
32.0 [9.38]
4.3
48.4 [14.18]
30.6 [8.97]
4.3
47.5 [13.92]
29.2 [8.56]
4.2
46.0 [13.48]
37.3 [10.93]
4.3
45.1 [13.22]
35.7 [10.46]
4.2
44.3 [12.98]
34.0 [9.96]
4.2
43.4 [12.72]
39.6 [11.61]
4.2
42.6 [12.48]
37.9 [11.11]
4.2
41.8 [12.25]
36.1 [10.58]
4.2
110
[43.3]
Total BTUH [kW]
Sens BTUH [kW]
Power
47.6 [13.95]
31.3 [9.17]
4.5
46.8 [13.72]
29.9 [8.76]
4.4
45.9 [13.45]
28.5 [8.35]
4.4
44.3 [12.98]
36.6 [10.73]
4.5
43.5 [12.75]
34.9 [10.23]
4.4
42.7 [12.51]
33.3 [9.76]
4.4
41.7 [12.22]
38.9 [11.40]
4.4
41.0 [12.02]
37.1 [10.87]
4.4
40.2 [11.78]
35.4 [10.37]
4.4
115
[46.1]
Total BTUH [kW]
Sens BTUH [kW]
Power
46.3 [13.57]
30.7 [9.00]
4.7
45.5 [13.33]
29.3 [8.59]
4.6
44.6 [13.07]
27.9 [8.18]
4.6
43.0 [12.60]
36.0 [10.55]
4.6
42.2 [12.37]
34.4 [10.08]
4.6
41.4 [12.13]
32.8 [9.61]
4.6
40.4 [11.84]
38.3 [11.22]
4.6
39.6 [11.61]
36.6 [10.73]
4.6
38.9 [11.40]
34.8 [10.20]
4.5
Air Indoor Airflow Performance
RQNL Series
24
External Static Pressure—Inches W.C. [kPa]
Side Discharge—Wet Coil
RPM 730
Nominal
Cooling
Capacity
Tons [kW]
Motor
Speed
from
Factory
775
Manufacturer
Recommended
Air-Flow Range
(Min/Max) CFM
Motor
Speed
820 865 905 940 975
Watts 356 349 341 331 320 305 287
Medium
CFM 1222 [577] 1197 [565] 1179 [556] 1162 [548] 1137 [537] 1097 [518]
0.1 [.02] 0.2 [.05] 0.3 [.07] 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17]
1033 [488]
RPM 765 810 855 890
RPM 695 785 870 905 940 980 1020
920 960 995
Watts 221 214 203 191 171 163 149
High
CFM 898 [424] 861 [406] 822 [388] 777 [367] 721 [340] 651 [307] 562 [265]
2.5
[8.79] Low 875 CFM/1125 CFM
[413/531 L/s]
Low
CFM 1076 [508]
RPM 940 965 995 1020 1045 1070 1090
1059 [500] 1032 [487] 996 [470] 950 [448] 896 [423] 832 [393]
Watts 423 415 407 397 386 370 351
High
CFM 1222 [577] 1201 [567] 1173 [554] 1137 [537] 1090 [514] 1030 [486] 954 [450]
RPM 785 805 830 870 905 950 990
Watts 355 352 346 340 331 320 306
RPM 824 856 889 931 968 1009 1041
Watts 268 280 288 303 311 325 331
High
(Tap 2)
CFM 1559 [736] 1530 [722] 1488 [702] 1454 [686] 1417 [669] 1375 [649] 1336 [631]
RPM 870 893 932 968 1007 1036 1072
3.5
[12.31]
Low
(Tap 1)
1225 CFM/1575 CFM
[578/743 L/s]
Low
(Tap 1)
CFM 1455 [687] 1431 [675] 1396 [659] 1360 [642] 1315 [621] 1285 [606] 1241 [586]
Watts 321 327 338 351 364 371 381
2.0
[7.03] High 700 CFM/900 CFM
[271/319 L/s]
Low
CFM 675 [319] 657 [310] 634 [299] 602 [284] 560 [264] 505 [238] 435 [205]
Watts 292 278 266 253 239 221 199
RPM 923 944 979 1013 1045 1077 1098
Watts 390 401 412 425 433 440 432
High
(Tap 2)
CFM 1770 [835] 1751 [826] 1706 [805] 1672 [789] 1624 [766] 1555 [734] 1463 [690]
RPM 966 989 1018 1050 1078 1100 1115
4.0
[14.07]
Low
(Tap 1)
1350 CFM/1700 CFM
[496/802 L/s]
Low
(Tap 1)
CFM 1675 [791] 1658 [782] 1610 [760] 1580 [746] 1535 [724] 1491 [704] 1422 [671]
Watts 454 466 473 486 490 481 460
Blower Size/
Motor
HP [W] &
# of Speeds
10x9 Blower
1/2 HP [372]
2 Speed
(PSC Motor)
10x9 Blower
3/4 HP [559]
2 Speed
(X13 Motor)
9x7 Blower
1/4 HP [186]
2 Speed
(PSC Motor)
10x9 Blower
3/4 HP [559]
2 Speed
(X13 Motor)
High
CFM 1514 [715] 1461 [690] 1415 [668] 1370 [647] 1322 [624] 1266 [597] 1197 [565]
RPM 895 930 965 985 1005 1025 1045
Watts 538 514 493 473 454 434 412
3.0
[10.55] Low 1050 CFM/1350 CFM
[496/637 L/s]
10x9 Blower
1/3 HP [248]
1 Speed
(PSC Motor)
INDOOR AIRFLOW PERFORMANCE—208 VOLTS
CFM [L/s] 600 [283] 800 [378] 1000 [472] 1200 [566] 1400 [661]
Pressure Drop—Inches W.C. [kPa] .00 .01 [.002] .02 [.005] .03 [.007] .05 [.012]
1600 [775]
.07 [.017]
DOWN DISCHARGE PRESSURE DROP (ADD TO EXTERNAL STATIC PRESSURE)
[ ] Designates Metric Conversions
NOTE: Effect of electric heat strip on airflow performance is negligible.
Air Indoor Airflow Performance
RQNL Series
25
External Static Pressure—Inches W.C. [kPa]
Side Discharge—Wet Coil
RPM 760
Blower Size/
Motor
HP [W] &
# of Speeds
Nominal
Cooling
Capacity
Tons [kW]
10x9 Blower
1/2 HP [373]
3 Speed
(PSC Motor)
Motor
Speed
from
Factory
815
Manufacturer
Recommended
Air-Flow Range
(Min/Max) CFM
Motor
Speed
870 910 950 975 1000
Watts 419 406 394 381 368 353 334
10x9 Blower
3/4 HP [559]
2 Speed
(X13 Motor)
Medium
CFM 1411 [666] 1368 [646] 1327 [626] 1285 [606] 1238 [584] 1183 [558]
0.1 [.02] 0.2 [.05] 0.3 [.07] 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17]
1116 [527]
RPM 865 900 935 970
RPM 825 870 910 950 985 1010 1030
1000 1020 1035
3.0
[10.55]
Watts 253 242 230 217 204 189 181
9x7 Blower
1/4 HP [186]
2 Speed
(PSC Motor)
10x9 Blower
3/4 HP [559]
2 Speed
(X13 Motor)
High
High
CFM 946 [446] 922 [435] 882 [416] 830 [392] 769 [363] 701 [331] 630 [297]
2.5
[8.79] Low 875 CFM/1125 CFM
[413/531 L/s]
Low
CFM 1206 [569]
RPM 990 1015 1035 1055 1070 1085 1100
1182 [558] 1157 [546] 1128 [532] 1091 [515] 1044 [493] 983 [464]
Watts 498 498 481 464 447 431 391
1050 CFM/1350 CFM
[496/637 L/s]
10x9 Blower
1/3 HP [249]
1 Speed
(PSC Motor)
High
CFM 1391 [656] 1357 [640] 1312 [619] 1258 [594] 1201 [567] 1145 [540] 1093 [516]
RPM 835 875 915 940 965 985 1000
Watts 428 419 406 392 378 365 355
RPM 831 854 894 932 972 1005 1042
Watts 276 282 297 307 319 326 341
High
(Tap 2)
CFM 1550 [732] 1520 [717] 1486 [701] 1449 [684] 1407 [664] 1382 [652] 1337 [631]
RPM 867 890 930 974 1003 1039 1073
3.5
[12.31]
Low
(Tap 1)
1225 CFM/1575 CFM
[578/743 L/s]
Low
(Tap 1)
CFM 1467 [692] 1439 [679] 1408 [665] 1360 [642] 1331 [628] 1287 [607] 1259 [594]
Watts 317 323 339 355 362 377 385
2.0
[7.03] High 700 CFM/900 CFM
[271/319 L/s]
Low
CFM 771 [364] 751 [354] 725 [342] 691 [326] 645 [304] 584 [276] 546 [258]
Watts 315 303 288 273 257 241 226
RPM 931 950 982 1018 1054 1082 1103
Watts 404 409 424 434 450 453 443
High
(Tap 2)
CFM 1748 [825] 1718 [811] 1686 [796] 1647 [777] 1616 [763] 1543 [728] 1472 [695]
RPM 955 978
High
1010 1043 1073 1096 1111
4.0
[14.07]
Low
(Tap 1)
1350 CFM/1700 CFM
[496/802 L/s]
Low
(Tap 1)
CFM 1692 [799] 1661 [784] 1633 [771] 1589 [750] 1560 [736] 1512 [714] 1442 [681]
Watts 440 446 462 475 484 473 459
CFM 1641 [774] 1577 [744] 1515 [715] 1455 [687] 1393 [657] 1329 [627] 1262 [596]
RPM 980 1000 1020 1035 1050 1065 1080
Watts 589 565 543 523 503 481 456
INDOOR AIRFLOW PERFORMANCE—230 VOLTS
CFM [L/s] 600 [283] 800 [378] 1000 [472] 1200 [566] 1400 [661]
Pressure Drop—Inches W.C. [kPa] .00 .01 [.002] .02 [.005] .03 [.007] .05 [.012]
1600 [775]
.07 [.017]
DOWN DISCHARGE PRESSURE DROP (ADD TO EXTERNAL STATIC PRESSURE)
[ ] Designates Metric Conversions
NOTE: Effect of electric heat strip on airflow performance is negligible.
Air Indoor Airflow Performance
RQPL Series
26
External Static Pressure—Inches W.C. [kPa]
Side Discharge—Wet Coil
RPM 719
Nominal
Cooling
Capacity
Tons [kW]
Motor
Speed
from
Factory
749
Manufacturer
Recommended
Air-Flow Range
(Min/Max) CFM
Motor
Speed
791 819 876 952 983
Watts 143 145 155 159 169 182 185
Medium
(Tap 2)
CFM 1165 [550] 1132 [534] 1091 [515] 1051 [496] 1009 [476] 959 [453]
0.1 [.02] 0.2 [.05] 0.3 [.07] 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17]
855 [404]
RPM 744 785 833 864
RPM 892 818 788 765 737 695 659
905 951 1020
Watts 145 147 156 157 164 167 167
High
(Tap 2)
CFM 914 [431] 887 [419] 853 [403] 824 [389] 793 [374] 762 [360] 717 [338]
2.5
[8.79]
Low
(Tap 1)
875 CFM/1125 CFM
[413/531 L/s]
Low
(Tap 1)
CFM 1067 [504]
RPM 934 971 1024 1053 1083 1121 1135
1034 [488] 992 [468] 957 [452] 912 [430] 820 [387] 778 [367]
Watts 167 177 188 191 202 206 217
RPM 824 856 889 931 968 1009 1041
Watts 268 280 288 303 311 325 331
High
(Tap 2)
CFM 1559 [736] 1530 [722] 1488 [702] 1454 [686] 1417 [669] 1375 [649] 1336 [631]
RPM 870 893 932 968 1007 1036 1072
3.5
[12.31]
Low
(Tap 1)
1225 CFM/1575 CFM
[578/743 L/s]
Low
(Tap 1)
CFM 1455 [687] 1431 [675] 1396 [659] 1360 [642] 1315 [621] 1285 [606] 1241 [586]
Watts 321 327 338 351 364 371 381
2.0
[7.03]
High
(Tap 1)
700 CFM/900 CFM
[271/319 L/s]
Low
(Tap 1)
CFM 847 [400] 818 [386] 788 [372] 765 [361] 737 [348] 695 [328] 659 [311]
Watts 173 177 185 186 188 192 185
RPM 923 944 979 1013 1045 1077 1098
Watts 390 401 412 425 433 440 432
High
(Tap 2)
CFM 1770 [835] 1751 [826] 1706 [805] 1672 [789] 1624 [766] 1555 [734] 1463 [690]
RPM 966 989 1018 1050 1078 1100 1115
4.0
[14.07]
Low
(Tap 1)
1350 CFM/1700 CFM
[496/802 L/s]
Low
(Tap 1)
CFM 1675 [791] 1658 [782] 1610 [760] 1580 [746] 1535 [724] 1491 [704] 1422 [671]
Watts 454 466 473 486 490 481 460
Blower Size/
Motor
HP [W] &
# of Speeds
10x9 Blower
1/2 HP [372]
3 Speed
(X13 Motor)
10x9 Blower
3/4 HP [559]
2 Speed
(X13 Motor)
9x7 Blower
1/3 HP [249]
3 Speed
(X13 Motor)
10x9 Blower
3/4 HP [559]
2 Speed
(X13 Motor)
High
(Tap 3)
CFM 1252 [591] 1213 [572] 1166 [550] 1137 [537] 1099 [519] 1046 [494] 986 [465]
RPM 796 826 868 893 934 982 1026
Watts 206 210 219 225 234 245 248
1024
192
0.8 [.20]
819 [387]
581
1053
155
602 [284]
1155
729 [344]
351
581 [274]
164
892 [421]
1086
256
RPM 784
10x9 Blower
1/2 HP [372]
3 Speed
(X13 Motor)
819 863 890 932 957 1012
Watts 200 208 219 224 233 236 246
Medium
(Tap 2)
CFM 1307 [617] 1292 [610] 1238 [584] 1214 [573] 1170 [552] 1135 [536] 1087 [513]
RPM 820 850 889 918 944 981 1028
1075
256
3.0
[10.55]
Low
(Tap 1)
1050 CFM/1350 CFM
[496/637 L/s]
Low
(Tap 1)
CFM 1247 [589] 1220 [576] 1178 [556] 1143 [539] 1099 [519] 1064 [502] 998 [471]
Watts 233 242 248 255 262 268 277
989 [467]
1087
904 [427]
284
1103 [521]
1089
316
High
(Tap 3)
CFM 1396 [659] 1357 [640] 1334 [630] 1286 [607] 1253 [591] 1207 [570] 1163 [549]
RPM 864 898 920 942 976 1010 1043
Watts 268 280 288 292 299 304 310
INDOOR AIRFLOW PERFORMANCE—208 VOLTS
CFM [L/s] 600 [283] 800 [378] 1000 [472] 1200 [566] 1400 [661]
Pressure Drop—Inches W.C. [kPa] .00 .01 [.002] .02 [.005] .03 [.007] .05 [.012]
1600 [775]
.07 [.017]
DOWN DISCHARGE PRESSURE DROP (ADD TO EXTERNAL STATIC PRESSURE)
[ ] Designates Metric Conversions
NOTE: Effect of electric heat strip on airflow performance is negligible.
Air Indoor Airflow Performance
RQPL Series
27
External Static Pressure—Inches W.C. [kPa]
Side Discharge—Wet Coil
RPM 715
Nominal
Cooling
Capacity
Tons [kW]
Motor
Speed
from
Factory
753
Manufacturer
Recommended
Air-Flow Range
(Min/Max) CFM
Motor
Speed
787 825 877 946 1005
Watts 144 148 157 169 175 187 198
Medium
(Tap 2)
CFM 1187 [560] 1124 [530] 1096 [517] 1071 [505] 1024 [483] 987 [466]
0.1 [.02] 0.2 [.05] 0.3 [.07] 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17]
896 [423]
RPM 762 799 832 859
RPM 889 953 974 1018 1065 1101 1133
914 940 1021
Watts 151 159 162 166 173 176 180
High
(Tap 2)
CFM 918 [433] 888 [419] 874 [412] 838 [395] 819 [387] 781 [369] 711 [336]
2.5
[8.79]
Low
(Tap 1)
875 CFM/1125 CFM
[413/531 L/s]
Low
(Tap 1)
CFM 1076 [508]
RPM 953 988 1032 1060 1091 1126 1146
1041 [491] 1017 [480] 970 [458] 928 [438] 852 [402] 785 [370]
Watts 176 182 191 196 209 212 227
RPM 831 854 894 932 972 1005 1042
Watts 276 282 297 307 319 326 341
High
(Tap 2)
CFM 1550 [732] 1520 [717] 1486 [701] 1449 [684] 1407 [664] 1382 [652] 1337 [631]
RPM 867 890 930 974 1003 1039 1073
3.5
[12.31]
Low
(Tap 1)
1225 CFM/1575 CFM
[578/743 L/s]
Low
(Tap 1)
CFM 1467 [692] 1439 [679] 1408 [665] 1360 [642] 1331 [628] 1287 [607] 1259 [594]
Watts 317 323 339 355 362 377 385
2.0
[7.03]
Low
(Tap 1)
700 CFM/900 CFM
[271/319 L/s]
Low
(Tap 1)
CFM 862 [407] 834 [394] 819 [387] 781 [369] 761 [359] 729 [344] 695 [328]
Watts 181 184 194 198 200 204 189
RPM 931 950 982 1018 1054 1082 1103
Watts 404 409 424 434 450 453 443
High
(Tap 2)
CFM 1748 [825] 1718 [811] 1686 [796] 1647 [777] 1616 [778] 1543 [779] 1472 [780]
RPM 955 978 1010 1043 1073 1096 1111
4.0
[14.07]
Low
(Tap 1)
1350 CFM/1700 CFM
[496/802 L/s]
Low
(Tap 1)
CFM 1692 [799] 1661 [784] 1633 [771] 1589 [750] 1560 [736] 1512 [714] 1442 [681]
Watts 440 446 462 475 484 473 459
Blower Size/
Motor
HP [W] &
# of Speeds
10x9 Blower
1/2 HP [372]
3 Speed
(X13 Motor)
10x9 Blower
3/4 HP [559]
2 Speed
(X13 Motor)
9x7 Blower
1/3 HP [249]
3 Speed
(X13 Motor)
10x9 Blower
3/4 HP [559]
2 Speed
(X13 Motor)
High
(Tap 3)
CFM 1271 [600] 1223 [577] 1169 [552] 1137 [537] 1104 [521] 1071 [505] 1015 [479]
RPM 797 836 878 905 939 974 1026
Watts 212 217 227 231 241 247 257
1032
202
0.8 [.20]
852 [402]
1156
1059
165
616 [291]
1157
745 [352]
235
606 [286]
168
934 [441]
1089
270
RPM 802
10x9 Blower
1/2 HP [372]
3 Speed
(X13 Motor)
829 861 894 933 971 1020
Watts 210 217 225 230 239 245 259
Medium
(Tap 2)
CFM 1336 [631] 1298 [613] 1259 [594] 1229 [580] 1198 [565] 1160 [547] 1116 [527]
RPM 821 867 903 920 957 993 1038
1077
268
3.0
[10.55]
Low
(Tap 1)
1050 CFM/1350 CFM
[496/637 L/s]
Low
(Tap 1)
CFM 1258 [594] 1215 [573] 1200 [566] 1160 [547] 1130 [533] 1082 [511] 1026 [484]
Watts 239 249 259 262 275 279 290
1071 [505]
1071
954 [450]
299
1168 [551]
1091
337
High
(Tap 3)
CFM 1416 [668] 1379 [651] 1342 [633] 1292 [610] 1275 [602] 1240 [585] 1200 [566]
RPM 874 898 933 952 993 1011 1060
Watts 285 290 299 304 314 322 328
INDOOR AIRFLOW PERFORMANCE—230 VOLTS
CFM [L/s] 600 [283] 800 [378] 1000 [472] 1200 [566] 1400 [661]
Pressure Drop—Inches W.C. [kPa] .00 .01 [.002] .02 [.005] .03 [.007] .05 [.012]
1600 [775]
.07 [.017]
DOWN DISCHARGE PRESSURE DROP (ADD TO EXTERNAL STATIC PRESSURE)
[ ] Designates Metric Conversions
NOTE: Effect of electric heat strip on airflow performance is negligible.
Air Electrical Data
RQNL/RQPL Series
28
ELECTRICAL DATA – RQNL- SERIES
Minimum Circuit Ampacity 19/19
Unit Information
Unit Operating
Voltage Range 187-253
Minimum Overcurrent
Protection Device Size 25/25
Maximum Overcurrent
Protection Device Size 30/30
Compressor Motor
No. 1
Volts 208/230
Phase 1
HP 2
RPM 3450
Amps (RLA) 12.8/12.8
Amps (LRA) 58.3/58.3
Condenser Motor
No. 1
Volts 208/230
Phase 1
HP 1/5
Amps (FLA) 1.3
Amps (LRA) 2.2
Evaporator Fan
No. 1
Volts 208/230
Phase 1
HP 1/4
Amps (FLA) 1.5
Amps (LRA) 2.4 5.1
2.4
1/2
1
208/230
1
2.2
1.3
1/5
1
208/230
1
73/73
14.1/14.1
3450
2 1/2
1
208/230
1
35/35
25/25
22/22
187-253
2.5
1.7
1/3
1
208/230
1
2.2
1.3
1/5
1
208/230
1
88/88
10.4/10.4
3450
3
3
208/230
1
25/25
20/20
17/17
187-253
2.5
1.7
1/3
1
208/230
1
2.2
1.3
1/5
1
208/230
1
79/79
16.7/16.7
3450
3
1
208/230
1
40/40
25/25
24/24
187-253
0
6
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
83.1/83.1
13.1/13.1
3450
3 1/2
3
208/230
1
35/35
30/30
25/25
187-253
0
6
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
109/109
19.9/19.9
3450
3 1/2
1
208/230
1
50/50
35/35
33/33
187-253
0
6
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
83.1/83.1
13.7/13.7
3450
4
3
208/230
1
35/35
30/30
26/26
187-253
0
6
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
117/117
23.8/23.8
3450
4
1
208/230
1
50/50
40/40
37/37
187-253
-B024JK -B030JK -B036CK -B036JK -B042CK -B042JK -B048CK -B048JK
ELECTRICAL DATA – RQPL- SERIES
Minimum Circuit Ampacity 21/21
Unit Information
Unit Operating
Voltage Range 187-253
Minimum Overcurrent
Protection Device Size 25/25
Maximum Overcurrent
Protection Device Size 30/30
Compressor Motor
No. 1
Volts 208/230
Phase 1
HP 2
RPM 3450
Amps (RLA) 12.8/12.8
Amps (LRA) 58.3/58.3
Condenser Motor
No. 1
Volts 208/230
Phase 1
HP 1/5
Amps (FLA) 1.3
Amps (LRA) 2.2
Evaporator Fan
No. 1
Volts 208/230
Phase 1
HP 1/3
Amps (FLA) 2.8
Amps (LRA) 0 0
4.1
1/2
1
208/230
1
2.2
1.3
1/5
1
208/230
1
73/73
14.1/14.1
3450
2 1/2
1
208/230
1
35/35
25/25
24/24
187-253
0
4.1
1/2
1
208/230
1
2.2
1.3
1/5
1
208/230
1
88/88
10.4/10.4
3450
3
3
208/230
1
25/25
20/20
19/19
187-253
0
4.1
1/2
1
208/230
1
2.2
1.3
1/5
1
208/230
1
79/79
16.7/16.7
3450
3
1
208/230
1
40/40
30/30
27/27
187-253
0
6
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
83.1/83.1
13.1/13.1
3450
3 1/2
3
208/230
1
35/35
30/30
25/25
187-253
0
6
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
109/109
19.9/19.9
3450
3 1/2
1
208/230
1
50/50
35/35
33/33
187-253
0
6
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
83.1/83.1
13.7/13.7
3450
4
3
208/230
1
35/35
30/30
26/26
187-253
0
6
3/4
1
208/230
1
3.9
2
1/3
1
208/230
1
117/117
23.8/23.8
3450
4
1
208/230
1
50/50
40/40
37/37
187-253
-B024JK -B030JK -B036CK -B036JK -B042CK -B042JK -B048CK -B048JK
21/21
25/25
30/30
1
208/230
1
2
3450
12.8/12.8
58.3/58.3
187-253
1
208/230
1
1/3
1.3/1.3
0/0
1
208/230
1
1/3
2.8/2.8
0/0
B025JK
1. Horsepower Per Compressor.
2. Amp Draw Per Motor. Multiply Value By Number of Motors to Determine Total Amps.
Air Electric Heater Kits
RQNL/RQPL Series
29
Unit Model Application Electric Heater Kit Models
RXQJ-A10J (208-240 volt, 1-ph, 10kW)
RXQJ-A05J (208-240 volt, 1-ph, 5kW)
RXQJ-A05J (208-240 volt, 1-ph, 5kW)
RXQJ-A15J (208-240 volt, 1-ph, 15kW)
RXQJ-A10J (208-240 volt, 1-ph, 10kW)
RXQJ-A10J (208-240 volt, 1-ph, 10kW)
RXQJ-10J (208-240 volt, 1-ph, 10kW)
RXQJ-15J (208-240 volt, 1-ph, 15kW)
RQNL/RQPL-B036CK
RXQJ-10J (208-240 volt, 1-ph, 10kW)
RXQJ-15J (208-240 volt, 1-ph, 15kW)
RXQJ-A10C (208-240 volt, 3-ph, 10kW)
RXQJ-A15C (208-240 volt, 3-ph, 15kW)
RXQJ-A10C (208-240 volt, 3-ph, 10kW)
RQNL/RQPL-B048CK
RXQJ-A15C (208-240 volt, 3-ph, 15kW)
RXQJ-A10C (208-240 volt, 3-ph, 10kW)
RXQJ-A15C (208-240 volt, 3-ph, 15kW)
RQNL/RQPL-B042CK
RQNL/RQPL-B024JK & RQPL-B025JK
RQNL/RQPL-B030JK
RQNL/RQPL-B036JK
RQNL/RQPL-B042JK
RQNL/RQPL-B048JK
WARNING
ONLY ELECTRIC HEATER KITS SUPPLIED BY THIS MANU-
FACTURER AS DESCRIBED IN THIS PUBLICATION HAVE
BEEN DESIGNED, TESTED, AND EVALUATED BY A NATION-
ALLY RECOGNIZED SAFETY TESTING AGENCY FOR USE
WITH THIS UNIT. USE OF ANY OTHER MANUFACTURED
ELECTRIC HEATERS INSTALLED WITHIN THIS UNIT MAY
CAUSE HAZARDOUS CONDITIONS RESULTING IN PROP-
ERTY DAMAGE, FIRE, BODILY INJURY OR DEATH.
Air Electric Heater Kits
RQNL Series
30
B024JK
No Heat — — — 19/19 30/30 30/30
A10J 2 24.56/32.75 34.6/40.0 62/69 70/70 70/70
A05J 1 12.28/16.38 17.3/20.0 41/44 45/50 45/50
44/50 45/50 — — —
— — 19/19 30/30 30/30
22/25 25/25 — — —
RXQJ-
Heater Kit
Nominal kW
No. of
Elements
Heater
KBTU/Hr
@ 208-240 V
Heater
Amp.
@ 208-240 V
Unit Min. Ckt.
Ampacity
@ 208-240 V
Over Current
Protective Device Size
Min./Max.
@ 208 V
Min./Max.
@ 240 V
Min. Ckt.
Ampacity
208/240V
Max. Fuse
Size
208/240V
Min. Circuit
Ampacity
208-240 V
Over Current
Protective Device Size
Min./Max.
@ 208 V
Min./Max.
@ 240 V
7.2/9.6
—
3.6/4.8
Rated
Heater kW
@ 208-240 V
2
—
1
No. of
Sequence
Steps
208-240 VOLT, SINGLE PHASE, 60 HZ, AUXILIARY ELECTRIC HEATER KITS CHARACTERISTICS AND APPLICATION
B030JK
No Heat — — — — 22/22 35/35 35/35 — — 22/22 35/35 35/35
A05J 1 1 3.6/4.8 12.28/16.38 17.3/20.0 43/47 50/50 50/50 22/25 25/25 — — —
A10J 2 2 7.2/9.6 24.56/32.75 34.6/40.0 65/72 70/80 70/80 44/50 45/50 — — —
B036JK
No Heat — — — — 24/24 40/40 40/40 — — 24/24 40/40 40/40
A10J 2 2 7.2/9.6 24.56/32.75 34.6/40.0 68/74 70/80 70/80 44/50 45/50 — — —
A15J 3 2 10.8/14.4 36.84/49.13 51.9/60.0 89/99 90/100 90/100 65/75 70/80 — — —
B042JK
No Heat — — — — 33/33 50/50 50/50 — — 33/33 50/50 50/50
B10J 2 2 7.2/9.6 24.56/32.75 34.6/40.0 77/83 80/90 80/90 44/50 45/50 — — —
B15J 3 2 10.8/14.4 36.84/49.13 51.9/60.0 98/108 100/110 100/110 65/75 70/80 — — —
B048JK
No Heat — — — — 37/37 50/50 50/50 — — 37/37 50/50 50/50
B10J 2 2 7.2/9.6 24.56/32.75 34.6/40.0 80/87 90/90 90/90 44/50 45/50 — — —
B15J 3 2 10.8/14.4 36.84/49.13 51.9/60.0 102/112 110/125 110/125 65/75 70/80 — — —
Heater Kit Heat Pump
Unit
Model
No.
RQNL-
Heater Kit Heat Pump
Single Power Supply For Both Unit and Heater Kit Separate Power Supply For Both Unit and Heater Kit
10.8/14.4A15C 3 36.84/49.13 30.1/34.7 54/60 60/60
208-240 VOLT, THREE PHASE, 60 HZ, AUXILIARY ELECTRIC HEATER KITS CHARACTERISTICS AND APPLICATION
—
7.2/9.6
60/60
B042CK
No Heat — — — — 25/25 35/35 35/35 — — 25/25 35/35 35/35
A10C 3 3 7.2/9.6 24.56/32.75 20.0/23.1 50/54 50/60 50/60 25/29 25/30 — — —
A15C 3
B036CK
No Heat
3 10.8/14.4
— — 17/17 25/25 25/25
36.84/49.13 30.1/34.7 63/68
A10C
70/70 70/70
3 24.56/32.75 20.0/23.1 42/45 45/45 45/45
38/44 40/45 — — —
B048CK
No Heat — — — — 26/26 35/35 35/35 — — 26/26 35/35 35/35
A10C 3 3 7.2/9.6 24.56/32.75 20.0/23.1 51/55 60/60 60/60 25/29 25/30 — — —
A15C 3 3 10.8/14.4 36.84/49.13 30.1/34.7 63/69 70/70 70/70 38/44 40/45 — —
Rated
Heater kW
@ 208-240 V
3
—
—
3
Heater Kit Heat Pump
Unit
Model
No.
RQNL-
Heater Kit Heat Pump
Single Power Supply For Both Unit and Heater Kit Separate Power Supply For Both Unit and Heater Kit
No. of
Sequence
Steps
38/44 40/45 — — —
— — 17/17 25/25 25/25
25/29 25/30 — — —
RXQJ-
Heater Kit
Nominal kW
No. of
Elements
Heater
KBTU/Hr
@ 208-240 V
Heater
Amp.
@ 208-240 V
Unit Min. Ckt.
Ampacity
@ 208-240 V
Over Current
Protective Device Size
Min./Max.
@ 208 V
Min./Max.
@ 240 V
Min. Ckt.
Ampacity
208/240V
Max. Fuse
Size
208/240V
Min. Circuit
Ampacity
208-240 V
Over Current
Protective Device Size
Min./Max.
@ 208 V
Min./Max.
@ 240 V
Air Electric Heater Kits
RQPL Series
31
B024JK
B025JK
No Heat — — — 21/21 30/30 30/30
A10J 2 24.56/32.75 34.6/40.0 64/71 70/80 70/80
A05J 1 12.28/16.38 17.3/20.0 42/46 50/50 50/50
44/50 45/50 — — —
— — 21/21 30/30 30/30
22/25 25/25 — — —
RXQJ-
Heater Kit
Nominal kW
No. of
Elements
Heater
KBTU/Hr
@ 208-240 V
Heater
Amp.
@ 208-240 V
Unit Min. Ckt.
Ampacity
@ 208-240 V
Over Current
Protective Device Size
Min./Max.
@ 208 V
Min./Max.
@ 240 V
Min. Ckt.
Ampacity
208/240V
Max. Fuse
Size
208/240V
Min. Circuit
Ampacity
208-240 V
Over Current
Protective Device Size
Min./Max.
@ 208 V
Min./Max.
@ 240 V
7.2/9.6
—
3.6/4.8
Rated
Heater kW
@ 208-240 V
2
—
1
No. of
Sequence
Steps
208-240 VOLT, SINGLE PHASE, 60 HZ, AUXILIARY ELECTRIC HEATER KITS CHARACTERISTICS AND APPLICATION
B030JK
No Heat — — — — 24/24 35/35 35/35 — — 24/24 35/35 35/35
A05J 1 1 3.6/4.8 12.28/16.38 17.3/20.0 45/49 50/50 50/50 22/25 25/25 — — —
A10J 2 2 7.2/9.6 24.56/32.75 34.6/40.0 67/74 70/80 70/80 44/50 45/50 — — —
B036JK
No Heat — — — — 27/27 40/40 40/40 — — 27/27 40/40 40/40
A10J 2 2 7.2/9.6 24.56/32.75 34.6/40.0 70/77 70/80 70/80 44/50 45/50 — — —
A15J 3 2 10.8/14.4 36.84/49.13 51.9/60.0 92/102 100/110 100/110 65/75 70/80 — — —
B042JK
No Heat — — — — 33/33 50/50 50/50 — — 33/33 50/50 50/50
B10J 2 2 7.2/9.6 24.56/32.75 34.6/40.0 77/83 80/90 80/90 44/50 45/50 — — —
B15J 3 2 10.8/14.4 36.84/49.13 51.9/60.0 98/108 100/110 100/110 65/75 70/80 — — —
B048JK
No Heat — — — — 37/37 50/50 50/50 — — 37/37 50/50 50/50
B10J 2 2 7.2/9.6 24.56/32.75 34.6/40.0 80/87 90/90 90/90 44/50 45/50 — — —
B15J 3 2 10.8/14.4 36.84/49.13 51.9/60.0 102/112 110/125 110/125 65/75 70/80 — — —
Heater Kit Heat Pump
Unit
Model
No.
RQPL-
Heater Kit Heat Pump
Single Power Supply For Both Unit and Heater Kit Separate Power Supply For Both Unit and Heater Kit
10.8/14.4A15C 3 36.84/49.13 30.1/34.7 57/62 60/70
208-240 VOLT, THREE PHASE, 60 HZ, AUXILIARY ELECTRIC HEATER KITS CHARACTERISTICS AND APPLICATION
—
7.2/9.6
60/70
B042CK
No Heat — — — — 25/25 35/35 35/35 — — 25/25 35/35 35/35
A10C 3 3 7.2/9.6 24.56/32.75 20.0/23.1 50/54 50/60 50/60 25/29 25/30 — — —
A15C 3
B036CK
No Heat
3 10.8/14.4
— — 19/19 25/25 25/25
36.84/49.13 30.1/34.7 63/68
A10C
70/70 70/70
3 24.56/32.75 20.0/23.1 44/48 45/50 45/50
38/44 40/45 — — —
B048CK
No Heat — — — — 26/26 35/35 35/35 — — 26/26 35/35 35/35
A10C 3 3 7.2/9.6 24.56/32.75 20.0/23.1 51/55 60/60 60/60 25/29 25/30 — — —
A15C 3 3 10.8/14.4 36.84/49.13 30.1/34.7 63/69 70/70 70/70 38/44 40/45 — —
Rated
Heater kW
@ 208-240 V
3
—
—
3
Heater Kit Heat Pump
Unit
Model
No.
RQPL-
Heater Kit Heat Pump
Single Power Supply For Both Unit and Heater Kit Separate Power Supply For Both Unit and Heater Kit
No. of
Sequence
Steps
38/44 40/45 — — —
— — 19/19 25/25 25/25
25/29 25/30 — — —
RXQJ-
Heater Kit
Nominal kW
No. of
Elements
Heater
KBTU/Hr
@ 208-240 V
Heater
Amp.
@ 208-240 V
Unit Min. Ckt.
Ampacity
@ 208-240 V
Over Current
Protective Device Size
Min./Max.
@ 208 V
Min./Max.
@ 240 V
Min. Ckt.
Ampacity
208/240V
Max. Fuse
Size
208/240V
Min. Circuit
Ampacity
208-240 V
Over Current
Protective Device Size
Min./Max.
@ 208 V
Min./Max.
@ 240 V
Air Dimensional Data
RQNL/RQPL Series
32
30% 2%
21% 2%
29% 2%
20% 2%
CORNER WEIGHTS
% OF TOTAL
UNIT WEIGHT
THERMOSTAT WIRING
ENTRANCE
ELECTRICAL POWER
ENTRANCE
BLOWER/
EVAPORATOR
ACCESS PANEL
SIDE SUPPLY
DUCT OPENING
SIDE RETURN
DUCT OPENING
OUTDOOR FAN GRILLE
AND COMPRESSOR ACCESS
CONTROL
ACCESS PANEL
LIQUID PRESSURE
SERVICE PORT
SUCTION PRESSURE
SERVICE PORT
THREADED PVC CONDENSATE
DRAIN CONNECTION (3/4" [19.05 mm] N.P.T.)
OUTDOOR COIL
PROTECTIVE GRILLE
FILTER ACCESS
PANEL (FOR
UNIT MOUNTED
FILTER ACCESSORY)
OUTDOOR FAN
GRILLE &
COMPRESSOR ACCESS
BOTTOM
RETURN
DUCT
OPENING
BOTTOM
SUPPLY
DUCT
OPENING
4719/32"
[1209 mm]
5013/16"
[1290 mm]
451/16"
[1145 mm]
INSIDE 13/16"
[30 mm]
TYP.
11/2"
[38 mm]
TYP.
497/16"
[1256 mm]
INSIDE
199/16"
[497 mm]
153/8"
[391 mm]
33/16"
[97 mm]
45/16"
[95 mm]
313/16"
[97 mm]
141/4"
[362 mm]
TYP.
[ ] Designates Metric Conversions
TOP VIEW BOTTOM VIEW
Air Dimensional Data
RQNL/RQPL Series
33
471/2"
[1207 mm]
2211/16"
[576 mm]
75/16"
[186 mm]
SIDE SUPPLY
DUCT OPENING
SHOWN WITH DUCT COVERS REMOVED.
LIQUID
PRESSURE
SERVICE PORT
CONTROL
ACCESS PANEL
THREADED PVC
CONDENSATED DRAIN
CONNECTION (3/4 N.P.T.)
SIDE RETURN
DUCT OPENING
SUCTION PRESSURE
SERVICE PORT
15"
[381 mm]
191/8"
[486 mm]
81/2"
[216 mm]
TYP.
47/16"
[113 mm]
133/4"
[349 mm]
47/8"
[124 mm]
143/16"
[360 mm]
TYP.
57/16" [138 mm]
21/2" [63.5 mm]
527/16"
[1332 mm]
FILTER ACCESS PANEL (FOR UNIT
MOUNTED FILTER ACCESSORY)
BLOWER/
EVAPORATOR
ACCESS PANEL
OUTDOOR
COIL PROTECTIVE
GRILLE
255/16"
[643 mm]
103/16"
[259 mm]
43/4"
[121 mm]
51/16"
[129 mm]
11/8"
[28.6 mm]
THERMOSTAT
WIRE ENTRANCE
ELECTRICAL
POWER
ENTRANCE
[ ] Designates Metric Conversions
FRONT VIEW BACK VIEW
SIDE VIEW SIDE VIEW
Model Number Height “A”
B024, B025 3515/16
B030, B036,
B042, B048 41
IMPORTANT:
INSTALLATION MUST NOT
INTERFERE WITH DRAINAGE
OPENINGS IN BOTTOM OF
UNIT UNDER OUTDOOR COIL.
IMPORTANT:
UNIT MUST BE LEVEL TO
PREVENT WATER MIGRATION.
Air Typical Installations
RQNL/RQPL Series
34
[ ] Designates Metric Conversions[ ] Designates Metric Conversions
Air Accessories
RQNL/RQPL Series
35
COMMON SUPPLY/RETURN
CONCENTRIC AIR DIFFUSER
SUPPLY AIR/PERFORMANCE
NOTE: The location of the combination supply and return diffuser should
not exceed 10 feet [3.05 m] above the floor level for units @ 1000 CFM
[472 L/s] or less and 12 [3.66 m] to 14 feet [4.27 m] above the floor level
for units with CFM greater than 1000 [472 L/s]. If the diffuser is installed
with a greater distance than recommended above, the supply air may
become stratified above the required comfort area causing uncomforta -
ble conditions.
Accessory Approximate CFM [L/s]-Supply Air
.12 [.030].07 [.017] .10 [.024]Plenum & Supply/Return Duct
1575 [743] 1800 [850]1300 [614]
.16 [.040].09 [.022] .13 [.032]Diffuser
.11 [.027].06 [.015] .09 [.022]Economizer .17 [.042]
.24 [.060]
.17 [.042]
2200 [1038]
Diffuser Airflow CFM [L/s] Range of Throw Ft. [m]
14 [4.27]-16 [4.88]800 [378]-1200 [566]
18 [5.49]-28 [8.53]1600 [755]-2000 [944]
ACCESSORY EQUIPMENT
Accessory
Description
Model
Application
Accessory
Model No.
Thermostats RQNL-/RQPL- See Thermostat Specification Sheet (T11-001)
Supply & Return Diffusers RQNL-/RQPL- RXRN-BD15
Economizers (Downflow Only) RQNL-/RQPL- AXRE-CAA30 (3 Position)
AXRD-CAM10 (Fully Modulating)
Fresh Air Damper RQNL-/RQPL- AXRF-FAB1 (Motorized-35%)
AXRF-FAA1 (Fixed-35%)
Rectangular to Round Transition (Downflow) RQNL-/RQPL- RXMC-CA02 (16" [406 mm] Ducts)
RXMC-CA03 (18" [457 mm] Ducts)
Filter Kit RQNL-/RQPL- RXRY-B01
High Pressure Control RQNL-/RQPL- RXAB-D01
Outdoor Thermostat RQNL-/RQPL- RXPT-A01
Duct Adapter Sideflow Square to Round Transition RQNL-/RQPL- AXMC-BA01
Low Amient Control RQNL-/RQPL- RXPZ-G01
Lift Kit RQNL-/RQPL- RXML-A01
Economizers (Sideflow Only) RQNL-/RQPL- AXRD-CCM10 (Fully Modulating)
AXRE-CCA30 (3 Position)
Roofcurb RQNL-/RQPL- RXQG-AAA14 (14" [356 mm] Height)
RXQG-AAA24 (24" [610 mm] Height)
Designed to convert a side by side or an over and under arrange-
ment into a concentric distribution of air. The diffuser is flush
mounted, completely insulated, assembled, and internally baffled
to provide four way supply air distribution with a center return. To
make the assembly complete and ready to fit into a 2' [0.61 m] x
4' [1.22 m] suspended ceiling grid, the diffuser includes
adjustable supply louvers, hanging rings, anti-sweat gasket, and
round flanges for use with flexible ducts.
Model No.
RXRN-
Diameter
Inches [mm]
16 [406] 90 [40.82]
Shipping Wt.
Lbs. [kg]
Dimension A
Inches [mm]
201/2[521]
BD15
SUPPLY/RETURN DIFFUSER
AIRFLOW/PRESSURE DROP
INFORMATION (INCHES W.C. [kPa])
NOTE: The location of the combination supply and return diffuser should
not exceed 10 feet [3.05 m] above the floor level for units @ 1000 CFM
[472 L/s] or less and 12 [3.66 m] to 14 feet [4.27 m] above the floor level
for units with CFM greater than 1000 [472 L/s]. If the diffuser is installed
with a greater distance than recommended above, the supply air may
become stratified above the required comfort area causing uncomforta -
ble conditions.
[ ] Designates Metric Conversions
Air Accessories
RQNL/RQPL Series
36

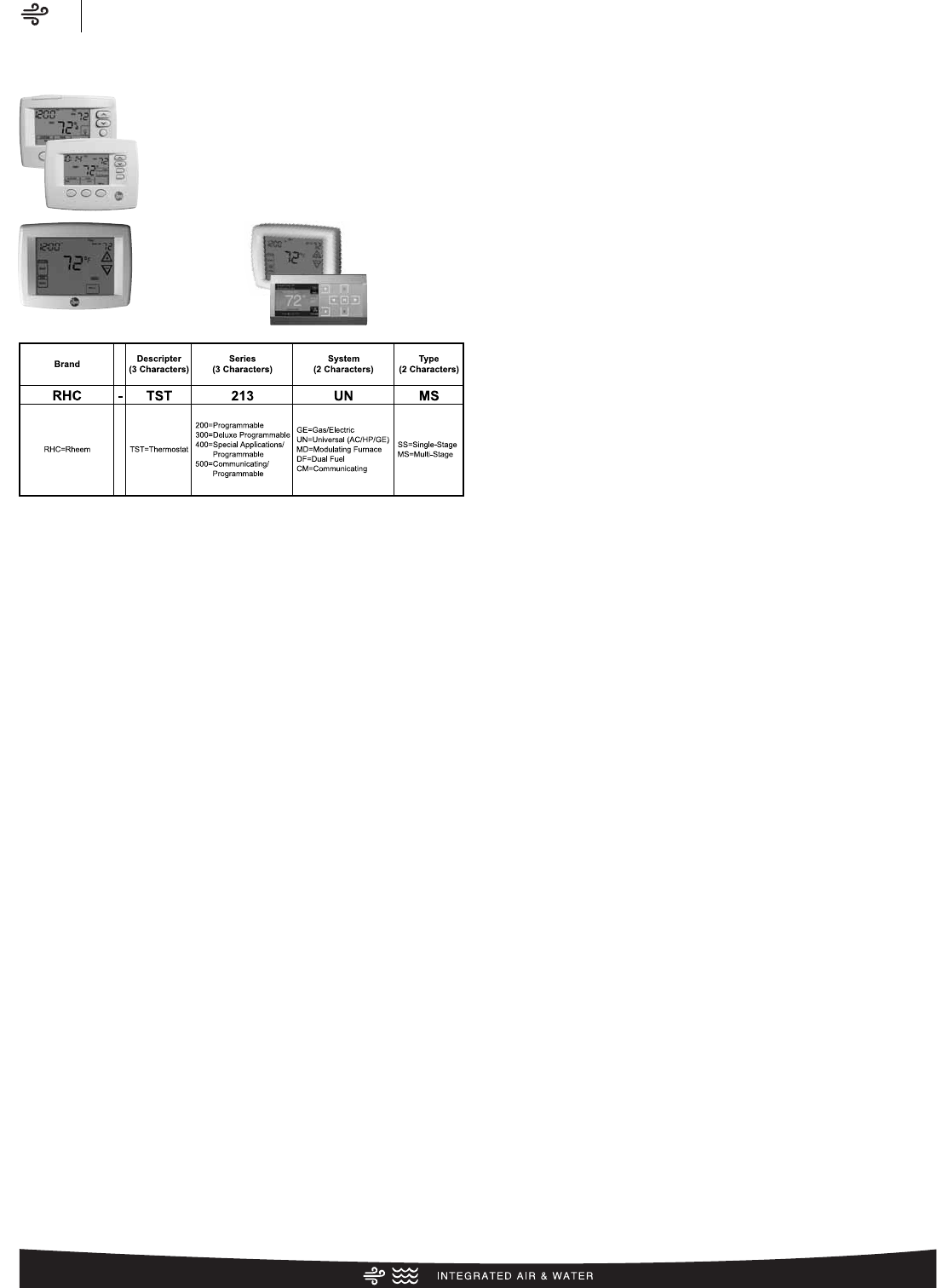

* Photos are representative. Actual models may vary.
For detailed thermostat match-up information,
see specification sheet form number T11-001.
300-Series *
Deluxe
Programmable
400-Series *
Special Applications/
Programmable
500-Series *
Communicating/
Programmable
200-Series *
Programmable
THERMOSTATS
Air Accessories
RQNL/RQPL Series
37
DUCT ADAPTERS
RECTANGULAR TO ROUND
TRANSITIONS (DOWNFLOW)
RXMC-CA03
RXMC-CA02
[ ] Designates Metric Conversions
Air Accessories
RQNL/RQPL Series
38
[ ] Designates Metric Conversions
AXRE-CAA30 (3 Position)
Provided with enthalpy control, and
mixed air sensor. Settings include
fully open, fully closed and adjust able
mid point.
AXRD-CAM10 (Fully Modulating)
Provided with enthalpy control, mixed
air sensor and minimum position poten-
tiometer for proportioning (mod ulat ing)
the amount of fresh air.
[ ] Designates Metric Conversions
ECONOMIZERS
AXRE-CAA30 (3 Position) and
AXRD-CAM10 (Fully Modulating) for
RQNL-/RQPL- Series
Downflow Application
AXRF-FAA1 (Fixed - 0-35%)
The 0-35% manual outside Air Damper is designed to replace
the unit return air duct cover. No drilling or damper assembly is
required. The amount of outside air (0-35%) is controlled by sim-
ply adjusting the side damper.
AXRF-FAB1 (Motorized - 0-35%)
The 0-35% motorized outside Air Damper is designed to replace
the unit return air duct cover. No drilling or damper assembly is
required. The control motor opens the adjustable slide damper
when the unit blower motor is energized.
FRESH AIR DAMPER FOR USE ON
RQNL-/RQPL- SERIES
Air Accessories
RQNL/RQPL Series
39
AXRD-CCM10 (Fully Modulating)
Provided with enthalpy control, mixed
air sensor and minimum position poten-
tiometer for proportioning (mod ulat ing)
the amount of fresh air.
AXRE-CCA30 (3-Position)
Has outdoor air sensor, minimum position
potentiometer, and mixed air sensor to
provide three damper positions.
[ ] Designates Metric Conversions
ECONOMIZERS
AXRD-CCM10 (Fully Modulating) and
AXRE-CCA30 (3 Position)
Horizontal Application
Air Accessories
RQNL/RQPL Series
40
680 [321]
850 [401]
1020 [481]
1190 [562]
1275 [602] 1500 [708]
1400 [661]
1200 [566]
1000 [472]
800 [378]
1650 [779]
1540 [727]
1320 [623]
1100 [519]
880 [415]
1700 [802] 2000 [944] 2200 [1039]
510 [241] 600 [283] 660 [311]
Minimum
Airflow
Nominal
Airflow
Maximum
Airflow
CFM [L/s] Airflow Pressure Drop, Inches W.C. [kPa]
1" Filter 2" FilterCFM [L/s]
500 [236] .02 [.0050] .03 [.0075]
600 [283] .02 [.0050] .03 [.0075]
700 [330] .03 [.0075] .04 [.0010]
800 [378] .04 [.0010] .05 [.0124]
900 [425] .05 [.0124] .06 [.0149]
1000 [472] .07 [.0174] .08 [.0199]
1100 [519] .08 [.0199] .09 [.0224]
1200 [566] .10 [.0249] .12 [.0299]
1300 [614] .13 [.0324] .15 [.0373]
1400 [661] .16 [.0398] .19 [.0473]
1500 [708] .19 [.0473] .21 [.0523]
1600 [755] .20 [.0498] .23 [.0572]
1700 [802] .21 [.0523] .24 [.0598]
1800 [850] .22 [.0548] .25 [.0623]
1900 [897] .24 [.0598] .27 [.0672]
2000 [944] .26 [.0647] .29 [.0722]

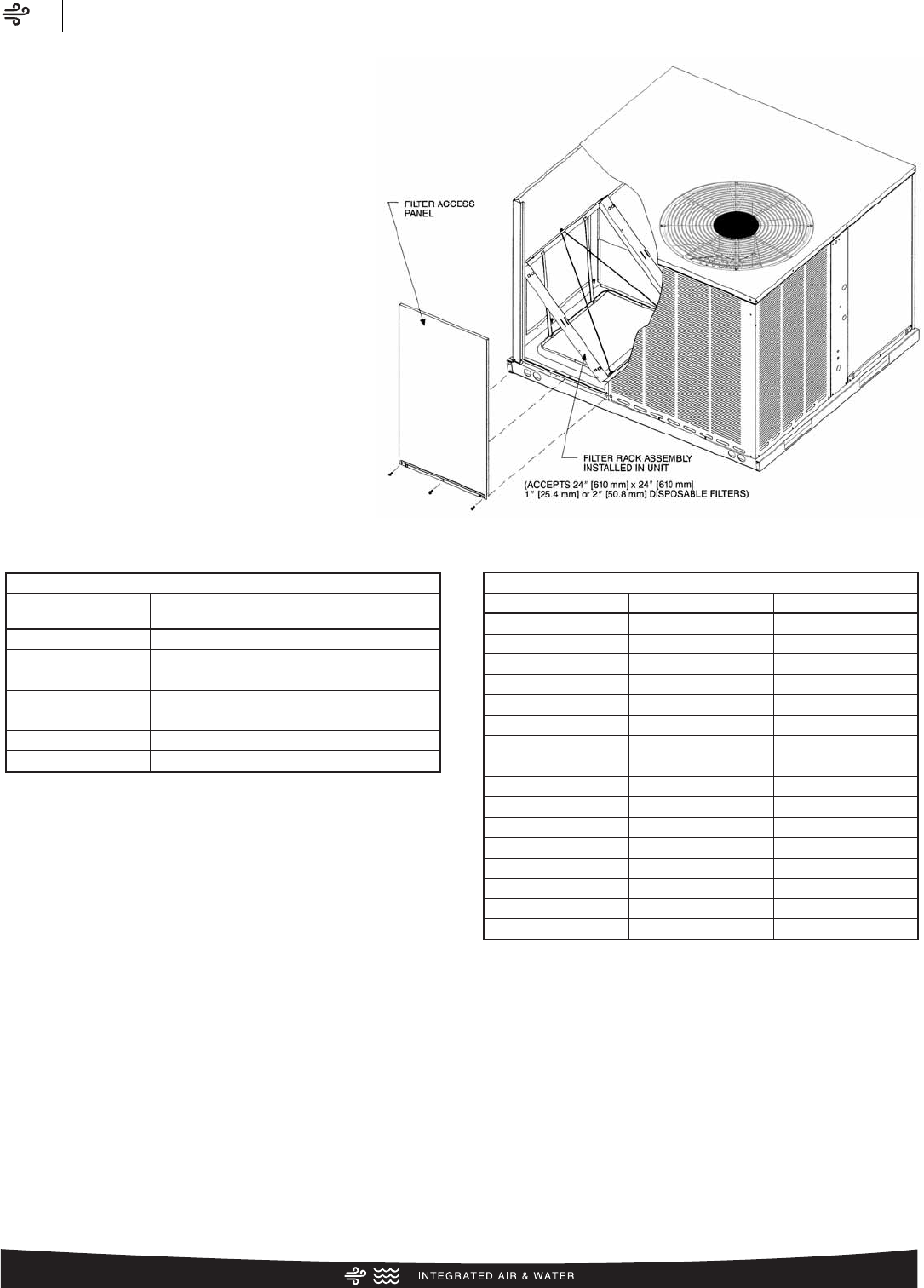

FILTER KIT INSTALLATION
RXRY-B01
For use in either vertical
or horizontal discharge.
[ ] Designates Metric Conversions[ ] Designates Metric Conversions
Air Accessories
RQNL/RQPL Series
41

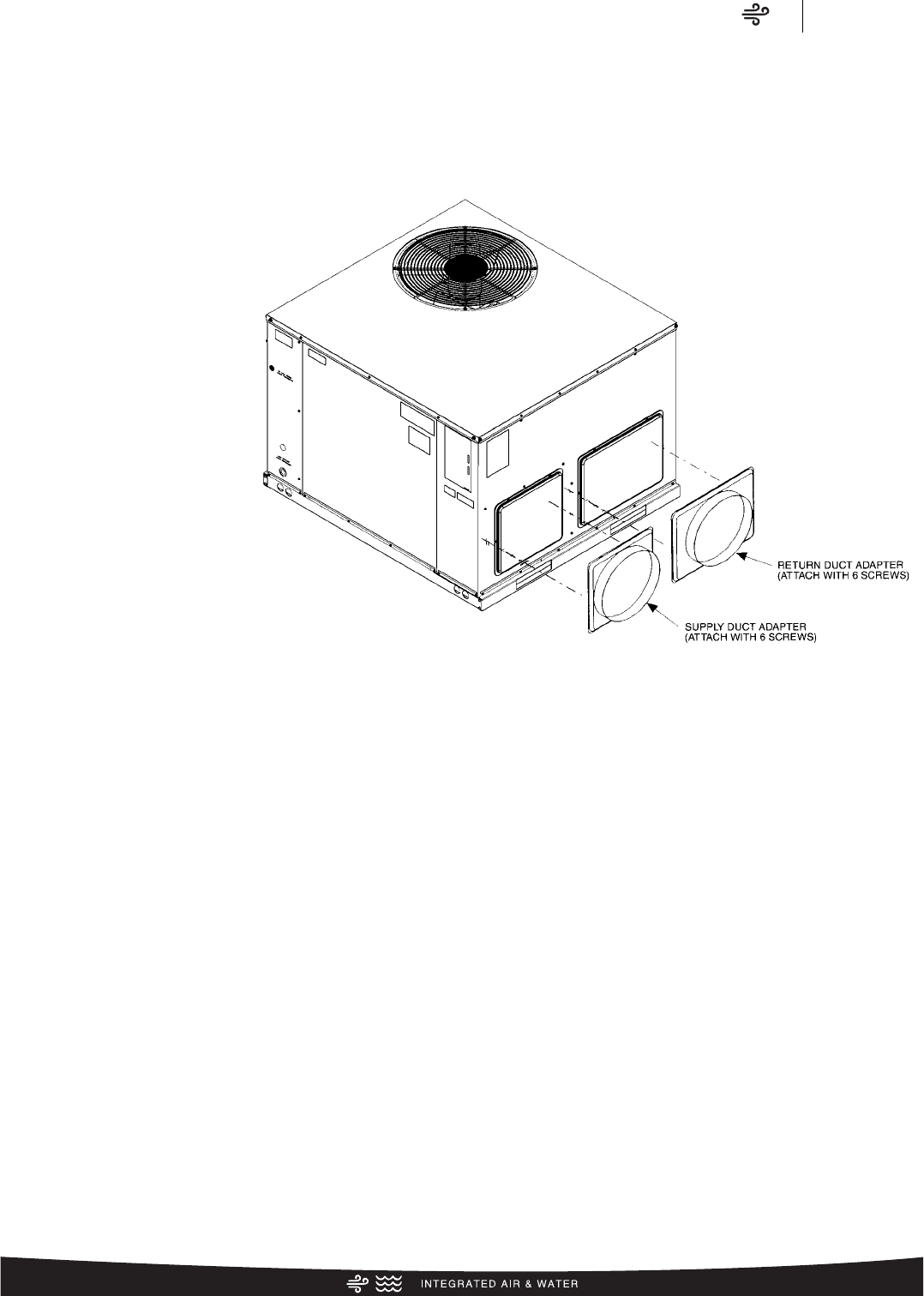

DUCT ADAPTER SIDEFLOW
SQUARE TO ROUND TRANSITION
AXMC-BA01
Adapts the side rectangular supply and return openings to 14"
[356 mm] diameter round openings. Adapters provided with
same finish as unit and also provided with thermal insulation.
[ ] Designates Metric Conversions
Air Accessories
RQNL/RQPL Series
42
RXQG-AAA14
(14" [356 mm] High)
Roofcurb (Sloped)
RXQG-AAA14 & RXQG-AAA24
for RQNL-/RQPL- Series
Note: Heat pump models must
use sloped curbs.
Hinged corners make
for fast, easy set-up.
RXQG-AAA24
(24" [610 mm] High)
[ ] Designates Metric Conversions
OUTDOOR FAN GRILLE�
AND COMPRESSOR ACCESS
CONTROL�
ACCESS PANEL
LIQUID PRESSURE�
SERVICE PORT
SUCTION PRESSURE�
SERVICE PORT
IMPORTANT: UNIT MUST BE LEVEL TO �
PREVENT WATER MIGRATION
OUTDOOR COIL�
PROTECTIVE GRILLE
THREADED PVC CONDENSATE�
DRAIN CONNECTION (3/4" [19.05 mm] N.P.T.)
5"�
[127 mm]
207/8"
[530.2 mm]
Packaged Heat Pump
Roofcurb Installation (Sloped)
Air Accessories
RQNL/RQPL Series
43
ONLY 1 CABINET SIZE—
ALL MODELS
RQNL-/
RQPL-
OLD MODEL PACKAGE
HEAT PUMP
OLD CURB MODEL NEW MODEL TO OLD MODEL
ROOFCURB ADAPTER
NEW MODEL PACKAGE
HEAT PUMP
SMALL CABINET
20 SERIES
RXPX-BACCA20
RXPX-BACCA21
RXPX-BCCCA23
(11/2-2 TON) [5.28-7.03 kW]
RPNC-
RPND-
RXPA-CA21
MEDIUM CABINET
21 SERIES
(21/2-3 TON) [8.79-10.55 kW]
RPNC-
RPND-
RXPA-CA23
EXTRA LARGE CABINET
23 SERIES
(31/2-5 TON) [12.31-17.58 kW]
RPNC-
RPND-
RXPA-CA20
[ ] Designates Metric Conversions
ROOFCURB ADAPTERS
Fabricated from galvanized steel to adapt the New cabinet to the old style curb. All are furnished with a New gasket.
Air Wiring Diagrams
RQNL Series
44
Air Wiring Diagrams
RQNL Series
45
Air Wiring Diagrams
RQNL Series
46
Air Wiring Diagrams
RQNL Series
47
Air Wiring Diagrams
RQNL Series
48
Air Limited Warranty
RQNL/RQPL Series
49
BEFORE PURCHASING THIS APPLIANCE, READ IMPORTANT ENERGY COST AND EFFICIENCY INFORMATION AVAILABLE FROM
YOUR RETAILER.
Rheem will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
periods stated, in accordance with the terms of the limited
warranty.
*For Complete Details of the Limited Warranty, Including Applicable
Terms and Conditions, See Your Local Installer or Contact the
Manufacturer for a Copy.
Conditional Parts (Registration Required)
1 Phase, Residential Applications ..................Ten (10) Years
Compressor
1 Phase, Residential Applications...................Ten (10) Years
1 & 3 Phase, Commercial Applications ...........Five (5) Years
Parts
1 & 3 Phase, Commercial Applications .............One (1) Year
GENERAL TERMS OF LIMITED WARRANTY*
Air Notes
RQNL/RQPL Series
50
Air Notes
RQNL/RQPL Series
51
The new degree of comfort.
™
Rheem Heating, Cooling & Water Heating • P.O. Box 17010
Fort Smith, Arkansas 72917 • www.rheem.com
In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.
PRINTED IN U.S.A 02/12 QG FORM NO. P11-791
Rheem Canada Ltd./Ltée • 125 Edgeware Road, Unit 1
Brampton, Ontario • L6Y 0P5

Navigation menu
