Rheem Classic®Series Two-Stage
Upflow Gas Furnaces
FORM NO. G11-525
RGRL- Series
95% A.F.U.E. or Above
Input Rates of 45, 60, 75, 90 & 105 kBTU
[13.19, 17.58, 22, 26.38 & 30.77 kW]
With Dual Comfort Control™
✝A.F.U.E. (Annual Fuel Utilization Efficiency) calculated in accordance with
Department of Energy test procedures.
• The Rheem Classic®Series 90 Plus with Dual Comfort
Control™line of upflow gas furnaces are designed for utility
rooms, closets, alcoves, or attics. Because of the low-profile
34 inch [864 mm] height, the upflow model can also be used
to satisfy most applications. The design is certified by CSA.
• Two stages of operation to save energy and maintain optimal
comfort level.
• Furnace operates at 70% capacity for low-heat and 100%
capacity for high-heat.
• Compatible with single or two-stage thermostat. (For optimal
performance a two-stage thermostat is recommended.)
• Heat exchanger is constructed of aluminized steel for maxi-
mum corrosion resistance and thermal fatigue reliability.
• Low profile “34 inch” design is lighter and easier to handle
and leaves room for optional accessories.
• Left or right side gas, electric, and condensate drainage
connections.
• Integrated control board manages all operational functions
and provides hookups for humidifier and electronic air
cleaner.
• An insulated blower compartment, a slow-opening gas valve
and a specially designed inducer system make it one of the
quietest furnaces on the market today.
• Features a Limited Lifetime Warranty on the primary and
secon dary heat exchanger and a 10-Year Limited Warranty
on all other parts.
• Molded permanent filters.
• Optional indoor or outdoor combustion air. In addition, com-
bustion air may be piped to either the top or side of the cabi-
net on all upflow models. A special molded fitting is provided
to ease installation.
• Dual certified for sealed combustion (2-pipe) or non-direct
(1-pipe) applications.
• Solid bottom is standard.
• Control board diagnostics.
• A variety of cooling coils and plenums designed to use with
the Rheem Classic®Series 90 Plus gas furnaces are available
as optional accessories for air conditioning models.
Air Gas Furnaces
RGRL Series
Air Table of Contents
RGRL Series
2

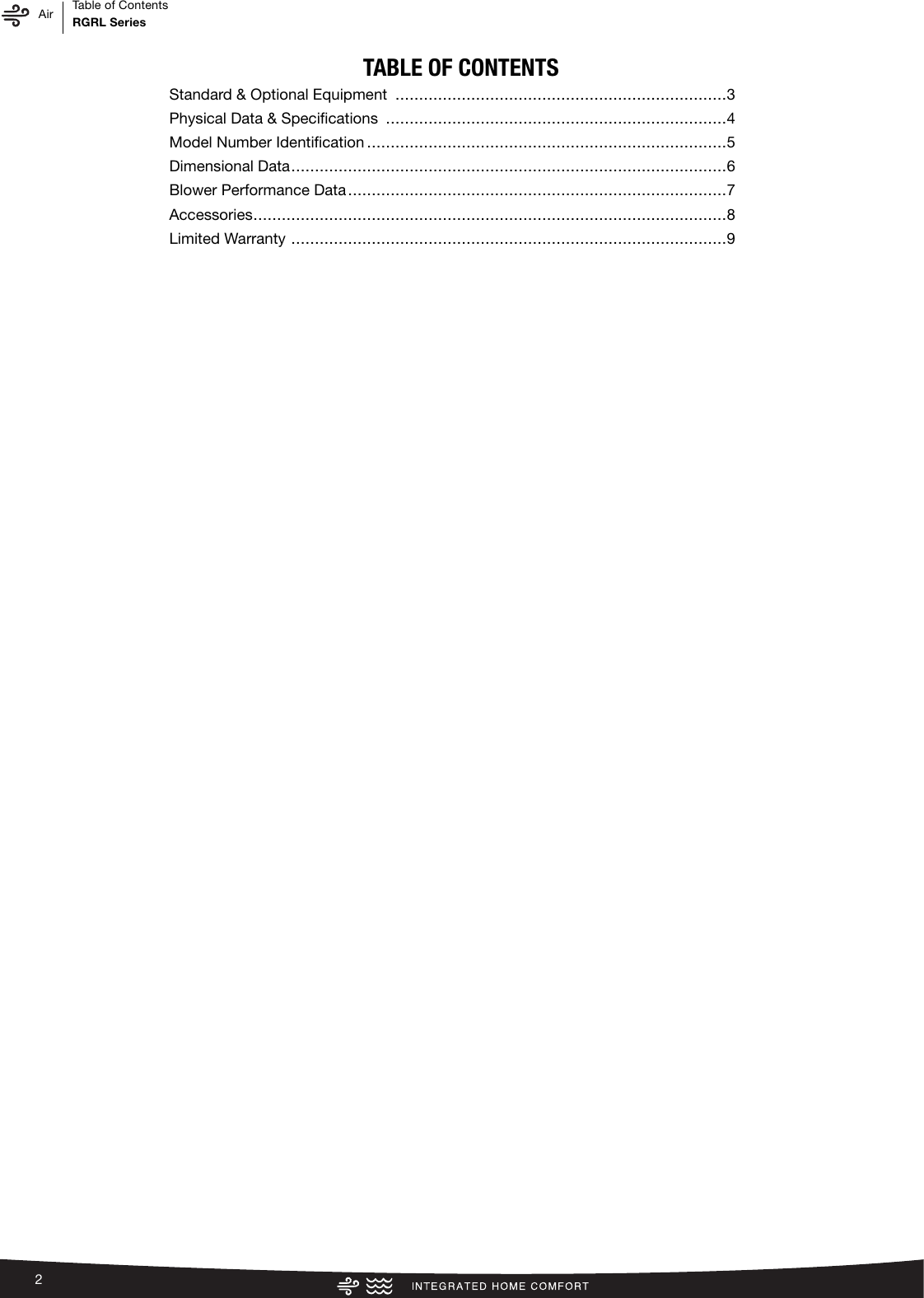

TABLE OF CONTENTS
Standard & Optional Equipment ......................................................................3
Physical Data & Specifications ........................................................................4
Model Number Identification ............................................................................5
Dimensional Data............................................................................................6
Blower Performance Data ................................................................................7

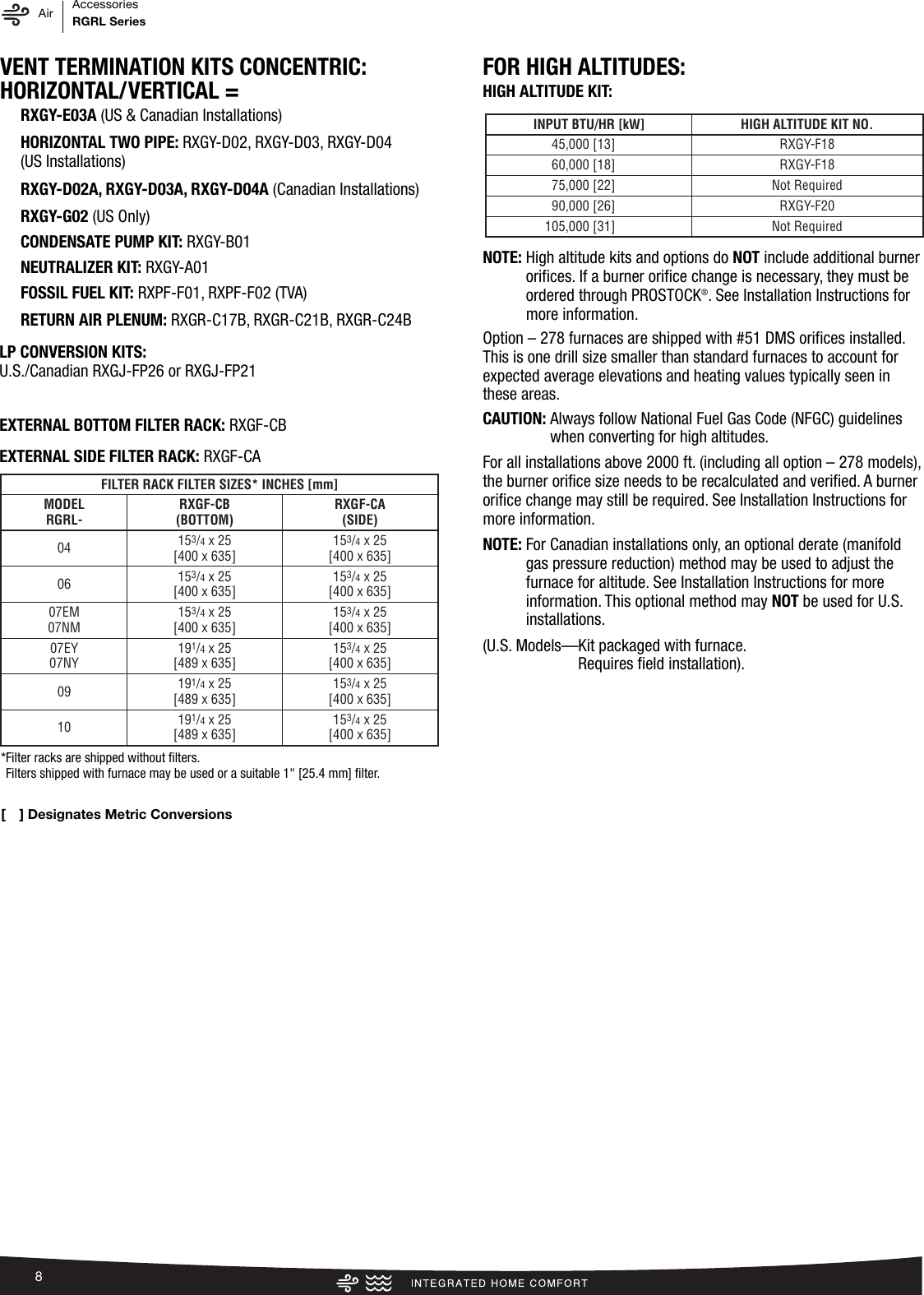

Accessories....................................................................................................8
Limited Warranty ............................................................................................9
Air Standard & Optional Equipment
RGRL Series
3
WARNING
THIS FURNACE IS NOT APPROVED
OR RECOMMENDED
FOR USE IN MOBILE HOMES
PRIMARY AND SECONDARY
HEAT EXCHANGER
REMOTE
SENSOR
IN-SHOT BURNERS
PRESSURE SWITCHES
DRAFT INDUCER
INTEGRATED
FURNACE
CONTROL
GAS VALVE AND
MANIFOLD
DIRECT SPARK IGNITION &
REMOTE SENSOR
STANDARD EQUIPMENT
Completely assembled and wired; heat exchanger; primary:
aluminized steel, secondary: 29-4C stainless steel; induced
draft; pressure switches; redundant main gas control; blower
compartment door safety switch; solid state time on/off
blower control; limit controls; manual shut-off valve; 100%
safety lock out; cool fan off delay; field selectable heat fan off
delay; one hour automatic retry; power and self-test diagnos-
tics; flame sense current diagnostics; electronic air cleaner
connections; twinning (built-in) features; humidifier connec-
tions; humidifier on/off delay; low speed continuous fan option;
single speed option for heating and cooling applications; pres-
sure regulator for natural and L.P. (propane) gasses; trans-
former; direct drive, multi-speed blower motor. (Please note: a
thermostat is not included as standard equipment.)
OPTIONAL EQUIPMENT
Side and bottom filter racks; return air cabinet for all sizes.
NOTE: Furnace is not listed for use with fuels other than natural
or L.P. (propane) gas.
All models can be converted by a qualified distributor or local
service dealer to use L.P. (propane) gas without changing burn-
ers. Factory approved kits must be used to convert from natural
to L.P. (propane) gas and may be ordered as optional acces-
sories from a parts distributor.
For L.P. (propane) operation, refer to Conversion Kit Index Form.

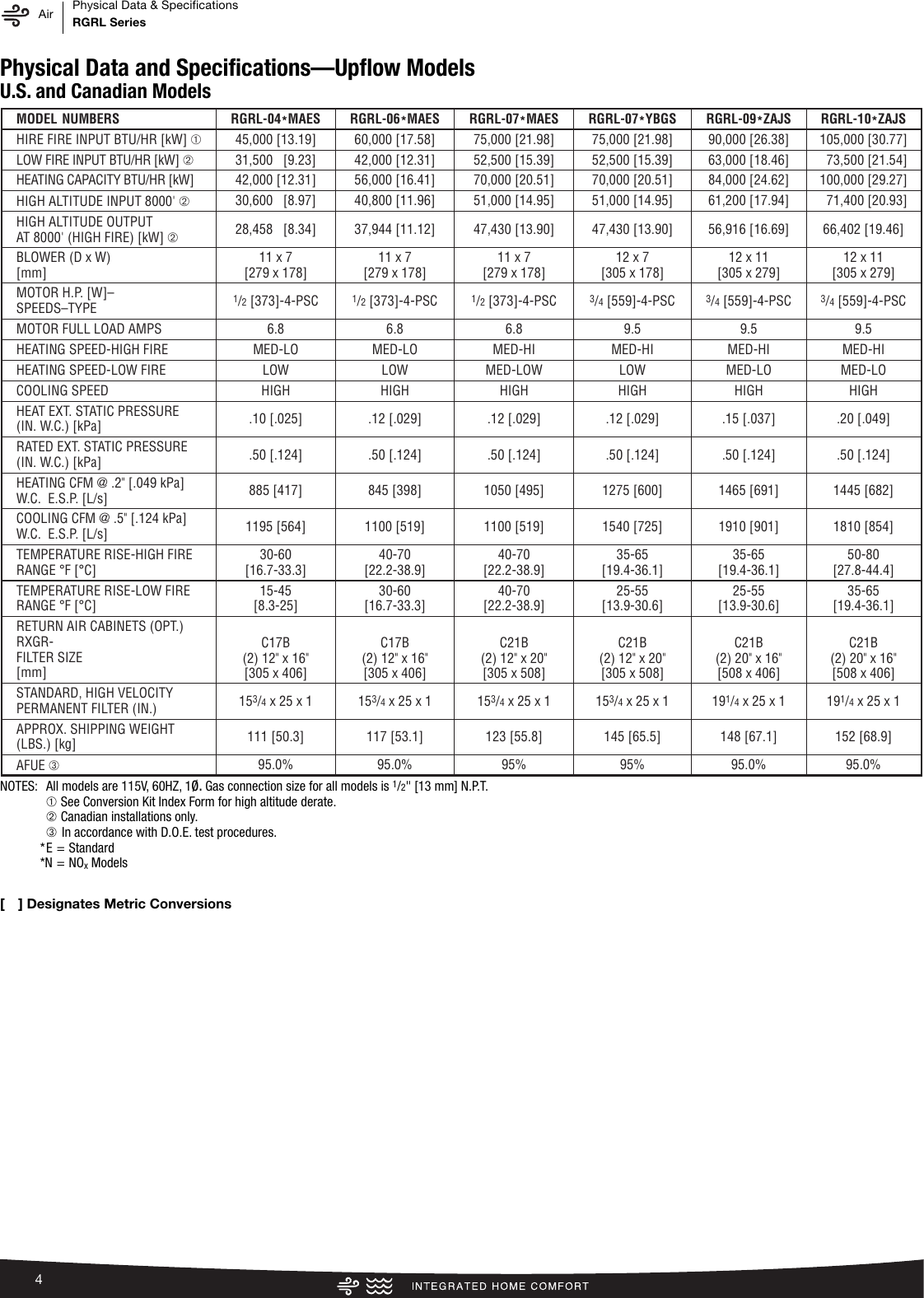

Air Physical Data & Specifications
RGRL Series
4
MODEL NUMBERS RGRL-04*MAES RGRL-06*MAES RGRL-09*ZAJS
HIRE FIRE INPUT BTU/HR [kW] ➀45,000 [13.19] 60,000 [17.58] 90,000 [26.38]
LOW FIRE INPUT BTU/HR [kW] ➁31,500 [9.23] 42,000 [12.31] 63,000 [18.46]
HIGH ALTITUDE INPUT 8000' ➁30,600 [8.97] 40,800 [11.96] 61,200 [17.94]
HIGH ALTITUDE OUTPUT
AT 8000' (HIGH FIRE) [kW] ➁28,458 [8.34] 37,944 [11.12] 56,916 [16.69]
BLOWER (D x W)
[mm]
11 x 7
[279 x 178]
11 x 7
[279 x 178]
12 x 11
[305 x 279]
MOTOR H.P. [W]–
SPEEDS–TYPE 1/2[373]-4-PSC 1/2[373]-4-PSC 3/4[559]-4-PSC
MOTOR FULL LOAD AMPS 6.8 6.8 9.5
HEATING SPEED-HIGH FIRE MED-LO MED-LO MED-HI
COOLING SPEED HIGH HIGH HIGH
HEAT EXT. STATIC PRESSURE
(IN. W.C.) [kPa] .10 [.025] .12 [.029] .15 [.037]
RATED EXT. STATIC PRESSURE
(IN. W.C.) [kPa] .50 [.124] .50 [.124] .50 [.124]
HEATING CFM @ .2" [.049 kPa]
W.C. E.S.P. [L/s] 885 [417] 845 [398] 1465 [691]
COOLING CFM @ .5" [.124 kPa]
W.C. E.S.P. [L/s] 1195 [564] 1100 [519] 1910 [901]
TEMPERATURE RISE-HIGH FIRE
RANGE °F [°C]
30-60
[16.7-33.3]
40-70
[22.2-38.9]
35-65
[19.4-36.1]
APPROX. SHIPPING WEIGHT
(LBS.) [kg] 111 [50.3] 117 [53.1] 148 [67.1]
AFUE ➂95.0% 95.0% 95.0%
RETURN AIR CABINETS (OPT.)
RXGR-
FILTER SIZE
[mm]
C17B
(2) 12" x 16"
[305 x 406]
C17B
(2) 12" x 16"
[305 x 406]
C21B
(2) 20" x 16"
[508 x 406]
STANDARD, HIGH VELOCITY
PERMANENT FILTER (IN.) 153/4x 25 x 1 153/4x 25 x 1 191/4x 25 x 1
HEATING CAPACITY BTU/HR [kW] 42,000 [12.31] 56,000 [16.41] 84,000 [24.62]
TEMPERATURE RISE-LOW FIRE
RANGE °F [°C]
15-45
[8.3-25]
30-60
[16.7-33.3]
25-55
[13.9-30.6]
HEATING SPEED-LOW FIRE LOW LOW MED-LO
RGRL-07*MAES
153/4x 25 x 1
75,000 [21.98]
52,500 [15.39]
51,000 [14.95]
70,000 [20.51]
47,430 [13.90]
11 x 7
[279 x 178]
1/2[373]-4-PSC
40-70
[22.2-38.9]
6.8
MED-HI
MED-LOW
HIGH
.12 [.029]
.50 [.124]
1050 [495]
1100 [519]
40-70
[22.2-38.9]
123 [55.8]
95%
C21B
(2) 12" x 20"
[305 x 508]
RGRL-07*YBGS
153/4x 25 x 1
75,000 [21.98]
52,500 [15.39]
51,000 [14.95]
70,000 [20.51]
47,430 [13.90]
12 x 7
[305 x 178]
3/4[559]-4-PSC
25-55
[13.9-30.6]
9.5
MED-HI
LOW
HIGH
.12 [.029]
.50 [.124]
1275 [600]
1540 [725]
35-65
[19.4-36.1]
145 [65.5]
95%
C21B
(2) 12" x 20"
[305 x 508]
RGRL-10*ZAJS
105,000 [30.77]
191/4x 25 x 1
73,500 [21.54]
71,400 [20.93]
66,402 [19.46]
100,000 [29.27]
12 x 11
[305 x 279]
3/4[559]-4-PSC
9.5
35-65
[19.4-36.1]
MED-HI
HIGH
MED-LO
.20 [.049]
.50 [.124]
1445 [682]
1810 [854]
50-80
[27.8-44.4]
152 [68.9]
95.0%
C21B
(2) 20" x 16"
[508 x 406]
NOTES: All models are 115V, 60HZ, 1
ø.
Gas connection size for all models is 1/2" [13 mm] N.P.T.
➀See Conversion Kit Index Form for high altitude derate.
➁ Canadian installations only.
➂In accordance with D.O.E. test procedures.
*E = Standard
*N = NOxModels
[ ] Designates Metric Conversions
Physical Data and Specifications—Upflow Models
U.S. and Canadian Models

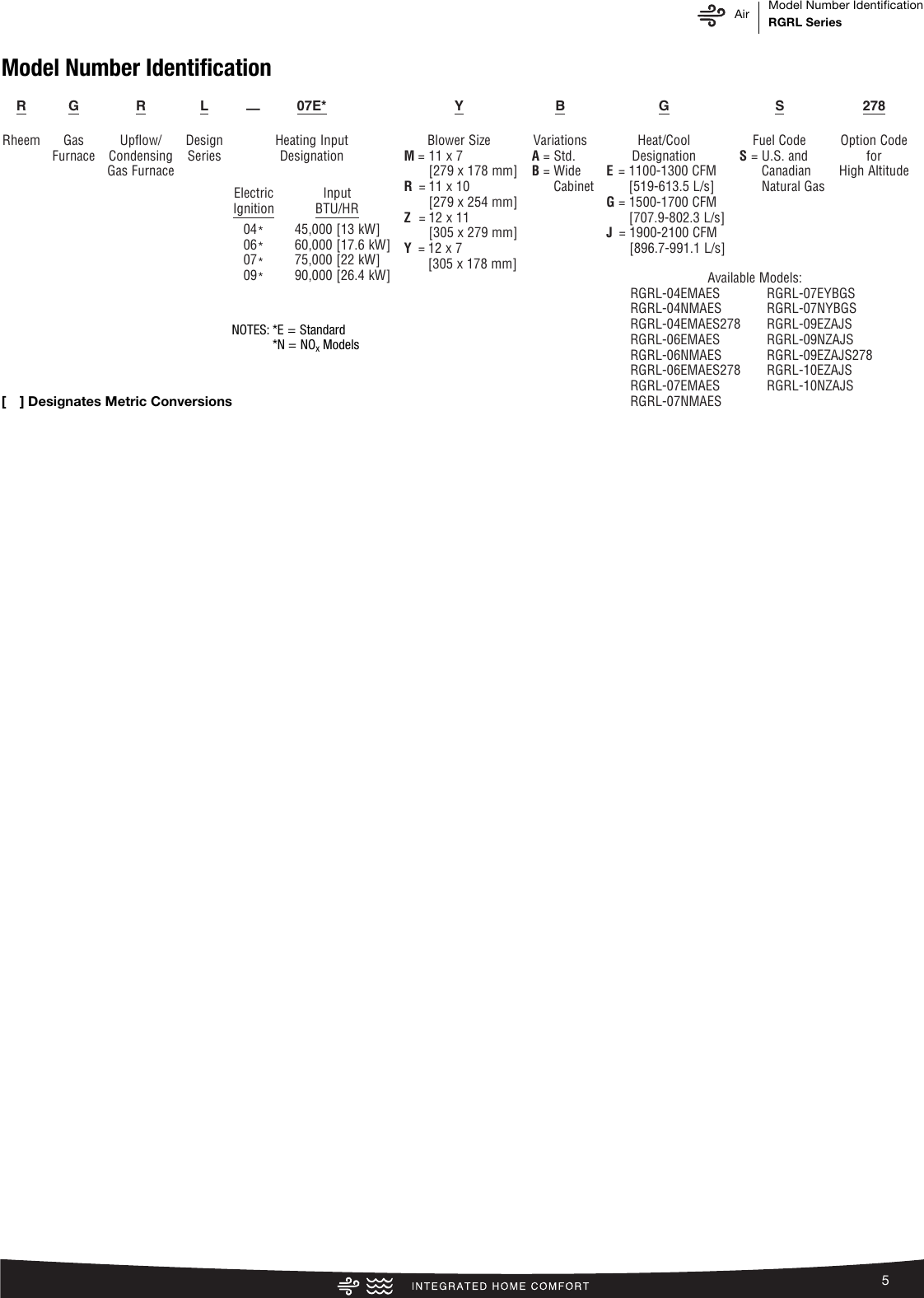

Air Model Number Identification
RGRL Series
5
Model Number Identification
R G R L 07E* BY G S
Rheem Gas
Furnace
Upflow/
Condensing
Gas Furnace
Design
Series
Heating Input
Designation
Variations
A= Std.
B= Wide
Cabinet
Blower Size
M= 11 x 7
[279 x 178 mm]
R= 11 x 10
[279 x 254 mm]
Z= 12 x 11
[305 x 279 mm]
Y= 12 x 7
[305 x 178 mm]
Heat/Cool
Designation
E= 1100-1300 CFM
[519-613.5 L/s]
G= 1500-1700 CFM
[707.9-802.3 L/s]
J= 1900-2100 CFM
[896.7-991.1 L/s]
Fuel Code
S= U.S. and
Canadian
Natural Gas
Electric
Ignition
04*
06*
07*
09*
Input
BTU/HR
45,000 [13 kW]
60,000 [17.6 kW]
75,000 [22 kW]
90,000 [26.4 kW]
278
Option Code
for
High Altitude
—
Available Models:
RGRL-04EMAES RGRL-07EYBGS
RGRL-04NMAES RGRL-07NYBGS
RGRL-04EMAES278 RGRL-09EZAJS
RGRL-06EMAES RGRL-09NZAJS
RGRL-06NMAES RGRL-09EZAJS278
RGRL-06EMAES278 RGRL-10EZAJS
RGRL-07EMAES RGRL-10NZAJS
RGRL-07NMAES
NOTES: *E = Standard
*N = NOxModels
[ ] Designates Metric Conversions

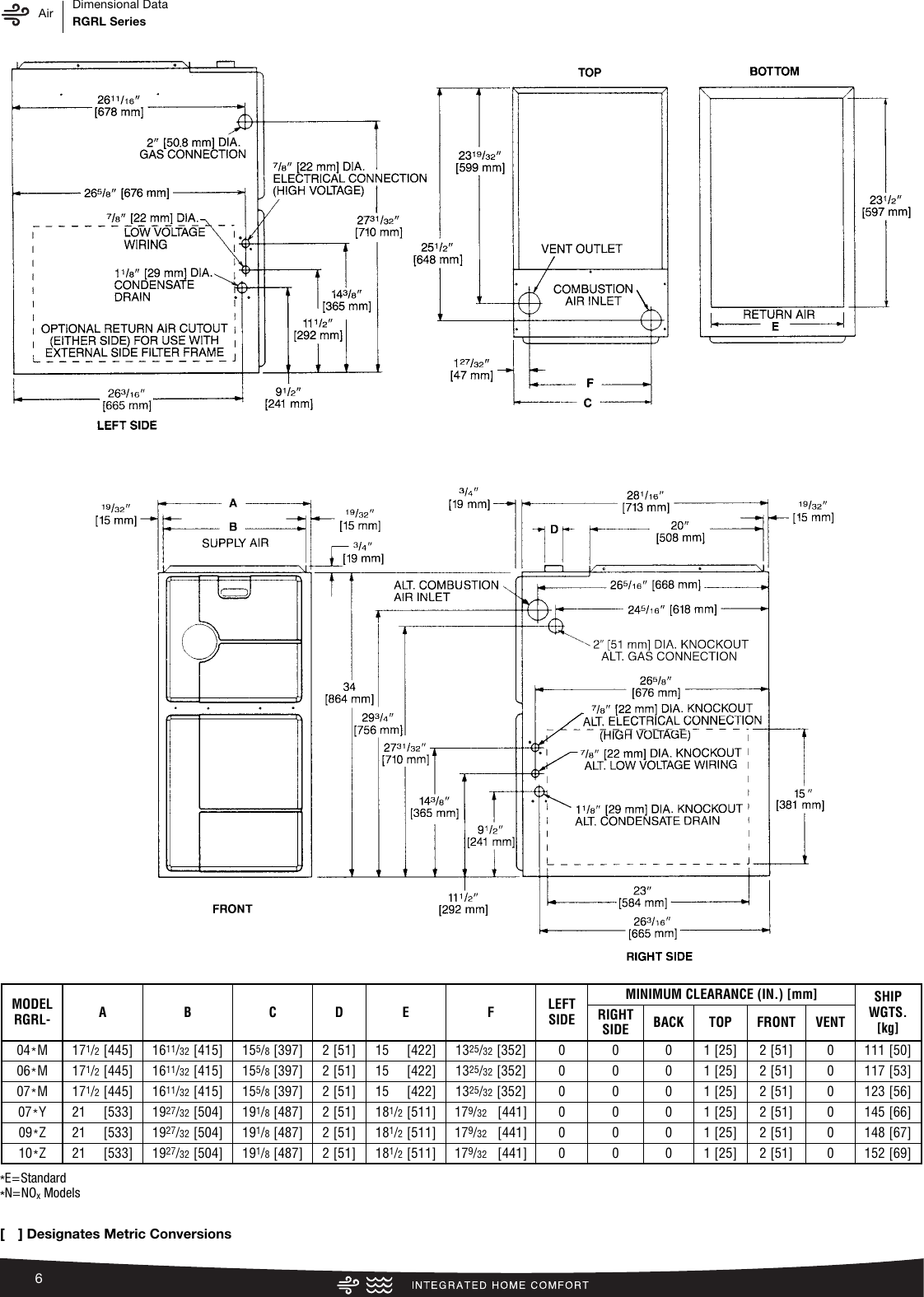

Air Dimensional Data
RGRL Series
6
MODEL
RGRL- A B C D E F LEFT
SIDE
MINIMUM CLEARANCE (IN.) [mm] SHIP
WGTS.
[kg]
RIGHT
SIDE BACK TOP FRONT VENT
04*M 171/2[445] 1611/32 [415] 155/8[397] 2 [51] 15 [422] 1325/32 [352] 0 0 0 1 [25] 2 [51] 0111 [50]
06*M 171/2[445] 1611/32 [415] 155/8[397] 2 [51] 15 [422] 1325/32 [352] 0 0 0 1 [25] 2 [51] 0117 [53]
07*Y 21 [533] 1927/32 [504] 191/8[487] 2 [51] 181/2[511] 179/32 [441] 0 0 0 1 [25] 2 [51] 0145 [66]
09*Z 21 [533] 1927/32 [504] 191/8[487] 2 [51] 181/2[511] 179/32 [441] 0 0 0 1 [25] 2 [51] 0148 [67]
07*M 171/2[445] 1611/32 [415] 155/8[397] 2 [51] 15 [422] 1325/32 [352] 0 0 0 1 [25] 2 [51] 0123 [56]
10*Z21 [533] 1927/32 [504] 191/8[487] 2 [51] 181/2[511] 179/32 [441] 0 0 0 1 [25] 2 [51] 0152 [69]
*E=Standard
*N=NOxModels
[ ] Designates Metric Conversions

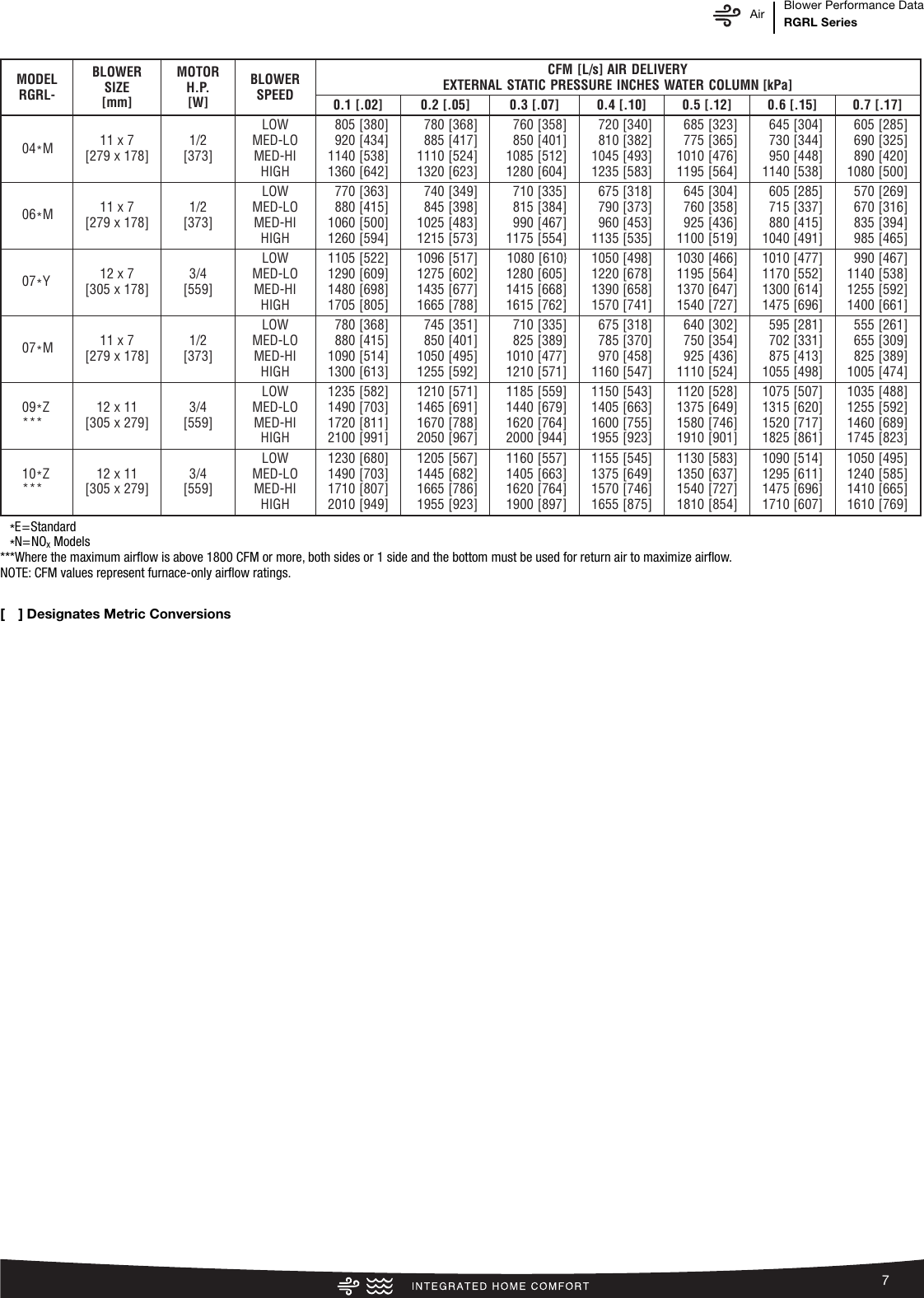

Air Blower Performance Data
RGRL Series
7
MODEL
RGRL-
BLOWER
SIZE
[mm]
MOTOR
H.P.
[W]
BLOWER
SPEED
CFM [L/s] AIR DELIVERY
EXTERNAL STATIC PRESSURE INCHES WATER COLUMN [kPa]
07*Y12 x 7
[305 x 178]
3/4
[559]
LOW
MED-LO
MED-HI
HIGH
1105 [522]
1290 [609]
1480 [698]
1705 [805]
1096 [517]
1275 [602]
1435 [677]
1665 [788]
1080 [610}
1280 [605]
1415 [668]
1615 [762]
1050 [498]
1220 [678]
1390 [658]
1570 [741]
1030 [466]
1195 [564]
1370 [647]
1540 [727]
1010 [477]
1170 [552]
1300 [614]
1475 [696]
0.1 [.02] 0.2 [.05] 0.3 [.07] 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17]
04*M11 x 7
[279 x 178]
1/2
[373]
LOW
MED-LO
MED-HI
HIGH
805 [380]
920 [434]
1140 [538]
1360 [642]
780 [368]
885 [417]
1110 [524]
1320 [623]
760 [358]
850 [401]
1085 [512]
1280 [604]
720 [340]
810 [382]
1045 [493]
1235 [583]
685 [323]
775 [365]
1010 [476]
1195 [564]
645 [304]
730 [344]
950 [448]
1140 [538]
605 [285]
690 [325]
890 [420]
1080 [500]
06*M11 x 7
[279 x 178]
1/2
[373]
LOW
MED-LO
MED-HI
HIGH
770 [363]
880 [415]
1060 [500]
1260 [594]
740 [349]
845 [398]
1025 [483]
1215 [573]
710 [335]
815 [384]
990 [467]
1175 [554]
675 [318]
790 [373]
960 [453]
1135 [535]
645 [304]
760 [358]
925 [436]
1100 [519]
605 [285]
715 [337]
880 [415]
1040 [491]
570 [269]
670 [316]
835 [394]
985 [465]
990 [467]
1140 [538]
1255 [592]
1400 [661]
09*Z
***
12 x 11
[305 x 279]
3/4
[559]
LOW
MED-LO
MED-HI
HIGH
1235 [582]
1490 [703]
1720 [811]
2100 [991]
1210 [571]
1465 [691]
1670 [788]
2050 [967]
1185 [559]
1440 [679]
1620 [764]
2000 [944]
1150 [543]
1405 [663]
1600 [755]
1955 [923]
1120 [528]
1375 [649]
1580 [746]
1910 [901]
1075 [507]
1315 [620]
1520 [717]
1825 [861]
1035 [488]
1255 [592]
1460 [689]
1745 [823]
07*M11 x 7
[279 x 178]
1/2
[373]
LOW
MED-LO
MED-HI
HIGH
780 [368]
880 [415]
1090 [514]
1300 [613]
745 [351]
850 [401]
1050 [495]
1255 [592]
710 [335]
825 [389]
1010 [477]
1210 [571]
675 [318]
785 [370]
970 [458]
1160 [547]
640 [302]
750 [354]
925 [436]
1110 [524]
595 [281]
702 [331]
875 [413]
1055 [498]
555 [261]
655 [309]
825 [389]
1005 [474]
10*Z
***
12 x 11
[305 x 279]
3/4
[559]
LOW
MED-LO
MED-HI
HIGH
1230 [680]
1490 [703]
1710 [807]
2010 [949]
1205 [567]
1445 [682]
1665 [786]
1955 [923]
1160 [557]
1405 [663]
1620 [764]
1900 [897]
1155 [545]
1375 [649]
1570 [746]
1655 [875]
1130 [583]
1350 [637]
1540 [727]
1810 [854]
1090 [514]
1295 [611]
1475 [696]
1710 [607]
1050 [495]
1240 [585]
1410 [665]
1610 [769]
***E=Standard
***N=NOxModels
***Where the maximum airflow is above 1800 CFM or more, both sides or 1 side and the bottom must be used for return air to maximize airflow.
NOTE: CFM values represent furnace-only airflow ratings.
[ ] Designates Metric Conversions
Air Accessories
RGRL Series
8
VENT TERMINATION KITS CONCENTRIC:
HORIZONTAL/VERTICAL =
RXGY-E03A (US & Canadian Installations)
HORIZONTAL TWO PIPE: RXGY-D02, RXGY-D03, RXGY-D04
(US Installations)
RXGY-D02A, RXGY-D03A, RXGY-D04A (Canadian Installations)
RXGY-G02 (US Only)
CONDENSATE PUMP KIT: RXGY-B01
NEUTRALIZER KIT: RXGY-A01
FOSSIL FUEL KIT: RXPF-F01, RXPF-F02 (TVA)
RETURN AIR PLENUM: RXGR-C17B, RXGR-C21B, RXGR-C24B
FILTER RACK FILTER SIZES* INCHES [mm]
MODEL
RGRL-
RXGF-CB
(BOTTOM)
04 153/4x 25
[400 x 635]
09 191/4x 25
[489 x 635]
RXGF-CA
(SIDE)
153/4x 25
[400 x 635]
153/4x 25
[400 x 635]
06 153/4x 25
[400 x 635]
153/4x 25
[400 x 635]
07EM
07NM
153/4x 25
[400 x 635]
153/4x 25
[400 x 635]
07EY
07NY
191/4x 25
[489 x 635]
153/4x 25
[400 x 635]
10 191/4x 25
[489 x 635]
153/4x 25
[400 x 635]
*Filter racks are shipped without filters.
Filters shipped with furnace may be used or a suitable 1" [25.4 mm] filter.
[ ] Designates Metric Conversions
NOTE: High altitude kits and options do NOT include additional burner
orifices. If a burner orifice change is necessary, they must be
ordered through PROSTOCK®. See Installation Instructions for
more information.
Option – 278 furnaces are shipped with #51 DMS orifices installed.
This is one drill size smaller than standard furnaces to account for
expected average elevations and heating values typically seen in
these areas.
CAUTION: Always follow National Fuel Gas Code (NFGC) guidelines
when converting for high altitudes.
For all installations above 2000 ft. (including all option – 278 models),
the burner orifice size needs to be recalculated and verified. A burner
orifice change may still be required. See Installation Instructions for
more information.
NOTE: For Canadian installations only, an optional derate (manifold
gas pressure reduction) method may be used to adjust the
furnace for altitude. See Installation Instructions for more
information. This optional method may NOT be used for U.S.
installations.
(U.S. Models—Kit packaged with furnace.
Requires field installation).
LP CONVERSION KITS:
U.S./Canadian RXGJ-FP26 or RXGJ-FP21
EXTERNAL BOTTOM FILTER RACK: RXGF-CB
EXTERNAL SIDE FILTER RACK: RXGF-CA
FOR HIGH ALTITUDES:
HIGH ALTITUDE KIT:
60,000 [18]
INPUT BTU/HR [kW] HIGH ALTITUDE KIT NO.
RXGY-F18
45,000 [13] RXGY-F18
90,000 [26] RXGY-F20
75,000 [22] Not Required
105,000 [31] Not Required
Air Limited Warranty
RGRL Series
9
GENERAL TERMS OF LIMITED WARRANTY*
Rheem will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
period stated, in accordance with the terms of the limited
warranty.
*For complete details of the Limited and Conditional Warranties, including
applicable terms and conditions, contact your local contractor or the
Manufacturer for a copy of the product warranty certificate.
Conditional Parts
(Registration Required) ...............................Ten (10) Years
Heat Exchanger .........................................Limited Lifetime

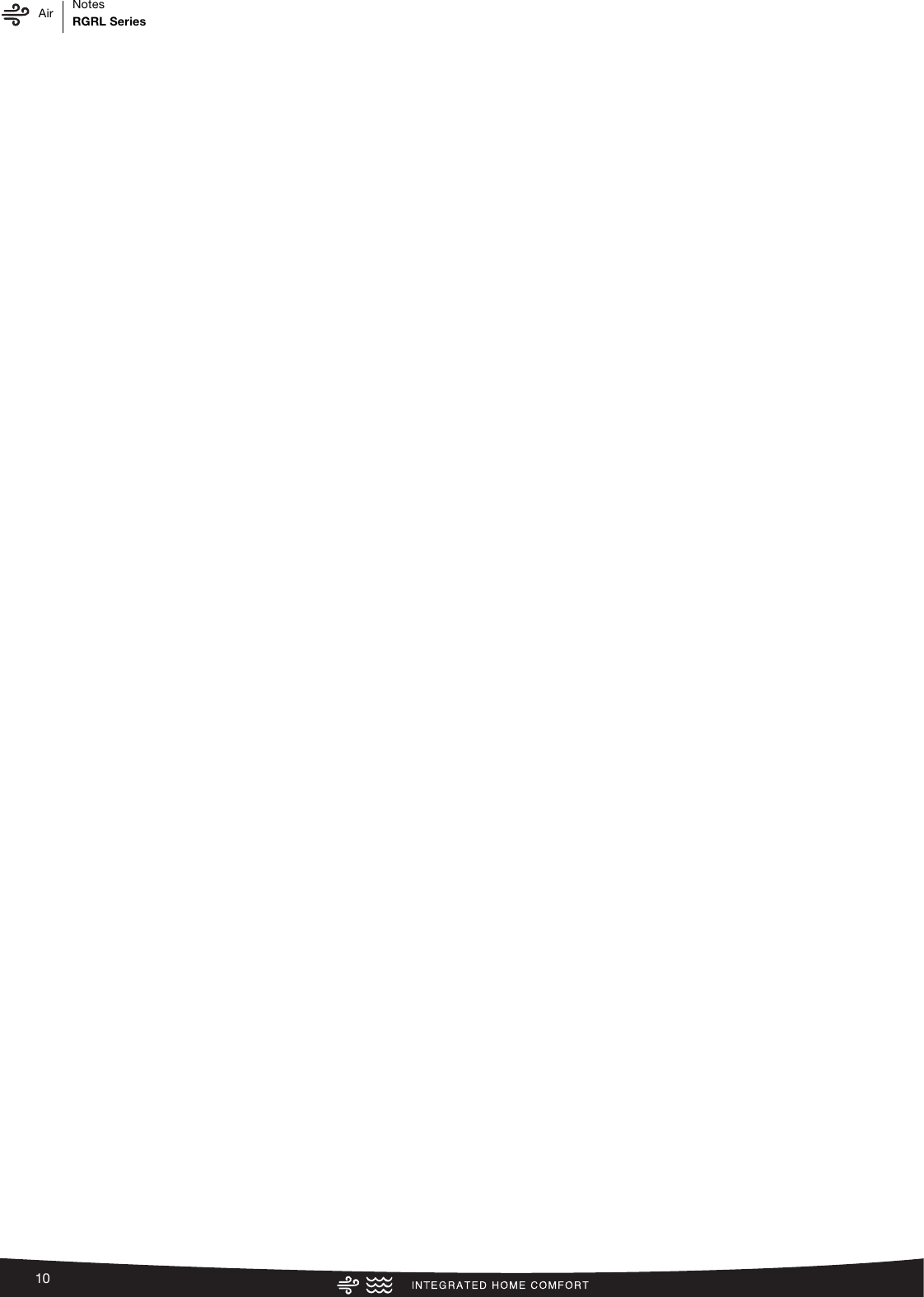

Air Notes
RGRL Series
10

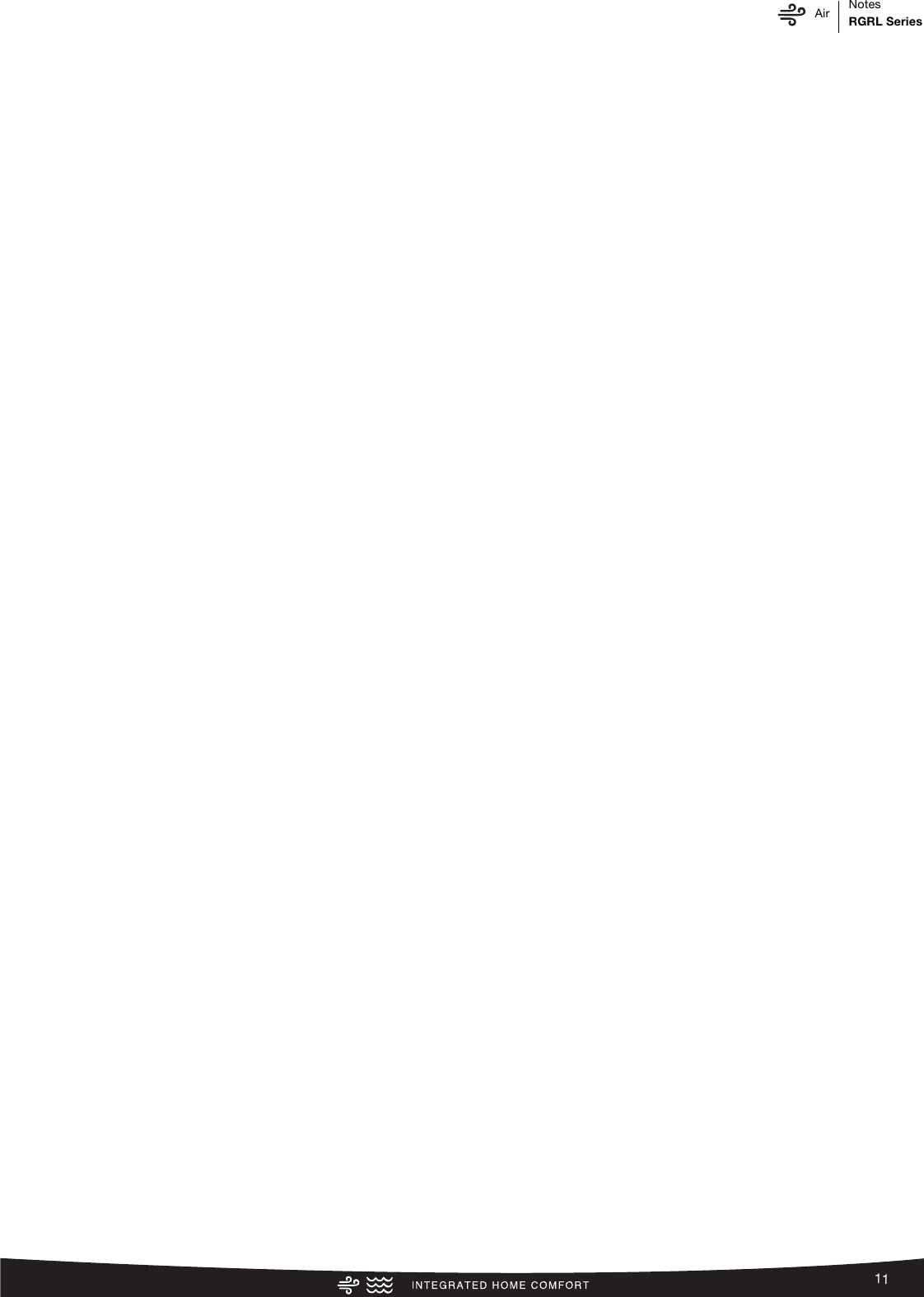

Air Notes
RGRL Series
11

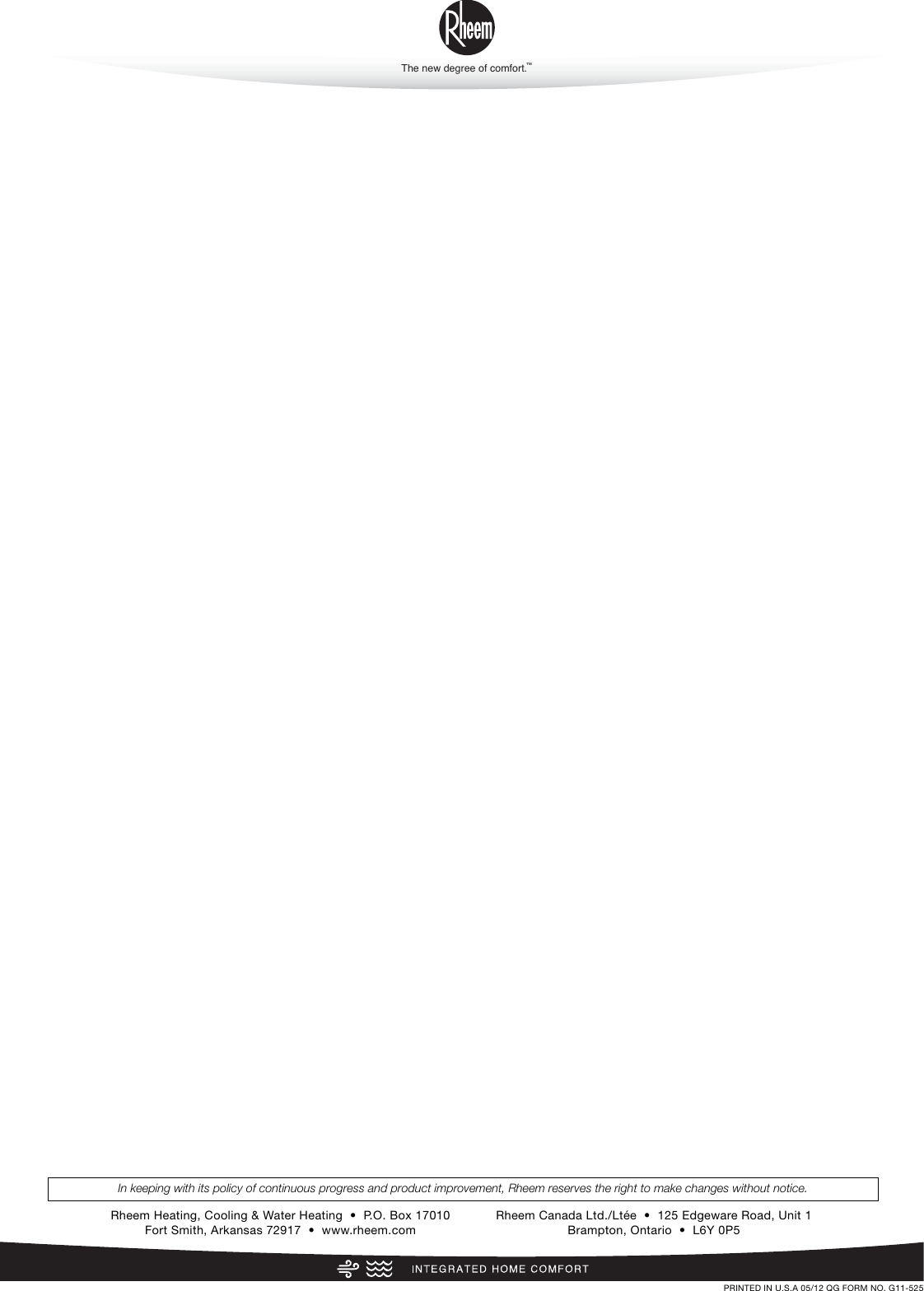

The new degree of comfort.
™
Rheem Heating, Cooling & Water Heating • P.O. Box 17010
Fort Smith, Arkansas 72917 • www.rheem.com
In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.
PRINTED IN U.S.A 05/12 QG FORM NO. G11-525
Rheem Canada Ltd./Ltée • 125 Edgeware Road, Unit 1
Brampton, Ontario • L6Y 0P5
