Rheem Prestige Series™Two-Stage
Air Conditioners equipped with
the Comfort Control2System™
FORM NO. A11-211
RASL- JEC Series
Efficiencies up to 18 SEER/14 EER
Nominal Sizes 2 to 5 Ton [7.03 to 17.6 kW]
Cooling Capacities 25.8 to 57.2
[7.56 to 16.76 kW]
• Industry’s lowest profile design: 33" maximum height
• The Comfort Control2System™ provides over 32+ on-board
diagnostics and fault history codes for condensing units with
single-phase compressors by detecting system and electrical
problems. The integrated diagnostics with Active Protection™
prevents compressor operation when potentially harmful
conditions are detected. Sends “Call for Service” alert notifi-
cation to the thermostat to alert the homeowner of required
service.
• Serial Communication Enhanced – When installed with a
Serial Communicating Air Handler (RHPL/RHPN-HM****JC)
and user interface control (RHC-TST501CMMS) Series 500
thermostat this unit offers 4 or 2 wire installation, auto-
configuration, and diagnostic messaging with full communi-
cating capability.
• Legacy Enabled – Unit can be conventionally wired using
24VAC with non-communicating Rheem Prestige air-handlers
or furnaces with non-communicating thermostat.
• Features a 10-year conditional unit replacement warranty and
10-year parts warranty when properly installed with a new
Rheem air handler or Rheem indoor coil with a Rheem gas
furnace. See product warranty card for additional information.
• Reliable Two-Stage operation for precise temperature control
with On-Demand dehumidification feature. When matched
with ECM gas furnace or air-handler, the system adjusts air-
flow to help control humidity for unsurpassed comfort in the
cooling mode.
• All controls are accessible by removing one service panel.
Removable top grille provides access to the condenser fan
motor and condenser coil.
• Attractive, louvered wrap-around jacket protects the coil
from yard hazards and weather extremes. Top grille is steel
reinforced for extra strength. Cabinet is powder painted for
all-weather protection.
• For quiet operation and improved efficiency, models feature
an ECM two-speed condenser fan motor with a 3-blade
outdoor fan.
• All models meet or exceed a 1000-hour salt spray test per
ASTM B117 Standard Practice for Operating Salt Spray
Testing Apparatus.
Air Air Conditioners
RASL- JEC Series
“Proper sizing and installation of equipment is critical to achieve
optimal performance. Ask your Contractor for details or visit
www.energystar.gov.”
Air Table of Contents
RASL- JEC Series
2
TABLE OF CONTENTS
Model Features ..............................................................................................3
Model Number Identification ............................................................................4
Accessories....................................................................................................4
Scroll Compressor ..........................................................................................4
Performance Data ......................................................................................5-38
Electrical & Physical Data ..............................................................................39
Unit Dimensions............................................................................................40
Refrigerant Line Size Information ..............................................................41-43
Limited Warranty ..........................................................................................44
Air Model Features
RASL- JEC Series
3

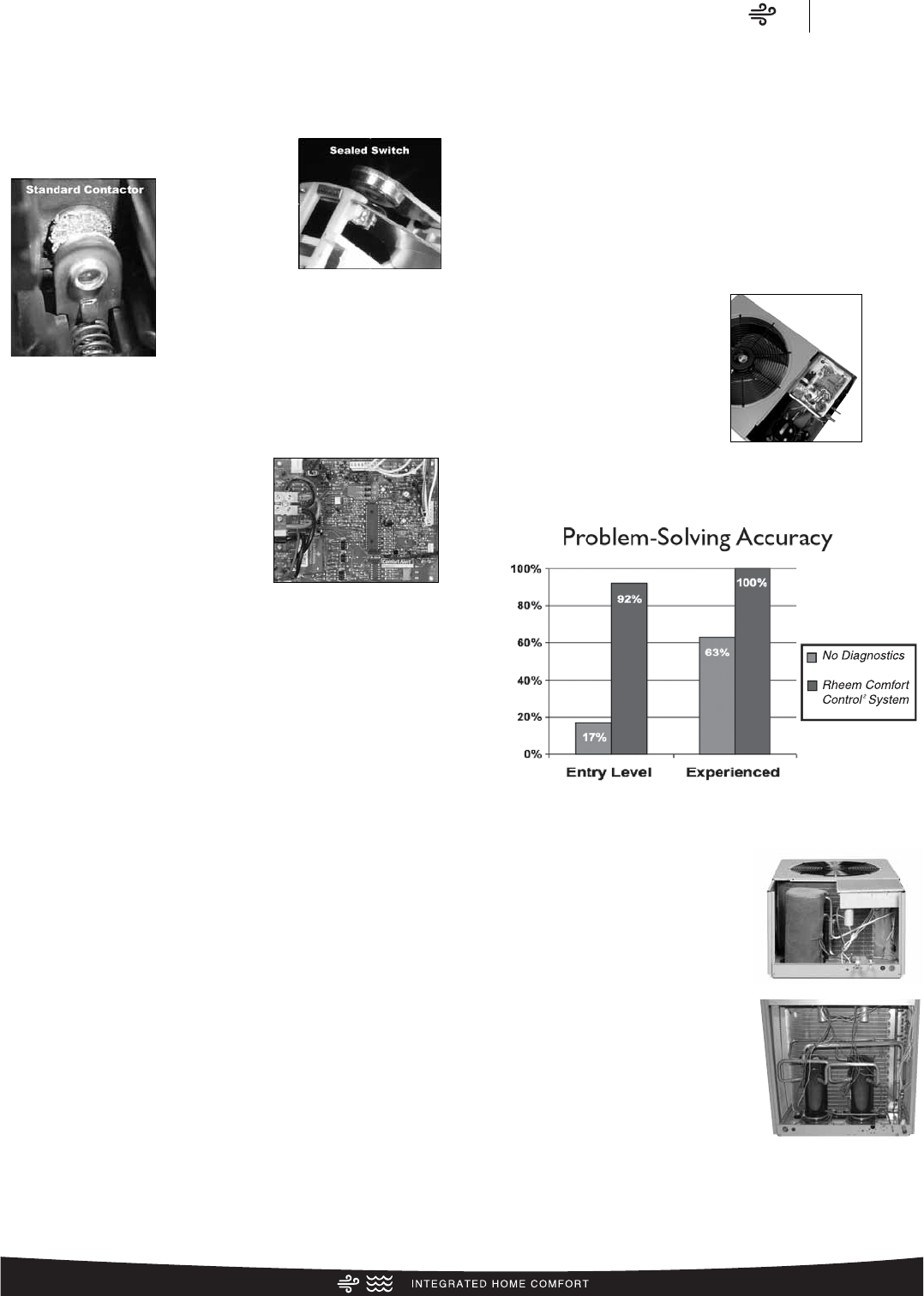

■The Rheem exclusive Dual 7-Segment LED Display easily
shows system operating status codes
and diagnostic codes.
■A Sealed Switch replaces the standard
contactor and
features optical
control and
latching mecha-
nism. The sealed
switch prevents
infiltration of
insects and dust. A minimal switching
arc, by the optical control, offers greater
reliability. The latching mechanism con-
sumes less power while reducing chatter.
■The Status Indication and System Diagnostics feature
thermostat communication capability, built-in diagnostics,
current sensing and high & low pressure switch monitor-
ing. The thermostat communication capability alerts the
homeowner to any necessary ser-
vice requirements. Faster, more
accurate service is provided by the
built-in diagnostics, by providing
the HVAC professional with
dependable information. In addition,
high and low pressure-switch moni-
toring prevents the system from
operating outside of its normal parameters.
■The fault recall feature will allow for the last six fault-codes
to be displayed, and will retain these codes even if power
failure occurs.
■Built-in short-cycle protection allows the compressor to
restart easily without oil removal.
■A 30-second minimum run-time for every compressor call
allows the oil to return to the compressor.
■Active Protection monitors the system to prevent nuisance
lockouts and prevents compressor operation when poten-
tially harmful conditions are detected.
■The compressor and fan are
controlled independently,
which reduces the starting load
and light dimming.
■A manual push-button is
offered to operate the com-
pressor and fan for 5 seconds
to allow for an operation
check.
■In order to save time and
money, replacement automotive fuses can be utilized
instead of replacing the entire control board.
Standard Features:
RASL- JEC Condensing Units
1. Scroll compressor is hermetically sealed and incorporates
internal high temperature motor overload protection, and
durable insulation on the motor windings. It is externally
mounted on rubber grommets to reduce vibration and noise.
2. Compressors have an internal pressure relief assembly to
protect against excessive pressure differential.
3. All refrigerant connections are on the exterior of the unit,
located close to the ground for neat appearing installations.
4. Cabinet is constructed of powder painted galvanized
steel. The full wrap-around louvered grille protects the coil
from damage.
5. Sound Blanket-enhanced compressor sound blanket is
standard.
6. Copper tube—aluminum fin coils are used on all models.
7. The control box is located in the top corner of the cabinet
providing for easy access through a service panel.
8. Service valves are standard on all models.
9. Field connections for power and control wiring are kept
separate.
10. Every unit is factory charged and run-tested.
11. Separate compressor compartment for easy service
access.
12. Drawn, painted base pan for extra corrosion resistance and
sound reduction.
13. The RASL- JEC has a 10-year limited parts warranty, plus a
10-year conditional unit replacement warranty. Refer to the
General Terms of Limited Warranty for more details.
14. Hard Start Kits—Standard on all JEC models.
15. Control Box Cover.
16. The RASL- JEC is shipped with a liquid line filter drier, and
also features factory-installed low and high pressure
controls.
The
Comfort Control
2
System
™Features:
Scroll® Compressor
024 & 036 nominal capacities
— Single scroll Ultra-Tech two-stage
compressor
— Operates at 67% capacity in non
peak conditions to improve
efficiency and comfort (humidity
control)
039, 048 & 60 nominal capacities
— Dual Drive scroll compressors –
Tandem
— Operates at 50% capacity on first
compressor in non peak conditions
to improve efficiency and comfort
(humidity control)
— Compressor “A” operated by control
board “A” Compressor “B” operated
by control board “B”.

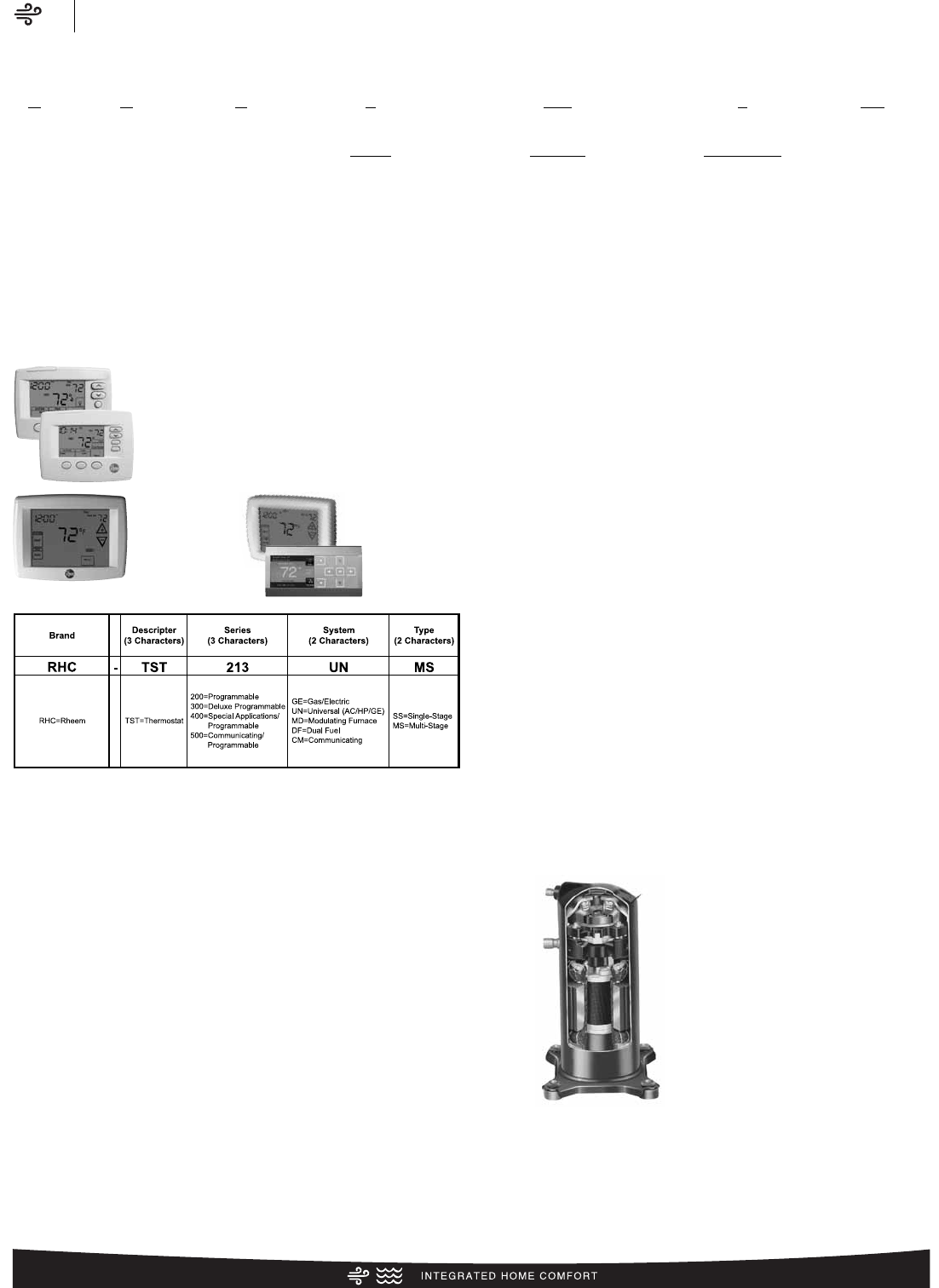

Air Model I.D./Accessories/Compressor
RASL- JEC Series
4
Model Number Identification
R A S L 024
COOLING
CAPACITY
025 = 24,000 BTU/HR [7.03 kW]
037 = 36,000 BTU/HR [10.55 kW]
039 = 39,000 BTU/HR [11.43 kW]
048 = 48,000 BTU/HR [14.07 kW]
060 = 60,000 BTU/HR [17.6 kW]
JEC
RHEEM REMOTE
CONDENSING
UNIT
18-SEER DESIGN
SERIES
L = FIRST DESIGN
SERIES
ELECTRICAL
DESIGNATION
J = 208/230V-1-60
EC = EQUIPPED WITH
THE
COMFORT
CONTROL
2
SYSTEM
™
—
Accessories
•Communicating 2 Wire Kit (RXME-A02)
* Photos are representative. Actual models may vary.
For detailed thermostat match-up information,
see specification sheet form number T11-001.
300-Series *
Deluxe
Programmable
400-Series *
Special Applications/
Programmable
500-Series *
Communicating/
Programmable
200-Series *
Programmable
Scroll®Compressor
The reliable scroll compressor is the key to efficiency for this
Rheem model. It’s the latest in high-efficiency compressor tech-
nology. The advanced scroll compressor offers low noise and
vibration characteristics and features tolerance to liquid refrigerant
and system contamination. The scroll compressor also has low
start torque, reducing start problems in the field. And its unique
design enables air conditioners to perform efficiently and quietly.
[ ] Designates Metric Conversions
Thermostats
Air Performance Data
RASL- JEC Series
5
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
025JEC
RCSN-H*2421 ➀RHPN-HM2421
114500 [4.2] 6100 [1.8]
25800 [7.6] 18 14
575 [271] 71
219300 [5.7] 6500 [1.9] 825 [389] 74
1 - dehumid 12100 [3.5] 5200 [1.5] 475 [224]
2 - dehumid 17300 [5.1] 7300 [2.1] 675 [319]
RCFL-H*2417
RGFE-06?MCK? 113800 [4.0] 6200 [1.8] 24600 [7.2] 17 13 575 [271] 71
218200 [5.3] 6400 [1.9] 800 [378] 74
RGFE-07?MCK? 114100 [4.1] 6100 [1.8] 24600 [7.2] 17 13 600 [283] 71
218200 [5.3] 6400 [1.9] 825 [389] 74
RGFG-06?MCK? 113800 [4.0] 6200 [1.8] 24600 [7.2] 17 13 575 [271] 71
218200 [5.3] 6400 [1.9] 800 [378] 74
RGFG-07?MCK? 114100 [4.1] 6100 [1.8] 24600 [7.2] 17 13 600 [283] 71
218200 [5.3] 6400 [1.9] 850 [401] 74
RGGE-06?MCK? 114100 [4.1] 6100 [1.8] 24800 [7.3] 17 13 625 [295] 71
218400 [5.4] 6400 [1.9] 825 [389] 74
RGGE-07?MCK? 113800 [4.0] 6200 [1.8] 24800 [7.3] 17 13 575 [271] 71
218400 [5.4] 6400 [1.9] 800 [378] 74
RGJF-06?MCK? 114100 [4.1] 6100 [1.8] 24800 [7.3] 17 13 625 [295] 71
218400 [5.4] 6400 [1.9] 825 [389] 74
RGJF-07?MCK? 113800 [4.0] 6200 [1.8] 24800 [7.3] 17 13 575 [271] 71
218400 [5.4] 6400 [1.9] 800 [378] 74
RGLE-07?AMK? 114300 [4.2] 6100 [1.8] 24800 [7.3] 17.5 13 600 [283] 71
218400 [5.4] 6400 [1.9] 800 [378] 74
RGPE-05?BMK? 113800 [4.0] 6200 [1.8] 24800 [7.3] 17 13 575 [271] 71
218400 [5.4] 6400 [1.9] 800 [378] 74
RGPE-07?AMK? 114300 [4.2] 6100 [1.8] 24800 [7.3] 17.5 13 625 [295] 71
218400 [5.4] 6400 [1.9] 825 [389] 74
RGRM-04?MAE? 113800 [4.0] 6200 [1.8] 24600 [7.2] 17 13 575 [271] 71
218200 [5.3] 6400 [1.9] 800 [378] 74
RGRM-06?MAE? 114100 [4.1] 6100 [1.8] 24600 [7.2] 17 13 600 [283] 71
218200 [5.3] 6400 [1.9] 825 [389] 74
RGRM-07?MAE? 114100 [4.1] 6100 [1.8] 24400 [7.1] 16.5 13 625 [295] 71
218000 [5.3] 6400 [1.9] 850 [401] 74
RGTM-06?MAE? 114900 [4.4] 5900 [1.7] 24600 [7.2] 17 13 750 [354] 71
218200 [5.3] 6400 [1.9] 825 [389] 74
ROCA-070E03 114300 [4.2] 6100 [1.8] 24800 [7.3] 17.5 13 600 [283] 71
218400 [5.4] 6400 [1.9] 800 [378] 74
ROLA-070E03 114100 [4.1] 6100 [1.8] 24800 [7.3] 17 13 600 [283] 71
218400 [5.4] 6400 [1.9] 800 [378] 74
RCFL-H*2417+RXMD-C06 Coil Only 113700 [4.0] 6100 [1.8] 24200 [7.1] 15.1 12.5 625 [295] 71
217800 [5.2] 6400 [1.9] 825 [389] 74
RCFL-H*2617
RGFE-06?MCK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 575 [271] 71
219100 [5.6] 6500 [1.9] 800 [378] 74
RGFE-07?MCK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 600 [283] 71
219100 [5.6] 6500 [1.9] 825 [389] 74
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
6
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
7
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
025JEC
RCFL-H*2621
RGJF-06?MCK? 115000 [4.4] 6000 [1.8] 25600 [7.5] 18 13 625 [295] 71
219100 [5.6] 6500 [1.9] 825 [389] 74
RGJF-07?MCK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 575 [271] 71
219100 [5.6] 6500 [1.9] 800 [378] 74
RGLE-07?AMK? 114500 [4.2] 6100 [1.8] 25800 [7.6] 18 13 600 [283] 71
219300 [5.7] 6500 [1.9] 800 [378] 74
RGPE-05?BMK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 575 [271] 71
219100 [5.6] 6500 [1.9] 800 [378] 74
RGPE-07?AMK? 115000 [4.4] 6000 [1.8] 25800 [7.6] 18 13 625 [295] 71
219300 [5.7] 6500 [1.9] 825 [389] 74
RGRM-04?MAE? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 575 [271] 71
219100 [5.6] 6500 [1.9] 800 [378] 74
RGRM-06?MAE? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 600 [283] 71
219100 [5.6] 6500 [1.9] 825 [389] 74
RGRM-07?MAE? 114800 [4.3] 6000 [1.8] 25400 [7.4] 17.5 13 625 [295] 71
218900 [5.5] 6500 [1.9] 850 [401] 74
RGTM-06?MAE? 115800 [4.6] 5800 [1.7] 25600 [7.5] 18 13 750 [354] 71
219100 [5.6] 6500 [1.9] 825 [389] 74
ROCA-070E03 114500 [4.2] 6100 [1.8] 25800 [7.6] 18 13 600 [283] 71
219300 [5.7] 6500 [1.9] 800 [378] 74
ROLA-070E03 114500 [4.2] 6100 [1.8] 25800 [7.6] 18 13 600 [283] 71
219300 [5.7] 6500 [1.9] 800 [378] 74
RCFL-H*2621+RXMD-C06 Coil Only 114400 [4.2] 6000 [1.8] 25200 [7.4] 15.5 12.5 625 [295] 71
218700 [5.5] 6500 [1.9] 825 [389] 74
RCFN-H*2417
RGFE-06?MCK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 575 [271] 71
219100 [5.6] 6500 [1.9] 800 [378] 74
RGFE-07?MCK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 600 [283] 71
219100 [5.6] 6500 [1.9] 825 [389] 74
RGFG-06?MCK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 575 [271] 71
219100 [5.6] 6500 [1.9] 800 [378] 74
RGFG-07?MCK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 600 [283] 71
219100 [5.6] 6500 [1.9] 850 [401] 74
RGGE-06?MCK? 115000 [4.4] 6000 [1.8] 25600 [7.5] 18 13 625 [295] 71
219100 [5.6] 6500 [1.9] 825 [389] 74
RGGE-07?MCK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 575 [271] 71
219100 [5.6] 6500 [1.9] 800 [378] 74
RGJF-06?MCK? 115000 [4.4] 6000 [1.8] 25600 [7.5] 18 13 625 [295] 71
219100 [5.6] 6500 [1.9] 825 [389] 74
RGJF-07?MCK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 575 [271] 71
219100 [5.6] 6500 [1.9] 800 [378] 74
RGLE-07?AMK? 114500 [4.2] 6100 [1.8] 25800 [7.6] 18 13 600 [283] 71
219300 [5.7] 6500 [1.9] 800 [378] 74
RGPE-05?BMK? 114500 [4.2] 6100 [1.8] 25600 [7.5] 18 13 575 [271] 71
219100 [5.6] 6500 [1.9] 800 [378] 74
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
8
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
9
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
025JEC
RCFN-H*2421
RGTM-06?MAE? 115800 [4.6] 5800 [1.7] 25600 [7.5] 18 13 750 [354] 71
219100 [5.6] 6500 [1.9] 825 [389] 74
ROCA-070E03 114500 [4.2] 6100 [1.8] 25800 [7.6] 18 13 600 [283] 71
219300 [5.7] 6500 [1.9] 800 [378] 74
ROLA-070E03 114500 [4.2] 6100 [1.8] 25800 [7.6] 18 13 600 [283] 71
219300 [5.7] 6500 [1.9] 800 [378] 74
RCFN-H*2421+RXMD-C06 Coil Only 114400 [4.2] 6000 [1.8] 25200 [7.4] 15.5 12.5 625 [295] 71
218700 [5.5] 6500 [1.9] 825 [389] 74
RCQD-2417
RBHM-17J 115000 [4.4] 5600 [1.6] 26000 [7.6] 18 13 600 [283] 71
220300 [5.9] 5700 [1.7] 825 [389] 74
RGFE-06?MCK? 114700 [4.3] 5700 [1.7] 26000 [7.6] 18 13 575 [271] 71
220300 [5.9] 5700 [1.7] 800 [378] 74
RGFE-07?MCK? 115000 [4.4] 5600 [1.6] 26000 [7.6] 18 13 600 [283] 71
220300 [5.9] 5700 [1.7] 825 [389] 74
RGFG-06?MCK? 114700 [4.3] 5700 [1.7] 26000 [7.6] 18 13 575 [271] 71
220300 [5.9] 5700 [1.7] 800 [378] 74
RGFG-07?MCK? 115000 [4.4] 5600 [1.6] 26000 [7.6] 18 13 600 [283] 71
220300 [5.9] 5700 [1.7] 850 [401] 74
RGJF-06?MCK? 115000 [4.4] 5600 [1.6] 26000 [7.6] 18 13 625 [295] 71
220300 [5.9] 5700 [1.7] 825 [389] 74
RGJF-07?MCK? 114700 [4.3] 5700 [1.7] 26000 [7.6] 18 13 575 [271] 71
220300 [5.9] 5700 [1.7] 800 [378] 74
RGPE-05?BMK? 114700 [4.3] 5700 [1.7] 26000 [7.6] 18 13 575 [271] 71
220300 [5.9] 5700 [1.7] 800 [378] 74
RGPE-07?AMK? 115000 [4.4] 5600 [1.6] 26200 [7.7] 18 13 625 [295] 71
220500 [6.0] 5700 [1.7] 825 [389] 74
RGPR-05?BMK? 115000 [4.4] 5600 [1.6] 25800 [7.6] 17.5 13 600 [283] 71
220000 [5.9] 5800 [1.7] 775 [366] 74
RGPR-07?AMK? 115000 [4.4] 5600 [1.6] 26000 [7.6] 18 13 600 [283] 71
220300 [5.9] 5700 [1.7] 800 [378] 74
RGRM-04?MAE? 114700 [4.3] 5700 [1.7] 26000 [7.6] 17.5 13 575 [271] 71
220300 [5.9] 5700 [1.7] 800 [378] 74
RGRM-06?MAE? 115000 [4.4] 5600 [1.6] 26000 [7.6] 18 13 600 [283] 71
220300 [5.9] 5700 [1.7] 825 [389] 74
RGRM-07?MAE? 115000 [4.4] 5600 [1.6] 25800 [7.6] 17.5 13 625 [295] 71
220100 [5.9] 5700 [1.7] 850 [401] 74
RGTM-06?MAE? 115900 [4.7] 5300 [1.6] 26000 [7.6] 18 13 750 [354] 71
220300 [5.9] 5700 [1.7] 825 [389] 74
ROCA-070E03 115000 [4.4] 5600 [1.6] 26200 [7.7] 18 13 600 [283] 71
220500 [6.0] 5700 [1.7] 800 [378] 74
ROLA-070E03 115000 [4.4] 5600 [1.6] 26200 [7.7] 18 13 600 [283] 71
220500 [6.0] 5700 [1.7] 800 [378] 74
RCQD-2417+RXMD-C06 Coil Only 114600 [4.3] 5600 [1.6] 25600 [7.5] 15.5 13 625 [295] 71
219900 [5.8] 5700 [1.7] 825 [389] 74
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
10
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
11
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
037JEC
RCFL-H*3617
ROLA-070E03 119500 [5.7] 9100 [2.7] 35000 [10.3] 16 12 900 [425] 69
224000 [7.0] 11000 [3.2] 1175 [554] 72
ROLA-070E04 119500 [5.7] 9100 [2.7] 35000 [10.3] 16 12 900 [425] 69
224000 [7.0] 11000 [3.2] 1175 [554] 72
RCFL-H*3617+RXMD-C06 Coil Only 118900 [5.5] 9100 [2.7] 34400 [10.1] 14 11.5 925 [437] 69
223200 [6.8] 11200 [3.3] 1075 [507] 72
RCFL-H*3621
RGFE-06?MCK? 119000 [5.6] 9200 [2.7] 34600 [10.1] 15 11.5 875 [413] 69
223700 [6.9] 10900 [3.2] 1200 [566] 72
RGFE-07?MCK? 119000 [5.6] 9200 [2.7] 34600 [10.1] 15 11 875 [413] 69
223800 [7.0] 10800 [3.2] 1225 [578] 72
RGFE-09?ZCM? 119000 [5.6] 9200 [2.7] 35000 [10.3] 16 12 875 [413] 69
224100 [7.1] 10900 [3.2] 1200 [566] 72
RGFE-10?ZCM? 119500 [5.7] 9100 [2.7] 35000 [10.3] 16 12 900 [425] 69
224200 [7.1] 10800 [3.2] 1225 [578] 72
RGFG-06?MCK? 119000 [5.6] 9200 [2.7] 34600 [10.1] 15 11.5 875 [413] 69
223700 [6.9] 10900 [3.2] 1200 [566] 72
RGFG-07?MCK? 118400 [5.4] 9400 [2.8] 34000 [10.0] 15.5 12 800 [378] 69
222300 [6.5] 11700 [3.4] 1000 [472] 72
RGFG-09?ZCM? 119000 [5.6] 9200 [2.7] 35000 [10.3] 16 12 875 [413] 69
224100 [7.1] 10900 [3.2] 1200 [566] 72
RGFG-10?ZCM? 119500 [5.7] 9100 [2.7] 35000 [10.3] 16 12 900 [425] 69
224100 [7.1] 10900 [3.2] 1200 [566] 72
RGGE-06?MCK? 119300 [5.7] 9100 [2.7] 34800 [10.2] 15.5 11.5 925 [437] 69
223900 [7.0] 10900 [3.2] 1200 [566] 72
RGGE-07?MCK? 119000 [5.6] 9200 [2.7] 34800 [10.2] 15.5 11.5 875 [413] 69
223900 [7.0] 10900 [3.2] 1200 [566] 72
RGGE-09?ZCM? 119000 [5.6] 9200 [2.7] 35200 [10.3] 16 12 875 [413] 69
224400 [7.1] 10800 [3.2] 1225 [578] 72
RGGE-10?ZCM? 119000 [5.6] 9200 [2.7] 35000 [10.3] 16 12 875 [413] 69
224100 [7.1] 10900 [3.2] 1200 [566] 72
RGJF-06?MCK? 119300 [5.7] 9100 [2.7] 34800 [10.2] 15.5 11.5 925 [437] 69
223900 [7.0] 10900 [3.2] 1200 [566] 72
RGJF-07?MCK? 119000 [5.6] 9200 [2.7] 34800 [10.2] 15.5 11.5 875 [413] 69
223900 [7.0] 10900 [3.2] 1200 [566] 72
RGJF-09?ZCM? 119000 [5.6] 9200 [2.7] 35200 [10.3] 16 12 875 [413] 69
224400 [7.1] 10800 [3.2] 1225 [578] 72
RGJF-10?ZCM? 119000 [5.6] 9200 [2.7] 35000 [10.3] 16 12 875 [413] 69
224100 [7.1] 10900 [3.2] 1200 [566] 72
RGLE-07?AMK? 119000 [5.6] 9200 [2.7] 35000 [10.3] 15.5 12 875 [413] 69
224100 [7.1] 10900 [3.2] 1200 [566] 72
RGLE-07?BRQ? 118300 [5.4] 9500 [2.8] 34400 [10.1] 16 12.5 775 [366] 69
222800 [6.7] 11600 [3.4] 1025 [484] 72
RGLE-10?BRM? 119200 [5.6] 9200 [2.7] 35200 [10.3] 16 12.5 875 [413] 69
224300 [7.1] 10900 [3.2] 1200 [566] 72
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
12
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
13
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
037JEC
RCFL-H*3621
ROLA-070E03 119500 [5.7] 9100 [2.7] 35000 [10.3] 16 12 900 [425] 69
224000 [7.0] 11000 [3.2] 1175 [554] 72
ROLA-070E04 119500 [5.7] 9100 [2.7] 35000 [10.3] 16 12 900 [425] 69
224000 [7.0] 11000 [3.2] 1175 [554] 72
ROLA-115E05 119500 [5.7] 9100 [2.7] 35200 [10.3] 16 12.5 900 [425] 69
224300 [7.1] 10900 [3.2] 1200 [566] 72
RCFL-H*3621+RXMD-C06 Coil Only 118900 [5.5] 9100 [2.7] 34400 [10.1] 14 11.5 925 [437] 69
223200 [6.8] 11200 [3.3] 1125 [531] 72
RCFL-H*3821
RGFE-06?MCK? 118900 [5.5] 9700 [2.8] 35400 [10.4] 15.5 12 875 [413] 69
224200 [7.1] 11200 [3.3] 1200 [566] 72
RGFE-07?MCK? 118900 [5.5] 9700 [2.8] 35400 [10.4] 15.5 11.5 875 [413] 69
224300 [7.1] 11100 [3.3] 1225 [578] 72
RGFE-09?ZCM? 119100 [5.6] 9700 [2.8] 35800 [10.5] 16 12.5 875 [413] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGFE-10?ZCM? 119700 [5.8] 9500 [2.8] 35800 [10.5] 16.5 12.5 900 [425] 69
224700 [7.2] 11100 [3.3] 1225 [578] 72
RGFG-06?MCK? 118900 [5.5] 9700 [2.8] 35400 [10.4] 15.5 12 875 [413] 69
224200 [7.1] 11200 [3.3] 1200 [566] 72
RGFG-07?MCK? 118500 [5.4] 9900 [2.9] 34800 [10.2] 16 12.5 800 [378] 69
222800 [6.7] 12000 [3.5] 1000 [472] 72
RGFG-09?ZCM? 119100 [5.6] 9700 [2.8] 35800 [10.5] 16 12.5 875 [413] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGFG-10?ZCM? 119500 [5.7] 9500 [2.8] 35800 [10.5] 16 12.5 900 [425] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGGE-06?MCK? 119500 [5.7] 9500 [2.8] 35600 [10.4] 16 12 925 [437] 69
224400 [7.1] 11200 [3.3] 1200 [566] 72
RGGE-07?MCK? 118900 [5.5] 9700 [2.8] 35400 [10.4] 15.5 12 875 [413] 69
224200 [7.1] 11200 [3.3] 1200 [566] 72
RGGE-09?ZCM? 120200 [5.9] 9200 [2.7] 36000 [10.5] 16 12.5 1025 [484] 69
225000 [7.3] 11000 [3.2] 1250 [590] 72
RGGE-10?ZCM? 119100 [5.6] 9700 [2.8] 35800 [10.5] 16 12.5 875 [413] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGJF-06?MCK? 119500 [5.7] 9500 [2.8] 35600 [10.4] 16 12 925 [437] 69
224400 [7.1] 11200 [3.3] 1200 [566] 72
RGJF-07?MCK? 118900 [5.5] 9700 [2.8] 35400 [10.4] 15.5 12 875 [413] 69
224200 [7.1] 11200 [3.3] 1200 [566] 72
RGJF-09?ZCM? 120200 [5.9] 9200 [2.7] 36000 [10.5] 16 12.5 1025 [484] 69
225000 [7.3] 11000 [3.2] 1250 [590] 72
RGJF-10?ZCM? 119100 [5.6] 9700 [2.8] 35800 [10.5] 16 12.5 875 [413] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGLE-07?AMK? 119100 [5.6] 9700 [2.8] 35600 [10.4] 16 12.5 875 [413] 69
224400 [7.1] 11200 [3.3] 1200 [566] 72
RGLE-07?BRQ? 119700 [5.8] 9500 [2.8] 36000 [10.5] 16.5 13 925 [437] 69
224900 [7.3] 11100 [3.3] 1225 [578] 72
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
14
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
037JEC RCFL-H*3821
RGLE-10?BRM? 119300 [5.7] 9700 [2.8] 36000 [10.5] 16.5 13 875 [413] 69
224800 [7.3] 11200 [3.3] 1200 [566] 72
RGLR-07?AMK? 119500 [5.7] 9500 [2.8] 35600 [10.4] 16 12.5 925 [437] 69
224400 [7.1] 11200 [3.3] 1200 [566] 72
RGLR-07?BRQ? 119700 [5.8] 9500 [2.8] 36000 [10.5] 16.5 13 900 [425] 69
224900 [7.3] 11100 [3.3] 1225 [578] 72
RGLR-10?BRM? 119700 [5.8] 9500 [2.8] 36000 [10.5] 16.5 13 925 [437] 69
224800 [7.3] 11200 [3.3] 1200 [566] 72
RGPE-05?BMK? 119500 [5.7] 9500 [2.8] 35600 [10.4] 16 12 900 [425] 69
224400 [7.1] 11200 [3.3] 1200 [566] 72
RGPE-07?AMK? 119500 [5.7] 9500 [2.8] 35800 [10.5] 16 12.5 900 [425] 69
224700 [7.2] 11100 [3.3] 1225 [578] 72
RGPE-07?BRQ? 119700 [5.8] 9500 [2.8] 36200 [10.6] 16.5 13 900 [425] 69
225100 [7.4] 11100 [3.3] 1225 [578] 72
RGPE-10?BRM? 119700 [5.8] 9500 [2.8] 36200 [10.6] 16.5 13 900 [425] 69
225100 [7.4] 11100 [3.3] 1225 [578] 72
RGPR-05?BMK? 119300 [5.7] 9500 [2.8] 35400 [10.4] 15.5 12 900 [425] 69
224200 [7.1] 11200 [3.3] 1200 [566] 72
RGPR-07?AMK? 119500 [5.7] 9500 [2.8] 35600 [10.4] 16 12.5 900 [425] 69
224400 [7.1] 11200 [3.3] 1200 [566] 72
RGPR-07?BRQ? 119300 [5.7] 9700 [2.8] 36000 [10.5] 16.5 13 875 [413] 69
224800 [7.3] 11200 [3.3] 1200 [566] 72
RGPR-10?BRM? 119700 [5.8] 9500 [2.8] 36000 [10.5] 16.5 12.5 925 [437] 69
224900 [7.3] 11100 [3.3] 1225 [578] 72
RGRM-04?MAE? 119300 [5.7] 9500 [2.8] 35200 [10.3] 15.5 11.5 925 [437] 69
224000 [7.0] 11200 [3.3] 1200 [566] 72
RGRM-06?MAE? 119500 [5.7] 9500 [2.8] 35200 [10.3] 15.5 11.5 900 [425] 69
223900 [7.0] 11300 [3.3] 1175 [554] 72
RGRM-07?MAE? 118500 [5.4] 9900 [2.9] 34600 [10.1] 15.5 12 800 [378] 69
222700 [6.7] 11900 [3.5] 1025 [484] 72
RGRM-07?YBG? 117600 [5.2] 10200 [3.0] 34400 [10.1] 16 12 700 [330] 69
222300 [6.5] 12100 [3.5] 975 [460] 72
RGRM-09?ZAJ? 119500 [5.7] 9500 [2.8] 35800 [10.5] 16 12 950 [448] 69
224700 [7.2] 11100 [3.3] 1225 [578] 72
RGRM-10?ZAJ? 119100 [5.6] 9700 [2.8] 35400 [10.4] 16 12.5 875 [413] 69
223900 [7.0] 11500 [3.4] 1150 [543] 72
RGTM-06?MAE? 119500 [5.7] 9500 [2.8] 35000 [10.3] 16 12.5 900 [425] 69
223100 [6.8] 11900 [3.5] 1025 [484] 72
RGTM-07?RBG? 119500 [5.7] 9500 [2.8] 36200 [10.6] 16 12.5 950 [448] 69
225300 [7.4] 10900 [3.2] 1275 [602] 72
RGTM-09?ZAJ? 120000 [5.9] 9400 [2.8] 36000 [10.5] 16 12.5 975 [460] 69
224900 [7.3] 11100 [3.3] 1225 [578] 72
ROCA-070E03 120100 [5.9] 9300 [2.7] 35800 [10.5] 16 12.5 1000 [472] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
15
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
037JEC
RCFL-H*3821
ROCA-070E04 120100 [5.9] 9300 [2.7] 35800 [10.5] 16 12.5 1000 [472] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
ROLA-070E03 119700 [5.8] 9500 [2.8] 35800 [10.5] 16.5 12.5 900 [425] 69
224500 [7.2] 11300 [3.3] 1175 [554] 72
ROLA-070E04 119700 [5.8] 9500 [2.8] 35800 [10.5] 16.5 12.5 900 [425] 69
224500 [7.2] 11300 [3.3] 1175 [554] 72
ROLA-115E05 119700 [5.8] 9500 [2.8] 36000 [10.5] 16.5 13 900 [425] 69
224800 [7.3] 11200 [3.3] 1200 [566] 72
RCFL-H*3821+RXMD-C06 Coil Only 118900 [5.5] 9500 [2.8] 35000 [10.3] 14 11.5 925 [437] 69
223500 [6.9] 11500 [3.4] 1125 [531] 72
RCFL-H*3824
RGFE-09?ZCM? 119100 [5.6] 9700 [2.8] 35800 [10.5] 16 12.5 875 [413] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGFE-10?ZCM? 119700 [5.8] 9500 [2.8] 35800 [10.5] 16.5 12.5 900 [425] 69
224700 [7.2] 11100 [3.3] 1225 [578] 72
RGFE-12?RCM? 119100 [5.6] 9700 [2.8] 36000 [10.5] 16.5 12.5 875 [413] 69
224900 [7.3] 11100 [3.3] 1225 [578] 72
RGFG-09?ZCM? 119100 [5.6] 9700 [2.8] 35800 [10.5] 16 12.5 875 [413] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGFG-10?ZCM? 119500 [5.7] 9500 [2.8] 35800 [10.5] 16 12.5 900 [425] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGFG-12?RCM? 119100 [5.6] 9700 [2.8] 36000 [10.5] 16.5 12.5 875 [413] 69
224900 [7.3] 11100 [3.3] 1225 [578] 72
RGGE-09?ZCM? 120200 [5.9] 9200 [2.7] 36000 [10.5] 16 12.5 1025 [484] 69
225000 [7.3] 11000 [3.2] 1250 [590] 72
RGGE-10?ZCM? 119100 [5.6] 9700 [2.8] 35800 [10.5] 16 12.5 875 [413] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGGE-12?RCM? 119100 [5.6] 9700 [2.8] 36000 [10.5] 16.5 13 875 [413] 69
224800 [7.3] 11200 [3.3] 1200 [566] 72
RGJF-09?ZCM? 120200 [5.9] 9200 [2.7] 36000 [10.5] 16 12.5 1025 [484] 69
225000 [7.3] 11000 [3.2] 1250 [590] 72
RGJF-10?ZCM? 119100 [5.6] 9700 [2.8] 35800 [10.5] 16 12.5 875 [413] 69
224600 [7.2] 11200 [3.3] 1200 [566] 72
RGJF-12?RCM? 119300 [5.7] 9700 [2.8] 36000 [10.5] 16.5 13 875 [413] 69
224800 [7.3] 11200 [3.3] 1200 [566] 72
RGLE-07?BRQ? 119700 [5.8] 9500 [2.8] 36000 [10.5] 16.5 13 925 [437] 69
224900 [7.3] 11100 [3.3] 1225 [578] 72
RGLE-10?BRM? 119300 [5.7] 9700 [2.8] 36000 [10.5] 16.5 13 875 [413] 69
224800 [7.3] 11200 [3.3] 1200 [566] 72
RGLE-12?ARM? 119700 [5.8] 9500 [2.8] 36200 [10.6] 16.5 13 925 [437] 69
225100 [7.4] 11100 [3.3] 1225 [578] 72
RGLR-07?BRQ? 119700 [5.8] 9500 [2.8] 36000 [10.5] 16.5 13 900 [425] 69
224900 [7.3] 11100 [3.3] 1225 [578] 72
RGLR-10?BRM? 119700 [5.8] 9500 [2.8] 36000 [10.5] 16.5 13 925 [437] 69
224800 [7.3] 11200 [3.3] 1200 [566] 72
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
16
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
17
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
037JEC RCFN-H*3624
RGFE-09?ZCM? 121700 [6.4] 8700 [2.5] 38500 [11.3] 17.5 13 875 [413] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RGFE-10?ZCM? 122300 [6.5] 8500 [2.5] 38500 [11.3] 17.5 13 900 [425] 69
228400 [8.3] 10100 [3.0] 1225 [578] 72
RGFE-12?RCM? 123100 [6.8] 8100 [2.4] 38500 [11.3] 17.5 13 1025 [484] 69
228600 [8.4] 9900 [2.9] 1250 [590] 72
RGFG-06?MCK? 121500 [6.3] 8700 [2.5] 38000 [11.1] 16.5 12.5 875 [413] 69
227800 [8.1] 10200 [3.0] 1200 [566] 72
RGFG-07?MCK? 122600 [6.6] 8200 [2.4] 38000 [11.1] 16 12.5 1000 [472] 69
227900 [8.2] 10100 [3.0] 1225 [578] 72
RGFG-09?ZCM? 121700 [6.4] 8700 [2.5] 38500 [11.3] 17.5 13 875 [413] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RGFG-10?ZCM? 122100 [6.5] 8500 [2.5] 38500 [11.3] 17.5 13 900 [425] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RGFG-12?RCM? 123100 [6.8] 8100 [2.4] 38500 [11.3] 17.5 13 1025 [484] 69
228600 [8.4] 9900 [2.9] 1250 [590] 72
RGGE-06?MCK? 122100 [6.5] 8500 [2.5] 38000 [11.1] 17 13 925 [437] 69
227800 [8.1] 10200 [3.0] 1200 [566] 72
RGGE-07?MCK? 121500 [6.3] 8700 [2.5] 38000 [11.1] 17 13 875 [413] 69
227800 [8.1] 10200 [3.0] 1200 [566] 72
RGGE-09?ZCM? 121700 [6.4] 8700 [2.5] 38500 [11.3] 17.5 13 875 [413] 69
228400 [8.3] 10100 [3.0] 1225 [578] 72
RGGE-10?ZCM? 121700 [6.4] 8700 [2.5] 38500 [11.3] 17.5 13 875 [413] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RGGE-12?RCM? 121700 [6.4] 8700 [2.5] 38500 [11.3] 18 13 875 [413] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RGJF-06?MCK? 122100 [6.5] 8500 [2.5] 38000 [11.1] 17 13 925 [437] 69
227800 [8.1] 10200 [3.0] 1200 [566] 72
RGJF-07?MCK? 121500 [6.3] 8700 [2.5] 38000 [11.1] 17 13 875 [413] 69
227800 [8.1] 10200 [3.0] 1200 [566] 72
RGJF-09?ZCM? 121700 [6.4] 8700 [2.5] 38500 [11.3] 17.5 13 875 [413] 69
228400 [8.3] 10100 [3.0] 1225 [578] 72
RGJF-10?ZCM? 121700 [6.4] 8700 [2.5] 38500 [11.3] 17.5 13 875 [413] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RGJF-12?RCM? 121700 [6.4] 8700 [2.5] 38500 [11.3] 18 13 875 [413] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RGLE-07?AMK? 121700 [6.4] 8700 [2.5] 38500 [11.3] 17 13 875 [413] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RGLE-07?BRQ? 122300 [6.5] 8500 [2.5] 38500 [11.3] 18 13 925 [437] 69
228400 [8.3] 10100 [3.0] 1225 [578] 72
RGLE-10?BRM? 121700 [6.4] 8700 [2.5] 38500 [11.3] 18 13 875 [413] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RGLE-12?ARM? 122300 [6.5] 8500 [2.5] 39000 [11.4] 18 13 925 [437] 69
228900 [8.5] 10100 [3.0] 1225 [578] 72
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
18
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
19
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
037JEC
RCFN-H*3624
RGTM-07?RBG? 122100 [6.5] 8500 [2.5] 39000 [11.4] 17.5 13 950 [448] 69
229200 [8.6] 9800 [2.9] 1275 [602] 72
RGTM-09?ZAJ? 122700 [6.7] 8300 [2.4] 38500 [11.3] 17.5 13 975 [460] 69
228400 [8.3] 10100 [3.0] 1225 [578] 72
RGTM-10?RBJ? 122700 [6.7] 8300 [2.4] 38500 [11.3] 17.5 13 975 [460] 69
228400 [8.3] 10100 [3.0] 1225 [578] 72
ROCA-070E03 122800 [6.7] 8200 [2.4] 38500 [11.3] 17 13 1000 [472] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
ROCA-070E04 122800 [6.7] 8200 [2.4] 38500 [11.3] 17 13 1000 [472] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
ROLA-070E03 122300 [6.5] 8500 [2.5] 38500 [11.3] 17.5 13 900 [425] 69
228200 [8.3] 10300 [3.0] 1175 [554] 72
ROLA-070E04 122300 [6.5] 8500 [2.5] 38500 [11.3] 17.5 13 900 [425] 69
228200 [8.3] 10300 [3.0] 1175 [554] 72
ROLA-115E05 122300 [6.5] 8500 [2.5] 38500 [11.3] 17.5 13 900 [425] 69
228300 [8.3] 10200 [3.0] 1200 [566] 72
RCFN-H*3624+RXMD-C06 Coil Only 121500 [6.3] 8500 [2.5] 37600 [11.0] 15 12.5 925 [437] 69
227000 [7.9] 10600 [3.1] 1125 [531] 72
RCQD-3621
RGFE-06?MCK? 121100 [6.2] 8500 [2.5] 37200 [10.9] 16.5 12.5 875 [413] 69
227200 [8.0] 10000 [2.9] 1200 [566] 72
RGFE-07?MCK? 118200 [5.3] 9600 [2.8] 36600 [10.7] 17 13 500 [236] 69
225800 [7.6] 10800 [3.2] 1025 [484] 72
RGFE-09?ZCM? 121100 [6.2] 8500 [2.5] 37600 [11.0] 17 13 875 [413] 69
227600 [8.1] 10000 [2.9] 1200 [566] 72
RGFE-10?ZCM? 121600 [6.3] 8400 [2.5] 37600 [11.0] 17 13 900 [425] 69
227700 [8.1] 9900 [2.9] 1225 [578] 72
RGFG-06?MCK? 121100 [6.2] 8500 [2.5] 37200 [10.9] 16.5 12.5 875 [413] 69
227200 [8.0] 10000 [2.9] 1200 [566] 72
RGFG-07?MCK? 121900 [6.4] 8100 [2.4] 37200 [10.9] 16 12.5 1000 [472] 69
227300 [8.0] 9900 [2.9] 1225 [578] 72
RGFG-09?ZCM? 121100 [6.2] 8500 [2.5] 37600 [11.0] 17 13 875 [413] 69
227600 [8.1] 10000 [2.9] 1200 [566] 72
RGFG-10?ZCM? 121600 [6.3] 8400 [2.5] 37600 [11.0] 17 13 900 [425] 69
227600 [8.1] 10000 [2.9] 1200 [566] 72
RGJF-06?MCK? 117900 [5.2] 9700 [2.8] 36800 [10.8] 17 13 475 [224] 69
226000 [7.6] 10800 [3.2] 1025 [484] 72
RGJF-07?MCK? 117900 [5.2] 9700 [2.8] 36800 [10.8] 17 13 475 [224] 69
226000 [7.6] 10800 [3.2] 1025 [484] 72
RGJF-09?ZCM? 122400 [6.6] 8000 [2.3] 37800 [11.1] 17 13 1025 [484] 69
228000 [8.2] 9800 [2.9] 1250 [590] 72
RGJF-10?ZCM? 121100 [6.2] 8500 [2.5] 37600 [11.0] 17 13 875 [413] 69
227600 [8.1] 10000 [2.9] 1200 [566] 72
RGPE-05?BMK? 121400 [6.3] 8400 [2.5] 37400 [11.0] 17 12.5 900 [425] 69
227400 [8.0] 10000 [2.9] 1200 [566] 72
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
20
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
21
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
037JEC RCQD-3624
RBHM-24J 122100 [6.5] 8700 [2.5] 37600 [11.0] 17.5 13 900 [425] 69
227600 [8.1] 10000 [2.9] 1175 [554] 72
RBHN-24J 122100 [6.5] 8700 [2.5] 38000 [11.1] 17.5 13 925 [437] 69
228000 [8.2] 10000 [2.9] 1175 [554] 72
RGFE-09?ZCM? 121500 [6.3] 8900 [2.6] 37400 [11.0] 17 13 875 [413] 69
227500 [8.1] 9900 [2.9] 1200 [566] 72
RGFE-10?ZCM? 122100 [6.5] 8700 [2.5] 37600 [11.0] 17 13 900 [425] 69
227900 [8.2] 9700 [2.8] 1225 [578] 72
RGFE-12?RCM? 122900 [6.7] 8300 [2.4] 37800 [11.1] 17 13 1025 [484] 69
228200 [8.3] 9600 [2.8] 1250 [590] 72
RGFG-09?ZCM? 121500 [6.3] 8900 [2.6] 37400 [11.0] 17 13 875 [413] 69
227500 [8.1] 9900 [2.9] 1200 [566] 72
RGFG-10?ZCM? 121900 [6.4] 8700 [2.5] 37400 [11.0] 17 13 900 [425] 69
227500 [8.1] 9900 [2.9] 1200 [566] 72
RGFG-12?RCM? 121500 [6.3] 8900 [2.6] 37800 [11.1] 17 13 875 [413] 69
228100 [8.2] 9700 [2.8] 1225 [578] 72
RGJF-09?ZCM? 122900 [6.7] 8300 [2.4] 37800 [11.1] 17 13 1025 [484] 69
228200 [8.3] 9600 [2.8] 1250 [590] 72
RGJF-10?ZCM? 121500 [6.3] 8900 [2.6] 37400 [11.0] 17 13 875 [413] 69
227500 [8.1] 9900 [2.9] 1200 [566] 72
RGJF-12?RCM? 121500 [6.3] 8900 [2.6] 37800 [11.1] 17.5 13 875 [413] 69
227900 [8.2] 9900 [2.9] 1200 [566] 72
RGPE-07?BRQ? 122100 [6.5] 8700 [2.5] 37800 [11.1] 17.5 13 900 [425] 69
228100 [8.2] 9700 [2.8] 1225 [578] 72
RGPE-10?BRM? 122100 [6.5] 8700 [2.5] 37800 [11.1] 17.5 13 900 [425] 69
228100 [8.2] 9700 [2.8] 1225 [578] 72
RGPE-12?ARM? 121500 [6.3] 8900 [2.6] 37800 [11.1] 17.5 13 875 [413] 69
227900 [8.2] 9900 [2.9] 1200 [566] 72
RGPR-07?BRQ? 121500 [6.3] 8900 [2.6] 37600 [11.0] 17.5 13 875 [413] 69
227700 [8.1] 9900 [2.9] 1200 [566] 72
RGPR-10?BRM? 121900 [6.4] 8700 [2.5] 37800 [11.1] 17 13 925 [437] 69
228100 [8.2] 9700 [2.8] 1225 [578] 72
RGPR-12?ARM? 122800 [6.7] 8400 [2.5] 38000 [11.1] 17 13 1000 [472] 69
228400 [8.3] 9600 [2.8] 1250 [590] 72
RGRM-07?YBG? 121000 [6.2] 9000 [2.6] 36800 [10.8] 16 12 850 [401] 69
226900 [7.9] 9900 [2.9] 1200 [566] 72
RGRM-09?ZAJ? 121900 [6.4] 8700 [2.5] 37400 [11.0] 16.5 13 950 [448] 69
227700 [8.1] 9700 [2.8] 1225 [578] 72
RGRM-10?ZAJ? 121500 [6.3] 8900 [2.6] 37000 [10.8] 17 13 875 [413] 69
226800 [7.9] 10200 [3.0] 1150 [543] 72
RGRM-12?RAJ? 122100 [6.5] 8700 [2.5] 37600 [11.0] 17 13 925 [437] 69
227900 [8.2] 9700 [2.8] 1225 [578] 72
RGTM-07?RBG? 121900 [6.4] 8700 [2.5] 37800 [11.1] 17 13 950 [448] 69
228300 [8.3] 9500 [2.8] 1275 [602] 72
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
22
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
23
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
039JEC
RCFL-H*3617 RGTM-06?MAE? 115550 [4.6] 5450 [1.6] 35800 [10.5] 15 11 1075 [507] 69
223600 [6.9] 12200 [3.6] 1225 [578] 73
RCFL-H*3617+RXMD-C06 Coil Only 114100 [4.1] 5400 [1.6] 35600 [10.4] 14 11 800 [378] 69
223400 [6.9] 12200 [3.6] 1075 [507] 73
RCFL-H*3621
RGFG-06?MCK? 115300 [4.5] 5100 [1.5] 35200 [10.3] 16 11 875 [413] 69
223150 [6.8] 12050 [3.5] 1200 [566] 73
RGFG-07?MCK? 113500 [4.0] 5900 [1.7] 34800 [10.2] 16.5 11.5 550 [260] 69
221900 [6.4] 12900 [3.8] 1000 [472] 73
RGFG-09?ZCM? 115500 [4.5] 5100 [1.5] 35600 [10.4] 16.5 11.5 875 [413] 69
223450 [6.9] 12150 [3.6] 1200 [566] 73
RGFG-10?ZCM? 113850 [4.1] 5750 [1.7] 35600 [10.4] 16.5 11.5 600 [283] 69
223500 [6.9] 12100 [3.5] 1200 [566] 73
RGGE-06?MCK? 115500 [4.5] 5300 [1.6] 35800 [10.5] 16 11.5 925 [437] 69
223650 [6.9] 12150 [3.6] 1200 [566] 73
RGGE-09?ZCM? 113800 [4.0] 5800 [1.7] 36000 [10.5] 16 11.5 575 [271] 69
224000 [7.0] 12000 [3.5] 1225 [578] 73
RGGE-10?ZCM? 113800 [4.0] 5800 [1.7] 35800 [10.5] 16.5 11.5 575 [271] 69
223800 [7.0] 12000 [3.5] 1200 [566] 73
RGJF-06?MCK? 115500 [4.5] 5300 [1.6] 35800 [10.5] 16 11.5 925 [437] 69
223650 [6.9] 12150 [3.6] 1200 [566] 73
RGJF-07?MCK? 115350 [4.5] 5250 [1.5] 35800 [10.5] 16 11.5 875 [413] 69
223650 [6.9] 12150 [3.6] 1200 [566] 73
RGJF-09?ZCM? 115300 [4.5] 5300 [1.6] 36200 [10.6] 16.5 12 875 [413] 69
223900 [7.0] 12300 [3.6] 1225 [578] 73
RGJF-10?ZCM? 115300 [4.5] 5300 [1.6] 36000 [10.5] 16.5 12 875 [413] 69
223750 [7.0] 12250 [3.6] 1200 [566] 73
RGLE-07?AMK? 115300 [4.5] 5300 [1.6] 36000 [10.5] 16.5 11.5 875 [413] 69
223800 [7.0] 12200 [3.6] 1200 [566] 73
RGLE-07?BRQ? 115650 [4.6] 5350 [1.6] 36200 [10.6] 17 12 925 [437] 69
223850 [7.0] 12350 [3.6] 1225 [578] 73
RGLE-10?BRM? 115500 [4.5] 5300 [1.6] 36200 [10.6] 17.5 12.5 875 [413] 69
223850 [7.0] 12350 [3.6] 1200 [566] 73
RGPE-05?BMK? 115300 [4.5] 5300 [1.6] 35800 [10.5] 16 11.5 900 [425] 69
223650 [6.9] 12150 [3.6] 1200 [566] 73
RGPE-07?BRQ? 115450 [4.5] 5350 [1.6] 36200 [10.6] 17 12 900 [425] 69
223850 [7.0] 12350 [3.6] 1225 [578] 73
RGPE-10?BRM? 115450 [4.5] 5350 [1.6] 36200 [10.6] 17 12 900 [425] 69
223850 [7.0] 12350 [3.6] 1225 [578] 73
RGRM-04?MAE? 114150 [4.1] 5450 [1.6] 35000 [10.3] 16 11.5 750 [354] 69
223000 [6.7] 12000 [3.5] 1025 [484] 73
RGRM-06?MAE? 114250 [4.2] 5450 [1.6] 35000 [10.3] 16 11.5 775 [366] 69
223000 [6.7] 12000 [3.5] 1000 [472] 73
RGRM-07?MAE? 114250 [4.2] 5450 [1.6] 34800 [10.2] 15.5 11 800 [378] 69
222850 [6.7] 11950 [3.5] 1025 [484] 73
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
24
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
039JEC
RCFL-H*3621
RGRM-07?YBG? 114050 [4.1] 5350 [1.6] 34800 [10.2] 16 11.5 700 [330] 69
222900 [6.7] 11900 [3.5] 975 [460] 73
RGRM-09?ZAJ? 114600 [4.3] 5600 [1.6] 35800 [10.5] 15.5 11.5 950 [448] 69
223550 [6.9] 12250 [3.6] 1225 [578] 73
RGRM-10?ZAJ? 114450 [4.2] 5550 [1.6] 35600 [10.4] 16 11.5 875 [413] 69
223400 [6.9] 12200 [3.6] 1150 [543] 73
RGTM-06?MAE? 115800 [4.6] 5400 [1.6] 35600 [10.4] 15.5 11 1075 [507] 69
223450 [6.9] 12150 [3.6] 1225 [578] 73
RGTM-07?RBG? 115650 [4.6] 5350 [1.6] 36400 [10.7] 16.5 12 950 [448] 69
224050 [7.0] 12350 [3.6] 1275 [602] 73
RGTM-09?ZAJ? 115600 [4.6] 5400 [1.6] 36200 [10.6] 16.5 12 975 [460] 69
223900 [7.0] 12300 [3.6] 1225 [578] 73
RCFL-H*3621+RXMD-C06 Coil Only 114100 [4.1] 5400 [1.6] 35600 [10.4] 14 11 875 [413] 69
223400 [6.9] 12200 [3.6] 1150 [543] 73
RCFL-H*3821
RGFE-06?MCK? 118000 [5.3] 7600 [2.2] 37000 [10.8] 16 12.5 875 [413] 69
225400 [7.4] 11600 [3.4] 1200 [566] 73
RGFE-07?MCK? 115400 [4.5] 8500 [2.5] 36600 [10.7] 17 13 500 [236] 69
224400 [7.1] 12200 [3.6] 1025 [484] 73
RGFE-09?ZCM? 118100 [5.3] 7600 [2.2] 37400 [11.0] 17 13 875 [413] 69
225800 [7.6] 11600 [3.4] 1200 [566] 73
RGFE-10?ZCM? 118300 [5.4] 7600 [2.2] 37600 [11.0] 17 13 900 [425] 69
226400 [7.7] 11200 [3.3] 1225 [578] 73
RGFG-06?MCK? 118000 [5.3] 7600 [2.2] 37000 [10.8] 16 12.5 875 [413] 69
225400 [7.4] 11600 [3.4] 1200 [566] 73
RGFG-07?MCK? 118700 [5.5] 7300 [2.1] 37200 [10.9] 15.5 12 1000 [472] 69
225800 [7.6] 11400 [3.3] 1225 [578] 73
RGFG-09?ZCM? 118100 [5.3] 7600 [2.2] 37400 [11.0] 17 13 875 [413] 69
225800 [7.6] 11600 [3.4] 1200 [566] 73
RGFG-10?ZCM? 118300 [5.4] 7600 [2.2] 37400 [11.0] 17 13 900 [425] 69
225800 [7.6] 11600 [3.4] 1200 [566] 73
RGGE-06?MCK? 115200 [4.5] 8600 [2.5] 36800 [10.8] 16.5 13 475 [224] 69
224600 [7.2] 12200 [3.6] 1025 [484] 73
RGGE-07?MCK? 117200 [5.0] 8000 [2.3] 36800 [10.8] 16.5 13 750 [354] 69
224400 [7.1] 12400 [3.6] 1025 [484] 73
RGGE-09?ZCM? 118100 [5.3] 7600 [2.2] 37800 [11.1] 17 13 875 [413] 69
226400 [7.7] 11400 [3.3] 1225 [578] 73
RGGE-10?ZCM? 118100 [5.3] 7600 [2.2] 37400 [11.0] 17 13 875 [413] 69
225800 [7.6] 11600 [3.4] 1200 [566] 73
RGJF-06?MCK? 117000 [5.0] 8000 [2.3] 36800 [10.8] 17 13 725 [342] 69
224600 [7.2] 12200 [3.6] 1025 [484] 73
RGJF-07?MCK? 118000 [5.3] 7600 [2.2] 37200 [10.9] 16 12.5 875 [413] 69
225600 [7.5] 11600 [3.4] 1200 [566] 73
RGJF-09?ZCM? 118100 [5.3] 7600 [2.2] 37800 [11.1] 17 13 875 [413] 69
226400 [7.7] 11400 [3.3] 1225 [578] 73
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
25
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
039JEC RCFL-H*3821
RGJF-10?ZCM? 118100 [5.3] 7600 [2.2] 37400 [11.0] 17 13 875 [413] 69
225800 [7.6] 11600 [3.4] 1200 [566] 73
RGLE-07?AMK? 117200 [5.0] 8000 [2.3] 36800 [10.8] 17 13 750 [354] 69
224600 [7.2] 12200 [3.6] 1025 [484] 73
RGLE-07?BRQ? 118600 [5.4] 7500 [2.2] 37800 [11.1] 17 13 925 [437] 69
226600 [7.8] 11200 [3.3] 1225 [578] 73
RGLE-10?BRM? 118200 [5.3] 7600 [2.2] 37600 [11.0] 17.5 13 875 [413] 69
226200 [7.7] 11400 [3.3] 1200 [566] 73
RGPE-05?BMK? 118200 [5.3] 7600 [2.2] 37200 [10.9] 16.5 12.5 900 [425] 69
225600 [7.5] 11600 [3.4] 1200 [566] 73
RGPE-07?AMK? 118300 [5.4] 7600 [2.2] 37600 [11.0] 16.5 13 900 [425] 69
226200 [7.7] 11400 [3.3] 1225 [578] 73
RGPE-07?BRQ? 118400 [5.4] 7600 [2.2] 38000 [11.1] 17 13 900 [425] 69
226600 [7.8] 11400 [3.3] 1225 [578] 73
RGPE-10?BRM? 118400 [5.4] 7600 [2.2] 38000 [11.1] 17 13 900 [425] 69
226600 [7.8] 11400 [3.3] 1225 [578] 73
RGRM-04?MAE? 117100 [5.0] 8000 [2.3] 36600 [10.7] 16.5 12.5 750 [354] 69
224400 [7.1] 12200 [3.6] 1025 [484] 73
RGRM-06?MAE? 118100 [5.3] 7600 [2.2] 37000 [10.8] 16 12 900 [425] 69
225400 [7.4] 11600 [3.4] 1175 [554] 73
RGRM-07?MAE? 117600 [5.2] 7800 [2.3] 36400 [10.7] 16.5 12.5 800 [378] 69
224200 [7.1] 12200 [3.6] 1025 [484] 73
RGRM-07?YBG? 117600 [5.2] 7800 [2.3] 36800 [10.8] 16 12 850 [401] 69
225200 [7.4] 11600 [3.4] 1200 [566] 73
RGRM-09?ZAJ? 118600 [5.4] 7400 [2.2] 37600 [11.0] 16.5 12.5 950 [448] 69
226200 [7.7] 11400 [3.3] 1225 [578] 73
RGRM-10?ZAJ? 118100 [5.3] 7600 [2.2] 37400 [11.0] 16.5 13 875 [413] 69
225800 [7.6] 11600 [3.4] 1150 [543] 73
RGTM-06?MAE? 118200 [5.3] 7600 [2.2] 36600 [10.7] 16.5 13 900 [425] 69
224400 [7.1] 12200 [3.6] 1025 [484] 73
RGTM-07?RBG? 118700 [5.5] 7400 [2.2] 38000 [11.1] 17 13 950 [448] 69
226800 [7.9] 11200 [3.3] 1275 [602] 73
RGTM-09?ZAJ? 118900 [5.5] 7400 [2.2] 37800 [11.1] 17 13 975 [460] 69
226400 [7.7] 11400 [3.3] 1225 [578] 73
ROCA-070E03 119000 [5.6] 7300 [2.1] 37400 [11.0] 16.5 13 1000 [472] 69
225800 [7.6] 11600 [3.4] 1200 [566] 73
ROCA-070E04 119000 [5.6] 7300 [2.1] 37400 [11.0] 16.5 13 1000 [472] 69
225800 [7.6] 11600 [3.4] 1200 [566] 73
ROLA-070E03 118300 [5.4] 7600 [2.2] 37600 [11.0] 17 13 900 [425] 69
226000 [7.6] 11600 [3.4] 1175 [554] 73
ROLA-070E04 118300 [5.4] 7600 [2.2] 37600 [11.0] 17 13 900 [425] 69
226000 [7.6] 11600 [3.4] 1175 [554] 73
ROLA-115E05 118300 [5.4] 7600 [2.2] 37600 [11.0] 17 13 900 [425] 69
226000 [7.6] 11600 [3.4] 1200 [566] 73
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
26
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
27
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
039JEC
RCFL-H*3824
RGRM-12?RAJ? 118500 [5.4] 7500 [2.2] 37800 [11.1] 17 13 925 [437] 69
226400 [7.7] 11400 [3.3] 1225 [578] 73
RGTM-07?RBG? 118700 [5.5] 7400 [2.2] 38000 [11.1] 17 13 950 [448] 69
226800 [7.9] 11200 [3.3] 1275 [602] 73
RGTM-09?ZAJ? 118900 [5.5] 7400 [2.2] 37800 [11.1] 17 13 975 [460] 69
226400 [7.7] 11400 [3.3] 1225 [578] 73
RGTM-10?RBJ? 118900 [5.5] 7400 [2.2] 37800 [11.1] 17 13 975 [460] 69
226600 [7.8] 11200 [3.3] 1225 [578] 73
ROCA-070E03 119000 [5.6] 7300 [2.1] 37400 [11.0] 16.5 13 1000 [472] 69
225800 [7.6] 11600 [3.4] 1200 [566] 73
ROCA-070E04 119000 [5.6] 7300 [2.1] 37400 [11.0] 16.5 13 1000 [472] 69
225800 [7.6] 11600 [3.4] 1200 [566] 73
ROLA-070E03 118300 [5.4] 7600 [2.2] 37600 [11.0] 17 13 900 [425] 69
226000 [7.6] 11600 [3.4] 1175 [554] 73
ROLA-070E04 118300 [5.4] 7600 [2.2] 37600 [11.0] 17 13 900 [425] 69
226000 [7.6] 11600 [3.4] 1175 [554] 73
ROLA-115E05 118300 [5.4] 7600 [2.2] 37600 [11.0] 17 13 900 [425] 69
226000 [7.6] 11600 [3.4] 1200 [566] 73
RCFL-H*3824+RXMD-C06 Coil Only 117100 [5.0] 7800 [2.3] 37000 [10.8] 15 12 825 [389] 69
225400 [7.4] 11600 [3.4] 1175 [554] 73
RCFN-H*3624
RGFE-09?ZCM? 117100 [5.0] 4700 [1.4] 39000 [11.4] 18 13 875 [413] 69
227750 [8.1] 11250 [3.3] 1200 [566] 73
RGFE-10?ZCM? 117250 [5.1] 4750 [1.4] 39500 [11.6] 18 13 900 [425] 69
227850 [8.2] 11650 [3.4] 1225 [578] 73
RGFE-12?RCM? 117100 [5.0] 4700 [1.4] 39500 [11.6] 18.5 13 875 [413] 69
228000 [8.2] 11500 [3.4] 1225 [578] 73
RGFG-09?ZCM? 117300 [5.1] 4500 [1.3] 39000 [11.4] 18 13 875 [413] 69
227550 [8.1] 11450 [3.4] 1200 [566] 73
RGFG-10?ZCM? 115500 [4.5] 5100 [1.5] 39000 [11.4] 18 13 600 [283] 69
227500 [8.1] 11500 [3.4] 1200 [566] 73
RGFG-12?RCM? 117400 [5.1] 4600 [1.3] 39500 [11.6] 18.5 13 875 [413] 69
228250 [8.3] 11250 [3.3] 1225 [578] 73
RGGE-09?ZCM? 117300 [5.1] 4500 [1.3] 39500 [11.6] 18 13 875 [413] 69
228200 [8.3] 11300 [3.3] 1225 [578] 73
RGGE-10?ZCM? 115400 [4.5] 5300 [1.6] 39000 [11.4] 18 13 575 [271] 69
227600 [8.1] 11400 [3.3] 1200 [566] 73
RGJF-09?ZCM? 117100 [5.0] 4700 [1.4] 39500 [11.6] 18 13 875 [413] 69
228050 [8.2] 11450 [3.4] 1225 [578] 73
RGJF-10?ZCM? 117100 [5.0] 4700 [1.4] 39000 [11.4] 18 13 875 [413] 69
227750 [8.1] 11250 [3.3] 1200 [566] 73
RGJF-12?RCM? 117100 [5.0] 4700 [1.4] 39500 [11.6] 18.5 13.5 875 [413] 69
227850 [8.2] 11650 [3.4] 1200 [566] 73
RGLE-07?BRQ? 117250 [5.1] 4750 [1.4] 39500 [11.6] 18.5 13.5 925 [437] 69
228000 [8.2] 11500 [3.4] 1225 [578] 73
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
28
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
29
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
039JEC RCQD-3621
RGFG-06?MCK? 115200 [4.5] 5200 [1.5] 37600 [11.0] 17 12 575 [271] 69
226550 [7.8] 11050 [3.2] 1200 [566] 73
RGFG-07?MCK? 115250 [4.5] 5150 [1.5] 37800 [11.1] 17 12 600 [283] 69
227000 [7.9] 10800 [3.2] 1225 [578] 73
RGFG-09?ZCM? 117200 [5.0] 4400 [1.3] 38000 [11.1] 17.5 12.5 875 [413] 69
226850 [7.9] 11150 [3.3] 1200 [566] 73
RGFG-10?ZCM? 115250 [4.5] 5150 [1.5] 38000 [11.1] 17.5 12.5 600 [283] 69
226850 [7.9] 11150 [3.3] 1200 [566] 73
RGJF-06?MCK? 117200 [5.0] 4600 [1.3] 37800 [11.1] 17 12.5 925 [437] 69
226650 [7.8] 11150 [3.3] 1200 [566] 73
RGJF-07?MCK? 116850 [4.9] 4550 [1.3] 37800 [11.1] 17 12 875 [413] 69
226700 [7.8] 11100 [3.3] 1200 [566] 73
RGJF-09?ZCM? 117000 [5.0] 4600 [1.3] 38500 [11.3] 17.5 13 875 [413] 69
227100 [7.9] 11300 [3.3] 1225 [578] 73
RGJF-10?ZCM? 117050 [5.0] 4550 [1.3] 38000 [11.1] 17.5 12.5 875 [413] 69
226800 [7.9] 11200 [3.3] 1200 [566] 73
RGPE-05?BMK? 117000 [5.0] 4600 [1.3] 37800 [11.1] 17 12.5 900 [425] 69
226700 [7.8] 11100 [3.3] 1200 [566] 73
RGPE-07?AMK? 117200 [5.0] 4600 [1.3] 38000 [11.1] 17.5 12.5 900 [425] 69
226950 [7.9] 11050 [3.2] 1225 [578] 73
RGPE-07?BRQ? 117200 [5.0] 4600 [1.3] 38500 [11.3] 18 13 900 [425] 69
227300 [8.0] 11200 [3.3] 1225 [578] 73
RGPE-10?BRM? 117200 [5.0] 4600 [1.3] 38500 [11.3] 18 13 900 [425] 69
227250 [8.0] 11250 [3.3] 1225 [578] 73
RGRM-04?MAE? 116150 [4.7] 4650 [1.4] 36800 [10.8] 16.5 12 750 [354] 69
226250 [7.7] 10550 [3.1] 1025 [484] 73
RGRM-06?MAE? 116450 [4.8] 4750 [1.4] 37400 [11.0] 16 11.5 900 [425] 69
226700 [7.8] 10700 [3.1] 1175 [554] 73
RGRM-07?MAE? 116350 [4.8] 4650 [1.4] 36800 [10.8] 16.5 12 800 [378] 69
226300 [7.7] 10500 [3.1] 1025 [484] 73
RGRM-07?YBG? 116300 [4.8] 4700 [1.4] 37200 [10.9] 16 11.5 850 [401] 69
226550 [7.8] 10650 [3.1] 1200 [566] 73
RGRM-09?ZAJ? 116800 [4.9] 4800 [1.4] 37800 [11.1] 16.5 12 950 [448] 69
227000 [7.9] 10800 [3.2] 1225 [578] 73
RGRM-10?ZAJ? 116450 [4.8] 4750 [1.4] 37600 [11.0] 16.5 12.5 875 [413] 69
226850 [7.9] 10750 [3.1] 1150 [543] 73
ROCA-070E03 117350 [5.1] 4650 [1.4] 37600 [11.0] 16 12.5 1000 [472] 69
226850 [7.9] 10750 [3.1] 1200 [566] 73
ROCA-070E04 117350 [5.1] 4650 [1.4] 37600 [11.0] 16 12.5 1000 [472] 69
226850 [7.9] 10750 [3.1] 1200 [566] 73
ROLA-070E03 117200 [5.0] 4750 [1.4] 37600 [11.0] 16.5 13 900 [425] 69
226950 [7.9] 10650 [3.1] 1175 [554] 73
ROLA-070E04 117200 [5.0] 4600 [1.3] 37600 [11.0] 16.5 13 900 [425] 69
226950 [7.9] 10650 [3.1] 1175 [554] 73
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
30
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
31
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
039JEC
RCQD-3624 ROLA-115E05 117200 [5.0] 4600 [1.3] 37600 [11.0] 17 13 900 [425] 69
226950 [7.9] 10650 [3.1] 1200 [566] 73
RCQD-3624+RXMD-C06 Coil Only 116200 [4.7] 4600 [1.3] 37600 [11.0] 14.5 11.5 825 [389] 69
226200 [7.7] 11400 [3.3] 1175 [554] 73
RCSL-H*3621 RHPL-HM3621 114750 [4.3] 5650 [1.7] 36200 [10.6] 17 12 925 [437] 69
223800 [7.0] 12400 [3.6] 1225 [578] 73
048JEC
RCSN-H*4824 ➀RHPN-HM4824
120800 [6.1] 5800 [1.7]
48500 [14.2] 18 13
1000 [472] 73
235800 [10.5] 12700 [3.7] 1600 [755] 74
1 - dehumid 19200 [5.6] 6800 [2.0] 825 [389]
2 - dehumid 32800 [9.6] 14200 [4.2] 1300 [613]
RCFL-H*4821
RGFE-07?MCK? 117100 [5.0] 6900 [2.0] 42500 [12.5] 15.5 11 875 [413] 73
228700 [8.4] 13800 [4.0] 1225 [578] 74
RGFE-09?ZCM? 117800 [5.2] 7200 [2.1] 43500 [12.7] 15 10.5 1200 [566] 73
229500 [8.6] 14100 [4.1] 1600 [755] 74
RGFE-10?ZCM? 117800 [5.2] 7200 [2.1] 43500 [12.7] 15 10.5 1225 [578] 73
229550 [8.7] 13950 [4.1] 1600 [755] 74
RGFG-07?MCK? 117100 [5.0] 7300 [2.1] 42500 [12.5] 15.5 11 925 [437] 73
226250 [7.7] 16250 [4.8] 1225 [578] 74
RGFG-09?ZCM? 116200 [4.7] 7800 [2.3] 43500 [12.7] 16 10.5 775 [366] 73
229350 [8.6] 14150 [4.1] 1600 [755] 74
RGFG-10?ZCM? 115850 [4.6] 7950 [2.3] 43000 [12.6] 16 11 725 [342] 73
227500 [8.1] 15500 [4.5] 1400 [661] 74
RGGE-09?ZCM? 117950 [5.3] 7250 [2.1] 43500 [12.7] 15.5 11 1225 [578] 73
229650 [8.7] 13850 [4.1] 1600 [755] 74
RGGE-10?ZCM? 117800 [5.2] 7200 [2.1] 43500 [12.7] 15 10.5 1200 [566] 73
229500 [8.6] 14000 [4.1] 1600 [755] 74
RGJF-09?ZCM? 116300 [4.8] 7900 [2.3] 44000 [12.9] 16 11 775 [366] 73
229200 [8.6] 14800 [4.3] 1600 [755] 74
RGJF-10?ZCM? 116300 [4.8] 7900 [2.3] 43500 [12.7] 16 10.5 775 [366] 73
229200 [8.6] 14300 [4.2] 1600 [755] 74
RGLE-07?BRQ? 117950 [5.3] 7250 [2.1] 44000 [12.9] 16 11 1225 [578] 73
229800 [8.7] 14200 [4.2] 1600 [755] 74
RGLE-10?BRM? 117950 [5.3] 7250 [2.1] 44500 [13.0] 16 11.5 1200 [566] 73
230100 [8.8] 14300 [4.2] 1600 [755] 74
RGPE-07?AMK? 117250 [5.1] 6950 [2.0] 42500 [12.5] 16.5 11.5 900 [425] 73
229000 [8.5] 13500 [4.0] 1225 [578] 74
RGPE-07?BRQ? 117950 [5.3] 7250 [2.1] 44000 [12.9] 16 11 1225 [578] 73
229750 [8.7] 14250 [4.2] 1600 [755] 74
RGPE-10?BRM? 118150 [5.3] 7250 [2.1] 44000 [12.9] 16 11.5 1225 [578] 73
229950 [8.8] 14050 [4.1] 1625 [767] 74
RGRM-07?MAE? 117150 [5.0] 7050 [2.1] 43000 [12.6] 15 11 950 [448] 73
228600 [8.4] 14400 [4.2] 1225 [578] 74
RGRM-07?YBG? 117450 [5.1] 7150 [2.1] 43500 [12.7] 14.5 10.5 1050 [495] 73
228900 [8.5] 14600 [4.3] 1400 [661] 74
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
32
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
048JEC
RCFL-H*4821
RGRM-09?ZAJ? 117450 [5.1] 7150 [2.1] 44000 [12.9] 16 12 950 [448] 73
229200 [8.6] 14800 [4.3] 1225 [578] 74
RGRM-10?ZAJ? 117600 [5.2] 7200 [2.1] 44000 [12.9] 15.5 11.5 1025 [484] 73
229400 [8.6] 14600 [4.3] 1425 [672] 74
RGTM-09?ZAJ? 117950 [5.3] 7250 [2.1] 43500 [12.7] 15.5 11 1250 [590] 73
229700 [8.7] 13800 [4.0] 1600 [755] 74
RCFL-H*4821+RXMD-C06 Coil Only 119200 [5.6] 6200 [1.8] 44000 [12.9] 14 11 1100 [519] 73
229600 [8.7] 14400 [4.2] 1475 [696] 74
RCFL-H*4824
RGFE-09?ZCM? 118300 [5.4] 6900 [2.0] 44000 [12.9] 15.5 11 1200 [566] 73
230050 [8.8] 13950 [4.1] 1600 [755] 74
RGFE-10?ZCM? 118250 [5.3] 6950 [2.0] 44000 [12.9] 15 10.5 1225 [578] 73
230100 [8.8] 13900 [4.1] 1600 [755] 74
RGFE-12?RCM? 118400 [5.4] 7000 [2.1] 44500 [13.0] 15.5 11 1225 [578] 73
230200 [8.8] 14300 [4.2] 1625 [767] 74
RGFG-09?ZCM? 116650 [4.9] 7550 [2.2] 44000 [12.9] 16 11 775 [366] 73
229800 [8.7] 14200 [4.2] 1600 [755] 74
RGFG-10?ZCM? 116900 [5.0] 7500 [2.2] 44500 [13.0] 16 10.5 800 [378] 73
230800 [9.0] 13700 [4.0] 1650 [779] 74
RGFG-12?RCM? 116600 [4.9] 7600 [2.2] 44500 [13.0] 16 11 775 [366] 73
230450 [8.9] 14050 [4.1] 1625 [767] 74
RGGE-09?ZCM? 118450 [5.4] 6950 [2.0] 44500 [13.0] 15.5 11 1225 [578] 73
230200 [8.8] 14300 [4.2] 1600 [755] 74
RGGE-10?ZCM? 118300 [5.4] 6900 [2.0] 44000 [12.9] 15.5 11 1200 [566] 73
230050 [8.8] 13950 [4.1] 1600 [755] 74
RGGE-12?RCM? 118400 [5.4] 7000 [2.1] 44500 [13.0] 16 11.5 1200 [566] 73
230500 [8.9] 14000 [4.1] 1575 [743] 74
RGJF-09?ZCM? 116700 [4.9] 7600 [2.2] 44500 [13.0] 16.5 11 775 [366] 73
229800 [8.7] 14700 [4.3] 1600 [755] 74
RGJF-10?ZCM? 116100 [4.7] 7900 [2.3] 44000 [12.9] 16.5 11.5 675 [319] 73
228000 [8.2] 16000 [4.7] 1400 [661] 74
RGJF-12?RCM? 116800 [4.9] 7600 [2.2] 45000 [13.2] 16.5 11.5 775 [366] 73
230200 [8.8] 14800 [4.3] 1575 [743] 74
RGLE-10?BRM? 118400 [5.4] 7000 [2.1] 45000 [13.2] 16.5 11.5 1200 [566] 73
230650 [9.0] 14350 [4.2] 1600 [755] 74
RGLE-12?ARM? 118600 [5.4] 7000 [2.1] 44500 [13.0] 16.5 11.5 1225 [578] 73
230450 [8.9] 14050 [4.1] 1600 [755] 74
RGPE-07?BRQ? 118400 [5.4] 7000 [2.1] 44500 [13.0] 16 11.5 1225 [578] 73
230300 [8.9] 14200 [4.2] 1600 [755] 74
RGPE-10?BRM? 118600 [5.4] 7000 [2.1] 44500 [13.0] 16 11.5 1225 [578] 73
230500 [8.9] 14000 [4.1] 1625 [767] 74
RGPE-12?ARM? 118400 [5.4] 7000 [2.1] 44500 [13.0] 16.5 11.5 1200 [566] 73
230450 [8.9] 14050 [4.1] 1625 [767] 74
RGRM-07?YBG? 117950 [5.3] 6850 [2.0] 43500 [12.7] 15 10.5 1050 [495] 73
229300 [8.6] 14200 [4.2] 1400 [661] 74
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
33
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
048JEC
RCFL-H*4824
RGRM-09?ZAJ? 117950 [5.3] 6850 [2.0] 44000 [12.9] 16 12 950 [448] 73
229550 [8.7] 14450 [4.2] 1225 [578] 74
RGRM-10?ZAJ? 118100 [5.3] 6900 [2.0] 44000 [12.9] 16 11.5 1025 [484] 73
229800 [8.7] 14200 [4.2] 1425 [672] 74
RGRM-12?RAJ? 117950 [5.3] 6850 [2.0] 44000 [12.9] 16.5 12 925 [437] 73
229700 [8.7] 14300 [4.2] 1225 [578] 74
RGTM-09?ZAJ? 118400 [5.4] 7000 [2.1] 44500 [13.0] 15.5 11 1250 [590] 73
230250 [8.9] 14250 [4.2] 1600 [755] 74
RCFL-H*4824+RXMD-C06 Coil Only 119200 [5.6] 6200 [1.8] 44000 [12.9] 14 11 1075 [507] 73
229600 [8.7] 14400 [4.2] 1425 [672] 74
RCFN-H*4824
RGFE-09?ZCM? 121050 [6.2] 5950 [1.7] 47500 [13.9] 16.5 11.5 1200 [566] 73
235000 [10.3] 12500 [3.7] 1600 [755] 74
RGFE-10?ZCM? 121250 [6.2] 5950 [1.7] 47000 [13.8] 16.5 11.5 1225 [578] 73
234800 [10.2] 12200 [3.6] 1600 [755] 74
RGFE-12?RCM? 121200 [6.2] 6000 [1.8] 47500 [13.9] 17 12 1225 [578] 73
235150 [10.3] 12350 [3.6] 1625 [767] 74
RGFG-09?ZCM? 119000 [5.6] 6600 [1.9] 47500 [13.9] 17.5 11.5 775 [366] 73
235150 [10.3] 12350 [3.6] 1600 [755] 74
RGFG-10?ZCM? 119200 [5.6] 6400 [1.9] 47500 [13.9] 17.5 11.5 800 [378] 73
235450 [10.4] 12050 [3.5] 1650 [779] 74
RGFG-12?RCM? 119100 [5.6] 6500 [1.9] 47500 [13.9] 17.5 12 775 [366] 73
235050 [10.3] 12450 [3.6] 1625 [767] 74
RGGE-09?ZCM? 121200 [6.2] 6000 [1.8] 47500 [13.9] 17 12 1225 [578] 73
235150 [10.3] 12350 [3.6] 1600 [755] 74
RGGE-10?ZCM? 121050 [6.2] 5950 [1.7] 47500 [13.9] 16.5 11.5 1200 [566] 73
234950 [10.2] 12550 [3.7] 1600 [755] 74
RGGE-12?RCM? 121200 [6.2] 6000 [1.8] 47500 [13.9] 17.5 12 1200 [566] 73
235250 [10.3] 12250 [3.6] 1575 [743] 74
RGJF-09?ZCM? 121200 [6.2] 6000 [1.8] 47500 [13.9] 17 12 1225 [578] 73
235150 [10.3] 12350 [3.6] 1600 [755] 74
RGJF-10?ZCM? 121050 [6.2] 5950 [1.7] 47500 [13.9] 16.5 11.5 1200 [566] 73
234950 [10.2] 12550 [3.7] 1600 [755] 74
RGJF-12?RCM? 121200 [6.2] 6000 [1.8] 47500 [13.9] 17.5 12 1200 [566] 73
235250 [10.3] 12250 [3.6] 1575 [743] 74
RGLE-10?BRM? 121400 [6.3] 6000 [1.8] 48000 [14.1] 17.5 12.5 1200 [566] 73
235400 [10.4] 12600 [3.7] 1600 [755] 74
RGLE-12?ARM? 121350 [6.3] 6050 [1.8] 48000 [14.1] 17.5 12.5 1225 [578] 73
235400 [10.4] 12600 [3.7] 1600 [755] 74
RGPE-07?BRQ? 120950 [6.1] 5850 [1.7] 47000 [13.8] 17.5 12.5 1050 [495] 73
234800 [10.2] 12200 [3.6] 1400 [661] 74
RGPE-10?BRM? 121400 [6.3] 6000 [1.8] 47500 [13.9] 17 12 1225 [578] 73
235250 [10.3] 12250 [3.6] 1625 [767] 74
RGPE-12?ARM? 121400 [6.3] 6000 [1.8] 48000 [14.1] 17.5 12.5 1200 [566] 73
235400 [10.4] 12600 [3.7] 1625 [767] 74
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
34
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
35
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
048JEC
RCQD-4821
ROCA-070E04 119850 [5.8] 5750 [1.7] 46000 [13.5] 15 11.5 1200 [566] 73
233350 [9.8] 12650 [3.7] 1400 [661] 74
ROLA-070E04 120000 [5.9] 5800 [1.7] 46000 [13.5] 15.5 11.5 1175 [554] 73
233750 [9.9] 12250 [3.6] 1600 [755] 74
RCQD-4821+RXMD-C06 Coil Only 121400 [6.3] 4500 [1.3] 46000 [13.5] 14.5 11.5 1175 [554] 73
233600 [9.8] 12400 [3.6] 1550 [731] 74
RCQD-4824
RBHM-25J* 120500 [6.0] 5900 [1.7] 47000 [13.8] 17.5 13 1200 [566] 73
234800 [10.2] 12200 [3.6] 1600 [755] 74
RGFE-09?ZCM? 120450 [6.0] 5950 [1.7] 45500 [13.3] 16 11.5 1200 [566] 73
233750 [9.9] 11750 [3.4] 1600 [755] 74
RGFE-10?ZCM? 120650 [6.1] 5950 [1.7] 45500 [13.3] 16 11.5 1225 [578] 73
233800 [9.9] 11700 [3.4] 1600 [755] 74
RGFE-12?RCM? 120800 [6.1] 6000 [1.8] 46000 [13.5] 16.5 11.5 1225 [578] 73
233900 [9.9] 12100 [3.5] 1625 [767] 74
RGFG-09?ZCM? 118450 [5.4] 6550 [1.9] 45500 [13.3] 16.5 11.5 775 [366] 73
233400 [9.8] 12100 [3.5] 1600 [755] 74
RGFG-10?ZCM? 118100 [5.3] 6700 [2.0] 45000 [13.2] 17 11.5 725 [342] 73
231550 [9.2] 13450 [3.9] 1400 [661] 74
RGFG-12?RCM? 118450 [5.4] 6550 [1.9] 46000 [13.5] 17 11.5 775 [366] 73
234050 [10.0] 11950 [3.5] 1625 [767] 74
RGJF-09?ZCM? 120600 [6.0] 6000 [1.8] 46000 [13.5] 16.5 11.5 1225 [578] 73
233900 [9.9] 12100 [3.5] 1600 [755] 74
RGJF-10?ZCM? 120650 [6.1] 5950 [1.7] 45500 [13.3] 16 11.5 1200 [566] 73
233750 [9.9] 11750 [3.4] 1600 [755] 74
RGJF-12?RCM? 120800 [6.1] 6000 [1.8] 46500 [13.6] 17 12 1200 [566] 73
234200 [10.0] 12300 [3.6] 1575 [743] 74
RGPE-07?BRQ? 120800 [6.1] 6000 [1.8] 46500 [13.6] 16.5 12 1225 [578] 73
234200 [10.0] 12300 [3.6] 1600 [755] 74
RGPE-10?BRM? 120800 [6.1] 6000 [1.8] 46000 [13.5] 16.5 12 1225 [578] 73
234000 [10.0] 12000 [3.5] 1625 [767] 74
RGPE-12?ARM? 120800 [6.1] 6000 [1.8] 46500 [13.6] 17 12 1200 [566] 73
234200 [10.0] 12300 [3.6] 1625 [767] 74
RGRM-07?YBG? 119800 [5.8] 5600 [1.6] 44500 [13.0] 15.5 11 1050 [495] 73
232850 [9.6] 11650 [3.4] 1400 [661] 74
RGRM-09?ZAJ? 119900 [5.8] 5700 [1.7] 45500 [13.3] 16 11.5 1075 [507] 73
233450 [9.8] 12050 [3.5] 1400 [661] 74
RGRM-10?ZAJ? 119750 [5.8] 5650 [1.7] 45500 [13.3] 16 11.5 1025 [484] 73
233450 [9.8] 12050 [3.5] 1425 [672] 74
RGRM-12?RAJ? 120100 [5.9] 5700 [1.7] 46000 [13.5] 16.5 12 1075 [507] 73
233750 [9.9] 12250 [3.6] 1425 [672] 74
ROCA-070E04 120450 [6.0] 5950 [1.7] 46000 [13.5] 15 11.5 1200 [566] 73
233300 [9.8] 12700 [3.7] 1400 [661] 74
ROLA-070E04 120650 [6.1] 5950 [1.7] 46000 [13.5] 15.5 11.5 1175 [554] 73
233900 [9.9] 12100 [3.5] 1600 [755] 74
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
36
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
37
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
060JEC
RCFL-H*6024
RGTM-09?ZAJ? 123600 [6.9] 9200 [2.7] 56000 [16.4] 16 11.5 1250 [590] 67
238200 [11.2] 17800 [5.2] 1600 [755] 72
RGTM-10?RBJ? 123750 [7.0] 9250 [2.7] 56500 [16.6] 16 11.5 1275 [602] 67
238600 [11.3] 17900 [5.2] 1675 [790] 72
ROLA-070E04 123700 [6.9] 8900 [2.6] 55500 [16.3] 15.5 11.5 1175 [554] 67
238200 [11.2] 17300 [5.1] 1600 [755] 72
ROLA-115E05 123850 [7.0] 8950 [2.6] 56000 [16.4] 16 11.5 1200 [566] 67
238550 [11.3] 17450 [5.1] 1600 [755] 72
RCFL-H*6024+RXMD-C06 Coil Only 122400 [6.6] 9000 [2.6] 56500 [16.6] 15 11.5 1250 [590] 67
238500 [11.3] 18000 [5.3] 1675 [790] 72
RCFN-H*6024
RGFE-09?ZCM? 123700 [6.9] 8900 [2.6] 55500 [16.3] 16 11 1200 [566] 67
238250 [11.2] 17250 [5.1] 1600 [755] 72
RGFE-10?ZCM? 123650 [6.9] 8950 [2.6] 55500 [16.3] 16 11 1225 [578] 67
238100 [11.2] 17400 [5.1] 1600 [755] 72
RGFE-12?RCM? 123850 [7.0] 8950 [2.6] 56000 [16.4] 16.5 11.5 1225 [578] 67
238350 [11.2] 17650 [5.2] 1625 [767] 72
RGFG-09?ZCM? 124400 [7.1] 8200 [2.4] 55500 [16.3] 16 11 1200 [566] 67
236950 [10.8] 18550 [5.4] 1600 [755] 72
RGFG-10?ZCM? 124400 [7.1] 8200 [2.4] 56000 [16.4] 16 11 1200 [566] 67
237850 [11.1] 18150 [5.3] 1650 [779] 72
RGFG-12?RCM? 124800 [7.3] 8000 [2.3] 56000 [16.4] 16.5 11.5 1225 [578] 67
237600 [11.0] 18400 [5.4] 1625 [767] 72
RGGE-09?ZCM? 123850 [7.0] 8950 [2.6] 56000 [16.4] 16.5 11.5 1225 [578] 67
238400 [11.3] 17600 [5.2] 1600 [755] 72
RGGE-10?ZCM? 123700 [6.9] 8900 [2.6] 55500 [16.3] 16 11 1200 [566] 67
238250 [11.2] 17250 [5.1] 1600 [755] 72
RGGE-12?RCM? 123250 [6.8] 8750 [2.6] 57000 [16.7] 16.5 11 1000 [472] 67
239050 [11.4] 17950 [5.3] 1950 [920] 72
RGJF-09?ZCM? 124300 [7.1] 9100 [2.7] 56000 [16.4] 15.5 11 1400 [661] 67
238500 [11.3] 17500 [5.1] 1775 [838] 72
RGJF-10?ZCM? 124100 [7.1] 9100 [2.7] 56000 [16.4] 15 11 1400 [661] 67
238500 [11.3] 17500 [5.1] 1775 [838] 72
RGJF-12?RCM? 124250 [7.1] 9150 [2.7] 56500 [16.6] 16 11.5 1375 [649] 67
238800 [11.4] 17700 [5.2] 1750 [826] 72
RGPE-07?BRQ? 124000 [7.0] 9000 [2.6] 56000 [16.4] 16.5 11.5 1225 [578] 67
238500 [11.3] 17500 [5.1] 1600 [755] 72
RGPE-10?BRM? 124000 [7.0] 9000 [2.6] 56500 [16.6] 16.5 11.5 1225 [578] 67
238650 [11.3] 17850 [5.2] 1625 [767] 72
RGPE-12?ARM? 123800 [7.0] 9000 [2.6] 56500 [16.6] 17 12 1200 [566] 67
238800 [11.4] 17700 [5.2] 1625 [767] 72
RGRM-12?RAJ? 123850 [7.0] 8950 [2.6] 56000 [16.4] 16 11.5 1225 [578] 67
238350 [11.2] 17650 [5.2] 1625 [767] 72
RGTM-07?RBG? 124150 [7.1] 9050 [2.7] 56500 [16.6] 16 11.5 1325 [625] 67
238650 [11.3] 17850 [5.2] 1675 [790] 72
RGTM-09?ZAJ? 124000 [7.0] 9000 [2.6] 55500 [16.3] 16 11.5 1250 [590] 67
238200 [11.2] 17300 [5.1] 1600 [755] 72
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
38
Outdoor
Unit
RASL-
Model Numbers
Stage
AHRI Cooling Performance
80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
AHRI Ratings Indoor
Airflow
CFM [L/s]
Sound
Rating
dB
ID Coil ID Air Mover Total Capacity
BTU/H [kW] SEER EER
060JEC
RCFN-H*6024
RGTM-10?RBJ? 123950 [7.0] 9050 [2.7] 56500 [16.6] 16.5 11.5 1275 [602] 67
238800 [11.4] 17700 [5.2] 1675 [790] 72
ROLA-070E04 123700 [6.9] 8900 [2.6] 55500 [16.3] 15.5 11.5 1175 [554] 67
238200 [11.2] 17300 [5.1] 1600 [755] 72
ROLA-115E05 123850 [7.0] 8950 [2.6] 56000 [16.4] 16 11.5 1200 [566] 67
238550 [11.3] 17450 [5.1] 1600 [755] 72
RCFN-H*6024+RXMD-C06 Coil Only 124400 [7.1] 7900 [2.3] 56500 [16.6] 15 11.5 1250 [590] 67
238500 [11.3] 18000 [5.3] 1680 [793] 72
RCQD-6024
RBHM-26J* 122500 [6.6] 9300 [2.7] 54500 [16.0] 16.5 12 1275 [602] 67
236800 [10.8] 17700 [5.2] 1700 [802] 72
RGFE-09?ZCM? 121550 [6.3] 9250 [2.7] 52500 [15.4] 15 10.5 1200 [566] 67
235500 [10.4] 17000 [5.0] 1600 [755] 72
RGFE-10?ZCM? 121550 [6.3] 9250 [2.7] 52000 [15.2] 15 10.5 1225 [578] 67
235350 [10.4] 16650 [4.9] 1600 [755] 72
RGFE-12?RCM? 121700 [6.4] 9300 [2.7] 52500 [15.4] 15.5 11 1225 [578] 67
235600 [10.4] 16900 [5.0] 1625 [767] 72
RGFG-09?ZCM? 122150 [6.5] 8450 [2.5] 52000 [15.2] 15 10.5 1200 [566] 67
234100 [10.0] 17900 [5.2] 1600 [755] 72
RGFG-10?ZCM? 122150 [6.5] 8450 [2.5] 52500 [15.4] 15 10.5 1200 [566] 67
235150 [10.3] 17350 [5.1] 1650 [779] 72
RGFG-12?RCM? 122600 [6.6] 8400 [2.5] 52500 [15.4] 15 11 1225 [578] 67
234800 [10.2] 17700 [5.2] 1625 [767] 72
RGJF-09?ZCM? 121700 [6.4] 9300 [2.7] 52500 [15.4] 15 11 1225 [578] 67
235650 [10.4] 16850 [4.9] 1600 [755] 72
RGJF-10?ZCM? 121550 [6.3] 9250 [2.7] 52500 [15.4] 15 10.5 1200 [566] 67
235500 [10.4] 17000 [5.0] 1600 [755] 72
RGJF-12?RCM? 121700 [6.4] 9300 [2.7] 52500 [15.4] 15.5 11 1200 [566] 67
235800 [10.5] 16700 [4.9] 1575 [743] 72
RGPE-07?BRQ? 121650 [6.3] 9350 [2.7] 52500 [15.4] 15.5 11 1225 [578] 67
235750 [10.5] 16750 [4.9] 1600 [755] 72
RGPE-10?BRM? 121650 [6.3] 9350 [2.7] 53000 [15.5] 15.5 11 1225 [578] 67
235900 [10.5] 17100 [5.0] 1625 [767] 72
RGPE-12?ARM? 121700 [6.4] 9300 [2.7] 53000 [15.5] 16 11 1200 [566] 67
236050 [10.6] 16950 [5.0] 1625 [767] 72
RGRM-09?ZAJ? 121900 [6.4] 9100 [2.7] 52500 [15.4] 14.5 10.5 1225 [578] 67
235600 [10.4] 16900 [5.0] 1625 [767] 72
RGRM-10?ZAJ? 121600 [6.3] 9000 [2.6] 52500 [15.4] 15 10.5 1150 [543] 67
235400 [10.4] 17100 [5.0] 1600 [755] 72
RGRM-12?RAJ? 121850 [6.4] 9150 [2.7] 53000 [15.5] 15 11 1225 [578] 67
235850 [10.5] 17150 [5.0] 1625 [767] 72
ROLA-070E04 121550 [6.3] 9250 [2.7] 53000 [15.5] 14.5 10.5 1175 [554] 67
235450 [10.4] 17550 [5.1] 1600 [755] 72
ROLA-115E05 121700 [6.4] 9300 [2.7] 53000 [15.5] 15 11 1200 [566] 67
235800 [10.5] 17200 [5.0] 1600 [755] 72
RCQD-6024+RXMD-C06 Coil Only 120400 [6.0] 9100 [2.7] 53000 [15.5] 14 11 1275 [602] 67
235600 [10.4] 17400 [5.1] 1700 [802] 72
Rev.
5/8/2012
➀Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RASL- JEC Series
Air Electrical and Physical Data
RASL- JEC Series
39
Model
Number
16AJL
ELECTRICAL PHYSICAL
Phase
Frequency (Hz)
Voltage (Volts)
Compressor Fan Motor
Full Load
Amperes
(FLA)
Minimum
Circuit
Ampacity
Amperes
Fuse or HACR
Circuit Breaker Outdoor Coil Refrig.
Per
Circuit
Oz. [g]
Weight
Rated Load
Amperes
(RLA)
Locked Rotor
Amperes
(LRA)
Minimum
Amperes
Maximum
Amperes
Face Area
Sq. Ft. [m2]
No.
Rows CFM [L/s] Net
Lbs. [kg]
Shipping
Lbs. [kg]
Rev. 5/8/2012
025JEC 1-60-208/230 11.7/11.7 58.3 2.8 18/18 25/25 25/25 15.8 [1.47] 12500 [1180] 138 [3912] 206 [93.4] 219 [93.4]
037JEC 1-60-208/230 15.3/15.3 83 2.8 22/22 30/30 35/35 23.01 [2.14] 13400 [1604] 186 [5273] 216 [98] 229 [98]
039JEC 1-60-208/230 17.9/17.9 96 2.8 26/26 30/30 40/40 23 [2.14] 23500 [1652] 268 [7598] 326 [147.9] 345 [147.9]
048JEC 1-60-208/230 26.9/26.9 117 2.8 37/37 45/45 60/60 23 [2.14] 23500 [1652] 253 [7173] 326 [147.9] 348 [147.9]
060JEC 1-60-208/230 28.2/28.2 146 2.8 39/39 50/50 60/60 23 [2.14] 23500 [1652] 241 [6832] 328 [148.8] 346 [148.8]
NOTE: Factory Refrigerant Charge includes refrigerant for 15 feet of standard line set.
[ ] Designates Metric Conversions
Electrical and Physical Data
Model Number
RASL-
Height “H”
(Inches) [mm]
Length “L”
(Inches) [mm]
Width “W”
(Inches) [mm]
025JEC/037JEC/039JEC/
048JEC/060JEC 33 [838] 443/8[1127] 311/2[800]

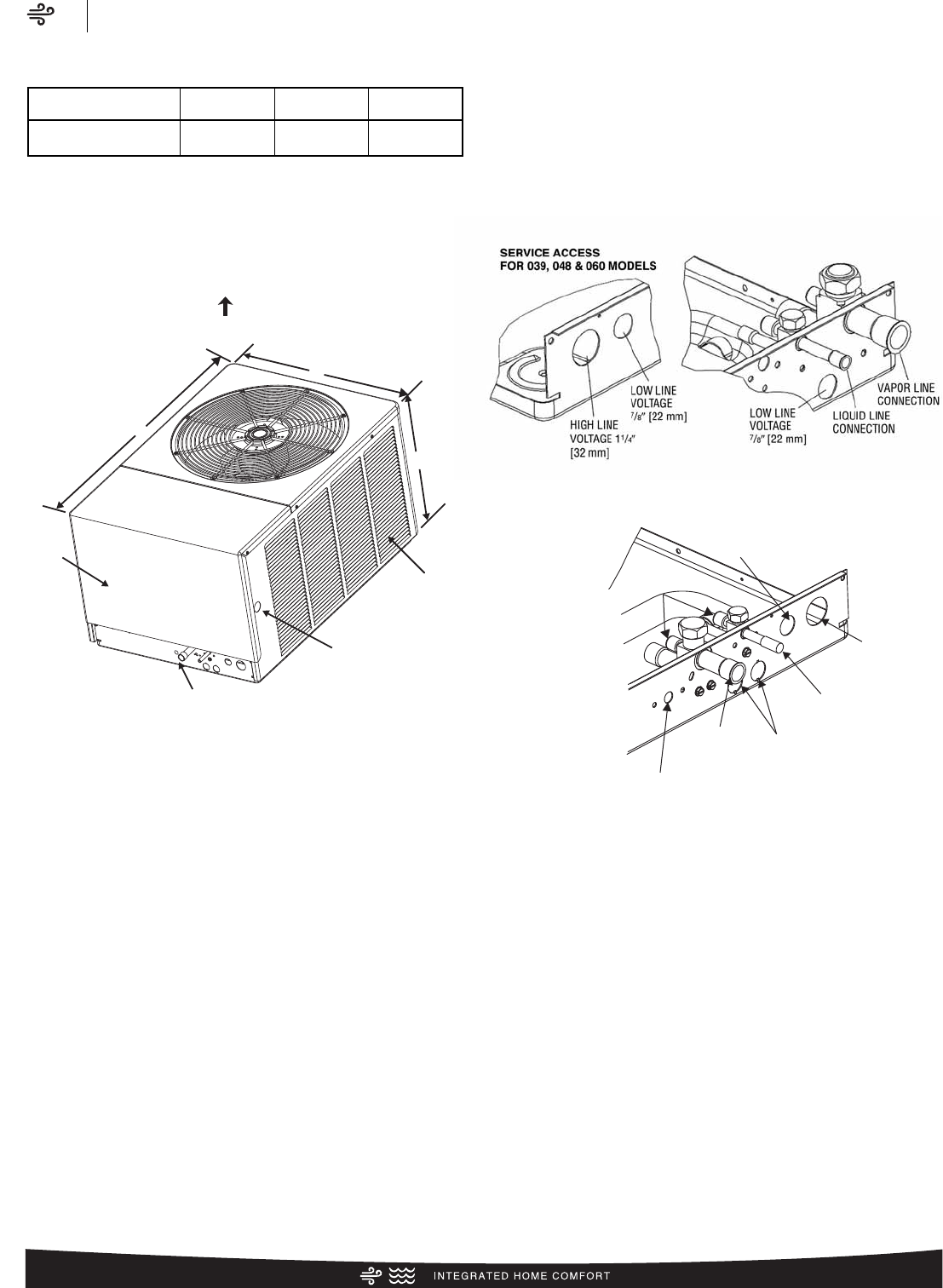

Air Unit Dimensions
RASL- JEC Series
40
Unit Dimensions
AIR INLETS
(LOUVERS)
ALLOW 6 [152 mm]
MIN. CLEARANCE
3 SIDES
AIR DISCHARGE
ALLOW 60 [1524 mm] CLEARANCE
ALLOW 24 [610 mm]
ACCESS CLEARANCE
ACCESS
PANEL
L
W
H
ALTERNATE HIGH VOLTAGE
CONNECTION (KNOCKOUT)
111/32[34 mm]
SERVICE
FITTINGS
LOW VOLTAGE
CONNECTION
7/80 [22 mm]
HIGH VOLTAGE
CONNECTION
111/320 [34 mm]
LIQUID LINE
CONNECTION
SERVICE ACCESS
TO ELECTRICAL &
VALVES ALLOW
240 [610 mm]
CLEARANCE
ONE SIDE
27/80 [73 mm] DIA.
ACCESSORY
KNOCKOUTS
VAPOR LINE
CONNECTION
HIGH PRESSURE
CONTROL
MANUAL RESET
(FIELD INSTALLED
ACCESSORY)
A-00003
[ ] Designates Metric Conversions
Air Refrigerant Line Size Information
RASL- JEC Series
41
Condensing Unit Refrigerant Line Size Information
R-410A
System
Capacity
Model
Line Size
(Inch O.D.)
[mm]
Liquid Line Size
Outdoor Unit Above Indoor Coil
(Cooling Only - Does not apply to Heat Pumps)
Minimum Vertical Separation—Feet [m]
25
[7.62]
50
[15.24]
75
[22.86]
100
[30.48]
125
[38.10]
150
[45.72]
Total Equivalent Length—Feet [m]
3/8" [9.52]*0 0 0 0 0 0
-025
1/4" [6.35]* 0 0 10 [3.05] 34 [10.36] 58 [17.68] 82 [24.99]
3/8″
[9.53]
Line Size
Connection
Size
(Inch I.D.)
[mm]
Liquid Line Sizing (2-Stage R-410A)
5/16" [7.93]*0 0 0 0 0 0
1/2" [12.70]*
3/8" [9.52]* 0 0 0 0 0 0
0 0 0 0 0 0
-037
5/16" [7.93]*0 0 6 [1.83] 14 [4.27] 21 [6.40] 28 [8.53]
3/8″
[9.53]
1/2" [12.70]*
3/8" [9.52]*0 0 0 0 0 0
0 0 0 0 0 0
-039
5/16" [7.93]* 0 0 0 0 10 [3.05] 24 [7.32]
3/8″
[9.53]
-048 3/8″
[9.53]
5/16" [7.93]* 0 0 0 18 [5.49] 40 [12.19] 62 [18.90]
3/8" [9.52]*0 0 0 0 0 0
1/2" [12.70]*0 0 0 0 0 0
-060 3/8″
[9.53]
3/8" [9.52]* 0 0 0 0 0 0
1/2" [12.70]*0 0 0 0 0 0
-048 3/8″
[9.53]
5/16" [7.93]* 25 [10.36] 24 [7.32] N/A N/A N/A N/A
3/8" [9.52]*25 [11.89]
3/8" [9.52]*
36 [10.97] 34 [10.36] 32 [9.75] 29 [8.84] 23 [7.01]
1/2" [12.70]*
3/8" [9.52]*
Maximum Vertical Separation—Feet [m]
Liquid Line Sizing (2-Stage R-410A)
12 [3.66]
5/16" [7.93]*25 [14.33] 44 [13.41] 40 [12.19] 36 [10.97] 30 [9.14] 24 [7.32]
25 [15.24] 48 [14.63]
25
[7.62]
50
[15.24]
47 [14.33] 46 [14.02] 45 [13.72]
75
[22.86]
43 [13.11]
100
[30.48]
125
[38.10]
150
[45.72]
Total Equivalent Length—Feet [m]
-025
1/4" [6.35]* 25 [11.28] 13 [3.96] N/A N/A N/A N/A
9 [2.74] N/A N/A N/A N/A
14 [4.27] 13 [3.96] 13 [3.96] 12 [3.66] 12 [3.66] 11 [3.35]
-037
5/16" [7.93]*N/A N/A N/A N/A N/A N/A
3/8″
[9.53]
1/2" [12.70]*
3/8" [9.52]*18 [5.49] 17 [5.18] 15 [4.57] 13 [3.96] 12 [3.66] 10 [3.05]
20 [6.10] 19 [5.79] 19 [5.79] 19 [5.79] 18 [5.49] 18 [5.49]
-039
5/16" [7.93]* 15 [4.57] 11 [3.35] N/A N/A N/A N/A
3/8″
[9.53]
1/2" [12.70]*25 [12.50] 40 [12.19] 40 [12.19] 39 [11.89] 39 [11.89] 38 [11.58]
-060 3/8″
[9.53]
3/8" [9.52]* 25 [11.28] 33 [10.06] 30 [9.14] 25 [7.62] 15 [4.57] N/A
R-410A
System
Capacity
Model
Line Size
(Inch O.D.)
[mm]
Liquid Line Size
Outdoor Unit Below Indoor Coil
(Cooling Only - Does not apply to Heat Pumps)
1/2" [12.70]*25 [11.89] 39 [11.89] 38 [11.58] 37 [11.28] 37 [11.28] 36 [10.97]
3/8″
[9.53]
Line Size
Connection
Size
(Inch I.D.)
[mm]
NOTES: N/A = Application not recommended.
*Standard line size.
[ ] Designates Metric Conversions
Air Refrigerant Line Size Information
RASL- JEC Series
42
NOTES: Using suction line larger than shown in chart will result in poor oil return. N/A = Application not recommended.
*Standard line size.
[ ] Designates Metric Conversions
Condensing Unit Refrigerant Line Size Information (Con’t.)
7/8" [22.23]*
3/4" [19.05]* N/A
Total Equivalent Length - Feet [m]
25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [45.72] 150 [45.72]
SUCTION LINE SIZE - OUTDOOR UNIT ABOVE INDOOR COIL
N/A
-037/-039
5/8" [15.88]*Same as Liquid Line Size Table
3/4"
[19.05]
7/8" [22.23]*
3/4" [19.05]*Same as Liquid Line Size Table
N/A
-048
5/8" [15.88]*Same as Liquid Line Size Table
7/8"
[22.23]
7/8" [22.23]*
3/4" [19.05]*
-025
5/8" [15.88]*Same as Liquid Line Size Table
3/4"
[19.05] N/A
N/A
1-1/8" [28.58]*
7/8" [22.23]* N/A
N/A
-060
3/4" [19.05]*Same as Liquid Line Size Table
7/8"
[22.23]
Outdoor Unit ABOVE Indoor Coil (Cooling Only - Does not apply to Heat Pumps)
R-410A
System
Capacity
Model
Line Size
(Inch O.D.)
[mm]
Suction Line Size
Line Size
Connection Size
(Inch I.D.) [mm]
1-1/8" [28.58]*
7/8" [22.23]* Same as Liquid Line Size Table
N/A
Outdoor Unit BELOW Indoor Coil (Cooling Only - Does not apply to Heat Pumps)
R-410A
System
Capacity
Model
Line Size
(Inch O.D.)
[mm]
Suction Line Size
-060
3/4" [19.05]*Same as Liquid Line Size Table
Line Size
Connection Size
(Inch I.D.) [mm]
7/8"
[22.23]
7/8" [22.23]*
3/4" [19.05]*
7/8" [22.23]*
3/4" [19.05]*
Same as Liquid Line Size Table
Total Equivalent Length - Feet [m]
N/A
25 [7.62] 50 [15.24]
Same as Liquid Line Size Table
75 [22.86] 100 [30.48] 125 [45.72] 150 [45.72]
SUCTION LINE SIZE - OUTDOOR UNIT BELOW INDOOR COIL
N/A
-037/-039
5/8" [15.88]*Same as Liquid Line Size Table
3/4"
[19.05]
7/8" [22.23]*
3/4" [19.05]*Same as Liquid Line Size Table
Same as Liquid Line Size Table
-048
5/8" [15.88]*Same as Liquid Line Size Table
7/8"
[22.23]
-025
5/8" [15.88]*Same as Liquid Line Size Table
3/4"
[19.05] N/A
N/A
Air Refrigerant Line Size Information
RASL- JEC Series
43
Vapor Line Capacity Multiplier
RASL
Unit Vapor Line Connection Size
(Inches I.D.) [mm]
25' [7.62]
50'[15.24]
75' [22.86]
100' [22.86]
Optional
Standard
Optional
Standard
Optional
Standard
Optional
Standard
025
1.00
1.00
0.98
1.00
0.98
1.00
0.98
N/A
3/4" [19.05]
Standard
3/4" [19.05]
Standard
039
0.99
1.00
0.97
0.99
0.96
0.99
0.95
N/A
3/4" [19.05]
Standard
037
0.99
1.00
0.98
1.00
0.96
0.99
0.95
N/A
3/4" [19.05]
Standard
048
0.98
1.00
0.96
0.99
0.94
0.98
0.92
N/A
7/8" [22.23]
Standard
060
0.99
1.00
0.98
0.99
0.96
0.96
0.95
N/A
5/8" [15.88]
Optional
5/8" [15.88]
Optional
5/8" [15.88]
Optional
5/8" [15.88]
Optional
3/4" [19.05]
Optional
Vapor Line Run Feet [m]
Vapor Line Diameter (inches O.D.) [mm]
7/8" [22.23]
I.D. Sweat
3/4" [19.05]
I.D. Sweat
3/4" [19.05]
I.D. Sweat
7/8" [22.23]
I.D. Sweat
7/8" [22.23]
I.D. Sweat
125' [38.10] Optional
Standard
0.96
N/A
0.94
N/A
0.93
N/A
0.90
N/A
0.94
N/A
150' [45.72] Optional
Standard
0.96
N/A
0.92
N/A
0.91
N/A
0.88
N/A
0.93
N/A
NOTES:
1. Do NOT exceed the limits in the liquid and suction line sizing charts.
2. Do NOT use 7/8 OD suction lines in 2, 3, or 4-ton applications.
3. Do NOT use 1-1/8 OD suction line in ANY application.
4. Line sets over 75 feet MUST use the optional suction line.
[ ] Designates Metric Conversions
Air Limited Warranty
RASL- JEC Series
44
GENERAL TERMS OF LIMITED WARRANTY*
Rheem will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
period stated, in accordance with the terms of the limited
warranty.
*For complete details of the Limited and Conditional Warranties, including
applicable terms and conditions, contact your local contractor or the
Manufacturer for a copy of the product warranty certificate.
Conditional Unit Replacement
(Registration Required) ...............................Ten (10) Years
Parts............................................................Ten (10) Years
Air Notes
RASL- JEC Series
45
Air Notes
RASL- JEC Series
46
Air Notes
RASL- JEC Series
47
The new degree of comfort.
™
Rheem Heating, Cooling & Water Heating • P.O. Box 17010
Fort Smith, Arkansas 72917 • www.rheem.com
In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.
PRINTED IN U.S.A 06/12 QG FORM NO. A11-211
Rheem Canada Ltd./Ltée • 125 Edgeware Road, Unit 1
Brampton, Ontario • L6Y 0P5

Navigation menu
