Rheem Prestige Series™equipped

with Comfort Control System™

FORM NO. A11-214

RAPM- JEZ Series

Efficiencies up to 16 SEER/13.55 EER

Nominal Sizes 1.5 to 5 Ton [5.28 to 17.6 kW]

Cooling Capacities 18.8 to 62.5 kBTU

[5.50 to 18.32 kW]

• The Comfort Control System™provides on-board diagnostics

and fault history for condensing units with single-phase

compressors by detecting system and electrical problems

without adding sensors. It can also communicate “fault

codes” to enabled “L terminal” thermostats. The integrated

diagnostics with Active Protection™prevents compressor

operation when potentially harmful conditions are detected.

• 7-Segment LED Display is exclusive only to Rheem products.

The information-display quickly and accurately shows

technicians the source of malfunctions.

• Features a five-year conditional unit replacement warranty

when properly installed with a new Rheem Air Handler or

Rheem Indoor Coil with a Rheem Gas Furnace. See product

warranty card for additional information.

• Compressor sound blanket is standard to provide quiet

operation.

• Attractive, louvered wrap-around jacket protects the coil from

yard hazards and weather extremes. Top grille is steel

reinforced for extra strength. Cabinet is powder painted for

all-weather protection.

• Air is discharged upward away from bushes and shrubs.

The discharge pattern of the top grille provides minimum air

restriction.

• Combination Grille/Motor Mount secures the motor to the

underside of the discharge grille. The grille protects the motor

windings and bearings from rain and snow.

• Removable top grille provides access to the condenser fan

motor and condenser coil.

• Single speed 8-pole fan motor designed for low speed, quiet,

energy-saving operation.

• All models meet or exceed a 1000-hour salt spray test per

ASTM B117 Standard Practice for Operating Salt Spray

Testing Apparatus.

Air Air Conditioners

RAPM- JEZ Series

“Proper sizing and installation of equipment is critical to achieve

optimal performance. Ask your Contractor for details or visit

www.energystar.gov.”

Air Table of Contents

RAPM- JEZ Series

TABLE OF CONTENTS

Model Features ........................................................................................................3

Model Number Identification ............................................................................4

Accessories....................................................................................................4

Scroll Compressor ..........................................................................................4

Performance Data ......................................................................................5-30

Electrical & Physical Data ..............................................................................31

Unit Dimensions............................................................................................32

Refrigerant Line Size Information ....................................................................33

Limited Warranty ..........................................................................................34

Air Model Features

RAPM- JEZ Series

■The Rheem exclusive 7-Segment LED Display easily shows

system operating status codes and

diagnostic codes.

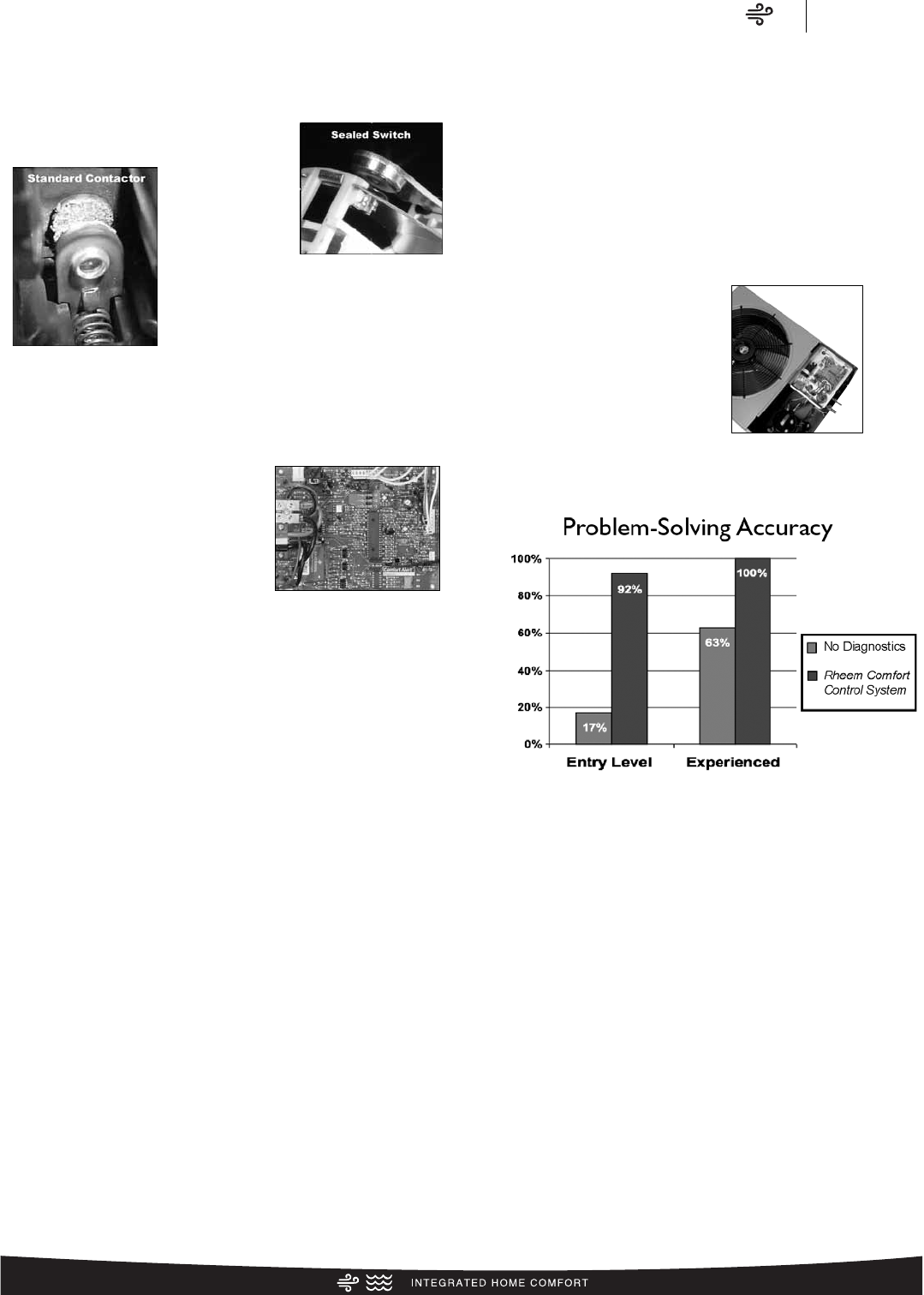

■A Sealed Switch replaces the standard

contactor and

features optical

control and

latching mecha-

nism. The sealed

switch prevents

infiltration of insects and dust. A minimal

switching arc, by the optical control,

offers greater reliability. The latching

mechanism consumes less power while

reducing chatter.

■The Status Indication and System Diagnostics feature ther-

mostat communication capability, built-in diagnostics, high

& low voltage monitoring and high & low pressure switch

monitoring. The thermostat communication capability alerts

the homeowner to any necessary service requirements. Faster,

more accurate service is provided by the built-in diagnostics,

by providing the HVAC professional

with dependable information. With

the high and low voltage monitoring

feature, the control provides alerts

for out-of-range conditions. In addi-

tion, high and low pressure-switch

monitoring prevents the system

from operating outside of its normal

parameters.

■The fault recall feature will allow for the last six fault-codes

to be displayed, and will retain these codes even if power

failure occurs.

■Built-in short-cycle protection allows the compressor to

restart easily without oil removal.

■A 30-second minimum run-time for every compressor call

enables the oil return to the compressor.

■Active Protection monitors the system to prevent nuisance

lockouts and prevents compressor operation when poten-

tially harmful conditions are detected.

■The compressor and fan are

controlled independently,

which reduces the starting load

and light dimming.

■A push-button is offered to

operate the compressor and

fan for 5 seconds to allow for

an operation check.

■In order to save time and

money, replacement automo-

tive fuses can be utilized instead of replacing the entire

control board.

Standard Features

RAPM- JEZ Condensing Units

1. This unit contains a special scroll compressor that is

designed specifically to operate with R-410A refrigerants

and polyolester (POE) oils. The compressor is hermetically

sealed and incorporates internal high temperature motor

overload protection and durable insulation on the motor

windings. It is externally mounted on rubber grommets to

reduce vibration and noise.

2. Scroll compressor is hermetically sealed and incorporates

internal high temperature motor overload protection, and

durable insulation on the motor windings. It is externally

mounted on rubber grommets to reduce vibration and

noise.

3. Compressors have an internal pressure relief assembly to

protect against excessive pressure differential.

4. All refrigerant connections are on the exterior of the unit,

located close to the ground for neat appearing installations.

5. Cabinet is constructed of powder painted galvanized

steel. The full wrap-around louvered grille protects the coil

from damage.

6. Enhanced compressor sound blanket is standard.

7. Copper tube—aluminum fin coils are used on all models.

8. The control box is located in the top corner of the cabinet

providing for easy access through a service panel.

9. Service valves are standard on all models.

10. Field connections for power and control wiring are kept

separate.

11. Every unit is factory charged and run-tested.

12. Separate compressor compartment for easy service

access.

The

Comfort Control System

™Features:

13. Drawn, painted base pan for extra corrosion resistance and

sound reduction.

14. The RAPM- JEZ has a 10 year limited compressor war-

ranty, plus a 5 year conditional unit replacement warranty.

See General Terms of Limited Warranty for more details.

15. Hard Start Kits—Standard on all JEZ models.

16. Control Box Cover.

17. Automatic reset high and low pressure controls are stan-

dard on all JEZ models.

18. Liquid line filter drier is standard on all models (shipped –

not installed).

Air Model I.D./Accessories/Compressor

RAPM- JEZ Series

Model Number Identification

VARIATIONS

A = STANDARD

R A P M 018 JE Z

RHEEM REMOTE

CONDENSING

UNIT

P = 14 SEER DESIGN

SERIES

M = R-410A

(2ND DESIGN

SERIES)

ELECTRICAL

DESIGNATION

J = 208/230V-1-60

VARIATIONS

EQUIPPED WITH

THE

COMFORT

CONTROL SYSTEM

™

COOLING

CONNECTION

FITTING

Z = SWEAT

W/SCROLL

COOLING

CAPACITY

018 = 18,000 BTU/HR [5.28 kW]

024 = 24,000 BTU/HR [7.03 kW]

030 = 30,000 BTU/HR [8.79 kW]

036 = 36,000 BTU/HR [10.55 kW]

042 = 42,000 BTU/HR [12.31 kW]

048 = 48,000 BTU/HR [14.07 kW]

056 = 56,000 BTU/HR [16.41 kW]

060 = 60,000 BTU/HR [17.58 kW]

—

Accessories

•Low Ambient Control (RXAD-A08)

•Crankcase Heater

* Photos are representative. Actual models may vary.

For detailed thermostat match-up information,

see specification sheet form number T11-001.

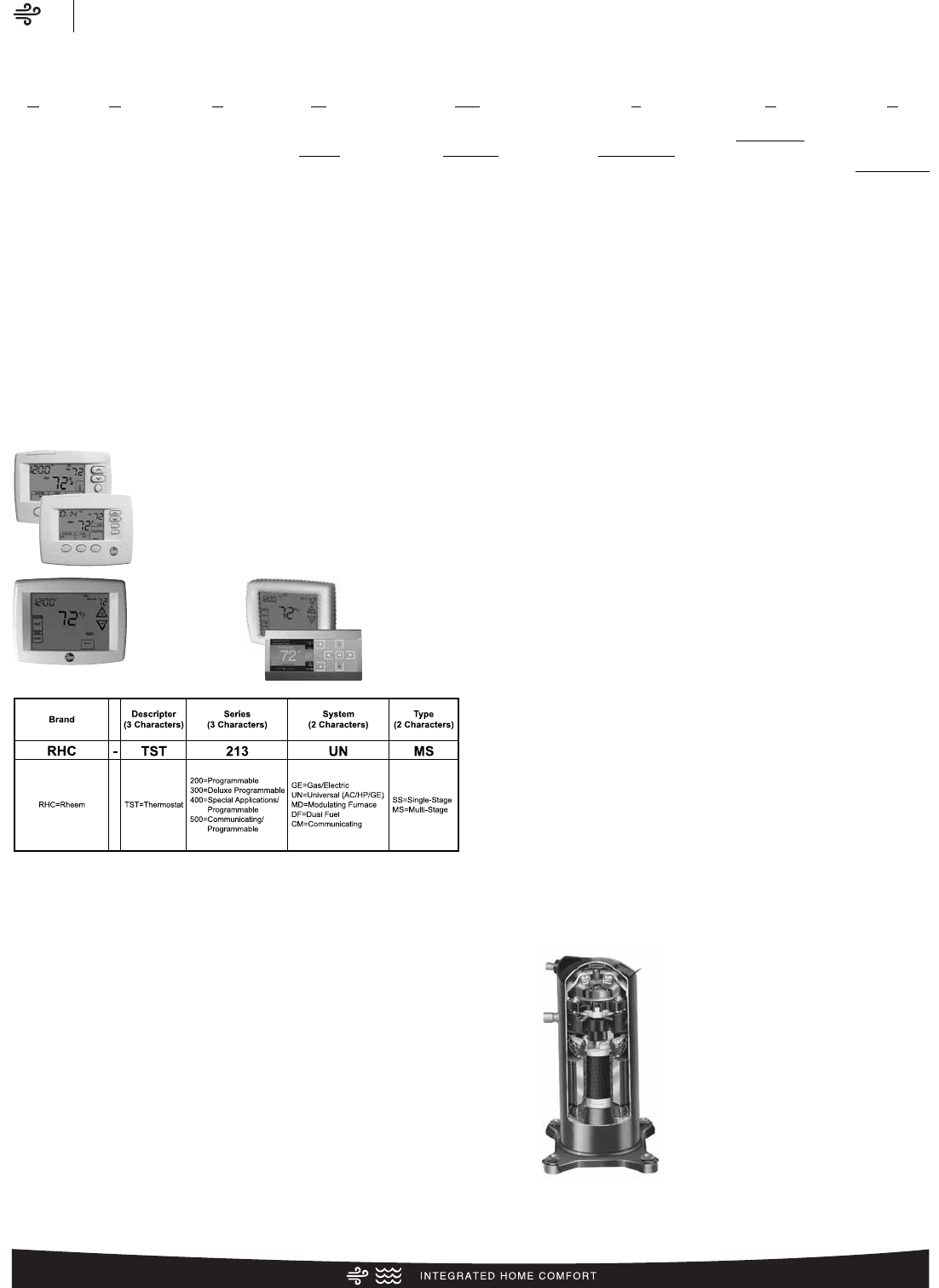

300-Series *

Deluxe

Programmable

400-Series *

Special Applications/

Programmable

500-Series *

Communicating/

Programmable

200-Series *

Programmable

Scroll®Compressor

The reliable scroll compressor is the key to efficiency for this

Rheem model. It’s the latest in high-efficiency compressor tech-

nology. The advanced scroll compressor offers low noise and

vibration characteristics and features tolerance to liquid refrigerant

and system contamination. The scroll compressor also has low

start torque, reducing start problems in the field. And its unique

design enables air conditioners to perform efficiently and quietly.

[ ] Designates Metric Conversions

Thermostats

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

018JEZ

RCFL-H*2417+RXMD-C04 ➀18,900 [5.5] 13,900 [4.1] 5,000 [1.5] 12.00 14.50 74 650 [307]

RCFL-A*2414+RXMD-C04 18,800 [5.5] 13,800 [4.0] 5,000 [1.5] 12.00 14.50 74 650 [307]

RCFL-A*2417(RGFE-06?MCK?) 18,900 [5.5] 13,650 [4.0] 5,250 [1.5] 13.00 16.00 74 575 [271]

RCFL-A*2417(RGFE-07?MCK?) 19,100 [5.6] 13,850 [4.1] 5,250 [1.5] 13.00 16.00 74 600 [283]

RCFL-A*2417(RGFG-06?MCK?) 19,000 [5.6] 13,800 [4.0] 5,200 [1.5] 13.00 16.00 74 575 [271]

RCFL-A*2417(RGFG-07?MCK?) 19,100 [5.6] 13,900 [4.1] 5,200 [1.5] 13.00 16.00 74 600 [283]

RCFL-A*2417(RGGE-06?MCK?) 19,300 [5.7] 14,150 [4.1] 5,150 [1.5] 13.00 16.00 74 625 [295]

RCFL-A*2417(RGGE-07?MCK?) 19,000 [5.6] 13,700 [4.0] 5,300 [1.6] 13.00 16.00 74 575 [271]

RCFL-A*2417(RGLE-07?AMK?) 19,100 [5.6] 13,850 [4.1] 5,250 [1.5] 13.00 16.00 74 600 [283]

RCFL-A*2417(RGLT-07?AMK?) 19,400 [5.7] 14,250 [4.2] 5,150 [1.5] 13.00 16.00 74 675 [319]

RCFL-A*2417(RGPE-05?BMK?) 18,900 [5.5] 13,650 [4.0] 5,250 [1.5] 13.00 16.00 74 575 [271]

RCFL-A*2417(RGPE-07?AMK?) 19,400 [5.7] 14,250 [4.2] 5,150 [1.5] 13.00 16.00 74 625 [295]

RCFL-A*2417(RGPT-05?BMK?) 19,300 [5.7] 14,200 [4.2] 5,100 [1.5] 13.00 16.00 74 650 [307]

RCFL-A*2417(RGPT-07?AMK?) 19,400 [5.7] 14,250 [4.2] 5,150 [1.5] 13.00 16.00 74 625 [295]

RCFL-A*2417(RGRM-04?MAE?) 18,900 [5.5] 13,650 [4.0] 5,250 [1.5] 13.00 16.00 74 575 [271]

RCFL-A*2417(RGRM-06?MAE?) 19,100 [5.6] 13,850 [4.1] 5,250 [1.5] 13.00 16.00 74 600 [283]

RCFL-A*2417(RGRM-07?MAE?) 19,300 [5.7] 14,200 [4.2] 5,100 [1.5] 13.00 16.00 74 625 [295]

RCFL-A*2417(RGTM-06?MAE?) 19,300 [5.7] 14,200 [4.2] 5,100 [1.5] 13.00 16.00 74 625 [295]

RCFL-A*2417(ROCA-070E03) 19,100 [5.6] 13,900 [4.1] 5,200 [1.5] 13.00 16.00 74 600 [283]

RCFL-A*2417(ROLA-070E03) 19,100 [5.6] 13,900 [4.1] 5,200 [1.5] 13.00 16.00 74 600 [283]

RCFL-A*2417+RXMD-C04 18,900 [5.5] 13,900 [4.1] 5,000 [1.5] 12.00 14.50 74 650 [307]

RCFL-H*2414+RXMD-C04 18,800 [5.5] 13,800 [4.0] 5,000 [1.5] 12.00 14.50 74 650 [307]

RCFL-H*2417(RGFE-06?MCK?) 18,900 [5.5] 13,650 [4.0] 5,250 [1.5] 13.00 16.00 74 575 [271]

RCFL-H*2417(RGFE-07?MCK?) 19,100 [5.6] 13,850 [4.1] 5,250 [1.5] 13.00 16.00 74 600 [283]

RCFL-H*2417(RGFG-06?MCK?) 19,000 [5.6] 13,800 [4.0] 5,200 [1.5] 13.00 16.00 74 575 [271]

RCFL-H*2417(RGFG-07?MCK?) 19,100 [5.6] 13,900 [4.1] 5,200 [1.5] 13.00 16.00 74 600 [283]

RCFL-H*2417(RGGE-06?MCK?) 19,300 [5.7] 14,150 [4.1] 5,150 [1.5] 13.00 16.00 74 625 [295]

RCFL-H*2417(RGGE-07?MCK?) 19,000 [5.6] 13,700 [4.0] 5,300 [1.6] 13.00 16.00 74 575 [271]

RCFL-H*2417(RGJF-06?MCK?) 19,300 [5.7] 14,150 [4.1] 5,150 [1.5] 13.00 16.00 74 625 [295]

RCFL-H*2417(RGJF-07?MCK?) 19,000 [5.6] 13,700 [4.0] 5,300 [1.6] 13.00 16.00 74 575 [271]

RCFL-H*2417(RGLE-07?AMK?) 19,100 [5.6] 13,850 [4.1] 5,250 [1.5] 13.00 16.00 74 600 [283]

RCFL-H*2417(RGLT-07?AMK?) 19,400 [5.7] 14,250 [4.2] 5,150 [1.5] 13.00 16.00 74 675 [319]

RCFL-H*2417(RGPE-05?BMK?) 18,900 [5.5] 13,650 [4.0] 5,250 [1.5] 13.00 16.00 74 575 [271]

RCFL-H*2417(RGPE-07?AMK?) 19,400 [5.7] 14,250 [4.2] 5,150 [1.5] 13.00 16.00 74 625 [295]

RCFL-H*2417(RGPT-05?BMK?) 19,300 [5.7] 14,200 [4.2] 5,100 [1.5] 13.00 16.00 74 650 [307]

RCFL-H*2417(RGPT-07?AMK?) 19,400 [5.7] 14,250 [4.2] 5,150 [1.5] 13.00 16.00 74 625 [295]

RCFL-H*2417(RGRM-04?MAE?) 18,900 [5.5] 13,650 [4.0] 5,250 [1.5] 13.00 16.00 74 575 [271]

RCFL-H*2417(RGRM-06?MAE?) 19,100 [5.6] 13,850 [4.1] 5,250 [1.5] 13.00 16.00 74 600 [283]

RCFL-H*2417(RGRM-07?MAE?) 19,300 [5.7] 14,200 [4.2] 5,100 [1.5] 13.00 16.00 74 625 [295]

RCFL-H*2417(RGTM-06?MAE?) 19,300 [5.7] 14,200 [4.2] 5,100 [1.5] 13.00 16.00 74 625 [295]

RCFL-H*2417(ROCA-070E03) 19,100 [5.6] 13,900 [4.1] 5,200 [1.5] 13.00 16.00 74 600 [283]

RCFL-H*2417(ROLA-070E03) 19,100 [5.6] 13,900 [4.1] 5,200 [1.5] 13.00 16.00 74 600 [283]

RBHP-17(RCHL-24A2) 19,000 [5.6] 13,500 [4.0] 5,500 [1.6] 13.00 16.00 74 650 [307]

RCQD-2417(RGFE-06?MCK?) 19,500 [5.7] 14,400 [4.2] 5,100 [1.5] 13.00 16.00 74 575 [271]

RCQD-2417(RGFE-07?MCK?) 19,600 [5.7] 14,550 [4.3] 5,050 [1.5] 13.00 16.00 74 600 [283]

RCQD-2417(RGFG-06?MCK?) 19,500 [5.7] 14,400 [4.2] 5,100 [1.5] 13.00 16.00 74 575 [271]

RCQD-2417(RGFG-07?MCK?) 19,500 [5.7] 14,500 [4.2] 5,000 [1.5] 13.00 16.00 74 600 [283]

RCQD-2417(RGJF-06?MCK?) 19,800 [5.8] 14,800 [4.3] 5,000 [1.5] 13.00 16.00 74 625 [295]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

018JEZ

RCQD-2417(RGJF-07?MCK?) 19,500 [5.7] 14,400 [4.2] 5,100 [1.5] 13.00 16.00 74 575 [271]

RCQD-2417(RGPE-05?BMK?) 19,500 [5.7] 14,400 [4.2] 5,100 [1.5] 13.00 16.00 74 575 [271]

RCQD-2417(RGPE-07?AMK?) 19,800 [5.8] 14,800 [4.3] 5,000 [1.5] 13.00 16.00 74 625 [295]

RCQD-2417(RGPT-05?BMK?) 19,800 [5.8] 14,900 [4.4] 4,900 [1.4] 13.00 16.00 74 650 [307]

RCQD-2417(RGPT-07?AMK?) 19,800 [5.8] 15,100 [4.4] 4,700 [1.4] 13.00 16.00 74 625 [295]

RCQD-2417(RGRM-04?MAE?) 19,800 [5.8] 14,850 [4.4] 4,950 [1.5] 13.00 16.00 74 575 [271]

RCQD-2417(RGRM-06?MAE?) 19,900 [5.8] 15,000 [4.4] 4,900 [1.4] 13.00 16.00 74 600 [283]

RCQD-2417(RGRM-07?MAE?) 20,200 [5.9] 15,400 [4.5] 4,800 [1.4] 13.00 16.00 74 625 [295]

RCQD-2417(ROCA-070E03) 19,600 [5.7] 14,600 [4.3] 5,000 [1.5] 13.00 16.00 74 600 [283]

RCQD-2417(ROLA-070E03) 19,600 [5.7] 14,600 [4.3] 5,000 [1.5] 13.00 16.00 74 600 [283]

RCQD-2417+RXMD-C04 18,800 [5.5] 13,800 [4.0] 5,000 [1.5] 12.00 14.50 74 650 [307]

RHKL-HM2417(RCSL-H*2417) 19,400 [5.7] 14,250 [4.2] 5,150 [1.5] 13.00 16.00 74 650 [307]

RHLL-HM2417(RCSL-H*2417) 19,400 [5.7] 14,250 [4.2] 5,150 [1.5] 13.00 16.00 74 650 [307]

RHSL-HM1817(RCSL-H*2417) 18,800 [5.5] 13,650 [4.0] 5,150 [1.5] 12.50 15.00 74 600 [283]

024JEZ

RCFL-H*2417+RXMD-C04 ➀25,000 [7.3] 18,450 [5.4] 6,550 [1.9] 12.00 14.50 73 800 [378]

RHAL-FR24P 24,000 [7.0] 18,500 [5.4] 5,500 [1.6] 11.50 13.50 73 800 [378]

RHBL-FR24T 24,000 [7.0] 18,500 [5.4] 5,500 [1.6] 12.50 15.00 73 800 [378]

RCFL-A*2414+RXMD-C04 24,800 [7.3] 18,300 [5.4] 6,600 [1.9] 12.00 14.50 73 800 [378]

RCFL-A*2417(RGFE-06?MCK?) 25,200 [7.4] 18,550 [5.4] 6,650 [1.9] 13.00 15.50 73 800 [378]

RCFL-A*2417(RGFE-07?MCK?) 25,200 [7.4] 18,550 [5.4] 6,650 [1.9] 13.00 15.50 73 825 [389]

RCFL-A*2417(RGFG-06?MCK?) 25,400 [7.4] 18,800 [5.5] 6,600 [1.9] 13.00 15.50 73 800 [378]

RCFL-A*2417(RGFG-07?MCK?) 25,400 [7.4] 18,700 [5.5] 6,700 [2.0] 13.00 15.50 73 800 [378]

RCFL-A*2417(RGGE-06?MCK?) 25,400 [7.4] 18,700 [5.5] 6,700 [2.0] 13.00 16.00 73 825 [389]

RCFL-A*2417(RGGE-07?MCK?) 25,200 [7.4] 18,500 [5.4] 6,700 [2.0] 13.00 15.50 73 800 [378]

RCFL-A*2417(RGLE-07?AMK?) 25,400 [7.4] 18,700 [5.5] 6,700 [2.0] 13.00 16.00 73 800 [378]

RCFL-A*2417(RGLT-07?AMK?) 25,600 [7.5] 19,100 [5.6] 6,500 [1.9] 13.00 16.00 73 850 [401]

RCFL-A*2417(RGPE-05?BMK?) 25,200 [7.4] 18,500 [5.4] 6,700 [2.0] 13.00 15.50 73 800 [378]

RCFL-A*2417(RGPE-07?AMK?) 25,000 [7.3] 18,100 [5.3] 6,900 [2.0] 13.00 16.00 73 725 [342]

RCFL-A*2417(RGPT-05?BMK?) 25,400 [7.4] 18,950 [5.6] 6,450 [1.9] 13.00 15.50 73 850 [401]

RCFL-A*2417(RGPT-07?AMK?) 25,600 [7.5] 19,100 [5.6] 6,500 [1.9] 13.00 15.50 73 850 [401]

RCFL-A*2417(RGRM-04?MAE?) 25,200 [7.4] 18,600 [5.4] 6,600 [1.9] 13.00 15.50 73 800 [378]

RCFL-A*2417(RGRM-06?MAE?) 25,200 [7.4] 18,600 [5.4] 6,600 [1.9] 13.00 15.50 73 825 [389]

RCFL-A*2417(RGRM-07?MAE?) 25,400 [7.4] 18,950 [5.6] 6,450 [1.9] 12.50 15.10 73 850 [401]

RCFL-A*2417(RHWB-04WMX36A) 25,400 [7.4] 18,800 [5.5] 6,600 [1.9] 13.00 16.00 73 825 [389]

RCFL-A*2417(ROCA-070E03) 25,400 [7.4] 18,750 [5.5] 6,650 [1.9] 13.00 16.00 73 800 [378]

RCFL-A*2417(ROLA-070E03) 25,400 [7.4] 18,750 [5.5] 6,650 [1.9] 13.00 16.00 73 800 [378]

RCFL-A*2417+RXMD-C04 24,800 [7.3] 18,300 [5.4] 6,600 [1.9] 12.00 14.50 73 800 [378]

RCFL-H*2414+RXMD-C04 24,800 [7.3] 18,300 [5.4] 6,600 [1.9] 12.00 14.50 73 800 [378]

RCFL-H*2417(RGFE-06?MCK?) 25,200 [7.4] 18,550 [5.4] 6,650 [1.9] 13.00 15.50 73 800 [378]

RCFL-H*2417(RGFE-07?MCK?) 25,200 [7.4] 18,550 [5.4] 6,650 [1.9] 13.00 15.50 73 825 [389]

RCFL-H*2417(RGFG-06?MCK?) 25,400 [7.4] 18,800 [5.5] 6,600 [1.9] 13.00 15.50 73 800 [378]

RCFL-H*2417(RGFG-07?MCK?) 25,400 [7.4] 18,700 [5.5] 6,700 [2.0] 13.00 15.50 73 800 [378]

RCFL-H*2417(RGGE-06?MCK?) 25,400 [7.4] 18,700 [5.5] 6,700 [2.0] 13.00 16.00 73 825 [389]

RCFL-H*2417(RGGE-07?MCK?) 25,200 [7.4] 18,500 [5.4] 6,700 [2.0] 13.00 15.50 73 800 [378]

RCFL-H*2417(RGJF-06?MCK?) 25,400 [7.4] 18,700 [5.5] 6,700 [2.0] 13.00 16.00 73 825 [389]

RCFL-H*2417(RGJF-07?MCK?) 25,200 [7.4] 18,500 [5.4] 6,700 [2.0] 13.00 15.50 73 800 [378]

RCFL-H*2417(RGLE-07?AMK?) 25,400 [7.4] 18,700 [5.5] 6,700 [2.0] 13.00 16.00 73 800 [378]

RCFL-H*2417(RGLT-07?AMK?) 25,600 [7.5] 19,100 [5.6] 6,500 [1.9] 13.00 16.00 73 850 [401]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

024JEZ

RCFL-H*2417(RGPE-05?BMK?) 25,200 [7.4] 18,500 [5.4] 6,700 [2.0] 13.00 15.50 73 800 [378]

RCFL-H*2417(RGPE-07?AMK?) 25,000 [7.3] 18,100 [5.3] 6,900 [2.0] 13.00 16.00 73 725 [342]

RCFL-H*2417(RGPT-05?BMK?) 25,400 [7.4] 18,950 [5.6] 6,450 [1.9] 13.00 15.50 73 850 [401]

RCFL-H*2417(RGPT-07?AMK?) 25,600 [7.5] 19,100 [5.6] 6,500 [1.9] 13.00 15.50 73 850 [401]

RCFL-H*2417(RGRM-04?MAE?) 25,200 [7.4] 18,600 [5.4] 6,600 [1.9] 13.00 15.50 73 800 [378]

RCFL-H*2417(RGRM-06?MAE?) 25,200 [7.4] 18,600 [5.4] 6,600 [1.9] 13.00 15.50 73 825 [389]

RCFL-H*2417(RGRM-07?MAE?) 25,400 [7.4] 18,950 [5.6] 6,450 [1.9] 12.50 15.10 73 850 [401]

RCFL-H*2417(RGTM-06?MAE?) 25,200 [7.4] 18,400 [5.4] 6,800 [2.0] 13.00 16.00 73 750 [354]

RCFL-H*2417(RHWB-04WMX36A) 25,400 [7.4] 18,800 [5.5] 6,600 [1.9] 13.00 16.00 73 825 [389]

RCFL-H*2417(ROCA-070E03) 25,400 [7.4] 18,750 [5.5] 6,650 [1.9] 13.00 16.00 73 800 [378]

RCFL-H*2417(ROLA-070E03) 25,400 [7.4] 18,750 [5.5] 6,650 [1.9] 13.00 16.00 73 800 [378]

RCFL-H*2621(RGPT-05?BMK?) 26,400 [7.7] 20,300 [5.9] 6,100 [1.8] 13.00 16.00 73 900 [425]

RCFL-H*2621(RHWB-04WMX36A) 26,200 [7.7] 20,100 [5.9] 6,100 [1.8] 13.00 16.00 73 875 [413]

RBHP-17(RCHL-24A2) 23,200 [6.8] 16,550 [4.8] 6,650 [1.9] 11.50 14.00 73 800 [378]

RCQD-2417(RGFE-06?MCK?) 24,600 [7.2] 18,600 [5.4] 6,000 [1.8] 12.50 15.00 73 800 [378]

RCQD-2417(RGFE-07?MCK?) 24,600 [7.2] 18,600 [5.4] 6,000 [1.8] 12.50 15.00 73 825 [389]

RCQD-2417(RGFG-06?MCK?) 26,000 [7.6] 19,600 [5.7] 6,400 [1.9] 13.00 16.00 73 800 [378]

RCQD-2417(RGFG-07?MCK?) 26,200 [7.7] 19,800 [5.8] 6,400 [1.9] 13.00 16.00 73 800 [378]

RCQD-2417(RGJF-06?MCK?) 24,600 [7.2] 18,550 [5.4] 6,050 [1.8] 12.50 15.00 73 825 [389]

RCQD-2417(RGJF-07?MCK?) 24,600 [7.2] 18,600 [5.4] 6,000 [1.8] 12.50 15.00 73 800 [378]

RCQD-2417(RGPE-05?BMK?) 24,600 [7.2] 18,600 [5.4] 6,000 [1.8] 12.50 15.00 73 800 [378]

RCQD-2417(RGPE-07?AMK?) 24,600 [7.2] 18,600 [5.4] 6,000 [1.8] 12.50 15.00 73 825 [389]

RCQD-2417(RGPT-05?BMK?) 25,000 [7.3] 19,350 [5.7] 5,650 [1.7] 12.50 15.00 73 900 [425]

RCQD-2417(RGRM-04?MAE?) 25,600 [7.5] 20,050 [5.9] 5,550 [1.6] 13.00 15.50 73 800 [378]

RCQD-2417(RGRM-06?MAE?) 25,600 [7.5] 20,050 [5.9] 5,550 [1.6] 13.00 15.50 73 825 [389]

RCQD-2417(RGRM-07?MAE?) 25,800 [7.6] 20,400 [6.0] 5,400 [1.6] 12.50 15.00 73 850 [401]

RCQD-2417(RHWB-04WMX36A) 26,600 [7.8] 20,600 [6.0] 6,000 [1.8] 13.00 16.00 73 875 [413]

RCQD-2417(ROCA-070E03) 24,600 [7.2] 18,600 [5.4] 6,000 [1.8] 12.50 15.10 73 800 [378]

RCQD-2417(ROLA-070E03) 24,600 [7.2] 18,650 [5.5] 5,950 [1.7] 12.50 15.10 73 800 [378]

RCQD-2417+RXMD-C04 24,800 [7.3] 18,750 [5.5] 6,050 [1.8] 11.50 14.00 73 800 [378]

RHKL-HM2417(RCSL-H*2417) 25,600 [7.5] 19,100 [5.6] 6,500 [1.9] 13.00 16.00 73 850 [401]

RHLL-HM2417(RCSL-H*2417) 25,600 [7.5] 18,900 [5.5] 6,700 [2.0] 13.00 16.00 73 775 [366]

RHSL-HM2417(RCSL-H*2417) 25,000 [7.3] 18,450 [5.4] 6,550 [1.9] 12.00 14.50 73 800 [378]

030JEZ

RCFL-H*3617+RXMD-C04 ➀29,000 [8.5] 20,950 [6.1] 8,050 [2.4] 12.00 14.50 73 1,000 [472]

RCFL-A*3617(RGFE-06?MCK?) 29,200 [8.6] 21,100 [6.2] 8,100 [2.4] 13.00 15.00 73 1,000 [472]

RCFL-A*3617(RGFE-07?MCK?) 29,200 [8.6] 21,150 [6.2] 8,050 [2.4] 12.50 14.50 73 1,025 [484]

RCFL-A*3617(RGFG-06?MCK?) 28,800 [8.4] 20,200 [5.9] 8,600 [2.5] 13.00 15.50 73 875 [413]

RCFL-A*3617(RGFG-07?MCK?) 28,800 [8.4] 20,200 [5.9] 8,600 [2.5] 13.00 15.50 73 850 [401]

RCFL-A*3617(RGGE-06?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-A*3617(RGGE-07?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-A*3617(RGLE-07?AMK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 13.00 15.50 73 1,025 [484]

RCFL-A*3617(RGLT-07?AMK?) 29,000 [8.5] 20,350 [6.0] 8,650 [2.5] 13.00 16.00 73 875 [413]

RCFL-A*3617(RGPE-05?BMK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 975 [460]

RCFL-A*3617(RGPE-07?AMK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,000 [472]

RCFL-A*3617(RGPT-05?BMK?) 28,800 [8.4] 20,100 [5.9] 8,700 [2.5] 13.00 15.50 73 850 [401]

RCFL-A*3617(RGPT-07?AMK?) 29,000 [8.5] 20,350 [6.0] 8,650 [2.5] 13.00 15.50 73 875 [413]

RCFL-A*3617(RGRM-04?MAE?) 29,200 [8.6] 21,100 [6.2] 8,100 [2.4] 12.00 14.50 73 1,025 [484]

RCFL-A*3617(RGRM-06?MAE?) 28,800 [8.4] 20,000 [5.9] 8,800 [2.6] 13.00 15.50 73 825 [389]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

030JEZ

RCFL-A*3617(RGRM-07?MAE?) 28,800 [8.4] 20,100 [5.9] 8,700 [2.5] 12.50 15.10 73 850 [401]

RCFL-A*3617(RGTM-06?MAE?) 29,000 [8.5] 20,450 [6.0] 8,550 [2.5] 13.00 15.50 73 900 [425]

RCFL-A*3617(RHWB-04WMX36A) 29,600 [8.7] 21,600 [6.3] 8,000 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-A*3617(RHWB-06WMX48A) 29,400 [8.6] 21,200 [6.2] 8,200 [2.4] 13.00 15.50 73 950 [448]

RCFL-A*3617(ROCA-070E03) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-A*3617(ROCA-070E04) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-A*3617(ROLA-070E03) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 975 [460]

RCFL-A*3617(ROLA-070E04) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,025 [484]

RCFL-A*3617+RXMD-C04 29,000 [8.5] 21,000 [6.2] 8,000 [2.3] 12.00 14.50 73 1,000 [472]

RCFL-A*3621(RGFE-06?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,000 [472]

RCFL-A*3621(RGFE-07?MCK?) 29,200 [8.6] 21,150 [6.2] 8,050 [2.4] 13.00 15.00 73 1,025 [484]

RCFL-A*3621(RGFE-09?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 975 [460]

RCFL-A*3621(RGFE-10?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-A*3621(RGFG-06?MCK?) 28,800 [8.4] 20,200 [5.9] 8,600 [2.5] 13.00 15.50 73 875 [413]

RCFL-A*3621(RGFG-07?MCK?) 29,000 [8.5] 20,200 [5.9] 8,800 [2.6] 13.00 15.50 73 850 [401]

RCFL-A*3621(RGFG-09?ZCM?) 29,000 [8.5] 20,400 [6.0] 8,600 [2.5] 13.00 16.00 73 875 [413]

RCFL-A*3621(RGFG-10?ZCM?) 29,200 [8.6] 20,600 [6.0] 8,600 [2.5] 13.00 15.50 73 900 [425]

RCFL-A*3621(RGGE-06?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-A*3621(RGGE-07?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-A*3621(RGGE-09?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-A*3621(RGGE-10?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-A*3621(RGLE-07?AMK?) 29,400 [8.6] 21,250 [6.2] 8,150 [2.4] 13.00 15.50 73 1,025 [484]

RCFL-A*3621(RGLE-07?BRQ?) 29,400 [8.6] 20,900 [6.1] 8,500 [2.5] 13.00 16.00 73 925 [437]

RCFL-A*3621(RGLE-10?BRM?) 29,800 [8.7] 21,800 [6.4] 8,000 [2.3] 13.00 16.00 73 1,050 [495]

RCFL-A*3621(RGLT-07?AMK?) 29,200 [8.6] 20,500 [6.0] 8,700 [2.5] 13.00 16.00 73 875 [413]

RCFL-A*3621(RGLT-07?BRQ?) 29,800 [8.7] 21,550 [6.3] 8,250 [2.4] 13.00 16.00 73 975 [460]

RCFL-A*3621(RGLT-10?BRM?) 29,800 [8.7] 21,550 [6.3] 8,250 [2.4] 13.00 16.00 73 975 [460]

RCFL-A*3621(RGPE-05?BMK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 975 [460]

RCFL-A*3621(RGPE-07?AMK?) 29,400 [8.6] 21,250 [6.2] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-A*3621(RGPE-07?BRQ?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 16.00 73 1,025 [484]

RCFL-A*3621(RGPE-10?BRM?) 30,000 [8.8] 22,100 [6.5] 7,900 [2.3] 13.00 16.00 73 1,075 [507]

RCFL-A*3621(RGPT-05?BMK?) 29,000 [8.5] 20,350 [6.0] 8,650 [2.5] 13.00 15.50 73 875 [413]

RCFL-A*3621(RGPT-07?AMK?) 29,000 [8.5] 20,500 [6.0] 8,500 [2.5] 13.00 15.50 73 875 [413]

RCFL-A*3621(RGPT-07?BRQ?) 29,800 [8.7] 21,800 [6.4] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-A*3621(RGPT-10?BRM?) 29,800 [8.7] 21,550 [6.3] 8,250 [2.4] 13.00 16.00 73 975 [460]

RCFL-A*3621(RGRM-04?MAE?) 29,200 [8.6] 21,100 [6.2] 8,100 [2.4] 12.00 14.50 73 1,025 [484]

RCFL-A*3621(RGRM-06?MAE?) 28,800 [8.4] 20,000 [5.9] 8,800 [2.6] 13.00 15.50 73 825 [389]

RCFL-A*3621(RGRM-07?MAE?) 28,800 [8.4] 20,100 [5.9] 8,700 [2.5] 12.50 15.10 73 850 [401]

RCFL-A*3621(RGRM-07?YBG?) 29,200 [8.6] 21,100 [6.2] 8,100 [2.4] 12.00 14.50 73 975 [460]

RCFL-A*3621(RGRM-09?ZAJ?) 29,200 [8.6] 20,900 [6.1] 8,300 [2.4] 13.00 15.50 73 950 [448]

RCFL-A*3621(RGRM-10?ZAJ?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-A*3621(RGTM-06?MAE?) 29,000 [8.5] 20,450 [6.0] 8,550 [2.5] 13.00 15.50 73 900 [425]

RCFL-A*3621(RGTM-07?RBG?) 29,400 [8.6] 21,000 [6.2] 8,400 [2.5] 13.00 15.50 73 950 [448]

RCFL-A*3621(RGTM-09?ZAJ?) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 16.00 73 975 [460]

RCFL-A*3621(RHWB-04WMX36A) 29,600 [8.7] 21,600 [6.3] 8,000 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-A*3621(RHWB-06WMX48A) 29,600 [8.7] 21,600 [6.3] 8,000 [2.3] 13.00 15.50 73 975 [460]

RCFL-A*3621(ROCA-070E03) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-A*3621(ROCA-070E04) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,000 [472]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

030JEZ

RCFL-A*3621(ROLA-070E03) 29,200 [8.6] 20,600 [6.0] 8,600 [2.5] 13.00 16.00 73 900 [425]

RCFL-A*3621(ROLA-070E04) 29,200 [8.6] 20,600 [6.0] 8,600 [2.5] 13.00 16.00 73 900 [425]

RCFL-A*3621(ROLA-115E05) 29,200 [8.6] 20,600 [6.0] 8,600 [2.5] 13.00 16.00 73 900 [425]

RCFL-A*3621+RXMD-C04 29,000 [8.5] 21,000 [6.2] 8,000 [2.3] 12.00 14.50 73 1,000 [472]

RCFL-A*3821(RGFG-06?MCK?) 29,800 [8.7] 21,350 [6.3] 8,450 [2.5] 13.00 15.50 73 875 [413]

RCFL-A*3821(RGFG-07?MCK?) 29,800 [8.7] 21,200 [6.2] 8,600 [2.5] 13.00 16.00 73 850 [401]

RCFL-A*3821(RGFG-09?ZCM?) 30,000 [8.8] 21,500 [6.3] 8,500 [2.5] 13.00 16.00 73 875 [413]

RCFL-A*3821(RGFG-10?ZCM?) 30,200 [8.8] 21,800 [6.4] 8,400 [2.5] 13.00 16.00 73 900 [425]

RCFL-A*3821(RGLT-07?AMK?) 30,000 [8.8] 21,750 [6.4] 8,250 [2.4] 13.00 16.00 73 925 [437]

RCFL-A*3821(RGLT-07?BRQ?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-A*3821(RGLT-10?BRM?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-A*3821(RGPT-05?BMK?) 29,800 [8.7] 21,450 [6.3] 8,350 [2.4] 13.00 15.50 73 900 [425]

RCFL-A*3821(RGPT-07?AMK?) 30,000 [8.8] 21,750 [6.4] 8,250 [2.4] 13.00 16.00 73 925 [437]

RCFL-A*3821(RGPT-07?BRQ?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-A*3821(RGPT-10?BRM?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-A*3821(RHWB-04WMX36A) 31,000 [9.1] 23,400 [6.9] 7,600 [2.2] 13.00 16.00 73 1,075 [507]

RCFL-A*3821(RHWB-06WMX48A) 30,600 [9.0] 22,800 [6.7] 7,800 [2.3] 13.00 16.00 73 1,000 [472]

RCFL-A*3821(ROCA-070E03) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 15.50 73 1,000 [472]

RCFL-A*3821(ROCA-070E04) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 15.50 73 1,000 [472]

RCFL-A*3821(ROLA-070E03) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-A*3821(ROLA-070E04) 30,400 [8.9] 22,550 [6.6] 7,850 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-A*3821(ROLA-115E05) 30,600 [9.0] 22,800 [6.7] 7,800 [2.3] 13.00 16.00 73 1,050 [495]

RCFL-A*3824(RGFG-09?ZCM?) 30,000 [8.8] 21,500 [6.3] 8,500 [2.5] 13.00 16.00 73 875 [413]

RCFL-A*3824(RGFG-10?ZCM?) 30,000 [8.8] 21,600 [6.3] 8,400 [2.5] 13.00 16.00 73 900 [425]

RCFL-A*3824(RGFG-12?RCM?) 30,000 [8.8] 21,450 [6.3] 8,550 [2.5] 13.00 16.00 73 875 [413]

RCFL-A*3824(RGLT-07?BRQ?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-A*3824(RGLT-10?BRM?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-A*3824(RGLT-12?ARM?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 13.00 16.00 73 975 [460]

RCFL-A*3824(RGPT-07?BRQ?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-A*3824(RGPT-10?BRM?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-A*3824(RGPT-12?ARM?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 13.00 16.00 73 975 [460]

RCFL-A*3824(ROCA-070E03) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 15.50 73 1,000 [472]

RCFL-A*3824(ROCA-070E04) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 15.50 73 1,000 [472]

RCFL-A*3824(ROLA-070E03) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-A*3824(ROLA-070E04) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-A*3824(ROLA-115E05) 29,800 [8.7] 21,450 [6.3] 8,350 [2.4] 13.00 16.00 73 900 [425]

RCFL-H*3617(RGFE-06?MCK?) 29,200 [8.6] 21,100 [6.2] 8,100 [2.4] 12.50 15.00 73 1,000 [472]

RCFL-H*3617(RGFE-07?MCK?) 29,200 [8.6] 21,150 [6.2] 8,050 [2.4] 12.50 14.50 73 1,025 [484]

RCFL-H*3617(RGFG-06?MCK?) 28,800 [8.4] 20,200 [5.9] 8,600 [2.5] 13.00 15.50 73 875 [413]

RCFL-H*3617(RGFG-07?MCK?) 28,800 [8.4] 20,200 [5.9] 8,600 [2.5] 13.00 15.50 73 850 [401]

RCFL-H*3617(RGGE-06?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-H*3617(RGGE-07?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-H*3617(RGJF-06?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-H*3617(RGJF-07?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-H*3617(RGLE-07?AMK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 13.00 15.50 73 1,025 [484]

RCFL-H*3617(RGLT-07?AMK?) 29,000 [8.5] 20,350 [6.0] 8,650 [2.5] 13.00 16.00 73 875 [413]

RCFL-H*3617(RGPE-05?BMK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 975 [460]

RCFL-H*3617(RGPE-07?AMK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,000 [472]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

030JEZ

RCFL-H*3617(RGPT-05?BMK?) 28,800 [8.4] 20,100 [5.9] 8,700 [2.5] 13.00 15.50 73 850 [401]

RCFL-H*3617(RGPT-07?AMK?) 29,000 [8.5] 20,350 [6.0] 8,650 [2.5] 13.00 15.50 73 875 [413]

RCFL-H*3617(RGRM-04?MAE?) 29,200 [8.6] 21,100 [6.2] 8,100 [2.4] 12.00 14.50 73 1,025 [484]

RCFL-H*3617(RGRM-06?MAE?) 28,800 [8.4] 20,000 [5.9] 8,800 [2.6] 13.00 15.50 73 825 [389]

RCFL-H*3617(RGRM-07?MAE?) 28,800 [8.4] 20,100 [5.9] 8,700 [2.5] 12.50 15.10 73 850 [401]

RCFL-H*3617(RGTM-06?MAE?) 29,000 [8.5] 20,450 [6.0] 8,550 [2.5] 13.00 15.50 73 900 [425]

RCFL-H*3617(RHWB-04WMX36A) 29,600 [8.7] 21,600 [6.3] 8,000 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-H*3617(RHWB-06WMX48A) 29,400 [8.6] 21,200 [6.2] 8,200 [2.4] 13.00 15.50 73 950 [448]

RCFL-H*3617(ROCA-070E03) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3617(ROCA-070E04) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3617(ROLA-070E03) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 975 [460]

RCFL-H*3617(ROLA-070E04) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,025 [484]

RCFL-H*3621(RGFE-06?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,000 [472]

RCFL-H*3621(RGFE-07?MCK?) 29,200 [8.6] 21,150 [6.2] 8,050 [2.4] 13.00 15.00 73 1,025 [484]

RCFL-H*3621(RGFE-09?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 975 [460]

RCFL-H*3621(RGFE-10?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3621(RGFG-06?MCK?) 28,800 [8.4] 20,200 [5.9] 8,600 [2.5] 13.00 15.50 73 875 [413]

RCFL-H*3621(RGFG-07?MCK?) 29,000 [8.5] 20,200 [5.9] 8,800 [2.6] 13.00 15.50 73 850 [401]

RCFL-H*3621(RGFG-09?ZCM?) 29,000 [8.5] 20,400 [6.0] 8,600 [2.5] 13.00 16.00 73 875 [413]

RCFL-H*3621(RGFG-10?ZCM?) 29,200 [8.6] 20,600 [6.0] 8,600 [2.5] 13.00 15.50 73 900 [425]

RCFL-H*3621(RGGE-06?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-H*3621(RGGE-07?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-H*3621(RGGE-09?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3621(RGGE-10?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3621(RGJF-06?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-H*3621(RGJF-07?MCK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

RCFL-H*3621(RGJF-09?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3621(RGJF-10?ZCM?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3621(RGLE-07?AMK?) 29,400 [8.6] 21,250 [6.2] 8,150 [2.4] 13.00 15.50 73 1,025 [484]

RCFL-H*3621(RGLE-07?BRQ?) 29,400 [8.6] 20,900 [6.1] 8,500 [2.5] 13.00 16.00 73 925 [437]

RCFL-H*3621(RGLE-10?BRM?) 29,800 [8.7] 21,800 [6.4] 8,000 [2.3] 13.00 16.00 73 1,050 [495]

RCFL-H*3621(RGLT-07?AMK?) 29,200 [8.6] 20,500 [6.0] 8,700 [2.5] 13.00 16.00 73 875 [413]

RCFL-H*3621(RGLT-07?BRQ?) 29,800 [8.7] 21,550 [6.3] 8,250 [2.4] 13.00 16.00 73 975 [460]

RCFL-H*3621(RGLT-10?BRM?) 29,800 [8.7] 21,550 [6.3] 8,250 [2.4] 13.00 16.00 73 975 [460]

RCFL-H*3621(RGPE-05?BMK?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 975 [460]

RCFL-H*3621(RGPE-07?AMK?) 29,400 [8.6] 21,250 [6.2] 8,150 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3621(RGPE-07?BRQ?) 29,600 [8.7] 21,450 [6.3] 8,150 [2.4] 13.00 16.00 73 1,025 [484]

RCFL-H*3621(RGPE-10?BRM?) 30,000 [8.8] 22,100 [6.5] 7,900 [2.3] 13.00 16.00 73 1,075 [507]

RCFL-H*3621(RGPT-05?BMK?) 29,000 [8.5] 20,350 [6.0] 8,650 [2.5] 13.00 15.50 73 875 [413]

RCFL-H*3621(RGPT-07?AMK?) 29,000 [8.5] 20,500 [6.0] 8,500 [2.5] 13.00 15.50 73 875 [413]

RCFL-H*3621(RGPT-07?BRQ?) 29,800 [8.7] 21,800 [6.4] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-H*3621(RGPT-10?BRM?) 29,800 [8.7] 21,550 [6.3] 8,250 [2.4] 13.00 16.00 73 975 [460]

RCFL-H*3621(RGRM-04?MAE?) 29,200 [8.6] 21,100 [6.2] 8,100 [2.4] 12.00 14.50 73 1,025 [484]

RCFL-H*3621(RGRM-06?MAE?) 28,800 [8.4] 20,000 [5.9] 8,800 [2.6] 13.00 15.50 73 825 [389]

RCFL-H*3621(RGRM-07?MAE?) 28,800 [8.4] 20,100 [5.9] 8,700 [2.5] 12.50 15.10 73 850 [401]

RCFL-H*3621(RGRM-07?YBG?) 29,200 [8.6] 21,100 [6.2] 8,100 [2.4] 12.00 14.50 73 975 [460]

RCFL-H*3621(RGRM-09?ZAJ?) 29,200 [8.6] 20,900 [6.1] 8,300 [2.4] 13.00 15.50 73 950 [448]

RCFL-H*3621(RGRM-10?ZAJ?) 29,400 [8.6] 21,300 [6.2] 8,100 [2.4] 12.50 15.10 73 1,025 [484]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

030JEZ

RCFL-H*3621(RGTM-06?MAE?) 29,000 [8.5] 20,450 [6.0] 8,550 [2.5] 13.00 15.50 73 900 [425]

RCFL-H*3621(RGTM-07?RBG?) 29,400 [8.6] 21,000 [6.2] 8,400 [2.5] 13.00 15.50 73 950 [448]

RCFL-H*3621(RGTM-09?ZAJ?) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 16.00 73 975 [460]

RCFL-H*3621(RHWB-04WMX36A) 29,600 [8.7] 21,600 [6.3] 8,000 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-H*3621(RHWB-06WMX48A) 29,600 [8.7] 21,600 [6.3] 8,000 [2.3] 13.00 15.50 73 975 [460]

RCFL-H*3621(ROCA-070E03) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3621(ROCA-070E04) 29,600 [8.7] 21,400 [6.3] 8,200 [2.4] 13.00 15.50 73 1,000 [472]

RCFL-H*3621(ROLA-070E03) 29,200 [8.6] 20,600 [6.0] 8,600 [2.5] 13.00 16.00 73 900 [425]

RCFL-H*3621(ROLA-070E04) 29,200 [8.6] 20,600 [6.0] 8,600 [2.5] 13.00 16.00 73 900 [425]

RCFL-H*3621(ROLA-115E05) 29,200 [8.6] 20,600 [6.0] 8,600 [2.5] 13.00 16.00 73 900 [425]

RCFL-H*3621+RXMD-C04 29,000 [8.5] 21,000 [6.2] 8,000 [2.3] 12.00 14.50 73 1,000 [472]

RCFL-H*3821(RGFE-06?MCK?) 30,000 [8.8] 22,050 [6.5] 7,950 [2.3] 12.50 15.10 73 1,000 [472]

RCFL-H*3821(RGFE-07?MCK?) 30,200 [8.8] 22,400 [6.6] 7,800 [2.3] 12.50 15.10 73 1,025 [484]

RCFL-H*3821(RGFE-09?ZCM?) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-H*3821(RGFE-10?ZCM?) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 1,000 [472]

RCFL-H*3821(RGFG-06?MCK?) 29,800 [8.7] 21,350 [6.3] 8,450 [2.5] 13.00 15.50 73 875 [413]

RCFL-H*3821(RGFG-07?MCK?) 29,800 [8.7] 21,200 [6.2] 8,600 [2.5] 13.00 16.00 73 850 [401]

RCFL-H*3821(RGFG-09?ZCM?) 30,000 [8.8] 21,500 [6.3] 8,500 [2.5] 13.00 16.00 73 875 [413]

RCFL-H*3821(RGFG-10?ZCM?) 30,200 [8.8] 21,800 [6.4] 8,400 [2.5] 13.00 16.00 73 900 [425]

RCFL-H*3821(RGGE-06?MCK?) 30,200 [8.8] 22,350 [6.5] 7,850 [2.3] 12.50 15.10 73 1,025 [484]

RCFL-H*3821(RGGE-07?MCK?) 30,200 [8.8] 22,350 [6.5] 7,850 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-H*3821(RGGE-09?ZCM?) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 1,000 [472]

RCFL-H*3821(RGGE-10?ZCM?) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 1,000 [472]

RCFL-H*3821(RGJF-06?MCK?) 30,200 [8.8] 22,350 [6.5] 7,850 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-H*3821(RGJF-07?MCK?) 30,200 [8.8] 22,350 [6.5] 7,850 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-H*3821(RGJF-09?ZCM?) 30,400 [8.9] 22,550 [6.6] 7,850 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3821(RGJF-10?ZCM?) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 1,000 [472]

RCFL-H*3821(RGLE-07?AMK?) 30,400 [8.9] 22,550 [6.6] 7,850 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3821(RGLE-07?BRQ?) 30,400 [8.9] 22,500 [6.6] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3821(RGLE-10?BRM?) 30,600 [9.0] 22,800 [6.7] 7,800 [2.3] 13.00 16.00 73 1,050 [495]

RCFL-H*3821(RGLT-07?AMK?) 30,000 [8.8] 21,750 [6.4] 8,250 [2.4] 13.00 16.00 73 925 [437]

RCFL-H*3821(RGLT-07?BRQ?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3821(RGLT-10?BRM?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3821(RGPE-05?BMK?) 30,200 [8.8] 22,250 [6.5] 7,950 [2.3] 13.00 15.50 73 975 [460]

RCFL-H*3821(RGPE-07?AMK?) 29,800 [8.7] 21,450 [6.3] 8,350 [2.4] 13.00 16.00 73 900 [425]

RCFL-H*3821(RGPE-07?BRQ?) 30,400 [8.9] 22,500 [6.6] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3821(RGPE-10?BRM?) 30,000 [8.8] 21,600 [6.3] 8,400 [2.5] 13.00 16.00 73 900 [425]

RCFL-H*3821(RGPT-05?BMK?) 29,800 [8.7] 21,450 [6.3] 8,350 [2.4] 13.00 15.50 73 900 [425]

RCFL-H*3821(RGPT-07?AMK?) 30,000 [8.8] 21,750 [6.4] 8,250 [2.4] 13.00 16.00 73 925 [437]

RCFL-H*3821(RGPT-07?BRQ?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3821(RGPT-10?BRM?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3821(RGRM-04?MAE?) 29,800 [8.7] 21,600 [6.3] 8,200 [2.4] 12.50 15.10 73 925 [437]

RCFL-H*3821(RGRM-06?MAE?) 30,000 [8.8] 22,100 [6.5] 7,900 [2.3] 12.50 15.10 73 1,000 [472]

RCFL-H*3821(RGRM-07?MAE?) 29,600 [8.7] 21,550 [6.3] 8,050 [2.4] 13.00 15.00 73 950 [448]

RCFL-H*3821(RGRM-07?YBG?) 30,000 [8.8] 22,100 [6.5] 7,900 [2.3] 13.00 15.00 73 975 [460]

RCFL-H*3821(RGRM-09?ZAJ?) 30,000 [8.8] 21,850 [6.4] 8,150 [2.4] 13.00 15.50 73 950 [448]

RCFL-H*3821(RGRM-10?ZAJ?) 30,200 [8.8] 22,350 [6.5] 7,850 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-H*3821(RGTM-06?MAE?) 29,800 [8.7] 21,450 [6.3] 8,350 [2.4] 13.00 16.00 73 900 [425]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

030JEZ

RCFL-H*3821(RGTM-07?RBG?) 30,000 [8.8] 21,850 [6.4] 8,150 [2.4] 13.00 16.00 73 950 [448]

RCFL-H*3821(RGTM-09?ZAJ?) 30,400 [8.9] 22,400 [6.6] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-H*3821(ROCA-070E03) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 15.50 73 1,000 [472]

RCFL-H*3821(ROCA-070E04) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 15.50 73 1,000 [472]

RCFL-H*3821(ROLA-070E03) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-H*3821(ROLA-070E04) 30,400 [8.9] 22,550 [6.6] 7,850 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3821(ROLA-115E05) 30,600 [9.0] 22,800 [6.7] 7,800 [2.3] 13.00 16.00 73 1,050 [495]

RCFL-H*3821+RXMD-C04 29,800 [8.7] 21,950 [6.4] 7,850 [2.3] 12.00 14.50 73 995 [470]

RCFL-H*3824(RGFE-09?ZCM?) 30,400 [8.9] 22,550 [6.6] 7,850 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-H*3824(RGFE-10?ZCM?) 29,800 [8.7] 21,450 [6.3] 8,350 [2.4] 13.00 16.00 73 900 [425]

RCFL-H*3824(RGFE-12?RCM?) 30,400 [8.9] 22,400 [6.6] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-H*3824(RGFG-09?ZCM?) 30,000 [8.8] 21,500 [6.3] 8,500 [2.5] 13.00 16.00 73 875 [413]

RCFL-H*3824(RGFG-10?ZCM?) 30,000 [8.8] 21,600 [6.3] 8,400 [2.5] 13.00 16.00 73 900 [425]

RCFL-H*3824(RGFG-12?RCM?) 30,000 [8.8] 21,450 [6.3] 8,550 [2.5] 13.00 16.00 73 875 [413]

RCFL-H*3824(RGGE-09?ZCM?) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 1,000 [472]

RCFL-H*3824(RGGE-10?ZCM?) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 1,000 [472]

RCFL-H*3824(RGGE-12?RCM?) 30,600 [9.0] 22,800 [6.7] 7,800 [2.3] 13.00 16.00 73 1,050 [495]

RCFL-H*3824(RGJF-09?ZCM?) 30,400 [8.9] 22,550 [6.6] 7,850 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3824(RGJF-10?ZCM?) 30,400 [8.9] 22,650 [6.6] 7,750 [2.3] 13.00 15.50 73 1,050 [495]

RCFL-H*3824(RGJF-12?RCM?) 30,600 [9.0] 22,800 [6.7] 7,800 [2.3] 13.00 16.00 73 1,050 [495]

RCFL-H*3824(RGLE-07?BRQ?) 30,000 [8.8] 21,700 [6.4] 8,300 [2.4] 13.00 16.00 73 925 [437]

RCFL-H*3824(RGLE-10?BRM?) 29,800 [8.7] 21,350 [6.3] 8,450 [2.5] 13.00 16.00 73 875 [413]

RCFL-H*3824(RGLE-12?ARM?) 30,200 [8.8] 21,900 [6.4] 8,300 [2.4] 13.00 16.00 73 925 [437]

RCFL-H*3824(RGLT-07?BRQ?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3824(RGLT-10?BRM?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3824(RGLT-12?ARM?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 13.00 16.00 73 975 [460]

RCFL-H*3824(RGPE-07?BRQ?) 30,000 [8.8] 21,650 [6.3] 8,350 [2.4] 13.00 16.00 73 900 [425]

RCFL-H*3824(RGPE-10?BRM?) 30,800 [9.0] 23,100 [6.8] 7,700 [2.3] 13.00 16.00 73 1,075 [507]

RCFL-H*3824(RGPE-12?ARM?) 30,800 [9.0] 23,100 [6.8] 7,700 [2.3] 13.00 16.00 73 1,075 [507]

RCFL-H*3824(RGPT-07?BRQ?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3824(RGPT-10?BRM?) 30,600 [9.0] 22,700 [6.7] 7,900 [2.3] 13.00 16.00 73 1,025 [484]

RCFL-H*3824(RGPT-12?ARM?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 13.00 16.00 73 975 [460]

RCFL-H*3824(RGRM-07?YBG?) 29,400 [8.6] 20,950 [6.1] 8,450 [2.5] 12.50 15.10 73 850 [401]

RCFL-H*3824(RGRM-09?ZAJ?) 30,400 [8.9] 22,750 [6.7] 7,650 [2.2] 13.00 15.50 73 1,075 [507]

RCFL-H*3824(RGRM-10?ZAJ?) 30,200 [8.8] 22,350 [6.5] 7,850 [2.3] 13.00 15.50 73 1,025 [484]

RCFL-H*3824(RGRM-12?RAJ?) 30,000 [8.8] 21,750 [6.4] 8,250 [2.4] 13.00 16.00 73 925 [437]

RCFL-H*3824(RGTM-07?RBG?) 30,000 [8.8] 21,850 [6.4] 8,150 [2.4] 13.00 16.00 73 950 [448]

RCFL-H*3824(RGTM-09?ZAJ?) 30,800 [9.0] 23,250 [6.8] 7,550 [2.2] 13.00 16.00 73 1,100 [519]

RCFL-H*3824(ROCA-070E03) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 15.50 73 1,000 [472]

RCFL-H*3824(ROCA-070E04) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 15.50 73 1,000 [472]

RCFL-H*3824(ROLA-070E03) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-H*3824(ROLA-070E04) 30,200 [8.8] 22,200 [6.5] 8,000 [2.3] 13.00 16.00 73 975 [460]

RCFL-H*3824(ROLA-115E05) 29,800 [8.7] 21,450 [6.3] 8,350 [2.4] 13.00 16.00 73 900 [425]

RCFL-H*3824+RXMD-C04 29,800 [8.7] 21,950 [6.4] 7,850 [2.3] 12.00 14.50 73 995 [470]

RBHP-21(RCHL-36A1) 28,000 [8.2] 19,450 [5.7] 8,550 [2.5] 12.50 15.00 73 1,000 [472]

RCQD-3621(RGFE-06?MCK?) 29,800 [8.7] 22,200 [6.5] 7,600 [2.2] 13.00 15.00 73 1,000 [472]

RCQD-3621(RGFE-07?MCK?) 29,800 [8.7] 22,200 [6.5] 7,600 [2.2] 13.00 15.00 73 1,025 [484]

RCQD-3621(RGFE-09?ZCM?) 30,000 [8.8] 22,350 [6.5] 7,650 [2.2] 13.00 15.50 73 1,025 [484]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

030JEZ

RCQD-3621(RGFE-10?ZCM?) 30,200 [8.8] 22,550 [6.6] 7,650 [2.2] 13.00 15.50 73 1,000 [472]

RCQD-3621(RGFG-06?MCK?) 29,800 [8.7] 21,600 [6.3] 8,200 [2.4] 13.00 15.50 73 875 [413]

RCQD-3621(RGFG-07?MCK?) 29,600 [8.7] 21,300 [6.2] 8,300 [2.4] 13.00 15.50 73 850 [401]

RCQD-3621(RGFG-09?ZCM?) 29,800 [8.7] 21,550 [6.3] 8,250 [2.4] 13.00 16.00 73 875 [413]

RCQD-3621(RGFG-10?ZCM?) 30,000 [8.8] 21,850 [6.4] 8,150 [2.4] 13.00 16.00 73 900 [425]

RCQD-3621(RGJF-06?MCK?) 30,000 [8.8] 22,350 [6.5] 7,650 [2.2] 13.00 15.00 73 1,025 [484]

RCQD-3621(RGJF-07?MCK?) 30,000 [8.8] 22,400 [6.6] 7,600 [2.2] 13.00 15.00 73 1,025 [484]

RCQD-3621(RGJF-09?ZCM?) 30,200 [8.8] 22,550 [6.6] 7,650 [2.2] 13.00 15.50 73 1,000 [472]

RCQD-3621(RGJF-10?ZCM?) 30,200 [8.8] 22,550 [6.6] 7,650 [2.2] 13.00 15.50 73 1,000 [472]

RCQD-3621(RGPE-05?BMK?) 30,000 [8.8] 22,350 [6.5] 7,650 [2.2] 13.00 15.00 73 975 [460]

RCQD-3621(RGPE-07?AMK?) 30,000 [8.8] 22,350 [6.5] 7,650 [2.2] 13.00 15.50 73 1,000 [472]

RCQD-3621(RGPE-07?BRQ?) 30,200 [8.8] 22,500 [6.6] 7,700 [2.3] 13.00 16.00 73 1,025 [484]

RCQD-3621(RGPE-10?BRM?) 29,800 [8.7] 21,750 [6.4] 8,050 [2.4] 13.00 16.00 73 900 [425]

RCQD-3621(RGPT-05?BMK?) 29,600 [8.7] 21,550 [6.3] 8,050 [2.4] 13.00 15.50 73 900 [425]

RCQD-3621(RGPT-07?AMK?) 29,800 [8.7] 21,800 [6.4] 8,000 [2.3] 13.00 15.50 73 925 [437]

RCQD-3621(RGPT-07?BRQ?) 30,400 [8.9] 22,850 [6.7] 7,550 [2.2] 13.00 16.00 73 1,050 [495]

RCQD-3621(RGPT-10?BRM?) 30,400 [8.9] 22,850 [6.7] 7,550 [2.2] 13.00 16.00 73 1,050 [495]

RCQD-3621(RGRM-04?MAE?) 30,600 [9.0] 23,650 [6.9] 6,950 [2.0] 12.00 14.50 73 1,025 [484]

RCQD-3621(RGRM-06?MAE?) 30,600 [9.0] 23,650 [6.9] 6,950 [2.0] 12.50 15.00 73 1,000 [472]

RCQD-3621(RGRM-07?MAE?) 30,400 [8.9] 23,500 [6.9] 6,900 [2.0] 11.50 14.00 73 1,025 [484]

RCQD-3621(RGRM-07?YBG?) 30,600 [9.0] 23,650 [6.9] 6,950 [2.0] 12.00 14.50 73 975 [460]

RCQD-3621(RGRM-09?ZAJ?) 29,800 [8.7] 21,950 [6.4] 7,850 [2.3] 13.00 15.50 73 950 [448]

RCQD-3621(RGRM-10?ZAJ?) 30,000 [8.8] 22,400 [6.6] 7,600 [2.2] 13.00 15.00 73 1,025 [484]

RCQD-3621(RHWB-04WMX36A) 30,800 [9.0] 23,500 [6.9] 7,300 [2.1] 13.00 15.50 73 1,075 [507]

RCQD-3621(RHWB-06WMX48A) 30,400 [8.9] 22,800 [6.7] 7,600 [2.2] 13.00 16.00 73 1,000 [472]

RCQD-3621(ROCA-070E03) 30,000 [8.8] 22,300 [6.5] 7,700 [2.3] 13.00 15.50 73 1,000 [472]

RCQD-3621(ROCA-070E04) 30,000 [8.8] 22,300 [6.5] 7,700 [2.3] 13.00 15.50 73 1,000 [472]

RCQD-3621(ROLA-070E03) 30,200 [8.8] 22,450 [6.6] 7,750 [2.3] 13.00 15.50 73 975 [460]

RCQD-3621(ROLA-070E04) 30,200 [8.8] 22,450 [6.6] 7,750 [2.3] 13.00 15.50 73 975 [460]

RCQD-3621(ROLA-115E05) 30,400 [8.9] 22,900 [6.7] 7,500 [2.2] 13.00 15.50 73 1,050 [495]

RCQD-3621+RXMD-C04 29,600 [8.7] 22,000 [6.4] 7,600 [2.2] 11.50 14.00 73 1,000 [472]

RCQD-3624(RGFG-09?ZCM?) 29,800 [8.7] 21,550 [6.3] 8,250 [2.4] 13.00 16.00 73 875 [413]

RCQD-3624(RGFG-10?ZCM?) 30,000 [8.8] 21,850 [6.4] 8,150 [2.4] 13.00 16.00 73 900 [425]

RCQD-3624(RGFG-12?RCM?) 30,000 [8.8] 21,750 [6.4] 8,250 [2.4] 13.00 16.00 73 875 [413]

RCQD-3624(RGPE-07?BRQ?) 30,400 [8.9] 22,850 [6.7] 7,550 [2.2] 13.00 16.00 73 1,050 [495]

RCQD-3624(RGPT-07?BRQ?) 30,600 [9.0] 23,050 [6.8] 7,550 [2.2] 13.00 16.00 73 1,050 [495]

RCQD-3624(RGPT-10?BRM?) 30,600 [9.0] 23,150 [6.8] 7,450 [2.2] 13.00 16.00 73 1,075 [507]

RCQD-3624(RGPT-12?ARM?) 30,400 [8.9] 22,650 [6.6] 7,750 [2.3] 13.00 16.00 73 975 [460]

RCQD-3624(RGRM-07?YBG?) 30,600 [9.0] 23,700 [6.9] 6,900 [2.0] 12.50 15.00 73 975 [460]

RCQD-3624(ROCA-070E03) 30,200 [8.8] 22,500 [6.6] 7,700 [2.3] 13.00 15.50 73 1,000 [472]

RCQD-3624(ROCA-070E04) 30,200 [8.8] 22,500 [6.6] 7,700 [2.3] 13.00 15.50 73 1,000 [472]

RCQD-3624(ROLA-070E03) 30,200 [8.8] 22,450 [6.6] 7,750 [2.3] 13.00 16.00 73 975 [460]

RCQD-3624(ROLA-070E04) 30,200 [8.8] 22,450 [6.6] 7,750 [2.3] 13.00 16.00 73 975 [460]

RCQD-3624(ROLA-115E05) 29,800 [8.7] 21,700 [6.4] 8,100 [2.4] 13.00 16.00 73 900 [425]

RCQD-3624+RXMD-C04 29,600 [8.7] 22,000 [6.4] 7,600 [2.2] 11.50 14.00 73 1,000 [472]

RHKL-HM3617(RCSL-H*3617) 29,600 [8.7] 21,350 [6.3] 8,250 [2.4] 13.00 16.00 73 1,025 [484]

RHLL-HM3617(RCSL-H*3617) 29,800 [8.7] 21,550 [6.3] 8,250 [2.4] 13.00 16.00 73 1,000 [472]

RHSL-HM3017(RCSL-H*3617) 29,000 [8.5] 20,700 [6.1] 8,300 [2.4] 12.00 14.50 73 950 [448]

RHKL-HM3821(RCSL-H*3821) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 13.00 16.00 73 1,000 [472]

RHLL-HM3821(RCSL-H*3821) 30,400 [8.9] 22,400 [6.6] 8,000 [2.3] 13.00 16.00 73 975 [460]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

036JEZ

RCFL-H*3617+RXMD-C04 ➀35,400 [10.4] 23,800 [7.0] 11,600 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-A*3617(RGFE-06?MCK?) 35,200 [10.3] 23,350 [6.8] 11,850 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-A*3617(RGFE-07?MCK?) 35,400 [10.4] 23,750 [7.0] 11,650 [3.4] 12.00 14.50 76 1,025 [484]

RCFL-A*3617(RGFG-06?MCK?) 35,200 [10.3] 23,400 [6.9] 11,800 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-A*3617(RGFG-07?MCK?) 35,400 [10.4] 23,800 [7.0] 11,600 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-A*3617(RGGE-06?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3617(RGGE-07?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3617(RGLE-07?AMK?) 35,800 [10.5] 24,100 [7.1] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3617(RGLT-07?AMK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,050 [495]

RCFL-A*3617(RGPE-07?AMK?) 35,400 [10.4] 23,400 [6.9] 12,000 [3.5] 12.50 15.10 76 1,000 [472]

RCFL-A*3617(RGPT-05?BMK?) 35,400 [10.4] 23,750 [7.0] 11,650 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-A*3617(RGPT-07?AMK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.00 76 1,050 [495]

RCFL-A*3617(RGRM-04?MAE?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.00 14.50 76 1,025 [484]

RCFL-A*3617(RGRM-06?MAE?) 35,400 [10.4] 23,500 [6.9] 11,900 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-A*3617(RHWB-04WMX36A) 35,800 [10.5] 24,200 [7.1] 11,600 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3617(RHWB-06WMX48A) 36,200 [10.6] 25,000 [7.3] 11,200 [3.3] 12.00 14.50 76 1,150 [543]

RCFL-A*3617(ROCA-070E03) 36,200 [10.6] 25,250 [7.4] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-A*3617(ROCA-070E04) 36,200 [10.6] 25,250 [7.4] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-A*3617(ROLA-070E03) 36,200 [10.6] 25,050 [7.3] 11,150 [3.3] 12.50 15.00 76 1,175 [554]

RCFL-A*3617(ROLA-070E04) 35,800 [10.5] 24,100 [7.1] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3617+RXMD-C04 35,400 [10.4] 23,800 [7.0] 11,600 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-A*3621(RGFE-06?MCK?) 35,200 [10.3] 23,350 [6.8] 11,850 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-A*3621(RGFE-07?MCK?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.00 14.50 76 1,025 [484]

RCFL-A*3621(RGFE-09?ZCM?) 35,800 [10.5] 24,100 [7.1] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3621(RGFE-10?ZCM?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3621(RGFG-06?MCK?) 35,200 [10.3] 23,400 [6.9] 11,800 [3.5] 12.50 15.00 76 1,000 [472]

RCFL-A*3621(RGFG-07?MCK?) 35,400 [10.4] 23,800 [7.0] 11,600 [3.4] 12.50 15.00 76 1,050 [495]

RCFL-A*3621(RGFG-09?ZCM?) 35,600 [10.4] 24,000 [7.0] 11,600 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3621(RGFG-10?ZCM?) 35,800 [10.5] 24,000 [7.0] 11,800 [3.5] 12.50 15.10 76 1,050 [495]

RCFL-A*3621(RGGE-06?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3621(RGGE-07?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3621(RGGE-09?ZCM?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3621(RGGE-10?ZCM?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,050 [495]

RCFL-A*3621(RGLE-07?AMK?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3621(RGLE-10?BRM?) 35,800 [10.5] 24,000 [7.0] 11,800 [3.5] 13.00 15.50 76 1,050 [495]

RCFL-A*3621(RGLT-07?AMK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,075 [507]

RCFL-A*3621(RGLT-07?BRQ?) 36,400 [10.7] 25,350 [7.4] 11,050 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-A*3621(RGLT-10?BRM?) 36,400 [10.7] 25,200 [7.4] 11,200 [3.3] 12.50 15.10 76 1,175 [554]

RCFL-A*3621(RGPE-07?AMK?) 35,400 [10.4] 23,400 [6.9] 12,000 [3.5] 12.50 15.10 76 1,000 [472]

RCFL-A*3621(RGPE-07?BRQ?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 13.00 15.50 76 1,025 [484]

RCFL-A*3621(RGPE-10?BRM?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 13.00 15.50 76 1,075 [507]

RCFL-A*3621(RGPT-05?BMK?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.00 14.50 76 1,075 [507]

RCFL-A*3621(RGPT-07?AMK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,050 [495]

RCFL-A*3621(RGPT-07?BRQ?) 36,000 [10.5] 24,200 [7.1] 11,800 [3.5] 13.00 15.50 76 1,050 [495]

RCFL-A*3621(RGPT-10?BRM?) 36,400 [10.7] 25,200 [7.4] 11,200 [3.3] 12.50 15.10 76 1,175 [554]

RCFL-A*3621(RGRM-04?MAE?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.00 14.50 76 1,025 [484]

RCFL-A*3621(RGRM-06?MAE?) 35,400 [10.4] 23,500 [6.9] 11,900 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-A*3621(RGRM-09?ZAJ?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.50 15.00 76 1,075 [507]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

036JEZ

RCFL-A*3621(RGRM-10?ZAJ?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3621(RHWB-04WMX36A) 35,800 [10.5] 24,200 [7.1] 11,600 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-A*3621(RHWB-06WMX48A) 36,200 [10.6] 25,100 [7.4] 11,100 [3.3] 12.00 14.50 76 1,175 [554]

RCFL-A*3621(ROCA-070E03) 36,200 [10.6] 25,250 [7.4] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-A*3621(ROCA-070E04) 36,200 [10.6] 25,250 [7.4] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-A*3621(ROLA-070E03) 36,200 [10.6] 25,050 [7.3] 11,150 [3.3] 12.50 15.10 76 1,175 [554]

RCFL-A*3621(ROLA-070E04) 36,200 [10.6] 25,050 [7.3] 11,150 [3.3] 12.50 15.10 76 1,175 [554]

RCFL-A*3621(ROLA-115E05) 36,400 [10.7] 25,350 [7.4] 11,050 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-A*3621+RXMD-C04 35,400 [10.4] 23,800 [7.0] 11,600 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-A*3821(RGFG-07?MCK?) 37,000 [10.8] 25,250 [7.4] 11,750 [3.4] 13.00 15.50 76 1,050 [495]

RCFL-A*3821(RGFG-09?ZCM?) 38,000 [11.1] 26,950 [7.9] 11,050 [3.2] 13.00 15.50 76 1,200 [566]

RCFL-A*3821(RGFG-10?ZCM?) 38,000 [11.1] 26,950 [7.9] 11,050 [3.2] 13.00 15.50 76 1,200 [566]

RCFL-A*3821(RGLT-07?AMK?) 37,200 [10.9] 25,700 [7.5] 11,500 [3.4] 13.00 15.50 76 1,100 [519]

RCFL-A*3821(RGPT-05?BMK?) 37,200 [10.9] 25,750 [7.5] 11,450 [3.4] 12.50 15.10 76 1,100 [519]

RCFL-A*3821(RGPT-07?AMK?) 37,200 [10.9] 25,700 [7.5] 11,500 [3.4] 12.50 15.10 76 1,100 [519]

RCFL-A*3821(ROCA-070E03) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-A*3821(ROCA-070E04) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-A*3821(ROLA-070E03) 37,600 [11.0] 26,400 [7.7] 11,200 [3.3] 13.00 15.50 76 1,175 [554]

RCFL-A*3821(ROLA-070E04) 37,600 [11.0] 26,400 [7.7] 11,200 [3.3] 13.00 15.50 76 1,175 [554]

RCFL-A*3821(ROLA-115E05) 38,000 [11.1] 26,900 [7.9] 11,100 [3.3] 13.00 15.50 76 1,200 [566]

RCFL-A*3824(RGFG-09?ZCM?) 38,000 [11.1] 26,950 [7.9] 11,050 [3.2] 13.00 15.50 76 1,200 [566]

RCFL-A*3824(RGFG-10?ZCM?) 37,800 [11.1] 26,750 [7.8] 11,050 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-A*3824(RGLT-12?ARM?) 37,800 [11.1] 26,450 [7.7] 11,350 [3.3] 13.00 16.00 76 1,150 [543]

RCFL-A*3824(RGPT-12?ARM?) 38,000 [11.1] 26,750 [7.8] 11,250 [3.3] 13.00 16.00 76 1,175 [554]

RCFL-A*3824(ROCA-070E03) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-A*3824(ROCA-070E04) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-A*3824(ROLA-070E03) 37,600 [11.0] 26,450 [7.7] 11,150 [3.3] 13.00 15.50 76 1,175 [554]

RCFL-A*3824(ROLA-070E04) 37,600 [11.0] 26,450 [7.7] 11,150 [3.3] 13.00 15.50 76 1,175 [554]

RCFL-A*3824(ROLA-115E05) 37,000 [10.8] 25,250 [7.4] 11,750 [3.4] 13.00 15.50 76 1,050 [495]

RCFL-H*3617(RGFE-06?MCK?) 35,200 [10.3] 23,350 [6.8] 11,850 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-H*3617(RGFE-07?MCK?) 35,400 [10.4] 23,750 [7.0] 11,650 [3.4] 12.00 14.50 76 1,025 [484]

RCFL-H*3617(RGFG-06?MCK?) 35,200 [10.3] 23,400 [6.9] 11,800 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-H*3617(RGFG-07?MCK?) 35,400 [10.4] 23,800 [7.0] 11,600 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-H*3617(RGGE-06?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3617(RGGE-07?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3617(RGJF-06?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3617(RGJF-07?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3617(RGLE-07?AMK?) 35,800 [10.5] 24,100 [7.1] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3617(RGLT-07?AMK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,050 [495]

RCFL-H*3617(RGPE-07?AMK?) 35,400 [10.4] 23,400 [6.9] 12,000 [3.5] 12.50 15.10 76 1,000 [472]

RCFL-H*3617(RGPT-05?BMK?) 35,400 [10.4] 23,750 [7.0] 11,650 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-H*3617(RGPT-07?AMK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.00 76 1,050 [495]

RCFL-H*3617(RGRM-04?MAE?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.00 14.50 76 1,025 [484]

RCFL-H*3617(RGRM-06?MAE?) 35,400 [10.4] 23,500 [6.9] 11,900 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-H*3617(RGTM-06?MAE?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.00 14.50 76 1,025 [484]

RCFL-H*3617(RHWB-04WMX36A) 35,800 [10.5] 24,200 [7.1] 11,600 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3617(RHWB-06WMX48A) 36,200 [10.6] 25,000 [7.3] 11,200 [3.3] 12.00 14.50 76 1,150 [543]

RCFL-H*3617(ROCA-070E03) 36,200 [10.6] 25,250 [7.4] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

036JEZ

RCFL-H*3617(ROCA-070E04) 36,200 [10.6] 25,250 [7.4] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-H*3617(ROLA-070E03) 36,200 [10.6] 25,050 [7.3] 11,150 [3.3] 12.50 15.00 76 1,175 [554]

RCFL-H*3617(ROLA-070E04) 35,800 [10.5] 24,100 [7.1] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGFE-06?MCK?) 35,200 [10.3] 23,350 [6.8] 11,850 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-H*3621(RGFE-07?MCK?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.00 14.50 76 1,025 [484]

RCFL-H*3621(RGFE-09?ZCM?) 35,800 [10.5] 24,100 [7.1] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGFE-10?ZCM?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGFG-06?MCK?) 35,200 [10.3] 23,400 [6.9] 11,800 [3.5] 12.50 15.00 76 1,000 [472]

RCFL-H*3621(RGFG-07?MCK?) 35,400 [10.4] 23,800 [7.0] 11,600 [3.4] 12.50 15.00 76 1,050 [495]

RCFL-H*3621(RGFG-09?ZCM?) 35,600 [10.4] 24,000 [7.0] 11,600 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGFG-10?ZCM?) 35,800 [10.5] 24,000 [7.0] 11,800 [3.5] 12.50 15.10 76 1,050 [495]

RCFL-H*3621(RGGE-06?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGGE-07?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGGE-09?ZCM?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGGE-10?ZCM?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,050 [495]

RCFL-H*3621(RGJF-06?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGJF-07?MCK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGJF-09?ZCM?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGJF-10?ZCM?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,050 [495]

RCFL-H*3621(RGLE-07?AMK?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGLE-07?BRQ?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 13.00 15.50 76 1,025 [484]

RCFL-H*3621(RGLE-10?BRM?) 35,800 [10.5] 24,000 [7.0] 11,800 [3.5] 13.00 15.50 76 1,050 [495]

RCFL-H*3621(RGLT-07?AMK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,075 [507]

RCFL-H*3621(RGLT-07?BRQ?) 36,400 [10.7] 25,350 [7.4] 11,050 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3621(RGLT-10?BRM?) 36,400 [10.7] 25,200 [7.4] 11,200 [3.3] 12.50 15.10 76 1,175 [554]

RCFL-H*3621(RGPE-07?AMK?) 35,400 [10.4] 23,400 [6.9] 12,000 [3.5] 12.50 15.10 76 1,000 [472]

RCFL-H*3621(RGPE-07?BRQ?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 13.00 15.50 76 1,025 [484]

RCFL-H*3621(RGPE-10?BRM?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 13.00 15.50 76 1,075 [507]

RCFL-H*3621(RGPT-05?BMK?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.00 14.50 76 1,075 [507]

RCFL-H*3621(RGPT-07?AMK?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,050 [495]

RCFL-H*3621(RGPT-07?BRQ?) 36,000 [10.5] 24,200 [7.1] 11,800 [3.5] 13.00 15.50 76 1,050 [495]

RCFL-H*3621(RGPT-10?BRM?) 36,400 [10.7] 25,200 [7.4] 11,200 [3.3] 12.50 15.10 76 1,175 [554]

RCFL-H*3621(RGRM-04?MAE?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.00 14.50 76 1,025 [484]

RCFL-H*3621(RGRM-06?MAE?) 35,400 [10.4] 23,500 [6.9] 11,900 [3.5] 12.00 14.50 76 1,000 [472]

RCFL-H*3621(RGRM-09?ZAJ?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.50 15.00 76 1,075 [507]

RCFL-H*3621(RGRM-10?ZAJ?) 35,600 [10.4] 23,900 [7.0] 11,700 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RGTM-06?MAE?) 35,600 [10.4] 23,950 [7.0] 11,650 [3.4] 12.50 15.00 76 1,025 [484]

RCFL-H*3621(RGTM-07?RBG?) 35,800 [10.5] 24,050 [7.0] 11,750 [3.4] 12.50 15.10 76 1,050 [495]

RCFL-H*3621(RGTM-09?ZAJ?) 36,000 [10.5] 24,500 [7.2] 11,500 [3.4] 12.50 15.10 76 1,100 [519]

RCFL-H*3621(RHWB-04WMX36A) 35,800 [10.5] 24,200 [7.1] 11,600 [3.4] 12.50 15.10 76 1,025 [484]

RCFL-H*3621(RHWB-06WMX48A) 36,200 [10.6] 25,100 [7.4] 11,100 [3.3] 12.00 14.50 76 1,175 [554]

RCFL-H*3621(ROCA-070E03) 36,200 [10.6] 25,250 [7.4] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-H*3621(ROCA-070E04) 36,200 [10.6] 25,250 [7.4] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-H*3621(ROLA-070E03) 36,200 [10.6] 25,050 [7.3] 11,150 [3.3] 12.50 15.10 76 1,175 [554]

RCFL-H*3621(ROLA-070E04) 36,200 [10.6] 25,050 [7.3] 11,150 [3.3] 12.50 15.10 76 1,175 [554]

RCFL-H*3621(ROLA-115E05) 36,400 [10.7] 25,350 [7.4] 11,050 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3621+RXMD-C04 35,400 [10.4] 23,800 [7.0] 11,600 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-H*3821(RGFE-09?ZCM?) 37,800 [11.1] 26,800 [7.9] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

036JEZ

RCFL-H*3821(RGFG-06?MCK?) 36,800 [10.8] 25,000 [7.3] 11,800 [3.5] 13.00 15.50 76 1,000 [472]

RCFL-H*3821(RGFG-07?MCK?) 37,000 [10.8] 25,250 [7.4] 11,750 [3.4] 13.00 15.50 76 1,050 [495]

RCFL-H*3821(RGFG-09?ZCM?) 38,000 [11.1] 26,950 [7.9] 11,050 [3.2] 13.00 15.50 76 1,200 [566]

RCFL-H*3821(RGFG-10?ZCM?) 38,000 [11.1] 26,950 [7.9] 11,050 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RGGE-06?MCK?) 37,600 [11.0] 26,650 [7.8] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-H*3821(RGGE-07?MCK?) 37,400 [11.0] 26,450 [7.7] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-H*3821(RGGE-10?ZCM?) 37,000 [10.8] 25,250 [7.4] 11,750 [3.4] 13.00 15.50 76 1,050 [495]

RCFL-H*3821(RGJF-06?MCK?) 37,600 [11.0] 26,650 [7.8] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-H*3821(RGJF-07?MCK?) 37,400 [11.0] 26,450 [7.7] 10,950 [3.2] 12.00 14.50 76 1,200 [566]

RCFL-H*3821(RGJF-10?ZCM?) 37,800 [11.1] 26,750 [7.8] 11,050 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RGLE-07?AMK?) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RGLE-10?BRM?) 38,000 [11.1] 26,900 [7.9] 11,100 [3.3] 13.00 15.50 76 1,200 [566]

RCFL-H*3821(RGLT-07?AMK?) 37,200 [10.9] 25,700 [7.5] 11,500 [3.4] 13.00 15.50 76 1,100 [519]

RCFL-H*3821(RGPT-05?BMK?) 37,200 [10.9] 25,750 [7.5] 11,450 [3.4] 12.50 15.10 76 1,100 [519]

RCFL-H*3821(RGPT-07?AMK?) 37,200 [10.9] 25,700 [7.5] 11,500 [3.4] 12.50 15.10 76 1,100 [519]

RCFL-H*3821(RGRM-07?YBG?) 36,600 [10.7] 24,950 [7.3] 11,650 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-H*3821(RGRM-09?ZAJ?) 37,000 [10.8] 25,300 [7.4] 11,700 [3.4] 12.50 15.10 76 1,075 [507]

RCFL-H*3821(RGRM-10?ZAJ?) 37,400 [11.0] 26,150 [7.7] 11,250 [3.3] 12.50 15.10 76 1,150 [543]

RCFL-H*3821(RGTM-06?MAE?) 36,800 [10.8] 25,100 [7.4] 11,700 [3.4] 12.50 15.10 76 1,075 [507]

RCFL-H*3821(RGTM-07?RBG?) 37,000 [10.8] 25,250 [7.4] 11,750 [3.4] 13.00 15.50 76 1,050 [495]

RCFL-H*3821(RGTM-09?ZAJ?) 37,400 [11.0] 25,850 [7.6] 11,550 [3.4] 13.00 15.50 76 1,100 [519]

RCFL-H*3821(RHWB-04WMX36A) 36,200 [10.6] 24,700 [7.2] 11,500 [3.4] 13.00 15.50 76 1,075 [507]

RCFL-H*3821(RHWB-06WMX48A) 37,000 [10.8] 26,200 [7.7] 10,800 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(ROCA-070E03) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(ROCA-070E04) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(ROLA-070E03) 37,600 [11.0] 26,400 [7.7] 11,200 [3.3] 13.00 15.50 76 1,175 [554]

RCFL-H*3821(ROLA-070E04) 37,600 [11.0] 26,400 [7.7] 11,200 [3.3] 13.00 15.50 76 1,175 [554]

RCFL-H*3821(ROLA-115E05) 38,000 [11.1] 26,900 [7.9] 11,100 [3.3] 13.00 15.50 76 1,200 [566]

RCFL-H*3821+RXMD-C04 36,400 [10.7] 24,800 [7.3] 11,600 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-H*3824(RGFE-09?ZCM?) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3824(RGFG-09?ZCM?) 38,000 [11.1] 26,950 [7.9] 11,050 [3.2] 13.00 15.50 76 1,200 [566]

RCFL-H*3824(RGFG-10?ZCM?) 37,800 [11.1] 26,750 [7.8] 11,050 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3824(RGGE-10?ZCM?) 37,800 [11.1] 26,800 [7.9] 11,000 [3.2] 13.00 15.00 76 1,200 [566]

RCFL-H*3824(RGGE-12?RCM?) 38,000 [11.1] 26,900 [7.9] 11,100 [3.3] 13.00 15.50 76 1,200 [566]

RCFL-H*3824(RGJF-10?ZCM?) 37,800 [11.1] 26,750 [7.8] 11,050 [3.2] 13.00 15.00 76 1,200 [566]

RCFL-H*3824(RGJF-12?RCM?) 38,000 [11.1] 26,900 [7.9] 11,100 [3.3] 13.00 15.50 76 1,200 [566]

RCFL-H*3824(RGLE-10?BRM?) 38,000 [11.1] 26,900 [7.9] 11,100 [3.3] 13.00 15.50 76 1,200 [566]

RCFL-H*3824(RGLE-12?ARM?) 37,200 [10.9] 25,400 [7.4] 11,800 [3.5] 13.00 16.00 76 1,075 [507]

RCFL-H*3824(RGLT-12?ARM?) 37,800 [11.1] 26,450 [7.7] 11,350 [3.3] 13.00 16.00 76 1,150 [543]

RCFL-H*3824(RGPE-10?BRM?) 37,200 [10.9] 25,400 [7.4] 11,800 [3.5] 13.00 16.00 76 1,075 [507]

RCFL-H*3824(RGPE-12?ARM?) 37,200 [10.9] 25,400 [7.4] 11,800 [3.5] 13.00 16.00 76 1,075 [507]

RCFL-H*3824(RGPT-12?ARM?) 38,000 [11.1] 26,750 [7.8] 11,250 [3.3] 13.00 16.00 76 1,175 [554]

RCFL-H*3824(RGRM-07?YBG?) 36,600 [10.7] 24,950 [7.3] 11,650 [3.4] 12.00 14.50 76 1,050 [495]

RCFL-H*3824(RGRM-09?ZAJ?) 36,800 [10.8] 25,100 [7.4] 11,700 [3.4] 12.50 15.10 76 1,075 [507]

RCFL-H*3824(RGRM-10?ZAJ?) 37,400 [11.0] 26,150 [7.7] 11,250 [3.3] 12.50 15.10 76 1,150 [543]

RCFL-H*3824(RGRM-12?RAJ?) 37,000 [10.8] 25,250 [7.4] 11,750 [3.4] 13.00 15.50 76 1,075 [507]

RCFL-H*3824(RGTM-07?RBG?) 37,000 [10.8] 25,250 [7.4] 11,750 [3.4] 13.00 15.50 76 1,050 [495]

RCFL-H*3824(RGTM-09?ZAJ?) 37,400 [11.0] 25,850 [7.6] 11,550 [3.4] 13.00 15.50 76 1,100 [519]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

036JEZ

RCFL-H*3824(RGTM-10?RBJ?) 37,600 [11.0] 26,150 [7.7] 11,450 [3.4] 13.00 15.50 76 1,125 [531]

RCFL-H*3824(ROCA-070E03) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3824(ROCA-070E04) 37,600 [11.0] 26,600 [7.8] 11,000 [3.2] 12.50 15.10 76 1,200 [566]

RCFL-H*3824(ROLA-070E03) 37,600 [11.0] 26,450 [7.7] 11,150 [3.3] 13.00 15.50 76 1,175 [554]

RCFL-H*3824(ROLA-070E04) 37,600 [11.0] 26,450 [7.7] 11,150 [3.3] 13.00 15.50 76 1,175 [554]

RCFL-H*3824(ROLA-115E05) 37,000 [10.8] 25,250 [7.4] 11,750 [3.4] 13.00 15.50 76 1,050 [495]

RCFL-H*3824+RXMD-C04 36,400 [10.7] 24,800 [7.3] 11,600 [3.4] 12.00 14.50 76 1,050 [495]

RCFN-H*3624(RGFE-09?ZCM?) 39,500 [11.6] 29,050 [8.5] 10,450 [3.1] 13.00 15.50 76 1,200 [566]

RCFN-H*3624(RGFE-10?ZCM?) 39,500 [11.6] 29,100 [8.5] 10,400 [3.0] 13.00 15.50 76 1,225 [578]

RCFN-H*3624(RGFE-12?RCM?) 39,500 [11.6] 29,050 [8.5] 10,450 [3.1] 13.00 16.00 76 1,225 [578]

RCFN-H*3624(RGFG-09?ZCM?) 40,500 [11.9] 30,750 [9.0] 9,750 [2.9] 13.00 16.00 76 1,200 [566]

RCFN-H*3624(RGFG-10?ZCM?) 40,500 [11.9] 30,750 [9.0] 9,750 [2.9] 13.00 16.00 76 1,200 [566]

RCFN-H*3624(RGFG-12?RCM?) 41,000 [12.0] 31,350 [9.2] 9,650 [2.8] 13.00 16.00 76 1,225 [578]

RCFN-H*3624(RGGE-09?ZCM?) 39,500 [11.6] 29,050 [8.5] 10,450 [3.1] 13.00 15.50 76 1,225 [578]

RCFN-H*3624(RGGE-10?ZCM?) 39,500 [11.6] 29,050 [8.5] 10,450 [3.1] 13.00 15.50 76 1,200 [566]

RCFN-H*3624(RGGE-12?RCM?) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,200 [566]

RCFN-H*3624(RGJF-09?ZCM?) 39,500 [11.6] 29,050 [8.5] 10,450 [3.1] 13.00 15.50 76 1,225 [578]

RCFN-H*3624(RGJF-10?ZCM?) 39,500 [11.6] 29,050 [8.5] 10,450 [3.1] 13.00 15.50 76 1,200 [566]

RCFN-H*3624(RGJF-12?RCM?) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,200 [566]

RCFN-H*3624(RGLE-07?BRQ?) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,225 [578]

RCFN-H*3624(RGLE-10?BRM?) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,200 [566]

RCFN-H*3624(RGLE-12?ARM?) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,225 [578]

RCFN-H*3624(RGLT-07?BRQ?) 40,000 [11.7] 29,900 [8.8] 10,100 [3.0] 13.00 16.00 76 1,275 [602]

RCFN-H*3624(RGLT-10?BRM?) 40,000 [11.7] 29,900 [8.8] 10,100 [3.0] 13.00 16.00 76 1,275 [602]

RCFN-H*3624(RGLT-12?ARM?) 40,000 [11.7] 29,450 [8.6] 10,550 [3.1] 13.00 16.50 76 1,200 [566]

RCFN-H*3624(RGPE-07?BRQ?) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,225 [578]

RCFN-H*3624(RGPE-10?BRM?) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,225 [578]

RCFN-H*3624(RGPE-12?ARM?) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,200 [566]

RCFN-H*3624(RGPT-07?BRQ?) 40,000 [11.7] 29,900 [8.8] 10,100 [3.0] 13.00 16.00 76 1,275 [602]

RCFN-H*3624(RGPT-10?BRM?) 40,000 [11.7] 29,750 [8.7] 10,250 [3.0] 13.00 16.00 76 1,250 [590]

RCFN-H*3624(RGPT-12?ARM?) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,200 [566]

RCFN-H*3624(RGRM-09?ZAJ?) 39,000 [11.4] 28,600 [8.4] 10,400 [3.0] 13.00 15.50 76 1,225 [578]

RCFN-H*3624(RGRM-10?ZAJ?) 39,000 [11.4] 28,350 [8.3] 10,650 [3.1] 13.00 15.50 76 1,150 [543]

RCFN-H*3624(RGRM-12?RAJ?) 39,500 [11.6] 29,050 [8.5] 10,450 [3.1] 13.00 15.50 76 1,225 [578]

RCFN-H*3624(ROCA-070E03) 39,500 [11.6] 29,100 [8.5] 10,400 [3.0] 13.00 15.50 76 1,200 [566]

RCFN-H*3624(ROCA-070E04) 39,500 [11.6] 29,100 [8.5] 10,400 [3.0] 13.00 15.50 76 1,200 [566]

RCFN-H*3624(ROLA-070E03) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,175 [554]

RCFN-H*3624(ROLA-070E04) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,175 [554]

RCFN-H*3624(ROLA-115E05) 39,500 [11.6] 29,000 [8.5] 10,500 [3.1] 13.00 16.00 76 1,200 [566]

RCFN-H*3624+RXMD-C04 39,000 [11.4] 28,700 [8.4] 10,300 [3.0] 12.50 15.00 76 1,200 [566]

RBHP-21(RCHL-36A1) 35,600 [10.4] 24,100 [7.1] 11,500 [3.4] 12.50 15.00 76 1,200 [566]

RCQD-3621(RGFE-09?ZCM?) 37,400 [11.0] 26,750 [7.8] 10,650 [3.1] 12.50 15.10 76 1,200 [566]

RCQD-3621(RGFG-07?MCK?) 36,800 [10.8] 25,400 [7.4] 11,400 [3.3] 12.50 15.10 76 1,050 [495]

RCQD-3621(RGFG-09?ZCM?) 37,600 [11.0] 26,850 [7.9] 10,750 [3.1] 12.50 15.10 76 1,200 [566]

RCQD-3621(RGFG-10?ZCM?) 37,000 [10.8] 25,550 [7.5] 11,450 [3.4] 13.00 15.50 76 1,050 [495]

RCQD-3621(RGJF-06?MCK?) 37,200 [10.9] 26,600 [7.8] 10,600 [3.1] 12.00 14.50 76 1,200 [566]

RCQD-3621(RGJF-07?MCK?) 37,200 [10.9] 26,600 [7.8] 10,600 [3.1] 11.50 14.00 76 1,200 [566]

RCQD-3621(RGJF-10?ZCM?) 37,400 [11.0] 26,700 [7.8] 10,700 [3.1] 12.50 15.10 76 1,200 [566]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

036JEZ

RCQD-3621(RGPE-05?BMK?) 37,200 [10.9] 26,600 [7.8] 10,600 [3.1] 12.00 14.50 76 1,200 [566]

RCQD-3621(RGPE-07?BRQ?) 36,800 [10.8] 25,350 [7.4] 11,450 [3.4] 13.00 15.50 76 1,050 [495]

RCQD-3621(RGPE-10?BRM?) 37,000 [10.8] 25,650 [7.5] 11,350 [3.3] 13.00 15.50 76 1,075 [507]

RCQD-3621(RGPT-05?BMK?) 36,800 [10.8] 25,700 [7.5] 11,100 [3.3] 12.00 14.50 76 1,100 [519]

RCQD-3621(RGPT-07?AMK?) 37,000 [10.8] 25,850 [7.6] 11,150 [3.3] 12.50 15.10 76 1,100 [519]

RCQD-3621(RGPT-07?BRQ?) 37,000 [10.8] 25,500 [7.5] 11,500 [3.4] 13.00 15.50 76 1,050 [495]

RCQD-3621(RGPT-10?BRM?) 37,000 [10.8] 25,500 [7.5] 11,500 [3.4] 13.00 15.50 76 1,050 [495]

RCQD-3621(RGRM-06?MAE?) 37,600 [11.0] 27,750 [8.1] 9,850 [2.9] 12.50 14.00 76 1,175 [554]

RCQD-3621(RGRM-07?YBG?) 36,400 [10.7] 25,100 [7.4] 11,300 [3.3] 12.00 14.50 76 1,050 [495]

RCQD-3621(RGRM-09?ZAJ?) 36,800 [10.8] 25,550 [7.5] 11,250 [3.3] 12.50 15.10 76 1,075 [507]

RCQD-3621(RGRM-10?ZAJ?) 37,800 [11.1] 27,700 [8.1] 10,100 [3.0] 12.50 15.00 76 1,150 [543]

RCQD-3621(RHWB-04WMX36A) 38,500 [11.3] 28,900 [8.5] 9,600 [2.8] 12.50 15.10 76 1,200 [566]

RCQD-3621(ROCA-070E03) 37,400 [11.0] 26,750 [7.8] 10,650 [3.1] 12.00 14.50 76 1,200 [566]

RCQD-3621(ROCA-070E04) 37,400 [11.0] 26,750 [7.8] 10,650 [3.1] 12.00 14.50 76 1,200 [566]

RCQD-3621(ROLA-070E03) 37,400 [11.0] 26,550 [7.8] 10,850 [3.2] 12.50 15.10 76 1,175 [554]

RCQD-3621(ROLA-070E04) 37,400 [11.0] 26,550 [7.8] 10,850 [3.2] 12.50 15.10 76 1,175 [554]

RCQD-3621(ROLA-115E05) 36,800 [10.8] 25,350 [7.4] 11,450 [3.4] 13.00 15.50 76 1,050 [495]

RCQD-3621+RXMD-C04 36,200 [10.6] 24,950 [7.3] 11,250 [3.3] 11.50 14.00 76 1,045 [493]

RCQD-3624(RGFE-09?ZCM?) 37,400 [11.0] 26,700 [7.8] 10,700 [3.1] 12.50 15.10 76 1,200 [566]

RCQD-3624(RGFG-09?ZCM?) 37,600 [11.0] 26,850 [7.9] 10,750 [3.1] 12.50 15.10 76 1,200 [566]

RCQD-3624(RGFG-10?ZCM?) 37,000 [10.8] 25,550 [7.5] 11,450 [3.4] 13.00 15.50 76 1,050 [495]

RCQD-3624(RGJF-10?ZCM?) 37,400 [11.0] 26,700 [7.8] 10,700 [3.1] 12.50 15.10 76 1,200 [566]

RCQD-3624(RGJF-12?RCM?) 37,600 [11.0] 26,850 [7.9] 10,750 [3.1] 13.00 15.50 76 1,200 [566]

RCQD-3624(RGPE-07?BRQ?) 36,800 [10.8] 25,350 [7.4] 11,450 [3.4] 13.00 15.50 76 1,050 [495]

RCQD-3624(RGPE-10?BRM?) 37,000 [10.8] 25,650 [7.5] 11,350 [3.3] 13.00 15.50 76 1,075 [507]

RCQD-3624(RGPE-12?ARM?) 37,200 [10.9] 25,850 [7.6] 11,350 [3.3] 13.00 15.50 76 1,075 [507]

RCQD-3624(RGPT-07?BRQ?) 37,000 [10.8] 25,500 [7.5] 11,500 [3.4] 13.00 15.50 76 1,050 [495]

RCQD-3624(RGPT-10?BRM?) 37,200 [10.9] 25,850 [7.6] 11,350 [3.3] 13.00 15.50 76 1,075 [507]

RCQD-3624(RGRM-07?YBG?) 36,400 [10.7] 25,050 [7.3] 11,350 [3.3] 12.00 14.50 76 1,050 [495]

RCQD-3624(RGRM-09?ZAJ?) 36,800 [10.8] 25,550 [7.5] 11,250 [3.3] 12.50 15.10 76 1,075 [507]

RCQD-3624(RGRM-10?ZAJ?) 38,000 [11.1] 27,800 [8.1] 10,200 [3.0] 12.50 15.10 76 1,150 [543]

RCQD-3624(RGRM-12?RAJ?) 37,000 [10.8] 25,700 [7.5] 11,300 [3.3] 13.00 15.50 76 1,075 [507]

RCQD-3624(ROCA-070E03) 37,400 [11.0] 26,750 [7.8] 10,650 [3.1] 12.50 15.00 76 1,200 [566]

RCQD-3624(ROCA-070E04) 37,400 [11.0] 26,750 [7.8] 10,650 [3.1] 12.50 15.00 76 1,200 [566]

RCQD-3624(ROLA-070E03) 37,400 [11.0] 26,550 [7.8] 10,850 [3.2] 12.50 15.10 76 1,175 [554]

RCQD-3624(ROLA-070E04) 37,400 [11.0] 26,550 [7.8] 10,850 [3.2] 12.50 15.10 76 1,175 [554]

RCQD-3624(ROLA-115E05) 36,800 [10.8] 25,350 [7.4] 11,450 [3.4] 13.00 15.50 76 1,050 [495]

RCQD-3624+RXMD-C04 36,200 [10.6] 24,950 [7.3] 11,250 [3.3] 11.50 14.00 76 1,045 [493]

RHKL-HM3617(RCSL-H*3617) 36,000 [10.5] 24,200 [7.1] 11,800 [3.5] 13.00 15.50 76 1,025 [484]

RHLL-HM3617(RCSL-H*3617) 35,800 [10.5] 23,800 [7.0] 12,000 [3.5] 13.00 15.50 76 1,000 [472]

RHSL-HM3617(RCSL-H*3617) 35,600 [10.4] 24,200 [7.1] 11,400 [3.3] 12.00 14.50 76 1,100 [519]

RHSL-HM3621(RCSL-H*3621) 35,600 [10.4] 24,200 [7.1] 11,400 [3.3] 12.00 14.50 76 1,100 [519]

RHKL-HM3821(RCSL-H*3821) 38,000 [11.1] 26,900 [7.9] 11,100 [3.3] 13.00 16.00 76 1,200 [566]

RHLL-HM3821(RCSL-H*3821) 37,800 [11.1] 26,600 [7.8] 11,200 [3.3] 13.00 16.00 76 1,175 [554]

RHPN-HM3624(RCSN-H*3624) 40,000 [11.7] 29,450 [8.6] 10,550 [3.1] 13.00 16.00 76 1,200 [566]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

042JEZ

RCFL-H*4821+RXMD-C04 ➀39,500 [11.6] 27,500 [8.1] 12,000 [3.5] 12.00 14.50 76 1,250 [590]

RCFL-A*3821(RGLT-07?AMK?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,250 [590]

RCFL-A*3821(RGLT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-A*3821(RGLT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-A*3821(RGPE-07?AMK?) 40,500 [11.9] 27,900 [8.2] 12,600 [3.7] 12.50 15.10 76 1,225 [578]

RCFL-A*3821(RGPT-05?BMK?) 39,500 [11.6] 27,450 [8.0] 12,050 [3.5] 12.00 14.50 76 1,225 [578]

RCFL-A*3821(RGPT-07?AMK?) 39,500 [11.6] 27,450 [8.0] 12,050 [3.5] 12.00 14.50 76 1,250 [590]

RCFL-A*3821(RGPT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-A*3821(RGPT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-A*3821(ROCA-070E03) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*3821(ROCA-070E04) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*3821(ROLA-070E03) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-A*3821(ROLA-070E04) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-A*4821(RGFE-09?ZCM?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4821(RGFE-10?ZCM?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,225 [578]

RCFL-A*4821(RGFG-09?ZCM?) 39,500 [11.6] 27,400 [8.0] 12,100 [3.5] 12.50 15.10 76 1,200 [566]

RCFL-A*4821(RGFG-10?ZCM?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4821(RGGE-06?MCK?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.00 14.50 76 1,200 [566]

RCFL-A*4821(RGGE-07?MCK?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.00 14.50 76 1,200 [566]

RCFL-A*4821(RGGE-09?ZCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCFL-A*4821(RGGE-10?ZCM?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4821(RGLE-07?AMK?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4821(RGLE-10?BRM?) 40,500 [11.9] 29,150 [8.5] 11,350 [3.3] 12.50 15.50 76 1,400 [661]

RCFL-A*4821(RGLT-07?AMK?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,250 [590]

RCFL-A*4821(RGLT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-A*4821(RGLT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-A*4821(RGPE-05?BMK?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.00 14.50 76 1,200 [566]

RCFL-A*4821(RGPE-07?AMK?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,225 [578]

RCFL-A*4821(RGPE-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-A*4821(RGPE-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-A*4821(RGPT-05?BMK?) 39,500 [11.6] 27,450 [8.0] 12,050 [3.5] 12.00 14.50 76 1,225 [578]

RCFL-A*4821(RGPT-07?AMK?) 39,500 [11.6] 27,450 [8.0] 12,050 [3.5] 12.00 14.50 76 1,250 [590]

RCFL-A*4821(RGPT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-A*4821(RGPT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-A*4821(RGTM-06?MAE?) 39,500 [11.6] 27,500 [8.1] 12,000 [3.5] 12.00 14.50 76 1,225 [578]

RCFL-A*4821(RGTM-07?RBG?) 39,500 [11.6] 26,700 [7.8] 12,800 [3.8] 12.50 15.50 76 1,125 [531]

RCFL-A*4821(RGTM-09?ZAJ?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.10 76 1,250 [590]

RCFL-A*4821(RHWB-04WMX36A) 39,500 [11.6] 27,300 [8.0] 12,200 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4821(RHWB-06WMX48A) 39,500 [11.6] 27,300 [8.0] 12,200 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4821(ROCA-070E03) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4821(ROCA-070E04) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4821(ROLA-070E03) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-A*4821(ROLA-070E04) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-A*4821+RXMD-C04 39,500 [11.6] 27,500 [8.1] 12,000 [3.5] 12.00 14.50 76 1,250 [590]

RCFL-A*4824(RGFE-09?ZCM?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4824(RGFE-10?ZCM?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,225 [578]

RCFL-A*4824(RGFE-12?RCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCFL-A*4824(RGFG-09?ZCM?) 39,500 [11.6] 27,400 [8.0] 12,100 [3.5] 12.50 15.10 76 1,200 [566]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

042JEZ

RCFL-A*4824(RGFG-10?ZCM?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4824(RGFG-12?RCM?) 40,000 [11.7] 28,000 [8.2] 12,000 [3.5] 13.00 15.50 76 1,225 [578]

RCFL-A*4824(RGGE-09?ZCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCFL-A*4824(RGGE-10?ZCM?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4824(RGGE-12?RCM?) 40,000 [11.7] 27,550 [8.1] 12,450 [3.6] 12.50 15.50 76 1,200 [566]

RCFL-A*4824(RGLE-10?BRM?) 40,000 [11.7] 27,550 [8.1] 12,450 [3.6] 13.00 15.50 76 1,200 [566]

RCFL-A*4824(RGLE-12?ARM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-A*4824(RGLT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-A*4824(RGLT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-A*4824(RGLT-12?ARM?) 39,500 [11.6] 26,750 [7.8] 12,750 [3.7] 13.00 16.00 76 1,150 [543]

RCFL-A*4824(RGPE-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-A*4824(RGPE-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-A*4824(RGPE-12?ARM?) 41,000 [12.0] 29,800 [8.7] 11,200 [3.3] 12.50 15.50 76 1,425 [672]

RCFL-A*4824(RGPT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-A*4824(RGPT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-A*4824(RGPT-12?ARM?) 40,000 [11.7] 27,400 [8.0] 12,600 [3.7] 13.00 16.00 76 1,175 [554]

RCFL-A*4824(RGRM-09?ZAJ?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.00 76 1,225 [578]

RCFL-A*4824(RGRM-10?ZAJ?) 39,500 [11.6] 26,900 [7.9] 12,600 [3.7] 12.50 15.10 76 1,150 [543]

RCFL-A*4824(RGRM-12?RAJ?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.10 76 1,225 [578]

RCFL-A*4824(RHWB-08WRX60A) 40,500 [11.9] 29,000 [8.5] 11,500 [3.4] 13.00 15.50 76 1,350 [637]

RCFL-A*4824(RHWB-10WRX60A) 41,000 [12.0] 29,800 [8.7] 11,200 [3.3] 13.00 15.50 76 1,400 [661]

RCFL-A*4824(ROCA-070E03) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4824(ROCA-070E04) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-A*4824(ROLA-070E03) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-A*4824(ROLA-070E04) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-A*4824(ROLA-115E05) 40,000 [11.7] 27,550 [8.1] 12,450 [3.6] 13.00 15.50 76 1,200 [566]

RCFL-A*4824+RXMD-C04 39,500 [11.6] 27,500 [8.1] 12,000 [3.5] 12.00 14.50 76 1,250 [590]

RCFL-H*3821(RGFE-09?ZCM?) 40,500 [11.9] 27,850 [8.2] 12,650 [3.7] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RGFE-10?ZCM?) 40,500 [11.9] 27,850 [8.2] 12,650 [3.7] 12.50 15.10 76 1,225 [578]

RCFL-H*3821(RGFG-09?ZCM?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RGFG-10?ZCM?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RGGE-06?MCK?) 40,500 [11.9] 27,900 [8.2] 12,600 [3.7] 12.50 14.50 76 1,200 [566]

RCFL-H*3821(RGGE-07?MCK?) 40,500 [11.9] 27,900 [8.2] 12,600 [3.7] 12.50 14.50 76 1,200 [566]

RCFL-H*3821(RGGE-09?ZCM?) 40,500 [11.9] 28,000 [8.2] 12,500 [3.7] 12.50 15.00 76 1,225 [578]

RCFL-H*3821(RGGE-10?ZCM?) 40,500 [11.9] 27,850 [8.2] 12,650 [3.7] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RGJF-06?MCK?) 40,500 [11.9] 27,900 [8.2] 12,600 [3.7] 12.50 15.00 76 1,200 [566]

RCFL-H*3821(RGJF-07?MCK?) 40,500 [11.9] 27,900 [8.2] 12,600 [3.7] 12.50 14.50 76 1,200 [566]

RCFL-H*3821(RGJF-09?ZCM?) 40,500 [11.9] 28,000 [8.2] 12,500 [3.7] 12.50 15.00 76 1,225 [578]

RCFL-H*3821(RGJF-10?ZCM?) 40,500 [11.9] 27,850 [8.2] 12,650 [3.7] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RGLE-07?AMK?) 40,500 [11.9] 27,850 [8.2] 12,650 [3.7] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RGLE-07?BRQ?) 40,500 [11.9] 27,800 [8.1] 12,700 [3.7] 13.00 15.50 76 1,225 [578]

RCFL-H*3821(RGLE-10?BRM?) 41,000 [12.0] 28,250 [8.3] 12,750 [3.7] 13.00 15.50 76 1,200 [566]

RCFL-H*3821(RGLT-07?AMK?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,250 [590]

RCFL-H*3821(RGLT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-H*3821(RGLT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-H*3821(RGPE-05?BMK?) 40,500 [11.9] 27,900 [8.2] 12,600 [3.7] 12.50 14.50 76 1,200 [566]

RCFL-H*3821(RGPE-07?AMK?) 40,500 [11.9] 27,900 [8.2] 12,600 [3.7] 12.50 15.10 76 1,225 [578]

RCFL-H*3821(RGPE-07?BRQ?) 41,000 [12.0] 28,300 [8.3] 12,700 [3.7] 13.00 15.50 76 1,225 [578]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

042JEZ

RCFL-H*3821(RGPE-10?BRM?) 41,000 [12.0] 28,250 [8.3] 12,750 [3.7] 13.00 15.50 76 1,225 [578]

RCFL-H*3821(RGPT-05?BMK?) 39,500 [11.6] 27,450 [8.0] 12,050 [3.5] 12.00 14.50 76 1,225 [578]

RCFL-H*3821(RGPT-07?AMK?) 39,500 [11.6] 27,450 [8.0] 12,050 [3.5] 12.00 14.50 76 1,250 [590]

RCFL-H*3821(RGPT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-H*3821(RGPT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*3821(RGRM-09?ZAJ?) 40,500 [11.9] 27,900 [8.2] 12,600 [3.7] 12.50 15.00 76 1,225 [578]

RCFL-H*3821(RGRM-10?ZAJ?) 40,000 [11.7] 27,050 [7.9] 12,950 [3.8] 12.50 15.00 76 1,150 [543]

RCFL-H*3821(RGTM-07?RBG?) 41,000 [12.0] 28,650 [8.4] 12,350 [3.6] 12.50 15.10 76 1,275 [602]

RCFL-H*3821(RGTM-09?ZAJ?) 41,000 [12.0] 28,500 [8.4] 12,500 [3.7] 13.00 15.50 76 1,250 [590]

RCFL-H*3821(RHWB-04WMX36A) 39,500 [11.6] 27,300 [8.0] 12,200 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(RHWB-06WMX48A) 39,500 [11.6] 27,300 [8.0] 12,200 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(ROCA-070E03) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(ROCA-070E04) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*3821(ROLA-070E03) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-H*3821(ROLA-070E04) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-H*3821(ROLA-115E05) 40,000 [11.7] 27,550 [8.1] 12,450 [3.6] 13.00 15.50 76 1,200 [566]

RCFL-H*3821+RXMD-C04 40,000 [11.7] 27,600 [8.1] 12,400 [3.6] 12.00 14.50 76 1,220 [576]

RCFL-H*3824(RGFG-10?ZCM?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*3824(RGLT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-H*3824(RGLT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-H*3824(RGLT-12?ARM?) 39,500 [11.6] 26,750 [7.8] 12,750 [3.7] 13.00 16.00 76 1,150 [543]

RCFL-H*3824(RGPT-07?BRQ?) 40,500 [11.9] 28,700 [8.4] 11,800 [3.5] 13.00 15.50 76 1,325 [625]

RCFL-H*3824(RGPT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*3824(RGPT-12?ARM?) 40,000 [11.7] 27,400 [8.0] 12,600 [3.7] 13.00 16.00 76 1,175 [554]

RCFL-H*3824(RHWB-08WPX60A) 40,500 [11.9] 29,000 [8.5] 11,500 [3.4] 13.00 15.50 76 1,350 [637]

RCFL-H*3824(RHWB-10WRX60A) 41,000 [12.0] 29,800 [8.7] 11,200 [3.3] 13.00 15.50 76 1,400 [661]

RCFL-H*3824(ROCA-070E03) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*3824(ROCA-070E04) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*3824(ROLA-070E03) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-H*3824(ROLA-070E04) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-H*3824(ROLA-115E05) 40,000 [11.7] 27,550 [8.1] 12,450 [3.6] 13.00 15.50 76 1,200 [566]

RCFL-H*3824+RXMD-C04 40,000 [11.7] 27,600 [8.1] 12,400 [3.6] 12.00 14.50 76 1,220 [576]

RCFL-H*4821(RGFE-09?ZCM?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(RGFE-10?ZCM?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,225 [578]

RCFL-H*4821(RGFG-09?ZCM?) 39,500 [11.6] 27,400 [8.0] 12,100 [3.5] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(RGFG-10?ZCM?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(RGGE-06?MCK?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.00 14.50 76 1,200 [566]

RCFL-H*4821(RGGE-07?MCK?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.00 14.50 76 1,200 [566]

RCFL-H*4821(RGGE-09?ZCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCFL-H*4821(RGGE-10?ZCM?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(RGJF-06?MCK?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.00 14.50 76 1,200 [566]

RCFL-H*4821(RGJF-07?MCK?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.00 14.50 76 1,200 [566]

RCFL-H*4821(RGJF-09?ZCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCFL-H*4821(RGJF-10?ZCM?) 39,500 [11.6] 27,100 [7.9] 12,400 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(RGLE-07?AMK?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(RGLE-10?BRM?) 40,500 [11.9] 29,150 [8.5] 11,350 [3.3] 12.50 15.50 76 1,400 [661]

RCFL-H*4821(RGLT-07?AMK?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,250 [590]

RCFL-H*4821(RGLT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

042JEZ

RCFL-H*4821(RGLT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-H*4821(RGPE-05?BMK?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.00 14.50 76 1,200 [566]

RCFL-H*4821(RGPE-07?AMK?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,225 [578]

RCFL-H*4821(RGPE-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*4821(RGPE-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*4821(RGPT-05?BMK?) 39,500 [11.6] 27,450 [8.0] 12,050 [3.5] 12.00 14.50 76 1,225 [578]

RCFL-H*4821(RGPT-07?AMK?) 39,500 [11.6] 27,450 [8.0] 12,050 [3.5] 12.00 14.50 76 1,250 [590]

RCFL-H*4821(RGPT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-H*4821(RGPT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*4821(RGRM-09?ZAJ?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,225 [578]

RCFL-H*4821(RGRM-10?ZAJ?) 39,500 [11.6] 26,900 [7.9] 12,600 [3.7] 12.50 15.10 76 1,150 [543]

RCFL-H*4821(RGTM-06?MAE?) 39,500 [11.6] 27,500 [8.1] 12,000 [3.5] 12.00 14.50 76 1,225 [578]

RCFL-H*4821(RGTM-07?RBG?) 39,500 [11.6] 26,700 [7.8] 12,800 [3.8] 12.50 15.50 76 1,125 [531]

RCFL-H*4821(RGTM-09?ZAJ?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.10 76 1,250 [590]

RCFL-H*4821(RHWB-04WMX36A) 39,500 [11.6] 27,300 [8.0] 12,200 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(RHWB-06WMX48A) 39,500 [11.6] 27,300 [8.0] 12,200 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(ROCA-070E03) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(ROCA-070E04) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4821(ROLA-070E03) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-H*4821(ROLA-070E04) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-H*4821(ROLA-115E05) 40,000 [11.7] 27,550 [8.1] 12,450 [3.6] 13.00 15.50 76 1,200 [566]

RCFL-H*4824(RGFE-09?ZCM?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4824(RGFE-10?ZCM?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.10 76 1,225 [578]

RCFL-H*4824(RGFE-12?RCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCFL-H*4824(RGFG-09?ZCM?) 39,500 [11.6] 27,400 [8.0] 12,100 [3.5] 12.50 15.10 76 1,200 [566]

RCFL-H*4824(RGFG-10?ZCM?) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4824(RGFG-12?RCM?) 40,000 [11.7] 28,000 [8.2] 12,000 [3.5] 13.00 15.50 76 1,225 [578]

RCFL-H*4824(RGGE-09?ZCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCFL-H*4824(RGGE-10?ZCM?) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4824(RGGE-12?RCM?) 40,500 [11.9] 29,050 [8.5] 11,450 [3.4] 12.50 15.00 76 1,375 [649]

RCFL-H*4824(RGJF-09?ZCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCFL-H*4824(RGJF-10?ZCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCFL-H*4824(RGJF-12?RCM?) 40,000 [11.7] 27,550 [8.1] 12,450 [3.6] 13.00 15.50 76 1,200 [566]

RCFL-H*4824(RGLE-10?BRM?) 40,500 [11.9] 29,150 [8.5] 11,350 [3.3] 12.50 15.50 76 1,400 [661]

RCFL-H*4824(RGLE-12?ARM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*4824(RGLT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-H*4824(RGLT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,250 [590]

RCFL-H*4824(RGLT-12?ARM?) 39,500 [11.6] 26,750 [7.8] 12,750 [3.7] 13.00 16.00 76 1,150 [543]

RCFL-H*4824(RGPE-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*4824(RGPE-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*4824(RGPE-12?ARM?) 41,000 [12.0] 29,800 [8.7] 11,200 [3.3] 12.50 15.50 76 1,425 [672]

RCFL-H*4824(RGPT-07?BRQ?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*4824(RGPT-10?BRM?) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCFL-H*4824(RGPT-12?ARM?) 40,000 [11.7] 27,400 [8.0] 12,600 [3.7] 13.00 16.00 76 1,175 [554]

RCFL-H*4824(RGRM-09?ZAJ?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.00 76 1,225 [578]

RCFL-H*4824(RGRM-10?ZAJ?) 39,500 [11.6] 26,900 [7.9] 12,600 [3.7] 12.50 15.10 76 1,150 [543]

RCFL-H*4824(RGRM-12?RAJ?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.10 76 1,225 [578]

RCFL-H*4824(RGTM-07?RBG?) 39,500 [11.6] 26,700 [7.8] 12,800 [3.8] 12.50 15.50 76 1,125 [531]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

042JEZ

RCFL-H*4824(RGTM-09?ZAJ?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.10 76 1,250 [590]

RCFL-H*4824(RGTM-10?RBJ?) 39,500 [11.6] 26,700 [7.8] 12,800 [3.8] 13.00 15.50 76 1,125 [531]

RCFL-H*4824(RHWB-08WPX60A) 40,500 [11.9] 29,000 [8.5] 11,500 [3.4] 13.00 15.50 76 1,350 [637]

RCFL-H*4824(RHWB-10WPX60A) 41,000 [12.0] 29,800 [8.7] 11,200 [3.3] 13.00 15.50 76 1,400 [661]

RCFL-H*4824(ROCA-070E03) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4824(ROCA-070E04) 39,500 [11.6] 27,150 [8.0] 12,350 [3.6] 12.50 15.10 76 1,200 [566]

RCFL-H*4824(ROLA-070E03) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-H*4824(ROLA-070E04) 39,500 [11.6] 26,950 [7.9] 12,550 [3.7] 12.50 15.50 76 1,175 [554]

RCFL-H*4824(ROLA-115E05) 40,000 [11.7] 27,550 [8.1] 12,450 [3.6] 13.00 15.50 76 1,200 [566]

RCFL-H*4824+RXMD-C04 39,500 [11.6] 27,500 [8.1] 12,000 [3.5] 12.00 14.50 76 1,250 [590]

RCFN-H*4824(RGFE-09?ZCM?) 43,500 [12.7] 32,500 [9.5] 11,000 [3.2] 12.50 15.00 76 1,200 [566]

RCFN-H*4824(RGFE-10?ZCM?) 42,500 [12.5] 30,500 [8.9] 12,000 [3.5] 13.00 15.50 76 1,225 [578]

RCFN-H*4824(RGFE-12?RCM?) 43,000 [12.6] 30,950 [9.1] 12,050 [3.5] 13.00 16.00 76 1,225 [578]

RCFN-H*4824(RGFG-09?ZCM?) 44,000 [12.9] 34,000 [10.0] 10,000 [2.9] 13.00 15.50 76 1,400 [661]

RCFN-H*4824(RGFG-10?ZCM?) 44,000 [12.9] 34,050 [10.0] 9,950 [2.9] 12.50 15.10 76 1,400 [661]

RCFN-H*4824(RGFG-12?RCM?) 44,500 [13.0] 34,800 [10.2] 9,700 [2.8] 13.00 15.50 76 1,450 [684]

RCFN-H*4824(RGGE-09?ZCM?) 43,000 [12.6] 30,950 [9.1] 12,050 [3.5] 13.00 16.00 76 1,225 [578]

RCFN-H*4824(RGGE-10?ZCM?) 43,500 [12.7] 32,500 [9.5] 11,000 [3.2] 12.50 15.00 76 1,200 [566]

RCFN-H*4824(RGGE-12?RCM?) 43,500 [12.7] 32,500 [9.5] 11,000 [3.2] 13.00 15.50 76 1,375 [649]

RCFN-H*4824(RGJF-09?ZCM?) 43,000 [12.6] 30,950 [9.1] 12,050 [3.5] 13.00 16.00 76 1,225 [578]

RCFN-H*4824(RGJF-10?ZCM?) 43,500 [12.7] 32,500 [9.5] 11,000 [3.2] 12.50 15.00 76 1,200 [566]

RCFN-H*4824(RGJF-12?RCM?) 43,500 [12.7] 32,500 [9.5] 11,000 [3.2] 13.00 15.50 76 1,375 [649]

RCFN-H*4824(RGLE-07?BRQ?) 43,000 [12.6] 30,900 [9.1] 12,100 [3.5] 13.00 16.00 76 1,225 [578]

RCFN-H*4824(RGLE-10?BRM?) 44,000 [12.9] 32,950 [9.7] 11,050 [3.2] 13.00 16.00 76 1,400 [661]

RCFN-H*4824(RGLE-12?ARM?) 43,000 [12.6] 32,300 [9.5] 10,700 [3.1] 13.00 16.00 76 1,225 [578]

RCFN-H*4824(RGLT-07?BRQ?) 43,000 [12.6] 31,050 [9.1] 11,950 [3.5] 13.00 16.00 76 1,250 [590]

RCFN-H*4824(RGLT-10?BRM?) 43,000 [12.6] 31,050 [9.1] 11,950 [3.5] 13.00 16.00 76 1,250 [590]

RCFN-H*4824(RGLT-12?ARM?) 44,000 [12.9] 32,950 [9.7] 11,050 [3.2] 13.00 16.00 76 1,400 [661]

RCFN-H*4824(RGPE-07?BRQ?) 43,000 [12.6] 30,900 [9.1] 12,100 [3.5] 13.00 16.00 76 1,225 [578]

RCFN-H*4824(RGPE-10?BRM?) 43,000 [12.6] 30,900 [9.1] 12,100 [3.5] 13.00 16.00 76 1,225 [578]

RCFN-H*4824(RGPE-12?ARM?) 43,500 [12.7] 32,500 [9.5] 11,000 [3.2] 13.00 16.00 76 1,425 [672]

RCFN-H*4824(RGPT-07?BRQ?) 43,500 [12.7] 31,950 [9.4] 11,550 [3.4] 13.00 16.00 76 1,325 [625]

RCFN-H*4824(RGPT-12?ARM?) 44,000 [12.9] 32,950 [9.7] 11,050 [3.2] 13.00 16.00 76 1,375 [649]

RCFN-H*4824(RGRM-09?ZAJ?) 42,500 [12.5] 30,100 [8.8] 12,400 [3.6] 13.00 15.50 76 1,225 [578]

RCFN-H*4824(RGRM-12?RAJ?) 42,500 [12.5] 30,050 [8.8] 12,450 [3.6] 13.00 15.50 76 1,225 [578]

RCFN-H*4824(RHWB-08WRX60A) 44,500 [13.0] 34,400 [10.1] 10,100 [3.0] 13.00 16.00 76 1,350 [637]

RCFN-H*4824(RHWB-10WRX60A) 44,500 [13.0] 34,700 [10.2] 9,800 [2.9] 13.00 16.00 76 1,400 [661]

RCFN-H*4824(ROLA-070E04) 43,500 [12.7] 32,500 [9.5] 11,000 [3.2] 13.00 15.50 76 1,375 [649]

RCFN-H*4824(ROLA-115E05) 43,500 [12.7] 32,500 [9.5] 11,000 [3.2] 13.00 15.50 76 1,400 [661]

RCFN-H*4824+RXMD-C04 42,000 [12.3] 29,800 [8.7] 12,200 [3.6] 12.50 15.00 76 1,200 [566]

RBHP-24(RCHL-48A1) 39,500 [11.6] 27,200 [8.0] 12,300 [3.6] 12.50 15.00 76 1,400 [661]

RCQD-4821(RGFE-06?MCK?) 39,500 [11.6] 27,400 [8.0] 12,100 [3.5] 11.50 14.00 76 1,200 [566]

RCQD-4821(RGFE-09?ZCM?) 40,500 [11.9] 29,450 [8.6] 11,050 [3.2] 11.50 14.00 76 1,400 [661]

RCQD-4821(RGFE-10?ZCM?) 40,500 [11.9] 29,600 [8.7] 10,900 [3.2] 12.00 14.00 76 1,425 [672]

RCQD-4821(RGFG-09?ZCM?) 39,500 [11.6] 27,400 [8.0] 12,100 [3.5] 12.50 15.00 76 1,200 [566]

RCQD-4821(RGFG-10?ZCM?) 39,500 [11.6] 27,400 [8.0] 12,100 [3.5] 12.00 14.50 76 1,200 [566]

RCQD-4821(RGJF-06?MCK?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.00 14.50 76 1,200 [566]

RCQD-4821(RGJF-07?MCK?) 39,500 [11.6] 27,350 [8.0] 12,150 [3.6] 12.00 14.00 76 1,200 [566]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

042JEZ

RCQD-4821(RGJF-09?ZCM?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.50 15.00 76 1,225 [578]

RCQD-4821(RGJF-10?ZCM?) 40,000 [11.7] 27,750 [8.1] 12,250 [3.6] 12.50 15.00 76 1,200 [566]

RCQD-4821(RGPE-05?BMK?) 39,500 [11.6] 27,350 [8.0] 12,150 [3.6] 12.00 14.50 76 1,200 [566]

RCQD-4821(RGPE-07?AMK?) 40,000 [11.7] 27,950 [8.2] 12,050 [3.5] 12.00 14.50 76 1,225 [578]

RCQD-4821(RGPE-07?BRQ?) 40,500 [11.9] 28,350 [8.3] 12,150 [3.6] 12.50 15.10 76 1,225 [578]

RCQD-4821(RGPE-10?BRM?) 40,500 [11.9] 28,350 [8.3] 12,150 [3.6] 12.50 15.50 76 1,225 [578]

RCQD-4821(RGPT-05?BMK?) 40,000 [11.7] 28,150 [8.2] 11,850 [3.5] 12.00 14.00 76 1,250 [590]

RCQD-4821(RGPT-07?AMK?) 40,000 [11.7] 28,100 [8.2] 11,900 [3.5] 12.00 14.50 76 1,250 [590]

RCQD-4821(RGPT-07?BRQ?) 40,500 [11.9] 28,500 [8.4] 12,000 [3.5] 13.00 15.00 76 1,250 [590]

RCQD-4821(RGPT-10?BRM?) 40,500 [11.9] 28,500 [8.4] 12,000 [3.5] 13.00 15.50 76 1,250 [590]

RCQD-4821(RGRM-09?ZAJ?) 40,000 [11.7] 30,200 [8.8] 9,800 [2.9] 11.50 14.00 76 1,225 [578]

RCQD-4821(RGRM-10?ZAJ?) 39,500 [11.6] 29,250 [8.6] 10,250 [3.0] 11.50 14.00 76 1,150 [543]

RCQD-4821(RHWB-04WMX36A) 39,500 [11.6] 27,600 [8.1] 11,900 [3.5] 12.50 15.10 76 1,200 [566]

RCQD-4821(RHWB-06WMX48A) 39,500 [11.6] 27,600 [8.1] 11,900 [3.5] 12.50 15.10 76 1,200 [566]

RCQD-4821(ROCA-070E03) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 12.00 14.50 76 1,200 [566]

RCQD-4821(ROCA-070E04) 40,000 [11.7] 27,800 [8.1] 12,200 [3.6] 12.00 14.50 76 1,200 [566]

RCQD-4821(ROLA-070E03) 40,000 [11.7] 27,600 [8.1] 12,400 [3.6] 12.50 15.10 76 1,175 [554]

RCQD-4821(ROLA-070E04) 40,000 [11.7] 27,600 [8.1] 12,400 [3.6] 12.50 15.10 76 1,175 [554]

RCQD-4821(ROLA-115E05) 40,000 [11.7] 27,700 [8.1] 12,300 [3.6] 12.50 15.10 76 1,200 [566]

RCQD-4821+RXMD-C04 39,500 [11.6] 27,800 [8.1] 11,700 [3.4] 11.50 14.00 76 1,255 [592]

RCQD-4824(RGFE-09?ZCM?) 40,000 [11.7] 27,750 [8.1] 12,250 [3.6] 12.50 15.00 76 1,200 [566]

RCQD-4824(RGFE-10?ZCM?) 40,000 [11.7] 27,900 [8.2] 12,100 [3.5] 12.00 14.50 76 1,225 [578]

RCQD-4824(RGFE-12?RCM?) 40,500 [11.9] 28,350 [8.3] 12,150 [3.6] 12.50 15.00 76 1,225 [578]

RCQD-4824(RGFG-09?ZCM?) 39,500 [11.6] 27,400 [8.0] 12,100 [3.5] 12.50 15.10 76 1,200 [566]

RCQD-4824(RGFG-10?ZCM?) 39,500 [11.6] 27,400 [8.0] 12,100 [3.5] 12.50 15.10 76 1,200 [566]

RCQD-4824(RGFG-12?RCM?) 40,000 [11.7] 28,100 [8.2] 11,900 [3.5] 13.00 15.50 76 1,225 [578]

RCQD-4824(RGJF-09?ZCM?) 40,000 [11.7] 27,850 [8.2] 12,150 [3.6] 12.50 15.00 76 1,225 [578]

RCQD-4824(RGJF-10?ZCM?) 40,500 [11.9] 29,400 [8.6] 11,100 [3.3] 12.00 14.50 76 1,400 [661]

RCQD-4824(RGJF-12?RCM?) 40,000 [11.7] 27,700 [8.1] 12,300 [3.6] 12.50 15.50 76 1,200 [566]

RCQD-4824(RGPE-07?BRQ?) 40,500 [11.9] 28,300 [8.3] 12,200 [3.6] 12.50 15.50 76 1,225 [578]

RCQD-4824(RGPE-10?BRM?) 40,500 [11.9] 28,300 [8.3] 12,200 [3.6] 12.50 15.50 76 1,225 [578]

RCQD-4824(RGPE-12?ARM?) 40,500 [11.9] 28,150 [8.2] 12,350 [3.6] 13.00 15.50 76 1,200 [566]

RCQD-4824(RGPT-07?BRQ?) 40,500 [11.9] 28,500 [8.4] 12,000 [3.5] 13.00 15.50 76 1,275 [602]

RCQD-4824(RGPT-10?BRM?) 40,500 [11.9] 28,450 [8.3] 12,050 [3.5] 13.00 15.50 76 1,275 [602]

RCQD-4824(RGPT-12?ARM?) 40,500 [11.9] 28,300 [8.3] 12,200 [3.6] 13.00 15.50 76 1,225 [578]

RCQD-4824(RGRM-09?ZAJ?) 39,500 [11.6] 29,900 [8.8] 9,600 [2.8] 11.50 14.00 76 1,225 [578]

RCQD-4824(RGRM-10?ZAJ?) 39,500 [11.6] 29,450 [8.6] 10,050 [2.9] 11.50 14.00 76 1,150 [543]

RCQD-4824(RGRM-12?RAJ?) 40,000 [11.7] 30,350 [8.9] 9,650 [2.8] 12.00 14.50 76 1,225 [578]

RCQD-4824(RHWB-08WRX60A) 41,000 [12.0] 30,100 [8.8] 10,900 [3.2] 13.00 15.50 76 1,400 [661]

RCQD-4824(ROCA-070E03) 40,000 [11.7] 27,750 [8.1] 12,250 [3.6] 12.50 15.00 76 1,200 [566]

RCQD-4824(ROCA-070E04) 40,000 [11.7] 27,750 [8.1] 12,250 [3.6] 12.50 15.00 76 1,200 [566]

RCQD-4824(ROLA-070E03) 40,000 [11.7] 27,600 [8.1] 12,400 [3.6] 12.50 15.10 76 1,175 [554]

RCQD-4824(ROLA-070E04) 40,000 [11.7] 27,600 [8.1] 12,400 [3.6] 12.50 15.10 76 1,175 [554]

RCQD-4824(ROLA-115E05) 40,000 [11.7] 27,700 [8.1] 12,300 [3.6] 13.00 15.50 76 1,200 [566]

RCQD-4824+RXMD-C04 39,500 [11.6] 27,800 [8.1] 11,700 [3.4] 11.50 14.00 76 1,255 [592]

RHKL-HM3821(RCSL-H*3821) 41,000 [12.0] 28,250 [8.3] 12,750 [3.7] 13.00 16.00 76 1,200 [566]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

042JEZ

RHLL-HM3821(RCSL-H*3821) 41,000 [12.0] 28,800 [8.4] 12,200 [3.6] 13.00 16.00 76 1,220 [576]

RHKL-HM4821(RCSL-H*4821) 41,000 [12.0] 29,600 [8.7] 11,400 [3.3] 13.00 15.50 76 1,400 [661]

RHLL-HM4821(RCSL-H*4821) 41,000 [12.0] 29,600 [8.7] 11,400 [3.3] 13.00 15.50 76 1,400 [661]

RHSL-HM4221(RCSL-H*4821) 40,000 [11.7] 28,550 [8.4] 11,450 [3.4] 12.00 14.50 76 1,350 [637]

RHPN-HM3624(RCSN-H*3624) 43,000 [12.6] 30,450 [8.9] 12,550 [3.7] 13.00 16.00 76 1,200 [566]

048JEZ

RCFL-H*4821+RXMD-C04 ➀47,500 [13.9] 33,350 [9.8] 14,150 [4.1] 12.00 14.50 76 1,575 [743]

RCFL-A*4821(RGFE-09?ZCM?) 47,000 [13.8] 31,650 [9.3] 15,350 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-A*4821(RGFG-09?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-A*4821(RGGE-09?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.50 14.50 76 1,400 [661]

RCFL-A*4821(RGGE-10?ZCM?) 47,000 [13.8] 31,650 [9.3] 15,350 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-A*4821(RGLE-10?BRM?) 47,500 [13.9] 32,000 [9.4] 15,500 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4821(RGLT-07?AMK?) 46,500 [13.6] 30,650 [9.0] 15,850 [4.6] 12.00 14.50 76 1,325 [625]

RCFL-A*4821(RGLT-07?BRQ?) 47,500 [13.9] 32,200 [9.4] 15,300 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-A*4821(RGLT-10?BRM?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4821(RGPE-07?BRQ?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4821(RGPE-10?BRM?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4821(RGPT-07?AMK?) 46,500 [13.6] 30,700 [9.0] 15,800 [4.6] 12.00 14.50 76 1,325 [625]

RCFL-A*4821(RGPT-07?BRQ?) 47,500 [13.9] 32,150 [9.4] 15,350 [4.5] 12.50 15.00 76 1,425 [672]

RCFL-A*4821(RGPT-10?BRM?) 47,500 [13.9] 32,150 [9.4] 15,350 [4.5] 12.50 15.50 76 1,425 [672]

RCFL-A*4821(RGTM-07?RBG?) 47,500 [13.9] 32,600 [9.6] 14,900 [4.4] 12.50 14.50 76 1,475 [696]

RCFL-A*4821(RGTM-09?ZAJ?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.50 14.50 76 1,400 [661]

RCFL-A*4821(ROLA-070E04) 47,000 [13.8] 31,400 [9.2] 15,600 [4.6] 12.50 15.10 76 1,375 [649]

RCFL-A*4821(ROLA-115E05) 47,000 [13.8] 31,550 [9.2] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4821+RXMD-C04 47,500 [13.9] 33,350 [9.8] 14,150 [4.1] 12.00 14.50 76 1,575 [743]

RCFL-A*4824(RGFE-09?ZCM?) 47,000 [13.8] 31,650 [9.3] 15,350 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-A*4824(RGFE-12?RCM?) 47,500 [13.9] 32,400 [9.5] 15,100 [4.4] 12.50 15.00 76 1,450 [684]

RCFL-A*4824(RGFG-10?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-A*4824(RGFG-12?RCM?) 47,000 [13.8] 32,200 [9.4] 14,800 [4.3] 12.50 15.00 76 1,450 [684]

RCFL-A*4824(RGGE-09?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-A*4824(RGGE-12?RCM?) 47,000 [13.8] 31,350 [9.2] 15,650 [4.6] 12.50 15.10 76 1,375 [649]

RCFL-A*4824(RGLE-10?BRM?) 47,500 [13.9] 32,000 [9.4] 15,500 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4824(RGLE-12?ARM?) 47,500 [13.9] 32,150 [9.4] 15,350 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-A*4824(RGLT-07?BRQ?) 47,500 [13.9] 32,200 [9.4] 15,300 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-A*4824(RGLT-10?BRM?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4824(RGLT-12?ARM?) 47,500 [13.9] 31,650 [9.3] 15,850 [4.6] 13.00 15.50 76 1,350 [637]

RCFL-A*4824(RGPE-07?BRQ?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4824(RGPE-10?BRM?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4824(RGPE-12?ARM?) 47,500 [13.9] 32,150 [9.4] 15,350 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-A*4824(RGPT-07?BRQ?) 48,500 [14.2] 34,100 [10.0] 14,400 [4.2] 13.00 15.50 76 1,550 [731]

RCFL-A*4824(RGPT-10?BRM?) 47,500 [13.9] 32,000 [9.4] 15,500 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-A*4824(RGPT-12?ARM?) 47,500 [13.9] 31,650 [9.3] 15,850 [4.6] 13.00 15.50 76 1,350 [637]

RCFL-A*4824(RGTM-07?RBG?) 47,500 [13.9] 32,600 [9.6] 14,900 [4.4] 12.50 14.50 76 1,475 [696]

RCFL-A*4824(RGTM-09?ZAJ?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.50 14.50 76 1,400 [661]

RCFL-A*4824(RGTM-10?RBJ?) 47,500 [13.9] 32,200 [9.4] 15,300 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-A*4824(RHWB-08WRX60A) 47,500 [13.9] 32,500 [9.5] 15,000 [4.4] 12.50 15.10 76 1,450 [684]

RCFL-A*4824(RHWB-10WRX60A) 48,000 [14.1] 33,200 [9.7] 14,800 [4.3] 13.00 15.50 76 1,475 [696]

RCFL-A*4824(ROLA-070E04) 47,000 [13.8] 31,400 [9.2] 15,600 [4.6] 12.50 15.10 76 1,375 [649]

RCFL-A*4824(ROLA-115E05) 47,500 [13.9] 32,800 [9.6] 14,700 [4.3] 12.00 14.50 76 1,500 [708]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

048JEZ

RCFL-A*4824+RXMD-C04 47,500 [13.9] 33,350 [9.8] 14,150 [4.1] 12.00 14.50 76 1,575 [743]

RCFL-H*4821(RGFE-09?ZCM?) 47,000 [13.8] 31,650 [9.3] 15,350 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4821(RGFG-09?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4821(RGFG-10?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4821(RGGE-09?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4821(RGGE-10?ZCM?) 47,000 [13.8] 31,650 [9.3] 15,350 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4821(RGJF-09?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4821(RGJF-10?ZCM?) 47,000 [13.8] 31,650 [9.3] 15,350 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4821(RGLE-10?BRM?) 47,500 [13.9] 32,000 [9.4] 15,500 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4821(RGLT-07?AMK?) 46,500 [13.6] 30,650 [9.0] 15,850 [4.6] 12.00 14.50 76 1,325 [625]

RCFL-H*4821(RGLT-07?BRQ?) 47,500 [13.9] 32,200 [9.4] 15,300 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-H*4821(RGLT-10?BRM?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4821(RGPE-07?BRQ?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4821(RGPE-10?BRM?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4821(RGPT-07?AMK?) 46,500 [13.6] 30,700 [9.0] 15,800 [4.6] 12.00 14.50 76 1,325 [625]

RCFL-H*4821(RGPT-07?BRQ?) 47,500 [13.9] 32,150 [9.4] 15,350 [4.5] 12.50 15.00 76 1,425 [672]

RCFL-H*4821(RGPT-10?BRM?) 47,500 [13.9] 32,150 [9.4] 15,350 [4.5] 12.50 15.50 76 1,425 [672]

RCFL-H*4821(RGRM-09?ZAJ?) 47,000 [13.8] 31,700 [9.3] 15,300 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4821(RGTM-07?RBG?) 47,500 [13.9] 32,600 [9.6] 14,900 [4.4] 12.50 14.50 76 1,475 [696]

RCFL-H*4821(RGTM-09?ZAJ?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.50 14.50 76 1,400 [661]

RCFL-H*4821(ROLA-070E04) 47,000 [13.8] 31,400 [9.2] 15,600 [4.6] 12.50 15.10 76 1,375 [649]

RCFL-H*4821(ROLA-115E05) 47,000 [13.8] 31,550 [9.2] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4824(RGFE-09?ZCM?) 47,000 [13.8] 31,650 [9.3] 15,350 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4824(RGFE-12?RCM?) 47,500 [13.9] 32,400 [9.5] 15,100 [4.4] 12.50 15.00 76 1,450 [684]

RCFL-H*4824(RGFG-12?RCM?) 47,000 [13.8] 32,200 [9.4] 14,800 [4.3] 12.50 15.00 76 1,450 [684]

RCFL-H*4824(RGGE-09?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4824(RGGE-10?ZCM?) 47,000 [13.8] 31,650 [9.3] 15,350 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4824(RGGE-12?RCM?) 47,000 [13.8] 31,350 [9.2] 15,650 [4.6] 12.50 15.10 76 1,375 [649]

RCFL-H*4824(RGJF-09?ZCM?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4824(RGJF-10?ZCM?) 47,000 [13.8] 31,650 [9.3] 15,350 [4.5] 12.00 14.50 76 1,400 [661]

RCFL-H*4824(RGJF-12?RCM?) 47,000 [13.8] 31,350 [9.2] 15,650 [4.6] 12.50 15.10 76 1,375 [649]

RCFL-H*4824(RGLE-10?BRM?) 47,500 [13.9] 32,000 [9.4] 15,500 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4824(RGLE-12?ARM?) 47,500 [13.9] 32,150 [9.4] 15,350 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-H*4824(RGLT-07?BRQ?) 47,500 [13.9] 32,200 [9.4] 15,300 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-H*4824(RGLT-10?BRM?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4824(RGLT-12?ARM?) 47,500 [13.9] 31,650 [9.3] 15,850 [4.6] 13.00 15.50 76 1,350 [637]

RCFL-H*4824(RGPE-07?BRQ?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4824(RGPE-10?BRM?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4824(RGPE-12?ARM?) 47,500 [13.9] 32,150 [9.4] 15,350 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-H*4824(RGPT-07?BRQ?) 48,500 [14.2] 34,100 [10.0] 14,400 [4.2] 13.00 15.50 76 1,550 [731]

RCFL-H*4824(RGPT-10?BRM?) 47,500 [13.9] 32,000 [9.4] 15,500 [4.5] 12.50 15.10 76 1,400 [661]

RCFL-H*4824(RGPT-12?ARM?) 47,500 [13.9] 31,650 [9.3] 15,850 [4.6] 13.00 15.50 76 1,350 [637]

RCFL-H*4824(RGRM-12?RAJ?) 47,000 [13.8] 31,750 [9.3] 15,250 [4.5] 12.00 14.50 76 1,425 [672]

RCFL-H*4824(RGTM-07?RBG?) 47,500 [13.9] 32,600 [9.6] 14,900 [4.4] 12.50 14.50 76 1,475 [696]

RCFL-H*4824(RGTM-09?ZAJ?) 47,000 [13.8] 31,600 [9.3] 15,400 [4.5] 12.50 14.50 76 1,400 [661]

RCFL-H*4824(RGTM-10?RBJ?) 47,500 [13.9] 32,200 [9.4] 15,300 [4.5] 12.50 15.10 76 1,425 [672]

RCFL-H*4824(RHWB-08WRX60A) 47,500 [13.9] 32,500 [9.5] 15,000 [4.4] 12.50 15.10 76 1,450 [684]

RCFL-H*4824(RHWB-10WRX60A) 48,000 [14.1] 33,200 [9.7] 14,800 [4.3] 13.00 15.50 76 1,475 [696]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

048JEZ

RCFL-H*4824(ROLA-070E04) 47,000 [13.8] 31,400 [9.2] 15,600 [4.6] 12.50 15.10 76 1,375 [649]

RCFL-H*4824(ROLA-115E05) 47,500 [13.9] 32,800 [9.6] 14,700 [4.3] 12.00 14.50 76 1,500 [708]

RCFL-H*4824+RXMD-C04 47,500 [13.9] 33,350 [9.8] 14,150 [4.1] 12.00 14.50 76 1,575 [743]

RCFN-H*4824(RGFE-12?RCM?) 50,500 [14.8] 36,050 [10.6] 14,450 [4.2] 13.00 16.00 76 1,450 [684]

RCFN-H*4824(RGFG-09?ZCM?) 49,500 [14.5] 35,250 [10.3] 14,250 [4.2] 13.00 15.50 76 1,400 [661]

RCFN-H*4824(RGFG-10?ZCM?) 49,500 [14.5] 35,250 [10.3] 14,250 [4.2] 12.50 15.50 76 1,400 [661]

RCFN-H*4824(RGFG-12?RCM?) 50,000 [14.6] 36,000 [10.5] 14,000 [4.1] 13.00 15.50 76 1,450 [684]

RCFN-H*4824(RGGE-12?RCM?) 51,500 [15.1] 37,950 [11.1] 13,550 [4.0] 13.00 15.50 76 1,575 [743]

RCFN-H*4824(RGJF-12?RCM?) 51,500 [15.1] 37,950 [11.1] 13,550 [4.0] 13.00 15.50 76 1,575 [743]

RCFN-H*4824(RGLE-07?BRQ?) 51,500 [15.1] 38,150 [11.2] 13,350 [3.9] 13.00 15.50 76 1,600 [755]

RCFN-H*4824(RGLE-10?BRM?) 51,500 [15.1] 38,100 [11.2] 13,400 [3.9] 13.00 16.00 76 1,600 [755]

RCFN-H*4824(RGLE-12?ARM?) 51,500 [15.1] 38,100 [11.2] 13,400 [3.9] 13.00 16.00 76 1,600 [755]

RCFN-H*4824(RGLT-07?BRQ?) 50,000 [14.6] 35,750 [10.5] 14,250 [4.2] 13.00 15.50 76 1,450 [684]

RCFN-H*4824(RGLT-10?BRM?) 50,000 [14.6] 35,750 [10.5] 14,250 [4.2] 13.00 15.50 76 1,450 [684]

RCFN-H*4824(RGLT-12?ARM?) 51,000 [14.9] 38,600 [11.3] 12,400 [3.6] 12.50 15.10 76 1,700 [802]

RCFN-H*4824(RGPE-07?BRQ?) 51,500 [15.1] 38,150 [11.2] 13,350 [3.9] 13.00 15.50 76 1,600 [755]

RCFN-H*4824(RGPE-10?BRM?) 51,500 [15.1] 37,750 [11.1] 13,750 [4.0] 13.00 16.00 76 1,550 [731]

RCFN-H*4824(RGPE-12?ARM?) 51,000 [14.9] 37,050 [10.9] 13,950 [4.1] 13.00 16.00 76 1,525 [720]

RCFN-H*4824(RGPT-07?BRQ?) 50,500 [14.8] 36,900 [10.8] 13,600 [4.0] 13.00 16.00 76 1,550 [731]

RCFN-H*4824(RGPT-10?BRM?) 50,000 [14.6] 35,750 [10.5] 14,250 [4.2] 13.00 15.50 76 1,450 [684]

RCFN-H*4824(RGPT-12?ARM?) 51,000 [14.9] 38,600 [11.3] 12,400 [3.6] 12.50 15.10 76 1,700 [802]

RCFN-H*4824(RHWB-08WRX60A) 50,500 [14.8] 36,800 [10.8] 13,700 [4.0] 13.00 16.00 76 1,450 [684]

RCFN-H*4824(RHWB-10WRX60A) 50,500 [14.8] 37,100 [10.9] 13,400 [3.9] 13.00 16.00 76 1,500 [708]

RCFN-H*4824(ROLA-115E05) 50,000 [14.6] 36,900 [10.8] 13,100 [3.8] 12.50 15.10 76 1,600 [755]

RCFN-H*4824+RXMD-C04 51,000 [14.9] 37,650 [11.0] 13,350 [3.9] 12.50 15.00 76 1,600 [755]

RBHP-24(RCHL-48A1) 47,000 [13.8] 32,000 [9.4] 15,000 [4.4] 12.50 15.00 76 1,600 [755]

RCQD-4821(RGFE-09?ZCM?) 47,000 [13.8] 31,500 [9.2] 15,500 [4.5] 12.00 14.00 76 1,400 [661]

RCQD-4821(RGFG-09?ZCM?) 47,500 [13.9] 32,250 [9.4] 15,250 [4.5] 12.00 14.50 76 1,400 [661]

RCQD-4821(RGFG-10?ZCM?) 47,500 [13.9] 32,250 [9.4] 15,250 [4.5] 12.00 14.50 76 1,400 [661]

RCQD-4821(RGJF-09?ZCM?) 47,500 [13.9] 32,000 [9.4] 15,500 [4.5] 12.00 14.50 76 1,400 [661]

RCQD-4821(RGJF-10?ZCM?) 47,000 [13.8] 31,500 [9.2] 15,500 [4.5] 12.00 14.00 76 1,400 [661]

RCQD-4821(RGPE-07?BRQ?) 47,500 [13.9] 31,900 [9.3] 15,600 [4.6] 12.50 15.00 76 1,400 [661]

RCQD-4821(RGPE-10?BRM?) 48,000 [14.1] 33,800 [9.9] 14,200 [4.2] 12.00 14.00 76 1,625 [767]

RCQD-4821(RGPT-07?BRQ?) 48,500 [14.2] 33,850 [9.9] 14,650 [4.3] 12.50 15.10 76 1,550 [731]

RCQD-4821(RGPT-10?BRM?) 47,500 [13.9] 32,050 [9.4] 15,450 [4.5] 12.50 15.10 76 1,425 [672]

RCQD-4821(RGRM-09?ZAJ?) 48,000 [14.1] 35,100 [10.3] 12,900 [3.8] 12.00 14.50 76 1,400 [661]

RCQD-4821(ROLA-070E04) 47,500 [13.9] 31,750 [9.3] 15,750 [4.6] 12.00 14.50 76 1,375 [649]

RCQD-4821+RXMD-C04 47,500 [13.9] 33,750 [9.9] 13,750 [4.0] 11.50 14.00 76 1,600 [755]

RCQD-4824(RGFE-09?ZCM?) 47,000 [13.8] 31,500 [9.2] 15,500 [4.5] 12.00 14.50 76 1,400 [661]

RCQD-4824(RGFE-10?ZCM?) 47,500 [13.9] 32,200 [9.4] 15,300 [4.5] 12.00 14.50 76 1,425 [672]

RCQD-4824(RGFE-12?RCM?) 47,500 [13.9] 32,250 [9.4] 15,250 [4.5] 12.00 14.50 76 1,450 [684]

RCQD-4824(RGFG-09?ZCM?) 47,500 [13.9] 32,200 [9.4] 15,300 [4.5] 12.00 14.50 76 1,400 [661]

RCQD-4824(RGFG-10?ZCM?) 47,500 [13.9] 32,200 [9.4] 15,300 [4.5] 12.00 14.50 76 1,400 [661]

RCQD-4824(RGFG-12?RCM?) 48,000 [14.1] 32,950 [9.7] 15,050 [4.4] 12.50 15.10 76 1,450 [684]

RCQD-4824(RGJF-09?ZCM?) 47,500 [13.9] 31,950 [9.4] 15,550 [4.6] 12.00 14.50 76 1,400 [661]

RCQD-4824(RGJF-10?ZCM?) 47,500 [13.9] 32,000 [9.4] 15,500 [4.5] 12.00 14.50 76 1,400 [661]

RCQD-4824(RGJF-12?RCM?) 48,500 [14.2] 34,250 [10.0] 14,250 [4.2] 12.00 14.50 76 1,575 [743]

RCQD-4824(RGPE-07?BRQ?) 48,500 [14.2] 34,250 [10.0] 14,250 [4.2] 12.00 14.50 76 1,600 [755]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

048JEZ

RCQD-4824(RGPE-10?BRM?) 48,000 [14.1] 33,800 [9.9] 14,200 [4.2] 12.00 14.50 76 1,625 [767]

RCQD-4824(RGPE-12?ARM?) 48,500 [14.2] 34,250 [10.0] 14,250 [4.2] 12.00 14.50 76 1,625 [767]

RCQD-4824(RGPT-07?BRQ?) 48,500 [14.2] 33,800 [9.9] 14,700 [4.3] 12.50 15.10 76 1,550 [731]

RCQD-4824(RGPT-10?BRM?) 48,000 [14.1] 32,700 [9.6] 15,300 [4.5] 12.50 15.10 76 1,450 [684]

RCQD-4824(RGPT-12?ARM?) 48,000 [14.1] 32,300 [9.5] 15,700 [4.6] 12.50 15.10 76 1,400 [661]

RCQD-4824(RGRM-09?ZAJ?) 48,000 [14.1] 35,350 [10.4] 12,650 [3.7] 12.00 14.50 76 1,400 [661]

RCQD-4824(RGRM-12?RAJ?) 48,000 [14.1] 35,450 [10.4] 12,550 [3.7] 12.50 15.00 76 1,425 [672]

RCQD-4824(RHWB-08WRX60A) 48,000 [14.1] 32,600 [9.6] 15,400 [4.5] 13.00 16.00 76 1,375 [649]

RCQD-4824(RHWB-10WRX60A) 48,500 [14.2] 34,100 [10.0] 14,400 [4.2] 13.00 16.00 76 1,525 [720]

RCQD-4824(ROLA-070E04) 47,500 [13.9] 31,750 [9.3] 15,750 [4.6] 12.50 15.00 76 1,375 [649]

RCQD-4824(ROLA-115E05) 47,500 [13.9] 31,900 [9.3] 15,600 [4.6] 12.50 15.00 76 1,400 [661]

RCQD-4824+RXMD-C04 47,500 [13.9] 33,750 [9.9] 13,750 [4.0] 11.50 14.00 76 1,600 [755]

RHKL-HM4821(RCSL-H*4821) 47,500 [13.9] 31,950 [9.4] 15,550 [4.6] 13.00 15.50 76 1,400 [661]

RHLL-HM4821(RCSL-H*4821) 47,500 [13.9] 31,950 [9.4] 15,550 [4.6] 13.00 16.00 76 1,400 [661]

RHSL-HM4821(RCSL-H*4821) 47,500 [13.9] 32,950 [9.7] 14,550 [4.3] 12.00 14.50 76 1,525 [720]

RHSL-HM4824(RCSL-H*4821) 47,500 [13.9] 32,800 [9.6] 14,700 [4.3] 12.00 14.50 76 1,500 [708]

RHKL-HM4824(RCSL-H*4824) 48,500 [14.2] 34,050 [10.0] 14,450 [4.2] 13.00 16.00 76 1,600 [755]

RHLL-HM4824(RCSL-H*4824) 49,000 [14.4] 34,900 [10.2] 14,100 [4.1] 13.00 16.00 76 1,625 [767]

RHPN-HM4824(RCSN-H*4824) 52,000 [15.2] 38,400 [11.3] 13,600 [4.0] 13.00 16.00 76 1,600 [755]

056JEZ

RCFL-H*6024+RXMD-C04 ➀52,500 [15.4] 37,300 [10.9] 15,200 [4.5] 12.00 14.50 76 1,525 [720]

RCFL-A*6024(RGGE-12?RCM?) 53,000 [15.5] 38,100 [11.2] 14,900 [4.4] 12.50 14.50 76 1,575 [743]

RCFL-A*6024(RGLE-07?BRQ?) 53,000 [15.5] 38,300 [11.2] 14,700 [4.3] 12.50 14.50 76 1,600 [755]

RCFL-A*6024(RGLE-10?BRM?) 53,500 [15.7] 38,750 [11.4] 14,750 [4.3] 12.50 15.10 76 1,600 [755]

RCFL-A*6024(RGLE-12?ARM?) 53,500 [15.7] 38,750 [11.4] 14,750 [4.3] 12.50 15.10 76 1,600 [755]

RCFL-A*6024(RGLT-12?ARM?) 53,500 [15.7] 39,500 [11.6] 14,000 [4.1] 12.00 14.50 76 1,700 [802]

RCFL-A*6024(RGPE-07?BRQ?) 53,000 [15.5] 38,300 [11.2] 14,700 [4.3] 12.50 14.50 76 1,600 [755]

RCFL-A*6024(RGPE-10?BRM?) 53,000 [15.5] 37,700 [11.0] 15,300 [4.5] 12.50 15.10 76 1,550 [731]

RCFL-A*6024(RGPE-12?ARM?) 53,500 [15.7] 38,950 [11.4] 14,550 [4.3] 12.50 15.10 76 1,625 [767]

RCFL-A*6024(RGPT-07?BRQ?) 53,000 [15.5] 37,600 [11.0] 15,400 [4.5] 13.00 15.50 76 1,550 [731]

RCFL-A*6024(RGPT-10?BRM?) 53,500 [15.7] 39,550 [11.6] 13,950 [4.1] 12.00 14.50 76 1,700 [802]

RCFL-A*6024(RGPT-12?ARM?) 53,500 [15.7] 39,550 [11.6] 13,950 [4.1] 12.00 14.50 76 1,700 [802]

RCFL-A*6024(RHWB-08WRX60A) 53,500 [15.7] 39,200 [11.5] 14,300 [4.2] 12.00 14.50 76 1,650 [779]

RCFL-A*6024(RHWB-10WRX60A) 53,000 [15.5] 37,800 [11.1] 15,200 [4.5] 12.00 14.50 76 1,500 [708]

RCFL-A*6024(ROLA-115E05) 52,500 [15.4] 37,250 [10.9] 15,250 [4.5] 12.00 14.50 76 1,500 [708]

RCFL-A*6024+RXMD-C04 52,500 [15.4] 37,300 [10.9] 15,200 [4.5] 12.00 14.50 76 1,525 [720]

RCFL-H*6024(RGGE-12?RCM?) 53,000 [15.5] 38,100 [11.2] 14,900 [4.4] 12.50 14.50 76 1,575 [743]

RCFL-H*6024(RGJF-12?RCM?) 53,000 [15.5] 38,100 [11.2] 14,900 [4.4] 12.50 14.50 76 1,575 [743]

RCFL-H*6024(RGLE-07?BRQ?) 53,000 [15.5] 38,300 [11.2] 14,700 [4.3] 12.50 14.50 76 1,600 [755]

RCFL-H*6024(RGLE-10?BRM?) 53,500 [15.7] 38,750 [11.4] 14,750 [4.3] 12.50 15.10 76 1,600 [755]

RCFL-H*6024(RGLE-12?ARM?) 53,500 [15.7] 38,750 [11.4] 14,750 [4.3] 12.50 15.10 76 1,600 [755]

RCFL-H*6024(RGLT-12?ARM?) 53,500 [15.7] 39,500 [11.6] 14,000 [4.1] 12.00 14.50 76 1,700 [802]

RCFL-H*6024(RGPE-07?BRQ?) 53,000 [15.5] 38,300 [11.2] 14,700 [4.3] 12.50 14.50 76 1,600 [755]

RCFL-H*6024(RGPE-10?BRM?) 53,000 [15.5] 37,700 [11.0] 15,300 [4.5] 12.50 15.10 76 1,550 [731]

RCFL-H*6024(RGPE-12?ARM?) 53,500 [15.7] 38,950 [11.4] 14,550 [4.3] 12.50 15.10 76 1,625 [767]

RCFL-H*6024(RGPT-07?BRQ?) 53,000 [15.5] 37,600 [11.0] 15,400 [4.5] 13.00 15.50 76 1,550 [731]

RCFL-H*6024(RGPT-10?BRM?) 53,500 [15.7] 39,550 [11.6] 13,950 [4.1] 12.00 14.50 76 1,700 [802]

RCFL-H*6024(RGPT-12?ARM?) 53,500 [15.7] 39,550 [11.6] 13,950 [4.1] 12.00 14.50 76 1,700 [802]

RCFL-H*6024(RHWB-08WRX60A) 53,500 [15.7] 39,200 [11.5] 14,300 [4.2] 12.00 14.50 76 1,650 [779]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Performance Data

RAPM- JEZ Series

Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air Sound

Rating

Indoor

CFM [L/s]

Outdoor

Unit

RAPM-

Indoor

Coil and/or

Air Handler

Total

Capacity

BTU/H [kW]

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

EER SEER

056JEZ

RCFL-H*6024(RHWB-10WRX60A) 53,000 [15.5] 37,800 [11.1] 15,200 [4.5] 12.00 14.50 76 1,500 [708]

RCFL-H*6024(ROLA-115E05) 52,500 [15.4] 37,250 [10.9] 15,250 [4.5] 12.00 14.50 76 1,500 [708]

RBHP-25(RCHL-60A1) 49,500 [14.5] 33,850 [9.9] 15,650 [4.6] 11.50 14.00 76 1,800 [849]

RCQD-6024(RGFE-09?ZCM?) 49,000 [14.4] 32,500 [9.5] 16,500 [4.8] 11.50 14.00 76 1,400 [661]

RCQD-6024(RGFE-10?ZCM?) 49,000 [14.4] 32,700 [9.6] 16,300 [4.8] 11.00 13.50 76 1,425 [672]

RCQD-6024(RGFE-12?RCM?) 49,500 [14.5] 34,400 [10.1] 15,100 [4.4] 11.00 13.50 76 1,625 [767]

RCQD-6024(RGFG-09?ZCM?) 48,500 [14.2] 32,650 [9.6] 15,850 [4.6] 11.00 13.50 76 1,400 [661]

RCQD-6024(RGFG-10?ZCM?) 48,500 [14.2] 32,650 [9.6] 15,850 [4.6] 11.00 13.50 76 1,400 [661]

RCQD-6024(RGFG-12?RCM?) 49,000 [14.4] 33,400 [9.8] 15,600 [4.6] 11.50 14.00 76 1,450 [684]

RCQD-6024(RGJF-09?ZCM?) 49,000 [14.4] 32,450 [9.5] 16,550 [4.8] 11.50 14.00 76 1,400 [661]

RCQD-6024(RGJF-10?ZCM?) 49,000 [14.4] 32,500 [9.5] 16,500 [4.8] 11.50 14.00 76 1,400 [661]

RCQD-6024(RGJF-12?RCM?) 50,000 [14.6] 34,800 [10.2] 15,200 [4.5] 11.50 14.00 76 1,575 [743]

RCQD-6024(RGPE-07?BRQ?) 50,000 [14.6] 34,800 [10.2] 15,200 [4.5] 11.50 14.00 76 1,600 [755]

RCQD-6024(RGPE-10?BRM?) 50,000 [14.6] 34,800 [10.2] 15,200 [4.5] 11.50 14.00 76 1,625 [767]

RCQD-6024(RGPE-12?ARM?) 50,000 [14.6] 34,750 [10.2] 15,250 [4.5] 11.50 14.00 76 1,625 [767]

RCQD-6024(RGPT-07?BRQ?) 50,000 [14.6] 34,350 [10.1] 15,650 [4.6] 12.00 14.50 76 1,550 [731]

RCQD-6024(RGPT-10?BRM?) 49,500 [14.5] 33,200 [9.7] 16,300 [4.8] 12.00 14.50 76 1,450 [684]

RCQD-6024(RGPT-12?ARM?) 49,500 [14.5] 32,800 [9.6] 16,700 [4.9] 12.00 14.50 76 1,400 [661]

RCQD-6024(RGRM-12?RAJ?) 49,500 [14.5] 34,050 [10.0] 15,450 [4.5] 11.00 13.50 76 1,550 [731]

RCQD-6024(ROCA-070E04) 48,500 [14.2] 32,050 [9.4] 16,450 [4.8] 11.50 13.50 76 1,400 [661]

RCQD-6024(ROLA-115E05) 49,000 [14.4] 32,400 [9.5] 16,600 [4.9] 11.50 14.00 76 1,400 [661]

RCQD-6024+RXMD-C04 49,000 [14.4] 34,050 [10.0] 14,950 [4.4] 11.00 13.50 76 1,600 [755]

RHKL-HM6024(RCSL-H*6024) 54,000 [15.8] 39,100 [11.5] 14,900 [4.4] 13.00 16.00 76 1,600 [755]

RHLL-HM6024(RCSL-H*6024) 54,000 [15.8] 38,670 [11.3] 15,330 [4.5] 13.00 16.00 76 1,550 [731]

060JEZ

RCFL-H*6024+RXMD-C04 ➀60,500 [17.7] 41,500 [12.2] 19,000 [5.6] 12.00 14.50 76 1,600 [755]

RCFL-A*6024(RGLT-10?BRM?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-A*6024(RGLT-12?ARM?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-A*6024(RGPT-07?BRQ?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-A*6024(RGPT-10?BRM?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-A*6024(RGPT-12?ARM?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-A*6024(RGTM-10?RBJ?) 61,000 [17.9] 42,800 [12.5] 18,200 [5.3] 12.00 14.50 76 1,675 [790]

RCFL-A*6024+RXMD-C04 60,500 [17.7] 41,500 [12.2] 19,000 [5.6] 12.00 14.50 76 1,600 [755]

RCFL-H*6024(RGLT-10?BRM?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-H*6024(RGLT-12?ARM?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-H*6024(RGPT-07?BRQ?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-H*6024(RGPT-10?BRM?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-H*6024(RGPT-12?ARM?) 61,000 [17.9] 43,000 [12.6] 18,000 [5.3] 12.00 14.50 76 1,700 [802]

RCFL-H*6024(RGTM-10?RBJ?) 61,000 [17.9] 42,800 [12.5] 18,200 [5.3] 12.00 14.50 76 1,675 [790]

RBHP-25(RCHL-60A1) 54,000 [15.8] 35,850 [10.5] 18,150 [5.3] 11.50 13.50 76 1,800 [849]

RBHM-26J(RCQD-6024) 60,000 [17.6] 42,500 [12.5] 17,500 [5.1] 12.50 15.00 76 1,700 [802]

RCQD-6024(RGPE-10?BRM?) 59,000 [17.3] 40,500 [11.9] 18,500 [5.4] 11.50 14.00 76 1,625 [767]

RCQD-6024(RGPE-12?ARM?) 59,000 [17.3] 40,500 [11.9] 18,500 [5.4] 11.50 14.00 76 1,625 [767]

RCQD-6024(RGPT-07?BRQ?) 59,500 [17.4] 42,000 [12.3] 17,500 [5.1] 11.50 14.00 76 1,725 [814]

RCQD-6024(RGPT-10?BRM?) 59,500 [17.4] 42,000 [12.3] 17,500 [5.1] 11.50 14.00 76 1,725 [814]

RCQD-6024(RGPT-12?ARM?) 59,500 [17.4] 42,000 [12.3] 17,500 [5.1] 11.50 14.00 76 1,725 [814]

RCQD-6024(RGTM-10?RBJ?) 59,000 [17.3] 41,500 [12.2] 17,500 [5.1] 11.50 14.00 76 1,675 [790]

RCQD-6024+RXMD-C04 58,500 [17.1] 40,000 [11.7] 18,500 [5.4] 11.50 13.50 76 1,600 [755]

RHKL-HM6024(RCSL-H*6024) 62,000 [18.2] 45,000 [13.2] 17,000 [5.0] 12.50 15.00 76 1,800 [849]

RHLL-HM6024(RCSL-H*6024) 62,000 [18.2] 45,000 [13.2] 17,000 [5.0] 12.50 15.00 76 1,800 [849]

RHSL-HM6024(RCSL-H*6024) 60,500 [17.7] 43,500 [12.7] 17,000 [5.0] 11.50 13.50 76 1,800 [849]

Rev.

6/14/12

➀Highest sales volume tested combination required by D.O.E. test procedures.

[ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Air Electrical and Physical Data

RAPM- JEZ Series

Model

Number

RAPM-

ELECTRICAL PHYSICAL

Phase

Frequency (Hz)

Voltage (Volts)

Compressor Fan Motor

Full Load

Amperes

(FLA)

Minimum

Circuit

Ampacity

Amperes

Fuse or HACR

Circuit Breaker Outdoor Coil Refrig.

Per

Circuit

Oz. [g]

Weight

Rated Load

Amperes

(RLA)

Locked Rotor

Amperes

(LRA)

Minimum

Amperes

Maximum

Amperes

Face Area

Sq. Ft. [m2]

No.

Rows CFM [L/s] Net

Lbs. [kg]

Shipping

Lbs. [kg]

Rev. 6/14/2012

018JEZ 1-60-208/230 9/9 48 1.9 14/14 20/20 20/20 11 [1.02] 11955 [923] 82 [2325] 145.5 [66] 160.5 [66]

024JEZ 1-60-208/230 13.5/13.5 58.3 1.1 18/18 25/25 30/30 20 [1.86] 13295 [1555] 128 [3629] 199.5 [90.5] 214.5 [90.5]

030JEZ 1-60-208/230 12.8/12.8 64 1.9 18/18 25/25 30/30 20 [1.86] 13645 [1720] 129 [3657] 201 [91.2] 214 [91.2]

036JEZ 1-60-208/230 16/16 79 1.9 22/22 30/30 35/35 23.01 [2.14] 13680 [1737] 146 [4139] 205 [93] 227 [93]

042JEZ 1-60-208/230 17.9/17.9 112 2.8 26/26 30/30 40/40 23.01 [2.14] 13925 [1852] 152 [4309] 234 [106.1] 256 [106.1]

048JEZ 1-60-208/230 21.8/21.8 117 2.8 31/31 40/40 50/50 23.01 [2.14] 23685 [1739] 203 [5755] 273 [123.8] 298 [123.8]

056JEZ 1-60-208/230 21.4/21.4 135 2.8 30/30 35/35 50/50 23 [2.14] 23685 [1739] 255 [7229] 281.5 [127.7] 306.5 [127.7]

060JEZ 1-60-208/230 26.4/26.4 134 2.8 36/36 45/45 60/60 23 [2.14] 24350 [2053] 262 [7428] 281.5 [127.7] 306.5 [127.7]

NOTE: Factory Refrigerant Charge includes refrigerant for 15 feet of standard line set.

[ ] Designates Metric Conversions

Electrical and Physical Data

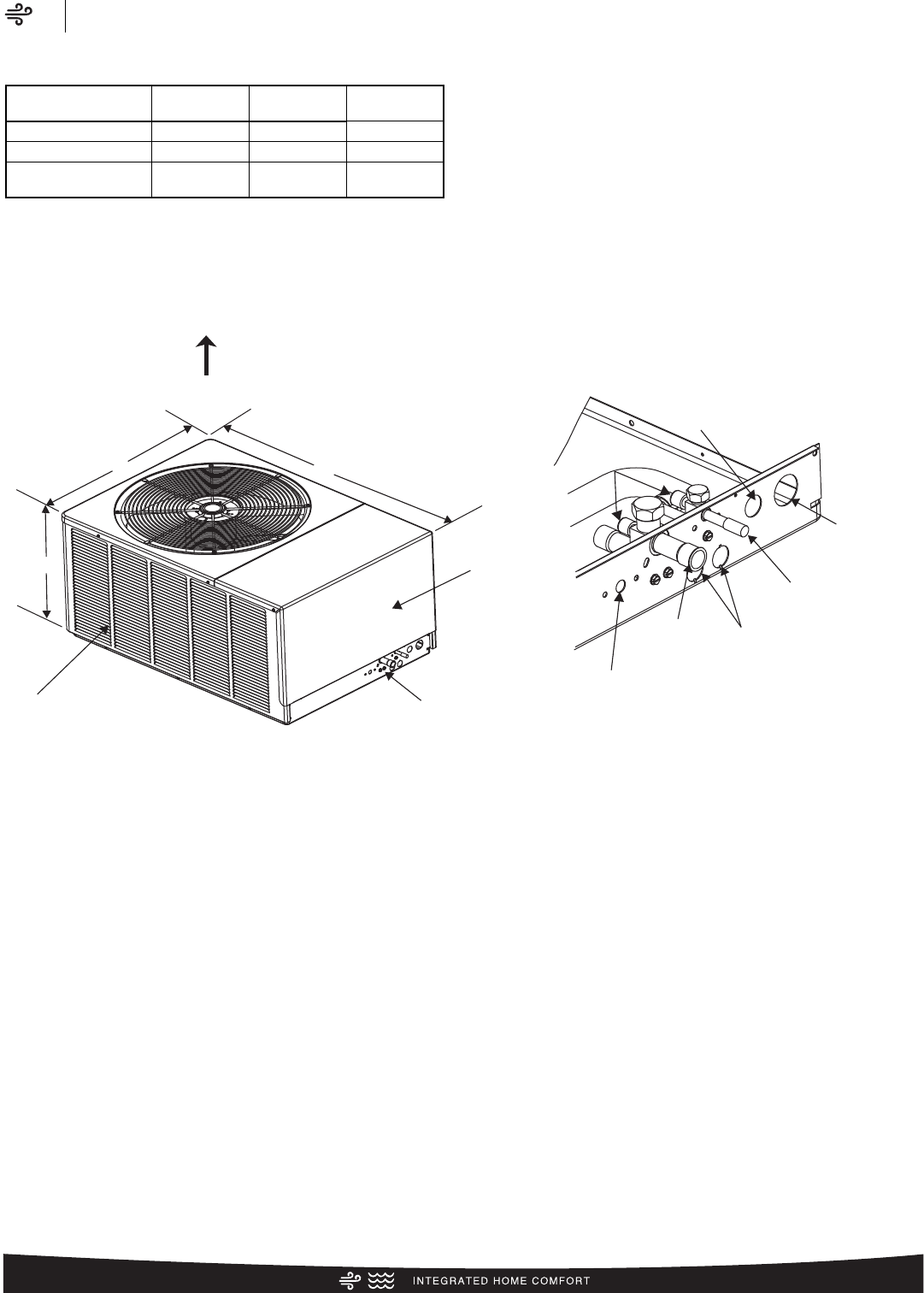

Air Unit Dimensions

RAPM- JEZ Series

Unit Dimensions

Model Number

RAPM-

Height “H”

(Inches) [mm]

Length “L”

(Inches) [mm]

Width “W”

(Inches) [mm]

018JEZ 19 [483] 401/2[1029] 275/8[702]

024JEZ/030JEZ 29 [737] 443/8[1127] 311/2[800]

036JEZ/042JEZ/

048JEZ/056JEZ/060JEZ 33 [838] 443/8[1127] 311/2[800]

[ ] Designates Metric Conversions

AIR DISCHARGE

ALLOW 60⬙ [1524 mm] CLEARANCE

AIR INLETS

(LOUVERS)

ALLOW 6⬙ [152 mm]

MIN. CLEARANCE

3 SIDES

ALLOW 24⬙ [610 mm]

ACCESS CLEARANCE

ACCESS

PANEL

A-00001

SERVICE

FITTINGS

LOW VOLTAGE

7/8⬙ [22 mm]

HIGH VOLTAGE

111/32⬙ [34 mm]

LIQUID LINE

CONNECTION

SERVICE ACCESS

TO ELECTRICAL &

VALVES ALLOW

24⬙ [610 mm]

CLEARANCE

ONE SIDE

27/8⬙ [73 mm] DIA.

ACCESSORY

KNOCKOUTS

VAPOR LINE

CONNECTION

HIGH PRESSURE

CONTROL

MANUAL RESET

(FIELD INSTALLED

ACCESSORY)

A-00003

Air Refrigerant Line Size Information

RAPM- JEZ Series

Suction Line Length/Size versus Capacity Multiplier (R-410A)

Suction Line Run—

Feet [m]

3/4" [19.05 mm] O.D. Opt.

7/8" [22.23 mm] O.D. Std.*

7/8" [22.23 mm] I.D.

Optional

Standard

Optional

Standard

Optional

Suction Line

Connection Size

Optional

Standard

Optional

3/4" [19.05 mm] I.D.

Optional

Standard

Optional

3 Ton 4 Ton2 TonUnit Size 11/2Ton

5/8" [15.88 mm] O.D. Opt.

3/4" [19.05 mm] O.D. Std.*

25' [7.62]

1.00

N/A

1.00

N/A

1.00

N/A

1.00

N/A

50' [15.24]

.98

.99

N/A

.98

.99

N/A

.99

N/A

.98

.99

N/A

100' [30.48]

.95

.96

N/A

.95

.96

N/A

.96

.98

N/A

.96

.97

N/A

150' [45.72]

.92

.93

N/A

.92

.94

N/A

.95

.96

N/A

.94

.95

N/A

21/2Ton

1.00

.96

.98

.99

.94

.96

.97

.91

.93

.95

31/2Ton

1.00

N/A

.99

N/A

.96

.98

N/A

.94

.96

N/A

7/8" [22.23 mm] O.D. Opt.

11/8" [28.58 mm] O.D. Std.*

5 Ton

1.00

N/A

.99

N/A

.97

.98

N/A

.94

.97

N/A

5/8" [15.88 mm] O.D. Opt.

3/4" [19.05 mm] O.D. Std.*

7/8" [22.23 mm] O.D. Opt.

System

Capacity

Line Size

(Inch O.D.)

[mm]

Liquid Line Size – Outdoor Unit Above Indoor Coil

(Cooling Only – Does not apply to Heat Pumps) Liquid Line Size – Outdoor Unit Below Indoor Coil

Minimum Vertical Separation—Feet [m] Maximum Vertical Separation—Feet [m]

[7.62]

[15.24]

[22.86]

100

[30.48]

125

[38.10]

150

[45.72]

[7.62]

[15.24]

[22.86]

100

[30.48]

125

[38.10]

150

[45.72]

Total Equivalent Length—Feet [m] Total Equivalent Length—Feet [m]

5/16 [7.94] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 62 [18.90] 58 [17.68] 53 [16.15] 49 [14.94]

11/2Ton

1/4*[6.35] 0 0 0 0 8 [2.44] 24 [7.32] 25 [7.62] 40 [12.19] 25 [7.62] 9 [2.74] N/A N/A

3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 75 [22.86] 72 [21.95] 70 [21.34] 68 [20.73]

3 Ton 5/16*[7.94] 0 0 0 0 0 9 [2.74] 25 [7.62] 50 [15.24] 37 [11.28] 22 [6.71] 7 [2.13] N/A

3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 68 [20.73] 63 [19.20] 58 [17.68] 53 [16.15]

31/2Ton 5/16*[7.94] 0 0 0 16 [4.88] 35 [10.67] 54 [16.46] 25 [7.62] 23 [7.01] 4 [1.22] N/A N/A N/A

3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 43 [13.11] 36 [10.97] 30 [9.14] 24 [7.32]

4 Ton 3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 46 [14.02] 38 [11.58] 30 [9.14] 22 [6.71] 15 [4.57]

1/2 [12.57] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 56 [17.07] 55 [16.76] 53 [16.15] 52 [15.85]

5 Ton 3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 56 [17.07] 44 [13.41] 32 [9.75] 20 [6.10]

1/2 [12.57] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 75 [22.86] 81 [24.69] 79 [24.08] 76 [23.16]

5/16 [7.94] 0 0 0 0 0 0 25 [7.62] 49 [14.94] 38 [11.58] 27 [8.23] 17 [5.18] 6 [1.83]

21/2Ton

1/4*[6.35] 0 14 [4.27] 56 [17.07] 98 [29.87] N/A N/A 25 [7.62] N/A N/A N/A N/A N/A

3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 68 [20.73] 65 [19.81] 62 [18.90] 58 [17.68]

5/16 [7.94] 0 0 0 0 0 0 25 [7.62] 36 [10.97] 29 [8.84] 23 [7.01] 16 [4.88] 9 [2.74]

2 Ton

1/4*[6.35] 0 3 [0.91] 29 [8.84] 55 [16.76] 81 [24.69] 108 [32.92] 23 [7.01] N/A N/A N/A N/A N/A

3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 72 [21.95] 70 [21.34] 68 [20.73] 65 [19.81]

3/8″

Line Size

Connection

(Inch I.D.)

3/8″

Liquid Line Sizing (R-410A)

NOTES: *Standard line size

N/A = Application not recommended.

NOTES: *Standard line size

Using suction line larger than shown in chart will result in poor oil return and is not recommended.

[ ] Designates Metric Conversions

Condensing Unit Refrigerant Line Size Information

Air Limited Warranty

RAPM- JEZ Series

GENERAL TERMS OF LIMITED WARRANTY*

Rheem will furnish a replacement for any part of this product

which fails in normal use and service within the applicable

period stated, in accordance with the terms of the limited

warranty.

*For complete details of the Limited and Conditional Warranties, including

applicable terms and conditions, contact your local contractor or the

Manufacturer for a copy of the product warranty certificate.

Conditional Compressor

(Registration Required) ...............................Ten (10) Years

Parts............................................................Ten (10) Years

Air Notes

RAPM- JEZ Series

The new degree of comfort.

™

Rheem Heating, Cooling & Water Heating • P.O. Box 17010

Fort Smith, Arkansas 72917 • www.rheem.com

In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.

PRINTED IN U.S.A 06/12 QG FORM NO. A11-214

Rheem Canada Ltd./Ltée • 125 Edgeware Road, Unit 1

Brampton, Ontario • L6Y 0P5

Rheem Prestige Series Single Stage Specification Sheet

Navigation menu

Versions of this User Manual:

Views

Navigation
