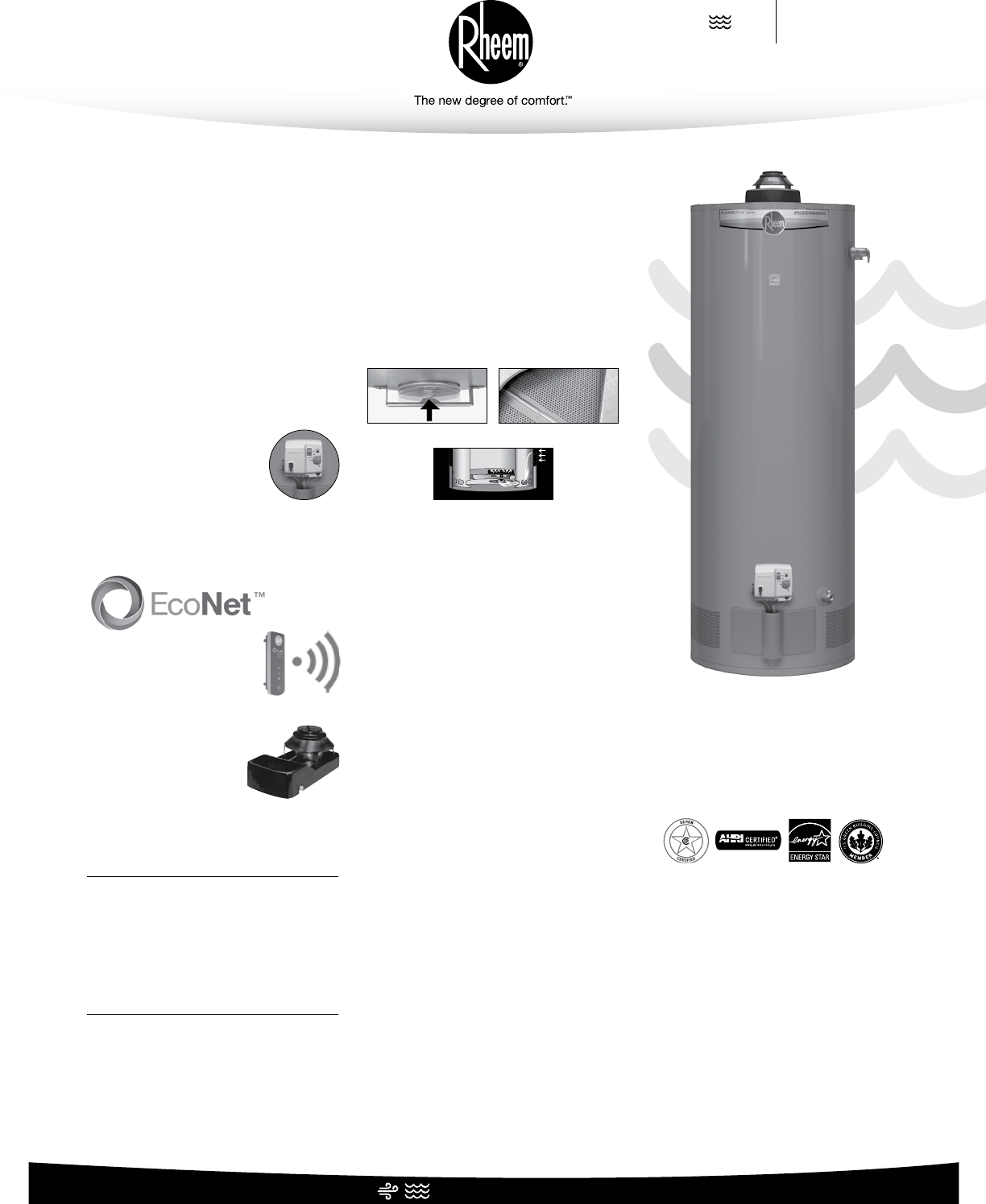

The energy efficient Professional
Classic Plus
™
Powered Damper gas water heaters meet or
exceed the latest ENERGY STAR® requirements
Efficiency
®
Performance
Self-Diagnostic System
Low Emissions
™
Technology
What is a Powered Damper?
Guardian System™ & Sensor
Longer Life
High Altitude Compliant
Plus…
Warranty
™
Professional
Classic Plus
Powered Damper
LEED Point = 1
Water
INTEGRATED HOME COMFORT
Residential Gas
Professional
Classic Plus
Powered Damper Water Heaters
Maintenance Free
Flame Arrestor PlateCombustion Shut-off System
See specifications chart on back.
Energy Factor based on D.O.E. (Department of Energy) test procedures.
DESCRIPTION FEATURES ROUGHING IN DIMENSIONS (SHOWN IN INCHES) ENERGY INFO.
T HT. TO WATER HT. TO WATER
Y GAS INPUT IN RECOVERY IN FIRST HOUR HT. TO TANK GAS VENT CONN. SIDE T&P CONN. SHIP. ENERGY
P GAL. MODEL THOUS. BTU/H G.P.H. 90° RISE DEL. G.P.H. VENT HT. DIAM. CONN. SIZE CNTR. VALVE SIZE WT. FACTOR
E CAP. NUMBER NAT. LP NAT. LP NAT. LP A B C D E F G H (LBS) NAT. LP
Tall 38 PRO+G38-40N RH69 PD 40 – 40.4 – 68 – 62-3/4 57-3/4 19-3/4 14 3 or 4 8 52-1/4 3/4 140 0.69 –
Tall 38 PRO+G38-36P RH69 PD – 36 – 36.4 – 68 62-3/4 57-3/4 19-3/4 14 3 or 4 8 52-1/4 3/4 140 – 0.69
Tall 50 PRO+G50-40N RH67 PD 40 – 40.4 – 84 – 63 58 21-3/4 14 3 or 4 8 52-1/2 3/4 160 0.67 –
Tall 50 PRO+G50-36P RH67 PD – 36 – 36.4 – 84 63 58 21-3/4 14 3 or 4 8 52-1/2 3/4 160 – 0.67
Tall 50 PRO+G50-50N RH67 PD 50 – 50.5 – 87 – 63-1/2 58 21-3/4 14 4 8 52-1/2 3/4 160 0.67 –
Short 40 PRO+G40S-40N RH67 PD 40 – 40.4 – 72 – 55-1/2 50-1/2 21-3/4 14 3 or 4 8 44 3/4 140 0.67 –
Short 40 PRO+G40S-36P RH67 PD – 36 – 36.4 – 72 55-1/2 50-1/2 21-3/4 14 3 or 4 8 44 3/4 140 – 0.67
Short 50 PRO+G50S-40N RH67 PD 40 – 40.4 – 89 – 55-1/2 50-1/2 23-3/4 14 3 or 4 8 44 3/4 160 0.67 –
Short 50 PRO+G50S-36P RH67 PD – 36 – 36.4 – 89 55-1/2 50-1/2 23-3/4 14 3 or 4 8 44 3/4 160 – 0.67
PRINTED IN U.S.A. 03/15 WP FORM NO. PRO+G RHPD Rev. 1
INTEGRATED HOME COMFOR
T
INTEGRATED HOME COMFORT
In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.
Rheem Water Heating • 101 Bell Road
Montgomery, Alabama 36117-4305 • www.rheem.com
Water
INTEGRATED HOME COMFORT
Residential Gas
Professional
Classic Plus
Powered Damper Water Heaters
Professional
Classic Plus

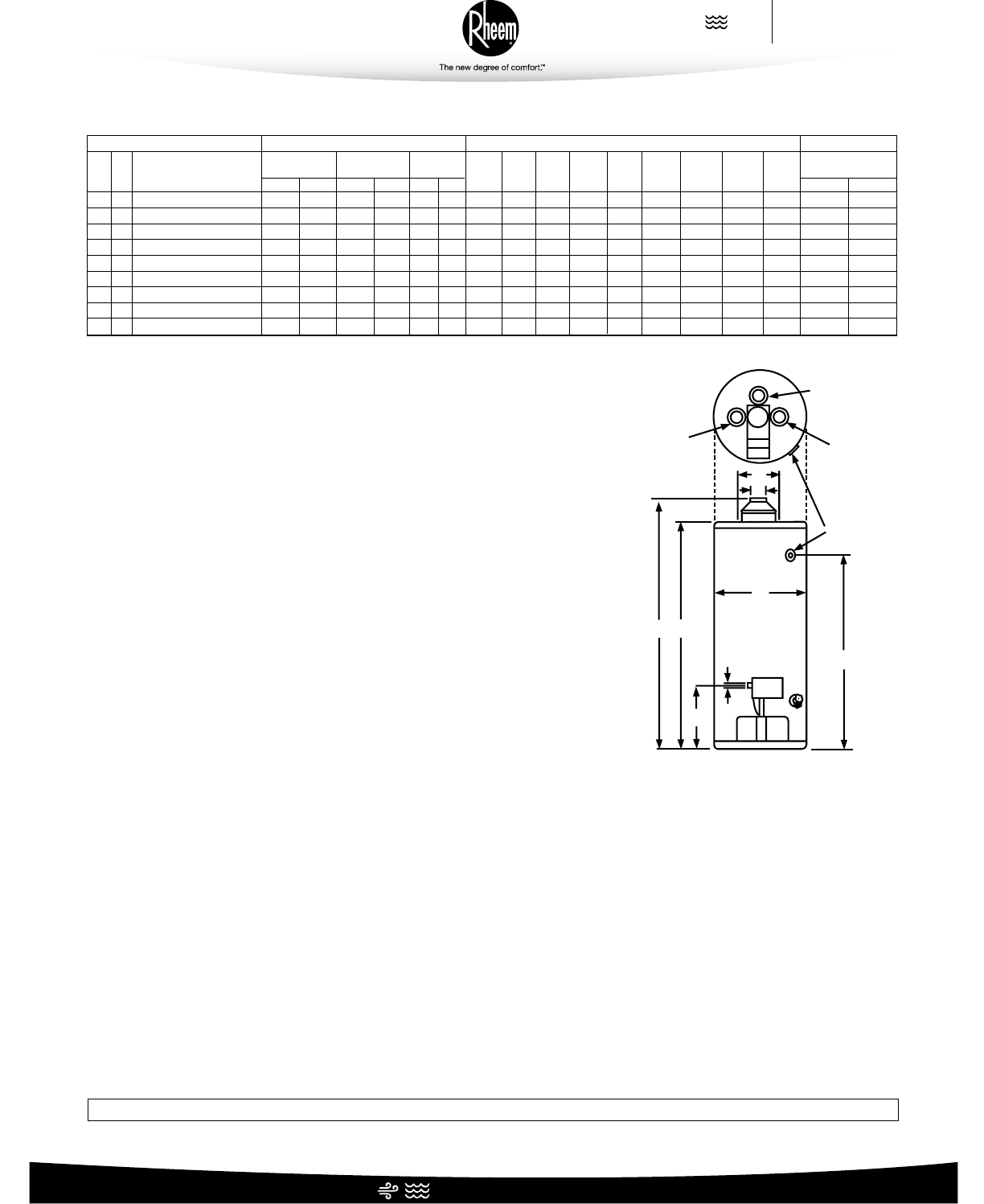

™ Powered Damper Specifications
E
G
BA
C
F
H
HOT
WATER
CONNECTION
H
COLD
WATER
CONNECTION
D
1/2"
3/4" N.P.T.
RELIEF
VALVE
OPENING
ANODE ROD
