Rhine Electronics Co 7096T Transmitter of Remote Control User Manual 20080129 UC7096T
Rhine Electronics Co Ltd Transmitter of Remote Control 20080129 UC7096T
User manual
1/1
INSTRUCTIONS FOR OPERATION
UC7096T : SETING THE OPERATING CONTROLS
1.This unit operates on AAA 1.5 volts battery*4 (not included).(We use AAA battery*4)
To prevent possible damage if the battery should leak , be sure to remove
the battery when the unit is not use .
2. Store the controller away from excess heat or humidity .
3. This remote control unit is required with 16 code combinations. To prevent
possible interference from or to other remote units such as garage door
openers, car alarm or security system . If you find that your fan and light
kit go on and off without using your control , simply change the combination
code in your transmitter and receiver .
4.Operation buttons on the panel of transmitter .
FAN(D) key – For fan speed control
甲、 HIàMEDàLOWàOFFà Cycle Operation
FAN AUTO key – Auto temp. set-up à manual à cycle set-up
甲、 Temp. of indoor is lower than set-up temp. OFF
乙、 Temp. of indoor is lower than set-up temp. 0~2℃ LOW SPEED
丙、 Temp. of indoor is lower than set-up temp. 2℃或 4℉ MED SPEED
丁、 Temp. of indoor is lower than set-up temp. 4℃或 8℉ HI SPEED
TIMER key – Set timer option of FAN OR LIGHT
HOUR ▲ key – Have time or temp. up.
HOUR ▼ key – Have time or temp. down.
FAN/REV key – Fan reverse control
LIGHT(@) key – For light brightness and ON/OFF control .
LIGHT DELAY key – Auto off after 3 mins.
5.Start the fan and Turn off the fan:
Press the selected speed button to run the fan at the desired .
6.Light control :
Turn the light on or off by only touching the LIGHT CONTROL button .
Keep pressing the button in excess of 0.7 second it becomes a dimmer ,
the light varies cyclically in 0.8 second .
2/2
GENERAL INFORMATION :
This REMOTE controller is designed to separately control your
ceiling fan speed and light brightness .
The Light ON/OFF button will control the light brightness ON/OFF .
INSTRUCTIONS FOR INSTALLATION AND OPERATION OF FAN SPEED
CONTROLLER
A. Setting the code on your new transmitter .

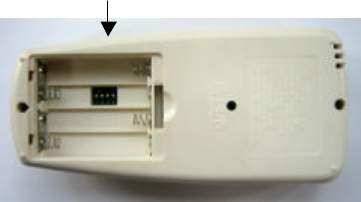

1. Remove battery cover .
Press firmly below arrow and slide battery cover off .
2. Slide code switches to your choice of UP and DOWN position .
Factory setting is all UP . Do not use this setting .
Use ball point pen or small screwdriver .
Slide firmly up or down .
B. Setting the code on your new Receiver unit .
1. Slide code switches to the same positions as set on your transmitter .
They must be set to same positions to work .
2. Replace battery cover on transmitter .
3. Make sure the code switches are on the left positions .
NOTICE :
The changes or modifications not expressly approved by the
party responsible for compliance could void user’s authority
to operate the equipment .
ＴＨＩＳ ＤＥＶＩＣＥ ＣＯＭＰＬＩＥＳ ＷＩＴＨ ＰＡＲＴ １５ ＯＦ ＴＨＥ ＦＣＣ ＲＵＬＥＳ． ＯＰＥＲＡＴＩＯＮＳ ＩＳ
ＳＵＢＪＥＣＴ ＩＮＴＥＲＦＥＲＥＮＣＥ ＡＮＤ （２） ＴＨＩＳ ＤＥＶＩＣＥ ＭＵＳＴ ＡＣＣＥＰＴ ＡＮＹ ＩＮＴＥＲＦＥＲＥＮＣＥ
ＲＥＣＥＩＶＥＤ， ＩＮＣＬＵＤＩＮＧ ＩＮＴＥＲＦＥＥＲＥＮＣＥ ＴＨＡＴ ＭＡＹ ＣＡＵＳＥ ＵＮＤＥＳＲＩＥＤ ＯＰＥＲＡＴＩＯＮ．
