INSTRUCTIONS FOR OPERATION
SETING THE OPERATING CONTROLS
1. This unit operates on a 3 volts battery (not included).
To prevent possible damage if the battery should leak , be sure to remove
the battery when the unit is not use .
2. Store the controller away from excess heat or humidity .
3. This remote control unit is required with 24bit code combinations. To prevent
possible interference from or to other remote units such as garage door
openers, car alarm or security system .

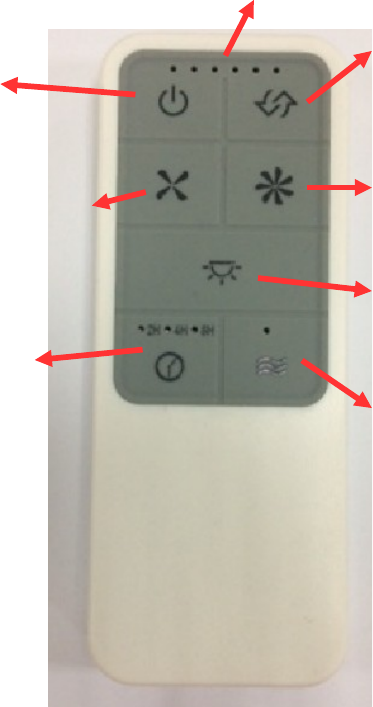

4. Operation buttons on the panel of transmitter .
LED display
REV button – Fan reverse
FAN OFF button - Warm weather/Cool weather
FAN OFF
FAN SPEED DOWN button – FAN SPEED UP button –
fan speed (speed 6 to 1) Fan speed (speed 1 to 6)
LIGHT button -
Light ON/OFF or Dimmer
FAN TIMING button-
2 hour/ 4 hour / 8 hour
Natural wind button-
Natural wind function Start/stop
1060718
1

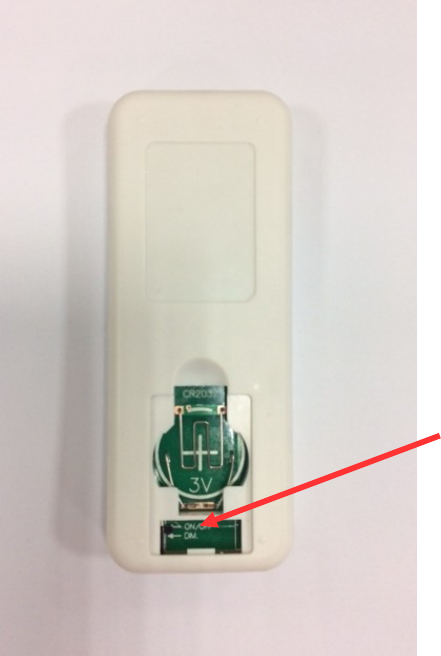

Light set Switch –
For set light dimmer type
or light ON/OFF type control .
5. Start the fan
Press the FAN speed button .
6. Turn off the fan :
Press the OFF button .
7. Light control :
Turn the light on or off by only touching the LIGHT CONTROL button .
Keep pressing the button in excess of 0.7 second it becomes a dimmer ,
the light varies cyclically in 0.8 second .
8. Timing set :
2H : 2 hours later, the fan is off
4H : 4 hours later, the fan is off
8H : 8 hours later, the fan is off
GENERAL INFORMATION :
This REMOTE controller is designed to separately control your
ceiling fan speed and light brightness . The Light
ON/OFF button will control the light brightness ON/OFF .
The LED indicator on the transmitter will light when the Function button is pressed .
1060718
2
INSTRUCTIONS FOR INSTALLATION AND OPERATION OF FAN SPEED
CONTROLLER
1. Setting the code on your new transmitter .
Within 60 seconds of turning the AC power on, press and hole the FAN ON/OFF
button for 5 seconds. The receiver will then lock in the chosen frequency.
If your fan has a light it it will blink twice, for fans without lights check operation using the
transmitter
