Ringway Tech ALLEGROIII DIGITAL PIANO User Manual
Ringway Tech(Jiangsu) Co.,Ltd. DIGITAL PIANO
User Manual
owner's manual
3
ALLEGRO III DIGITAL PIANO
WILLIAMSPIANOS.COM

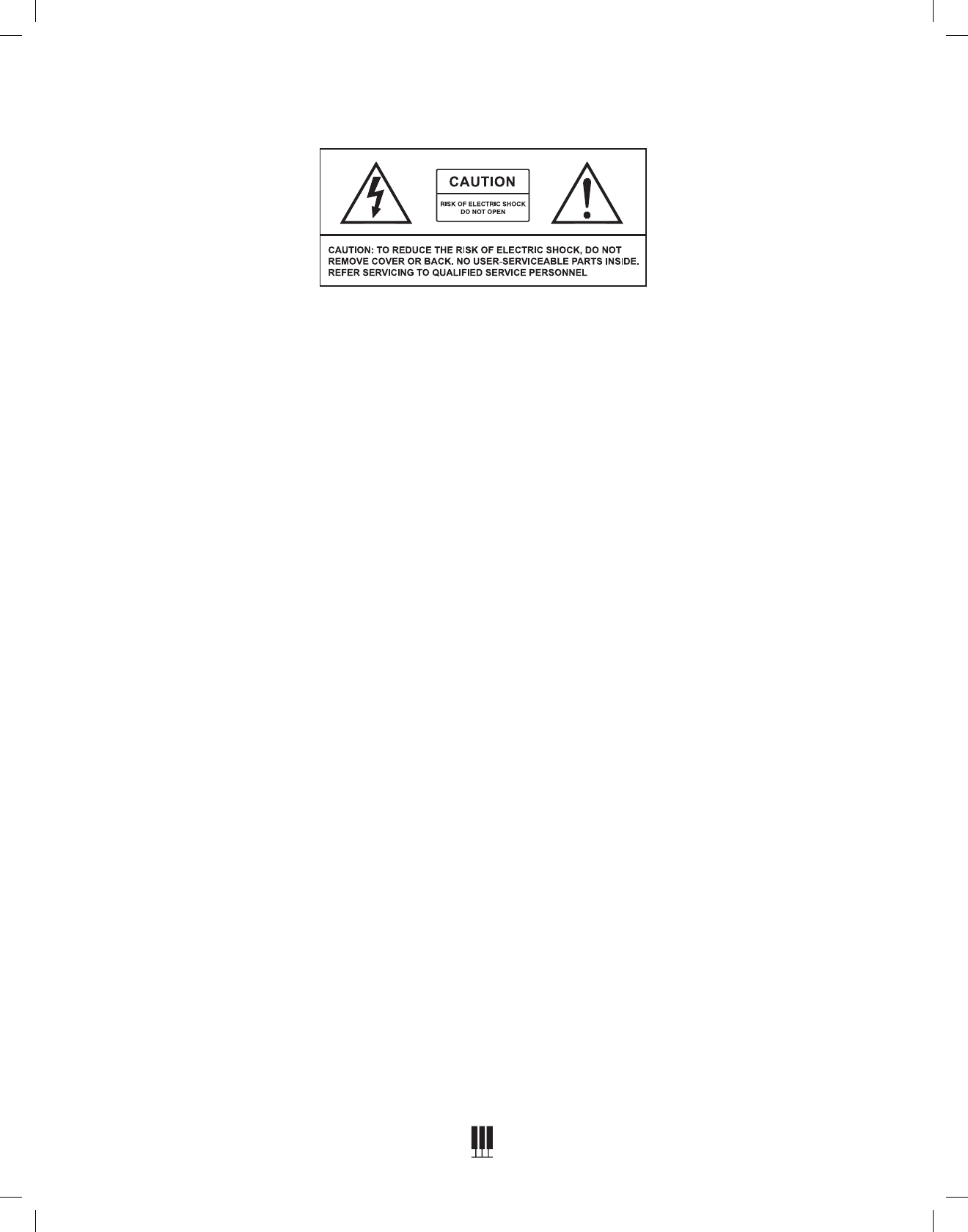

IMPORTANT SAFETY INSTRUCTIONS
• Do not use near water.
• Clean only with a soft, dry cloth.
• Do not block any ventilation openings.
• Do not place near any heat sources such as radiators, heat registers, stoves, or any other apparatus (including
ampliers) that produces heat.
• Do not remove the polarized or grounding-type plug.
• Protect the power cord from being walked on or pinched.
• Only use the included attachments/accessories.
• Unplug this apparatus during lightning storms or when unused for a long period of time.
• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
FCC STATEMENTS
1. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
2. NOTE: This equipment has been tested and found to comply with the for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.
4
OWNER'S MANUAL
INTRODUCTION
Congratulations! You have just purchased a state-of-the-art digital piano that provides remarkable acoustic
sound and feel. We recommend that you read through this owner's manual carefully, so you can get the most
enjoyment from your new piano.
Features:
• 88 weighted, velocity-sensitive keys
• 10 piano & keyboard sounds
• Metronome feature with variable tempo to facilitate practice or recording
• Demo songs corresponding to each voice
•Bluetooth and USB MIDI connections
•Stereo/mono line out jacks
•Battery Operation (batteries are not included).
•Stereo aux input
• Includes power supply, sustain pedal, and music rest
BEFORE YOU GET STARTED
Shipment
Your piano was carefully packed at the factory, and the packaging was designed to protect the unit from
rough handling. Nevertheless, we recommend that you carefully examine the packaging and its contents for
any signs of physical damage that may have occurred during transit.
• If the unit is damaged, notify us immediately at Williams Product Support: (888) 241-1582
• Always use the original packing carton to prevent damage during storage or transport.
• Make sure that no children are left unsupervised with the piano or its packaging.
• Please ensure proper disposal of all packing materials.
INITIAL OPERATION / QUICK START
• Insert the AC Adapter into the barrel jack into the back panel. Then plug in the power cord
into an 110V supply.
• Insert the supplied music rest into the two slots on the top panel.
•Plug the Sustain pedal into the Sustain Jack on the back panel of the piano.
•Set the piano on a secure, at surface at a comfortable height for playing.
• Press the power button on the left side of the front panel. The LED on the button will light.
•Press the Voice Select button for the desired voice.
• Adjust the volume control
5
ALLEGRO III DIGITAL PIANO
WILLIAMSPIANOS.COM
IMPORTANT SAFETY INSTRUCTIONS ............. 3
INTRODUCTION ................................................. 4
BEFORE YOU GET STARTED ............................ 4
INITIAL QUICK START ....................................... 4
TAKING CARE OF YOUR DIGITAL PIANO ........ 6
TOP PANEL ......................................................... 7
BACK PANEL ...................................................... 8
BOTTOM PANEL ................................................ 8
OPERATIONS ...................................................... 9
SELECTING VOICES ................................. 9
LAYER MODE ............................................ 9
SPLIT MODE .............................................. 9
DEMO SONGS .................................................. 10
METRONOME .......................................... 10
RECORDING ..................................................... 11
TUNING ............................................................ 11
EFFECTS ........................................................... 11
MOD FX ............................................................. 12
EQ ............................................................. 12
ADVANCED FUNCTIONS ................................. 13
BLUETOOTH MIDI ................................... 13
TOUCH SENSITIVITY .............................. 13
MIDI .................................................................. 13
SPECIFICATIONS ............................................. 15
MIDI IMPLEMENTATION CHART .................... 17
WARRANTY ...................................................... 18
TABLE OF CONTENTS
6
OWNER'S MANUAL
TA K I NG CARE OF YOUR DIGITAL PIANO
This Williams Allegro III digital piano will provide years of musical enjoyment if you follow the suggestions
listed below.
Product Servicing
This product should be serviced by qualied service personnel when:
• The power supply cord or the plug has been damaged.
• Liquid has been spilled into the unit or it has been exposed to rain.
• The instrument does not appear to operate normally or exhibits a marked change in performance.
• The instrument has been dropped or the cabinet has been damaged.
• Please contact support@williamspianos.com for parts and service information.
Handling and Transport
• Never apply excessive force to the controls, connectors or other parts of the instrument.
• Always unplug cables by gripping the plug rmly, not by pulling on the cable.
• Disconnect all cables before moving the instrument.
• Physical shocks caused by dropping, bumping, or placing heavy objects on the instrument can result in
supercial or operational damage.
• Carefully check the volume control before playing. Excessive volume can cause permanent hearing loss
Cleaning
• Clean the cabinet and panel with a soft, dry cloth. Do not use paint thinner or petrochemical
based polishes.
• To maintain the luster of the keys and buttons, wipe with a clean, lightly dampened cloth, and then
polish with a soft, dry cloth.
Location
• To avoid deformation, discoloration, or more serious damage, do not expose the instrument to
the To avoid deformation, discoloration, or more serious damage, do not expose the instrument
to the following conditions: Direct sunlight, high temperatures, excessive humidity, excessive dust,
strong vibration.
• Leave enough space around the piano for proper ventilation.
• This instrument contains digital circuitry and may cause or be susceptible to interference if placed
too close to radio, television receivers, or mobile phones. If interference occurs, move the instrument
further away from the affected equipment.
• Avoid placing vinyl objects on top of the instrument, vinyl can stick to and discolor the surface.
Power
• Turn the power off when the instrument is not in use.
• To avoid damage to the instrument and other devices to which it is connected, turn the power of
all related devices off prior to connection or disconnection of MIDI cables.
• Turn the power off if the main cable is damaged, or the instrument has been exposed to liquid.
• Do not switch the unit on and off in quick succession, as this places an undue load on the
electronic components.
• Unplug the AC power adapter during an electrical storm.
• Avoid plugging the AC power adapter into the same AC outlet as appliances with high power
consumption, such as electric heaters or ovens
7
ALLEGRO III DIGITAL PIANO
WILLIAMSPIANOS.COM
Power On/Off
Volume Knob
Controls the overall output volume of the piano.
EQ Low / High
Adjusts the EQ to add or subtract bass and treble
Bluetooth
Enables Bluetooth Wireless MIDI
Metronome
Turns the Metronome on and off.
Transpose
Transposes the key of the piano.
Octave
Transposes the range of the piano keys 1 octave
higher or lower.

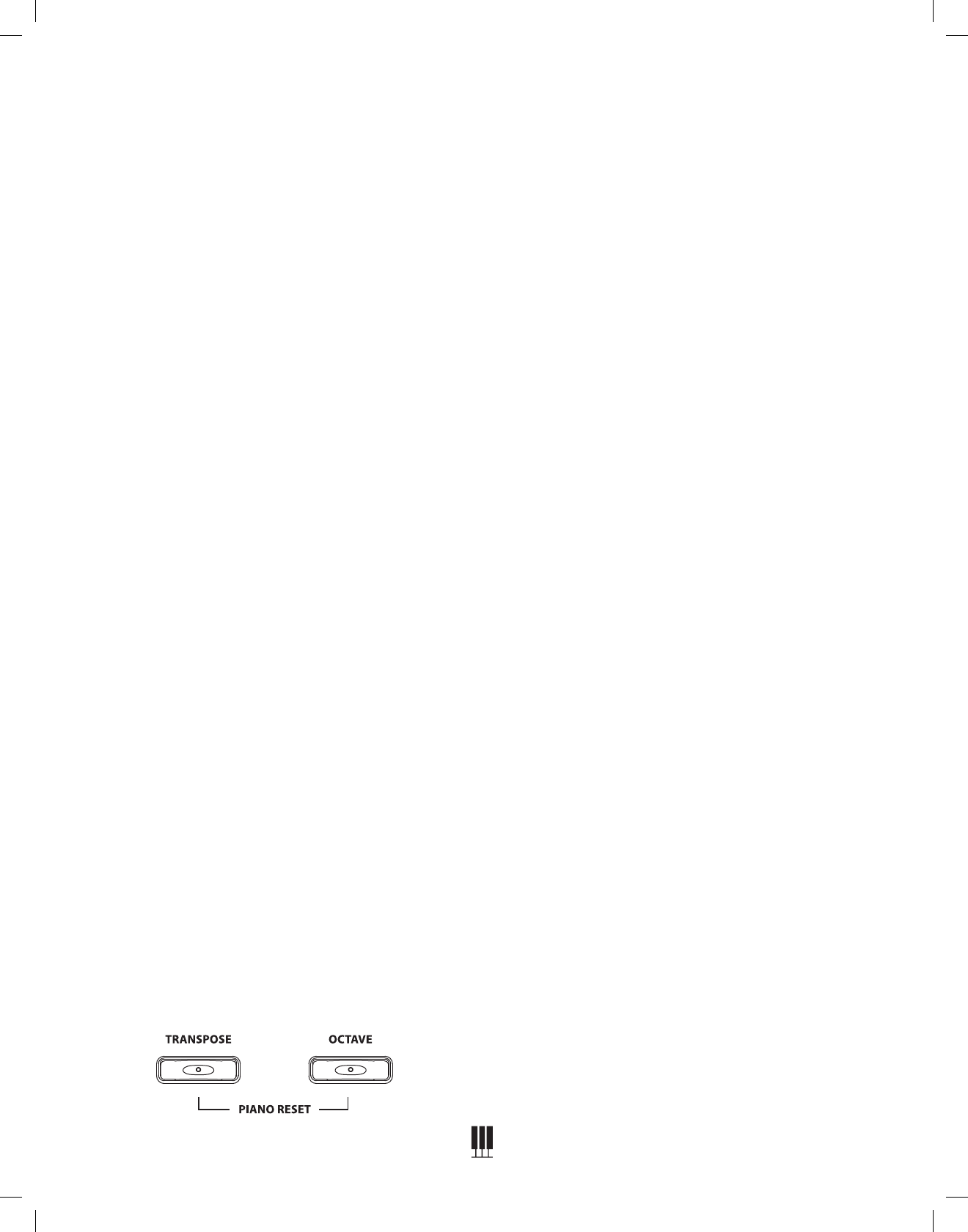

Piano Reset
Pressing the Transpose and Octave buttons
simultaneously will reset the transpose and octave
functions to factory settings.
Function Button
Selects various functions in the Piano.
10-key function
Note that the buttons on the right side of the piano
form a 10-key pad. Piano is 1, Electric Piano is 2,
etc. These buttons can be used to enter values on
the piano.
Song
Pressing the Song button and then the Voice
buttons selects which song will play.

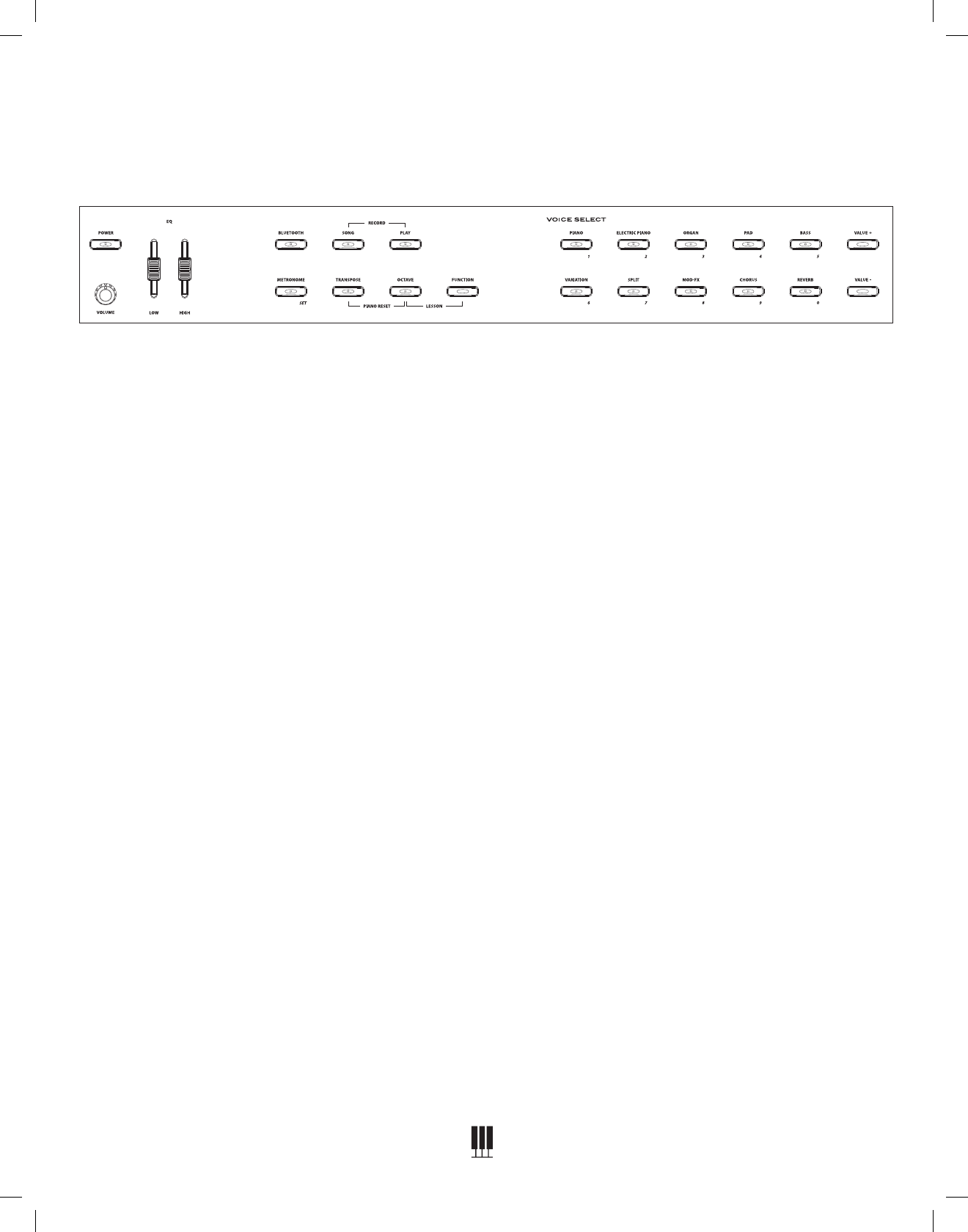

TOP PANEL
Record
Pressing the Song and Play buttons simultaneously
will start the recording function.
Play
Pressing Play will play back the song you recorded.
Voice Select Buttons
(PIANO, ELECTRIC PIANO, ORGAN, PAD, BASS)
Pressing these buttons will switch on the sound that
is associated with the names printed above them.
Variation Button
This will allow you to switch between the original
and variation sounds. When the blue LED is lighted
the sound will be the variation sound.
Split Button
Splits the keyboard with different sounds on the
right and left side.
Reverb Button
Transposes the key of the piano.
Chorus Button
Turns on and off the Chorus effect assigned to
the voice.
Mod FX Button
Turns on and off the Modulation effect assigned
to the voice.
Value +/-
Changes the selected setting
8
OWNER'S MANUAL
BACK PANEL
USB Input
The USB connection supports Class
Compliant MIDI Drivers to use with MIDI
Sequencer applications.
AC Adapter Input
Connection for the optional AC power adapter.
Sustain Pedal Input
The sustain pedal for Allegro III will function
in a similar method as an acoustic piano
sustain pedal. (It will also function as a Mod FX
expression pedal for organ sounds.) Using this
pedal will allow the piano key sounds to decay
slowly. A piano-style pedal may optionally be
used. The jack will auto-detect the polarity of
the sustain pedal: Plug in the pedal and then
turn on the Allegro III. It will auto-sense the
correct polarity as it starts up.
Headphone
The headphone socket disconnects the
speakers when headphones are connected.
Stereo/ Mono Line Out ¼” Jacks
The output jacks supply a line-level signal for
external amplication. Use both jacks for stereo
or just the Left jack for mono.
Aux In
The stereo 1/8” aux input sends that signal to
the headphones, line outputs, and speakers.
When interacting with an app, plug an aux cable
from the headphone jack of your device to the
Aux Input. This allows all of the audio to play
back from the same place.
BOTTOM PANEL
The product can be powered via an AC power adapter or battery. If batteries are inserted while
the unit is powered from a power supply, no power will be drawn from the batteries. The Allegro III
requires 6 D cell batteries for operation.
9
ALLEGRO III DIGITAL PIANO
WILLIAMSPIANOS.COM
OPERATIONS
Most of the front panel buttons are very straight
forward and easy to select for general functions.
In cases where you want to edit settings in
more depth you will need to use the front panel
buttons as well as the Function button and
Value buttons to change parameters.
Powering on Allegro III
Press and hold the POWER button in the upper
left corner of the front panel for two seconds.
The LED light in the button will stay on when
the piano is on. This product has a power
standby mode. If the piano turns off while you
are not playing it, this is likely due to the Power
mode being set to Auto Power off. To turn off
this function, hold the Function button and
press F#2 on the keyboard (below middle C).
Selecting Voices
The Allegro III piano has 10 built-in voices. Each
voice may be selected one at a time. They can
be layered to produce two voices at once, or
assigned to the left or right hands in the split
mode.
To select a voice, press the Voice Select button
that relates to the sound listed above the
button. The button will light and the LED will
indicate the selection.
Each voice has a variation sound. To select
that sound, rst select the voice then press the
Variation button.
Original Voice Variation Voice
1. Grand Piano Bright Piano
2. Tine Electric Piano Reed Electric Piano
3. Perc. Organ Full Drawbar Organ
4. String Pad Synth Pad
5. Acoustic Bass Electric Bass
Layer Mode
To layer two sounds, press the corresponding
voices simultaneously. For example, hold
PIANO and press PAD to hear piano and strings
layered together. Both voice LEDs will light up
to indicate that they are layers.
To layer a sound with a variation:
1. Press and hold the rst sound button
e.g. PIANO)
2. Press the layer sound button (e.g. PAD)
3. Still holding the rst button (PIANO), press
the VARIATION button.
To return to normal, single voice mode, press a
single Voice button.
To layer a sound and a variation (e.g. Tine
E Piano and Reed E Piano), press the Voice
Select button twice. The button will ash to
indicate the layer.
To Change the Layer Volume Level
1. Press and hold the Variation button.
2. Press the + and - buttons to adjust the
layer volume.
To Change the Main Voice Volume Level
1. Press and hold the Piano button.
2. Press the + and - buttons to adjust the main
layer volume
SPLIT MODE
Split Mode allows the keyboard to be divided
into two sections so that different voices may
be played with the left and right hands. The
volume may be independently adjusted for each
voice, the Split Point (the highest note played
with the left hand) may be adjusted and the
Split Voice may be changed as desired.
10
OWNER'S MANUAL
To Enter Split Mode
Press the [SPLIT] button. The Split (left hand)
voice will be the last Split Voice used and
the Split Point will be B2 (an octave below
middle C.)
To Change The Lower Split Volume
To adjust the lower split volume, press and hold
the Split button and press the Value + and Value
– buttons.
Change The Split (Left Hand) Voice
Press and hold the Split button while
depressing the desired Voice Select button.
Change The Main (Right Hand) Voice
Simply press another Voice Select button.
To Change the Split Point
Hold the Split button and then press a key on
the keyboard to determine the split point. This
key will be the top key of the lower split.
To Change the Split (Left Hand) Octave
When Split mode is on, changing the octave
adjusts the lower split. Press and hold the
Octave button then press the Value + or
Value – button.
To Turn Off Split Mode
Press the Split button. The Split Button LED will
switch off to show that it is disabled.
DEMO SONGS
The Allegro III comes with 10 demo songs as
well as the ability for you to play and record
your own song. When you record your own
song the recording will be retained until you
either record a new song or tif you reset the
Allegro III back to factory settings.
To Play A Demo Song
Press the Song button and then the
corresponding Voice select button. See list
below of the demo songs.
Metronome Function
Press the Metronome button to turn on the
metronome. The LED will light. You will hear
the click in headphones or speakers. Press the
Metronome button again to exit metronome
function. The LED will turn off.
To Change Metronome Time Signature
1. Press and hold the Metronome button, then
press and hold one of the 10-key buttons on
the right side of the panel. For example, for
3/4 meter hold the Metronome and 3 (Organ)
buttons for two seconds. See the chart below
for details.
Press and Hold Result
1 None
22/4 or 2/8
33/4 or 3/8
4 4/4 or 4/8
55/4 or 5/8
66/4 or 6/8
77/4 or 7/8
8Quarter (x/4) or
Eighth (x/8) meter
99/4 or 9/8
10 None
2. For an eighth meter (6/8, 7/8, etc), press and
hold the metronome and 8 (Mod FX) buttons.
To switch back to quarter meters, press
Metronome and 8 again.
The default meter is 4/4. The following options
are available: 2/4, 3/4, 4/4 (default), 5/4, 6/4,
7/4, 9/4, 2/8, 3/8, 4/8, 5/8, 6/8, 7/8, 9/8
To Change the Metronome Volume
To adjust the volume of the metronome in
balance with the piano sound, press and
hold Metronome and press the Value + or
Value – button.
11
ALLEGRO III DIGITAL PIANO
WILLIAMSPIANOS.COM
Metronome Tempo Setting
While the metronome is on, pressing the Value
+ and – buttons changes the tempo.
To specify a tempo, press and hold the
Metronome buttons and enter the three digit
tempo using the 10-key pad. For example, hold
Metronome and press 0-9-2 for 92bpm.
Transpose Function
To transpose the piano keyboard by +12 or
-12 semitones, press and hold the Transpose
button and play a key around middle C of
the keyboard. Transpose + middle C is no
transposition. Transpose + Eb above middle C
transposes the piano sharp by 3 semitones.
The button will light up to show that the feature
is active. To disable transposition, press the
Transpose button.
Octave
To transpose the piano up or down by one
octave, press and hold the Octave button then
press the Value + or Value – button. The button
will light up to show that the feature is active. To
disable transposition, press the Octave button.
Piano Reset
If you want to quickly reset the keyboard to
the normal transposition and Octave ranges
you can you do this quickly by pressing the
Transpose and Octave buttons simultaneously.
RECORDING
Recording Your Own Song
1. Press the Song and Play buttons
simultaneously.
2. Once you start playing, the button LEDs
will ash to indicate that the recording
has started.
3. When you nish playing, press the SONG and
PLAY buttons again to stop the recorder, or
you can press PLAY only to stop the recorder
and hear your song.
TUNING
To Change Piano Tuning
You may need to adjust the tuning of the piano
by a few cents to match an acoustic instrument
or recording. To do this, hold the Transpose
button and press the Value + or Value – buttons.
EFFECTS
The Reverb, Chorus and ModFX effects may be
applied to each voice individually and will be
retained even when the power is turned off.
To apply these effects, press the associated
button. The button will light and the effect will
be heard when the piano is played.
To turn off the effect press the button of the
desired effect again and the LED light will
go off.
Reverb, Chorus, and ModFX settings are set
per Instrument and retained over power cycling.
Reverb
The reverb effect makes the piano sound like
it is in a large room. To change the reverb mix
amount, hold the Reverb button and press the
Value + or Value – buttons.
Chorus
Chorus effects add shimmering movement to
a voice. The setting can be subtle to extreme.
To change the Chorus depth, hold the Chorus
button then press the Value + or Value – buttons.
12
OWNER'S MANUAL
MOD FX
Modulation effects are designed to add unique
playable sound effects to voices.
In addition to the sounds, the Allegro III has a
new effects section that will allow users to have
more control over their sounds called Mod FX.
These new effects will be inserted into the audio
pathway of the sound to the mixer and will be
preset into the Patch. When you switch on the
specic patch a preset effect will be associated
with the sound. You can then select whether the
effect should be turned off or modied.
The Mod FX Are:
Bank 1 Bank 2 Mod FX
Piano Piano - Bright Tremolo
Electric Piano Electric Piano 2 Tremolo
Organ Organ 2
Rotary
Fast/Slow -
Change with
Sustain Pedal
Pad - Strings Pad - Synth Tremolo
Acoustic Bass Electric Bass None
To turn on the Mod FX function for an
instrument press the ModFX button. The
effect will become active and the ModFX
LED will light.
To turn off the ModFX, press the button again.
The LED on the button will turn off.
Rotary
There is a rotary effect, which is designed
for organ voices. To select the speed of the
rotary, press the sustain pedal with your foot.
Holding down the pedal will speed up the rotary
voice to a tremolo. When the pedal is released,
the speed of the tremolo will slow down to a
choral setting.
Tremolo
When the ModFX effect is active, the Electric
Piano voices will receive a stereo tremolo
effect. The Piano and Pad voices have a mono
tremolo effect.
To Change The Tremolo Depth:
To adjust the tremolo depth, hold the ModFX
button and press the Value + or Value – buttons.
EQ Level Setting
Use the EQ Low and High sliders to change the
EQ for the piano.
Note on Effects
There are more settings available for changing
effects settings in the Williams Piano app for
iOS. It is available on the Apple App Store.
13
ALLEGRO III DIGITAL PIANO
WILLIAMSPIANOS.COM
ADVANCED
FUNCTIONS
Bluetooth MIDI
The Allegro III includes Bluetooth wireless MIDI
for connection to apps like the Williams App
for iOS. To connect the piano to your tablet,
smartphone, or computer:
1. Press the Bluetooth button. If you have not
yet paired a device, the LED will ash quickly.
2. Open the Bluetooth MIDI settings in your app
and select the Allegro III.
NOTE: The Allegro III will not show up in the
“Bluetooth” device list on your phone.
Your app needs to support Bluetooth
MIDI to work with the Allegro III. If the
app doesn't support Bluetooth MIDI,
you can still use it with a USB adapter
3. The Bluetooth button LED should stop
ashing once it is paired with a device.
To disable Bluetooth, press the button again so
that the LED switches off. Bluetooth MIDI allows
you to connect with piano learning apps on a
variety of devices.
Auto Power Save
The Allegro III has a Power saving function
that will shut off the Piano after 30 minutes of
non-use. The default setting is Off, however if
you nd you want this function to work use the
steps below.
1. Press and hold the Function button.
2. Press the F#2 key (F# below middle C)
Factory Reset
Performing a Factory Reset will clear all battery
backed memory and restore all functions to
factory defaults.
1. Turn the Power Off.
2. Press and hold the transpose and octave
buttons.
3. Turn the Power on. All of the LEDs will light
up to show that the piano has been reset.
Touch Sensitivity
You can change the way the keyboard reacts
to your playing by adjusting the Velocity
curve settings
1. Press and hold the Function button.
2. Press F#1, G#1, A#1, or C#2 to select
between Low, Normal, High, or Fixed velocity
curves. Refer to the chart below.
F#1 Low Velocity
G#1 Normal Velocity
A#1 High Velocity
C#2 Fixed Velocity
The default xed velocity is 100. Press Function
and + or - to change it from 1 to 127.
MIDI
The Musical Instrument Digital Interface
(MIDI) is an industry-standard protocol that
enables electronic musical instruments such
as keyboards, computers, drum machines,
etc. to communicate, control, and synchronize
with each other. MIDI transmissions consist of
electronic codes that communicate notes to be
played, the instrument, pitch or intensity that
notes are to be played with, and controlling
codes such as volume, vibrato, cues and clock
signals. The Allegro III has several functions that
facilitate its use as a MIDI device or controller.
MIDI Channels
The Allegro III has 16 channels numbered from
1-16. Each of the channels is responsible for
a voice. When the instrument receives MIDI
information from an external device, the active
channel is determined by the control message.
14
OWNER'S MANUAL
The transmission channels are xed as follows:
Channel 1 Master voice (keyboard)
Channel 2 Split voice (keyboard) Channel 3
Layer voice (keyboard) Local On/Off
Turning the Local On/Off function to “Off” will
disconnect the keyboard from the internal
sound engine of the piano. The Allegro III may
then be used as a MIDI controller to control
other MIDI devices or virtual instrument
software running on a computer, without
playing the sounds on the piano. Additionally,
it may be desirable to turn local playing off for
other requirements such as when using MIDI
sequencing software on your computer.
Local On/Off Setting
1. Press and hold the Function button.
2. Press the D#1 key. When D#1 is rst pressed
the current setting is conrmed by Piano
1 C3 playing once for on and twice for off.
Pressing D#1 again will change the setting
playing Piano 1 C3 the amount of times
equivalent to the new setting.
Multitimbral Mode
The Allegro III is able to receive MIDI information
on up to 16 channels simultaneously. If you
plan to use your piano with a multitrack MIDI
recording system, you can record up to 16
different parts using the Williams Allegro voices,
each played back individually on different MIDI
channels. To ensure your recorded part is
played back with the correct voice make sure
to press the voice button rst and play your
part second.
NOTE: Because the Allegro is receiving
playback information via MIDI, the
currently selected voice on the piano
may not correspond to the voice being
played back.
MIDI Channel Modes
1. Press and hold the Function button
2. Pressing A#0 allows you to change the MIDI
channel. The main piano sound will play
Piano 1 C3 the amount of times equivalent
to the current value. So, if MIDI channel 5 is
selected it will play 5 times. You then press
A#0 ve times to select channel 10. Piano 1
C3 will play the amount of times equivalent
to the current setting, after 2 seconds of
inactivity. Once 16 is reached, pressing one
more time will select 1.
MIDI Panic Reset
1. Press and hold the Function button
2. Pressing C#1 triggers “MIDI Panic” which
sends out general MIDI reset messages such
as all note off, etc. Once Panic reset has
been completed, the piano will automatically
exit Edit mode.
Memory Autosave
When modifying the settings of the Williams
Allegro III the following settings will be saved
after you turn off the keyboard: Reverb, Chorus
(for each voice), Main Volume, Layer Volume,
Split Volume, MIDI Channel, Velocity Curve,
Split Octave, and Auto Power Off.
15
ALLEGRO III DIGITAL PIANO
WILLIAMSPIANOS.COM
SPECIFICATIONS
Keyboard 88 weighted, velocity-sensitive keys
Voices 10
Polyphony 64
Voice Control Layer, Touch, Split, Metronome
Pedals Sustain
Demo Songs 10
MIDI Transmit Settings Local Control
Connectors USB, Sustain Pedal, Aux In, Line Out (L/R), Phones
Dimensions 51.9" x 13.3" x 4.4"
Weight 32.8 lbs.
Supplied Owners Manual, Music Stand
Included Accessories AC Power Adapter, Sustain Pedal, Music Rest
16
OWNER'S MANUAL
KEYBOARD
SHORTCUTS
FUNCTION MODE:
Press and hold Function, then Press one of the keys below.
A#0
MIDI
Channel
C#1
MIDI
Panic
D#1
Local
On/Off
F#1
Soft
Velocity
G#1
Normal
Velocity
A#1
Hard
Velocity
C#2
Fixed
Velocity
F#2
Auto Power
On/Off
C#3
Middle C
17
ALLEGRO III DIGITAL PIANO
WILLIAMSPIANOS.COM
MIDI IMPLEMENTATION CHART
FUNCTION TRANSMITTED RECOGNIZED REMARKS
Basic Default
Channel Changed
Basic Default
Channel Changed
1–16 CH
1–16 CH
Mode Default
Messages
Altered
Mode 3
X
**********
Mode 3
X
X
Note
Number: True Voice
0~127
**********
0~127
0~127
Velocity Note ON
Note OFF
O 9nH,v=1~127
O 8nH,v=0
O 9nH,v=1~127
O 9nH,v=0 or 8nh
After Key's X X
Pitch Bender X O
Control Change 0, 32
1
6
7
10
11
64
66
67
80, 81
84
91, 93
98, 99
100, 101
121
X
X
X
O
X
X
O
X
X
X
X
X
X
X
O
O
O
O
O
O
O
O
O
O
O
O
O
O (*2)
O (*1)
O
Function
Modulation
Data Entry
Volume
Pan
Expresssion
Sustain
Sostenuto
Soft Pedal
DSP Type
Portamento
DSP Depth
NRPN LSB, MSB
RPN LSB, MSB
Reset All Controllers
Program
Change: True
O 0–9
0–9
O 0–9
0–9
System Exclusive X O
System :Song Position
:Song Select
Common :Tune
X
X
O
X
X
X
Aux :Local ON/OFF
:All Notes OFF
Messages :Active Sense
:Reset
O
O
X
O
O
O
X
O
Mode1:OMNI ON,POLY Mode2:OMNI ON,MONO O: Yes
Mode3:OMNI OFF,POLY Mode4:OMNI OFF,MONO X: NO
*1: Registered parameter number:
#0: Pitch sensitivity
#1: Fine tuning in cents
#2: Coarse tuning in half-tones
*2: NRPN 1220h select IFX type 0: off
1: slow rotary
2: fast rotary
3: auto_pan
4: auto_tremelo
NRPN 1230h Enable IFX for current track
NRPN 1237h set global reverb send level if IFX have been enable on this track
NRPN 1238h set global chorus send level if IFX have been enable on this track
18
OWNER'S MANUAL
WARRANTY
Williams provides the following limited warranty,
to the original purchaser: this piano is warranted
to be free from electronic and/or structural
defects in materials and workmanship for a
period of one (1) year from the date of original
purchase. If this Williams piano is defective, at
its option during the warranty period, subject
to the terms of this limited warranty and upon
proof of purchase, Williams will either repair or
replace the listed piano with a same or similar
model of equal age or newer. Any repairs or
modications must be completed by Williams
and/or an authorized agent of Williams. The
warranty obligations as set forth herein shall be
performed free of charge with the exception of
all delivery and shipping expenses. This limited
warranty will not apply to this product in the
case of misuse, abuse, neglect, alterations,
normal wear and tear or other circumstance not
directly attributed to electronic and/or structural
defects in materials or workmanship. Without
limiting the foregoing, this limited warranty will
also be inapplicable to products that have not
been maintained or replaced in accordance with
the manufacturer’s instruction, or to products
from which the serial number has been removed
or altered. If covered defects are found, contact
your authorized Williams dealer with regard
to the alleged defect within ten (10) days of
discovery of the problem.
The foregoing repair or replacement obligation
for defective products shall be the sole and
exclusive remedy of this limited warranty. All
warranties including, but not limited to, the
express warranty and the implied warranties
of merchantability and tness for a particular
purpose are limited to the one (1) year warranty
period. Some states do not allow limitation
on how long an implied warranty lasts, so the
above limitation may not apply to you. There
are no express warranties beyond those stated
here. In the event that applicable law does
not allow the limitation of the duration of the
implied warranties to the warranty period, then
the duration of the implied warranties shall be
limited to as long as is provided by applicable
law. No warranties apply after that period.
Retailer and manufacturer shall not be liable
for damages based upon inconvenience, loss
of use of product, loss of time, interrupted
operation or commercial loss or any other
incidental or consequential damages including
but not limited to lost prots, downtime,
goodwill, damage to or replacement of
equipment and/or property.
1812-18272893
10506474-V1.0
