Ringway Tech HD-10 ELECTRONIC DRUM User Manual HD 10
Ringway Tech(Jiangsu) Co.,Ltd. ELECTRONIC DRUM HD 10
User Manual
Virgin Musical Instruments
Owner s Manual
HD-10

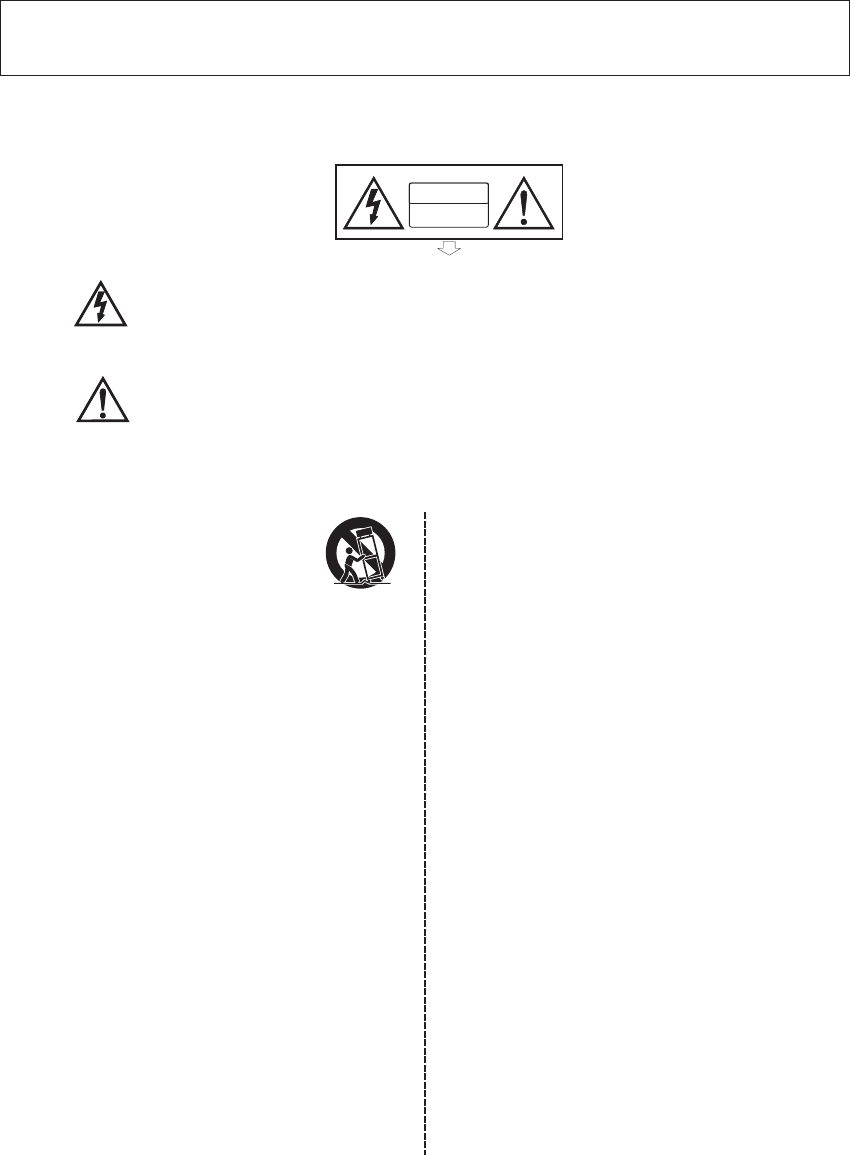

Precaution
Thank you for purchasing this electronic instrument.For perfect operation and
security, please read the manual carefully and keep it for future reference.
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage”within the product s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance(servicing)
instructions in the literature accompanying the product.
Safety Precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in
accordance with the manufacturer s instructions.
8) Do not install near the heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarizedplug hase two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety, if the provided plug does
not fit into your outlet. consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs. convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by
the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over(Figure 1).
13) Unplug this apparatus during lightning storms
or when unused for a long periods fo time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
WARNING: To reduce the risk of fire or electric
shock, do not expose this apparatus to rain or moisture.
CAUTION: Apparatus shall not be exposed to
dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the
apparatus.
(Figure 1)
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Contents
Assembly Instruction............................................................................................
Panel Controls .....................................................................................................
Connect..................................................................................................................

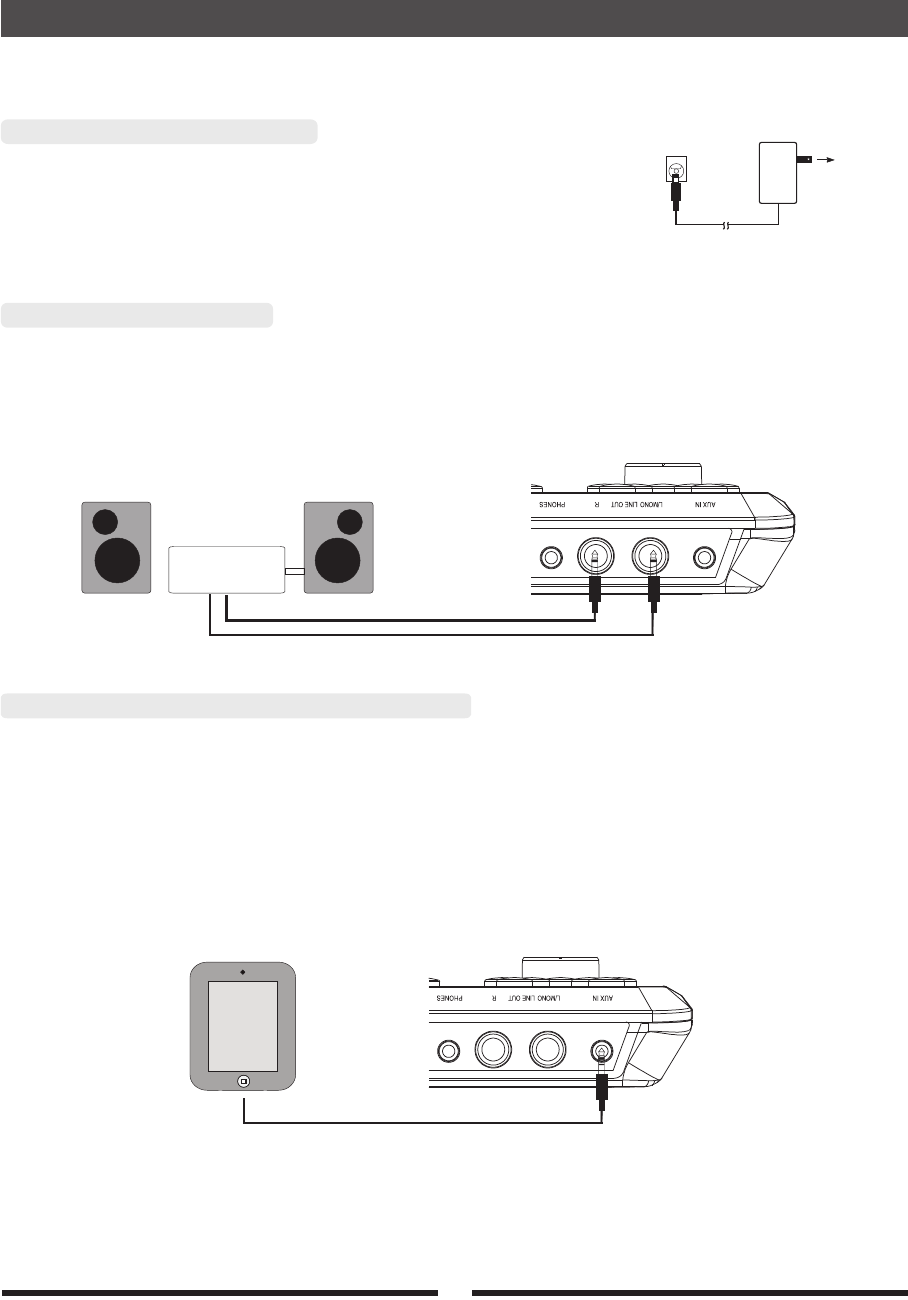

Connecting the Power Supply...........................................................................
Connecting an Amplifier.....................................................................................
Connecting a CD Player, etc.(AUX In jack).......................................................
USB MIDI.........................................................................................................
Using Headphones...........................................................................................
Begin Playing the Drums .....................................................................................

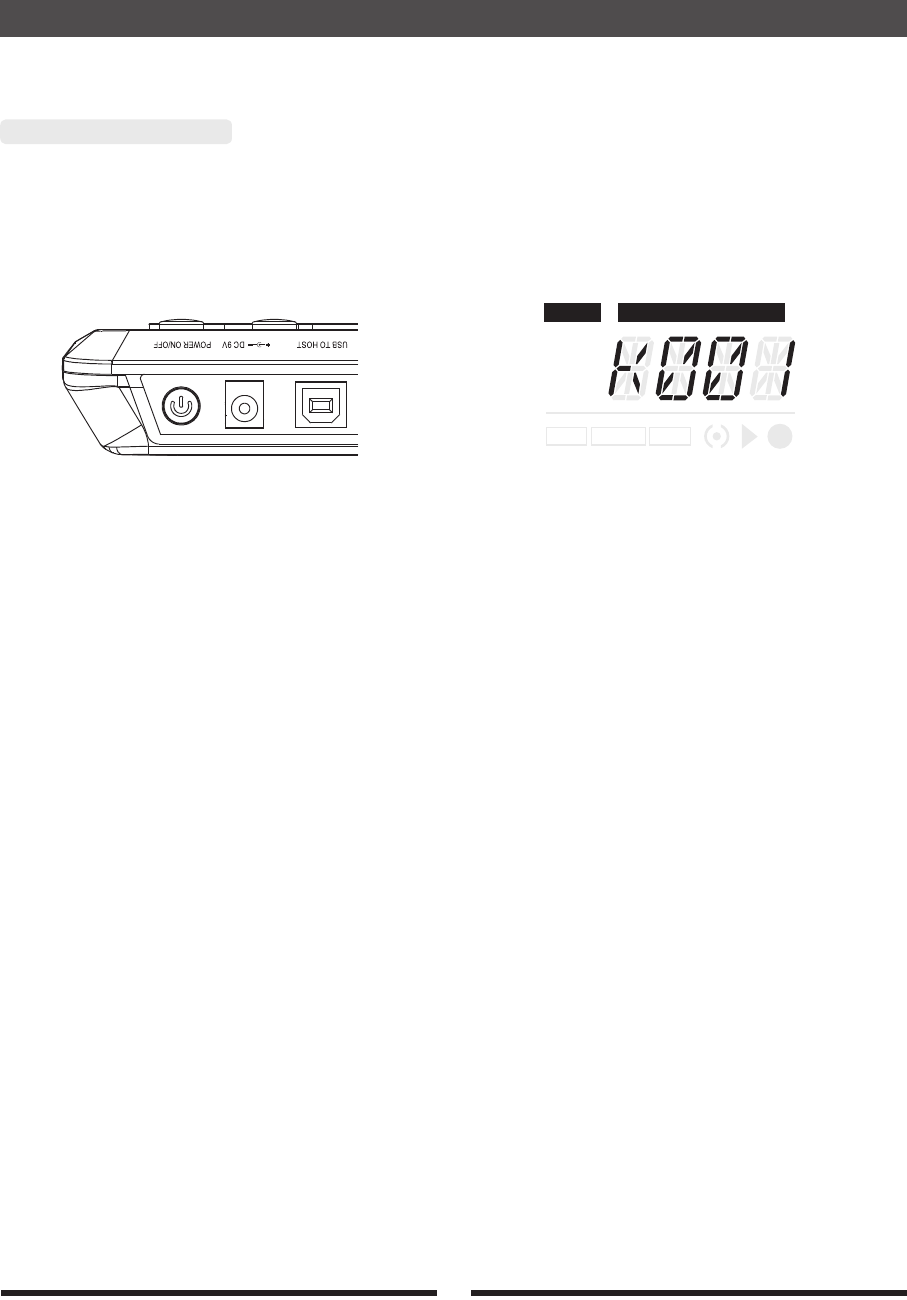

Switch the Power On .......................................................................................
Select Drum Kits .............................................................................................
ENTER Button .................................................................................................
BACK Button ...................................................................................................
Select Kit Edit ..................................................................................................

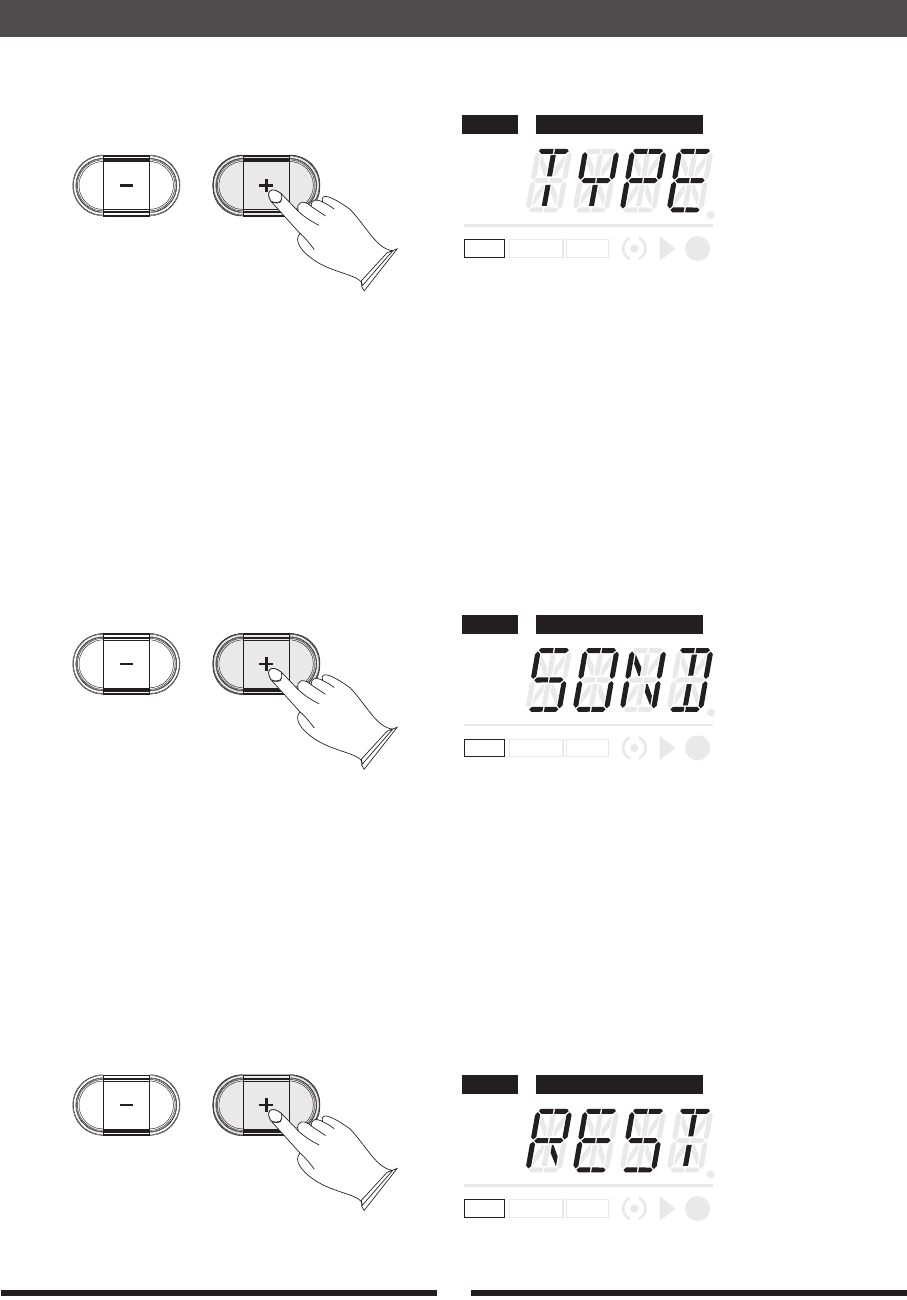

SETUP Button .................................................................................................
SONG Button ..................................................................................................
CLICK Button ..................................................................................................
TEMPO/TAP Button .........................................................................................
Recording Function .........................................................................................

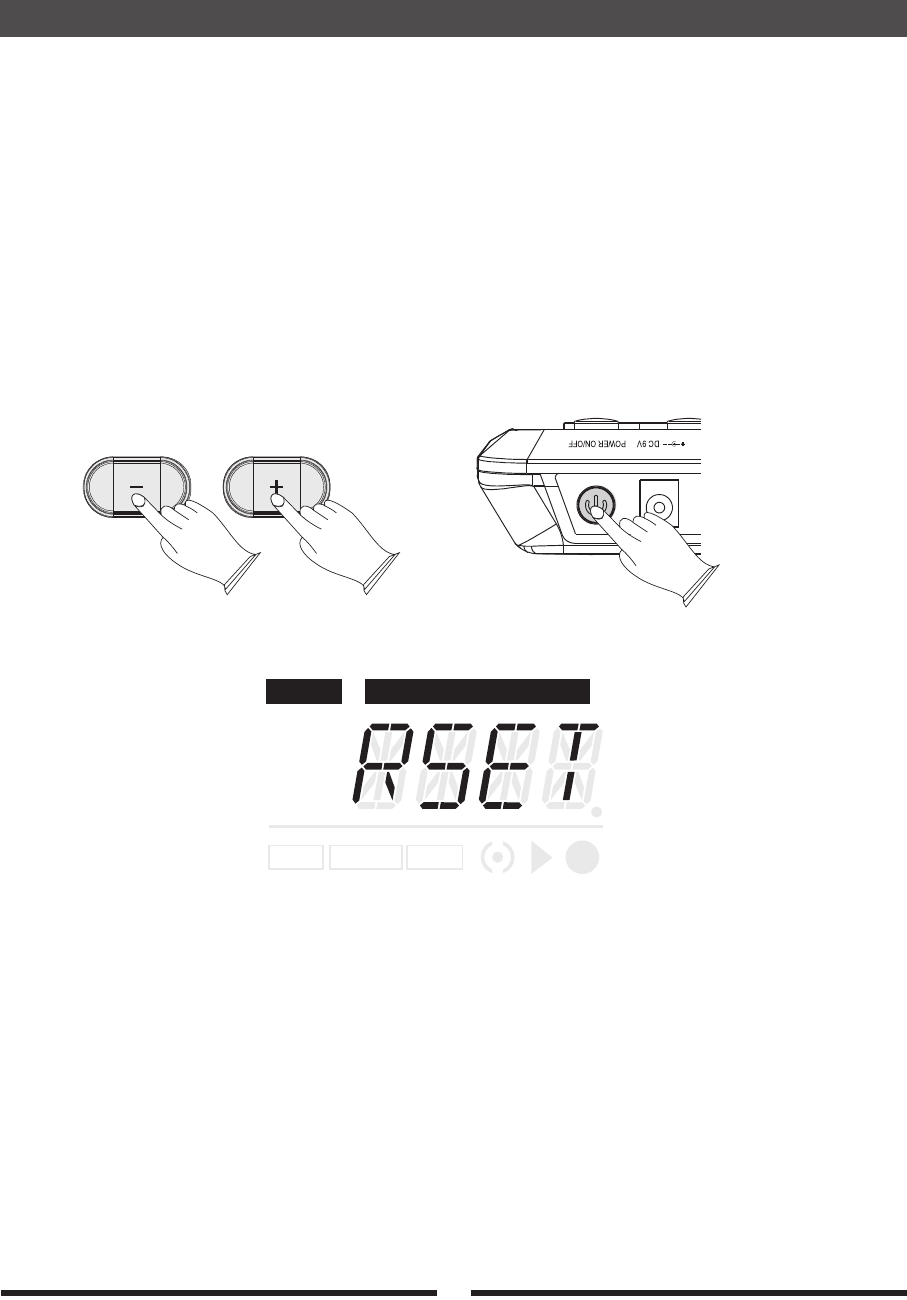

Factory Reset .......................................................................................................
Drum Kits List .......................................................................................................
Voice List ..............................................................................................................
Style List ...............................................................................................................
MIDI Implementation Chart...................................................................................
Specifications .......................................................................................................
1
2
5
9
9
9
9
10
10
11
11
12
12
12
13
17
21
24
26
27
29
30
31
35
36
37
2
1

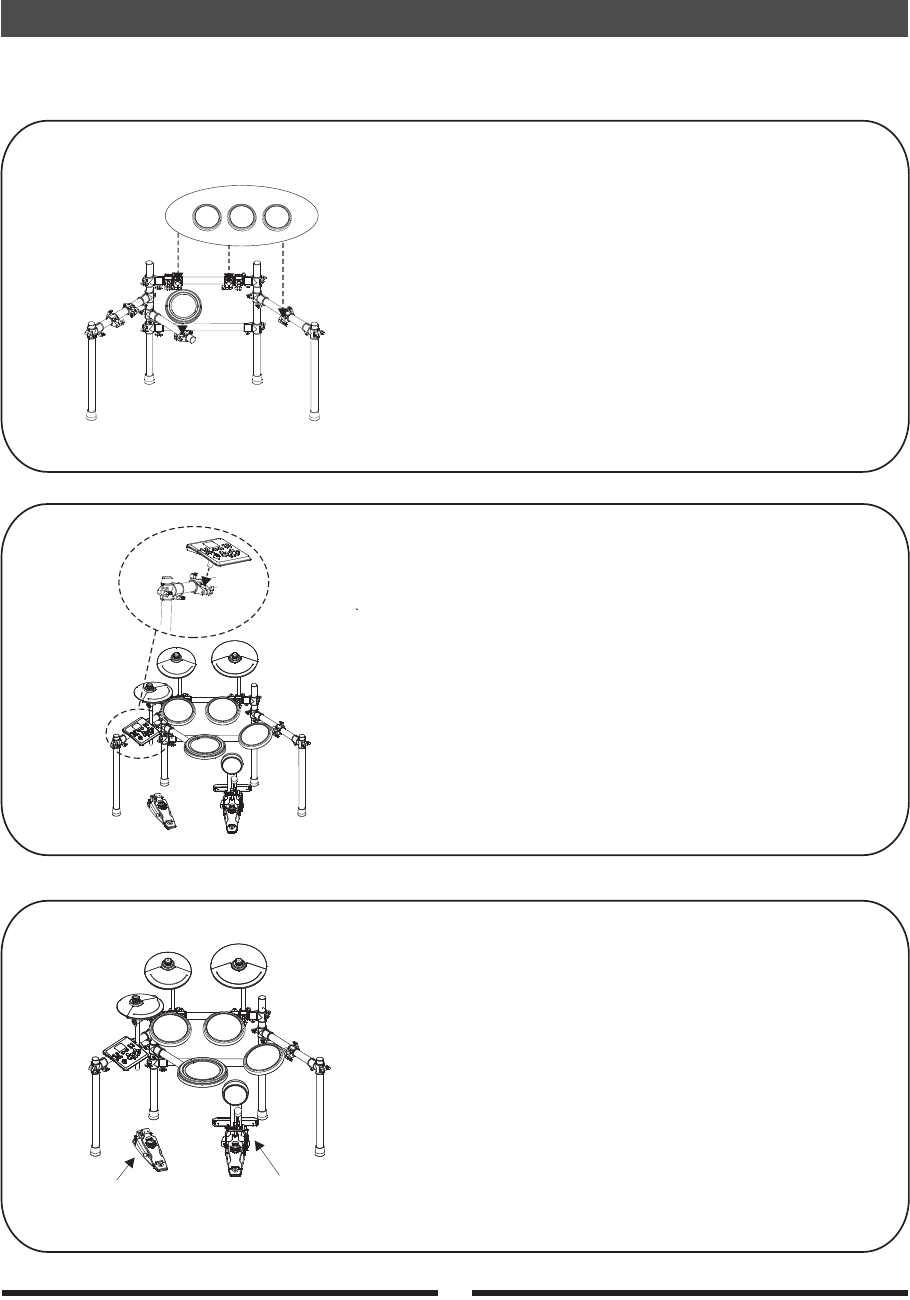

Attach the cymbal arms to the drum
frame indicated positions
Align the holes in Snare Drum Pad and the three
Tom Drum Pads and insert into the pole on the
Drum Frame as shown.
2
3
Assembly Instruction
Attach the cymbals to the cymbal arms as shown.
3
Attach the Drum Pads in the positions shown below.
4
Assembly Instruction
5
Insert the rod of sound module stand into the
Drum Frame clamp as shown, then tighten.
6
Please put Hi-hat control pedal on the left
and Kick pedal on the right.
Hi-hat control pedal Kick pedal
---It can produce hi-hat closed sound if you hit hi-hat when pressing foot controller.
---It can produce hi-hat open sound if you hit hi-hat without pressing foot controller.
---Press foot controller directly to produce hi-hat pedal sound.
---The hi-hat tone changes smoothly from open to closed in response to press the pedal
while hitting the hi-hat.
---Press the latter part of the pedal quickly and release the pedal immediately to produce
splash sound.
Only strike the rim of the snare pad to produce stick sound.
Hi-Hat Foot Controller
Cross Stick
Assembly Instruction
4

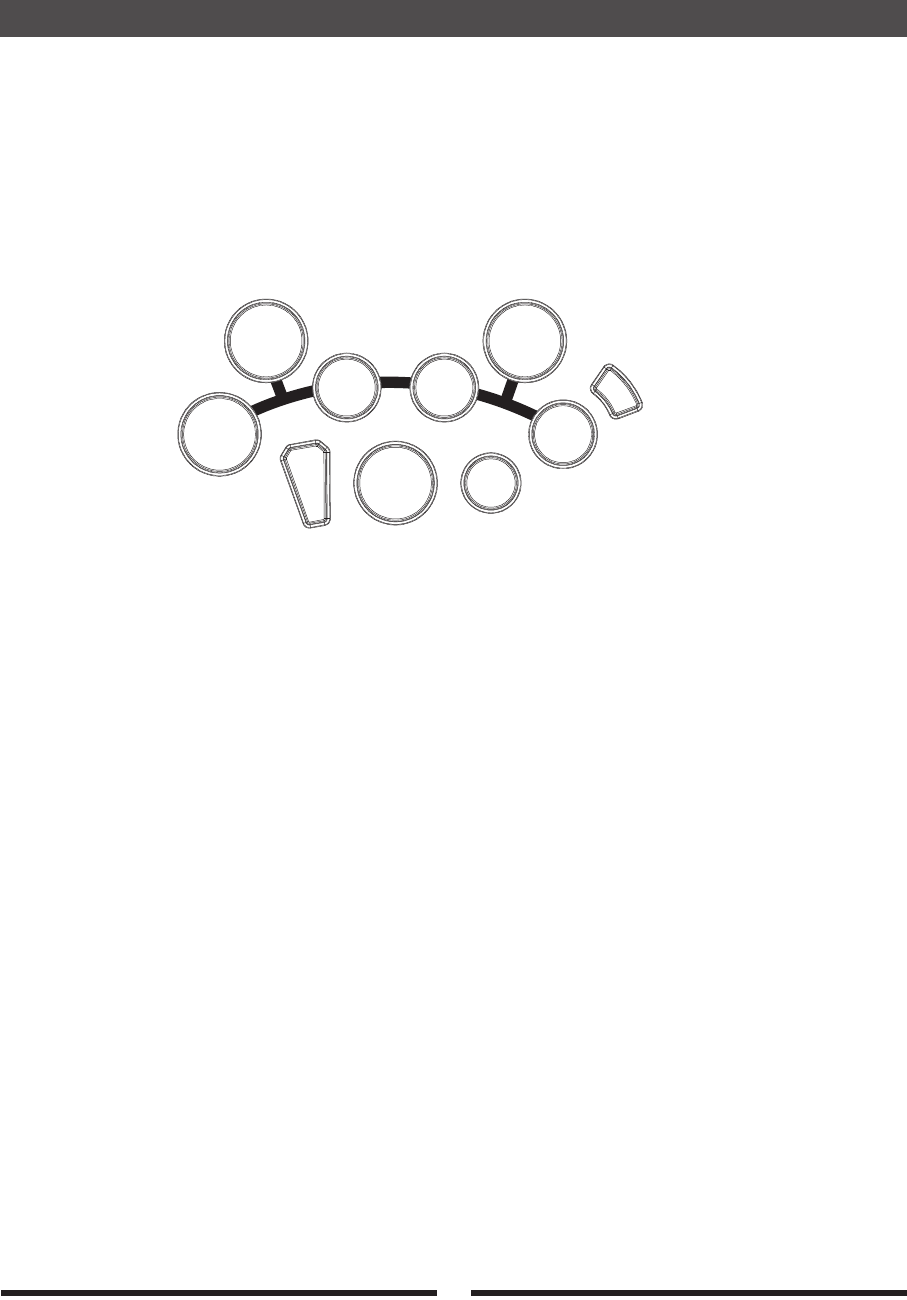

TO RIDE
TO CRASH
TO HH
TO TOM1
TO TOM2
TO TOM3
TO SNARE
TO HHC TO KICK
Hi-hat
Crash
Ride
Tom1
Tom2
Tom3
Snare
Hi-hat
Control
Kick
5
Panel Controls
Top Panel
Rear Panel
HD-10
TEMP O/TAP
CLIC K
PLAY/STOPRECO RD
KIT SO NG DRUM O FF
CRAS H
TOM1 TOM 2
RIDE
RIM
COUN T BAC K
SETU P ENT ER
HI-H AT
HI-H AT
CONT ROL
SNAR E KIC K
TOM3
PHONE S
DC 9V
USB TO HOS T
AUX IN POWER ON/OFF
LINE OUT
R
L/MONO
Drums selection
6
Panel Controls
1. MASTER VOLUME Adjust the overall volume of the drum module with this pot. It controls the line
outputs and the headphone output.
2.[CLICK] BUTTON This button turns the metronome on and off at any time,

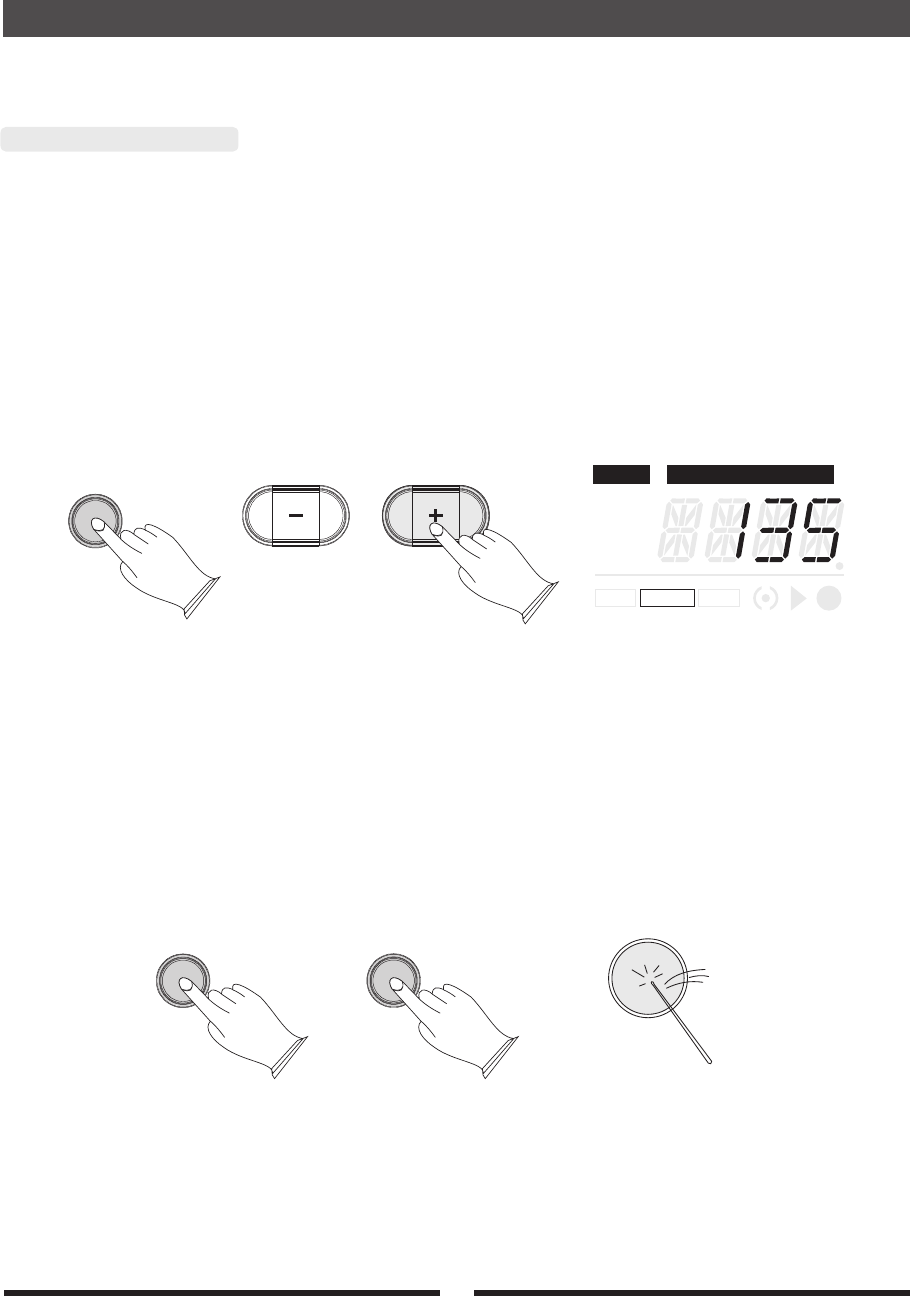

3.[TEMPO/TAP] BUTTON You can adjust the tempo of the built-in metronome, the practice songs, or the song
you are recording by pressing You can also set the tempo by hitting
the drum pads.
4.[RECORD] BUTTON Gives you the option to record your own song.
5.[PLAY/STOP] BUTTON Star or stop playing song and recording, Press button of drums selection to star auditi
on function.
6.[KIT] BUTTON select which instrument (drum sound) is played by
each pad and adjust its volume or effects settings, etc.
7.[SONG] BUTTON Press this button to play the song and also lets you adjust the relative volumes of the
drum and accompaniment tracks.
8.[DRUM OFF] BUTTON Turn on or off the sound of the drum in a song.
9.[+/- ] BUTTONS Use these buttons to navigate through the 50 drum kits, switch menu selections, or
change parameter values. Pressing them both at once will reset the value of the
current parameter to its default.
10.[SETUP] BUTTON parameters that affect all of the kit presets in the drum
module equally, such as the sensitivity, threshold, and velocity curve for each pad.
11.[ENTER] BUTTON This button will confirm and save the parameter changes you have made. It is also
used to access the sub-pages of each menu.
12.[COUNT] BUTTON Count the number of hitting drums in the certain period.
13.[BACK] BUTTON Pressing this button takes the drum module to the previous menu. From the highest
Edit menu it will exit to the Kit Select menu, except in Song mode where it will exit
to the Song Select menu.
14.DRUMS SELECTION Corresponding button of the drum pads, include: HI-HAT, CRASH, TOM1, TOM2,
TOM3, RIDE, RIM, HI-HAT CONTROL, SNARE, KICK.
except from within the top
level of Click Edit mode.
[Tempo/Tap].
Kit Edit mode enables you to
Press [Setup] to access
7
Panel Controls
Rear Panel
14. USB Connect to a computer for two-way MIDI communication. This
will enable a software program to trigger the drum module sounds,
or allow you to use the module as a MIDI trigger interface for the
software virtual drum instruments.
15. S Each pad should be connected to the corresponding trigger input
jack on the sound module.
16. POWER ON/OFF
17. DC 9V This jack is intended for use with the included DC adapter only.
18. PHONES Plug in a pair of stereo headphones here.
19. LINE OUT (R and L) Stereo audio outputs to connect to external audio sources.
20. AUX IN Connect the output of an external audio device such as iPod, CD
player, etc.
's
After connecting the included DC adapter, use this switch to turn
the power on or off.
erial connection Jack
for the pad trigger cables
Panel Controls
8

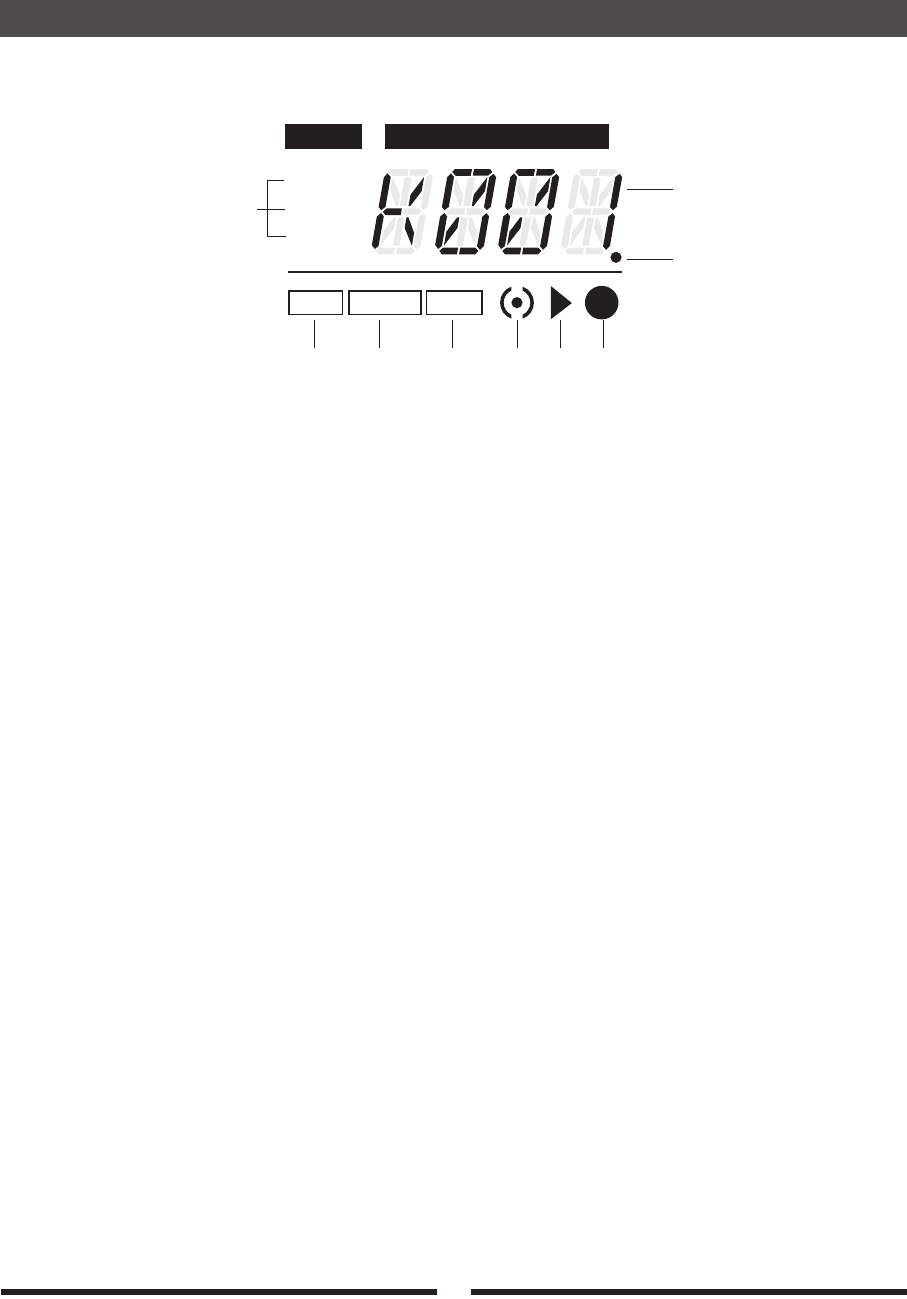

The Display
1. Mode This section indicates which mode you are in depending on
which of the three options is lit (Kit Select, Kit Edit, or Setup).
2. Parameter/Value The four large characters in the display tell you the name of the
page you have selected or the value of the current parameter.
There are several methods for changing the value or page
depending on what is being shown. See the related sections of
this manual for details.
3.“Edited” indicator The dot to the right of the kit number lets you know when the
stored drum kit has been edited in some way.
4. Click This icon will light when the metronome is active.
5. Tempo When this word is lit, the Value being shown is the tempo of
the metronome or the current song. You may adjust the tempo
using the -/+ buttons or by tapping the Tempo/Tap button.
6. Song When this word is lit you know the drum module is in Song
mode.
'll
7. Metronome indicator This icon will flash while the click is active, or while recording
or playing a song. , that
the downbeat of the bar. When only the Center dot is lit, that is
one of the sub-beats of the current time signature.
When the outer edges of the icon are lit 's
8. Playing Song When the triangle is lit you will know that a song is playing
back, not recording.
9. Recording Song The large dot indicates that a song is currently being recorded.
Anything played on the pads will be captured for later playback.
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
1
2
3
4 5 6 7 8 9
Make sure the power is switch OFF and connect the power
adaptor to the “DC 9V”jack on the rear panel.
AC POWER
Connecting the Power Supply
When you want to listen to the voices with an amplifier, connect amplifiers to the LINE OUT
jack on the rear panel. The volume is adjusted with the MASTER VOLUME knob.
Connecting an Amplifier
The audio output from a CD player connected to the AUX IN jack on the rear panel can be
mixed with the sound of the drum brain. This function is convenient when you want to play
along with a favourite song.
The volume of the external signal is adjusted with the MASTER VOLUME knob.
Connecting a CD Player, etc. (AUX In jack)
Connect
9
Pad
i
AMPLIFIER
Connect
USB MIDI
Using Headphones
An optional set of stereo headphones can be connected to the
PHONES jack located to the left side of the unit. Use the
[MASTER VOLUME] to adjust the headphone volume.
PHONES
Note: Never use headphones in high volume, as it may hurt your ears.
10
Your drum module is USB class-compliant. This means you can plug it into a USB
class-compliant host (for example, a computer running OS X, Windows XP, Vista or
Windows 7) and it should be recognized immediately. There are no drivers to install;
simply plug n' play. If you connect the drum module to a computer, you can trigger
drum libraries on the computer or record your performance into a MIDI sequencing
application. Check the operation and setup instructions for the software you intend to
use for more details.
Begin Playing the Drums
11
Switch the Power On
With everything set up and ready to go, it's time to start playing the drum kit. Locate the on/off
power switch on the drum module and switch the power on. The drum module is ready to
operate when the display shown below appears. This is the location from which you select the
drum kit you want to play or edit.
Next, connect headphones or a speaker system as described on the previous two pages. Start
with the MASTER VOLUME set to MIN and press the [Start/Stop] button on the drum
module. Gradually increase the volume until you hear a song playing through your speaker
system or headphones. If you hear no sound, please check all of the cables connecting the
drum module to your speakers and repeat the procedure. When the levels are set to a
comfortable level, press the [Start/Stop] button again to stop the song.
Once you have established that your sound system or headphones are connected correctly to
the drum module, play each of the pads, cymbals, and kick and hi-hat pedals. You should
hear a sound for every hit. If one pad or cymbal does not play a sound, check the cable
connection from that pad to the sound module.
With everything set up and the kit sounding from all pads, it time to start playing! When
you are ready to learn more about your new drum system, pick up the manual again and
continue with the next page.
's
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o

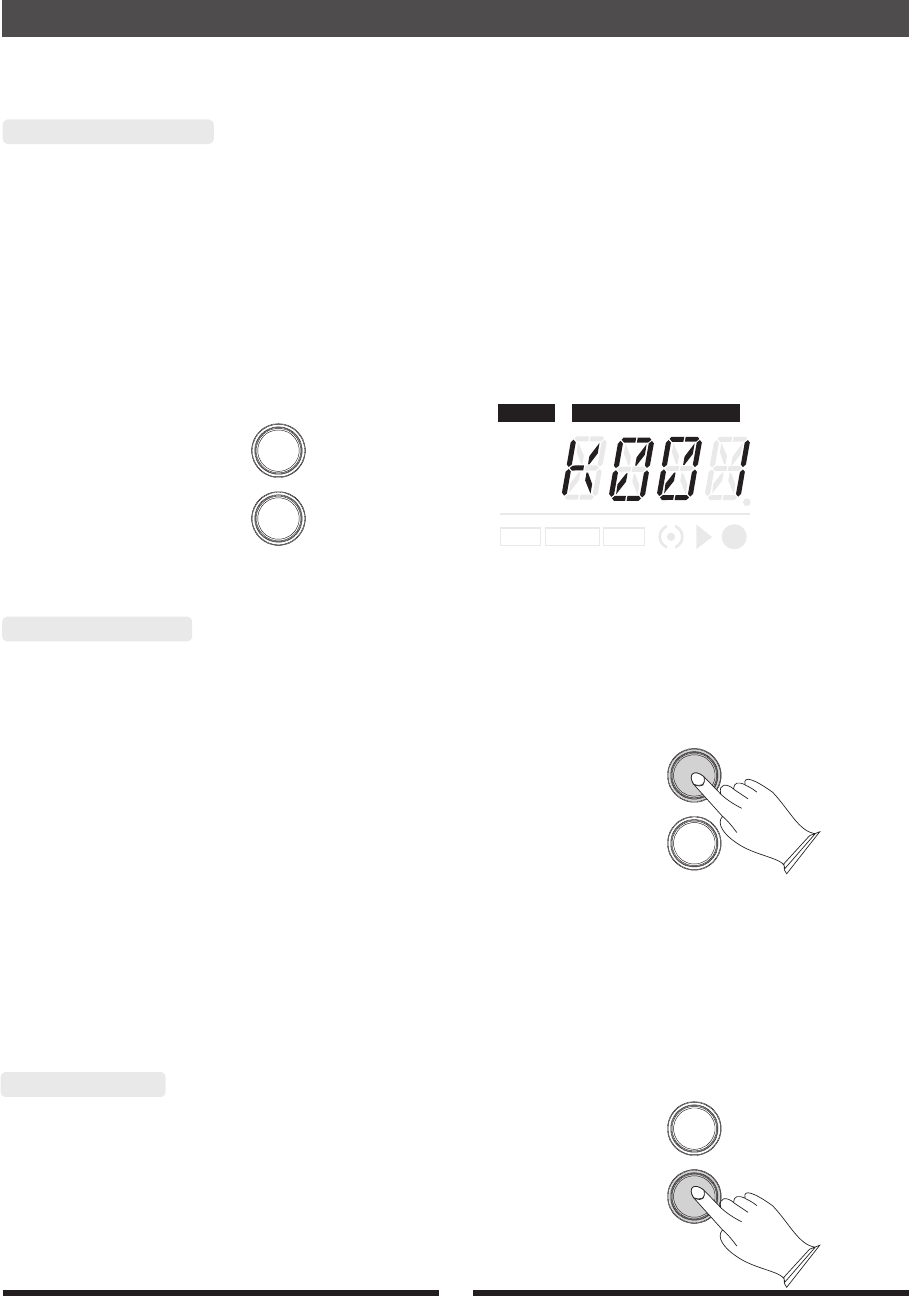

Selecting Drum Kits
'
“ ” “ ”
see page 30
Ready to explore the sound module some more? Then let's cover the rest of the features.
The unit comes with 45 preset drum kits, any of which may be edited to suit your tastes. If
you re not already at the Kit Select display, press the buttons marked [Back] and [Enter] to
get there. You will see the number of the current kit appear in the LCD display along with the
letter K (for Kit ). The display should look something like the image pictured below.
You can use the [-/+] buttons to step through any of the 50 kits. For a complete list of the
preset kits, please of this manual.
Begin Playing the Drums
12
Think of the [Enter] button as similar to the Enter or Return key
on a computer. It has two main functions:
· To take the unit down another menu level
in one of the modes (Kit Edit, Setup, and
Song)
· To confirm and save the new value or
function of an edited parameter.
Once the selection has been confirmed, the display
will return to the previous menu.
Press the [Back] button if you want to quit the current
menu.
[ENTER] button
[BACK] button
Once pressed the LCD display will take you back to the
previous menu.
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
BACK
ENTER
BACK
ENTER
BACK
ENTER
Selecting Kit Edit
In kit mode press the [ENTER] button, the LCD will display “ ” (Instrument), now,
you can use the [+/-] buttons to select “VOL”(Pad Volume), “RVRB”(Reverb Level),
“CHRS”(Chrous Level),“PAN”(Pan),“PICH”(Pitch),“DCAY”(Decay),“COPY”
(Copy), and “RSET”(Reset).
INST
A.
In kit model press the [ENTER] button
ENTER
b
Selecting an Instrument (INST)
: the LCD will display “INST”
Press [ ] button again.
2 There are two ways to choose a drum at this point:
a. Through the following button to select the desired pad.
. Hit the drum that you want to set.
1.
.
For example: to select snare voice
ENTER “ ”
ENTER
“ ”
1. Press [ ] button,
2. Press [ ] button again, use the [SNARE] button or hit the snare pad forcefully to
select the voice, the LCD will display 2001
3.
Press the corresponding button of the drums to audition.
4.
the LCD will display INST .
Use the [-/+] buttons to select new snare voice.
Press [ENTER] button to confirm or press [BACK] button to return.
13
Begin Playing the Drums
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
ENTER
CRASH
TOM1 TOM2
RIDE
RIM
HI-HAT
HI-HAT
CONTROL
SNARE KICK
TOM3
B.
In kit mode press the [ENTER] button
b
Pad Volume (VOL)
: the LCD will display “INST”
Use the [-/+] buttons to select“VOL”.
2. Press [ENTER] button again.
3 There are two ways to choose a drum at this point:
a. Through the following button to select the desired pad.
. Hit the drum that you want to set.
1.
.
14
Begin Playing the Drums
C.
In kit mode press the [ENTER] button
Press [ ] button again, use the pad buttons to select a pad (For example: SNARE).
U Range: 000-127 )
Reverb level (RVRB)
: the LCD will display “INST”.
Use the [-/+] buttons to select the “RVRB”
Enter
se the [-/+] buttons to set a value( .
Press [Enter] button to confirm or press [Back] button to return.
D.
In the k mode, press the [ ] button, use the [+/-] buttons to select“CHRS”
Press [ ] button, use the pad buttons to select a pad (For example: SNARE).
U Range: 000-127 )
Chorus level (CHRS)
it Enter
Enter
se the [-/+] buttons to set a value( .
Press [Enter] button to confirm or press [Back] button to return.
CRASH
TOM1 TOM2
RIDE
RIM
HI-HAT
HI-HAT
CONTROL
SNARE KICK
TOM3
For example: to select snare voice
ENTER “ ”
ENTER
1. Press [ ] button,
.
3. Press [ ] button again, use the [SNARE] button or hit the snare pad forcefully to
select the voice.
4.
Press the corresponding button of the drums to audition.
5.
the LCD will display INST .
2. Use the [-/+] buttons to select the “LEVL” menu
Use the [-/+] buttons to select new snare voice.
Press [ENTER] button to confirm or press [BACK] button to return.
E. Pan
In the k mode, press the [ ] button, use the [+/-] buttons to select“PAN”
Press [ ] button, use the pad buttons to select a pad (For example: SNARE).
U Range: 000~016 )
(PAN)
it Enter
Enter
se the [-/+] buttons to set a value( .
Press [Enter] button to confirm or press [Back] button to return.
15
Begin Playing the Drums
F. Pitch
In the k mode, press the [ ] button, use the [+/-] buttons to select“PICH”
Press [ ] button, use the pad buttons to select a pad (For example: SNARE).
U Range: -008~008 )
(PICH)
it Enter
Enter
se the [-/+] buttons to set a value( .
Press [Enter] button to confirm or press [Back] button to return.
G. Decay
In the k mode, press the [ ] button, use the [+/-] buttons to select“DCAY”
Press [ ] button, use the pad buttons to select a pad (For example: SNARE).
U Range: -005~000 )
(DCAY)
it Enter
Enter
se the [-/+] buttons to set a value( .
Press [Enter] button to confirm or press [Back] button to return.
H. Copy Drum Kit to New Location (COPY)
Any drum kit can be copied from any one of the 45 kit locations. This is handy if you want to
change the order in which the kits appear for a live performance, for example.
To copy the current drum kit to another location:
1. it Enter
2. Press [Enter] button and use the [-/+] buttons to select one of the drum kit numbers as the
destination. The display will flash the number of the targeted kit（USE1~USE5）.
In the k mode, press the [ ] button, use the [+/-] buttons to select“COPY”.
Note: the next step will overwrite the destination kit. Be sure you have chosen the right
one before you proceed!
Press [Enter] to confirm the destination kit to be overwritten or press [Back] to
exit the Copy function without making any changes.
“ ”
button button
If you pressed [Enter] to execute the Copy function in the previous step, the display will flash
END and exit to the Kit Select page with the new location selected.
16
Begin Playing the Drums

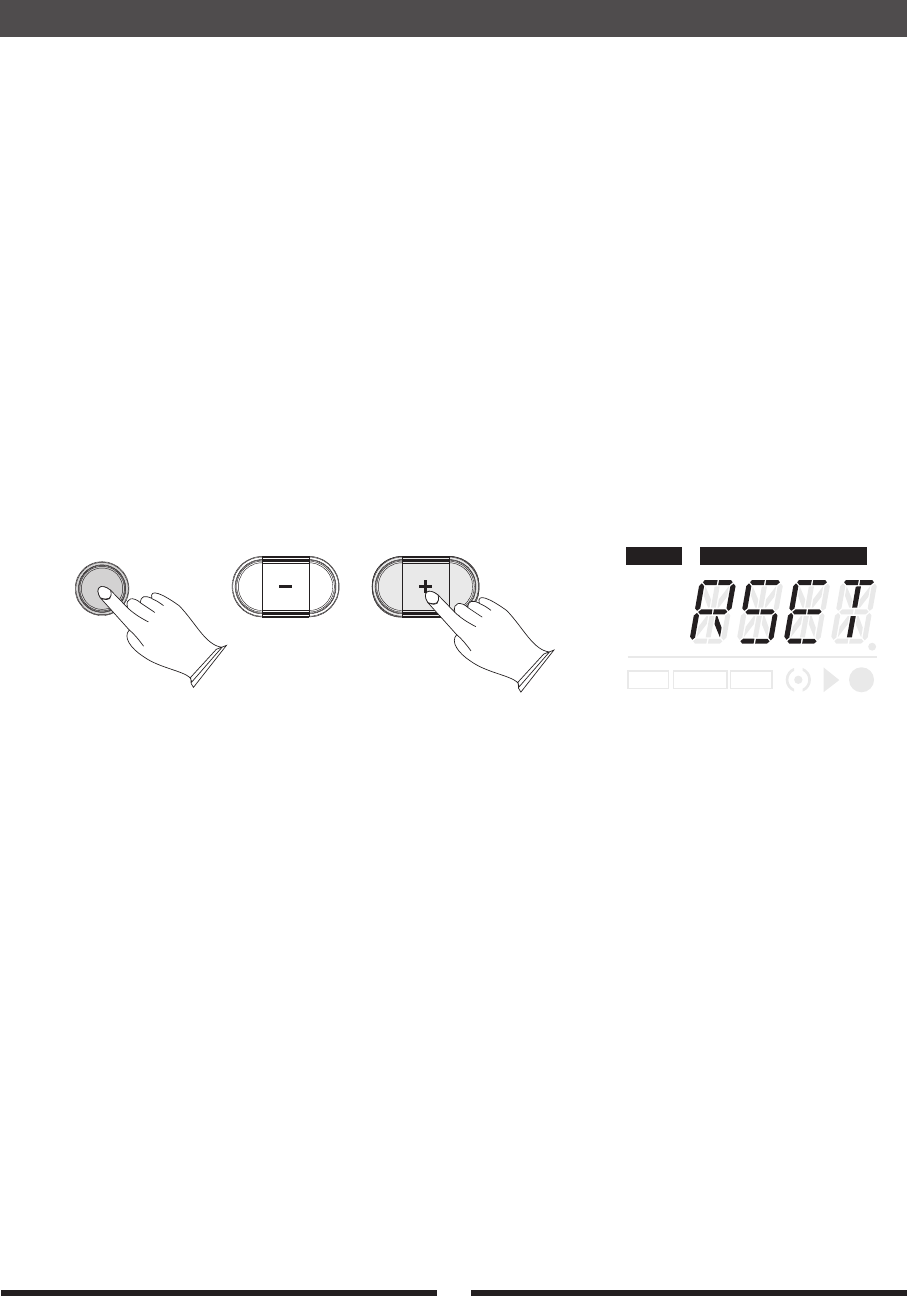

I. Resetting the Drum Kit(RSET)
If you have made changes to the current drum kit and decide you want to get back to the
factory starting point, we provided a way to do this.'ve
The procedure has been divided into two parts: resetting the instrument/pad assignments and
resetting the effects. We ll cover how to reset the effects in the next section. If you want to
reset the instrument/pad assignments for the current drum kit, here what to do:
'
's

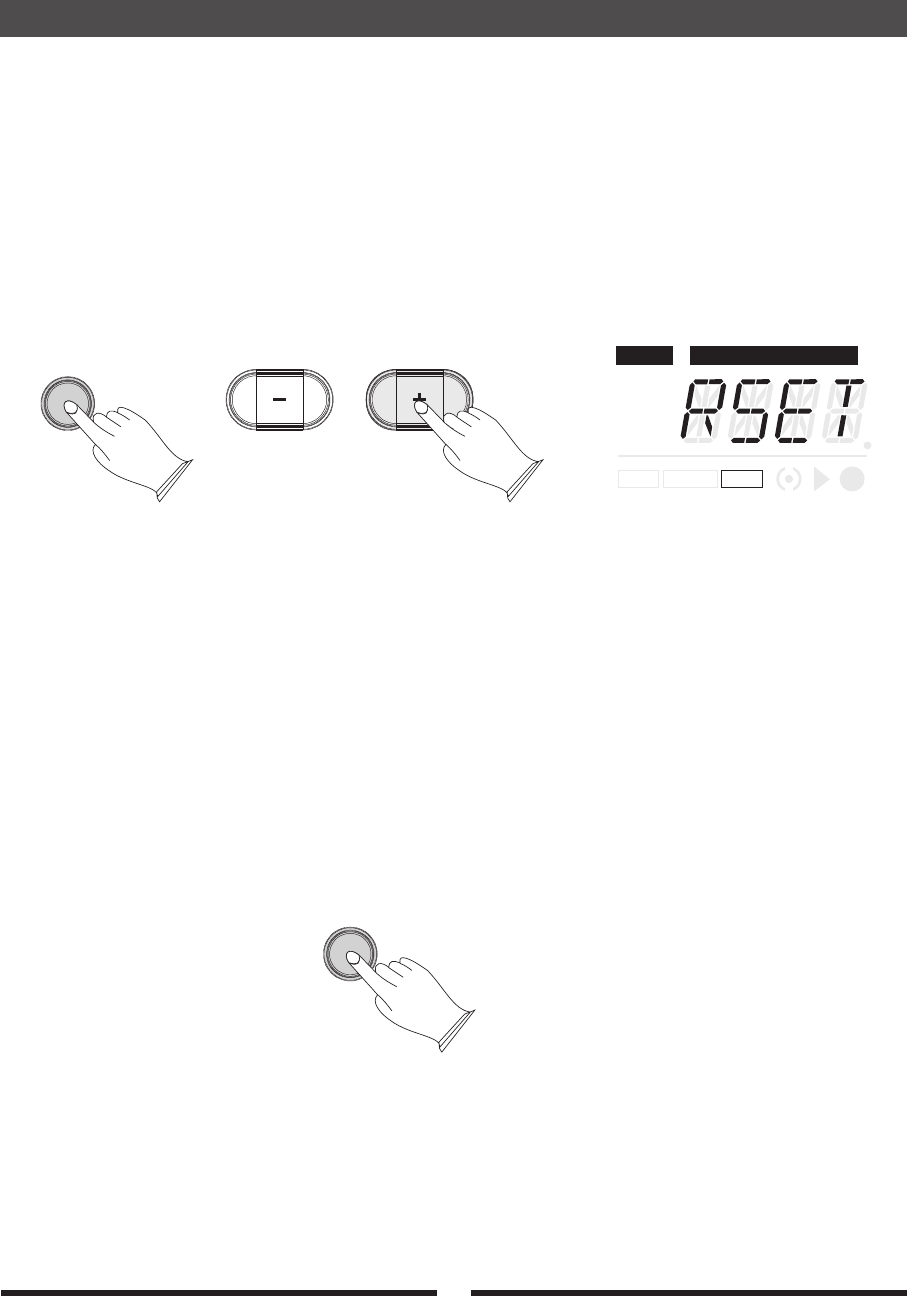

1. it Enter
2. Press [Enter] button, and .
3. Press [Enter] button again, the display will flash “END” and return to the previous menu.
In the k mode, press the [ ] button, use the [+/-] buttons to select“RSET”.
use the [+/-] buttons to select“CURT” or “ALL”
“CURT”-----Reset current drum
“ALL”-----Reset all drums
17
Begin Playing the Drums
[SETUP] Button

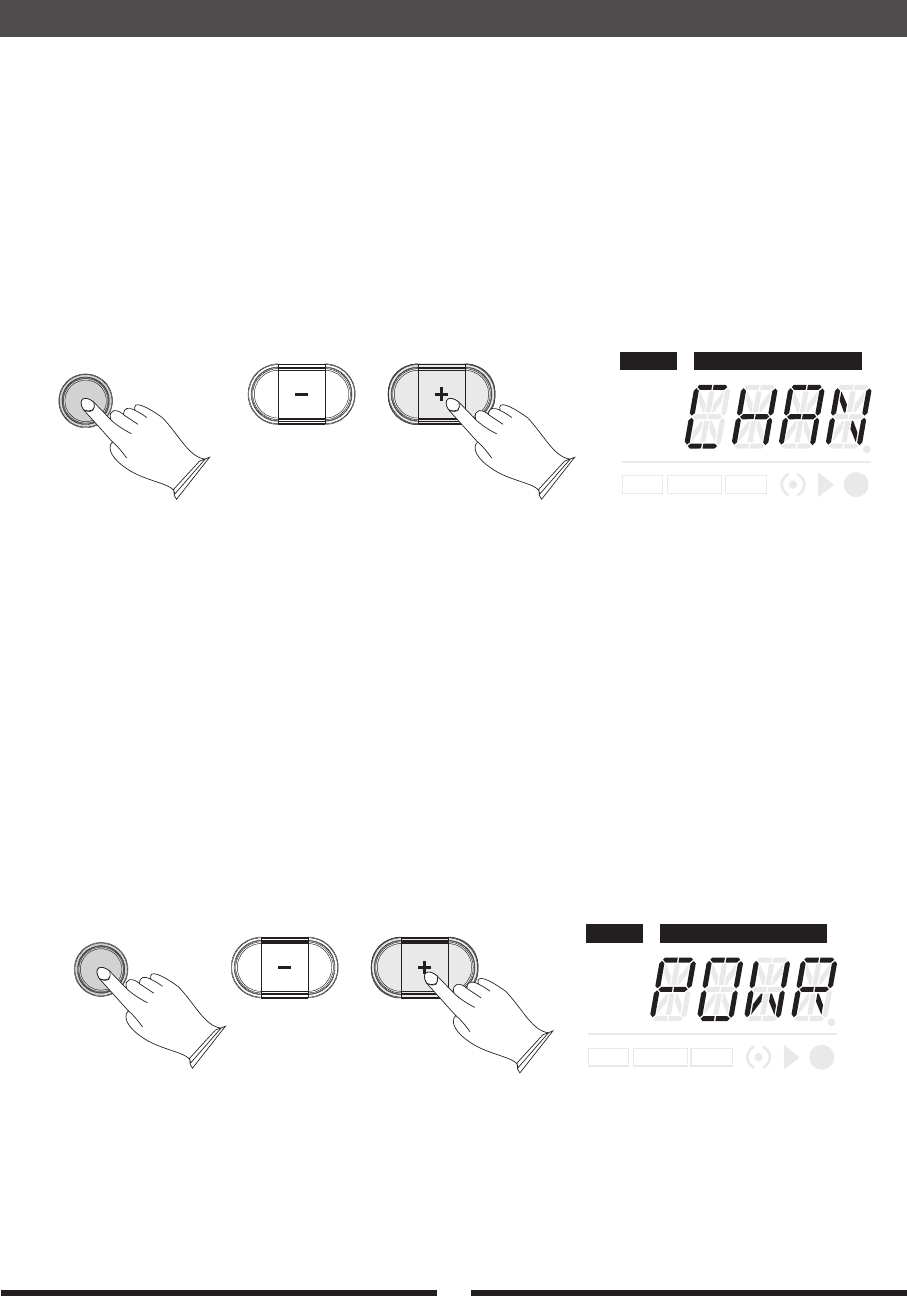

In this mode, you can set the Pad Trigger, Local On/Off, Channel selection,
Power On/Off and Resetting functions.
Effects,

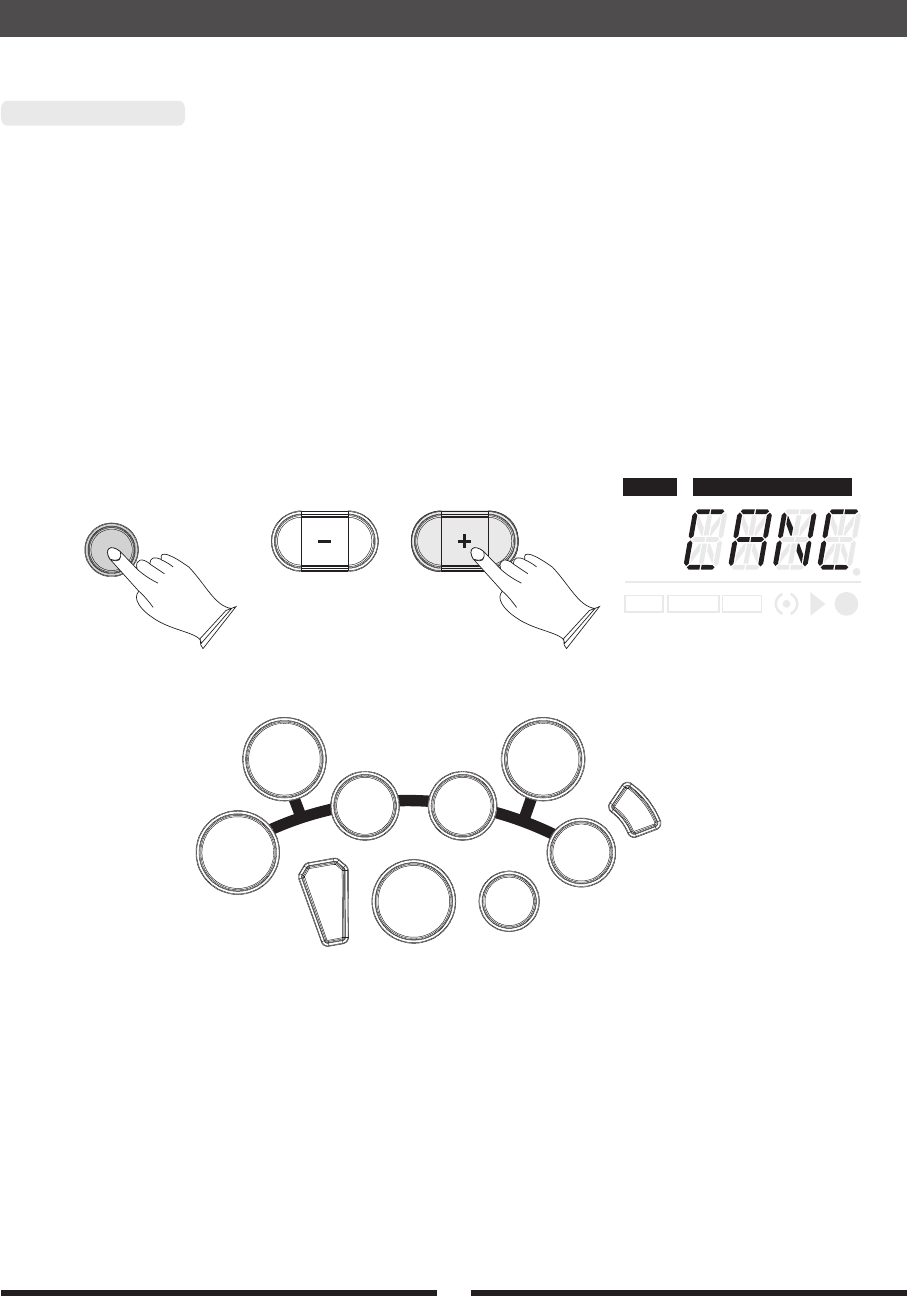

A. Trigger Setting
The trigger functions allow you to adapt how the drum module responds to your playing style.
Adjustable parameters include sensitivity, threshold, We will
explain each function in detail, but first, let's go through the basic process of changing these
parameters.
velocity curve and crosstalk.
For example, if you would like to adjust the trigger settings for the snare drum pad:
1. Press the [Setup] button: the display will “TRIG”
3. Press [Enter] button and use the [-/+] buttons to select one of the options (CANC, THRS,
CURV and XTLK).
display
Note: the Open and Closed hi-hat triggers share the same set of trigger parameters, so you will
see the same label in the display for both.
The Snare and Snare Rim triggers share the same set of CANC parameters, but their THRS,
CURV and XTLK parameters are independent.
5. Use the [-/+] buttons to select a new value.
6. Press [Enter] button to confirm the choice or press [Back] button to retain the original value.
4. Press [Enter] button and through the following button to select the desired pad.
SETUP
Mode Parameter/Value
K i t S e le ct
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
CRASH
TOM1 TOM2
RIDE
RIM
HI-HAT
HI-HAT
CONTROL
SNARE KICK
TOM3
18
Begin Playing the Drums
CANS Sensitivity: Simply put, set this to as high a value as you can. The lower the value, the
less sensitive the pad will be. If you find the pad overly sensitive, including the
unexpected triggering of the pad you are playing, try reducing the sensitivity of the
pad a little. Range: 001-008
THRS Threshold: This setting allows a trigger signal to be received only when you hit the
pad above a certain force level. This can be used to prevent a pad from sounding
because of vibrations from other pads. When set to a higher value, no sound is
produced when you strike the pad lightly. Range: 000-050
CURV Velocity Curve: This allows you to choose a curve for each pad so it responds the way
you want. There are four velocity curves from which to choose: Normal (NORL),
Dynamic (DYN), EASY, and Fixed (FID).
EASY As the name implies, this curve makes it relatively easy to reach the maximum
MIDI velocity of 127. So as a general rule, lower velocity hits are more likely
to produce a louder volume.
NORL Allows an evenly-distributed change in output in response to changes in velocity.
DYN This setting provides the widest dynamic range overall. As a result it is possible
to play more quietly, easier to produce a more subtle change in volume, and
requires slightly more forceful playing to reach the maximum MIDI velocity
of 127.
FID No matter how hard or soft you hit the pad, the engine will always receive a
MIDI velocity of 100.
XTLK Crosstalk can happen when you strike one of the pads forcefully, causing one of the
other instruments in the kit to be triggered unintentionally. When you have noticed
that one trigger pad is picking up signals from the other pads, adjust the XTAL
setting for the affected pad to a higher value until it stops receiving trigger events
from the pads that are causing the problem. Range: 000-080
Note: the hi-hat foot trigger (HH-P) does not offer adjustments for SENS, THRS, or XTAL.
HH-S does not offer adjustments for THRS or XTAL. You will see the word "NULL" when
you select those parameters for those instruments. You can adjust their velocity curves,
however.
19
Begin Playing the Drums
1. Press the [Setup] button: the LCD will display“TRIG”
2. Use the [-/+] buttons to select the“ EFCT” menu.
3. Press [Enter] button and use the [-/+] buttons to select the “REVB” or “CHRS”
4. Press [Enter] and use the [-/+] buttons to select one of the following options:
REVB: “OFF”“ HAL1”“ HAL2”“ROM1”“ROM2”“ ROM3”“ STG1”
“ STG2”“ PLAT”“ DLAY”“ECHO”.
CHRS: “OFF”“CHR1”“CHR2”“CHR3”“CHR4”“FDBK”“FLG1”
“SDLY”“SDFB”“FLG2”“FLG3”“CLS1”“CHR2”“CHR3”
5. Press [Enter] button again to confirm your choice or press [Back] button to exit to the previous
menu without having changed anything.
B. Defeating the Effects for All Drum Kits (EFCT)
We have added reverb effects to many of the drum kits. However, it's possible you might want
to turn off the reverb for all of the drum kits and process the audio with an external effects
unit. To do this:
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
C. Using the Drum Pads as MIDI Triggers Only (LOCL)
You might want to use the pads to trigger another sound source over USB but not hear the drum
module's internal sounds at the same time. This condition is known as "Local Off."
To configure the drum module in this way, do the following:
It can also be
useful if you are triggering the drum module's sounds via USB MIDI and want to eliminate any
double triggering.
1. Press the [Setup] button: the LCD will “TRIG”
2. Use the [-/+] buttons to select the “LOCL” menu.
3. Press [Enter] and use the [-/+] buttons to select either “Off” or “On” depending on
what you want to do. “On” is the normal operating mode: when you play the pads the
internal sounds will trigger. “Off” will not trigger the internal sounds directly.
4. Press [Enter] to confirm the choice, or press [Back] to exit without making any changes.
display
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
SETUP
SETUP
20
Begin Playing the Drums
D. (CHAN)
Select MIDI output channel（01-16）
1. Press the [Setup] button: the LCD will “TRIG”
2. Use the [-/+] buttons to select the “CHAN” menu.
3. Press [Enter] and use the [-/+] buttons to select 001-016 and OFF.
4. Press [Enter] to confirm the choice, or press [Back] to exit without making any changes.
display
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
SETUP
E. Auto Power Off
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
“ON” Mode: When the “ ”function is on and there is no operation within
thirty minutes, the drum will auto power off.
“OFF” Mode: Turns the “ff ” function off.
Auto Power O
Auto Power O
ff
Press the [SETUP] button and use the [+/-] button to select “POWR”, then press [ENTER]
button, use [+/-] button to select “ON” or “OFF”.
Press the [ENTER] button to confirm.
SETUP
21
Begin Playing the Drums
F. Restoring All Trigger Settings to the Factory Defaults (RSET)
If you have set up your drum kit in a new location, such as on a stage with a drum riser, you
may find that you need to readjust your trigger crosstalk settings, for example. If you would
prefer to start over from the factory trigger settings, follow this procedure:
1. Press the [Setup] button: the LCD will “TRIG”.
2. Use the [-/+] buttons to select the “RSET” menu.
3. Press [Enter] button and use the [-/+] buttons to select “TRIG”or“ALL”.
4.Press [Enter] button again, the display will flash “END” and the settings will have been
restored to their factory defaults.
display
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
“TRIG”-----Reset “TRIG” in “SETUP”
“ALL”-----Reset all the setting in “SETUP”
SETUP
Begin Playing the Drums
22
[SONG] Button
Song Selection
Here how to select and listen to the songs:'s
1. Press the [SONG] button. The display will show the number of the last song selected.
2. Use the [-/+] buttons to select one of the songs you like to listen to.
3. Press the [PLAY/STOP] button to start or stop the song.
'd
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
Your drum provides 50 (001-050) preset songs, and 2 (DEM1/DEM2) song demos.
SONG
A. Drum Part Volume (DVOL)
If you d like to adjust the volume of the pre-recorded drums while listening to or playing
along with the songs, here is how to do that:
'
1.
2. Press [Enter] and use the [-/+] buttons to select the “DVOL” menu
3. Press [Enter] and use the [-/+] buttons to adjust the volume up or down. Press both [–] and
[+] at the same time to reset the drum part volume to the default value of 028. Range: 000-032
4. Press [Enter] to confirm the new value.
“ ”
Press the [Song] button the the LCD will display “S001”
The change is not permanent, though; the value will
be returned to the default value of 028 on power-down.
Note: The drum part volume setting of 000 will silence the drum parts, but a quicker way to
do that is to use the Drum On/Off feature described on the previous page.
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
ENTER
Begin Playing the Drums
23

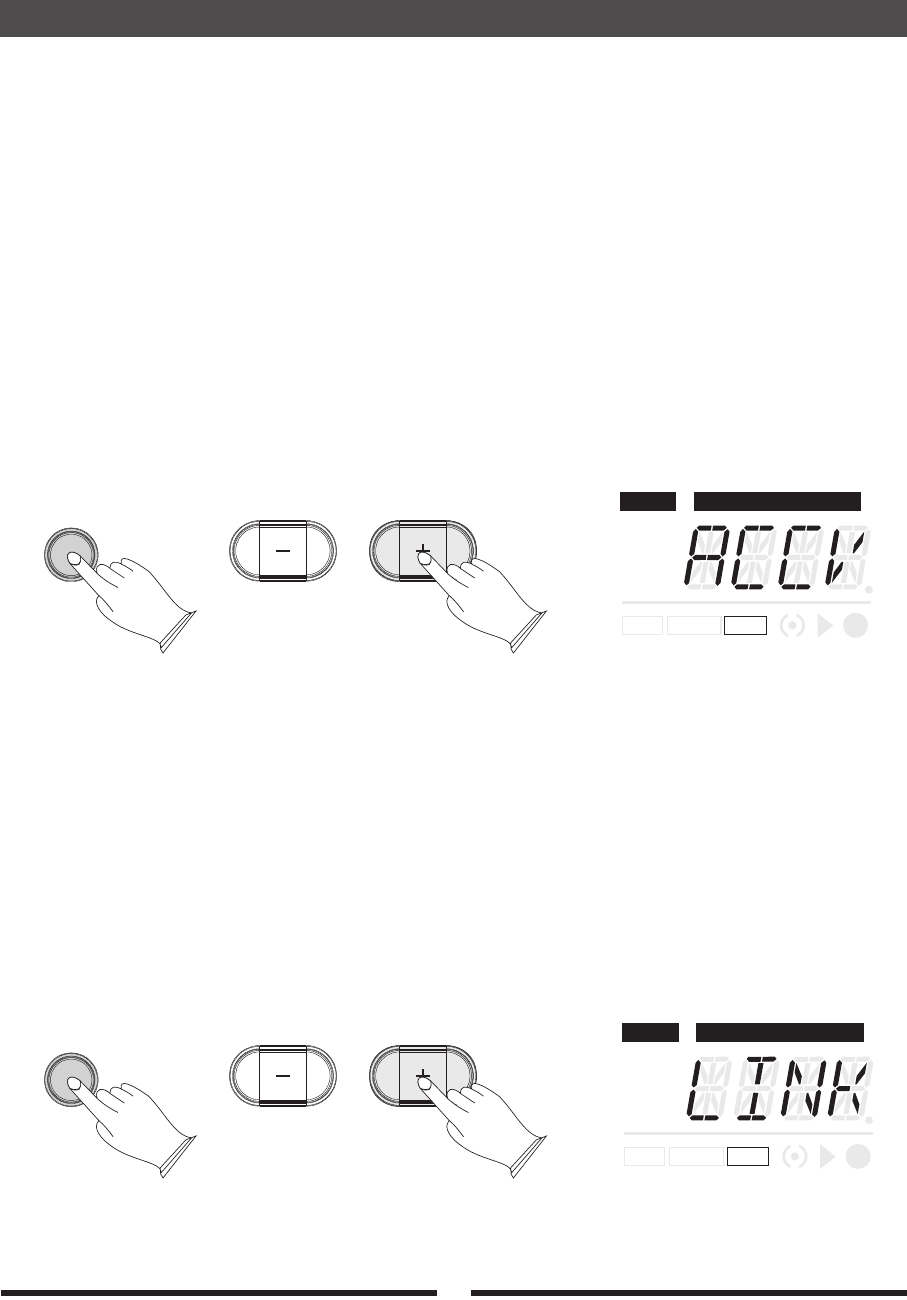

B. Accompaniment Part Volume (ACCV)
If you d like to adjust the volume of the pre-recorded accompaniment instruments while
listening to or playing along with the songs, here is what to do:
'
1.
2. Press [Enter] button and use the [-/+] buttons to select the “ACCV” menu
3. Press [Enter] button and use the [-/+] buttons to adjust the volume up or down. Press both
[-] and [+] at the same time to reset the accompaniment part volume to the default value of
028. Range: 000-032
4. Press [Enter] button to confirm the new value.
Press the [Song] button the the LCD will display “S001”
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
ENTER
C. (LINK)
1.
2. Press [Enter] button and use the [-/+] buttons to select the “LINK” menu
3. Press [Enter] button and use the [-/+] buttons to select “ON”or“OFF”.
4. Press [Enter] button to confirm the new value.
Press the [Song] button the the LCD will display “S001”
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
ENTER
“ON”-----Kit will be automatically jumped to the corresponding kit set when you select the
tempo.
“OFF”-----Kit doesn t change with the song mode.'
Begin Playing the Drums
24
D. Reset All Mix Parameters (REST)
If you d like to restore the default values for all of the Mix parameters, follow these steps:
1. Press the [Song] button the the LCD will display “S001”
2. Press [Enter] button and use the [-/+] buttons to select the “RSET” menu
3. Press [Enter] to execute the procedure. The display will flash “END” indicating that
the setting of the songs have been restored.
'
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
ENTER
E. Drum On/Off (DRUM OFF)
If you would like to play along to these songs without listening to the pre-recorded drum and
percussion parts, here is the method for disabling those parts:
If you want to mute the pre-recorded drums, press [DRUM OFF] button and the light will
be lighted.
Note: The value will be returned to On on power-down.“ ”
DRUM OFF
Begin Playing the Drums
25
[CLICK] Button
Click edit
It is possible to adjust the metronome volume, change its assigned instrument, or select a
different time signature. To access these parameters you will need to press button for
two seconds. After you have done this, the following options become available to you:
[CLICK]
A. Click Volume (LEVL)
To adjust the metronome volume, follow these steps:
1. P . The LCD will display “LEVL”
2. Press [Enter] and use the [-/+] buttons to adjust the click volume up or down.
Pressing both [–] and [+] at the same time will reset the click volume to the default value of
020. Range: 000-032
3. Press [Enter] to confirm the choice.
ress button for two seconds[CLICK]
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
B. Changing the Time Signature (TYPE)
The metronome settings can be changed to accommodate a number of different time
signatures. To change the time signature, follow these steps:
1.
2. Use the [-/+] buttons to select the “TYPE” menu
3. Press [Enter] again and use the [-/+] buttons to select the new time signature. Pressing
both [–] and [+] at the same time will reset the click to the default value of 4-4.
Range: 1-4, 2-4, 3-4, 4-4, 6-4,3-8,6-8,12-8..
4. Press [Enter] to confirm the choice.
Press button for two seconds. The LCD will display “LEVL”[CLICK]
Press [CLICK] button to turn on or turn off metronome.
CLICK
Begin Playing the Drums
26
C. Selecting the Click Sound (SOND)
It is possible to select one of three different sounds for the metronome click. If you d like to
experiment with the options to see which one is best for you, here is what to do:
'
1.
2. Use the [-/+] buttons to select the SOND menu
3. Press [Enter] button and use the [-/+] buttons to select one of the three sounds.(001-003)
4. Press [Enter] button to confirm the choice.
Press button for two seconds. The LCD will display “LEVL”
“ ”
[CLICK]
D. Restoring Factory Click Settings (REST)
There s a quick way to return all of the click settings to their factory defaults. If you would
like to do this, follow this procedure:
'
1.
2. Use the [-/+] buttons to select the “REST” menu
3. Press [Enter] button to execute the reset procedure. The display will flash END and
return to the “REST” menu.
Press button for two seconds. The LCD will display “LEVL”
“ ”
[CLICK]
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
27
[TEMPO/TAP] Button
The tempo of the click or the current song may be set by using one of several methods.
Each of these procedures is detailed in the paragraphs ahead:
A. Setting the Tempo with the [-/+] Buttons
For making precise adjustments to the tempo, use this procedure:
1. Press the [Tempo/Tap] button: the current tempo value will be shown
2. Use the [-/+] buttons to change the tempo value. Range: 020-240
Pressing both [–] and [+] at the same time will reset the tempo to the default value of 135
B. Setting the Tempo by Tapping
You can also enter the tempo by tapping it out on the [Tempo/Tap] button or by using one of
the pads. Here s how:
1. Press the [Tempo/Tap] button: the current tempo value will be shown
2.
3. Tap on one of the pads four times. Those four taps will be used
to calculate the new tempo value. Range: 020-240
'
Press the [Enter] button: the tempo value will flash
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
Begin Playing the Drums
TEMPO/TAP
TEMPO/TAP ENTER
4
28
Recording Function
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
Begin Playing the Drums
Press the [RECORD] button to enter the record mode，then use the [+/-] buttons
to change the menu.
A. “RECD”(Record)
Press the [RECORD] button t then press [ENTER] button
to start recording, press [BACK] or [RECORD] button to end recording.
he LCD will display “RECD”,
B. “PLAY”
Press the [RECORD] button t ress the
[PLAY/STOP] button or use [+/-] buttons to select PLAY and press [ENTER] button to
start playing the song , press [PLAY/STOP] button again to stop playing.
he LCD will display “RECD”, now you can p
“ ”
C. “CLER”(Clear)
Press the [RECORD] button t use [+/-] buttons to select
CLER .
CLER
he LCD will display “RECD”, then
“ ” Press [Enter] button to confirm. The display will flash “END” and return to the
“ ” menu.
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
RECORD Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
PLAY/STOP
PLAY/STOP
29
Begin Playing the Drums
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o

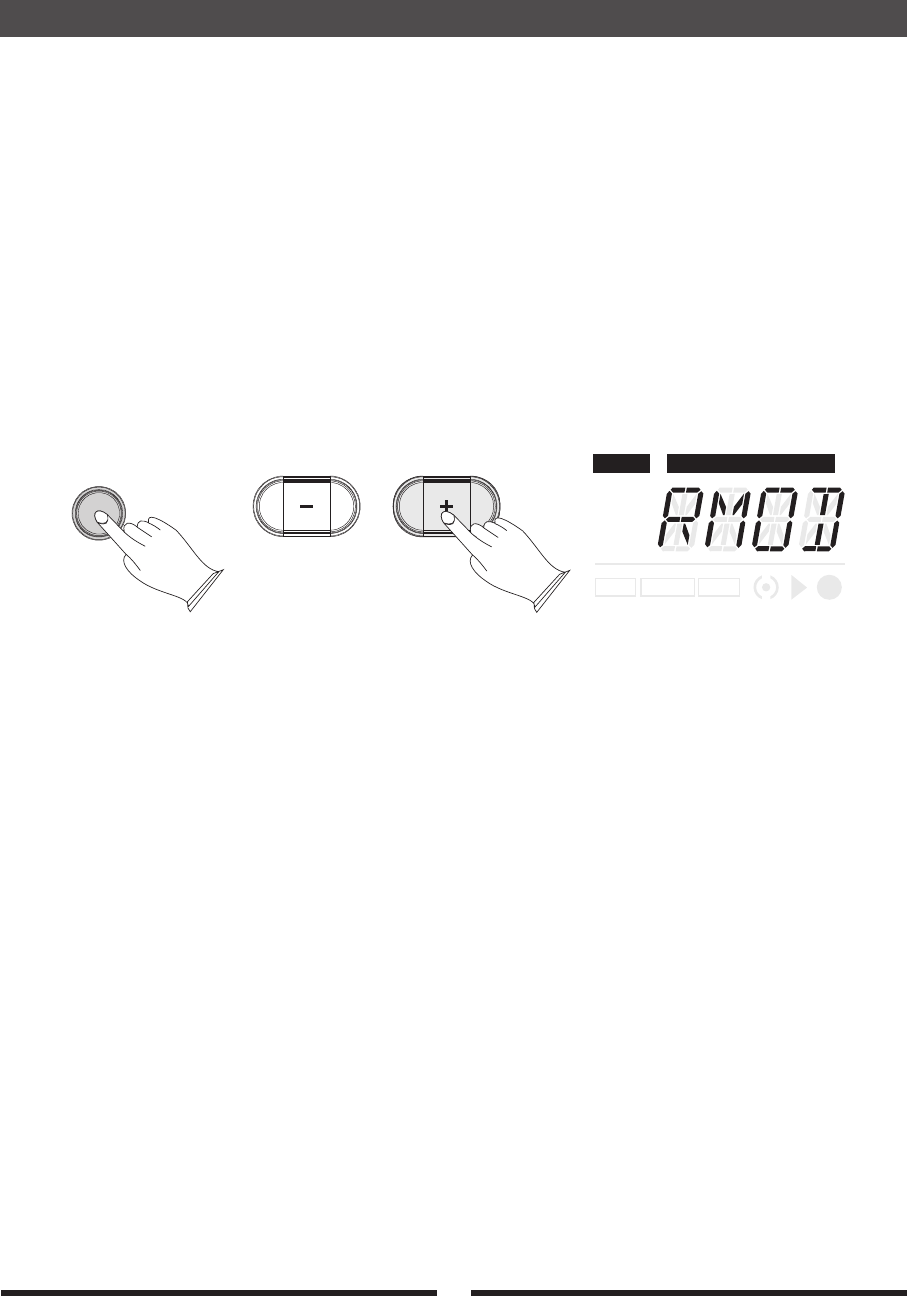

D. “RMOD”
Press the [RECORD] button t Use the [+/-] button to select
“RMOD”, then press the [ENTER] button and use the [+/-] button to select“SYNC”or
“AUTM”.
he LCD will display “RECD”,
SYNC ------ If you use Syn mode ,it will start recording when you start playing the instrument.
AUTM ------ Means that After four beats it will automatically start recording.
RECORD
30
Begin Playing the Drums

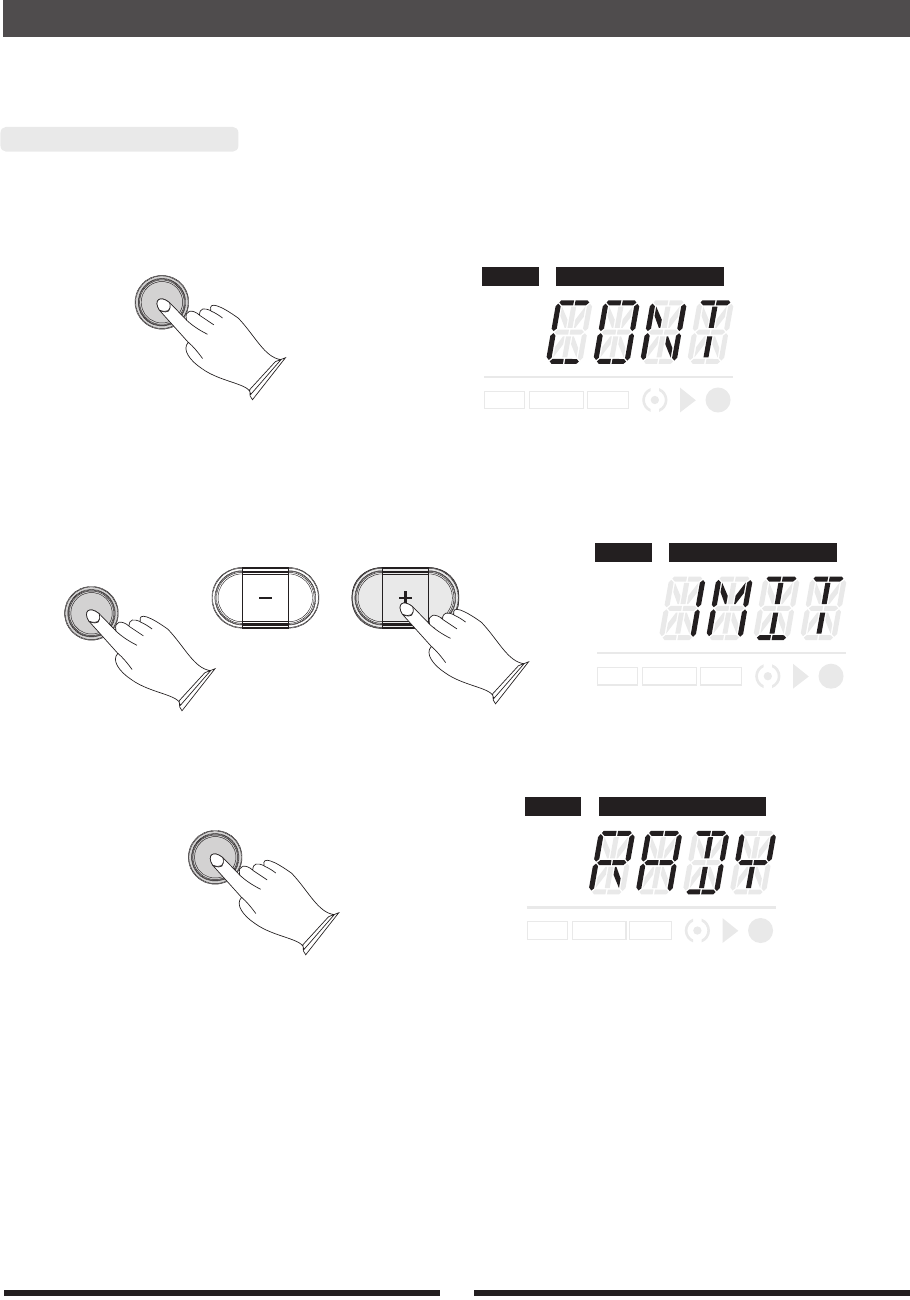

[COUNT] Button
Count the number of hitting drums in the certain period.
1. Press the [COUNT] button, the LCD will display“CONT”.
2. Press the [ENTER] button, and use the [-/+] buttons to select“1MIT”,“2MIT”and
“3MIT”(“1MIT”: One minute, “2MIT”: Two minutes, “3MIT”: Three minutes)
3. Press [ENTER] button again, the LCD will display “RADY”.
4. It starts counting by hitting the drum.
5. When time is out, the number of hitting drum will be displayed on the LCD and return to the
“KIT” menu.
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
COUNT
ENTER
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
ENTER
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
There is a simple way to restore everything in the drum module to the factory settings. This
includes all trigger settings, drum kits, effects, and the song you recorded. If you are certain
you want to do this, follow these steps:
1. Turn the power switch to OFF
2. Hold down the [-/+] buttons and turn the power switch to ON. The display will show
“RSET”, which means all of the parameters in the drum module have been restored to
their factory settings.
Start to Play the Drum
Connect
Assembly Instruction
Factory Reset
31
Mode Parameter/Value
K i t S e l e c t
K i t E d i t
S e t u p
C l i c k S o n gTe m p o
Drum Kits List
32
Kit #
001
002
003
004
005
006
007
008
009
010
011
012
013
014
015
016
017
018
019
020
021
022
023
024
025
Name
Acoustic 1
Analog
Acoustic 2
Drum Box 1
Room
Eight-oh
Rock 1
Dance Club
Jazz
Rap-hop
Early R&B
Electronic 1
Crunch
Compressed
Electronic 2
Kit # Name
Latin
Pop
Nine-oh
Electro-pop
Trash
Rock 2
Reggae-pop
Brush
Modern R&B
Drum Box 2
026
027
028
029
030
031
032
033
034
035
036
037
038
039
040
041
042
043
044
045
Mute Standard 1
Mute Standard 2
Electronic 1
Mute Standard 3
Jazz 1
Jazz 2
Latin 1
Power Rock 1
Latin 2
Power Rock 2
Power Rock 3
Electro Rock 1
Hard Rock 1
Explosion
Electro Rock 2
Hard Rock 2
Electro Rock 3
Latin Rock
Metal
Power Rock 4
Voice List
33
Group 1: Kick Drums
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27 1
28 2
29
30
31
Acoustic kick 1
Acoustic kick 2
Room kick 1
Room kick 2
Rock kick 1
Jazz kick
Early R&B kick
Compressed kick
Latin kick
Pop kick
Trash kick
Rock kick 2
Reggae-pop kick
Brush kick
Modern R&B kick
Big kick
Rock kick 3
Rock kick 4
Rock kick 5
8-oh kick
9-oh kick
Dance club kick
Rap-hop kick
Electronic kick 1
Electronic kick 2
Analog kick
Drum box kick
Drum box kick
Crunch kick
Electro-pop kick
Thick kick
BD_DP50_Fatso
BD_DP50_Tape
BD_DP50_Warm_Fatso
BD_DP50_Warm_Tape
BD_DP50_X
BD_DP50_Warm_X
MD16_BD_Elec_1
MD16_BD_Gated_2
MD16_BD_Slap_1
MD16_BD_Slap_2
Group 2: Snare Drums
01 Acoustic snare 1
02 Piccolo snare 1
03 Piccolo snare 2
04 Room snare 1
05 Room snare 2
06 Rock snare 1
07 Rock snare 2
08 Rock snare 3
09 Rock snare 4
10 Compressed snare
11 Jazz snare
12 Acoustic snare 2
13 Acoustic snare 3
14 Trash snare
15 Pop snare 1
16 Reggae-pop snare
17 Brush snare
18 Early R&B snare
19 Pop snare 2
20 Latin snare+tambourine
21 Electro-pop snare
22 Rap-hop snare
23 Analog snare 1
24 Modern R&B snare
25 Rock snare 5
26 Electronic snare 1
27 Drum box snare 1
28 8-oh snare
29 Dance club snare
30 9-oh snare
31 Drum box snare 2
32 Crunch snare 1
33 Electronic snare 2
34 Analog snare 2
35 Crunch snare 2
36 Drum box snare 3
37 Noise snare
38 Reso-snare
39 Bubble snare
40 Acoustic rimshot 1
41 Early R&B rimshot
42 Pop rimshot 1
43 Piccolo rimshot 1
44 Rock rimshot 1
45 Jazz rimshot 1
46 Acoustic rimshot 2
47 Compressed rimshot
48 Room rimshot
49 Pop rimshot 2
50 Rock rimshot 2
51 Reggae-pop rimshot
52 Brush rimshot
53 Analog rimshot 1
Voice List
34
Group 3: Toms
01 Acoustic tom 1 (high)
02 Acoustic tom 1 (mid)
03 Acoustic tom 1 (low)
04 Acoustic tom 2 (high)
05 Acoustic tom 2 (mid)
06 Acoustic tom 2 (low)
07 Room tom 1 (high)
08 Room tom 1 (mid)
09 Room tom 1 (low)
10 Compressed tom (high)
11 Compressed tom (mid)
12 Compressed tom (low)
13 Rock tom 1 (high)
14 Rock tom 1 (mid)
15 Rock tom 1 (low)
16 Rock tom 2 (high)
17 Rock tom 2 (mid)
18 Rock tom 2 (low)
19 Pop tom 1 (high)
20 Pop tom 1 (mid)
21 Pop tom 1 (low)
22 Pop tom 2 (high)
23 Pop tom 2 (mid)
24 Pop tom 2 (low)
25 Tight tom (high)
26 Tight tom (mid)
27 Tight tom (low)
28 D-dub tom (high)
29 D-dub tom (mid)
30 D-dub tom (low)
31 Rock tom 3 (high)
32 Rock tom 3 (mid)
33 Rock tom 3 (low)
34 Rock tom 4 (high)
54 Modern R&B rimshot
55 Trash rimshot
56 Drum box rimshot 1
57 8-oh rimshot
58 Dance club rimshot
59 Electronic rimshot 1
60 Crunch rimshot
61 Electronic rimshot 2
62 Analog rimshot 2
63 Drum box rimshot 2
64 Electro-pop rimshot
65 Piccolo snare 3
66 Piccolo rimshot 2
67 Rock snare 6
68 Rock rimshot 3
69 SD_DP50_Fatso
70 SD_DP50_Tape
71 SD_DP50_warm_Fatso
72 SD_DP50_warm_Tape
73 MD16_SD_Fusion_1
74 MD16_SD_Acoust_1
75 MD16_SD_Killa_1
76 MD16_SD_Acoust_1
77 Rim_DP50_Fatso
78 Rim_DP50_Tape
79 Rim_DP50_warm_Fatso
80 Rim_DP50_warm_Tape
81 Tamb_DP50_Fatso
82 MD16_Stick_2
83 MD16_Stick_3
84 MD16_SD_Ska_3
85 MD16_Clap_1
35 Rock tom 4 (mid)
36 Rock tom 4 (low)
37 Rock tom 5
38 Modern R&B tom (high)
39 Modern R&B tom (mid)
40 Modern R&B tom (low)
41 Jazz tom (high)
42 Jazz tom (mid)
43 Jazz tom (low)
44 Brush tom (high)
45 Brush tom (mid)
46 Brush tom (low)
47 Early R&B tom (high)
48 Early R&B tom (mid)
49 Early R&B tom (low)
50 Reggae-pop tom & timbale
51 Reggae-pop tom & conga
52 Reggae-pop tom & conga
53 Latin tom & conga
54 Latin tom & bongo
55 Electro-pop tom (high)
56 Electro-pop tom (mid)
57 Electro-pop tom (low)
58 Electro-pop tom 2 (high)
59 Electro-pop tom 2 (mid)
60 Electro-pop tom 2 (low)
61 Trash tom (high)
62 Trash tom (mid)
63 Trash tom (low)
64 Crunch tom (high)
65 Crunch tom (mid)
66 Crunch tom (low)
67 Rap-hop tom (high)
68 Rap-hop tom (mid)
69 Rap-hop tom (low)
70 Electronic tom 1 (high)
Voice List
35
71 Electronic tom 1 (mid)
72 Electronic tom 1 (low)
73 Electronic tom 2 (high)
74 Electronic tom 2 (mid)
75 Electronic tom 2 (low)
76 Analog tom (high)
77 Analog tom (mid)
78 Analog tom (low)
79 9-oh tom (high)
80 9-oh tom (mid)
81 9-oh tom (low)
82 9-oh tom 2 (high)
83 9-oh tom 2 (mid)
84 9-oh tom 2 (low)
85 8-oh tom-fall (high)
86 8-oh tom-fall (mid)
87 8-oh tom-fall (low)
88 Drum box tom 1 (high)
89 Drum box tom 1 (mid)
90 Drum box tom 1 (low)
91 Drum box tom 2 (high)
92 Drum box tom 2 (mid)
93 Drum box tom 2 (low)
94 Dance club tom (high)
95 Dance club tom (mid)
96 Dance club tom (low)
97 Tom_Dp50_01_Fatso
98 Tom_Dp50_02_Fatso
99 Tom_Dp50_03_Fatso
100 Tom_DP50_01_Tape
101 Tom_DP50_02_Tape
102 Tom_DP50_03_Tape
103 Tom_DP50_01_warm_Fatso
104 Tom_DP50_02_warm_Fatso
105 Tom_DP50_03_warm_Fatso
106 Tom_DP50_01_warm_Tape
107 Tom_DP50_02_warm_Tape
108 Tom_DP50_03_warm_Tape
109 Tom_DP50_01_X
110 Tom_DP50_02_X
111 Tom_DP50_03_X
112 Tom_DP50_01_warm_X
113 Tom_DP50_02_warm_X
114 Tom_DP50_03_warm_X
115 Conga_DP50_H_Fatso
116 Conga_DP50_L_Fatso
117 MD16_Tom_Elec_1
118 MD16_Tom_Elec_2
119 MD16_Tom_Elec_3
120 MD16_Tom_1
121 MD16_Tom_2
122 MD16_Tom_3
123 MD16_Timb_1
124 MD16_Timb_2
125 MD16_Timb_3
126 MD16_Cow_03
127 MD16_Cow_02
1 Crash cymbal 1
02 Crash cymbal 2
03 Rap-hop crash
04 Mid crash 1
05 Mid crash 2
06 Dark crash
07 18" crash 1
08 18" crash 2
Group 4: Cymbals
0
09 Mid splash
10 High splash
11 Crispy splash
12 Trash splash
13 Small splash
14 Electro splash
15 Dark splash
16 Low crash 1
17 Low crash 2
18 Analog crash
19 Electro-pop crash
20 Dance club crash
21 Electro crash 1
22 Electro crash 2
23 Falling crash
24 Submarine crash
25 Sizzle ride
26 Sizzle ride plus bell
27 Cymbal ride bell 1
28 Cymbal ride bell 2
29 Low ride
30 Early R&B ride
31 Ride crash
32 Brush ride
33 Cymbal ride plus bell 3
34 Latin ride & cowbell
35 Cymbal ride plus bell 1
36 Cymbal ride plus bell 2
37 Trash ride
38 Electronic ride 1
39 Electro-pop ride
40 High ping ride
41 Drum box ride
42 9-oh ride crash
Voice List
36
43 Pie tin ride
44 Electronic ride 2
45 Crunch ride
46 Electronic crash-ride
47 Electronic ride 3
48 Ride_DP50_Fatso
49 Ride_DP50_Tape
50 Crash_DP50_Tape
51 Ride_DP50_Fatso
52 Crash_DP50_Fatso
53 Shaker_DP50_Fatsp
54 MD16_Ride
55 MD16_Crash
56 MD16_Whistle
57 MD16_Shaker
58 00105_Rim
59 000ed_Rim
60 00100_Rim
61 000ea_Rim
62 00103_Rim
63 000e7_Rim
64 00110_Rim
65 000f1_Rim
66 00101_Rim
67 0010f_Rim
68 000F0_Rim
69 00111_Rim
70 000e9_Rim
71 00104_Rim
72 000eb_Rim
73 00112_Rim
74 000fb_Rim
75 00113_Rim
76 000fd_Rim
77 0010c_Rim
78 000f7_Rim
79 0010e_Rim
80 000f8_Rim
81 000f4_Rim
82 000fa_Rim
83 00108_Rim
84 0010a_Rim
85 000ee_Rim
86 0010d_Rim
87 000f9_Rim
88 0010b_Rim
89 000f2_Rim
90 00107_Rim
91 000ef_Rim
92 00106_Rim
93 00115_Rim
94 000fc_Rim
95 Ride_DP50_Fatso_Rim
96 Crash_DP50_Fatso_Rim
Group 5: -hats
1 Brush hat 1 closed
2 Brush hat 1 foot
3 Brush hat 1 open
4 Brush hat 1 splash
5 Brush hat 2 closed
6 Brush hat 2 foot
7 Brush hat 2 open
8 Brush hat 2 splash
9 Room hat closed
Hi
10 Room hat foot
11 Room hat open
12 Room hat splash
13 Rock hat 1 closed
14 Rock hat 1 foot
15 Rock hat 1 open
16 Rock hat 1 splash
17 Rock hat 2 closed
18 Rock hat 2 foot
19 Rock hat 2 open
20 Rock hat 2 splash
21 Small hat 1 closed
22 Small hat 1 foot
23 Small hat 1 open
24 Small hat 1 splash
25 Small hat 2 closed
26 Small hat 2 foot
27 Small hat 2 open
28 Small hat 2 splash
29 Snappy brush hat closed
30 Snappy brush hat foot
31 Snappy brush hat open
32 Snappy brush hat splash
33 Trash hat closed
34 Trash hat foot
35 Trash hat open
36 Trash hat splash
37 Early R&B hat closed
38 Early R&B hat foot
39 Early R&B hat open
40 Early R&B hat splash
41 Boom snap hat closed
42 Boom snap hat open
Voice List
37
43 Boom snap hat splash
44 Rock hat 3 closed
45 Rock hat 3 open
46 8-oh hat closed
47 8-oh hat foot
48 8-oh hat open
49 Dance club hat closed
50 Dance club hat foot
51 Dance club hat open
52 Rap-hop hat closed
53 Rap-hop hat foot
54 Rap-hop hat open
55 Rap-hop hat splash
56 Electronic hat 1 closed
57 Electronic hat 1 foot
58 Electronic hat 1 open
59 Crunch hat closed
60 Crunch hat foot
61 Crunch hat open
62 Electronic hat 2 closed
63 Electronic hat 2 foot
64 Electronic hat 2 open
65 Electronic hat 2 splash
66 Analog hat closed
67 Analog hat foot
68 Analog hat open
69 Drum box hat 1 closed
70 Drum box hat 1 foot
71 Drum box hat 1 open
72 9-oh hat closed
73 9-oh hat foot
74 9-oh hat open
75 9-oh hat splash
76 Electro-pop hat closed
77 Electro-pop hat foot
78 Electro-pop hat open
79 Electro-pop hat splash
80 Modern R&B hat closed
81 Modern R&B hat foot
82 Modern R&B hat open
83 Modern R&B hat splash
84 Drum box hat 2 closed
85 Drum box hat 2 foot
86 Drum box hat 2 open
87 Shaker hat closed
88 HHo_DP50_Fatso
89 HH_DP50_Fatso
90 HHo_DP50_Tape
91 HH_DP50_Tape
92 TriOpen_DP50_Fatso
93 TriClosed_DP50_Fatso
94 MD16_HH_2
95 MD16_HH_1
96 MD16_HH_pedal
97 MD16_HHo
Group 6: Percussion
01 Agogo (high)
02 Agogo (low)
03 Agogo (high/low)
04 Conga (high)
05 Conga (low)
06 Hand claps
07 Timbale (high)
08 Timbale (low)
09 Triangle mute
10 Triangle open
11 Triangle (open/mute)
12 Woodblock (high)
13 Woodblock (low)
14 Woodblock (high/low)
15 Shaker
16 Tambourine (down)
17 Tambourine (up)
18 Tambourine (up/down)
19 Cowbell
20 8-oh cowbell
Group 7:
01 Tom_DP50_04_Fatso
02 Tom1_DR220e
03 Tom2_DR220e
04 Tom3_DR220e
05 MD16_Tabla_3
06 MD16_Tabla_4
07 MD16_Tabla_5
08 MD16_Tabla_4
09 MD16_Tabla_5
10 Tom1_DR220e
11 Tom2_DR220e
12 Tom3_DR220e
13 DMX606_Tom_01
14 DMX606_Tom_03
15 DMX606_Tom_05
16 Kit1_Tom1_Rim
17 Kit1_Tom2_Rim
18 Kit1_Tom3_Rim
19 Kit2_Tom1_Rim
20 Kit2_Tom2_Rim
21 Kit2_Tom3_Rim
Voice List
38
22 Kit3_Tom1_Rim
23 Kit3_Tom2_Rim
24 Kit3_Tom3_Rim
25 Kit4_Tom1_Rim
26 Kit4_Tom2_Rim
27 Kit4_Tom3_Rim
28 Kit5_Tom1_Rim
29 Kit5_Tom2_Rim
30 Kit5_Tom3_Rim
31 Kit6_Tom1_Rim
32 Kit6_Tom2_Rim
33 Kit6_Tom3_Rim
34 Kit7_Tom1_Rim
35 Kit7_Tom2_Rim
36 Kit7_Tom3_Rim
37 Kit8_Tom1_Rim
38 Kit8_Tom2_Rim
39 Kit8_Tom3_Rim
40 Kit9_Tom1_Rim
41 Kit9_Tom2_Rim
42 Kit9_Tom3_Rim
43 Kit10_Tom1_Rim
44 Kit10_Tom2_Rim
45 Kit10_Tom3_Rim
46 Kit11_Tom1_Rim
47 Kit11_Tom2_Rim
48 Kit11_Tom3_Rim
49 Kit12_Tom1_Rim
50 Kit12_Tom2_Rim
51 Kit12_Tom3_Rim
52 Kit13_Tom1_Rim
53 Kit13_Tom2_Rim
54 Kit13_Tom3_Rim
55 Kit14_Tom1_Rim
56 Kit14_Tom2_Rim
57 Kit14_Tom3_Rim
58 Kit15_Tom1_Rim
59 Kit15_Tom2_Rim
60 Kit15_Tom3_Rim
61 Kit17_Tom1_Rim
62 Kit17_Tom2_Rim
63 Kit17_Tom3_Rim
64 Kit18_Tom1_Rim
65 Kit18_Tom2_Rim
66 Kit18_Tom3_Rim
67 Kit19_Tom1_Rim
68 Kit19_Tom2_Rim
69 Kit19_Tom3_Rim
70 Kit20_Tom1_Rim
71 Kit20_Tom2_Rim
72 Kit20_Tom3_Rim
73 Kit21_Tom1_Rim
74 Kit21_Tom2_Rim
75 Kit21_Tom3_Rim
76 Kit22_Tom1_Rim
77 Kit22_Tom2_Rim
78 Kit22_Tom3_Rim
79 Kit23_Tom1_Rim
80 Kit23_Tom2_Rim
81 Kit23_Tom3_Rim
82 Kit24_Tom1_Rim
83 Kit24_Tom2_Rim
84 Kit24_Tom3_Rim
85 Kit25_Tom1_Rim
86 Kit25_Tom2_Rim
87 Kit18_Tom3_Rim
88 Kit26_Tom1_Rim
89 Kit26_Tom2_Rim
90 Kit26_Tom3_Rim
91 Kit27_Tom1_Rim
92 Kit27_Tom2_Rim
93 Kit27_Tom3_Rim
94 Kit28_Tom1_Rim
95 Kit28_Tom2_Rim
96 Kit28_Tom3_Rim
97 Kit29_Tom1_Rim
98 Kit29_Tom2_Rim
99 Kit29_Tom3_Rim
100 Kit30_Tom1_Rim
101 Kit30_Tom2_Rim
102 Kit30_Tom3_Rim
103 Kit31_Tom1_Rim
104 Kit31_Tom2_Rim
105 Kit31_Tom3_Rim
106 Kit32_Tom1_Rim
107 Kit32_Tom2_Rim
108 Kit32_Tom3_Rim
109 MD16_Tom_Elec_1_Rim
110 MD16_Tom_Elec_2_Rim
111 MD16_Tom_Elec_3_Rim
112 MD16_Tom_1_Rim
113 MD16_Tom_2_Rim
114 MD16_Tom_3_Rim
Style List
39
Song Name/Style
Number
001
002
003
004
005
006
007
008
009
010
011
012
013
014
015
016
017
018
019
020
021
022
023
024
025
026
027
028
029
030
031
032
033
034
035
036
037
038
039
040
041
042
043
044
045
046
047
048
049
050
Swing Reggae
English Waltz
Tango
Rhythm & Blues
Polka
Bluegrass
Bossanova
ClubLatin
Country
DancePop
DiscoParty
Foxtrot
Garage
Hippop
JazzRock
LatinDisco
Mambo
ModernJazz
Merengue
PopRock
Rock&Roll
16beat
Salsa
SlowRock
Swing
Rock Shuffle
Surf Pop
Techno
60's Rock
Hard Rock
Pop Bossa
80's Rock
16 Beat
Modern 6/8
Swing Funk
Piano Ballad
Rap
16 Beat Ballad
Pop Ballad
8 Beat Dance
8 Beat Modern
0's Disco
Big Band
Country 8 Beat
3/4 Gospel
Soul
8 Beat Two
Reggae
7
Pop Shuffle
Guitar Pop
Song Name/Style
Number
MIDI Implementation Chart
Function
Basic Default
Channel Changed
Mode Default
Messages
Altered
Note
Number :True voice
Velocity Note ON
Note OFF
Affter Key's
Pitch Bender
Control Change 0, 32
1
5
6
7
10
11
64
65
66
67
80, 81
91, 93
100,101
121
Program
Change : True
System Exclusive
System : Song Position
: Song Select
Common : Tune
Aux : Local on/off
: All Notes Off
Messages : Active Sense
: Reset
Transmitted
1-16CH
1-16CH
Mode 3
X
**********
0~127
**********
O 9nH,v=1~127
O 8nH,v=0
X
X
O
X
X
O
O
X
X
X
X
X
X
O
O
X
X
O 0-127
0-127
X
X
X
X
X
O
X
X
Recognized
1-16CH
1-16CH
Mode 3
X
X
0~127
0~127
O 9nH,v=1~127
O 9nH,v=0 or 8nh
X
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O (*1)
O
O 0-127
0-127
X
X
X
X
O
O
O
O
Remarks
Bank Select
Modulation
Portamento time
Data Entry
Volume
Pan
Expression
Sustain
Portamento
Sostenuto
Soft pedal
DSP TYPE
DSP DEPTH
RPN LSB,MSB
Reset all Controllers
Mode1:OMNI ON, POLY Mode2:OMNI ON, MONO O: Yes
Mode3:OMNI OFF, POLY Mode4:OMNI OFF, MONO X: NO
*1: Registered parameter number:
#0: Pitch sensivity
#1: Fine tuning cents
#2: Coarse tuning in half-tones
40
10506069-V1.0
Specifications
41
☆ 1 Snare with RIM Function, 3 TOM Pads with RIM Function,
2 Cymbal Pads with RIM Function and choke Function,
1 Hi-Hat Pad, 1 Hi-Hat Pedal, 1 Kick Drum Pedal
☆
☆
☆ 583 Percussion Voices, 45 Preset and 5 Custom
☆
☆ 50 Styles
☆
☆
☆
☆
Count
☆
Drum Pads:
Display: Multi-function Backlit LCD Display
Polyphony: 64 Notes Polyphony Max
Voice Control:
Effect: Reverb type (10), Chorus type (13), Level
Styles:
Pad Control: Sensitivity, Threshold, Velocity Curve
Demo: 2 Songs
Song recording: Real-time Record and Playback
Others: Tap, Click Level, Click Sound, Click Tempo,
Metronome (1/4, 2/4, 3/4, 4/4, 6/4, 3/8, 6/8, 12/8),
Interface: DC 9V Power Socket, PHONES, USB TO HOST,
Line Out(L/MONO,R), AUX IN, Serial connection jack for
the pad trigger cables
