Ringway Tech PA-88H DIGITAL PIANO User Manual

Ringway Tech(Jiangsu) Co.,Ltd. DIGITAL PIANO

User Manual

PA-88H
Virgin Musical Instruments
Owner s Manual
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings; install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade
or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over (Figure 1).
13) Unplug this apparatus during lightning storms or when unused for a long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
CAUTION: Apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
Always make sure all batteries are .
Always replace at the same time.
Remove the batteries from the instrument if it is not to be used for a long time.
WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer
and birth defects or other reproductive harm. Wash hands after handling.
inserted the correct way around to match the +/- polarity markings
all of the batteries Do not combine old and new batteries, also do not mix battery
types, as this can cause overheating, or fire, or battery fluid leakage.
(Figure 1)
Thank you for purchasing this digital instrument. For correct operation and safety, please
read the manual carefully and keep it for future reference.
Precaution
Safety Precautions
Important Safety Instructions

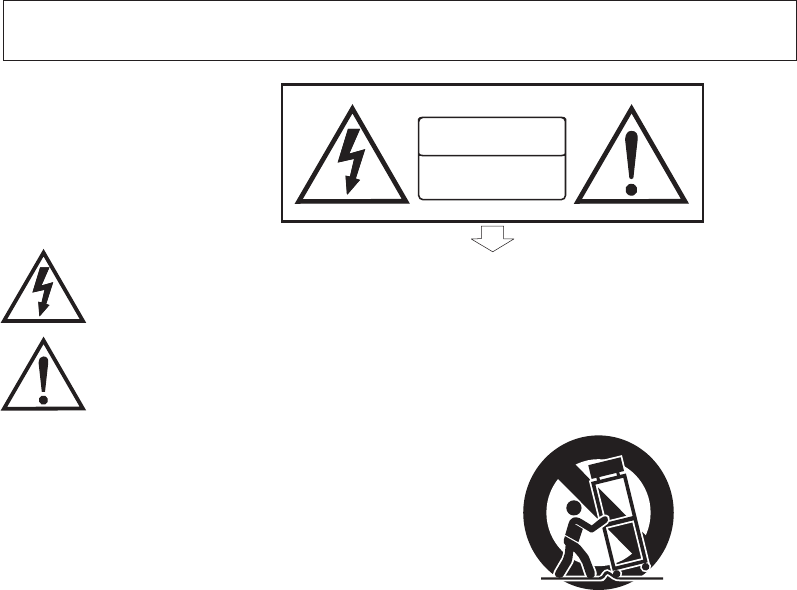

DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to constitute
a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
Your portable 88 note piano not only contains leading and innovative technology
but it also is developed by and for musicians of all playing levels. Featuring a
natural balanced, weighted hammer action keyboard action and an advanced
three layer acousta ridge tone generation sound technology, that will provide
you with a rich performing and playing experience.
This PA-88H offers many features and connection possibilities. To get the most
out of your instrument, please read this manual and try out the various functions
that can compliment your playing style.
Whether it is on stage, studio or home, your new portable piano is designed to
give you a lifetime of musical enjoyment.
Features Include:
. 88 Key Natural Balanced, weighted hammer action Keybed
. 16 Acousta Ridge sampled Instrument Voices
. DSP Functions for additional realism
. USB to Host and USB Audio Connection
. MIDI, Stereo and Mono Line Outs
. Battery Operated (6 D Cell Batteries are not included)
. Includes AC Adaptor, Sustain Pedal, Music Rack and more
Thank you for choosing Artesia!
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
1
3
4
7
8
8
8
9
11
11
12
14
15
16
16
17
18
20
20
20
21
23
24
29
30
31
Contents
Panel Control
Getting Started
Selecting a Voice
Demo Songs
Select the Demo Song
the Demo Song
Reverb and Chorus Buttons
Layer Mode
To Adjust the Volume of Main Voice in Layer
To Adjust the Volume of the Layer Voice
Metronome
Tempo
Edit Functions
Master Tunning
Touch
EQ Adjustment
MIDI Functions
MIDI Channels
MIDI Local On/Off
MIDI Panic Key
Factory Reset
Appendix

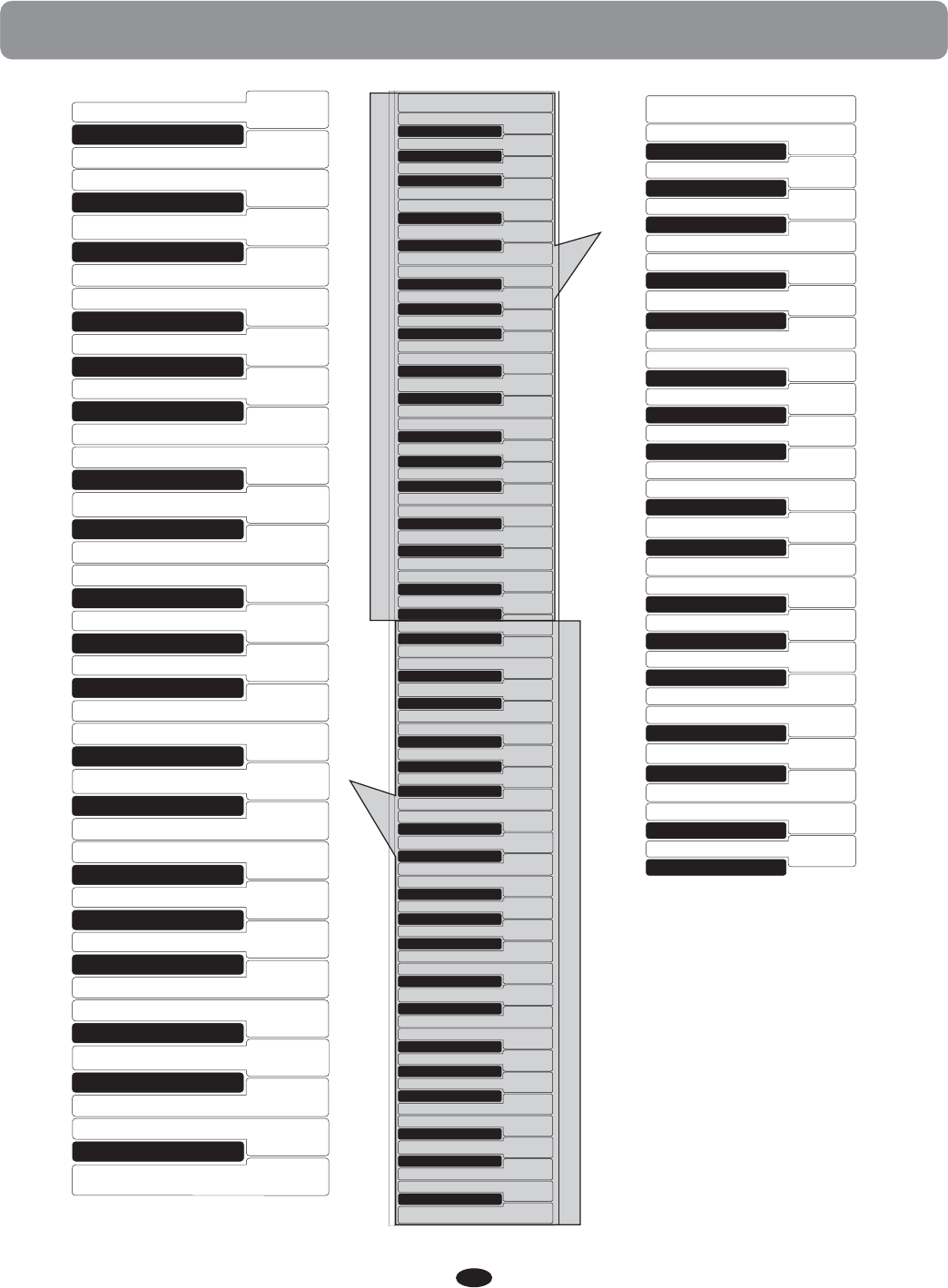

Advanced Functions keyboard Chart
Specifications
................................................................................
.............................................................................
...........................................................................
.................................................................................
................................................................
Stop ..................................................................
.........................................................
...................................................................................
..................................
........................................
...................................................................................
......................................................................................
...............................................................................
..........................................................................
........................................................................................
..........................................................................
.............................................................................
...........................................................................
......................................................................
..........................................................................
................................................................................
......................................................................................
.................................................
................................................................................
Warranty ......................................................................................
FUNCTION
TEMPOMETRONOME
REVERB CHORUS
DEMO
POWER
VOLUME
MIN MAX
PIANO 1 E.PIANO 1 ORGAN CLAVINET VIBES NYLON GTR STRINGS
E.PIANO 2 CHURCH ORGAN HARPSICHORD HARP STEEL GTR
PIANO 2 CHOIR
FANTASIA
E.BASS
BANK
USB TO HOST MIDI OUT
R
PHONES
L (MONO)
DC12V 1A
SUSTAIN
LINE OUT
USB TO HOST MIDI OUT
R
PHONES POWER
L (MONO)
DC12V 1A
SUSTAIN
LINE OUT
FUNCTION
TEMPOMETRONOME
REVERB CHORUS
DEMO
POWER
VOLUME
MIN MAX
PIANO 1 E.PIANO 1 ORGAN CLAVINET VIBES NYLON GTR STRINGS
E.PIANO 2 CHURCH ORGAN HARPSICHORD HARP STEEL GTR
PIANO 2 CHOIR
FANTASIA
E.BASS
BANK
8
910 11 12 13 14
POWER
3

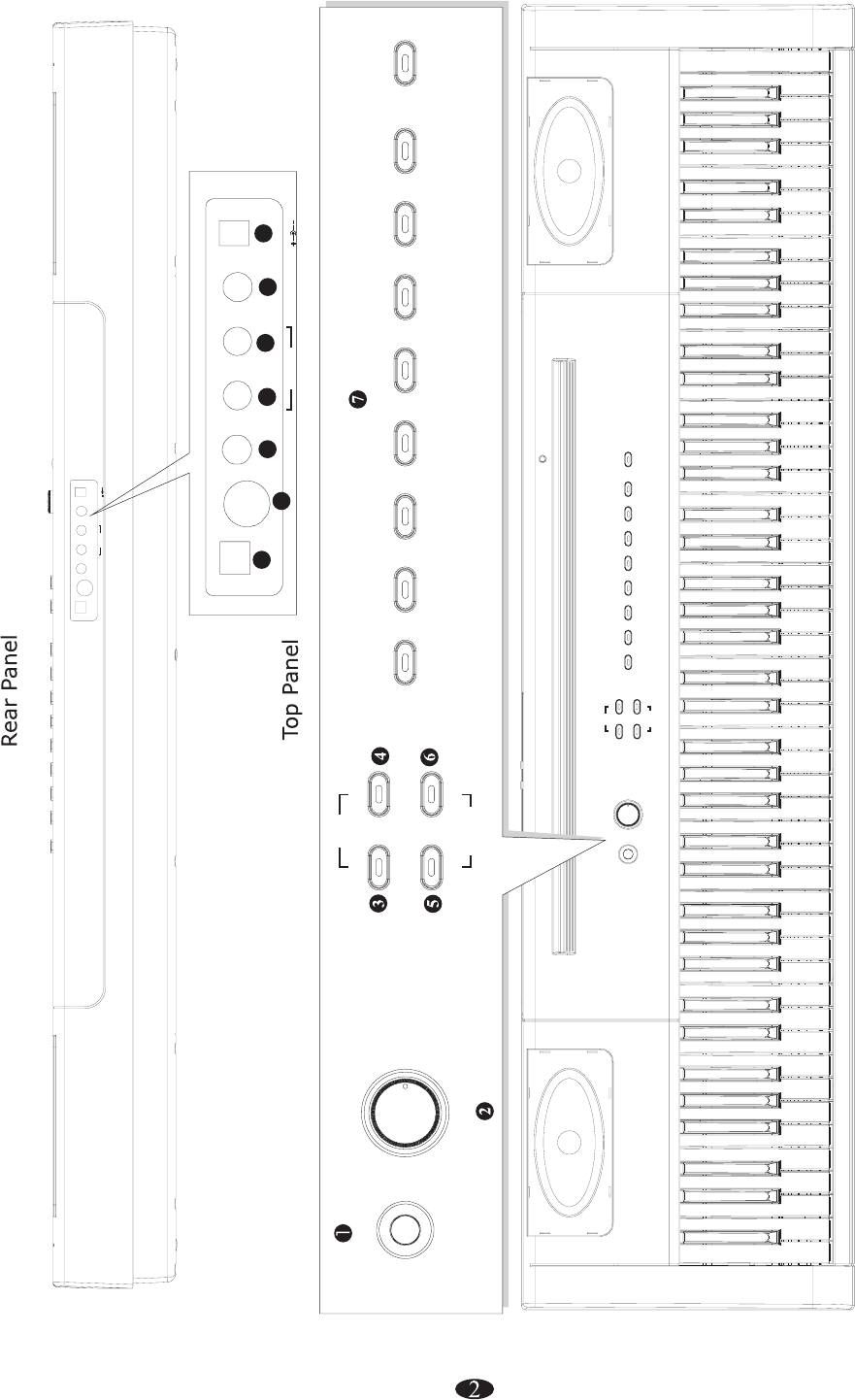

Panel Control
VOLUME
2
CHORUS Button
4
3REVERB Button
TEMPO Button
6
5METRONOME Button
7VOICES Select
9MIDI OUT Jack
8USB TO HOST Jack
POWER
1
11 LINE OUT(R) Jack
10 SUSTAIN Jack
POWER Jack
14
13 PHONES Jack
12 LINE OUT(L)(MONO) Jack
4

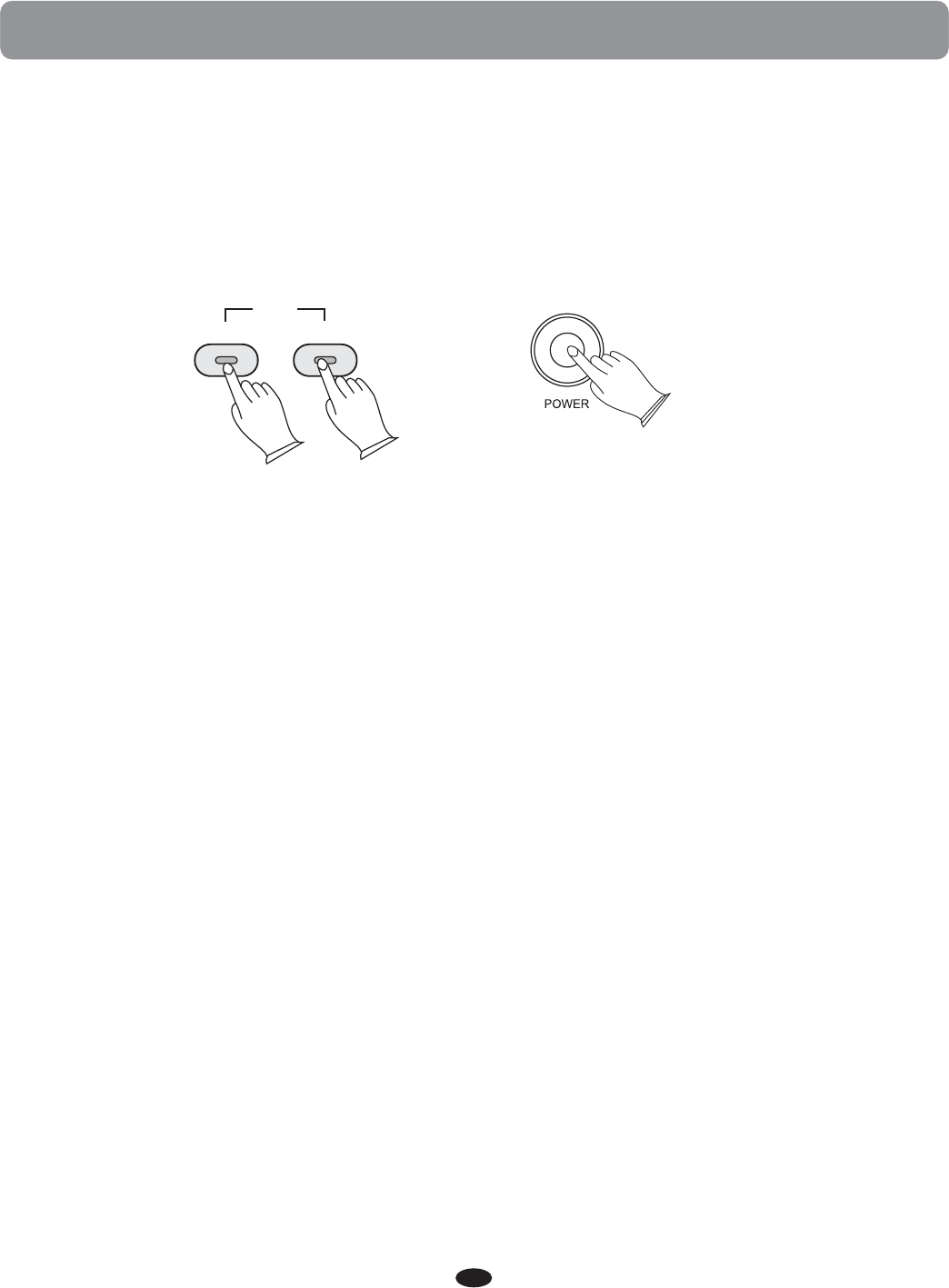

Getting Started
Before playing turn the power on by pressing the POWER switch, the panel LED
will turn on.
POWER
This piano has an auto off function. If you don't engage in any operations,
the piano will turn off after 30 minutes.
NOTE

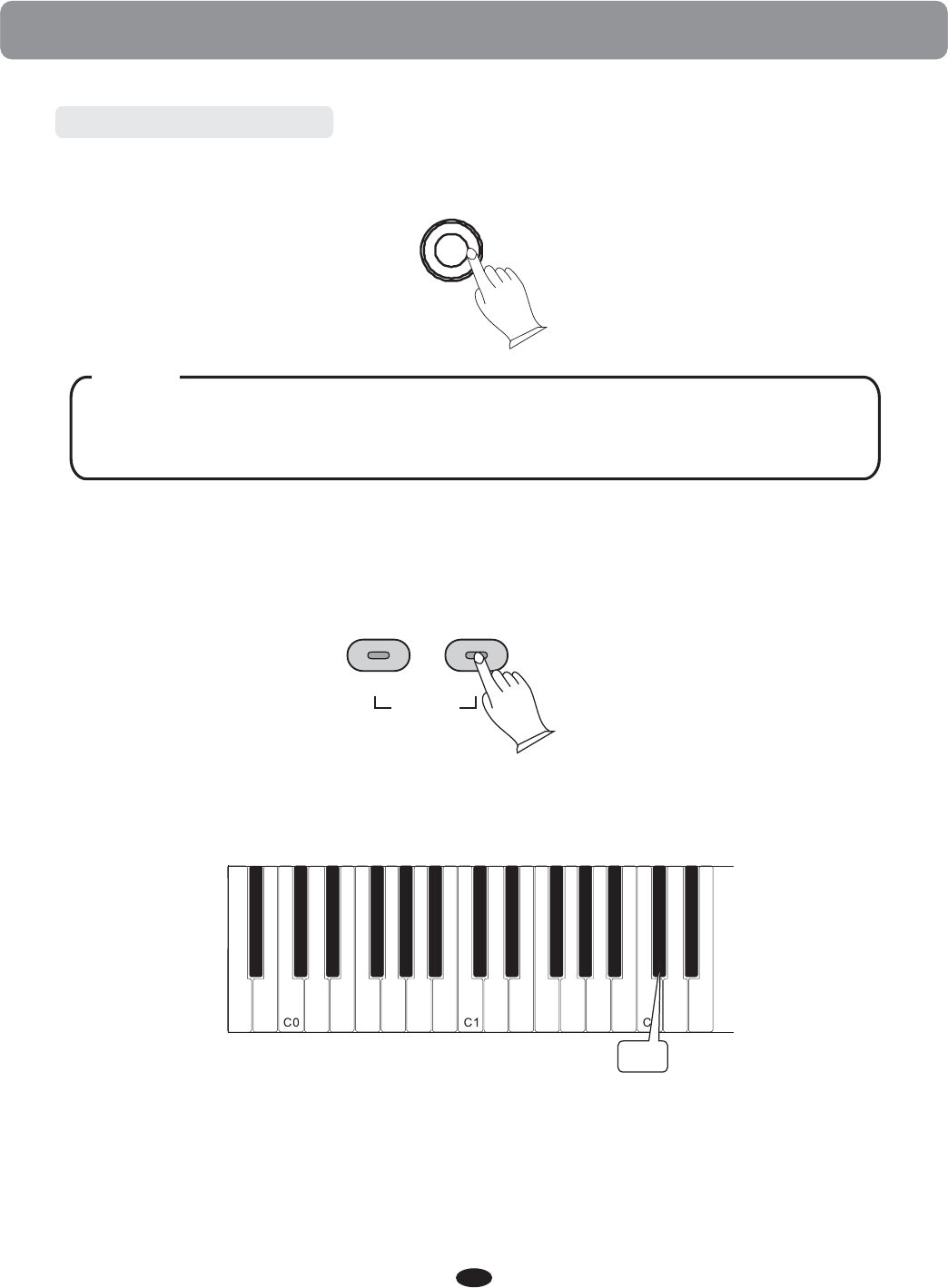

Turn on the power
Auto Power On/Off
Press the [METRONOME] and the [TEMPO] buttons together again to exit
the Function Mode.
FUNCTION
TEMPOMETRONOME

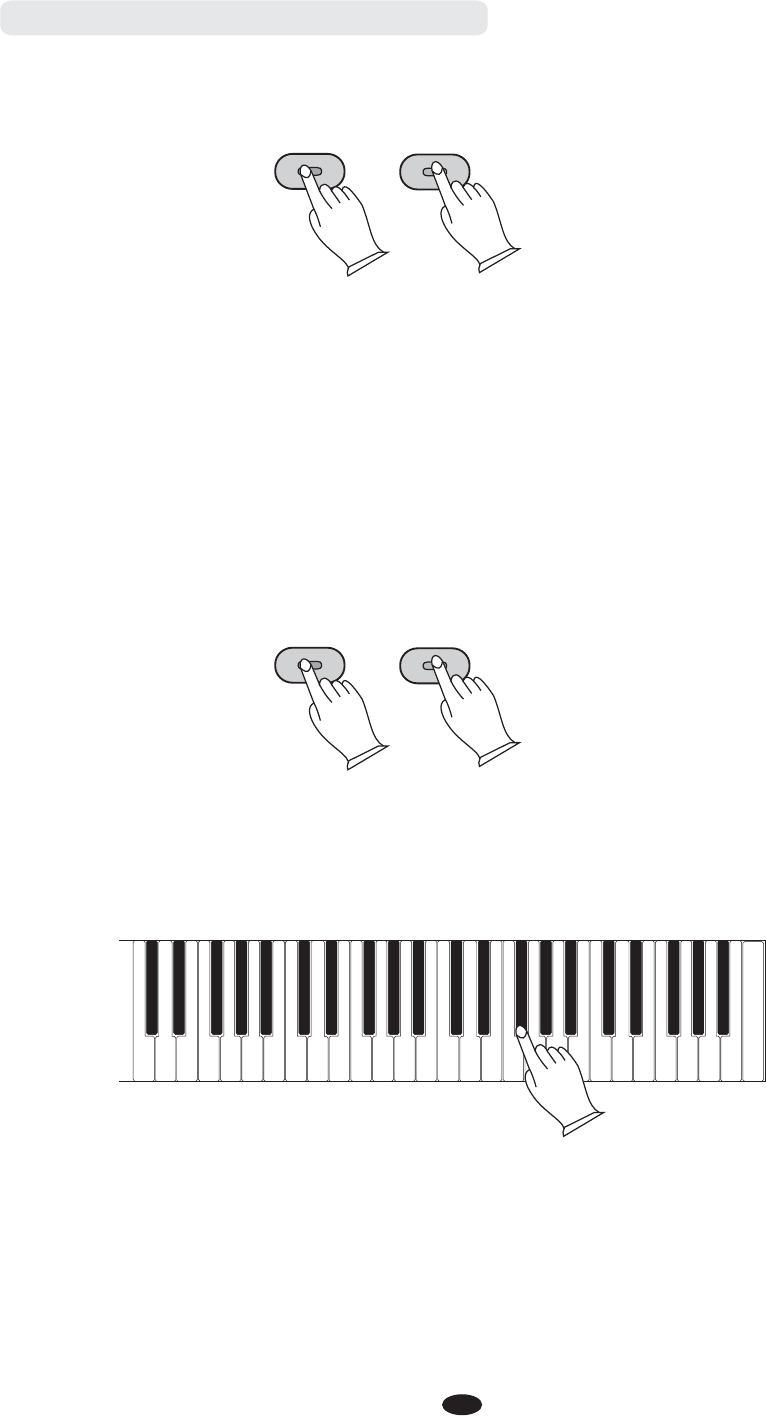

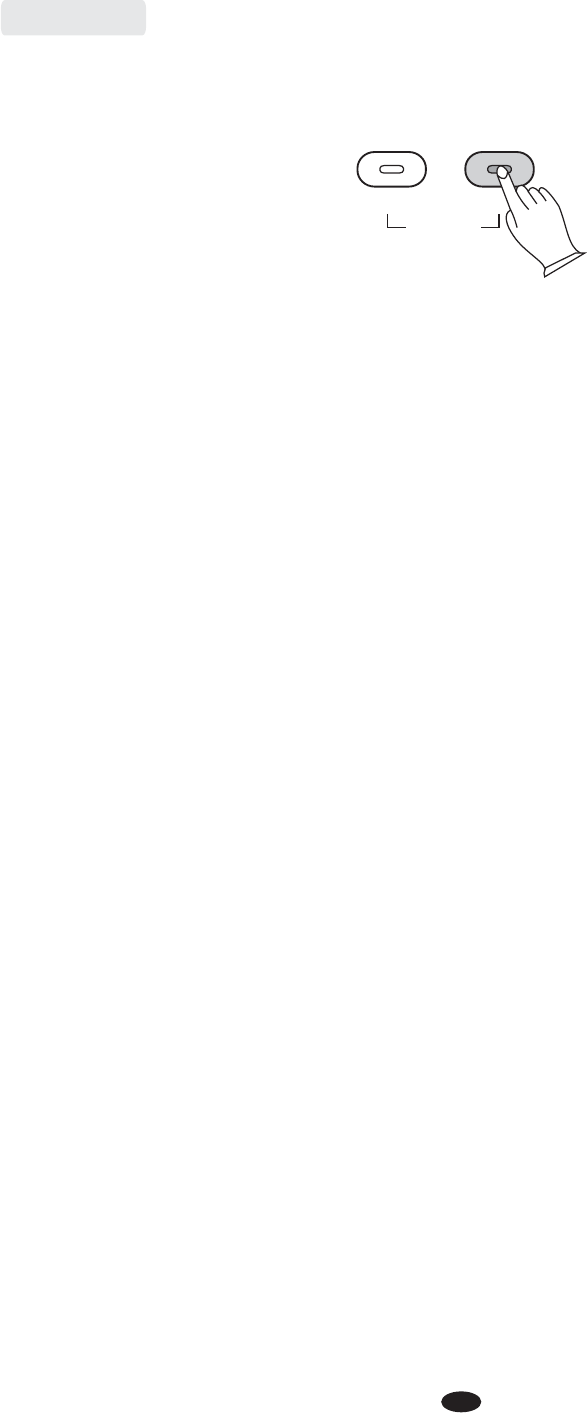

Press the [METRONOME] and the [TEMPO] buttons together to enter the
Function Mode.

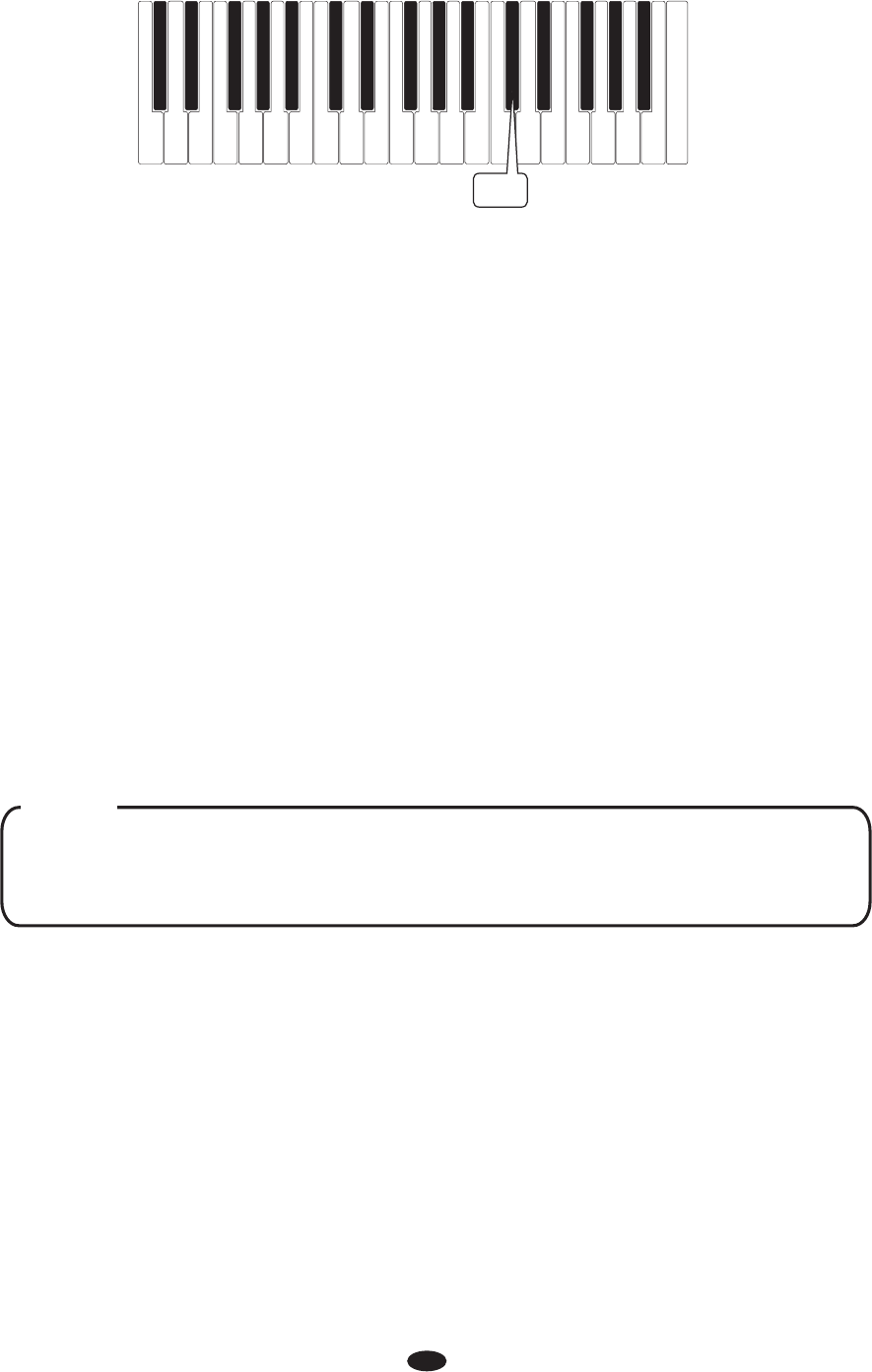

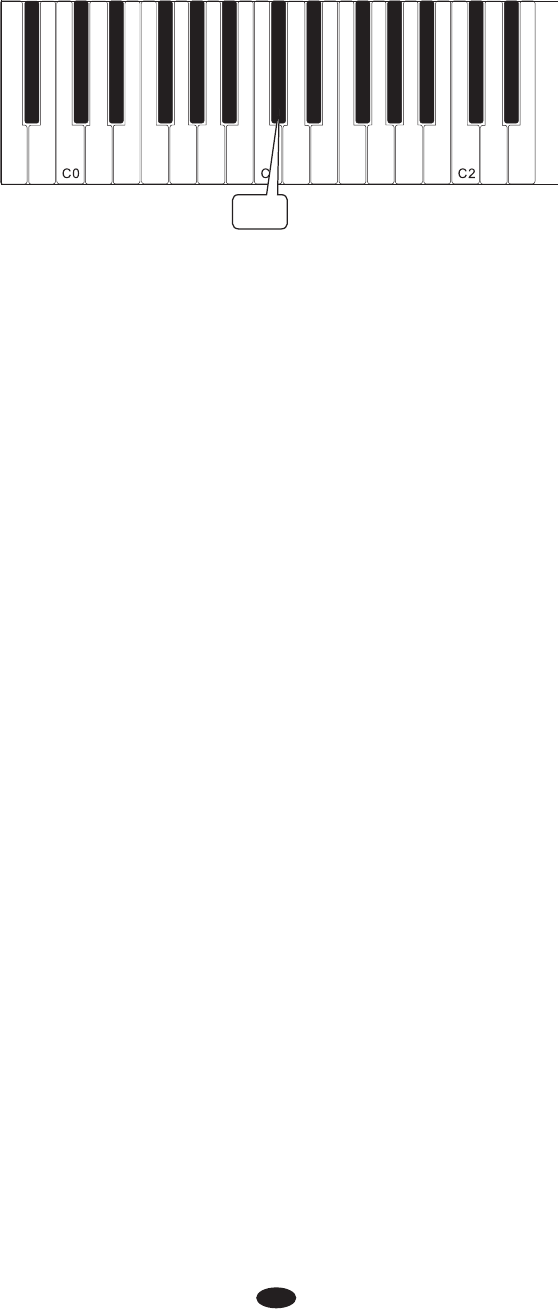

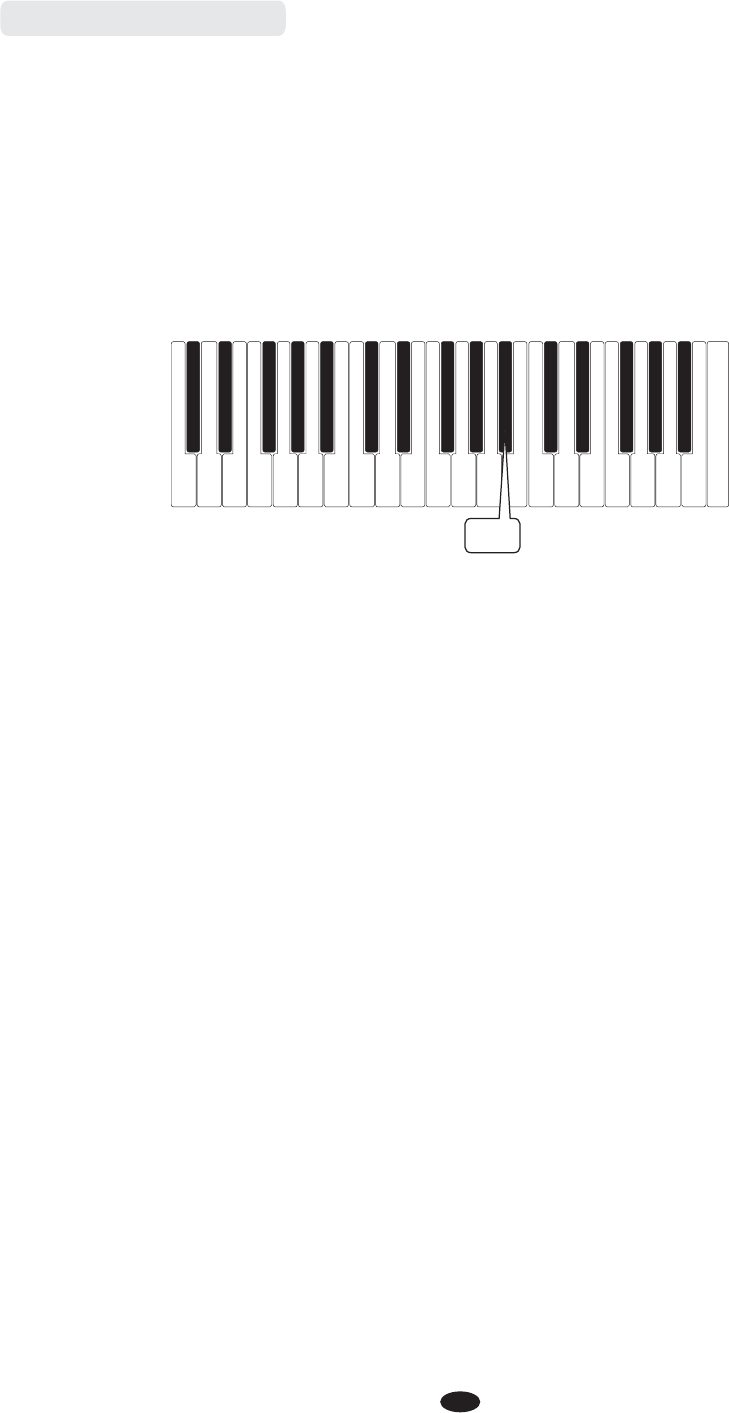

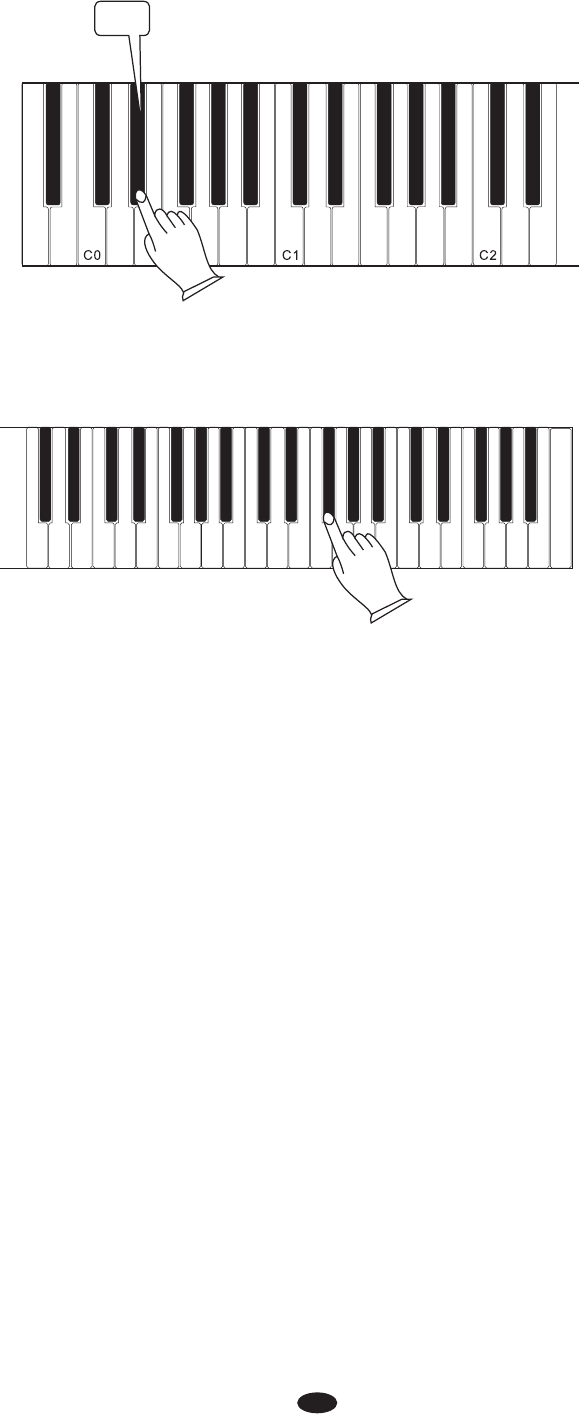

Pressing the C#2 piano key allows the user to switch auto Power On or Off.
While holding down the C#2 piano key, play the C3 Key once for Auto
Power On and twice for Auto Power Off.
TUNING
TOUCH=HIGH
AUTO POWER ON/OFF
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
C#2
5
RL(MONO)

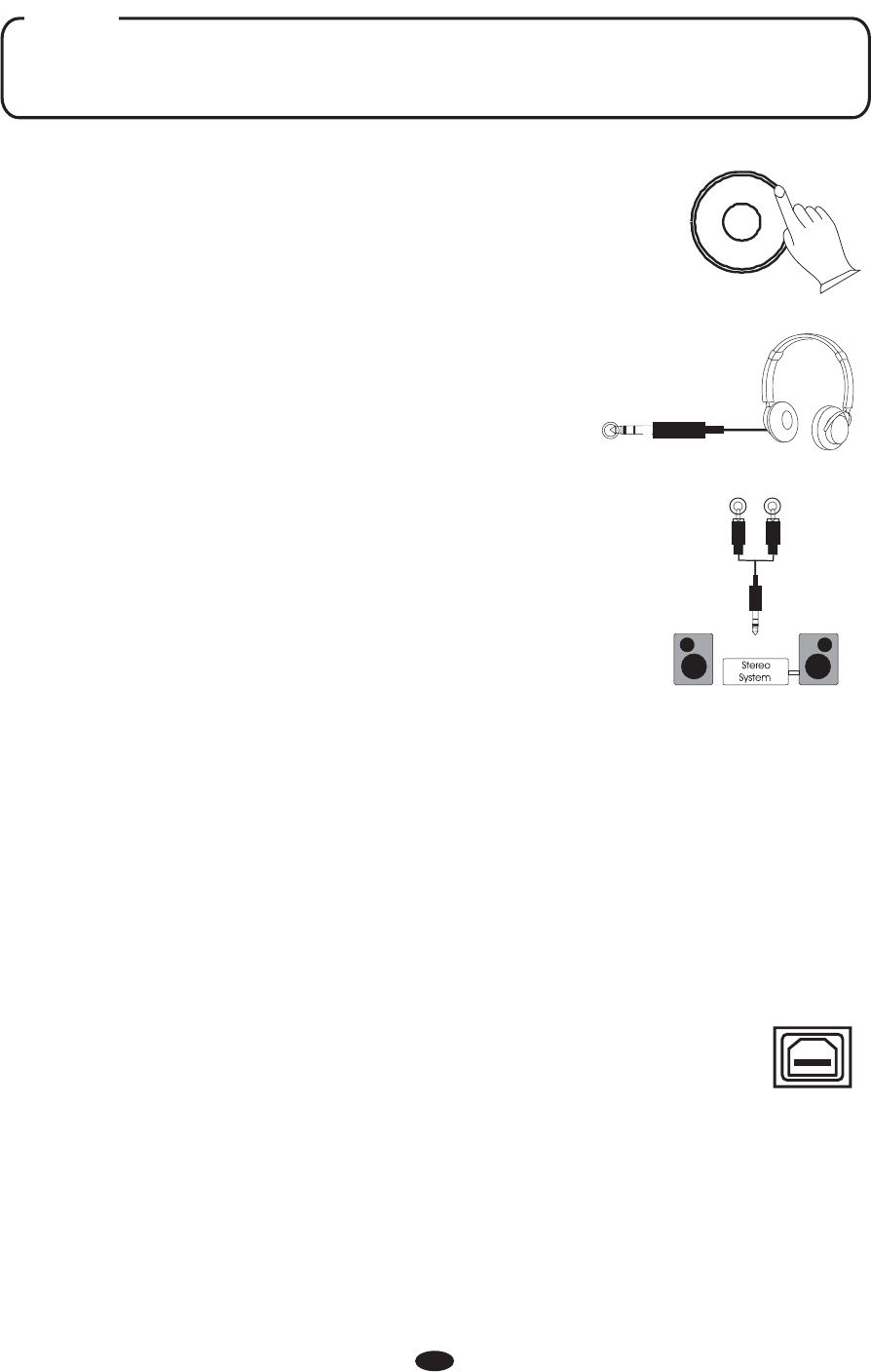

Using External Sound System
The Line Out jack(R) and can
be used to deliver the output of the piano to a keyboard
amplifier, stereo sound system, mixing console or tape
recorder.
Line Out jack(L)(MONO)
Set the Volume
Initially set the [VOLUME] about half way between the
"MIN" and "MAX" settings. You can adjust the volume
to accommodate your playing style.
Using Headphones
One standard stereo headphones can be plugged in
here for private practice or late-night playing. The
internal speaker system is automatically shut off
when a pair of headphones is plugged into PHONES
jacks.
PHONES
VOLUME
MIN MAX
NOTE
If the AUTO OFF Function is on, it means the unit will Auto Power
Off after 30 minutes of inactivity.
LINE OUT
MIDI OUT Jack
MIDI (Musical Instrument Digital Interface) is a world-standard communica-
tion interface which allows electronic musical instruments to communicate
with each other, by sending and receiving compatible note, program change
and other types of MIDI data.
This terminal transmits data from this instrument to other MIDI devices. The
transmitted data includes the note and touch velocity produced while playing
on the keyboard, as well as voice changes. Demo songs are not transmitted.
Using USB-MIDI
This piano allows the transfer of MIDI over USB. There is a specific
way in which the MIDI signals are routed for maximum flexibility.
In a standard Digital Piano, the built-in keyboard sends MIDI signals
to the internal sound bank as well as the 5-pin MIDI output. In this
digital piano, the keyboard not only sends MIDI signals to the internal
sound bank (just like normal) but also sends MIDI signals simultaneously to the
internal MIDI connection which hooks up inside the device to the Audio Interface.
It is the Audio Interface that is used to control the USB-MIDI.
USB TO HOST
Using the DC Power Jack
Connect the included DC power adapter to the Power Supply Jack.
Please use only the provided power adapter.
6
Using Battery Power
Always make sure all batteries are
.
Always replace all of the batteries at the same time.
Remove the batteries from the instrument if it is not to be used for a long time.
inserted the correct way around to match the
+/- polarity markings
Do not combine old and new
batteries, also do not mix battery types, as this can cause overheating, or fire, or
battery fluid leakage.

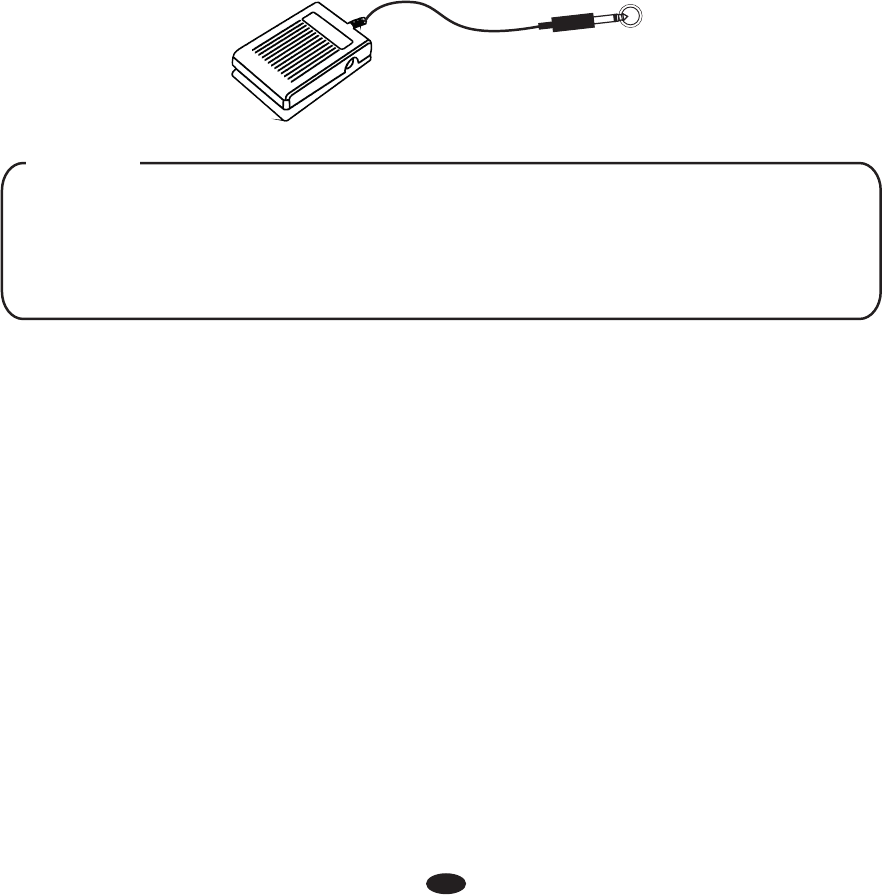

Sustain Pedal
USB Audio
The sustain pedal included with the PA-88H will cause piano key sounds to slowly
decay as if they were being held down. A more traditional piano style pedal may
be used also. The Sustain jack will auto-detect the polarity of any sustain pedal
that you use.
The PA-88H have USB Audio.
This means that you can plug in via a USB Cable to your Laptop, Tablet, iPad,
and SmartPhone and be able to hear you device's audio through the pianos
speaker system. This is very useful for example when you are recording your
piano with your laptop and want to listen back through the pianos speakers. Or
if you are using some of the instrument voices on the Garage Band app from
your iPad, now you can hear it through the pianos' sound delivery system
instead of just the iPad's speakers or headphones.
SUSTAIN
Please make sure that the piano is turned off before connecting the pedal.
Otherwise, it may not be read by the piano correctly.
If you use different sustain pedal and you need to change the polarity for
proper operation, you will need to turn off the piano and then hold down
the foot pedal during power up.
NOTE
7
Selecting a Voice
Press the [BANK] button and it's indicator will turn on, then when you
press an instrument select button the instrument that you hear is the
instrument listed on the bottom of the voice button.
NOTE
The piano has 16 built-in voices, which include several pianos as well as other
instruments. These digitally-sampled musical instrument sounds may be selected
one at a time, layered to produce two voices at once.
To select an instrument voice (Main voice), press the appropriate Voice Select
button on the front panel.
PIANO 1 E.PIANO 1 ORGAN CLAVINET VIBES NYLON GTR STRINGS
E.PIANO 2 CHURCH ORGAN HARPSICHORD HARP STEEL GTR
PIANO 2 CHOIR
FANTASIA
E.BASS
BANK
8
Demo Songs
There are 16 demo songs in the piano. Each demo song will demonstrate a
different voice. Here's how you can select and play the demo songs.
REVERB CHORUS
DEMO
During playback, another song may be chosen by pressing a different voice select
button. You can also press the [BANK] button then press a voice button to select
a demo song in the bottom line.
REVERB CHORUS
DEMO
To stop the demo song. Press the
again.
To replay the current song from the beginning, press the flashing voice select
button.
[REVERB] button and the [CHORUS] button
together
Stop the Demo Song
The demo songs may be selected by pressing the [REVERB] and [CHORUS]
buttons together simultaneously. The [REVERB] button, the [CHORUS] button
and voice buttons will flash . The first demo song is the Piano.
Select the Demo Song
PIANO 1 E.PIANO 1 ORGAN CLAVINET VIBES NYLON GTR STRINGS
E.PIANO 2 CHURCH ORGAN HARPSICHORD HARP STEEL GTR
PIANO 2 CHOIR
FANTASIA
E.BASS
BANK
9
Reverb and Chorus Buttons
To apply either effect, press either button. The button will light and the
effect will be heard when the piano is played.
To turn off the effect, press the button of the desired effect again and the
LED light will turn off.
REVERB
3. Set the reverb depth by pressing a key on the keyboard to select the value.
See the Appendix for the Reverb Depth on pages 24 to 31.
C4 C5 C6 C7C3
The Reverb and Chorus effects may be applied to each voice individually
and will be retained even when the power is turned off.
CHORUS
Select the Depth of the Effects
1. Press and hold the effect button that you want change the depth of.
REVERB CHORUS
2. The LED will blink. You can then release the button and press a key on the
keyboard corresponding to the setting you want for the reverb depth. It's
possible to change the setting by pressing multiple keys after each other
until the right setting is found.
10
4. Play the keyboard to hear the new setting with the sound selected.
[CHORUS]) [CHORUS])5. To exit the [REVERB]( function, press the [REVERB] (
button again.
11
Layer Mode
In Layer mode two voices may be played simultaneously, each at individual
selected volume levels.

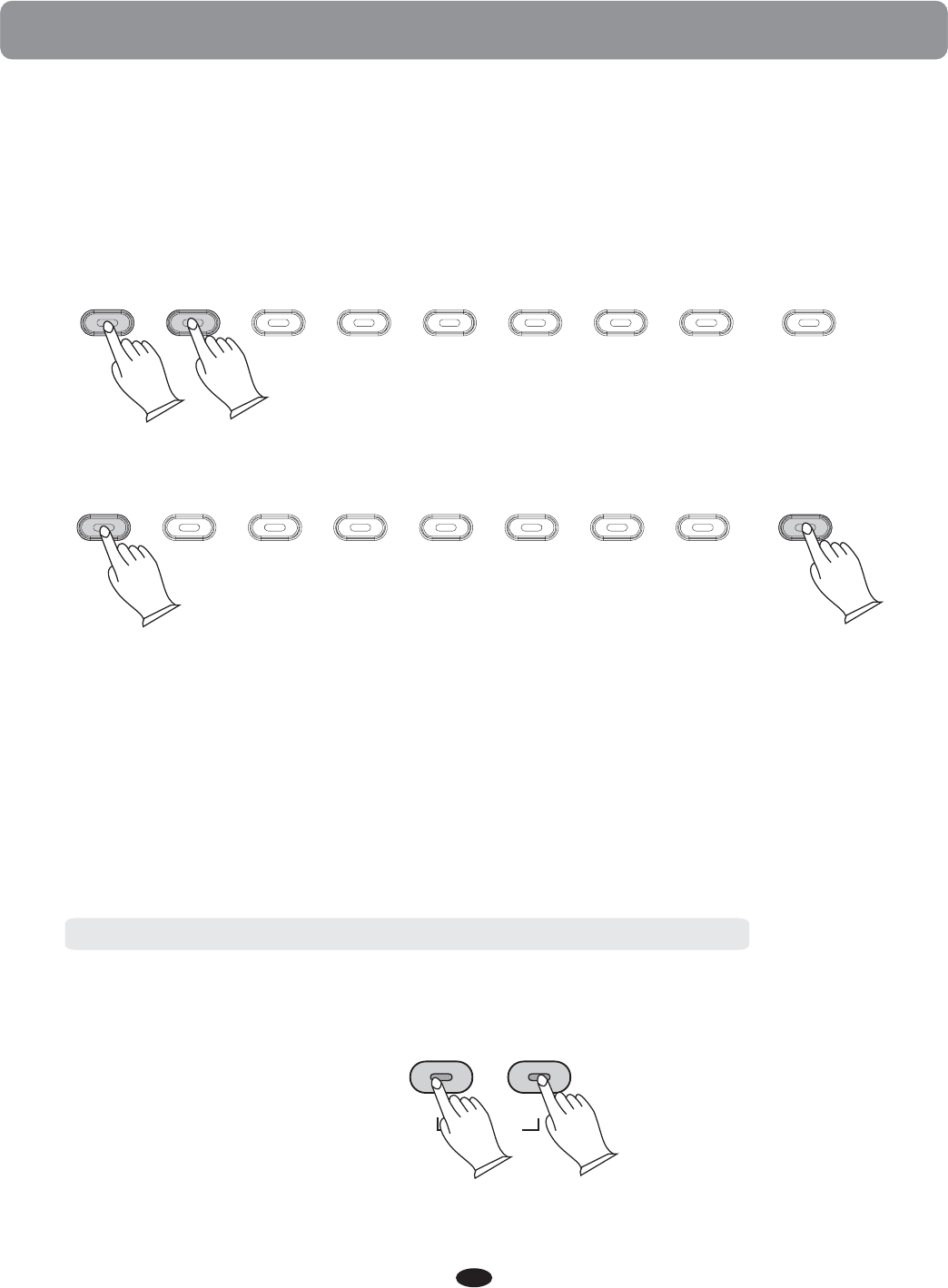

To enter the Layer mode, press and hold the voice select button to select the
MAIN sound, then press the another voice select button that you would like to
add for the LAYER sound, and release. Both the buttons LED will remain on
while layered.

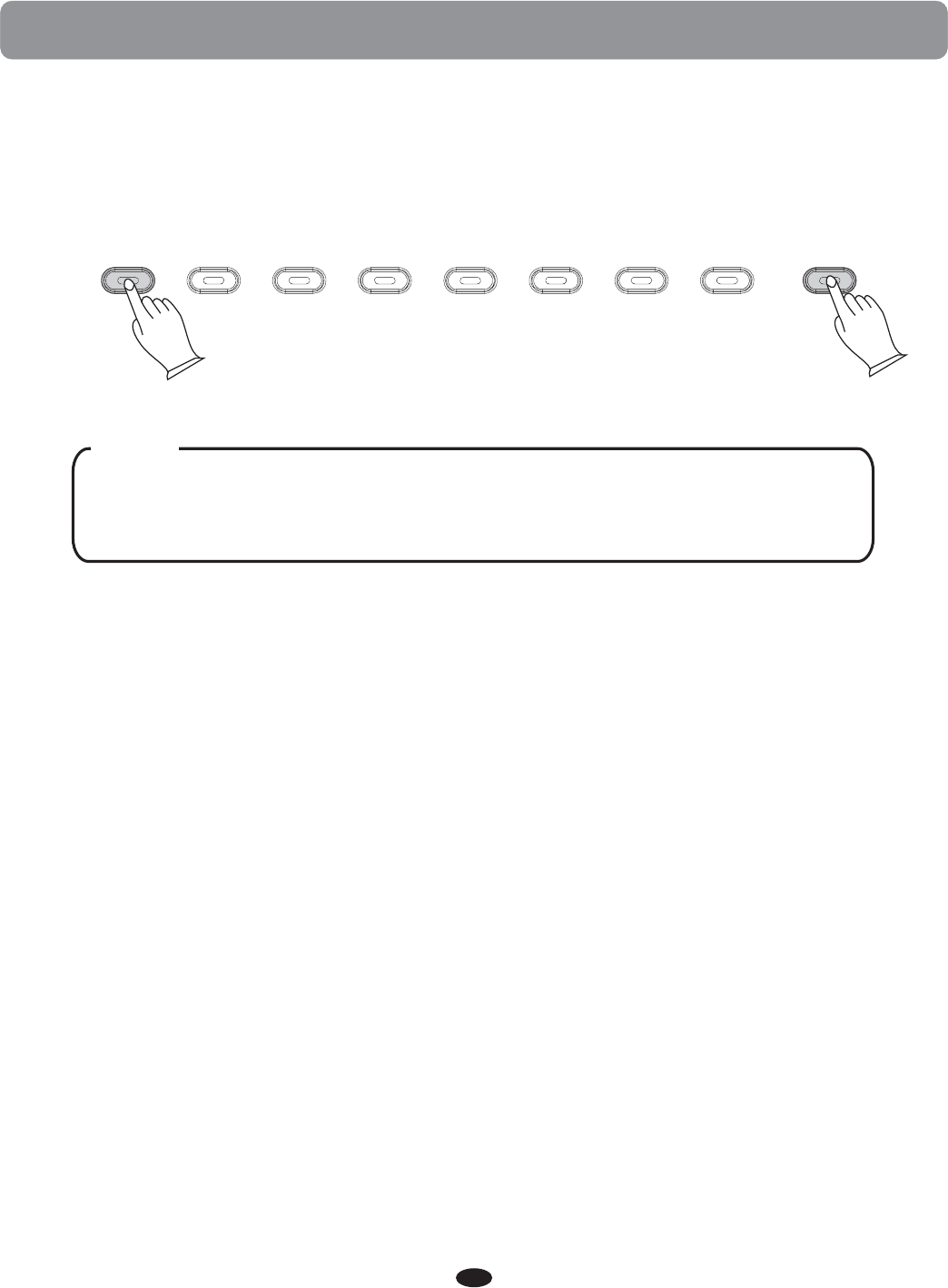

To layer two sounds in different banks, press and hold simultaneously the voice
button required in the first bank and the bank button. The bank button LED will
flash and the first voice button will be lit. Once the bank button is flashing you
can remove your hands from the buttons. Next, select the layered button from
the second bank by pressing the corresponding button. Once selected this
button will blink to indicate it is from the second bank while the instrument from
the first bank stays lit. If two voices in the first and second bank, but on the
same button are selected, the buttons should merely blink. These can also be
layered by double-pressing the button in which case again the button will blink.
FUNCTION
TEMPOMETRONOME

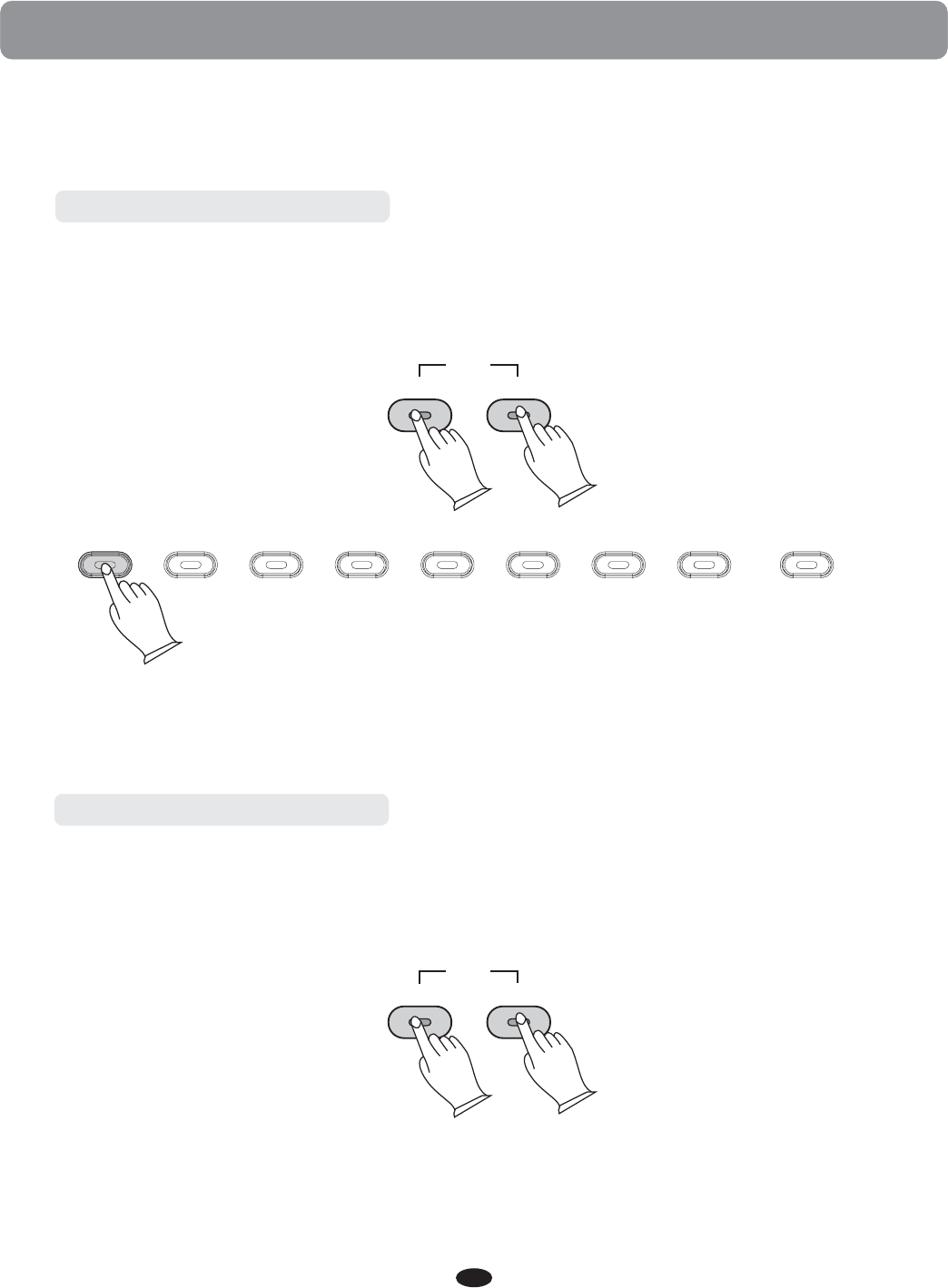

To Adjust the Volume of Main Voice in Layer Mode
Press the [METRONOME] and the [TEMPO] buttons together to enter Edit Mode
The LEDs for both buttons will become lit.
，
To turn Layer Mode off, select a single voice button and the other Voice LED light
will turn off.
PIANO 1
PIANO 1
E.PIANO 1
E.PIANO 1
ORGAN
ORGAN
CLAVINET
CLAVINET
VIBES
VIBES
NYLON GTR
NYLON GTR
STRINGS
STRINGS
E.PIANO 2
E.PIANO 2
CHURCH ORGAN
CHURCH ORGAN
HARPSICHORD
HARPSICHORD
HARP
HARP
STEEL GTR
STEEL GTR
PIANO 2
PIANO 2
CHOIR
CHOIR
FANTASIA
FANTASIA
E.BASS
E.BASS
BANK
BANK
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
12
#
Press the (D 0) key activates the voice volume menu. The volume can be
changed in 88 note steps from 0-127 where C7=127 and A-1=0.
To exit the Voice Volume function, press the [METRONOME] and [TEMPO]
buttons at the same time again.
The volume can be changed in 88 note steps from 0-127 where C7=127
and A-1=0. Pressing a key will play C3 of the currently selected voice
sound at the volume corresponding to the key value.
C4 C5 C6 C7
FUNCTION
TEMPOMETRONOME

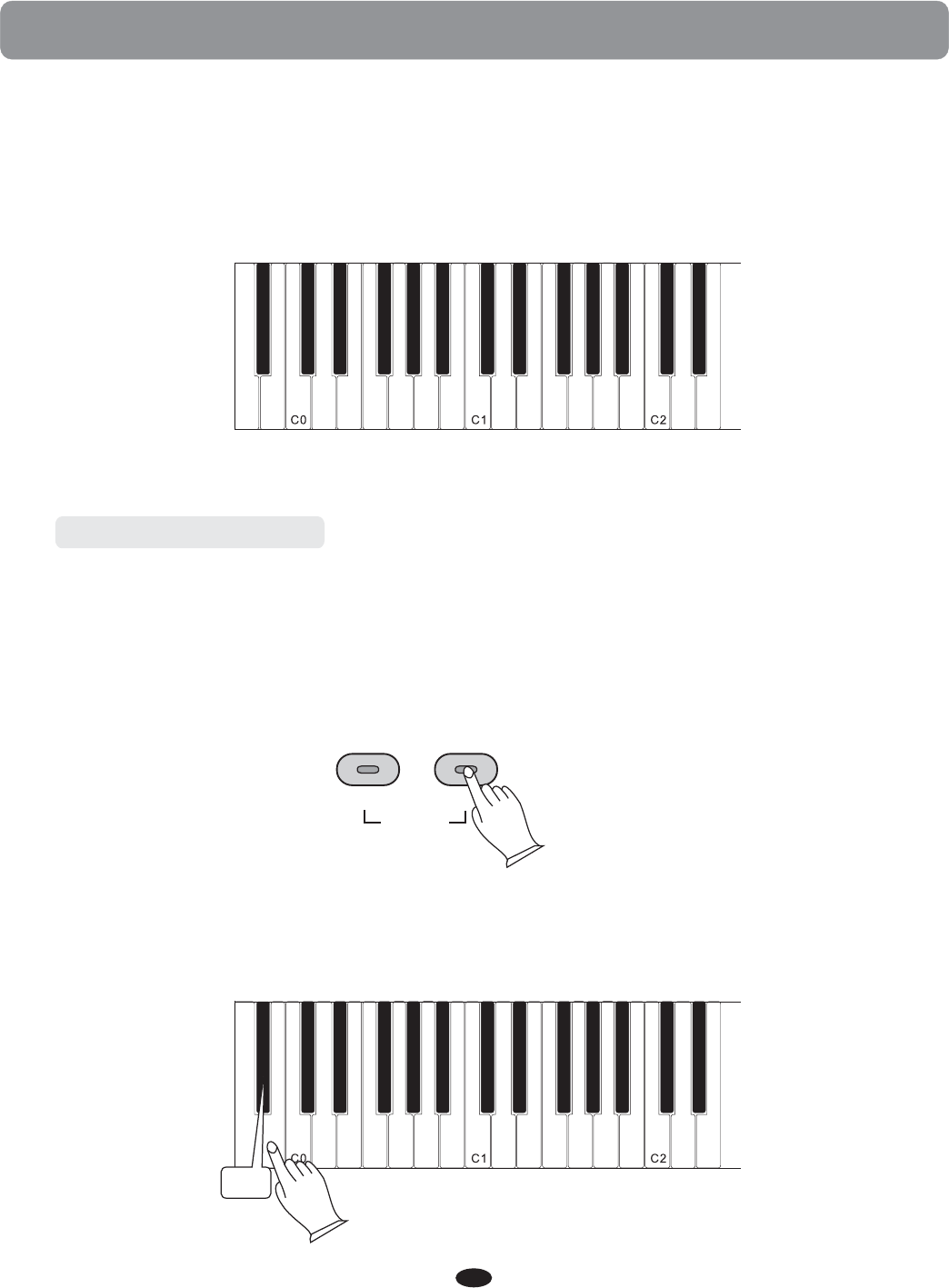

To Adjust the Volume of the Layer Voice
Press the [METRONOME] button and the [TEMPO] button to enter Edit Mode.
Pressing C#0 activates the voice volume menu.
#
C0
AUTO POWER ON/OFF
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
C4 C5 C6 C7
Press the [METRONOME] and the [TEMPO] again to exit Edit mode.
13
Press a key will play C3 of the currently selected layered sound at the
volume corresponding to the key value.
#
D0
AUTO POWER ON/OFF
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
Metronome
Press the metronome button to turn the metronome on.
FUNCTION
TEMPOMETRONOME

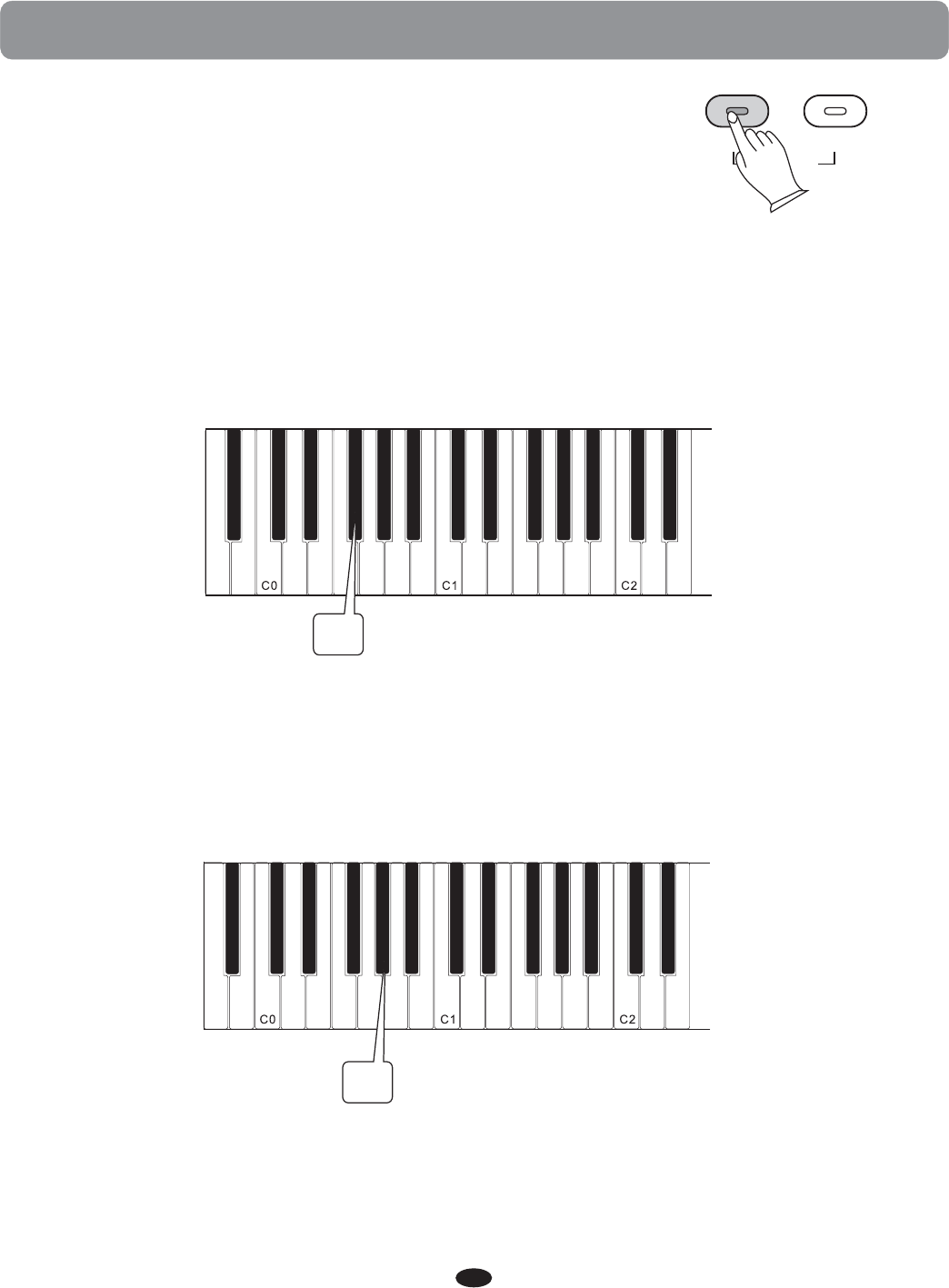

Metronome Volume
Press the [METRONOME] and [TEMPO] buttons together to enter edit mode.
Pressing F 0 activates the metronome volume menu. the volume can be changed in
88 note steps from 0-127 where C7=127 and A-1=0. Pressing a key will play the
metronome sound at the volume corresponding to the key value.
#
14
Press the [METRONOME ] again to exit Edit Mode. and the [TEMPO] buttons
Pressing the [METRONOME] and the [TEMPO] buttons allows you to change the
time signature for the metronome. When this menu is selected the metronome
starts playing at the current tempo setting. Pressing G#0 toggles through the
time signature options starting with the current setting. Default is 4/4 and the
following options are available to toggle through: 2/4, 3/4, 4/4, 5/4, 6/8, 9/8,
12/8.
Changing the Metronome Time Signature
#
G0
When the Metronome button is activated its LED will
light and you will hear the click in the headphones or
through the speakers.
#
F0
AUTO POWER ON/OFF AUTO POWER ON/OFF
To change the tempo, press and hold the button for 3 seconds to change
the setting. The LED will blink to current tempo speed. If the Metronome
is off, no sound will be heard.
Press a key on the keyboard to select a tempo. The LED will blink to the
new value. It is possible to make multiple changes and see the LED tempo
change as the keys are pressed.
To exit, press the tempo button. The LED will stop blinking and not light.
See Appendix for the value ranges .
Tempo defaults to 120 but settings are retained when the power is turned
off. For example 120BPM = C3 piano key.
Tempo
FUNCTION
TEMPOMETRONOME
The tempo of the metronome may range from 20 to 280 beats per minute
(BPM).
15
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
Edit Functions
Please refer to pages 11 and 14 for information about editing the
Metronome and Layer functions.
The piano is tuned to A440 when the power is turned on and does not require
tuning. However, if desired, the tuning may be adjusted in small increments
from -50 to +50 cents (one semitone).

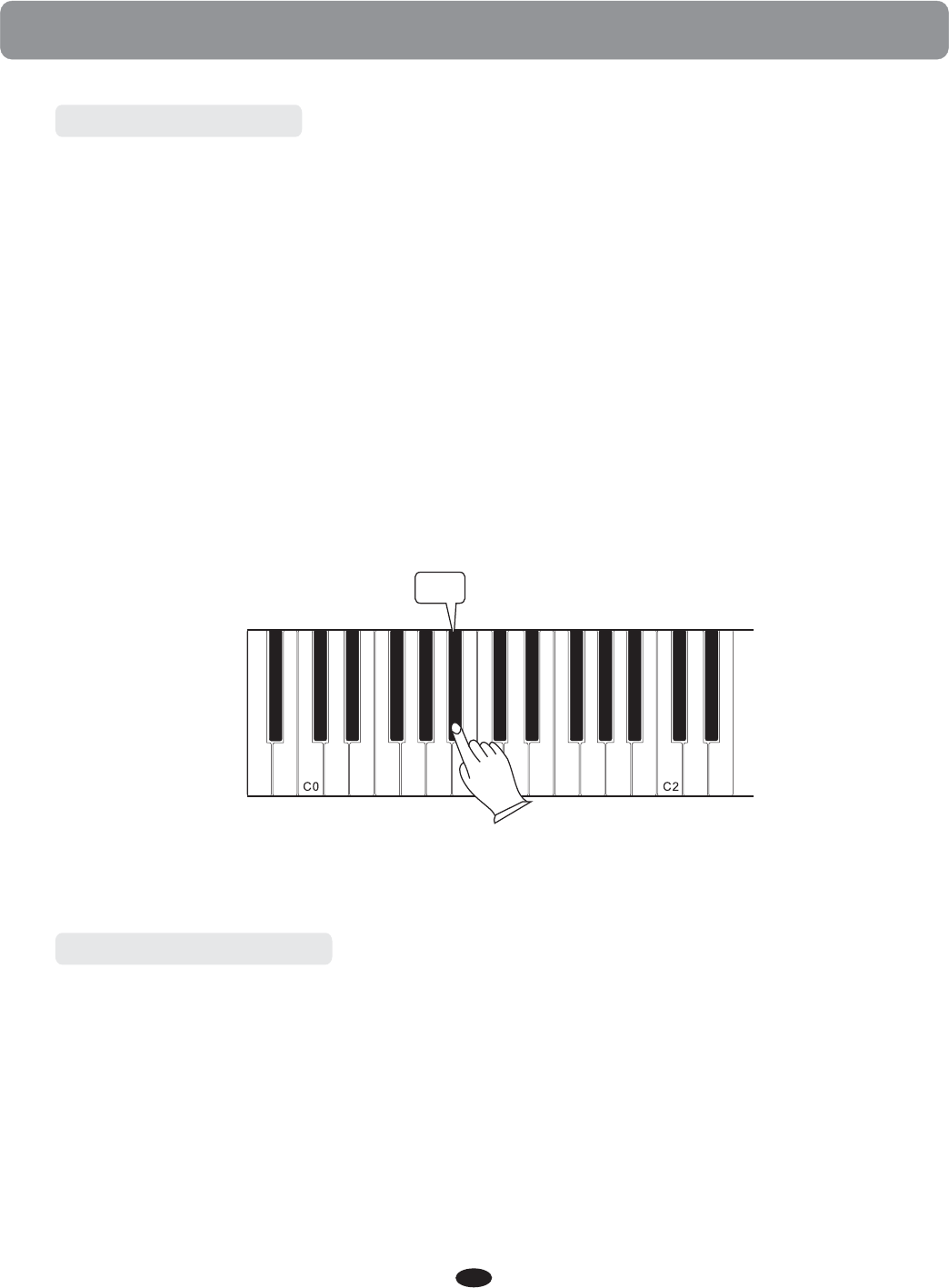

Master Tuning
Function Key Assignments
To change the Master Tuning:
Press the [METRONOME] and [TEMPO] button together to enter Edit Mode.
In the Edit Mode the keys on the keyboard are used for selecting the Function
to be edited. To enter the Edit Mode, press the Metronome and Tempo buttons
at the same time.
16
FUNCTION
TEMPOMETRONOME
#

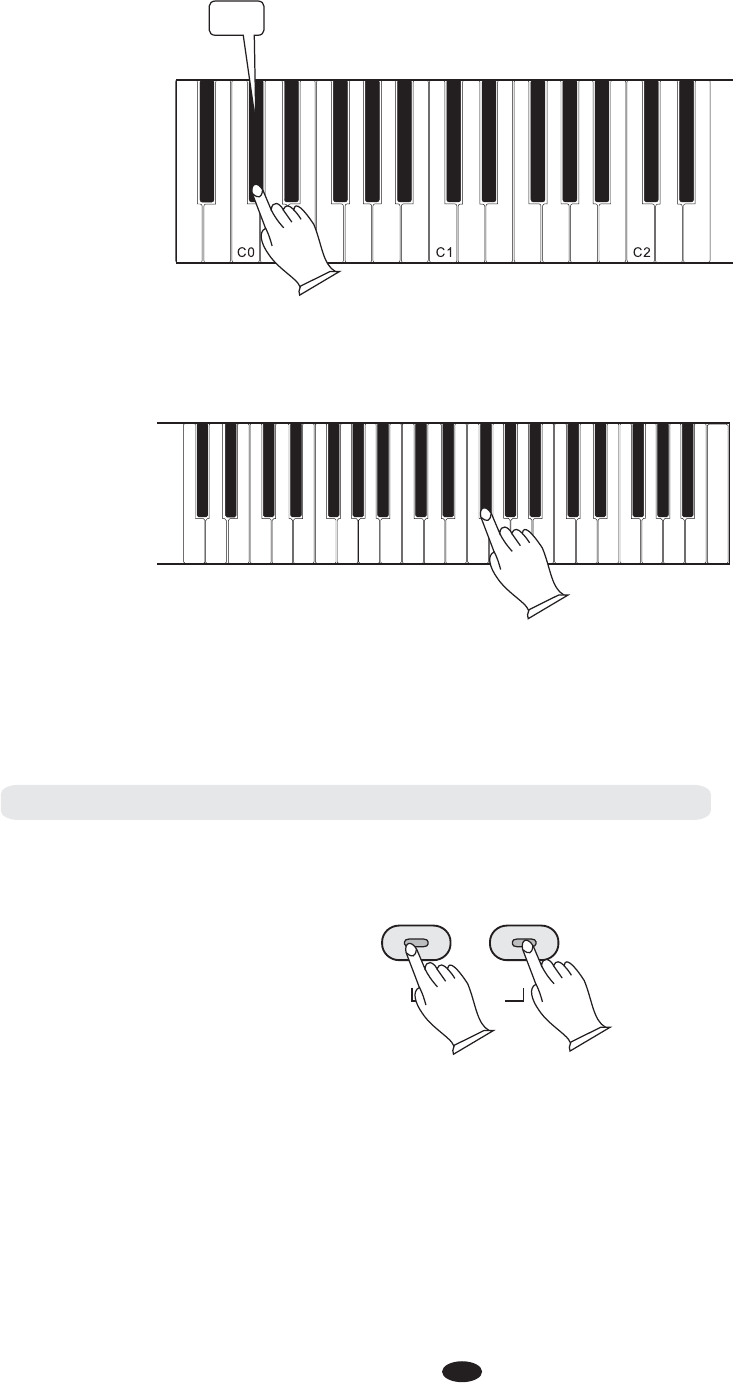

Press the Tunning key A -1 to select the Master Tuning Function. The keyboard
will now play middle C piano 1 voice (C3) on every note across the keyboard.
#
Playing C3=C3. Pressing any key downwards to A -1 will play C3 but change
the tuning setting proportionately to tune down by a whole semi tone.
#-1
A
AUTO POWER ON/OFF AUTO POWER ON/OFF
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
Touch
C4 C5 C6 C7
17
Press the [METRONOME ] and the [TEMPO] buttons again to exit Edit
Mode.
Pressing any key from C3 and up will play the C3 note but at tuning
settings proportionately so that its possible tune up by a whole semi tone.
Please listen as you proceed to determine the correct tuning setting.
The Touch Select function allows the choice of 3 keyboard sensitivity
settings for different playing styles: Low Sensitivity, Normal Sensitivity
and High Sensitivity. This affects the volume of the piano as you play the
keys.
To Set the Keyboard Sensitivity
Press the Metronome and Tempo Buttons together to enter the Edit mode.
FUNCTION
TEMPOMETRONOME
Press the desired Touch Select key (F 1, G 1, A 1) to select between Low,
Normal and High Keyboard Sensitivity. When selecting F#1 low, Piano 1 C3 will
play at velocity value 30. When G#1 Normal is selected, Piano 1 C3 will play
at velocity value 70. When A#1 High is selected, Piano 1 C3 will play at
velocity value 127 and the piano will exit Function Mode automatically.
###
Low
Sensitivity
Normal
Sensitivity
High
Sensitivity
AUTO POWER ON/OFF
18
EQ Adjustment
To change the sound of your piano's amplifier you can adjust the EQ to add more
Bass or to remove some of the Treble.
To Change the Bass Response
1. Press the [METRONOME] and [TEMPO] Buttons together to enter the Function
Edit mode.
#
2. Press the A5 piano key activates the Bass EQ Function
The Bass EQ can be changed by pressing white piano keys only from the A-1
piano key to D3 piano key.
Pressing the F1 Piano Key sets the Bass EQ to its center point EQ Setting.
Pressing the A-1 Piano Key will reduce the Bass response by 12dB.
Pressing the D3 Piano Key therefore increases the Bass response by 12 dB.
For Example to set the Bass EQ setting to 10 dB you would press the B2 white
piano key.
To set the BASS EQ to -8 dB you would press the E0 piano key.
For the Keyboard Chart of the piano key numbers and listings please page 29
of the Advanced Keyboard Functions.
4. Press the [METRONOME] and [TEMPO] Buttons together again to exit the
Function Mode. Then play the lower half of the piano to hear the bass response
increase for the changes that you have made in the Bass EQ settings.
To change the Treble Response
1. Press the [METRONOME] and [TEMPO] Buttons together to enter the Function
Edit Mode.
#
2. Press the C 6 piano key activates the Treble EQ Function.
C4 C5 C7C6
BASS EQ
#
A5
3. The Treble EQ can be changed by pressing white piano keys only from the
A-1 piano key to D3 piano key.
Pressing the F1 Piano Key sets the Treble EQ to its center point EQ Setting.
Pressing the A-1 Piano Key will reduce the Treble response by 12dB.
Pressing the D3 Piano Key therefore increases the Treble response by 12 dB.
For Example to set the Treble EQ setting to 10 dB you would press the B2 white
piano key.
To set the Treble EQ to -8 dB you would press the E0 piano key.
For the Keyboard Chart of the piano key numbers and listings please page 29 of
the Advanced Keyboard Functions.
4. Press the [METRONOME] and [TEMPO] Buttons together again to exit the
Function mode.
Then play the keyboard in the upper half of the piano keys to test the changes
that you made in the TREBLE EQ Setting.
To set the piano to its Default Settings press and hold the [REVERB] and
[CHORUS] buttons while turning the piano's power switch on.
C4 C5 C7C6
TREBLE EQ
Bass and Treble EQ settings will be stored in the pianos memory
and the latest setting will be used when the piano is powered up
again.
NOTE
19
#
C6
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
MIDI Functions
MIDI Channels
MIDI Out channel values range from 1 to 16.
To change the MIDI Out Channel Value: While in the Edit Mode press the key
the amount of times that correspond to the MIDI Out Channel that you desire.
The MIDI Out Channel Value is identified by the amount of times that the C3
Piano Note is sounded.
The default MIDI Out channel is 1.
For example: When you press piano key one time in edit mode, you will hear
one note C3 sound to indicate that current MIDI Out channel is 1.
If you press The piano key 9 times in a row while still in the Edit Mode you
will hear the C3 Note being played back 10 times to denote that the new MIDI
Out channel is 10.
#
A0
#
A0
#
A0
20
MIDI Local On/Off
Turning the Local On/Off function to Off will disconnect the keyboard from the
internal sound engine of this piano. This means you can use the piano as a MIDI
controller to control other MIDI devices (or virtual instrument software running on
#
A0
AUTO POWER ON/OFF
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
21
Press the Local On/Off key (D 1) to switch local on or off. When the D 1 key is
first pressed the current setting is confirmed by playing the C3 piano key once
for on and twice for off. If you press the D 1 key again you will need to re-enter
your desired settings.
# #
#
FUNCTION
TEMPOMETRONOME
Press the [METRONOME] and the [TEMPO] Buttons together to enter the edit
mode.
Press the [METRONOME] and the [TEMPO] Buttons again to exit the edit
mode.
your computer) without playing the internal sounds of this piano. You may also find
other occasions (such as when you are using MIDI sequencing software on your
computer) where it is useful to turn Local off.
MIDI Panic Key
“”“
”
“”
Pressing the Panic key will send out a Reset All Controllers and All Notes
Off MIDI Message on ALL MIDI Channels 1 - 16. This can be especially useful
for clearing stuck notes when controlling external MIDI devices or software.
“”“
”
To use the Panic key to send out a Reset All Controllers and All Notes
Off MIDI Message on ALL MIDI Channels 1 - 16:
Press the to enter Edit Mode. [METRONOME] and [TEMPO] button together
FUNCTION
TEMPOMETRONOME
#
D1
AUTO POWER ON/OFF
TUNING
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
Press the Panic Key ( ) allows the user to activate Panic, which send out
general MIDI reset messages such as all note off, etc. Once Panic reset has
been completed, Piano will automatically exit Edit mode.
#
C1
22
#
C1
AUTO POWER ON/OFF
1. Turn the Power Off.
2. Hold down the [REVERB] and the [CHORUS] buttons while powering on the piano.
All LEDs on the device will light while these buttons are held down. Once
this has happened, you can release the [REVERB] and [CHORUS] buttons.
When the [REVERB] and the [CHORUS] buttons are released, this piano
will return to normal operation Mode (ready-to-play). All button LEDs will
return to their default states.
This piano will now function normally and as if powered on for the first time.
Performing a Factory Reset will clear all battery backed memory and restore
all functions to their factory default settings, just like they were when you used
this piano for the first time.
REVERB CHORUS
DEMO
Factory Reset
23
MIDI Implementation Chart
1-16
1-16
Mode 3
No
No
0~127
Yes
Yes
No
No
No
0,1,5,6,7,10,11,
32,64,65,66,67,
80,81,91,93,100,
101,121
0-15
Yes*
No
No
No
No
No
F u n c t i o n T r a n s m i t t e d R e c o g n i z e d R e m a r k s
Basic
Channel
Mode
Note
Number
Velocity
Note
After
Touch
Pitch Bend
Program
Change
System
Real Time
Notes
1-16
1-16
Mode 3
Yes
********
0~127
********
Yes
Yes
No
No
No
0-127
0-127
********
Yes*
No
No
No
No
No
16
*The controller will recognize
and respond to GM Device
inquiries.
Master Tune supported.
Master Volume supported.
Default
Changed
Default
Messages
Altered
True voice
Note ON
Note OFF
Key's
Channels
True #
Song Position Pointer
Song Select
Tune Request
Clock
Commands
All Sounds Off*
Reset All Controllers
Local ON/OFF*
ALL Notes OFF
Active Sensing
System Reset
Control Change
System Exclusive
System
Common
Aux Messages
*Up to 3 channels
simultaneously
* The controller
will respond
to GM, but not
piano voices.
MIDI Channel Modes
OMNI ON
OMNI OFF
Mode1
Mode2
Mode3
Mode4
MONO ON
POLY OFF
Appendix
Yes
Yes
Yes
Yes
No
No
Yes
Yes
Yes
Yes
Yes
Yes
24
Parameter adjusting instructions
25
Voice
Vol
Tempo
Chorus
Vol
Reverb
Vol
Metro.
Vol
Layer
Vol
A-1
A#-1
B-1
C0
C#0
D0
D#0
E0
F0
F#0
G0
G#0
A0
A#0
B0
C1
C#1
D1
D#1
E1
F1
F#1
G1
G#1
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
According to choose corresponding key chart shown below, to set the desired
values.
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
20
24
28
32
36
40
44
48
52
56
60
62
64
66
68
70
72
74
76
80
82
84
86
88
Voice
Vol
Tempo
Chorus
Vol
Reverb
Vol
Metro.
Vol
Layer
Vol
A1
A#1
B1
C2
C#2
D2
D#2
E2
F2
F#2
G2
G#2
A2
A#2
B2
C3
C#3
D3
D#3
E3
F3
F#3
G3
G#3
A3
A#3
B3
C4
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
81
82
83
84
85
86
87
88
89
90
91
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
81
82
83
84
85
86
87
88
89
90
91
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
81
82
83
84
85
86
87
88
89
90
91
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
81
82
83
84
85
86
87
88
89
90
91
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
81
82
83
84
85
86
87
88
89
90
91
26
Voice
Vol
Tempo
Chorus
Vol
Reverb
Vol
Metro.
Vol
Layer
Vol
C#4
D4
D#4
E4
F4
F#4
G4
G#4
A4
A#4
B4
C5
C#5
D5
D#5
E5
F5
F#5
G5
G#5
A5
A#5
B5
C6
C#6
D6
D#6
E6
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
185
190
195
200
205
210
215
220
225
230
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
27
Voice
Vol
Tempo
Chorus
Vol
Reverb
Vol
Metro.
Vol
Layer
Vol
F6
F#6
G6
G#6
A6
A#6
B6
C7
120
121
122
123
124
125
126
127
120
121
122
123
124
125
126
127
120
121
122
123
124
125
126
127
120
121
122
123
124
125
126
127
120
121
122
123
124
125
126
127
235
240
245
250
255
260
270
280
Note:
X: No value available for this particular Edit Function on this key.
Resetting Value:
Tune Voice
Vol
Tempo
ChannelLocal
Metro.
Vol
Layer
Vol
Factory
Default 0127 100 100 1120
ON
Voice
Select
1(Grand
Piano)
28
Auto
Power
Off
OFF
Advanced Functions Keyboard Chart
29
C4 C5 C7C6
BASS EQ
TREBLE EQ
C0 C1 C2 C3
TOUCH=HIGH
AUTO POWER ON/OFF
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
TUNING
C0 C1 C2 C3 C4 C5 C6 C7
BASS EQ
TREBLE EQ
TOUCH=HIGH
TOUCH=NORMAL
TOUCH=LOW
LOCAL ON/OFF
PANIC
CHANNEL
TIME SIG
METRO VOL
LAYER VOL
VOICE VOL
TUNING
AUTO POWER ON/OFF
Specifications
30
88 standard-size hammer keys with touch response
16
Layer, Layer level, Keyboard sensitivity, Tuning
On/off, Level, Time signature
Sustain
Reverb, Chorus, Bass EQ, Treble EQ
16
Channels 1-16, Local On/Off; USB Audio
YDT816 15W/4ohm x 2
51.8x 13.3 x 5.1(inches),1315 x 337 x 130(mm)
13.5Kg
Owner's Manual, Music Rest
MIDI & Audio:
Connectors:
Speakers:
Dimensions(W x D x H)
Weight:
Supplied Accessories:
Voice:
Polyphony:
Voice Control:
Metronome:
Pedal Response:
Demo Songs:
Effect:
Keyboard:
64
USB TO HOST, MIDI OUT, SUSTAIN, LINE OUT(R),
LINE OUT(L)(MONO), PHONES, DC Power
10506035V2.0
Warranty
This product, except the exterior cosmetic parts, is warranted to the original
purchaser to be free from defects in material and workmanship under normal
use as follows:
1. For a period of one year from the date of purchase, Virgin Musical
Instrument Company will pay the labor charges to repair the defective
product. After this one year period, you must pay all labor charges.
2. In addition, Virgin Musical Instrument Company will supply, at no
charge, new or rebuilt replacements for defective parts for a period of
one year from the date of purchase.
In the event repairs are needed, the original purchaser should contact
Virgin Musical Instrument Company, the parent company of Artesia Pianos,
at 888-998-9848. Virgin Musical Instrument Company will then repair
the product or return it to the VMI distribution center for repairs. Upon
completion of the repair, the unit will be returned to the music store, freight
prepaid.
This warranty will not apply to this product if it has been misused, abused,
or altered. Without limiting the foregoing, bending, dropping of unit, or visible
cracks and/or scratches are presumed to be defects resulting from misuse or
abuse.
This warranty is void if the product has been opened.
Neither this warranty nor any other warranty expressed or implied, including
implied warranties of merchantable, shall extend beyond the warranty
period.
No responsibility is assumed for any incidental or consequential damages.
Outside the US contact the original retailer where the product was
purchased for additional warranty details.
31
Virgin Musical Instrument Company Inc
P O Box 2908
La Mesa, CA 91943
PH: 619 244-0006
E-mail: info@virginmusicalinstruments.com
www.virginmusicalinstruments.com

Navigation menu
