Risco RW132KLXP1356 2W WL White Slim Int. KP+Prox915, 2W WL Black Slim Ext. KP+Prox915 User Manual
Risco Ltd. 2W WL White Slim Int. KP+Prox915, 2W WL Black Slim Ext. KP+Prox915
Risco >
User Manual
1
Model:
RW132KL1P; RW132KL2P
EN
Installation Instructions
EN

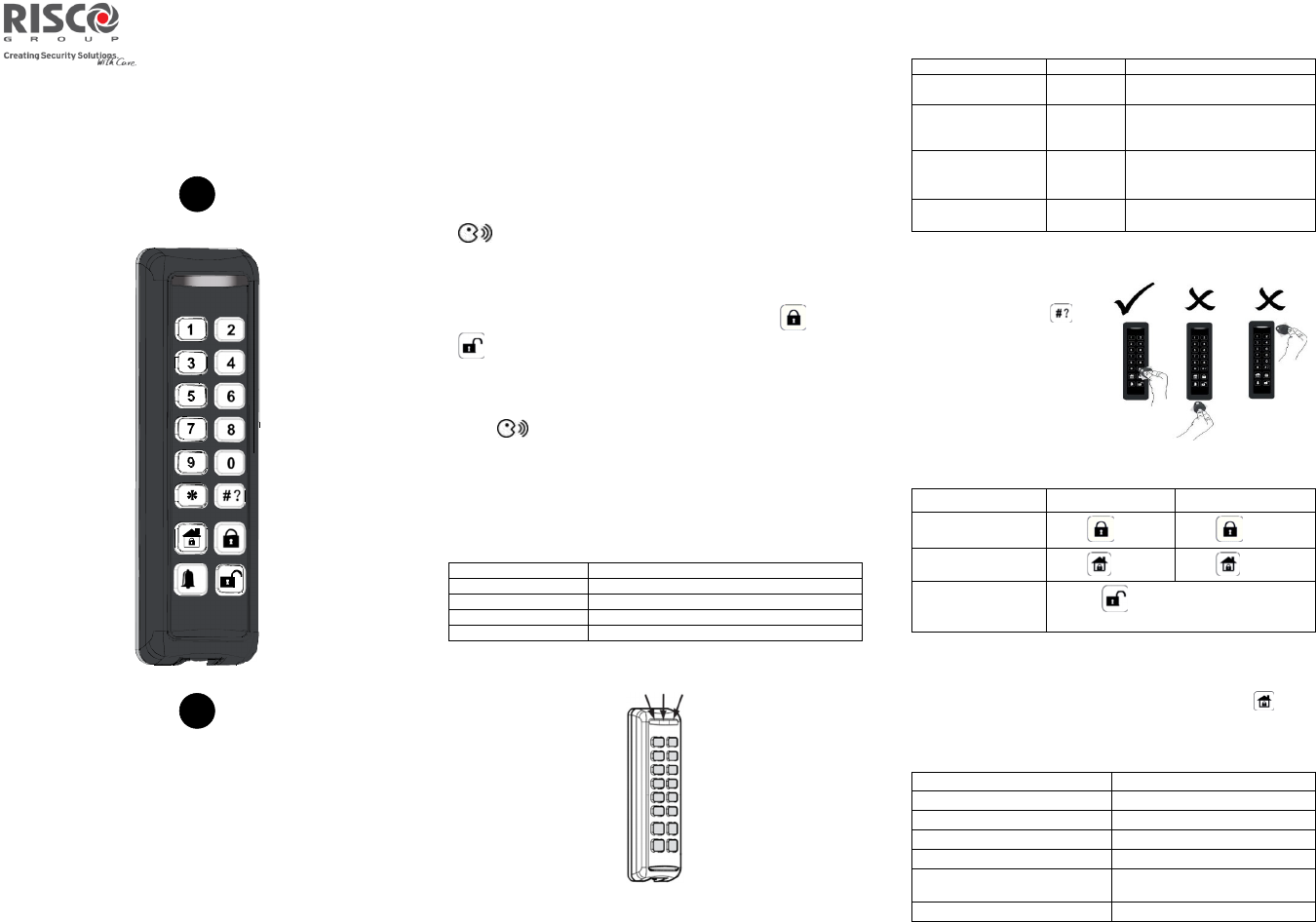

1 General Description
The Wireless 2-Way Slim Keypad empowered with a proximity
reader comes in two models:
RW132KL1PUSA — a black protection-insulated outdoor model
RW132KL2PUSA — a white indoor model
The keypad operates in either of two modes:
• Full function Mode: Wireless LED operating keypad
• Bypass unit Mode: Used to activate an entry countdown period
Being bi-directional the 2-Way keypad receives a reply status indication
from the panel for each command that it has sent to the panel.
To use functions of the keypad you can use a proximity tag or a code.
2 Activating the Batteries
Remove the batteries red strip to activate the batteries.
3 Quick Device Allocation at the Control Panel
The Keypad is automatically programmed to your control panel
during the on-line installation wizard setup. If you later purchase an
extra keypad you can enroll it as follows:
To quickly allocate a keypad at the control panel:
If the control panel is not already in Learn mode, press the
button on the control panel for 5 seconds; the unit beeps once
as it enters Learn mode (all the LEDs also light up, one after the
other).
Make sure batteries are installed in each keypad before allocating
them.
Send a signal transmission from the keypad by pressing and
simultaneously for at least 2 seconds; the control panel beeps
once to accept or beeps three times to reject. Once accepted, the
system announces the device type and its zone (for example,
“Keypad, zone 1”).
When the keypads have been enrolled, short-press the control panel
button to exit Learn mode; the unit beeps once and the LEDs
stop flashing.
Note: For future use, it is recommended to write down the keypad
description, zone number, and installation location of each allocated
keypad.
4 Buzzer and LED Indications
Buzzer Indications:
Duration
Operation
Long beep
Confirmation
3 short beeps Wrong code
Pulsed beeps Exit/enty beeps (programmable)
Short beep Each key press
LED Indciations:
Color
State
Status
Blue Blink During communcation with the
panel
Red On
Slow flash
Rapid flash
System fully or partially armed
During Exit dealy
During alarm
Green
Blink
Trouble indication in the
system while the system is
unset
Green/Red toggle Toggle
Waiting for code to be
entered
5 Using the Proxmity Tag
The proximity tag, is correctly
used by applying it within a
2 cm distance from the
key as shown in the
illustration (after waking the
keypad by pressing the
appropriate key).
6 Common Operations
Operation Quick High security mode1
Set (Away Arm)
Press Press 2
Part Set (Stay Arm) 3 Press Press 2
Unset (Disarm)
1. Press > Code or 2. Proximity tag
(after wakeup)
Notes:
1.
Consult your installer for the operations defined with
a code.
2.
The proximity tag can
be
used instead
of code.
3.
For Part Setting (Stay Arming) with
no
entry delay press the key for
two
seconds.
7 Technical Specifications
Battery type CR123, 3V lithium battery (x 2)
Current consumption 10µA stand by; 100 mA Max.
Battery life 3 years (for typical use)
Frequency 13.56MHz
Operating/storage temperature
-40° – 70°C (-40° – 159°F)
Dimensions 100 mm X 45 mm X 25 mm (3.9 x
1.8 x .98 inches)
Weight (incl batteries) 0.157 kg
Blue
Red
Green
2W WL White Slim Int. KP+Prox9152W WL White Slim Int. KP+Prox915
Funk-Wassermelder FWM-868
Montage- und Installationsanleitung
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to be free from
defects in materials and workmanship under normal use for 24 months from the date of
production. Because Seller does not install or connect the product and because the product may
be used in conjunction with products not manufactured by the Seller, Seller can not guarantee
the performance of the security system which uses this product. Sellers' obligation and liability
under this warranty is expressly limited to repairing and replacing, at Sellers option, within a
reasonable time after the date of delivery, any product not meeting the specifications. Seller
makes no other warranty, expressed or implied, and makes no warranty of merchantability or of
fitness for any particular purpose. In no case shall seller be liable for any consequential or
incidental damages for breach of this or any other warranty, expressed or implied, or upon any
other basis of liability whatsoever. Sellers obligation under this warranty shall not include any
transportation charges or costs of installation or any liability for direct, indirect, or not be
compromised or circumvented; that the product will prevent any persona; injury or property loss
by intruder, robbery, fire or otherwise; or that the product will in all cases provide adequate
warning or protection. Buyer understands that a properly installed and maintained alarm may
only reduce the risk of intruder, robbery or fire without warning, but is not insurance or a guaranty
that such will not occur or that there will be no personal injury or property loss as a result.
Consequently seller shall have no liability for any personal injury, property damage or loss based
on a claim that the product fails to give warning. However, if seller is held liable, whether directly
or indirectly, for any loss or damage arising from under this limited warranty or otherwise,
regardless of cause or origin, sellers maximum liability shall not exceed the purchase price of the
product, which shall be complete and exclusive remedy against seller. No employee or
representative of Seller is authorized to change this warranty in any way or grant any other
warranty.
WARNING: This product should be tested at least once a week.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to local regulations.
FCC ID: JE4RW132KLXP1356
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment
FCC Note
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment on and off, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on to a different circuit from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
© RISCO Group 07/16 5IN2557
