Ritron RIT18-456 UHF-FM CALLBOX TRANSCEIVER User Manual rqx456 UserMan
Ritron Inc UHF-FM CALLBOX TRANSCEIVER rqx456 UserMan
Ritron >
USERS MANUAL
![](/img.php?id=402597&img=bg1.png)
Rqx456_UserMan.pdf ii
TYPE OF EXHIBIT: INSTALLATION AND OPERATING INSTRUCTION MANUAL
FCC PART: 2.1033 (c)(3)
MANUFACTURER: RITRON, INC.
505 West Carmel Drive
Carmel, IN 46032
FCC ID: AIERIT18-456
MODELS: RQX-456, RQX-456-XT
DATE: February 16, 2004
IC STANDARDS: RSP-100, Issue 8, Section 7.2(b)
INDUSTRY CANADA: 1084A-RIT18456
MODELS: RQX-456-CANADA, RQX-456-XT-CANADA
Included in this exhibit is a draft of the User Manual for the RITRON Models RQX-456 and RQX-456-XP
UHF-FM Transceiver. A copy of this manual will be included with every radio.
This manual provides the end user with installation and operating instructions.
Signed:
Michael A. Pickard - Project Engineer
![](/img.php?id=402597&img=bg2.png)
OUTPOST
Wireless Callbox
Basic Owner’s Manual
Ritron Pub. 14500042 Rev. A 01/04
Copyright 2004 RITRON, INC. – ALL RIGHTS RESERVED
RITRON, PATRIOT, JOBCOM, Quick Assist, and Quiet Call are registered trademarks of
RITRON, INC. OUTPOST and Quick Talk are trademarks of RITRON, INC.
P.O. Box 1998, Carmel, IN 46082-1998 •
••
• 505 W. Carmel Dr., Carmel, IN 46032 •
••
• USA
Phone: 317-846-1201 or 800-USA-1-USA (800-872-1872) •
••
• FAX: 317-846-4978
Web: www.radiocallbox.com •
••
• E-mail: ritron@ritron.com
![](/img.php?id=402597&img=bg3.png)
0Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
TABLE OF CONTENTS
Description Page
WHAT THIS MANUAL COVERS ........................................................................................ ii
OUTPOST CALLBOX MODEL NUMBERS.........................................................................1
ABOUT THE OUTPOST WIRELESS CALLBOX ................................................................1
OPERATING THE OUTPOST CALLBOX ...........................................................................2
OPTIONAL OUTPOST CALLBOX FEATURES ..................................................................2
INSTALLATION INSTRUCTIONS

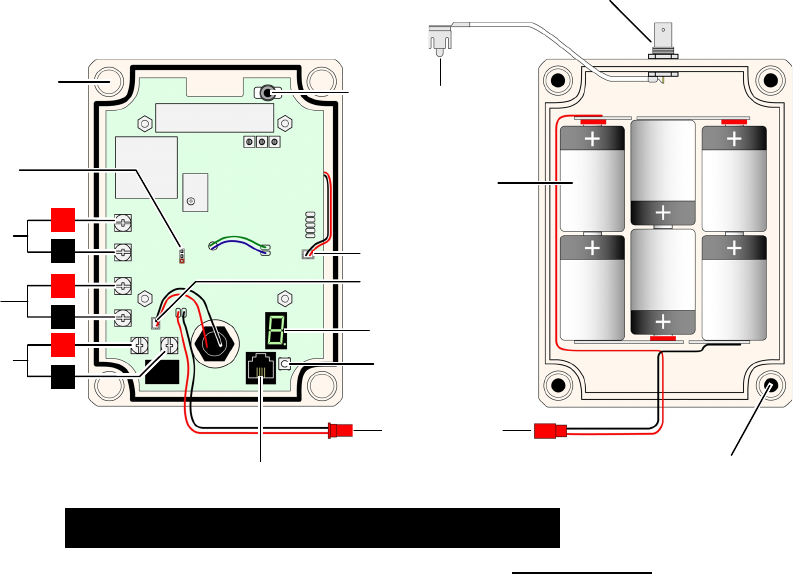

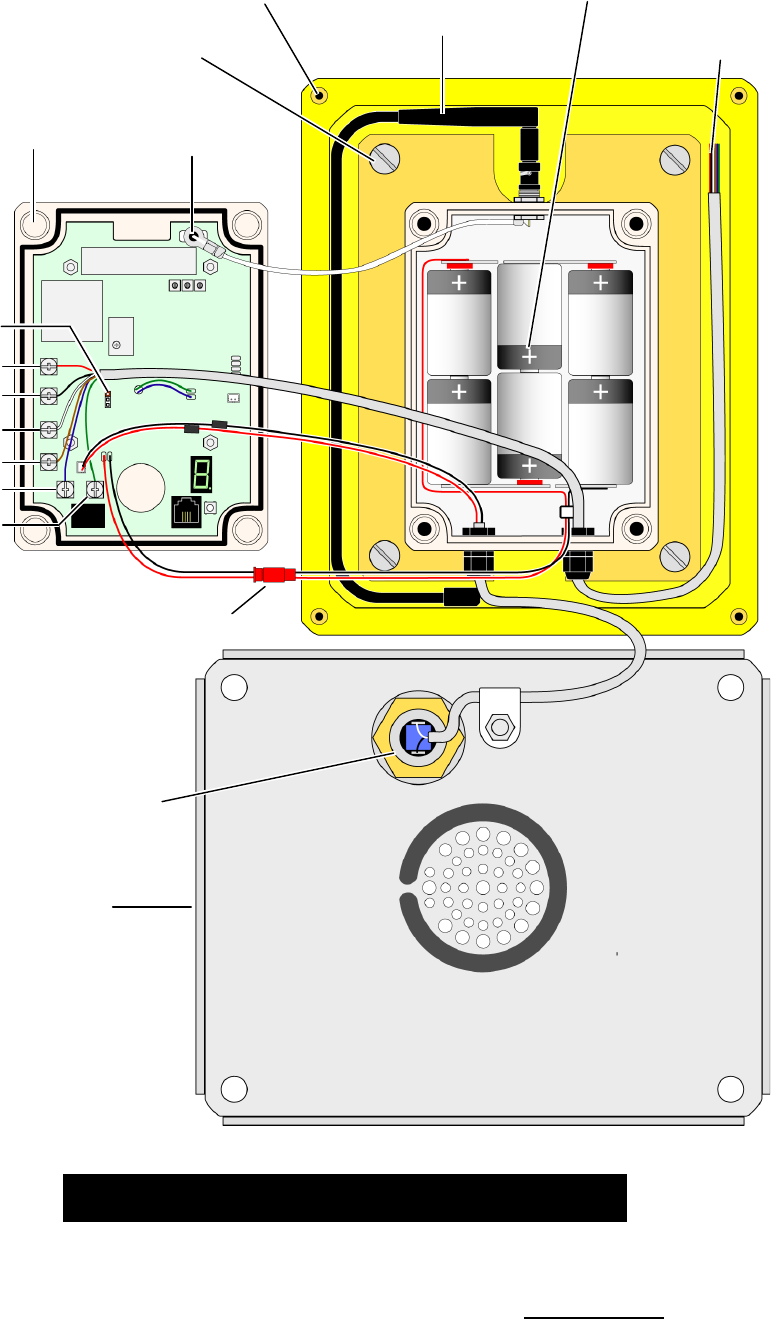

FIG-1: Callbox Assembly, Controls and Connectors............................................. 3
OUTPOST Installation Instructions .......................................................................4
XT OUTPOST Installation Instructions..................................................................4

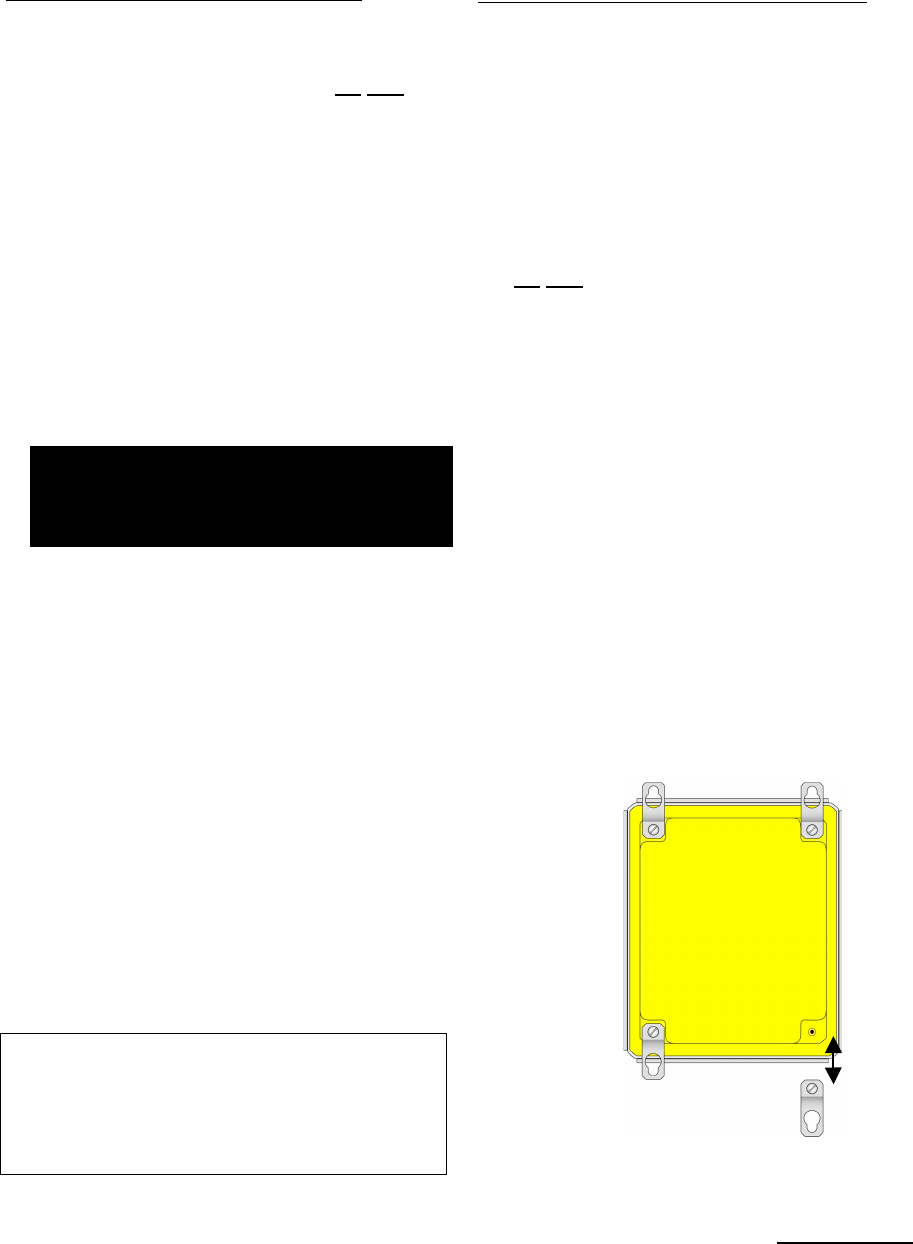

FIG-2: XT Callbox Mounting Brackets – Vertically Installed..................................4
FIG-3: XT Callbox Assembly.................................................................................5
XT Gate Guard Installation Instructions ................................................................6
FIG-4: Charge Jumper in Charge Position............................................................6

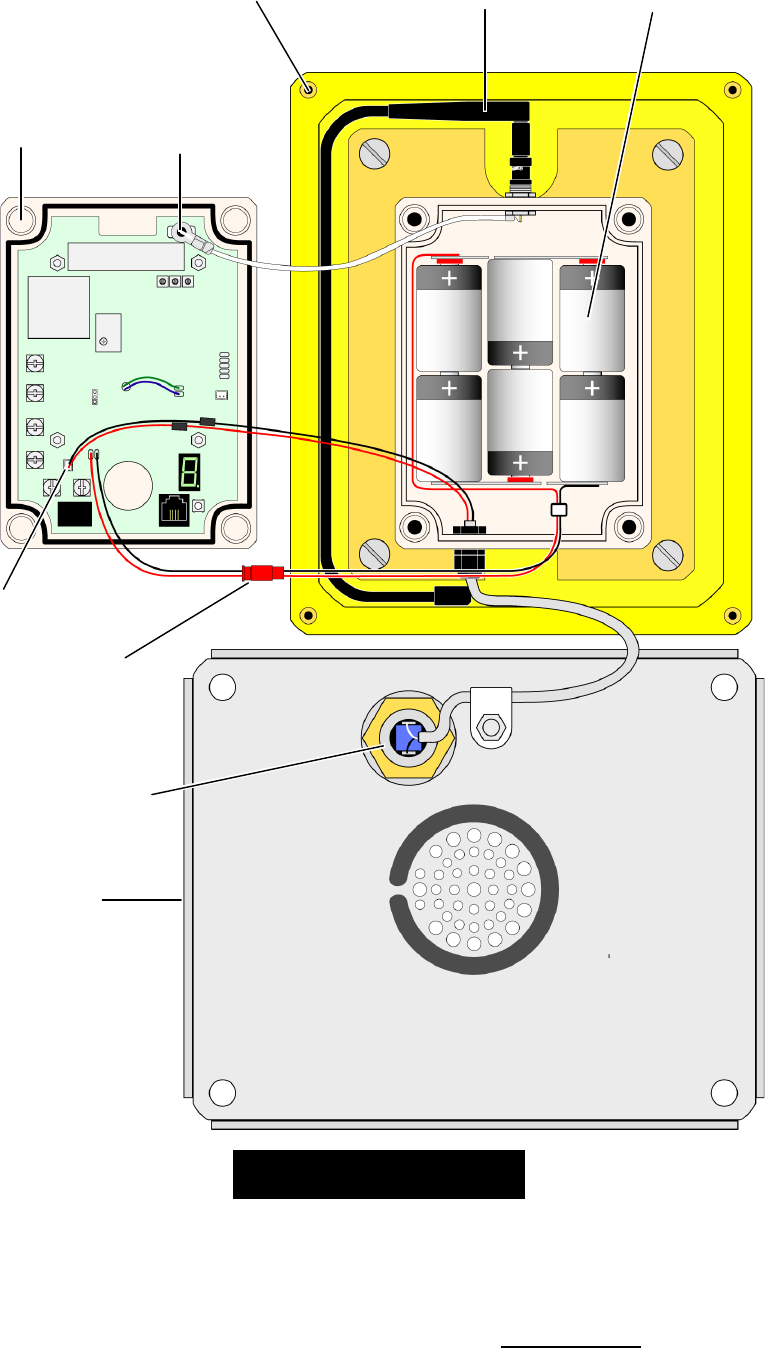

FIG-5: XT Callbox Gate Guard Assembly with Battery Back-Up..........................7
PROGRAMMING

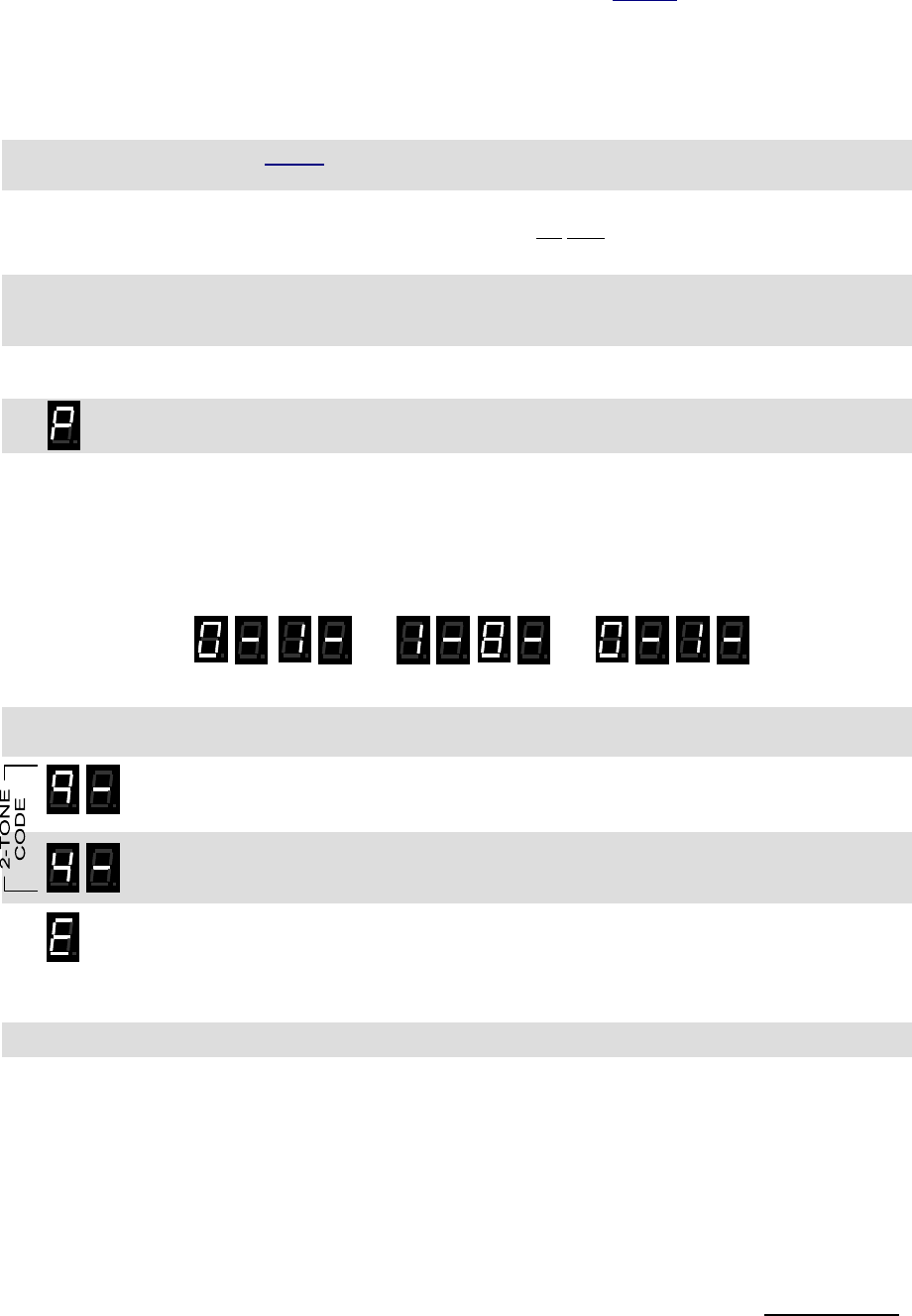

HOW TO READOUT CURRENT RADIO PROGRAMMING .................................8
HOW TO FIELD PROGRAM FREQUENCY & TONE CODES .............................9
HOW TO FIELD PROGRAM 2-TONE DECODE ................................................10
HOW TO FIELD PROGRAM RADIO FEATURES ..............................................11
Table 1: Programmable Frequency Codes .........................................................12
Table 2: Programmable QC Tone Codes............................................................13
Table 3: Programmable DQC Codes ..................................................................13
Table 4: Programmable 2-Tone Codes...............................................................13
Table 5: Programmable Features .......................................................................13
FIELD PROGRAMMING GATE GUARD ............................................................14
OPTIONAL GATE GUARD PROGRAMMING ....................................................14
INTERCOM (ALWAYS-ON) PROGRAMMING ...................................................15

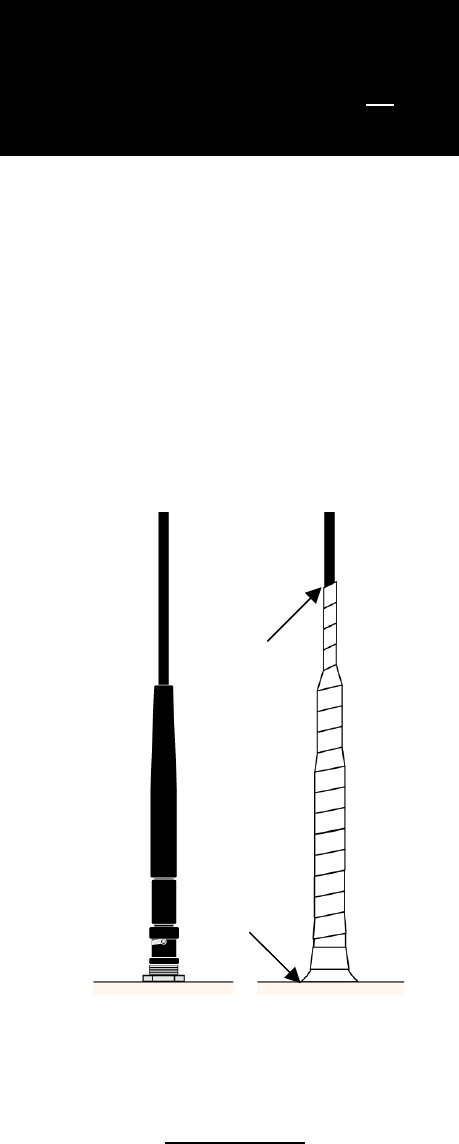

HOW TO SEAL THE ANTENNA .......................................................................................15
EXPOSURE TO RADIO FREQUENCY ENERGY ............................................................16
FCC LICENSE REQUIRED
Licensing.............................................................................................................16
Safety Standard ..................................................................................................16
Service................................................................................................................16
How to Obtain an FCC License ..........................................................................16
RITRON Limited Warranty ................................................................................................17
WHAT THIS MANUAL COVERS
This manual covers programming, operation and installation of the OUTPOST 2-Way Callbox models RQX-156,
RQX-156-XT, RQX-456, and RQX-456-XT.
![](/img.php?id=402597&img=bg4.png)
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 1
THANK YOU FOR CHOOSING RITRON
Congratulations on your purchase of the OUTPOST
Callbox.
Your new radio is the culmination of RITRON’s 25
years of designing, manufacturing, and supplying
reliable, professional wireless communication
products. Ritron wireless products will improve the
operation, safety, and profitability of any organization
by providing instant voice communications between
employees throughout the workplace.
OUTPOST CALLBOX MODEL NUMBERS
VHF MODELS
RQX-156 ...............Standard VHF Callbox
RQX-156-XT ........Vandal-Resistant VHF Callbox
UHF MODELS
RQX-456 ...............Standard UHF Callbox
RQX-456-XT ........Vandal-Resistant UHF Callbox
The model number is located on the bottom of the
standard Callbox enclosure. On XT models the
Standard enclose is located inside the yellow vandal-
resistant box.
VHF radios are designed to operate within the 12 MHz
band between factory standard 150 and 162 MHz.
UHF radios are designed to operate within the 20 MHz
band between factory standard 450 and 470 MHz.
ABOUT THE OUTPOST WIRELESS CALLBOX
The OUTPOST Callbox is a 2-way radio transceiver
used to communicate directly with portable, mobile
and stationary radios, or through radio repeaters.
Each OUTPOST Callbox is equipped with the
following features:
•
••
•Field Programming. The Callbox allows you to
quickly program your radio in the field without the
need for a PC programmer. Each radio can be field
programmed to one of 26 VHF or 77 UHF channel
table frequencies, and one of 51 QC or 83 DQC
interference eliminator codes.
•
••
•MURS Frequencies. VHF models can be
programmed from a list of 5 MURS frequencies that
require no FCC licensing in this service.
•
••
•QC (Quiet Call) interference eliminator codes.
The Callbox can be programmed from a list of 51
QC Sub-audible codes.
•
••
•DQC (Digital Quiet Call) interference eliminator
codes. Each Callbox can be programmed from a
list of 83 DQC Sub-audible codes.
•
••
•Battery Powered. The OUTPOST Callbox is
powered by 6 Alkaline, D-cell batteries that can
operate the radio for up to one year.
•
••
•Low battery alert. The Callbox will send a short
beep at the end of each transmission when the
batteries approach end-of-life. This allows the user
plenty of time to replace the batteries and assure
uninterrupted service.
•
••
•Wide or narrow band operation. The radio can be
programmed for wide or narrow operation by
selecting from a wide variety of field programmable
table frequencies, or by PC programming.
•
••
•Companded Audio. The radio can be field
programmed to enable or disable audio
companding. Companding will compress transmit
audio before sending it, and expand receive audio
before it is heard on the speaker to reduce the
background noise common in radio
communications.
•
••
•Sensor Input. Each OUTPOST has a single
sensor input that can cause the radio to send an
alert tone when sensor input is detected.
•
••
•“Wake-up” or “Intercom” mode operation. The
OUTPOST Callbox can operate in the standard
“Wake-Up” mode, where the radio is normally off
until the Call Button is pressed, or can be
programmed for “Intercom” mode where the radio is
always on.

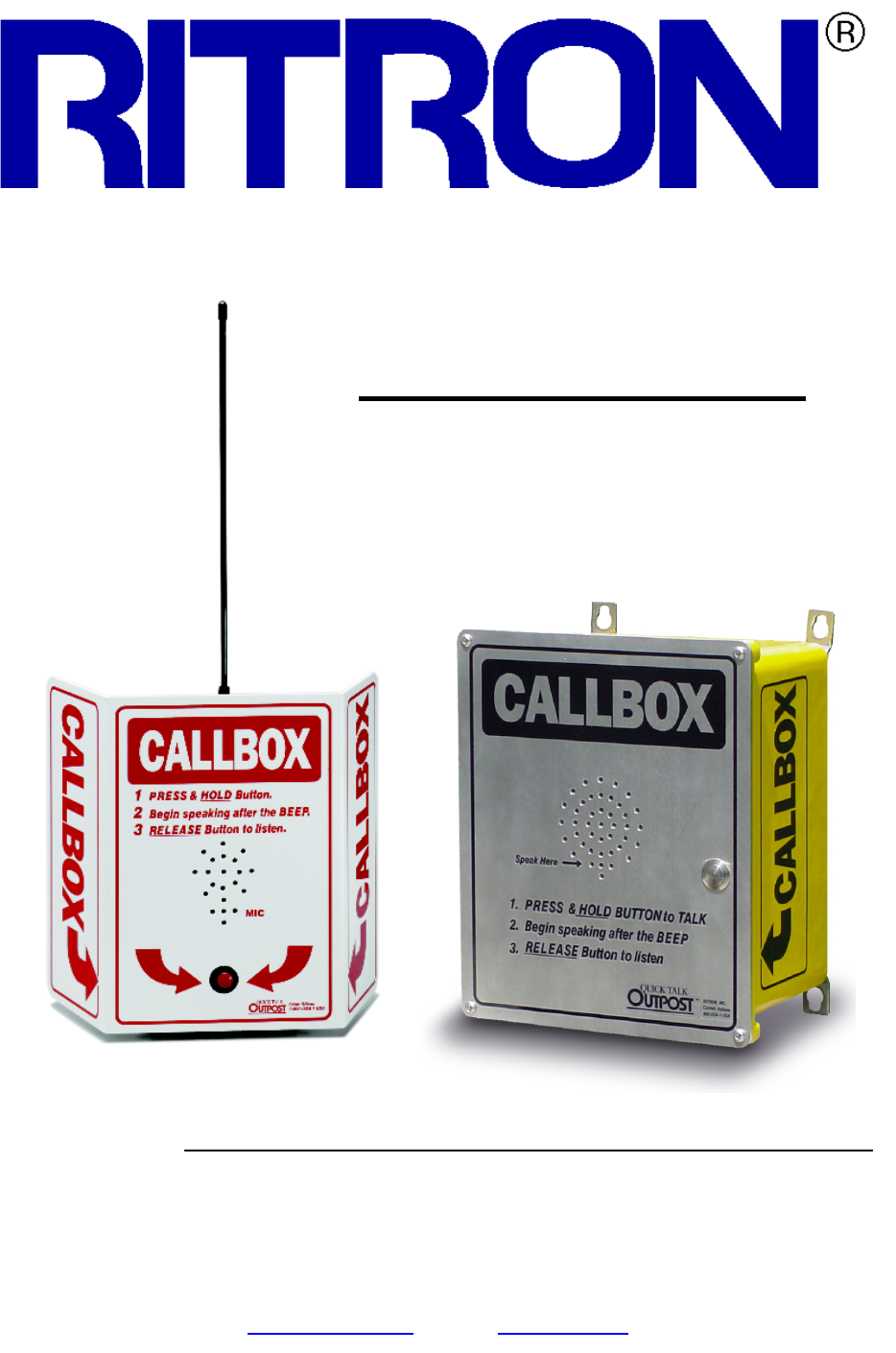

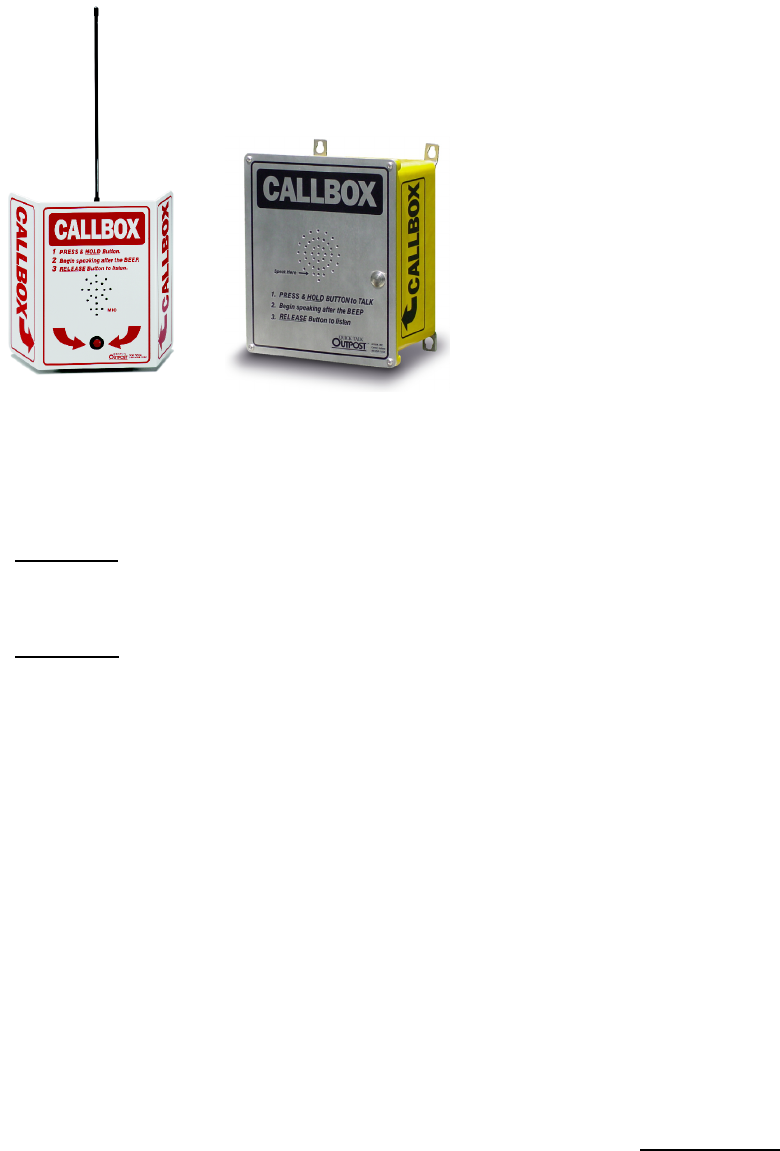

Standard Callbox XT Callbox
![](/img.php?id=402597&img=bg5.png)
2Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
OPERATING THE OUTPOST CALLBOX
The OUTPOST will not receive a call unless a call is
1st initiated by the OUTPOST.
THE OUTPOST AUTOMATICALLY SHUTS OFF
WHENEVER THERE IS INACTIVITY FOR TEN (10)
SECONDS.
To Initiate a Call:
Press and hold the ON/PTT Button on the unit, listen
for the “beep”, and begin speaking into the MIC. For
best communication, speak as closely as possible into
the microphone. The OUTPOST has been designed
for the caller to speak into the OUTPOST Callbox from
a distance of 3 feet or less.
To Receive a Response:
1. When you have finished speaking, release the
ON/PTT Button.
2. Any reply will be heard through the OUTPOST
speaker. If a reply is not received within 10
seconds of releasing the ON/PTT Button, the unit
sounds a low double tone and shuts off
automatically.
3. To call again, press and hold the ON/PTT Button
and begin speaking after the “beep”.
Operation Notes:
The OUTPOST must be powered with D-cell Alkaline
batteries ONLY, or alternatively, with an external 12
VDC power supply.
If there has been no activity for 10 seconds, i.e., either
the ON/PTT Button has not been pressed and
released or a reply has not been received, the unit
automatically shuts OFF. The automatic shutoff
feature is designed to increase battery life.
OPTIONAL OUTPOST CALLBOX FEATURES
The OUTPOST Callbox has many optional features
available through PC Programming.
Intercom (Always-On)
The OUTPOST can be PC programmed to operate as
a two-way intercom. When this feature is activated
the 10 second automatic shut-off is disabled and the
Callbox will operate in a “standby” mode, allowing the
Callbox to receive calls at any time.
Operating the Callbox in Intercom mode significantly
increases the battery drain, and is therefore not
recommended for battery powered applications. Refer
to “External 12 VDC Power Supply” in the Installation
section of this manual. If battery powered operation
is required, battery drain can be reduced with the
“Battery Saver” feature detailed in this section.
Battery Saver
When the Outpost Callbox is programmed to operate
in Intercom (Always-On) mode, Battery Saver can
increase battery life in both internal or external battery
powered applications.
With Battery Saver activated, the Callbox will
periodically “wake-up” and listen for a received signal
before returning to a low current “sleep” state. The
time between “wake-up’ states can be PC
programmed between 1-255 seconds. A longer time
between “Wake-up” states will result in increased
battery life.
The Callbox immediately leaves Battery Saver mode
any time the ON/PTT Button is pressed or a signal is
received, and will not return to Battery Saver until the
10 second inactivity timer has expired.
Inactivity Timer
Set from the factory for 10 seconds, the inactivity timer
can be PC programmed for 1-255 seconds. A shorter
inactivity time will result in increased battery life. In
standard “Wake-Up” operation a longer inactivity timer
will allow more time for a response before the Callbox
turns off.
Switch Output
The OUTPOST Callbox can be PC programmed to
open and close the Switch Output whenever a unique
2-tone code is received. The switch output is a simple
contact closure that may be used to open and close a
gate, switch on a light, sound an alarm or any other
application where an ON/OFF switch is required.
The Callbox can be field or PC programmed to
alternately open and close the switch using a single 2-
tone code, or can be PC programmed for unique open
and close 2-tone codes. Field programming offers
nine 2-tone codes that correspond to field
programmable 2-tone codes available in select
RITRON portable and base radios.
Sensor Input
The Callbox can be PC programmed to send a
warning tone when a change in the Sensor Input is
detected. The Sensor Input can be set to respond to
an open or closed switch.
Response Tone
The OUTPOST Callbox can be PC programmed to
send a unique Response tone after it receives a signal
to indicate the current status of the Switch Output or
the Sensor Input.
Battery Back-Up Alert
In installations with an external 12 VDC power supply
and internal battery back-up, the OUTPOST can be
PC programmed to send an alert tone at the end of
each transmission when the unit is operating on the
back-up battery.
Busy Channel TX Inhibit
When a user is transmitting on your radio frequency
without your tone, you will not be allowed to transmit.
The radio will beep a series of long, low tones while
the ON/PTT button is held down (like a busy signal).
![](/img.php?id=402597&img=bg6.png)
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 3
CALLBOX CONTROLS AND CONNECTORS
Antenna Connector
The antenna radiates radio signals. Before using the
OUTPOST Callbox, make sure the antenna is
securely fastened into the 50Ω BNC antenna
connector. If the Outpost is to be used outdoors, see
page 15 for instructions on properly sealing the
antenna connector.
RF Mating Connectors
An internal cable fron the antenna connector is
terminated into a phono style conector for connection
to the radio circuit board.
Captive Plastic Case Screws
A captive plastic case screw is located in each corner
of the case front. These 4 screws are used to secure
the case front containing the radio, to the case back
that contains the batteries.
Charge Jumper
The charge jumper can be set to trickle charge re-
chargeable backup batteries.
+12 VDC Input
Two screw terminal style connectors are used for the
“+” and “-“ connection of an external +12 VDC input for
installation without batteries.
Sensor Input
Two screw terminal style connectors are used for the
“+” and “-“ connection of an external DC level sensor.
Switch Output
Two screw terminal style connectors are used for the
“+” and “-“ connections of a 5A switch closure output.
Speaker Connector
The internal speaker is connected to the radio printed
circuit board with a polarized connector.
On/PTT Connector
The On/PTT switch is connected to the radio printed
circuit board with a polarized connector.
Pre-Drilled Mounting Holes
Mounting holes located in the 4 corners of the case
back are pre-drilled for mounting to a plate, wall or
post. Once mounted, the case front is secured to the
case back through these same threaded holes.
Program Cable Connector
An RJ11 style connector is used to connect the cable
from the PC programmer to the radio.
Program Button
A small, momentary pushbutton is used for field
programming the OUTPOST Callbox.
Program Display
A single digit LED display is used for field
programming the radio.
Battery Holder
The battery holder inside the case back is used for the
installation of 6 D-cell alkaline batteries. Refer to the
diagram below, or the labels beneath the cells, for
correct installation of the batteries.
Battery Mating Connectors
Polarized, 2-pin mating connectors are used to
connect the batteries to the radio circuit board.
+
-
+
-
+12 VDC Input
Sensor Input
+
-
Switch Output
RF Mating Connectors
50Ω
ΩΩ
Ω Antenna Connector
Captive Plastic Case
Screws (4 Corners)
Program Button
Program Display
Battery Mating
Connectors
Program Cable Connector
Battery Holder with
D-Cell Batteries
Installed
Pre-Drilled Mounting
Holes
(
4 Corners
)
FIG-1: Callbox Assembly, Controls and Connectors
Charge Jumper
Speaker Connector
On/PTT Connector
![](/img.php?id=402597&img=bg7.png)
4Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
OUTPOST INSTALLATION INSTRUCTIONS
The OUTPOST can be mounted to virtually any
surface with four (4) #6 panhead screws. Choose a
type of screw thread and screw length which will hold
firmly in the surface to which the unit will be mounted.
To MOUNT the OUTPOST: (Refer to FIG-1)
1. Loosen the (4) captive screws in the front corners
of the case and separate the case front from the
case back. These screws are captive to the
housing; to prevent damaging them, DO NOT
remove the screws from the housing.
2. Install 6 D-cell alkaline batteries into the battery
holder. Refer to FIG-1, or the labels beneath the
cells, for correct installation of the batteries.
3. If required, program the radio. Refer to the
programming section of this manual for details.
4. Disconnect the RF mating connectors and the
battery mating connectors. Set the case front
containing the radio circuit board aside.
5. Insert a #6 panhead screw into each of the four
(4) corner holes in the OUTPOST case back.
Position the case back in the chosen installation
location and secure it in place with the four
screws.
CAUTION
Do not drill or penetrate the OUTPOST case
with any additional holes. Use only the pre-
drilled mounting holes.
6. Re-connect the RF mating connectors and the
battery mating connectors between the case front
and case back.
7. Fasten the case front to the case back with the
four( 4) captive screws. Do not over-tighten the
plastic screws to prevent damage.
8. Insert, rotate and lock the antenna onto the
antenna connector. Orient the antenna vertically.
9. If the OUTPOST is to be used outdoors, it is
imperative that the antenna connector be sealed
with sealing tape after the antenna has been
installed. Use Grainger #2A-459, Radio Shack
#278-1647, or equivalent. Refer to “Sealing the
Antenna” instructions in this manual.
10. To install the message placard, align the center of
the hole over the ON/PTT Button, and the
mushroom-head fastener strips on the back of the
placard with the strips on the front of the Outpost
case. Press firmly to interlock the strips,
snapping the panel into position.
Coverage
Depending on the unit location and installation,
the OUTPOST can cover up to 1 mile. To
increase range, use an external antenna that is
mounted higher. See the RAM-1545 Magnet
Mounted Antenna on page ii.
XT OUTPOST INSTALLATION INSTRUCTIONS
The XT OUTPOST can be mounted to virtually any
surface with four (4) ¼” diameter fastners. Choose a
type of screw thread and screw length which will hold
firmly in the surface to which the unit will be mounted.
To MOUNT the XT OUTPOST: ( Refer to FIG-3)
1. Remove the front faceplate from the XT Callbox.
The faceplate is secured to the case with 4
vandal-resistant buttonhead, Torx screws. Use
the T-25 Torx bit included with the radio to
remove these screws.
2. Remove the “Mounting Bracket” kit secured to the
inside of the XT Callbox case.
3. Loosen the (4) captive screws in the front corners
of the internal Callbox case and separate the
case front from the case back. These screws are
captive to the housing; to prevent damaging them,
DO NOT remove the screws from the housing.
4. Install 6 D-cell alkaline batteries into the battery
holder. Refer to FIG-2, or the labels beneath the
cells, for correct installation of the batteries.
5. If required, program the radio. Refer to the
programming section of this manual for details.
6. Fasten the internal case front to the case back
with the four( 4) captive screws. Do not over-
tighten the plastic screws to prevent damage.
7. Re-fasten the front faceplate to the radio with the
4 buttonhead Torx screws.
8. Install the 4 mounting brackets to the back of the
XT Callbox case as shown in FIG-3 below with
the #10-32 bolts provided. The mounting
brackets can be installed vertically, as shown, or
horizontally.
9. Position the XT Callbox in the chosen installation
location and secure it in place with four screws
through the mounting brackets.
FIG-2: XT Callbox Mounting Brackets
– Verticall
y
Installed
![](/img.php?id=402597&img=bg8.png)
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 5
Battery Holder with
D-Cell Batteries Installed
Internal Antenna
RF Mating
Connectors
ON/PTT Mating
Connectors
Battery Mating
Connectors
ON/PTT Switch
Threaded Inserts for Front Plate
Mounting (4 Corners)
Front Plate
(Bottom Edge)
Captive Plastic
Case Screws
(
4 Corners
)
FIG 3: XT Callbox Assembly
![](/img.php?id=402597&img=bg9.png)
6Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
XT GATE GUARD INSTALLATION
INSTRUCTIONS
The XT OUTPOST GATE GUARD can be mounted to
virtually any surface with four (4) #6 panhead screws.
Choose a type of screw thread and screw length
which will hold firmly in the surface to which the unit
will be mounted.
To MOUNT the XT OUTPOST GATE GUARD: ( Refer
to FIG-5)
1. Remove the front faceplate from the XT Callbox.
The faceplate is secured to the case with 4
vandal-resistant buttonhead, Torx screws. Use
the T-25 Torx bit included with the radio to
remove these screws.
2. Remove the “Mounting Bracket” kit secured to the
inside of the XT Callbox case.
Due to the wide variety of installation possibilities,
RIITRON does not provide the cables or
hardware required to bring external connections
into the XT Callbox. When selecting your cable
hardware be sure it will adequately seal the cable
to the case.
3. Carefully study the internal construction of the XT
Callbox and determine the location on the outside
case where the external supply and Gate Guard
hook-up will be brought in. Consider clearance
with your desired hardware.
4. Remove the 4 flathead screws securing the
internal mounting plate and remove entire internal
case assembly. The front faceplate will be
attached to the internal case assembly, handle
with care.
5. Drill the hole in the XT Callbox case required for
your cable installation.
6. Install the 4 mounting brackets to the back of the
XT Callbox case shown in FIG-2. The mounting
brackets can be installed vertically, as shown, or
horizontally.
7. Thread your external hookup cable through the
hole with approximately 6 inches of cable inside
the case. Your external cable will be connected
to the XT Callbox 6-conductor interface cable with
wirenuts, dress your external wires accordingly.
With your selected hardware, secure and seal the
cable to the XT Callbox case.
8. Position the XT Callbox case in the chosen
installation location and secure it in place with
four screws through the mounting brackets.
9. If programming is required, loosen the (4) captive
screws in the front corners of the internal Callbox
case and separate the case front from the case
back. These screws are captive to the housing;
to prevent damaging them, DO NOT remove the
screws from the housing.
10. Program the radio, if required. Refer to the
programming section of this manual for details.
To program the radio you must first apply
+12VDC external power, or install a charged
back-up battery. Refer to FIG-1 for hookup of an
external +12VDC supply.

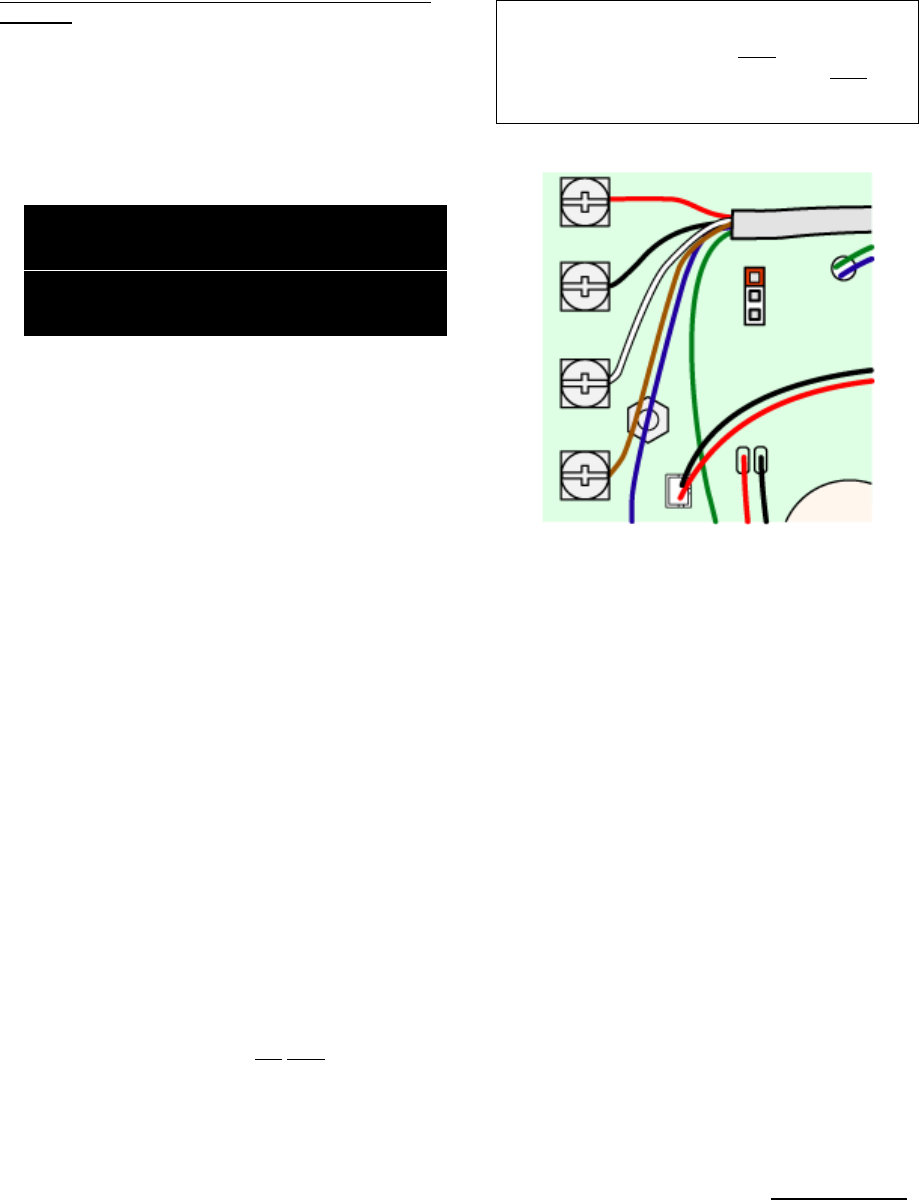

11. If rechargeable NiCd batteries are used for
battery backup the “Charge Jumper” must be
placed into the “charge” position as shown.
! ! CAUTION ! !
If rechargeable batteries are NOT used for battery
backup, be sure the “Charge Jumper” is NOT in
the “charge position. Charging alkaline batteries
will damage the cells and reduce battery life!
12. Fasten the internal case front to the case back
with the four( 4) captive screws. Do not over-
tighten the plastic screws to prevent damage.
13. Secure the internal case assembly to the XT
Callbox with the 4 flathead screws through the
internal mounting plate. Refer to FIG-5 for correct
orientation and location of the antenna and
cables. The front faceplate is attached to the
internal case assembly, handle with care.
14. Re-fasten the front faceplate to the radio with the
4 buttonhead Torx screws.
Charge
FIG-4: Charge Jumper in Charge Position
![](/img.php?id=402597&img=bga.png)
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 7
6-Conductor
Interface Cable
Battery Holder with
D
-
Cell Batteries Installed
Internal Antenna
Threaded Inserts for Faceplate
Mounting (4 Corners)
RF Mating
Connectors
Captive Plastic
Case Screws (4 Corners)
Back-up Battery
Mating Connectors
ON/PTT Switch
Faceplate
(Bottom Edge)
Red
Black
White
Brown
Blue
Green
FIG 5: XT Callbox Gate Guard Assembly with Battery Backup
Charge
Jumper
Flathead Screws for Internal
Mounting Plate (4 Corners)
![](/img.php?id=402597&img=bgb.png)
8Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com

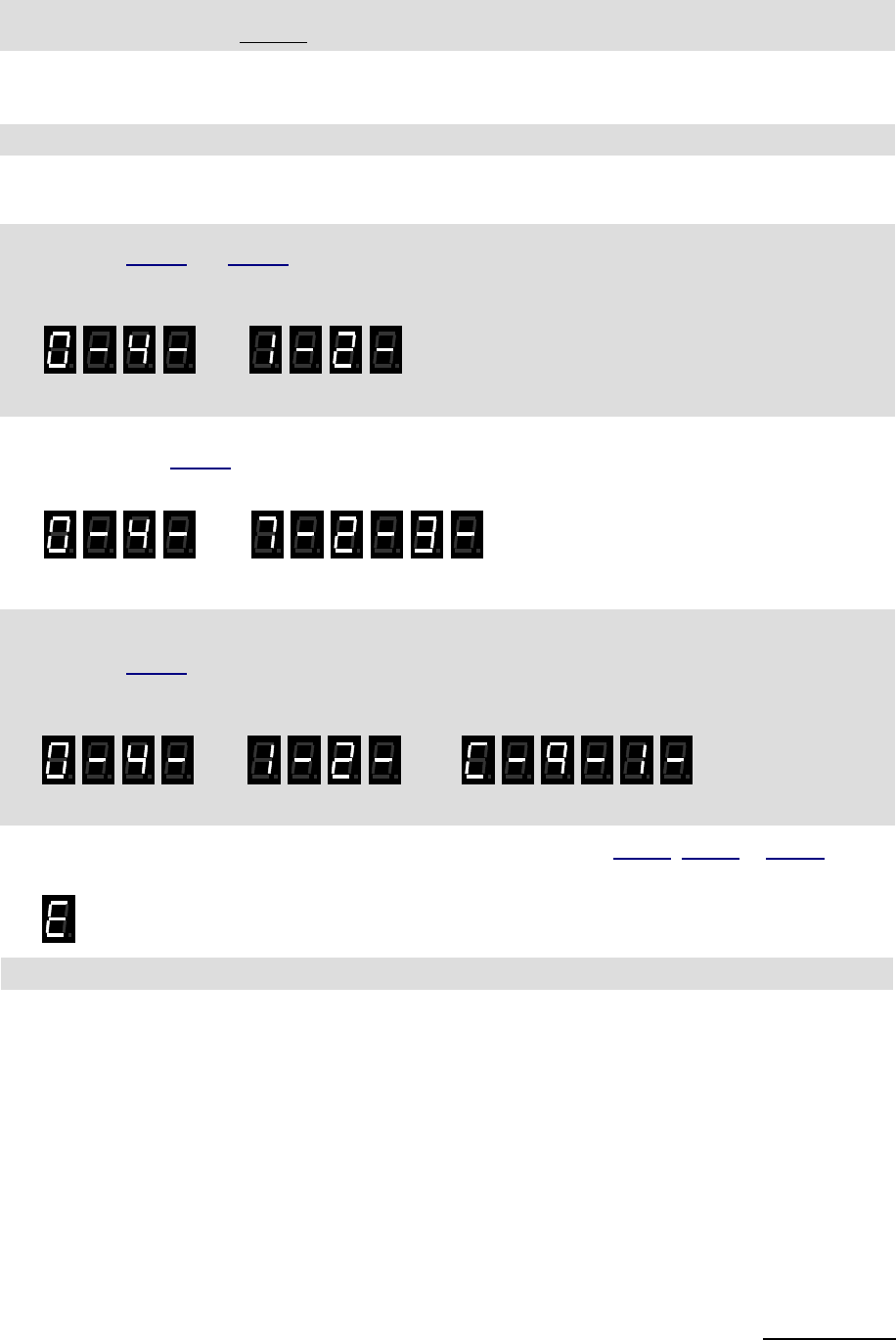

HOW TO READOUT CURRENT RADIO PROGRAMMING
1. Loosen the (4) captive screws in the front corners of the case. These screws are captive to the housing; to
prevent damaging them, DO NOT remove the screws from the housing.
2. Separate the case front from the case back, leaving the battery connected to the radio. Make sure the unit
has batteries installed. NOTE: The voltage of the batteries must be greater than 6 VDC to program properly.
3. Press and release the ON/TRANSMIT button on the front of the Callbox to turn the radio on.
4. Press and release the Program button (See FIG-1 on page 3 for location). The radio will begin to display a
series of four digits; with each digit separated by a hyphen.
5. Write down the four digits. The first two digits indicate the frequency code and the last two digits the tone
code; see Table 1 and Table 2 on pages 12 and 13. In this example an RQX-456 is programmed to
operate on the “Brown Dot” frequency of 464.500 MHz (Frequency code “04”) with 100.0 Hz tone (Tone code
“12”).
6. If a 5th digit is displayed, the channel has been programmed for DQC and the last three digits indicate the
DQC code; see Table 3 on page 13. In this example an RQX-456 was programmed to operate on the
“Brown Dot” frequency of 464.500 MHz (Frequency code “04”) with a DQC code of “723”).
7. If more than 5 digits are displayed, the radio has been programmed for 2-Tone Paging Decode. The
frequency and tone codes will be displayed, followed by a “C”, then the radio will display the 2-Tone paging
code; see Table 4 on page 13. In this example an RQX-456 was programmed to operate on the “Brown
Dot” frequency of 464.500 MHz (Frequency code “04”) with 100.0 Hz tone (Tone code “12”) and 2-tone
paging decode frequencies of 330.5 Hz and 569.1 Hz (2-Tone code “91”)
8. If the channel is PC-programmed with any frequency or tone not listed in Table 1, Table 2 or Table 3 on
pages 12 and 13, the radio will sound the error tone on contents read out and display an "E".
9. Normal radio operation resumes after the programming information has been displayed.
FREQUENCY CODE DQC CODE
FREQUENCY CODE TONE CODE
FREQUENCY CODE TONE CODE PAGING CODE
![](/img.php?id=402597&img=bgc.png)
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 9
04
12

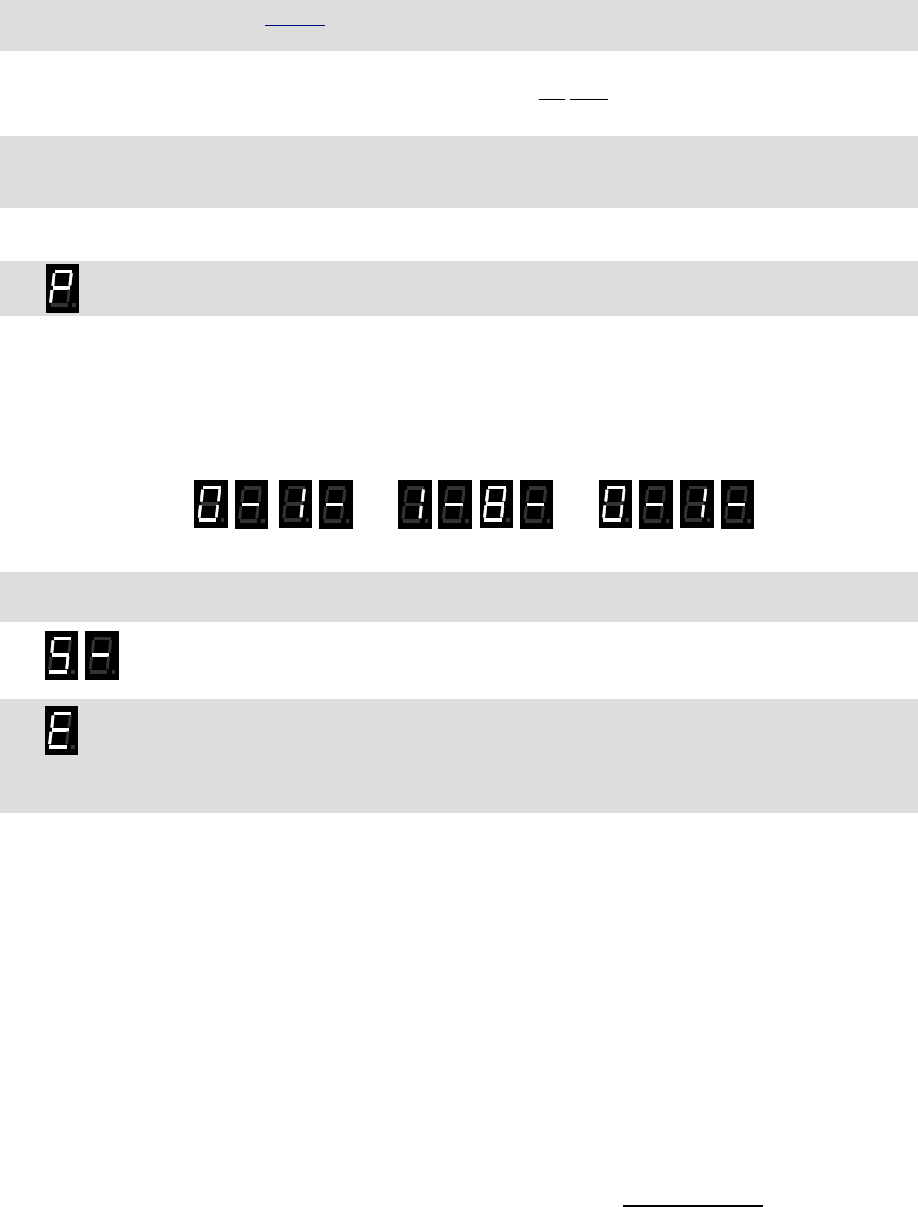

HOW TO FIELD PROGRAM FREQUENCY AND TONE CODES
To match other radios, the owner can select Frequency, Tone and DQC Codes from Table 1, Table 2 and Table 3
on pages 12 and 13. In our example we will program an RQX-456 to operate on the "Brown Dot" frequency of
464.500 MHz with 100.0 Hz tone.
1. Refer to Table 1 on page 12 to determine the two-digit frequency code and write it down.
2. Refer to Table 2 on page 13 to determine the two-digit tone code for 100.0 Hz and write
it down.
3. Loosen the (4) captive screws in the front corners of the case. These screws are captive
to the housing; to prevent damaging them, DO NOT remove the screws from the
housing.
4. Separate the case front from the case back, leaving the battery connected to the radio.
Make sure the unit has batteries installed.
NOTE: The voltage of the batteries must be greater than 6 VDC to program properly.
5. Press and release the ON/TRANSMIT button on the front of the unit to turn the radio on.
6. Press and hold the Program Button (See FIG-1 on page 3 for location). A "P" will appear
on the program display as you enter program mode and the radio will start beep rapidly.
7. Release the program button after the beeping has stopped. The radio will display a
series of six characters for Radio Identification, with each character separated by a
hyphen.
The 1st two characters indicate the model number, the 3rd and 4th characters indicate the
radio type, and the 5th and 6th characters indicate the firmware revision.
MODEL NUMBER RADIO TYPE FIRMWARE REVISION
8. After the Radio Identification has been displayed the radio will emit a triple beep
indicating that the radio is in program mode.
9. Enter the 1st digit of the frequency code by clicking the PTT button until the program
display shows the desired number. Pause—the radio will sound a low tone and show a
hyphen across the center of the display to indicate that it is ready to accept the next digit.
10. Enter the 2nd digit of the frequency code by clicking the PTT button until the program
display shows the desired number. Pause—the radio sounds a low tone and will show a
hyphen across the center of the display to indicate that it is ready to accept the next digit.
11. Enter the 1st digit of the tone code (or 1st digit of the DQC code) by clicking the PTT
button until the program display shows the desired number. Pause—the radio sounds a
low tone and will show a hyphen across the center of the display to indicate that it is
ready to accept the next digit.
12. Enter the 2nd digit of the tone code (or 2nd digit of the DQC code) by clicking the PTT
button until the program display shows the desired number. Pause—the radio sounds a
low tone and will show a hyphen across the center of the display to indicate that it is
ready to accept the next digit.
13. FOR DQC CODES ONLY – Enter the 3rd digit of the DQC code by clicking the PTT
button until the program display shows the desired number. Pause—the radio sounds a
low tone and will show a hyphen across the center of the display to indicate that it is
ready to accept the next digit.
14. Press and release the ON/TRANSMIT button to save your programming. A triple beep
will sound to indicate that programming was successful and the radio will turn off.
NOTE: An error tone will sound if you attempt to save an incorrect code, an "E" will
appear on the display and the radio will turn off. Check the digits you are attempting to
enter, then start over.
15. Turn the radio back on for normal operation.
![](/img.php?id=402597&img=bgd.png)
10 Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
94
HOW TO FIELD PROGRAM 2-TONE DECODE
For special applications, it is desirable to program the Callbox for 2-Tone decode operation. The user is able to
field program the radio for one of the 9 pre-determined tone pairs specified in Table 4 on page 13. These tone
pairs correspond to field programmable 2-Tone encode codes available in other RITRON portable and base
radios. In our example we will program an RQX-456 to operate with 2-Tone decode frequencies of 389.0 and
669.9 Hz.
NOTE: Field programming frequency and tone codes will remove all 2-Tone programming. If 2-Tone operation is
required, the 2-tone code must be re-programmed after field programming of the frequency and tone codes.
1. Refer to Table 4 on page 13 to determine the two-digit code for 2-tone decode on 389.0
and 669.9 Hz and write it down.
2. Loosen the (4) captive screws in the front corners of the case. These screws are captive
to the housing; to prevent damaging them, DO NOT remove the screws from the
housing.
3. Separate the case front from the case back, leaving the battery connected to the radio.
Make sure the unit has batteries installed.
NOTE: The voltage of the batteries must be greater than 6 VDC to program properly.
4. Press and release the ON/TRANSMIT button on the front of the unit to turn the radio on.
5. Press and hold the Program Button (See FIG-1 on page 3 for location). A "P" will appear
on the program display as you enter program mode and the radio will start beep rapidly.
6. Release the program button after the beeping has stopped. The radio will display a
series of six characters for Radio Identification, with each character separated by a
hyphen.
The 1st two characters indicate the model number, the 3rd and 4th characters indicate the
radio type, and the 5th and 6th characters indicate the firmware revision.
MODEL NUMBER RADIO TYPE FIRMWARE REVISION
7. After the Radio Identification has been displayed the radio will emit a triple beep
indicating that the radio is in program mode.
8. Enter the 1st digit of the 2-Tone code by clicking the PTT button until the program display
shows the desired number. Pause—the radio will sound a low tone and show a hyphen
across the center of the display to indicate that it is ready to accept the next digit.
9. Enter the 2nd digit of the 2-Tone code by clicking the PTT button until the program display
shows the desired number. Pause—the radio sounds a low tone and will show a
hyphen across the center of the display to indicate that it is ready to accept the next digit.
10. Press and release the ON/TRANSMIT button to save your programming. A triple beep
will sound to indicate that programming was successful and the radio will turn off.
NOTE: An error tone will sound if you attempt to save an incorrect code, an "E" will
appear on the display and the radio will turn off. Check the digits you are attempting to
enter, then start over.
11. Turn the radio back on for normal operation.
![](/img.php?id=402597&img=bge.png)
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 11
5
HOW TO FIELD PROGRAM RADIO FEATURES
The OUTPOST Callbox can be field programmed for a number of features that include companding, Gate Guard,
and speaker volume level. Refer to Table 5 on page 13 for the single digit codes available for field programming.
In our example we will program an RQX-456 for Gate Guard operation.
NOTE: Field programming frequency and tone codes will turn companding and Gate Guard OFF. If companding
or Gate Guard operation is required, the single-digit Radio Feature code must be re-programmed after field
programming of the frequency and tone codes.
1. Refer to Table 5 on page 13 to determine the single-digit code used to enable Gate
Guard.
2. Loosen the (4) captive screws in the front corners of the case. These screws are captive
to the housing; to prevent damaging them, DO NOT remove the screws from the
housing.
3. Separate the case front from the case back, leaving the battery connected to the radio.
Make sure the unit has batteries installed.
NOTE: The voltage of the batteries must be greater than 6 VDC to program properly.
4. Press and release the ON/TRANSMIT button on the front of the unit to turn the radio on.
5. Press and hold the Program Button (See FIG-1 on page 3 for location). A "P" will appear
on the program display as you enter program mode and the radio will start beep rapidly.
6. Release the program button after the beeping has stopped. The radio will display a
series of six characters for Radio Identification, with each character separated by a
hyphen.
The 1st two characters indicate the model number, the 3rd and 4th characters indicate the
radio type, and the 5th and 6th characters indicate the firmware revision.
MODEL NUMBER RADIO TYPE FIRMWARE REVISION
7. After the Radio Identification has been displayed the radio will emit a triple beep
indicating that the radio is in program mode.
8. Enter the single-digit code by clicking the PTT button until the program display shows the
desired number. Pause—the radio will sound a low tone and show a hyphen across the
center of the display to indicate that it is ready to accept the next digit.
9. Press and release the ON/TRANSMIT button to save your programming. A triple beep
will sound to indicate that programming was successful and the radio will turn off.
NOTE: An error tone will sound if you attempt to save an incorrect code, an "E" will
appear on the display and the radio will turn off. Check the digits you are attempting to
enter, then start over.
10. Turn the radio back on for normal operation.
![](/img.php?id=402597&img=bgf.png)
12 Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
TABLE 1: PROGRAMMABLE FREQUENCY CODES
UHF Business Band
Code Frequency Color Dot Bandwidth
01 467.7625 J 25
02 467.8125 K 25
03 464.5500 Yellow Dot 25
04 464.5000 Brown Dot 25
05 467.8500 Silver Star 25
06 467.8750 Gold Star 25
07 467.9000 Red Star 25
08 467.9250 Blue Star 25
09 469.2625 25
10 462.5750 White Dot 25
11 462.6250 Black Dot 25
12 462.6750 Orange Dot 25
13 464.3250 25
14 464.8250 25
15 469.5000 25
16 469.5500 25
17 463.2625 25
18 464.9125 25
19 464.6000 25
20 464.7000 25
21 462.7250 25
22 464.5000 Brown Dot 12.5
23 464.5500 Yellow Dot 12.5
24 467.7625 J 12.5
25 467.8125 K 12.5
26 467.8500 Silver Star 12.5
27 467.8750 Gold Star 12.5
28 467.9000 Red Star 12.5
29 467.9250 Blue Star 12.5
30 461.0375 12.5
31 461.0625 12.5
32 461.0875 12.5
33 461.1125 12.5
34 461.1375 12.5
35 461.1625 12.5
36 461.1875 12.5
37 461.2125 12.5
38 461.2375 12.5
39 461.2625 12.5
40 461.2875 12.5
41 461.3125 12.5
42 461.3375 12.5
43 461.3625 12.5
44 462.7625 12.5
45 462.7875 12.5
46 462.8125 12.5
47 462.8375 12.5
48 462.8625 12.5
49 462.8875 12.5
50 462.9125 12.5
51 464.4875 12.5
52 464.5125 12.5
53 464.5375 12.5
54 464.5625 12.5
55 466.0375 12.5
56 466.0625 12.5
57 466.0875 12.5
58 466.1125 12.5
59 466.1375 12.5
60 466.1625 12.5
61 466.1875 12.5
62 466.2125 12.5
UHF Business Band (continued)
Code Frequency Color Dot Bandwidth
63 466.2375 12.5
64 466.2625 12.5
65 466.2875 12.5
66 466.3125 12.5
67 466.3375 12.5
68 466.3625 12.5
69 467.7875 12.5
70 467.8375 12.5
71 467.8625 12.5
72 467.8875 12.5
73 467.9125 12.5
74 469.4875 12.5
75 469.5125 12.5
76 469.5375 12.5
77 469.5625 12.5
00 DELETE CODE*
UHF Business Band – Canada Models
Code Frequency Color Dot Bandwidth
01 458.6625 25
02 469.2625 25
00 DELETE CODE*
VHF Business Band
Code Frequency Color Dot Bandwidth
03 151.6250 Red Dot 25
04 151.9550 Purple Dot 25
05 151.9250 25
06 154.5400 25
07 154.5150 25
08 154.6550 25
09 151.6850 25
10 151.7150 25
11 151.7750 25
12 151.8050 25
13 151.8350 25
14 151.8950 25
15 154.4900 25
16 151.6550 25
17 151.7450 25
18 151.8650 25
24 151.7000 12.5
25 151.7600 12.5
26 152.7000 25
00 DELETE CODE *
VHF MURS **
Code Frequency Color Dot Bandwidth
01 154.6000 Green Dot 25
02 154.5700 Blue Dot 25
19 151.8200 MURS 12.5
20 151.8800 MURS 12.5
21 151.9400 MURS 12.5
22 154.6000 MURS 12.5
23 154.5700 MURS 12.5
00 DELETE CODE *
![](/img.php?id=402597&img=bg10.png)
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 13
TABLE 2: PROGRAMMABLE QC TONE CODES
Code Frequency Code Frequency Code Frequency Code Frequency
01 67.0 14 107.2 27 167.9 40 159.8
02 71.9 15 110.9 28 173.8 41 165.5
03 74.4 16 114.8 29 179.9 42 171.3
04 77.0 17 118.8 30 186.2 43 177.3
05 79.7 18 123.0 31 192.8 44 No Tone
06 82.5 19 127.3 32 203.5 45 183.5
07 85.4 20 131.8 33 210.7 46 189.9
08 88.5 21 136.5 34 218.1 47 196.6
09 91.5 22 141.3 35 225.7 48 199.5
10 94.8 23 146.2 36 233.6 49 206.5
11 97.4 24 151.4 37 241.8 50 229.1
12 100.0 25 156.7 38 250.3 51 254.1
13 103.5 26 162.2 39 69.4 00 Delete
TABLE 3: PROGRAMMABLE DQC CODES
Code Code Code Code Code Code Code Code
023 072 152 244 331 423 532 662
025 073 155 245 343 431 546 664
026 074 156 251 346 432 565 703
031 114 162 261 351 445 606 712
032 115 165 263 364 464 612 723
043 116 172 265 365 465 624 731
047 125 174 271 371 466 627 732
051 131 205 306 411 503 631 734
054 132 223 311 412 506 632 743
065 134 226 315 413 516 654 754
071 143 243
TABLE 4: PROGRAMMABLE 2-TONE CODES
Code Tone 1 Tone 2
91 330.5 569.1
92 349.0 600.9
93 368.5 634.5
94 389.0 669.9
95 410.8 707.3
96 433.7 746.8
97 457.9 788.5
98 483.5 832.5
99 330.5 600.9
TABLE 5: PROGRAMMABLE FEATURES
Code Feature
1 Companding ON
2 Companding OFF
3 Volume Level - Medium
4 Volume Level - High
5 Gate Guard ON
6 Gate Guard OFF
7
8
9
NOTE: Companding will compress transmit audio before sending it, and expand receive audio before it is heard
on the speaker to reduce the background noise common in radio communications. Companding is not
recommended unless all radios in the system are companded.
![](/img.php?id=402597&img=bg11.png)
14 Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
FIELD PROGRAMMING GATE GUARD
The XT OUTPOST can be field programmed for basic
Gate Guard operation, or PC programmed to suit your
unique requirements.
To field program the Gate Guard:
1. Program the frequency and tone codes per the
“How to Field Program Frequency and Tone
Codes” instructions on page 9.
2. Program the 2-Tone code per the “How to Field
Program 2-Tone Decode” instructions on page
10.
3. Program the Callbox for Gate Guard operation
per the “How to Field Program Radio Features”
instructions on page 11.
The XT OUTPOST Callbox will now operate in Gate
Guard mode as follows:
• The Callbox will be in “Wake-up” mode. The
ON/PTT button must 1st be pressed as described in
“Operating the OUTPOST Callbox” section on page
2 before normal two-way communications can be
established.
• If the Callbox does not send or receive a signal for
more than 10 seconds the Callbox will automatically
turn off. The ON/PTT button must be pressed to
turn the Callbox back on.
• When the Callbox receives the correct 2-Tone
signal the Callbox Switch Output will momentarily
close for 1 second. The Callbox will automatically
transmit a confirmation tone after the 2-tone has
been decoded.
OPTIONAL GATE GUARD PROGRAMMING
The XT OUTPOST can be PC programmed to
customize Gate Guard operation.
Intercom (Always On) will leave the Callbox tuned on
at all times, allowing Gate Guard operation even if
there is no one at the Callbox. The higher current
requirements of Intercom mode make it undesirable
in battery powered installations.
Battery Saver can be used to reduce battery drain
when Intercom (Always On) operation is required on
a battery powered installation. With Battery Saver
activated, the Callbox will periodically “wake-up” and
listen for a received signal before returning to a low
current “sleep” state. The time between “wake-up’
states can be PC programmed between 1-255
seconds. A longer time between “Wake-up” states
will result in increased battery life.
Ring Tone will sound an alert tone on the Callbox
speaker, similar to a telephone ring tone, whenever
2-tone has been successfully decoded. This will
alert the Callbox user that the gate is being opened
or closed.
Inactivity Timer is set from the factory for 10
seconds, but can be PC programmed for 1-255
seconds. A shorter inactivity time will result in
increased battery life. In standard “Wake-Up”
operation a longer inactivity timer will allow more
time for a response before the Callbox turns off.
Gate Guard Latch operation allows programming of
separate ON and OFF 2-tone codes. The Outpost
will close the Switch Output upon receiving the ON
code, and open the Switch Output upon receiving
the OFF code.
If the Gate Guard Latch option is used with an ON
code only, the Switch Output will automatically turn
OFF when the radio:
1. is turned off as a result of the Inactivity Timer in
“Wake-Up” mode or,
2. goes to the low current “sleep” state in “Intercom
(Always-On)” mode with battery saver enabled.
When reading out the radio programming as
described in the “How to Readout Current Radio
Programming” section, the ON code will be
displayed.
Sensor Output can be programmed to detect a logic
level and transmit an Alert tone when a change in
logic level is detected. Separate alert tones are
used for OPEN (logic level high) and CLOSED
(logic level low).
Battery Back-Up Alert is used in installations with an
external 12 VDC power supply and internal battery
back-up. The OUTPOST can be programmed to
send an alert tone at the end of each transmission
when the unit is operating on the back-up battery.
Busy Channel TX Inhibit will not allow you to
transmit when another user is already transmitting
on your radio frequency without your tone. The
radio will beep a series of long, low tones while the
ON/PTT button is held down (like a busy signal).
![](/img.php?id=402597&img=bg12.png)
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 15
INTERCOM (ALWAYS-ON) PROGRAMMING
The XT OUTPOST can be PC programmed to operate
as a two-way intercom. When this feature is activated
the automatic shut-off is disabled and the radio will
remain on in a “stand-by” mode, allowing it to receive
a call from another radio at any time. The higher
current requirements of Intercom operation make it
undesirable in battery powered installations.
Intercom (Always On) must be set for the Callbox to
remain tuned on at all times.
Battery Saver can be used to reduce battery drain on
a battery powered installation. With Battery Saver
activated, the Callbox will periodically “wake-up” and
listen for a received signal before returning to a low
current “sleep” state. The time between “wake-up’
states can be PC programmed between 1-255
seconds. A longer time between “Wake-up” states
will result in increased battery life.
2-Tone Decode allows selective calling to a Callbox in
a radio system where there is more than one
Callbox. When the Callbox is programmed for 2-
tone decode in “Intercom (Always-On)” mode it will
sound an alert tone on the Callbox speaker, similar
to a telephone ring tone, whenever 2-tone has been
successfully decoded. This will alert any users in
the immediate area that there is an incoming call on
the Callbox.
Ring Tone must be set to sound the alert tone on the
Callbox speaker when 2-tone is successfully
decoded.
Monitor can be set when used with 2-Tone decode to
allow the Callbox to hear all radio traffic on the
channel. If Monitor is not set, the Callbox will only
hear a broadcast after it has successfully decoded
the correct 2-tone code. Normal conversation can
follow after the 2-tone code is decoded and the
radio will automatically reset back to 2-tone decode
after 10 seconds of inactivity.
Busy Channel TX Inhibit will not allow you to
transmit when another user is already transmitting
on your radio frequency without your tone. The
radio will beep a series of long, low tones while the
ON/PTT button is held down (like a busy signal).
HOW TO SEAL THE ANTENNA
If the OUTPOST Callbox is to be used outdoors it is
imperative that the entire antenna connection be
sealed with seal tape to provide proper operation and
prevent voiding warranty.
Seal tape can be purchased at most Industrial Supply
Stores, Harware and Home Center Stores, or
Electronic Supply Stores.
Regarless of the antenna used, it is always best to
weatherproof the antenna connection using seal tape.
NOTICE
Failure to follow these instructions will
cause damage to the product, prevent
proper sealing of the enclose and will
void the Manufacturers Warranty.
Applying Seal Tape:
1. Attach the antenna to the 50Ω BNC connector on
the OUTPOST Callbox enclosure.
2. Begin wrapping seal tape at the base of the
antenna connector such that it is sealed to the
enclosure top.
3. Overlap the seal tape as you tightly wrap upward
around the connector and antenna. Continue to
overlap seal tape around the connector base,
past the articulated portion of the antenna and
several inches up the thin, shiny section of the
antenna.
AFB-1545
Antenna before
sealing
Wrap tape
from bottom,
sealing to
enclosure.
Overlap
sealing tape
(1) inch
beyond the
rigid section
of the
antenna
AFB-1545
Antenna after
sealing
![](/img.php?id=402597&img=bg13.png)
16 Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
EXPOSURE TO RADIO FREQUENCY ENERGY
RQX-456: This product generates radio frequency
(RF) energy when the ON/PTT button on the front of
the unit is depressed. This product has been
evaluated for compliance with the maximum
permissible exposure limits for RF energy at the
maximum power rating of the unit when using
antennas available from RITRON.
For both the AFB-1545 and RAM-1545 antennas, at
the 20 cm (7.9 inches) minimum expected separation
distance and greater, the maximum RF exposure is
well below the General Population/Uncontrolled limits.
Antennas other than those available from RITRON
have not been tested for compliance and may or may
not meet the exposure limits at the distances given.
Higher gain antennas are capable of generating higher
fields in the strongest part of their field and would,
therefore, require a greater separation from the
antenna. This product is not to be used by the general
public in an uncontrolled environment unless
compliance with the Uncontrolled/General Population
limits for RF exposure can be assured.
To limit exposure to RF energy to levels below the
limit, please observe the following:
• Use only the antenna(s) available from RITRON for
these models. DO NOT operate the radio without
an antenna.
• Keep talk times as short and infrequent as
possible. DO NOT depress the ON/PTT button
when not actually wishing to transmit. These
radios are equipped with an internal timer to limit
continuous transmit times.
• When transmitting, make certain that the distance
limits for the particular model in use are observed.
•
DO NOT allow children to operate the radio.
When used as directed, this series of radios is
designed to comply with the FCC’s RF exposure limits
for “Uncontrolled/General Population”. In addition,
they are designed to comply with the following
Standards and Guidelines:
• FCC OET Bulletin 65, Edition 97-01, Supplement
C, Evaluating Compliance with FCC Guidelines for
Human Exposure to Radio Frequency
Electromagnetic Fields.
• American National Standards Institute (C95.1-
1992), IEEE Standard for Safety Levels with
Respect to Human Exposure to Radio Frequency
Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-
1992), IEEE Recommended Practice for the
Measurement of Potentially Hazardous
Electromagnetic Fields-RF and Microwave.
FCC LICENSE REQUIRED
Licensing
The FCC requires the owners of the radios to obtain a
station license before using them.
The station licensee is responsible for ensuring that
transmitter power, frequency and deviation are within
the limits specified by the station license. The station
licensee is also responsible for proper operation and
maintenance of the radio equipment. This includes
checking the transmitter frequency and deviation
periodically, using appropriate methods.
To get an FCC license for VHF or UHF frequencies,
submit FCC application Form 600 as indicated in the
block at right. Your Ritron dealer can help you with this
process.
Safety Standards
The FCC (with its action in General Docket 79-144,
March 13, 1985) has adopted a safety standard for
human exposure to radio frequency electromagnetic
energy emitted by FCC regulated equipment. Ritron
observes these guidelines and recommends that you
do also:
• DO NOT hold the radio so that the antenna is very
close to or touching exposed parts of the body,
especially the face or eyes, while transmitting.
Keep the radio vertical, four inches away while
talking into the front panel.
• DO NOT press the Push-To-Talk except when you
intend to transmit.
• DO NOT operate radio equipment near electrical
blasting caps or in an explosive atmosphere.
• DO NOT allow children to play with any radio
equipment that contains a transmitting device.
• Repair of Ritron products should be performed only
by Ritron authorized personnel.
Service
Federal law prohibits you from making any internal
adjustments to the transmitter, and/ or from changing
transmit frequencies unless you are specifically
designated by the licensee.
If your radio equipment fails to operate properly, or
you wish to have the radio programmed, contact your
authorized dealer or Ritron.
RITRON, INC., Repair Department
505 West Carmel Drive
Carmel, IN 46032 USA
Phone: 317-846-1201
FAX: 317-846-4978
How to Obtain an FCC Radio License
Because your Ritron radio operates on Private Land
Mobile frequencies, it is subject to the Rules and
Regulations of the FCC, which requires all operators
of these frequencies to obtain a station license before
![](/img.php?id=402597&img=bg14.png)
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 17
operating their equipment. Make application for your
FCC license on FCC Forms 600 and 159.
To have forms and instructions faxed to you by the
FCC, call the FCC Fax-On-Demand system at 202-
418-0177 from your fax machine; request Document
000600 & Form 159.
To have Document 000600 & Form 159 mailed to you,
call the FCC Forms Hotline at 800-418-FORM (800-
418-3676).
For help with questions concerning the license
application, contact the FCC at 888-CALL-FCC (888-
225-5322).
You must decide which radio frequency(ies) you can
operate on before filling out your application.
For help determining your frequencies, call Ritron at
800-USA-1-USA (800-872-1872).
![](/img.php?id=402597&img=bg15.png)
18 Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
RITRON, INC. LIMITED WARRANTY
WHAT THIS WARRANTY COVERS:
RITRON, INC. ("RITRON") provides the following warranty against defects in materials and/or workmanship in RITRON Radios
and Accessories under normal use and service during the applicable warranty period (as stated below). "Accessories" means
antennas, holsters, chargers, earphones, speaker/microphones and items contained in the programming and
programming/service kits.
WHAT IS COVERED FOR HOW LONG WHAT RITRON WILL DO
OUTPOST Callboxes 1 year*During the first year after date of purchase,
RITRON will repair or replace the defective
product, at RITRON's option, parts and
labor included at no charge.
Accessories 90 days**
After date of purchase
WHAT THIS WARRANTY DOES NOT COVER:
• Any technical information provided with the covered product or any other RITRON products;
• Installation, maintenance or service of the product, unless this is covered by a separate written agreement with RITRON;
• Any products not furnished by RITRON which are attached or used with the covered product, or defects or damage from the
use of the covered product with equipment that is not covered (such as defects or damage from the charging or use of
batteries other than with covered product);
• Defects or damage, including broken antennas, resulting from:
- misuse, abuse, improper maintenance, alteration, modification, neglect, accident or act of God,
- the use of covered products other than in normal and customary manner or,
- improper testing or installation;
• Defects or damages from unauthorized disassembly, repair or modification, or where unauthorized disassembly, repair or
modification prevents inspection and testing necessary to validate warranty claims;
• Defects or damages in which the serial number has been removed, altered or defaced.
• Batteries if any of the seals are not intact.
IMPORTANT: This warranty sets forth the full extent of RITRON’s express responsibilities regarding the covered products, and
is given in lieu of all other express warranties. What RITRON has agreed to do above is your sole and exclusive remedy. No
person is authorized to make any other warranty to you on behalf of RITRON. Warranties implied by state law, such as implied
warranties of merchantability and fitness for a particular purpose, are limited to the duration of this limited warranty as it applies
to the covered product. Incidental and consequential damages are not recoverable under this warranty (this includes loss of use
or time, inconvenience, business interruption, commercial loss, lost profits or savings). Some states do not allow the exclusion
or limitation of incidental or consequential damages, or limitation on how long an implied warranty lasts, so the above limitations
or exclusions may not apply to you. Because each covered product system is unique, RITRON disclaims liability for range,
coverage, or operation of the system as a whole under this warranty.
WHO IS COVERED BY THIS WARRANTY: This warranty is given only to the purchaser or lessee of covered products
when acquired for use, not resale. This warranty is not assignable or transferable.
HOW TO GET WARRANTY SERVICE: To receive warranty service, you must deliver or send the defective product,
delivery costs and insurance prepaid, within the applicable warranty period, to RITRON, INC., 505 West Carmel Drive, Carmel,
Indiana 46032, Attention: Warranty Department. Please point out the nature of the defect in as much detail as you can. You
must retain your sales or lease receipt (or other written evidence of the date of purchase) and deliver it along with the product. If
RITRON chooses to repair or replace a defective product, RITRON may replace the product or any part or component with
reconditioned product, parts or components. Replacements are covered for the balance of the original applicable warranty
period. All replaced covered products, parts or components become RITRON’s property.
RIGHTS TO SOFTWARE RETAINED : Title and all rights or licenses to patents, copyrights, trademarks and trade secrets
in any RITRON software contained in covered products are and shall remain in RITRON. RITRON nevertheless grants you a
limited non-exclusive, transferable right to use the RITRON software only in conjunction with covered products. No other license
or right to the RITRON software is granted or permitted.
YOUR RIGHTS UNDER STATE LAW: This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
WHERE THIS WARRANTY IS VALID: This warranty is valid only within the United States, the District of Columbia and
Puerto Rico.
