6 Series OUTPOST® Wireless Callbox
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com
T
ABLE OF
C
ONTENTS
............................................................................
Basic Operation
6 SERIES OUTPOST® CALLBOX MODELS ......................................... 1
ABOUT THE 6 SERIES OUTPOST® CALLBOX ..................................... 2
2013 FCC NARROWBAND MANDATE .............................................. 2
OPERATING THE 6 SERIES OUTPOST® CALLBOX WITH FACTORY
DEFAULT SETTINGS ...................................................................... 3
EXPOSURE TO RADIO FREQUENCY ENERGY .................................... 3
Installation Instructions
APPLYING POWER TO THE OUTPOST® CALLBOX ............................... 4
Using Internal Batteries .............................................................. 4
Using External +12 VDC Power with Battery Back-up........................ 4
Using External +12 VDC Power without Battery Back-up ................... 4
POWER MANAGEMENT OPTIONS ..................................................... 5

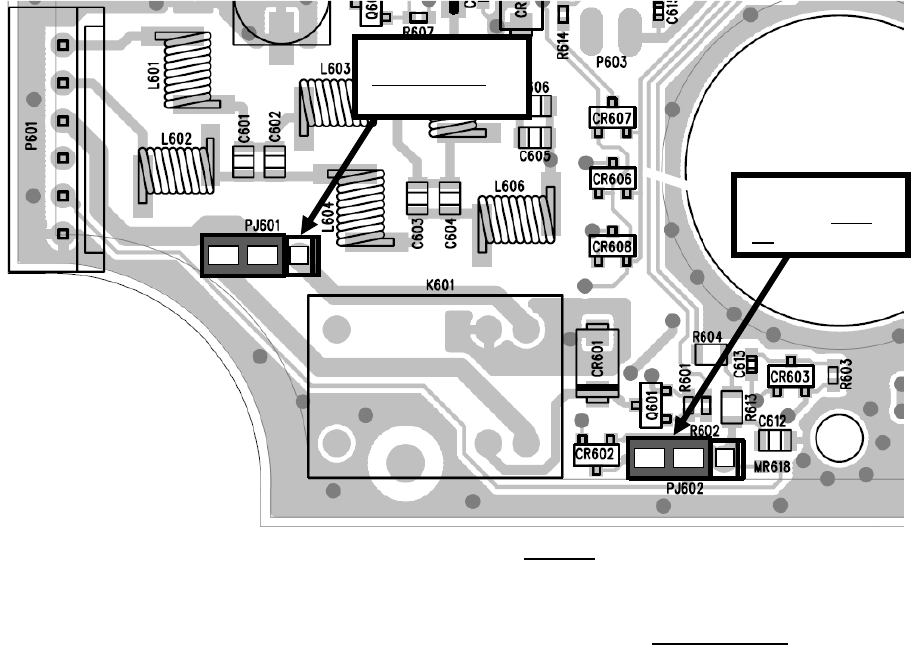

FIG-2
: Sensor Turn-On Jumper Shown in Turn-On Position
.................... 5

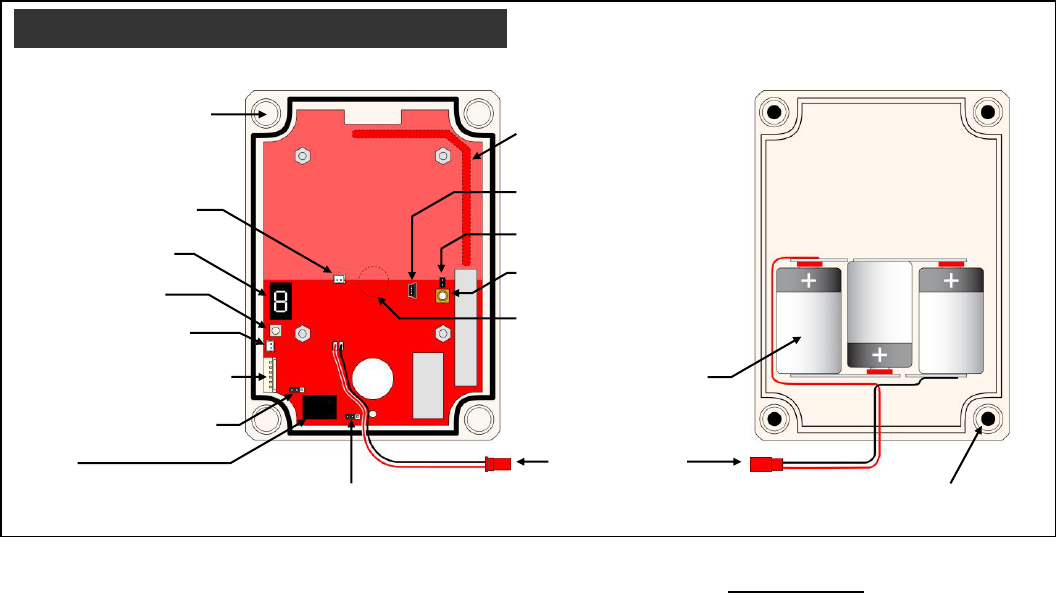

CALLBOX CONTROLS AND CONNECTORS ......................................... 6

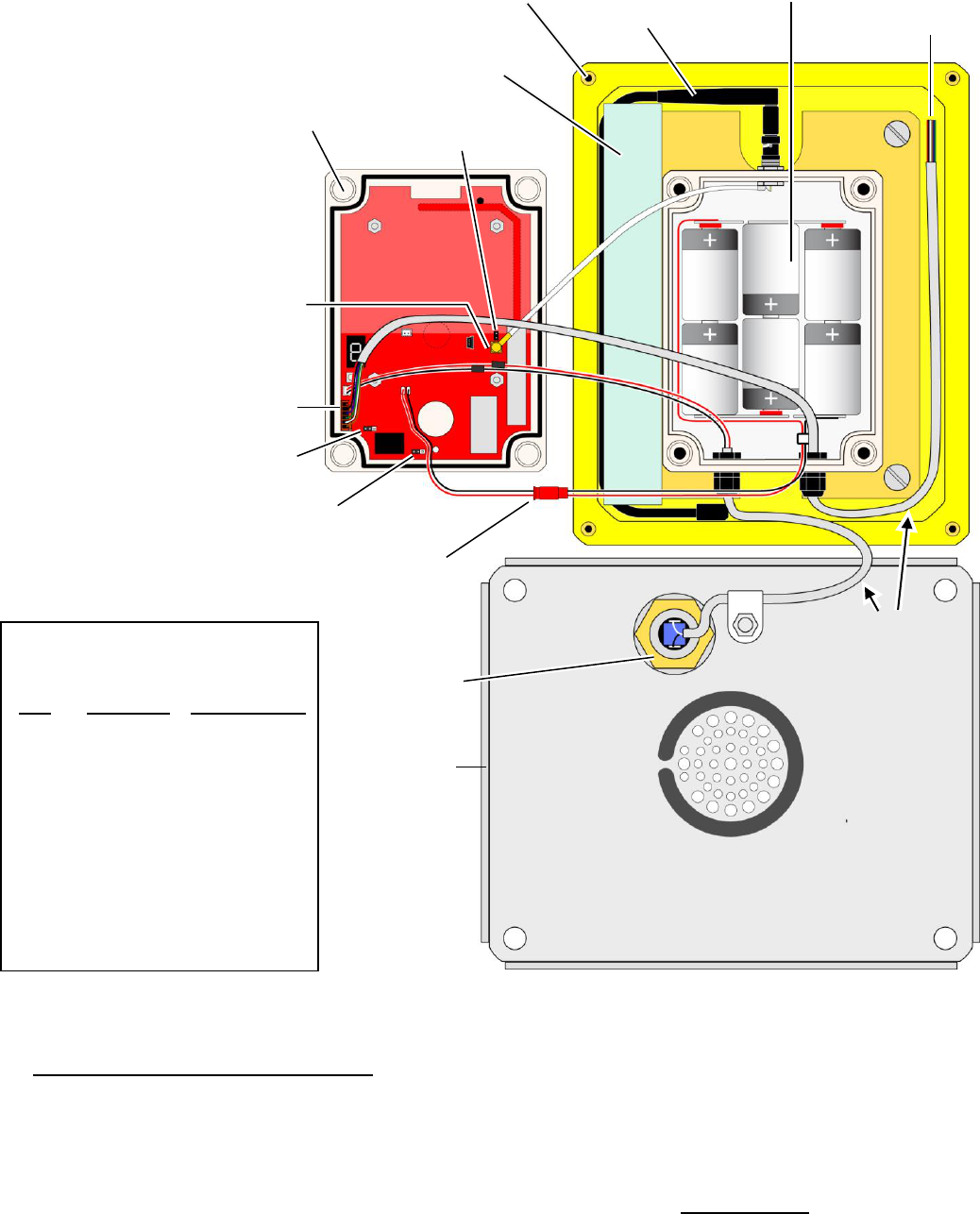

FIG-3: Callbox Assembly, Controls and Connectors ....................... 6
BASIC OUTPOST® INSTALLATION INSTRUCTIONS ............................... 7
COVERAGE ............................................................................... 7
XT OUTPOST® INSTALLATION INSTRUCTIONS ................................... 7
FIG-4: XT Callbox Mounting Brackets ........................................... 7
OPTIONAL XT OUTPOST® MOUNTING BRACKET INSTALLATION
INSTRUCTIONS .............................................................................. 8
FIG-5: Optional XTMK Mounting Bracket XT Callbox ...................... 8
HOW TO SEAL THE ANTENNA.......................................................... 8
Field Programming
RQX FIELD PROGRAMMING OVERVIEW ........................................... 9
HOW TO FIELD PROGRAM FREQUENCY & TONE CODES .................. 10
HOW TO FIELD PROGRAM 2-TONE OR DTMF DECODE (RECEIVE)
CODES ...................................................................................... 11
TABLE 1: PROGRAMMABLE FREQUENCY CODES ............................ 12
CANADIAN FREQUENCY CODES ...................................... 13
TABLE 2: INTERFERENCE ELIMINATOR PROGRAMMABLE QC
TONE CODES ............................................................... 13
TABLE 3: DIGITAL INTERFERENCE ELIMINATOR PROGRAMMABLE
DQC TONE CODES ...................................................... 13
TABLE 4: PROGRAMMABLE 2-TONE DECODE (RECEIVE) CODES ...... 13
HOW TO FIELD PROGRAM FEATURE CODES ................................... 14
TABLE 5: SINGLE-DIGIT RADIO FEATURE CODES ........................... 14
TABLE 6: ADVANCED FEATURE CODES ......................................... 15
Programmable Features
PROGRAMMABLE OUTPOST® CALLBOX FEATURES ................. 17
Glossary of Terms ........................................................... 17
INTERCOM (ALWAYS-ON) PROGRAMMING ............................. 19
USEFUL FEATURES TO USE WITH INTERCOM (ALWAYS-ON)
PROGRAMMING .................................................................. 19
SWITCH OUTPUT OPTIONS - ALLOWS CONTROL OF AN
EXTERNAL DEVICE ............................................................. 20
2-TONE DECODE (RECEIVE) SETTINGS ................................ 21
GateGuard® Application
Configuration for the Remote Control of a Gate Controller
CONFIGURING THE CALLBOX FOR A GATEGUARD®
APPLICATION ..................................................................... 22
FIG-6: XT CALLBOX ASSEMBLY .......................................... 23
TABLE 7: XT CALLBOX 6-CONDUCTOR INTERFACE CABLE...... 23
HOW TO FIELD PROGRAM THE OUTPOST® CALLBOX FOR
GATEGUARD® OPERATION ................................................. 24
OPTIONAL GATEGUARD® SETTING/FEATURES ...................... 24
Licensing
FCC Licensing ................................................................... 26
How to Obtain an FCC Radio License ................................... 26
INDUSTRY CANADA Regulations ........................................ 26
Safety Standards ............................................................... 26
Service ............................................................................. 26
Warranty
RITRON, INC. LIMITED WARRANTY .................................... 27
THANK YOU FOR CHOOSING RITRON
Congratulations on your purchase of the OUTPOST®
Callbox. Your new radio is the culmination of
RITRON’s 30 years of designing, manufacturing, and
supplying reliable, professional wireless communication
products. Ritron wireless products will improve the
operation, safety, and profitability of any organization
by providing instant voice communications between
employees throughout the workplace.
![](/img.php?id=2365602&img=bg3.png)
6 Series OUTPOST® Wireless Callbox Basic Operation
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 1
6
S
ERIES
O
UTPOST
®
C
ALLBOX
M
ODELS
...................................................
UHF MODELS
RQX-456 ................ UHF Basic Callbox
RQX-456-XT .......... UHF Vandal-Resistant XT Callbox
RQX-456-XT-KP .... UHF Vandal-Resistant XT Callbox with Keypad
VHF MODELS
RQX-156 ................ VHF Basic Callbox
RQX-156-XT .......... VHF Vandal-Resistant XT Callbox
RQX-156-XT-KP .... VHF Vandal-Resistant XT Callbox with Keypad
VHF MURS MODELS
RQX-156M.............. VHF MURS Basic Callbox
RQX-156M-XT ........ VHF MURS Vandal-Resistant XT Callbox
The model number appears on the serial label located on the back of the basic
Callbox enclosure. On XT models the standard enclosure is located inside the
fiberglass reinforced vandal-resistant box.
UHF radios are designed to operate within the 20 MHz band between factory standard 450 and 470 MHz.
VHF radios are designed to operate within the 24 MHz band between factory standard 150 and 174 MHz.
VHF MURS radios can operate on 1 of 5 VHF MURS frequencies only.

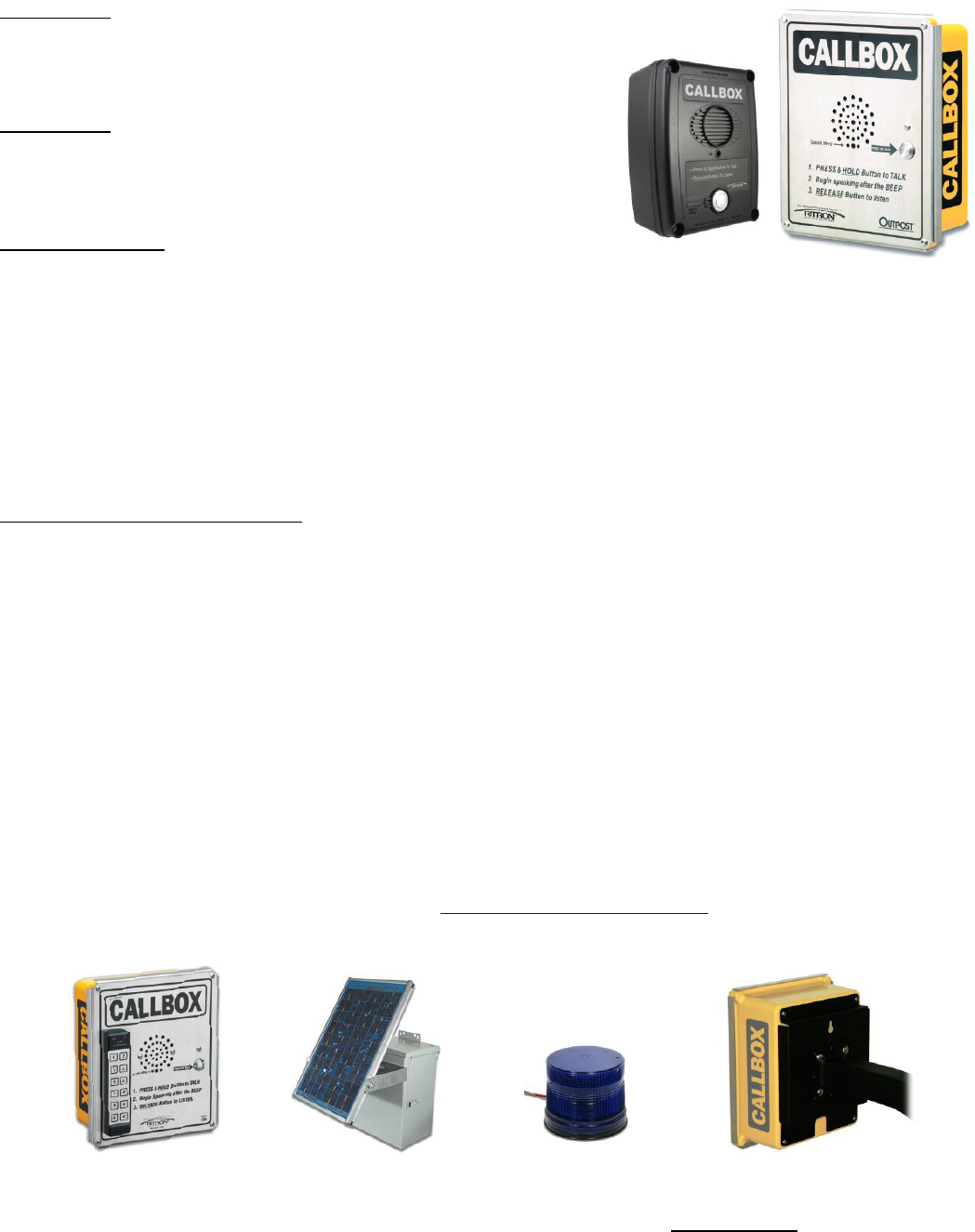

OPTIONAL ACCESSORY EQUIPMENT
Several options are available for the Ritron 6 Series OUTPOST® Callbox. These options, individually, or in combination with one
another can greatly enhance the functionality of the callbox as well as the overall communication system. Available options
include:
Entry Keypad – RQX-156-XT-KP and RQX-456-XT-KP “keypad versions” of the 6 Series Outpost callbox are available to
allow local access with up to 500 unique codes. This version hosts a 2x6 DTMF keypad mechanically mounted to the stainless
steel faceplate.
RSS-100 - The RSS-100 is a complete solar power supply system consisting of a 10-watt solar panel, charge controller and 8
AH rechargeable battery all housed in a rugged, ready-to-mount enclosure.
R-STROBE - The R-STROBE is a powerful strobe light, giving a visual indication of a callbox in use. The R-STROBE is
available in both AC (R-STROBE) and DC versions (R-STROBE-DC).
RCIM-1000 - The RCIM-1000 MDC-1200 encoder board allows each callbox to be assigned a unique unit ID number.
GGT-1 - The GGT-1 DTMF decoder/relay board allows remote control of the on-board relay (e.g. Gateguard® operation) with a
DTMF keypad equipped radio.
RQX-XTMK – The RQX-XTMK is a mounting plate used to mount the XT callbox to most flat surfaces.
RQX-XTMK-GN – The RQX-XTMK-GN is a mounting bracket used to mount the XT callbox to an industry standard gooseneck
post.
For additional information and pictures of these items go to http://www.ritron.com/callboxes.html and download pdf of the product
brochure.
XT Callbox with Keypad
RQX-XTMK-GN
RSS-100
R-STROBE
Basic Callbox XT Callbox
![](/img.php?id=2365602&img=bg4.png)
6 Series OUTPOST® Wireless Callbox Basic Operation
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 2
A
BOUT THE
6
S
ERIES
O
UTPOST®
C
ALLBOX
................................................
The 6 Series OUTPOST® Callbox is a 2-way radio transceiver used
to communicate directly with portable, mobile and stationary radios;
or through radio repeaters with Ritron PC Programming software.
Each callbox is equipped with the following features or capabilities.
Field Programming. Field programming allows you to quickly
program your radio in the field without the need for a PC
programmer. Each radio can be field programmed to one of 32
VHF, 5 VHF MURS, or 114 UHF channel table frequencies,
and one of 50 QC or 104 DQC interference eliminator codes.
154 Interference Eliminator Codes. Quiet Call (QC) and
Digital Quiet Call (DQC) codes can be programmed to
eliminate other radio users not in your workgroup. For
compatibility, new radios should be programmed with the
same codes.
2-Tone Decoding. The Callbox can be programmed to
decode unique 2-tone codes for selective signaling of the
Callbox, “Listen In” remote activation of the transmitter, or
Switch Output activation in GateGuard® applications.
Volume Level. Field programmable to one of 5 preset levels
and PC programmable to 2 – 100% volume level.
Normal or High Microphone Gain. Field and PC
programmable to normal or high microphone gain.
High/Low Power Output. The callbox can be Field
programmed for transmitter power output.
VHF: 0.8 Watt or 2.5 Watt
VHF MURS: 0.9 Watt or 2 Watt
UHF: 0.7 Watt or 2 Watt (1.5W for RQX-456-XT)
Battery Powered. The OUTPOST® Callbox can be powered
by 3 Alkaline D-cell batteries for 700mW transmit power, or by
6 Alkaline D-cell or AA-cell batteries for 2W transmit power.
The D-cell batteries can operate the radio for up to one year or
7,000 transmissions.
External Power +12 VDC Capable. The XT models are
capable of being power by an external +12 VDC source. This
method of powering the callbox allows the radio to remain ON
at all times, like an intercom. Automatic Turn Off must be
DISABLED via Field or PC programming for Intercom
operation.
Low Battery Alert. The callbox will transmit an Alert Tone at
the end of each transmission when the batteries approach
end-of-life. This allows sufficient time for you to replace the
batteries and assure uninterrupted service.
+12 VDC Power Fail Alert. This feature can be enabled via
Field or PC programming. The callbox will transmit an Alert
Tone if it detects loss of +12 VDC power. This Alert Tone
replaces a Low Battery Alert. The radio automatically
continues to transmit an Alert Tone once every hour (unless
programmed for Automatic Turn Off) until +12 VDC is restored
or the batteries are depleted.
Companded Audio. The radio can be Field or PC
programmed to ENABLE or DISABLE audio companding.
Companding will compress transmit audio before sending it,
and expand receive audio before it is heard on the speaker to
reduce the background noise common in radio
communications.
“Automatic Turn-Off” or “Intercom” Operation. The 6
Series OUTPOST® Callbox can operate in the standard
“Automatic Turn-Off” mode (Factory Default), where the radio
is normally OFF until the Call Button is pressed, or can be
Field or PC programmed for “Intercom” operation where the
radio is always ON. See “External Power +12 VDC Capable”
feature above.
Listen In. Allows remote activation of the transmitter when a
unique 2-Tone code is received. Field programmable to one
of 9 different 2-Tone codes and 4 different Listen In transmit
times.
DTMF or Selcall ANI. 1-9 digit DTMF or 3-7 digit Selcall
codes can be transmitted at the beginning of each message
for radio identification.
Sensor Turn-On. When operating the Callbox with Automatic
Turn-Off enabled, the unit can be configured to turn itself ON
any time the Sensor Input is pulled LOW (ground). This
allows an external switch closure to activate the Callbox.
2013
FCC
N
ARROWBAND
M
ANDATE
...................................................
On January 1, 2013, pursuant to the FCC Narrowband mandate,
Ritron will no longer be allowed to manufacture wide band (25 kHz)
capable radio equipment that operates in the frequency bands from
150 MHz to 512 MHz. All Ritron RQX Series Callboxes are FCC
certified for narrowband operation, so the only change required is
the elimination of wideband operation.
To meet the FCC narrowband mandate by Jan 1, 2013, Ritron will
initiate the transition process of manufacturing narrowband only
compliant radio equipment beginning July 1, 2012.
After that date, customer orders will begin to be filled with radios
manufactured for FCC narrowband compliance, with no provisions
for wideband operation except where allowed by FCC rule. These
radios will be clearly marked as “FCC Narrowband Compliant”.
The narrowband manufacturing process will proceed gradually on a
model by model basis, with all models narrowband compliant by
the January 1, 2013 deadline.
For a complete list of Ritron radios capable of narrowband opera-
tion; a Ritron FAQ on the subject, and various links on the FCC
website dealing with Narrowbanding go to:
www.ritron.com/narrowband
If you have any questions contact us at 1-800-872-1872.
![](/img.php?id=2365602&img=bg5.png)
6 Series OUTPOST® Wireless Callbox Basic Operation
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 3
O
PERATING THE
6
S
ERIES
O
UTPOST
®
C
ALLBOX WITH
F
ACTORY
D
EFAULT
S
ETTINGS
............................................................................................
The 6 Series OUTPOST® Callbox Factory Default setting is
with Automatic Turn Off ENABLED. This means the callbox is
OFF and will not receive a call until the callbox first initiates a
call.
In Automatic Turn Off mode the callbox automatically
shuts off whenever there is “no activity” for ten (10)
seconds.
To Initiate a Call
Press and hold the ON/PTT Button. The callbox will send a
unique CALL TONE to alert radio equipped personnel. This
CALL TONE will also be heard at the callbox. Listen for the
“beep”, then, begin speaking into the MIC. For best
communication, the caller should be 3 feet or less from the
microphone.
To Receive a Call
1. When you have finished speaking, release the ON/PTT
Button.
2. Any reply will be heard through the callbox speaker. If a call
is not received within 10 seconds of releasing the ON/PTT
Button and there is no activity on the channel, the callbox
will sound a low double tone and turn-off automatically. This
automatic turn-off feature is designed to conserve battery
life.
Operation Notes
The 6 Series OUTPOST® must be powered with Alkaline
batteries ONLY, or alternatively, with an external 12 VDC
power supply, order Ritron model RPS-EXPO 110 VAC to 12
VDC cube power supply. When using an external 12 VDC
supply, the Alkaline batteries can be used as back-up. See
page 4.
If there has been no activity for 10 seconds, i.e. either the
ON/PTT Button has not been pressed or a call has not been
received, the unit automatically shuts OFF.
Low Battery Alert
The callbox will transmit an Alert Tone at the end of each
transmission when the batteries approach end-of-life. This
allows sufficient time for you to replace the batteries and assure
uninterrupted service.
E
XPOSURE TO
R
ADIO
F
REQUENCY
E
NERGY
..............................................
RQX-156, RQX-156-XT, RQX-156M, RQX-156M-XT,
RQX-456, RQX-456-XT:
This product generates radio frequency (RF) energy when the
PTT button on the front of the unit is depressed. This product
has been evaluated for compliance with the maximum
permissible exposure limits for RF energy at the maximum
power rating of the unit when using antennas available from
RITRON.
For antennas available from RITRON at the 20 cm (7.9 inches)
minimum expected separation distance and greater, the
maximum RF exposure is well below the General Population /
Uncontrolled limits. Antennas other than those available from
RITRON have not been tested for compliance and may or may
not meet the exposure limits at the distances given. Higher
gain antennas are capable of generating higher fields in the
strongest part of their field and would, therefore, require a
greater separation from the antenna. This product is not to be
used by the general public in an uncontrolled environment
unless compliance with the Uncontrolled/General Population
limits for RF exposure can be assured.
To limit exposure to RF energy to levels below the limit, please
observe the following:
• Use only the antenna(s) available from RITRON for these
models. DO NOT operate the radio without an antenna.
• DO NOT activate the transmitter when not actually wishing
to transmit. These radios transmit recorded messages of a
pre-determined length to prevent continuous transmit
times.
• When transmitting, make certain that the distance limits for
the particular model in use are observed.
• DO NOT allow children to operate the radio.
When used as directed, this series of radios is designed to
comply with the FCC’s RF exposure limits for
“Uncontrolled/General Population”. In addition, they are
designed to comply with the following Standards and
Guidelines:
• United States Federal Communications Commission, Code
of Federal Regulations; 47 CFR §§ 2 sub-part J.
• American National Standards Institute (ANSI) / Institute of
Electrical and Electronic Engineers (IEEE) C95. 1-1992.
• Institute of Electrical and Electronic Engineers (IEEE)
C95.1-1999 Edition.
Copyright Telecommunications Industry Association
![](/img.php?id=2365602&img=bg6.png)
6 Series OUTPOST® Wireless Callbox Installation Instructions
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 4

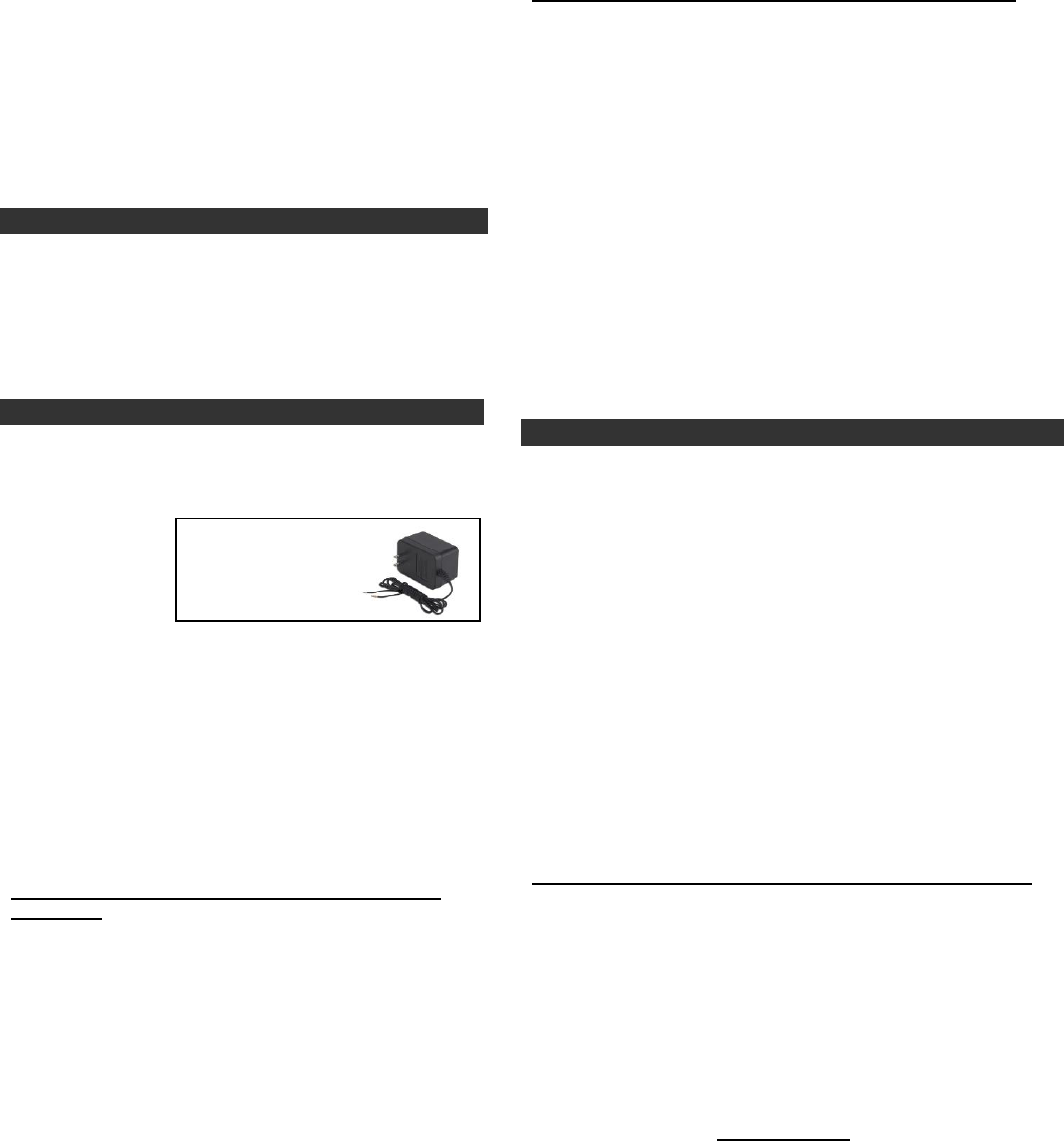

Order Ritron model
RPS-EXPO 110 VAC
to 12 VDC cube
power supply.
A
PPLYING
P
OWER TO THE
O
UTPOST
®
C
ALLBOX
........................................
The Callbox may be powered:
by six (6) D-cell batteries (XT model)
by six (6) AA-cell batteries
by an external +12 VDC source
by 3 D-cell batteries for low power operation
Powering the callbox from internal batteries will allow for an
installation that does not require wiring to an external
source of power. Powering the callbox by an external
source will allow the unit to remain ON, like an intercom*.
To provide a useful amount of battery life, one of two
battery saver options should also be used. See “Power
Management Options” on page 5.
* Automatic Turn Off must be DISABLED via Field or PC
Programming
Using Internal Batteries
Batteries may be installed in the internal battery holder for
a no trenching, no wires required installation. If internal
batteries are used, a LOW battery alert tone will be
transmitted when the battery voltage drops below a
programmed value. The LOW battery tone notifies
personnel that the batteries should be replaced.
Using External +12 VDC Power with Battery Back-up
Note: An additional hole, strain relief, and conduit will
need to be installed into the callbox.
The unit may be powered by an external source of +12
VDC. This source
should be filtered,
with minimum
noise and hum,
and capable of
supplying at least
1 Ampere.
Factory Default programming of the callbox is optimized for
battery power operation. The External +12 VDC Power Fail
Alert option is NOT ENABLED.
It is recommended that if an external source of power is
used, that the internal batteries be installed as a back-up
against loss of power. If this option is chosen, we
recommend that the “External +12 VDC Power Fail Alert”
feature be ENABLED via Field or PC programming.
How the Callbox will Operate:
If External +12 VDC Power Fail Alert Feature is NOT
ENABLED:
Radio always checks for LOW battery or DEAD battery
condition when the radio is ON.
If LOW battery is detected, a single Alert Tone will be
transmitted at the end of the transmission.
Radio does NOT automatically transmit a LOW battery tone.
The callbox must be ON and Alert Tone is only sent at the end
of a transmission.
If DEAD battery is detected, the radio ceases all operation. A
DEAD battery tone is heard on the callbox speaker and the
radio will turn OFF.
If External +12 VDC Power Fail Alert Feature is ENABLED:
Radio always checks for External +12 VDC when the radio is
ON. If loss of External +12 VDC is detected while the radio is
in standby: a single Alert Tone will be transmitted immediately.
If loss of External +12 VDC is detected while the radio is in
receive: a single Alert Tone will be transmitted after the
received message is complete.
If loss of External +12 VDC is detected while the radio is in
transmit: a single Alert Tone will be transmitted at the end of
the transmission.
Once loss of External +12 VDC is detected and the Alert Tone
is transmitted, the radio will automatically send the Alert Tone
once every hour until External +12 VDC is restored or the
batteries are exhausted. If radio is set for Automatic Turn-Off
(default setting) this hourly alert will NOT occur.
If Dead battery is detected the radio ceases all operation, a
DEAD battery tone is heard on the callbox speaker and the
radio will turn OFF.
Using External +12 VDC Power without Battery Back-up
The Ritron 6 Series callbox can be programmed for always-on
operation by disabling the Automatic Turn-Off option. This is
accomplished using the RQX PC Programmer, or through Field
Programming. Once Automatic Turn-Off is disabled, the user
simply turns on the RQX by pressing the front panel PTT button
and it will remain on as long as power is applied. If power to the
callbox is lost, the user must press the front panel PTT to restart
the radio. For externally powered callboxes, battery backup is
one method of keeping the radio on if the primary external power
is lost.
For users that do not want to rely on battery backup, and do
not want to “restart” the callbox after a power loss, the call-
box can be modified to automatically restart after a power
loss.
For details or questions about this modification contact Ritron at
1-800-872-1872 and reference Ritron publication 14670028,
RQX 1-Series, 6-Series and 7-Series Callbox Modification for
Always On Operation.
Important considerations before applying this modification:
The Automatic Turn-Off option must be disabled.
When Automatic Turn-Off is disabled the unit will consume the
largest amount of current, but is always ready to instantly
receive messages. This mode should only be considered if an
external source of +12 VDC is available.
The callbox receiver will always be on. All radio communica-
tion on the programmed frequency and tone will be heard over
the RQX callbox.
![](/img.php?id=2365602&img=bg7.png)
6 Series OUTPOST® Wireless Callbox Installation Instructions
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 5
P
OWER
M
ANAGEMENT
O
PTIONS
...........................................................
There are four power management options available to the 6
Series OUTPOST® Callbox:
Automatic Turn-Off (Field or PC Programmable)
In this mode, the callbox will automatically turn itself off after a
programmed period of no activity (no transmissions made
and no calls received) has elapsed. Once the unit has turned
itself off, it can only be turned back on by depressing the
ON/PTT Button. The programmed period of no activity
necessary before the unit turns itself off is called the RQX
Reset Time. RQX Reset Time and Automatic Turn-Off can
both be Field programmed, or PC programmed by the factory
or your Ritron dealer via the Ritron RQX Series PC
Programmer. Automatic Turn-Off mode is the factory default
mode for power management with an RQX Reset Time of 10
seconds.
Battery Saver (PC Programmable Only)
This mode is similar to the Automatic Turn-Off mode except
that the unit does NOT turn itself off after the RQX Rest Time
has elapsed. Instead it reverts to a mode where the unit goes to
sleep and periodically wakes up to test for receive activity on
the channel. The Sleep Period (called Battery Saver Sleep
Time) can be set using the Ritron RQX Series PC Programmer
to between 0.5 and 8 seconds. Longer sleep times result in
better battery life, but increase the chances that activity on the
channel may be missed. The unit will come out of this mode
when activity is detected during the wake-up period or if the
ON/PTT button is pressed. The Automatic Turn-Off and Battery
Saver modes cannot be used together.
Neither “Automatic Turn-Off” nor “Battery Saver” Used
(Field or PC Programmable)
If neither Automatic Turn-Off nor Battery Saver are used the
unit will consume the largest amount of current, but is always
ready to instantly receive messages. This mode should only be
considered if an external source of +12 VDC is available (see
“Using External +12 VDC Power with Battery Back-up” on page
4).
Sensor Turn-On
When operating the Callbox with Automatic Turn-Off enabled,
the unit can be configured to turn itself ON any time the Sensor
Input is pulled LOW (ground). This allows an external switch
closure to activate the Callbox.
When the switch closure is detected the Callbox will turn on
and automatically transmit the Sensor On alert. The Callbox is
then in normal operating mode and will automatically turn itself
off after a programmed period of no activity as described in the
Automatic Turn-Off topic in this section.
For Sensor Turn-On operation the Sensor Turn-On jumper
must be placed into the “Turn-On” position. Refer to FIG-2
below for correct placement of the jumper. If the Sensor Input
is not used the jumper placement has no effect on Callbox
operation.
FIG-2: Sensor Turn-On Jumper Shown in Turn-On Position
Sensor Turn-On
Jumper in Turn-
On position
Relay Jumper in
Normally-Open
position
![](/img.php?id=2365602&img=bg8.png)
6 Series OUTPOST® Wireless Callbox Installation Instructions
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 6
C
ALLBOX
C
ONTROLS AND
C
ONNECTORS
...............................................
BNC Antenna Connector
The antenna radiates radio signals. Before using a OUTPOST®
Callbox, make sure any external antenna is securely fastened
into the 50 BNC antenna connector.
SMB RF Connector
SMB style RF connector for external antennas. The antenna
jumper must be removed when using the SMB RF connector.
Internal Antenna
An internal antenna is etched to the PCB back side. When
used, there should be no connection to the SMB RF connector
on the PCB.
Antenna Jumper
The antenna jumper is in place whenever the internal antenna
is used, otherwise it is removed.
Sensor Turn-On Jumper
The Sensor Turn-On jumper can be set to turn-on the radio
whenever the Sensor Input is pulled low.
Relay Polarity Jumper Jumper
The Relay Polarity jumper can set the relay output to normally
open or normally closed.
Captive Plastic Case Screws
A captive plastic case screw is located in each corner of the
case front. These 4 screws are used to secure the case front
containing the radio, to the case back that contains the
batteries.
Input/Output Connector
The 6-pin, polarized connector is used to connect external
input/output devices. This allows connection of an external +12
VDC input, an external DC level sensor input, and a 1A contact
switch closure output.
Microphone
The microphone is installed on the PCB back side.
Speaker Connector
The internal speaker is connected to the radio printed circuit
board with a polarized connector.
On/PTT Connector
The On/PTT switch is connected to the radio printed circuit
board with a polarized connector.
Pre-Drilled Mounting Holes
Mounting holes located in the 4 corners of the case back are
pre-drilled for mounting to a plate, wall or post. Once mounted,
the case front is secured to the case back through these same
threaded holes.
USB Programming Connector
A Mini-USB style connector is used to connect the cable from
the PC programmer to the radio.
Program Button
A small, momentary pushbutton is used for field programming
the OUTPOST® Callbox.
Program Display
A single digit LED display is used during field programming of
the radio.
Battery Holder
The battery holder inside the case back is used for the
installation of D-cell alkaline batteries. Refer to the diagram
below, or the labels beneath the cells, for correct installation of
the batteries.
Battery Mating Connectors
Polarized, 2-pin mating connectors are used to connect the
batteries to the radio circuit board.
Internal Antenna
(PCB back side)
USB Programming
Antenna Jumper
SMB RF Connector
Microphone
(PCB back side)
D-Cell Battery Holder
with Batteries Installed
Battery Mating
Connectors
Pre-Drilled Mounting
Holes (4 Corners)
FIG-3: Callbox Assembly, Controls and Connectors
Captive Plastic Case
Screws (4 Corners)
Speaker Connector
Program Display
Program Button
On/PTT Connector
Input/Output Connector
Relay Polarity Jumper
Relay
Sensor Turn-On Jumper
![](/img.php?id=2365602&img=bg9.png)
6 Series OUTPOST® Wireless Callbox Installation Instructions
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 7
B
ASIC
O
UTPOST
®
I
NSTALLATION
I
NSTRUCTIONS
.......................................
The basic OUTPOST® can be mounted to virtually any surface
with four (4) #6 panhead screws. Choose a type of screw
thread and screw length which will hold firmly in the surface to
which the unit will be mounted.
MOUNTING the OUTPOST®: (Refer to FIG-3)
1. Loosen the (4) captive screws in the front corners of the
case and separate the case front from the case back.
These screws are captive to the housing; to prevent
damaging them, DO NOT remove the screws from the
housing.
2. Install D-cell alkaline batteries into the battery holder. Refer
to FIG-3, or the labels beneath the cells, for correct
installation of the batteries.
3. If required, program the radio. Refer to the programming
section of this manual for details.
4. Disconnect the battery mating connectors. Set the case
front containing the radio circuit board aside.
5. Insert a #6 panhead screw into each of the four (4) corner
holes in the OUTPOST® case back. Position the case back
in the chosen installation location and secure it in place
with the four screws.
CAUTION
Do not drill or penetrate the OUTPOST®
case with any additional holes. Use only the pre-
drilled mounting holes.
6. Reconnect the battery mating connectors between the
case front and case back.
7. Fasten the case front to the case back with the four (4)
captive screws. Do not over-tighten the plastic screws to
prevent damage.
COVERAGE
Depending on the unit location and installation, the
OUTPOST® can cover up to 1 mile line of sight. To in-
crease range, use an external antenna that is mounted
higher. Contact RITRON for a RAM-1545 Magnet Mounted
Antenna. Refer to Special Note on page 4.
XT
O
UTPOST
®
I
NSTALLATION
I
NSTRUCTIONS
.............................................
The XT OUTPOST® can be mounted to virtually any surface with four (4) ¼” diameter fasteners, not included. Choose a type of
screw thread and screw length which will hold firmly in the surface to which the unit will be mounted.
MOUNTING the XT OUTPOST®: ( Refer to FIG-4 at right, and FIG-6 on page 23)
1. Remove the front faceplate from the XT Callbox. The faceplate is secured to the case with 4
vandal-resistant buttonhead, Torx screws. Use the T-25 Torx bit included with the radio to
remove these screws.
2. Remove the “Mounting Bracket” kit secured to the inside of the XT Callbox case.
3. Loosen the (4) captive screws in the front corners of the internal Callbox case and separate
the case front from the case back. The screws are captive to the housing; to prevent damaging
them, DO NOT remove the screws from the housing.
4. Install 6 D-cell alkaline batteries into the battery holder. Refer to FIG-6, or the labels beneath
the cells, for correct installation of the batteries.
5. If required, program the radio. Refer to the programming section of this manual for details.
6. Fasten the internal case front to the case back with the four (4) captive screws. To prevent
damage, do not over-tighten the plastic screws.
7. Re-fasten the front faceplate to the radio with the 4 buttonhead Torx screws.
8. Install the 4 mounting brackets to the back of the XT Callbox case as shown in FIG-4 with the
#10-32 bolts provided. The mounting brackets can be installed vertically, as shown, or
horizontally.
9. Position the XT Callbox in the chosen installation location and secure it in place with four
screws through the mounting brackets.

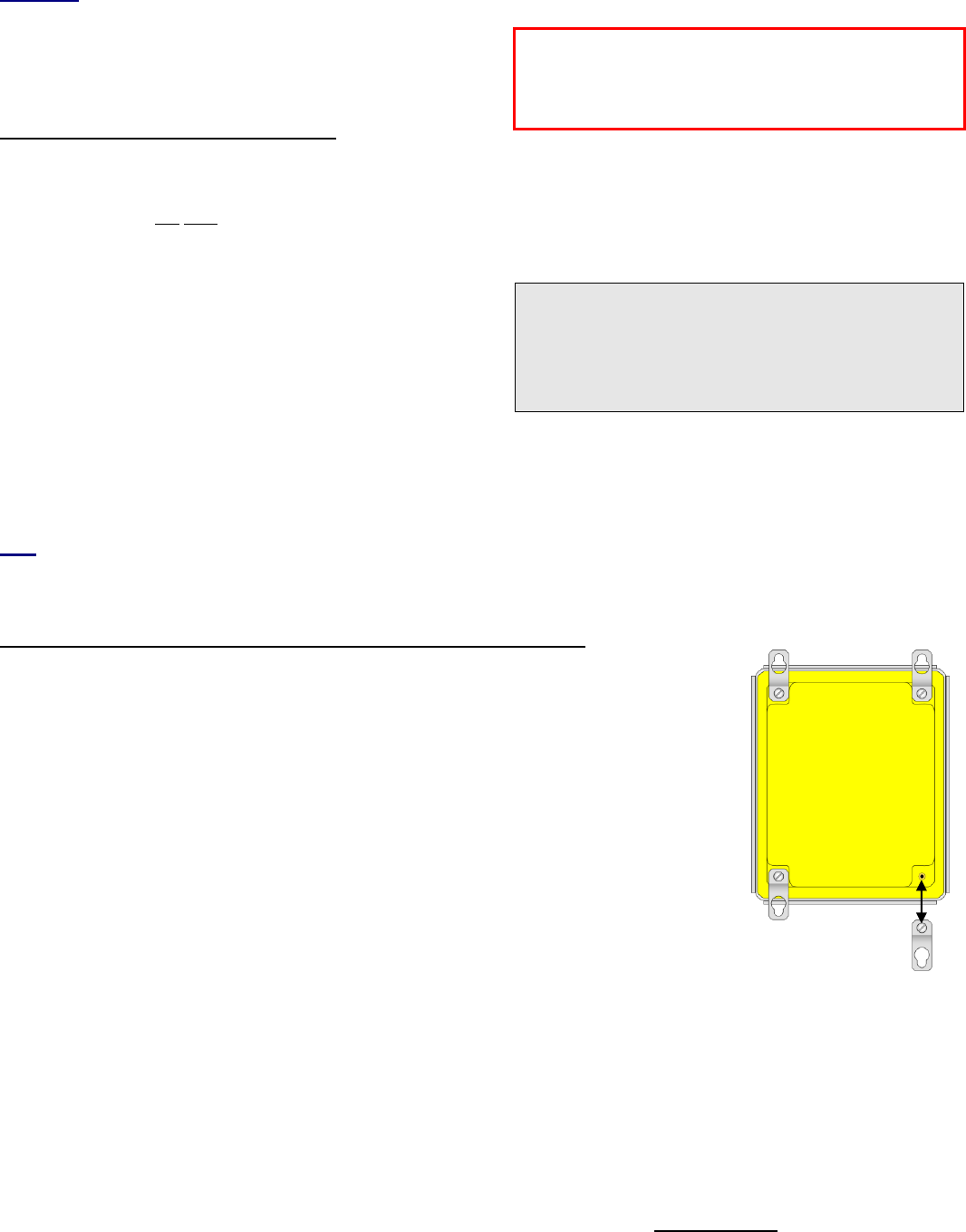

FIG-4: XT Callbox
Mounting Brackets
!
![](/img.php?id=2365602&img=bga.png)
6 Series OUTPOST® Wireless Callbox Installation Instructions
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 8
O
PTIONAL
XT
O
UTPOST
®
M
OUNTING
B
RACKET
I
NSTALLATION
I
NSTRUCTIONS
The optional XT Mounting Bracket (order part # XTMK) can be
attached to the callbox for special applications with two (2) ¼”
diameter fasteners, NOT included. Choose a type of screw thread and
screw length which will fasten the callbox securely to the mounting
surface.

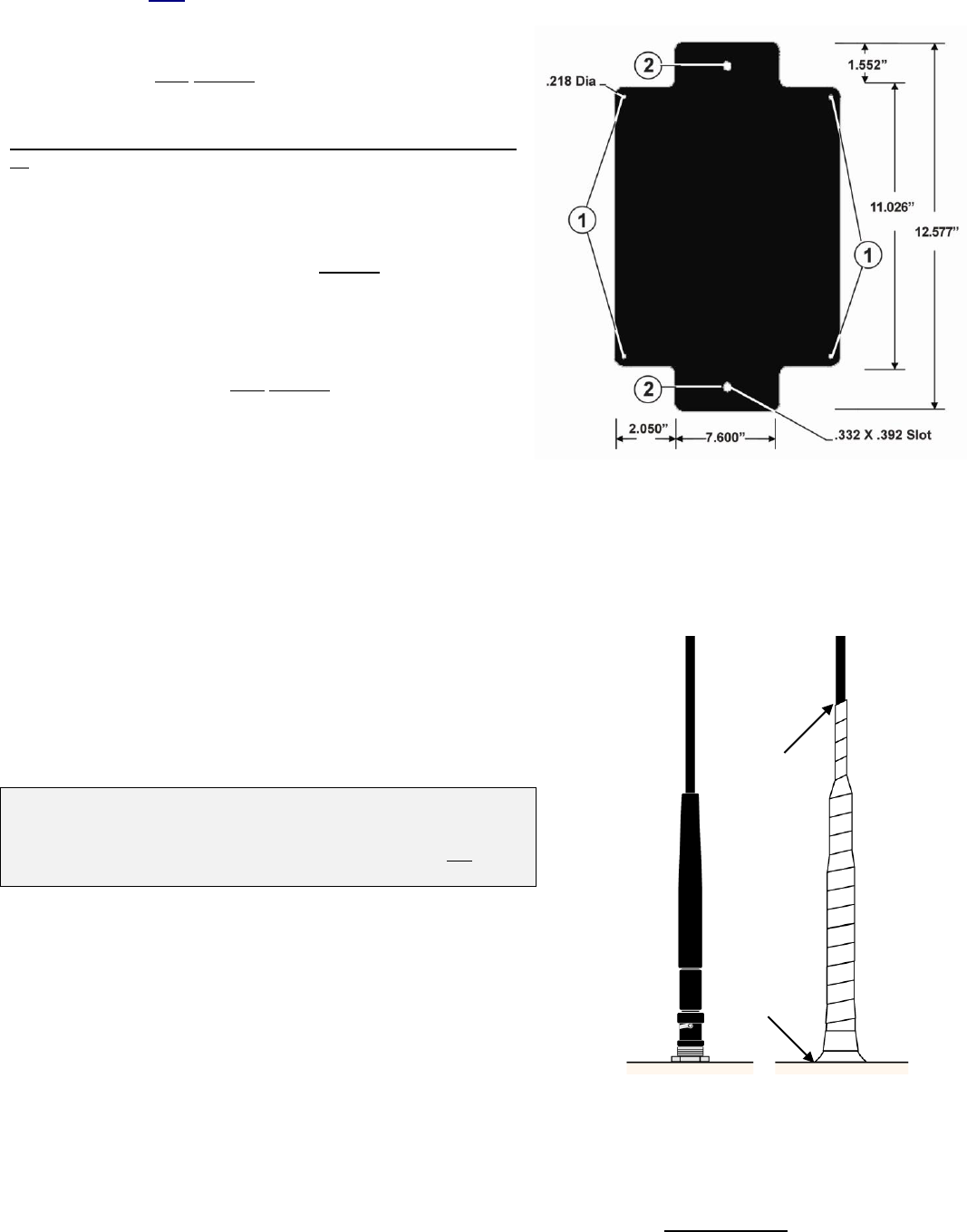

MOUNTING the OPTIONAL XT OUTPOST® BRACKET: Refer to FIG-
5 :
1. Using the XTMK bracket as a template, mark the two (2) holes #2
(see FIG-5) on the mounting surface you intend to fasten the
bracket.
2. Find a flat work surface and using the included four (4) button
head tamper resistant fasteners, attach the XTMK bracket to the
existing holes on the back of the XT callbox (holes #1), as shown
in FIG-5.
3. Secure the XTMK bracket to the mounting surface using holes #2
and two (2) ¼” fasteners (NOT included), as shown in FIG-5.
Make sure mounting surface and fasteners are capable of
supporting the total weight of the XT callbox.
H
OW TO
S
EAL THE
A
NTENNA
.................................................................
If the OUTPOST® Callbox is to be used outdoors it is imperative that
the entire antenna connection be sealed with seal tape to provide
proper operation and prevent voiding warranty.
Seal tape can be purchased at most Industrial Supply Stores,
Hardware and Home Center Stores, or Electronic Supply Stores.
Regardless of the antenna used, it is always best to weatherproof the
antenna connection using seal tape.
NOTICE
Failure to follow these instructions will cause damage to the
product, prevent proper sealing of the enclosure and will void
the Manufacturers Warranty.
Applying Seal Tape:
1. Attach the antenna to the 50 BNC connector on the OUTPOST®
Callbox enclosure.
2. Begin wrapping seal tape at the base of the antenna connector
such that it is sealed to the enclosure top.
3. Overlap the seal tape as you tightly wrap upward around the
connector and antenna. Continue to overlap seal tape around the
connector base, past the articulated portion of the antenna and
several inches up the thin, shiny section of the antenna.
FIG-5: Optional XTMK Mounting Bracket
XT Callbox
AFB-1545 Antenna
before sealing
Wrap tape
from bottom,
sealing to
enclosure.
Overlap
sealing tape
(1) inch be-
yond the
rigid section
of the an-
tenna
AFB-1545 Antenna
after sealing
![](/img.php?id=2365602&img=bgb.png)
6 Series OUTPOST® Wireless Callbox Field Programming
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 9
RQX
F
IELD
P
ROGRAMMING
O
VERVIEW
..................................................
Program
Codes Table Codes
Enter a 2-digit or 3-digit Frequency code from Table 1.
Enter a 2-digit Quiet Call code from Table 2 or a 3-digit Digital Quiet Call code from Table 4.
Enter a 2-digit, 2-Tone Paging code from Table 4 or
Enter any 3 – 7-digit DTMF Code.

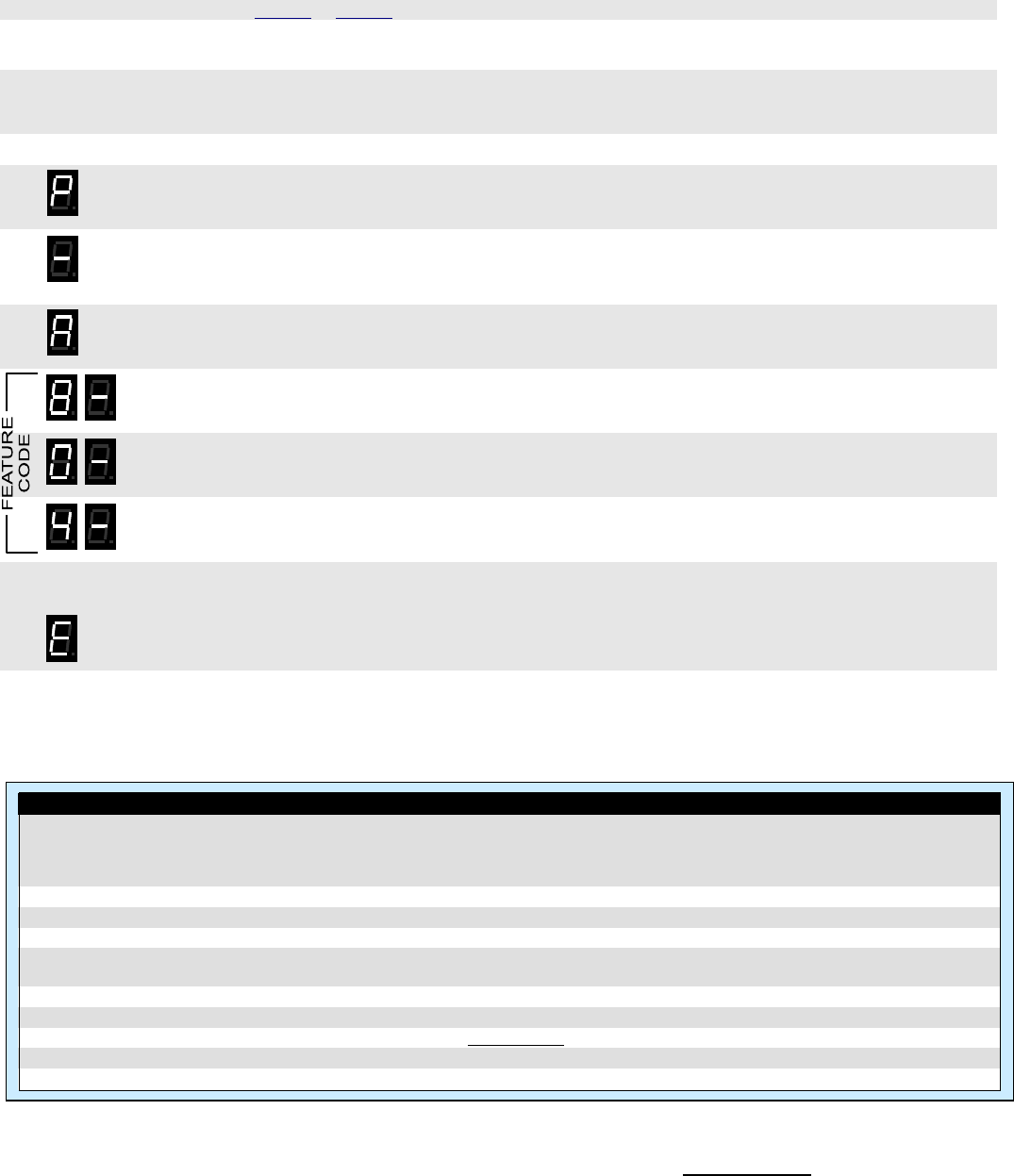

Enter any 1-digit or 3-digit RQX Feature code from Tables 5 and 6 to:
Enable or disable Companding.
Enable or disable GateGuard® operation.
Enable or disable Call Tone.
Enable or disable External +12VDC operation.
Enable or disable Automatic Turn-Off.
Enable or disable Busy Channel TX Inhibit.
Set microphone gain high or low.
Set Listen In operation.
Set RQX Reset Time.
Set switch output operation.
Reset RQX to Factory default programming.
Enter the desired Speaker Volume Level as a 2–digit number from 05 – 99.

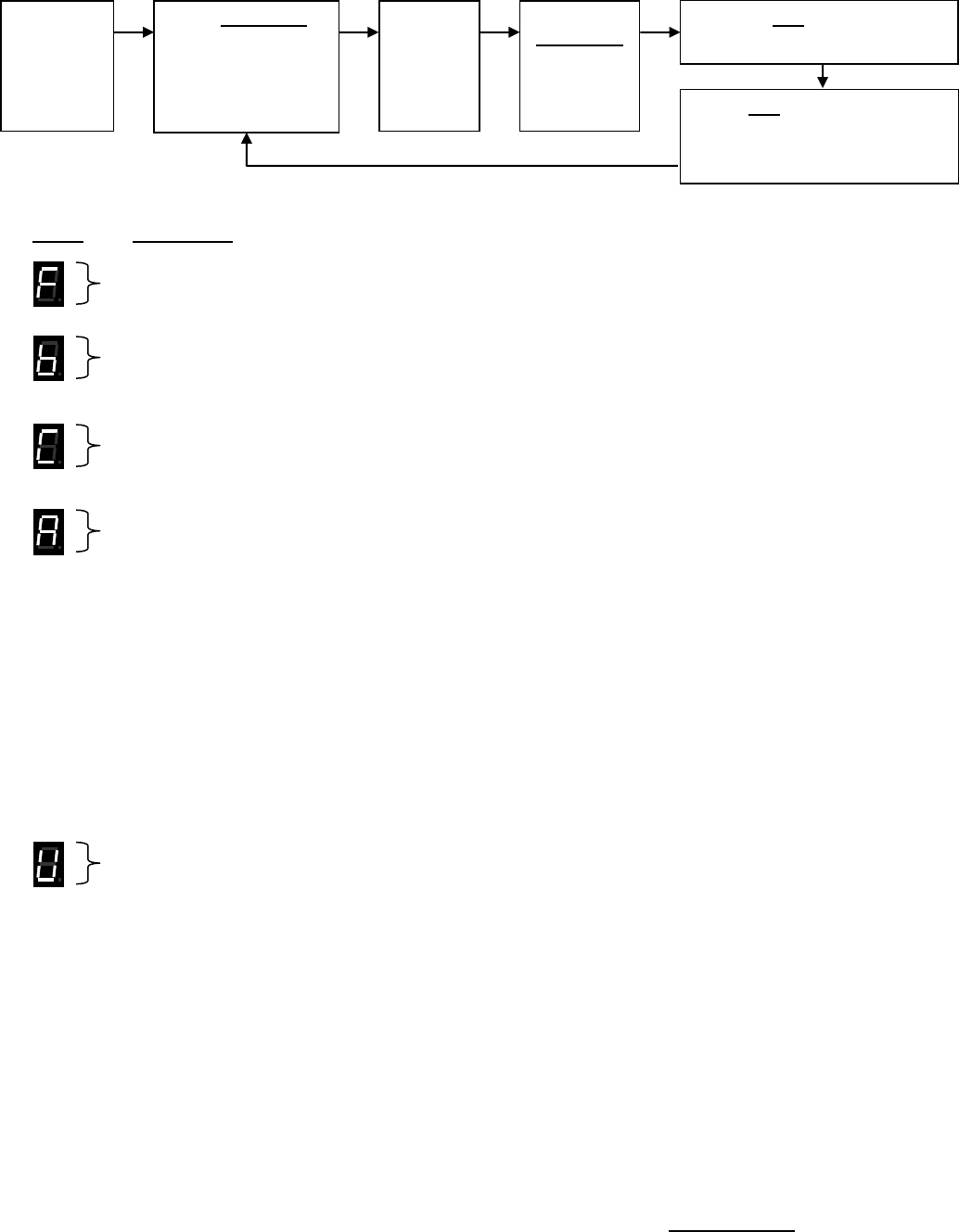

Place the
RQX
Callbox
into
Program
mode.
Use PROGRAM
button to scroll to
one of the following
Program Code
characters:
[F] [b] [C] [A] [U]
Pause, a
hyphen
will
appear
on the
display.
Using the
PROGRAM
button,
enter the
desired
Table Code.
Press PTT button to save
programming entry.
Press PTT button a second time
to Exit programming.
or
Proceed with next program entry.
![](/img.php?id=2365602&img=bgc.png)
6 Series OUTPOST® Wireless Callbox Field Programming
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 10
H
OW TO
F
IELD
P
ROGRAM
F
REQUENCY
&
T
ONE
C
ODES
............................

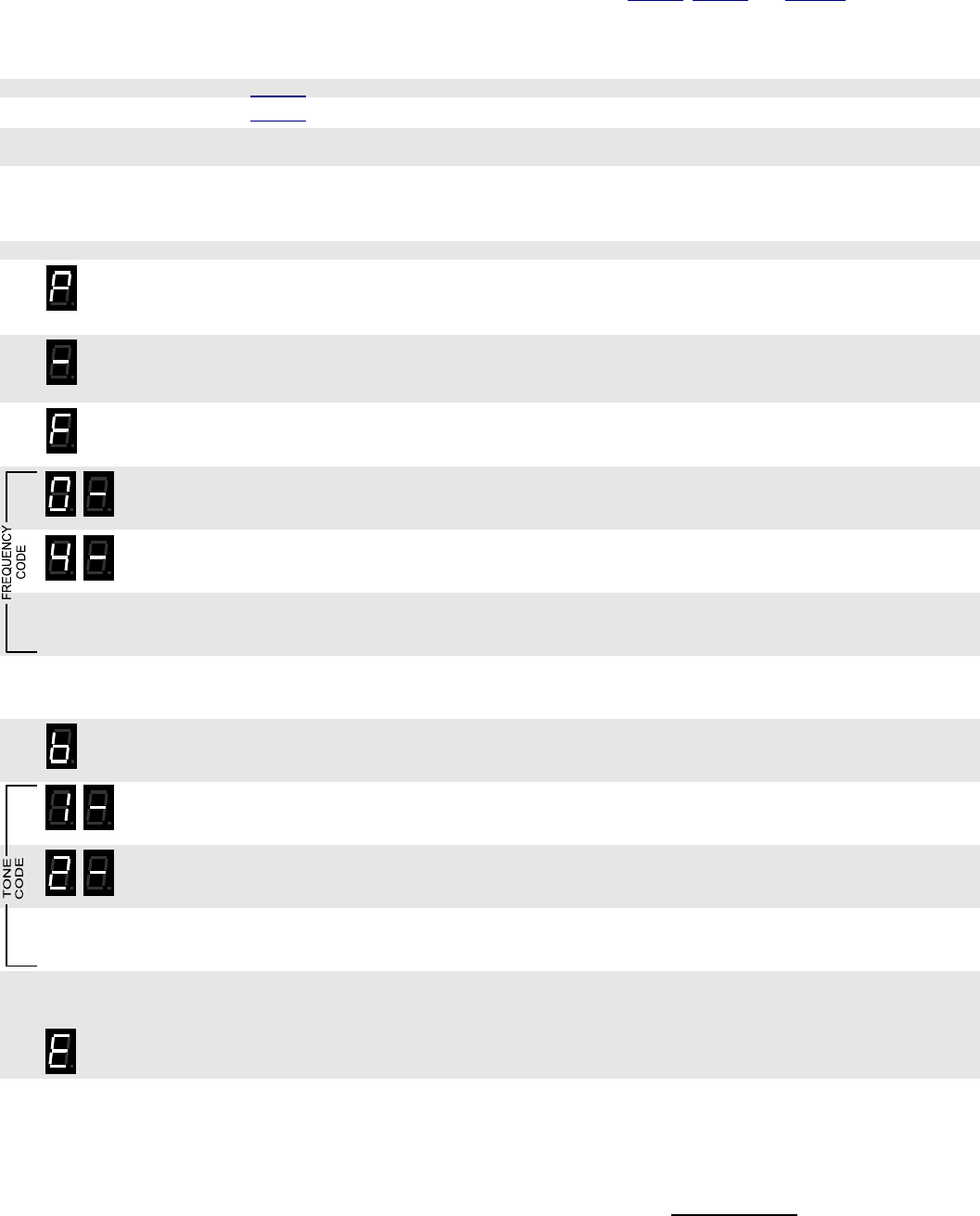

To match other radios, the owner can select Frequency, Tone and DQC Codes from Table 1, Table 2 and Table 3 on pages 12 and
13. In our example, we will program an RQX-456 to operate on the "Brown Dot" frequency of 464.500 MHz with 100.0 Hz tone.
NOTES:
1. Refer to Table 1 on page 12 to determine the two-digit frequency code and write it down.
2. Refer to Table 2 on page 13 to determine the two-digit tone code for 100.0 Hz and write it down.
3. Loosen the (4) captive screws in the front corners of the case. These screws are captive to the housing; to
prevent damaging them, DO NOT remove the screws from the housing.
4. Separate the case front from the case back, leaving the batteries connected to the radio. Make sure the
unit has batteries installed.
NOTE: The voltage of the batteries must be greater than 3.3 VDC to program properly.
5. Press and release the ON/PTT button on the front of the unit to turn the radio on.
6. Press and HOLD the Program Button (See FIG-3 on page 6 for location). A "P" will appear on the program
display as you enter program mode and the radio will beep rapidly.
7. Release the program button after the beeping has stopped. The radio will emit a triple beep indicating that
the radio is in program mode and a hyphen will appear on the program display.
8. Click the Program button until the program display shows the Program Code “F”. Pause—the radio will
sound a low tone and show a hyphen across the center of the display to indicate that it is ready to accept
the 2 or 3-digit Frequency code from Table 1.
9. Enter the 1st digit of the frequency code by clicking the Program button until the program display shows the
desired number. Pause—the radio will sound a low tone and show a hyphen across the center of the
display to indicate that it is ready to accept the next digit.
10. Enter the 2nd digit of the frequency code by clicking the Program button until the program display shows the
desired number. Pause—the radio sounds a low tone and will show a hyphen across the center of the
display to indicate that it is ready to accept the next digit.
11. If necessary, enter the 3rd digit of the frequency code by clicking the Program button until the program
display shows the desired number. Pause—the radio sounds a low tone and will show a hyphen across the
center of the display to indicate that it is ready to accept the next digit
12. Press and release the ON/PTT button to save your programming. A triple beep will sound to indicate that
programming was successful and a hyphen will appear on the program display. The radio is now ready for
another program entry.
13. Click the Program button until the program display shows the Program Code “b”. Pause—the radio will
sound a low tone and show a hyphen across the center of the display to indicate that it is ready to accept
the 2-digit Quiet-Call code or 3-digit Digital Quiet-Call code from Table 2 or Table 3.
14. Enter the 1st digit of the tone code (or 1st digit of the DQC code) by clicking the Program button until the
program display shows the desired number. Pause—the radio sounds a low tone and will show a hyphen
across the center of the display to indicate that it is ready to accept the next digit.
15. Enter the 2nd digit of the tone code (or 2nd digit of the DQC code) by clicking the Program button until the
program display shows the desired number. Pause—the radio sounds a low tone and will show a hyphen
across the center of the display to indicate that it is ready to accept the next digit.
16. FOR DQC CODES ONLY – Enter the 3rd digit of the DQC code by clicking the Program button until the
program display shows the desired number. Pause—the radio sounds a low tone and will show a hyphen
across the center of the display to indicate that it is ready to accept the next digit.
17. Press and release the ON/PTT button to save your programming. A triple beep will sound to indicate that
programming was successful and a hyphen will appear on the program display. The radio is now ready for
another program entry.
NOTE: An error tone will sound if you attempt to save an incorrect code, an "E" will appear on the display.
Check the digits you are attempting to enter, then re-enter.
18. Once you have made your final program entry, press the ON/PTT button a final time to turn the radio off.
Turn the radio back on for normal operation.
22
12
![](/img.php?id=2365602&img=bgd.png)
6 Series OUTPOST® Wireless Callbox Field Programming
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 11
H
OW TO
F
IELD
P
ROGRAM
2-T
ONE OR
DTMF
D
ECODE
(R
ECEIVE
)
C
ODES
....

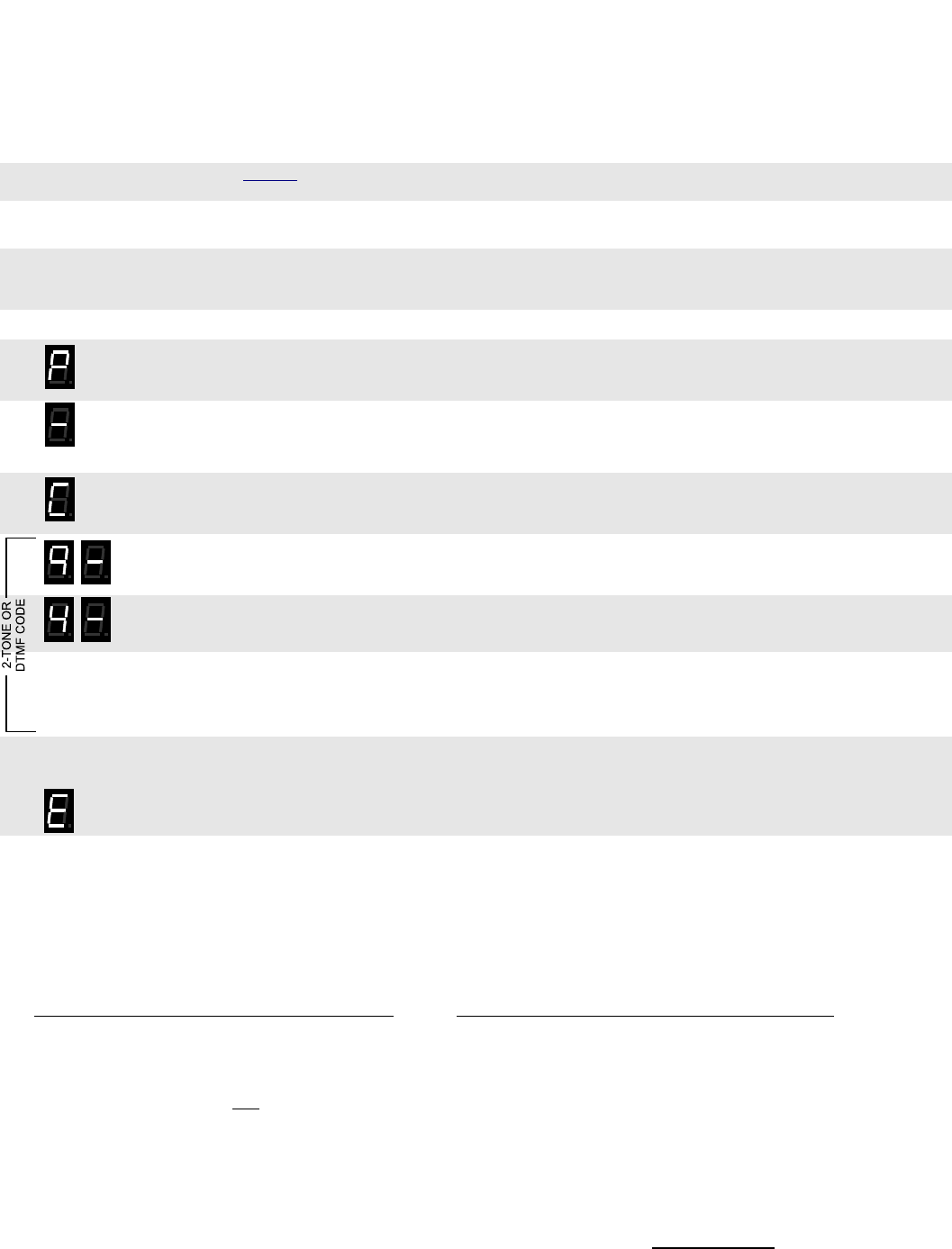

For special applications, it is desirable to program the Callbox for 2-Tone or DTMF decode (receive) operation. The user is able to
field program the radio for one of the 9 pre-determined tone pairs specified in Table 4 on page 13, or for any 3-7 digit DTMF
sequence. The 2-Tone codes correspond to field programmable 2-Tone encode (transmit) codes available in other RITRON
portable and base radios. In our example we will program an RQX-456 to operate with 2-Tone Decode (Receive) Code 94
frequencies of 389.0 and 669.9 Hz.
1. Refer to Table 4 on page 13 to determine the two-digit code for 2-tone decode on 389.0 and 669.9 Hz and
write it down.
2. Loosen the (4) captive screws in the front corners of the case. These screws are captive to the housing; to
prevent damaging them, DO NOT remove the screws from the housing.
3. Separate the case front from the case back, leaving the batteries connected to the radio. Make sure the
unit has batteries installed.
NOTE: The voltage of the batteries must be greater than 3.3 VDC to program properly.
4. Press and release the ON/PTT button on the front of the unit to turn the radio on.
5. Press and HOLD the Program Button (See FIG-3 on page 6 for location). A "P" will appear on the program
display as you enter program mode and the radio will beep rapidly.
6. Release the program button after the beeping has stopped. The radio will emit a triple beep indicating that
the radio is in program mode and a hyphen will appear on the program display.
7. Click the Program button until the program display shows the Program Code “C”. Pause—the radio will
sound a low tone and show a hyphen across the center of the display to indicate that it is ready to accept a
2-digit 2-Tone code from Table 4, or a 3 to 7-digit DTMF decode sequence.
8. Enter the 1st digit of the 2-Tone code (or 1st digit of the DTMF code) by clicking the Program button until the
program display shows the desired number. Pause—the radio will sound a low tone and show a hyphen
across the center of the display to indicate that it is ready to accept the next digit.
9. Enter the 2nd digit of the 2-Tone code (or 2nd digit of the DTMF code) by clicking the Program button until
the program display shows the desired number. Pause—the radio sounds a low tone and will show a
hyphen across the center of the display to indicate that it is ready to accept the next digit.
10. FOR DTMF CODES ONLY – Enter the 3rd digit of the DTMF decode sequence by clicking the Program
button until the program display shows the desired number. Pause—the radio sounds a low tone and will
show a hyphen across the center of the display to indicate that it is ready to accept the next digit. Continue
entering up to seven digits.
11. Press and release the ON/PTT button to save your programming. A triple beep will sound to indicate that
programming was successful and a hyphen will appear on the program display. The radio is now ready for
another program entry.
NOTE: An error tone will sound if you attempt to save an incorrect code, an "E" will appear on the display.
Check the digits you are attempting to enter, then re-enter.
12. Once you have made your final program entry, press the ON/PTT button a final time to turn the radio off.
Turn the radio back on for normal operation.
IMPORTANT NOTES:
1. Typically, 2-Tone or DTMF decode is used to selectively call an RQX Callbox. When using 2-Tone or DTMF decode for special
applications (GateGuard® or Listen-In) the associated Feature Code must also be entered. Programming for features listed
below will cause the RQX to use the 2-tone or DTMF codes for their special application and not be used to screen calls.
2-Tone or DTMF decode used for selective calling 2-Tone or DTMF decode used for special application
No Switch GateGuard® momentary
Switch ON when called GateGuard® toggle
Switch ON when active Listen-IN
2. The radio can operate only one 2-Tone Decode function from the list above when field programmed. Your Ritron dealer can
PC program the callbox to perform more than one 2-tone decode function. Contact your Ritron dealer for details.
3. When the callbox is programmed for 2-Tone Decode operation, it is recommended that you do NOT use QC Tone Codes
greater than “23” (146.2 Hz).
94
![](/img.php?id=2365602&img=bge.png)
6 Series OUTPOST® Wireless Callbox Field Programming
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 12
T
ABLE
1:
P
ROGRAMMABLE
F
REQUENCY
C
ODES
........................................
UHF Business Band Models
Code Frequency Color Dot BW
09 469.2625 12.5 †
10 462.5750 White Dot 12.5 †
11 462.6250 Black Dot 12.5 †
12 462.6750 Orange Dot 12.5 †
13 464.3250 12.5 †
14 464.8250 12.5 †
15 469.5000 12.5 †
16 469.5500 12.5 †
17 463.2625 12.5 †
18 464.9125 12.5 †
19 464.6000 12.5 †
20 464.7000 12.5 †
21 462.7250 12.5 †
22 464.5000 Brown Dot 12.5
23 464.5500 Yellow Dot 12.5
24 467.7625 J 12.5
25 467.8125 K 12.5
26 467.8500 Silver Star 12.5
27 467.8750 Gold Star 12.5
28 467.9000 Red Star 12.5
29 467.9250 Blue Star 12.5
30 461.0375 12.5
31 461.0625 12.5
32 461.0875 12.5
33 461.1125 12.5
34 461.1375 12.5
35 461.1625 12.5
36 461.1875 12.5
37 461.2125 12.5
38 461.2375 12.5
39 461.2625 12.5
40 461.2875 12.5
41 461.3125 12.5
42 461.3375 12.5
43 461.3625 12.5
44 462.7625 12.5
45 462.7875 12.5
46 462.8125 12.5
47 462.8375 12.5
48 462.8625 12.5
49 462.8875 12.5
50 462.9125 12.5
51 464.4875 12.5
52 464.5125 12.5
53 464.5375 12.5
54 464.5625 12.5
55 466.0375 12.5
56 466.0625 12.5
57 466.0875 12.5
58 466.1125 12.5
59 466.1375 12.5
60 466.1625 12.5
61 466.1875 12.5
62 466.2125 12.5
63 466.2375 12.5
64 466.2625 12.5
65 466.2875 12.5
UHF Business Band Models
Code Frequency Color Dot BW
66 466.3125 12.5
67 466.3375 12.5
68 466.3625 12.5
69 467.7875 12.5
70 467.8375 12.5
71 467.8625 12.5
72 467.8875 12.5
73 467.9125 12.5
74 469.4875 12.5
75 469.5125 12.5
76 469.5375 12.5
77 469.5625 12.5
78 462.1875 12.5
79 462.4625 12.5
80 462.4875 12.5
81 462.5125 12.5
82 467.1875 12.5
83 467.4625 12.5
84 467.4875 12.5
85 467.5125 12.5
86 451.1875 12.5
87 451.2375 12.5
88 451.2875 12.5
89 451.3375 12.5
90 451.4375 12.5
91 451.5375 12.5
92 451.6375 12.5
93 452.3125 12.5
94 452.5375 12.5
95 452.4125 12.5
96 452.5125 12.5
97 452.7625 12.5
98 452.8625 12.5
99 456.1875 12.5
100 456.2375 12.5
101 456.2875 12.5
102 468.2125 12.5
103 468.2625 12.5
104 468.3125 12.5
105 468.3625 12.5
106 468.4125 12.5
107 468.4625 12.5
108 468.5125 12.5
109 468.5625 12.5
110 468.6125 12.5
111 468.6625 12.5
112 456.3375 12.5
113 456.4375 12.5
114 456.5375 12.5
115 456.6375 12.5
116 457.3125 12.5
117 457.4125 12.5
118 457.5125 12.5
119 457.7625 12.5
120 457.8625 12.5
121 461.3175 12.5
122 464.8375 12.5
VHF Business Band Models
Code Frequency Color Dot BW
03 151.6250 Red Dot 12.5 †
04 151.9550 Purple Dot 12.5 †
05 151.9250 12.5 †
06 154.5400 12.5 †
07 154.5150 12.5 †
08 154.6550 12.5 †
09 151.6850 12.5 †
10 151.7150 12.5 †
11 151.7750 12.5 †
12 151.8050 12.5 †
13 151.8350 12.5 †
14 151.8950 12.5 †
15 154.4900 12.5 †
16 151.6550 12.5 †
17 151.7450 12.5 †
18 151.8650 12.5 †
24 151.7000 12.5
25 151.7600 12.5
26 152.7000 12.5 †
27 152.8850 12.5
28 152.9150 12.5
29 152.9450 12.5
30 151.5125 12.5
31 154.5275 12.5
32 153.0050 12.5
33 158.4000 12.5
34 158.4075 12.5
VHF MURS Models**
Code Frequency Color Dot BW
01 154.600 Green Dot 25.0
02 154.570 Blue Dot 25.0
19 151.820 MURS 12.5
20 151.880 MURS 12.5
21 151.940 MURS 12.5
22 154.600 MURS 12.5
23 154.570 MURS 12.5
Notes
** MURS models do not require an FCC
license. All other models require an
FCC license.
† Frequency code was 25 KHz
bandwidth prior to the 2013 FCC
Narrowband Mandate.
BW is the bandwidth in kHz.
12.5 kHz indicates a narrow band
channel, 25 kHz indicates a wide band
channel.
If the callbox has been PC pro-
grammed to a non-table frequencies it
cannot be changed via field program-
ming
![](/img.php?id=2365602&img=bgf.png)
6 Series OUTPOST® Wireless Callbox Field Programming
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 13
C
ANADIAN
F
REQUENCY
C
ODES
............................................................
Canada Models
UHF Business Band
Code Frequency Color Dot BW
01 458.6625 25
02 469.2625 25
Canada Models
VHF Business Band
Code Frequency Color Dot BW
01 151.055 25
02 151.115 25
British Columbia Models
VHF Business Band
Code Frequency Color Dot BW
01 154.100 25
02 158.940 25
T
ABLE
2:
P
ROGRAMMABLE
QC
T
ONE
C
ODES
..........................................
Code Frequency
01 67.0
02 71.9
03 74.4
04 77.0
05 79.7
06 82.5
07 85.4
08 88.5
09 91.5
10 94.8
11 97.4
12 100.0
13 103.5
Code Frequency
14 107.2
15 110.9
16 114.8
17 118.8
18 123.0
19 127.3
20 131.8
21 136.5
22 141.3
23 146.2
24 151.4
25 156.7
26 162.2
Code Frequency
27 167.9
28 173.8
29 179.9
30 186.2
31 192.8
32 203.5
33 210.7
34 218.1
35 225.7
36 233.6
37 241.8
38 250.3
39 69.4
Code Frequency
40 159.8
41 165.5
42 171.3
43 177.3
44 No Tone
45 183.5
46 189.9
47 196.6
48 199.5
49 206.5
50 229.1
51 254.1
00 No Tone
T
ABLE
3:
P
ROGRAMMABLE
D
IGITAL
DQC
T
ONE
C
ODES
............................
Code
023
025
026
031
032
036
043
047
051
053
054
065
071
Code
072
073
074
114
115
116
122
125
131
132
134
143
145
Code
152
155
156
162
165
172
174
205
212
223
225
226
243
Code
244
245
246
251
252
255
261
263
265
266
271
274
306
Code
311
315
325
331
332
343
346
351
356
364
365
371
411
Code
412
413
423
431
432
445
446
452
454
455
462
464
465
Code
466
503
506
516
523
532
546
565
606
662
612
624
627
Code
631
632
645
654
664
703
712
723
731
732
734
743
754
T
ABLE
4: P
ROGRAMMABLE
2-T
ONE
D
ECODE
(R
ECEIVE
)
C
ODE
........................
Code Tone 1 Tone 2
90 * *
91 330.5 569.1
92 349.0 600.9
93 368.5 634.5
94 389.0 669.9
95 410.8 707.3
96 433.7 746.8
97 457.9 788.5
98 483.5 832.5
99 330.5 600.9
NOTES:
1. 2-Tone Decode codes 91-99 operate with Ring Tone and
Transpond enabled. See “2-TONE DECODE (RECEIVE) SETTINGS”
section on page 21 for a full description of these features.
2. When the callbox is programmed for 2-Tone Decode operation, it
is recommended that you do NOT use QC Tone Codes greater
than “23” (146.2 Hz).
* If the Callbox displays 2-Tone Code “90” on readout it has been
PC programmed for custom frequencies.
![](/img.php?id=2365602&img=bg10.png)
6 Series OUTPOST® Wireless Callbox Field Programming
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 14
H
OW TO
F
IELD
P
ROGRAM
F
EATURE
C
ODES
..............................................
The OUTPOST® Callbox can be field programmed for a number of advanced features. Refer to Table 5 and Table 6 for the one or
three digit codes available for field programming. In our example we will program an RQX-456 for an RQX Reset Time of 30
seconds.
1. Refer to Table 5 or Table 6 to determine the one or three-digit feature code and write it down.
2. Loosen the (4) captive screws in the front corners of the case. These screws are captive to the housing; to
prevent damaging them, DO NOT remove the screws from the housing.
3. Separate the case front from the case back, leaving the batteries connected to the radio. Make sure the
unit has batteries installed.
NOTE: The voltage of the batteries must be greater than 3.3 VDC to program properly.
4. Press and release the ON/PTT button on the front of the unit to turn the radio on.
5. Press and HOLD the Program Button (See FIG-3 on page 6 for location). A "P" will appear on the program
display as you enter program mode and the radio will beep rapidly.
6. Release the program button after the beeping has stopped. The radio will emit a triple beep indicating that
the radio is in program mode and a hyphen will appear on the program display.
7. Click the Program button until the program display shows the Program Code “A”. Pause—the radio will
sound a low tone and show a hyphen across the center of the display to indicate that it is ready to accept a
1-digit or a 3-digit Feature code.
8. Enter the 1st digit of the feature code by clicking the Program button until the program display shows the
desired number. Pause—the radio will sound a low tone and show a hyphen across the center of the
display to indicate that it is ready to accept the next digit.
9. Enter the 2nd digit of the feature code (if necessary) by clicking the Program button until the program
display shows the desired number. Pause—the radio sounds a low tone and will show a hyphen across the
center of the display to indicate that it is ready to accept the next digit.
10. Enter the 3rd digit of the feature code (if necessary) by clicking the Program button until the program display
shows the desired number. Pause—the radio sounds a low tone and will show a hyphen across the center
of the display to indicate that it is ready to accept the next digit.
11. Press and release the ON/PTT button to save your programming. A triple beep will sound to indicate that
programming was successful and a hyphen will appear on the program display. The radio is now ready for
another program entry.
NOTE: An error tone will sound if you attempt to save an incorrect code, an "E" will appear on the display.
Check the digits you are attempting to enter, then re-enter.
12. Once you have made your final program entry, press the ON/PTT button a final time to turn the radio off.
Turn the radio back on for normal operation.
T
ABLE
5: S
INGLE
D
IGIT
R
ADIO
F
EATURE
C
ODES
....................................
Code Feature Default Description
1 Companding ON Companding will compress transmit audio before sending it, and expand receive audio
before it is heard on the speaker to reduce the background noise common in radio
communications. Companding is not recommended unless all radios in the system are
companded.
2 Companding OFF
3 Volume Level – Medium Sets Volume level to 50%
4 Volume Level – High Sets Volume level to 100%
5 GateGuard® ON Provides momentary (1 second) switch closure via on-board relay. The 2-Tone
Decode code must be programmed AFTER entering the GateGuard® ON code.
6 GateGuard® OFF The GateGuard® OFF code will disable the 2-Tone Decode Code.
7 Transmit Low Pwr
8 Transmit High Pwr Refer to Special Notice on page 4 regarding Alkaline Battery usage.
9 Call Tone ON When PTT button is initially pressed a Call Tone will be transmitted.
0 Call Tone OFF
The Callbox is set from the factory with these options enabled.
804
![](/img.php?id=2365602&img=bg11.png)
6 Series OUTPOST® Wireless Callbox Field Programming
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 15
T
ABLE
6:
A
DVANCED
F
EATURE
C
ODES
....................................................
Code Feature Default Description
RQX Reset Time
801 5 seconds RQX Reset Time is the length of time the RQX Callbox can remain
802 10 seconds inactive (not receiving or transmitting) before it automatically shuts off.
803 20 seconds
804 30 seconds
805 45 seconds
806 1 minute
807 2 minutes
808 3 minutes
809 4 minutes
Switch Operation
811 No Switch * Disables all switch operation.
812 Switch On When Called Switch closes (e.g. strobe light turns on) when Callbox 1st receives a call. Switch
opens (e.g. stobe light turns off) as soon as the PTT is pressed.
813 Switch On When Active Switch is closed (e.g. strobe light turns on) as long as Callbox is in use. Switch opens
(e.g. stobe light turns off) when Callbox has not been used (transmit or receive) for a
period of time longer than RQX Reset Time.
814 GateGuard® Momentary * Switch is closed for 1 second when correct 2-Tone or DTMF Decode Code is received.
Enabling this feature requires programming of a 2-Tone or DTMF decode code before
it can operate.
815 GateGuard® Toggle Switch alternately closes and opens when correct 2-Tone Decode Code is received.
Enabling this feature requires programming of a 2-Tone or DTMF decode code before
it can operate.
Special Features
821 Reset to Factory Defaults Resets Callbox to Factory default programming.
822 Display Radio Revision Callbox will display a sequence of 6 digits to identify operating code revision. This is
helpful when troubleshooting the radio.
823 Enable External +12 VDC Enables the External +12 VDC “Loss of power” notification feature.
824 Disable External +12 VDC Disables the External +12 VDC “Loss of power” notification and reverts back to “Low
Battery” notification.
825 Enable Auto Turn-Off Callbox will automatically turn off when it has not been used (transmit or receive) for a
period of time longer than the RQX Reset Time.
826 Disable Auto Turn-Off Callbox will remain on at all times. This mode of operation is not recommended for
battery-powered applications.
827 Enable Busy Channel TX Inhibit Callbox cannot transmit when there is a received signal. A “busy signal” will be heard
on the Callbox speaker when the PTT is pressed and a received signal is present.
828 Disable Busy Channel TX Inhibit Callbox will transmit whenever the PTT is pressed, regardless of any received signal.
829 Mic Gain High Places the microphone into high gain operation where quiet and distant voices will be
heard. This mode of operation will increase background noise transmitted by the
Callbox.
820 Mic Gain Normal Places the microphone into normal gain operation for the majority of applications
where the user is talking directly into the Callbox. This mode of operation will
decrease background noise transmitted by the Callbox.
Programming Readout Codes
881 Frequency Code Display will sequentially show the programmed 2 or 3-digit Frequency Code
882 QC or DQC Tone Code Display will sequentially show the programmed 2-digit QC Tone Code or 3-digit DQC
Tone Code
883 2-Tone or DTMF decode Code Display will sequentially show the programmed 2-digit 2-Tone Code or 3 to 7-digit
DTMF Code.
884 RQX Reset Time Display will sequentially show the programmed 3-digit RQX Reset Time Code.
885 Switch Operation Display will sequentially show the programmed 3-digit Switch Operatiion Code
886 Listen In Time Display will sequentially show the programmed 3-digit Listen In Time Code
887 Receive Volume Level Display will sequentially show the programmed 3-digit Receive Volume Level Code
The Callbox is set from the factory with these options enabled.
* Setting is also available via Single-Digit Radio Feature Code programming.
![](/img.php?id=2365602&img=bg12.png)
6 Series OUTPOST® Wireless Callbox Field Programming
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 16
T
ABLE
6:
A
DVANCED
F
EATURE
C
ODES (
CONTINUED
)
...................................
Code Feature Default Description
Listen In Time
870 Listen In Off The Callbox will automatically transmit for a period of time equal to the
871 Listen In 5 seconds Listen In Time when the correct 2-Tone decode code is received.
872 Listen In 10 seconds Programming Listen In Time will disable any previously programmed 2-
873 Listen In 20 seconds Tone decode operation and require re-entry of the 2-Tone Decode Code
874 Listen In 30 seconds before it can operate.
Receive Volume Level
875 10% Sets the speaker volume level of received signals.
876 25%
877 50% *
878 75%
879 100% *
The Callbox is set from the factory with these options enabled.
* Setting is also available via Single-Digit Radio Feature Code programming.
![](/img.php?id=2365602&img=bg13.png)
6 Series OUTPOST® Wireless Callbox Programmable Features
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 17
P
ROGRAMMABLE
O
UTPOST
®
C
ALLBOX
F
EATURES
.....................................
The OUTPOST® Callbox has a variety of programmable
features that determine how your callbox operates. Some of
these features can be Field Programmed (FP) by you without
using special tools, while other features can only be
Programmed (PC) with a PC and RQX Series PC Programmer
version 10.1.0 or higher. Contact your Ritron dealer or the
factory for details.
Glossary of Terms
Intercom Mode – The Automatic Turn-Off feature has been
disabled and the Callbox is able to receive calls at any time.
Sleep – If Automatic Turn-Off is DISABLED and Battery Saver
is ENABLED the Callbox will go into a low current Sleep Time
when it is not being used, waking up periodically to check for a
received message. Pressing the ON/PTT button will wake-up
the radio immediately.
Wake-Up – When Battery Saver is ENABLED and the Callbox
has entered the low current Sleep state, the radio will wake-up
periodically to check for a received message. The Sleep Time
is set by the Battery Saver Sleep Time.
No Activity Time – A continuous period of time where the
Callbox is not sending or receiving a call.
Programmable Features Key:
FP for Field Programmable Feature – no software required
PC for PC Programmable Feature with Software
Field Programming Enable ......................... (PC)
This option is ENABLED as the Factory Default setting. This
permits all Field Programmable features (FP) to be field
programmed by you. If DISABLED, the features can only be
programmed using special Ritron PC Programming software.
Send Call Tone ................................. (PC or FP)
The Factory Default setting has the Call Tone feature ON (refer
to “How to Field Program Single-Digit Radio Feature Codes on
page 14). The callbox can be programmed to transmit a Call
Tone if the Reset Time has expired and the ON/PTT button is
pressed. This will alert system users that the call is originating
from the callbox.
Speaker Volume .................................. (PC or FP)
The Factory Default setting is medium volume. Field
programming allows you to select from 5 different Volume
settings. PC Programming allows any volume level between 2 –
100%. A lower speaker volume reduces audio distortion and
provides a more natural sound. For best performance, do not
set the volume any higher than is necessary for your
application.
Companding ........................................(PC or FP)
The Factory Default setting for Companding is OFF (NOT
selected). The radio can be programmed to ENABLE or
DISABLE audio companding. Companding will compress
transmit audio before sending it, and expand receive audio
before it is heard on the speaker to reduce the background
noise common in radio communications. See page 14.
High/Low Power ...................................(PC or FP)
The OUTPOST® Callbox can be set to transmit at high or low
power. Low power is recommended in battery powered
installations.
Refer to Special Note on page 4 regarding Alkaline
batteries.
Automatic Turn-Off ........................... (PC or FP)
This feature is ENABLED as the Factory Default setting. The
callbox will turn OFF when the RQX Reset Time has expired.
The Reset Time is a pre-programmed amount of time of “no
activity” (no calls transmitted, no calls received) before the
callbox turns OFF in order to conserve battery life. The callbox
can be turned back ON when the ON/PTT button is pressed.
This is the recommended mode of operation for all battery only
powered applications.
If Automatic Turn-OFF is NOT selected the callbox does NOT
completely turn OFF, but remains in the Intercom mode,
allowing the callbox to receive calls at any time.
Operating the callbox with Automatic Turn-OFF DISABLED
significantly increases battery drain, and is therefore NOT
recommended for battery only powered applications. Battery
life can be increased using the Battery Saver Enable feature
detailed in this section.
Battery Saver Enable ................................. (PC)
When the OUTPOST® Callbox is programmed to operate with
Automatic Turn-Off disabled, Battery Saver can increase
battery life in both internal and external battery powered
applications.
With Battery Saver Enable, the callbox will periodically Wake-
Up and listen for a received signal before returning to a low
current Sleep state. The time between Wake-Up states can be
PC programmed between 0.5 - 8 seconds with the Battery
Saver Sleep Time setting. A longer time between Wake-Up
states will result in increased battery life.
The callbox immediately leaves Battery Saver mode any time
the ON/PTT Button is pressed or a signal is received, and will
not return to Battery Saver until the period of no activity
exceeds the RQX Reset Time.
!
![](/img.php?id=2365602&img=bg14.png)
6 Series OUTPOST® Wireless Callbox Programmable Features
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 18
P
ROGRAMMABLE
O
UTPOST
®
C
ALLBOX
F
EATURES (C
ONTINUED
)
....................
External +12 VDC Power Fail Alert Tone .............. (PC or FP)
By selecting the +12 VDC Power Fail Alert Tone feature the
callbox will look for a loss of the +12 VDC power source. The
callbox will immediately transmit an Alert Tone to notify
personnel that the +12 VDC source has been lost and is now
operating on battery back-up. The callbox will transmit an Alert
Tone once every hour until the +12 VDC power source is
restored or until the back-up batteries are exhausted. Even if
this feature is NOT selected, it will always revert to Back-up
Battery power, see page 4 for details.
RQX Reset Time ................................ (PC or FP)
Set from the factory for 10 seconds, the RQX Reset Time can
be Field Programmed to 9 different times ranging from 5
seconds to 4 minutes, and PC programmed for 5-255 seconds.
A shorter RQX Reset Time will result in increased battery life.
In standard Automatic Turn-Off operation a longer RQX Reset
Time will allow more time for a response before the Callbox
turns off.
RQX Reset Time defines the Inactivity Time allowed before the
Callbox:
Turns Off if Automatic Turn-Off is ENABLED.
Enters Battery Saver mode if Battery Saver is ENABLED.
Resets 2-Tone Paging Decode.
Automatically opens the Switch output.
Microphone Gain ............................... (PC or FP)
The Microphone can be placed in HIGH or NORMAL gain
mode. With the microphone in high gain mode quiet and
distant voices will be heard. This mode of operation will
increase background noise transmitted by the Callbox.
The Microphone gain is set to NORMAL mode by default.
Leave the microphone in normal gain mode for the majority of
applications where the user is talking directly into the Callbox.
This mode of operation will decrease background noise
transmitted by the Callbox.
Listen In ........................................... (PC or FP)
Listen In allows remote activation of the Callbox transmitter for
a programmed period of time when the correct 2-Tone code is
decoded.
This feature, turned OFF by default, can be Field Programmed
to 4 different transmit times ranging from 5-30 seconds and PC
programmed for 1-255 seconds.
The 2-Tone Decode Code required to activate the feature can
be Field Programmed from the 9 different 2-Tone Decode
Codes in Table 4, or PC programmed for any 2-Tone frequency
pair between 300-1500 Hz.
Busy Channel TX Inhibit .................... (PC or FP)
With this feature enabled the Callbox cannot transmit when
there is a received signal. A “busy signal” will be heard on the
Callbox speaker when the PTT is pressed and a received
signal is present. Busy Channel TX Inhibit is disabled from the
factory.
Sensor/Contact Closure Input ..........................
The Callbox will send a warning tone when a change in the
Sensor Input is detected. The Sensor Input will respond to an
OPEN or CLOSED switch.
Transmit Beep Enable ................................. (PC)
This feature is turned on from the factory to provide a short
beep in the Callbox speaker any time the ON/PTT button is
pressed. This assures the Callbox user that the radio has
turned on and is ready to transmit their message. With this
feature disabled the Callbox will only beep when the radio is
first turned on.
RX Courtesy Beep Enable ............................ (PC)
In high noise environments it is sometimes difficult to determine
when a received message has ended. With the RX Courtesy
Beep enabled the Callbox will sound a short beep on the
speaker at the end of each received transmission.
TX Time Out Time ...................................... (PC)
Set from the factory for 60 seconds, the TX Time Out Time can
be programmed for 1-255 seconds. This sets the length of time
the Callbox can transmit continuously. If the ON/PTT button is
held down longer then the TX Time Out Time will allow, the
radio will stop transmitting and a “Busy Signal” will be heard in
the speaker until the button is released.
DTMF or Selcall ANI ................................... (PC)
The RQX can be programmed to send a 1-9 digit DTMF or 3-7
digit Selcall ANI code at the beginning of each transmission for
radio identification.
![](/img.php?id=2365602&img=bg15.png)
6 Series OUTPOST® Wireless Callbox Programmable Features
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 19
I
NTERCOM
(A
LWAYS
O
N
)
P
ROGRAMMING
.............................................
The OUTPOST® can be Field or PC programmed by the factory
or by your Ritron dealer to operate as a two-way intercom.
When operating as an intercom the Automatic Turn-Off must be
DISABLED so that the radio will remain ON in a “intercom”
mode. The callbox can receive a call from another radio at any
time. The higher current requirements of Intercom operation
make it undesirable in battery powered only installations. It is
recommended that you power the callbox using +12 VDC
capability. See page 4.
Required Radio Programming:
Automatic Turn-Off ................................................. (PC or FP)
This feature must be DISABLED via Field or PC programming
for the callbox to remain ON at all times.
Other Programmable Features to Consider:
Battery Saver .................................................................... (PC)
Battery Saver can be used to increase battery life in battery
powered applications. With Battery Saver enabled, the callbox
will periodically “wake-up” and listen for a received signal
before returning to a low current “sleep” mode. The Sleep Time
can be PC programmed between 0.5 - 8 seconds. A longer
sleep time will result in increased battery life, but may result in
missed calls.
Busy Channel TX Inhibit ........................................ (PC or FP)
If ENABLED this feature prevents you from talking over
someone else on the same channel even if they are using a
different tone code. The radio will beep a series of long, low
tones that sounds like a “busy signal” when you press the
ON/PTT button.
U
SEFUL
F
EATURES TO USE WITH
I
NTERCOM
(A
LWAYS
O
N
)
P
ROGRAMMING
....
Programming for Selective Calling:
2-Tone Paging Decode ........................................... (PC or FP)
This allows selective calling to a Callbox in a radio system
where there is more than one Callbox. When the Callbox is
programmed for 2-tone decode in Intercom (Always-On) mode
it will sound an alert tone on the Callbox speaker, similar to a
telephone ring tone, whenever 2-tone page has been
successfully decoded. This will alert any users in the immediate
area that there is an incoming call on the Callbox.
Ring Tone .......................................................................... (PC)
Ring Tone must be set to sound the alert tone on the Callbox
speaker when a 2-Tone Page is successfully decoded. Ring
Tone is enabled from the factory.
2-Tone Monitor Trip .......................................................... (PC)
This can be set when used with 2-Tone decode to allow the
Callbox to hear all radio traffic on the channel after it has
successfully decoded the correct 2-tone code, regardless of QC
or DQC programming.
Normal conversation will follow after the 2-tone code is
decoded.
If the ON/PTT button is pressed the Callbox returns to QC
or DQC decode operation.
The radio will automatically reset back to 2-tone decode
after the RQX Reset Time has expired.
Switch Output Programming:
Switch on When Called .......................................... (PC or FP)
This will close the internal Switch Output whenever the radio
receives a call after an Inactivity Time that exceeds the RQX
Reset Time. The switch will remain closed until the ON/PTT
button is pressed or the RQX Reset Time expires. The Switch
Output could be used to turn on a light or activate an alarm to
notify users in the area that an incoming call was present.
![](/img.php?id=2365602&img=bg16.png)
6 Series OUTPOST® Wireless Callbox Programmable Features
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 20
S
WITCH
O
UTPUT
O
PTIONS
–A
LLOWS
C
ONTROL OF AN
E
XTERNAL
D
EVICE
.....
(e.g., a gate controller, a strobe light, or any relay controlled device.)
The switch output is a simple 1-Amp relay contact closure that
can be used to OPEN and CLOSE a gate, switch on a light,
sound an alarm or any other application where remote control
of an ON/OFF switch is required. The OUTPOST® Callbox can
be programmed to OPEN and CLOSE the Switch Output when
one of the following programmed conditions is met.
The Callbox can be programmed to alternately OPEN and
CLOSE the switch using a single 2-tone code, or can be PC
programmed for separate OPEN and CLOSE 2-tone codes.
Field programming offers nine 2-tone codes that correspond to
field programmable 2-tone codes available in select RITRON
portable and base radios.
No Switch ........................................... (PC or FP)
Select this option for no switch operation.
Switch On When Called ....................... (PC or FP)
With this option selected the switch will CLOSE when the
Callbox first receives a call. The switch will remain CLOSED
until the ON/PTT button is pressed or the RQX Reset Time
expires. This option is not applicable if the Callbox is
programmed for Automatic Turn-Off.
Switch On When Callbox in Use ........... (PC or FP)
This option will CLOSE the switch when the Callbox first sends
or receives a call. The switch will remain closed until the RQX
Reset Time expires, which also turns the radio off if it is
programmed for Automatic Turn-Off.
Switch On When Active with Turn-Off Code ............. (PC)
This option operates the same as Switch On When Callbox in
Use with the added ability to OPEN the switch when a unique
2-Tone Turn-Off Code is received. Unlike the Switch On When
Callbox in Use feature, the switch will not OPEN when the RQX
Reset Time expires unless the Callbox is programmed for
Automatic Turn-Off. See “2-TONE DECODE (RECEIVE) SETTINGS”
on page 21 for details on programming a 2-Tone Turn-Off code.
GateGuard® – Momentary for 1 sec.
...........................................................(PC or FP)
With this option selected the switch will momentarily CLOSE
when a unique 2-Tone code is received. The switch will remain
CLOSED for the programmed period of time, programmable for
1-255 seconds. See “2-TONE DECODE (RECEIVE) SETTINGS” on
page 21 for details on programming a 2-Tone Decode Code.
Single-Digit field programming the Callbox for GateGuard®
operation places the radio into this momentary mode.
GateGuard® – Toggle ............................(PC or FP)
With this option selected the switch will alternately OPEN and
CLOSE when it receives a unique 2-Tone code. After the 2-
tone code is received the Callbox will transmit a SINGLE BEEP
if the switch has been OPENED and a DOUBLE BEEP if the
switch has been CLOSED. The switch will open when the
Callbox turns off if it is programmed for Automatic Turn-Off.
See “2-TONE DECODE (RECEIVE) SETTINGS” on page 21 for
details on programming a 2-Tone Decode Code.
GateGuard® – On Code / Off Code ................ (PC)
When this option is selected the switch will CLOSE when a
unique 2-Tone code is received, and OPEN when the 2-Tone
Turn-Off code is received. The switch will OPEN when the
Callbox turns off if it is programmed for Automatic Turn-Off.
See “2-TONE DECODE (RECEIVE) SETTINGS” on page 21 for
details on programming a 2-Tone Decode Code and a 2-Tone
Turn-Off Code.
![](/img.php?id=2365602&img=bg17.png)
6 Series OUTPOST® Wireless Callbox Programmable Features
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 21
2-T
ONE
D
ECODE
(R
ECEIVE
)
S
ETTINGS
...................................................
2-Tone decode can be used to selectively call the Callbox in a
system where multiple radios operate on a single frequency.
Alternatively, 2-Tone decode can also be used to operate the
Switch Output built into every Callbox.
When the radio is programmed for 2-Tone Paging decode, no
call will be heard unless the 2-tone code has been successfully
decoded or the ON/PTT button has been pressed. After
decoding, normal 2-way conversation is possible without the
need for the 2-tone code. 2-Tone Paging Decode is
automatically reset when the RQX Reset Time expires.
When the Callbox is programmed for Switch Output or Listen In
operation with 2-Tone decode, regular voice communication is
unaffected by the 2-tone code. If a Switch Output Option is
selected that uses 2-tone decode it cannot be used for 2-Tone
Paging Decode.
NOTICE
When the callbox is programmed for 2-Tone Decode operation,
it is recommended that you do NOT use QC Tone Codes
greater than “23” (146.2 Hz).
2-Tone Table # .................................. (PC or FP)
The OUTPOST® Callbox comes equipped with 9 pre-
determined 2-Tone codes that correspond to table codes that
certain RITRON portable and base radios can send. Use of the
2-Tone Table codes allows programming without the need for
the PC programmer.
1st Tone decoded for 1 sec. ..................... (PC)
You can custom program the 1st tone of the 2-tone code to any
frequency between 300-1500 Hz. The 1st tone must be
decoded for the programmed period of time before the radio
looks for the 2nd tone. The factory setting for decode time is 1
second.
2nd Tone decoded for 1 sec. .................... (PC)
You can custom program the 2nd tone of the 2-tone code to
any frequency between 300-1500 Hz.The 2nd tone must be
decoded for the programmed period of time after the 1st tone
has been decoded. The factory setting for decode time is 1
second.
All Call decoded for 4 sec. ....................... (PC)
With 2-Tone All Call enabled you can custom program an All
Call tone to any frequency between 300-1500 Hz. The All Call
tone must be decoded for the programmed period of time. All
Call is not enabled as received from the factory.
Ring Tone Enable ....................................... (PC)
With this feature enabled the Callbox will sound a ring signal in
the speaker, similar to a telephone ring, any time the 2-Tone
code, Group Call or All Call code is decoded. Ring Tone is
enabled from the factory.
2-Tone Transpond ...................................... (PC)
2-Tone Transpond transmits a tone after the 2-Tone code,
Group Call or All Call code has been received to alert the
calling radio that the 2-Tone code was successfully decoded. 2-
Tone Transpond is enabled from the factory.
2-Tone Group Call ...................................... (PC)
When this option is set, 2-tone decode is achieved if the radio
receives the 1st tone for the programmed All Call time. If this
option is selected the All Call time must be longer than the 1st
Tone time or the Callbox will always decode on the 1st tone,
ignoring the 2nd tone altogether. Group Call is not enabled as
received from the factory.
2-Tone Monitor Trip ................................... (PC)
With this option selected the Callbox will be in carrier squelch
mode any time the 2-Tone code is decoded, regardless of any
QC or DQC code programmed in the radio. The radio reverts
back to QC or DQC tone decode if the ON/PTT button is
pressed and reverts back to 2-tone decode after the RQX
Reset Time has expired. 2-Tone Monitor Trip is not enabled
from the factory.
2-Tone Decode with Subtone ...................... (PC)
With 2-Tone Decode with Subtone enabled, the Callbox will not
decode 2-Tone codes unless the correct subtone is also
present. 2-Tone Decode with Subtone is not enabled from the
factory.
Turn-Off Code ............................................ (PC)
In certain Switch Output applications a separate 2-Tone Turn-
Off Code is required. This code can not be the same as the 2-
Tone Decode Code.
Listen In Ring Tone Enable ........................ (PC)
With this feature enabled the Callbox will sound a ring signal in
the speaker, similar to a telephone ring, any time the 2-Tone
Listen In code is decoded. Listen In Ring Tone is not enabled
from the factory.
![](/img.php?id=2365602&img=bg18.png)
6 Series OUTPOST® Wireless Callbox GateGuard® Application
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 22
C
ONFIGURING THE
C
ALLBOX FOR A
G
ATE
G
UARD
®
A
PPLICATION
...............
The XT OUTPOST® can be mounted to virtually any surface
with four (4) ¼” panhead screws. Choose a type of screw
thread and screw length which will hold firmly in the surface to
which the unit will be mounted.
MOUNTING the XT OUTPOST®: ( Refer to FIG-6)
1. Remove the front faceplate from the XT Callbox. The
faceplate is secured to the case with 4 vandal-resistant
buttonhead, Torx screws. Use the T-25 Torx bit included
with the radio to remove these screws.
2. Remove the “Mounting Bracket” kit secured to the inside of
the XT Callbox case.
3.
4. Remove the 4 flathead screws securing the internal
mounting plate and remove entire internal case assembly.
The front faceplate will be attached to the internal case
assembly, handle with care.
5. Carefully drill the hole in the XT Callbox case required for
your external hook-up cable installation.
6. Install the 4 mounting brackets to the back of the XT
Callbox case shown in FIG-4 on page 7. The mounting
brackets can be installed vertically, as shown, or
horizontally.
7. CONNECTING THE SWITCH OUTPUTS TO AN
EXTERNAL DEVICE
a. Thread your external hookup cable from the external
device you wish to control through the hole with
approximately 6 inches of cable inside the XT case.
b. Your external cable will be connected to the XT
Callbox 6-conductor interface cable with wirenuts,
dress your external wires accordingly (Refer to Table
7 on page 23).
c. With your selected hardware, secure and seal the
conduit to ensure moisture and vandal resistant
functions to the XT Callbox case.
Consult the manufacturer of the external device you
are attempting to control for the recommended wire
gauge.
Confirm that your application will NOT exceed the
maximum rating of the on-board relay of 120 VAC @
1 amp.
Make sure all power to the equipment is turned OFF
or disconnected.
CAUTION: The interface cable and wirenuts should be
positioned on the right side of the case, opposite the
antenna (See FIG-6 on page 23)
8. Position the XT Callbox case in the chosen installation
location and secure it in place with four screws through the
mounting brackets.
9. If programming is required, loosen the (4) captive screws
in the front corners of the internal Callbox case and
separate the case front from the case back. These screws
are captive to the housing; to prevent damaging them, DO
NOT remove the screws from the housing.
10. Program the radio, if required. Refer to the programming
section of this manual for details. To program the radio you
must first apply +12 VDC external power, or alkaline
batteries.
11. Fasten the internal case front to the case back with the four
(4) captive screws. Do not over-tighten the plastic screws to
prevent damage.
12. Secure the internal case assembly to the XT Callbox with
the 4 flathead screws through the internal mounting plate.
Refer to FIG-6 for correct orientation and location of the
antenna and cables. The front faceplate is attached to the
internal case assembly, handle with care.
13. Re-fasten the front faceplate to the radio with the 4
buttonhead Torx screws.
Be sure both the interface cable and the front-panel
On/PTT switch cable are routed to the side of the internal
plastic case assembly, away from the antenna. The cables
cannot lay across the face of the internal plastic case, they
must be alongside.
!
!
Due to the wide variety of installation possibilities,
RITRON does not provide the cables or hardware
required to bring external connections into the XT
Callbox.
When selecting your cable hardware be sure it
will adequately seal the cable to the case.
Carefully study the internal construction of the
XT Callbox and determine the location on the
outside case where the external supply and
GateGuard® hook-up will be brought in.
Consider clearance with your desired hardware.
![](/img.php?id=2365602&img=bg19.png)
6 Series OUTPOST® Wireless Callbox GateGuard® Application
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 23
F
IG
:
6
XT
C
ALLBOX
A
SSEMBLY
.............................................................
• Do not remove the foam Antenna Locator. The foam Antenna Locator is used to position the antenna for optimum
performance. The antenna should be routed in the slot on Antenna Locator, along the inside of the XT case as shown. The tip
of the antenna should not come in contact with any of the connecting cables.
Captive Plastic
Case Screws
(4 Corners)
Antenna Jumper
removed
Battery Mating
Connectors
On/PTT Switch
Front Plate
(Bottom Edge)
Threaded Inserts for Front Plate
Mounting (4 Corners)
Internal Antenna
Battery Holder with
D-Cell Batteries Installed
6-Conductor
Interface Cable
RF Mating
Connector
Input/Output
Connector
Sensor Turn-On
Jumper
Table 7: XT Callbox 6-Conductor
Interface Cable
Input/Output
Wire Description Connector Pin #
Red External 12 VDC 6
“+” input
Black External 12 VDC 5
“-“ input
Blue Switch Output 4
“+” connection
Green Switch Output 3
“-“ connection
White Sensor Input 2
“+” connection
Brown Sensor Input 1
“-“ ground
Foam Antenna
Locator
Cables must be routed
to the side of internal
plastic case assembly.
Relay Polarity
Jumper
![](/img.php?id=2365602&img=bg1a.png)
6 Series OUTPOST® Wireless Callbox GateGuard® Application
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 24
H
OW TO
F
IELD
P
ROGRAM THE
O
UT
P
OST
®
C
ALLBOX FOR
G
ATE
G
UARD
®
O
PERATION
...................................................................
The OUTPOST® can be field programmed for basic
GateGuard® operation, or PC programmed to suit your unique
requirements. The instructions in this section apply only to
Field Programmable features. If PC programming software
has been used to set 2-Tone decode (receive) or other optional
GateGuard® features, operation may not be as described here.
Follow these steps to program the OUTPOST® for GateGuard®
operation:
1. Program the frequency and tone codes per the “HOW TO
FIELD PROGRAM FREQUENCY & TONE CODES” instructions on
page 10.
2. Program the callbox for GateGuard® Operation ON per
the “HOW TO FIELD PROGRAM SINGLE-DIGIT RADIO FEATURE
CODES” instructions on page 14.
3. Program the 2-Tone decode (receive) code per the “HOW
TO FIELD PROGRAM 2-TONE DECODE (RECEIVE) CODES”
instructions on page 11.
The OUTPOST® Callbox will now operate in GateGuard® mode
as follows:
The Callbox will be in “Automatic Turn-Off” mode. The
ON/PTT button must first be pressed as described in
“OPERATING THE 6 SERIES OUTPOST® CALLBOX WITH FACTORY
DEFAULT SETTINGS” section on page 3 before normal two-way
communications can be established.
If the Callbox does not send or receive a signal for more than
10 seconds the Callbox will automatically turn off. The
ON/PTT button must be pressed to turn the Callbox back on
and receive a call.
When the Callbox receives and decodes the correct 2-Tone
code the Callbox Switch Output will momentarily CLOSE the
switch for 1 second. The Callbox will also automatically
transmit a confirmation tone back to the senders radio
notifying them that the correct 2-tone code has been
decoded at the OUTPOST® Callbox.
O
PTIONAL
G
ATE
G
UARD
®
S
ETTING
/F
EATURES
..........................................
The OUTPOST® can be Field Programmed, or PC programmed
using special software, for customized GateGuard®
applications.
Automatic Turn-Off.......................................... (PC or FP)
This is ENABLED as the Factory Default setting. The callbox
will turn OFF when the RQX Reset Time has expired. The
Reset Time is a pre-programmed amount of time of “no activity”
(no calls transmitted, no calls received) before the callbox turns
OFF in order to conserve battery life. The callbox can be turned
back ON when the ON/PTT button is pressed. This is the
recommended mode of operation for all battery only powered
applications.
If Automatic Turn-Off is NOT selected the callbox does NOT
completely turn OFF, but remains in the Intercom mode,
allowing the callbox to receive calls at any time.
Operating the callbox with Automatic Turn-Off DISABLED
significantly increases battery drain, and is therefore NOT
recommended for battery only powered applications. Battery
life can be increased using the Battery Saver Enable feature
detailed in this section.
RQX Reset Time ...................................................... (PC or FP)
This is set from the factory for 10 seconds, but can be Field
Programmed to 9 different times ranging from 5 seconds to 4
minutes, and PC programmed for 5-255 seconds. A shorter
RQX Reset Time will result in increased battery life. In standard
Automatic Turn-Off operation a longer inactivity timer will allow
more time for a response before the callbox turns OFF.
Battery Saver Enable ........................................................ (PC)
When the OUTPOST® Callbox is programmed to operate with
Automatic Turn-Off DISABLED, Battery Saver can increase
battery life in both internal or external battery powered
applications.
With Battery Saver Enable, the callbox will periodically Wake-
Up and listen for a received signal before returning to a low
current Sleep mode. The sleep time can be PC programmed
between 0.5 - 8 seconds with the Battery Saver Sleep Time
setting. A longer sleep time will result in increased battery life,
but may result in missed calls.
The callbox immediately leaves Battery Saver mode any time
the ON/PTT Button is pressed or a signal is received, and will
not return to Battery Saver until the period of no activity
exceeds the RQX Reset Time.
External +12 VDC Power Fail Alert Tone .............. (PC or FP)
By selecting the +12 VDC Power Fail Alert Tone feature the
callbox will look for a loss of the +12 VDC power source. The
callbox will immediately transmit an Alert Tone to notify
personnel that the +12 VDC source has been lost and is now
operating on battery back-up. The callbox will transmit an Alert
Tone once every hour until the +12 VDC power source is
restored or until the back-up batteries are exhausted. Even if
this feature is NOT selected, it will always revert to Back-up
Battery power, see page 4 for details.
NOTE: In applications where external power is available, we
recommend using the RPS-EXPO Cube Power
Supply. See page 4 for details.
![](/img.php?id=2365602&img=bg1b.png)
6 Series OUTPOST® Wireless Callbox GateGuard® Application
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 25
O
PTIONAL
G
ATE
G
UARD
®
S
ETTING
/F
EATURES (
CONTINUED
)
..........................
Send Call Tone ........................................................ (PC or FP)
The Factory Default setting has the Call Tone feature ON (refer
to “HOW TO FIELD PROGRAM SINGLE-DIGIT RADIO FEATURE CODES”
on page 14). The callbox can be programmed to transmit a Call
Tone if the Reset Time has expired and the ON/PTT button is
pressed. This will alert system users that the call is originating
from the callbox.
Ring Tone .......................................................................... (PC)
This will sound an alert tone on the callbox speaker, similar to a
telephone ring tone, whenever the correct 2-tone code has
been successfully decoded. This feature is used to alert the
Callbox user that the gate is being opened or closed. Ring
Tone is enabled from the factory.
GateGuard® – Toggle ............................................. (PC or FP)
Will alternately open and close the Switch Output when it
receives a unique 2-Tone code. After the 2-tone decode
(receive) code is received the callbox will transmit a single beep
if the switch has been opened and a double beep if the switch
has been closed. The switch will open when the callbox turns
off if it is programmed for Automatic Turn-Off.
GateGuard® On Code / Off Code ..................................... (PC)
This operation allows programming of separate ON and OFF 2-
tone decode (receive) codes. The OUTPOST® will CLOSE the
Switch Output upon receiving the ON code, and OPEN the
Switch Output upon receiving the OFF code.
When reading out the radio programming as described in the
“HOW TO READOUT CURRENT RADIO FREQUENCY & TONE CODES”
section, the ON code will be displayed.
Relay Polarity
The relay switch output can be set for a normally-open or
normally-closed condition depending on the position of the
Relay Polarity Jumper.
Sensor/Contact Closure Input
The Sensor Input will detect a logic level and transmit an Alert
tone when a change in logic level is detected. Separate alert
tones are used for OPEN (logic level high) tone and CLOSED
(logic level low) tone. Additionally, the Sensor Input can be
used to turn on the RQX Callbox with the Sensor Input Jumper
in place.
Busy Channel TX Inhibit ........................................ (PC or FP)
This will not allow you to transmit when another user is already
transmitting on your radio frequency, even if they are using a
different tone code. The radio will beep a series of long, low
tones (like a busy signal) while the ON/PTT button is held
down.
![](/img.php?id=2365602&img=bg1c.png)
6 Series OUTPOST® Wireless Callbox Licensing
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 26
FCC Licensing
Except for the five (5) VHF MURS frequencies listed on page 12, the FCC
requires the owners of radios operating on these frequencies to obtain a
station license before using them.
The station licensee is responsible for ensuring that transmitter power,
frequency and deviation are within the limits specified by the station license.
The station licensee is also responsible for proper operation and
maintenance of the radio equipment. This includes checking the transmitter
frequency and deviation periodically, using appropriate methods.
To get an FCC license for VHF or UHF frequencies, submit FCC application
Form 601. Your Ritron dealer can help you with this process.
How to Obtain an FCC Radio License
Because your Ritron radio operates on Private Land Mobile frequencies, it
is subject to the Rules and Regulations of the FCC, which requires all
operators of these frequencies to obtain a station license before operating
their equipment. Make application for your FCC license on FCC Forms 601,
Schedules D and H, and Fee Remittance Form 159.
To have forms and instructions faxed to you by the FCC, call the FCC Fax-
On-Demand system at 202-418-0177 from your fax machine; request
Document numbers 3000159, 3060001, 3060003, and 3060006.
To have Document numbers 3000159, 3060001, 3060003, and 3060006
mailed to you, call the FCC Forms Hotline at 800-418-FORM (800-418-
3676).
For help with questions concerning the license application, contact the FCC
at 888-CALL-FCC (888-225-5322) or log on at www.fcc.gov
You must decide which radio frequency(ies) you can operate on before
filling out your application.
For help determining your frequencies, call Ritron at 800-USA-1-USA
(800-872-1872).
INDUSTRY CANADA Regulations
Industry Canada requires the owners of the radios to obtain a radio license
before using them.
Application forms can be obtained from the nearest Industry Canada District
office.
1. Fill in the items per the instructions. If you need additional space for
any item, use the reverse side of the application.
2. Use a typewriter or print legibly.
3. Make a copy for your files.
4. Prepare a check or money order to “Receiver General for Canada”, for
the amount listed at http://www.ic.gc.ca/eic/site/smt-
gst.nsf/eng/sf01027.html. (Licenses are renewed annually on April 1st.
Refer to the calculation for application fees for each month.)
5. Mail the completed application, along with your check or money order,
to the closest Industry Canada District Office.
Notes: Fees are subject to change without notice.
Safety Standards
The FCC (with its action in General Docket
79-144, March 13, 1985) has adopted a
safety standard for human exposure to radio
frequency electromagnetic energy emitted by
FCC regulated equipment. Ritron observes
these guidelines and recommends that you
do also:
• DO NOT hold the radio so that the antenna
is very close to or touching exposed parts
of the body, especially the face or eyes,
while transmitting. Keep the radio vertical,
eight inches away while talking into the
front panel.
• DO NOT press the Push-To-Talk except
when you intend to transmit.
• DO NOT operate radio equipment near
electrical blasting caps or in an explosive
atmosphere.
• DO NOT allow children to play with any
radio equipment that contains a
transmitting device.
• Repair of Ritron products should be
performed only by Ritron authorized
personnel.
Service
Federal law prohibits you from making any
internal adjustments to the transmitter, and / or
from changing transmit frequencies unless you
are specifically designated by the licensee.
If your radio equipment fails to operate properly,
or you wish to have the radio programmed,
contact your local authorized dealer or Ritron.
U.S. Manufacturer:
RITRON, INC. - Repair Department
505 West Carmel Drive,
Carmel, Indiana 46032 USA
Phone: 317-846-1201
FAX: 317-846-4978
Email: customer_service@ritron.com
![](/img.php?id=2365602&img=bg1d.png)
6 Series OUTPOST® Wireless Callbox Warranty
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 27
RITRON,
INC.
L
IMITED
W
ARRANTY
.......................................................
WHAT THIS WARRANTY COVERS:
RITRON, INC. ("RITRON") provides the following warranty against defects in materials and/or workmanship in RITRON Radios and Accessories
under normal use and service during the applicable warranty period (as stated below). "Accessories" means antennas, holsters, chargers, ear-
phones, speaker/microphones and items contained in the programming and programming/service kits.
WHAT IS COVERED FOR HOW LONG WHAT RITRON WILL DO
OUTPOST® Callboxes 1 year* During the first year after date of purchase, RITRON will repair or
replace the defective product, at RITRON's option, parts and labor
included at no charge.
Accessories 90 days* *After date of purchase
WHAT THIS WARRANTY DOES NOT COVER:
• Any technical information provided with the covered product or any other RITRON products;
• Installation, maintenance or service of the product, unless this is covered by a separate written agreement with RITRON;
• Any products not furnished by RITRON which are attached or used with the covered product, or defects or damage from the use of the covered
product with equipment that is not covered (such as defects or damage from the charging or use of batteries other than with covered product);
• Defects or damage, including broken antennas, resulting from:
- misuse, abuse, improper maintenance, alteration, modification, neglect, accident or act of God,
- the use of covered products other than in normal and customary manner or,
- improper testing or installation;
• Defects or damages from unauthorized disassembly, repair or modification, or where unauthorized disassembly, repair or modification prevents
inspection and testing necessary to validate warranty claims;
• Defects or damages in which the serial number has been removed, altered or defaced.
• Batteries if any of the seals are not intact.
IMPORTANT: This warranty sets forth the full extent of RITRON’s express responsibilities regarding the covered products, and is given in lieu of all
other express warranties. What RITRON has agreed to do above is your sole and exclusive remedy. No person is authorized to make any other
warranty to you on behalf of RITRON. Warranties implied by state law, such as implied warranties of merchantability and fitness for a particular pur-
pose, are limited to the duration of this limited warranty as it applies to the covered product. Incidental and consequential damages are not recover-
able under this warranty (this includes loss of use or time, inconvenience, business interruption, commercial loss, lost profits or savings). Some
states do not allow the exclusion or limitation of incidental or consequential damages, or limitation on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to you. Because each covered product system is unique, RITRON disclaims liability for range, cover-
age, or operation of the system as a whole under this warranty.
WHO IS COVERED BY THIS WARRANTY: This warranty is given only to the purchaser or lessee of covered products when acquired for use,
not resale. This warranty is not assignable or transferable.
HOW TO GET WARRANTY SERVICE: To receive warranty service, you must deliver or send the defective product, delivery costs and insur-
ance prepaid, within the applicable warranty period, to RITRON, INC., 505 West Carmel Drive, Carmel, Indiana 46032, Attention: Warranty De-
partment. Please point out the nature of the defect in as much detail as you can. You must retain your sales or lease receipt (or other written evi-
dence of the date of purchase) and deliver it along with the product. If RITRON chooses to repair or replace a defective product, RITRON may re-
place the product or any part or component with reconditioned product, parts or components. Replacements are covered for the balance of the orig-
inal applicable warranty period. All replaced covered products, parts or components become RITRON’s property.
RIGHTS TO SOFTWARE RETAINED : Title and all rights or licenses to patents, copyrights, trademarks and trade secrets in any RITRON
software contained in covered products are and shall remain in RITRON. RITRON nevertheless grants you a limited non-exclusive, transferable right
to use the RITRON software only in conjunction with covered products. No other license or right to the RITRON software is granted or permitted.
YOUR RIGHTS UNDER STATE LAW: This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
WHERE THIS WARRANTY IS VALID: This warranty is valid only within the United States, the District of Columbia and Puerto Rico.
