User Manual
Start making your home smart!
You need the Bosch Smart Cameras
App to install, configure and use
your Bosch Smart Home Eyes-

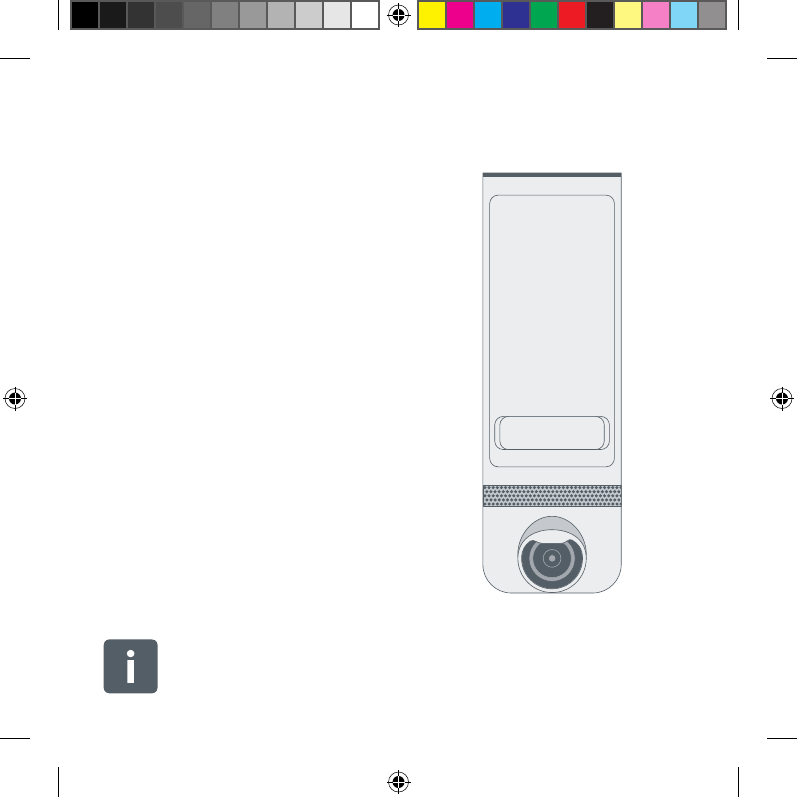

Outdoor Camera.
Please also make sure that you have
a Wi-fi internet connection available
in the installation location.
Make sure that you download the
Bosch Smart Cameras App first!
5792_Outdoor_Kamera_160818.indd 2 19.08.16 10:46

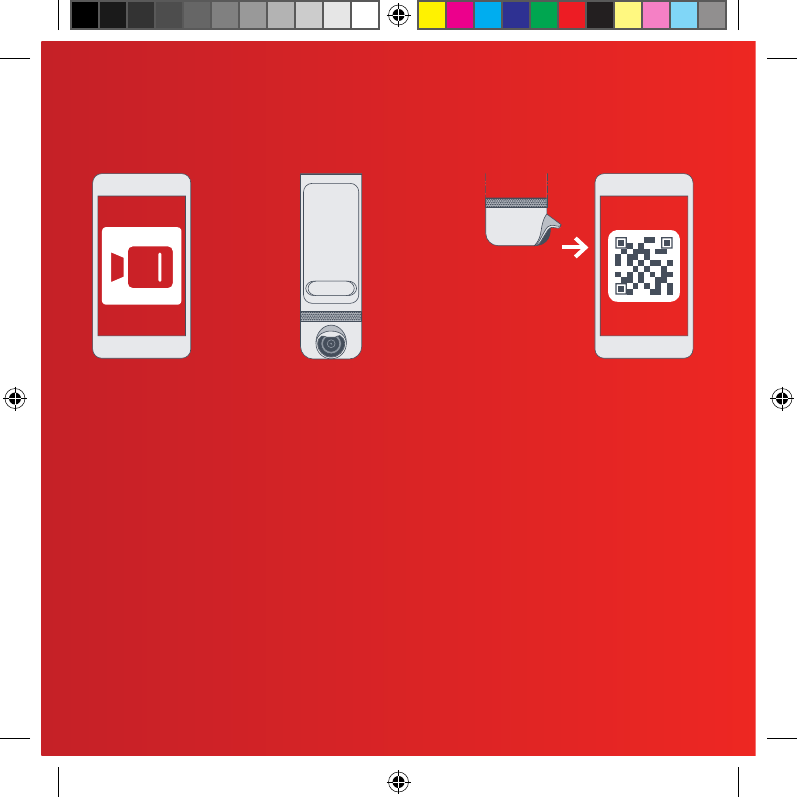

Set up your Eyes-Outdoor Camera in just three steps
▶ Start the Bosch
Bosch Smart
Cameras App
▶ Mount the Eyes-
Outdoor Camera
and power it up

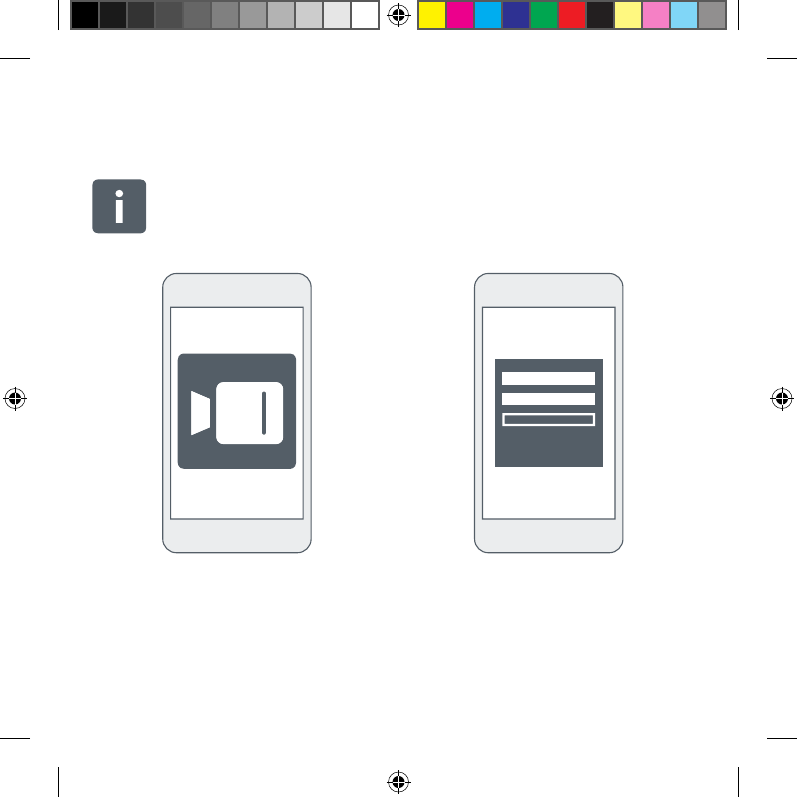

▶ Use the Bosch Smart
Cameras App to
connect and configure
your Eyes-Outdoor
Camera
5792_Outdoor_Kamera_160818.indd 3 19.08.16 10:46
5792_Outdoor_Kamera_160818.indd 4 19.08.16 10:46
5
Congratulations with the purchase of your Bosch Smart Home Eyes-Outdoor
Camera. It will help you to make your home more secure and smarter. Integrated
motion sensors automatically detect motion and record events, whilst the built-in
lights ensure high quality images at night and offer an attractive illumination to the
exterior of your home. With the Bosch Smart Cameras App you can access the
recordings and live images from anywhere, so you will always know if everything
is in order around your home.
We hope you enjoy your new product,
The Bosch Smart Home Team
Dear Customer,
5792_Outdoor_Kamera_160818.indd 5 19.08.16 10:46
6
INDEX
1.0 Product overview ....................08
1.1 Target application .....................09
2.0 In the box ................................. 10
3.0 Warning notices ......................12
3.1 Safety message explanation ..... 12
3.2 Legal notice ............................... 13
3.3 Safety precautions .................... 14
4.0 Indicators and control ............ 16
4.1 Product overview ...................... 16
5.0 Fixing ........................................ 20
5.1 Fixing instructions ..................... 20
5.2 Check the Wi-fi availability ........ 21
5.3 Install the mounting plate .......... 22
5.4 Power connection ..................... 25
5.5 Place the
Eyes-Outdoor Camera ............... 26
5792_Outdoor_Kamera_160818.indd 6 19.08.16 10:46
7
6.0 Installation and initial
configuration ...........................28
6.1 Start Cameras App .................... 21
6.2 Add Eyes-Outdoor Camera
to network ................................. 22
7.0 Eyes-Outdoor Camera
operation .................................32
8.0 Error and error resolutions ....33
9.0 Product details ........................ 34
8.1 Technical details ....................... 34
8.2 Declaration of conformity ......... 35
8.3 Faults in radio operation ........... 36
8.4 Open-Source-Software .............36
8.5 Environmental protection
and product disposal ................ 38
10.0 Further informations ............39
5792_Outdoor_Kamera_160818.indd 7 19.08.16 10:46
8
Bosch Smart Home Eyes-Outdoor
Camera is controlled via Wi-fi and has
the following features:
▶ LED-front light
▶ Decorative top/bottom lights
▶ Internal memory stores capable of
storing up to 200 events
▶ Microphone and speaker for
two-way communication
1.0 PRODUCT OVERVIEW
Detailed information on advanced set-up and sharing
can be found at www.bosch-smarthome.com
5792_Outdoor_Kamera_160818.indd 8 19.08.16 10:46
9
Do not open or modify the product in any way. Any other use
is considered unintended use. We will not assume liability for any
resulting damage.
1.1 Target application
The product must only be used to-
gether with original Bosch Smart
Home components, and is for outdoor
use only.
▶ Please make sure you strictly follow
the safety and installation instruc-
tions in this document as well as in
the Bosch Smart Cameras App
▶ Only use the Outdoor Camera ac-
cording the installation instructions
and within the temperature and
humidity limits as described in the
Technical Data section (see p. 34)
▶ Avoid direct sun light and sources
of heat and cold
5792_Outdoor_Kamera_160818.indd 9 19.08.16 10:46
10

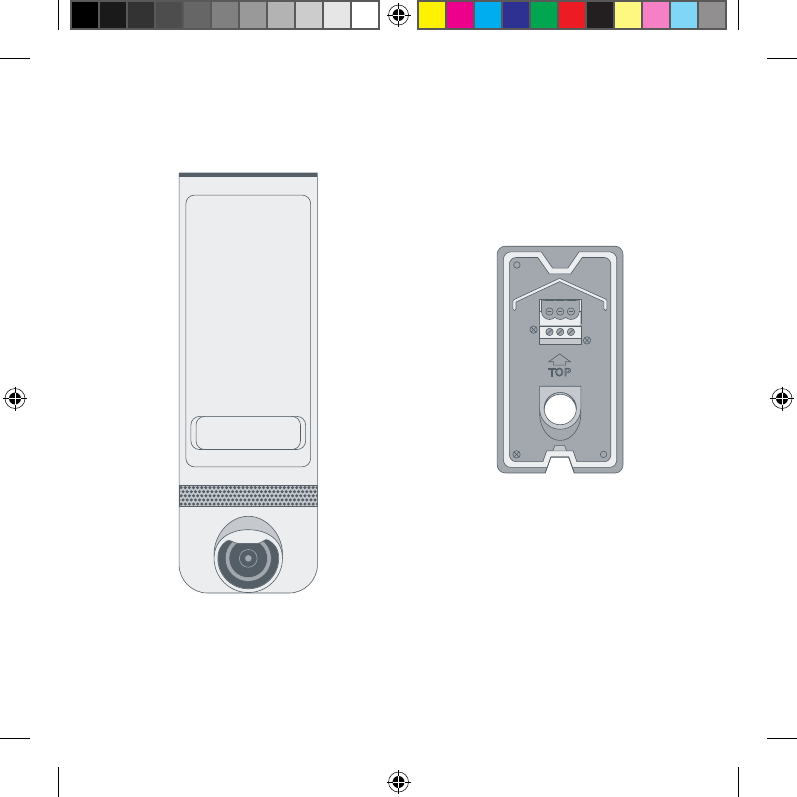

2.0 IN THE BOX
Wall mounting plateEyes-Outdoor Camera
5792_Outdoor_Kamera_160818.indd 10 19.08.16 10:46
11

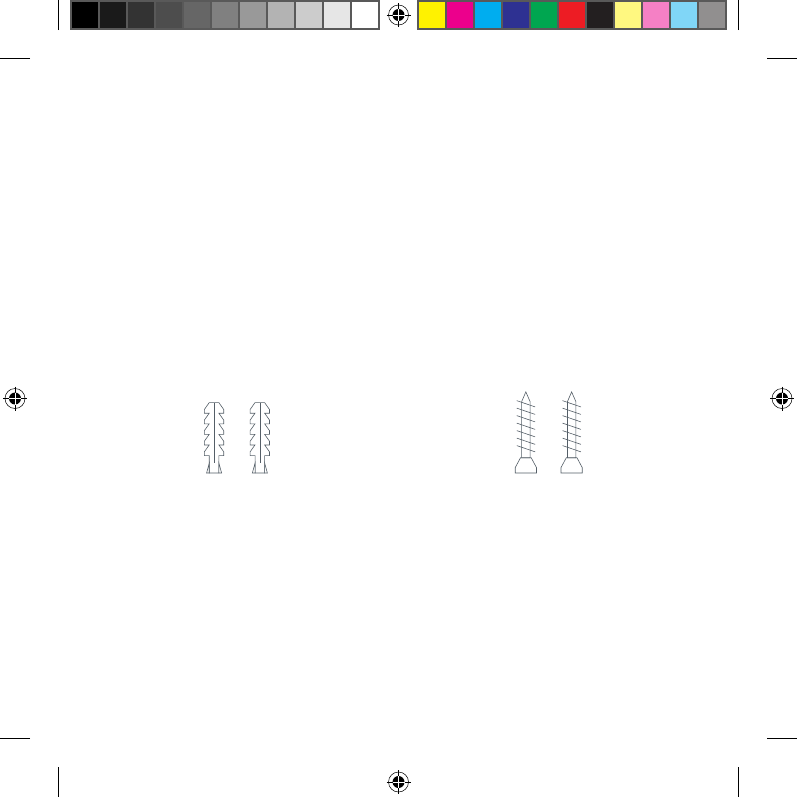

2 wall plugs 2 mounting screws
5792_Outdoor_Kamera_160818.indd 11 19.08.16 10:46
12
3.0 WARNING NOTICES
3.1 Safety message explanation
Notice!
Indicates a situation which, if not avoided, could result to
damage of the equipment or environment, or data loss.
Caution!
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
5792_Outdoor_Kamera_160818.indd 12 19.08.16 10:46
13
3.2 Legal notice
Privacy
The Bosch Smart Home Eyes-Outdoor Camera is designed for outdoor
personal use. Laws in your country may restrict the observation of
areas outside your private property. Please check your local legisla-
tion. To respect privacy, please avoid placing your Eyes-Outdoor
Camera to record public space including the street as well as private
property of your neighbors. We advise you to inform relatives, visitors
and home employees that a Eyes-Outdoor Camera is installed and
might be in operation.
Security
By using the Bosch Smart Home Eyes-Outdoor Camera you agree not
to rely on the device and its services for life safety or critical purposes.
Mobile notifications are provided for informational purposes only.
Bosch Smart Home GmbH cannot be held liable for missing or in-
correct notifications or event registrations.
5792_Outdoor_Kamera_160818.indd 13 19.08.16 10:46
14
3.3 Safety precautions
Do not open the Eyes-Outdoor Camera. The Eyes-Outdoor Camera
does not contain any user replaceable parts. If the Eyes-Outdoor
Camera stops working please contact customer service via telephone
00800 843 762 78. Please adhere to manual instructions on intended use.
Caution, risk of electric shock
The light source contained in this luminaire shall only be replaced by
the manufacturer or his service agent or a similar qualified person.
Please only use the power supply which was delivered with the
Eyes-Outdoor Camera. Please do not paint the Eyes-Outdoor Camera.
Recommended replacement of Eyes-Outdoor Camera after 10 years.
This product must only be installed by people legally qualified to install
230 V devices. Please check your local legislation in case of doubts.
5792_Outdoor_Kamera_160818.indd 14 19.08.16 10:46
15
US/Canada installation
Installations and servicing must be done by qualified technicians and
comply with:
▶ Installed per the American National Electrical Code (NEC), article
280, or Canadian Electric Code (CEC) guidelines as applicable.
The conducting voltage of the surge protector device (SPD) or surge
arrestor must be less than 2,500 Vpk
▶ The branch circuit socket-outlet or circuit breaker shall be installed
near the equipment and shall be easily accessible
▶ The equipment is designed only for normal building installations
(110 VAC 60 Hz)
▶ Use an appropriate 16-AWG power cord for this device. Use UL-listed
flexible cord, SJ or SO serviceable or better, labeled with the suffix
“W,” “W-A,” “Water-Resistant,” or “Outdoor” marked on the cord.
Do not allow anything to rest on the power cord and do not install
the product where someone can walk on the power cord
▶ Do not perform installation activities during thunder storms or when
the threat of lightning is present
5792_Outdoor_Kamera_160818.indd 15 19.08.16 10:46
4
5
2
3
1
16

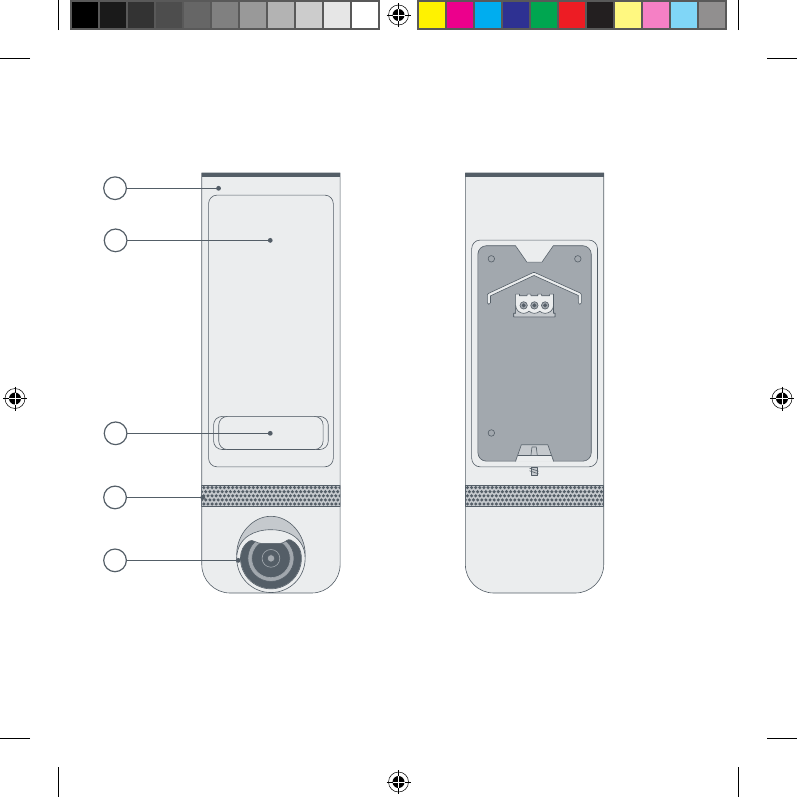

4.0 INDICATORS AND CONTROL
4.1 Product overview
Front Back
5792_Outdoor_Kamera_160818.indd 16 19.08.16 10:46
17
Pos. Description Explanation
1Camera body –
2Front light
Automatically switches on when movement
is detected in the dark. can optionally be used as
decoration or welcome light
3Motion detector 180° 10 m range
4Speaker mesh Protects the speaker and microphone
5Wide angle lens
Covers a horizontal viewing angle of 120 degrees;
the direction of view can be optimized during
installation
5792_Outdoor_Kamera_160818.indd 17 19.08.16 10:46
6
6
7
8
9
18
4.0 INDICATORS AND CONTROL
4.1 Product overview
Top
Bottom
Wall mounting plate
5792_Outdoor_Kamera_160818.indd 18 19.08.16 10:46
19
Pos. Description Explanation
6Decorative light Top and bottom decoration lights
7Reset hole Resets all settings in the camera, deletes all stored
video, removes the camera from your system
8Terminal block Connection for live, neutral and ground wires
9Cable entry Please make sure the power cable is routed
through this entry hole
5792_Outdoor_Kamera_160818.indd 19 19.08.16 10:46
20

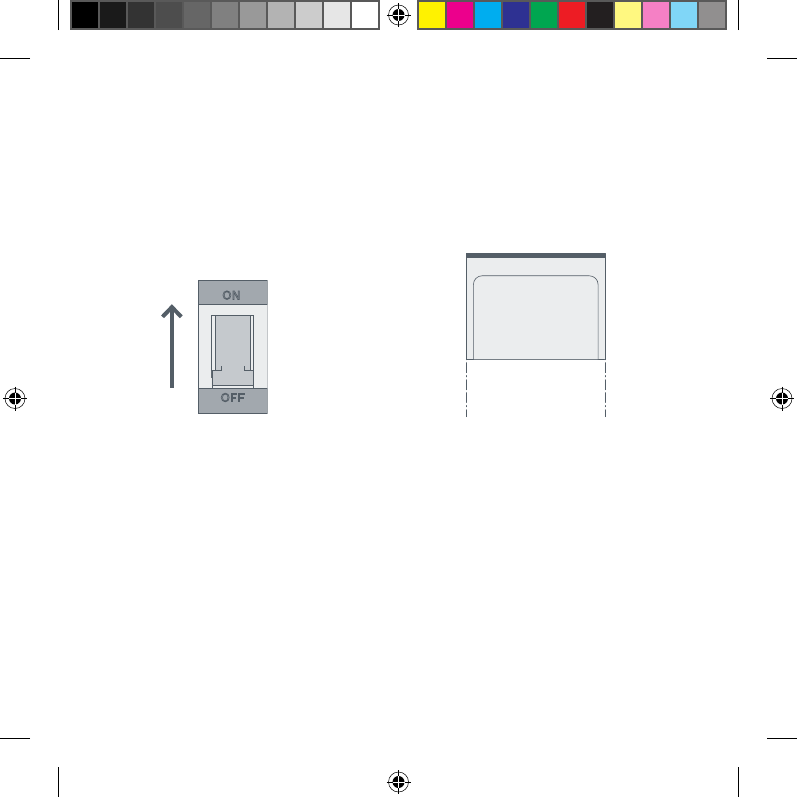

5.0 FIXING
5.1 Fixing instructions
Before you start
Please turn off the electricity at all costs!
5792_Outdoor_Kamera_160818.indd 20 19.08.16 10:46
3G/4G
21
The Eyes-Outdoor Camera needs a stable and sufficiently
strong Wi-fi connection.

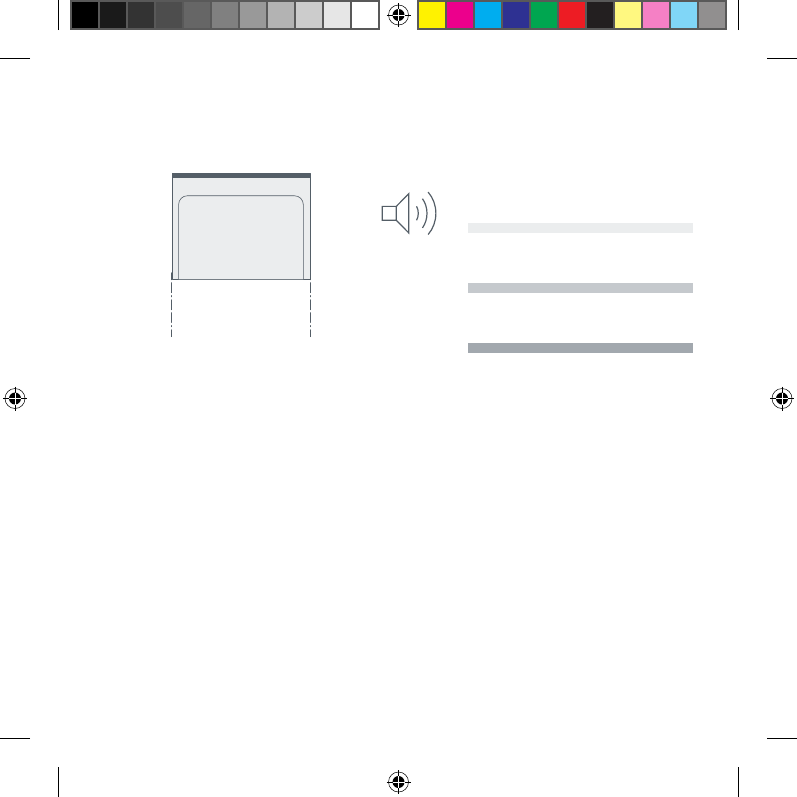

5.2 Check the Wi-fi availability
Please choose the location where
you would like to position your
Eyes- Outdoor Camera and check the
strength of the Wi-fi-signal using your
smart phone.
The table above indicates if the Wi-fi
connection strength is sufficient
for use in combination with the Eyes-
Outdoor Camera.
5792_Outdoor_Kamera_160818.indd 21 19.08.16 10:46
22
5.3 Install the wall mounting plate
The Eyes-Outdoor Camera needs 230 VAC power supply
(with live, neutral and ground connections).
The Eyes-Outdoor Camera must be installed vertically at a wall
between 1.5 and 2.5 meter height above ground.
The Eyes-Outdoor Camera must be installed with the camera
at the bottom.
Before you start the installation please ensure the
power is switched off at the main power switch.
5792_Outdoor_Kamera_160818.indd 22 19.08.16 10:46
23

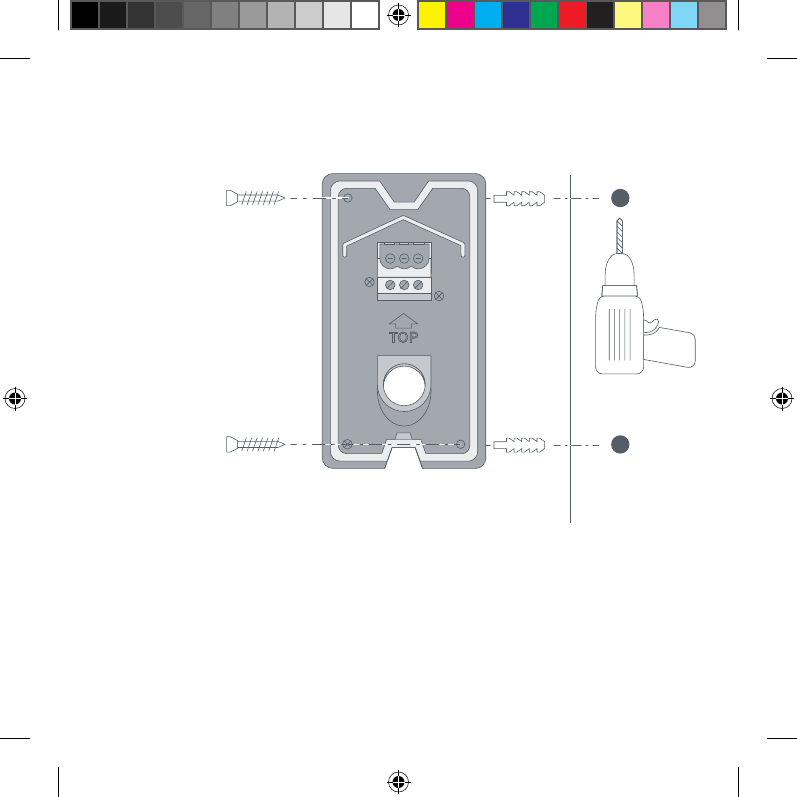

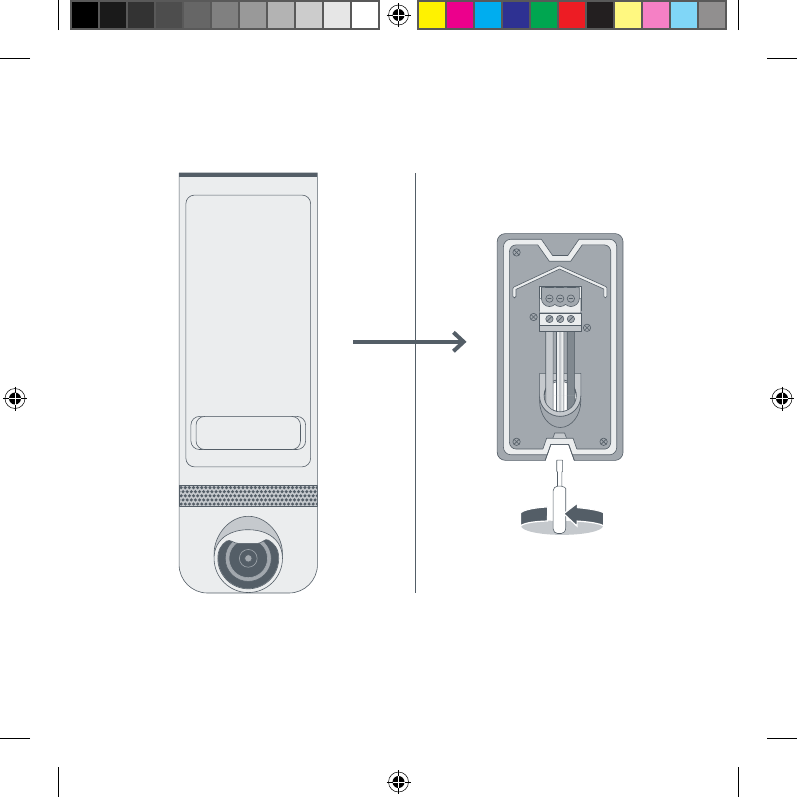

Position the wall mount in the desired
location, pull the cable through the
cable entry and mark the two screws
on the wall through the screw holes.
5792_Outdoor_Kamera_160818.indd 23 19.08.16 10:46
24
Remove the mounting plate and drill
the holes for the plugs.
Push in the plugs and fix the mounting
plate on the wall with the screws.
5792_Outdoor_Kamera_160818.indd 24 19.08.16 10:46
N
L
PE
25

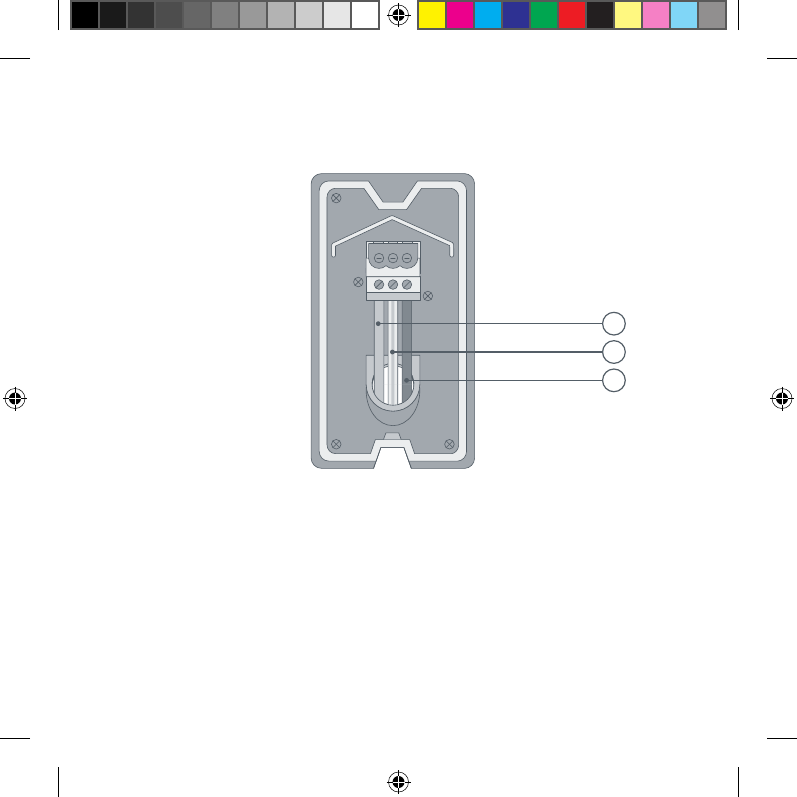

5.4 Power connection
Connect the power wires as indicated.
5792_Outdoor_Kamera_160818.indd 25 19.08.16 10:46
26
5.5 Place the Eyes-Outdoor Camera
Push the Eyes-Outdoor Camera onto
the mounting plate until you hear a click.
Lock the camera in place with the
locking screw.
5792_Outdoor_Kamera_160818.indd 26 19.08.16 10:46
27
You can now switch on the power.
When the camera is switched on it will
boot automatically, indicated by a red
light ring at the top of the front light.
When the camera is ready to connect
to the Wi-fi the light ring blinks green.
5792_Outdoor_Kamera_160818.indd 27 19.08.16 10:46
28
6.0 INSTALLATION AND INITIAL CONFIGURATION
Before you start
Please first download the Bosch Smart Cameras App. You need the
app to install and configure the Eyes-Outdoor Camera. Make sure
you have a Wi-Fi internet connection available and the password to
hand. Make sure your smart phone is connected to the same Wi-fi
network you want to use for the camera.
For Android Devices Für Apple iOS-Geräte
▶ Open Google Play
▶ Search for “Bosch Smart Home”
▶ Select the “Bosch Smart Cameras
App”
▶ Tap “Install”
▶ Open the App Store
▶ Search for “Bosch Smart Home”
▶ Select the “Bosch Smart Cameras
App”
▶ Tap “Install”
5792_Outdoor_Kamera_160818.indd 28 19.08.16 10:46
29
To configure the Eyes-Outdoor Camera you need to make sure your
phone is connected to the same Wi-fi network you want to connect the
device to.
6.1 Start Cameras App
Start the Bosch Smart Cameras App and
login with your Bosch account or register.
5792_Outdoor_Kamera_160818.indd 29 19.08.16 10:46
30

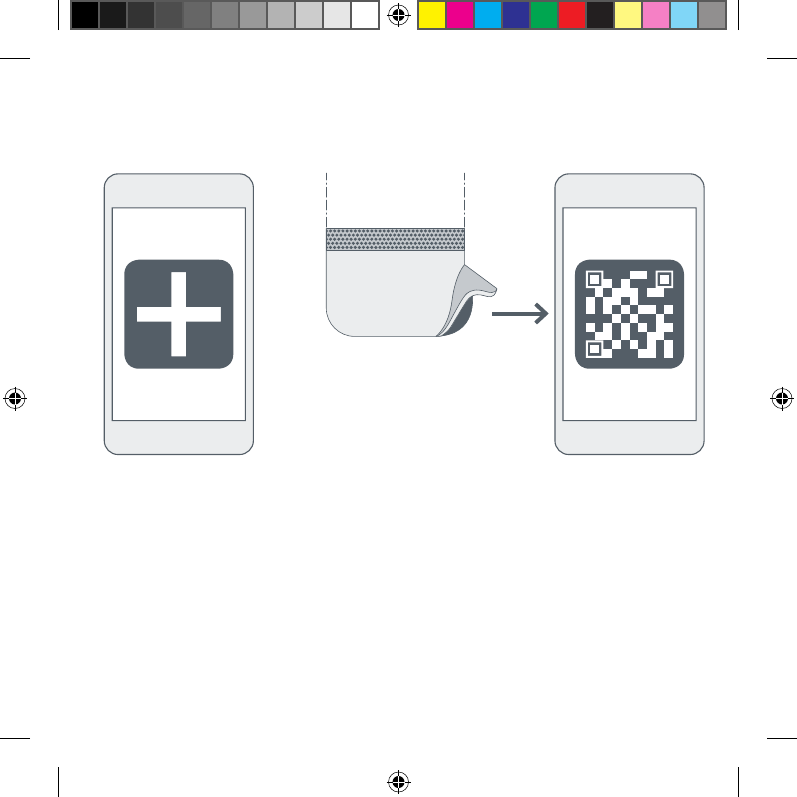

6.2 Configuration of the Eyes-Outdoor Camera
In the Bosch Smart Cameras App
overview screen, select “Add Camera”.
Follow the steps indicated in the app
and enter the Wi-fi-password of the
network you want to connect your
camera.
The app will now generate a QR code.
Please show this QR code to the
Eyes-Outdoor Camera from about a
half arm’s length away.
5792_Outdoor_Kamera_160818.indd 30 19.08.16 10:46
31
When the Eyes-Outdoor Camera
recognized the QR code, you will hear
a beep and the light ring turns green
for about 3 seconds. The camera will
automatically reboot, indicated by the
light ring being red.
It will then automatically connect to
the Wi-fi and cloud services. Once
the connection and configuration is
completed the light ring turns blue.
The camera is now ready for use.
Whenever it streams video the light
ring will light up blue.
20 sec.
3 sec.Green
Red
Blue
5792_Outdoor_Kamera_160818.indd 31 19.08.16 10:46
32
7.0 EYES-OUTDOOR CAMERA OPERATION
The Eyes-Outdoor Camera is operated
and controlled via the Bosch Smart
Cameras App.
More details on all functionality can
be found online in the FAQs section at:
www.bosch-smarthome.com
5792_Outdoor_Kamera_160818.indd 32 19.08.16 10:46
33
8.0 ERROR AND ERROR RESOLUTIONS
More detailed information, like how to reset your camera to factory
defaults, visit the online FAQs at www.bosch-smarthome.com
Error Error indicator Measure
– LED off
Please check the power
supply connection to your
camera
Generic boot error LED blinks red
Switch off mains fuse or
remove camera from wall,
wait 30 seconds and then
power up again
Connection to
Wi-fi failed
LED blinks alternating
red and green
Check the strength of the
Wi-fi signal (on the camera
and on your smartphone).
Tap previous in the app,
re-enter the Wi-fi password,
create new QR code and show
QR code to the camera
Connection to cloud
service failed
LED blinks alternating
red and blue
Check the internet
connection of your router;
if OK, wait 30 minutes
5792_Outdoor_Kamera_160818.indd 33 19.08.16 10:46
34
9.0 PRODUCT DETAILS
9.1 Technical details
Product name Outdoor Camera
Article number F01U314889
Resolution 1920 x 1080 (1080p)
Viewing angle 112°
Wi-fi IEEE 802.11b/g/n
Wi-fi free field range 80 m
Dimensions (H x W x D) 210 mm x 70 mm x 100 mm
Power Supply 210–250 VAC, 50 Hz
Current consumption max. 15 W
Current consumption
front illumination
max. 7 W
Current consumption
top/down illumination
je 1 W
Weight 750 g
Operational temperature -20 °C bis +50 °C
Dimensions packaging 285 mm x 190 mm x 100 mm
5792_Outdoor_Kamera_160818.indd 34 19.08.16 10:46
35
9.2 Declaration of conformity
Robert Bosch Smart Home GmbH
hereby declares that the Bosch Smart
Home Eyes-Outdoor Camera complies
with Directive 1999/5/EC and is
designed for use in all countries of the
European Union.
The declaration of conformity
and declaration of performance
can be downloaded from
www.bosch-smarthome.com
5792_Outdoor_Kamera_160818.indd 35 19.08.16 10:46
36
9.3 Faults in radio operation
Faults in radio operation (e.g. due
to electric motors or defective electri-
cal devices) cannot be ruled out.
The radio range inside buildings may
differ greatly from the radio range in
free-field conditions. Apart from the
transmission power and the receiver
characteristics, environmental influ-
ences such as humidity and structural
characteristics may also influence
radio operation.
9.4 Open-Source-Software
This Bosch Smart Home product uses
open-source software. You will find
the license information for the compo-
nents used on the opposite site.
5792_Outdoor_Kamera_160818.indd 36 19.08.16 10:46
37
Copyright (C) 2009-2013 ARM Limited. All rights reserved. Redistribution and
use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
▶ Redistributions of source code must retain the above copyright notice, this list
of conditions and the following disclaimer
▶ Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the following disclaimer in the documentation and/or
other materials provided with the distribution
▶ Neither the name of ARM nor the names of its contributors may be used to
endorse or promote products derived from this software without specific prior
written permission
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIB-
UTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUB-
STITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
5792_Outdoor_Kamera_160818.indd 37 19.08.16 10:46
38
9.5 Environmental protection and product disposal
Environmental protection and disposal
Electrical and electronic equipment
that is no longer usable and defective
or used batteries must be separated
from other waste and recycled in
anenvironmentally friendly manner
(European Directive on waste electri-
cal and electronic equipment).
To dispose of old electrical and
electronic equipment or batteries,
use your country-specific return
and collection systems.
5792_Outdoor_Kamera_160818.indd 38 19.08.16 10:46
39
You can find more detailed informa tion
on operating and maintaining the
Eyes-Outdoor Camera in the online
FAQs at
www.bosch-smarthome.com/faq
You will also find all contact details on
the rear side of this document.
10.0 FURTHER INFORMATIONS
Sale and transfer
Before you transfer or sell your device, delete your personal
information. To do this, reset the device to its factory settings
(see online FAQs).
5792_Outdoor_Kamera_160818.indd 39 19.08.16 10:46
40
5792_Outdoor_Kamera_160818.indd 40 19.08.16 10:46
#BeSmarter
5792_Outdoor_Kamera_160818.indd 41 19.08.16 10:46
Bosch Smart Home offers a range of products to make your life
more comfortable, safer and more sustainable.
More at www.bosch-smarthome.com
INTERCONNECTED SMART HOME PRODUCTS
5792_Outdoor_Kamera_160818.indd 42 19.08.16 10:46
5792_Outdoor_Kamera_160818.indd 43 19.08.16 10:46
Robert Bosch Smart Home GmbH
Schockenriedstraße 17
D-70565 Stuttgart-Vaihingen
+49 00800 8437 6278 (free for UK)
Mon–Fri 7:00 am–8:00 pm
Sat 8:00 am–6:00 pm
service@bosch-smarthome.com
09/2016 F.01U.326.436
5792_Outdoor_Kamera_160818.indd 44 19.08.16 10:46
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
— Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules standard. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna
or transmitter.
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user authority to operate the equipment.
Referring to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated
simultaneously without C2P.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and
your body.
