Robertshaw Controls d b a Invensys Home Control Systems EMST-100 RF Thermostat User Manual 111 315

Robertshaw Controls Company d/b/a Invensys Home Control Systems RF Thermostat 111 315

User Manual

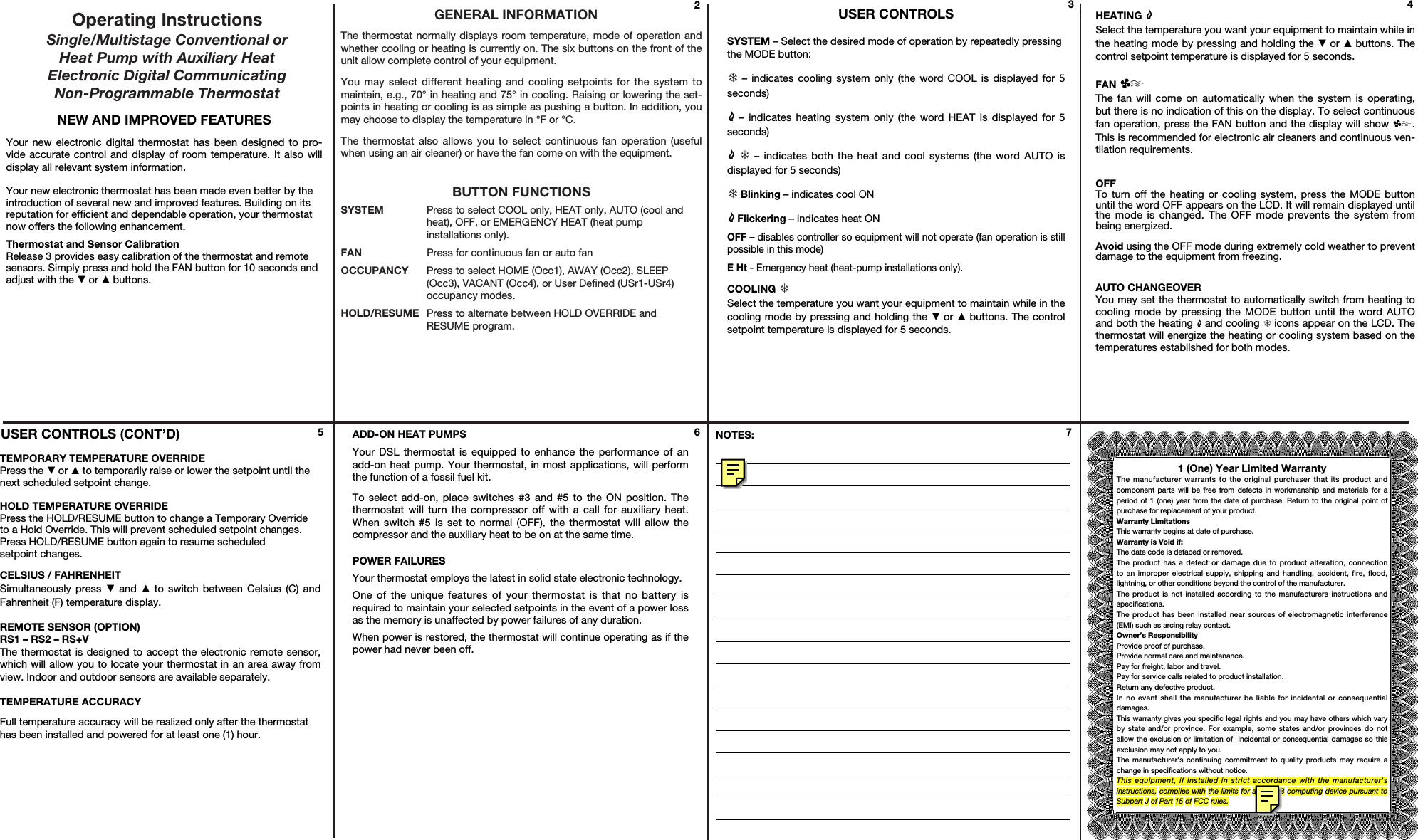

GENERAL INFORMATIONThe thermostat normally displays room temperature, mode of operation andwhether cooling or heating is currently on. The six buttons on the front of theunit allow complete control of your equipment.You may select different heating and cooling setpoints for the system tomaintain, e.g., 70° in heating and 75° in cooling. Raising or lowering the set-points in heating or cooling is as simple as pushing a button. In addition, youmay choose to display the temperature in °F or °C.The thermostat also allows you to select continuous fan operation (usefulwhen using an air cleaner) or have the fan come on with the equipment.BUTTON FUNCTIONSSYSTEM Press to select COOL only, HEAT only, AUTO (cool andheat), OFF, or EMERGENCY HEAT (heat pump installations only).FAN Press for continuous fan or auto fanOCCUPANCY Press to select HOME (Occ1), AWAY (Occ2), SLEEP(Occ3), VACANT (Occ4), or User Defined (USr1-USr4) occupancy modes.HOLD/RESUME Press to alternate between HOLD OVERRIDE andRESUME program.Operating InstructionsSingle/Multistage Conventional orHeat Pump with Auxiliary HeatElectronic Digital CommunicatingNon-Programmable ThermostatHEATING Select the temperature you want your equipment to maintain while inthe heating mode by pressing and holding the or buttons. Thecontrol setpoint temperature is displayed for 5 seconds.FAN The fan will come on automatically when the system is operating,but there is no indication of this on the display. To select continuousfan operation, press the FAN button and the display will show .This is recommended for electronic air cleaners and continuous ven-tilation requirements.OFFTo turn off the heating or cooling system, press the MODE buttonuntil the word OFF appears on the LCD. It will remain displayed untilthe mode is changed. The OFF mode prevents the system frombeing energized.Avoid using the OFF mode during extremely cold weather to preventdamage to the equipment from freezing.AUTO CHANGEOVERYou may set the thermostat to automatically switch from heating tocooling mode by pressing the MODE button until the word AUTOand both the heating and cooling icons appear on the LCD. Thethermostat will energize the heating or cooling system based on thetemperatures established for both modes.USER CONTROLS (CONT’D)TEMPORARY TEMPERATURE OVERRIDE Press the or to temporarily raise or lower the setpoint until thenext scheduled setpoint change.HOLD TEMPERATURE OVERRIDEPress the HOLD/RESUME button to change a Temporary Override to a Hold Override. This will prevent scheduled setpoint changes.Press HOLD/RESUME button again to resume scheduled setpoint changes.CELSIUS / FAHRENHEITSimultaneously press and to switch between Celsius (C) andFahrenheit (F) temperature display.REMOTE SENSOR (OPTION)RS1 – RS2 – RS+VThe thermostat is designed to accept the electronic remote sensor,which will allow you to locate your thermostat in an area away fromview. Indoor and outdoor sensors are available separately.TEMPERATURE ACCURACYFull temperature accuracy will be realized only after the thermostathas been installed and powered for at least one (1) hour.NOTES:ADD-ON HEAT PUMPSYour DSL thermostat is equipped to enhance the performance of anadd-on heat pump. Your thermostat, in most applications, will performthe function of a fossil fuel kit.To select add-on, place switches #3 and #5 to the ON position. Thethermostat will turn the compressor off with a call for auxiliary heat.When switch #5 is set to normal (OFF), the thermostat will allow thecompressor and the auxiliary heat to be on at the same time.POWER FAILURESYour thermostat employs the latest in solid state electronic technology.One of the unique features of your thermostat is that no battery isrequired to maintain your selected setpoints in the event of a power lossas the memory is unaffected by power failures of any duration.When power is restored, the thermostat will continue operating as if thepower had never been off.USER CONTROLS SYSTEM – Select the desired mode of operation by repeatedly pressingthe MODE button:– indicates cooling system only (the word COOL is displayed for 5seconds)– indicates heating system only (the word HEAT is displayed for 5 seconds)– indicates both the heat and cool systems (the word AUTO is displayed for 5 seconds)Blinking – indicates cool ONFlickering – indicates heat ONOFF – disables controller so equipment will not operate (fan operation is stillpossible in this mode)E Ht - Emergency heat (heat-pump installations only).COOLING Select the temperature you want your equipment to maintain while in thecooling mode by pressing and holding the or buttons. The controlsetpoint temperature is displayed for 5 seconds.2345 6 71 (One) Year Limited WarrantyThe manufacturer warrants to the original purchaser that its product and component parts will be free from defects in workmanship and materials for aperiod of 1 (one) year from the date of purchase. Return to the original point ofpurchase for replacement of your product.Warranty LimitationsThis warranty begins at date of purchase.Warranty is Void if:The date code is defaced or removed.The product has a defect or damage due to product alteration, connection to an improper electrical supply, shipping and handling, accident, fire, flood, lightning, or other conditions beyond the control of the manufacturer.The product is not installed according to the manufacturers instructions andspecifications.The product has been installed near sources of electromagnetic interference(EMI) such as arcing relay contact.Owner’s ResponsibilityProvide proof of purchase.Provide normal care and maintenance.Pay for freight, labor and travel.Pay for service calls related to product installation.Return any defective product.In no event shall the manufacturer be liable for incidental or consequential damages.This warranty gives you specific legal rights and you may have others which varyby state and/or province. For example, some states and/or provinces do notallow the exclusion or limitation of  incidental or consequential damages so thisexclusion may not apply to you.The manufacturer’s continuing commitment to quality products may require achange in specifications without notice.This equipment, if installed in strict accordance with the manufacturer's instructions, complies with the limits for a Class B computing device pursuant toSubpart J of Part 15 of FCC rules.NEW AND IMPROVED FEATURESYour new electronic digital thermostat has been designed to pro-vide accurate control and display of room temperature. It also willdisplay all relevant system information.Your new electronic thermostat has been made even better by theintroduction of several new and improved features. Building on itsreputation for efficient and dependable operation, your thermostatnow offers the following enhancement.Thermostat and Sensor CalibrationRelease 3 provides easy calibration of the thermostat and remotesensors. Simply press and hold the FAN button for 10 seconds andadjust with the or buttons.

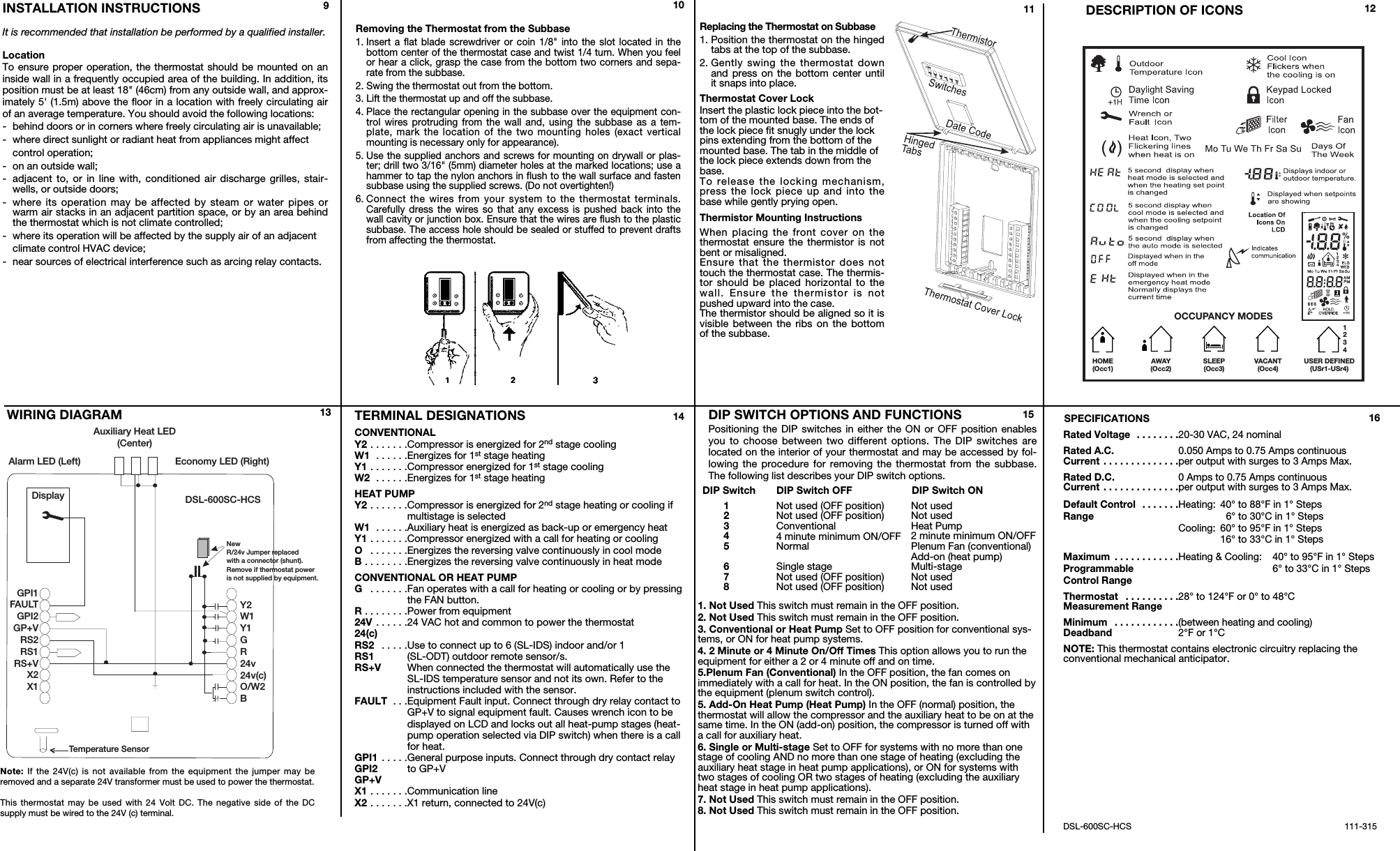

INSTALLATION INSTRUCTIONSIt is recommended that installation be performed by a qualified installer.LocationTo ensure proper operation, the thermostat should be mounted on aninside wall in a frequently occupied area of the building. In addition, itsposition must be at least 18" (46cm) from any outside wall, and approx-imately 5' (1.5m) above the floor in a location with freely circulating airof an average temperature. You should avoid the following locations:-behind doors or in corners where freely circulating air is unavailable;-where direct sunlight or radiant heat from appliances might affect control operation;-on an outside wall;-adjacent to, or in line with, conditioned air discharge grilles, stair-wells, or outside doors;-where its operation may be affected by steam or water pipes orwarm air stacks in an adjacent partition space, or by an area behindthe thermostat which is not climate controlled;-where its operation will be affected by the supply air of an adjacent climate control HVAC device;-near sources of electrical interference such as arcing relay contacts.TERMINAL DESIGNATIONSCONVENTIONALY2 . . . . . . .Compressor is energized for 2nd stage coolingW1  . . . . . .Energizes for 1st stage heatingY1 . . . . . . .Compressor energized for 1st stage coolingW2  . . . . . .Energizes for 1st stage heatingHEAT PUMPY2 . . . . . . .Compressor is energized for 2nd stage heating or cooling ifmultistage is selectedW1  . . . . . .Auxiliary heat is energized as back-up or emergency heatY1 . . . . . . .Compressor energized with a call for heating or coolingO . . . . . . .Energizes the reversing valve continuously in cool modeB . . . . . . . .Energizes the reversing valve continuously in heat modeCONVENTIONAL OR HEAT PUMPG . . . . . . .Fan operates with a call for heating or cooling or by pressingthe FAN button.R . . . . . . . .Power from equipment24V . . . . . .24 VAC hot and common to power the thermostat24(c)RS2  . . . . .Use to connect up to 6 (SL-IDS) indoor and/or 1RS1 (SL-ODT) outdoor remote sensor/s.RS+V When connected the thermostat will automatically use theSL-IDS temperature sensor and not its own. Refer to theinstructions included with the sensor.FAULT  . . .Equipment Fault input. Connect through dry relay contact toGP+V to signal equipment fault. Causes wrench icon to bedisplayed on LCD and locks out all heat-pump stages (heat-pump operation selected via DIP switch) when there is a callfor heat.GPI1 . . . . .General purpose inputs. Connect through dry contact relayGPI2 to GP+VGP+VX1 . . . . . . .Communication lineX2 . . . . . . .X1 return, connected to 24V(c)SPECIFICATIONS Rated Voltage  . . . . . . . .20-30 VAC, 24 nominalRated A.C. 0.050 Amps to 0.75 Amps continuousCurrent . . . . . . . . . . . . . .per output with surges to 3 Amps Max.Rated D.C. 0 Amps to 0.75 Amps continuousCurrent . . . . . . . . . . . . . .per output with surges to 3 Amps Max.Default Control  . . . . . . .Heating: 40° to 88°F in 1° StepsRange 6° to 30°C in 1° StepsCooling: 60° to 95°F in 1° Steps16° to 33°C in 1° StepsMaximum  . . . . . . . . . . . .Heating & Cooling: 40° to 95°F in 1° StepsProgrammable 6° to 33°C in 1° StepsControl RangeThermostat  . . . . . . . . . .28° to 124°F or 0° to 48°CMeasurement RangeMinimum  . . . . . . . . . . . .(between heating and cooling)Deadband 2°F or 1°CNOTE: This thermostat contains electronic circuitry replacing theconventional mechanical anticipator.DSL-600SC-HCS 111-315VACANT(Occ4) USER DEFINED(USr1-USr4)1234HOME(Occ1)AWAY(Occ2) SLEEP(Occ3)OCCUPANCY MODESDESCRIPTION OF ICONSWIRING DIAGRAM Note: If the 24V(c) is not available from the equipment the jumper may beremoved and a separate 24V transformer must be used to power the thermostat. This thermostat may be used with 24 Volt DC. The negative side of the DC supply must be wired to the 24V (c) terminal.910 11 12161413DSL-600SC-HCSAlarm LED (Left)Auxiliary Heat LED(Center)Economy LED (Right)GPI1FAULTGPI2GP+VRS2RS1RS+VX2X1Y2W1Y1GR24v24v(c)O/W2BTemperature SensorDisplayNewR/24v Jumper replacedwith a connector (shunt).Remove if thermostat poweris not supplied by equipment.Removing the Thermostat from the Subbase1. Insert a flat blade screwdriver or coin 1/8" into the slot located in thebottom center of the thermostat case and twist 1/4 turn. When you feelor hear a click, grasp the case from the bottom two corners and sepa-rate from the subbase. 2. Swing the thermostat out from the bottom.3. Lift the thermostat up and off the subbase.4. Place the rectangular opening in the subbase over the equipment con-trol wires protruding from the wall and, using the subbase as a tem-plate, mark the location of the two mounting holes (exact verticalmounting is necessary only for appearance).5. Use the supplied anchors and screws for mounting on drywall or plas-ter; drill two 3/16" (5mm) diameter holes at the marked locations; use ahammer to tap the nylon anchors in flush to the wall surface and fastensubbase using the supplied screws. (Do not overtighten!)6. Connect the wires from your system to the thermostat terminals.Carefully dress the wires so that any excess is pushed back into thewall cavity or junction box. Ensure that the wires are flush to the plasticsubbase. The access hole should be sealed or stuffed to prevent draftsfrom affecting the thermostat.Replacing the Thermostat on Subbase1. Position the thermostat on the hingedtabs at the top of the subbase.2. Gently swing the thermostat downand press on the bottom center untilit snaps into place.Thermostat Cover LockInsert the plastic lock piece into the bot-tom of the mounted base. The ends ofthe lock piece fit snugly under the lockpins extending from the bottom of themounted base. The tab in the middle ofthe lock piece extends down from thebase.To release the locking mechanism,press the lock piece up and into thebase while gently prying open.Thermistor Mounting InstructionsWhen placing the front cover on thethermostat ensure the thermistor is notbent or misaligned.Ensure that the thermistor does nottouch the thermostat case. The thermis-tor should be placed horizontal to thewall. Ensure the thermistor is notpushed upward into the case.The thermistor should be aligned so it isvisible between the ribs on the bottomof the subbase.DIP SWITCH OPTIONS AND FUNCTIONSPositioning the DIP switches in either the ON or OFF position enablesyou to choose between two different options. The DIP switches arelocated on the interior of your thermostat and may be accessed by fol-lowing the procedure for removing the thermostat from the subbase.The following list describes your DIP switch options.1. Not Used This switch must remain in the OFF position.2. Not Used This switch must remain in the OFF position.3. Conventional or Heat Pump Set to OFF position for conventional sys-tems, or ON for heat pump systems.4. 2 Minute or 4 Minute On/Off Times This option allows you to run theequipment for either a 2 or 4 minute off and on time.5.Plenum Fan (Conventional) In the OFF position, the fan comes onimmediately with a call for heat. In the ON position, the fan is controlled bythe equipment (plenum switch control).5. Add-On Heat Pump (Heat Pump) In the OFF (normal) position, thethermostat will allow the compressor and the auxiliary heat to be on at thesame time. In the ON (add-on) position, the compressor is turned off witha call for auxiliary heat.6. Single or Multi-stage Set to OFF for systems with no more than onestage of cooling AND no more than one stage of heating (excluding theauxiliary heat stage in heat pump applications), or ON for systems withtwo stages of cooling OR two stages of heating (excluding the auxiliaryheat stage in heat pump applications).7. Not Used This switch must remain in the OFF position.8. Not Used This switch must remain in the OFF position.DIP Switch DIP Switch OFF DIP Switch ON12345678Not used (OFF position)Not used (OFF position)Conventional4 minute minimum ON/OFFNormalSingle stageNot used (OFF position)Not used (OFF position)Not usedNot usedHeat Pump2 minute minimum ON/OFFPlenum Fan (conventional)Add-on (heat pump)Multi-stageNot usedNot used15
