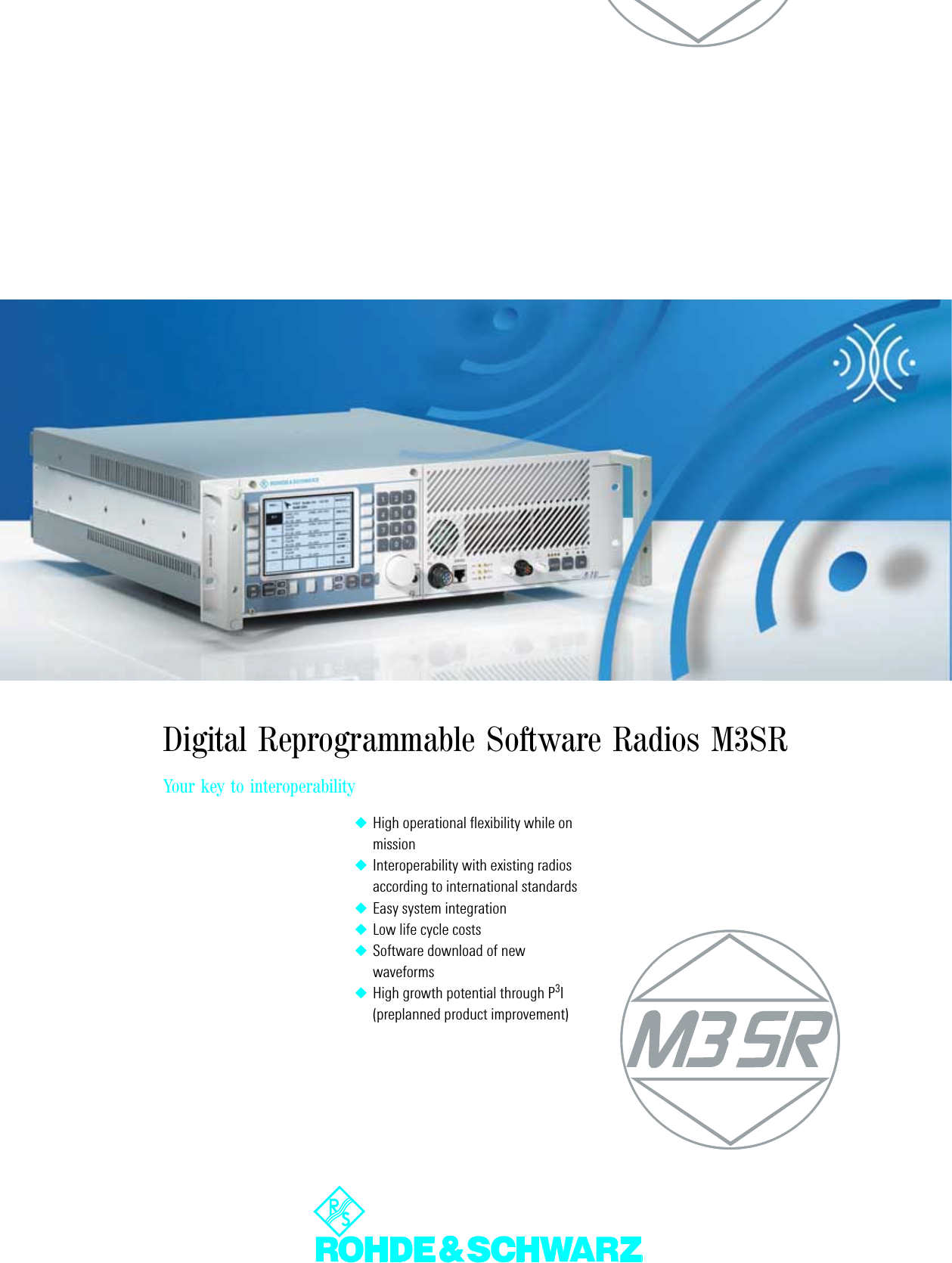

Digital Reprogrammable Software Radios M3SRYour key to interoperability◆High operational flexibility while on mission◆Interoperability with existing radios according to international standards◆Easy system integration◆Low life cycle costs◆Software download of new waveforms◆High growth potential through P3I (preplanned product improvement)
2 Digital Reprogrammable Software Radios M3SRM3SR (multiband, multimode and multi-role surface radio) represents an innova-tive and versatile generation of software radios for use in the navy, in civil and mil-itary air traffic control, air defence, and in stationary applications. In addition to M3TR (multiband, multi-mode and multirole tactical radio) and M3AR (multiband, multimode and multi-role airborne radio), the M3SR series is the third element of a new radio equip-ment generation. All three types feature a functionality that can be varied by means of software.For the commercial user, the basic units come standard with the waveform for air traffic control (ATC) in line with EN300676. M3SR can be used both in normal ATC operation and as an emer-gency backup radio.The M3SR series is interoperable with many types of existing radio equipment and standards. For military customers, this means seamless communication with their own and allied troops. To com-municate with neighbouring troops, the radio is switched to the waveform or com-munication protocol used there. This switchover can be made online even during a mission.The operational functions and the avail-able waveforms are determined by the loaded application software. Additional functions can be implemented, as required, by downloading the appropriate software and/or using plug-in hardware modules. Modular designThe M3SR features highly modular hard-ware and software architecture. All M3SR units are based on the uniform Radio Basis KR4400. The versatile upgrade concept (P3I) of the basic version helps to avoid unnecessarily high initial investment costs. The M3SR is available as a receiver, multireceiver, transmitter or transceiver, according to the customer’s require-ments. Radio Basis KR4400The various models are set up on the hardware and software of the Radio Basis KR4400, which forms the central and common part of all M3SR radios. The radio basis is independent of the RF-specific modules. Additional radio-specific hardware and software modules define the performance features of the radio.The KR4400 consists of the mechanical frame, the radio platform (motherboard), and a front panel with audio interface, loudspeaker and status displays. The plat-form is the control center of the radio. The embedded realtime operating system controls and monitors all the functions in the radio. A control panel (GB4000C) can be integrated for local control of the radios. The main tasks of the radio basis include:◆Monitoring and control of the com-plete radio unit◆Mechanical and electrical accommo-dation of modules and control panel◆Digital voice and data processing◆Internal routing of information data to the interfaces◆Standard interfaces to peripherals◆Audio interface, loading of encryp-tion keys and display of status infor-mationAn oven-controlled crystal oscillator (OCXO) is integrated as standard to meet the stringent requirements regarding time stability. For the configuration of the various radio models, the radio basis is equipped with slots for the radio modules, and a mechanical fixture on the side to accom-modate the transmitter module.

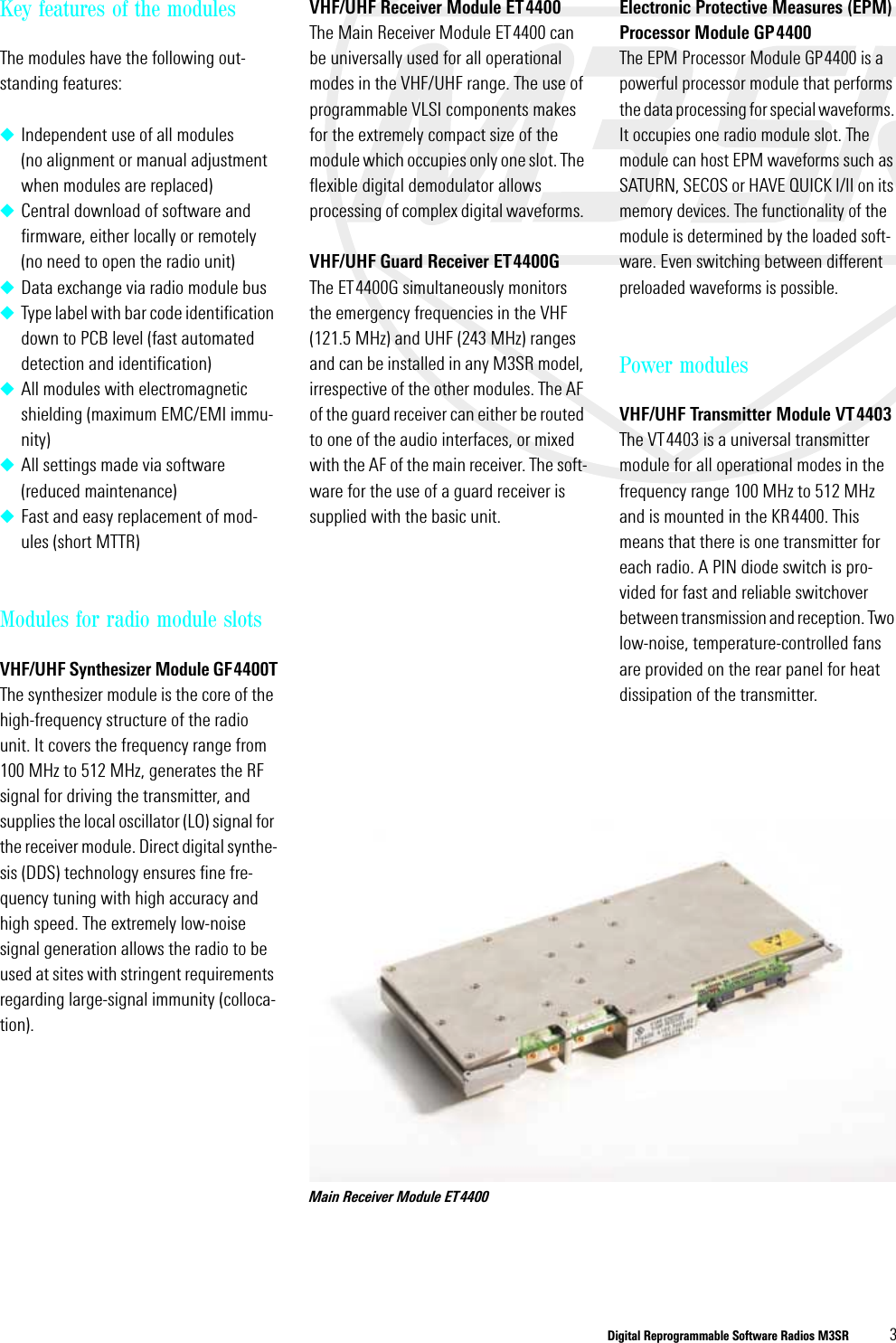

Digital Reprogrammable Software Radios M3SR 3Key features of the modulesThe modules have the following out-standing features:◆Independent use of all modules (no alignment or manual adjustment when modules are replaced)◆Central download of software and firmware, either locally or remotely (no need to open the radio unit)◆Data exchange via radio module bus◆Type label with bar code identification down to PCB level (fast automated detection and identification)◆All modules with electromagnetic shielding (maximum EMC/EMI immu-nity)◆All settings made via software (reduced maintenance)◆Fast and easy replacement of mod-ules (short MTTR)Modules for radio module slotsVHF/UHF Synthesizer Module GF4400TThe synthesizer module is the core of the high-frequency structure of the radio unit. It covers the frequency range from 100 MHz to 512 MHz, generates the RF signal for driving the transmitter, and supplies the local oscillator (LO) signal for the receiver module. Direct digital synthe-sis (DDS) technology ensures fine fre-quency tuning with high accuracy and high speed. The extremely low-noise signal generation allows the radio to be used at sites with stringent requirements regarding large-signal immunity (colloca-tion).VHF/UHF Receiver Module ET4400The Main Receiver Module ET4400 can be universally used for all operational modes in the VHF/UHF range. The use of programmable VLSI components makes for the extremely compact size of the module which occupies only one slot. The flexible digital demodulator allows processing of complex digital waveforms. VHF/UHF Guard Receiver ET4400GThe ET4400G simultaneously monitors the emergency frequencies in the VHF (121.5 MHz) and UHF (243 MHz) ranges and can be installed in any M3SR model, irrespective of the other modules. The AF of the guard receiver can either be routed to one of the audio interfaces, or mixed with the AF of the main receiver. The soft-ware for the use of a guard receiver is supplied with the basic unit.Electronic Protective Measures (EPM) Processor Module GP4400The EPM Processor Module GP4400 is a powerful processor module that performs the data processing for special waveforms. It occupies one radio module slot. The module can host EPM waveforms such as SATURN, SECOS or HAVE QUICK I/II on its memory devices. The functionality of the module is determined by the loaded soft-ware. Even switching between different preloaded waveforms is possible.Power modulesVHF/UHF Transmitter Module VT4403The VT4403 is a universal transmitter module for all operational modes in the frequency range 100 MHz to 512 MHz and is mounted in the KR4400. This means that there is one transmitter for each radio. A PIN diode switch is pro-vided for fast and reliable switchover between transmission and reception. Two low-noise, temperature-controlled fans are provided on the rear panel for heat dissipation of the transmitter.Main Receiver Module ET4400

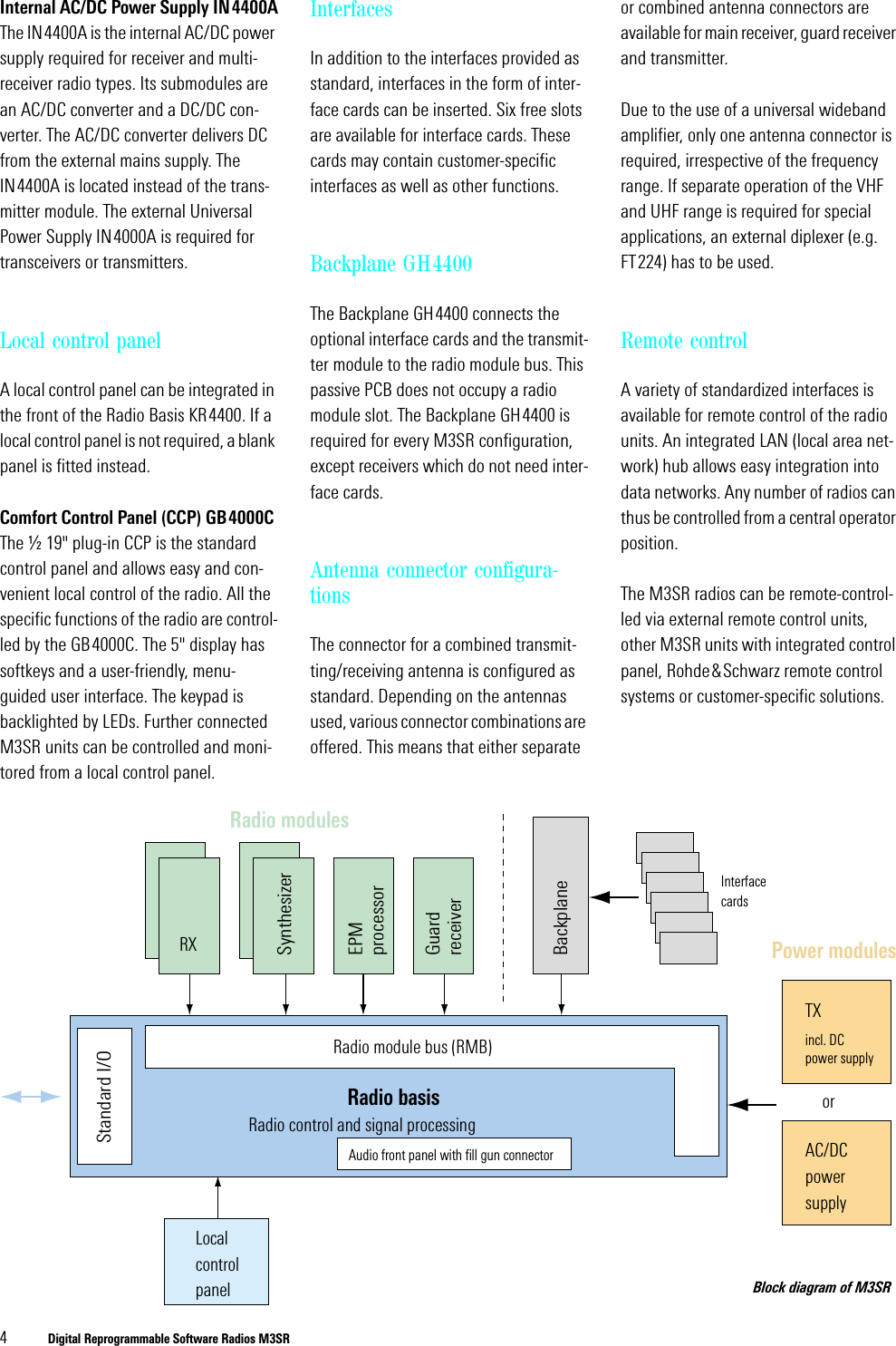

4 Digital Reprogrammable Software Radios M3SRInternal AC/DC Power Supply IN4400AThe IN4400A is the internal AC/DC power supply required for receiver and multi-receiver radio types. Its submodules are an AC/DC converter and a DC/DC con-verter. The AC/DC converter delivers DC from the external mains supply. The IN4400A is located instead of the trans-mitter module. The external Universal Power Supply IN4000A is required for transceivers or transmitters.Local control panelA local control panel can be integrated in the front of the Radio Basis KR4400. If a local control panel is not required, a blank panel is fitted instead.Comfort Control Panel (CCP) GB4000C The ½ 19" plug-in CCP is the standard control panel and allows easy and con-venient local control of the radio. All the specific functions of the radio are control-led by the GB4000C. The 5" display has softkeys and a user-friendly, menu-guided user interface. The keypad is backlighted by LEDs. Further connected M3SR units can be controlled and moni-tored from a local control panel.InterfacesIn addition to the interfaces provided as standard, interfaces in the form of inter-face cards can be inserted. Six free slots are available for interface cards. These cards may contain customer-specific interfaces as well as other functions.Backplane GH4400The Backplane GH4400 connects the optional interface cards and the transmit-ter module to the radio module bus. This passive PCB does not occupy a radio module slot. The Backplane GH4400 is required for every M3SR configuration, except receivers which do not need inter-face cards.Antenna connector configura-tionsThe connector for a combined transmit-ting/receiving antenna is configured as standard. Depending on the antennas used, various connector combinations are offered. This means that either separate or combined antenna connectors are available for main receiver, guard receiver and transmitter.Due to the use of a universal wideband amplifier, only one antenna connector is required, irrespective of the frequency range. If separate operation of the VHF and UHF range is required for special applications, an external diplexer (e.g. FT224) has to be used.Remote controlA variety of standardized interfaces is available for remote control of the radio units. An integrated LAN (local area net-work) hub allows easy integration into data networks. Any number of radios can thus be controlled from a central operator position. The M3SR radios can be remote-control-led via external remote control units, other M3SR units with integrated control panel, Rohde&Schwarz remote control systems or customer-specific solutions.orRadio modulesPower modulesRXSynthesizerEPM processorRadio basisRadio module bus (RMB)Standard I/OGuardreceiverincl. DCpower supplyAC/DC power supplyRadio control and signal processingLocalcontrolpanelBackplaneAudio front panel with fill gun connectorInterfacecardsTX Block diagram of M3SR

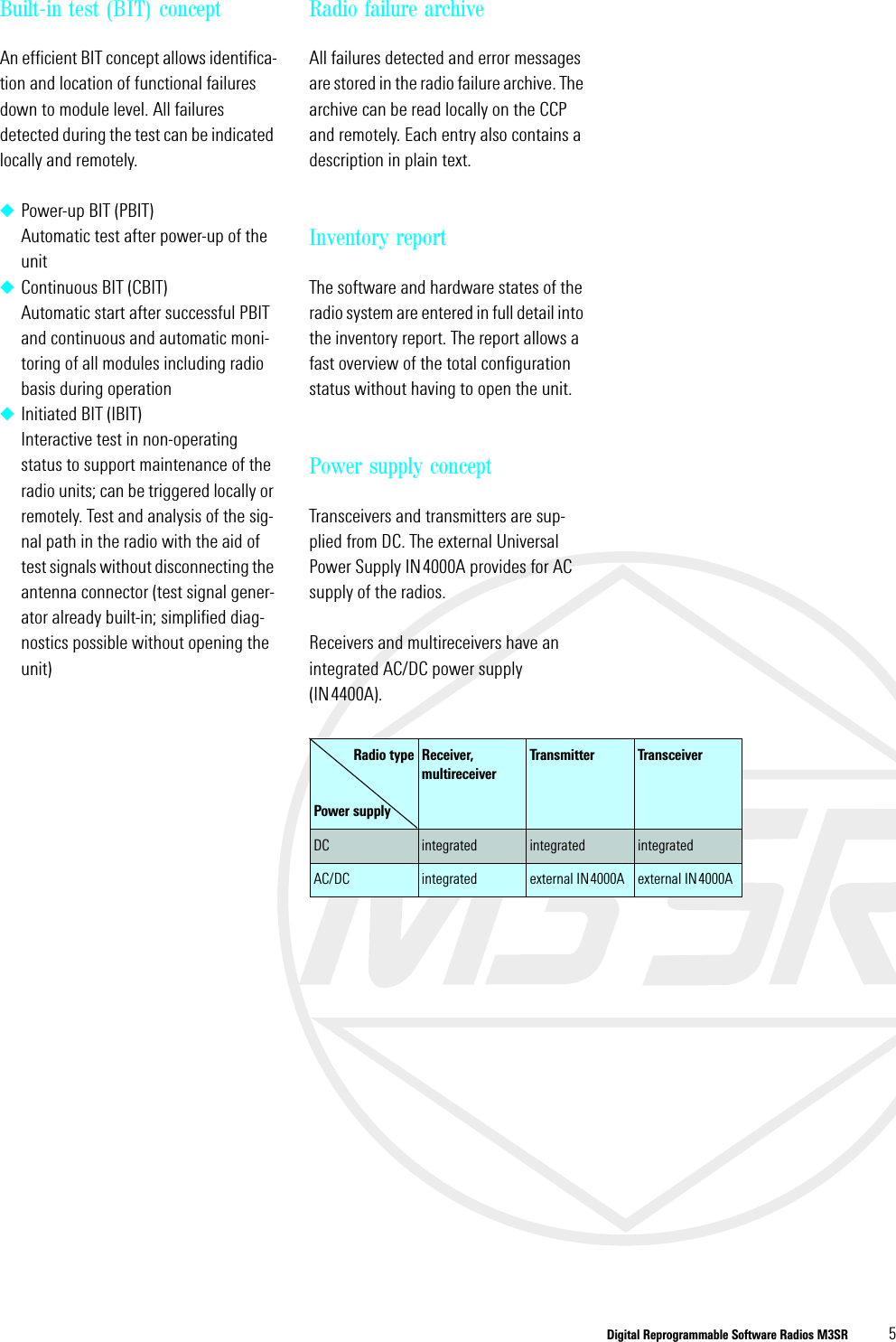

Digital Reprogrammable Software Radios M3SR 5Built-in test (BIT) conceptAn efficient BIT concept allows identifica-tion and location of functional failures down to module level. All failures detected during the test can be indicated locally and remotely. ◆Power-up BIT (PBIT)Automatic test after power-up of the unit◆Continuous BIT (CBIT)Automatic start after successful PBIT and continuous and automatic moni-toring of all modules including radio basis during operation◆Initiated BIT (IBIT)Interactive test in non-operating status to support maintenance of the radio units; can be triggered locally or remotely. Test and analysis of the sig-nal path in the radio with the aid of test signals without disconnecting the antenna connector (test signal gener-ator already built-in; simplified diag-nostics possible without opening the unit)Radio failure archiveAll failures detected and error messages are stored in the radio failure archive. The archive can be read locally on the CCP and remotely. Each entry also contains a description in plain text.Inventory reportThe software and hardware states of the radio system are entered in full detail into the inventory report. The report allows a fast overview of the total configuration status without having to open the unit. Power supply conceptTransceivers and transmitters are sup-plied from DC. The external Universal Power Supply IN4000A provides for AC supply of the radios. Receivers and multireceivers have an integrated AC/DC power supply (IN4400A).Radio typePower supplyReceiver, multireceiverTransmitter Transceive rDC integrated integrated integratedAC/DC integrated external IN4000A external IN4000A

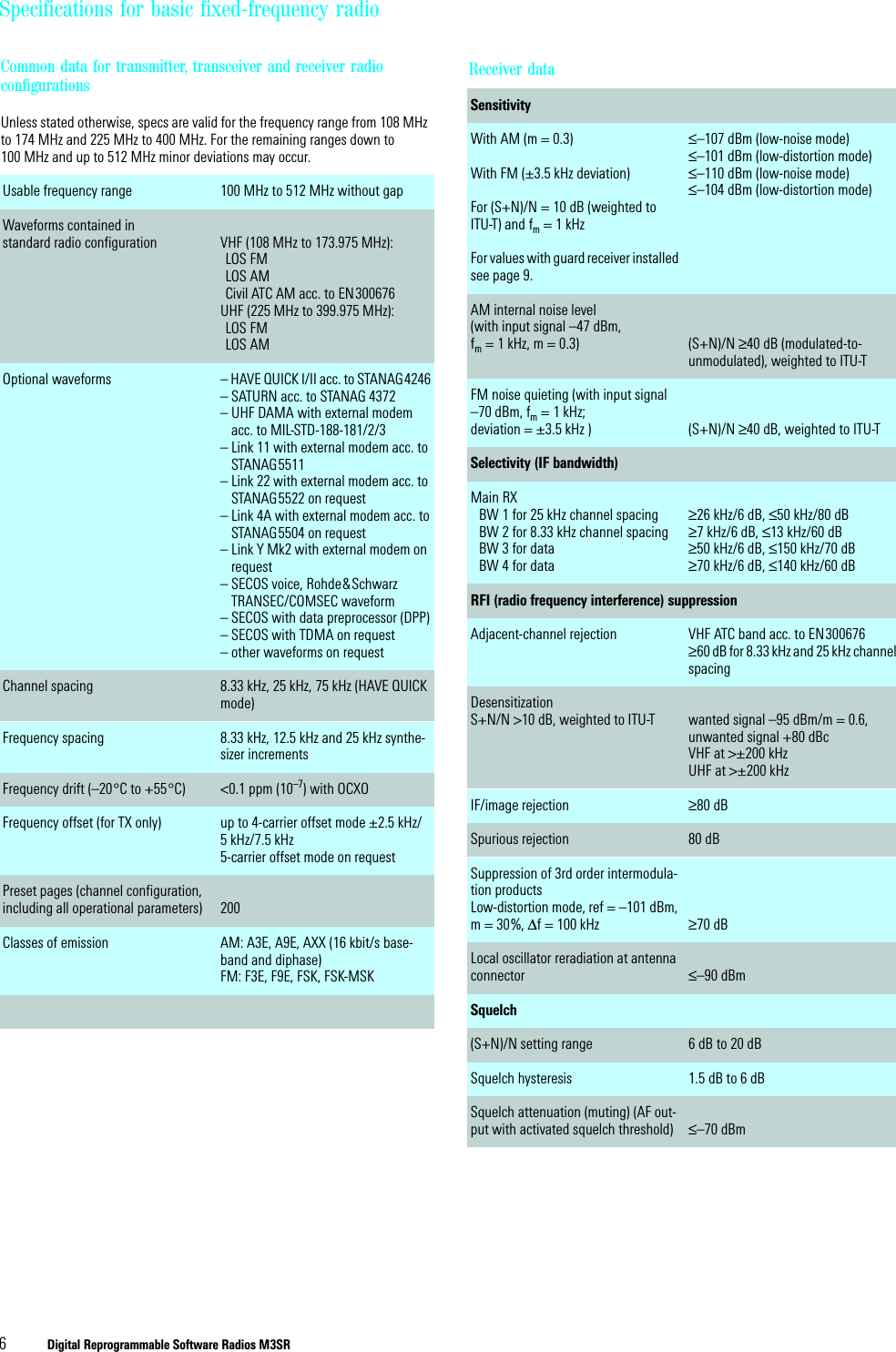

6 Digital Reprogrammable Software Radios M3SRSpecifications for basic fixed-frequency radioCommon data for transmitter, transceiver and receiver radio configurationsUnless stated otherwise, specs are valid for the frequency range from 108 MHz to 174 MHz and 225 MHz to 400 MHz. For the remaining ranges down to 100 MHz and up to 512 MHz minor deviations may occur.Usable frequency range 100 MHz to 512 MHz without gapWaveforms contained instandard radio configuration VHF (108 MHz to 173.975 MHz): LOS FM LOS AMCivil ATC AM acc. to EN300676UHF (225 MHz to 399.975 MHz):LOS FM LOS AMOptional waveforms – HAVE QUICK I/II acc. to STANAG4246– SATURN acc. to STANAG 4372– UHF DAMA with external modemacc. to MIL-STD-188-181/2/3 – Link 11 with external modem acc. toSTANAG5511 – Link 22 with external modem acc. toSTANAG5522 on request– Link 4A with external modem acc. toSTANAG5504 on request– Link Y Mk2 with external modem onrequest– SECOS voice, Rohde&SchwarzTRANSEC/COMSEC waveform– SECOS with data preprocessor (DPP)– SECOS with TDMA on request– other waveforms on requestChannel spacing 8.33 kHz, 25 kHz, 75 kHz (HAVE QUICK mode) Frequency spacing 8.33 kHz, 12.5 kHz and 25 kHz synthe-sizer incrementsFrequency drift (–20°C to +55°C) <0.1 ppm (10–7) with OCXOFrequency offset (for TX only) up to 4-carrier offset mode ±2.5 kHz/5 kHz/7.5 kHz5-carrier offset mode on requestPreset pages (channel configuration, including all operational parameters) 200Classes of emission AM: A3E, A9E, AXX (16 kbit/s base-band and diphase)FM: F3E, F9E, FSK, FSK-MSKReceiver dataSensitivityWith AM (m = 0.3)With FM (±3.5 kHz deviation)For (S+N)/N = 10 dB (weighted to ITU-T) and fm = 1 kHzFor values with guard receiver installed see page 9.≤–107 dBm (low-noise mode)≤–101 dBm (low-distortion mode)≤–110 dBm (low-noise mode)≤–104 dBm (low-distortion mode)AM internal noise level (with input signal –47 dBm, fm = 1 kHz, m = 0.3) (S+N)/N ≥40 dB (modulated-to-unmodulated), weighted to ITU-TFM noise quieting (with input signal –70 dBm, fm = 1 kHz; deviation = ±3.5 kHz ) (S+N)/N ≥40 dB, weighted to ITU-TSelectivity (IF bandwidth)Main RXBW 1 for 25 kHz channel spacingBW 2 for 8.33 kHz channel spacingBW 3 for dataBW 4 for data≥26 kHz/6 dB, ≤50 kHz/80 dB≥7 kHz/6 dB, ≤13 kHz/60 dB≥50 kHz/6 dB, ≤150 kHz/70 dB≥70 kHz/6 dB, ≤140 kHz/60 dBRFI (radio frequency interference) suppressionAdjacent-channel rejection VHF ATC band acc. to EN300676≥60 dB for 8.33 kHz and 25 kHz channel spacingDesensitizationS+N/N >10 dB, weighted to ITU-T wanted signal –95 dBm/m = 0.6, unwanted signal +80 dBcVHF at >±200 kHzUHF at >±200 kHzIF/image rejection ≥80 dBSpurious rejection 80 dBSuppression of 3rd order intermodula-tion productsLow-distortion mode, ref = –101 dBm, m = 30%, ∆f = 100 kHz ≥70 dBLocal oscillator reradiation at antenna connector ≤–90 dBmSquelch(S+N)/N setting range 6 dB to 20 dBSquelch hysteresis 1.5 dB to 6 dBSquelch attenuation (muting) (AF out-put with activated squelch threshold) ≤–70 dBm

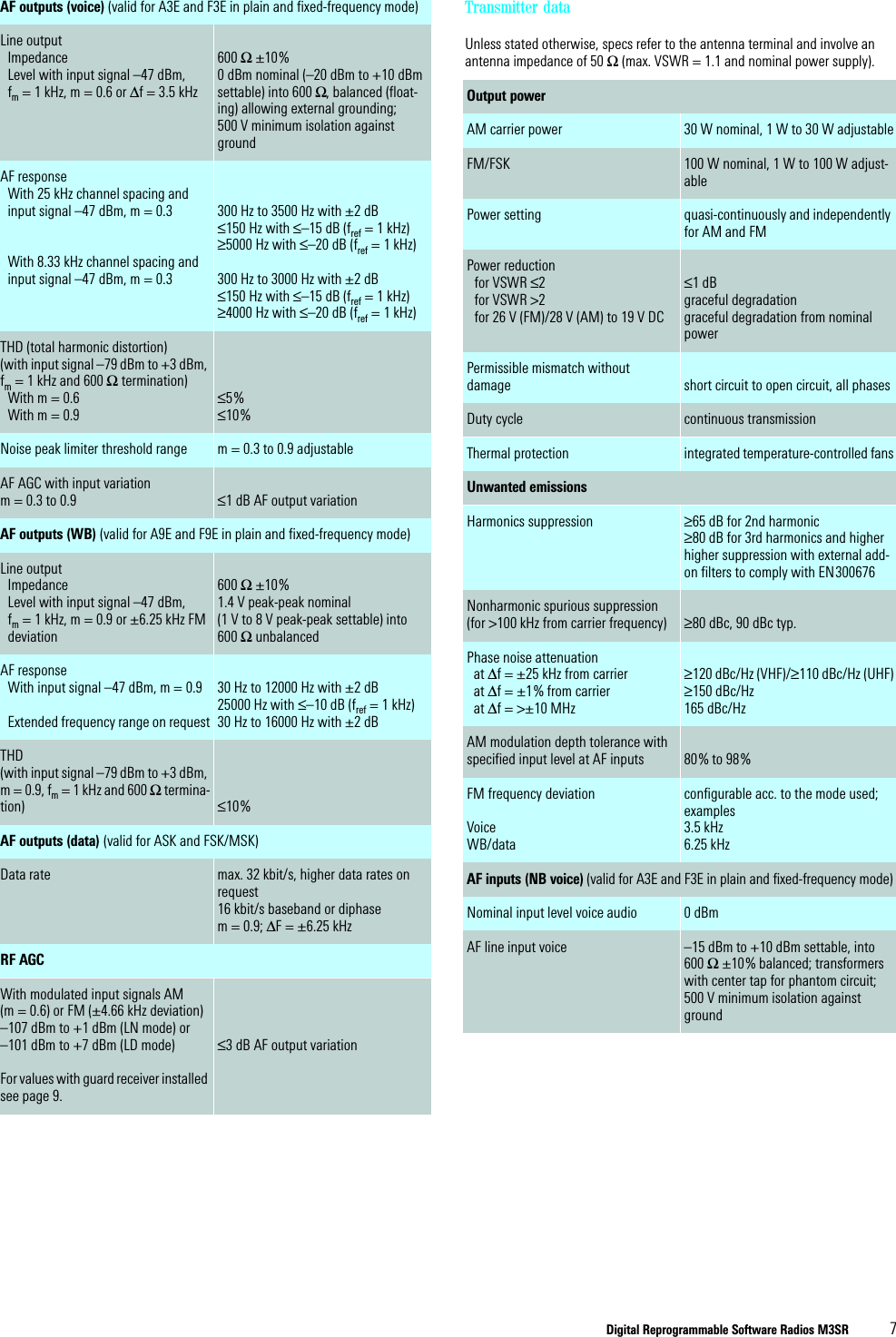

Digital Reprogrammable Software Radios M3SR 7AF outputs (voice) (valid for A3E and F3E in plain and fixed-frequency mode)Line outputImpedanceLevel with input signal –47 dBm, fm = 1 kHz, m = 0.6 or ∆f = 3.5 kHz600 Ω ±10%0 dBm nominal (–20 dBm to +10 dBm settable) into 600 Ω, balanced (float-ing) allowing external grounding;500 V minimum isolation against groundAF responseWith 25 kHz channel spacing andinput signal –47 dBm, m = 0.3With 8.33 kHz channel spacing andinput signal –47 dBm, m = 0.3300 Hz to 3500 Hz with ±2 dB ≤150 Hz with ≤–15 dB (fref = 1 kHz) ≥5000 Hz with ≤–20 dB (fref = 1 kHz) 300 Hz to 3000 Hz with ±2 dB ≤150 Hz with ≤–15 dB (fref = 1 kHz) ≥4000 Hz with ≤–20 dB (fref = 1 kHz) THD (total harmonic distortion) (with input signal –79 dBm to +3 dBm, fm = 1 kHz and 600 Ω termination)With m = 0.6With m = 0.9≤5%≤10%Noise peak limiter threshold range m = 0.3 to 0.9 adjustableAF AGC with input variation m = 0.3 to 0.9 ≤1 dB AF output variationAF outputs (WB) (valid for A9E and F9E in plain and fixed-frequency mode)Line outputImpedanceLevel with input signal –47 dBm, fm = 1 kHz, m = 0.9 or ±6.25 kHz FMdeviation600 Ω ±10%1.4 V peak-peak nominal (1 V to 8 V peak-peak settable) into 600 Ω unbalancedAF responseWith input signal –47 dBm, m = 0.9Extended frequency range on request30 Hz to 12000 Hz with ±2 dB 25000 Hz with ≤–10 dB (fref = 1 kHz) 30 Hz to 16000 Hz with ±2 dB THD(with input signal –79 dBm to +3 dBm, m = 0.9, fm = 1 kHz and 600 Ω termina-tion) ≤10%AF outputs (data) (valid for ASK and FSK/MSK)Data rate max. 32 kbit/s, higher data rates on request16 kbit/s baseband or diphasem = 0.9; ∆F = ±6.25 kHzRF AGCWith modulated input signals AM (m = 0.6) or FM (±4.66 kHz deviation)–107 dBm to +1 dBm (LN mode) or–101 dBm to +7 dBm (LD mode)For values with guard receiver installed see page 9.≤3 dB AF output variationTransmitter dataUnless stated otherwise, specs refer to the antenna terminal and involve an antenna impedance of 50 Ω (max. VSWR = 1.1 and nominal power supply).Output powerAM carrier power 30 W nominal, 1 W to 30 W adjustableFM/FSK 100 W nominal, 1 W to 100 W adjust-ablePower setting quasi-continuously and independently for AM and FMPower reductionfor VSWR ≤2for VSWR >2for 26 V (FM)/28 V (AM) to 19 V DC≤1 dBgraceful degradationgraceful degradation from nominal powerPermissible mismatch without damage short circuit to open circuit, all phasesDuty cycle continuous transmissionThermal protection integrated temperature-controlled fansUnwanted emissionsHarmonics suppression ≥65 dB for 2nd harmonic≥80 dB for 3rd harmonics and higherhigher suppression with external add-on filters to comply with EN300676Nonharmonic spurious suppression (for >100 kHz from carrier frequency) ≥80 dBc, 90 dBc typ.Phase noise attenuationat ∆f = ±25 kHz from carrier at ∆f = ±1% from carrierat ∆f = >±10 MHz≥120 dBc/Hz (VHF)/≥110 dBc/Hz (UHF)≥150 dBc/Hz165 dBc/HzAM modulation depth tolerance with specified input level at AF inputs 80% to 98%FM frequency deviationVoiceWB/dataconfigurable acc. to the mode used; examples3.5 kHz6.25 kHzAF inputs (NB voice) (valid for A3E and F3E in plain and fixed-frequency mode)Nominal input level voice audio 0 dBmAF line input voice –15 dBm to +10 dBm settable, into 600 Ω ±10% balanced; transformers with center tap for phantom circuit;500 V minimum isolation against ground
Digital Reprogrammable Software Radios M3SR 8AF responseWith 25 kHz channel spacing and nominal input signalWith 8.33 kHz channel spacing and nominal input signal300 Hz to 3500 Hz with ±2 dB ≤100 Hz with ≤–20 dB (fref = 1 kHz) ≥5000 Hz with ≤–25 dB (fref = 1 kHz) 300 Hz to 2500 Hz with ±2 dB ≤100 Hz with ≤–20 dB (fref = 1 kHz) ≥3200 Hz with ≤–25 dB (fref = 1 kHz) AF inputs (WB)Nominal input level wideband 1.4 V peak-peakAF line input WB/data 1 V to 8 V peak-peak adjustable, into 600 Ω ±10% AF response (valid for A9E)With nominal input signalExtended frequency range on request30 Hz to 12000 Hz with ±2 dB 30 Hz to 16000 Hz with ±2 dB AF response (valid for F9E)With nominal input signalExtended frequency range on request300 Hz to 12000 Hz with ±2 dB 300 Hz to 16000 Hz with ±2 dB AF inputs (data) (valid for ASK and FSK/MSK)Data rate max. 32 kbit/s, higher data rates on re-quest16 kbit/s baseband or diphasem = 0.9; ∆F = ±6.25 kHzDistortion AM/FM (with 0 dBm input (300 Hz to 3500 Hz)) ≤8%ALC (automatic level control) function selectableModulation depth variation for ±15 dB, with input level setting –15 dBm to 0 dBm m = 0.8 to 0.98Noise modulation (S+N/N) (m = 0.9, 1 kHz; fm = 5 kHz) ≥40 dBSpecial tones and PTTTest tone 1 kHz/m = 0.9; generator included as standard; for local and remote testsSidetone (in plain AM/FM (normal voice) mode, level related to adjusted RX output) sidetone derived from carrier (AM) or power monitor (FM) and introduced into normal AF output0 dB to 10 dB adjustablePTT signalling variety of methods (configurable): parallel (ground or voltage), serial or via audio inband tone (e.g. 2040 Hz) on requestBuilt-in interfacesSerial interfaces 2 serial interfaces up to 115 kbit/s; one RS-232-C, the other one can be config-ured as RS-232-C/RS-422/RS-485, parameters adjustable;for radio control, configuration, soft-ware download and user data (SECOS mode with DPP)LAN 2 interfaces acc. to Ethernet IEEE802.3, RJ-45 connectors, 10baseT;for radio control, configuration and software downloadRF power amplifier (PA) and RF filter control interfaces 2 user-configurable interfaces for Rohde&Schwarz PA and filters: 2 x PA or 2 x filter or 1 x filter + 1 x PA; others on requestRF connectors for antennas N female for TX or common TX/RX an-tenna and BNC female for RXAF standard interfaces 2 narrowband, 2 wideband;for voice and user dataExternal reference frequency for special applications; input/output (BNC connector): 0.8/1/2/5 or 10 MHz configurable, can be daisy-chainedTiming system input/output to receive/transmit TOD (time of day) from/to external timing system (e.g. GT400) acc. to STANAG 4246, STANAG 4430, ICD-GPS-060Key distribution device interface (fill gun) KYK-13, KOI-18, DTD (data transfer de-vice) conforming to DS100/DS101/DS102; Rohde&Schwarz KDD (key dis-tribution device); external mainte-nance toolExternal crypto devices KY 58 (others on request)Miscellaneous interfaces e.g. PTT, carrier SQ, NOGO, INHIBIT, switched DC for external devices; other I/Os on requestDTMF on requestHeadphones output max. 1 V at 150 Ω (adjustable to lower values down to 0 V), NF7-type headset connectorIntegrated loudspeaker max. 0.4 W, volume adjustable via knobMicrophone inputs dynamic micro: 0 mV to 25 mV into 150 Ωamplifier micro: 0 V to 1 V/150 Ω, 15 mA to 20 mA, 9 V DC max., NF7-type headset connector

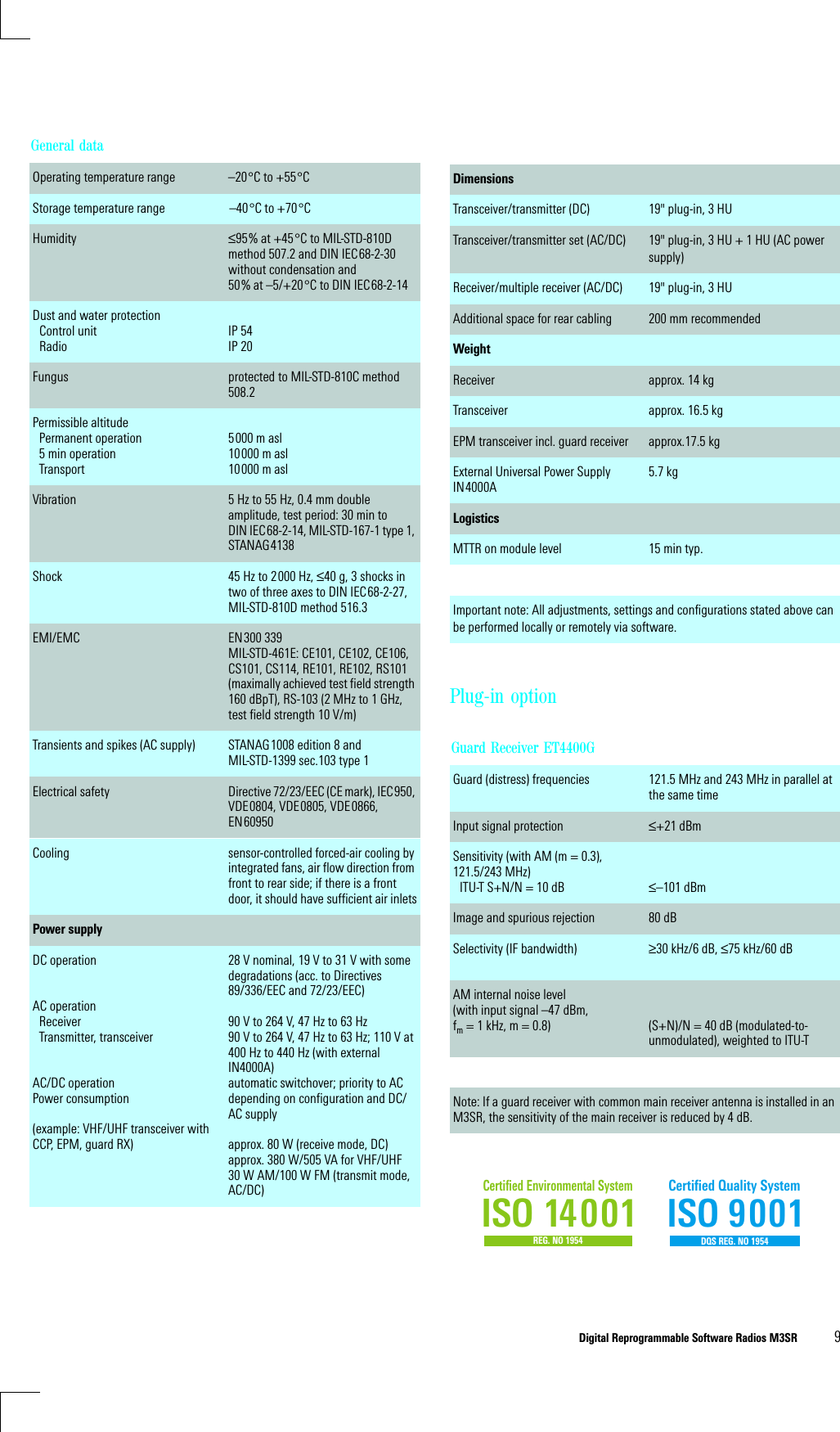

Digital Reprogrammable Software Radios M3SR 9Plug-in optionDimensionsTransceiver/transmitter (DC) 19" plug-in, 3 HUTransceiver/transmitter set (AC/DC) 19" plug-in, 3 HU + 1 HU (AC power supply)Receiver/multiple receiver (AC/DC) 19" plug-in, 3 HUAdditional space for rear cabling 200 mm recommendedWeightReceiver approx. 14 kgTransceiver approx. 16.5 kg EPM transceiver incl. guard receiver approx.17.5 kg External Universal Power Supply IN4000A5.7 kgLogisticsMTTR on module level 15 min typ.Important note: All adjustments, settings and configurations stated above can be performed locally or remotely via software.Guard Receiver ET4400GGuard (distress) frequencies 121.5 MHz and 243 MHz in parallel at the same timeInput signal protection ≤+21 dBmSensitivity (with AM (m = 0.3), 121.5/243 MHz)ITU-T S+N/N = 10 dB ≤–101 dBmImage and spurious rejection 80 dBSelectivity (IF bandwidth) ≥30 kHz/6 dB, ≤75 kHz/60 dBAM internal noise level (with input signal –47 dBm, fm = 1 kHz, m = 0.8) (S+N)/N = 40 dB (modulated-to-unmodulated), weighted to ITU-TNote: If a guard receiver with common main receiver antenna is installed in an M3SR, the sensitivity of the main receiver is reduced by 4 dB.General dataOperating temperature range –20°C to +55°C Storage temperature range –40°C to +70°CHumidity ≤95% at +45°C to MIL-STD-810D method 507.2 and DIN IEC68-2-30 without condensation and50% at –5/+20°C to DIN IEC68-2-14Dust and water protectionControl unitRadioIP 54IP 20Fungus protected to MIL-STD-810C method 508.2Permissible altitudePermanent operation5 min operationTransport5000 m asl10000 m asl10000 m aslVibration 5 Hz to 55 Hz, 0.4 mm double amplitude, test period: 30 min to DIN IEC68-2-14, MIL-STD-167-1 type 1, STANAG4138Shock 45 Hz to 2000 Hz, ≤40 g, 3 shocks in two of three axes to DIN IEC68-2-27, MIL-STD-810D method 516.3EMI/EMC EN300 339MIL-STD-461E: CE101, CE102, CE106, CS101, CS114, RE101, RE102, RS101 (maximally achieved test field strength 160 dBpT), RS-103 (2 MHz to 1 GHz, test field strength 10 V/m)Transients and spikes (AC supply) STANAG1008 edition 8 and MIL-STD-1399 sec.103 type 1Electrical safety Directive 72/23/EEC (CE mark), IEC950, VDE0804, VDE0805, VDE0866, EN60950Cooling sensor-controlled forced-air cooling by integrated fans, air flow direction from front to rear side; if there is a front door, it should have sufficient air inletsPower supplyDC operationAC operationReceiverTransmitter, transceiverAC/DC operationPower consumption (example: VHF/UHF transceiver with CCP, EPM, guard RX)28 V nominal, 19 V to 31 V with some degradations (acc. to Directives 89/336/EEC and 72/23/EEC)90 V to 264 V, 47 Hz to 63 Hz90 V to 264 V, 47 Hz to 63 Hz; 110 V at 400 Hz to 440 Hz (with external IN4000A)automatic switchover; priority to ACdepending on configuration and DC/AC supplyapprox. 80 W (receive mode, DC)approx. 380 W/505 VA for VHF/UHF 30 W AM/100 W FM (transmit mode, AC/DC)Certified Environmental SystemISO 14001REG. NO 1954Certified Quality SystemISO 9001DQS REG. NO 1954

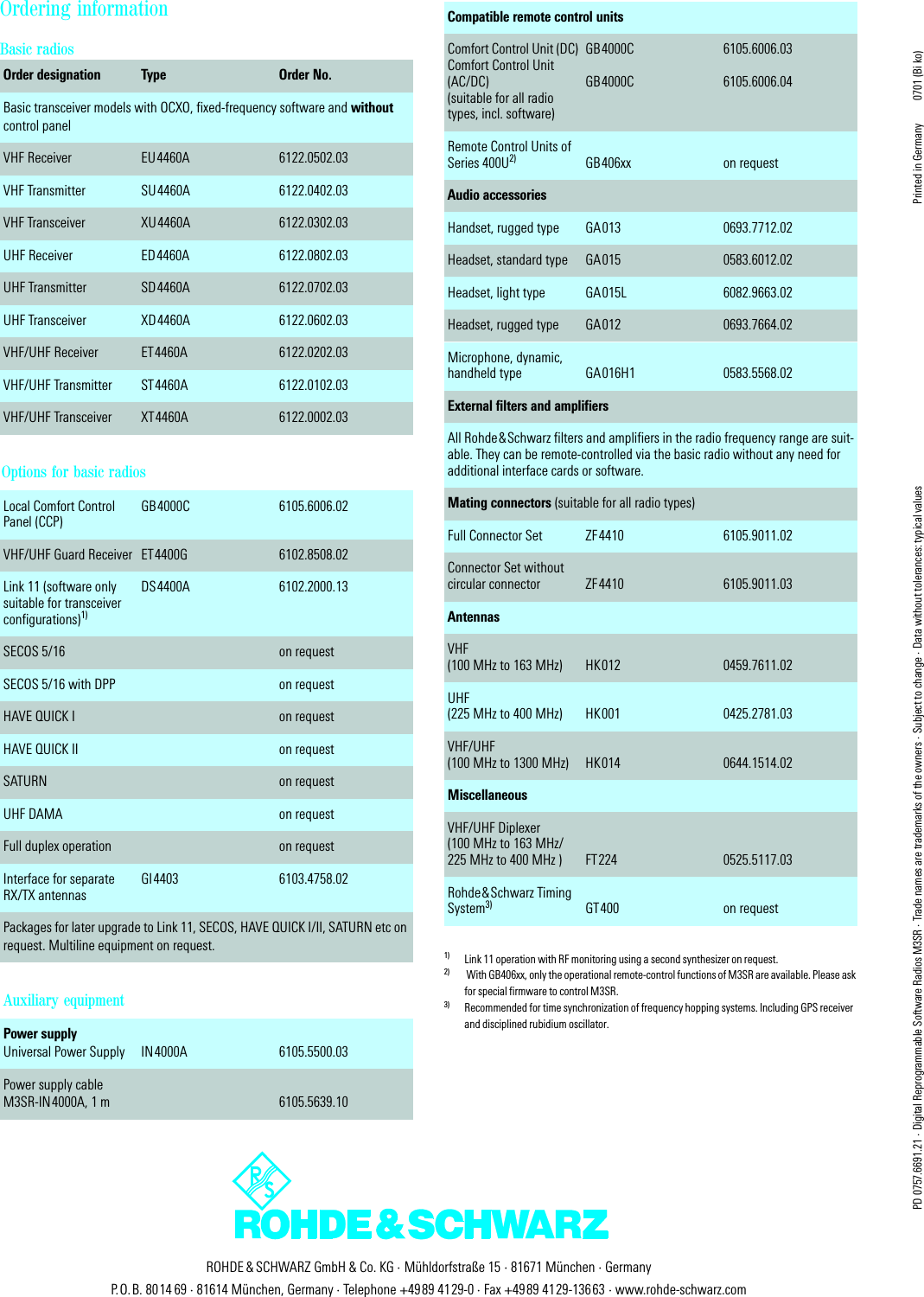

ROHDE & SCHWARZ GmbH & Co. KG ⋅ Mühldorfstraße 15 ⋅ 81671 München ⋅ GermanyP.O.B. 8014 69 ⋅ 81614 München, Germany ⋅ Telephone +4989 4129-0 ⋅ Fax +4989 4129-13663 ⋅ www.rohde-schwarz.comPD 0757.6691.21 ⋅ Digital Reprogrammable Software Radios M3SR ⋅ Trade names are trademarks of the owners ⋅ Subject to change ⋅ Data without tolerances: typical values Printed in Germany 0701 (Bi ko)Ordering informationBasic radiosOrder designation Type Order No.Basic transceiver models with OCXO, fixed-frequency software and without control panelVHF Receiver EU4460A 6122.0502.03VHF Transmitter SU4460A 6122.0402.03VHF Transceiver XU4460A 6122.0302.03UHF Receiver ED4460A 6122.0802.03UHF Transmitter SD4460A 6122.0702.03UHF Transceiver XD4460A 6122.0602.03VHF/UHF Receiver ET4460A 6122.0202.03VHF/UHF Transmitter ST4460A 6122.0102.03VHF/UHF Transceiver XT4460A 6122.0002.03Options for basic radiosLocal Comfort Control Panel (CCP)GB4000C 6105.6006.02VHF/UHF Guard Receiver ET4400G 6102.8508.02Link 11 (software only suitable for transceiver configurations)1)DS4400A 6102.2000.13SECOS 5/16 on requestSECOS 5/16 with DPP on requestHAVE QUICK I on requestHAVE QUICK II on requestSATURN on requestUHF DAMA on requestFull duplex operation on requestInterface for separate RX/TX antennasGI4403 6103.4758.02Packages for later upgrade to Link 11, SECOS, HAVE QUICK I/II, SATURN etc on request. Multiline equipment on request.Auxiliary equipmentPower supplyUniversal Power Supply IN4000A 6105.5500.03Power supply cable M3SR-IN4000A, 1 m 6105.5639.10Compatible remote control unitsComfort Control Unit (DC)Comfort Control Unit (AC/DC) (suitable for all radio types, incl. software)GB4000CGB4000C6105.6006.036105.6006.04Remote Control Units of Series 400U2) GB406xx on requestAudio accessoriesHandset, rugged type GA013 0693.7712.02Headset, standard type GA015 0583.6012.02Headset, light type GA015L 6082.9663.02Headset, rugged type GA012 0693.7664.02Microphone, dynamic, handheld type GA016H1 0583.5568.02External filters and amplifiersAll Rohde&Schwarz filters and amplifiers in the radio frequency range are suit-able. They can be remote-controlled via the basic radio without any need for additional interface cards or software.Mating connectors (suitable for all radio types)Full Connector Set ZF4410 6105.9011.02Connector Set without circular connector ZF4410 6105.9011.03AntennasVHF (100 MHz to 163 MHz) HK012 0459.7611.02UHF (225 MHz to 400 MHz) HK001 0425.2781.03VHF/UHF (100 MHz to 1300 MHz) HK014 0644.1514.02MiscellaneousVHF/UHF Diplexer (100 MHz to 163 MHz/225 MHz to 400 MHz ) FT224 0525.5117.03Rohde&Schwarz Timing System3) GT400 on request1) Link 11 operation with RF monitoring using a second synthesizer on request.2) With GB406xx, only the operational remote-control functions of M3SR are available. Please ask for special firmware to control M3SR.3) Recommended for time synchronization of frequency hopping systems. Including GPS receiver and disciplined rubidium oscillator.
