Users Manual 2

Quick Start Guide and Safety Manual
P/N RDC2-COT* (ER-200) QUICKSTART – Rev A
8
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Changes or modifications not expressly approved by Cosasco could void the user's
authority to operate the equipment
This radio transmitter (ER-200) has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a
gain greater than the maximum gain indicated for that type, are strictly prohibited for use
with this device.
OMB.242.08F21
Le présent émetteur radio (ER-200) a été approuvé par Industrie Canada pour fonctionner
avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et
l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits
pour l'exploitation de l'émetteur.
OMB.242.08F21
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
FCC ID: ZYS-ER200
IC : 9910A-ER200
Quick Start Guide and Safety Manual
P/N RDC2-COT* (ER-200) QUICKSTART – Rev A

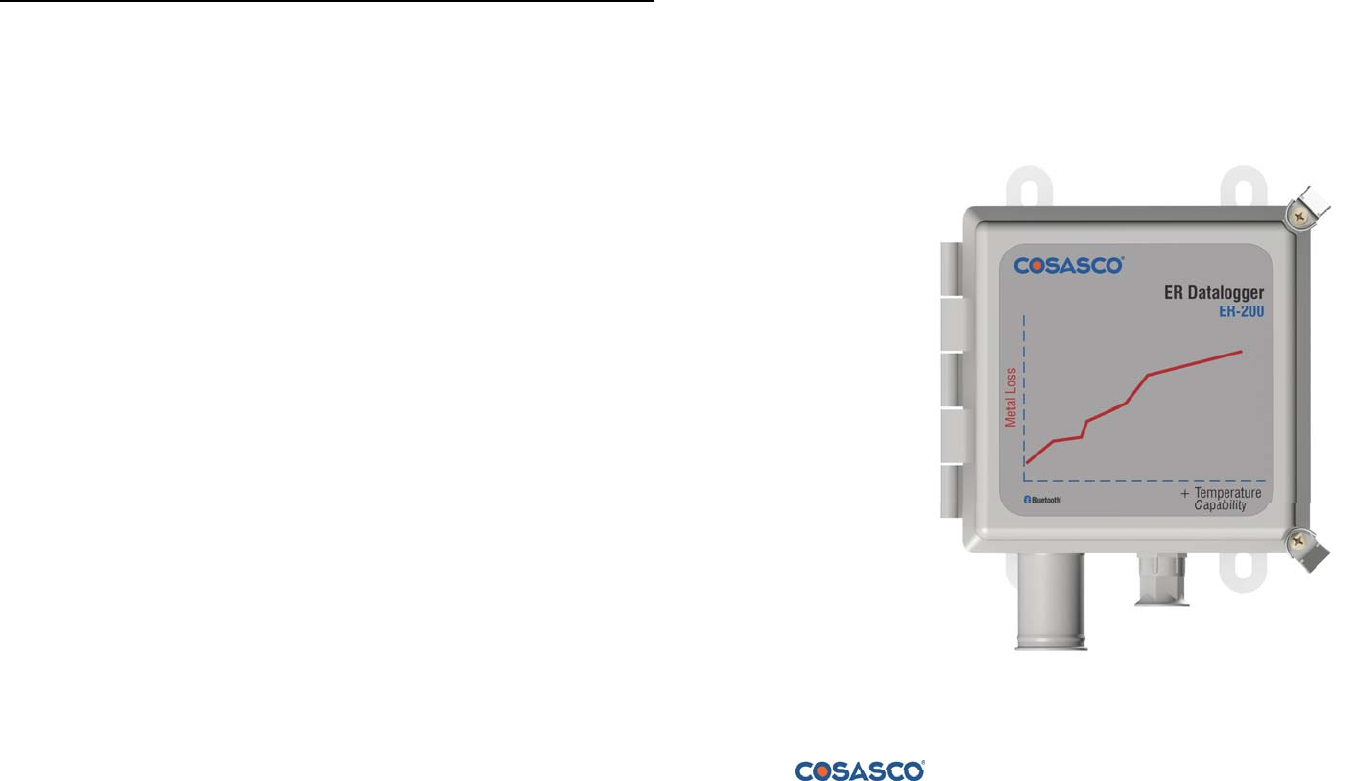

RDC2-COT* (ER-200)
Rohrback Cosasco Systems, Inc.
© 2015 Rohrback Cosasco Systems, Inc. All rights reserved.
Quick Start Guide and Safety Manual
P/N RDC2-COT* (ER-200) QUICKSTART – Rev A
2
No part of this manual may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose, without the express written
permission of Rohrback Cosasco Systems, Inc.
RDC2-COT-G* only differs by the N-type connector used, for hazardous area approvals it
may not pass the 500V isolation between antenna and enclosure.
Rohrback Cosasco Systems, Inc.
11841 Smith Avenue,
Santa Fe Springs, CA 90670
USA
Phone: 800-635-6898
Phone: 562-949-0123
Fax: 562-949-3065
Website: www.Cosasco.com
Sales Email: Sales@Cosasco.com
General Email: RCS@Cosasco.com
Quick Start Guide and Safety Manual
P/N RDC2-COT* (ER-200) QUICKSTART – Rev A
7
North American Certifications
CSA Certification: 70008419
CSAUS Class I, Zone 0, AEx ia IIC T4 Ga, Ta = -40˚C to +70˚C
CCSA Ex ia IIC T4 Ga, Ta = -40˚C to +70˚C
For use only with RCS RDC2 Battery Pack P/N 726043
The RDC2-COT* complies with the following North American standards:
US Approval:
ANSI/UL 60079-0:2013, 6th Ed. Electrical Apparatus for Explosive Gas Atmospheres – Part
0: General Requirements
ANSI/UL 60079-11:2013, 6th Ed. Electrical apparatus for Explosive Gas Atmospheres –
Part 11: Intrinsic safety “i”
ANSI/ISA 61010-1 3rd Edition, Safety Requirements for Electrical Equipment for
Measurement, Control, and Laboratory Use – Part 1: General Requirements – Third Edition
Canadian Approval:
CAN/CSA-C22.2 No. 61010-1-12, Safety Requirements for Electrical Equipment for
Measurement, Control, and Laboratory Use – Part 1: General Requirements – Third Edition
CAN/CSA-C22.2 No. 60079-0:11 Ed. 5, Explosive Atmospheres – Part 0: Equipment –
General requirements
CAN/CSA-C22.2 No. 60079-11:14 Ed. 6, Explosive Atmospheres – Part 11: Equipment
protection by intrinsic safety “i”
Electromagnetic Compatibility Directive (EMC) 89/336/EEC, Amended
91/263/EEC, 92/31/EEC and 93/97/EEC
The RDC2-COT* complies with the European EMC Directive and the following standards:
EN 61326-1:2013, Electrical Equipment for Measurement and Control
EN 61326-1:2013, Group 1 Class B: Radiated Emissions
EN 61000-4-2:2009, EMC: Electrostatic Discharge Immunity
EN 61000-4-3:2010, A2:2008, EMC: Radiated Radio Frequency Immunity
Telecommunication Compliance
All wireless devices require certification to ensure that they adhere to regulations regarding
the use of the radio frequency (RF) spectrum. Nearly every country requires this type of
product certification. RCS is working with governmental agencies around the world to
supply fully compliant products and to remove the risk of violating country directives or laws
governing wireless device usage.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation..
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
Quick Start Guide and Safety Manual
P/N RDC2-COT* (ER-200) QUICKSTART – Rev A
6
PRODUCT CERTIFICATIONS
Product Name: RDC2-COT*
Model: ER-200
Approved Manufacturing Location
Rohrback Cosasco Systems, Inc. — Santa Fe Springs, California USA
Canadian Standards Association (CSA Group)
The RDC2-COT* has been examined and tested to determine that the design meets basic
electrical, mechanical and fire protection requirements by CSA, a Nationally Recognized
Testing Laboratory (NRTL) as accredited by the Federal Occupational Safety and Health
Administration (OSHA).
European Union (EU) Directives
ATEX certification
SIRA 14ATEX2265X
Ex ia IIC T4 Ga, Ta = -40˚C to +70˚C
For use only with RCS RDC2 Battery Pack P/N 726043
ATEX Directive 94/9/EC
The RDC2-COT* complies with the European ATEX Directive and the following standards:
EN 60079-0:2012/A11:2013, Explosive atmospheres – Part 0: Equipment – General
Requirements
EN 60079-11:2012, Explosive atmospheres – Part 11: Equipment protection by intrinsic
safety “i”
EN 60079-26:2015, Explosive atmospheres – Part 26: Equipment with equipment
protection level (EPL) (applicable to the Ga equipment only)
IEC Ex Certification
IECEx SIR 14.0098X
Ex ia IIC T4 Ga, Ta = -40˚C to +70˚C
For use only with RCS RDC2 Battery Pack P/N 726043
The RDC2-COT* complies with the following IEC standards:
IECEx:
IEC 60079-0:2011-06, Edition 6.0, Explosive atmospheres – Part 0: Equipment – General
Requirements
IEC 60079-11:2011-06, Edition 6.0, Explosive atmospheres – Part 11: Equipment
protection by intrinsic safety “i”
IEC 60079-26:2014-08, Edition 3.0, Explosive atmospheres – Part 26: Equipment with
equipment protection level (EPL) (applicable to the Ga equipment only
Quick Start Guide and Safety Manual
P/N RDC2-COT* (ER-200) QUICKSTART – Rev A
3
IMPORTANT NOTICE
This start guide provides basic guidelines for the RDC2-COT* installation. Refer to
the RDC2-COT* Reference Manual for additional details including configuration,
diagnostics, maintenance, service, troubleshooting, and installation.
Shipping considerations for wireless products (Lithium Batteries)
Primary lithium batteries are regulated in transportation by the U.S. Department of
transportation, and are also covered by IATA (International Air Transport
Association), ICAO (International Civil Aviation Organization), and ARD (European
Ground Transportation of Dangerous Goods). It is the responsibility of the shipper
to ensure compliance with these or any other local requirements. Please consult
current regulations and requirements before shipping.
Conditions Of Certification/Special Conditions For Safe Use:
i. Under certain extreme circumstances, the exposed plastic/fibre glass
surfaces of the non-metallic enclosure version of the equipment
may generate, and its unearthed metal parts may store, an ignition-
capable level of electrostatic charge. Therefore this version of the
equipment shall not be installed in a location where the external
conditions are conducive to the build-up of electrostatic charge on
the enclosure surfaces. In addition, the equipment shall only be
cleaned with a damp cloth. This is particularly important if the
equipment is installed in a Zone 0 location.
ii. The maximum radio power output at the r.f. connectors is 1W. Any
antenna fitted shall not result in the radiated power from exceeding
2W when any antenna gain is taken into account.
iii. The RDC2-COT-G* is not capable of passing a 500V R.M.S. insulation
test according to 60079-11 between its intrinsically safe circuits and
the enclosure. This shall be taken into account in any equipment
installation.
WARNING
Explosions could result in death or serious injury
Installation of this datalogger in an explosive environment must be in accordance
with the appropriate local, national, and international standards, codes, and
practices. Please review the Product Certifications section for any restrictions
associated with a safe installation.
• Before connecting the RDC2-COT* in an explosive atmosphere, ensure the
instruments are installed in accordance with intrinsically safe field wiring
practices.
Electrical shock can result in death or serious injury
• Avoid contact with the leads and terminals. High voltage that may be present
on leads can cause electrical shock.
Use only with RCS RDC2 Battery Pack, P/N 726043
Quick Start Guide and Safety Manual
P/N RDC2-COT* (ER-200) QUICKSTART – Rev A
4
MOUNT THE RDC2-COT* (ER-200)
The RDC2-COT* cannot be directly mounted to a probe. The RDC2-COT* is typically
remote mounted.
The antenna used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter.
Grounding
A 8 to 14 AWG grounding wire can be attached to the Datalogger at the grounding lug.
Connect the ground wire to earth ground per local electrical code.

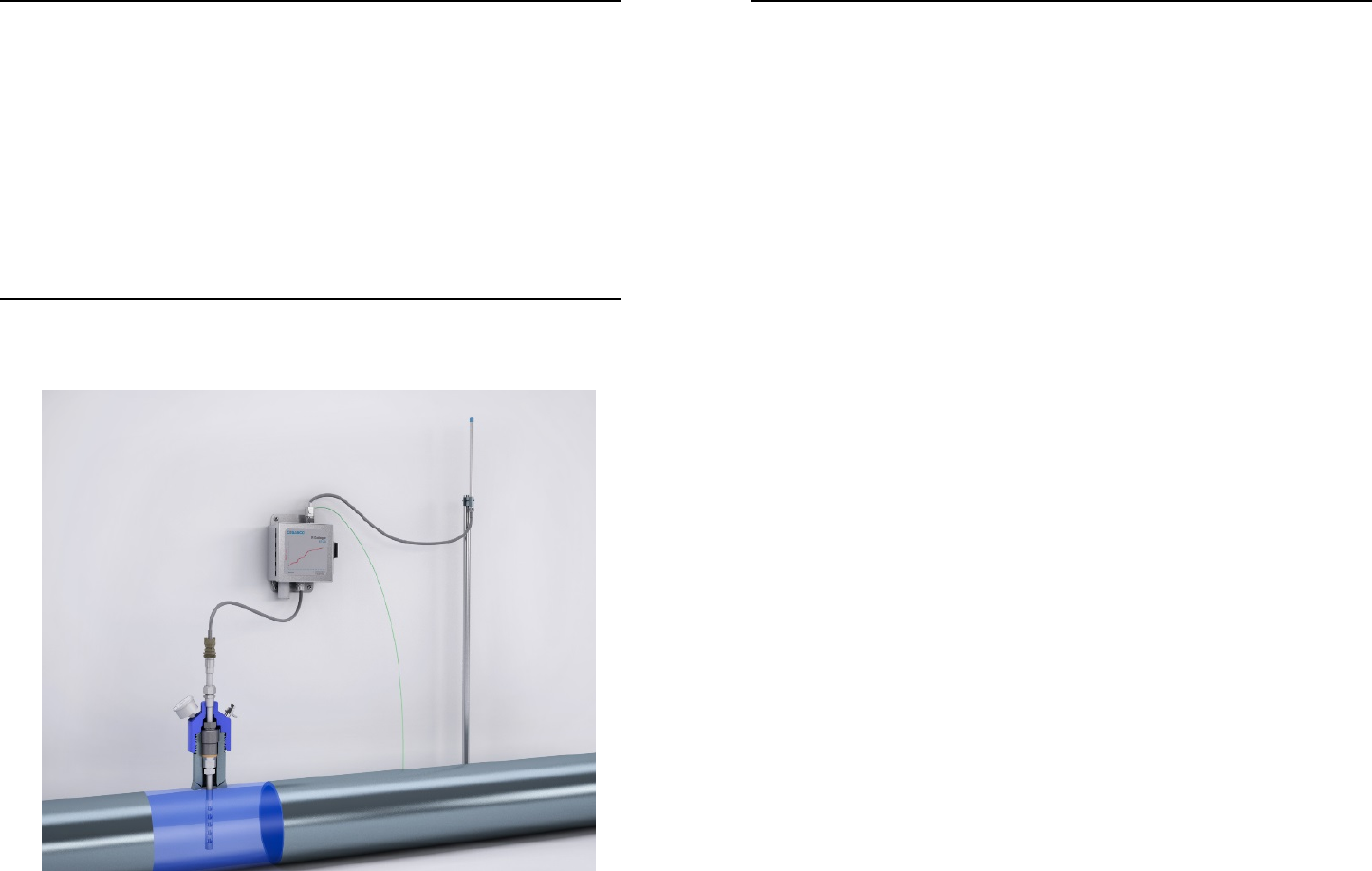

Typical RDC2-COT* Mounting
Quick Start Guide and Safety Manual
P/N RDC2-COT* (ER-200) QUICKSTART – Rev A
5
VERIFY OPERATION
Operation can be verified with the MATE* handheld or similar device.
Handheld Device
Check the Status of the connection with the MATE handheld device. Refer to the MATE
handheld device documentation for more details.
NOTE:
It may take a minimum of 5 minutes for the device to take a reading.
Troubleshooting
If the device is not operating properly, refer to the troubleshooting section of the RDC2-
COT* Reference Manual.
The intrinsic safety parameters at the permanently connected probe cable are:
Ui = 0
Uo = 5.36V
Co = 64.9µF
Ii = 0
Io = 0.329A
Lo = 300µH
Pi = 0
Po = 0.45W
Lo/Ro = 53µH/Ω
The intrinsic safety parameters at the RF connector, if installed, are:
Ui = 0
Uo = 5.36V
Ci = 30.4uF
Co = 1.6uF
Ii = 0
Io = 0.894A
Li = 35nH
Lo = 44.4**µH
Pi = 0
Po = 0.95W
**A maximum of 2μH shall be discrete inductance, the balance being permitted
to be cable inductance.
Quick Start Guide and Safety Manual
P/N RDC2-COT* (ER-200) QUICKSTART – Rev A
9
