Roku N1001 1 x 2 Wi-Fi Module User Manual

Roku, Inc. 1 x 2 Wi-Fi Module

Contents

User Manual

PRODUCT SPECIFICATION
1 X 2 WI-FI MODULE
Roku
WM01
Version 1.0
Liteon PN: AAZ200001G
This document contains confidential proprietary information and is property of LTC. The contents of this document should not
be disclosed to unauthorized persons without the written consent of LTC.
Change History:
Revision Date Author Change List
Version 1.0 2014/01/27 Kaysa Lee Preliminary
Author: Kaysa Lee Approved by: Sunny Hsieh
Editor: Kaysa Lee Project Leader: Sunny Hsieh
CONTENT
PRODUCT FEATURES ....................................................................................................................3
PRODUCT SPECIFICATIONS........................................................................................................3
MAIN CHIPSET........................................................................................................................................3
FUNCTIONAL SPECIFICATIONS ...............................................................................................................3
MECHANICAL.........................................................................................................................................4
PRODUCT PICTURE.................................................................................................................................4
PIN DEFINITION ......................................................................................................................................5
BLOCK DIAGRAM...................................................................................................................................5
EEPROM INFORMATION ..............................................................................................................5
ENVIRONMENTAL..........................................................................................................................5
PRODUCT FEATURES
Operate at 2.4GHz band
150Mbps PHY Rate Support
1T1R Modes
USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed
IEEE standards support: IEEE 802.11b/g and 802.11n
802.11i- WEP 64/128, AES, TKIP
Support Wi-Fi Direct
RoHS compliance
Low Halogen compliance
Product specifications
Main chipset
MAC/Baseband/RF: Broadcom BCM43143
Functional Specifications
Standard IEEE802.11b; IEEE 802.11g; IEEE802.11n
Bus Interface Universal Serial Bus (USB2.0)
Data Rate
802.11b:
11, 5.5, 2, 1 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
MCS 0 to 7 for HT20MHz
Media Access Control CSMA/CA with ACK
Radio Technology
802.11b:
CCK, DQPSK, DBPSK
802.11g:
64QAM, 16 QAM, QPSK, BPSK
802.11n:
BPSK, QPSK, 16QAM, 64QAM
Network architecture Infrastructure mode
Wi-Fi Direct
Miracast
Operating Channel 2.4-2.483 GHz:IEEE Channels 1-11 (USA)
Transmit Output Power
(Tolerance:
+1.5dBm/-1.5dBm)
802.11b
17.5dBm 802.11g
15.5dBm@54Mbps 802.11n
15dBm
Receiver Sensitivity
802.11b:
Less than -76dBm
802.11g:
Less than -82dBm @ 6Mpbs
Less than -65dBm @54Mbps
802.11n:
Less than -82dBm @ MCS0
Less than -64dBm @ MCS7
Security 64-bit, 128-bit WEP, TKIP, AES, WPA, WPA2, WPS
IEEE 802.11i
Operating Voltage 3.3V ±9% I/O supply voltage
Power Consumption 299.62mA/381.89mA (Mean/Max)
988.746mW/1260.237mW(3.3V)
Antenna Type Antenna 1: On-board metal PIFA-type antenna
Antenna 2: Stand-alone metal PIFA with soldered mini-coaxial cable using
male U.FL. connector
*Environmental factors dependent
Mechanical

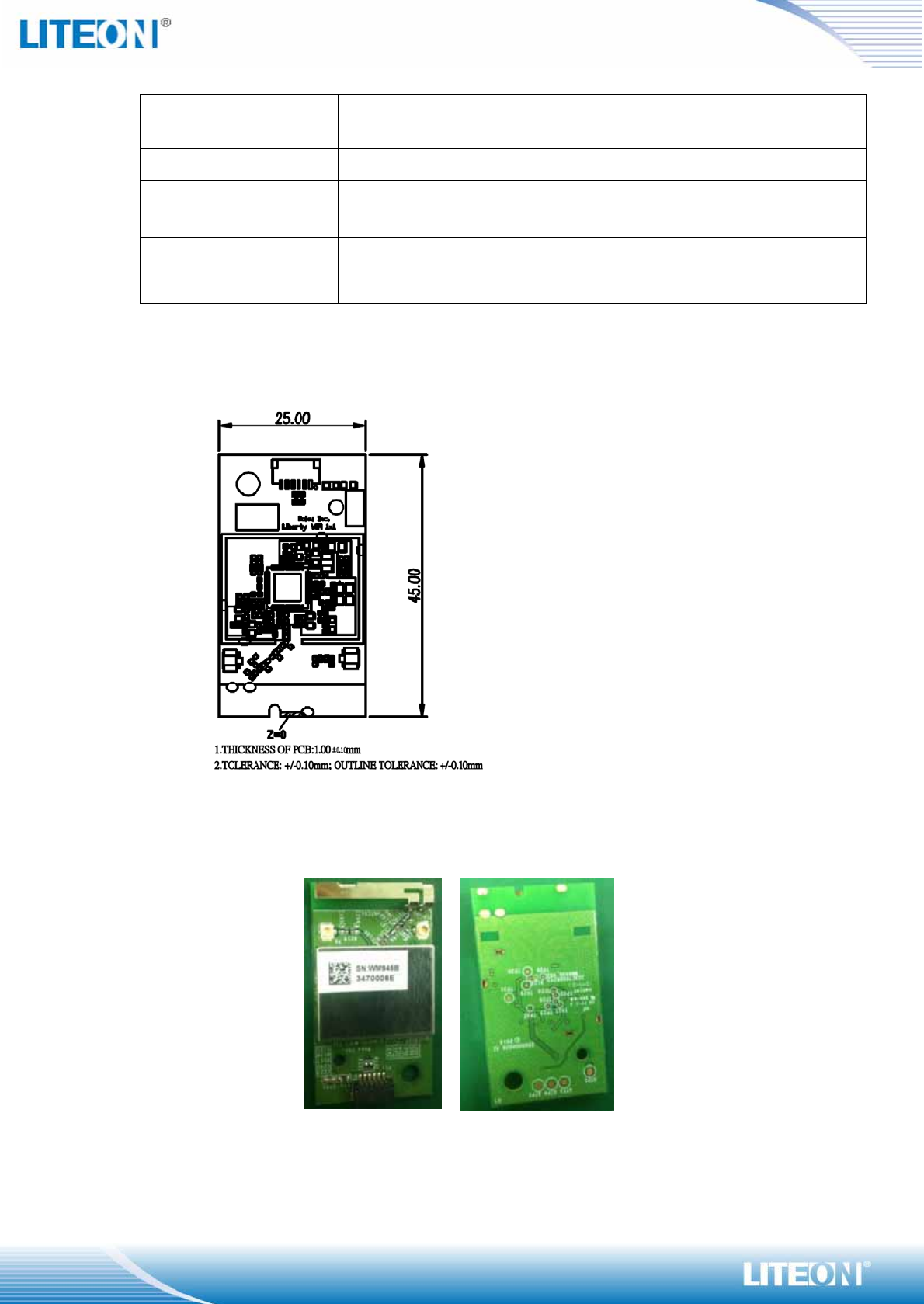

Product Picture
Top Bottom
Pin definition
Pin Number Pin Name
1 VCC(3V3)
2 D-
3 D+
4 GND
5 NC
6 RESETn

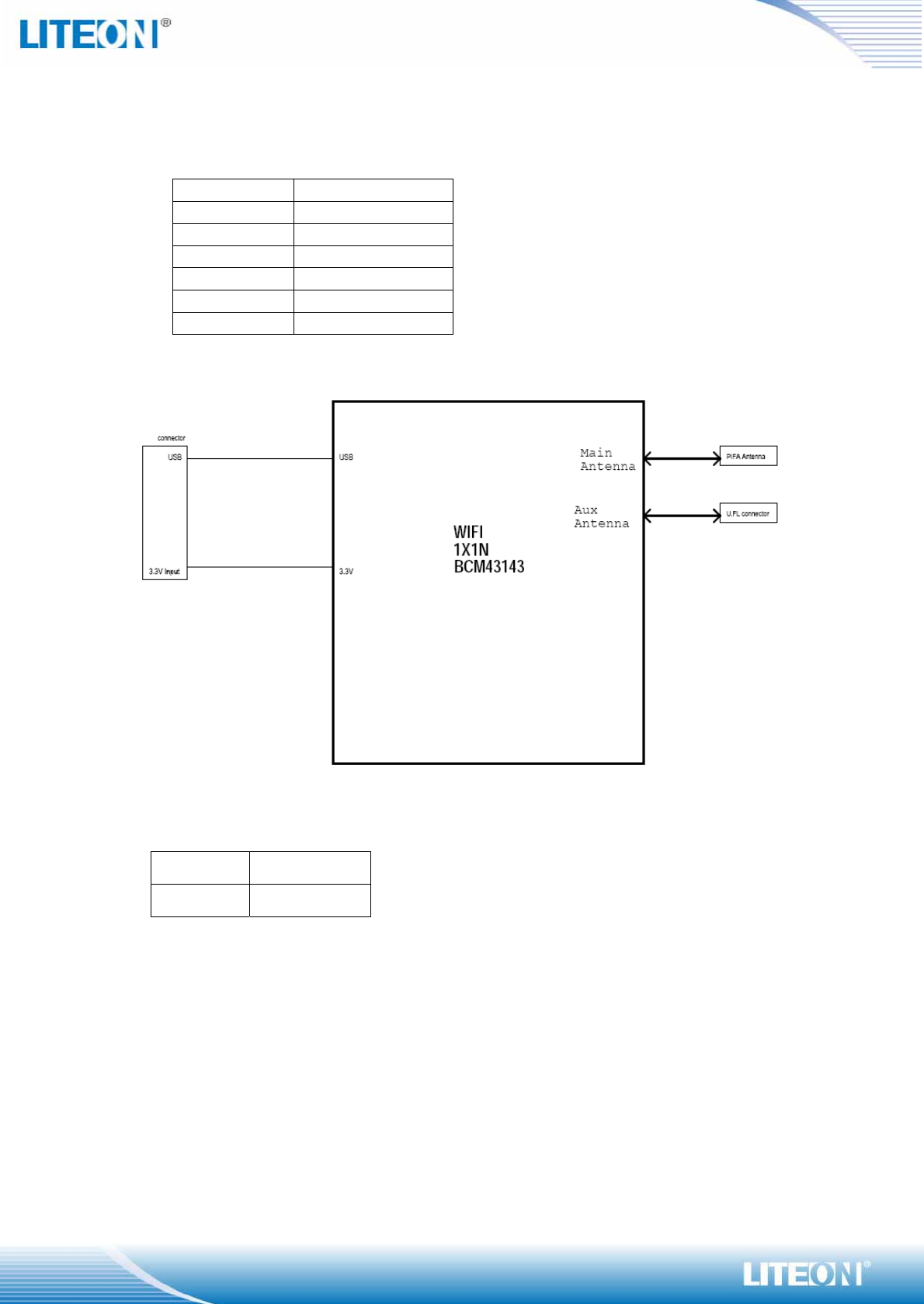

Block Diagram
EEPROM INFORMATION
Vendor ID 0x0A5C
Product ID 0xBD1E
ENVIRONMENTAL
Operating
Operating Temperature: 0 to 40C
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -40 to 80C
Relevant Humidity: 5-80% (non-condensing)
