Rolling Code TRXC Remote Control User Manual NEW CLONER USA 300 390

TX USA

MANUAL TX USA

ATTENTION: THIS REMOTE WORKS IN TWO DIFFERENT WAYS:

1. ENTERING DIRECTLY THE RECEIVER

2. CLONING

ATTENTION: IN TX USA (MULTICLONER) YOU CAN PUT A DIFFERENT BRAND AND FREQUENCY IN EACH

BUTTON (CHANNEL) ONLY IN CLONE MODE.

ENTERING DIRECTLY THE RECEIVER MODE

PROGRAMMING INSTRUCTIONS

1. Locate the selector switch in the back of the remote. Pry up the cover to expose the selector

switch and the hidden button, see image below.

2. Set your selector switch of 8 DIPs switch with the desired brand. See Table 1 and image below.

3. Head for your receiver, in case it has DIPs switch, this defines the code of this specific receiver, please

select this same combination from the receiver in the transmitter TX USA, both must match, otherwise the

communication between them will not work.

In case your receiver doesn’t have this DIP selector, this section must be ignored, it is not neccessary.

4. The remote is ready to be used, press any button (from 1 to 3) please refer to your receiver’s user

manual.

Note: To programme BFT and MUTANCODE it will be necessary to press the hidden button (beside the switches) before

pressing one ordinary button (button 1 to 3).

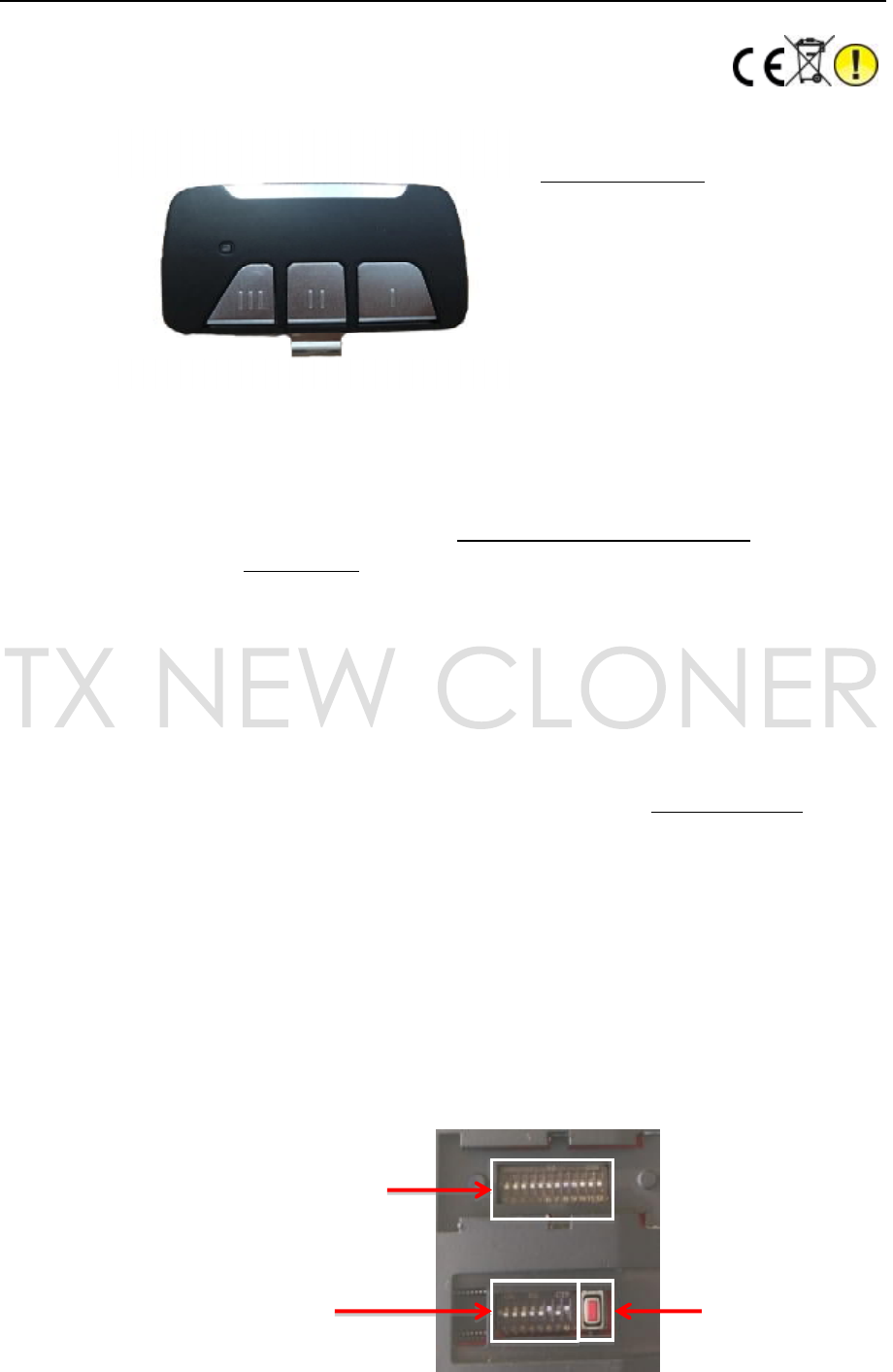

Image to locate battery and DIP switches for selecting the brand.

TECHNICAL FEATURES

ü Model TX USA

ü 2 BATTERIES 2032 (3V)

ü Frequencies 315 - 390 MHz

ü 3 Channels

ü Special Chip

SPECIFIC RECEIVER’S CODE

HIDDEN BUTTON BRAND SELECTOR

TX USA

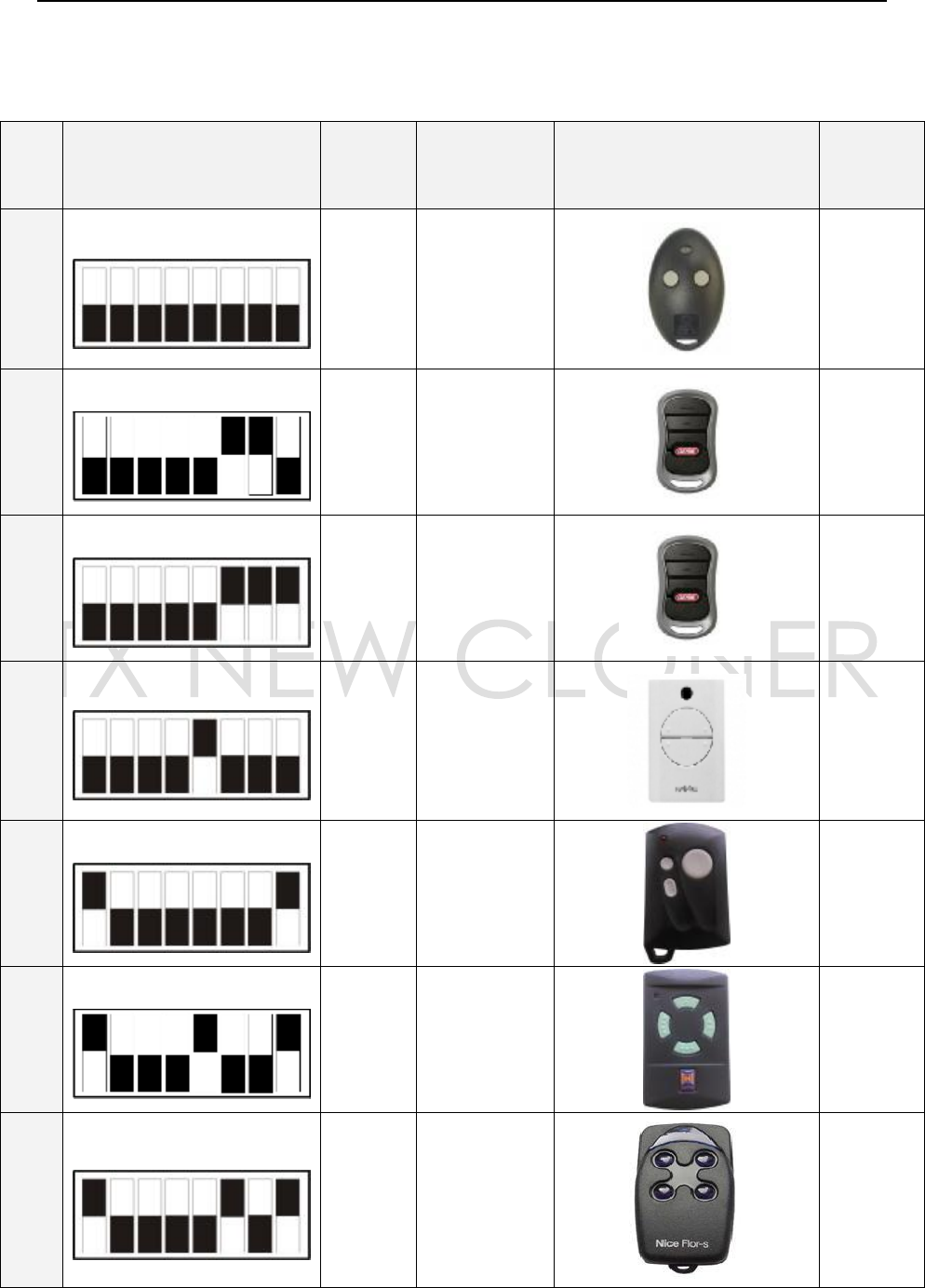

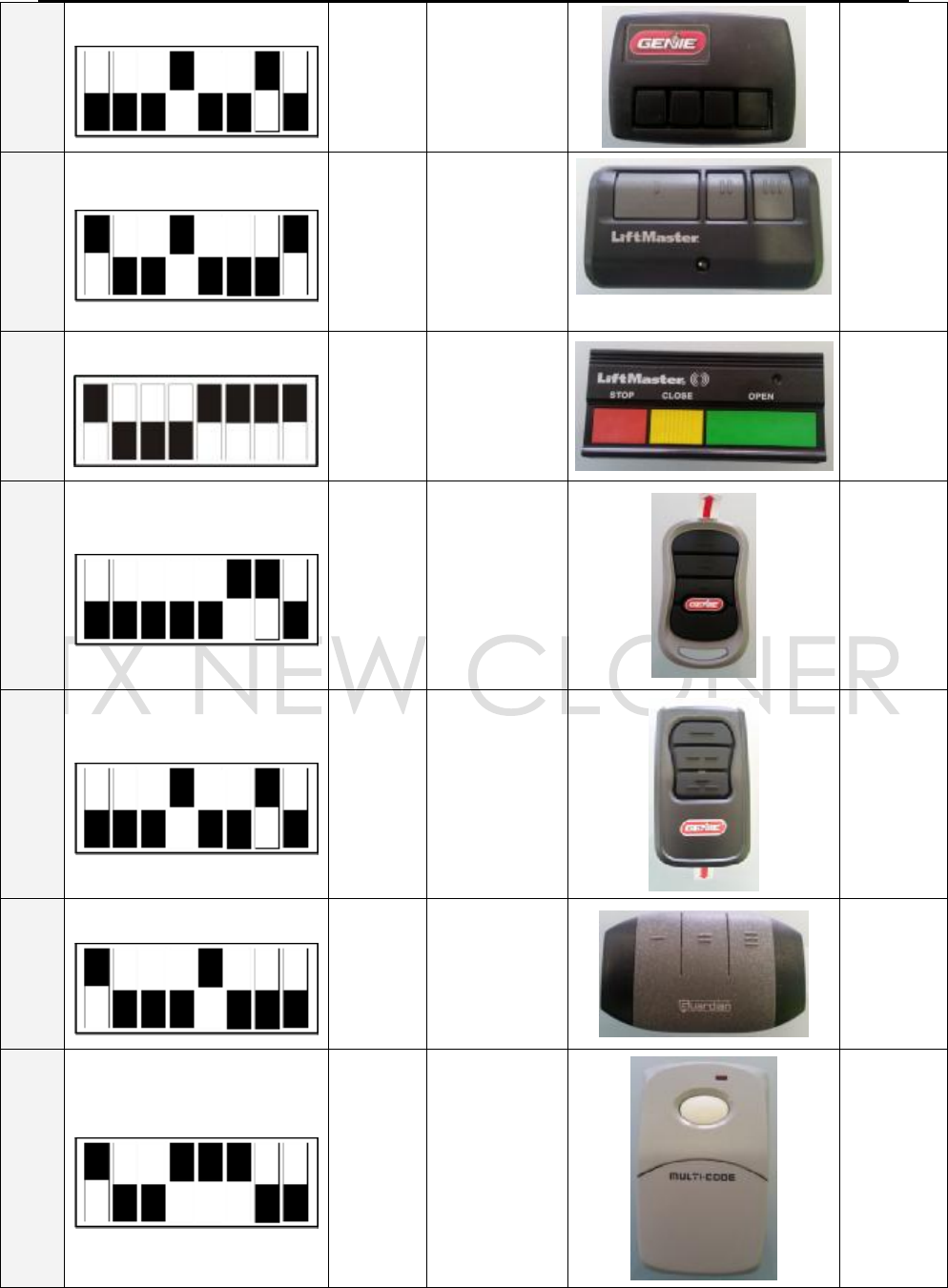

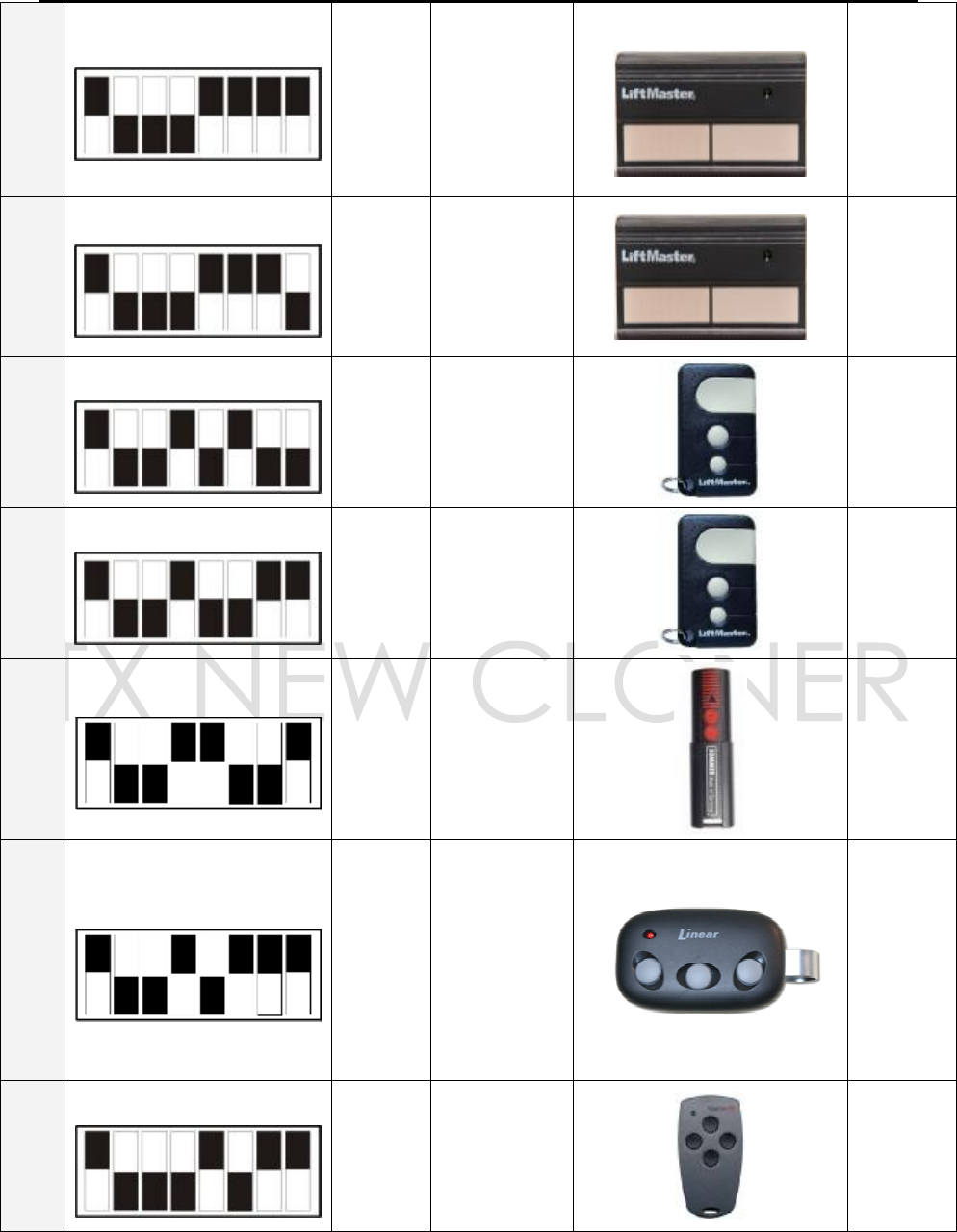

Table 1: Entering directly the receiver.

Num

DIP SWITCHES R/F Brand

Compatible

Original

Comments

1

1 2 3 4 5 6 7 8

Rolling

Code

BFT MITTO

315 MHZ

Need

hidden

button

2

1 2 3 4 5 6 7 8

Rolling

Code

Genie

315 MHZ

3

1 2 3 4 5 6 7 8

Rolling

Code

Genie

390 MHZ

4

1 2 3 4 5 6 7 8

Rolling

Code

FAAC

XT 315 RC

315 MHz

Red LED

5

1 2 3 4 5 6 7 8

Fixed

Code

Linear

315 MHZ

6

1 2 3 4 5 6 7 8

Fixed

Code

HÖRMANN

315 MHZ

7

1 2 3 4 5 6 7 8

Encrypted

Code

Nice

Flor-s

315 MHZ

TX USA

8

1 2 3 4 5 6 7 8

Fixed

Code

LiftMaster

BILLIONCODE

315 MHZ

9

1 2 3 4 5 6 7 8

Fixed

Code

LiftMaster

BILLIONCODE

390 MHZ

10

1 2 3 4 5 6 7 8

Encrypted

Code

Liftmaster

Chamberlain

Lobas

315 MHZ

11

1 2 3 4 5 6 7 8

Encrypted

Code

Liftmaster

Chamberlain

Lobas

390 MHZ

12

1 2 3 4 5 6 7 8

Rolling

code

SOMMER

315 FM MHZ

13

1 2 3 4 5 6 7 8

Rolling

code

MCT-3 Linear

318 MHZ

14

1 2 3 4 5 6 7 8

Fixed

Code

Marantec

315 MHZ

TX USA

15

1 2 3 4 5 6 7 8

Rolling

Code

Genie

315MHz

16

1 2 3 4 5 6 7 8

Encrypted

Code

Liftmaster

LOBAS

390MHz

17

1 2 3 4 5 6 7 8

Fixed

Code

Liftmaster

BILLIONCODE

315MHz

18

1 2 3 4 5 6 7 8

Rolling

Code

Genie

315MHz

19

1 2 3 4 5 6 7 8

Rolling

Code

Genie

315MHz

Mode A

Code select

by position 1

to 9 on

DIP12

20

1 2 3 4 5 6 7 8

Fixed

Code

GUARDIAN

303MHz

21

1 2 3 4 5 6 7 8

DIP

Code

MULTI CODE

300MHz

Code select

by position 1

to 10 on

DIP12

TX USA

CLONE MODE

PROGRAMMING INSTRUCTIONS

1. Locate the selector switch in the back of the remote. Pry up the cover to expose the selector switch and the

hidden button, see the image above.

2. Select the DIP position brand. Example: Fixed Code.

1 2 3 4 5 6 7 8

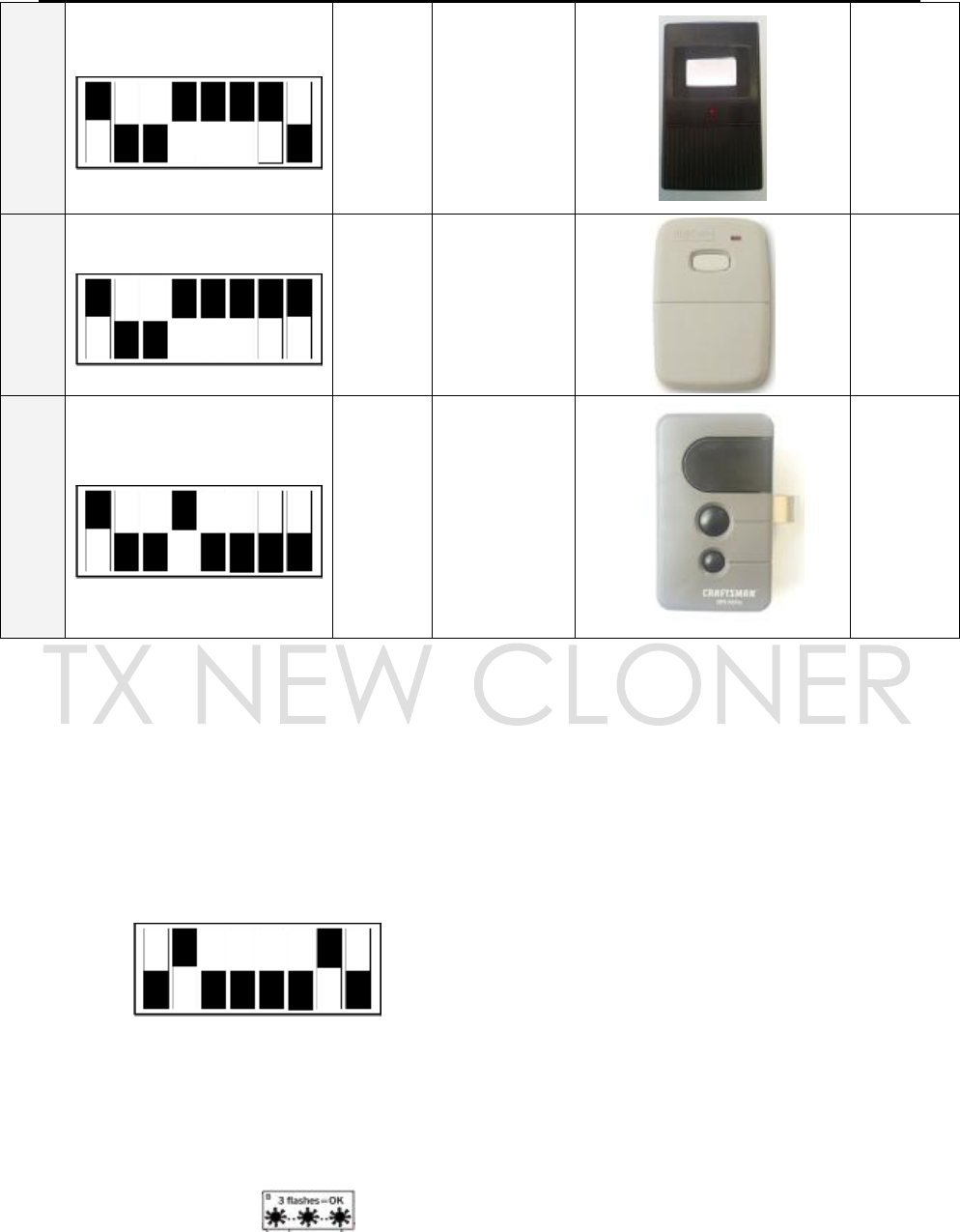

3. Press hidden button located at the back of TX USA remote, CLONER led turns on, the clone mode is activated.

4. On the CLONER remote, press the button you desire to be learnt ONCE AND RELEASE, led Lights off.

5. Close together the CLONER transmitter with the ORIGINAL transmitter.

6. Press and hold the button on the ORIGINAL transmitter until led flashes.

Note: If the remote was copied correctly, the led on the CLONER will flash 3 times.

To use another button, repeat steps 1 to 6.

Table 2: Clone mode.

22

1 2 3 4 5 6 7 8

DIP

Code

LINEAR2

310MHz

Code select

by position 1

to 8 on

DIP12

23

1 2 3 4 5 6 7 8

DIP

Code

DIGI CODE

310MHz

Code select

by position 1

to 10 on

DIP12

1 2 3 4 5 6 7 8

Encrypted

Code

Liftmaster

LOBAS

315MHz

TX USA

Num DIP SWITCHES R/F Brand

Compatible

Original Comments

1

1 2 3 4 5 6 7 8

Fixed

Code

Universal

Fixed Code

300 - 390MHz

SCAN MODE

Scan ANY fixed code

remote with

frequency from 300

to 390 MHz.

2

1 2 3 4 5 6 7 8

V2 V2

300 - 390

MHz

SCAN MODE

Scan V2 remotes that

work with

frequencies from 300

to 390 MHz.

3

1 2 3 4 5 6 7 8

HCS

Universal

Rolling

Code

300-390MHz

SCAN MODE

Scan ANY Rolling

Code that works with

frequencies from 300

to 390 MHz.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 -Reorient or relocate the receiving antenna.

 -Increase the separation between the equipment and receiver.

 -Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 -Consult the dealer or an experienced radio/TV technician for help.
