Rosslare Enterprises Ltd Remote Control Users Manual
Rosslare >
Users Manual
Rosslare Enterprises Ltd.
Copyright Rosslare Enterprises Ltd 1999-2002
Product Documentation
Compatibility: The SA-26,27,28 F and FP Wireless 1,2 & 4-Button Remote Controls are compatible with a variety of Rosslare's RF receivers and panels,
available in 418.00 MHz. For a list of these products and other information please contact your nearest Rosslare representative.
Page 1 of 1 5501-0010054-00
MAIN FEATURES:
A) Fully compatible with a selection of panels,
universal receivers, and RF accessories such
as repeaters.
B) Excellent RF performance.
C) The SA-28 is designed to be attached to the
belt using the belt clip attachment, or mounted
on a hook with the wall mount attachment.
D) Small and smooth enough to fit into your
pocket or purse comfortably.
E) Microprocessor and SMT Designed
electronics for higher quality, and
superior performance.
F) LED indicator visually confirms a good
transmission signal.
G) Two cells AAA sized replaceable batteries
(Model AAA Standard Alkaline Battery) with
a long life.
H) Over 16 million random RF ID Codes. Multiple
SA-26,27 28 units can be programmed to
work with a single panel.
GENERAL SPECIFICATIONS
Battery: Two 1.5 Volt Alkaline Standard Battery
Model AAA. Rosslare recommends
to use the following brands:
Energizer, Duracell, Panasonic, Varta
SA-26 F&FP: 1 Button (1 Channel)
PANIC or ID
SA-27 F&FP: 2 Button (2 Channel)
ARM / DISARM or ID
SA-28 F&FP: 4 Button (4 Channel)
ARM / DISARM / PARTIAL ARM /
PANIC or ID
Operating Temp: -10oC to +50oC
(14oF to + 122oF)
Operating Humidity: Up to 95% Non-
Condensing (max.)
RF Frequency: 418.00 MHz
Installation: Indoor Use Only
(Not Water Proof)
Supervisor: The SA-26,27 & 28 F and FP
Remote control transmitters
are not supervised.
Tamper: There is no case tamper on
the SA-26,27,and 28.
Current: Standby: 0 A
Transmit: 16 mA
Size: 104mm x 40mm x 15mm
(4.09" x 1.57 " x 0.59 ")
Weight: 28 grams Including battery.
GENERAL DESCRIPTION:
Rosslare has designed the SA-26,27,28 F and FP series to be compliant with
the USA standards UL and FCC. The SA-26,27 and 28 are wireless remote
controls that have 1,2 and 4 buttons respectively, the F series are designed to
function in 418.00 MHz with Rosslare’s Popular receivers and controls. (For a
full list of available controls please contact your nearest distributor). The FP
series are designed to function with the AY-L24 D Wireless to Weigand
Receiver.
The SA-26,27,28 F and FP are slim, portable, and except for the number of
buttons, all three models have the same smooth surface mechanical enclosure
which comes with a belt-clip and a wall mounting attachment.
SA-26,27,28 use state of the art microprocessor design, internal antenna
design, and integrated RF with ASK RF technology, designed and
manufactured under ISO9001 standards. Each model is factory encoded with
Individual ID codes, ensuring that multiple units can be used to provide a
reliable remote control solution in a single installation.

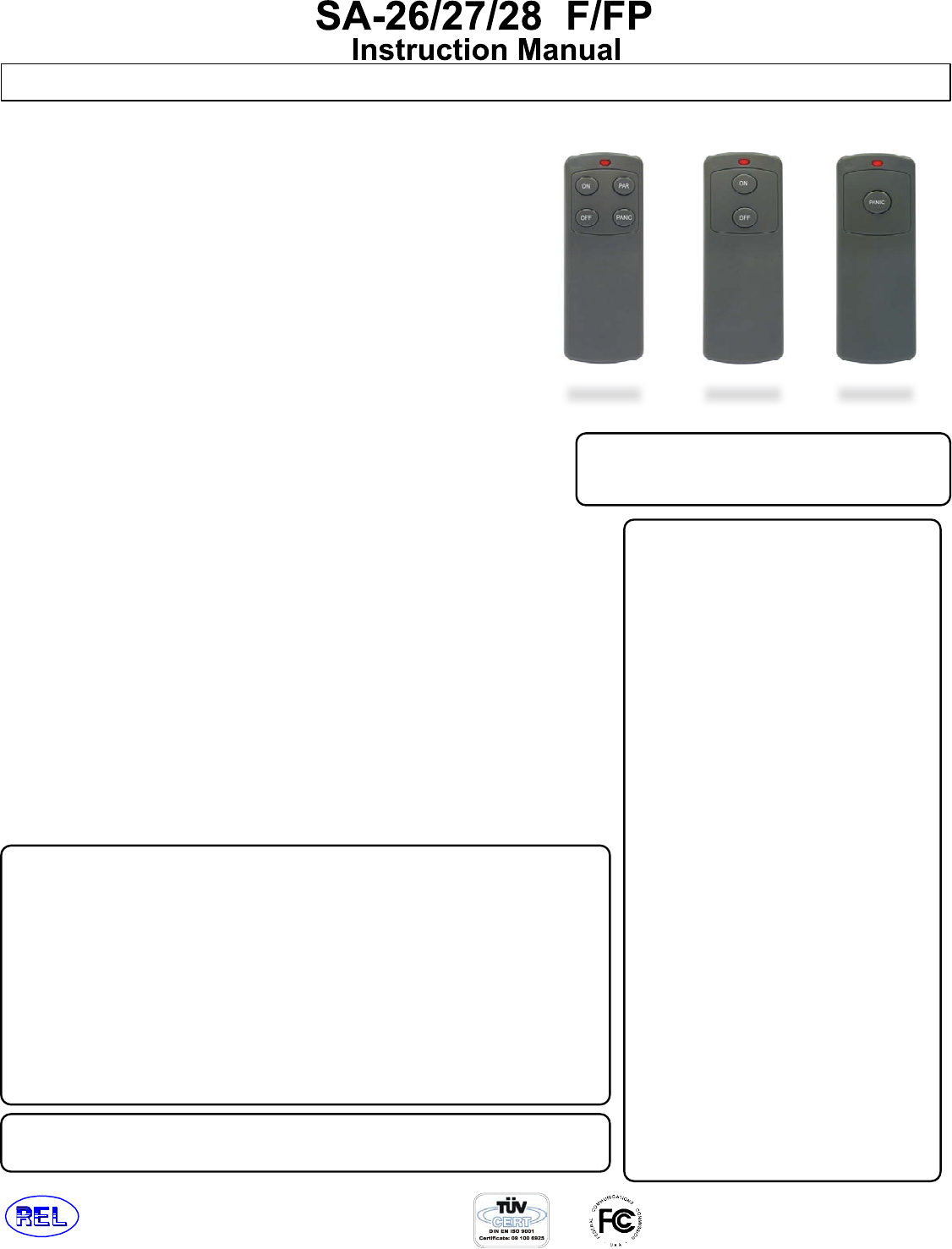

Model : SA-26
Model : SA-27
Model : SA-28
www.rosslare.com.hk
FCC NOTE: Transmitter FCC ID : GCD-2628SATX
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
! Warning !
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance (Rosslare Enterprises Ltd.) could void the user's authority to operate the equipment.
OPERATING AND INSTALLING:
Installing/Replacing the Batteries:
>> On the back of the unit, there is a battery
door, which can be opened via the latch.
>> For a new unit, simply remove the Plastic
Tab Insulator to activate the unit.
>> To replace the batteries, when the unit is
no longer functioning, replace the two
primary cells with the recommended AAA
batteries.
Enrolling the Remote to the Host Control
>> Using the control unit’s interface go to the
enrolling menu, select the options for the
new remote, and transmit to the control unit
to enroll. (See Host Instructions)
Operation
>> Simply pressing one of the buttons will
generate the RF transmission to the
control unit.
>> Local LED indicator visually confirms a
good transmission signal.
FCC Notice: Transmitter FCC ID : GCD-2628SATX
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference (2)
This device must accept any interference received including any interference
that may cause undersired operation
