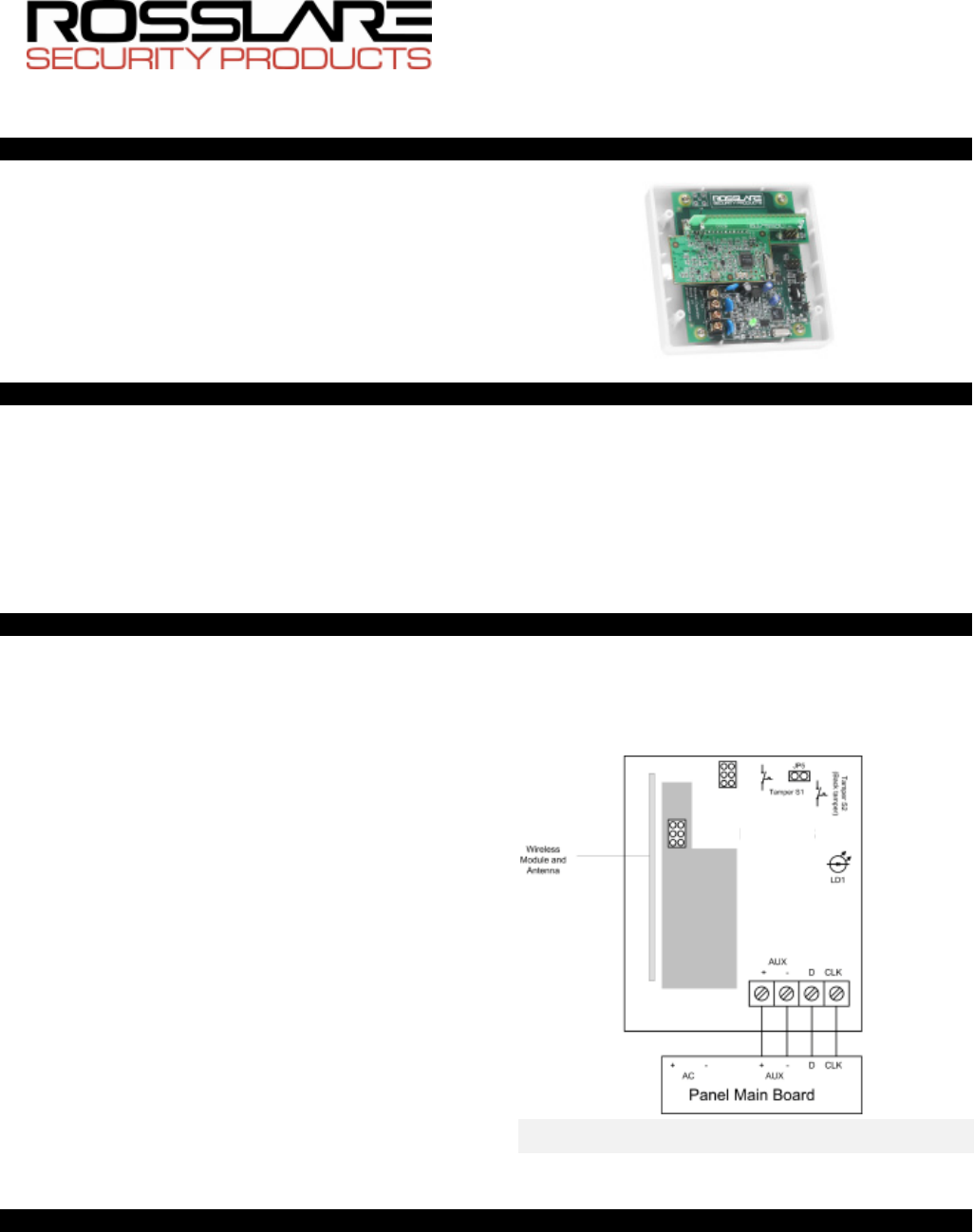

Rosslare XR-16AG Wireless Expansion User Manual Installation Manual
Rosslare Enterprises Ltd Wireless Expansion Installation Manual
Rosslare >
Manual
MatrixBus™ XR-16A
Installation Instructions AuraSys™ L-4/6 Wireless Zone Expansion
1 0706-0960344+01
1. Introduction
This wireless expansion transforms the AuraSys Lite system from a
limited hardwired system into a wireless system. The expansion is a
two way RF communicator which allows connection to wireless
sensors, sirens, keypads, repeaters and remote controls.
With up to 4/6 zones depending on the hosting panel having the
same characteristics as the on board zones.
The stand alone expansion option is housed in a plastic casing
installed outside of the system's case considering RF environment
and wireless devices deployment.
2. Technical Specifications
2.1. Electrical Characteristics
Auxiliary Voltage: 13.4 – 13.8 VDC from hosting panel
Maximum Input Current: 55-75 mA
Indication:
2.2. Environmental Characteristics
Red LED
Operating Environment: indoor use
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Operating Humidity: 0 to 95% (Non-Condensing)
RFI Protection:
2.3. Physical Characteristics (with case)
>20 V/m up to 1000 MHz.
Dimensions (HxWxD): 101 x 99 x 35 mm (4 x 3.9 x1.4 in)
Weight:
2.4. Available models:
143 g (0.316 lbs)
XR-16AH – 868.35 MHz
XR-16AG – 433.92 MHz
3. Installation
3.1. General
The XR-16A is designed for easy installation. Only a few steps are
required to install the keypad.
Changes or modifications to this equipment not expressly
approved by Rosslare security as the party responsible for
compliance could void the user’s authority to operate the
equipment.
3.2. Mounting the XR-16A expansion
Perform the following steps to mount the expansion:
1) Remove the four screws holding the front cover. Set the
screws aside.
2) Disassemble the PCB assembly from the back plate, remove
the four screws holding the PCB, set them aside.
3) Locate the back plate at the desired installation location.
The wireless expansion should be installed at a secured
location considering RF environment and wireless devices
deployment.
4) Use the back cover itself as a template for the wall screws.
5) Drill holes in the wall and insert anchors. Hardware is
provided.
6) Route a four-wire cable from the panel to the wireless
expansion location.
7) Pass the 4-wire cable via one of the channels designed in
the back plate. Use pliers to remove the section covering
the channel.
8) Mount and fasten the back plate using the screws provided.
Make sure to level the plate.
9) Make wiring connections, to the PCB assembly and mount
on the back plate.
10) Secure with the screws, set aside previously.
3.3. Wiring
Refer to the wiring diagram below.
NOTE: Wiring must be done when the AuraSys™ L-4/6 panel
power is turned off.
4. Configuration
4.1. LEDs
The module LED flashes red until the panel finishes initialization of
Wireless module. After initialization, the wireless module turns the
LED on continuously.
During normal operation, when the module is in programming
mode, or any time the module is LOCKED, the LED flashes red.
4.2. Tamper
The stand alone expansion option cover and back tamper
switches prevent vandalism and unauthorized PCB access.
The module continuously checks the Tampers status when JP5 is
disconnected.
The JP5 jumper is the Tamper jumper. When using the expansion
on the board inside the metal casing the tampers must be
shorted in order to prevent false alarms.
When operating as a stand alone module, jumper JP5 must be
open (no jumper).
MatrixBUS
XR-16A
2 0706-0960344+01
5. Limited Warranty
ROSSLARE ENTERPRISES LIMITED S (Rosslare) TWO YEAR LIMITED
WARRANTY is applicable worldwide. This warranty supersedes any other
warranty. Rosslare's TWO YEAR LIMITED WARRANTY is subject to the
following conditions:
Warranty of Rosslare's products extends to the original purchaser (Customer)
of the Rosslare product and is not transferable.
Warranty
ROSSLARE ENTERPRISES LTD. AND / ORSUBSIDIARIES (ROSSLARE)
warrants that the MatrixBus XR-16A wireless zone expansion, to be free from
defects in materials and assembly in the course of normal use and service.
The warranty period commences with the date of shipment to the original
purchaser and extends for a period of 2 years (24 Months).
Products Covered By This Warranty and Duration
In the event of a breach of warranty, ROSSLARE will credit Customer with the
price of the Product paid by Customer, provided that the warranty claim is
delivered to ROSSLARE by the Customer during the warranty period in
accordance with the terms of this warranty. Unless otherwise requested by
ROSSLARE ENTERPRISES LTD. AND / OR SUBSIDIARIES representative,
return of the failed product(s) is not immediately required.
Warranty Remedy Coverage
If ROSSLARE has not contacted the Customer within a sixty (60) day holding
period following the delivery of the warranty claim, Customer will not be
required to return the failed product(s). All returned Product(s), as may be
requested at ROSSLARE ENTERPRISES LTD. AND /OR SUBSIDIARY’S sole
discretion, shall become the property of ROSSLARE ENTERPRISES LTD.
AND /OR SUBSIDIARIES.
To exercise the warranty, the user must contact Rosslare Enterprises Ltd. to
obtain an RMA number after which, the product must be returned to the
Manufacturer freight prepaid and insured
In the event ROSSLARE chooses to perform a product evaluation within the
sixty (60) day holding period and no defect is found, a minimum US$ 50.00 or
equivalent charge will be applied to each Product for labor required in the
evaluation.
Rosslare will repair or replace, at its discretion, any product that under normal
conditions of use and service proves to be defective in material or
workmanship. No charge will be applied for labor or parts with respect to
defects covered by this warranty, provided that the work is done by Rosslare
or a Rosslare authorized service center.
ROSSLARE shall not be responsible or liable for any damage or loss resulting
from the operation or performance of any Product or any systems in which a
Product is incorporated. This warranty shall not extend to any ancillary
equipment not furnished by ROSSLARE, which is attached to or used in
conjunction with a Product, nor to any Product that is used with any ancillary
equipment, which is not furnished by ROSSLARE.
Exclusions and Limitations
This warranty does not cover expenses incurred in the transportation, freight
cost to the repair center, removal or reinstallation of the product, whether or
not proven defective.
Specifically excluded from this warranty are any failures resulting from
Customer's improper testing, operation, installation, or damage resulting from
use of the Product in other than its normal and customary manner, or any
maintenance, modification, alteration, or adjustment or any type of abuse,
neglect, accident, misuse, improper operation, normal wear, defects or
damage due to lightning or other electrical discharge. This warranty does not
cover repair or replacement where normal use has exhausted the life of a part
or instrument, or any modification or abuse of, or tampering with, the Product if
Product disassembled or repaired in such a manner as to adversely affect
performance or prevent adequate inspection and testing to verify any warranty
claim.
ROSSLARE does not warrant the installation, maintenance, or service of the
Product. Service life of the product is dependent upon the care it receives and
the conditions under which it has to operate.
In no event shall Rosslare be liable for incidental or consequential damages.
THIS WARRANTY SETS FORTH THE FULL EXTENT OF ROSSLARE
ENTERPRISES LTD. AND IT’S SUBSIDIARIES’S WARRANTY
Limited Warranty Terms
77BTHE TERMS OF THIS WARRANTY MAY NOT BE VARIED BY ANY PERSON,
WHETHER OR NOT PURPORTING TO REPRESENT OR ACT ON BEHALF OF
ROSSLARE.
78BTHIS LIMITED WARRANTY IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES. ALL OTHER WARRANTIES EXPRESSED OR IMPLIED,
INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
SPECIFICALLY EXCLUDED.
79BIN NO EVENT SHALL ROSSLARE BE LIABLE FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT, OR FOR ANY OTHER INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES, INCLUDING BUT NOT LIMITED TO
LOSS OF USE, LOSS OF TIME, COMMERCIAL LOSS, INCONVENIENCE, AND
LOSS OF PROFITS, ARISING OUT OF THE INSTALLATION, USE, OR INABILITY
TO USE SUCH PRODUCT, TO THE FULLEST EXTENT THAT ANY SUCH LOSS
OR DAMAGE MAY BE DISCLAIMED BY LAW.
80BTHIS WARRANTY SHALL BECOME NULL AND VOID IN THE EVENT OF A
VIOLATION OF THE PROVISIONS OF THIS LIMITED WARRANTY.
6. 31BDeclaration of Conformity
97BThis equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• 81BReorient or relocate the receiving antenna.
• 82BIncrease the separation between the equipment and receiver.
• 83BConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• 84BConsult the dealer or an experienced radio/TV technician for help.
