Roll Laminator Service Manual

MODEL:RSH-380SL

3 ~ 3

4 ~ 10

4 ~ 6

6 ~ 7

7 ~ 9

9 ~ 10

11 ~ 11

12 ~ 14

12 ~ 12

13 ~ 13

13 ~ 14

14 ~ 14

15 ~ 16

17 ~ 19

20 ~ 25

26 ~ 29

30 ~ 33

4.Adjustments ……………………………………………………………………………………

5. Parts List …………………………………………………………………………………………

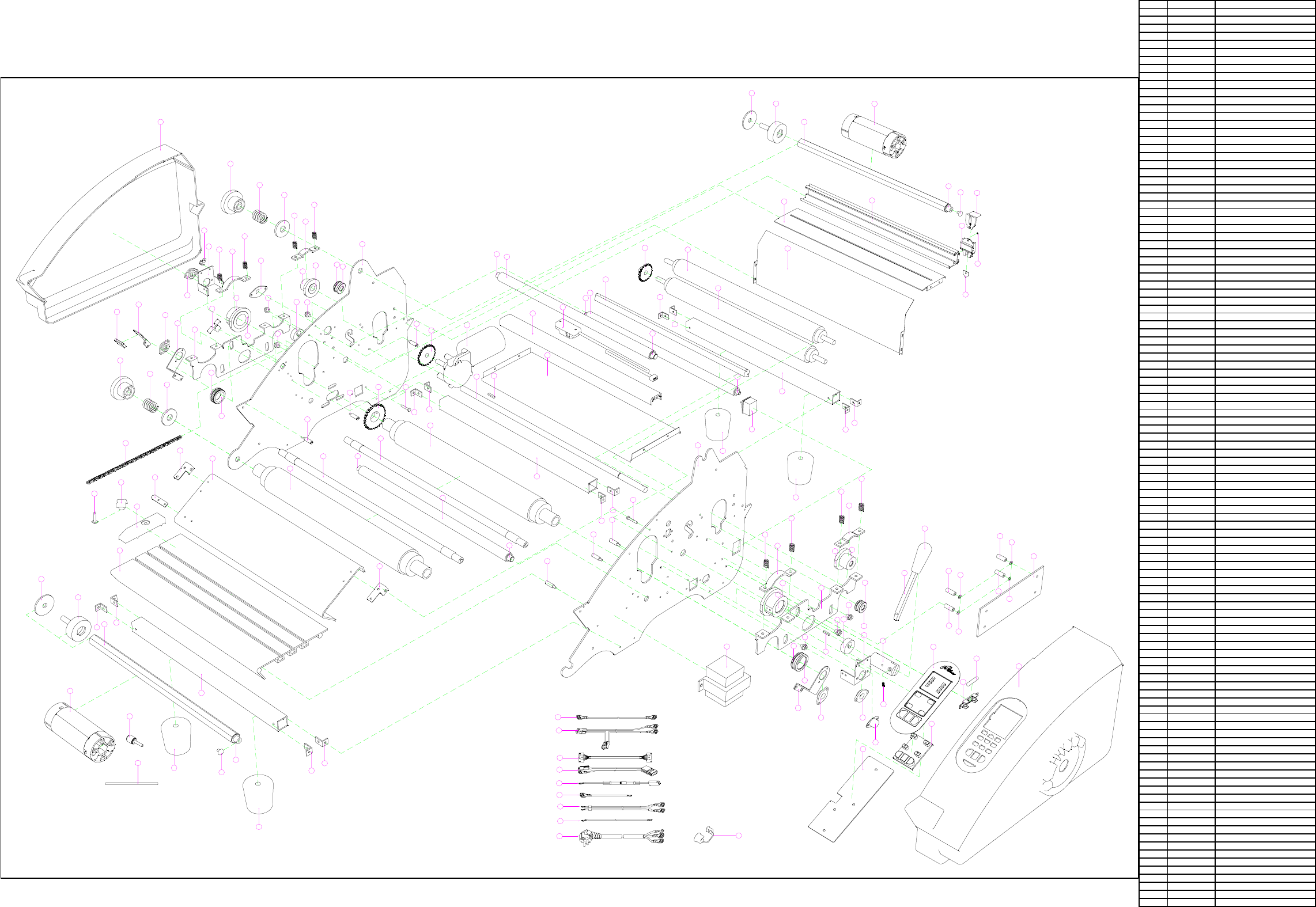

6.Exploded Drawings ………………………………………………………………………

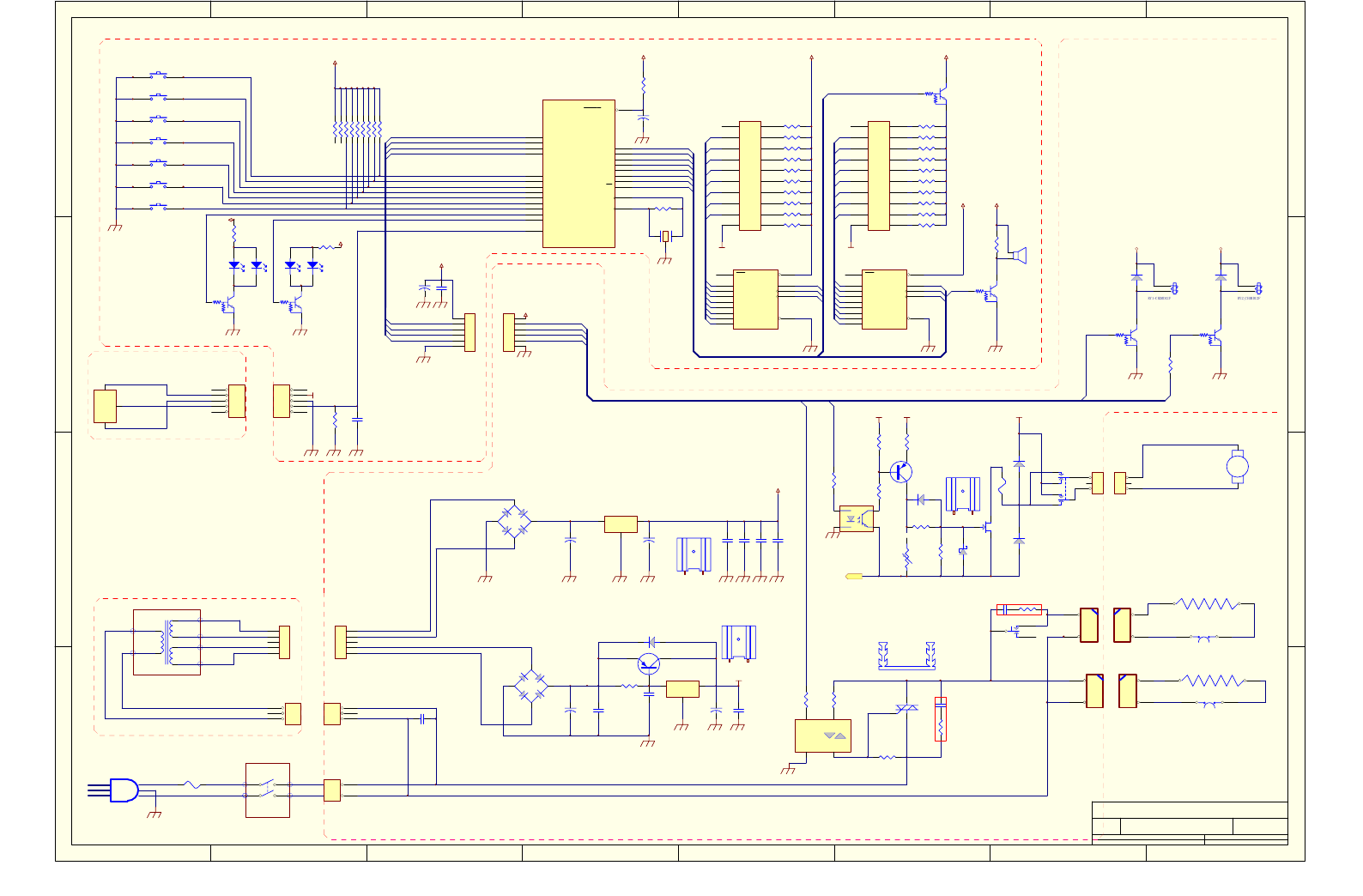

7.Wire Diagram …………………………………………………………………………………

8.Backup ……………………………………………………………………………………………

…

3.4) Main PCB ……………………………………………………………………………………

…

3.5) Sub PCB ………………………………………………………………………………………

3.6) Heaters ………………………………………………………………………………………

…

3.7) Cross Cutter …………………………………………………………………………………

…

3.Replacing Parts ………………………………………………………………………………

3.1) Right Cover …………………………………………………………………………………

…

3.2) Left Cover …………………………………………………………………………………

…

3.3) Rear Cover …………………………………………………………………………………

…

Table of Content

1.Safety Precautions ………………………………………………………………………

2.Troubleshooting ……………………………………………………………………………

2.5) Poor Lamination Quality …………………………………………………………………

…

2.1) Rollers Not Heating ………………………………………………………………………

…

2.2) Rollers Over Heating ………………………………………………………………………

…

2.3) Rollers Not Running ………………………………………………………………………

…

2.4) No Main Power ………………………………………………………………………………

…

Safety Precaution

1. Safety Precautions

Failure to comply any of the following safety procedures could result in serious injury.

Please read the instructions carefully and keep for future reference.

1. Only a licensed electrician should install wiring and outlet for the laminator.

2. Ensure the unit is plugged into a properly grounded outlet with the correct

voltage.

3. Keep hands and clothing(ie.Neckties)away from rollers. The rollers are pinch points that

can trap body parts or clothing and cause serious injury .

4. Keep flammable and wet objects away from the machine .

5. Place machine on a level surface.

6. Avoid excessive sunlight, humidity and extreme temperatures.

7. Ensure the unit is turned off, cooled ,and unplugged from the outlet prior to moving

and/or repairing.

8. Keep out of reach of children.

9. Only Royal Sovereign authorized maintenance and service technicians should make

repairs.

10. Do not attempt to laminate items that exceed total recommended material thickness for

the unit.

11. When cleaning the machine, don't use flammable sprays or materials.

12. Do not touch the rollers when they are hot or place foreign objects inside the machine.

13. Do not cover the surface of the machine until the machine has completely cooled.

Note: While repairing:

a. Make sure the power plug is unplugged from the power outlet.

b. Open both side covers and rear cover.

c. Be sure to follow the steps below in order.

2.1 Rollers Not Heating

CAUSES:

1. Improper laminating mode.

2. Heating wire is not connected to the main PCB.

3. Blown (burnt) upper and/or lower wire fuse (T/Fuse).

4. Defective Bi-Metal.

5. Defective heater.

6. Defective Main PCB.

MEASURE

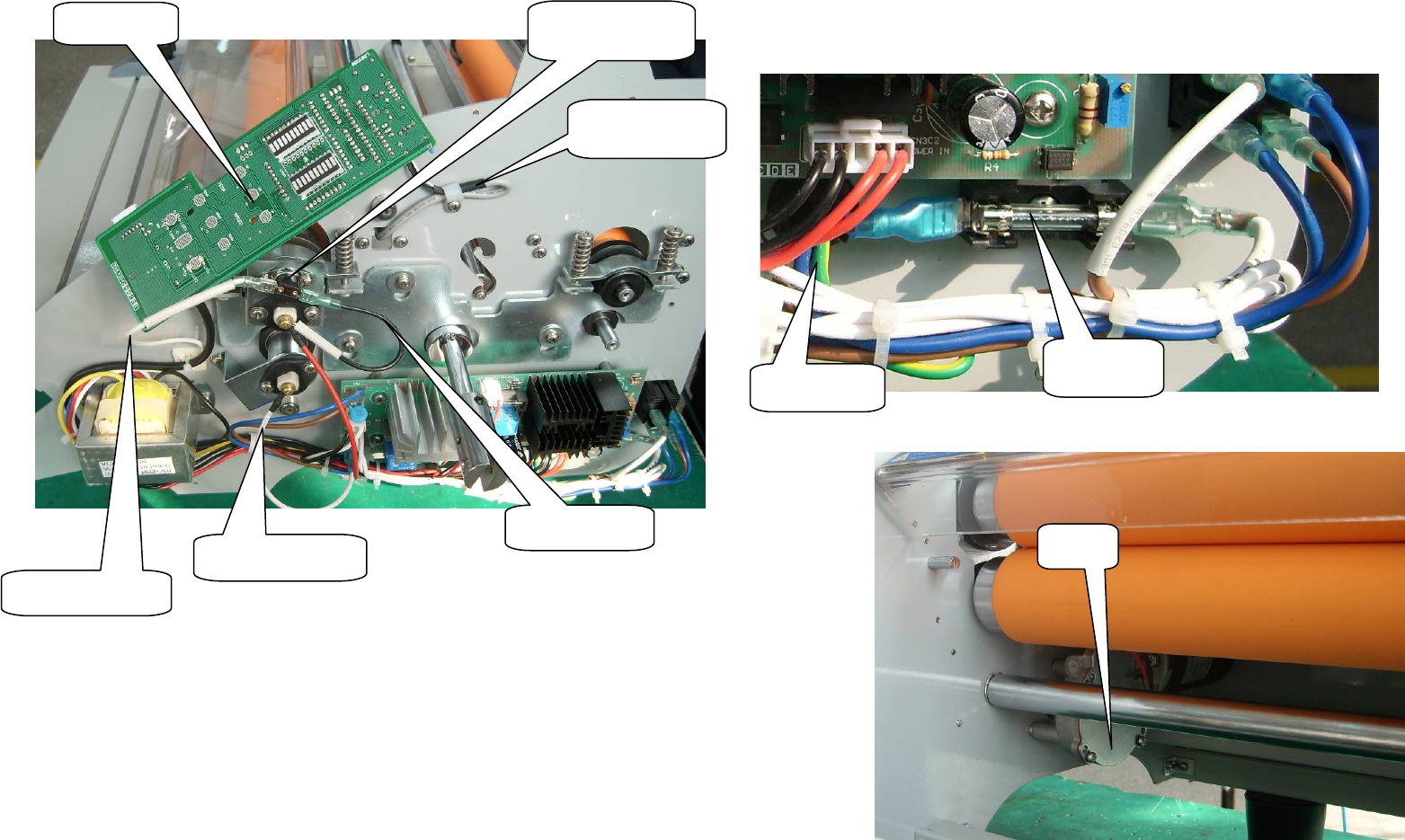

1. Heating wire is not connected to the main PCB.

a. Connect the upper and lower heating wires to the main PCB.

2. Troubleshooting

Wire-Heater

2. Blown (burnt) wire fuse (T/Fuse).

a. Replace the T/Fuse wire located on the left-hand side.

3. Defective Bi-Metal.

a. Replace the Bi-Metal

4. Defective heater.

a. Using the multi-meter, test the continuity of the heater. If it fails, replace the heater.

b. Physically examine the heater assembly for breakage.

Multi-meter

Broken

Wire-Temp. Fuse

Bi-metal (135℃)

5. Defective Main PCB.

a. Replace the PCB Main.

2.2 Rollers Over Heating

CAUSES

1. Heat sensor is reversed on the PCB Main.

2. Defective T/Fuse wire.

3. Defective heater.

4. Defective main PCB.

MEASURES

1. Wires for lower and upper heat sensors are reversed on the main PCB.

a. Reverse the heat sensors.

2. Defective T/Fuse wire.

a. Replace the T/Fuse wire located on the left-hand side.

3. Defective heater.

a. Test continuity of the heater. If it fails, replace the heater.

b. Glass tube that surrounds heating coil is broken – replace the heating element.

Connector-Wire Sensor

Wire-T / Fuse

4. Defective Main PCB.

a. Replace the PCB Main.

2.3 Rollers Not Running

CAUSES

1. No power to the unit.

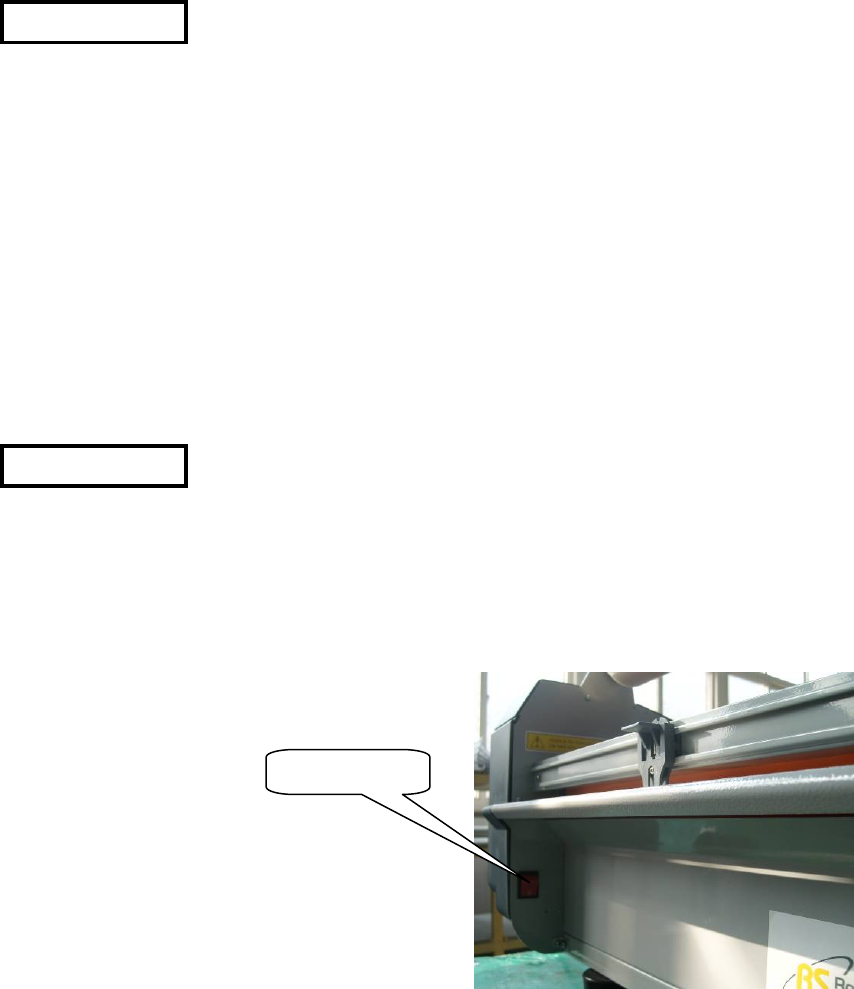

2. The main switch is close.

3. Opened safety cover.

4. Film is jammed on the rollers.

5. Disconnected motor wire.

6. Defective main motor.

7. Defective main PCB.

MEASURES

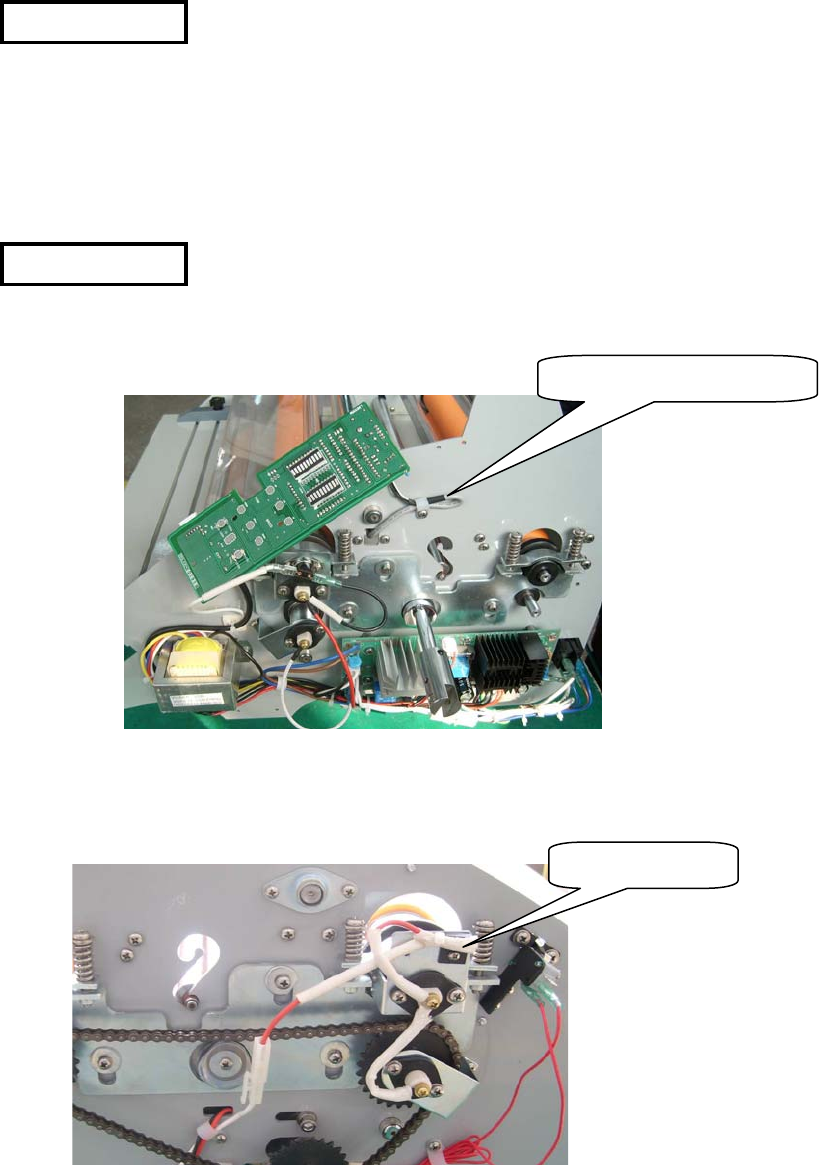

1. No power to the unit.

a. Make sure the power plug is connected to the proper source of outlet

2. The main switch is close.

3. Opened safety cover.

a. Close the safety cover and double check to insure that the safety cover switch

is engaged.

Note: By closing the safety cover, it engages the safety cover switch.

Main Switch

4. Film is jammed on the rollers.

a. Un-jam the film using a combination of the pressure lever and reverse button.

5. Disconnected motor wire.

a. Check the motor wire connection with PCB.

6. Defective main motor.

a. Replace the main motor.

Switch is engaged

Wire-motor

Motor

7. Defective main PCB.

a. Replace the main PCB.

2.4 No Main Power

CAUSES

1. No electricity.

2. Blown main fuse.

3. Disconnected main power wires.

4. Defective transformer.

MEASURES

1. No Electricity.

a. Double check to insure that you have electricity from your outlet.

b. Check the circuit breaker.

c. Double check that source of power is 220V, 15Amp, and single phase.

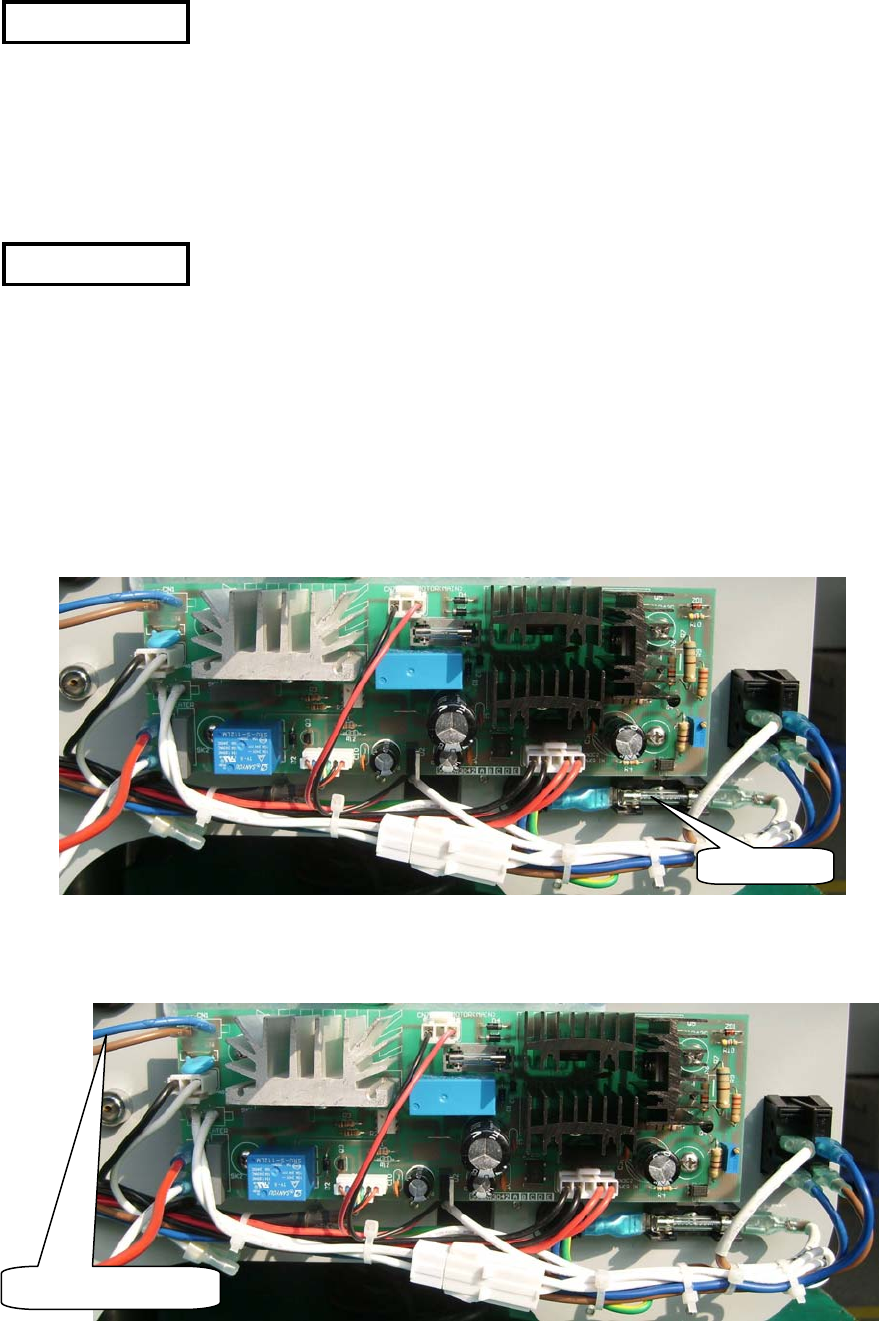

2. Blown main fuse.

a. Replace the main fuse located above the main power switch.

3. Disconnected main power wires.

a. Check that the main power wires are properly connected.

Main Fuse

Main Power Wires

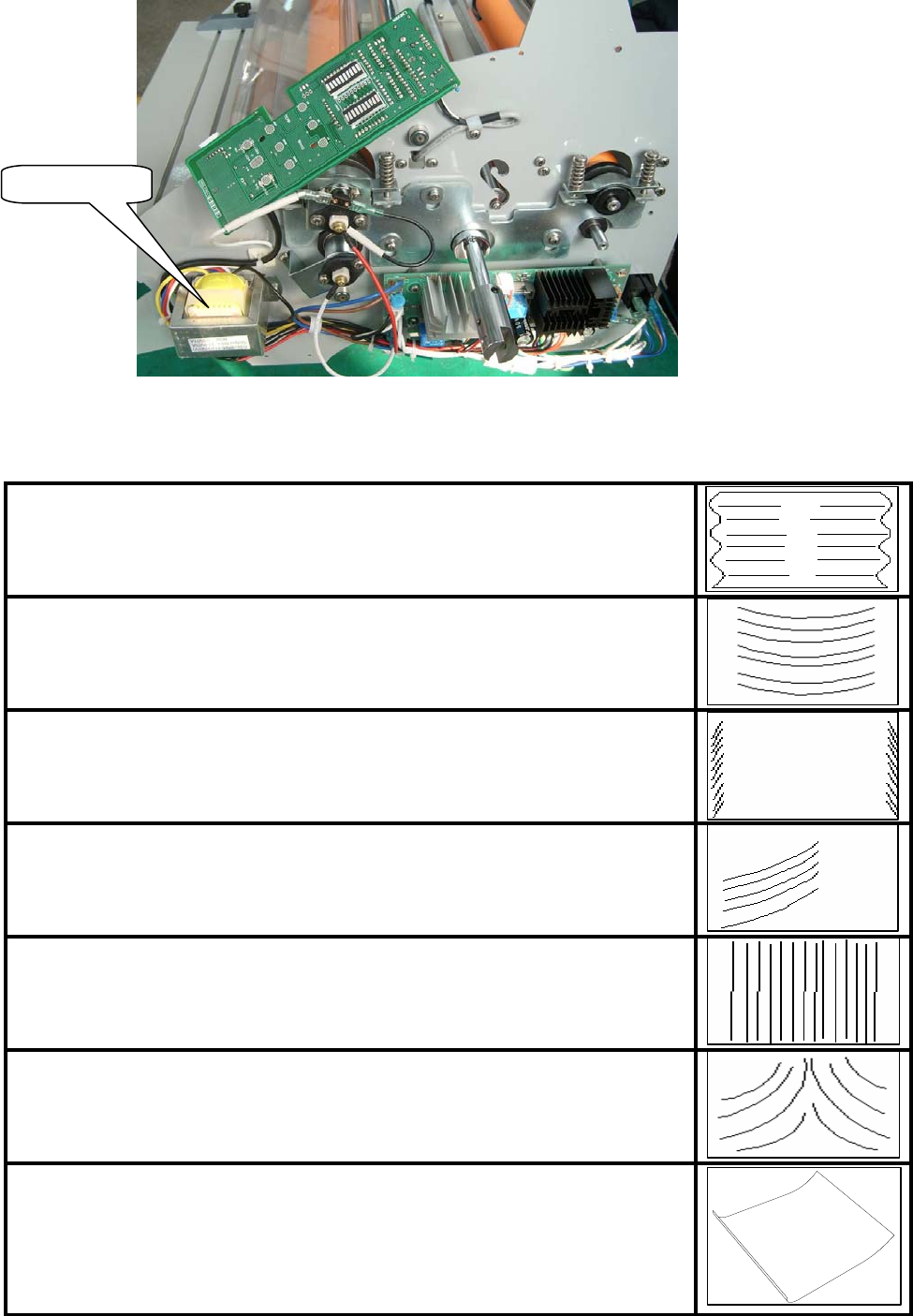

4. Transformer is defective

a. Replace the transformer.

Problem: Straight wave lines across the output.

Cause: Excessive front roller pressure.

Measure: Loosen the front roller pressure.

Problem: Concave waves in the lamination.

Cause: Excessive rear (pulling) roller pressure.

Measure: Loosen the rear back roller pressure.

Problem: Angled waves on both sides of the output.

Cause: Insufficient rear roller pressure.

Measure: Tighten the rear roller pressure.

Problem: Angled waves on one side of the output.

Cause: Insufficient rear left (or right) side roller pressure.

Measure: Tighten the rear left (or right) side roller pressure.

Problem: Straight waves in the output.

Cause: Excessive heat at the nip rollers.

Measure: Lower the roller temperature.

Problem: Wake waves.

Cause: Insufficient heat at the nip rollers.

Measure: Raise the roller temperature.

Problem: Curling.

Cause: 1.The film tension is very tight;

2.The decurling bar is not in the working location.

Measure: 1.Loose the tension;2.Adjust the decurling bar to working location.

2.5 Poor Lamination Quality

Transformer

Note: While replacing parts:

a. Make sure the power plug is unplugged from the power outlet.

b. Open both side covers and rear cover.

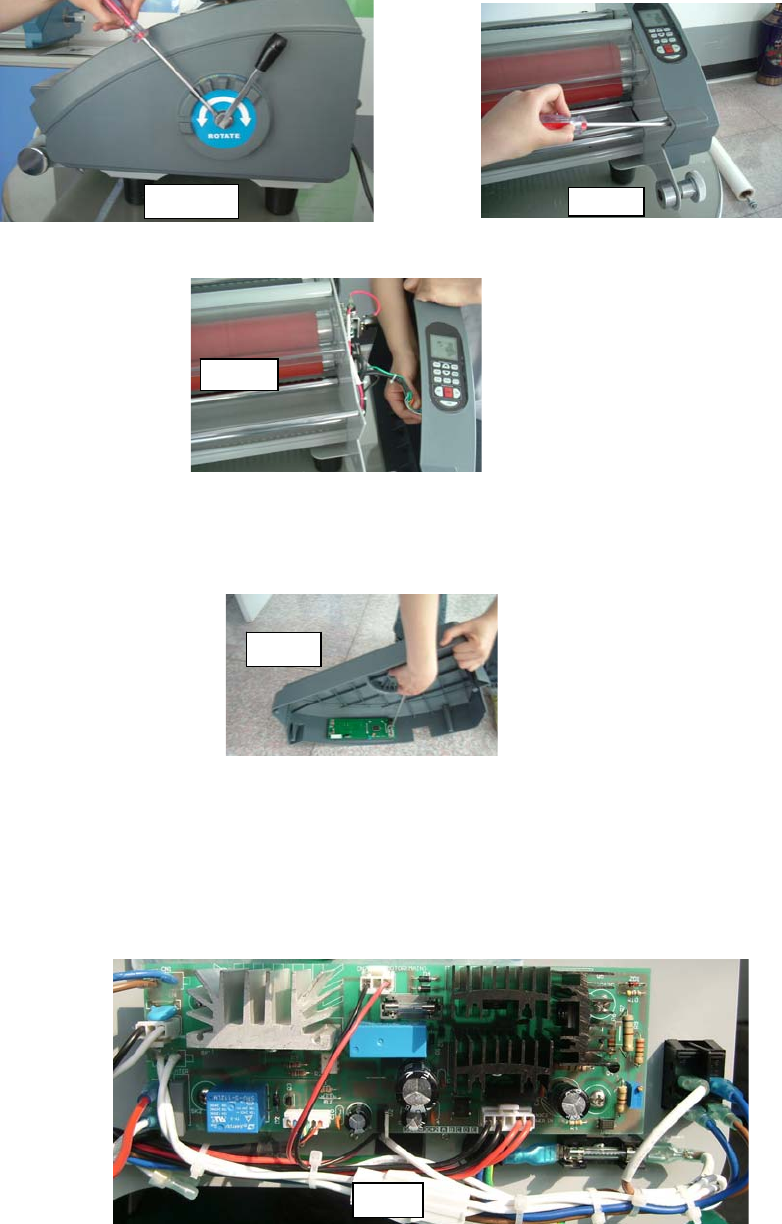

3.1 Replacing the Right Cover.

a. Take out the pressure lever (Figure 1) and four cover screws using Phillips screw driver (Figure 2).

b. Pull out the male control panel connector from the Sub-PCB（ Figure 3）.

3.2 Replacing the Sub-PCB

a. Refer to “Replacing Right Cover”.

c. Loosen two screws from Sub-PCB , installed on to new Right Cover (Figure 4).

d. Follow the reverse order to assemble the Right Cover back.

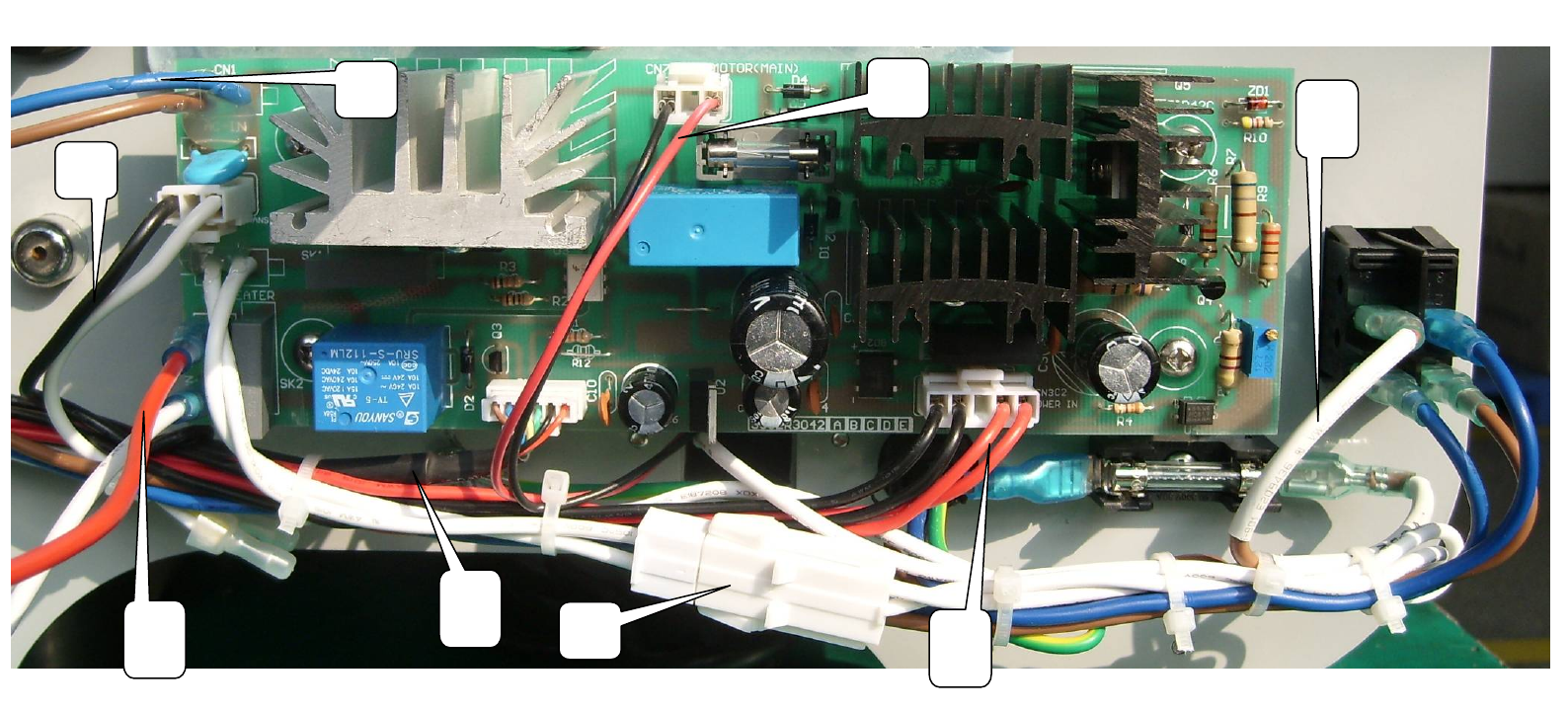

3.3 Replacing the Main PCB

a. Remove the rear cover and label all the wires before unplugging from the Main PCB.

b. Detach the Main PCB from 6 white plastic holders ( Figure 7).

c. Replace the board with new PCB and connect all the wires.

3. Replacing Parts

Figure 1 Fi

ure

Figure

3.4 Replacing the Heaters

Note: Cotton or surgical gloves are recommended while handling the heater assembly.

a. Disassemble Right and Left Covers (Refer to “Replacing Right Cover” and “Replacing Left Cover”).

b. Take out the heater brackets on each side by loosening screws (Figure 8, 9).

c. Take out the broken heater. Figure 10

Note:

a. When inserting the heater into the roller, rotate the heater slightly and push the rod in gently.

b. Use an air blower to blow out the broken pieces of heating rod.

(Please ensure that no one is standing on the other side.)

3.5 Replacing the Cross Cutter

a. Disassemble the nut from the Frame-Cutter.

b. Unfasten the spring from the cutter.

c. Change the Cutter.

d. Assemble the Cutter by reversing the above steps.

Figure8

Figure 1

Figure9

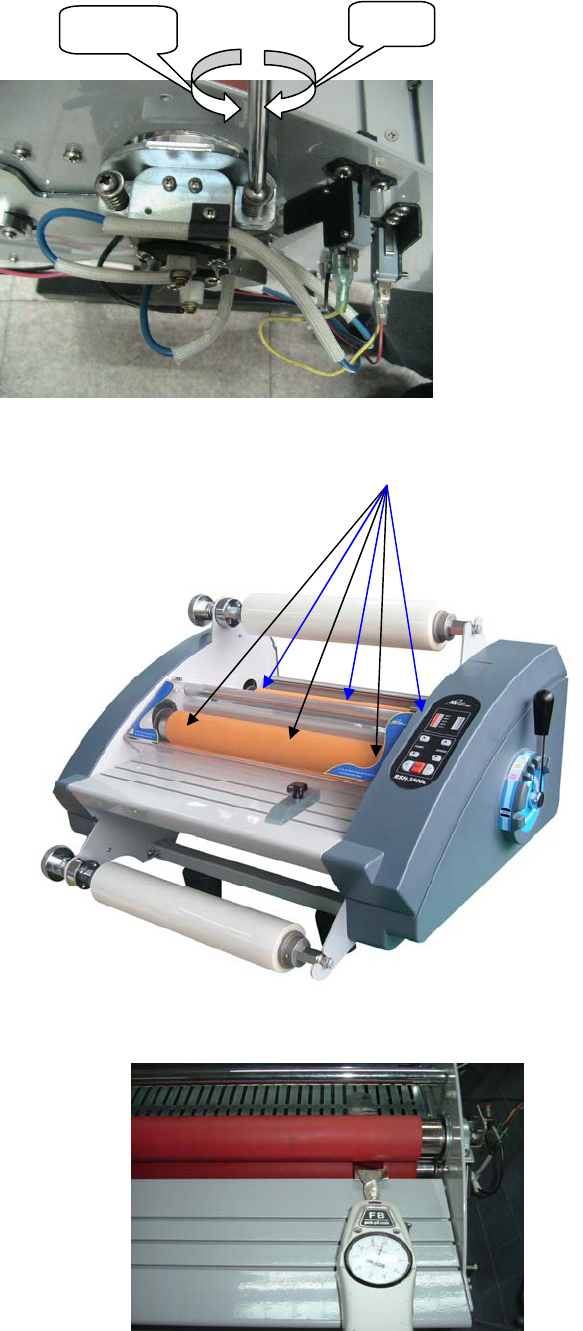

.2 Adjusting front and rear roller

Pressure

• Use Screwdriver

to adjust the roller pressure:

C.W – Increase pressure.

C.C.W – Decrease pressure.

1.Using Push-Pull Scale , measure

3 spots as shown on Figure B &C:

Front roller should be 5~6 and back

rollers should be 6~8.

2.Checking for over all tension –

when the machine is running, check that

the top and the bottom films are fed in

without any wrinkles.

3.Pressure mark checking (Heat Line) –

stop the machine for 30 seconds to

create a heat line. Then check to see if

you have two even parallel lines from

one end to other. Note: A narrow parallel

lines indicate that it has less pressure

at that point.

4.Laminating Test – Laminate samples

with different thickness of substrates.

5.Check above steps 2 through 4 with

3mil & 5mil films.

4. Adjustments

Figure C

Figure B

Figure A

C.W

C.C.W

021LR0001A COVER-L ABS PA-765 UL94 V-0 PANTON 431

125LR4001A HANDLE-TENSION S45C Cu+Ni+Cr

138LR4012A SPRING-TENSION SWP Ф3.2

12200X022A BEARING-RADIAL 15*28

141LR4033A PLATE-PRESSURE,PULL SPCC 3.0T

138LR4015A SPRING-PRESSURE SWP Ф2

141LR4032A PLATE-PRESSDURE,LAMI SPCC 3.0T

141LR4035A PLATE-DU BUSH SECC T=2.0

141LR4019A BRACKET-HEATER,UP SPCC 1.6T

36400X014B MICRO SWITCH AC 250V/5A 50-60HZ

141LR4054A BRACKET-LIMIT SWITCH SPCC 2.0T

147LR4013A STOPPER-HEATER,UP SILICONE

141LR4020A BRACKET-HEATER,LOW SPCC 1.6T

141LR3039A PLATE-PRESSURE,L SPCC 3.0T

021LR4001A LAMIT-SWITCH COVER PP

122LR4044A BUSH-ROLLER LAMI,UP FTG70 CU 3-35

122LR4046A BUSH-ROLLER PULL,UP FTG70 CU 3-35

111LR4024A BOLT-GUIDE S45C

124LR4005A CAM S45C

122LR4050A BUSH-ROLLER LAMI，LO FTG70 CU 3-35

122LR4047A BUSH-ROLLER PULL,LO FTG70Cu3-35

136LR4001X CHAIN RS#25 P6.35 98节

013LR3142A FRAME-L SPCC 3.0T

147LR4002A PAD-TENSION LEATER 1.5T

140LR4036A HOLDER-SHAFT,FILM S45C Cu+Ni+Cr

120LR4002M SHAFT-FILM S45C N19

ASMLR1339A ASSY-AUTO GRIP CORE 2" RSH-380SL

ASMLR1339B ASM-AUTO GRIP CORE3" RSH-380SL

124LR4006A CORE-24 AL 6063

RIV05018E8 BRINDER RIVET AL φ5*18

12200X029A DU-BUSH FLANGE Ф10*10

026LR4006A FOOT NBR 160g

141LR4064A BRACKET-TABLE SPCC 2.2T

013LR3146A FRAME-STAND 25*25*2.0 SQUARE TUBE

023LR4002A KNOB-BOLT GUIDE PHENOL BLK

145LR3002A GUIDE-DOCUMENT ABS PA-765 UL94V-0 431C

27-1

27-2

No.

5.PART LIST

Part No. RemarkPart Name Spec.

141LR4043A FRONT TABLE SAFETY LEVER SPCC 1.5T

013LR4004A SAFETY FRAME SPCC

021LR3024A SAFETY-COVER PC 3.0T

014LR3001B TABLE-FRONT AL6063

133LR3001A ROLLER-LAMI STPG ORG

223LR3001H HEATER ASS'Y FCHW1 81Ω EU,KR,CH,EU(N),BR

223LR3001J HEATER ASS'Y FCHW1 96Ω AU,UK

223LR3001E HEATER ASS'Y FCHW1 24Ω CUL

223LR3001D HEATER ASS'Y FCHW1 20.2Ω TW

223LR3001F HEATER ASS'Y FCHW1 16.7Ω JOL,JAP

140LR4003A HOLDER-SAFETY COVER S45C

111LR4018A SCREW-H SWRH　MFZN－Y

131LR4027A SPROCKET-MOTOR S45 24Z

210004002A MOTOR-MAIN DC 24V

131LR4017A SPROCKET-LAMI FTG70Cu3-35 28z

120LR3031B SHAFT-CAM S45C Cu+Ni+Cr

013LR3143A PLATE-MIDDLE SPCC 0.5T

015LR2010A BAR-IDLE S45C Φ20

015LR3011C IDLE-BAR S45C Cu+Ni+Cr

015LR3012C SHAFT-DECURLING S45C Cr

131LR4018A SPROCKET PULL FTG70Cu3-35 20z

133LR3002A ROLLER-PULL S45C GRY

013LR3144A REAR-COVER SPCC 0.5T

013LR3145A TABLE-CUTTER SPCC 2.0T

013LR3002H FRAME-CUTTER AL6063

021CR3001A KNOB-CUTTER,C ABS PA-765 UL94 V-0 PANTON 431C

140LR3001A HOLDER-CUTTER,C ABS PA-765 UL94 V-0 PANTON 431C

213LR4001A CUTTER-CROSS STS420 J2 1T

34000S011A POWER TRANSFORMER AC110-120V,220-240V/50-60HZ

141LR3038A PLATE-PRESSURE,R SPCC 3.0T

144LR4001B CLAMPER-LEVER S45C Cu+Ni+Cr

023LR4010A KNOB LEVER NYLON BLK

125LR4003B LEVER-PRESSURE S45C Cu+Ni+Cr

120LR4009B SHAFT-COVER SAFETY S45C

350LR3042A PCB MAIN ASM ROHS

032LR3029A SHEET-FUNCTION PC 0.75T

032LR3029C SHEET-FUNCTION PC 0.75T

023LR3007B BUTTON-FUNC SILICON

66-1

40-1

40-2

40-3

40-4

350LR3043A PCB-SUB ASSY FR-4

36600X001A FUSE-BLOCK FB66 LITTLE FUSE TRIAD INC

32500X0008 FUSE-MAIN 65TS AC250V 10A EU,AU,KR,CH,UK,EU(N),BR

32500X0005 FUSE-MAIN 65TS AC250V 20A TW,CUL,JOL,JAP

021LR3018A COVER-R ABS PA-765 UL94 V-0 PANTON 431

138LR4001A SPRING-CUTTER CROSS SWRH Φ0.3

KPS03012D2 KEY PLAIN 3*3*12 SUS27

138LR4018A SPRING-LEVER SUS 304-WPB

12200X027A DU-BUSH FLANGE Ф25*10

12200X028A DU-BUSH FLANGE Ф25*20

111LR4006A BOLT-GUIDE S45C SNC3 4*22.5

12200X030A DU-BUSH FLANGE Ф10*20

013LR3141A FRAME-R SPCC 3.0T

36400X002B SWITCH-MAIN 8216 B/R I/O SIGNAL-LUX SPA

013LR2012G FRAME-SENSOR AL6063

033LP4016A MICA-WASHER Φ4*Φ11 T=0.5

12200X032A DU-BUSH FLANGE Ф12*10

12200X040A DU-BUSH φ6*8 FLANGE

363LR4013A BIMETAL THERMOSTAL 135℃ 15A

141LP4018A BRACKET-FUSE EGI T=1

147CR4003A SILICON RUBBER SILICON Φ7*160

23300X001A BUSHING-CORD,EU 7NR32 DONG-A

111LR4004A BOLT-CORE S45C Φ15*42

ASMLR2023A ASM SENSOR RSH-380SL

381LR4020B WIRE-FUSE,EU UL1015 AWG#14

381LR4052A WIRE-MOTOR UL1007 AWG#20 BLK RED

381LR4115A WIRE-MAIN UL2464 AWG#24,BLE

381LR4062B WIRE-HEATER UL1015 AWG#16 WHITE

381LR4063A WIRE-TEMP FUSE SF133E,AC250V 15A 133℃ UL1015 AWG#14

381LR4049A WIRE-BIMETAL UL1015 AWG#18, WHT

381LR4114A WIRE-HEATER LOW UL1015 AWG#16, WHT

381LR4051A WIRE-HEATER LINK UL1015 AWG#18, WHT

380LR4001A POWER CORD EU AC250V 15A 1.8M

380LR4003A POWER CORD AU AC250V 15A 1.8M

380CR4007A POWER CORD UK AC250V 10A 1.8M

380LR4001B POWER CORD KR AC250V 15A 1.8M

380CR4003A POWER CORD JAP AC125V 15A 1.8M

380CR4004A POWER CORD CUL AC125V 15A 1.8M

99-4

99-5

99-1

99-2

99-3

70-1

No. Part No. Part Name

1 021LR0001A COVER-L

2 125LR4001A HANDLE-TENSION

3 138LR4012A SPRING-TENSION

4 12200X022A BEARING-RADIAL

5 141LR4033A PLATE-PRESSURE

PULL

6 138LR4015A SPRING-PRESSURE

7 141LR4032A PLATE-PRESSDURE

LAMI

8 141LR4035A PLATE-DU BUSH

9 141LR4019A BRACKET-HEATER

10 36400X014B MICRO SWITCH

11 141LR4054A BRACKET-LIMIT SWITCH

12 147LR4013A STOPPER-HEATER

13 141LR4020A BRACKET-HEATER

LOW

14 141LR3039A PLATE-PRESSURE

15 021LR4001A LAMIT-SWITCH COVER

16 122LR4044A BUSH-ROLLER LAMI

17 122LR4046A BUSH-ROLLER PULL

18 111LR4024A BOLT-GUIDE

19 124LR4005A CAM

20 122LR4050A BUSH-ROLLER LAMI，LO

21 122LR4047A BUSH-ROLLER PULL

22 136LR4001X CHAIN

23 013LR3142A FRAME-L

24 147LR4002A PAD-TENSION

25 140LR4036A HOLDER-SHAFT

FILM

26 120LR4002M SHAFT-FILM

27 ASMLR1339A ASSY-AUTO GRIP CORE 2"

27-1 ASMLR1339B ASM-AUTO GRIP CORE3"

27-2 124LR4006A CORE-24

28 RIV05018E8 BRINDER RIVET

29 12200X029A DU-BUSH

30 026LR4006A FOOT

31 141LR4064A BRACKET-TABLE

32 013LR3146A FRAME-STAND

33 023LR4002A KNOB-BOLT GUIDE

34 145LR3002A GUIDE-DOCUMENT

35 141LR4043A FRONT TABLE SAFETY LEVER

36 013LR4004A SAFETY FRAME

37 021LR3024A SAFETY-COVER

38 014LR3001B TABLE-FRONT

39 133LR3001A ROLLER-LAMI

40 223LR3001H HEATER ASS'Y

40-1 223LR3001J HEATER ASS'Y

40-2 223LR3001E HEATER ASS'Y

40-3 223LR3001D HEATER ASS'Y

40-4 223LR3001F HEATER ASS'Y

41 140LR4003A HOLDER-SAFETY COVER

42 111LR4018A SCREW-H

43 131LR4027A SPROCKET-MOTOR

44 210004002A MOTOR-MAIN

45 131LR4017A SPROCKET-LAMI

46 120LR3031B SHAFT-CAM

47 013LR3143A PLATE-MIDDLE

48 015LR2010A BAR-IDLE

49 015LR3011C IDLE-BAR

50 015LR3012C SHAFT-DECURLING

51 131LR4018A SPROCKET PULL

52 133LR3002A ROLLER-PULL

53 013LR3144A REAR-COVER

54 013LR3145A TABLE-CUTTER

55 013LR3002H FRAME-CUTTER

56 021CR3001A KNOB-CUTTER

57 140LR3001A HOLDER-CUTTER

58 213LR4001A CUTTER-CROSS

59 34000S011A POWER TRANSFORMER

60 141LR3038A PLATE-PRESSURE

61 144LR4001B CLAMPER-LEVER

62 023LR4010A KNOB LEVER

63 125LR4003B LEVER-PRESSURE

64 120LR4009B SHAFT-COVER SAFETY

65 350LR3042A PCB MAIN ASM

66 032LR3029A SHEET-FUNCTION

66-1 032LR3029C SHEET-FUNCTION

67 023LR3007B BUTTON-FUNC

68 350LR3043A PCB-SUB ASSY

69 36600X001A FUSE-BLOCK

70 32500X0008 FUSE-MAIN

70-1 32500X0005 FUSE-MAIN

71 021LR3018A COVER-R

72 138LR4001A SPRING-CUTTER CROSS

73 KPS03012D2 KEY PLAIN

74 138LR4018A SPRING-LEVER

75 12200X027A DU-BUSH

76 12200X028A DU-BUSH

77 111LR4006A BOLT-GUIDE

78 12200X030A DU-BUSH

79 013LR3141A FRAME-R

80 36400X002B SWITCH-MAIN

81 013LR2012G FRAME-SENSOR

82 033LP4016A MICA-WASHER

83 12200X032A DU-BUSH

84 12200X040A DU-BUSH

85 363LR4013A BIMETAL THERMOSTAL

86 141LP4018A BRACKET-FUSE

87 147CR4003A SILICON RUBBER

88 23300X001A BUSHING-CORD

89 111LR4004A BOLT-CORE

90 ASMLR2023A ASM SENSOR

91 381LR4020B WIRE-FUSE

92 381LR4052A WIRE-MOTOR

93 381LR4115A WIRE-MAIN

94 381LR4062B WIRE-HEATER

95 381LR4063A WIRE-TEMP FUSE

96 381LR4049A WIRE-BIMETAL

97 381LR4114A WIRE-HEATER LOW

98 381LR4051A WIRE-HEATER LINK

99 380LR4001A POWER CORD

99-1 380LR4003A POWER CORD

99-2 380CR4007A POWER CORD

99-3 380LR4001B POWER CORD

99-4 380CR4003A POWER CORD

99-5 380CR4004A POWER CORD

6.EXPLODE VIEW

381LR4051A

1212

380LR4001A

51 52

54 55

381LR4062B 94

381LR4063A 95

381LR4049A

LOW

91381LR4020B

92381LR4052A

381LR4115A

381LR4114A 97

7. Wire Diagram

1 2 3 4 5 6 78

7654321

Title

Number RevisionSi ze

Date: 6-Mar-2009 Sheet of

Fi le: D:\PR OGR AM FI LES\EXAMPLES\RSL-38 2S CI\RSL-382 S C I.DDBDrawn By:

SER2

QF2

HEATER2

SP EED _ D O WN SW

SR CL K1

HEATER2

QA1

SPEED _U P SW

RU N_ SW

SR CL K2

QB1

REV-RELAY

TEMP_UP SW

TEMP_ UP SW

QG 1

TEMP_ D O WN SW QC 2

HE ATE R2 LED

PW M O U T

REV R ELAY

HE AT ER

QD 2

SR CL K2

SP EED _ U P SW

QD 1

se nso r _in

QB2

REV

ST OP_ SW

TE MP SEN SOR

H/Display Com

SE R1

QA2

PW M- O UT

QC 1

RC LK2

BU Z ZE R

QE1

SPEED _D O WN SW

QH 1

RCLK1

RU N L ED

QH 2

REV_SW

H/Dis p lay Com

HEATER

QF 1

BU Z ZE R

TEMP_D OWN SW

QG2

QE2

HEATER2

REV SW

RCLK2

SER 1

SR CL K1

RC LK1

SE R2

ST OP SW

RU N SW

PW M

C102

104

C107

47 0/ 25V

FUSE1

T 15A 250V

C105

104

R103

10K

MCLR/ Vpp 1

RA0/AN0

RA1/AN1

RA2/AN2

RA3/AN3/VREF

RA4/TOCKI

RA5/AN4/SS 7

OSC1/CLKIN 9

OSC2/CLKOUT 10

R C 0 / T1 OS O/ T 1 C KI

RC1/T1OSI

RC2/CCP1

RC3/SCK/SCL

RC4/SDI/SDA

RC5/SDO

RC6

RC7

RB0/INT 21

RB1 22

RB2 23

RB3 24

RB4 25

RB5 26

RB6 27

RB7

U101

PIC16C72

4 6

MOC3 0 4 3

R104

10K

RA103

330R 10 P

1N4007

TA C 1

HS-501

s_ou t

vc cgn d

SENS _ASS 'Y

SW1

KA7805/1A

10 0

C102

CN7

YW396-03V

C103

104

FR 10 5

CN2

YW396-03AV

HS?

HS-529

CNN102

SMH025-0 5

TA C 1

33 0

100nF/275 V MKP

CNN2

YH396- 03

RY1A

CH2-MD12F

RA101 10K x 10

4700/10 0V

R102 1M

SW4

SW3

R101

330

RY2 A

CH1 -MD12F

910

1112

1314

1516

1718

1920

LA10 1

LDQ-N5 1 G

CN1

BR-110 3C02P

68 0 2w

SW6

CNN5

MG6 105 99

C101

10 4

CN5

MG6 405 98

330 D3

1N4148

1000/50 V

CN102

SMW02 5-0 5

10 4

SW7

C104

104

SW2

BD1

BR-106

AC POWER S/W

SK1

10 4 120 з

10K 1/2W

Q102

C102 M

SER 14

SRCLK 11

SRCLR 10

RCLK 12

G13

15 QB

1QC

2QD

3QE

4QF

5QG

6QH

U103

74LS59 5

C102 M

2 3

PC 81 7

104

CNN7

YH3 96-03V

Q101

C102 M

BD2

DB1 05G

BZ1

B UZ ZER

C106

3. 3/5 0V

DC?

MOTOR DC

R10

4. 7K

RA102

330R 10 P

1K 1w

SER 14

SRCLK 11

SRCLR 10

RCLK 12

G13

15 QB

1QC

2QD

3QE

4QF

5QG

6QH

U102

74 LS 59 5

910

1112

1314

1516

1718

1920

LA10 2

LDQ-N5 1 R

FR 10 5

ZD1

1W 15V

22 0 1w

IR F8 30

47 0/ 50V

SK2

10 4 120 з

XTAL10 1

8Mh z

104

HEATER ASS'Y

470/25V

SW5

470 1w

1N4007

FUSE1

T 6.3 AL 25 0V

POWER TRANSFORMER

bimetal 70∩

24v_gn d

VCC_5V

U1 KA7 824

12V

VCC_5V

24 V

24V24V

VCC_5V

GND_EARTH

VCC_5V

GND_EAR TH

VCC_5V

24V

VCC_5V

AC INPUT

CA RB ON S/ W

AC13V

BT A2 4 - 6 0 0 C

AC_in

利寇急

SENSOR ASS'Y

P/ T OU TPUT

MAIN-S UB

P/T INPUT

DOWN HEAT ER

SENSOR

UP Heater

AC24V

P/ T OU TPUT

FF/REV Motor

PNP

75 2w

D6 1N4007

10 4

HS?

HS-5 29

HS?

HS-529

HEATER2 ASS'Y

bimetal 70∩

CNN4

MG6 105 99

CN4

MG6 405 98

CN1 01

CN6

LED4

LED3LED2

LE D1

VCC_5V

Q103

C102 M 1

Q104

C102 M

R103

33 0

R103

330

VCC_5V

CNN3

CN3

A1271

R12

1. Wire Main. 6. Wire Power Transformer In

2. Wire Power 7. Wires Power Transformer Output

3. Wire Heater，up 8. Wire Fuse

4. Wire Heater，low

5. Motor wires

SUB PCB

Wire Bimetal

Wire Up Heater

Wire Lo Heater

Bimetal(135℃)

Power Cord

Fuse Main

Motor

Wire Sensor

Wire T/Fuse (133℃)

Wire Safety S/W

Wire Motor

Micro Switch

Royal Sovereign Roll Laminator Rsh 380Sl Users Manual SVC

RSH-380SL to the manual 137b851f-0bcd-420f-979e-db9bb1623c44

Navigation menu

Versions of this User Manual:

Views

Navigation
