RoyalTek BV-3200 Outdoor Sport GPS User Manual

RoyalTek Company Ltd. Outdoor Sport GPS

User manual

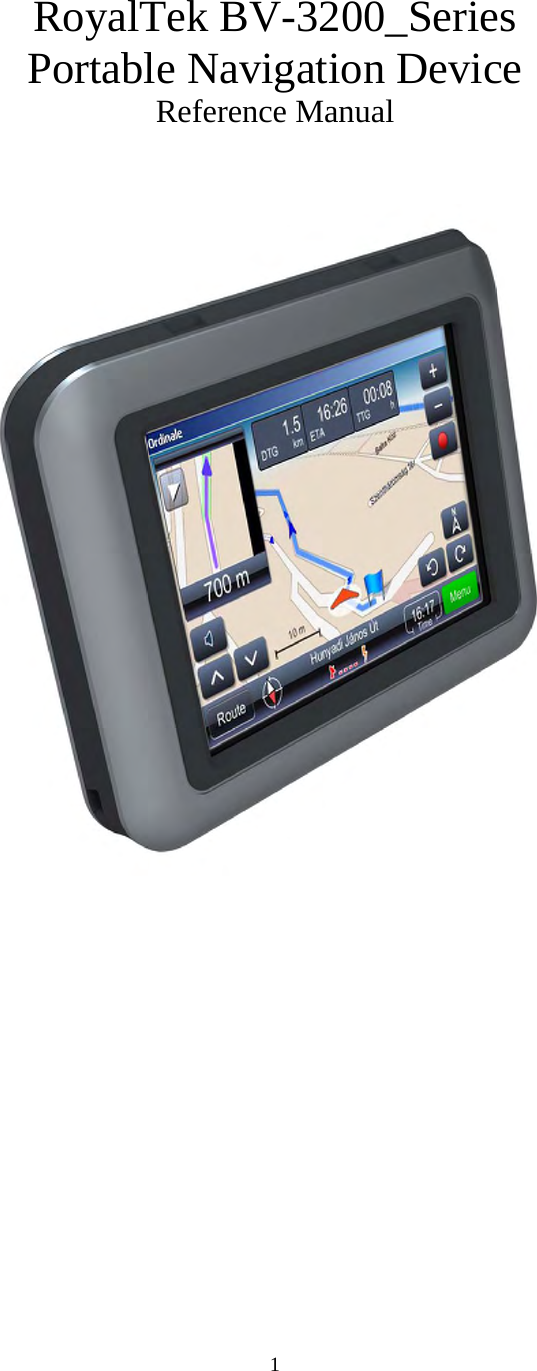

1RoyalTek BV-3200_Series Portable Navigation Device Reference Manual

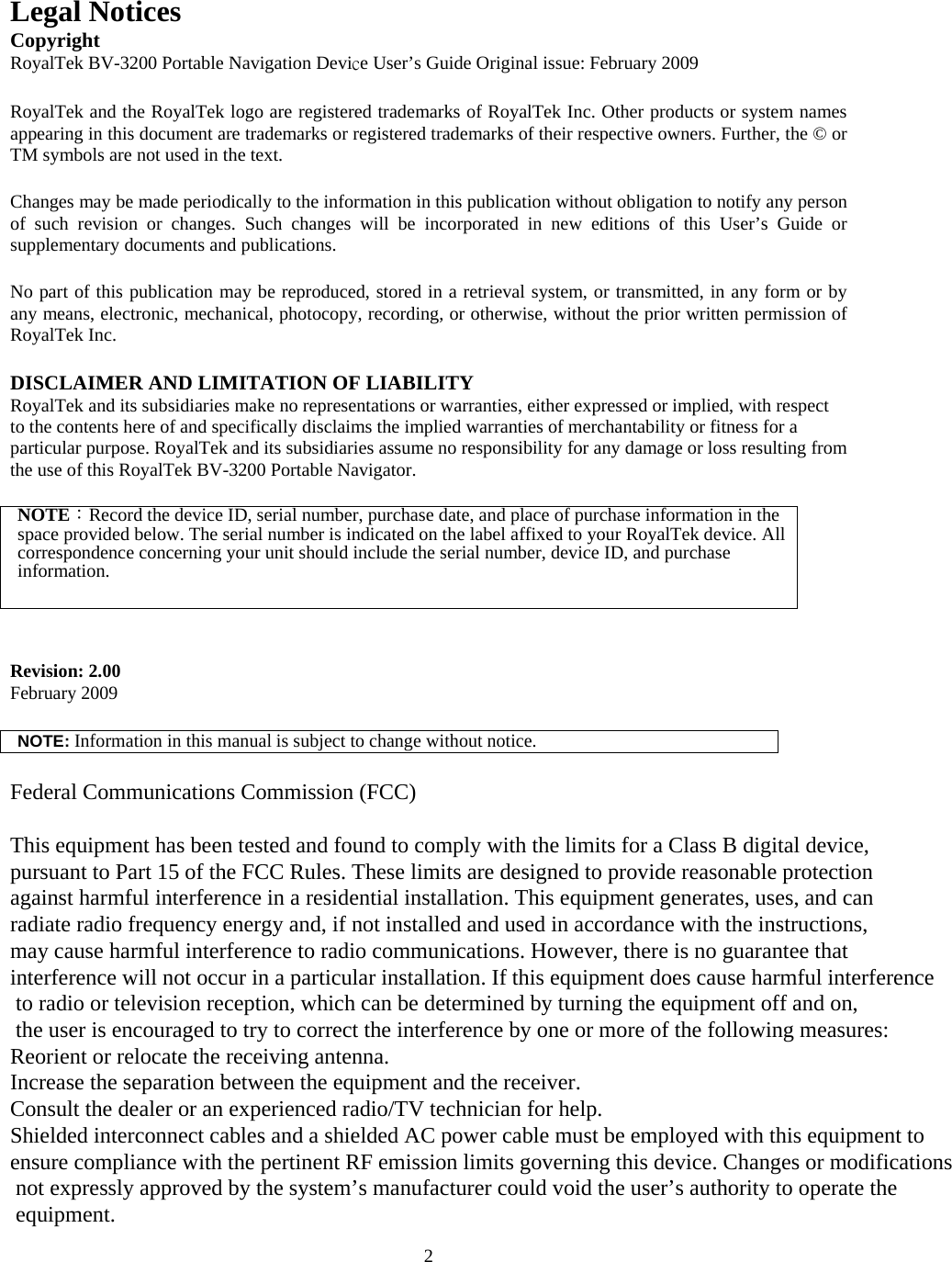

2Legal Notices Copyright RoyalTek BV-3200 Portable Navigation Device User’s Guide Original issue: February 2009 RoyalTek and the RoyalTek logo are registered trademarks of RoyalTek Inc. Other products or system names appearing in this document are trademarks or registered trademarks of their respective owners. Further, the © or TM symbols are not used in the text. Changes may be made periodically to the information in this publication without obligation to notify any person of such revision or changes. Such changes will be incorporated in new editions of this User’s Guide or supplementary documents and publications. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of RoyalTek Inc. DISCLAIMER AND LIMITATION OF LIABILITY RoyalTek and its subsidiaries make no representations or warranties, either expressed or implied, with respect to the contents here of and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose. RoyalTek and its subsidiaries assume no responsibility for any damage or loss resulting from the use of this RoyalTek BV-3200 Portable Navigator. NOTE：Record the device ID, serial number, purchase date, and place of purchase information in the space provided below. The serial number is indicated on the label affixed to your RoyalTek device. All correspondence concerning your unit should include the serial number, device ID, and purchase information. Revision: 2.00 February 2009 NOTE: Information in this manual is subject to change without notice. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.Increase the separation between the equipment and the receiver. Consult the dealer or an experienced radio/TV technician for help.Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment.

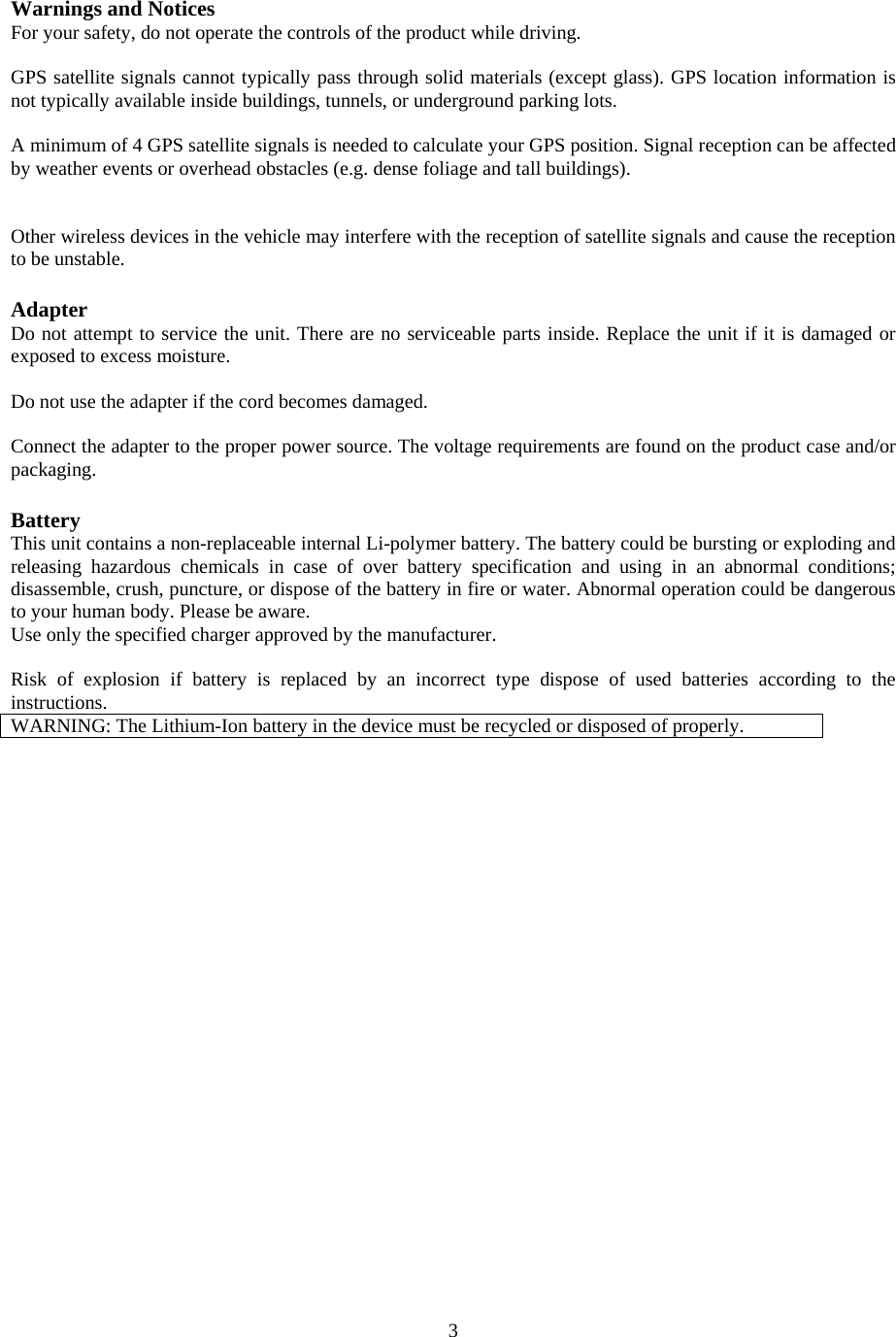

3Warnings and Notices For your safety, do not operate the controls of the product while driving. GPS satellite signals cannot typically pass through solid materials (except glass). GPS location information is not typically available inside buildings, tunnels, or underground parking lots. A minimum of 4 GPS satellite signals is needed to calculate your GPS position. Signal reception can be affected by weather events or overhead obstacles (e.g. dense foliage and tall buildings). Other wireless devices in the vehicle may interfere with the reception of satellite signals and cause the reception to be unstable. Adapter Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. Do not use the adapter if the cord becomes damaged. Connect the adapter to the proper power source. The voltage requirements are found on the product case and/or packaging. Battery This unit contains a non-replaceable internal Li-polymer battery. The battery could be bursting or exploding and releasing hazardous chemicals in case of over battery specification and using in an abnormal conditions; disassemble, crush, puncture, or dispose of the battery in fire or water. Abnormal operation could be dangerous to your human body. Please be aware. Use only the specified charger approved by the manufacturer. Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the instructions. WARNING: The Lithium-Ion battery in the device must be recycled or disposed of properly.

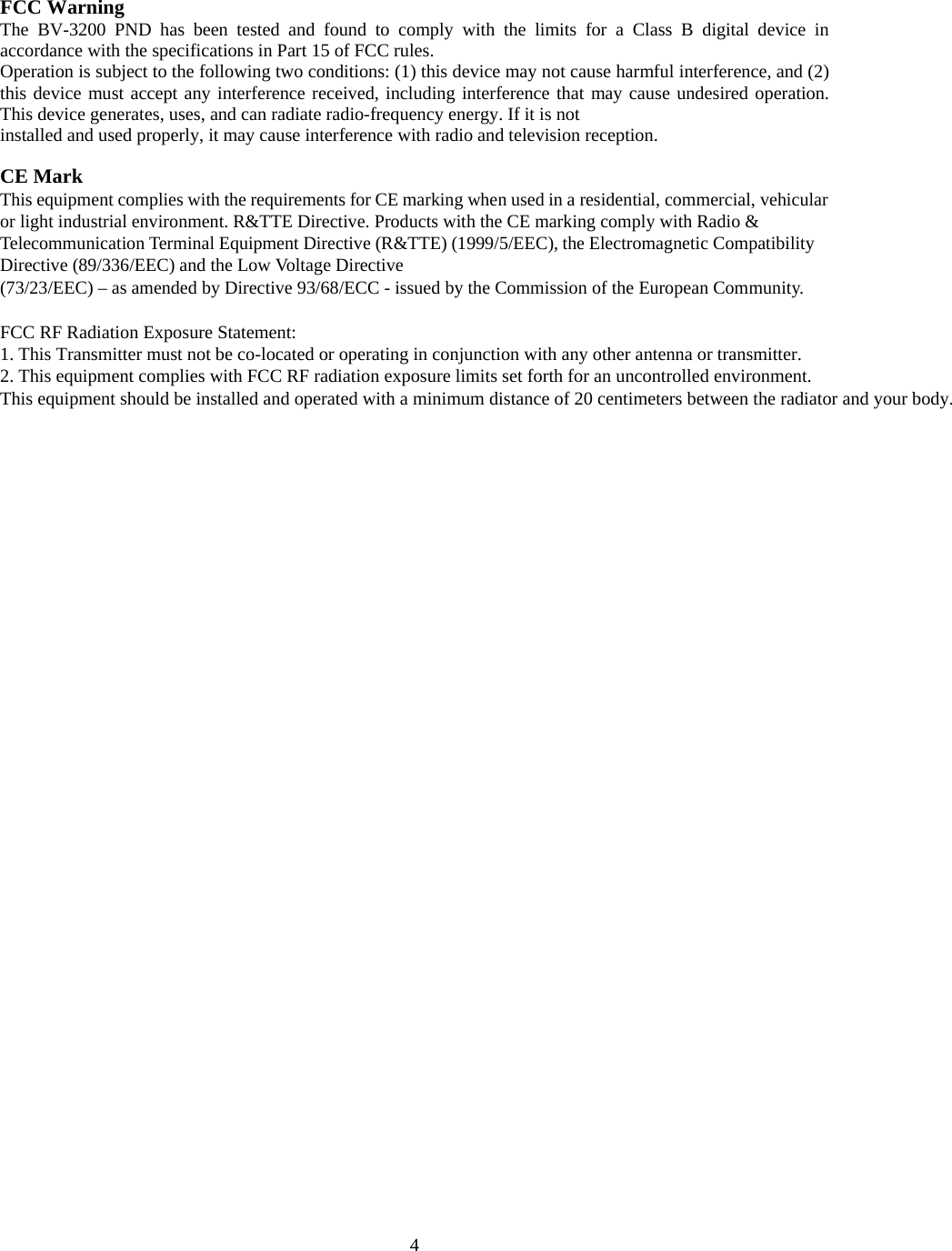

4FCC Warning The BV-3200 PND has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device generates, uses, and can radiate radio-frequency energy. If it is not installed and used properly, it may cause interference with radio and television reception. CE Mark This equipment complies with the requirements for CE marking when used in a residential, commercial, vehicular or light industrial environment. R&TTE Directive. Products with the CE marking comply with Radio & Telecommunication Terminal Equipment Directive (R&TTE) (1999/5/EEC), the Electromagnetic Compatibility Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) – as amended by Directive 93/68/ECC - issued by the Commission of the European Community. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

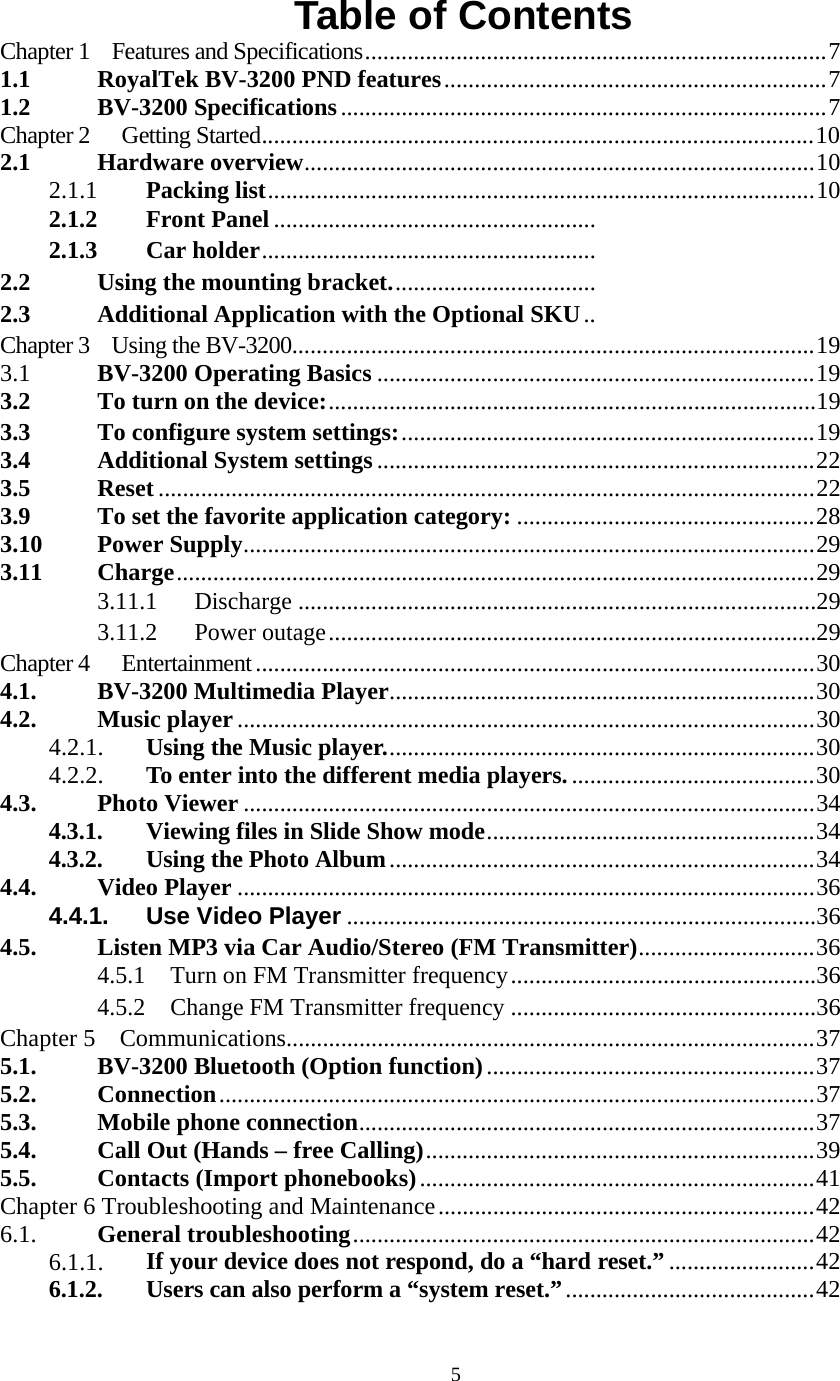

5Table of Contents Chapter 1 Features and Specifications............................................................................7 1.1 RoyalTek BV-3200 PND features...............................................................7 1.2 BV-3200 Specifications................................................................................7 Chapter 2 Getting Started...........................................................................................10 2.1 Hardware overview....................................................................................10 2.1.1 Packing list..........................................................................................10 2.1.2 Front Panel.....................................................2.1.3 Car holder....................................................... 2.2 Using the mounting bracket.................................. 2.3 Additional Application with the Optional SKU..Chapter 3 Using the BV-3200......................................................................................19 3.1 BV-3200 Operating Basics ........................................................................19 3.2 To turn on the device:................................................................................193.3 To configure system settings:....................................................................19 3.4 Additional System settings ........................................................................22 3.5 Reset ............................................................................................................22 3.9 To set the favorite application category: .................................................28 3.10 Power Supply..............................................................................................29 3.11 Charge.........................................................................................................29 3.11.1 Discharge.....................................................................................29 3.11.2 Power outage................................................................................29 Chapter 4 Entertainment............................................................................................30 4.1. BV-3200 Multimedia Player......................................................................30 4.2. Music player...............................................................................................30 4.2.1. Using the Music player.......................................................................30 4.2.2. To enter into the different media players.........................................30 4.3. Photo Viewer ..............................................................................................34 4.3.1. Viewing files in Slide Show mode......................................................34 4.3.2. Using the Photo Album......................................................................34 4.4. Video Player ...............................................................................................36 4.4.1. Use Video Player.............................................................................364.5. Listen MP3 via Car Audio/Stereo (FM Transmitter).............................36 4.5.1 Turn on FM Transmitter frequency..................................................36 4.5.2 Change FM Transmitter frequency..................................................36 Chapter 5 Communications.......................................................................................37 5.1. BV-3200 Bluetooth (Option function)......................................................37 5.2. Connection..................................................................................................37 5.3. Mobile phone connection...........................................................................37 5.4. Call Out (Hands – free Calling)................................................................39 5.5. Contacts (Import phonebooks).................................................................41 Chapter 6 Troubleshooting and Maintenance..............................................................42 6.1. General troubleshooting............................................................................42 6.1.1. If your device does not respond, do a “hard reset.”........................42 6.1.2. Users can also perform a “system reset.”.........................................42

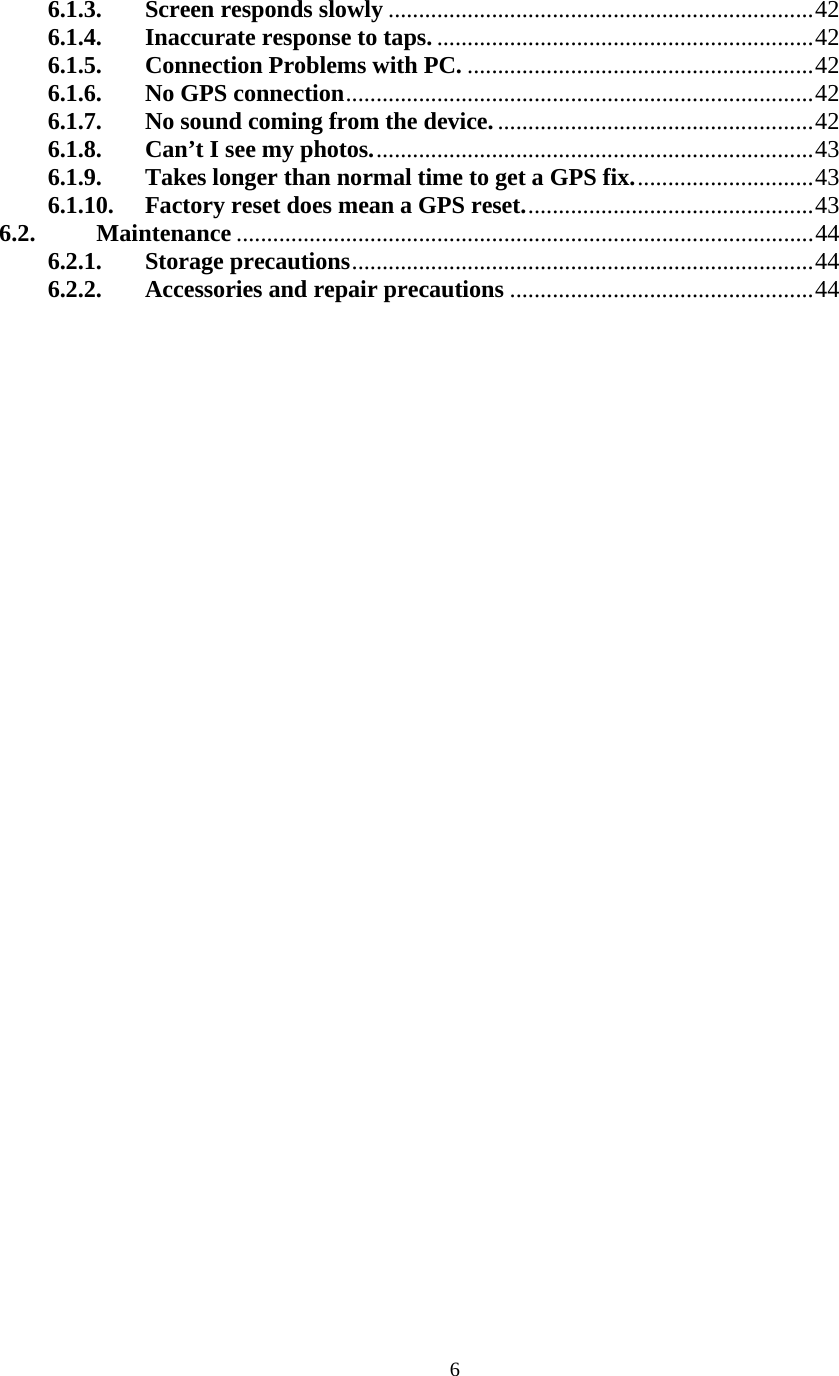

66.1.3. Screen responds slowly......................................................................42 6.1.4. Inaccurate response to taps...............................................................42 6.1.5. Connection Problems with PC..........................................................42 6.1.6. No GPS connection.............................................................................42 6.1.7. No sound coming from the device.....................................................42 6.1.8. Can’t I see my photos.........................................................................43 6.1.9. Takes longer than normal time to get a GPS fix..............................43 6.1.10. Factory reset does mean a GPS reset................................................43 6.2. Maintenance ...............................................................................................44 6.2.1. Storage precautions............................................................................44 6.2.2. Accessories and repair precautions..................................................44

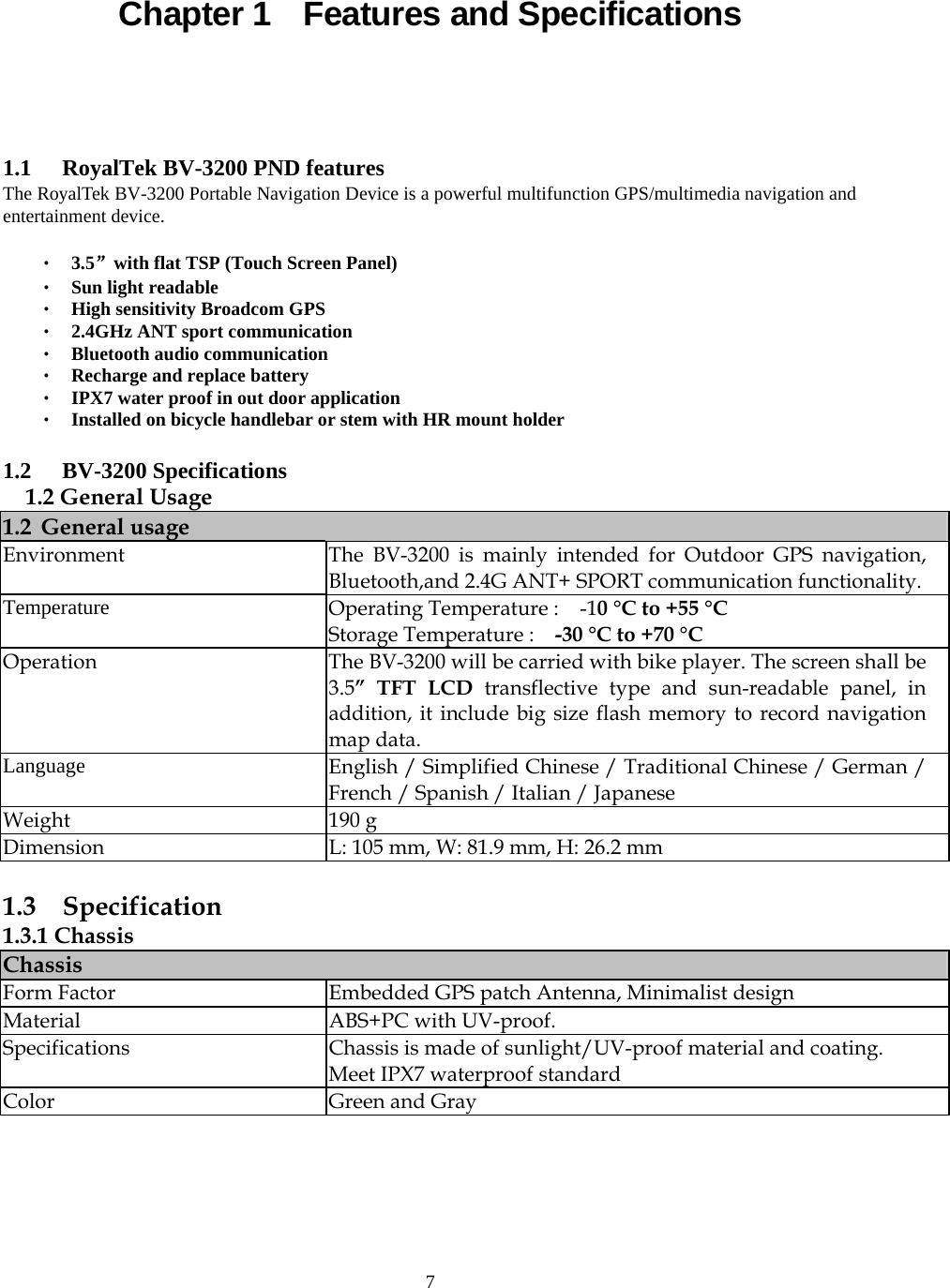

7Chapter 1 Features and Specifications 1.1 RoyalTek BV-3200 PND features The RoyalTek BV-3200 Portable Navigation Device is a powerful multifunction GPS/multimedia navigation and entertainment device. ‧ 3.5”with flat TSP (Touch Screen Panel) ‧ Sun light readable ‧ High sensitivity Broadcom GPS ‧ 2.4GHz ANT sport communication ‧ Bluetooth audio communication ‧ Recharge and replace battery ‧ IPX7 water proof in out door application ‧ Installed on bicycle handlebar or stem with HR mount holder 1.2 BV-3200 Specifications 1.2 General Usage 1.2 General usage Environment The BV-3200 is mainly intended for Outdoor GPS navigation, Bluetooth,and 2.4G ANT+ SPORT communication functionality. Temperature Operating Temperature : -10 °C to +55 °C Storage Temperature : -30 °C to +70 °C Operation The BV-3200 will be carried with bike player. The screen shall be 3.5” TFT LCD transflective type and sun-readable panel, in addition, it include big size flash memory to record navigation map data. Language English / Simplified Chinese / Traditional Chinese / German / French / Spanish / Italian / Japanese Weight 190 g Dimension L: 105 mm, W: 81.9 mm, H: 26.2 mm 1.3 Specification 1.3.1 Chassis Chassis Form Factor Embedded GPS patch Antenna, Minimalist design Material ABS+PC with UV-proof. Specifications Chassis is made of sunlight/UV-proof material and coating. Meet IPX7 waterproof standard Color Green and Gray

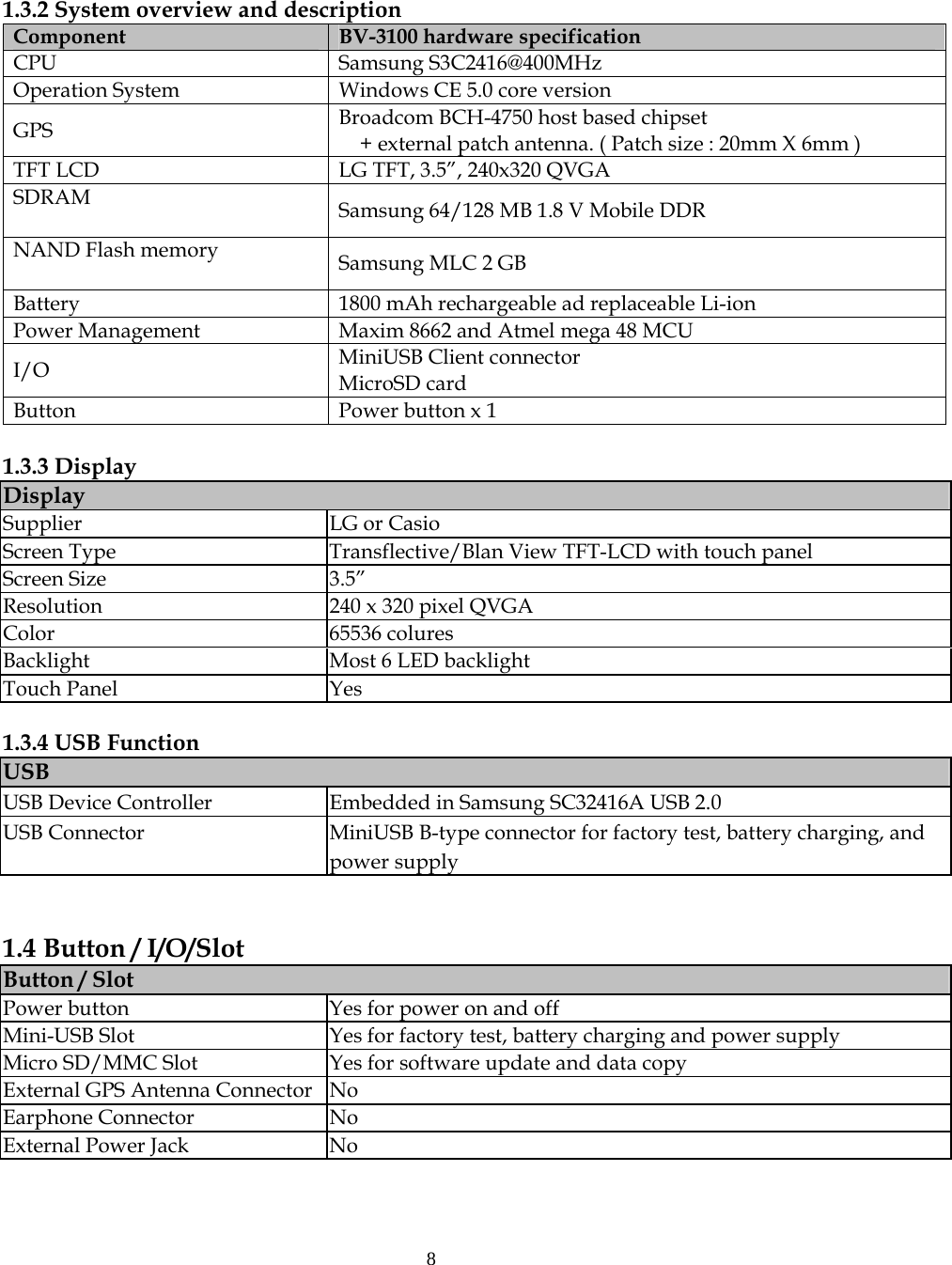

8 1.3.2 System overview and description Component BV-3100 hardware specification CPU Samsung S3C2416@400MHz Operation System Windows CE 5.0 core version GPS Broadcom BCH-4750 host based chipset + external patch antenna. ( Patch size : 20mm X 6mm ) TFT LCD LG TFT, 3.5”, 240x320 QVGA SDRAM Samsung 64/128 MB 1.8 V Mobile DDR NAND Flash memory Samsung MLC 2 GB Battery 1800 mAh rechargeable ad replaceable Li-ion Power Management Maxim 8662 and Atmel mega 48 MCU I/O MiniUSB Client connector MicroSD card Button Power button x 1 1.3.3 Display Display Supplier LG or Casio Screen Type Transflective/Blan View TFT-LCD with touch panel Screen Size 3.5” Resolution 240 x 320 pixel QVGA Color 65536 colures Backlight Most 6 LED backlight Touch Panel Yes 1.3.4 USB Function USB USB Device Controller Embedded in Samsung SC32416A USB 2.0 USB Connector MiniUSB B-type connector for factory test, battery charging, and power supply 1.4 Button / I/O/Slot Button / Slot Power button Yes for power on and off Mini-USB Slot Yes for factory test, battery charging and power supply Micro SD/MMC Slot Yes for software update and data copy External GPS Antenna Connector No Earphone Connector No External Power Jack No

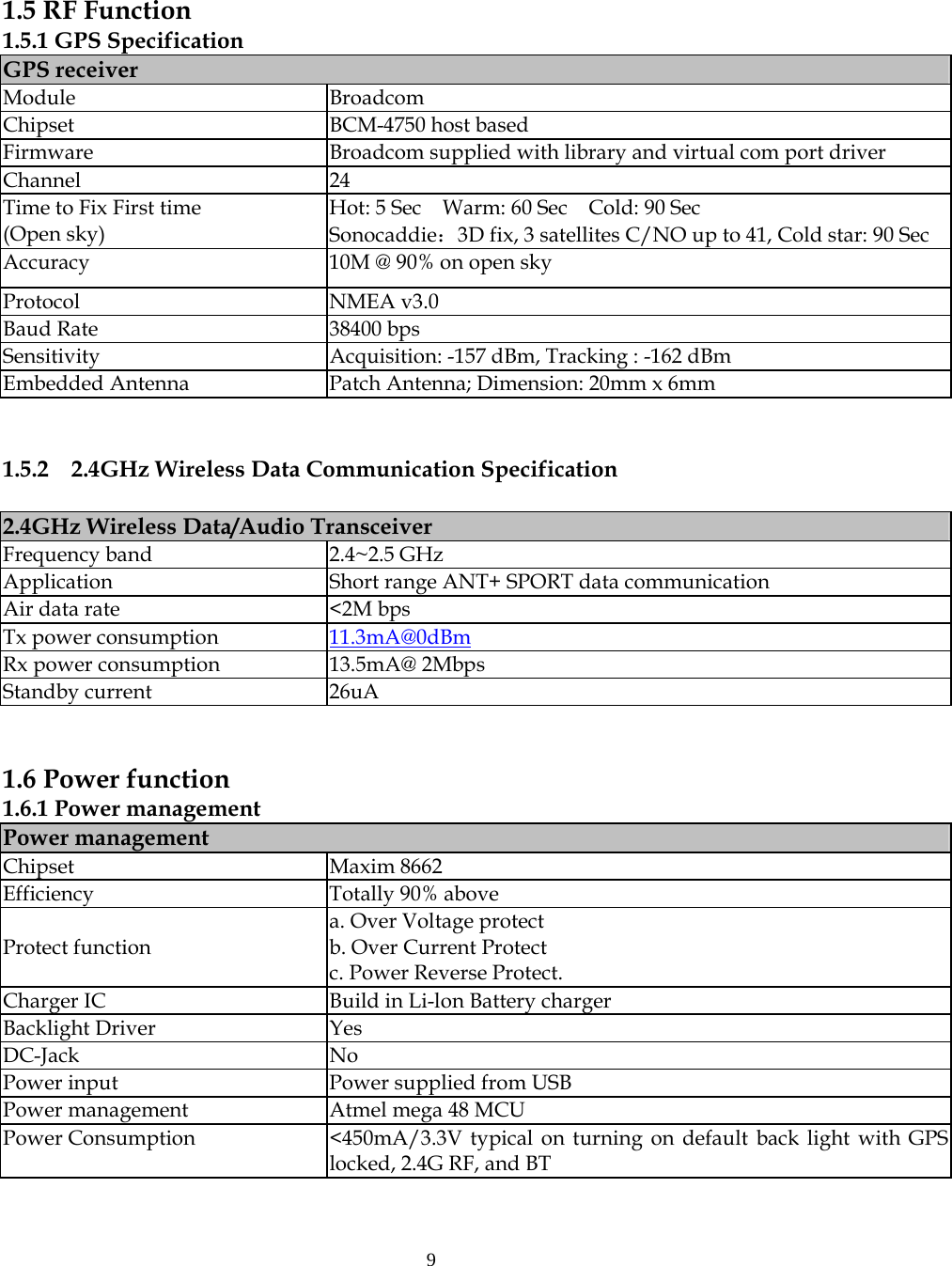

9 1.5 RF Function 1.5.1 GPS Specification GPS receiver Module Broadcom Chipset BCM-4750 host based Firmware Broadcom supplied with library and virtual com port driver Channel 24 Time to Fix First time (Open sky) Hot: 5 Sec Warm: 60 Sec Cold: 90 Sec Sonocaddie：3D fix, 3 satellites C/NO up to 41, Cold star: 90 Sec Accuracy 10M @ 90% on open sky Protocol NMEA v3.0 Baud Rate 38400 bps Sensitivity Acquisition: -157 dBm, Tracking : -162 dBm Embedded Antenna Patch Antenna; Dimension: 20mm x 6mm 1.5.2 2.4GHz Wireless Data Communication Specification 2.4GHz Wireless Data/Audio Transceiver Frequency band 2.4~2.5 GHz Application Short range ANT+ SPORT data communication Air data rate <2M bps Tx power consumption 11.3mA@0dBm Rx power consumption 13.5mA@ 2Mbps Standby current 26uA 1.6 Power function 1.6.1 Power management Power management Chipset Maxim 8662 Efficiency Totally 90% above Protect function a. Over Voltage protect b. Over Current Protect c. Power Reverse Protect. Charger IC Build in Li-lon Battery charger Backlight Driver Yes DC-Jack No Power input Power supplied from USB Power management Atmel mega 48 MCU Power Consumption <450mA/3.3V typical on turning on default back light with GPS locked, 2.4G RF, and BT

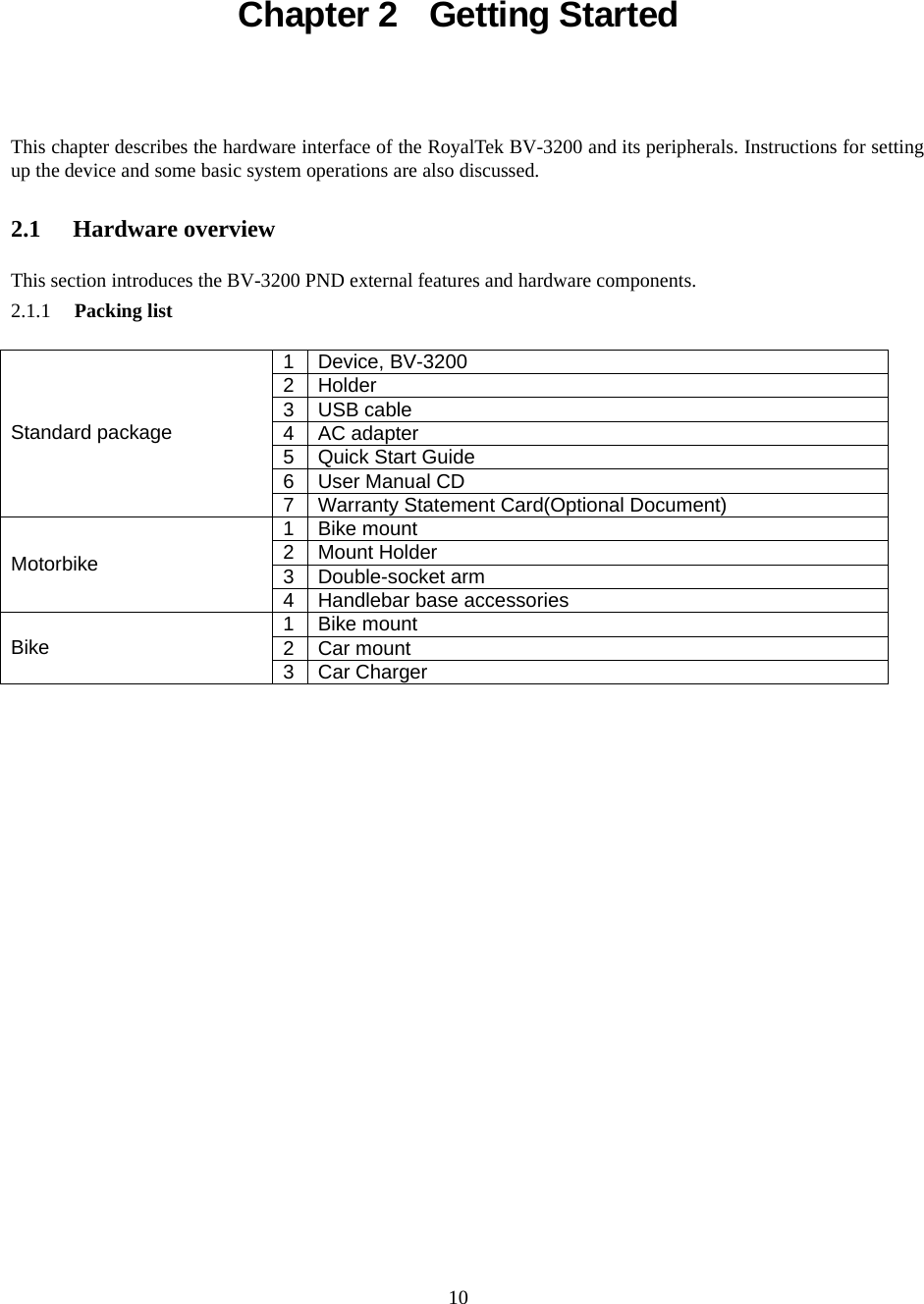

10 Chapter 2 Getting Started This chapter describes the hardware interface of the RoyalTek BV-3200 and its peripherals. Instructions for setting up the device and some basic system operations are also discussed. 2.1 Hardware overview This section introduces the BV-3200 PND external features and hardware components. 2.1.1 Packing list 1 Device, BV-3200 2 Holder 3 USB cable 4 AC adapter 5 Quick Start Guide 6 User Manual CD Standard package 7 Warranty Statement Card(Optional Document) 1 Bike mount 2 Mount Holder 3 Double-socket arm Motorbike 4 Handlebar base accessories 1 Bike mount 2 Car mount Bike 3 Car Charger MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT.

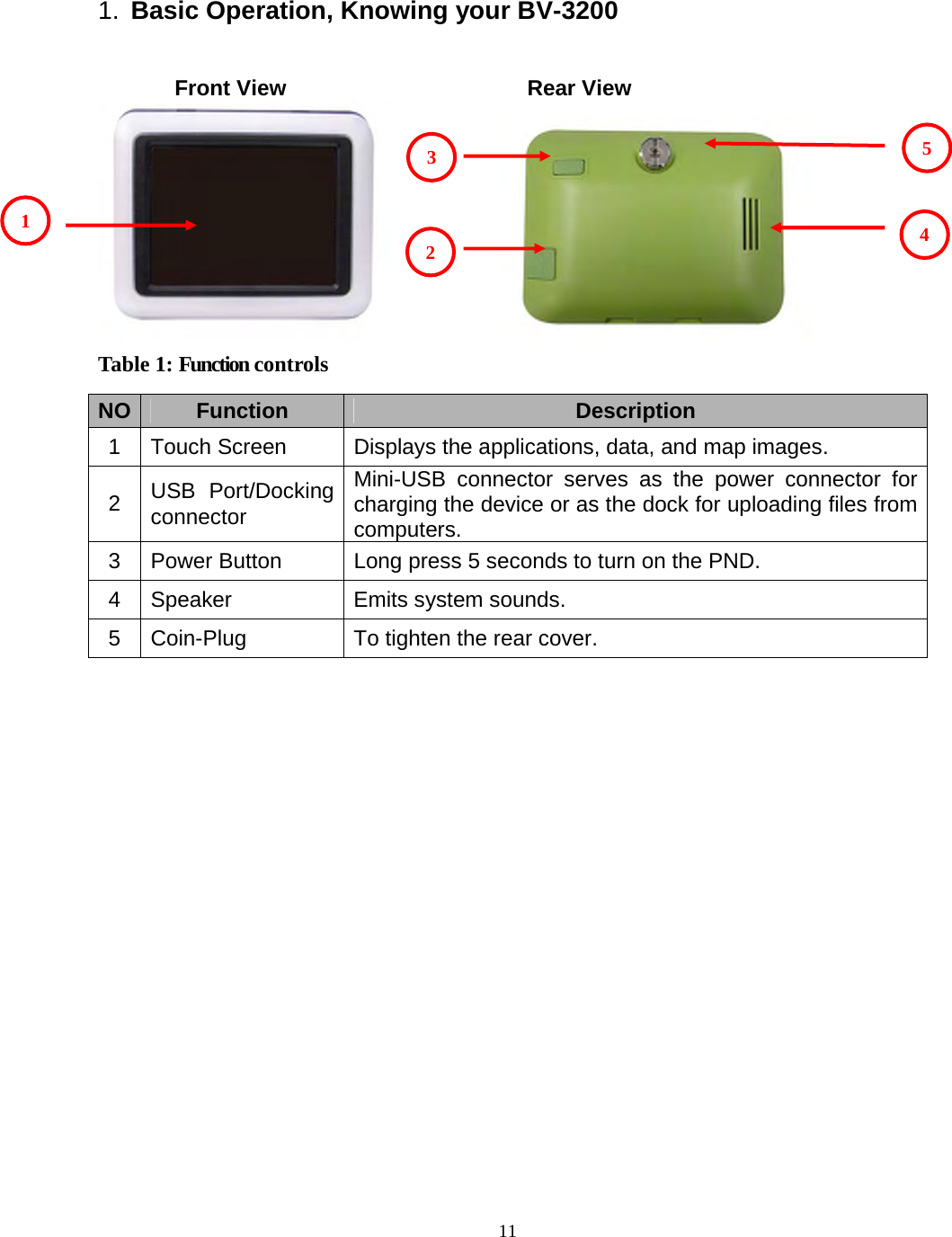

111. Basic Operation, Knowing your BV-3200 Front View Rear View Table 1: Function controls NO Function Description 1 Touch Screen Displays the applications, data, and map images. 2 USB Port/Docking connector Mini-USB connector serves as the power connector for charging the device or as the dock for uploading files from computers. 3 Power Button Long press 5 seconds to turn on the PND. 4 Speaker Emits system sounds. 5 Coin-Plug To tighten the rear cover. 1 2345

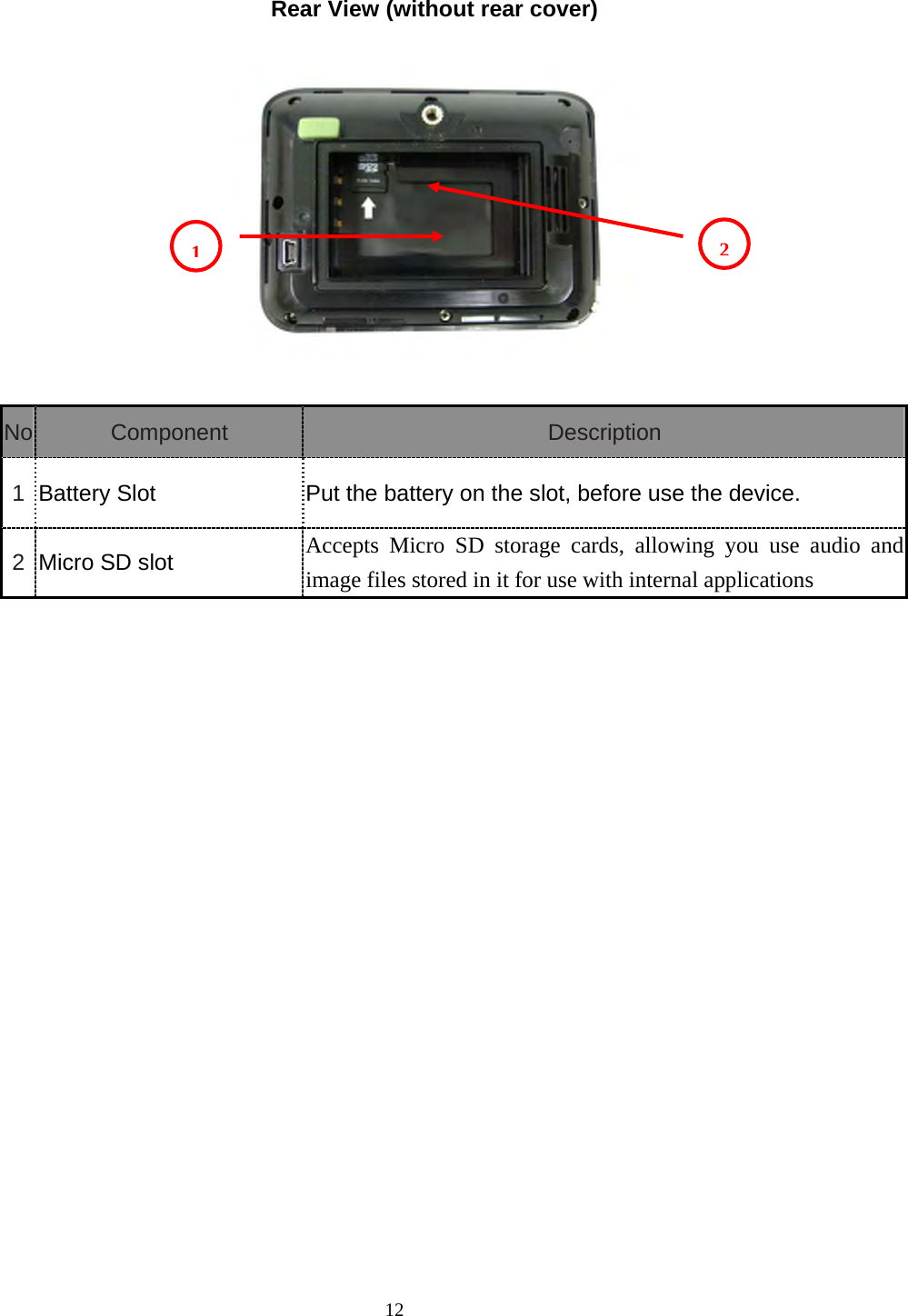

12 Rear View (without rear cover) No Component Description 1 Battery Slot Put the battery on the slot, before use the device. 2 Micro SD slot Accepts Micro SD storage cards, allowing you use audio and image files stored in it for use with internal applications 12

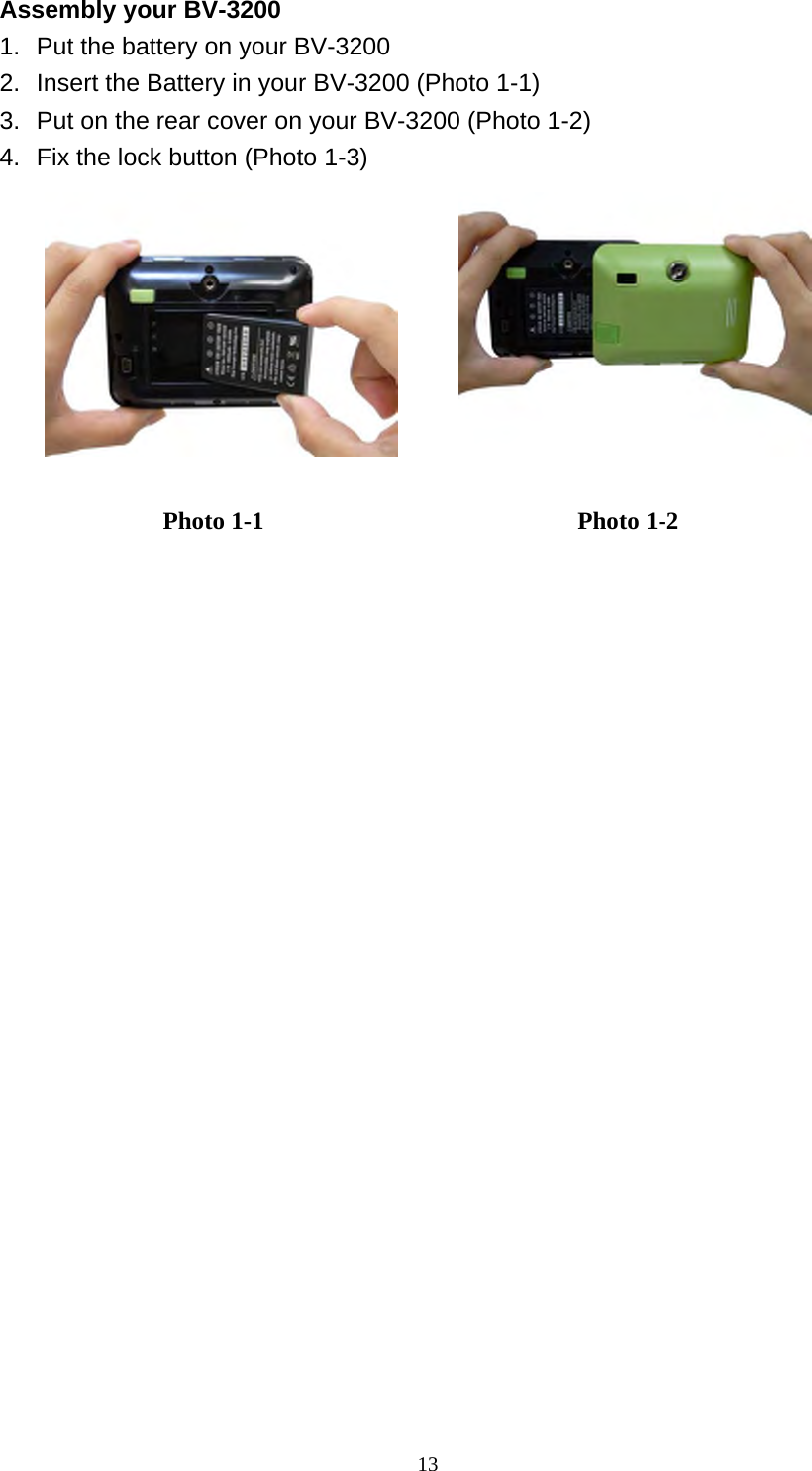

13Assembly your BV-3200 1. Put the battery on your BV-3200 2. Insert the Battery in your BV-3200 (Photo 1-1) 3. Put on the rear cover on your BV-3200 (Photo 1-2) 4. Fix the lock button (Photo 1-3) Photo 1-1 Photo 1-2

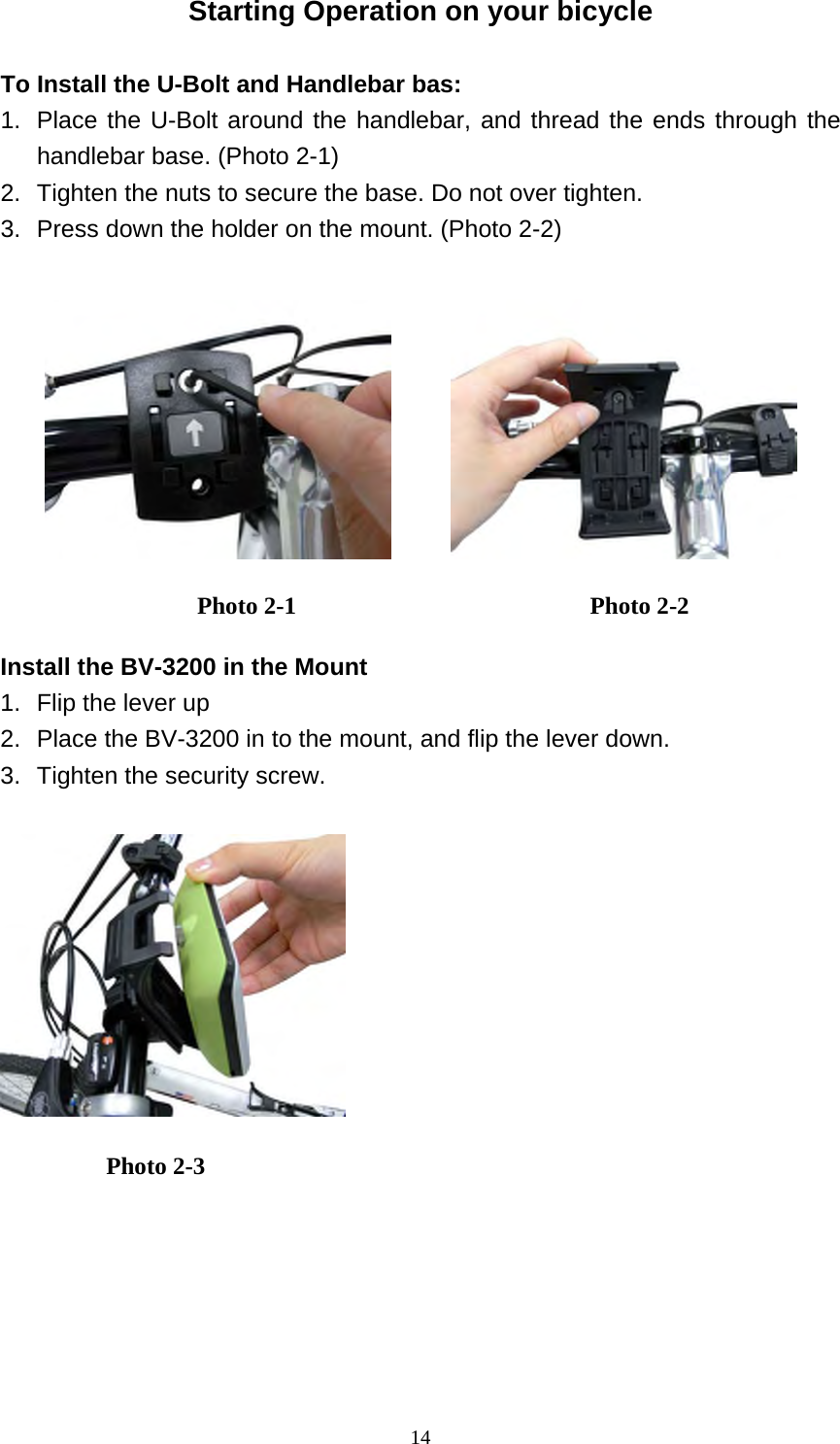

14Starting Operation on your bicycle To Install the U-Bolt and Handlebar bas: 1. Place the U-Bolt around the handlebar, and thread the ends through the handlebar base. (Photo 2-1) 2. Tighten the nuts to secure the base. Do not over tighten. 3. Press down the holder on the mount. (Photo 2-2) Install the BV-3200 in the Mount 1. Flip the lever up 2. Place the BV-3200 in to the mount, and flip the lever down. 3. Tighten the security screw. Photo 2-1 Photo 2-2 Photo 2-3

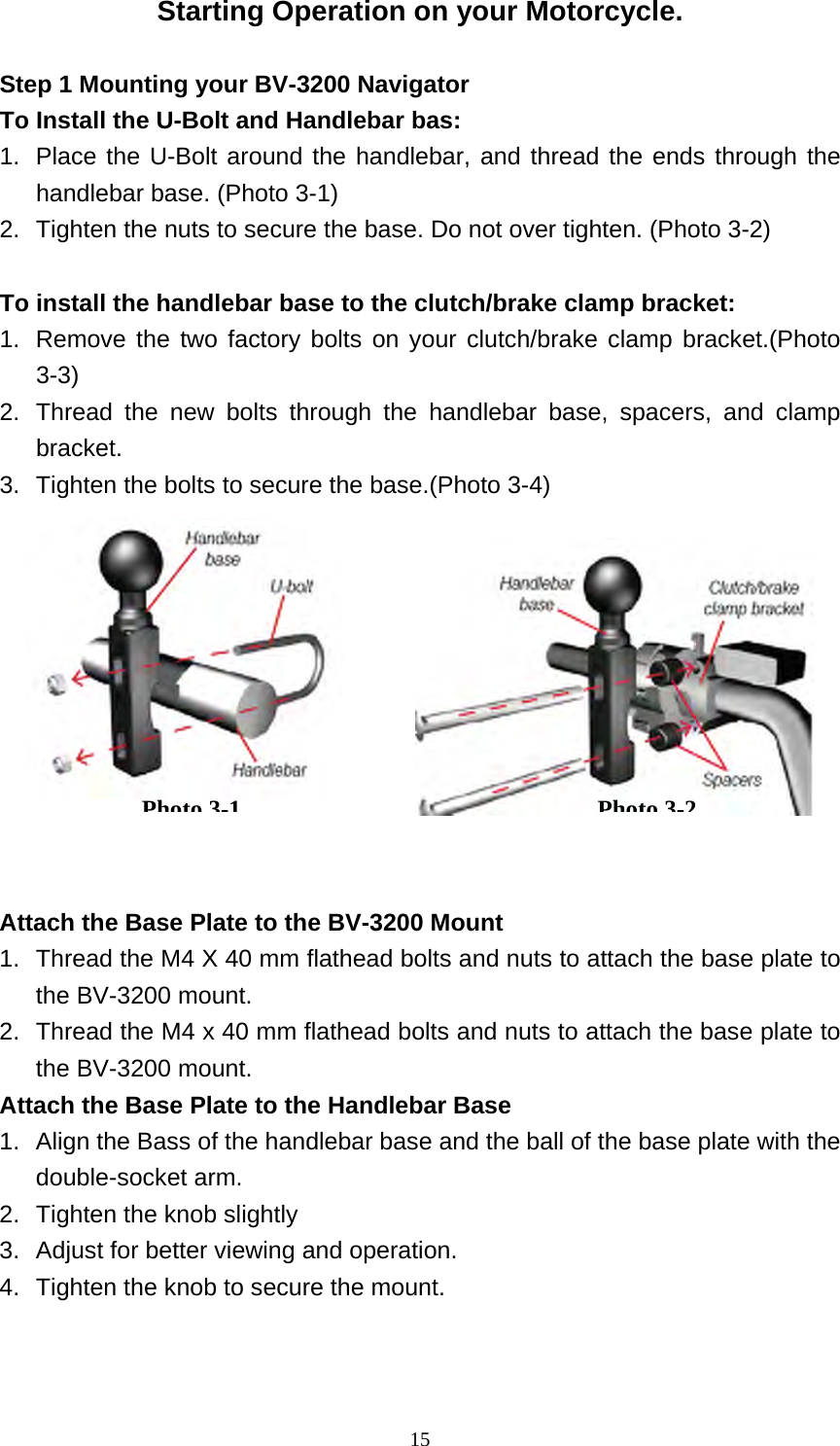

15Starting Operation on your Motorcycle. Step 1 Mounting your BV-3200 Navigator To Install the U-Bolt and Handlebar bas: 1. Place the U-Bolt around the handlebar, and thread the ends through the handlebar base. (Photo 3-1) 2. Tighten the nuts to secure the base. Do not over tighten. (Photo 3-2) To install the handlebar base to the clutch/brake clamp bracket: 1. Remove the two factory bolts on your clutch/brake clamp bracket.(Photo 3-3) 2. Thread the new bolts through the handlebar base, spacers, and clamp bracket. 3. Tighten the bolts to secure the base.(Photo 3-4) Attach the Base Plate to the BV-3200 Mount 1. Thread the M4 X 40 mm flathead bolts and nuts to attach the base plate to the BV-3200 mount. 2. Thread the M4 x 40 mm flathead bolts and nuts to attach the base plate to the BV-3200 mount. Attach the Base Plate to the Handlebar Base 1. Align the Bass of the handlebar base and the ball of the base plate with the double-socket arm. 2. Tighten the knob slightly 3. Adjust for better viewing and operation. 4. Tighten the knob to secure the mount. Photo3-1Photo3-2

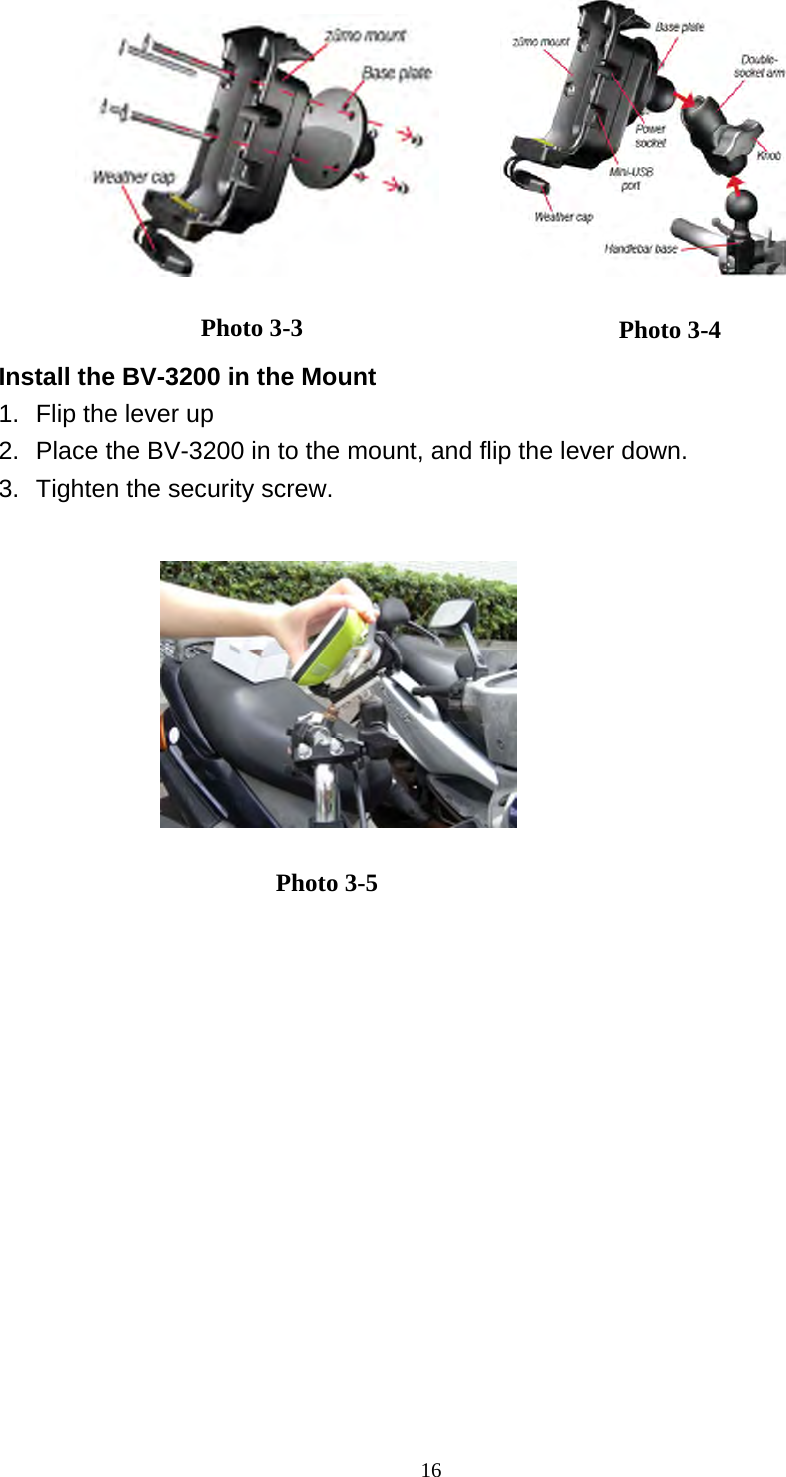

16 Install the BV-3200 in the Mount 1. Flip the lever up 2. Place the BV-3200 in to the mount, and flip the lever down. 3. Tighten the security screw. Photo 3-3 Photo 3-4 Photo 3-5

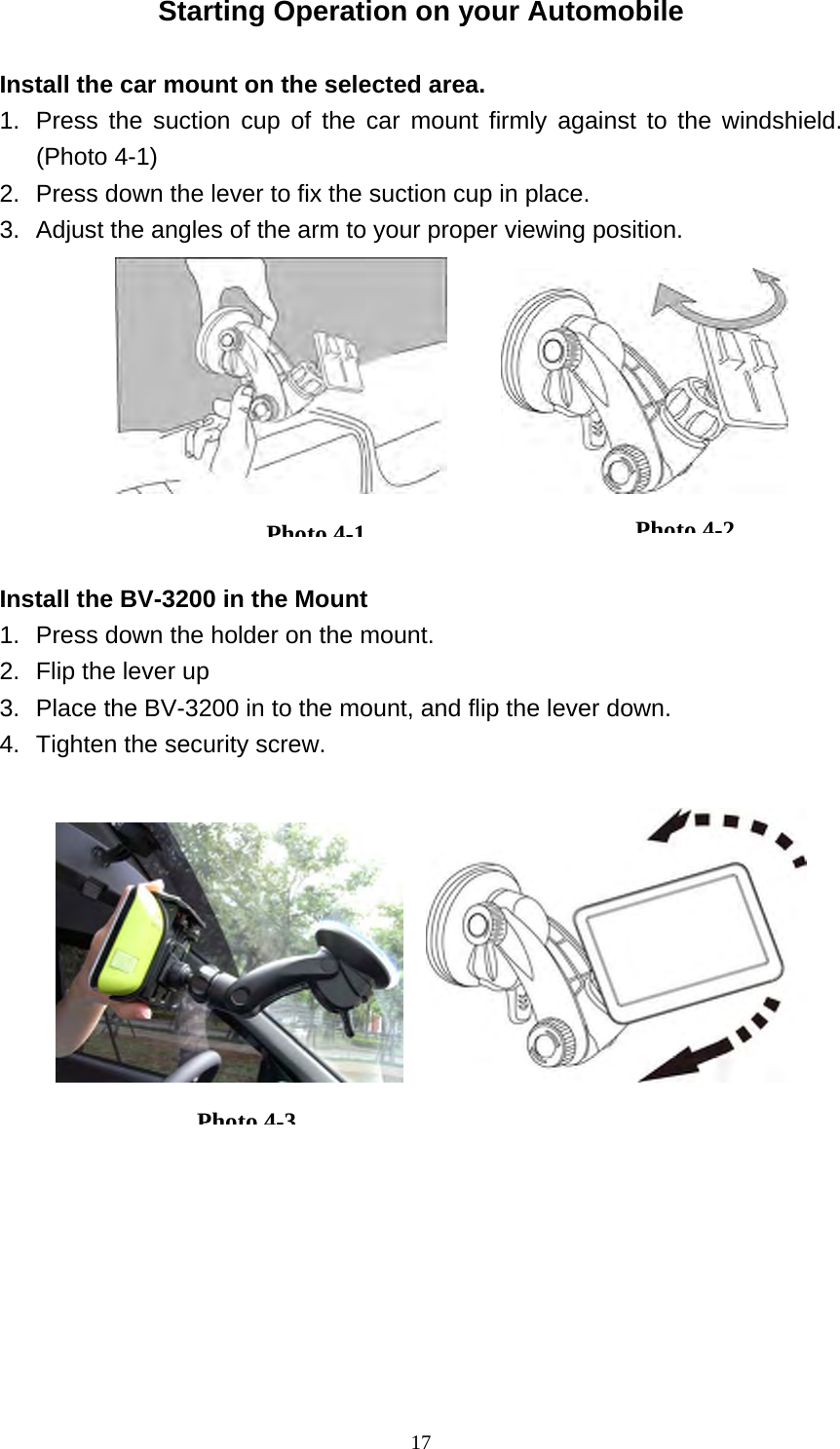

17Starting Operation on your Automobile Install the car mount on the selected area. 1. Press the suction cup of the car mount firmly against to the windshield. (Photo 4-1) 2. Press down the lever to fix the suction cup in place. 3. Adjust the angles of the arm to your proper viewing position. Install the BV-3200 in the Mount 1. Press down the holder on the mount. 2. Flip the lever up 3. Place the BV-3200 in to the mount, and flip the lever down. 4. Tighten the security screw. Photo4-1Photo4-2Photo4-3

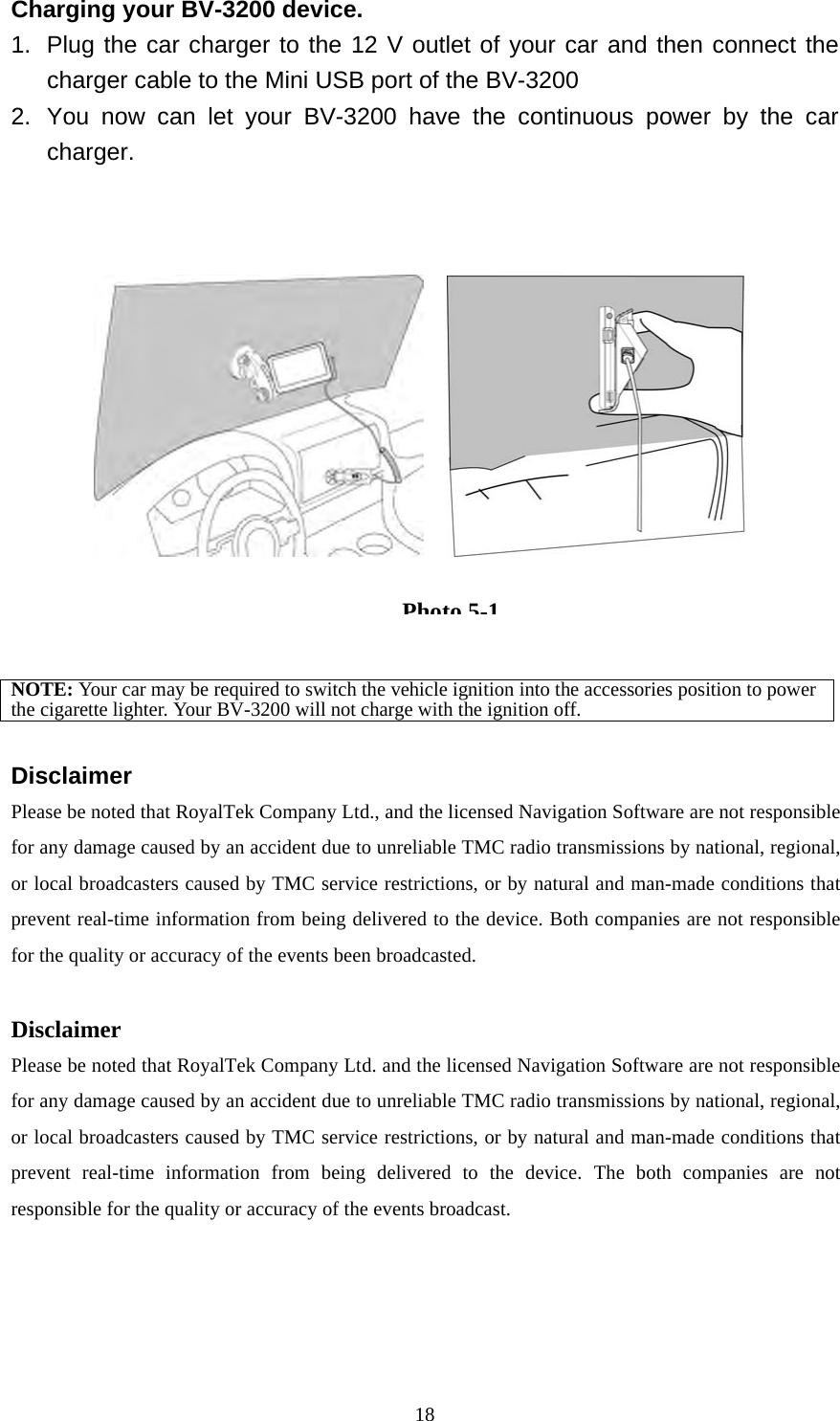

18Charging your BV-3200 device. 1. Plug the car charger to the 12 V outlet of your car and then connect the charger cable to the Mini USB port of the BV-3200 2. You now can let your BV-3200 have the continuous power by the car charger. NOTE: Your car may be required to switch the vehicle ignition into the accessories position to power the cigarette lighter. Your BV-3200 will not charge with the ignition off. Disclaimer Please be noted that RoyalTek Company Ltd., and the licensed Navigation Software are not responsible for any damage caused by an accident due to unreliable TMC radio transmissions by national, regional, or local broadcasters caused by TMC service restrictions, or by natural and man-made conditions that prevent real-time information from being delivered to the device. Both companies are not responsible for the quality or accuracy of the events been broadcasted. Disclaimer Please be noted that RoyalTek Company Ltd. and the licensed Navigation Software are not responsible for any damage caused by an accident due to unreliable TMC radio transmissions by national, regional, or local broadcasters caused by TMC service restrictions, or by natural and man-made conditions that prevent real-time information from being delivered to the device. The both companies are not responsible for the quality or accuracy of the events broadcast. Photo5-1

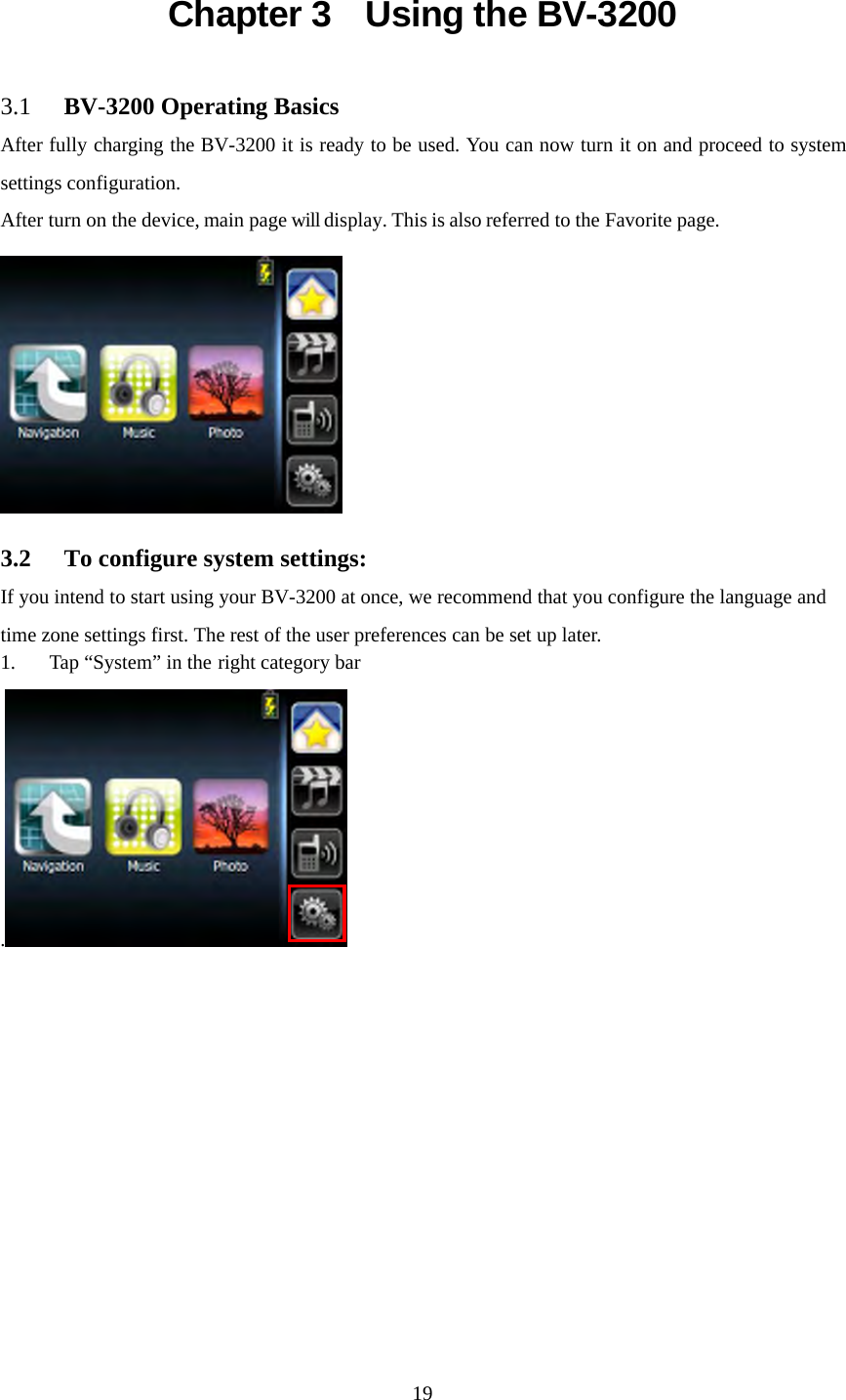

19Chapter 3 Using the BV-3200 3.1 BV-3200 Operating Basics After fully charging the BV-3200 it is ready to be used. You can now turn it on and proceed to system settings configuration. After turn on the device, main page will display. This is also referred to the Favorite page. 3.2 To configure system settings: If you intend to start using your BV-3200 at once, we recommend that you configure the language and time zone settings first. The rest of the user preferences can be set up later. 1. Tap “System” in the right category bar .

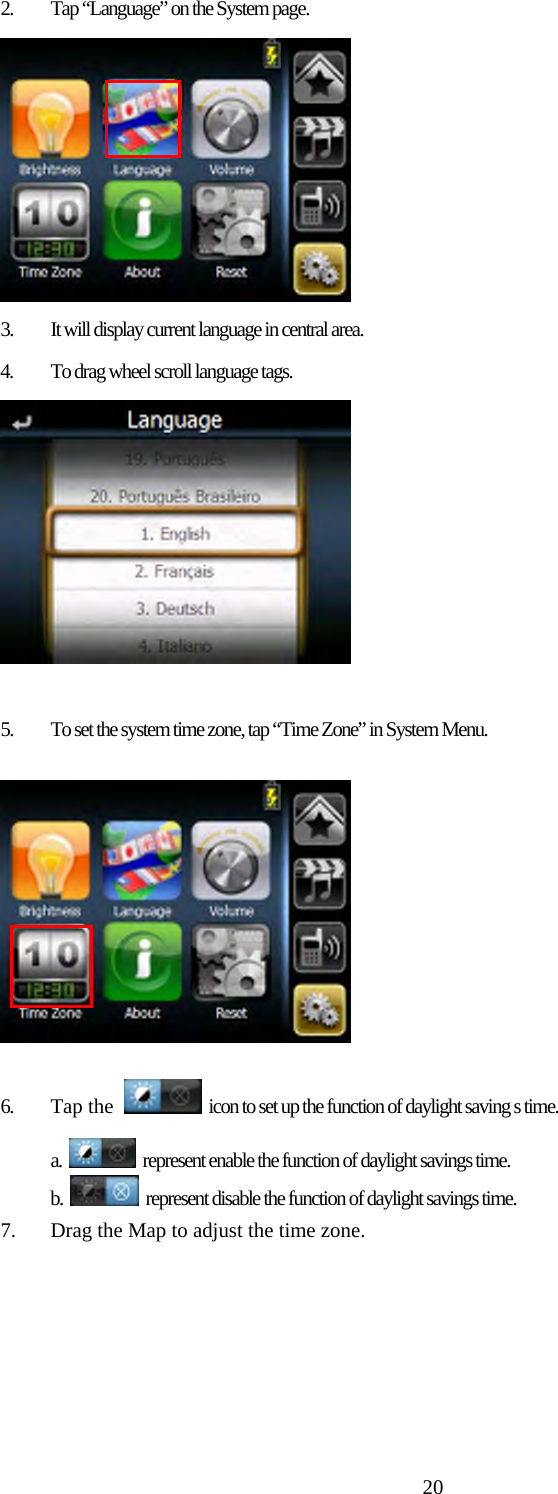

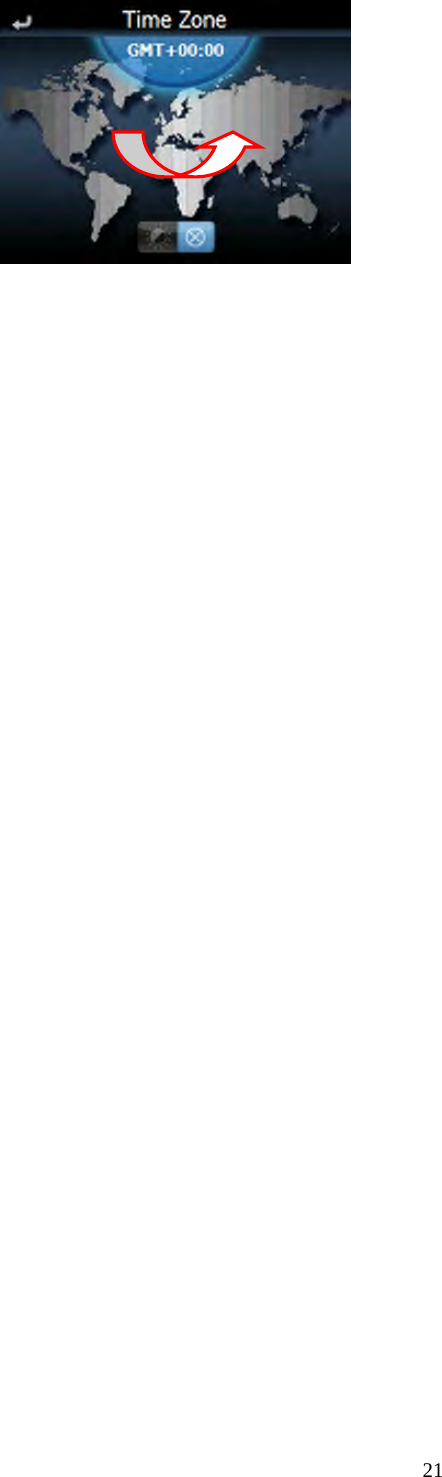

202. Tap “Language” on the System page. 3. It will display current language in central area. 4. To drag wheel scroll language tags. 5. To set the system time zone, tap “Time Zone” in System Menu. 6. Tap the icon to set up the function of daylight saving s time. a. represent enable the function of daylight savings time. b. represent disable the function of daylight savings time. 7. Drag the Map to adjust the time zone.
21

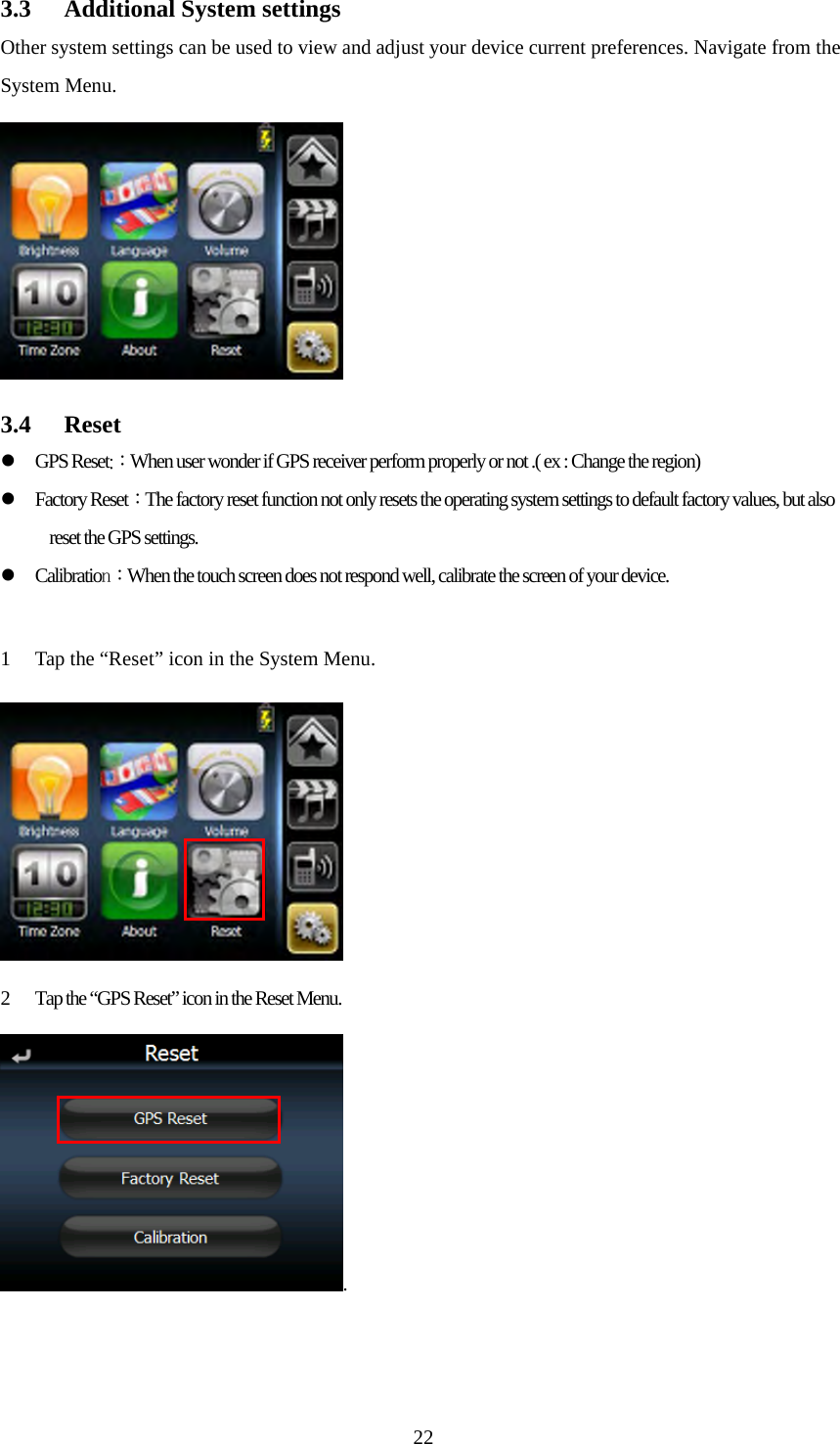

223.3 Additional System settings Other system settings can be used to view and adjust your device current preferences. Navigate from the System Menu. 3.4 Reset z GPS Reset:：When user wonder if GPS receiver perform properly or not .( ex : Change the region) z Factory Reset：The factory reset function not only resets the operating system settings to default factory values, but also reset the GPS settings. z Calibration：When the touch screen does not respond well, calibrate the screen of your device. 1 Tap the “Reset” icon in the System Menu. 2 Tap the “GPS Reset” icon in the Reset Menu. .

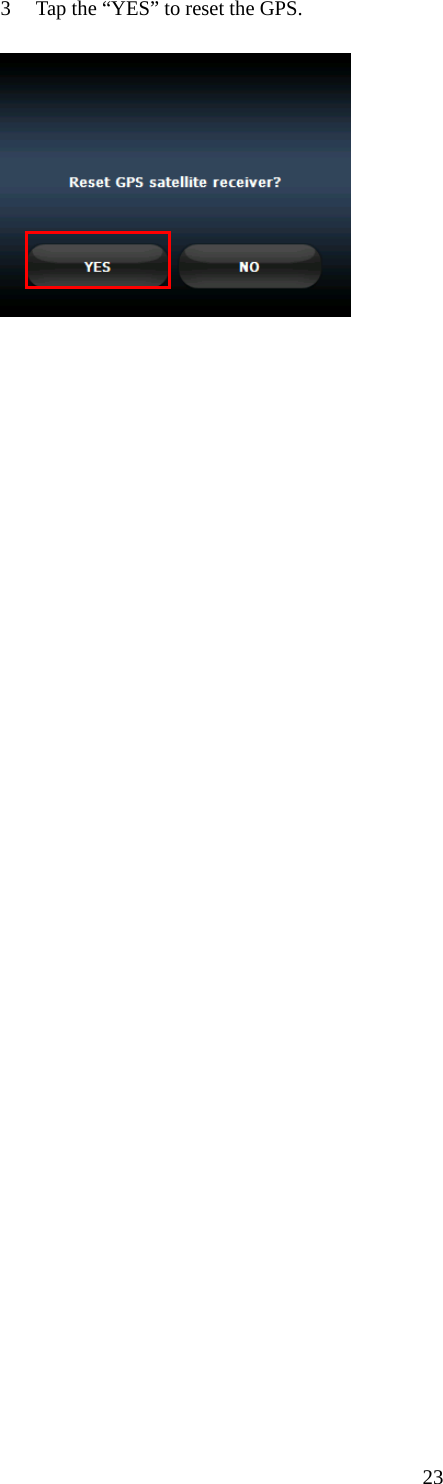

233 Tap the “YES” to reset the GPS.

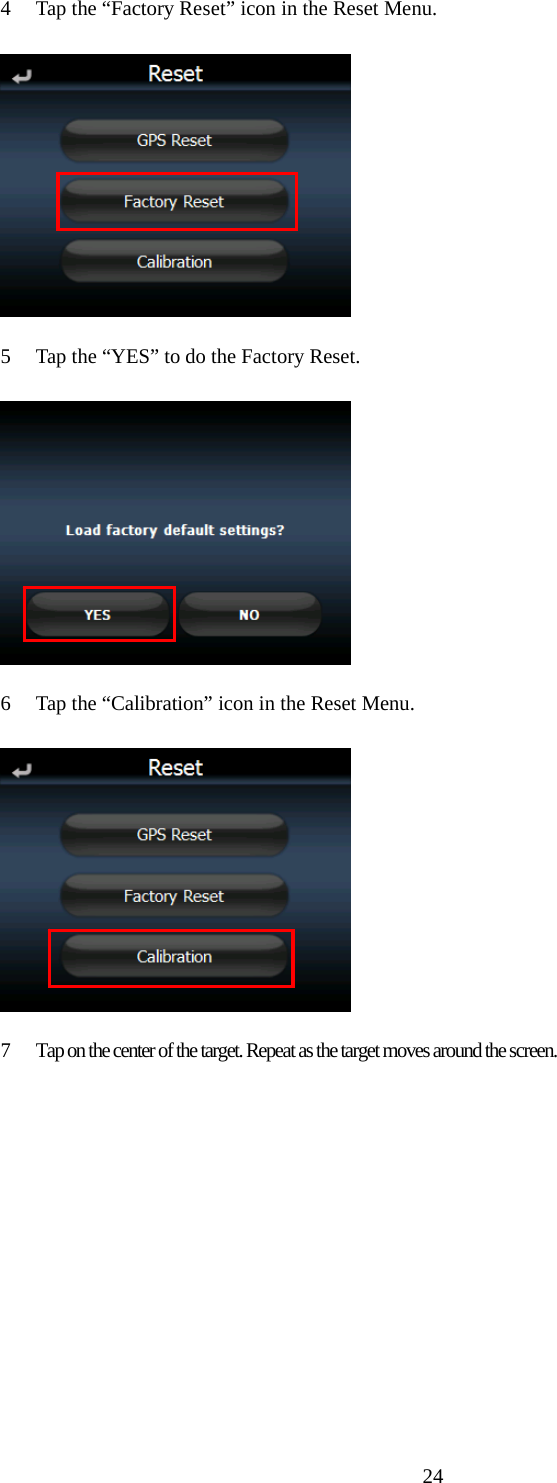

244 Tap the “Factory Reset” icon in the Reset Menu. 5 Tap the “YES” to do the Factory Reset. 6 Tap the “Calibration” icon in the Reset Menu. 7 Tap on the center of the target. Repeat as the target moves around the screen.

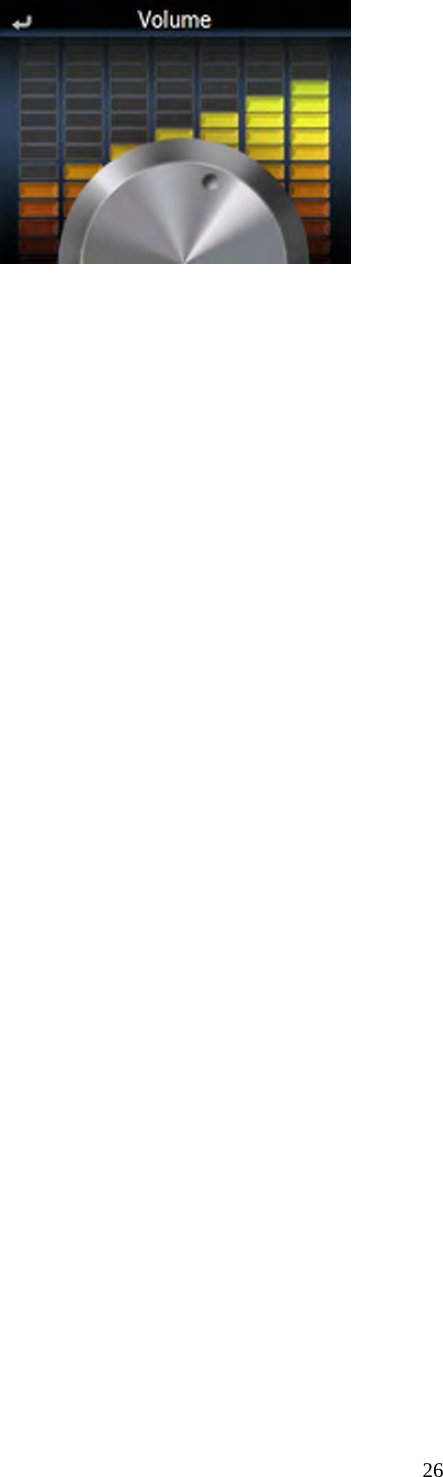

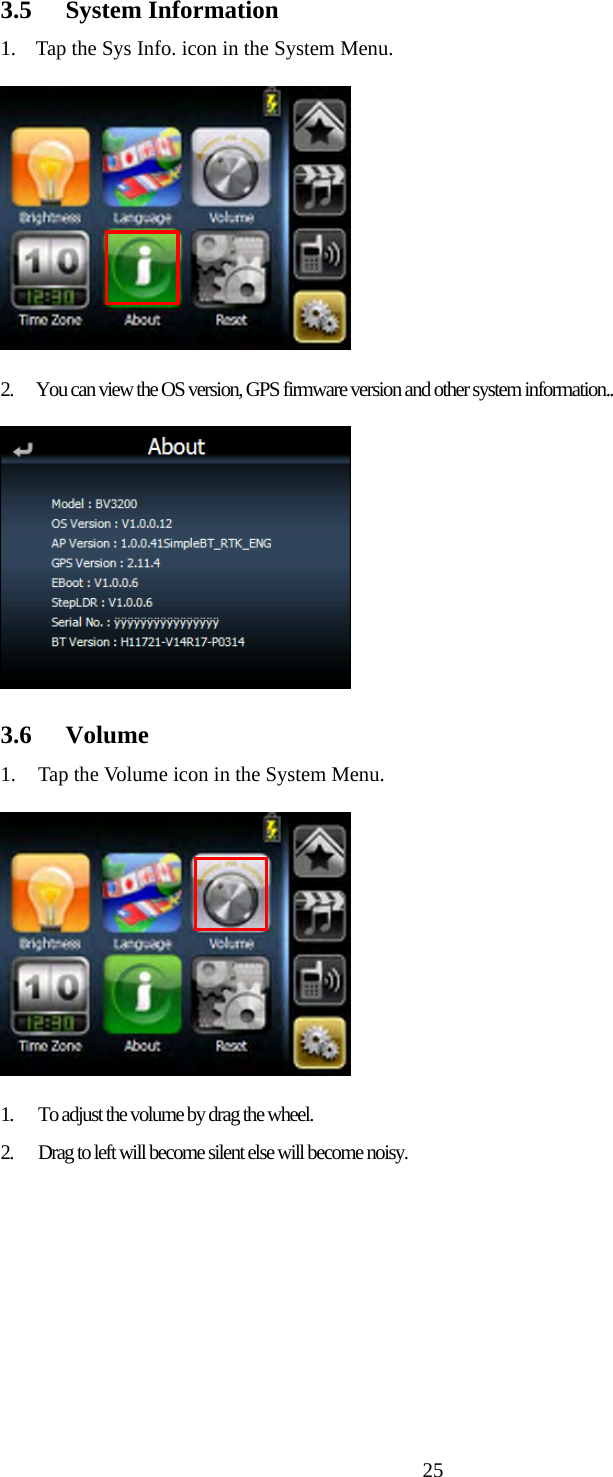

253.5 System Information 1. Tap the Sys Info. icon in the System Menu. 2. You can view the OS version, GPS firmware version and other system information.. 3.6 Volume 1. Tap the Volume icon in the System Menu. 1. To adjust the volume by drag the wheel. 2. Drag to left will become silent else will become noisy.
26

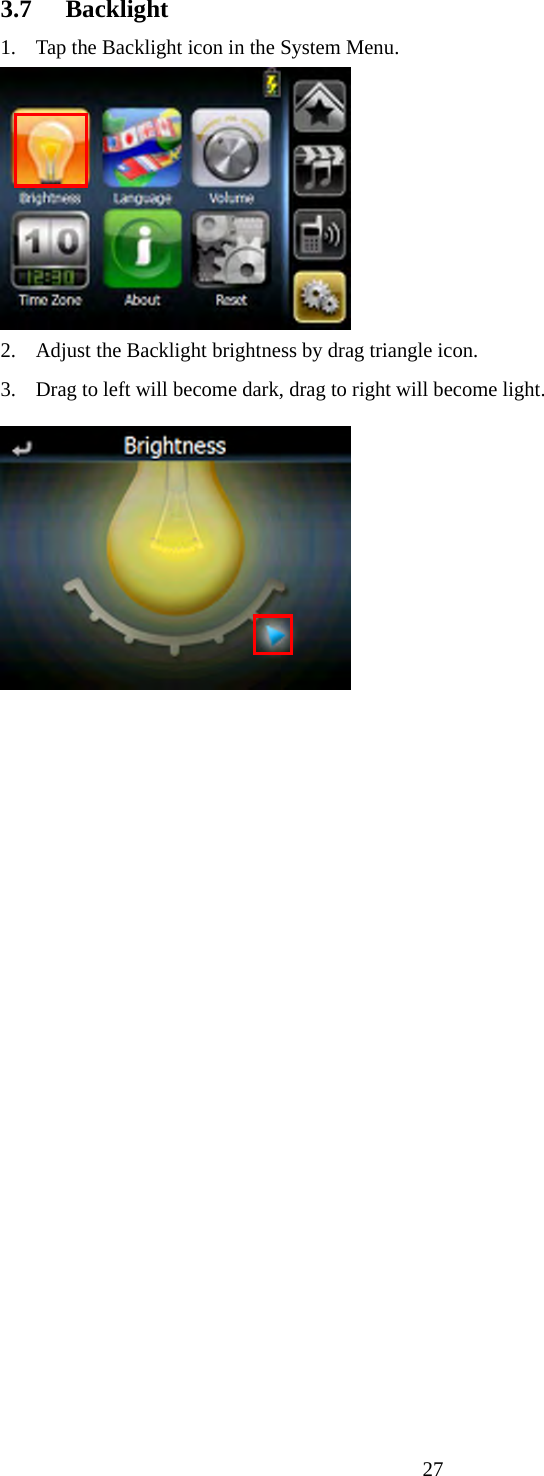

273.7 Backlight 1. Tap the Backlight icon in the System Menu. 2. Adjust the Backlight brightness by drag triangle icon. 3. Drag to left will become dark, drag to right will become light.

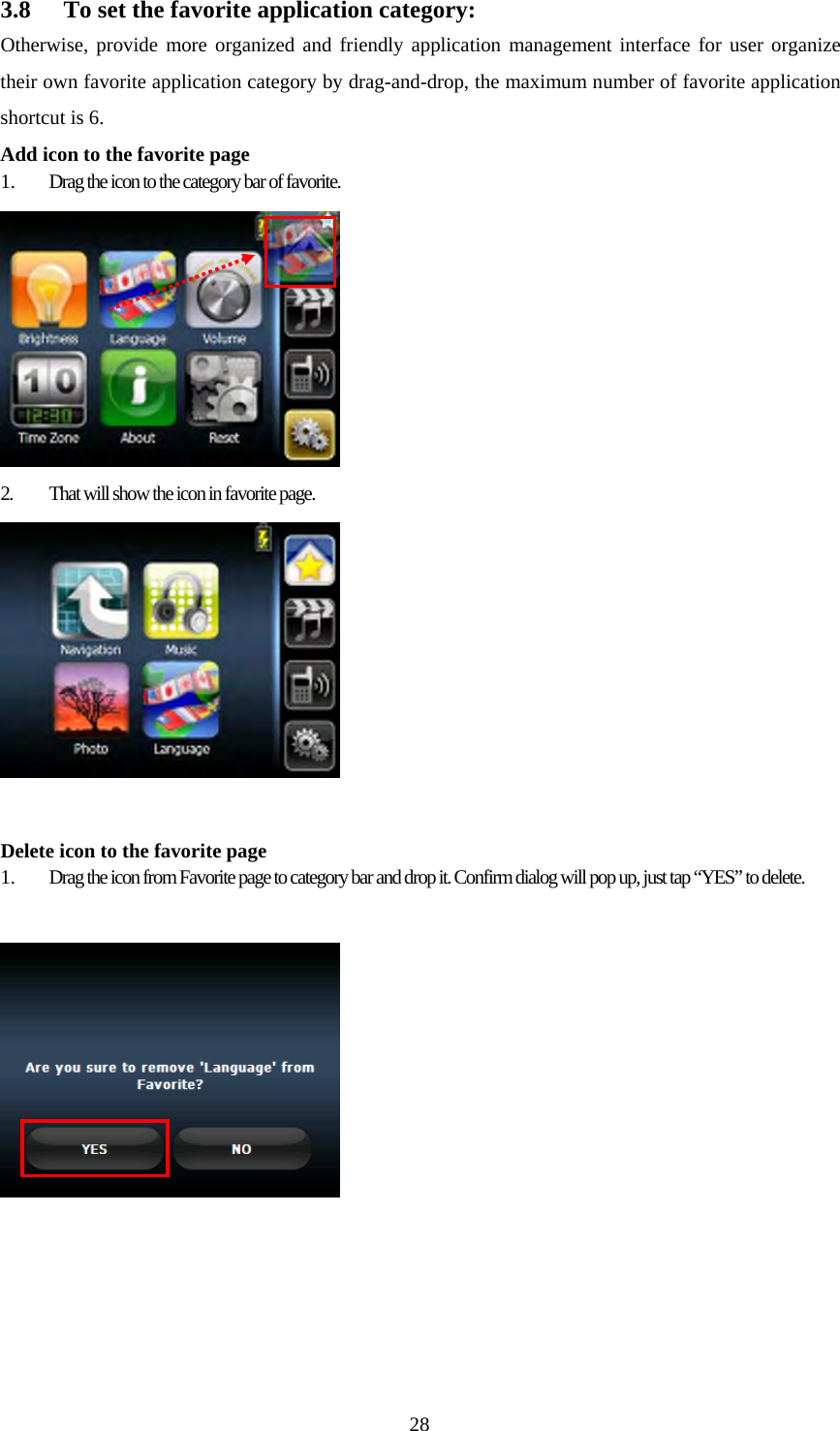

283.8 To set the favorite application category: Otherwise, provide more organized and friendly application management interface for user organize their own favorite application category by drag-and-drop, the maximum number of favorite application shortcut is 6. Add icon to the favorite page 1. Drag the icon to the category bar of favorite. 2. That will show the icon in favorite page. Delete icon to the favorite page 1. Drag the icon from Favorite page to category bar and drop it. Confirm dialog will pop up, just tap “YES” to delete.

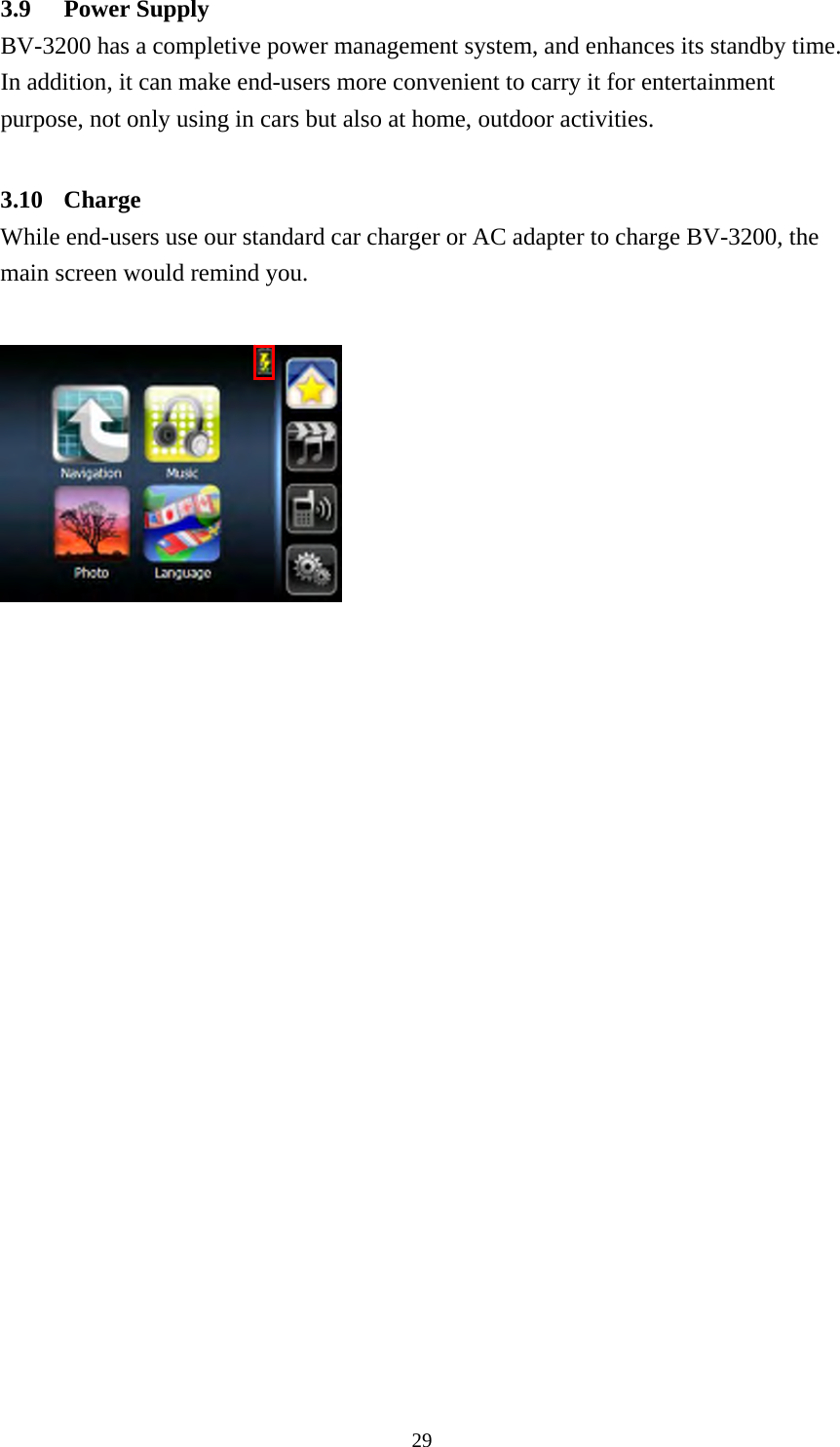

293.9 Power Supply BV-3200 has a completive power management system, and enhances its standby time. In addition, it can make end-users more convenient to carry it for entertainment purpose, not only using in cars but also at home, outdoor activities. 3.10 Charge While end-users use our standard car charger or AC adapter to charge BV-3200, the main screen would remind you.

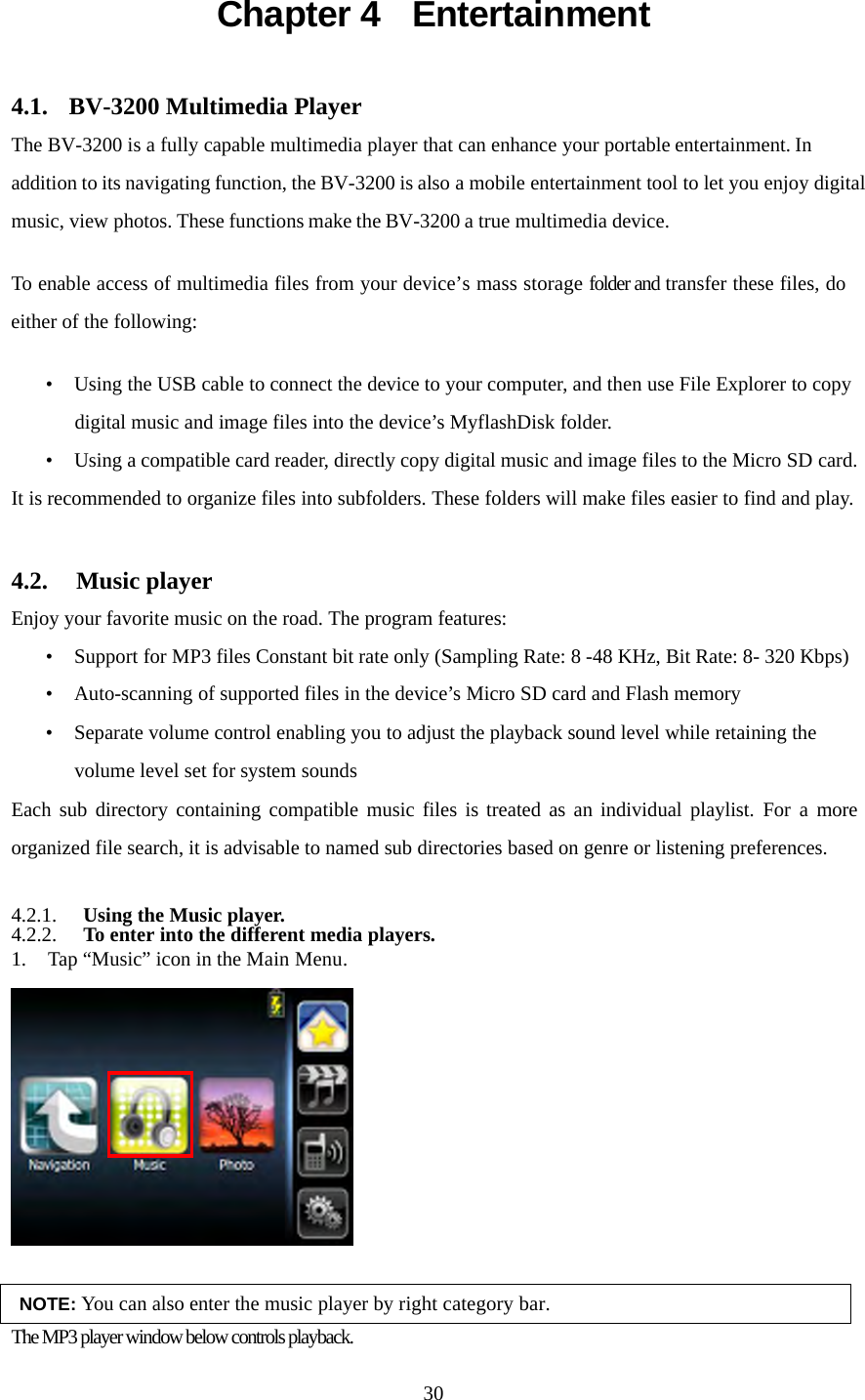

30Chapter 4 Entertainment 4.1. BV-3200 Multimedia Player The BV-3200 is a fully capable multimedia player that can enhance your portable entertainment. In addition to its navigating function, the BV-3200 is also a mobile entertainment tool to let you enjoy digital music, view photos. These functions make the BV-3200 a true multimedia device. To enable access of multimedia files from your device’s mass storage folder and transfer these files, do either of the following: • Using the USB cable to connect the device to your computer, and then use File Explorer to copy digital music and image files into the device’s MyflashDisk folder. • Using a compatible card reader, directly copy digital music and image files to the Micro SD card. It is recommended to organize files into subfolders. These folders will make files easier to find and play. 4.2. Music player Enjoy your favorite music on the road. The program features: • Support for MP3 files Constant bit rate only (Sampling Rate: 8 -48 KHz, Bit Rate: 8- 320 Kbps) • Auto-scanning of supported files in the device’s Micro SD card and Flash memory • Separate volume control enabling you to adjust the playback sound level while retaining the volume level set for system sounds Each sub directory containing compatible music files is treated as an individual playlist. For a more organized file search, it is advisable to named sub directories based on genre or listening preferences. 4.2.1. Using the Music player. 4.2.2. To enter into the different media players. 1. Tap “Music” icon in the Main Menu. NOTE: You can also enter the music player by right category bar. The MP3 player window below controls playback.

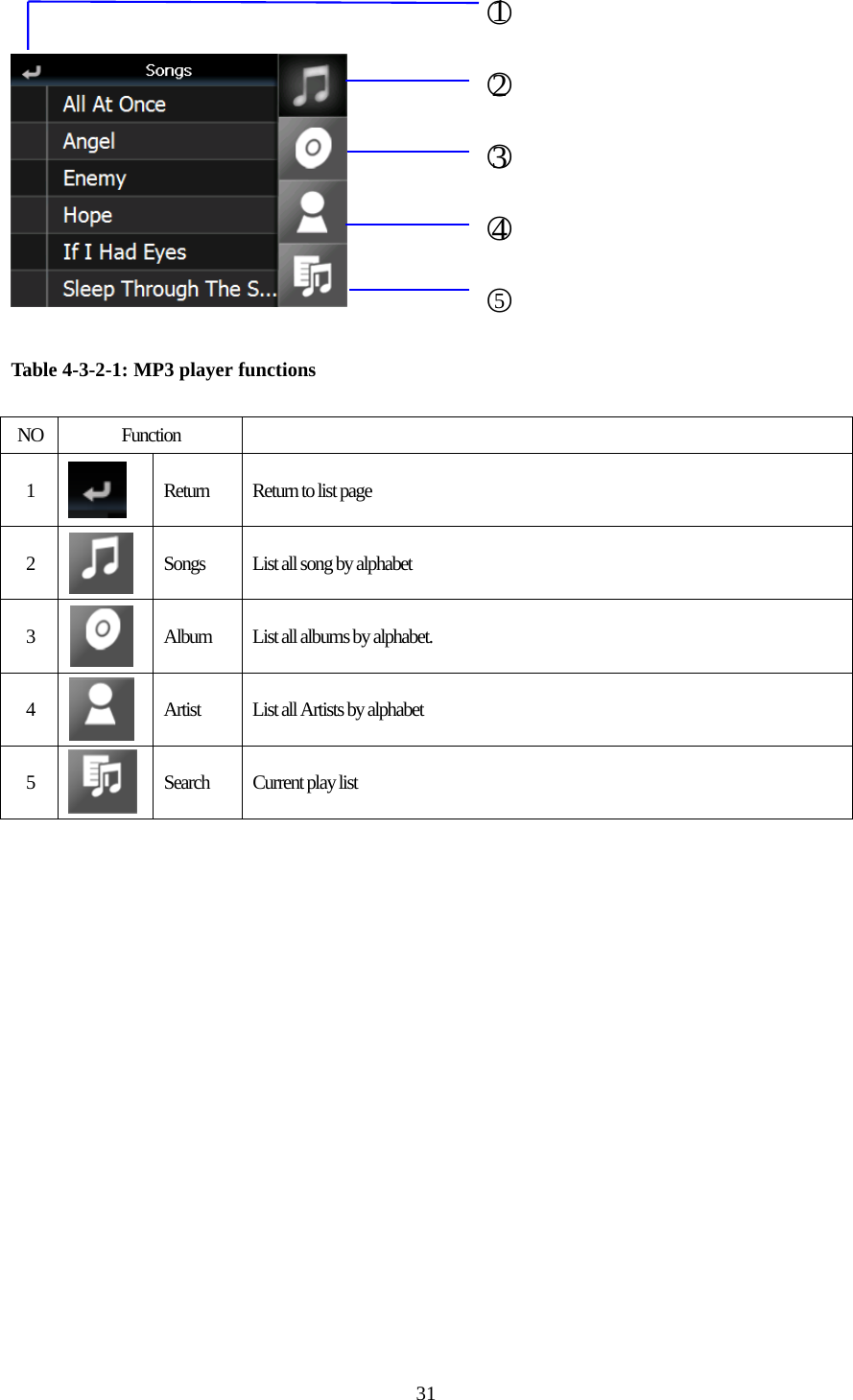

31 Table 4-3-2-1: MP3 player functions NO Function 1 Return Return to list page 2 Songs List all song by alphabet 3 Album List all albums by alphabet. 4 Artist List all Artists by alphabet 5 Search Current play list ○1 ○2 ○3 ○4 ○5

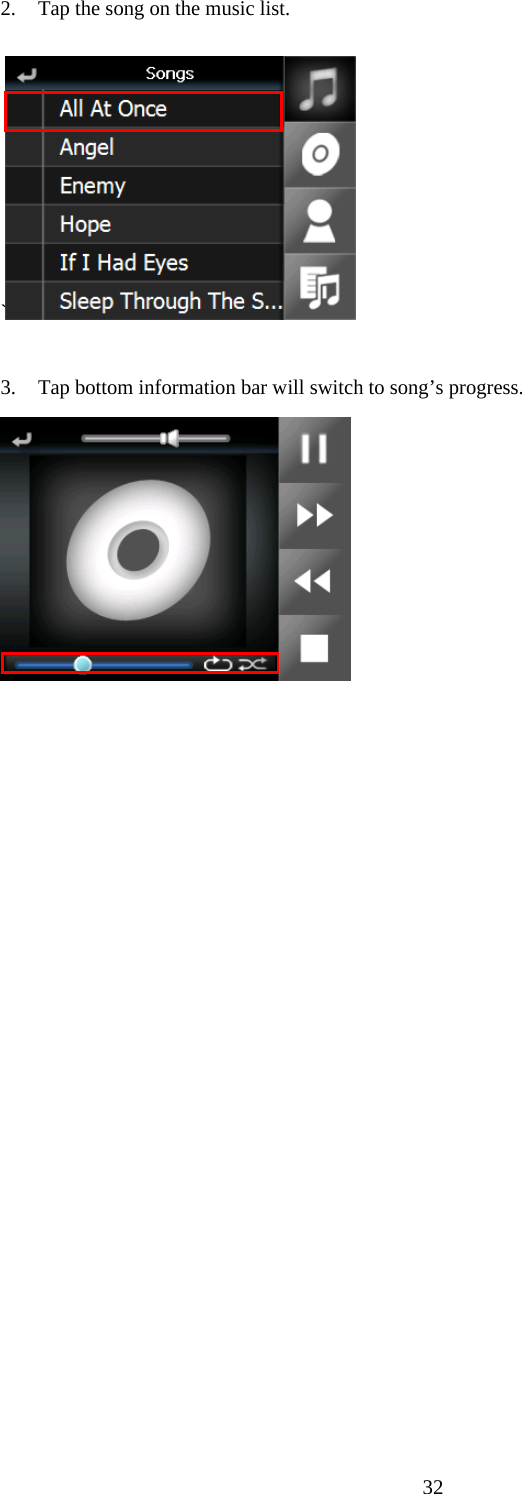

322. Tap the song on the music list. ` 3. Tap bottom information bar will switch to song’s progress.

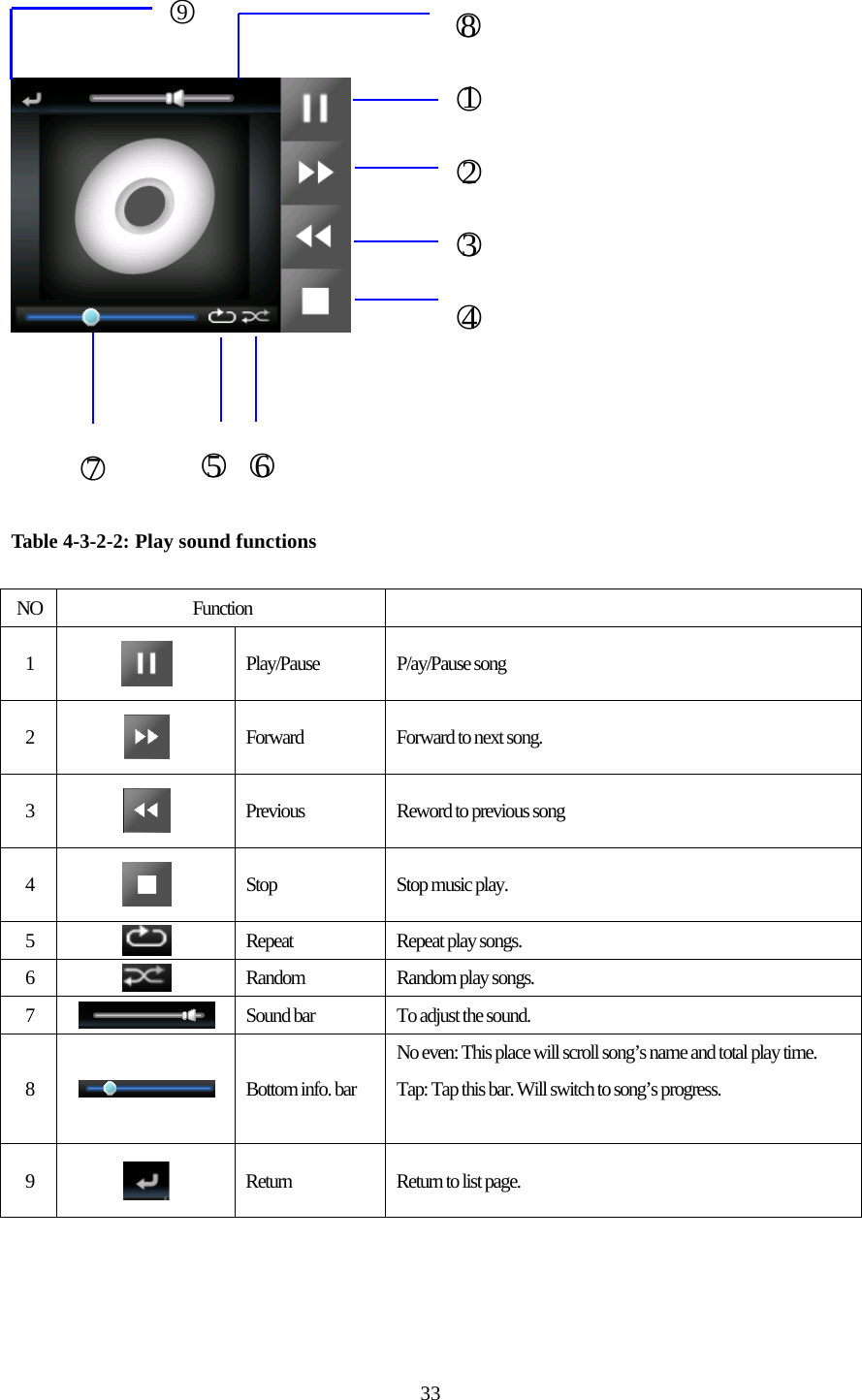

33 Table 4-3-2-2: Play sound functions NO Function 1 Play/Pause P/ay/Pause song 2 Forward Forward to next song. 3 Previous Reword to previous song 4 Stop Stop music play. 5 Repeat Repeat play songs. 6 Random Random play songs. 7 Sound bar To adjust the sound. 8 Bottom info. bar No even: This place will scroll song’s name and total play time. Tap: Tap this bar. Will switch to song’s progress. 9 Return Return to list page. ○1 ○2 ○3 ○4 ○5 ○6 ○7 ○8 ○9

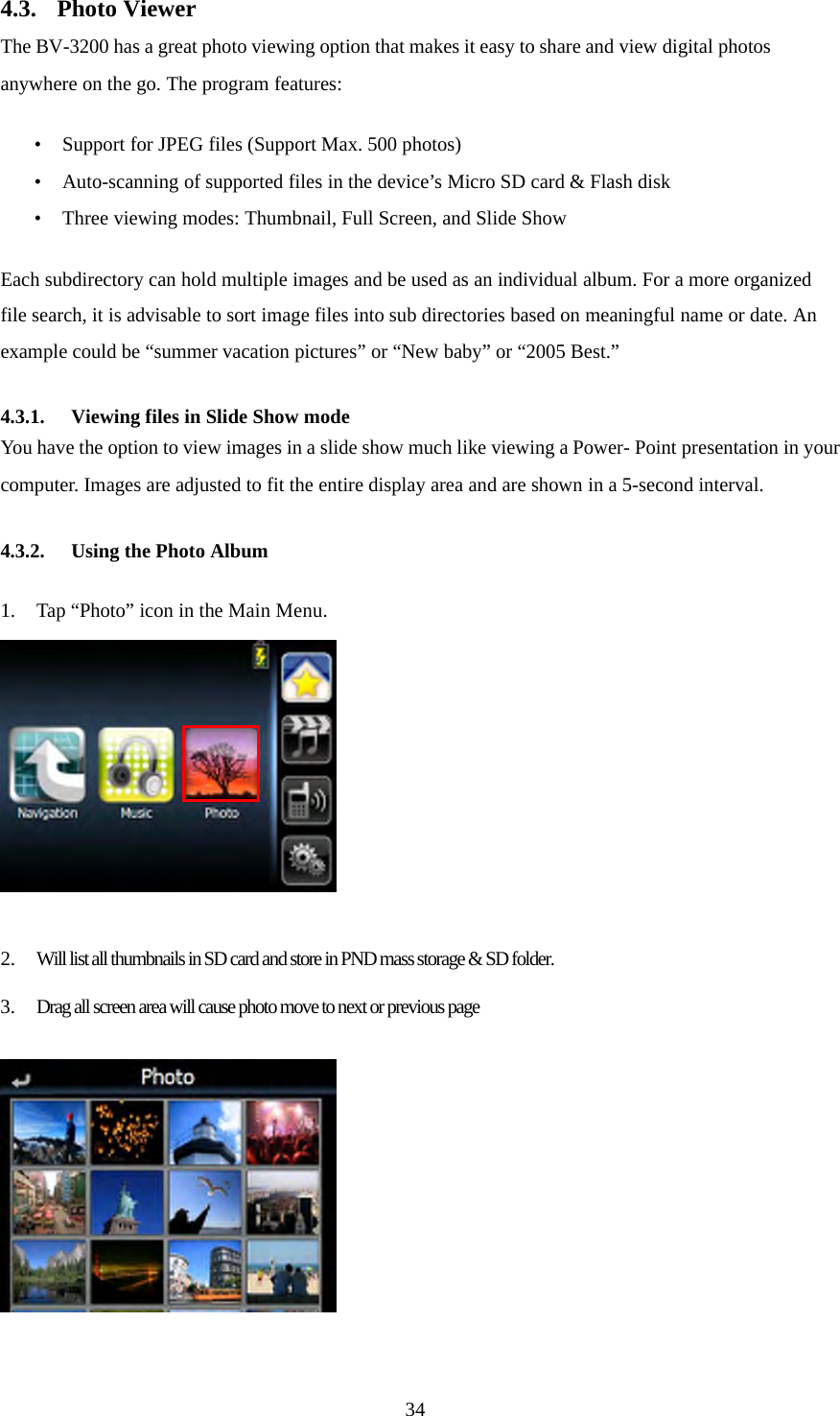

344.3. Photo Viewer The BV-3200 has a great photo viewing option that makes it easy to share and view digital photos anywhere on the go. The program features: • Support for JPEG files (Support Max. 500 photos) • Auto-scanning of supported files in the device’s Micro SD card & Flash disk • Three viewing modes: Thumbnail, Full Screen, and Slide Show Each subdirectory can hold multiple images and be used as an individual album. For a more organized file search, it is advisable to sort image files into sub directories based on meaningful name or date. An example could be “summer vacation pictures” or “New baby” or “2005 Best.” 4.3.1. Viewing files in Slide Show mode You have the option to view images in a slide show much like viewing a Power- Point presentation in your computer. Images are adjusted to fit the entire display area and are shown in a 5-second interval. 4.3.2. Using the Photo Album 1. Tap “Photo” icon in the Main Menu. 2. Will list all thumbnails in SD card and store in PND mass storage & SD folder. 3. Drag all screen area will cause photo move to next or previous page

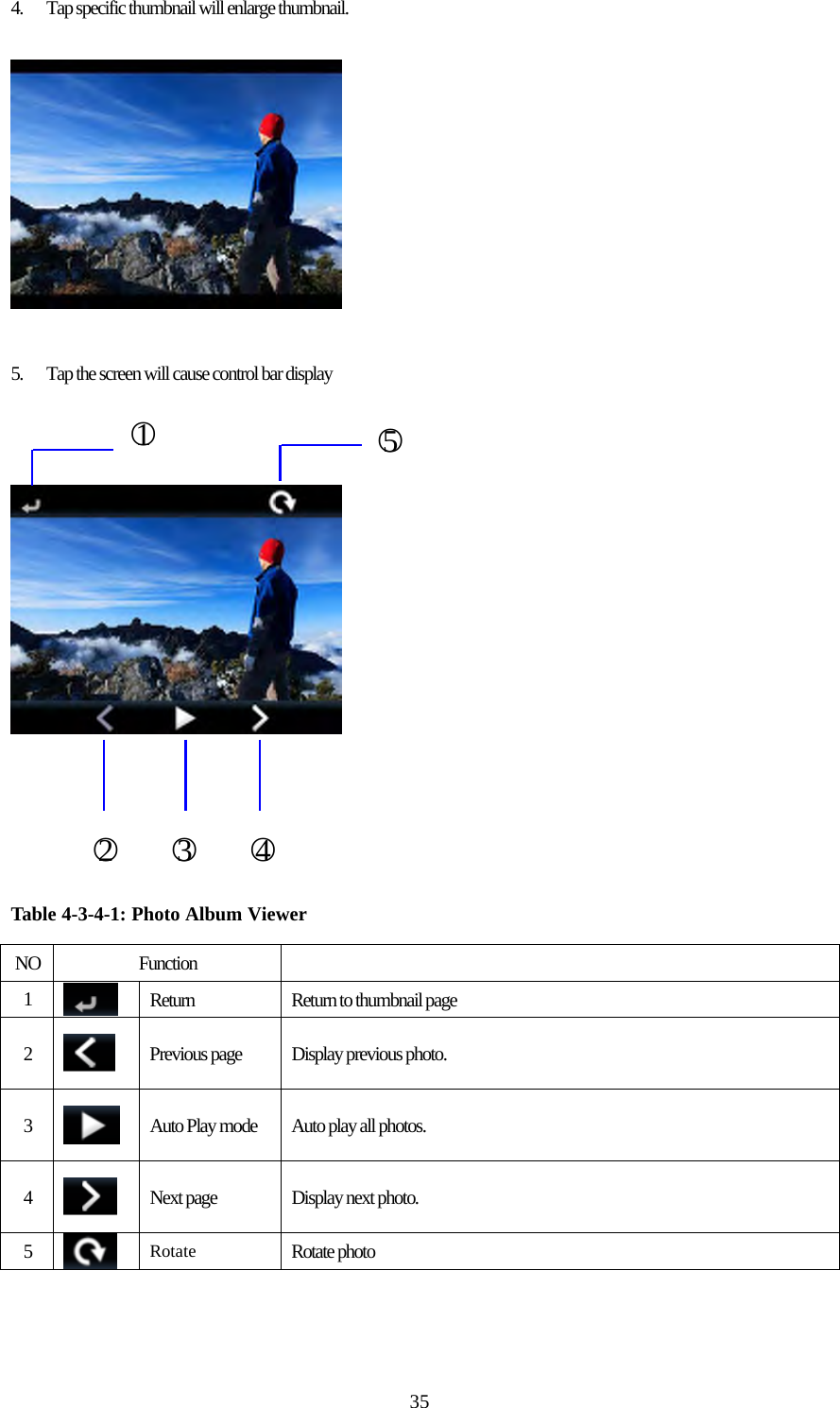

354. Tap specific thumbnail will enlarge thumbnail. 5. Tap the screen will cause control bar display Table 4-3-4-1: Photo Album Viewer NO Function 1 Return Return to thumbnail page 2 Previous page Display previous photo. 3 Auto Play mode Auto play all photos. 4 Next page Display next photo. 5 Rotate Rotate photo ○1 ○5○2 ○3 ○4

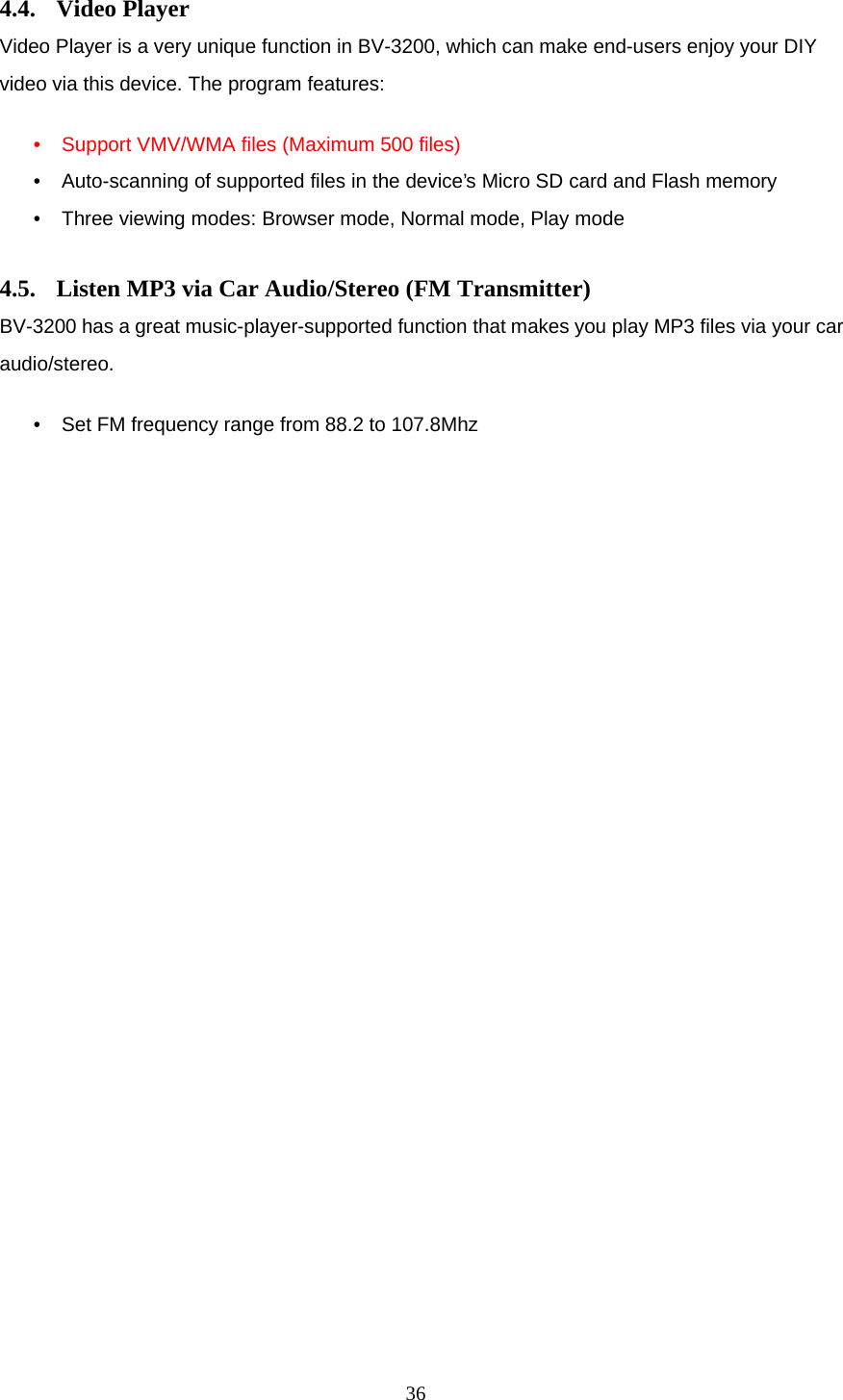

36 4.4. Video Player Video Player is a very unique function in BV-3200, which can make end-users enjoy your DIY video via this device. The program features: • Support VMV/WMA files (Maximum 500 files) • Auto-scanning of supported files in the device’s Micro SD card and Flash memory • Three viewing modes: Browser mode, Normal mode, Play mode 4.5. Listen MP3 via Car Audio/Stereo (FM Transmitter) BV-3200 has a great music-player-supported function that makes you play MP3 files via your car audio/stereo. • Set FM frequency range from 88.2 to 107.8Mhz

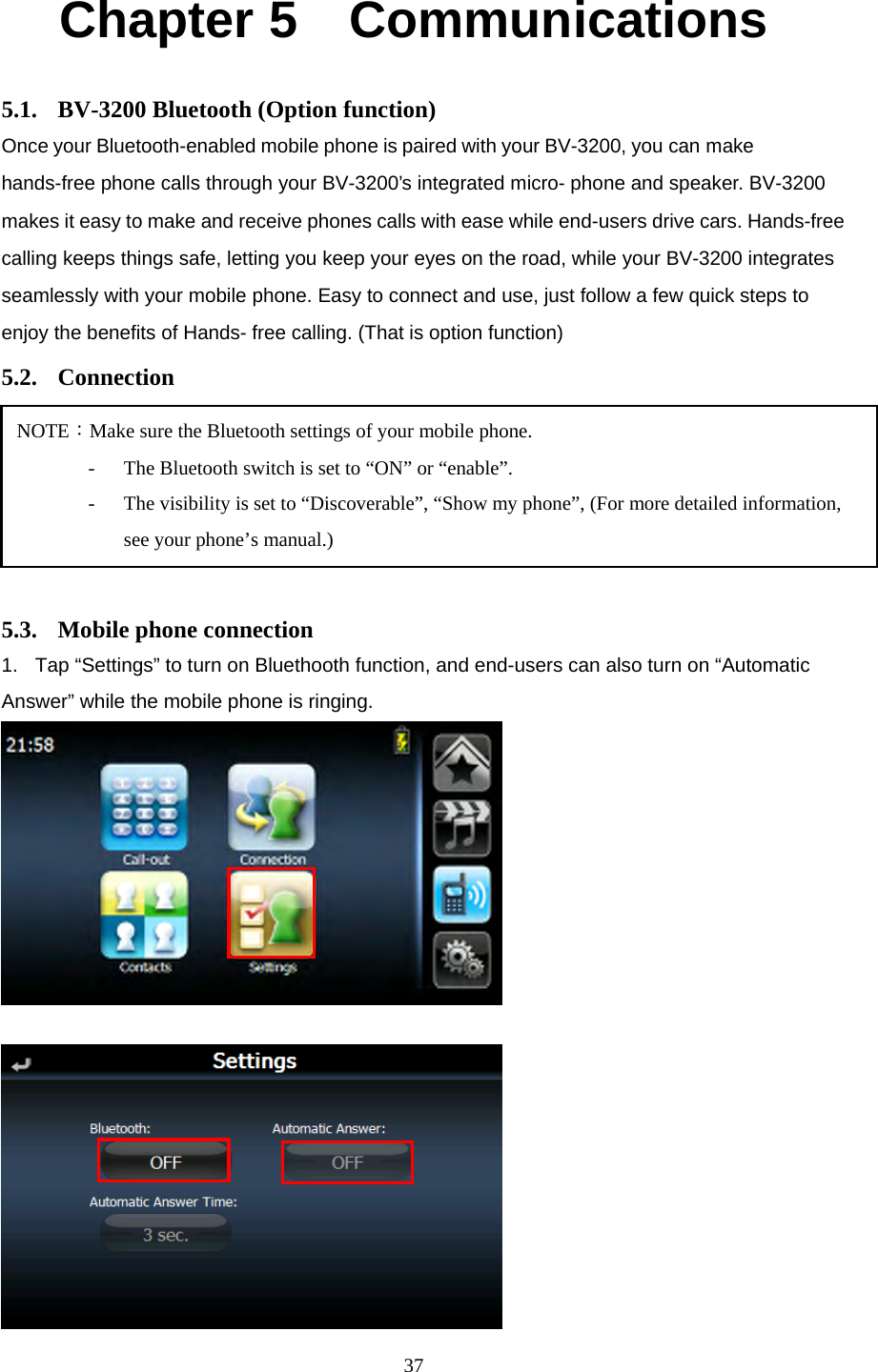

37Chapter 5 Communications 5.1. BV-3200 Bluetooth (Option function) Once your Bluetooth-enabled mobile phone is paired with your BV-3200, you can make hands-free phone calls through your BV-3200’s integrated micro- phone and speaker. BV-3200 makes it easy to make and receive phones calls with ease while end-users drive cars. Hands-free calling keeps things safe, letting you keep your eyes on the road, while your BV-3200 integrates seamlessly with your mobile phone. Easy to connect and use, just follow a few quick steps to enjoy the benefits of Hands- free calling. (That is option function) 5.2. Connection 5.3. Mobile phone connection 1. Tap “Settings” to turn on Bluethooth function, and end-users can also turn on “Automatic Answer” while the mobile phone is ringing. NOTE：Make sure the Bluetooth settings of your mobile phone. - The Bluetooth switch is set to “ON” or “enable”. - The visibility is set to “Discoverable”, “Show my phone”, (For more detailed information, see your phone’s manual.)

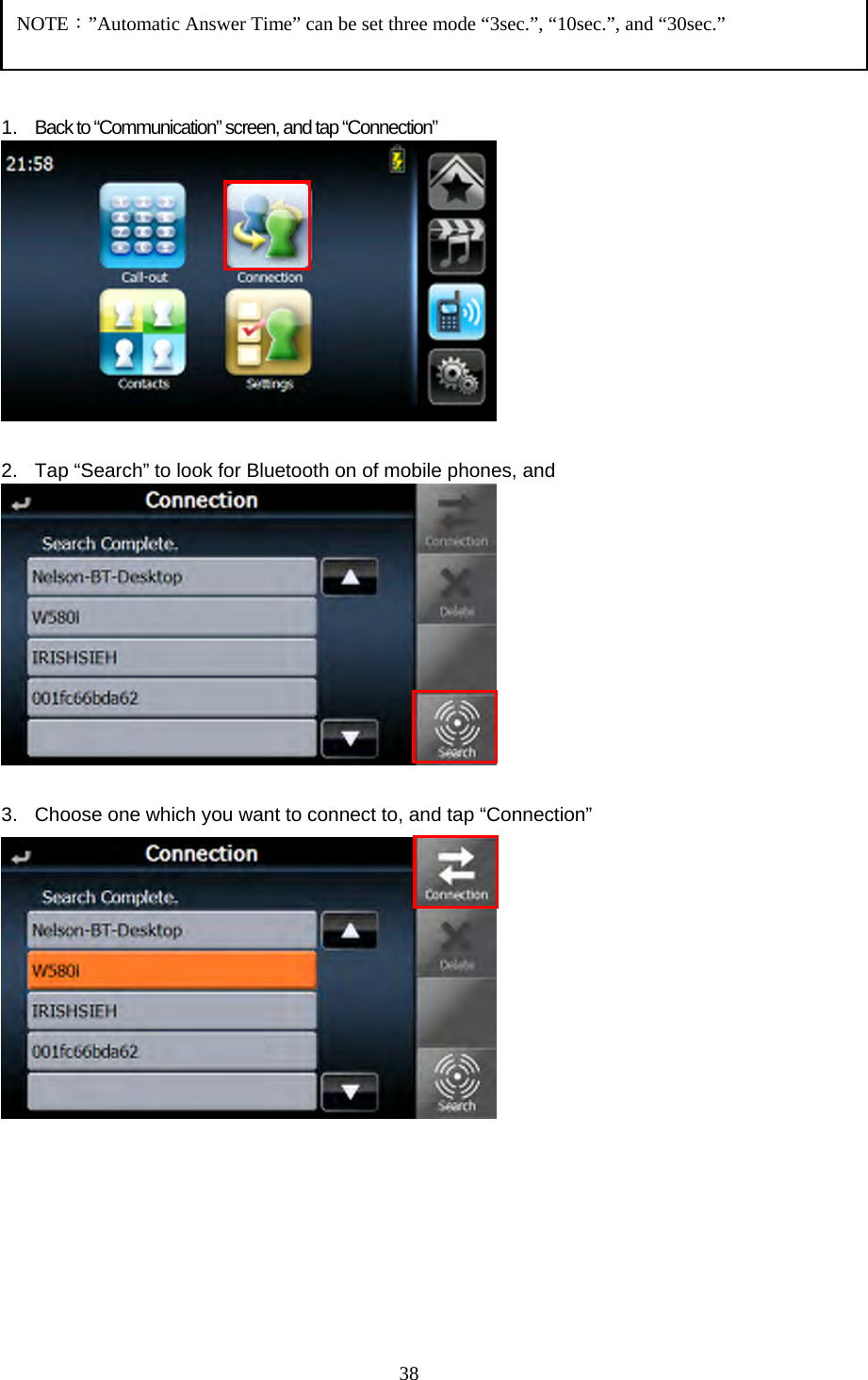

38 1. Back to “Communication” screen, and tap “Connection” 2. Tap “Search” to look for Bluetooth on of mobile phones, and 3. Choose one which you want to connect to, and tap “Connection” NOTE：”Automatic Answer Time” can be set three mode “3sec.”, “10sec.”, and “30sec.”

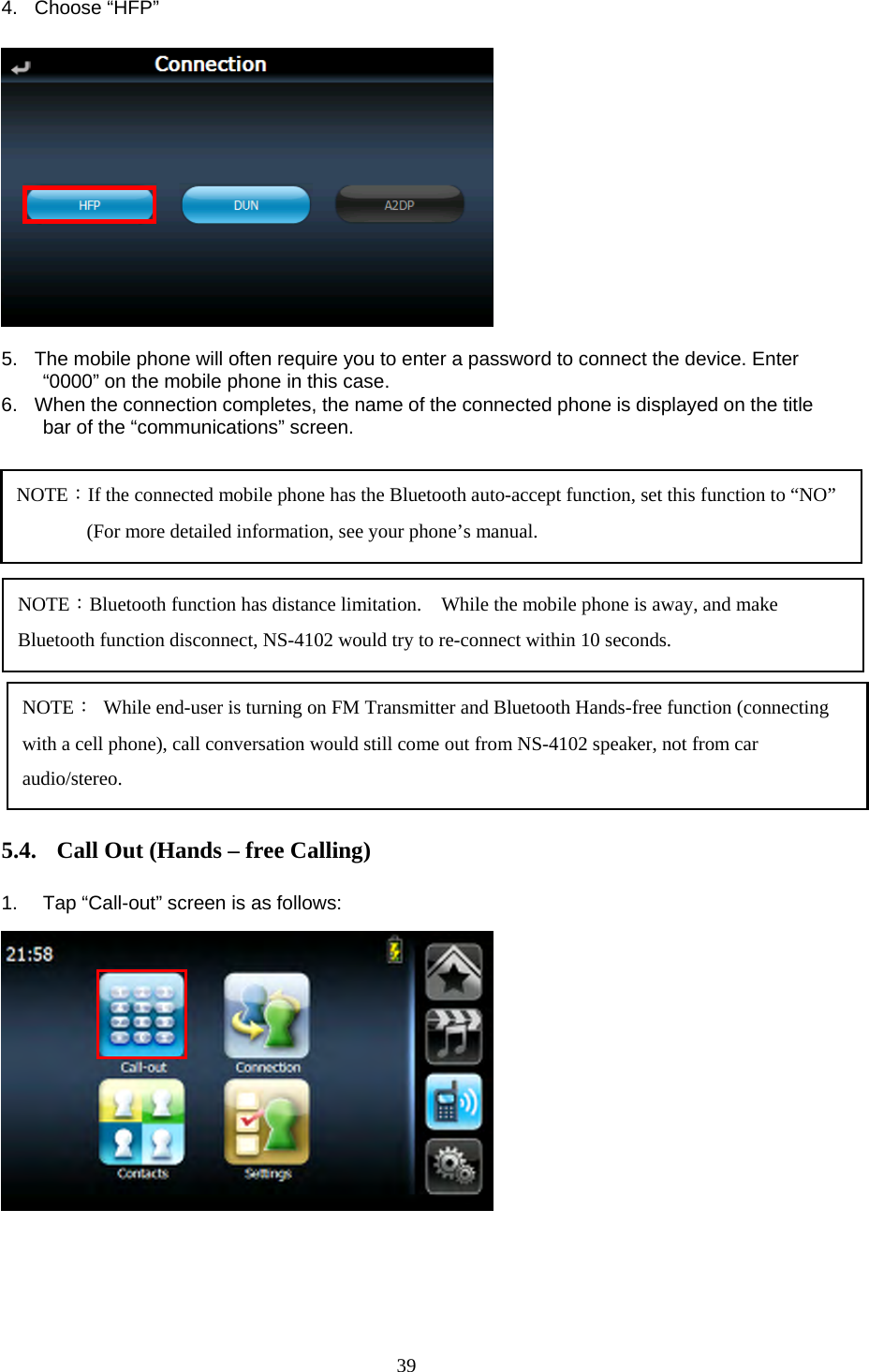

39 4. Choose “HFP” 5. The mobile phone will often require you to enter a password to connect the device. Enter “0000” on the mobile phone in this case. 6. When the connection completes, the name of the connected phone is displayed on the title bar of the “communications” screen. 5.4. Call Out (Hands – free Calling) 1. Tap “Call-out” screen is as follows: NOTE：If the connected mobile phone has the Bluetooth auto-accept function, set this function to “NO” (For more detailed information, see your phone’s manual. NOTE：Bluetooth function has distance limitation. While the mobile phone is away, and make Bluetooth function disconnect, NS-4102 would try to re-connect within 10 seconds. NOTE： While end-user is turning on FM Transmitter and Bluetooth Hands-free function (connecting with a cell phone), call conversation would still come out from NS-4102 speaker, not from car audio/stereo.

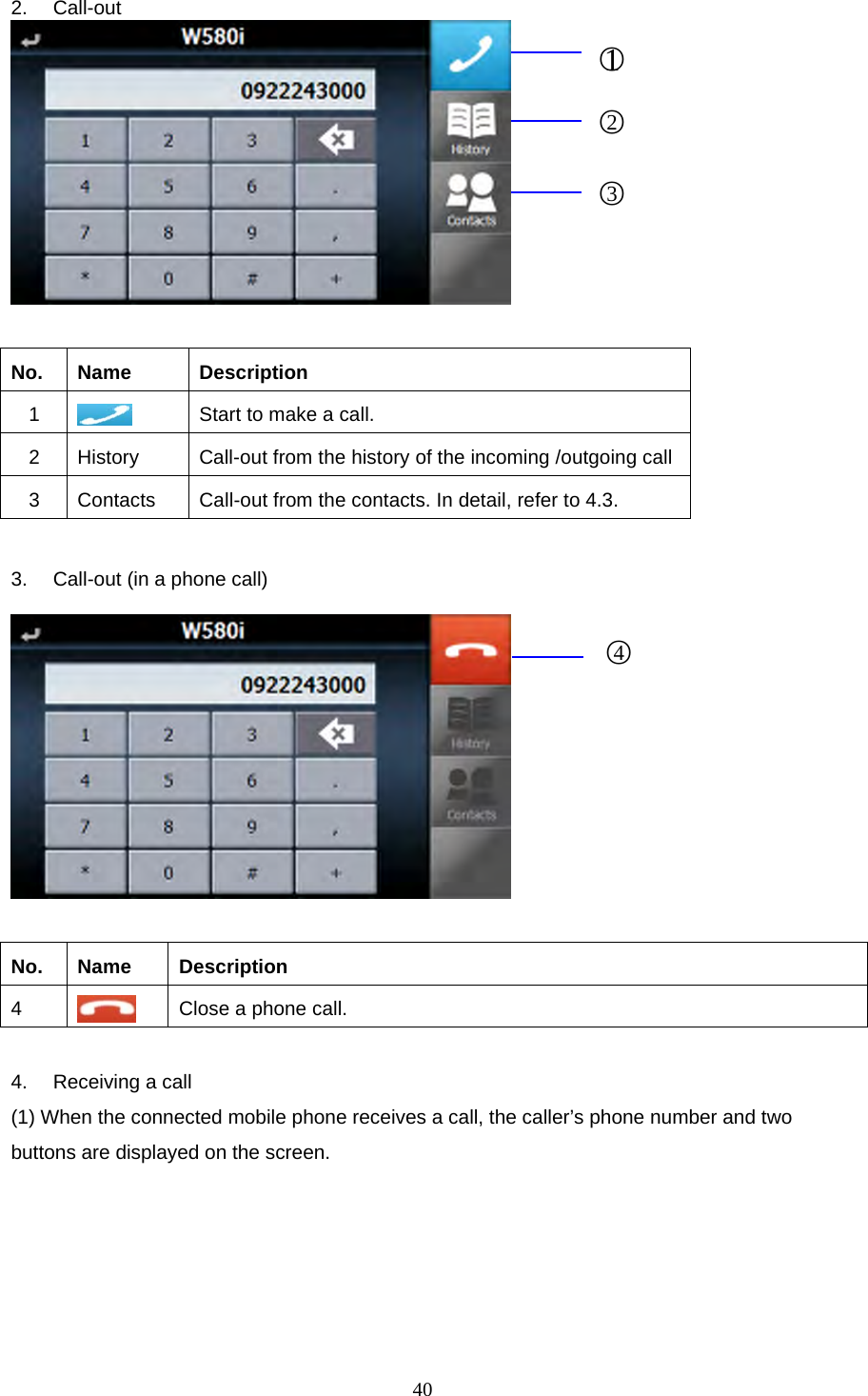

40 2. Call-out No. Name Description 1 Start to make a call. 2 History Call-out from the history of the incoming /outgoing call 3 Contacts Call-out from the contacts. In detail, refer to 4.3. 3. Call-out (in a phone call) No. Name Description 4 Close a phone call. 4. Receiving a call (1) When the connected mobile phone receives a call, the caller’s phone number and two buttons are displayed on the screen. ○1 ○2 ○3 ○4

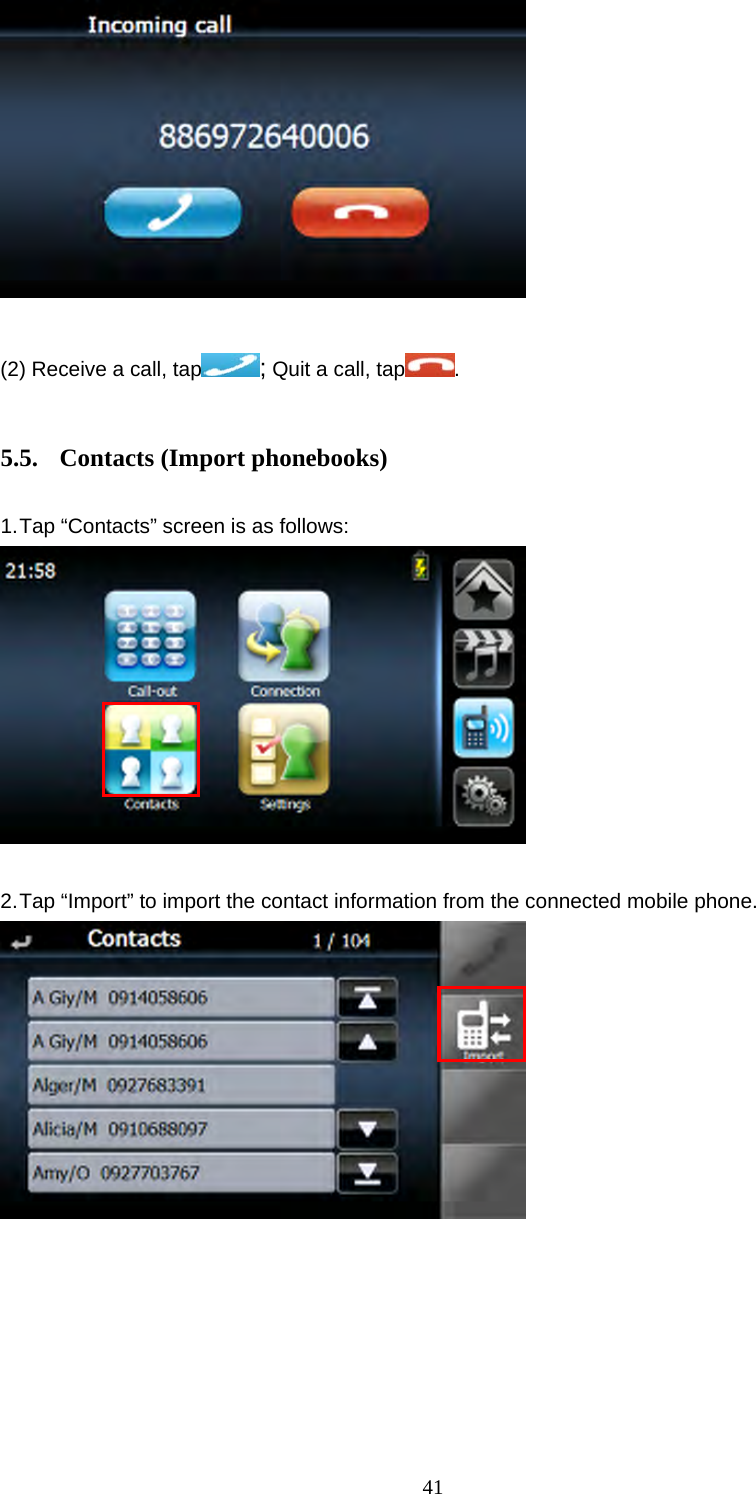

41 (2) Receive a call, tap ; Quit a call, tap . 5.5. Contacts (Import phonebooks) 1. Tap “Contacts” screen is as follows: 2. Tap “Import” to import the contact information from the connected mobile phone.

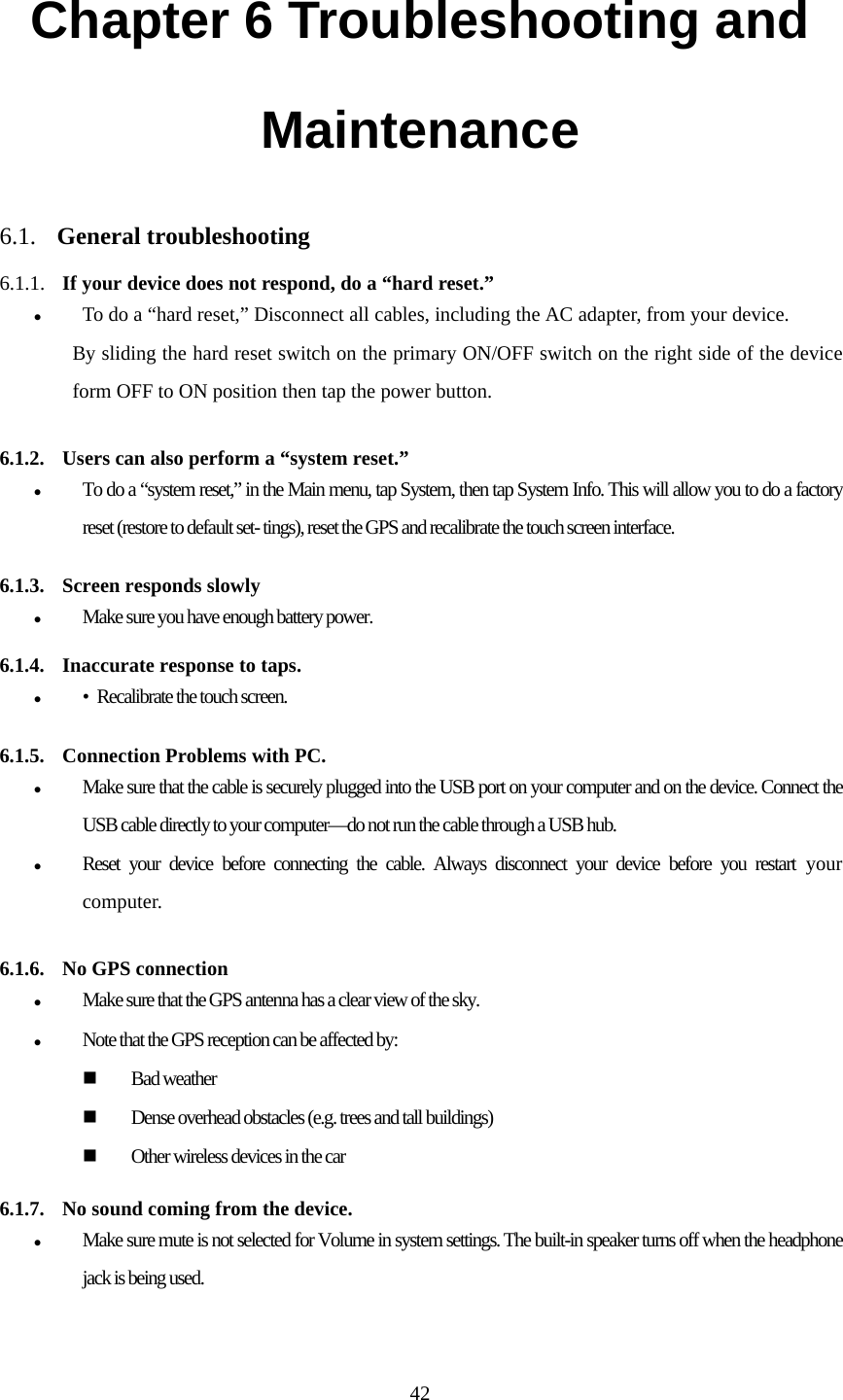

42Chapter 6 Troubleshooting and Maintenance 6.1. General troubleshooting 6.1.1. If your device does not respond, do a “hard reset.” z To do a “hard reset,” Disconnect all cables, including the AC adapter, from your device. By sliding the hard reset switch on the primary ON/OFF switch on the right side of the device form OFF to ON position then tap the power button. 6.1.2. Users can also perform a “system reset.” z To do a “system reset,” in the Main menu, tap System, then tap System Info. This will allow you to do a factory reset (restore to default set- tings), reset the GPS and recalibrate the touch screen interface. 6.1.3. Screen responds slowly z Make sure you have enough battery power. 6.1.4. Inaccurate response to taps. z • Recalibrate the touch screen. 6.1.5. Connection Problems with PC. z Make sure that the cable is securely plugged into the USB port on your computer and on the device. Connect the USB cable directly to your computer—do not run the cable through a USB hub. z Reset your device before connecting the cable. Always disconnect your device before you restart your computer. 6.1.6. No GPS connection z Make sure that the GPS antenna has a clear view of the sky. z Note that the GPS reception can be affected by:  Bad weather  Dense overhead obstacles (e.g. trees and tall buildings)  Other wireless devices in the car 6.1.7. No sound coming from the device. z Make sure mute is not selected for Volume in system settings. The built-in speaker turns off when the headphone jack is being used.

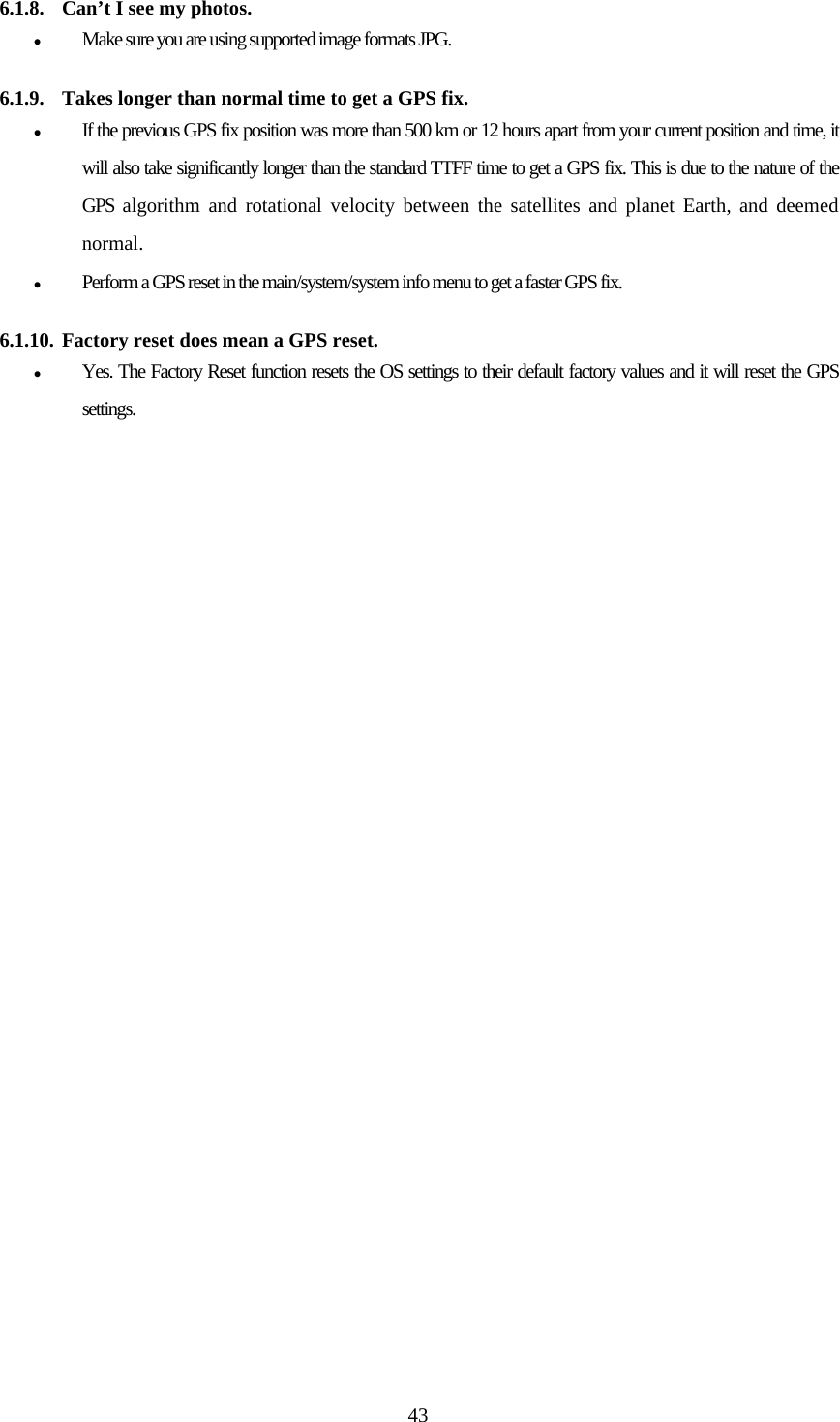

43 6.1.8. Can’t I see my photos. z Make sure you are using supported image formats JPG. 6.1.9. Takes longer than normal time to get a GPS fix. z If the previous GPS fix position was more than 500 km or 12 hours apart from your current position and time, it will also take significantly longer than the standard TTFF time to get a GPS fix. This is due to the nature of the GPS algorithm and rotational velocity between the satellites and planet Earth, and deemed normal. z Perform a GPS reset in the main/system/system info menu to get a faster GPS fix. 6.1.10. Factory reset does mean a GPS reset. z Yes. The Factory Reset function resets the OS settings to their default factory values and it will reset the GPS settings. EQUIPMENT. EQUIPMENT.

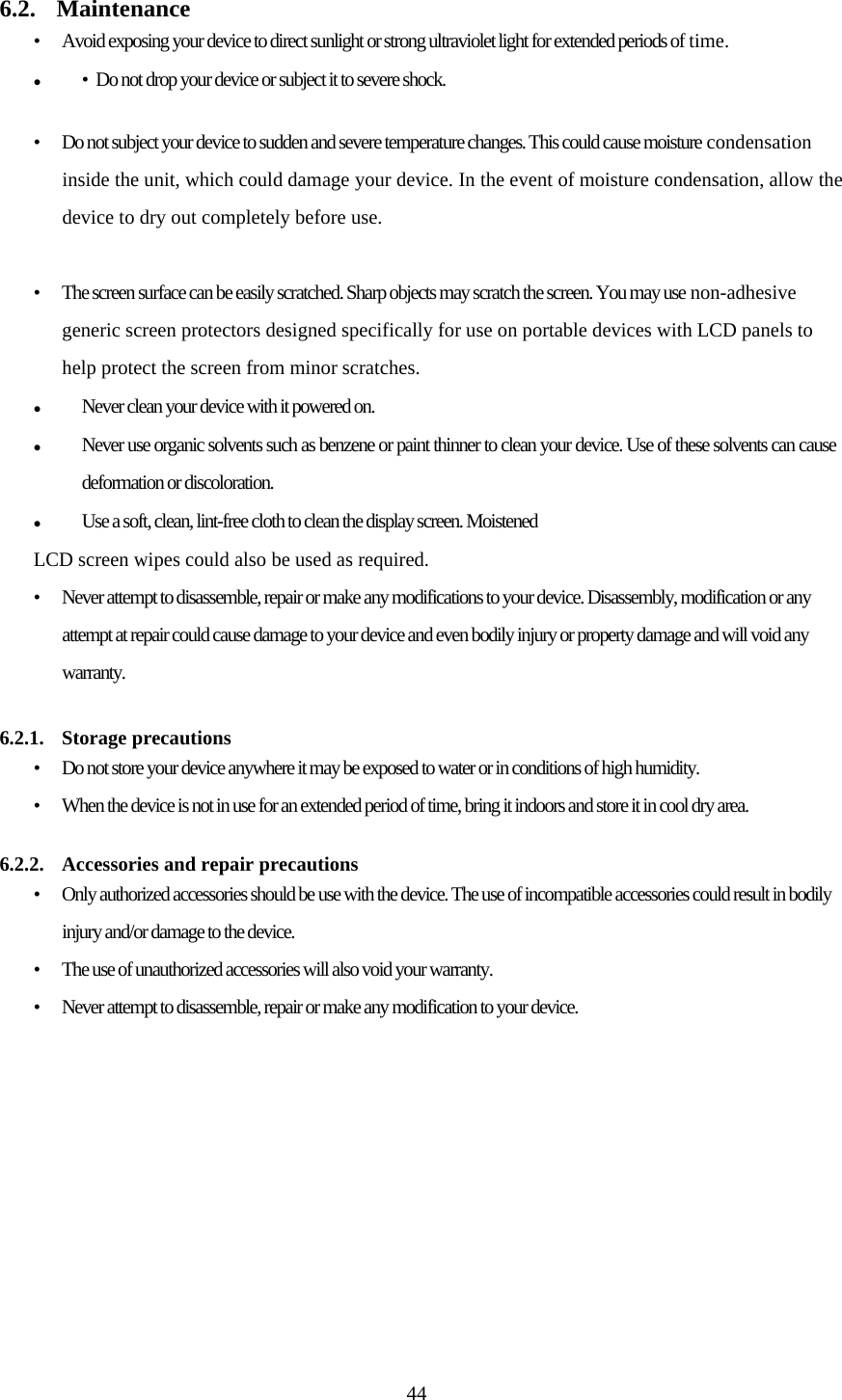

44 6.2. Maintenance • Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time. z • Do not drop your device or subject it to severe shock. • Do not subject your device to sudden and severe temperature changes. This could cause moisture condensation inside the unit, which could damage your device. In the event of moisture condensation, allow the device to dry out completely before use. • The screen surface can be easily scratched. Sharp objects may scratch the screen. You may use non-adhesive generic screen protectors designed specifically for use on portable devices with LCD panels to help protect the screen from minor scratches. z Never clean your device with it powered on. z Never use organic solvents such as benzene or paint thinner to clean your device. Use of these solvents can cause deformation or discoloration. z Use a soft, clean, lint-free cloth to clean the display screen. Moistened LCD screen wipes could also be used as required. • Never attempt to disassemble, repair or make any modifications to your device. Disassembly, modification or any attempt at repair could cause damage to your device and even bodily injury or property damage and will void any warranty. 6.2.1. Storage precautions • Do not store your device anywhere it may be exposed to water or in conditions of high humidity. • When the device is not in use for an extended period of time, bring it indoors and store it in cool dry area. 6.2.2. Accessories and repair precautions • Only authorized accessories should be use with the device. The use of incompatible accessories could result in bodily injury and/or damage to the device. • The use of unauthorized accessories will also void your warranty. • Never attempt to disassemble, repair or make any modification to your device.
