User manual
1
RoyalTek BV-3200_Series
Portable Navigation Device
Reference Manual
2
Legal Notices
Copyright
RoyalTek BV-3200 Portable Navigation Device User’s Guide Original issue: February 2009
RoyalTek and the RoyalTek logo are registered trademarks of RoyalTek Inc. Other products or system names
appearing in this document are trademarks or registered trademarks of their respective owners. Further, the © or
TM symbols are not used in the text.
Changes may be made periodically to the information in this publication without obligation to notify any person
of such revision or changes. Such changes will be incorporated in new editions of this User’s Guide or
supplementary documents and publications.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by
any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of
RoyalTek Inc.
DISCLAIMER AND LIMITATION OF LIABILITY
RoyalTek and its subsidiaries make no representations or warranties, either expressed or implied, with respect
to the contents here of and specifically disclaims the implied warranties of merchantability or fitness for a
particular purpose. RoyalTek and its subsidiaries assume no responsibility for any damage or loss resulting from
the use of this RoyalTek BV-3200 Portable Navigator.
NOTE：Record the device ID, serial number, purchase date, and place of purchase information in the
space provided below. The serial number is indicated on the label affixed to your RoyalTek device. All
correspondence concerning your unit should include the serial number, device ID, and purchase
information.
Revision:
2.00
February 2009
NOTE:
Information
in
this
manual
is
subject
to
change
without
notice.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to
ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications
not expressly approved by the system’s manufacturer could void the user’s authority to operate the
equipment.
3
Warnings and Notices
For your safety, do not operate the controls of the product while driving.
GPS satellite signals cannot typically pass through solid materials (except glass). GPS location information is
not typically available inside buildings, tunnels, or underground parking lots.
A minimum of 4 GPS satellite signals is needed to calculate your GPS position. Signal reception can be affected
by weather events or overhead obstacles (e.g. dense foliage and tall buildings).
Other wireless devices in the vehicle may interfere with the reception of satellite signals and cause the reception
to be unstable.
Adapter
Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or
exposed to excess moisture.
Do not use the adapter if the cord becomes damaged.
Connect the adapter to the proper power source. The voltage requirements are found on the product case and/or
packaging.
Battery
This unit contains a non-replaceable internal Li-polymer battery. The battery could be bursting or exploding and
releasing hazardous chemicals in case of over battery specification and using in an abnormal conditions;
disassemble, crush, puncture, or dispose of the battery in fire or water. Abnormal operation could be dangerous
to your human body. Please be aware.
Use only the specified charger approved by the manufacturer.
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the
instructions.
WARNING: The Lithium-Ion battery in the device must be recycled or disposed of properly.
4
FCC Warning
The BV-3200 PND has been tested and found to comply with the limits for a Class B digital device in
accordance with the specifications in Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation.
This device generates, uses, and can radiate radio-frequency energy. If it is not
installed and used properly, it may cause interference with radio and television reception.
CE Mark
This
equipment
complies
with
the
requirements
for
CE
marking
when
used
in
a residential,
commercial,
vehicular
or
light
industrial
environment.
R&TTE Directive.
Products
with
the
CE
marking
comply
with
Radio
&
Telecommunication
Terminal
Equipment
Directive
(R&TTE)
(1999/5/EEC),
the
Electromagnetic
Compatibility
Directive
(89/336/EEC)
and
the
Low
Voltage
Directive
(73/23/EEC)
–
as
amended
by
Directive
93/68/ECC
-
issued
by
the
Commission
of
the
European
Community.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
5
Table of Contents
Chapter 1 Features and Specifications............................................................................7
1.1 RoyalTek BV-3200 PND features...............................................................7
1.2 BV-3200 Specifications................................................................................7
Chapter 2 Getting Started...........................................................................................10
2.1 Hardware overview....................................................................................10
2.1.1
Packing
list
..........................................................................................10
2.1.2
Front Panel
.....................................................
2.1.3
Car holder
.......................................................

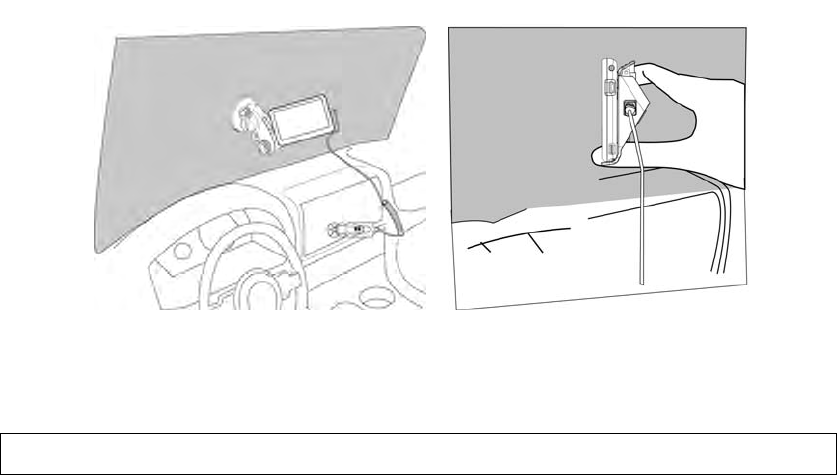

2.2 Using the mounting bracket..................................
2.3 Additional Application with the Optional SKU..
Chapter 3 Using the BV-3200......................................................................................19
3.1 BV-3200 Operating Basics ........................................................................19
3.2 To turn on the device:................................................................................19

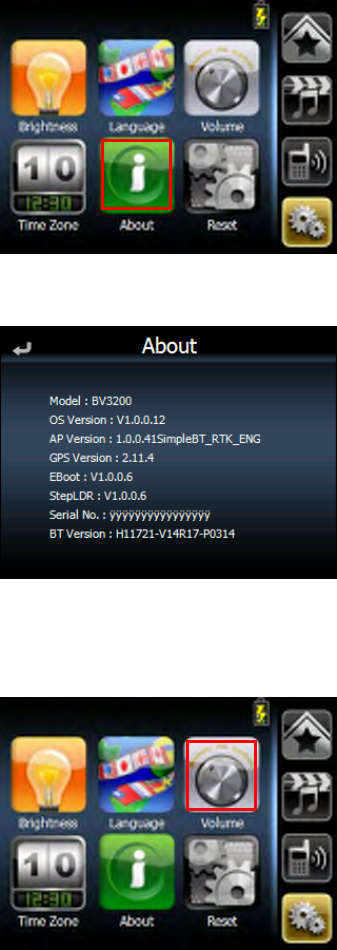

3.3 To configure system settings:....................................................................19
3.4 Additional System settings ........................................................................22
3.5 Reset ............................................................................................................22
3.9 To set the favorite application category: .................................................28
3.10 Power Supply..............................................................................................29
3.11 Charge.........................................................................................................29
3.11.1
Discharge
.....................................................................................29
3.11.2
Power outage
................................................................................29
Chapter 4 Entertainment............................................................................................30

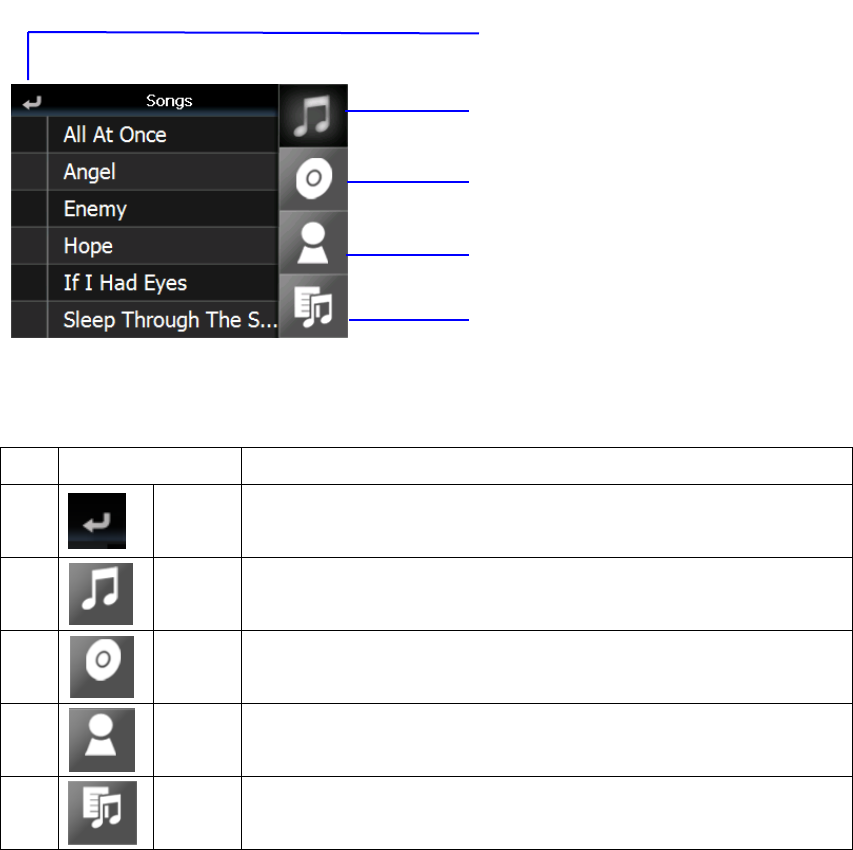

4.1. BV-3200 Multimedia Player......................................................................30
4.2. Music player...............................................................................................30

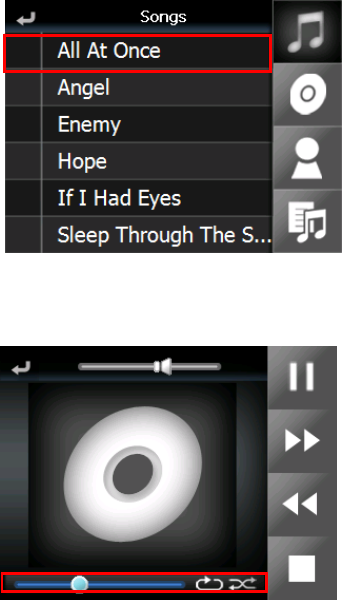

4.2.1.
Using
the
Music
player.
......................................................................30
4.2.2.
To
enter
into
the
different
media
players.
........................................30
4.3. Photo Viewer ..............................................................................................34

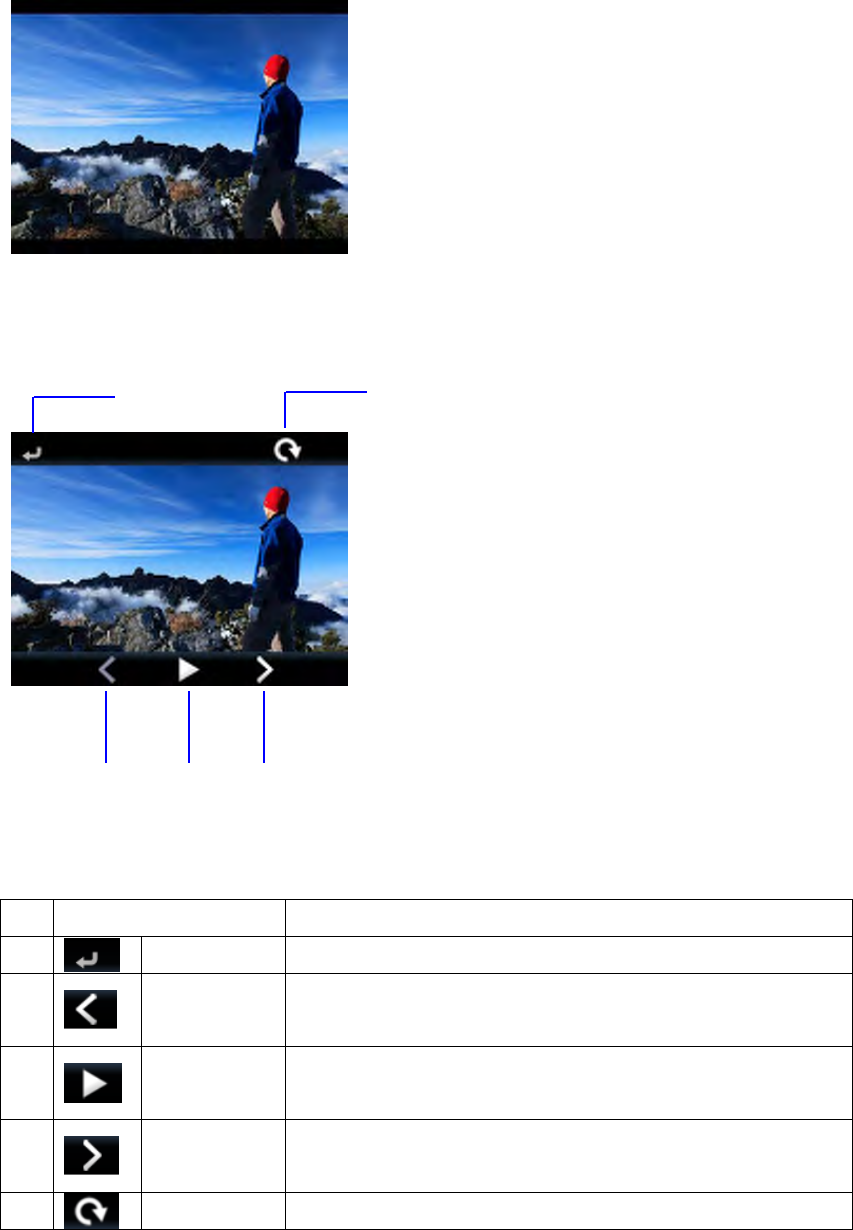

4.3.1.
Viewing files in Slide Show mode
......................................................34
4.3.2.
Using the Photo Album
......................................................................34
4.4. Video Player ...............................................................................................36
4.4.1.
Use Video Player
.............................................................................36
4.5. Listen MP3 via Car Audio/Stereo (FM Transmitter).............................36
4.5.1
Turn on FM Transmitter frequency
..................................................36
4.5.2
Change FM Transmitter frequency
..................................................36
Chapter 5 Communications.......................................................................................37
5.1. BV-3200 Bluetooth (Option function)......................................................37
5.2. Connection..................................................................................................37

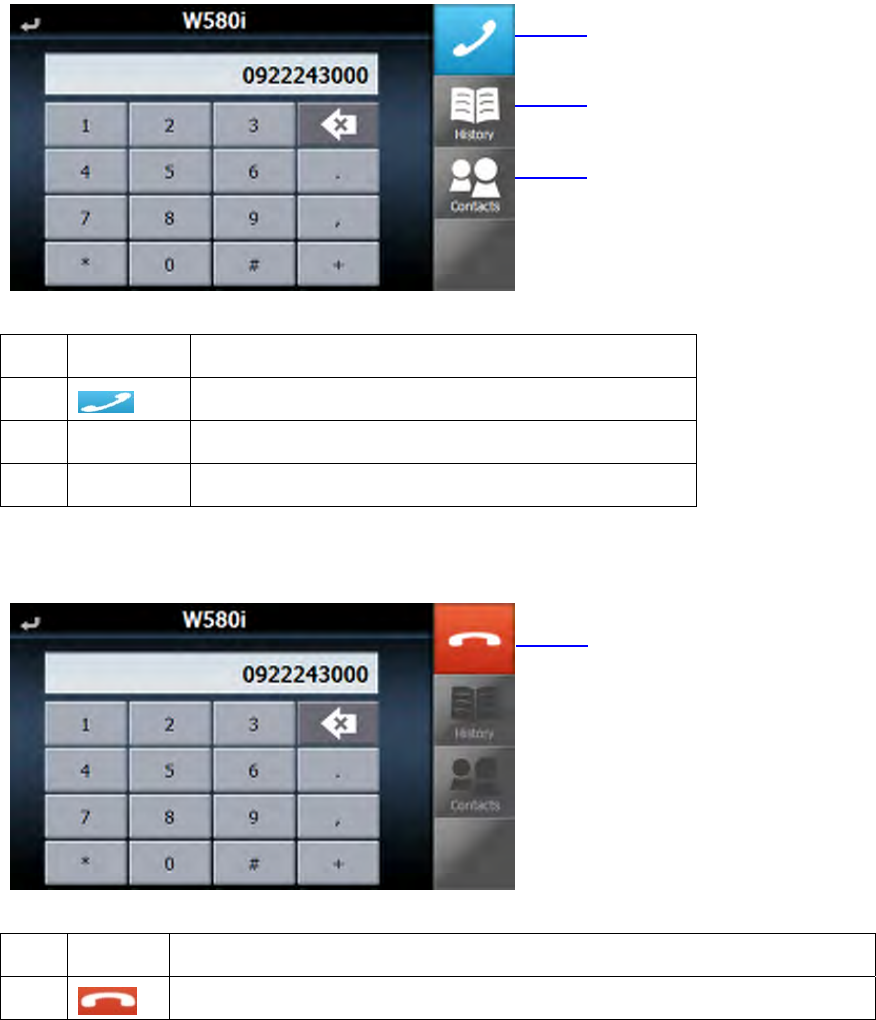

5.3. Mobile phone connection...........................................................................37
5.4. Call Out (Hands – free Calling)................................................................39
5.5. Contacts (Import phonebooks).................................................................41
Chapter 6 Troubleshooting and Maintenance..............................................................42
6.1. General troubleshooting............................................................................42
6.1.1.
If
your
device
does
not
respond,
do
a
“hard
reset.”
........................42
6.1.2.
Users can also perform a “system reset.”
.........................................42
6
6.1.3.
Screen responds slowly
......................................................................42
6.1.4.
Inaccurate response to taps.
..............................................................42
6.1.5.
Connection Problems with PC.
.........................................................42
6.1.6.
No GPS connection
.............................................................................42
6.1.7.
No sound coming from the device.
....................................................42
6.1.8.
Can’t I see my photos.
........................................................................43
6.1.9.
Takes longer than normal time to get a GPS fix.
.............................43
6.1.10.
Factory reset does mean a GPS reset.
...............................................43
6.2. Maintenance ...............................................................................................44
6.2.1.
Storage precautions
............................................................................44
6.2.2.
Accessories and repair precautions
..................................................44
7
Chapter 1 Features and Specifications

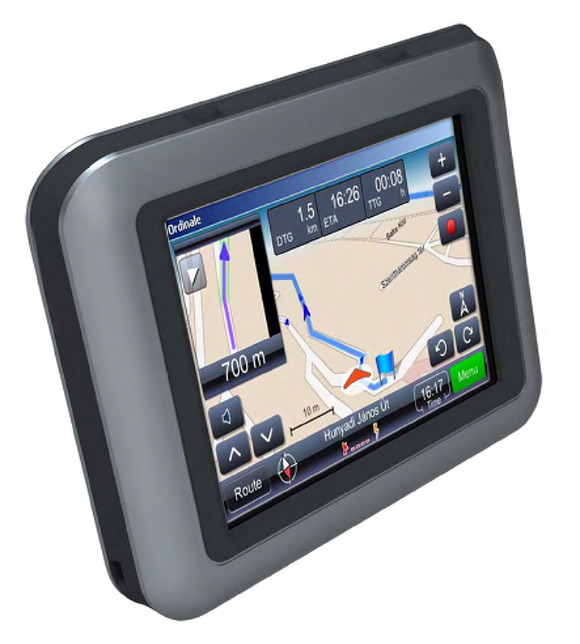

1.1 RoyalTek BV-3200 PND features
The
RoyalTek
BV-3200
Portable
Navigation
D
evice
is
a
powerful
multifunction
GPS/multimedia
navigation
and
entertainment
device.
‧
3.5
”
with flat TSP (Touch Screen Panel)
‧
Sun light readable
‧
High sensitivity Broadcom GPS
‧
2.4GHz ANT sport communication
‧
Bluetooth audio communication
‧
Recharge and replace battery
‧
IPX7 water proof in out door application
‧
Installed on bicycle handlebar or stem with HR mount holder
1.2 BV-3200 Specifications
1.2 General Usage
1.2 General usage
Environment
The BV-3200 is mainly intended for Outdoor GPS navigation,
Bluetooth,and 2.4G ANT+ SPORT communication functionality.
Temperature Operating Temperature : -10 °C to +55 °C
Storage Temperature : -30 °C to +70 °C
Operation The BV-3200 will be carried with bike player. The screen shall be
3.5” TFT LCD transflective type and sun-readable panel, in
addition, it include big size flash memory to record navigation
map data.
Language English / Simplified Chinese / Traditional Chinese / German /
French / Spanish / Italian / Japanese
Weight 190 g
Dimension L: 105 mm, W: 81.9 mm, H: 26.2 mm
1.3 Specification
1.3.1 Chassis
Chassis
Form Factor Embedded GPS patch Antenna, Minimalist design
Material ABS+PC with UV-proof.
Specifications Chassis is made of sunlight/UV-proof material and coating.
Meet IPX7 waterproof standard
Color Green and Gray
8
1.3.2 System overview and description
Component BV-3100 hardware specification
CPU Samsung S3C2416@400MHz
Operation System Windows CE 5.0 core version
GPS Broadcom BCH-4750 host based chipset
+ external patch antenna. ( Patch size : 20mm X 6mm )
TFT LCD LG TFT, 3.5”, 240x320 QVGA
SDRAM
Samsung 64/128 MB 1.8 V Mobile DDR
NAND Flash memory
Samsung MLC 2 GB
Battery 1800 mAh rechargeable ad replaceable Li-ion
Power Management Maxim 8662 and Atmel mega 48 MCU
I/O MiniUSB Client connector
MicroSD card
Button Power button x 1
1.3.3 Display
Display
Supplier LG or Casio
Screen Type Transflective/Blan View TFT-LCD with touch panel
Screen Size 3.5”
Resolution 240 x 320 pixel QVGA
Color 65536 colures
Backlight Most 6 LED backlight
Touch Panel Yes
1.3.4 USB Function
USB
USB Device Controller Embedded in Samsung SC32416A USB 2.0
USB Connector MiniUSB B-type connector for factory test, battery charging, and
power supply
1.4 Button / I/O/Slot
Button / Slot
Power button Yes for power on and off
Mini-USB Slot Yes for factory test, battery charging and power supply
Micro SD/MMC Slot Yes for software update and data copy
External GPS Antenna Connector No
Earphone Connector No
External Power Jack No
9
1.5 RF Function
1.5.1 GPS Specification
GPS receiver
Module Broadcom
Chipset BCM-4750 host based
Firmware Broadcom supplied with library and virtual com port driver
Channel 24
Time to Fix First time
(Open sky)
Hot: 5 Sec Warm: 60 Sec Cold: 90 Sec
Sonocaddie：3D fix, 3 satellites C/NO up to 41, Cold star: 90 Sec
Accuracy 10M @ 90% on open sky
Protocol NMEA v3.0
Baud Rate 38400 bps
Sensitivity Acquisition: -157 dBm, Tracking : -162 dBm
Embedded Antenna Patch Antenna; Dimension: 20mm x 6mm
1.5.2 2.4GHz Wireless Data Communication Specification
2.4GHz Wireless Data/Audio Transceiver
Frequency band 2.4~2.5 GHz
Application Short range ANT+ SPORT data communication
Air data rate <2M bps
Tx power consumption 11.3mA@0dBm
Rx power consumption 13.5mA@ 2Mbps
Standby current 26uA
1.6 Power function
1.6.1 Power management
Power management
Chipset Maxim 8662
Efficiency Totally 90% above
Protect function
a. Over Voltage protect
b. Over Current Protect
c. Power Reverse Protect.
Charger IC Build in Li-lon Battery charger
Backlight Driver Yes
DC-Jack No
Power input Power supplied from USB
Power management Atmel mega 48 MCU
Power Consumption <450mA/3.3V typical on turnin
g
on default back li
g
ht with GPS
locked, 2.4G RF, and BT
10
Chapter 2 Getting Started
This
chapter
describes
the
hardware
interface
of
the
RoyalTek
BV-3200
and its
peripherals.
Instructions
for
setting
up
the
device
and
some
basic
system operations
are
also
discussed.
2.1 Hardware overview
This section introduces the BV-3200 PND external features and hardware components.
2.1.1
Packing
list
1 Device, BV-3200
2 Holder
3 USB cable
4 AC adapter
5 Quick Start Guide
6 User Manual CD
Standard package
7 Warranty Statement Card(Optional Document)
1 Bike mount
2 Mount Holder
3 Double-socket arm
Motorbike
4 Handlebar base accessories
1 Bike mount
2 Car mount
Bike
3 Car Charger
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT.
11

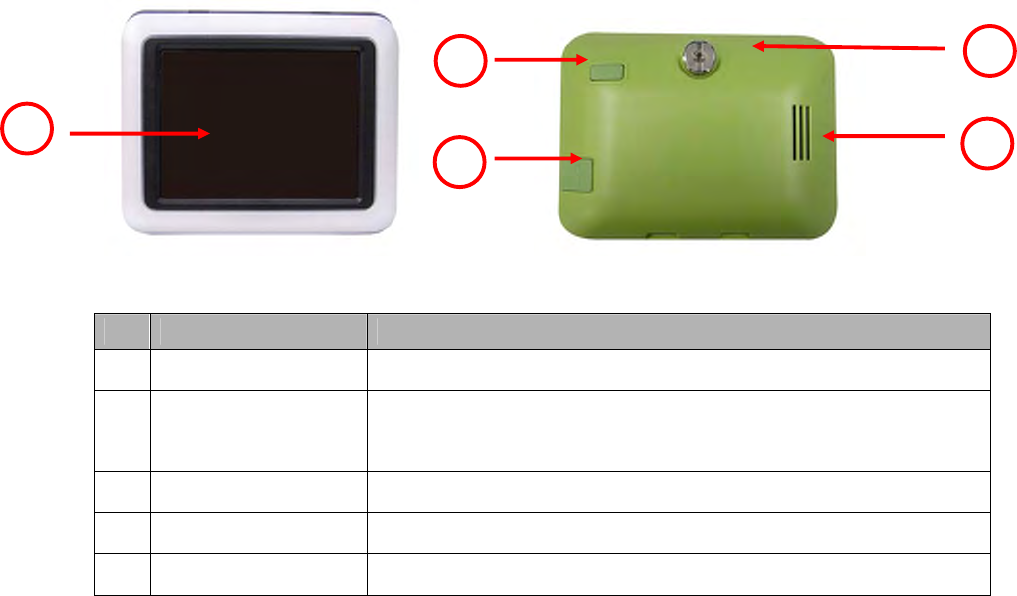

1. Basic Operation, Knowing your BV-3200
Front View Rear View
Table
1:
Function controls
NO Function Description
1 Touch Screen Displays the applications, data, and map images.
2 USB Port/Docking
connector
Mini-USB connector serves as the power connector for
charging the device or as the dock for uploading files from
computers.
3 Power Button Long press 5 seconds to turn on the PND.
4 Speaker Emits system sounds.
5 Coin-Plug To tighten the rear cover.
1
2
3
4
5
12
Rear View (without rear cover)

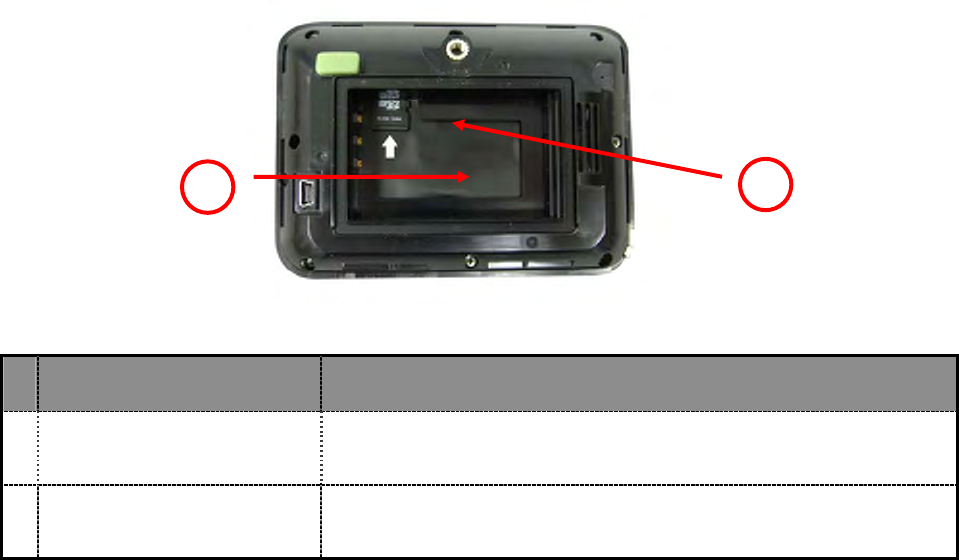

No Component Description
1 Battery Slot Put the battery on the slot, before use the device.
2 Micro SD slot Accepts Micro SD storage cards, allowing you use audio and
image files stored in it for use with internal applications
1
2
13
Assembly your BV-3200

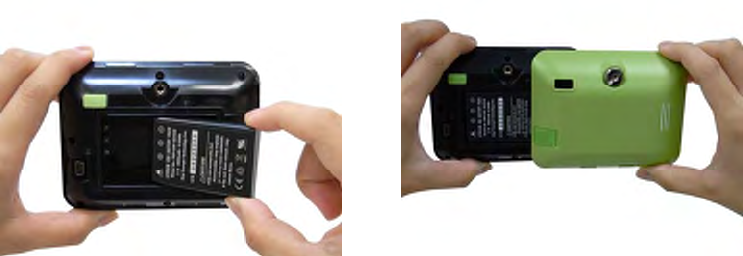

1. Put the battery on your BV-3200
2. Insert the Battery in your BV-3200 (Photo 1-1)
3. Put on the rear cover on your BV-3200 (Photo 1-2)
4. Fix the lock button (Photo 1-3)
Photo 1-1 Photo 1-2
14
Starting Operation on your bicycle

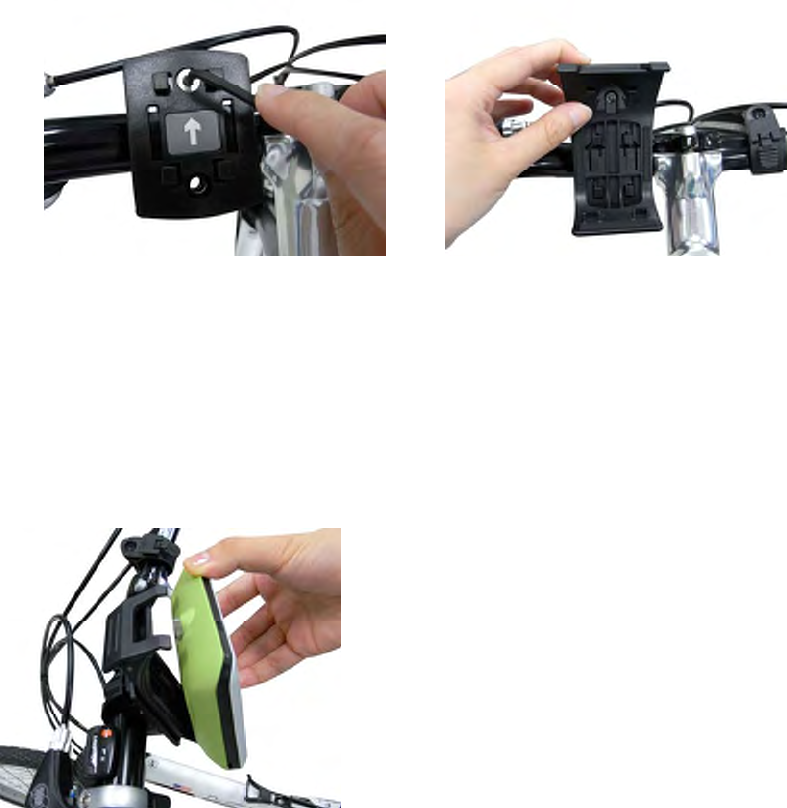

To Install the U-Bolt and Handlebar bas:
1. Place the U-Bolt around the handlebar, and thread the ends through the
handlebar base. (Photo 2-1)
2. Tighten the nuts to secure the base. Do not over tighten.
3. Press down the holder on the mount. (Photo 2-2)

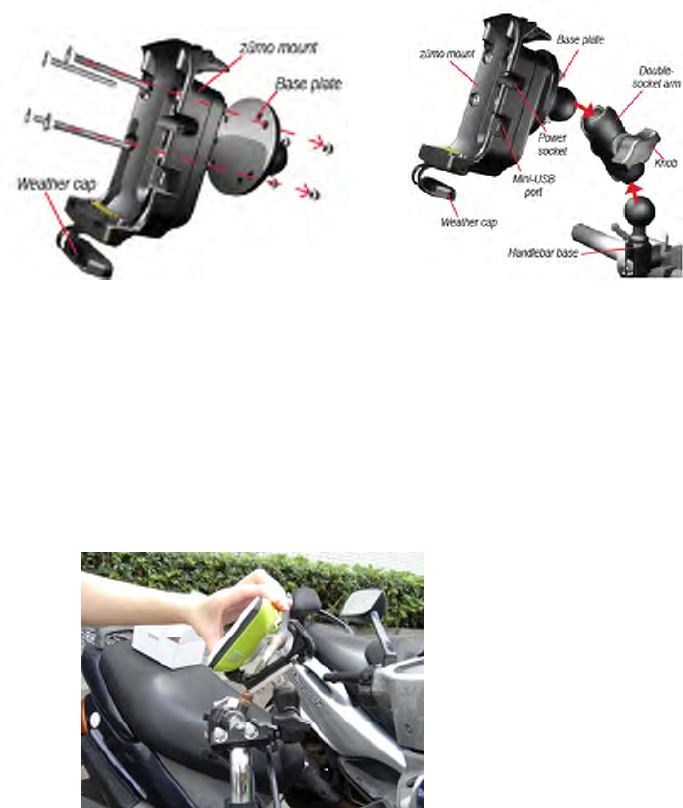

Install the BV-3200 in the Mount
1. Flip the lever up
2. Place the BV-3200 in to the mount, and flip the lever down.
3. Tighten the security screw.
Photo 2-1 Photo 2-2
Photo 2-3
15
Starting Operation on your Motorcycle.
Step 1 Mounting your BV-3200 Navigator
To Install the U-Bolt and Handlebar bas:

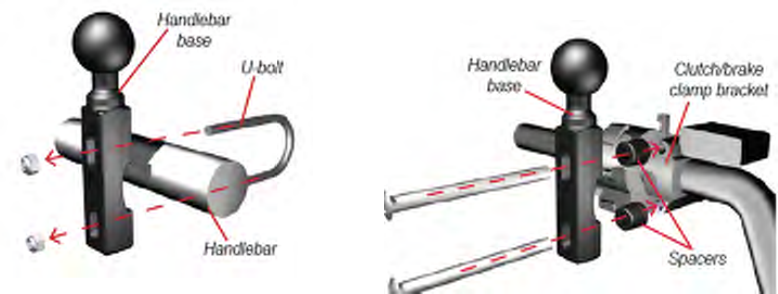

1. Place the U-Bolt around the handlebar, and thread the ends through the
handlebar base. (Photo 3-1)
2. Tighten the nuts to secure the base. Do not over tighten. (Photo 3-2)
To install the handlebar base to the clutch/brake clamp bracket:
1. Remove the two factory bolts on your clutch/brake clamp bracket.(Photo
3-3)
2. Thread the new bolts through the handlebar base, spacers, and clamp
bracket.
3. Tighten the bolts to secure the base.(Photo 3-4)
Attach the Base Plate to the BV-3200 Mount
1. Thread the M4 X 40 mm flathead bolts and nuts to attach the base plate to
the BV-3200 mount.
2. Thread the M4 x 40 mm flathead bolts and nuts to attach the base plate to
the BV-3200 mount.
Attach the Base Plate to the Handlebar Base
1. Align the Bass of the handlebar base and the ball of the base plate with the
double-socket arm.
2. Tighten the knob slightly
3. Adjust for better viewing and operation.
4. Tighten the knob to secure the mount.
3
-
1
3
-
2
16
Install the BV-3200 in the Mount
1. Flip the lever up
2. Place the BV-3200 in to the mount, and flip the lever down.
3. Tighten the security screw.
Photo 3-3 Photo 3-4
Photo 3-5
17

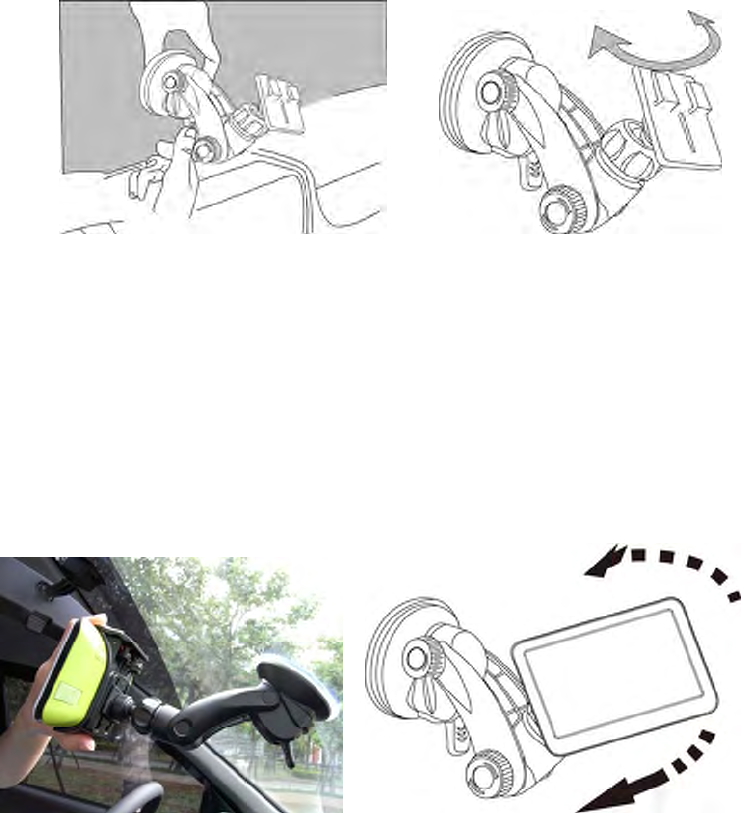

Starting Operation on your Automobile
Install the car mount on the selected area.
1. Press the suction cup of the car mount firmly against to the windshield.
(Photo 4-1)
2. Press down the lever to fix the suction cup in place.
3. Adjust the angles of the arm to your proper viewing position.
Install the BV-3200 in the Mount
1. Press down the holder on the mount.
2. Flip the lever up
3. Place the BV-3200 in to the mount, and flip the lever down.
4. Tighten the security screw.
4
-
1
4
-
2
4
-
3
18
Charging your BV-3200 device.
1. Plug the car charger to the 12 V outlet of your car and then connect the
charger cable to the Mini USB port of the BV-3200
2. You now can let your BV-3200 have the continuous power by the car
charger.
NOTE:
Your
car
may
be
required
to
switch
the
vehicle
ignition
into
the
accessories
position
to
power
the
cigarette
lighter.
Your
BV-3200
will
not charge
with
the
ignition
off.
Disclaimer
Please be noted that RoyalTek Company Ltd., and the licensed Navigation Software are not responsible
for any damage caused by an accident due to unreliable TMC radio transmissions by national, regional,
or local broadcasters caused by TMC service restrictions, or by natural and man-made conditions that
prevent real-time information from being delivered to the device. Both companies are not responsible
for the quality or accuracy of the events been broadcasted.
Disclaimer
Please be noted that RoyalTek Company Ltd. and the licensed Navigation Software are not responsible
for any damage caused by an accident due to unreliable TMC radio transmissions by national, regional,
or local broadcasters caused by TMC service restrictions, or by natural and man-made conditions that
prevent real-time information from being delivered to the device. The both companies are not
responsible for the quality or accuracy of the events broadcast.
5
-
1
19
Chapter 3 Using the BV-3200
3.1 BV-3200 Operating Basics
After
fully
charging
the
BV-3200
it
is
ready
to
be
used.
You
can
now
turn
it on
and proceed
to
system
settings configuration.
After turn on the device,

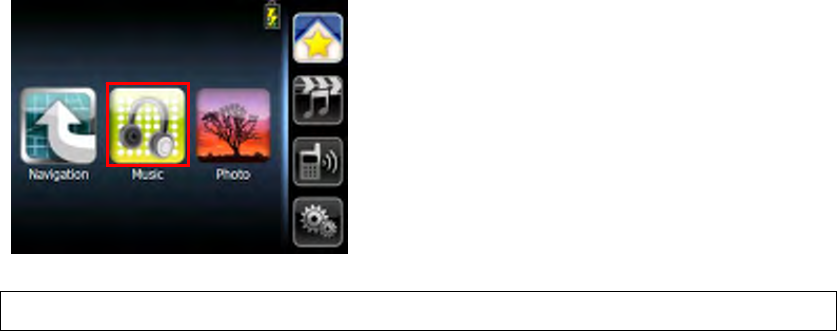

main page
will
display.
This
is
also
referred
to
the
Favorite page.
3.2 To configure system settings:
If
you
intend
to
start
using
your
BV-3200
at
once,
we
recommend
that
you configure
the
language
and
time zone
settings
first.
The
rest
of
the
user
preferences
can
be
set
up
later.
1.

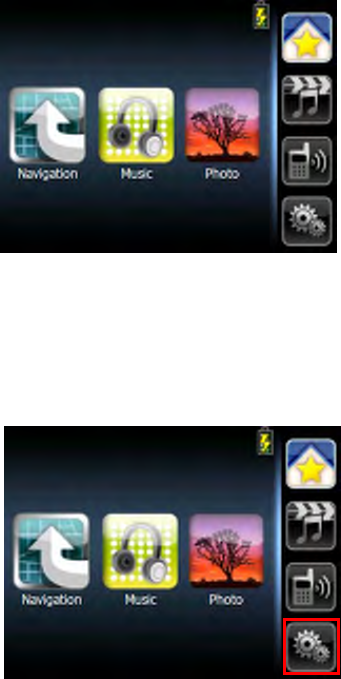

Tap
“System”
in
the
right category bar
.
20
2.

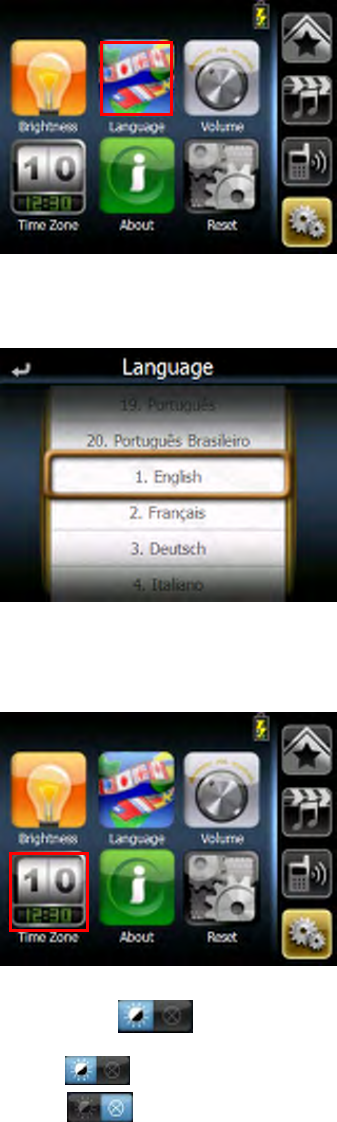

Tap “Language” on the System page.
3.
It will display current language in central area.
4.
To drag wheel scroll language tags.
5.

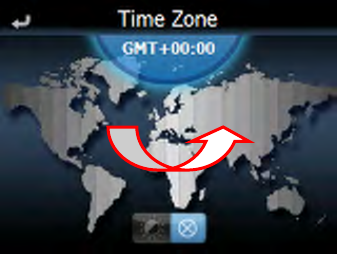

To set the system time zone, tap “Time Zone” in System Menu.
6.
Tap the
icon to set up the function of daylight saving s time.
a. represent enable the function of daylight savings time.
b. represent disable the function of daylight savings time.
7. Drag the Map to adjust the time zone.
21
22
3.3 Additional System settings
Other
system
settings
can
be
used
to
view
and
adjust
your
device
current
preferences.
Navigate
from
the
System
Menu.
3.4 Reset
z
GPS Reset
:：
When user wonder if GPS receiver perform properly or not .( ex : Change the region)
z

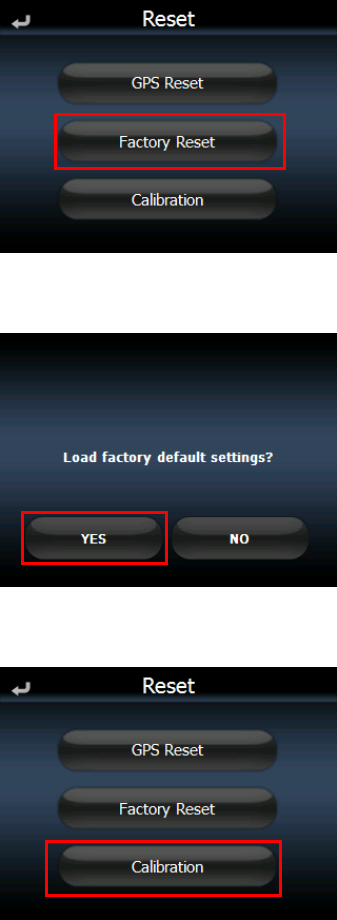

Factory Reset
：
The factory reset function not only resets the operating system settings to default factory values, but also
reset the GPS settings.
z
Calibratio
n
：
When the touch screen does not respond well, calibrate the screen of your device.
1
Tap
the
“
Reset”
icon
in
the
System
Menu.
2

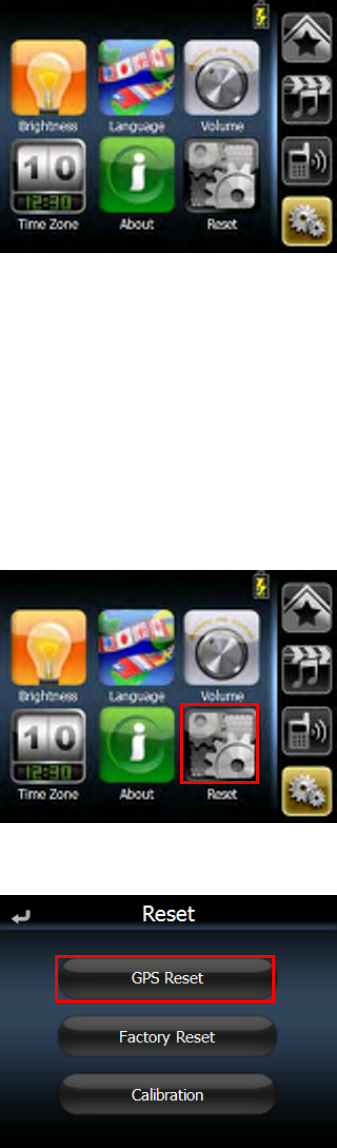

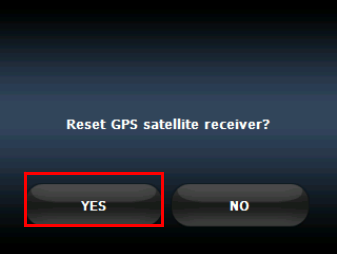

Tap the “GPS Reset” icon in the Reset Menu.
.
23
3
Tap
the “YES” to reset the GPS.
24
4
Tap
the
“Factory
Reset”
icon
in
the
Reset
Menu.
5
Tap
the “YES” to do the Factory Reset.
6
Tap
the
“Calibration
”
icon
in
the
Reset
Menu.
7
Tap on the center of the target. Repeat as the target moves around the screen.
25
3.5 System Information
1.
Tap
the
Sys
Info.
icon
in
the
System
Menu.
2.
You can view the OS version, GPS firmware version and other system information..
3.6 Volume
1.

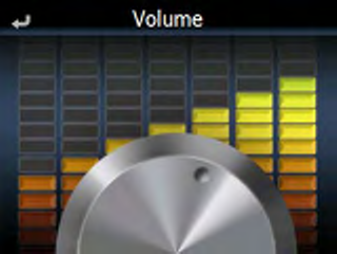

Tap
the
Volume
icon
in
the
System
Menu.
1.
To adjust the volume by drag the wheel.
2.
Drag to left will become silent else will become noisy.
26
27
3.7 Backlight

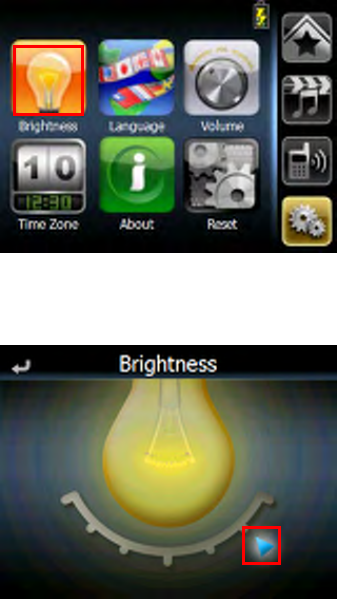

1.
Tap
the
Backlight
icon
in
the
System
Menu.
2.
Adjust
the
Backlight
brightness by drag triangle icon.
3.
Drag to left will become dark, drag to right will become light.
28
3.8 To set the favorite application category:
Otherwise, provide more organized and friendly application management interface for user organize
their own favorite application category by drag-and-drop, the maximum number of favorite application
shortcut is 6.

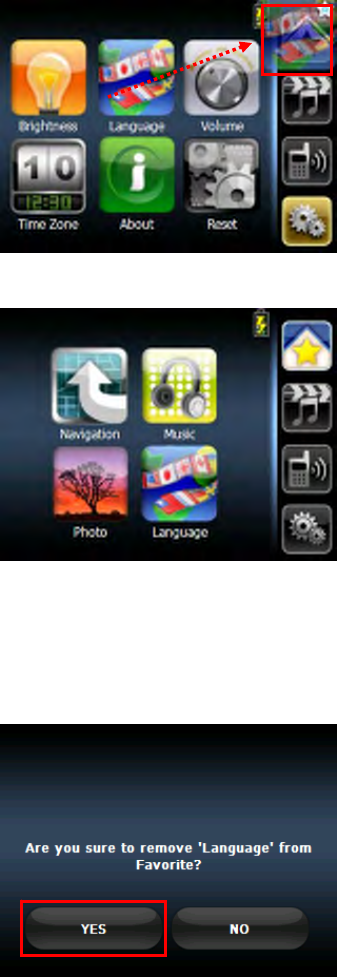

Add icon to the favorite page
1.
Drag the icon to the category bar of favorite.
2.
That will show the icon in favorite page.
Delete icon to the favorite page
1.
Drag the icon from Favorite page to category bar and drop it. Confirm dialog will pop up, just tap “YES” to delete.
29
3.9 Power Supply

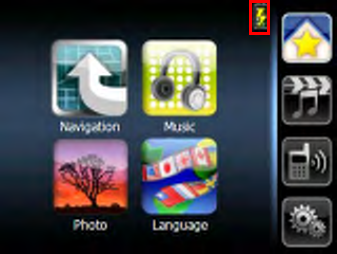

BV-3200 has a completive power management system, and enhances its standby time.
In addition, it can make end-users more convenient to carry it for entertainment
purpose, not only using in cars but also at home, outdoor activities.
3.10 Charge
While end-users use our standard car charger or AC adapter to charge BV-3200, the
main screen would remind you.
30
Chapter 4 Entertainment

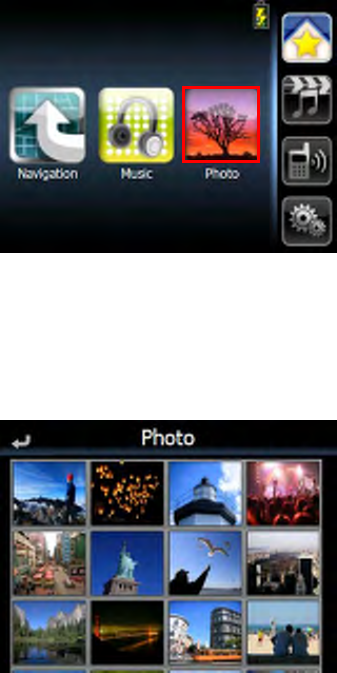

4.1. BV-3200 Multimedia Player
The
BV-3200
is
a
fully
capable
multimedia
player
that
can
enhance
your
portable
entertainment.
In
addition
to
its
navigating
function,
the
BV-3200
is
also
a
mobile
entertainment
tool
to let
you
enjoy
digital
music,
view photos.
These
functions
make
the
BV-3200
a true
multimedia
device.
To
enable
access
of
multimedia
files
from
your
device’s
mass storage
folder and
transfer
these
files,
do
either
of
the
following:
•
Using
the
USB
cable
to
connect
the
device to
your
computer,
and then
use
File
Explorer
to
copy
digital music
and
files
into
the
device’s
MyflashDisk
folder.
•
Using
a
compatible
card
reader,
directly
copy
digital
music
and image
files
to
the
Micro
SD
card.
It
is
recommended
to
organize
files
into
subfolders.
These
folders
will
make files
easier
to
find
and
play.
4.2. Music player
Enjoy
your
favorite
music
on
the
road.
The
program
features:
•
Support
for
MP3 files Constant bit rate only (Sampling Rate: 8 -48 KHz, Bit Rate: 8- 320 Kbps)
•
Auto-scanning
of
supported
files
in
the
device’s
Micro
SD
card and Flash memory
•
Separate
volume
control
enabling
you
to
adjust
the
playback
sound level
while
retaining
the
volume
level
set
for
system
sounds
Each
sub
directory
containing
compatible
music
files
is
treated
as
an
individual playlist.
For
a
more
organized
file
search,
it
is
advisable
to
named
sub
directories
based
on
genre
or
listening
preferences.
4.2.1.
Using
the
Music
player.
4.2.2.
To
enter
into
the
different
media
players.
1.
Tap
“Music”
icon
in
the
Main Menu.
NOTE:
You
can
also
enter
the
music
player
by
right category bar.
The MP3 player window below controls playback.
31
Table
4-3-2-1:
MP3
player
functions
NO Function
1 Return Return to list page
2 Songs List all song by alphabet
3 Album List all albums by alphabet.
4 Artist List all Artists by alphabet
5 Search Current play list
○
1
○2
○3
○4
○
5
32
2.
Tap the song on the music list.
`
3.
Tap bottom information bar will switch to song’s progress.
33

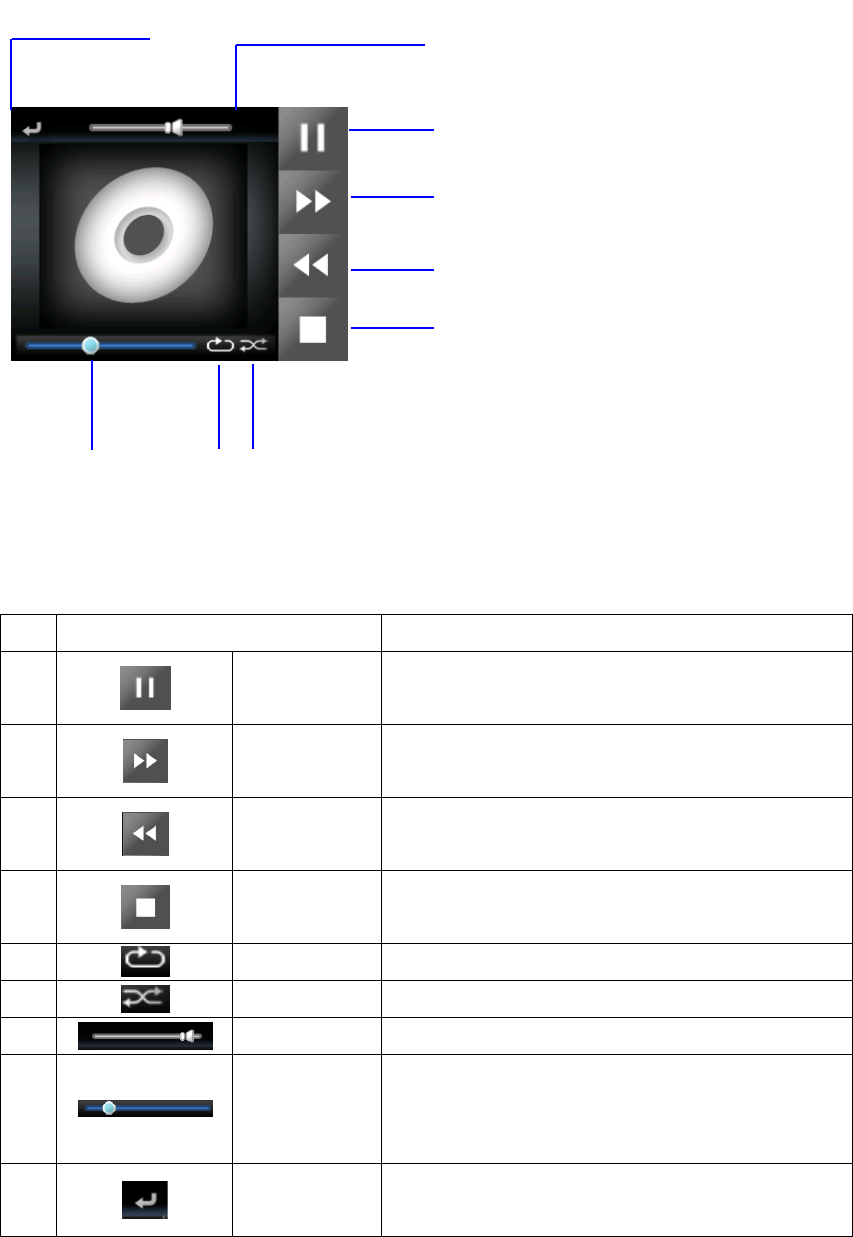

Table
4-3-2-2:
Play sound functions
NO Function
1 Play/Pause P/ay/Pause song
2 Forward Forward to next song.
3 Previous Reword to previous song
4 Stop Stop music play.
5 Repeat Repeat play songs.
6 Random Random play songs.
7 Sound bar To adjust the sound.
8 Bottom info. bar
No even: This place will scroll song’s name and total play time.
Tap: Tap this bar. Will switch to song’s progress.
9 Return Return to list page.
○
1
○2
○3
○4
○5 ○6
○7
○8
○
9
34
4.3. Photo Viewer
The
BV-3200
has
a
great
viewing
option
that
makes
it
easy
to
share
and view
digital
photos
anywhere
on
the
go.
The
program
features:
•
Support
for
JPEG
files (Support Max. 500 photos)
•
Auto-scanning
of
supported
files
in
the
device’s
Micro SD
card & Flash disk
•
Three
viewing
modes:
Thumbnail,
Full
Screen,
and
Slide
Show
Each
subdirectory
can
hold
multiple
images
and
be
used
as
an
individual
album.
For
a
more
organized
file
search,
it
is
advisable
to
sort
files
into sub
directories
based
on
meaningful
name
or
date.
An
example
could
be
“summer
vacation
pictures”
or
“New
baby”
or
“2005
Best.”
4.3.1.
Viewing files in Slide Show mode
You
have
the
option
to
view
images
in
a
slide
show
much
like
viewing
a
Power- Point
presentation
in
your
computer.
Images
are
adjusted
to
fit
the
entire
display
area
and
are
shown
in
a
5-second
interval.
4.3.2.
Using the Photo Album
1.
Tap
“Photo”
icon
in
the
Main Menu.
2.
Will list all thumbnails in SD card and store in PND mass storage & SD folder.
3.
Drag all screen area will cause photo move to next or previous page
35
4.
Tap specific thumbnail will enlarge thumbnail.
5.
Tap the screen will cause control bar display
Table
4-3-4-1:
Album
Viewer
NO Function
1 Return Return to thumbnail page
2 Previous page Display previous photo.
3 Auto Play mode Auto play all photos.
4 Next page Display next photo.
5
Rotate
Rotate photo
○1 ○5
○2 ○3 ○4
36
4.4. Video Player
Video Player is a very unique function in BV-3200, which can make end-users enjoy your DIY
video via this device.
The
program
features:
•
Support
VMV/WMA
files (Maximum 500 files)
•
Auto-scanning
of
supported
files
in
the
device’s
Micro SD
card and Flash memory
•
Three
viewing
modes:
Browser mode, Normal mode, Play mode
4.5. Listen MP3 via Car Audio/Stereo (FM Transmitter)
BV-3200
has
a
great
music-player-supported function that
makes
you play MP3 files via your car
audio/stereo.
•
Set FM frequency range from 88.2 to 107.8Mhz
37
Chapter 5 Communications
5.1. BV-3200 Bluetooth (Option function)
Once
your
Bluetooth-enabled
mobile
phone
is
paired
with
your
BV-3200,
you can
make
hands-free
phone
calls
through
your
BV-3200’s
integrated
micro- phone
and
speaker.
BV-3200
makes
it
easy
to
make
and
receive
phones calls
with
ease
while
end-users
drive cars. Hands-free
calling
keeps
things
safe,
letting
you
keep
your
eyes
on
the
road, while
your
BV-3200
integrates
seamlessly
with
your
mobile
phone.
Easy
to connect
and
use,
just
follow
a
few
quick
steps
to
enjoy
the
benefits
of
Hands- free
calling. (That is option function)
5.2. Connection
5.3. Mobile phone connection
1.

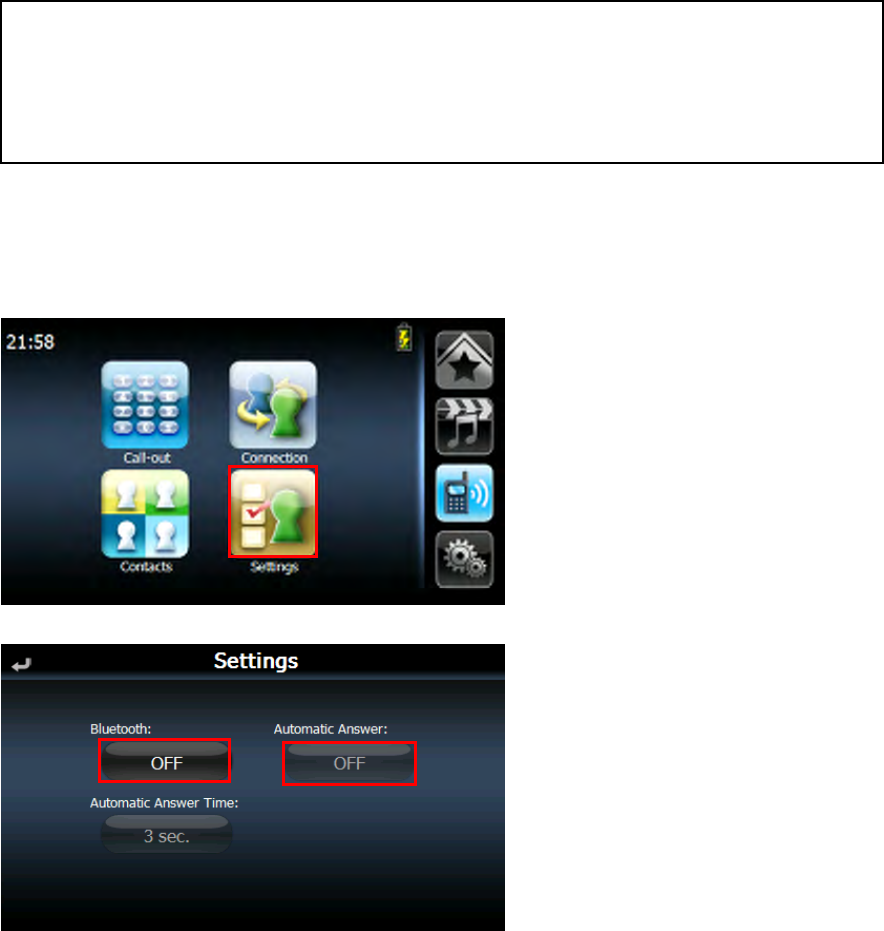

Tap “Settings” to turn on Bluethooth function, and end-users can also turn on “Automatic
Answer” while the mobile phone is ringing.
NOTE：Make sure the Bluetooth settings of your mobile phone.
- The Bluetooth switch is set to “ON” or “enable”.
- The visibility is set to “Discoverable”, “Show my phone”, (For more detailed information,
see your phone’s manual.)
38

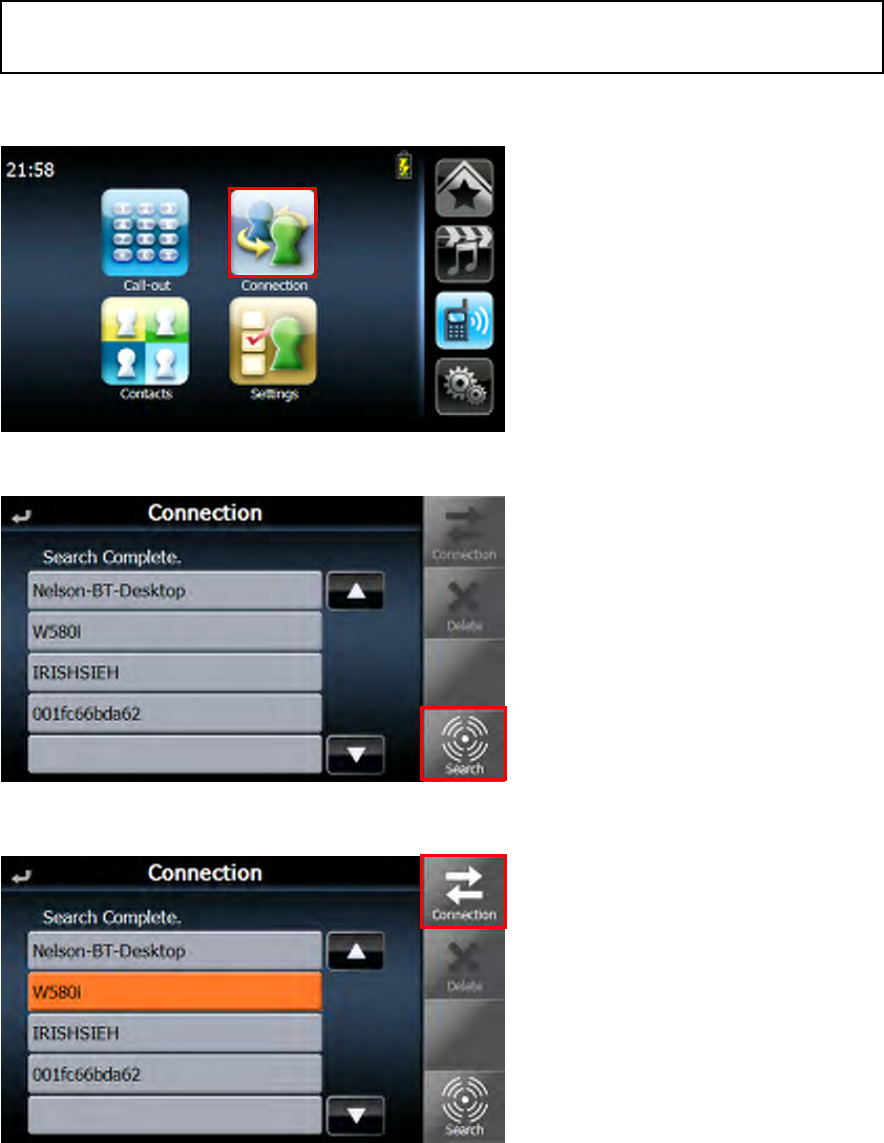

1.
Back to “Communication” screen, and tap “Connection”
2. Tap “Search” to look for Bluetooth on of mobile phones, and
3. Choose one which you want to connect to, and tap “Connection”
NOTE：”Automatic Answer Time” can be set three mode “3sec.”, “10sec.”, and “30sec.”
39

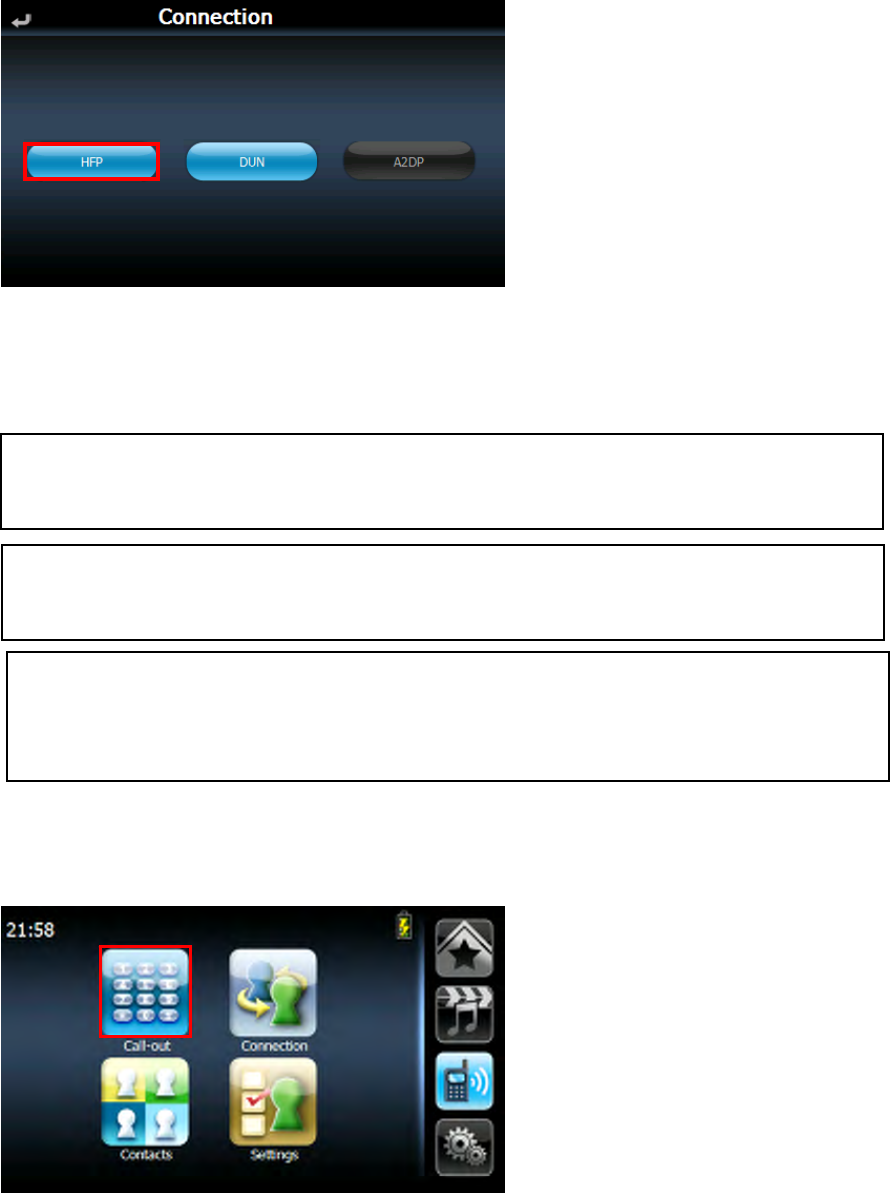

4. Choose “HFP”
5. The mobile phone will often require you to enter a password to connect the device. Enter
“0000” on the mobile phone in this case.
6. When the connection completes, the name of the connected phone is displayed on the title
bar of the “communications” screen.
5.4. Call Out (Hands – free Calling)
1. Tap “Call-out” screen is as follows:
NOTE：If the connected mobile phone has the Bluetooth auto-accept function, set this function to “NO”
(For more detailed information, see your phone’s manual.
NOTE：Bluetooth function has distance limitation. While the mobile phone is away, and make
Bluetooth function disconnect, NS-4102 would try to re-connect within 10 seconds.
NOTE： While end-user is turning on FM Transmitter and Bluetooth Hands-free function (connecting
with a cell phone), call conversation would still come out from NS-4102 speaker, not from car
audio/stereo.
40
2. Call-out
No. Name Description
1 Start to make a call.
2 History Call-out from the history of the incoming /outgoing call
3 Contacts Call-out from the contacts. In detail, refer to 4.3.
3. Call-out (in a phone call)
No. Name Description
4 Close a phone call.
4. Receiving a call

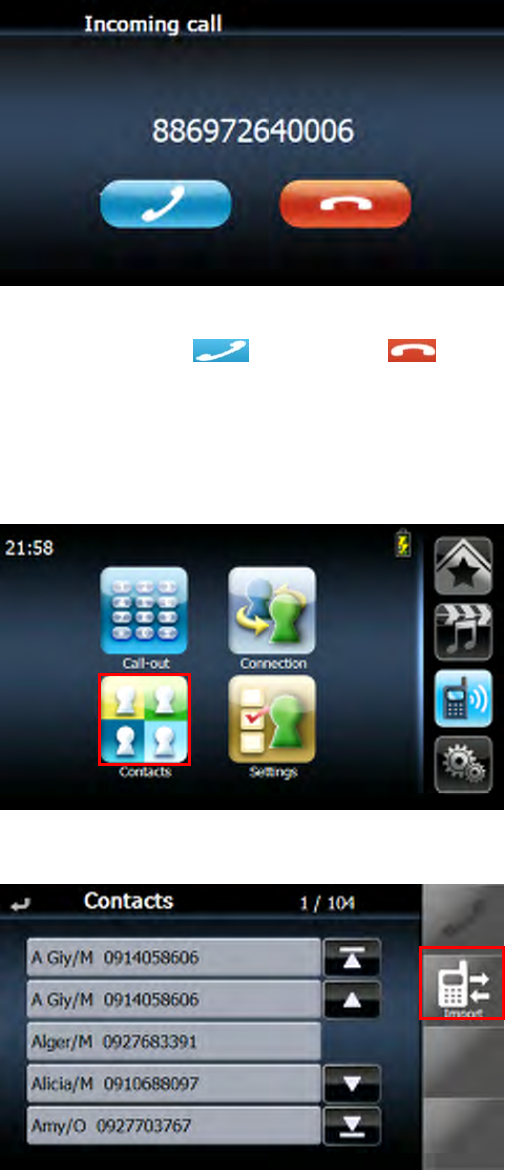

(1) When the connected mobile phone receives a call, the caller’s phone number and two
buttons are displayed on the screen.
○1
○
2
○
3
○
4
41
(2) Receive a call, tap ; Quit a call, tap .
5.5. Contacts (Import phonebooks)
1. Tap “Contacts” screen is as follows:
2. Tap “Import” to import the contact information from the connected mobile phone.
42
Chapter 6 Troubleshooting and
Maintenance
6.1. General troubleshooting
6.1.1.
If
your
device
does
not
respond,
do
a
“hard
reset.”
z
To
do
a
“hard
reset,”
Disconnect
all
cables,
including
the
AC
adapter, from
your
device.
By sliding the hard reset switch on the primary ON/OFF switch on the right side of the device
form OFF to ON position then tap the power button.
6.1.2.
Users can also perform a “system reset.”
z
To do a “system reset,” in the Main menu, tap System, then tap System Info. This will allow you to do a factory
reset (restore to default set- tings), reset the GPS and recalibrate the touch screen interface.
6.1.3.
Screen responds slowly
z
Make sure you have enough battery power.
6.1.4.
Inaccurate response to taps.
z
• Recalibrate the touch screen.
6.1.5.
Connection Problems with PC.
z
Make sure that the cable is securely plugged into the USB port on your computer and on the device. Connect the
USB cable directly to your computer—do not run the cable through a USB hub.
z
Reset your device before connecting the cable. Always disconnect your device before you restart
your
computer.
6.1.6.
No GPS connection
z
Make sure that the GPS antenna has a clear view of the sky.
z
Note that the GPS reception can be affected by:
Bad weather
Dense overhead obstacles (e.g. trees and tall buildings)
Other wireless devices in the car
6.1.7.
No sound coming from the device.
z
Make sure mute is not selected for Volume in system settings. The built-in speaker turns off when the headphone
jack is being used.
43
6.1.8.
Can’t I see my photos.
z
Make sure you are using supported image formats JPG.
6.1.9.
Takes longer than normal time to get a GPS fix.
z
If the previous GPS fix position was more than 500 km or 12 hours apart from your current position and time, it
will also take significantly longer than the standard TTFF time to get a GPS fix. This is due to the nature of the
GPS
algorithm
and
rotational
velocity
between
the
satellites
and
planet
Earth,
and
deemed
normal.
z
Perform a GPS reset in the main/system/system info menu to get a faster GPS fix.
6.1.10.
Factory reset does mean a GPS reset.
z
Yes. The Factory Reset function resets the OS settings to their default factory values and it will reset the GPS
settings.
EQUIPMENT.
EQUIPMENT.
44
6.2. Maintenance
• Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of
time.
z
• Do not drop your device or subject it to severe shock.
• Do not subject your device to sudden and severe temperature changes. This could cause moisture
condensation
inside
the
unit,
which
could damage
your
device.
In
the
event
of
moisture
condensation,
allow
the
device
to
dry
out
completely
before
use.
• The screen surface can be easily scratched. Sharp objects may scratch the screen. You may use non-adhesive
generic screen protectors designed specifically for use on portable devices with LCD panels to
help protect the screen from minor scratches.
z
Never clean your device with it powered on.
z
Never use organic solvents such as benzene or paint thinner to clean your device. Use of these solvents can cause
deformation or discoloration.
z
Use a soft, clean, lint-free cloth to clean the display screen. Moistened
LCD screen wipes could also be used as required.
• Never attempt to disassemble, repair or make any modifications to your device. Disassembly, modification or any
attempt at repair could cause damage to your device and even bodily injury or property damage and will void any
warranty.
6.2.1.
Storage precautions
• Do not store your device anywhere it may be exposed to water or in conditions of high humidity.
• When the device is not in use for an extended period of time, bring it indoors and store it in cool dry area.
6.2.2.
Accessories and repair precautions
• Only authorized accessories should be use with the device. The use of incompatible accessories could result in bodily
injury and/or damage to the device.
• The use of unauthorized accessories will also void your warranty.
• Never attempt to disassemble, repair or make any modification to your device.
