Ruckus Wireless T310 T310 (C/D) Access Point User Manual T310c Access Point Quick Setup Guide

Ruckus Wireless, Inc. T310 (C/D) Access Point T310c Access Point Quick Setup Guide

T310c User Manual

T310c Access Point
Quick Setup Guide
NOTE: The minimum software revision for the T310c is
ZoneDirector (ZD) 10.1 or later, or SmartZone (SZ) 3.6 or
later, or standalone AP firmware 108.0 or later.
This Quick Setup Guide provides step-by-step instructions on
how to field-install the Ruckus Wireless T310c access point
(AP). For detailed information on planning the installation,
performing a site survey, and operating the T310c, refer to the
Ruckus Wireless Outdoor Access Point User Guide
, available
at https://support.ruckuswireless.com.
WARNING! Only trained and qualified personnel should be
allowed to install, replace, or service this equipment.
WARNING! Installation of this equipment must comply with
local and national electrical codes.
CAUTION! Make sure that you form a 80mm - 130mm
(3”-5”) drip loop in any cable that is attached to the AP or
the building. This will prevent water from running along the
cable and entering the AP or the building where the cable
terminates.
CAUTION! Be sure that grounding is available and that it
meets local and national electrical codes. For additional
lightning protection, use lightning rods and lightning
arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
WARNING! Ruckus Wireless strongly recommends that you
wear eye protection before mounting the T310c.
This Guide in Other Languages
• 请从以下网站请得请指南的请体中文版 https://
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
•このガイドの日本語版は https://
support.ruckuswireless.com でご覧ください。
•이 가이드의 한국어 버전은 웹 사이트 (https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em https://
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta
guía en https://support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus Wireless products, please check for
the latest software and the release documentation.
• Release Notes and other user documentation are available
at http://support.ruckuswireless.com/documents.
• Software upgrades are available at http://
support.ruckuswireless.com/software.
• Open source information is available at http://
opensource.ruckuswireless.com.
• Software license and limited warranty information are
available at http://support.ruckuswireless.com/warranty.
Before deploying your Ruckus Wireless Access Point, verify
that all items listed in
Package Contents
are included in the
package. If any item is damaged or missing, notify your
authorized Ruckus Wireless sales representative. Also,
make sure that you have the required hardware and tools.
Required Hardware and Tools
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe or pole --OR-- a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall
anchors, flat washers, and hex nuts for flat-surface mount
Package Contents
A complete T310c field installation package includes all of the
items listed below (see Figure below for illustrations):
• T310c Access Point (A)
• M25 data cable gland (B)
• Ground wire with lug (C)
• Pole/Wall Mount Bracket Kit (D)
• Four steel pipe clamps
• Service Level Agreement/Limited Warranty Statement
• Declaration of Conformity
• Regulatory Statement
• Ruckus Wireless AP Getting Started Guide
• This Quick Setup Guide

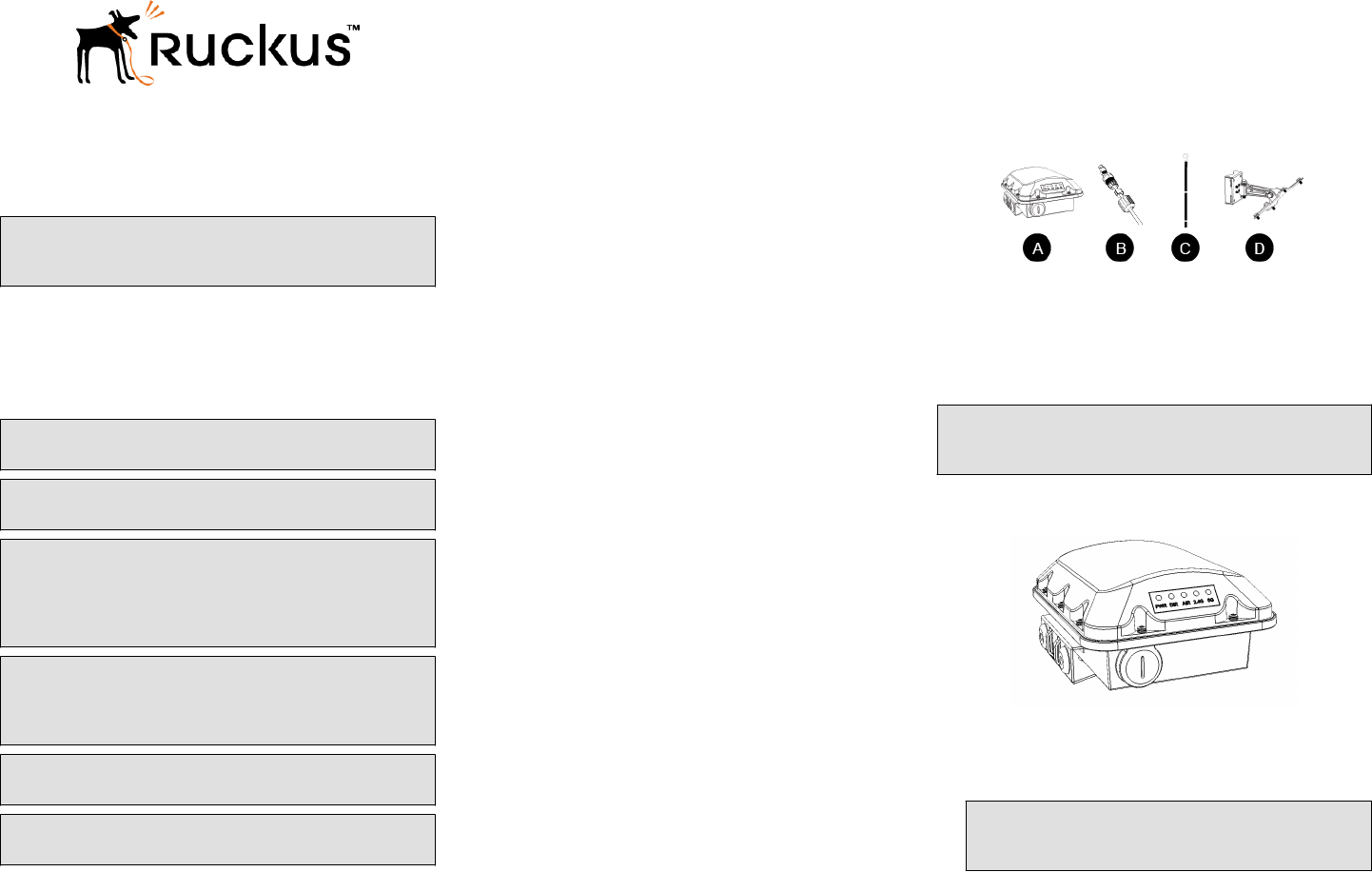

FIGURE 1 T310c Package Contents
Mounting Instructions
Connecting And Sealing the RJ-45 Cables
Connect and seal the RJ-45 cable(s) using the M25 data
cable glands shown in the Figure below.
WARNING! Do not use any PoE injector not tested and
approved by Ruckus Wireless to power the T310c Access
Point.
FIGURE 2 T310c LEDs and Ports
1. Feed the end of the cable through the sealing nut, rubber
O-ring, clamping ring assembly and cable gland base as
shown.
NOTE: Do not seat the clamping ring and rubber O-ring
into the gland body until the gland body has been
torqued to spec.
Copyright ® 2017 Ruckus Wireless, Inc. Page 1 of 3
Published September 2017, Part Number 800-71622-001 Rev A

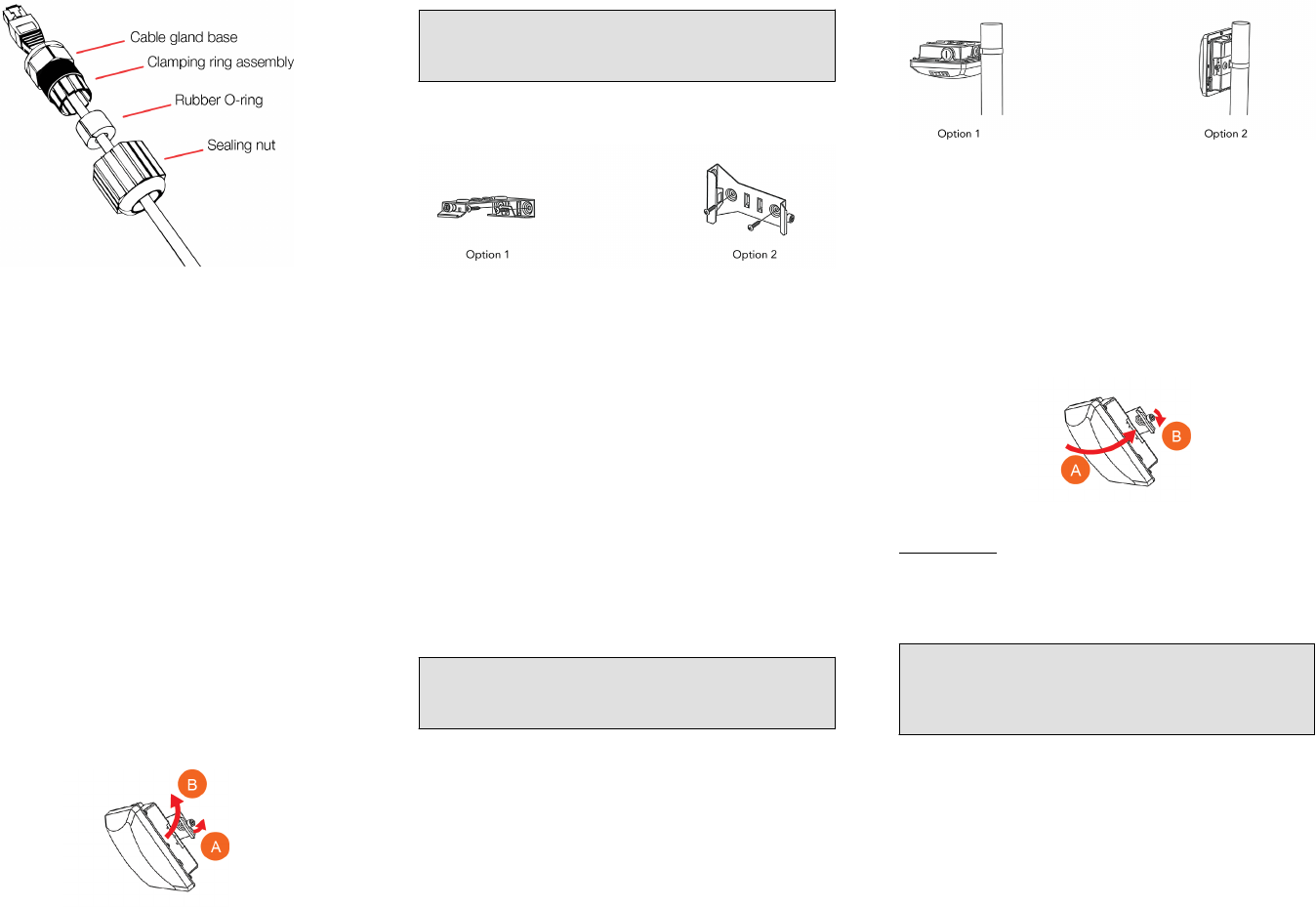

FIGURE 3 RJ-45 cable and cable gland assembly
2. Use a wide flat-blade screwdriver to remove the required
(PoE IN) blanking cap from the AP.
3. Connect the cable to the Ethernet port on the AP.
4. Tighten the cable gland base into the AP chassis to 7 N.m
or 62 in-lbs.
5. Wrap the clamping ring assembly around the rubber O-
ring. Make sure that the clamping ring assembly fully
encloses the rubber O-ring.
6. Seat the clamping ring assembly and rubber O-ring in the
cable gland base.
7. Hand-tighten the sealing nut.
Attaching the Mounting Bracket To A Flat
Surface
1. The AP mounting bracket attaches to the AP using a
captive screw. Use a medium flat-blade or No. 2 Phillips
screwdriver to loosen the captive screw (A in the Figure
below) and pull up on the end of the bracket to remove
the bracket from the AP (B in the Figure below).
FIGURE 4 Removing the mounting bracket
2. Using either of the two options shown in Figure 5, hold
the mounting bracket at the location on the mounting
surface where you want to mount the AP. Use the holes
on the mounting bracket as a template to mark the
locations of the mounting holes.
NOTE: The mounting bracket can be mounted to a
vertical or horizontal surface to support the AP in the
required orientation.
FIGURE 5 Mounting bracket on a flat surface
3. Remove the mounting bracket from the mounting surface.
4. Drill holes required for the customer-supplied mounting
hardware.
5. Attach the mounting bracket to the flat surface using the
mounting hardware.
6. Using the mounting hardware instructions, tighten the
hardware to secure the mounting bracket.
7. Continue with Mounting the AP.
Attaching the Mounting Bracket to a Pole
1. The AP mounting bracket attaches to the AP using a
captive screw. Loosen the screw (A in Figure 4) and pull
up on the end of the bracket to remove the bracket from
the AP (B in the Figure above).
2. Insert the open end of one steel clamp (D in the Figure
above) into two of the slots on the mounting bracket.
NOTE: The mounting bracket can be mounted to a
vertical or horizontal pole to support the AP in the
required orientation.
3. Using either of the two options shown, use the clamp(s) to
attach the mounting bracket to the pole. Tighten the
clamps to 3 N.m or 27 in-lbs, or per manufacturer’s
specifications if the factory-supplied clamps are not used.
4. If necessary, daisy-chain the other steel clamps to
accommodate larger poles.
FIGURE 6 Mounting bracket on a pole
5. Continue with Mounting the AP.
Mounting the AP
1. Snap the AP back onto the mounting bracket (A in the
Figure below), and use a medium flat-blade or No. 2
Phillips screwdriver to tighten the captive screw to 1.1
N.m or 10 in-lbs to secure the bracket to the AP (B).
FIGURE 7 Attaching the mounting bracket to the AP
2. Optional Step: If you also need to lock the mounting
bracket to the AP, then use a matching security
screwdriver to screw the customer-supplied locking
stainless steel 6mm M3 panhead security screw through
the mounting bracket and into the AP chassis.
CAUTION! Make sure that the customer-supplied
locking stainless steel M3 panhead security screw is no
longer than 6mm. If the security screw is longer than
6mm, it can damage the AP chassis.
Copyright ® 2017 Ruckus Wireless, Inc. Page 2 of 3
Published September 2017, Part Number 800-71622-001 Rev A
FIGURE 8 Locking the mounting bracket to the AP
You have completed mounting the AP to the mounting
bracket.
Earth Grounding the AP
CAUTION! Make sure that earth grounding is available and
that it meets local and national electrical codes. For
additional lightning protection, use lightning rods and
lightning arrestors.
NOTE: The color coding of ground wires varies by region.
Before completing this step, check your local wiring
standards for guidance.
Using the factory-supplied ground wire and ground screw/
washer set, connect a good earth ground to the AP chassis
ground point.
CAUTION! The T310c AP includes one 9mm stainless steel
M6x1 earth ground screw with split lock and flat washers.
Make sure that any replacement screw is no longer than
9mm. If a screw is longer than 9mm, it can damage the AP
chassis.

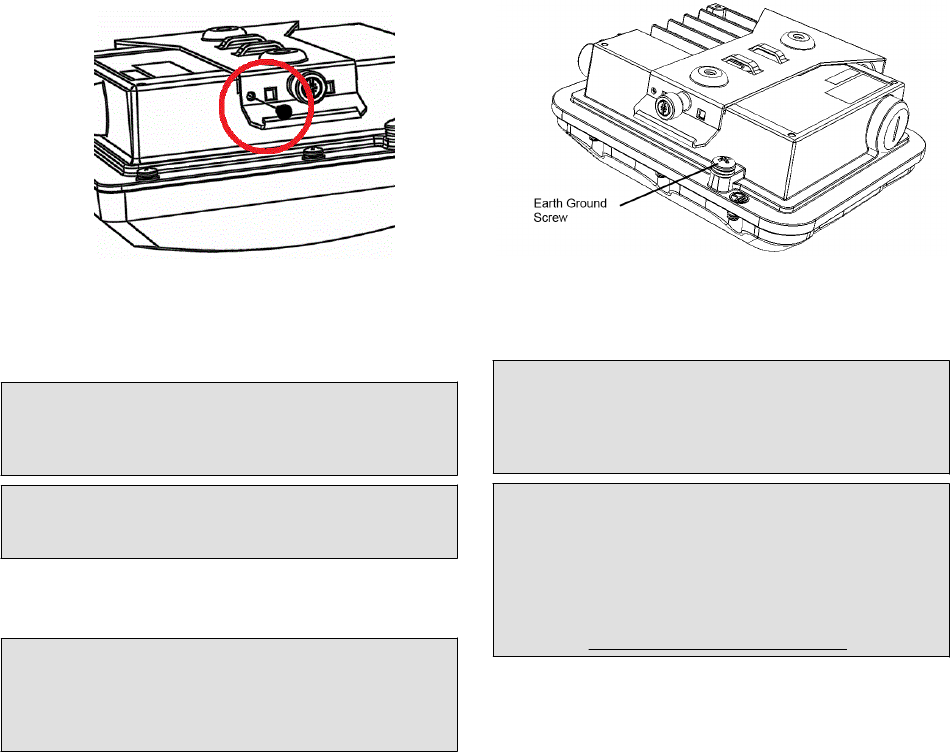

FIGURE 9 Connect good earth ground to AP here
Congratulations! You have mounted your T310c access point.
Troubleshooting
CAUTION! If required, you can reset the AP to its factory
default settings by pressing the reset button located inside
the PoE IN port. DO NOT DO THIS UNLESS SO
INSTRUCTED. (Doing this resets the AP IP address to
192.168.0.1.)
NOTE: After a reset, you can access the internal AP web
interface using https://192.168.0.1. Your device must use
any other address from 192.168.0.2 through
192.168.0.254, with subnet mask 255.255.255.0. The
username is super, and the password is sp-admin. Refer to
the
Outdoor Access Point User Guide
for information on
configuring and operating the AP. This document is
available at https://support.ruckuswireless.com.
For More Information
For information on how to configure and manage the AP, refer
to the
Ruckus Wireless Outdoor Access Point User Guide
,
available from https://support.ruckuswireless.com.
Copyright ® 2017 Ruckus Wireless, Inc. Page 3 of 3
Published September 2017, Part Number 800-71622-001 Rev A
