User Manual 1 of 2
Ruckus Wireless™
ZoneFlex™ 7761CM Dual Band 802.11n
Outdoor Access Point
with Integrated Cable Modem
Installation Guide
Part Number 800-70290-001
Published March 2010
www.ruckuswireless.com
i
1About This Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Using ZoneDirector to Manage the CMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Terms Used in This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2Unpacking the CMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preconfiguring the Access Point (Standalone Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Step 1: Prepare the Administrative Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Step 2: Supply Power to the CMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 3: Log Into the Access Point’s Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Step 4: Configure the Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Step 5: Disconnect the CMAP from the Administrative Computer . . . . . . . . . . . . . . 14
Step 6: Restore the Administrative Computer’s Network Settings . . . . . . . . . . . . . . 14
Pointing the CMAP to ZoneDirector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Use SSH to Set the ZoneDirector IP Address on the CMAP . . . . . . . . . . . . . . . . . . . . 15
Configure Option 43 on the DHCP Server (ZoneDirector Management Only) . . . . . 16
4Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Weight and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Ethernet/PoE-Out Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Supported Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Prepare the Required Hardware and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Perform a Site Survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Contents
ii
6Powering the CMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using DC Power (Staging or Debugging Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using Power Over Cable (Actual Deployment) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7Verifying Access Point Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8Switching LEDs to Cable Modem Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Using the AP’s Web Interface to Switch to CM Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using SNMP to Switch to CM Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9Resetting the Access Point to Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using the Reset Switch on the DC Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using SNMP to Reset the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10 Resetting the CM to Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
11 Mounting the CMAP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
12 Installing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
13 What to Do Next. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Change the Administrative Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Read Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
14 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Retrieving the CM’s MAC Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
How Radio Frequency Scanning Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Contacting Ruckus Wireless Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
1
1About This Installation Guide
This Installation Guide provides information on how to set up the Cable Modem Access
Point (CMAP) on your network. Topics covered in this guide include installation, basic
configuration, operation, and device mounting.
This guide is intended for use by those responsible for installing and setting up network
equipment. Consequently, it assumes a basic working knowledge of local area networking,
cable modem setup and configuration, wireless networking, and wireless devices.
NOTE: The cable modem and access point each have its own independent firmware load
that are updated independently.
Related Documentation
In addition to this guide, each Cable Modem Access Point documentation set includes
the following:
■User Guide: Provides detailed information on how to configure the functions of the
unit. The User Guide is available for download on the Ruckus Wireless Support Web
site at:
http://support.ruckuswireless.com/documents
■Release Notes: Provides late-breaking information about the current software release,
including new features, enhancements, and known issues. If the information in the
Release Notes differs from the information in this guide, follow the instructions in the
Release Notes.
■Online Help: Accessible from the CMAP’s Web interface, the Online Help provides
information that helps you configure the device from the Web interface.
Using ZoneDirector to Manage the CMAP
If you are planning to use a Ruckus Wireless ZoneDirector to manage the CMAP, this guide
describes the required steps that will enable the access point to report to and
communicate with ZoneDirector successfully. Refer to “Configure Option 43 on the DHCP
Server (ZoneDirector Management Only)” on page 16.
Terms Used in This Guide
Before continuing, Ruckus Wireless recommends that you become familiar with the
following terms:
■Access Point (AP): The Wi-Fi component of the Cable Modem Access Point (CMAP).
2
Unpacking the CMAP
Package Contents
■Cable Modem (or CM): The cable modem component of the Cable Modem Access
Point (CMAP).
■Cable Modem Access Point (or ZF7761CM): The whole unit, which includes the CM
and AP, as well as the power supply.
2Unpacking the CMAP
1. Open the CMAP package, and then carefully remove the contents.
2. Return all packing materials to the shipping box, and put the box away in a dry location.
3. Verify that all items listed in Package Contents below are included in the package.
Check each item for damage. If any item is damaged or missing, notify your authorized
Ruckus Wireless sales representative.
Package Contents
A complete ZoneFlex 7761CM package contains all of the items listed below:
■ZoneFlex 7761CM unit
■Three N-type 5GHz external antennas
■Service Level Agreement / Limited Warranty Statement
■Regulatory Statement
■This Installation Guide
NOTE: The CMAP comes preinstalled with the cable strand interface, which you will use
to mount the assembly onto the cable strand. You only need to attach the three external
antennas to the cable strand interface (after mounting the CMAP on the strand) to
complete the assembly. See “Installing the Antennas” on page 45 for more information.
3
Unpacking the CMAP
Package Contents

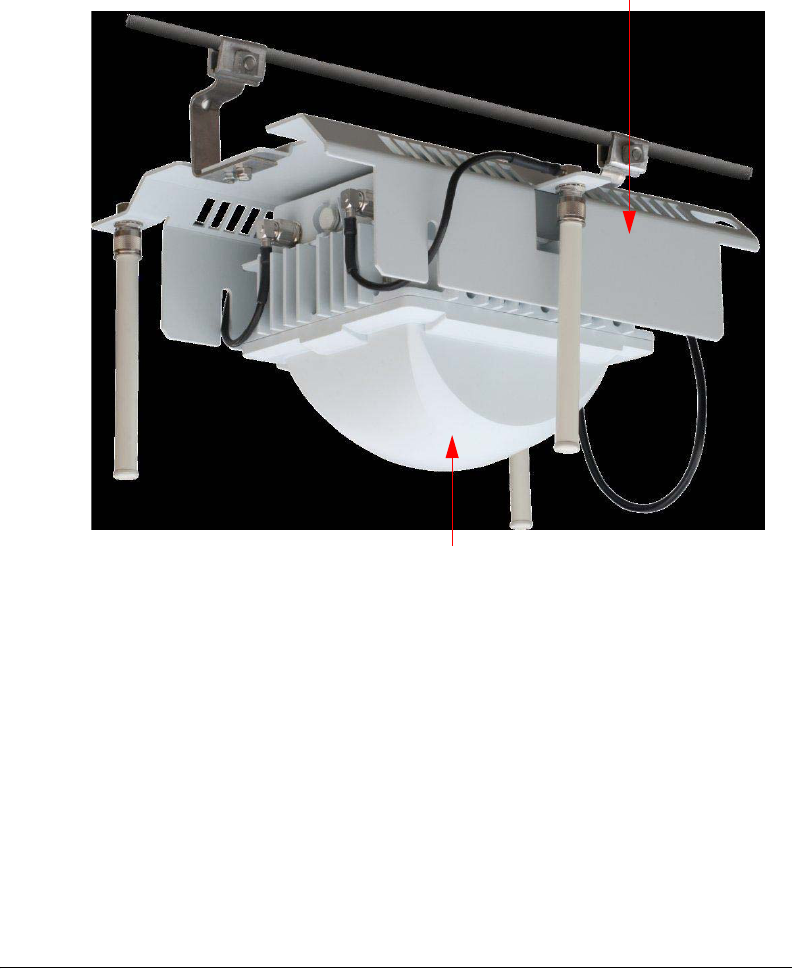

Figure 1. The CMAP comes preassembled with the cable strand interface
Cable Strand
Interface
Access Point
4
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)
3Preparing for Installation
This section describes the tasks that you need to perform before proceeding with the
installation. The required tasks depend on whether you are deploying the access point as
a standalone device or as a ZoneDirector-managed device.
■Preconfiguring the Access Point (Standalone Only)
■Configure Option 43 on the DHCP Server (ZoneDirector Management Only)
NOTE: A standalone access point refers to a device that is not managed by Ruckus
Wireless ZoneDirector or Ruckus Wireless FlexMaster.
Preconfiguring the Access Point (Standalone Only)
If you are deploying the access point as a standalone device, Ruckus Wireless strongly
recommends that you preconfigure (or “stage”) the unit before mounting it. It is more
convenient to connect the administrative computer to the access point and configure the
device in the lab than when the device is already mounted on the cable strand.
Preconfiguring the access point requires the following tasks to be completed:
■Step 1: Prepare the Administrative Computer
■Step 2: Supply Power to the CMAP
■Step 3: Log Into the Access Point’s Web Interface
■Step 4: Configure the Wireless Settings
■Step 5: Disconnect the CMAP from the Administrative Computer
■Step 6: Restore the Administrative Computer’s Network Settings
Before starting, prepare the following requirements:
■DC power supply (see DC Power Supply in “Connectors” on page 31)
■One Ethernet cable
■An administrative computer (any computer running Windows that you will use to
preconfigure the access point)
5
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)
Step 1: Prepare the Administrative Computer
NOTE: The following procedures are applicable if the administrative computer is running
on Windows XP. If you are using a different operating system, refer to the documentation
that was shipped with your operating system for information on how to modify the
computer’s IP address settings.
On Microsoft Windows 7
1. Click the orb, and then click Control Panel.
2. Double-click Network and Sharing Center.
3. On the left menu, click Change Adapter Settings. The Network Connections page
appears and displays the available network interfaces on the computer.
4. Look for the network connection icon labeled Local Area Connection.
5. Right-click Local Area Connection, and then click Properties. The Local Connection
Properties dialog box appears.
6. Under This connection uses the following items, look for Internet Protocol Version 4
(TCP/IPv4), and then double-click the item. The Internet Protocol Version 4 (TCP/IPv4)
Properties dialog box appears.
7. Write down all of the currently active network settings. You will need this information
later when you restore your computer to its current network configuration.
8. On the General tab, Click Use the following IP address, and then configure the IP
address settings with the values listed in Tab le 2. For a sample configuration, refer to
Figure 3.
9. Click OK to save your changes and close the Internet Protocol Version 4 (TCP/IPv4)
Properties dialog box.
10. Click OK again to close the Local Area Connection Properties dialog box.
Windows saves the IP address settings that you configured.
Table 1. Configure your computer’s IP address settings
IP address 192.168.100.77 (or any address in the
192.168.100.x network — with the exception of
192.168.100.2, which is already used by the access
point)
Subnet mask 255.255.255.0
6
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)

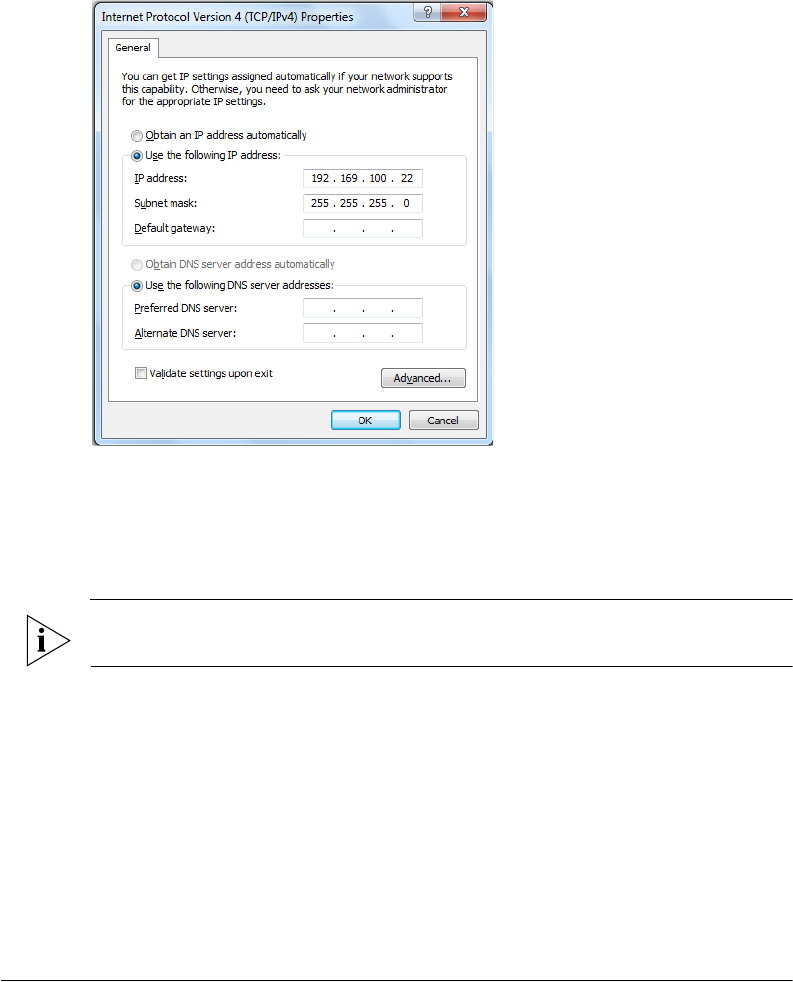

Figure 2. Sample configuration in the Internet Protocol Version 4 (TCP/IPv4)
Properties dialog box
On Microsoft Windows XP
1. Click Start > Control Panel > Network Connections.
2. When the Network Connections window appears, right-click the icon for Local Area
Connection, and then click Properties.
NOTE: Make sure that you configure the Local Area Connection properties, not the
Wireless Network Connection properties.
3. When the Local Area Connection Properties dialog box appears, select Internet
Protocol (TCP/IP) from the list, and then click Properties. The Internet Protocol (TCP/
IP) Properties dialog box appears.
4. Write down all of the currently active network settings. You will need this information
later when you restore your computer to its current network configuration.
7
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)
5. Click Use the following IP address, and then configure the IP address settings with
the values listed in Tab le 2. For a sample configuration, refer to Figure 3.
6. Click OK to save your changes and close the Internet Protocol (TCP/IP) Properties
dialog box.
7. Click OK again to close the Local Area Connection Properties dialog box.
Windows saves the IP address settings that you configured.

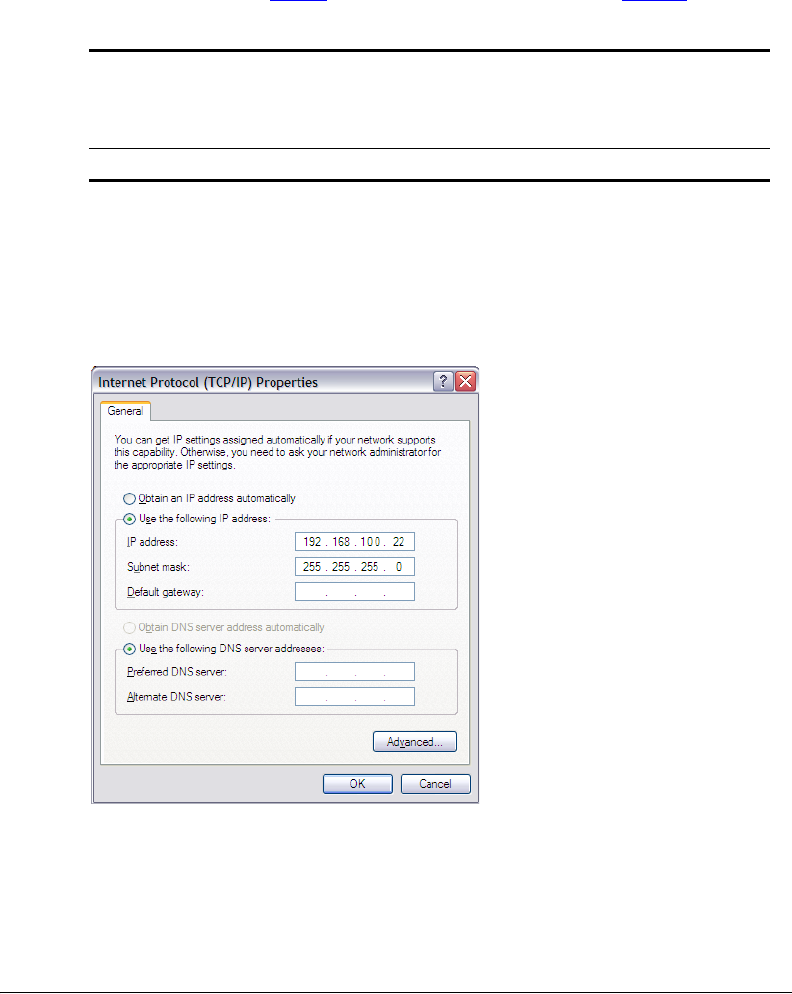

Figure 3. Sample configuration in the Internet Protocol (TCP/IP) Properties dialog box
Table 2. Configure your computer’s IP address settings
IP address 192.168.100.77 (or any address in the
192.168.100.x network — with the exception of
192.168.100.2, which is already used by the access
point)
Subnet mask 255.255.255.0
8
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)
Step 2: Supply Power to the CMAP
In this step, you will connect the CMAP to the administrative computer, and then you will
power it on using 12 VDC power.
NOTE: Before starting this procedure, you must have already obtained a DC power
supply, such as 705-60224-002 shown in Figure 4.
To supply DC power to the CMAP
1. Connect one end of an Ethernet cable to the Ethernet port (labeled PoE OUT) on the
CMAP, and then connect the other end to the administrative computer’s Ethernet port.
2. Remove the protective cap from the DC connector on the CMAP.
3. Connect the DC adapter (labeled 2 in Figure 4) to the DC connector on the CMAP.

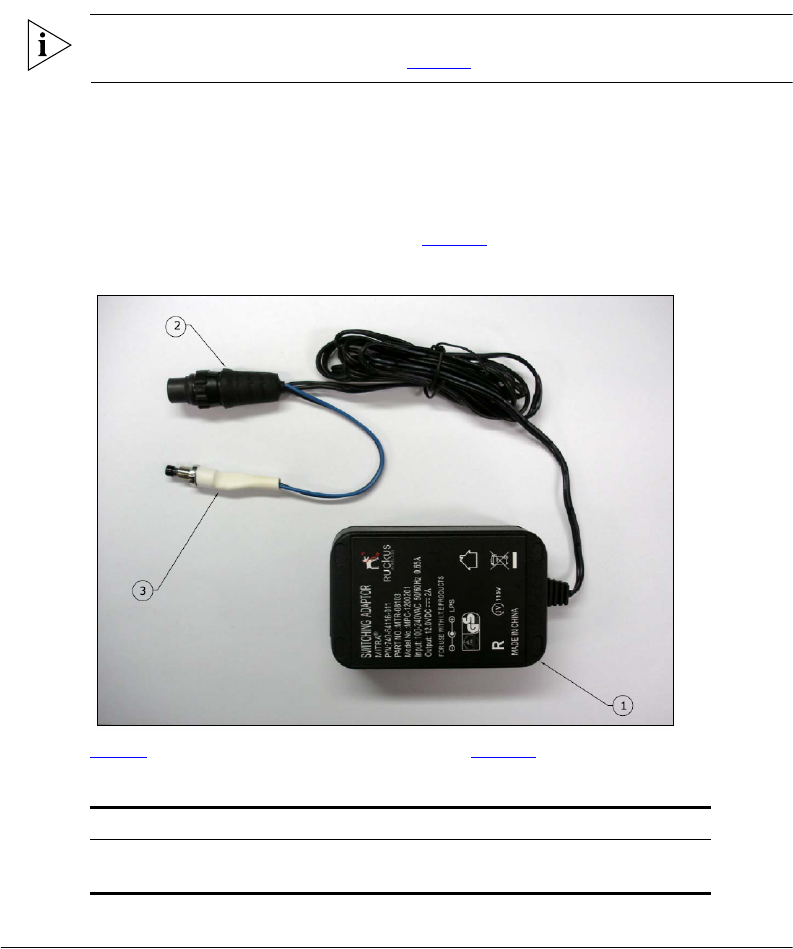

Figure 4. DC switching adapter
Tabl e 3 identifies the numbered components in Figure 4.
Table 3. DC switching adapter components
Number Description
1Power Supply: 100 to 240 VAC input. Connects with a standard IEC
C13 style power cord.
9
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)
Step 3: Log Into the Access Point’s Web Interface
1. On the administrative computer, open a Web browser window.
2. In the address or location bar, type the following address:
https://192.168.100.2
3. Press <Enter> on the keyboard to connect to the access point’s Web interface. A
security alert message appears.
4. Click Yes or OK (depending on the browser) to continue. The access point’s login page
appears.
Figure 5. The ZoneFlex Access Point login page
5. In User name, type super.
6. In Password, type sp-admin.
7. Click Log In. The Web interface appears, displaying the Device page.
8. Continue to “Step 4: Configure the Wireless Settings” below.
2 Connector for the 12VDC connector on the CMAP
3 Reset switch
Table 3. DC switching adapter components
Number Description
10
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)
Step 4: Configure the Wireless Settings
To complete this step, you will need to configure the settings on the Common tab and at
least one Wireless # tab. These are the essential wireless settings that will enable wireless
devices on the network to associate with the access point.
NOTE: ZoneFlex 7762 has one 2.4GHz radio and one 5GHz radio. The wireless settings
for each radio need to be configured separately on the Web interface (except for the
country code setting, see note in Ta ble 4 ). To configure the 2.4GHz radio settings, click
Configuration > Radio 2.4G. To configure the 5GHz radio settings, click Configuration
> Radio 5G.
For your reference, the default wireless settings on the access point are listed in Ta ble 4 .
Configure Common Wireless Settings
1. On the left menu of the Web interface, click Configuration > Radio {2.5/5} G. The
Common page appears.
2. Verify that the common wireless settings are configured as listed in Table 8.
Table 4. Default wireless settings
Setting Default Value
SSID (network name) Wireless 1 to Wireless 8 (8 WLANs)
Encryption (security) Disabled on all WLANs
Default management IP address 192.168.100.2
Table 5. Common wireless configuration
Setting Recommended Value
Wireless Mode Auto-select
Channel SmartSelect
Channel Width 20MHz or 40MHz
11
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)
3. If you made any changes to the Common tab that you want to save, click Update
Settings.
4. Continue to “Step 4: Configure the Wireless Settings” below.

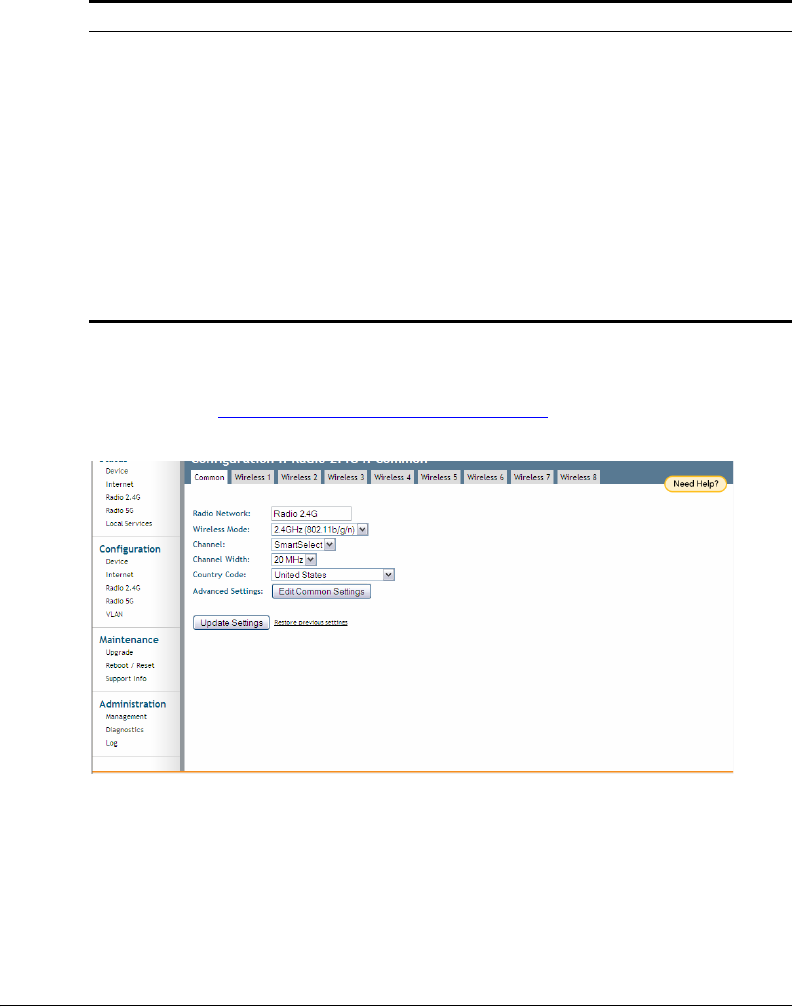

Figure 6. The Configuration > Radio 2.4 > Common tab
Configure Wireless # Settings
1. Click one of the Wireless # tabs.
2. In Wireless Availability, click Enabled.
3. In Broadcast SSID, click Enabled.
Country Code • If you purchased the access point in the United States,
this value is fixed to United States at the factory and is
not user-configurable.
• If you purchased the access point outside of the United
States, verify that the value is set to your country or
region. Selecting the correct country code ensures that
the access point uses only the radio channels allowed in
your country or region.
NOTE: The two radios on ZoneFlex 7762 Access Point are
always configured with the same country code setting. If
you change the country code for Radio 2.4G, for example,
the same change will be automatically applied to Radio 5G.
Table 5. Common wireless configuration
Setting Recommended Value
12
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)
4. Clear the SSID box, and then type a unique and descriptive name that you want to call
this wireless network.
For example, you can type Ruckus Wireless AP. This SSID is the name that will
help users identify this wireless network in their wireless network connection
application.
NOTE: You may also configure other wireless settings on this and other Wireless # tabs
(in addition to the settings described above), although it is not necessary for completing
the access point installation.
5. Click Update Settings.
You have completed configuring the basic wireless settings of the access point.

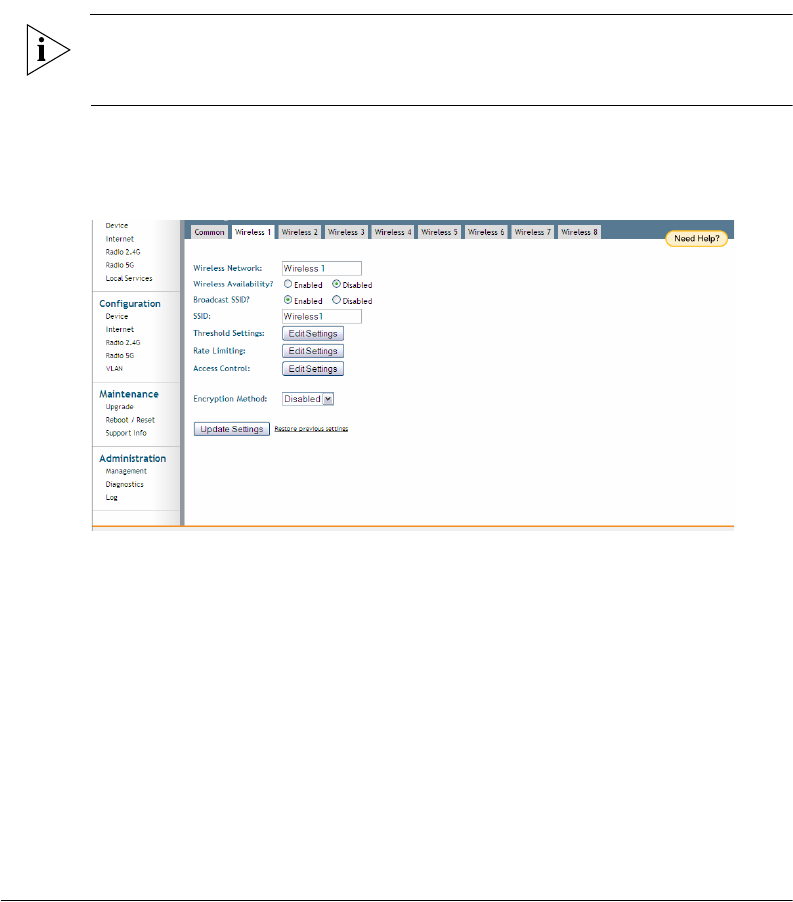

Figure 7. The Configuration > Radio 2.4 > Wireless 1 tab
13
Preparing for Installation
Preconfiguring the Access Point (Standalone Only)
Figure 8. Type the FlexMaster server URL
14
Preparing for Installation
Pointing the CMAP to ZoneDirector
Step 5: Disconnect the CMAP from the Administrative
Computer
1. Disconnect the CMAP from the DC power source.
2. Verify that all LEDs are off.
3. Disconnect the Ethernet cable from the administrative computer’s Ethernet port.
Step 6: Restore the Administrative Computer’s Network
Settings
1. On your Windows XP or Windows 2000 computer, open the Network Connections (or
Network and Dial-up Connections) control panel according to how the Start menu is
set up:
• On Windows XP, click Start > Control Panel > Network Connections.
• On Windows 2000, click Start > Settings > Network Connections.
2. When the Network Connections window appears, right-click the icon for Local Area
Connection, and then click Properties.
3. When the Local Area Connection Properties dialog box appears, select Internet
Protocol (TCP/IP) from the scrolling list, and then click Properties. The TCP/IP
Properties dialog box appears.
4. Restore the computer’s network settings by typing the original IP address settings in
the TCP/IP Properties dialog box.
5. On the TCP/IP Properties dialog box, click OK to close it.
6. Click OK again to close the Local Area Connection Properties dialog box.
You are now ready to connect the CMAP to your network.
Pointing the CMAP to ZoneDirector
If you are deploying the access point to be managed by ZoneDirector, you must ensure
that the CMAP can report to its parent ZoneDirector device on the network. There are two
ways you can do this:
■Use SSH to Set the ZoneDirector IP Address on the CMAP
■Configure Option 43 on the DHCP Server (ZoneDirector Management Only)
15
Preparing for Installation
Pointing the CMAP to ZoneDirector
Use SSH to Set the ZoneDirector IP Address on the CMAP
You can use SSH to set the IP address of the ZoneDirector device that you want to use to
manage the CMAP. Before starting this procedure, you must obtain the IP address of the
ZoneDirector device to which you want to assign the CMAP.
To perform this procedure, you will need the following:
■An administrative computer
■An Ethernet cable
■A Telnet or SSH (secure shell) client program
To set the ZoneDirector IP Address on the CMAP via SSH
1. Connect one end of the Ethernet cable to the administrative computer’s Ethernet port,
and then connect the other end to the CMAP’s Ethernet port.
2. Change the administrative computer’s IP address to the same subnet as the CMAP.
The AP’s default IP address is 192.168.100.2.
3. Start the Telnet or SSH client program on the administrative computer.
4. Log onto to the AP via Telnet or SSH using the following logon details:
•User name: super
•Password: sp-admin
5. When command prompt appears, enter the following command:
set director ip {ip-address}
where {ip-address} is the IP address of the ZoneDirector to which you want to
assign the CMAP.
The following message appears, which indicates that you have assigned the
ZoneDirector IP address:
Please reboot for this change to take effect.
6. Reboot the CMAP.
7. Log onto the command prompt again, and then enter the following command:
get director info
The command prompt displays the IP address of the ZoneDirector device that is
managing the CMAP.
8. Verify that this IP address is the same IP address that you set in Step 5.
You have completed the setting the ZoneDirector IP address via SSH.
16
Preparing for Installation
Pointing the CMAP to ZoneDirector
Configure Option 43 on the DHCP Server (ZoneDirector
Management Only)
You can configure the DHCP server on your CMTS backbone to ensure that the CMAP will
successfully discover its parent ZoneDirector on the network.
To customize your DHCP server, you need to configure DHCP Option 43 (043 Vendor
Specific Info) with the IP address of the ZoneDirector device on the network. When an
access point requests an IP address, the DHCP server will send a list of ZoneDirector IP
addresses to the access point. If there are multiple ZoneDirector devices on the network,
the access point will automatically select a ZoneDirector to register with from this list of IP
addresses.
NOTE: The following procedure describes how to customize a DHCP server running on
Microsoft Windows. If your DHCP server is running on a different operating system, the
procedure may be different.
The procedure for configuring Option 43 on your DHCP server depends on whether both
ZoneDirector and FlexMaster exist on the network, and whether you want to add the DHCP
subcode for ZoneDirector.
If Only ZoneDirector Exists on the Network (No ZoneDirector Subcode)
1. From Control Panel > Windows Administrative Tools, open DHCP, and then select the
DHCP server you want to configure.
2. If the Scope folder is collapsed, click the plus (+) sign to expand it.
3. Right-click Scope Options, and then click Configure Options. The General tab of the
Scope Options dialog box appears.
4. Under Available Options, look for the 43 Vendor Specific Info check box, and then
select it.
5. Under Data Entry, position the cursor in the ASCII text area, and then type the IP
address of the ZoneDirector device. In the figure below, the IP address of the
ZoneDirector device is 192.168.100.2.
17
Preparing for Installation
Pointing the CMAP to ZoneDirector

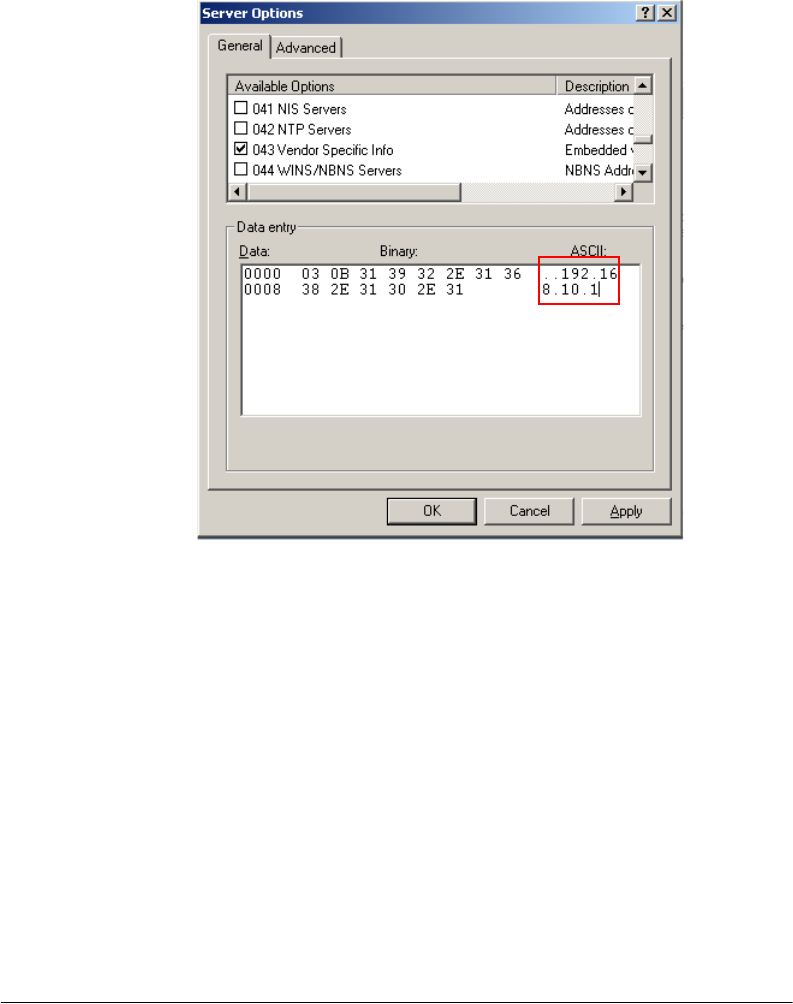

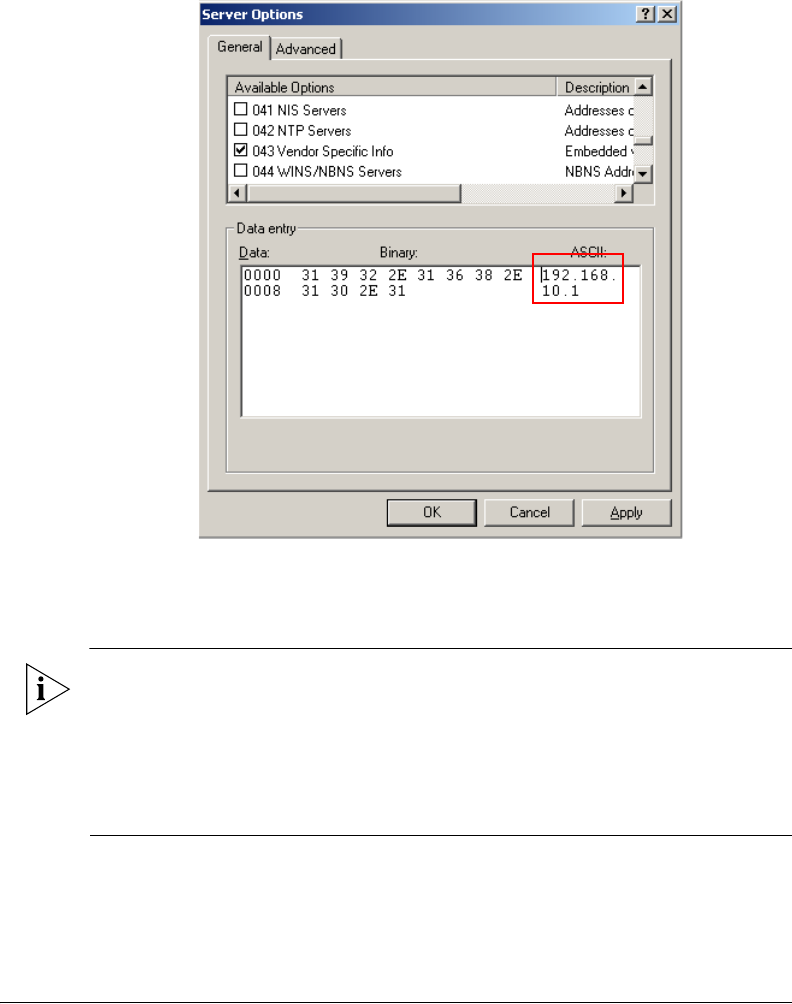

Figure 9. In the ASCII area, type the IP address of the ZoneDirector device
The hexadecimal equivalent of the ZoneDirector IP address appears in the Binary text
area.
NOTE: If there are multiple ZoneDirector devices on the network, type all the IP addresses
in the ASCII text area. Use commas (,) to separate the IP addresses. If a management
interface is used for Web UI management, the actual IP address must still be used when
configuring ZoneDirector as a client for a backend RADIUS server, FlexMaster server or in
any SNMP systems. If two ZoneDirector devices are deployed in a Smart Redundancy
configuration, both of the actual IP addresses must be used rather than the management
IP address.
6. Click Apply to save your changes.
7. Click OK to close the Scope Options dialog box.
You have completed customizing your DHCP server to automatically provide supported
APs with ZoneDirector’s IP address.
18
Preparing for Installation
Pointing the CMAP to ZoneDirector
If Only ZoneDirector Exists on the Network (With ZoneDirector Subcode)
1. From Control Panel > Windows Administrative Tools, open DHCP, and then select the
DHCP server you want to configure.
2. If the Scope folder is collapsed, click the plus (+) sign to expand it.
3. Right-click Scope Options, and then click Configure Options. The General tab of the
Scope Options dialog box appears.
4. Under Available Options, look for the 43 Vendor Specific Info check box, and then
select it.
5. Under Data Entry, highlight the existing values, and then press <Delete> on your
keyboard.
6. Position your cursor again after the last octet (in this example, 0000) under the Binary
text area, and then type 03 (the subcode for ZoneDirector).
Figure 10. Under the Binary text area, type 03 (the subcode for ZoneDirector)
7. After the ZoneDirector subcode (03), type the hexadecimal equivalent of the length of
the ZoneDirector IP address. For example, if the ZoneDirector IP address is
192.168.10.1, the length in decimal is 12 and the hexadecimal equivalent is 0B.
19
Preparing for Installation
Pointing the CMAP to ZoneDirector

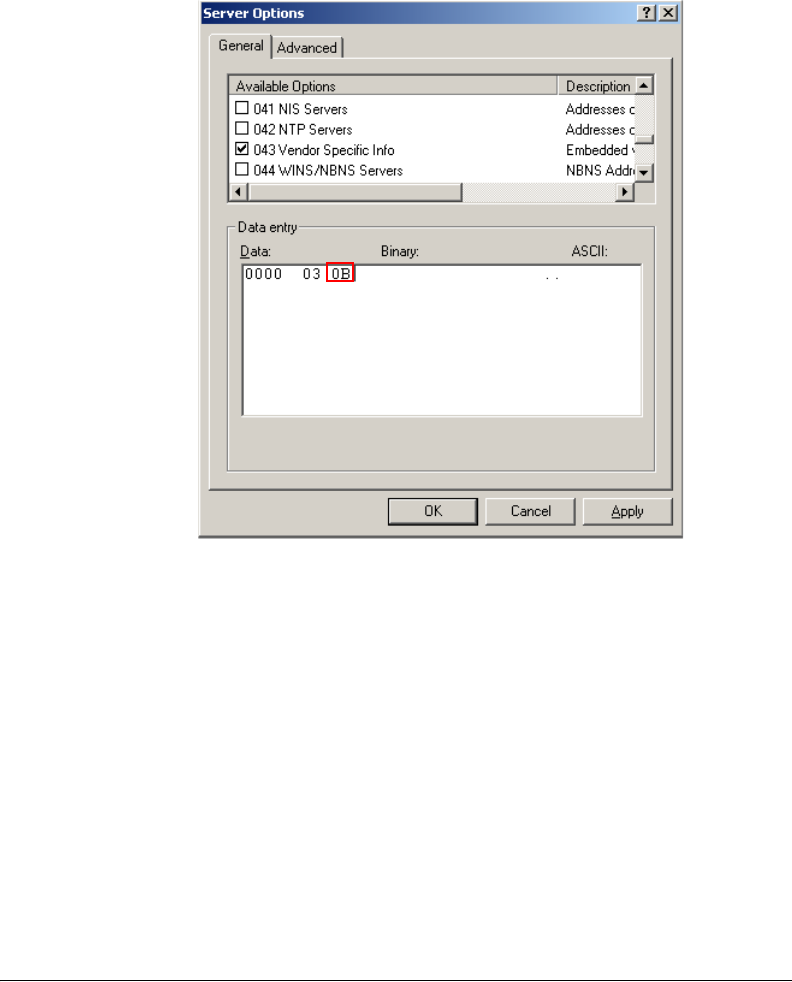

Figure 11. After the ZoneDirector subcode, type the hexadecimal equivalent of the
ZoneDirector IP address length
8. Position the cursor under the ASCII text area, and then type the ZoneDirector IP
address. If you typed the hexadecimal equivalent of the ZoneDirector IP address, there
should be two bytes (represented by two periods) already filled under the ASCII text
area.
In the example below, the ZoneDirector IP address is 192.168.10.1.
20
Preparing for Installation
Pointing the CMAP to ZoneDirector
Figure 12. In the ASCII text area, type the ZoneDirector IP address
9. Click Apply to save your changes.
10. Click OK to close the Scope Options dialog box.
You have completed configuring DHCP Option 43 to provide supported APs with the
ZoneDirector IP address.
If Both ZoneDirector and FlexMaster Exist on the Network
Before starting with this procedure, count the number of characters (including http or
https, back slashes, colon, and periods) in the FlexMaster server URL and ZoneDirector
IP address, and then convert these (decimal) values to hexadecimal. If there are multiple
ZoneDirector devices on the network, count the total number of characters.
You will need this information when you configure DHCP Option 43 for both FlexMaster
and ZoneDirector. You can use an online conversion Web site, such as
http://www.easycalculation.com/decimal-converter.php, to perform the
conversion.
21
Preparing for Installation
Pointing the CMAP to ZoneDirector
The table below lists the FlexMaster URL and ZoneDirector IP address that are used as
examples in this procedure, including their length in decimal and hexadecimal values.
Do the following on the DHCP server
1. From Windows Administrative Tools, open DHCP, and then select the DHCP server
you want to configure.
2. If the Scope folder is collapsed, click the plus (+) sign to expand it.
3. Right-click Scope Options, and then click Configure Options. The General tab of the
Scope Options dialog box appears.
4. Under Available Options, look for the 43 Vendor Specific Info check box, and then
select it.
5. Under Data Entry, highlight the existing values, and then press <Delete> on your
keyboard.
6. Position the cursor in the Binary text area, and then type 01, the subcode for
FlexMaster.
Table 6. URL/IP address values that are used as examples in this procedure
URL / IP Address Decimal Length Hexadecimal Length
FlexMaster http://192.168.10.1/intune/
server (URL)
33 21
ZoneDirector 192.168.10.2 (IP Address) 12 0C
22
Preparing for Installation
Pointing the CMAP to ZoneDirector

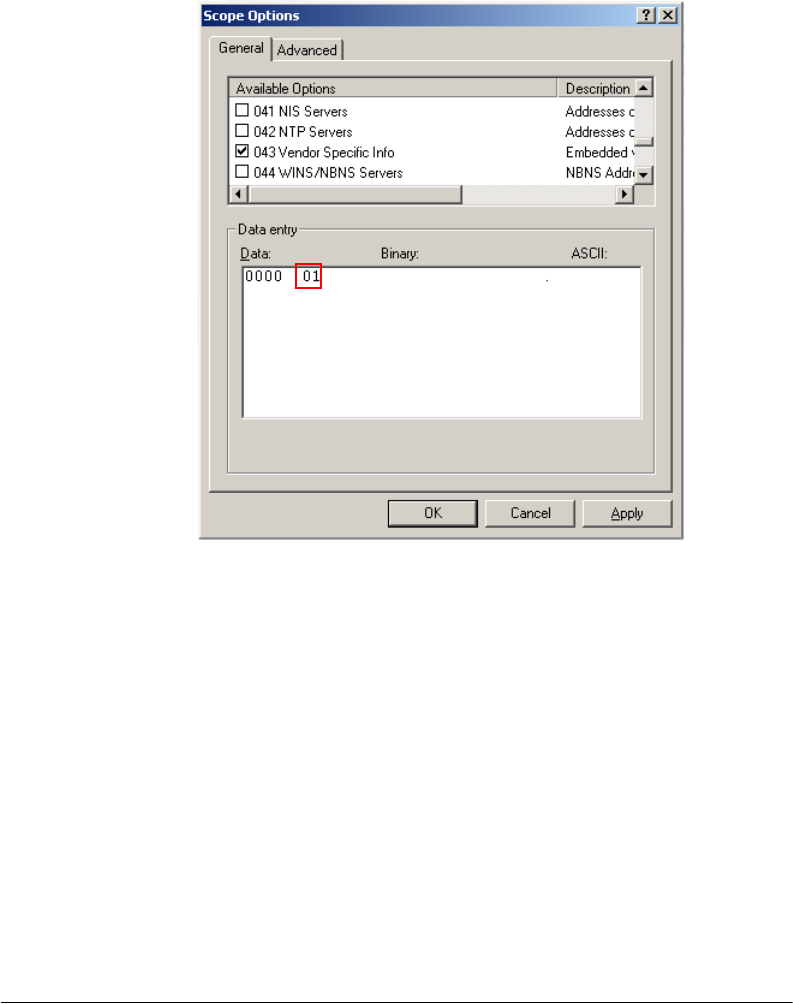

Figure 13. Type 01, the subcode for FlexMaster
7. Under the Binary text area, position the cursor after the 01 subcode, and then type 21
– the hexadecimal equivalent of the FlexMaster server URL length that is used as the
example in this procedure.
23
Preparing for Installation
Pointing the CMAP to ZoneDirector

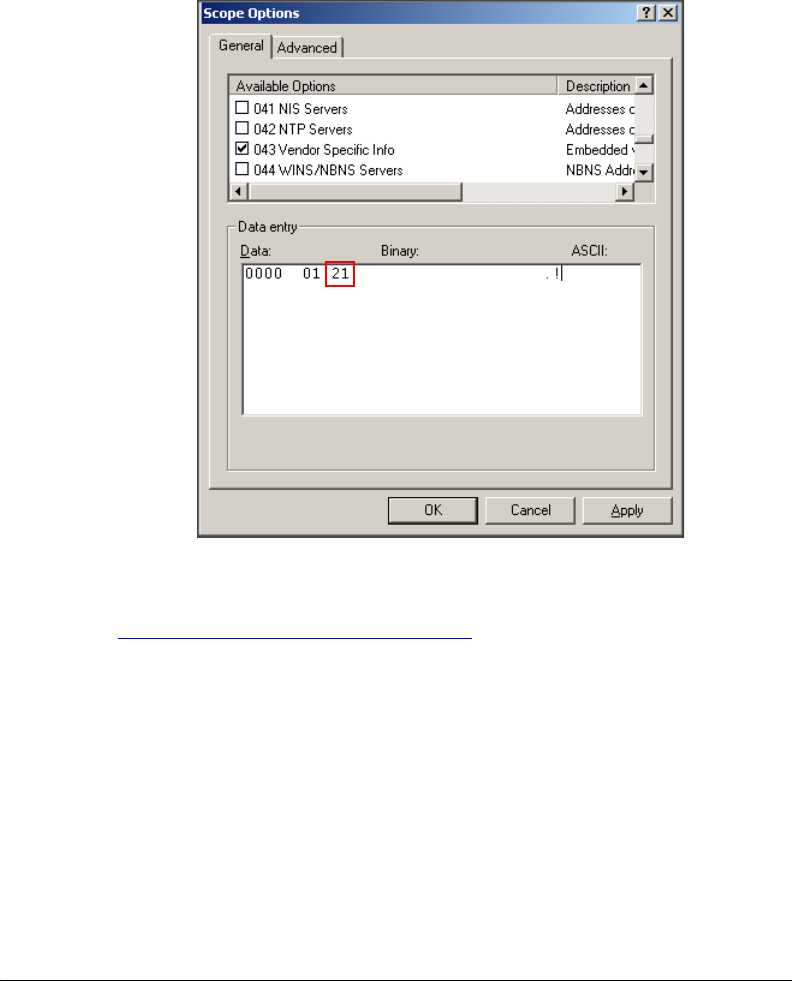

Figure 14. After the 01 subcode for FlexMaster, type 21 – the hexadecimal equivalent
of the FlexMaster server URL length
8. Position the cursor under the ASCII text area, and then type the FlexMaster server URL.
In the example below, the FlexMaster server URL is
http://192.168.10.1/intune/server.
24
Preparing for Installation
Pointing the CMAP to ZoneDirector

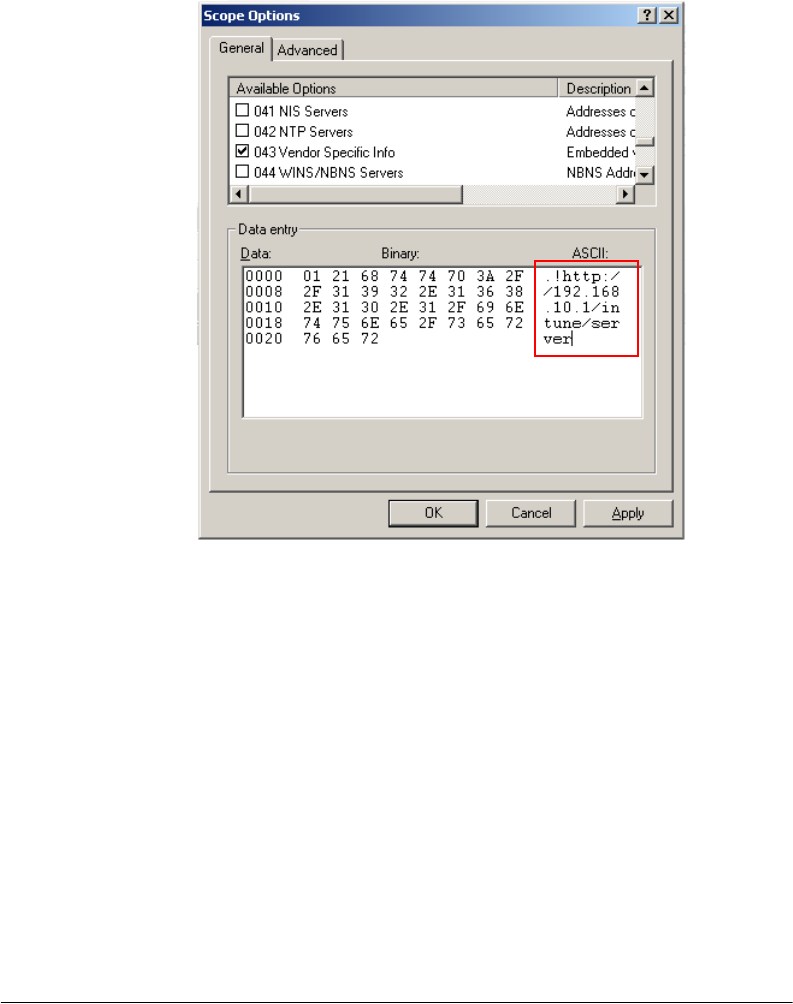

Figure 15. In the ASCII text area, type the FlexMaster server URL
9. Position your cursor again after the last octet (in this example, 72) under the Binary
text area, and then type 03 (the subcode for ZoneDirector).
25
Preparing for Installation
Pointing the CMAP to ZoneDirector
Figure 16. Under the Binary text area, type 03 (the subcode for ZoneDirector)
10. After the ZoneDirector subcode (03), type the hexadecimal equivalent of the length of
the ZoneDirector IP address length. For example, if the ZoneDirector IP address is
192.168.10.2, the length in decimal is 12 and the hexadecimal equivalent is 0C.
26
Preparing for Installation
Pointing the CMAP to ZoneDirector

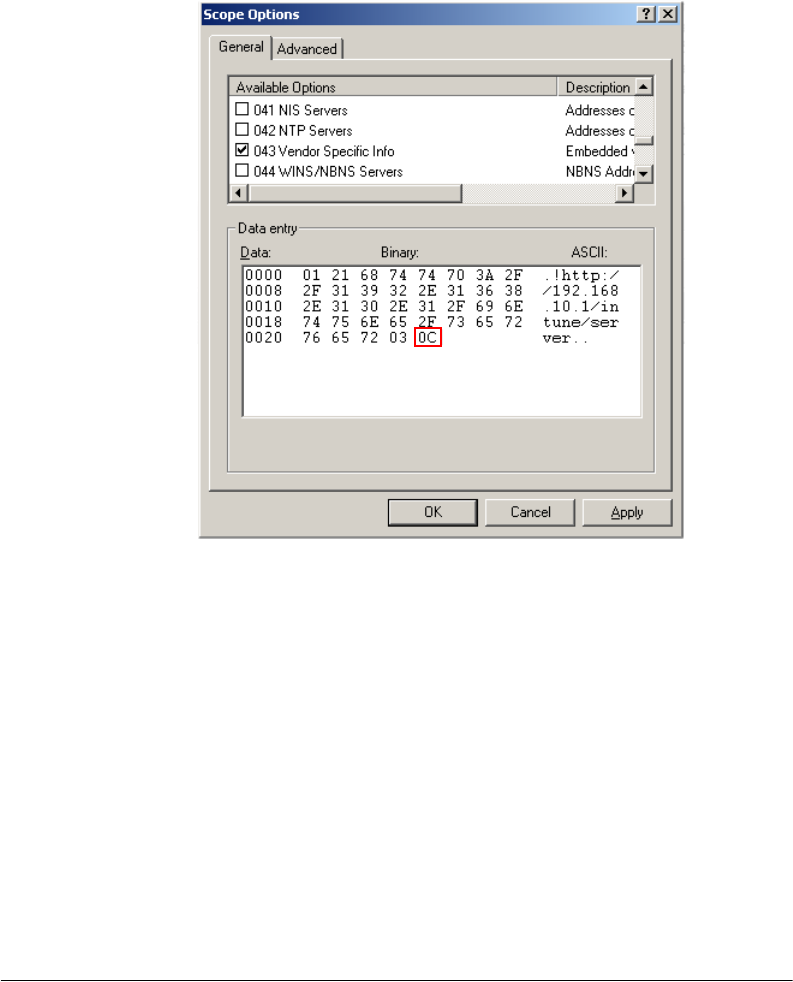

Figure 17. After the ZoneDirector subcode, type the hexadecimal equivalent of the
ZoneDirector IP address length
11. Position the cursor under the ASCII text area after the FlexMaster server URL, and then
type the ZoneDirector IP address. If you typed the hexadecimal equivalent of the
ZoneDirector IP address, there should be two bytes (represented by two periods)
between the FlexMaster URL and the ZoneDirector IP address.
In the example below, the ZoneDirector IP address is 192.168.10.2.
27
Preparing for Installation
Pointing the CMAP to ZoneDirector
Figure 18. In the ASCII text area, type the ZoneDirector IP address (two bytes after the
FlexMaster server URL)
12. Click Apply to save your changes.
13. Click OK to close the Scope Options dialog box.
You have completed configuring DHCP Option 43 to provide supported APs with the
FlexMaster server URL and ZoneDirector IP address.
There should be a two-
byte gap between the
FlexMaster URL and
ZoneDirector IP address
28
Hardware Features
Pointing the CMAP to ZoneDirector
4Hardware Features
Figure 19 and Figure 20 identify the CMAP features that are relevant to the installation and
mounting instructions that this guide provides. Before you begin the installation process,
Ruckus Wireless recommends that you first become familiar with these features.
Figure 19. CMAP parts and connectors (Connector side)
Antenna
Connector
DC Connector
Coaxial Cable
Connector B
Coaxial Cable
Connector A
Ethernet
Port
29
Hardware Features
Pointing the CMAP to ZoneDirector
Table 7. Parts and connectors on the CMAP
Label Description
Ethernet Port RJ45 port that supports 10/100Mbps connections and provides
Power over Ethernet (PoE) power to compliant devices.
Antenna Connector One of the three connectors for the three 5GHz antennas supplied
with the CMAP. The other two connectors are located on the other
side of the unit (see Figure 20).
DC Connector In addition to the power supplied by the coaxial cable from the
CMTS, the CMAP may also be DC powered.

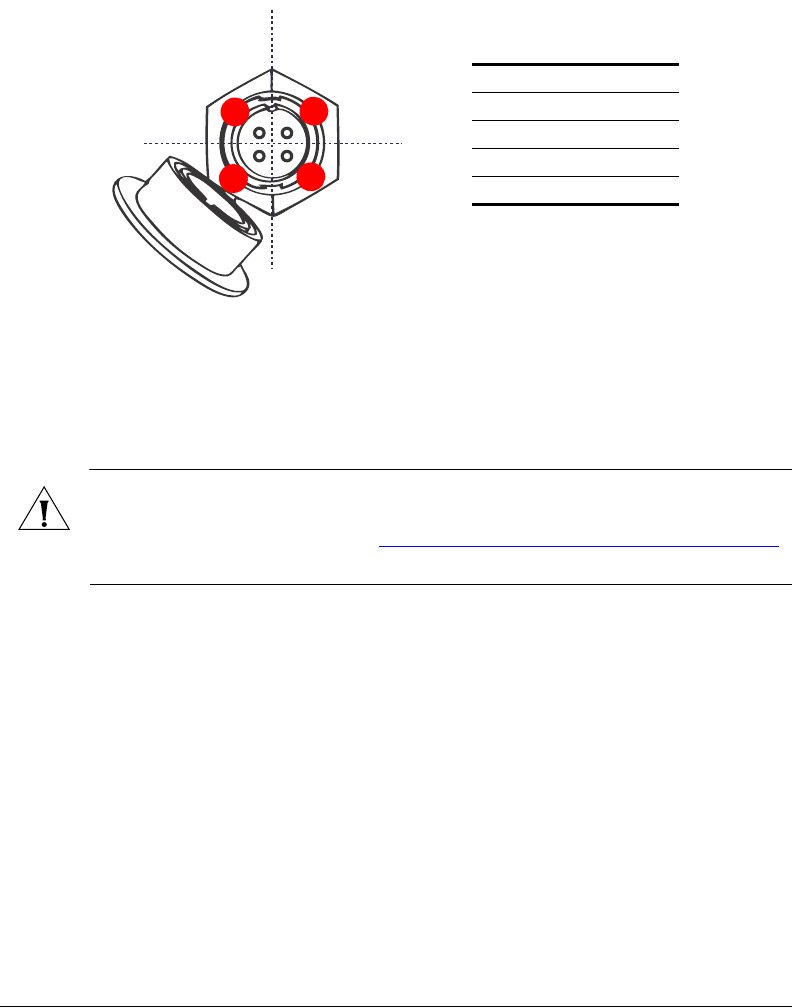

Shorting pins 3 and 4 in the DC power connector using an electrical
shunt will reset the CMAP to factory default settings. For more
information, refer to “Troubleshooting” on page 46.
Coaxial Cable
Connector A
Provides a 9 dB lower sample of the downstream RF signal as seen
by the modem electronics. Therefore, the CATV tap should be
selected to provide a measured downstream signal level on this
port, which is approximately 12 to 20 dBmV in the channel being
used.
Coaxial Cable
Connector B
Connects to the cable modem termination system (CMTS) at the
headend using a tap on the plant and it provides AC power to the
CMAP. AC power is supplied via Power Over Cable (POC). For
more information, see “Using Power Over Cable (Actual
Deployment)” on page 35.
30
Hardware Features
Weight and Dimensions

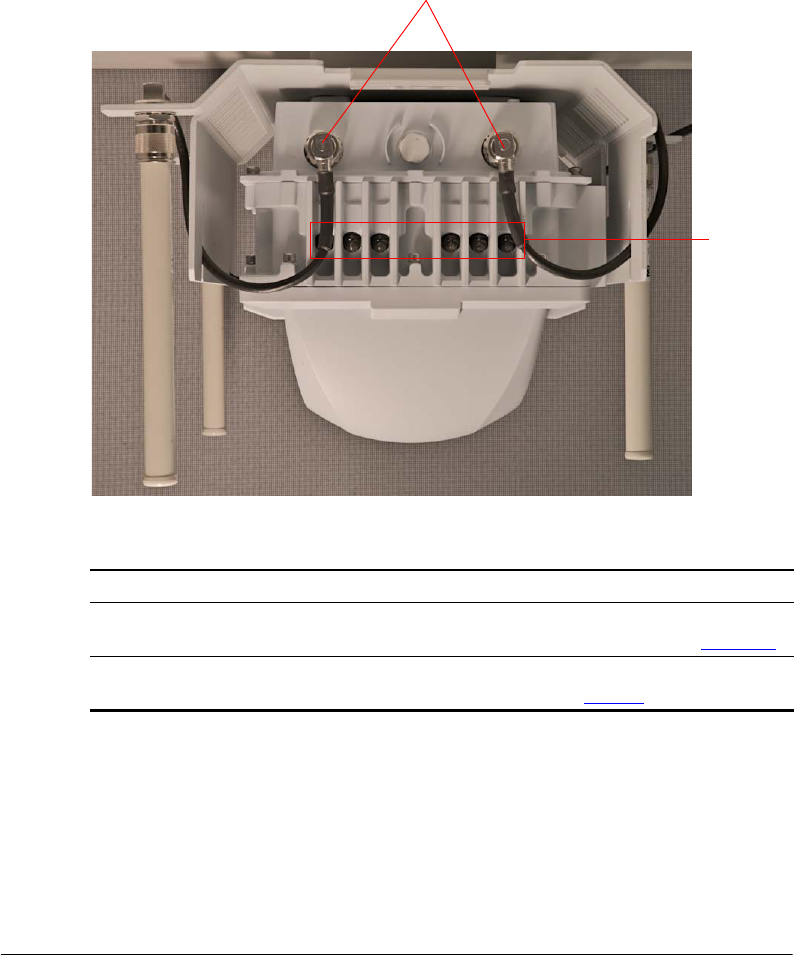

Figure 20. CMAP parts and connectors (LED side)
Weight and Dimensions
The CMAP has the following weight and dimensions:
■Unit weight: 14 pounds (6 Kg)
■Unit size: 33 x 42 x 21cm (plus the hangers, which add approximately 8 cm more to the
height)
■Shipping weight: 17 pounds (8 Kg)
■Shipping size: 39 x 41 x 52 cm
Table 8. LEDs and connectors on the CMAP
Label Description
Antenna Connectors Two of the three connectors for the 5GHz antennas. The other
connector is located on the other side of the unit (see Figure 19).
LEDs Six LEDs that indicate the different statuses of the CMAP and cable
modem. For more information, refer to “LEDs” on page 31.
Antenna
Connectors
LEDs
31
Hardware Features
Connectors
Connectors
The CMAP provides the following connectors:
■PoE-Out connector: RJ-45 port that can supply power to devices that support PoE.
■Three N-type antenna connectors: Connects to the three 5GHz antennas supplied with
the CMAP.
■DC power supply (Ruckus Wireless part number 705-60244-002): Connected through
a 4-pin connector, which is normally unused. It may be used to supply DC power to the
unit for testing or configuration purposes. The supply has a reset switch that may be
used to reset the unit. See “Using the Reset Switch on the DC Power Supply” on
page 40 for more information.
■Coaxial cable connectors (see Figure 19): Connector A may be connected to a
spectrum analyzer or signal analyzer to allow monitoring of the downstream signal.
Connector B must be connected to the CMTS backbone and AC power when deployed
in the field.
Ethernet/PoE-Out Port
The CMAP provides one 10/100Mbps RJ45 Ethernet port, which also functions as a PoE-
Out port. The PoE-Out port, which can supply up to 15.4 watts (compliant with 802.3af),
can be used to power PoE-capable devices (for example, an IP-based surveillance camera).
NOTE: The PoE-Out function is non-operational when the unit is powered via the 12 VDC
connector.
NOTE: By default, both Ethernet data and PoE-Out are enabled. If necessary, you can
disable PoE-Out from the Web interface. Refer to the AP User Guide for more information.
LEDs
Use the six LEDs to check the status of the access point and cable modem. The LEDs
behave differently when the access point is in standalone mode and when ZoneDirector
is managing it.
Upon bootup, the LEDs are in CM Mode. Once bootup is completed, the LEDs alternate
between CM Mode and AP Mode.
NOTE: The LEDs do not indicate whether the access point is in standalone mode or if
ZoneDirector is managing it. To check if ZoneDirector is managing the access point, log
into the ZoneDirector Web interface, go to the Access Points page, and then search for
32
Hardware Features
LEDs
the access point’s MAC address. If you are unable to find the access point, then it is very
likely to be in standalone mode. If you have multiple ZoneDirector devices on the network,
make sure you check each one of them.
Tabl e 9 describes the behavior of the LEDs on the CMAP when it is in CM, AP standalone,
and AP ZoneDirector modes.
Table 9. LED behavior in CM, AP Standalone, and AP ZoneDirector modes
CM Mode AP Standalone Mode AP ZoneDirector Mode
White On Off Off
Orange Off On On
Red DownStream At least one 2.4GHz wireless
client is associated with the
access point and signal
strength is strong.
At least one 2.4GHz wireless
client is associated with the
access point and signal
strength is strong.
Red Flashing Searching for
downstream
2.4GHz WLAN is up but no
clients.
2.4GHz WLAN is up but no
clients.
Yellow UpStream At least one 2.4GHz wireless
client is associated with the
access point and signal
strength is weak.
At least one 2.4GHz wireless
client is associated with the
access point and signal
strength is weak.
Green On_Line At least one 5GHz wireless
client is associated with the
access point and signal
strength is strong.
If AP is RAP, at least on MAP
is associated. If AP is MAP it
is associated with a RAP.
Signal strength is strong.
Blue Link At least one 5GHz wireless
client is associated with the
access point and signal
strength is weak.
If AP is RAP, at least on MAP
is associated. If AP is MAP it
is associated with a RAP.
Signal strength is weak.
33
Before You Begin
Supported Power Sources
Supported Power Sources
The CMAP supports the following power sources:
■Power over Cable (POC): 40 to 90V AC supplied through the RF coaxial cable (attached
to Connector B) that is connected to the cable modem termination system (CMTS)
backbone. POC is the primary and conventional source of power for the CMAP.
■DC power (via DC connector): External 12 VDC. Use this only when staging or
debugging the CMAP.
NOTE: PoE output is disabled when the CMAP is powered via the 12 VDC connector.
Heaters
The CMAP includes two built-in heaters that permit operation at extremely low
temperatures. They are typically on below 0 degrees C.
The heaters are enabled by default. If preferred, the access point heater can be disabled
from the Web interface. The cable modem heater cannot be disabled.
5Before You Begin
Before installing and setting up the CMAP, Ruckus Wireless recommends that you first
complete the following pre-installation tasks.
Prepare the Required Hardware and Tools
You must supply the following tools and equipment:
■A notebook computer running Windows 7/Vista/XP with one wireless 802.11b/g/n
network card and one Ethernet card installed
■Coaxial cable with a male F connector (connected to the CMTS backbone)
■If you plan to use DC to power the CMAP (for staging or debugging purposes only),
you will need a DC power supply (see DC Power Supply in “Connectors” on page 31).
NOTE: At the beginning of each procedure, this guide lists the specific tools, accessories,
and equipment that you will need to complete the procedure.
34
Before You Begin
Perform a Site Survey
Perform a Site Survey
Before installing the CMAP, perform a site survey to determine the optimal access point
placement for maximum range, coverage, and network performance. When performing a
site survey, consider the following factors:
■Data rates: Range is generally inversely proportional to data rates. The maximum radio
range is achieved at the lowest workable data rate. Higher data rates will generally be
achieved at closer distances.
■Physical environment: Clear or open areas provide better radio range than crowded
or filled areas. The less cluttered the operating environment, the greater the wireless
range.
■Obstructions, building materials, and sources of interference: Physical obstructions,
such as concrete pillars, steel beams, filing cabinets, buildings, or trees, can block or
hinder wireless communication. Avoid installing the CMAP in an environment where
there is an obstruction between sending and receiving devices. A number of machines
and electronic devices that emit radio waves – wireless phones, microwave ovens,
satellite dishes – interfere with and block wireless signals. Building materials used in
construction also influence radio signal penetration. For example, drywall construction
permits greater range than concrete blocks.
■Mounting: The CMAP is designed to hang on a 1/4 to 3/8" support wire. The hangers
will allow a 2" bundle of cables between the support wire and the CMAP.
■Power and backhaul connections: Of course, the CMAP needs a backhaul connection
to the CMTS and it needs to be close enough to an AC power inserter on the CATV
cable to assure that it will be able to pull 60 watts at greater than 45 VAC. If not, then
another power inserter must be installed closer to the CMAP. The CATV signal level
must be roughly 5 dBmV at the tap connection to the unit.
35
Powering the CMAP
Using DC Power (Staging or Debugging Only)
6Powering the CMAP
The CMAP supports both POC (AC) and DC power. Depending on whether you are have
access to 45 to 90 VAC on the CMTS CATV cable or would prefer to power it with 120-240
VAC and a 12 VDC adaptor, follow the relevant procedure below.
Using DC Power (Staging or Debugging Only)
Use DC power to supply power to the CMAP only when you are staging or debugging the
device in a lab environment. When performing the actual deployment of the CMAP, you
must use POC (see “Using Power Over Cable (Actual Deployment)” in the next section).
To supply power to the CMAP using DC power
1. Obtain a DC power supply (see DC Power Supply in “Connectors” on page 31).
2. Connect the DC power supply to the DC connector (shown in Figure 19).
3. Connect the DC adapter to a 120 -240 VAC source.
You have completed connecting the CMAP to a DC power source.
Using Power Over Cable (Actual Deployment)
When performing actual deployment of the CMAP, you must use only POC via an F-type
coaxial cable that is connected to the CMTS backbone.
To supply power to the CMAP using POC
1. Insert the F-type coaxial cable that is connected to the CMTS backbone to the F-type
connector (Connector B) on the CMAP. Power is supplied through a power passing tap
on the CATV coax. The tap is connected to Connector B on the CMAP.
2. Finger tighten the coaxial cable connector and then tighten to the recommended
torque specifications for the connector type that you are using.
3. Verify that the CMAP is receiving power by checking if any of the LEDs is on.
You have completed supplying power to the CMAP using POC.
36
Verifying Access Point Operation
Using Power Over Cable (Actual Deployment)
7Verifying Access Point Operation
After powering the CMAP, you can verify that the access point is operating normally by
associating a wireless client with it.
NOTE: The following procedure uses a wireless client that is running on Windows. If using
a wireless client that is running on a different operating system, refer to that operating
system’s documentation for instructions on how to associate with an access point.
To associate a wireless client with the AP
1. Obtain a Windows computer with a built-in or external wireless card.
2. In the system tray, right-click the (Wireless Network Connection) icon, and then
click View Available Wireless Networks.
3. In the list of available wireless network, click the network with the same SSID as you
configured in “Step 4: Configure the Wireless Settings” on page 10. For example, if
you set the SSID to Ruckus Wireless AP, click the wireless network named Ruckus
Wireless AP.
If ZoneDirector is managing the access point, the wireless settings would have been
included in the configuration file that the access point downloaded when it registered
with ZoneDirector. Check with your CMTS administrator and ask for the SSID that the
access point has been configured with.
4. Click Connect.
Your wireless client connects to the wireless network. After the wireless client connects
to the wireless network successfully, the wireless client icon in the system tray changes
to .
5. Verify that you can connect to the Internet by starting your Web browser, and then
visiting http://www.ruckuswireless.com. If you are able to view the Ruckus
Wireless web site, then your wireless client is able to successfully connect to the Internet
through the access point.
You have completed verifying the access point operation.
8Switching LEDs to Cable Modem Mode
The LEDs indicate the statuses of both the access point and cable modem components.
However, they can only show the status of one or the other at a time – either access point
status only (AP Mode) or cable modem status only (CM Mode).
37
Switching LEDs to Cable Modem Mode
Using the AP’s Web Interface to Switch to CM Mode
When the access point boots up, the LEDs are in CM Mode. Once it completes the bootup
process, the LEDs alternate between CM Mode and AP Mode. The LEDs are color-coded
to enable you to quickly identify the current LED mode:
■If you see an orange LED, the LEDs are in AP Mode.
■If you see a white LED, the LEDs are in CM Mode.
If you want the LEDs to stay in CM Mode, you need to manually switch them to CM Mode.
You can switch to CM Mode through the following methods:
■Using the AP’s Web Interface to Switch to CM Mode
■Using SNMP to Switch to CM Mode
Using the AP’s Web Interface to Switch to CM Mode
To use the Web interface to switch the LEDs to CM Mode
1. Log onto the access point’s Web interface.
2. On the menu, click Administration > LED Diagnostics.
3. In LED Mode, click one of the following modes:
•(1) Cable Modem: Click this option if you want the LEDs to stay in CM Mode until
you switch them to another mode.
•(3) Alternate between modes and 1 at 30 second period then disabled after
60 minutes: Click this option if you want the LEDs to switch to CM Mode as soon
as you click Save, and then alternate with AP Mode every 30 seconds.
4. Click Save.
5. Check the access point for a white LED. This indicates that the LEDs are now in CM
Mode.
NOTE: If you see an orange LED, this indicates that the LEDs are still in AP Mode.
You have completed switching the LEDs to CM Mode using the access point’s Web
interface.
38
Switching LEDs to Cable Modem Mode
Using SNMP to Switch to CM Mode
Figure 21. The LED Diagnostics page
Using SNMP to Switch to CM Mode
Use SNMP to set MIB values on the CMAP that control the LED mode.
NOTE: Before starting this procedure, you must first obtain the related MIBs from Ruckus
Wireless. Contact your authorized Ruckus Wireless sales representative or Ruckus Wireless
Support. Visit http://support.ruckuswireless.com/contacts for contact
information.
To switch the LEDs to CM Mode using SNMP
1. Start your MIB browser.
2. Load the Ruckus Wireless MIBs onto the MIB browser.
3. In the MIB browser, specify the IP address of the CMAP that you want to configure.
4. Find the OID 1.3.6.1.4.1.25053.3.1.4.7.3 (ruckusZF7761CMControlLED).
5. Set the value to one of the following:
•1: ledPerCM(1) – After you set the LEDs to CM Mode, they will stay in CM Mode
until you switch them to another mode.
•2: ledPerCMOneHour(2) – After you set the LEDs to CM Mode, they will stay
in CM Mode for one hour, and then they will turn off.
6. Check the CMAP for a white LED. This indicates that the LEDs are now in CM Mode.
39
Switching LEDs to Cable Modem Mode
Using SNMP to Switch to CM Mode
NOTE: If you see an orange LED, this indicates that the LEDs are still in AP Mode.
You have completed switching the LEDs to CM Mode using SNMP.
40
Resetting the Access Point to Factory Default Settings
Using the Reset Switch on the DC Power Supply
9Resetting the Access Point to Factory
Default Settings
There are two ways to reset the access point to factory default settings:
■Using the Reset Switch on the DC Power Supply
■Using SNMP to Reset the Access Point
CAUTION: Resetting the access point to factory default settings will erase all the settings
that you have previously configured on the device. Note, too, that this will disrupt all
wireless network communications through this device.
Using the Reset Switch on the DC Power Supply
The DC power supply (see DC Power Supply in “Connectors” on page 31) includes a reset
switch that you can use to reset the access point to its factory default settings.
CAUTION: Performing this procedure resets both the CM and AP components to their
factory default settings. If you only want to reset the AP component to its factory default
setting, perform the procedure described in “Using the Reset Switch on the DC Power
Supply” on page 40 instead.
To reset the access point to factory defaults the DC power supply
1. Verify that the access point is receiving power from the coaxial cable.
2. If the DC connector on the access point is protected by its cap, remove the cap.
3. Connect the DC adapter to the DC connector on the access point.
4. Connect the DC power adapter to a power source.
5. Press the reset switch (labeled 3 in Figure 4) for eight seconds.
The LEDs go off as the access point resets itself to factory default settings. When the
orange LED comes on, it indicates that the access point has completed the reset process.
41
Resetting the Access Point to Factory Default Settings
Using SNMP to Reset the Access Point
Figure 22. Pinout connections for the DC connector
Using SNMP to Reset the Access Point
You can use SNMP on either the access point or cable modem to reset the AP to factory
default settings. The procedure is the same, regardless whether you perform this operation
from the AP or CM.
CAUTION: Performing this procedure resets only the AP component to its factory default
settings. If you want to reset both the CM and AP components to factory default settings,
perform the procedure described in “Using the Reset Switch on the DC Power Supply”
on page 40 instead.
Before You Begin
Before starting this procedure, you must first obtain the following:
■The IP address that is assigned to the access point that you want to reset to factory
default settings. You can obtain this information from the DHCP server on the network.
■Obtain the related MIBs from Ruckus Wireless. Contact your authorized Ruckus
Wireless sales representative or Ruckus Wireless Support. For the Ruckus Wireless
Support contact information, visit the following Web address:
http://support.ruckuswireless.com/contacts
To reset the access point to factory defaults using SNMP
1. Connect the administrative computer to the same network as the access point.
2. Start your MIB browser.
3. Load the Ruckus Wireless MIBs onto the MIB browser.
No. Pinout
1+DC power
2-DC power
3Factory reset
4Ground
14
23
42
Resetting the Access Point to Factory Default Settings
Using SNMP to Reset the Access Point
4. In the MIB browser, specify the IP address of the access point that you want to reset to
factory default settings.
5. Find the OID 1.3.6.1.4.1.25053.3.1.4.7.3 (ruckusZF7761CMControlLED).
6. Set the value to 12 (factoryResetAP).
You have completed resetting the access point to factory default settings using SNMP.
43
Resetting the CM to Factory Default Settings
Using SNMP to Reset the Access Point
10 Resetting the CM to Factory Default
Settings
You can also use SNMP on either the access point or cable modem to reset the CM to
factory default settings. The procedure is the same, regardless whether you perform this
operation from the AP or CM.
CAUTION: Performing this procedure resets only the CM component to its factory default
settings. If you want to reset both the CM and AP components to factory default settings,
perform the procedure described in “Using the Reset Switch on the DC Power Supply”
on page 40 instead.
Before You Begin
Before starting this procedure, you must first obtain the following:
■The IP address that is assigned to the access point that you want to reset to factory
default settings. You can obtain this information from the DHCP server on the network.
■Obtain the related MIBs from Ruckus Wireless. Contact your authorized Ruckus
Wireless sales representative or Ruckus Wireless Support. For the Ruckus Wireless
Support contact information, visit the following Web address:
http://support.ruckuswireless.com/contacts
To reset the access point to factory defaults using SNMP
1. Connect the administrative computer to the same network as the cable modem.
2. Start your MIB browser.
3. Load the Ruckus Wireless MIBs onto the MIB browser.
4. In the MIB browser, specify the IP address of the cable modem that you want to reset
to factory default settings.
5. Find the OID 1.3.6.1.4.1.25053.3.1.4.7.3 (ruckusZF7761CMControlLED).
6. Set the value to 15 (factoryResetCM).
You have completed resetting the cable modem to factory default settings using SNMP.
44
Mounting the CMAP
Using SNMP to Reset the Access Point
11 Mounting the CMAP
To mount the CMAP assembly on a cable strand, you need to secure the cable clamps that
are attached to the strand interface bracket to the cable strand.
NOTE: The CMAP must be installed on a cable strand by a professional cable installer.
The CATV coaxial cable used in the actual field deployment must have 45 to 90 VAC power
multiplexed with the RF signal on the coaxial cable since Connector B is used for both
electrical power and the RF signal.
To mount the CMAP
1. Slightly loosen the square nuts that fasten the two cable clamps to the strand bracket,
enough for the strand support cable to fit into the cable clamps.
2. Place the cable clamps on the strand support cable.
3. Tighten the two square nuts to approximately 16 ft-lbs to secure the mounting.
4. Connect the CATV connector from the cable lines to Connector B on the CMAP. Select
a CATV power passing tap that will supply a signal level between -15 and +15 dBuV at
its output (prefer 0 to 6 dBuV). Connect the CMAP's Connector B to the tap's output
using an RG6 quad shield cable.
NOTE: You may use the CMAP's loop-through function on Connector A to measure the
downstream signal level at the internal cable modem. Connector A's signal level is
approximately 9 dB lower than the signal at the input to the modem.
You have completed mounting the CMAP on the cable strand.
You may now install the three external antennas. See “Installing the Antennas” on page 45
for more information.
45
Installing the Antennas
Using SNMP to Reset the Access Point
12 Installing the Antennas
After you mount the CMAP on the cable strand, the next step is to install the three 5GHz
antennas that are supplied with the CMAP.
CAUTION: To avoid damaging the antennas, Ruckus Wireless strongly recommends that
you install the antennas only after you mount the CMAP on the cable strand and have
attached the strand coaxial cable to Connector B. See the preceding section.
To install the external antennas
1. Take out the three antennas that were shipped with the CMAP.
2. Locate the three N type female bulkhead connectors on the underside of the strand
interface.
3. Take one antenna and then mate its end (N type male connector) with the N type female
bulkhead connector on the strand interface.
4. Using your fingers, turn the connector nut only on the antenna to tighten the
connection.
5. Repeat the previous two steps for the two remaining antennas.
6. Verify that all three antennas are securely attached to the strand interface.
7. Verify that all antenna connectors from the strand interface are securely fastened to
the CMAP.
You have completed attaching the external antennas to the strand interface.
NOTE: After verifying correct connections and correct operation, you may choose to wrap
the connectors with self-fusing tape if you deem that they require protection from local
weather.
46
What to Do Next
Change the Administrative Password
13 What to Do Next
The following are some of the post-installation tasks that Ruckus Wireless recommends.
Refer to the ZoneFlex 7761CM Dual Band 802.11n Outdoor Access Point with Integrated
Cable Modem User Guide for more information on configuring and managing the access
point.
Change the Administrative Password
Management access to the Web interface of the access point is controlled through
administrative user name and password. As soon as you complete the access point setup,
make sure you log on to the access point’s Web interface and change the default
administrative user name and password. This will help prevent unauthorized users from
logging in to the access point’s Web interface and changing the access point settings to
compromise your network.
Read Related Documentation
If you are using FlexMaster or ZoneDirector to manage the access point, make sure you
read the accompanying documentation to learn how to configure and manage the access
point from the FlexMaster and ZoneDirector Web interface.
The latest versions of Ruckus Wireless access point documentation are available for
download on the Ruckus Wireless Support Web site at:
http://support.ruckuswireless.com/documents
14 Troubleshooting
This section lists some information that may be useful in troubleshooting the CMAP. Topics
discussed include:
■Retrieving the CM’s MAC Address
■How Radio Frequency Scanning Works
■Contacting Ruckus Wireless Support
Retrieving the CM’s MAC Address
There are some configuration operations that require you to enter the CM’s MAC address.
If the CM’s MAC address is not printed on the CMAP, you can retrieve it via the command
line interface.
To perform this procedure, you will need the following:
■An administrative computer
47
Troubleshooting
How Radio Frequency Scanning Works
■An Ethernet cable
■A Telnet or SSH (secure shell) client program
Do the following
1. Connect one end of the Ethernet cable to the administrative computer’s Ethernet port,
and then connect the other end to the CMAP’s Ethernet port.
2. Change the administrative computer’s IP address to the same subnet as the CMAP.
The CM’s default IP address is 192.168.100.1.
3. Start the Telnet or SSH client program on the administrative computer.
4. Log onto to the CM via Telnet or SSH using the following logon details:
•User name: super
•Password: mso-admin
5. When the command prompt appears, enter the following command:
cd n
cd hal
mac_address 1
The command prompt displays the CM’s MAC address.
How Radio Frequency Scanning Works
To perform radio frequency scanning, the AP does the following:
1. Looks at the last “known good channel” (repeat this every 64 channel checks).
2. Checks the sixteen last known frequencies (repeat this every 32 channel checks).
3. Scans standard channels (where the center of the channel is an integer spaced by 6
MHz), first [from 94.25 MHz to 1001.25 MHz - 152 channels]).
4. Scans the harmonically related carriers (HRC) channels, which moves the channels 1.25
MHz off the standard frequencies so the video carriers are all related by 6 MHz [from
93 to 999 MHz - 152 channels].
A complete frequency scan requires approximately 469 channel checks. Since each
channel takes about 0.6 seconds, a full scan is done every 281 second (a little under 5
minutes).
Contacting Ruckus Wireless Support
For assistance in troubleshooting other issues that are not described in this guide, contact
Ruckus Wireless technical support (see below):
■Email: support@ruckuswireless.com
■Web Site: http://support.ruckuswireless.com/
48
Troubleshooting
Contacting Ruckus Wireless Support
■Support Forum: http://forums.ruckuswireless.com/
