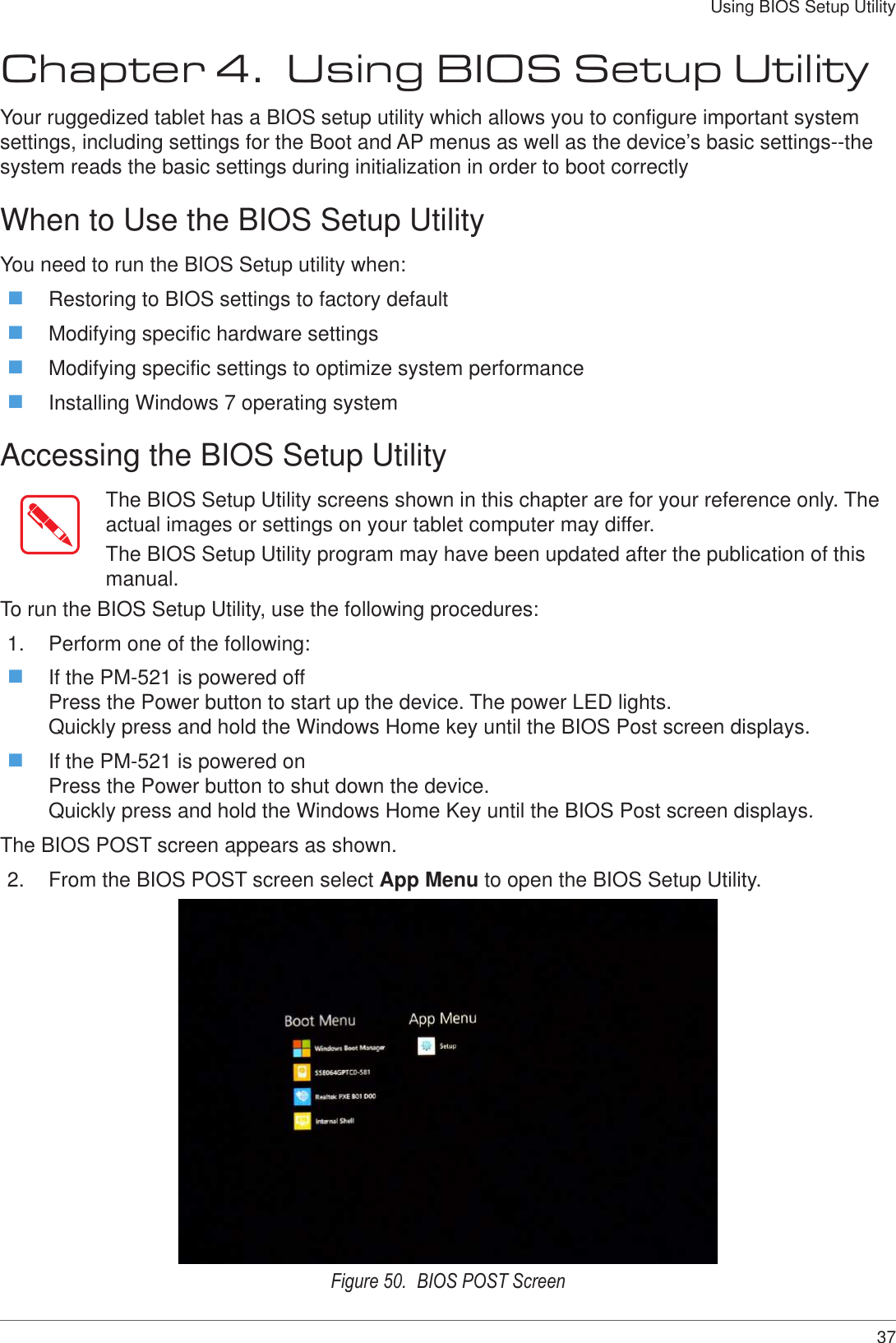

37Using BIOS Setup UtilityChapter 4. Using BIOS Setup UtilityYour ruggedized tablet has a BIOS setup utility which allows you to configure important system settings, including settings for the Boot and AP menus as well as the device’s basic settings--the system reads the basic settings during initialization in order to boot correctlyWhen to Use the BIOS Setup UtilityYou need to run the BIOS Setup utility when: Restoring to BIOS settings to factory default Modifying specific hardware settings Modifying specific settings to optimize system performance Installing Windows 7 operating systemAccessing the BIOS Setup UtilityThe BIOS Setup Utility screens shown in this chapter are for your reference only. The actual images or settings on your tablet computer may differ.The BIOS Setup Utility program may have been updated after the publication of this manual.To run the BIOS Setup Utility, use the following procedures:1. Perform one of the following: If the PM-521 is powered off Press the Power button to start up the device. The power LED lights. Quickly press and hold the Windows Home key until the BIOS Post screen displays. If the PM-521 is powered on Press the Power button to shut down the device. Quickly press and hold the Windows Home Key until the BIOS Post screen displays.The BIOS POST screen appears as shown.2. From the BIOS POST screen select App Menu to open the BIOS Setup Utility.Figure 50. BIOS POST Screen
38Using BIOS Setup UtilityDue to the device’s fast boot up and boot down time, there is only a small time frame of a few seconds between the release of the Power button and the opportunity to press the Windows Home key.The App Menu displays.Figure 51. BIOS Setup Utility: App Menu ScreenInstallation an Operating SystemSetting Up a Windows 7 Installation EnvironmentThere are several settings in BIOS that must be modified before you can install a Windows 7 operating system.Use the following guidelines to prepare the BIOS environment: Step 1: Enable CSM Support1. Access the BIOS Setup Utility, see “Accessing the BIOS Setup Utility” on page 37.2. Navigate to APP Menu > Main > Boot Features.3. Locate the CSM Support setting and tap the drop-down menu to display the options.

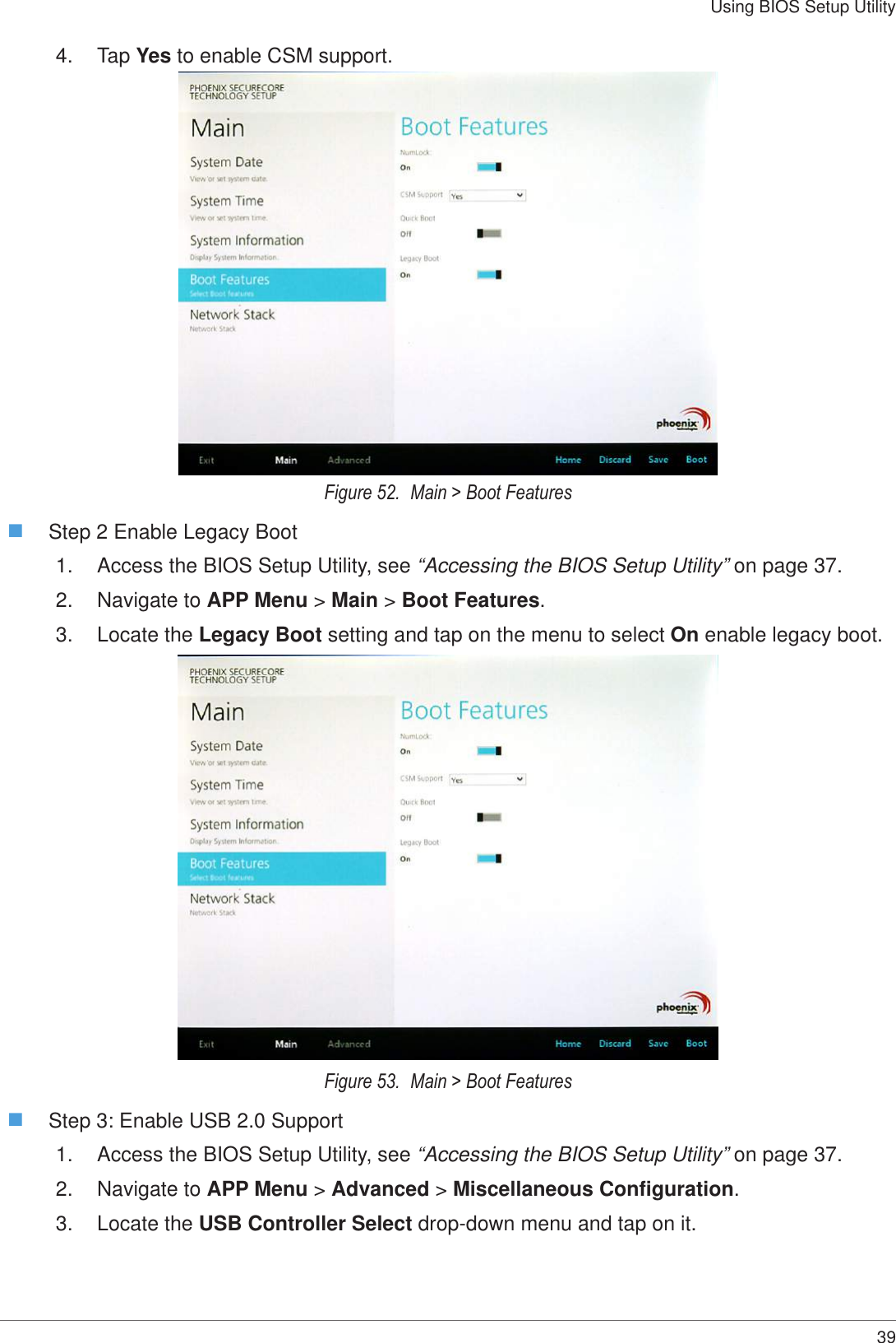

39Using BIOS Setup Utility4. Tap Yes to enable CSM support. Figure 52. Main > Boot Features Step 2 Enable Legacy Boot1. Access the BIOS Setup Utility, see “Accessing the BIOS Setup Utility” on page 37.2. Navigate to APP Menu > Main > Boot Features.3. Locate the Legacy Boot setting and tap on the menu to select On enable legacy boot. Figure 53. Main > Boot Features Step 3: Enable USB 2.0 Support1. Access the BIOS Setup Utility, see “Accessing the BIOS Setup Utility” on page 37.2. Navigate to APP Menu > Advanced > Miscellaneous Configuration.3. Locate the USB Controller Select drop-down menu and tap on it.

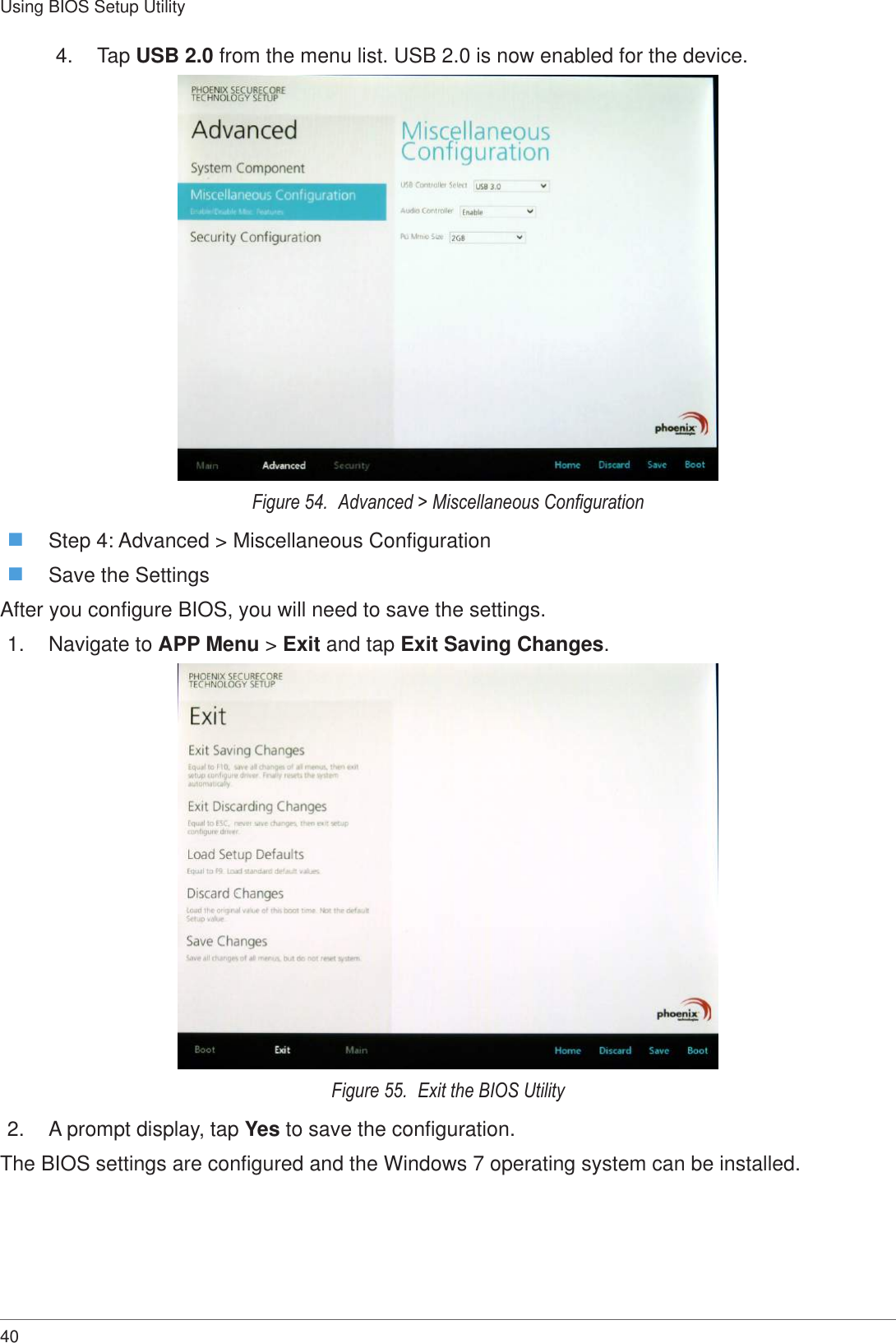

40Using BIOS Setup Utility4. Tap USB 2.0 from the menu list. USB 2.0 is now enabled for the device.Figure 54. Advanced > Miscellaneous Conguration Step 4: Advanced > Miscellaneous Configuration Save the SettingsAfter you configure BIOS, you will need to save the settings.1. Navigate to APP Menu > Exit and tap Exit Saving Changes.Figure 55. Exit the BIOS Utility2. A prompt display, tap Yes to save the configuration.The BIOS settings are configured and the Windows 7 operating system can be installed.
41Using BIOS Setup UtilityBIOS PasswordsSetting Up a Supervisor PasswordTo setup a supervisor password, follow the procedure as described:1. Go to APP Menu > Security > Account’s Password Status.2. Tap the Enter icon next to Setup the Supervisor Password to access the virtual keyboard.Figure 56. Security > Account’s Password Status3. Tap the password to use for the Supervisor profile and tap Enter.Figure 57. Set Supervisor Password

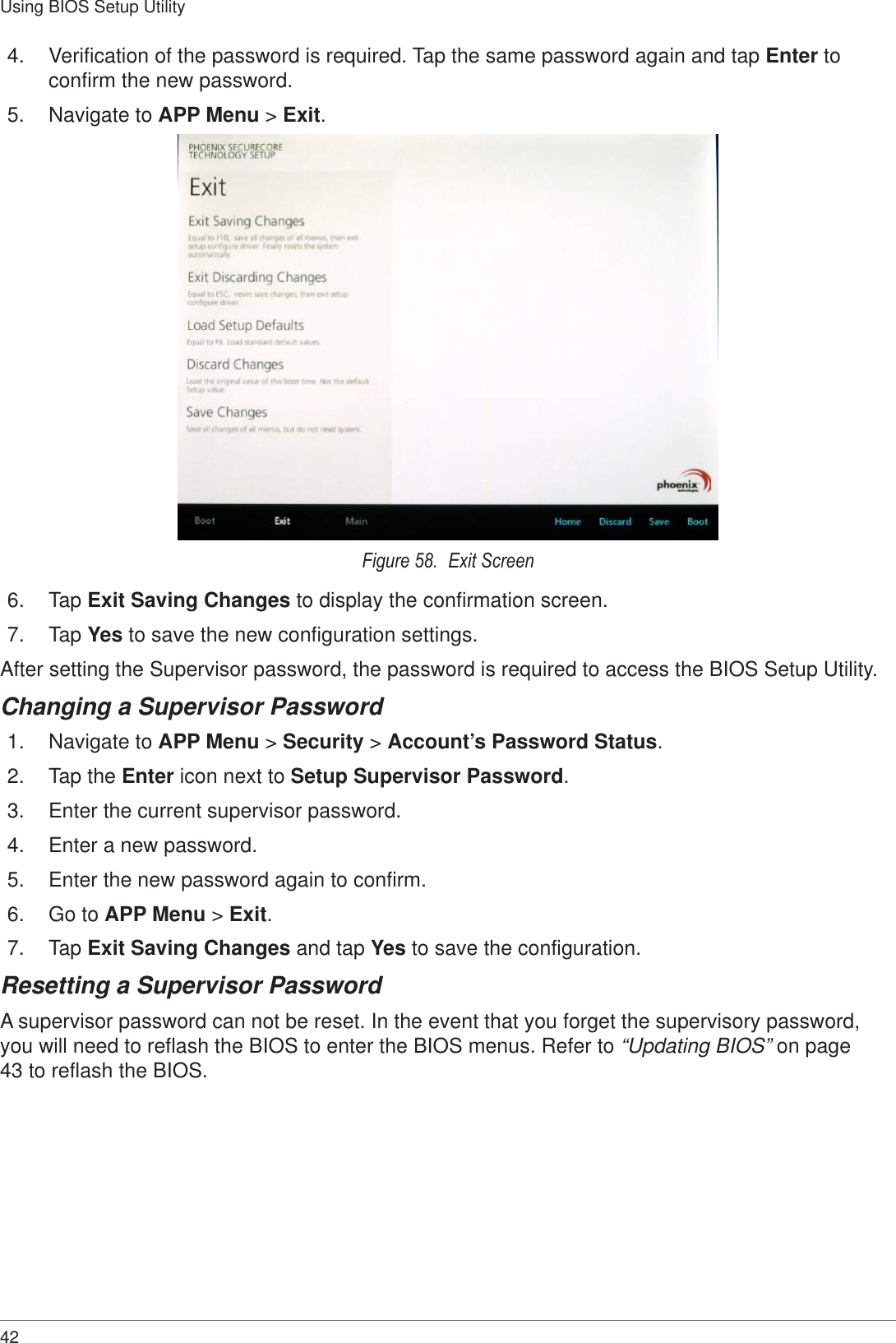

42Using BIOS Setup Utility4. Verification of the password is required. Tap the same password again and tap Enter to confirm the new password.5. Navigate to APP Menu > Exit.Figure 58. Exit Screen6. Tap Exit Saving Changes to display the confirmation screen.7. Tap Yes to save the new configuration settings.After setting the Supervisor password, the password is required to access the BIOS Setup Utility.Changing a Supervisor Password1. Navigate to APP Menu > Security > Account’s Password Status.2. Tap the Enter icon next to Setup Supervisor Password.3. Enter the current supervisor password.4. Enter a new password.5. Enter the new password again to confirm.6. Go to APP Menu > Exit.7. Tap Exit Saving Changes and tap Yes to save the configuration.Resetting a Supervisor PasswordA supervisor password can not be reset. In the event that you forget the supervisory password, you will need to reflash the BIOS to enter the BIOS menus. Refer to “Updating BIOS” on page 43 to reflash the BIOS.

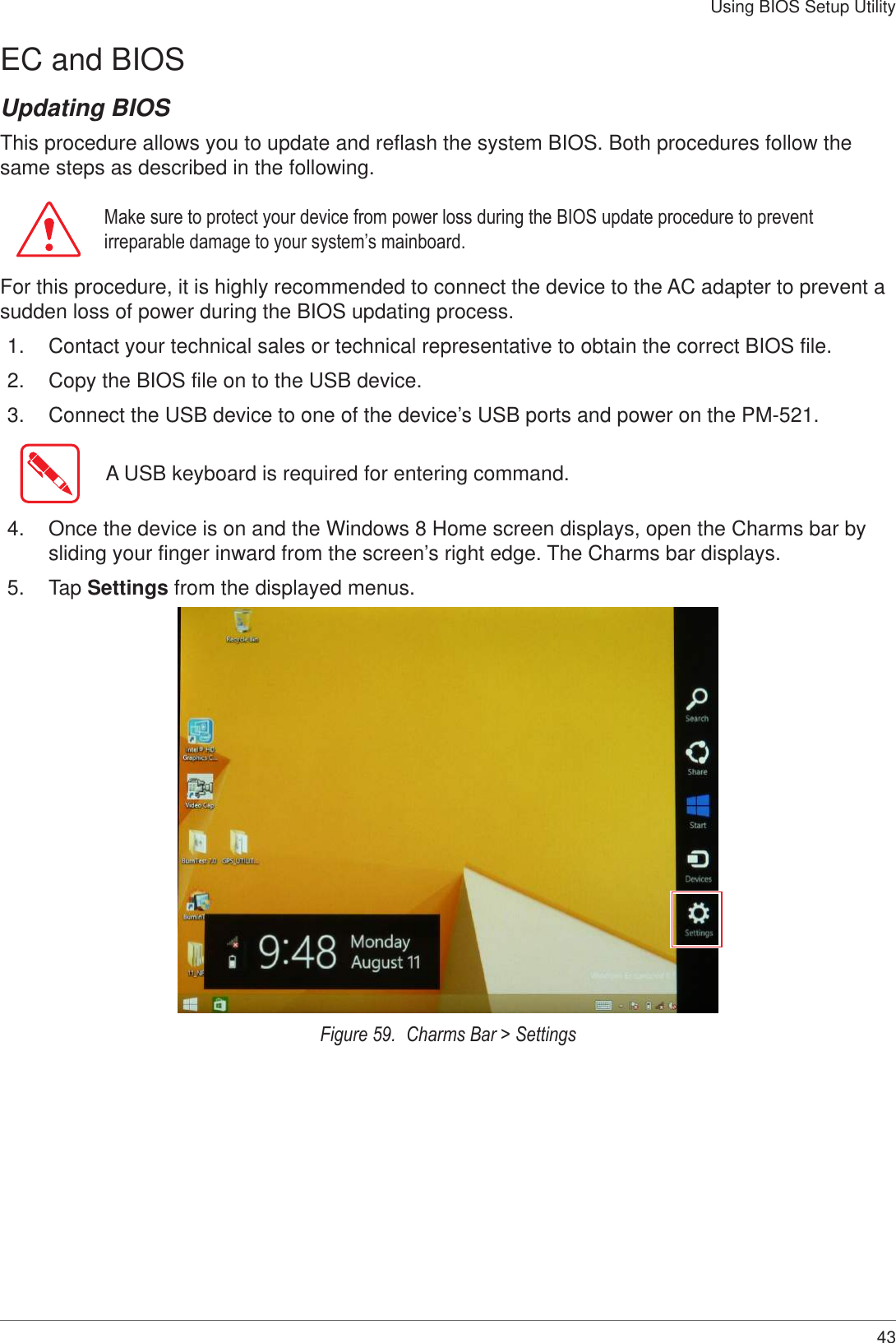

43Using BIOS Setup UtilityEC and BIOSUpdating BIOSThis procedure allows you to update and reflash the system BIOS. Both procedures follow the same steps as described in the following. Make sure to protect your device from power loss during the BIOS update procedure to prevent irreparable damage to your system’s mainboard.For this procedure, it is highly recommended to connect the device to the AC adapter to prevent a sudden loss of power during the BIOS updating process.1. Contact your technical sales or technical representative to obtain the correct BIOS file.2. Copy the BIOS file on to the USB device.3. Connect the USB device to one of the device’s USB ports and power on the PM-521.A USB keyboard is required for entering command.4. Once the device is on and the Windows 8 Home screen displays, open the Charms bar by sliding your finger inward from the screen’s right edge. The Charms bar displays.5. Tap Settings from the displayed menus.Figure 59. Charms Bar > Settings

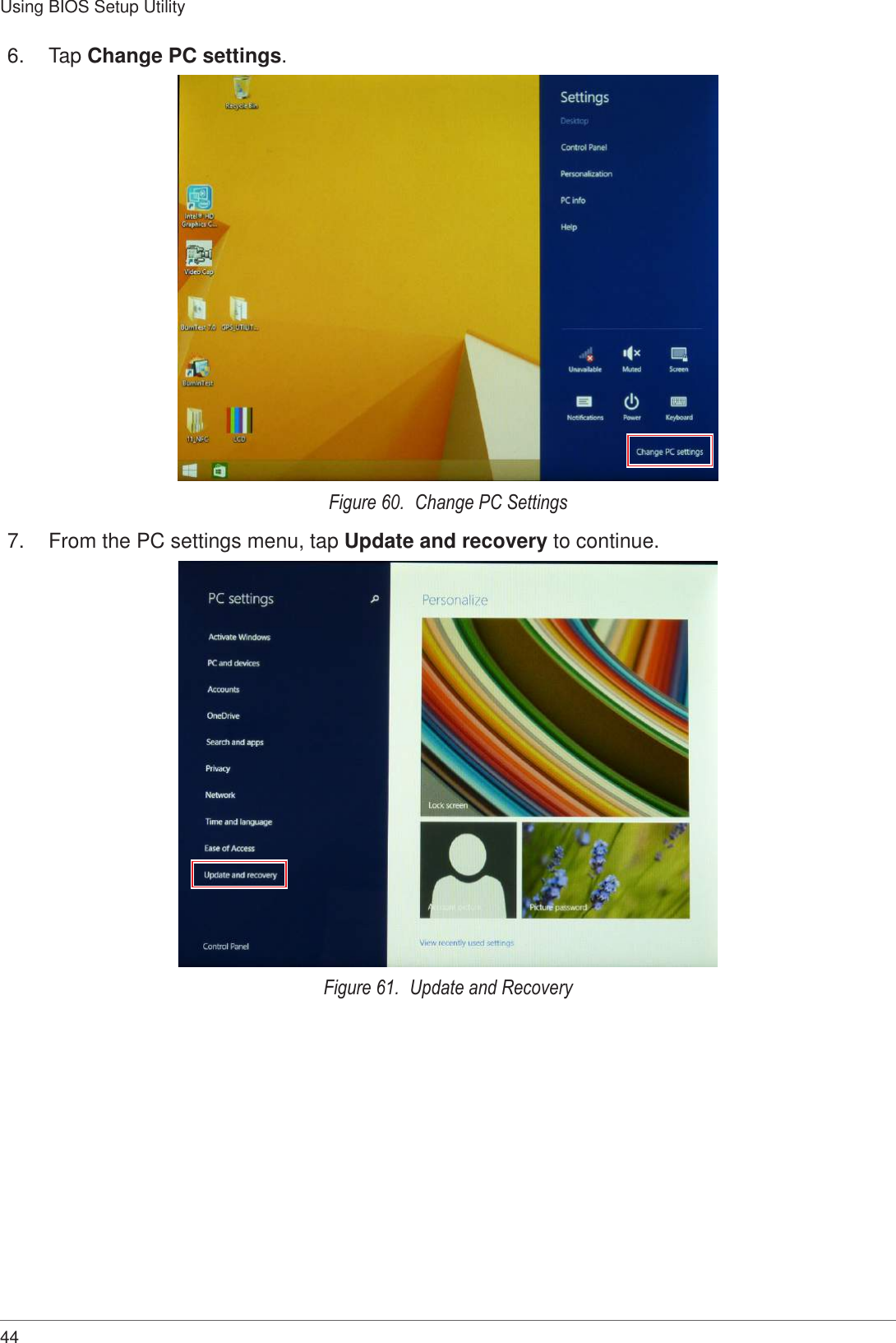

44Using BIOS Setup Utility6. Tap Change PC settings.Figure 60. Change PC Settings7. From the PC settings menu, tap Update and recovery to continue.Figure 61. Update and Recovery

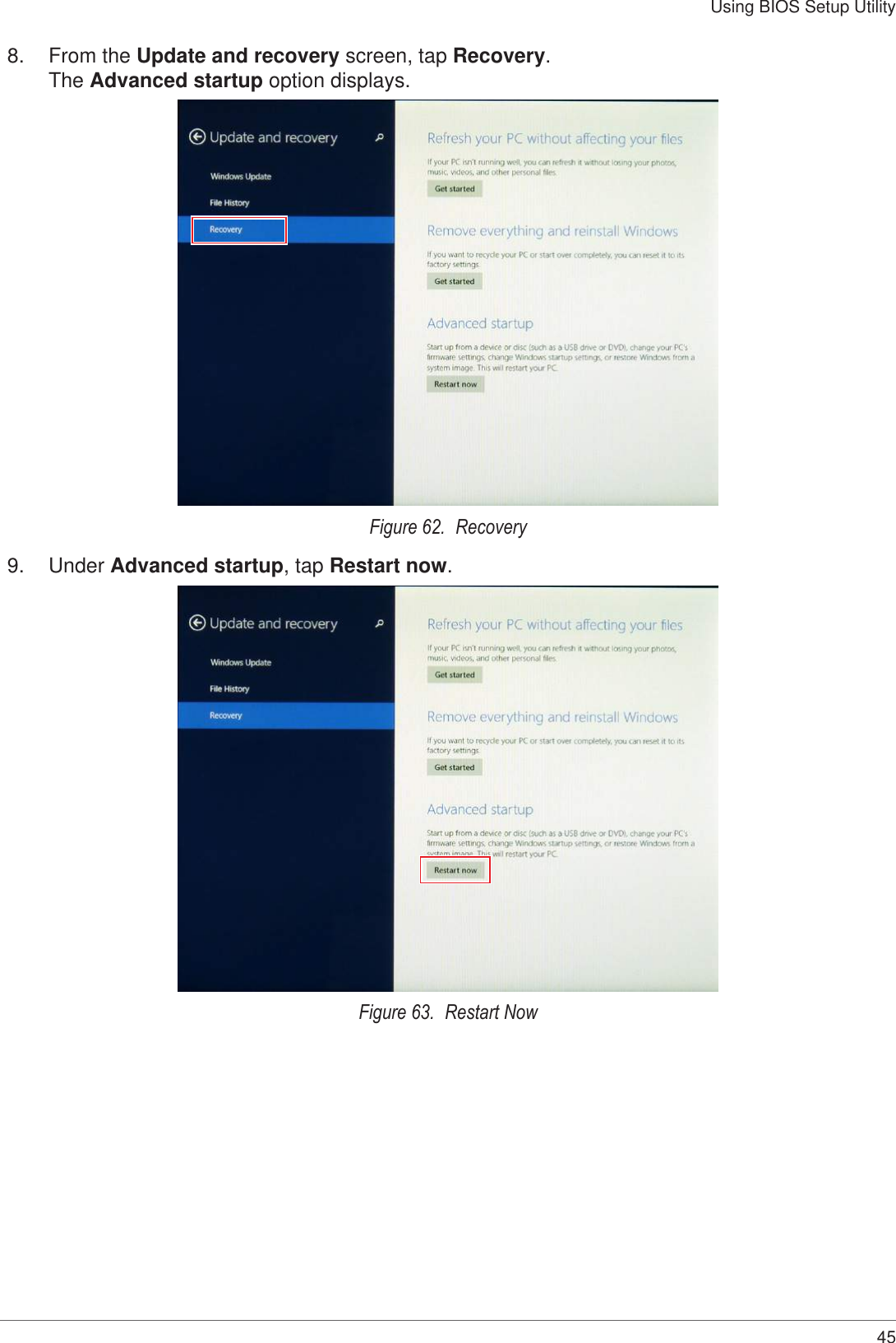

45Using BIOS Setup Utility8. From the Update and recovery screen, tap Recovery. The Advanced startup option displays.Figure 62. Recovery9. Under Advanced startup, tap Restart now.Figure 63. Restart Now

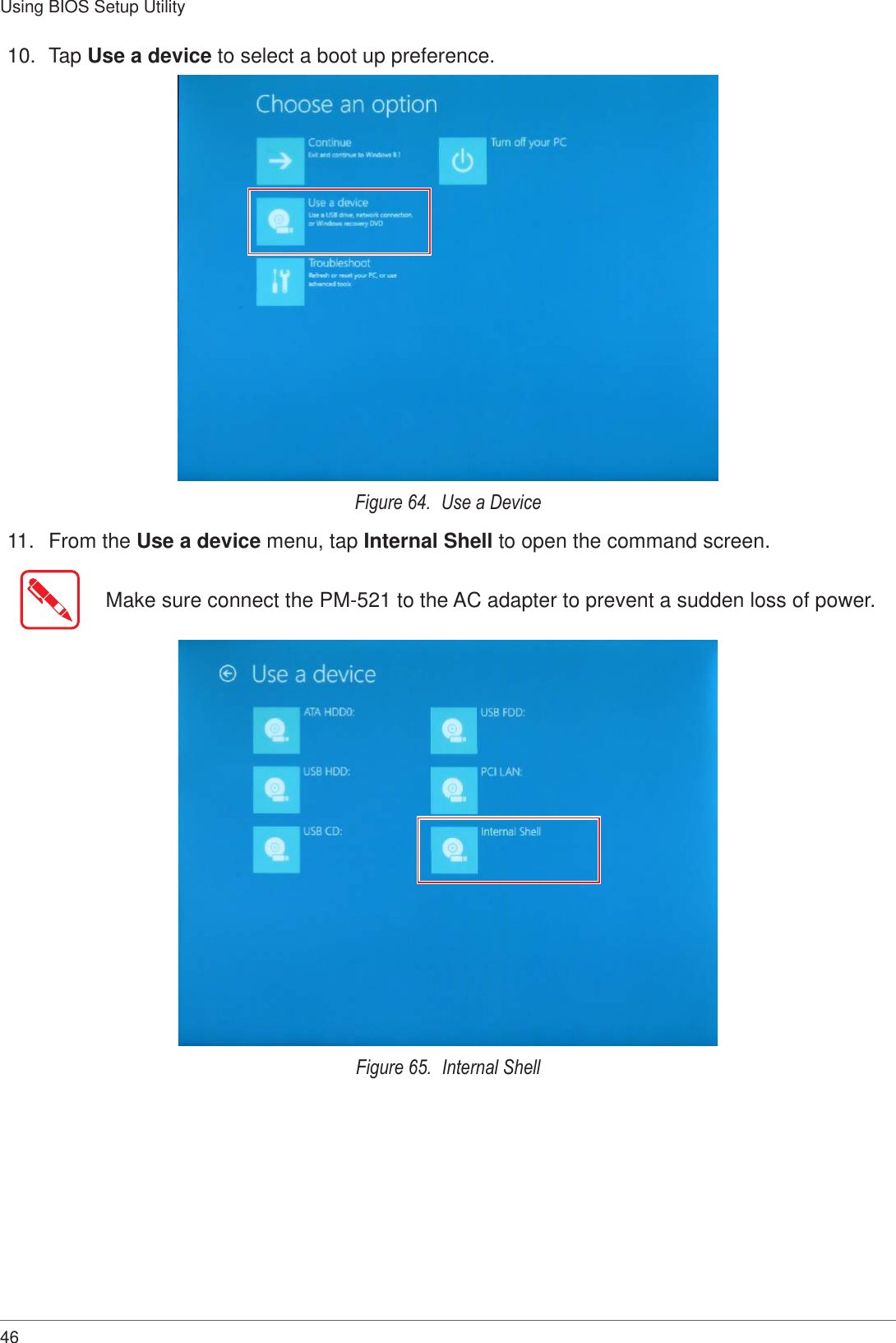

46Using BIOS Setup Utility10. Tap Use a device to select a boot up preference.Figure 64. Use a Device11. From the Use a device menu, tap Internal Shell to open the command screen.Make sure connect the PM-521 to the AC adapter to prevent a sudden loss of power.Figure 65. Internal Shell

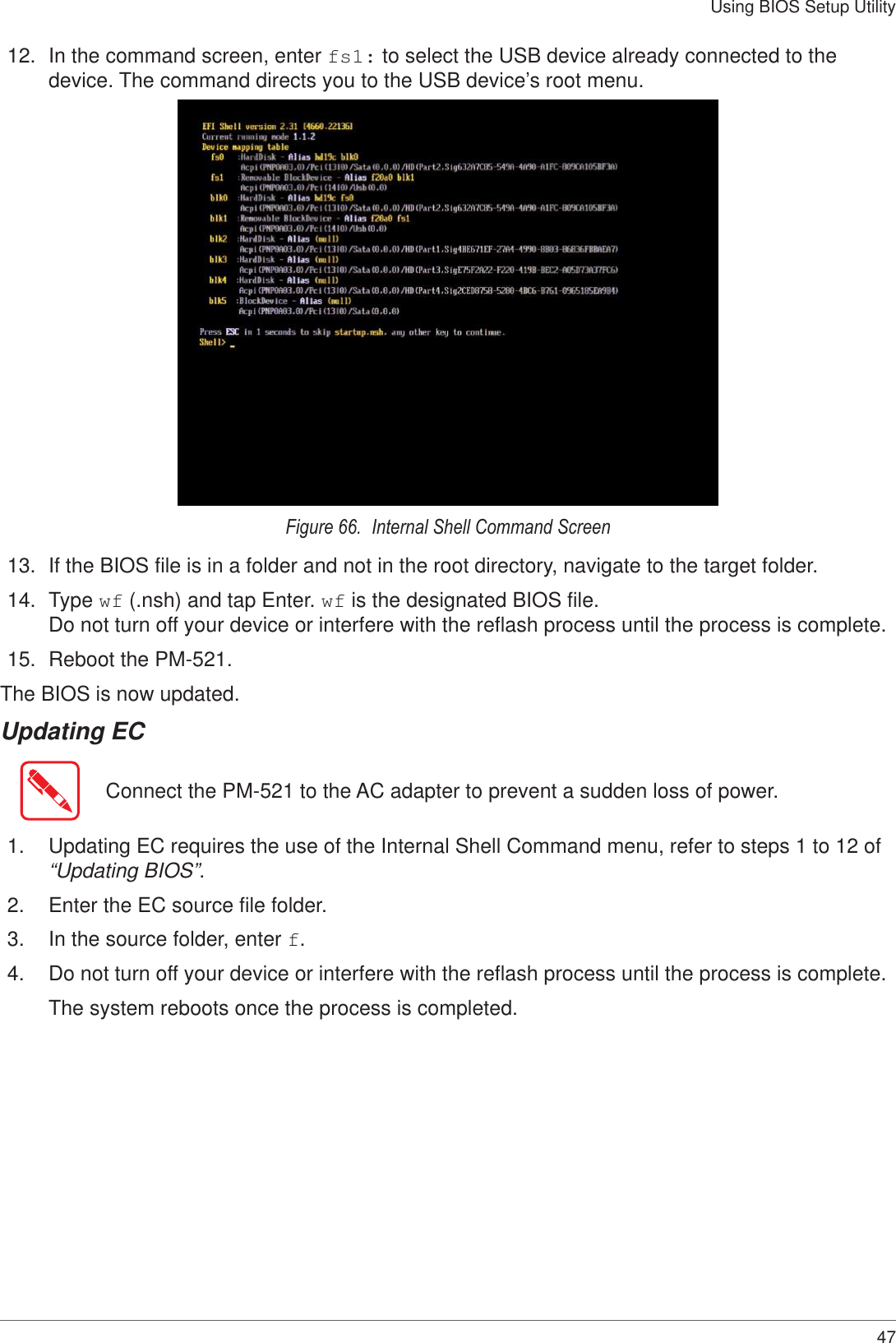

47Using BIOS Setup Utility12. In the command screen, enter fs1: to select the USB device already connected to the device. The command directs you to the USB device’s root menu. Figure 66. Internal Shell Command Screen13. If the BIOS file is in a folder and not in the root directory, navigate to the target folder. 14. Type wf (.nsh) and tap Enter. wf is the designated BIOS file. Do not turn off your device or interfere with the reflash process until the process is complete.15. Reboot the PM-521. The BIOS is now updated. Updating ECConnect the PM-521 to the AC adapter to prevent a sudden loss of power.1. Updating EC requires the use of the Internal Shell Command menu, refer to steps 1 to 12 of “Updating BIOS”.2. Enter the EC source file folder.3. In the source folder, enter f.4. Do not turn off your device or interfere with the reflash process until the process is complete.The system reboots once the process is completed.

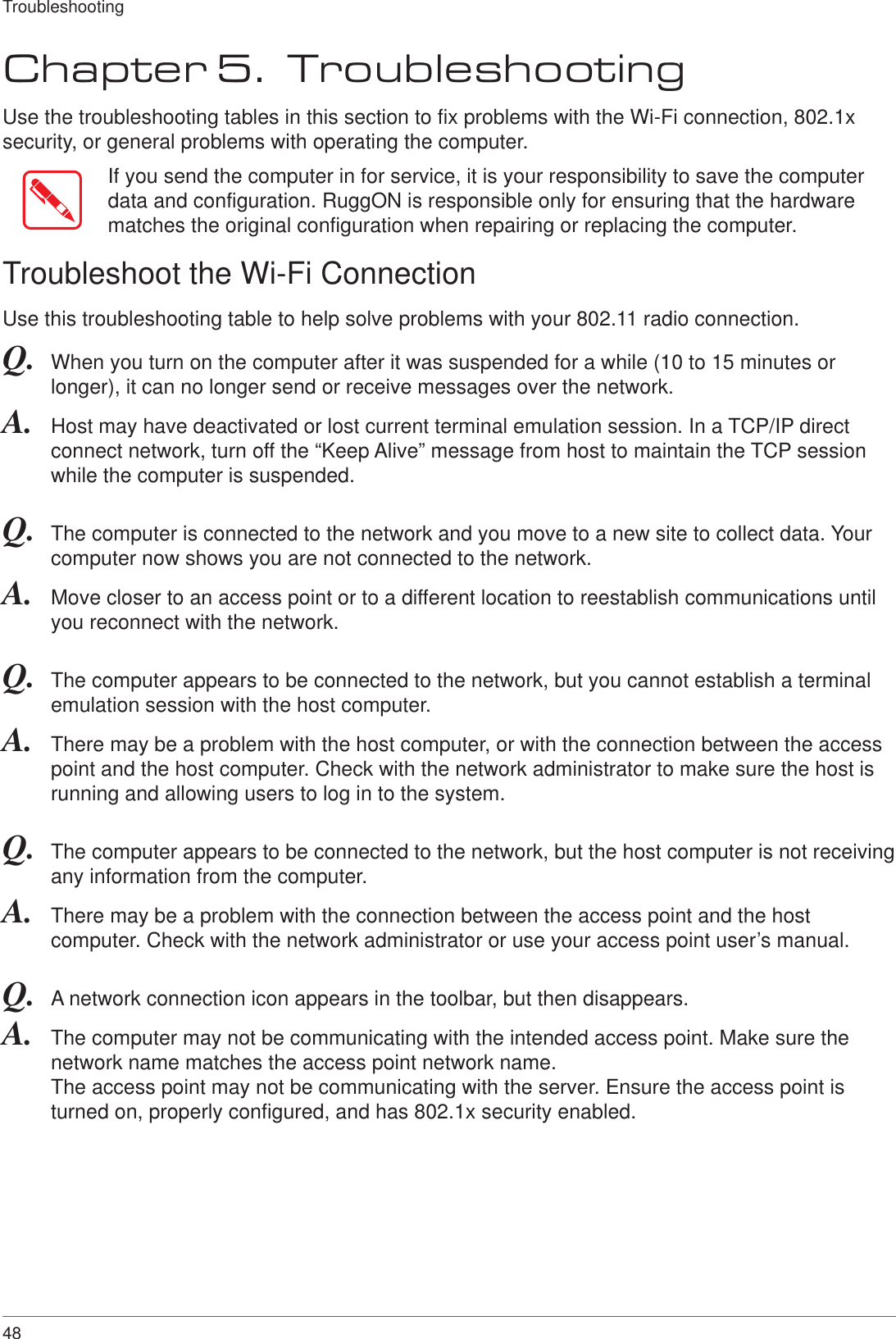

48TroubleshootingChapter 5. TroubleshootingUse the troubleshooting tables in this section to fix problems with the Wi-Fi connection, 802.1x security, or general problems with operating the computer.If you send the computer in for service, it is your responsibility to save the computer data and configuration. RuggON is responsible only for ensuring that the hardware matches the original configuration when repairing or replacing the computer.Troubleshoot the Wi-Fi ConnectionUse this troubleshooting table to help solve problems with your 802.11 radio connection.Q. When you turn on the computer after it was suspended for a while (10 to 15 minutes or longer), it can no longer send or receive messages over the network.A. Host may have deactivated or lost current terminal emulation session. In a TCP/IP direct connect network, turn off the “Keep Alive” message from host to maintain the TCP session while the computer is suspended.Q. The computer is connected to the network and you move to a new site to collect data. Your computer now shows you are not connected to the network.A. Move closer to an access point or to a different location to reestablish communications until you reconnect with the network.Q. The computer appears to be connected to the network, but you cannot establish a terminal emulation session with the host computer.A. There may be a problem with the host computer, or with the connection between the access point and the host computer. Check with the network administrator to make sure the host is running and allowing users to log in to the system.Q. The computer appears to be connected to the network, but the host computer is not receiving any information from the computer.A. There may be a problem with the connection between the access point and the host computer. Check with the network administrator or use your access point user’s manual.Q. A network connection icon appears in the toolbar, but then disappears.A. The computer may not be communicating with the intended access point. Make sure the network name matches the access point network name. The access point may not be communicating with the server. Ensure the access point is turned on, properly configured, and has 802.1x security enabled.

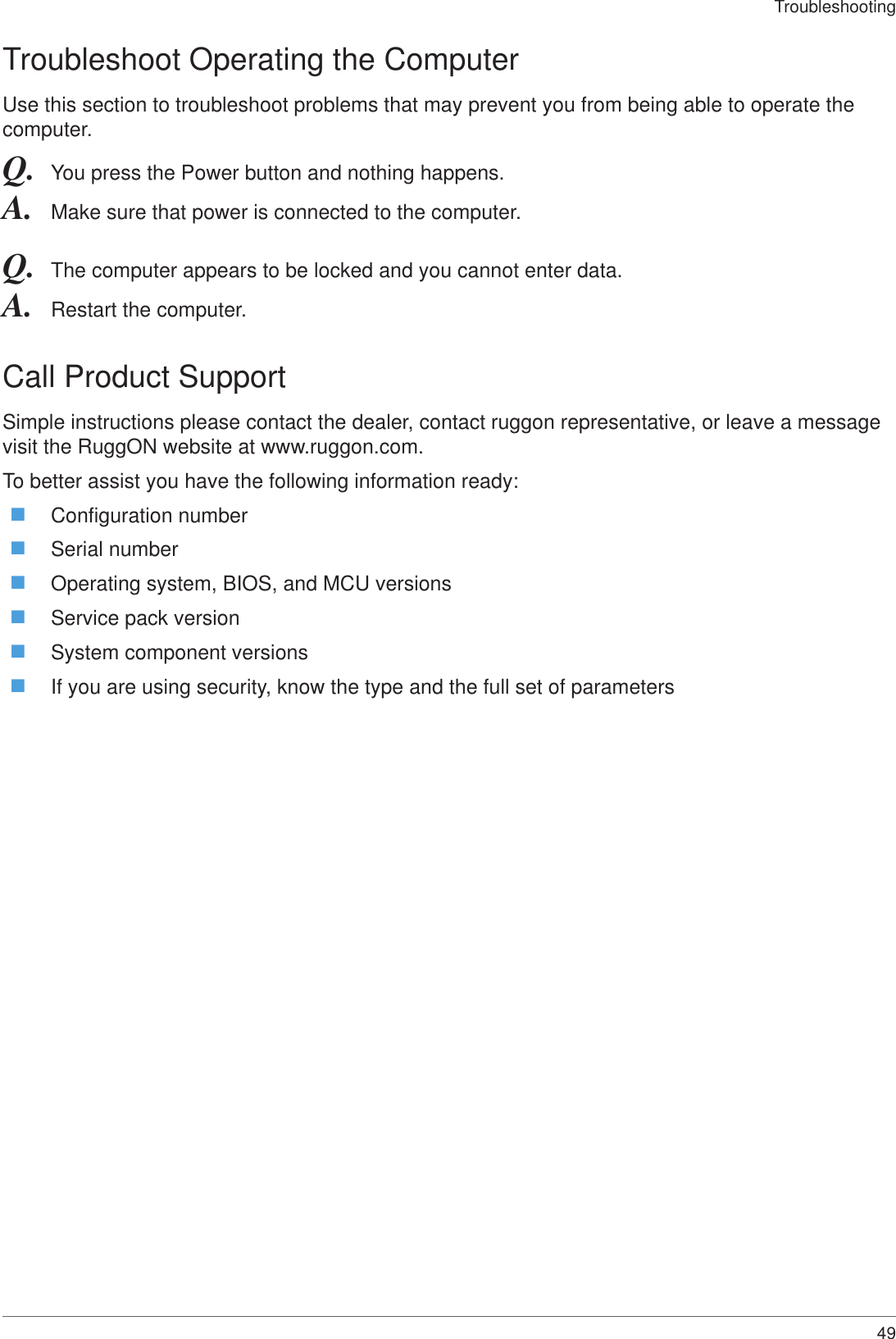

49TroubleshootingTroubleshoot Operating the ComputerUse this section to troubleshoot problems that may prevent you from being able to operate the computer.Q. You press the Power button and nothing happens.A. Make sure that power is connected to the computer.Q. The computer appears to be locked and you cannot enter data.A. Restart the computer.Call Product SupportSimple instructions please contact the dealer, contact ruggon representative, or leave a message visit the RuggON website at www.ruggon.com. To better assist you have the following information ready: Configuration number Serial number Operating system, BIOS, and MCU versions Service pack version System component versions If you are using security, know the type and the full set of parameters
50MaintenanceChapter 6. MaintenanceCleaning the DeviceDanger to electric shock when cleaning or maintaining the PM-521.To avoid electric shock, turn the PM-521 off and disconnect it from the power supply before cleaning or maintaining it.Housing The housing of the PM-521 is best cleaned with a damp cloth. Use compressed air, a high-pressure cleaner or vacuum cleaner may damage the surface. Use a high-pressure cleaner, the additional risk of water entering the PM-521 may damage the electronics or touch screen.Touch Screen Use neutral detergent or isopropyl alcohol on a clean soft cloth to clean the panel surface. Prevent using any kind of chemical solvent, acidic or alkali solution.Returning the DevicePlease put the contents in the original package gently when you need to return the PM-521.Contacting RuggONIf you experience technical difficulties, please consult your distributor or contact the technical services department:www.ruggon.com
