Basic Solution Specifications
Number of sectors
(BTS)
4 sectors with 1 antenna each
or 1 sector with all antennas on it
Frequency 470-698MHz
FFT 512, 1024MHz**
FEC Convolution Code, Turbo Code
and repetition
Channel
bandwidth
6MHz, 12MHz**
Duplex method TDD
Central frequency
Resolution
125 KHz
Rx Sensitivity per
channel
-97 dBm @ 6MHz channel and
QPSK1/2 modulation
-89 dBm @ 6MHz channel and
16QAM 3⁄4 modulation
Noise Figure <6dB
Antennas
(BTS) connector
4 x N-Type
50 Ohm
Modulation and
coding rates
DL/UL: QPSK (1/2, 3/4), 16 QAM
(1/2, 3/4), 64 QAM (2/3, 3/4)
Multiple antenna
techniques
DL: MIMO-A/B (2x2)**, STC, SISO
Synchronization
(BTS)
Integrated GPS module with on
board synchronization unit
Capacity 12Mbps(6MHz); 24Mbps(12MHz)**
BTS
Dimensions 39cm (L) x 24cm (W) x 12cm (H)
Weight 5 KG
Operating
external
temperature
-40°C – 65°C industrial
-10°C – 55°C commercial
Physical Dimension (BTS)
4G End-to-End Mobile Solutions
Equipment Network/Antenna
interface
Antenna
Mode
Antennas
gain
TX Power Power source Power
consumption
BTS / eBTS 2xRJ-45 / N Type 4TX, 4RX 6dBi 4x24dBm -48VDC 65W
Micro Noc 2xRJ-45 NA NA NA 110-230Vac
12VDC
15W
Outdoor CPE POE RJ-45 / F Type 2TX, 2RX 2x12dBi or
2x7dBi
2x24dBi POE 48VDC
or 18VDC
5W
AFAS RJ-45 NA NA NA 110-230Vac NA
BTS Antenna N Type Panel
Antenna
6dBi NA NA
CPE Antenna F Type Yagi
Antenna
10dBi NA NA NA
Deliverables
Network
Management
SNMPv2, standard and proprietary
MIB
System
Configuration
SNMP, FTP, CLI
Software Upgrade Remote TFTP upgrade of firmware
and programming
FCC Data Base
Management
Using AFAS Software
Management
Frequency 470-698 MHz
BW 6MHz, 12MHz
Antennas 2 x external antenna connection
Indicator Signal strength, Data
Power 24 ± 1.5 dBm
CPE*
• ROI < 12 months
• Better NLOS coverage than
WiFi and LTE (3.65GHz)
• Big Cells due to TVWS Frequencies
• 470-698 MHz coverage
• Enhanced Capacity using Channel
bonding (24Mbps)**
• 40 dBm EIRP**
• 4 sectors in one unit
• Affordable user terminals
• Inherent redundancy using the
terminals handoff feature
• Special interference avoidance
antenna
* The CPE is pending FCC approval
** These features are pending FCC approval
Government,
Municipalities
and Education
Oil, Gas
and Mining
Data and Voice
for Businesses and
Private Networks
and Residential
Applications
Homeland
security,
Emergency
recovery,
Public
safety
BETTER COVERAGE
for Broadband Wireless Applications
Video Surveillance
and Traffic Control
Emergency
Services
Utilities and
Smart Grids
WiFi
Backhaul
Internet of
Things (IoT)
RNU4000BS Scalable Deployment
Entry into the 4G TV White Space broadband
wireless access (TVWS-BWA) market encounters
obstacles in the form of high costs, technical
complexities and a shortage of resources.
Runcom’s 4G Network solution for TV White
Space provides seamles and cost-effective entry
into the BWA – TVWS market for wireless telecom
operators, wireless ISPs and system integrators.
The TVWS 4G broadband access wireless solution
includes a highly integrated, fully outdoor Runcom 4G
enhanced Base Station with 4 sectors, various types of
CPE units, a full network gateway and compact NOC
towards the internet.
The TVWS solution includes central or distributed
service support for daily update of authorized
frequencies, and frequency allocation according to
the FCC regulations.
All devices are provided with their mechanical
installation kit, remote and local configuration
capabilities, and user manuals. The TVWS 4G system
is delivered as a ready to work plug-and-play system,
making it possible for service providers to rollout an
initial light weight and low-cost TVWS BWA fixed
network in a matter of hours.
Solution content
Enhanced Base Station with 4 antennas (TX/RX),
installation kit and power supply.
Direct connection to the internet.
Full site solution with 2,3 or 4 base stations,
MicroNOC and frequency automated allocation
server (AFAS).
Automated frequency allocation server for daily
update according to FCC regulations.
Outdoor plug and play CPE with PoE, remote
management and users behind CPE control.
Immediate entry into the 4G TVWS wireless market

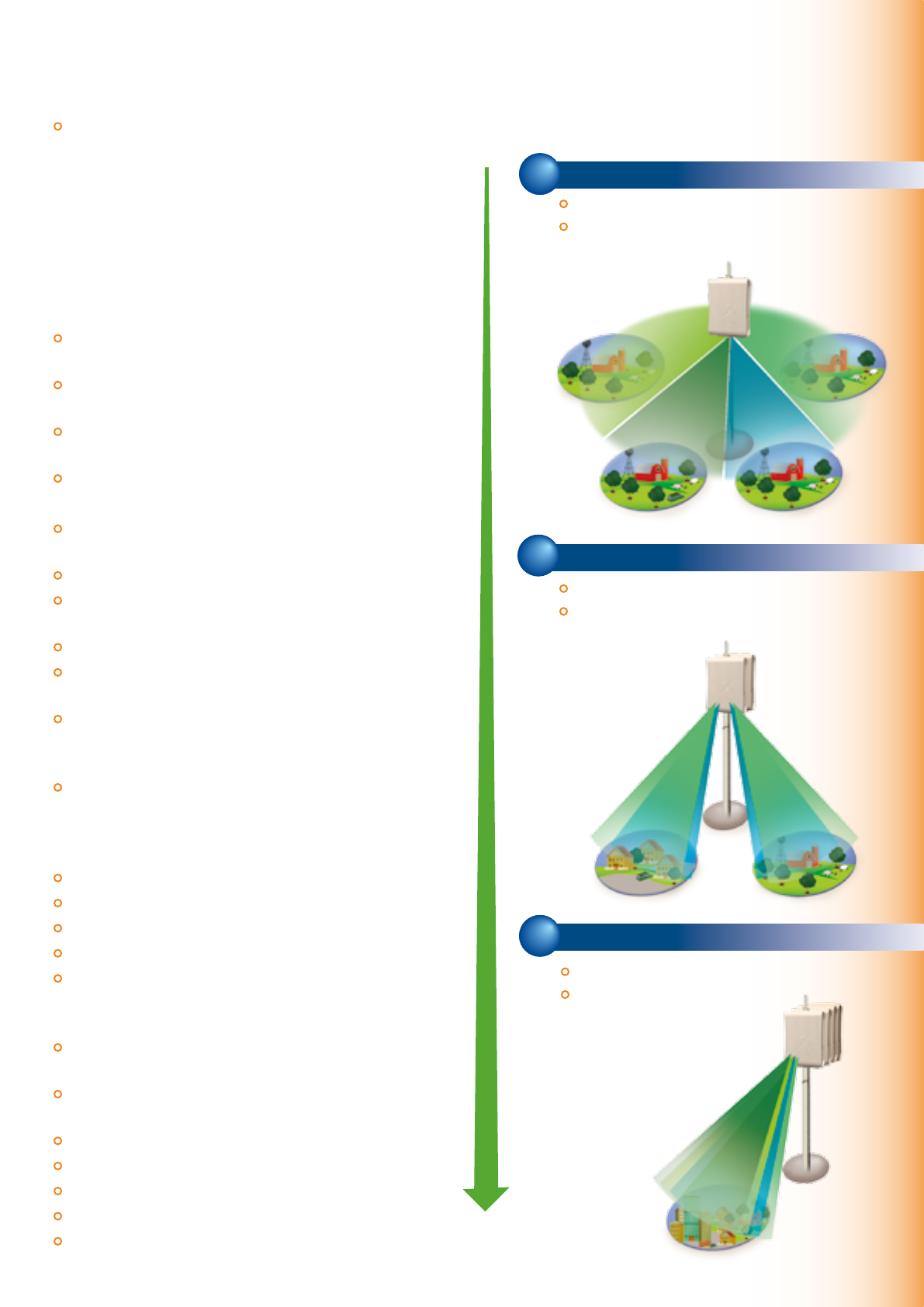

QUAD Sector 4X4 Mode
Dual Sector 2X2 Mode
SISO Quad Sector 1x1 Mode
RNU4000BS
RNU4000BS
RNU4000BS
3G
Offload
Rural,
Urban,
Sub-urban
4G TV White Space Solution Key Features
Core components of the 4G TVWS advanced
outdoor solutions:
• MicroNOC: ASN gateway, Basic AAA,
DHCP & DNS
• 4G OFDMA Base Station with integrated 4 RF
transceivers covering all TVWS spectrum
(470-698MHz)
• CPEs with multi user, multi service support
• AFAS – Automated Frequency Allocation Server
Complete network interface including AAA, routing,
profile policing enforcement, and more
Remote control and configuration to all network
elements
Daily frequency updates by the AFAS according to
FCC requirements
Supports full white space spectrum at all devices,
including channel bonding (12MHz).**
Supports multiuser behind CPE, application
awareness, QoS and more
Synchronization circuit with GPS (internal or external)
Designed for light and easy installation in both urban
and rural areas
Plug-and-play – quick and easy-to-install
Flexible base station installation – on rooftops, street,
water tanks, grain elevators, poles or towers
Seamless migration from single enhanced base
station, through multiple base stations at a site to
full-scale network with Runcom NOC
Suitable for multiple applications (full tripleplay –
Video, Voice, Data)
Operational Benefits
Unique, all-in-one solution
Quick installation
Low entry cost
Adaptable to customer needs
Suitable for fixed and mobile networks
Applications
Rural and suburban internet services for large area
coverage
Data and voice for businesses, private networks and
residential applications
Government, municipalities and education
Video surveillance, public safety and traffic control
Emergency services
Utility companies, Oil, gas and mining, M2M
Industrial zone broadband connectivity
Coverage
based
Capacity
based
QUAD sector 4X4
96Mbps accumulated capacity
in 4 sectors without MIMO
Dual Sector 2X2
48Mbps accumulated capacity in 2 Sectors
or 24Mbps/ sector (without MIMO)
Quad sector 1X1
24Mbps accumulated capacity in 4 sectors
or 0-24MBps / sector
M2M
WiFi (0.2 Miles)
3.65 GHz LTE (1 Mile)
TVWS Coverage (>6 Miles)
Government,
Municipalities
and Education
Oil, Gas
and Mining
Data and Voice
for Businesses and
Private Networks
and Residential
Applications
Homeland
security,
Emergency
recovery,
Public
safety
BETTER COVERAGE
for Broadband Wireless Applications
Video Surveillance
and Traffic Control
Emergency
Services
Utilities and
Smart Grids
WiFi
Backhaul
Internet of
Things (IoT)
RNU4000BS Scalable Deployment
Entry into the 4G TV White Space broadband
wireless access (TVWS-BWA) market encounters
obstacles in the form of high costs, technical
complexities and a shortage of resources.
Runcom’s 4G Network solution for TV White
Space provides seamles and cost-effective entry
into the BWA – TVWS market for wireless telecom
operators, wireless ISPs and system integrators.
The TVWS 4G broadband access wireless solution
includes a highly integrated, fully outdoor Runcom 4G
enhanced Base Station with 4 sectors, various types of
CPE units, a full network gateway and compact NOC
towards the internet.
The TVWS solution includes central or distributed
service support for daily update of authorized
frequencies, and frequency allocation according to
the FCC regulations.
All devices are provided with their mechanical
installation kit, remote and local configuration
capabilities, and user manuals. The TVWS 4G system
is delivered as a ready to work plug-and-play system,
making it possible for service providers to rollout an
initial light weight and low-cost TVWS BWA fixed
network in a matter of hours.
Solution content
Enhanced Base Station with 4 antennas (TX/RX),
installation kit and power supply.
Direct connection to the internet.
Full site solution with 2,3 or 4 base stations,
MicroNOC and frequency automated allocation
server (AFAS).
Automated frequency allocation server for daily
update according to FCC regulations.
Outdoor plug and play CPE with PoE, remote
management and users behind CPE control.
Immediate entry into the 4G TVWS wireless market
QUAD Sector 4X4 Mode
Dual Sector 2X2 Mode
SISO Quad Sector 1x1 Mode
RNU4000BS
RNU4000BS
RNU4000BS
3G
Offload
Rural,
Urban,
Sub-urban
4G TV White Space Solution Key Features
Core components of the 4G TVWS advanced
outdoor solutions:
• MicroNOC: ASN gateway, Basic AAA,
DHCP & DNS
• 4G OFDMA Base Station with integrated 4 RF
transceivers covering all TVWS spectrum
(470-698MHz)
• CPEs with multi user, multi service support
• AFAS – Automated Frequency Allocation Server
Complete network interface including AAA, routing,
profile policing enforcement, and more
Remote control and configuration to all network
elements
Daily frequency updates by the AFAS according to
FCC requirements
Supports full white space spectrum at all devices,
including channel bonding (12MHz).**
Supports multiuser behind CPE, application
awareness, QoS and more
Synchronization circuit with GPS (internal or external)
Designed for light and easy installation in both urban
and rural areas
Plug-and-play – quick and easy-to-install
Flexible base station installation – on rooftops, street,
water tanks, grain elevators, poles or towers
Seamless migration from single enhanced base
station, through multiple base stations at a site to
full-scale network with Runcom NOC
Suitable for multiple applications (full tripleplay –
Video, Voice, Data)
Operational Benefits
Unique, all-in-one solution
Quick installation
Low entry cost
Adaptable to customer needs
Suitable for fixed and mobile networks
Applications
Rural and suburban internet services for large area
coverage
Data and voice for businesses, private networks and
residential applications
Government, municipalities and education
Video surveillance, public safety and traffic control
Emergency services
Utility companies, Oil, gas and mining, M2M
Industrial zone broadband connectivity
Coverage
based
Capacity
based
QUAD sector 4X4
96Mbps accumulated capacity
in 4 sectors**
Dual Sector 2X2
48Mbps accumulated capacity in 2 Sectors
or 24Mbps/sector **
Quad sector 1X1
24Mbps accumulated capacity in 4 sectors
or 0-24MBps / sector
M2M
WiFi (0.2 Miles)
3.65 GHz LTE (1 Mile)
TVWS Coverage (>6 Miles)
Please contact us:
Runcom Technologies Ltd.
info@runcom.com
Tel: +972-3-9428888
For more information on Runcom’s products see our website:
www.runcom.com
Information in this brochure might be changed without notice
Basic Solution Specifications
Number of sectors
(BTS)
4 sectors with 1 antenna each
or 1 sector with all antennas on it
Frequency 470-698MHz
FFT 512, 1024MHz**
FEC Convolution Code, Turbo Code
and repetition
Channel
bandwidth
6MHz, 12MHz**
Duplex method TDD
Central frequency
Resolution
125 KHz
Rx Sensitivity per
channel
-97 dBm @ 6MHz channel and
QPSK1/2 modulation
-89 dBm @ 6MHz channel and
16QAM 3⁄4 modulation
Noise Figure <6dB
Antennas
(BTS) connector
4 x N-Type
50 Ohm
Modulation and
coding rates
DL/UL: QPSK (1/2, 3/4), 16 QAM
(1/2, 3/4), 64 QAM (2/3, 3/4)
Multiple antenna
techniques
DL: MIMO-A/B (2x2)**, STC, SISO
Synchronization
(BTS)
Integrated GPS module with on
board synchronization unit
Capacity 12Mbps(6MHz); 24Mbps(12MHz)**
BTS
Dimensions 39cm (L) x 24cm (W) x 12cm (H)
Weight 5 KG
Operating
external
temperature
-40°C – 65°C industrial
-10°C – 55°C commercial
Physical Dimension (BTS)
4G End-to-End Mobile Solutions
Equipment Network/Antenna
interface
Antenna
Mode
Antennas
gain
TX Power Power source Power
consumption
BTS / eBTS 2xRJ-45 / N Type 4TX, 4RX 6dBi 4x24dBm -48VDC 65W
Micro Noc 2xRJ-45 NA NA NA 110-230Vac
12VDC
15W
Outdoor CPE* POE RJ-45 / F Type 2TX, 2RX 2x12dBi or
2x7dBi
2x24dBm POE 48VDC
or 18VDC
5W
AFAS RJ-45 NA NA NA 110-230Vac NA
BTS Antenna N Type Panel
Antenna
6dBi NA NA
CPE Antenna F Type Yagi
Antenna
10dBi NA NA NA
Deliverables
Network
Management
SNMPv2, standard and proprietary
MIB
System
Configuration
SNMP, FTP, CLI
Software Upgrade Remote TFTP upgrade of firmware
and programming
FCC Data Base
Management
Using AFAS Software
Management
Frequency 470-698 MHz
BW 6MHz, 12MHz
Antennas 2 x external antenna connection
Indicator Signal strength, Data
Power 24 ± 1.5 dBm
CPE*
• ROI < 12 months
• Better NLOS coverage than
WiFi and LTE (3.65GHz)
• Big Cells due to TVWS Frequencies
• 470-698 MHz coverage
• Enhanced Capacity using Channel
bonding (24Mbps)**
• 40 dBm EIRP**
• 4 sectors in one unit
• Affordable user terminals
• Inherent redundancy using the
terminals handoff feature
• Special interference avoidance
antenna
* The CPE is pending FCC approval
** These features are pending FCC approval
