S F EXPRESS GROUP HHT4GR Handheld Terminal User Manual HHT4GR

S.F. EXPRESS GROUP CO., LTD. Handheld Terminal HHT4GR

UserManual.wiki >

S F EXPRESS GROUP >

HHT4GR User Manual >

Contents

1. Manual revised
2. Revised user manual

Manual revised

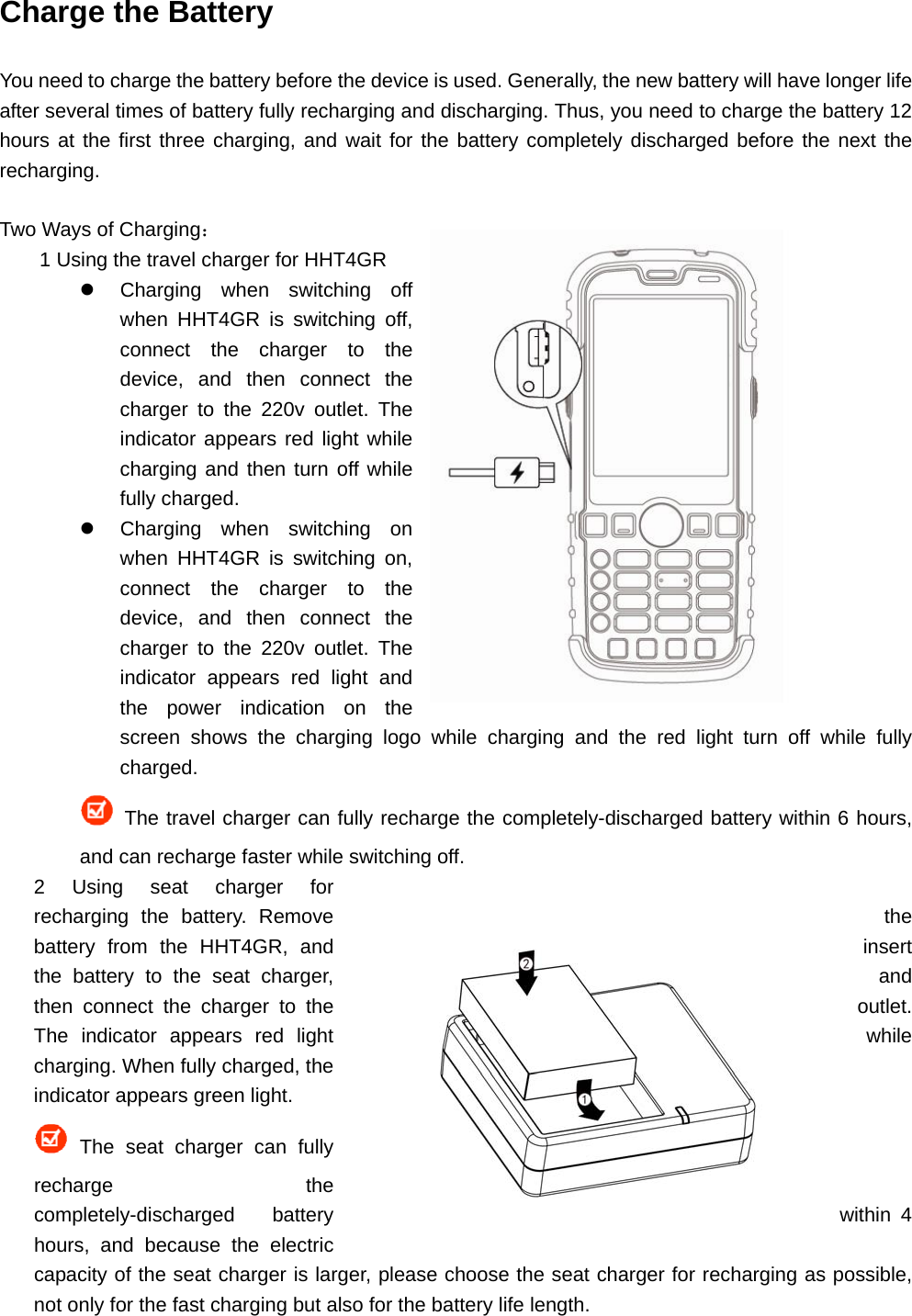

CATALOG Ⅰ HHT-4GR Overview ........................................................... 2ProductFeatures..........................................................................................2StructureandElements..............................................................................3Ⅱ Operation Guide ................................................................. 4Poweronandoff..........................................................................................4SleepandWakeup.......................................................................................4HardReset......................................................................................................4InstallandRemoveBattery.....................................................................5InstallSIMcardandTFcard...................................................................5ChargetheBattery......................................................................................6Appendix .................................................................................. 7

Ⅰ HHT-4GR Overview Product Features Item Feature OS Windows Embedded CE 6.0 CPU Samsung S3C6410 ARM11 667MHz Frequency Bands WCDMA 2100MHz, do not support voice service Memory 256MB DDR SDRAM; 256MB OneNAND Flash Camera 2M pixels CMOS 1600×1200 resolution with Flashlight LCD 3.2” Transflective TFT LCD, 320*240 pixels, 262144 colors Audio Output Built-in Loudspeaker 16Bit stereo output Physical Interface Mini USB 2.0 WIFI 802.11b/g Scanner Single line miniature laser scan engine Expanded Memory Support Micro SD Size W68*L149*T28mm Battery 3.7V 3000mAH lithium-ion polymer battery AC Charger Input: 100~240V ~0.3A 50~60Hz 12-15VA Output: 5V 1.0A Max Operating Temp -20°C to 50°C Storage Temp -25°C to 60°C Humiditiy 95% non-condensing

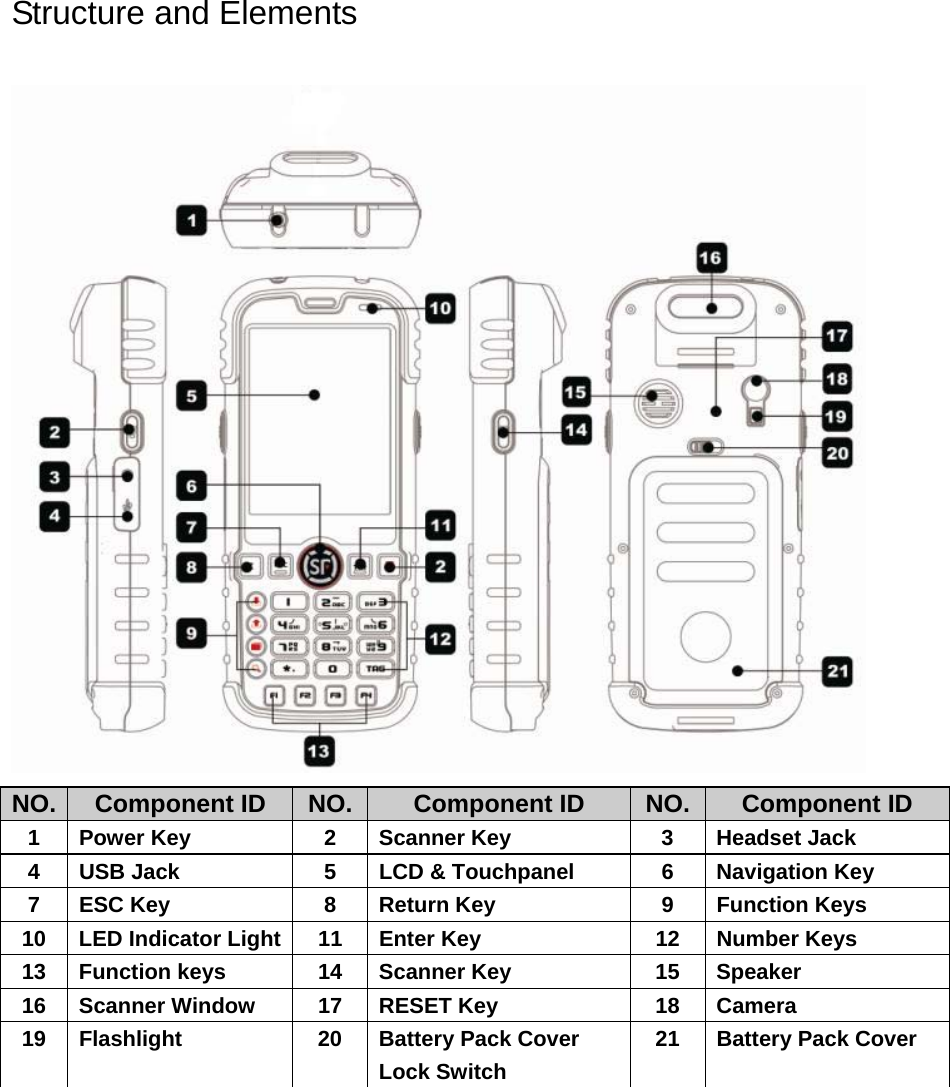

Structure and Elements NO. Component ID NO. Component ID NO. Component ID 1 Power Key 2 Scanner Key 3 Headset Jack 4 USB Jack 5 LCD & Touchpanel 6 Navigation Key 7 ESC Key 8 Return Key 9 Function Keys 10 LED Indicator Light 11 Enter Key 12 Number Keys 13 Function keys 14 Scanner Key 15 Speaker 16 Scanner Window 17 RESET Key 18 Camera 19 Flashlight 20 Battery Pack Cover Lock Switch 21 Battery Pack Cover

Ⅱ Operation Guide Power on and off Power on： Short press the power key, the screen will turn light, and the device is launched to work. Power off： Press and hold the power key for a while, the screen will turn off, and the device is switched off. Sleep and Wakeup Sleep： When the system enters into sleeping mode, it means the system enters a low power consumption mode, in which more power will be saved. There are two methods to enter into the sleeping mode. One method is leaving the device to go to sleep automatically. When the system is idle and no other operation occurs for a certain period, the system is going to sleep by itself automatically. The other method is to make it sleep manually, which you can short press the power key when the system is active, and then the screen will turn off, the system enters into sleeping mode. Wakeup： When the system is sleeping, you can short press power key to wake up it, the screen will turn on, and you can operate the device normally. Hard Reset When the system is running on, poke the reset key on back of the device, the system will reset quickly.

Install and Remove Battery Showing as the figure, Slide the battery cover locking key to the right, then press the cover at the top-right side, lift the cover and remove the battery cover. When removing the battery, press the up-line of the battery, then lift the battery from the slot. When replacing the battery, insert the battery bottom to the slot bottom, then press the battery to the slot. When replacing the battery cover, make sure the cover bottom and the slot bottom matched well, cover on the slot, and then slide the locking key to the left and lock the cover. Install SIM card and TF card As the slot of SIM card, PSAM card and T-Flash card are placed in the battery slot, the battery must be removed if they are replaced or removed. When replacing the SIM card, as the direction showing in the figure, insert the card to the slot, making sure the SIM card is matched well with the slot. Replacing the PSAM card is same as the SIM card When replacing the T-Flash card, slide down the locking catch of the slot first, and then lift the locking catch, replacing the T-Flash in the slot, then cover the locking catch, and finally slide up the locking catch to lock the T-Flash card.

Appendix General Precautions • Damage requiring service Unplug the product from the electrical outlet and refer servicing to an authorized service technician or provider under the following conditions: • Liquid has been spilled or an object has fallen into the product. • The product has been exposed to rain or water. • The product has been dropped or damaged. • There are noticeable signs of overheating. • The product does not operate normally when you follow the operating instructions. • Avoid hot areas The product should be placed away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. • Avoid wet areas Never use the product in a wet location. • Avoid pushing objects into product Never push objects of any kind into cabinet slots or other openings in the product. Slots and openings are provided for ventilation. These openings must not be blocked or covered. • Mounting Accessories Do not use the product on an unstable table, cart, stand, tripod, or bracket. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. • Avoid unstable mounting Do not place the product with an unstable base. • Use product with approved equipment This product should be used only with personal computers and options identified as suitable for use with your equipment. • Cleaning Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning, but NEVER use water to clean the LCD screen.

• USB port Due to the used enclosure material, the GSM mobile phone shall only be connected to a USB interface of version 2.0 or higher. The connection to so called power USB is prohibited. • Charging When charging, please place the phone in an environment that has a normal room temperature and good ventilation. It is recommended to charge the phone in an environment with a temperature that ranges from 5℃~25℃. Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the phone and the guarantee article. Safety Precautions for Power Supply Unit • Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. • Handle battery packs carefully This product contains a Li-ion Polymer battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60˚C (140˚F). CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS • Excessive sound pressure may harm your hearing • This charger is for indoor use only.

SAR Information ● The SAR limit of USA is 1.6 W/kg. Device types HHT4GR has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for properly worn on the body is 0.436W/kg. This device was tested for typical body worn operations with the ‐back of the handset kept 1.5cm from the body. To maintain compliance with RF exposure requirements, use accessories that maintain a 1.5cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements, and should be avoided. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help

R&TTE DECLARATION Hereby, S.F. EXPRESS GROUP CO., LTD declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the declaration of conformity, visit the Web site www.sf-express.com /certification. Notice: Observe the national local regulations in the location where the device is to be used. This device may be restricted for use in some or all member states of the European Union (EU) Warning! DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. TO REDUCE RISK OF FIRE OR BURNS, DO NOT DISASSEMBLE, CRUSH, PUNCTURE, SHORT EXTERNAL CONTACTS, EXPOSE TO TEMPERATURE ABOVE 60˚C (140˚F), OR DISPOSE OF IN FIRE OR WATER. REPLACE ONLY WITH SPECIFIED BATTERIES. RECYCLE OR DISPOSE OF USED BATTERIES ACCORDING TO THE LOCAL REGULATIONS OR REFERENCE GUIDE SUPPLIED WITH YOUR PRODUCT.
