user manual
Bluetooth Headset
Model Name: X6
Brand Name: MEEMEELECTRONICS
FCC ID: 2ABMR-X6
X6 PRODUCTS DESCRIPTION
PRODUCTS TECHNOLOGY PARAMETERS:
PRODUCT SIZE:37mmL X 22mmW X 38mmH
PRODUCT WEIGHT: ABOUT 15G
CHIP: IS1681S 3.0 BLUETOOTH
WORKING VOLTAGE: DC3.7V
STAND-BY TIME: 120 HOURS
HOLDING TIME (MUSIC PLAY): 5 HOURS
CHARGING TIME: 3 HOURS
BLUETOOTH DISTANCE: 10 METERS
RF Sensitivity ≤-70dBm
BATTERY CAPACITY POLYMER BATTERY 120mAh
MODULATION SYSTEM : GFSK, π /4-DQPSK, 8DPSK
BLUETOOTH FREQUENCY: 2.402GHz～2.480GHz
SUPPORT PATTERN: Handfree/Headset
IDENTIFICATION CODE: 0000
USAGE TEMPERATURE: -10℃～+45℃
STORAGE TEMPERATURE: -20℃～+45℃
BLUETOOTH USE METHOD:

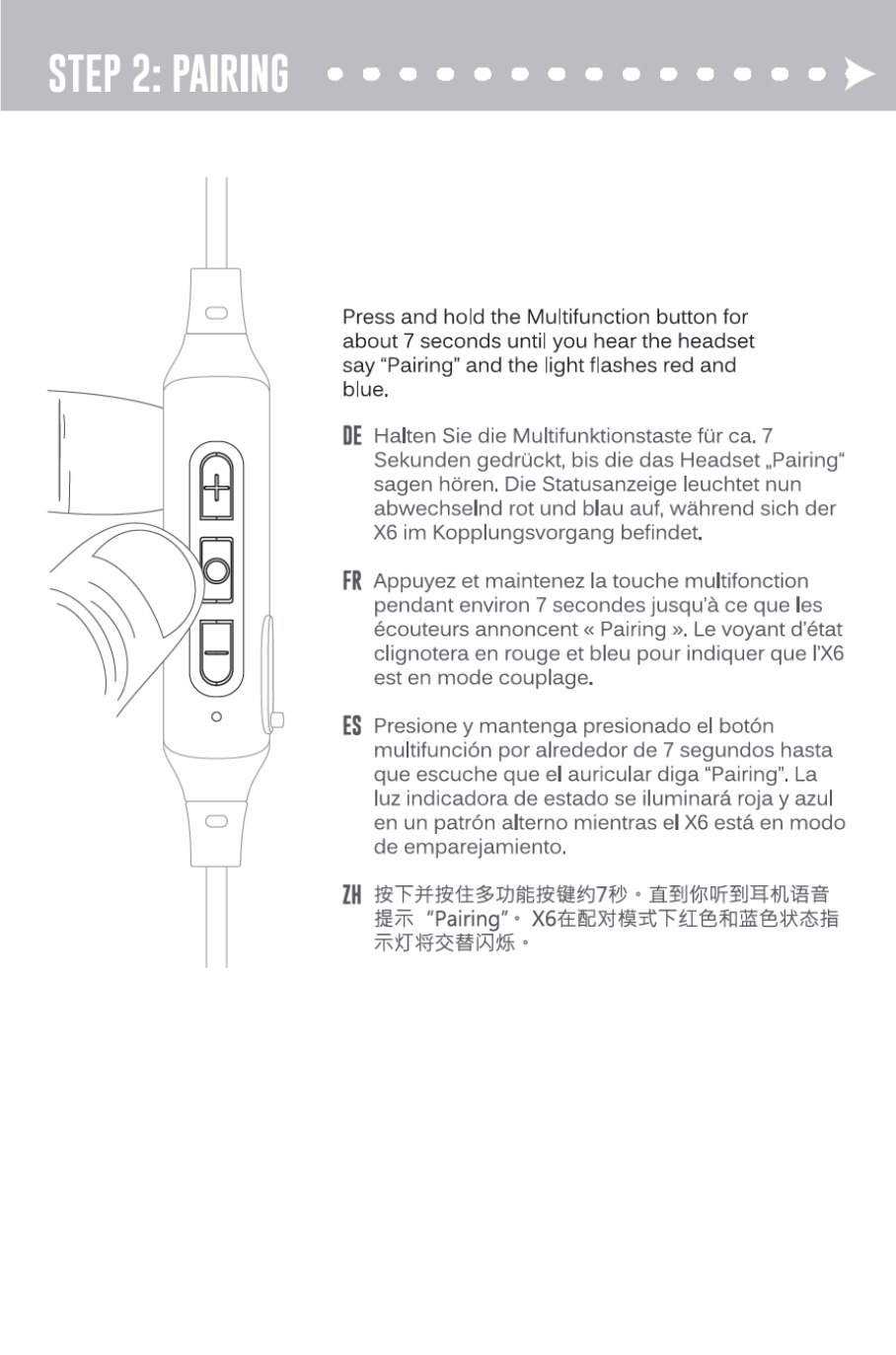

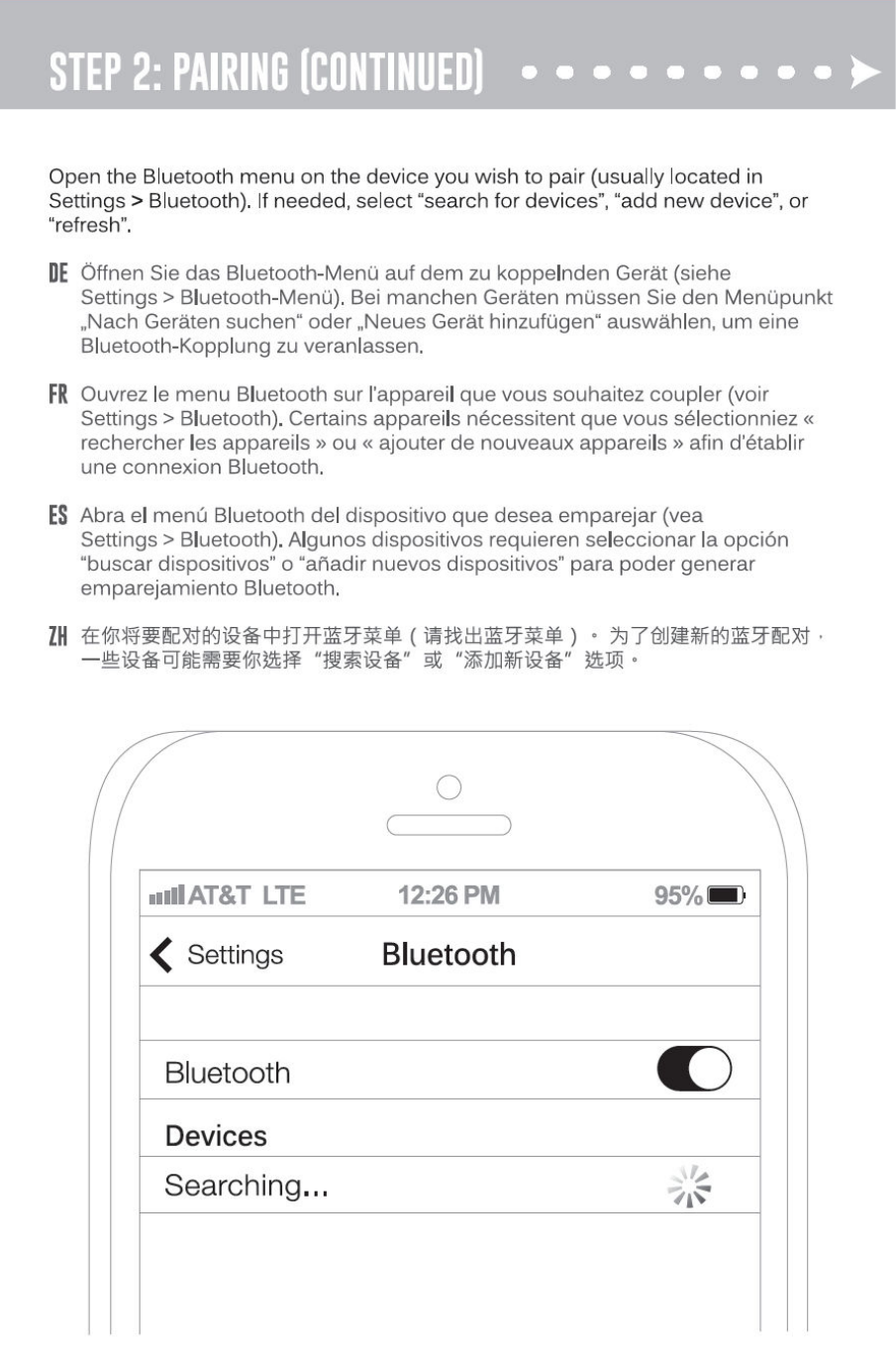

1． MATCHING METHODS: PRESS THE POWER BUTTON ABOUT 5 SECONDS UNTIL THE RED
AND BLUE LIGHT TWINKLING ALTERNATELY.OPEN THE MOBILE’S BLUETOOTH, SEARCH FOR
MATCHING, THE MATCHING CODE IS 0000. IN VIEW OF SOME BUYERS SAID MATCHING SUCEED
IN THE FIRST TIME,BUT FAIL IN THE SECOND TIME, YOU CAN DELETE THE ORIGINAL
MATCHING RECORD, RE-MATCHING THE BLUETOOTH AGAIN THEN WILL BE SUCCEED.WHEN YOU
CLOSED THE BLUETOOTH ,PLEASE CLOSED THE BLUETOOTH EARPHONE FIRST. MAKE SURE
TO BROKEN LINK WITH MOBILE,THEN CLOSED MOBILE’S BLUETOOTH, AVOIDING THE
BLUETOOTH EARPHONE ALWAYS IN POER-UP STATE.
2、ANSWER INCOMING TELEGRAM: SHORT PRESS ONE TIME MFB KEY
3、HANGING UP: SHORT PRESS ONE TIME MFB KEY

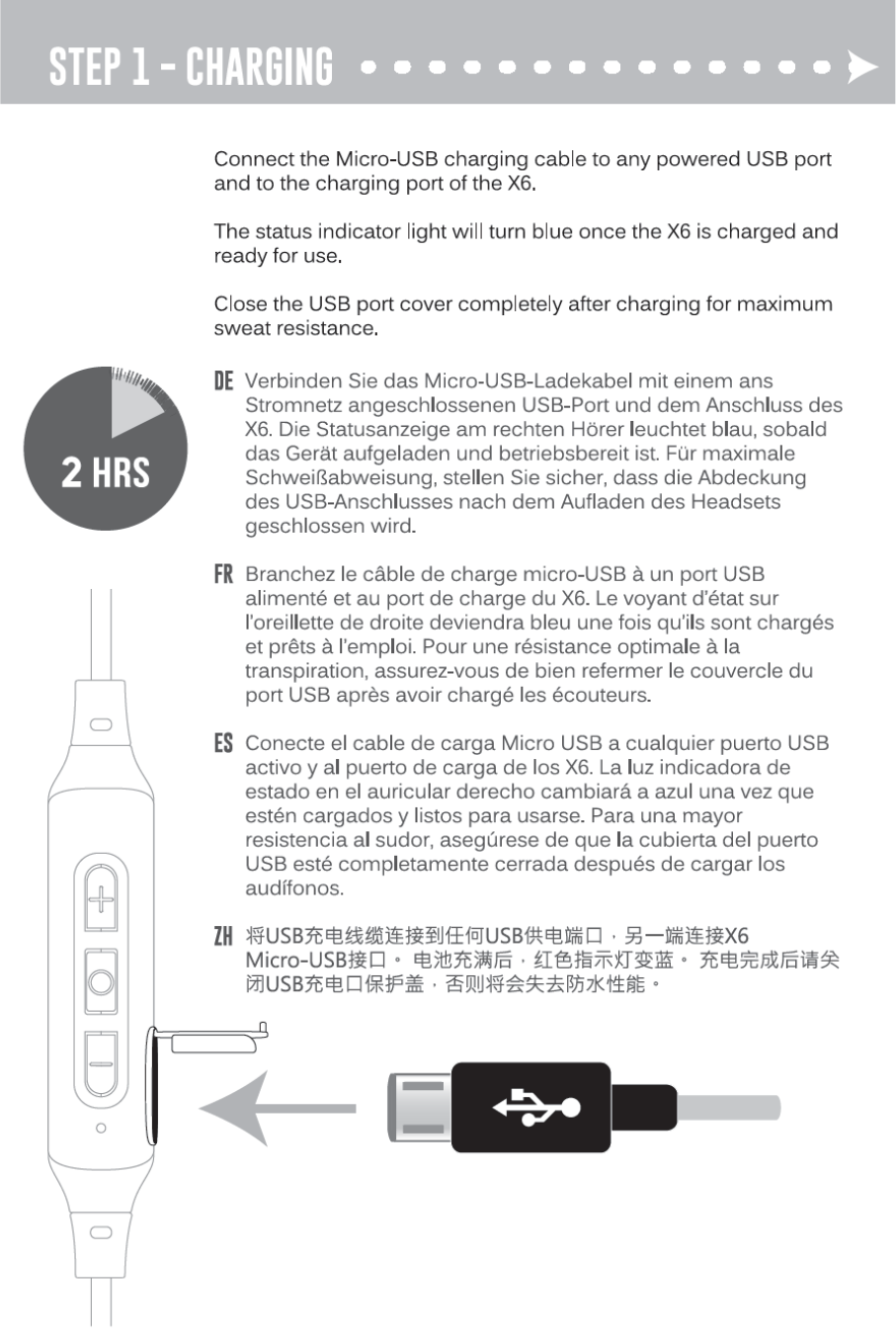

Charging：
1、INDICATOR LIGHT (RED LIGHT) ALWAYS ON, MEANS IN CHARGING POWER
2、
INDICATOR LIGHT (BLUE LIGHT) ALWAYS ON, MEANS CHARGING COMPLETE

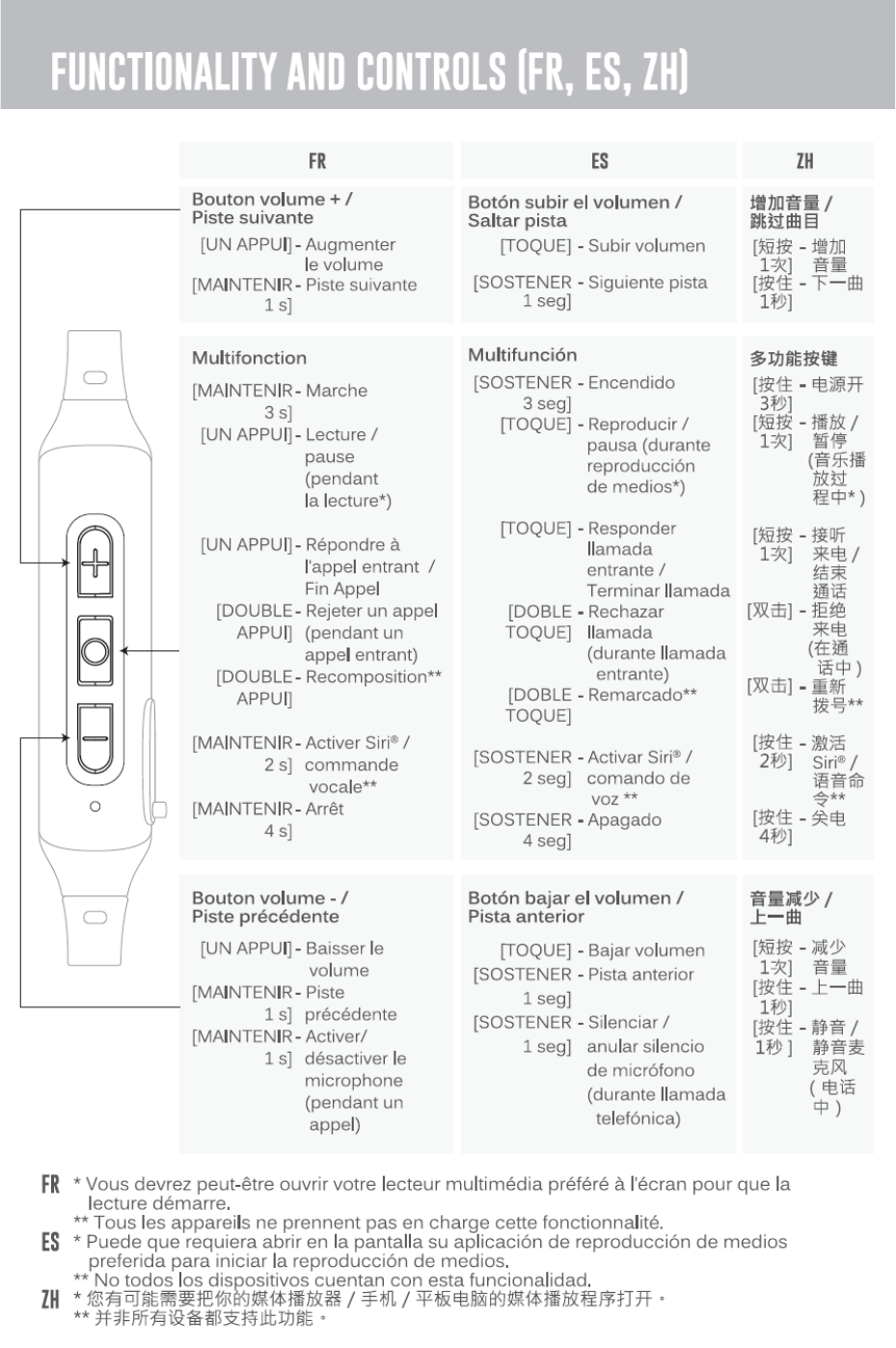

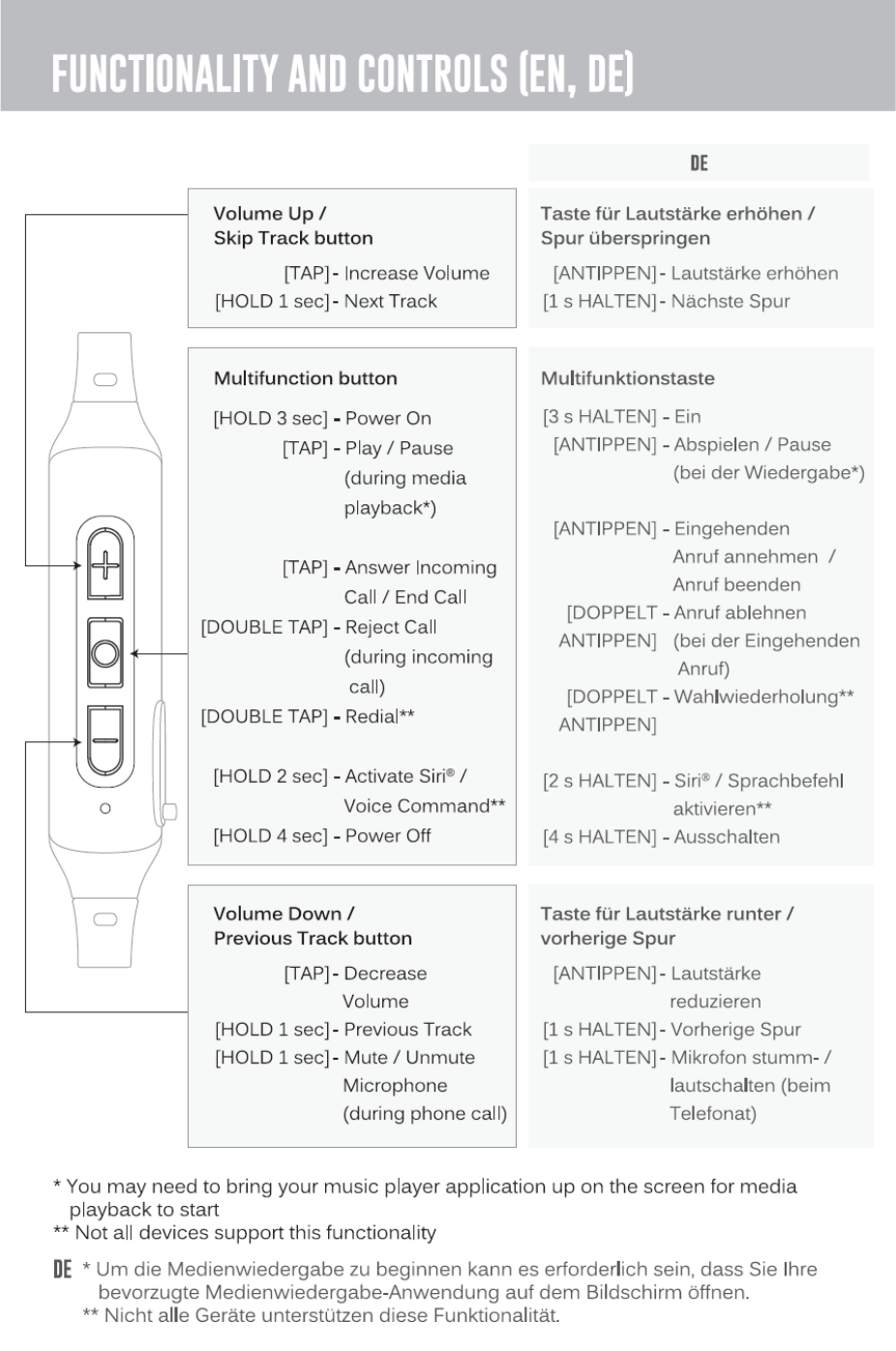

Function
Button and time
（second）
Status
Note
Starting up
press MFB (about 3
seconds)
Blue indicator
flashing 3 times
Heard “power on” means
operation succeed
matching
Press MFB button
about 5 seconds
Red and blue
indicator
flashing
alternately
When matching, heard
“Pairing”,then red and blue
indicator maintain
alternately flashing 2
seconds
shutdown
Press MFB about 3
seconds
Red indicator
flashing 3 times
Heard “power off”means
operation succeed
Last number
redial
Long press MFB
“Beep” means
operation
succeed
The mobile should have
Bluetooth redial pattern
Voice dial
Double click MFB in
Standby mode
use mobile to
continue the voice
dial
Support by mobile
Answer the
call
Short press MFB
“Beep” means
operation
succeed
Answer the call
End the call
Short press MFB
“Beep” means
operation
succeed
End the call recover in
standby condition then
waiting for next call
Reject the
call
Short press MFB in 1
second
“Beep”means
operation
succeed
Reject the call but earphone still in
standby condition (need mobile
support)
Music
play/stop
Short Press MFB to
play music, press
again to pause
“Beep”means
operation
succeed
Last
music/next
music
Long press volume
+ button in 1 second
to play next music,
press volume - to
play last music
Volume
adjustment
Short press V+、V-
Increase and
decrease the
volume
mute
press volume +
button in 1 second
Microphone in mute
“Beep”means operation
succeed
Some functions will be different as different mobile, please pay attention in actual operation.

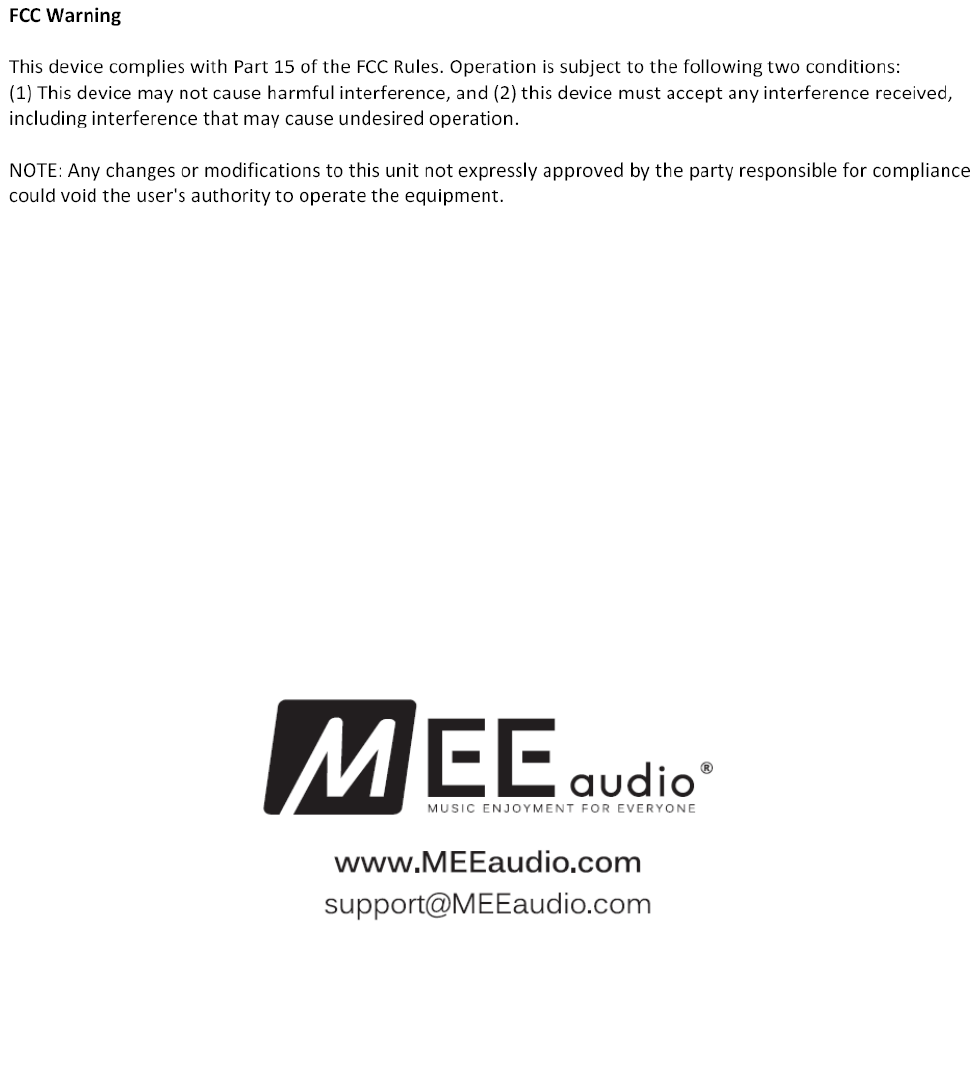

Important Regulatory Information
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
